elvita CTS5195V User manual

User manual
Drying cabinet
CTS5195V

2 3
© 2021, Elon Group AB. All rights reserved.
Thank you
for your trust and the purchase of our product. This user manual is supplied to help you
use this product. The instructions should allow you to learn about your new product as
quickly as possible.
Make sure you have received an undamaged product. If you do find transport damage,
please contact the seller from which you purchased the product, or the regional
warehouse from which it was supplied.
Publication date: 2021-10-20
This document and its content, including written material and images, are the
property of Elon Group AB. You may not copy, reproduce, modify, republish or
distribute this document or any of its content without express written permission from Elon Group AB. ©
2021, Elon Group AB. All rights reserved.

3
© 2021, Elon Group AB. All rights reserved.
WARRANTY
Guarantee of quality for the consumer (does not include wear parts).

4 5
© 2021, Elon Group AB. All rights reserved.
Art. No.: 427001033 Rev. 01
We reserve the right to make changes.
Printed on recycled paper that meets the criteria of Friends of the
Earth Sweden and the Swedish Society for Nature Conservation.
Contents
THIS USER MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SAFE OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CONDENSED WATER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
REVERSING THE DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ELECTRICAL SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
START-UP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ARRANGING ITEMS FOR DRYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DRYING PROGRAMME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FINE-TUNING THE DRYING PROGRAMME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5
© 2021, Elon Group AB. All rights reserved.
THIS USER MANUAL
The contents of this manual describe the operation and use of the drying cabinet and provide instructions for its
installation and maintenance.
_________________________________________________________________
NOTE!
Keep this user manual handy, so that it is always available for future reference
_________________________________________________________________
SAFE OPERATION
This advice on using the appliance safely is provided to help you avoid incorrect use and unnecessary risks, and
you should read it before installing or using the drying cabinet.
WARNING!
This equipment is only intended for drying textiles that are washed in water.
• This drying cabinet can be used by children from the age of 8 upwards, and by individuals (including children)
with reduced physical, sensory or mental capabilities or lack of experience and knowledge, on condition that
they are supervised or instructed in how to use the drying cabinet safely, and that they understand the hazards
involved.
• Do not let children play in, on or with the drying cabinet. Keep an eye on children when they are close to the
cabinet.
• The power cord must be replaced immediately if it is damaged; this should only be done by the manufacturer,
an authorised service representative or similarly qualified person, to avoid danger.
• Cleaning and maintenance must not be carried out by children without supervision.
• Avoid hanging items in the cabinet that are dripping or soaking wet, as it is not designed to collect large
amounts of water. This could lead to water running on to the floor.
If you need to dry items that are dripping or soaking wet, we recommend that you spin-dry them first or, if this
is not possible, wring them out before placing them in the drying cabinet. We also recommend that the cabinet
is placed on a drip tray to prevent any water damage to the floor.

6 7
© 2021, Elon Group AB. All rights reserved.
COMPONENTS
The drying cabinet works in the same way as a
heat pump, by using a dehumidifier instead of a
conventional hot air unit. This means that it takes less
heat to dry items and uses considerably less energy.
The cabinet is a closed system. There is no need to
connect it to a ventilation system. Moisture condenses
during the process and the water that is produced is
led to a removable water tank or by hose to a drain.
The fan is also powerful enough that it causes
garments to flap, which makes the drying process
even more efficient.
Sliding sets of hangers (3)
Door hangers
Removable shoe stand
Tank for condensed water
Dehumidifier
Adjustable feet (4)
Wall mounting

7
© 2021, Elon Group AB. All rights reserved.
AIR FLOW IN THE CABINET
Return air after dehumidification.
Flows through channel at rear of cabinet.
Air inlet
– 6 rows of holes
Dehumidifier

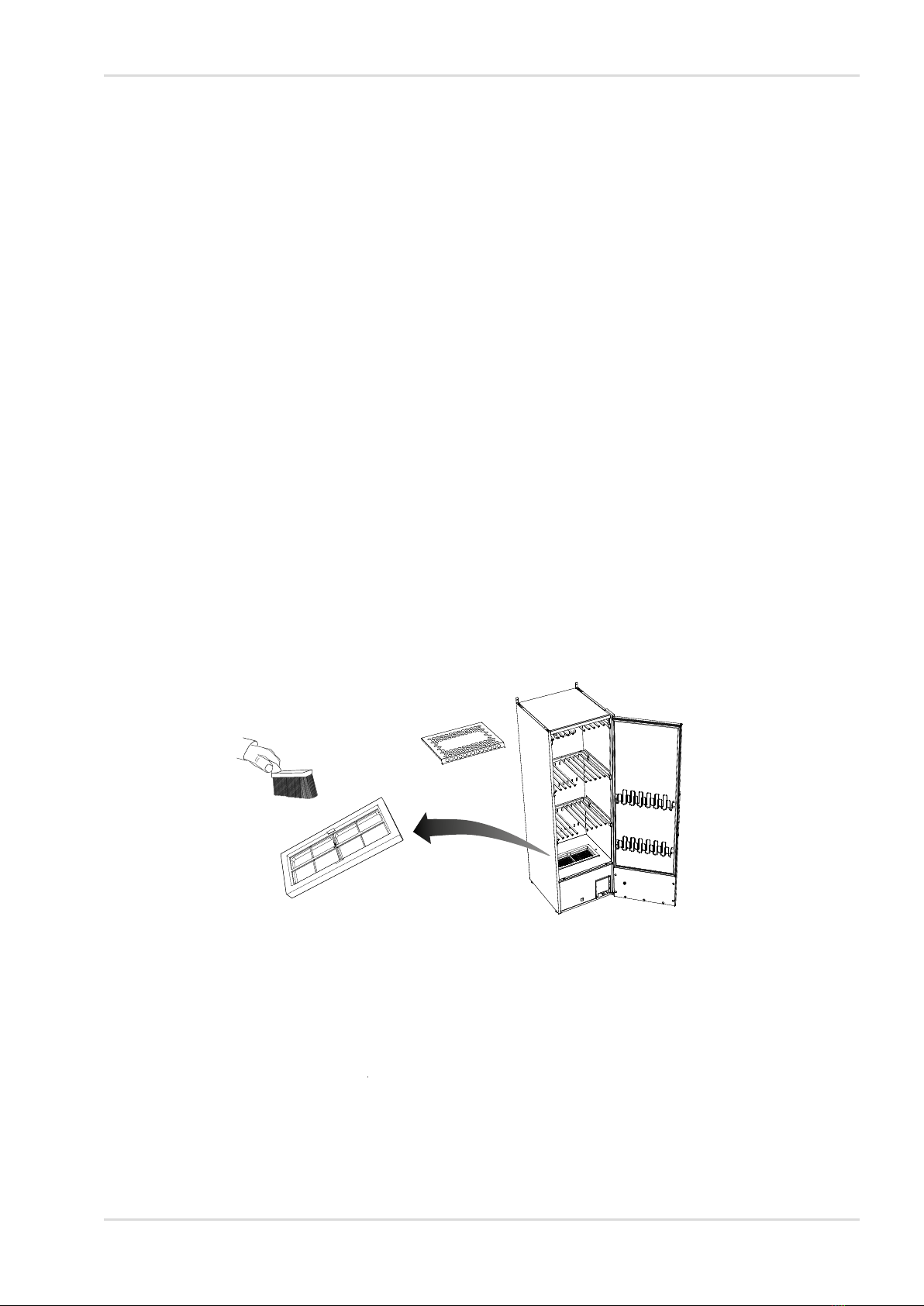

Filter underneath
shoe stand
___________________________
NOTE!
Make sure that shoes and the like do not
block the air flow!
___________________________

8 9
© 2021, Elon Group AB. All rights reserved.
CONDENSED WATER
The condensed water can be removed in two ways:
it can be collected in a removable water tank or by a
hose that runs to a floor drain.

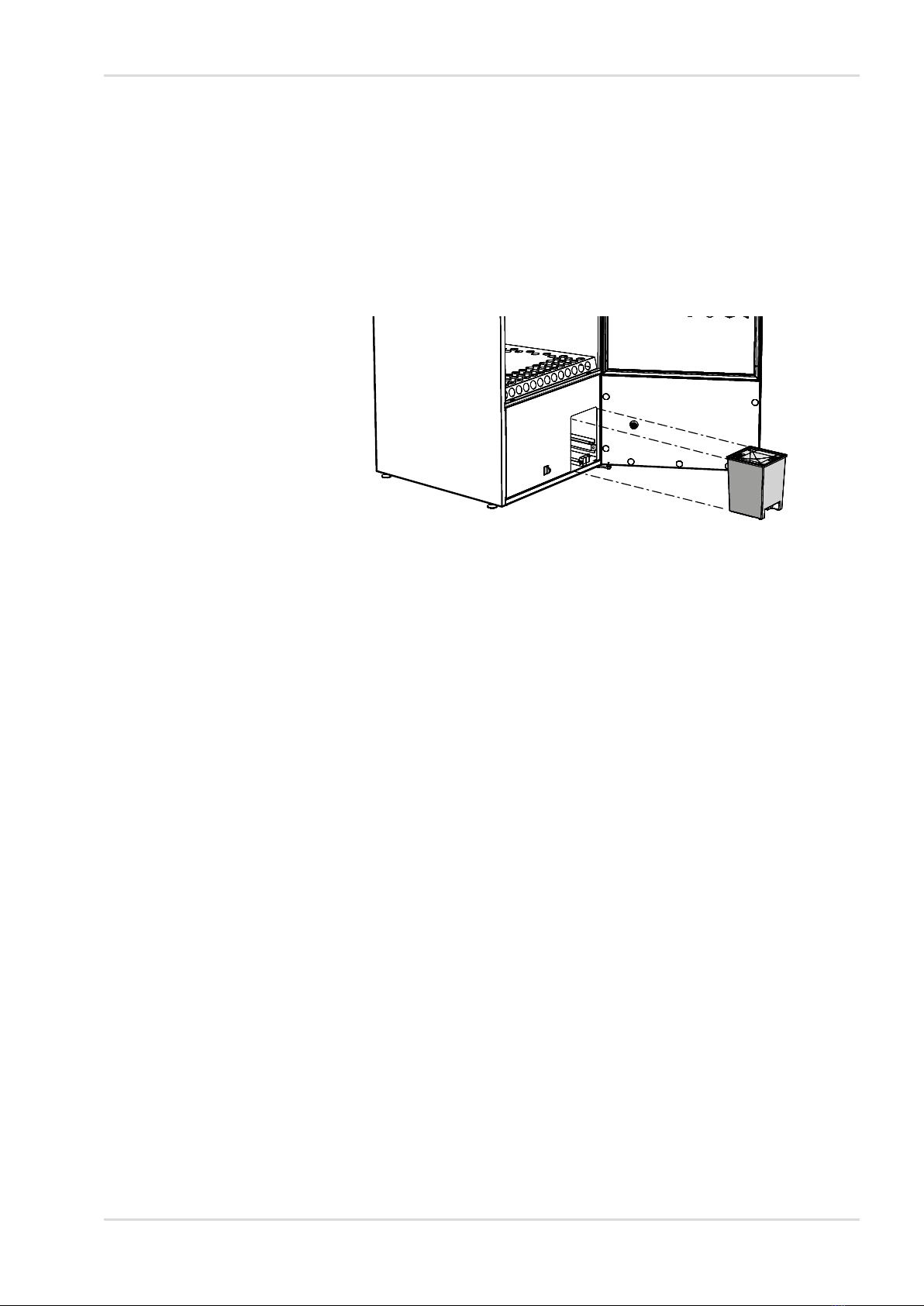

Removable water tank
____________________
The water tank has ample ca-
pacity to collect the water from
a complete wash. But make it
a routine to empty the water
tank before you dry every
wash load.
____________________

9
© 2021, Elon Group AB. All rights reserved.

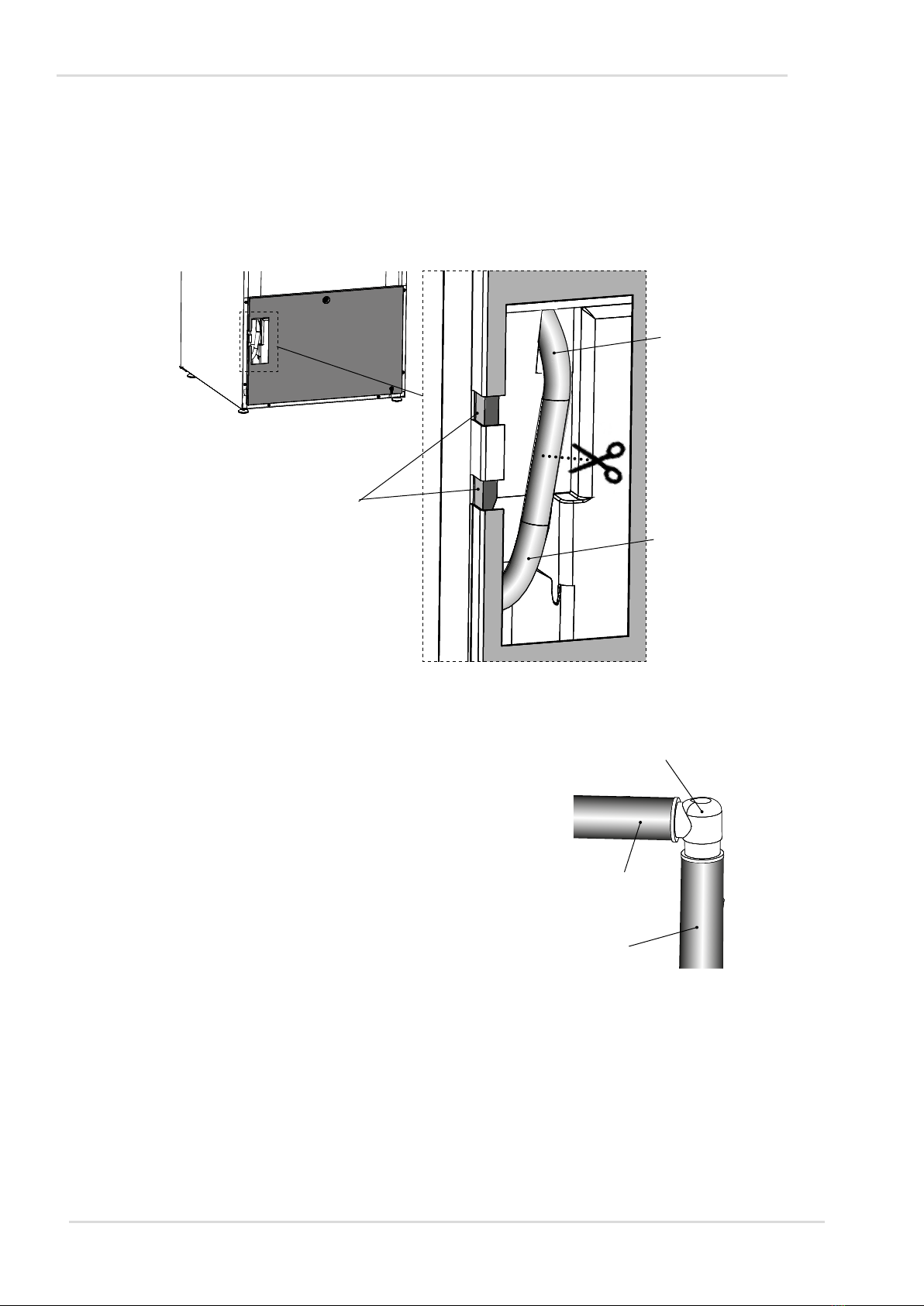

Connecting to floor drain
When delivered, the drain hose in the drying cabinet is connected to the removable water tank.
To connect the hose to a floor drain, do as follows:
Cabinet seen from rear
Route the drain
hose through one
of the cut-outs in
the panel
Hose to remova-
ble water tank
Hose from con-
densed water
pump
New hose to
floor drain
Elbow
Cut hose from
condensed
water pump
1 Carefully pull out the upper part
of the hose around 2–3 cm.
2 Cut through the hose at the middle of the
opening.
3 Attach the new drain hose and elbow that are
supplied in the installation kit, as illustrated.
The hoses are a push-fit on the elbow coupling.
4 Route the drain hose through one of the
cut-outs in the panel to prevent it from being
crushed.
5 Run the drain hose to the floor drain.
6 If the floor drain is higher than the outlet from
cabinet, make sure that the hose hangs
in an arc towards the floor and creates a
water trap. Otherwise there is a risk that the
condensed water could flow back towards the
compartment when the pump is not running.
This could cause the compartment to fill up
with water and damage the drying cabinet.
Connecting to water tank
If you want to reconnect the condensed water outlet to
the water tank you simply need to reconnect the two
hoses with the elbow coupling.
______________________________
NOTE!
The hose must never be bent so that it
obstructs the flow of water.
______________________________

10 11
© 2021, Elon Group AB. All rights reserved.

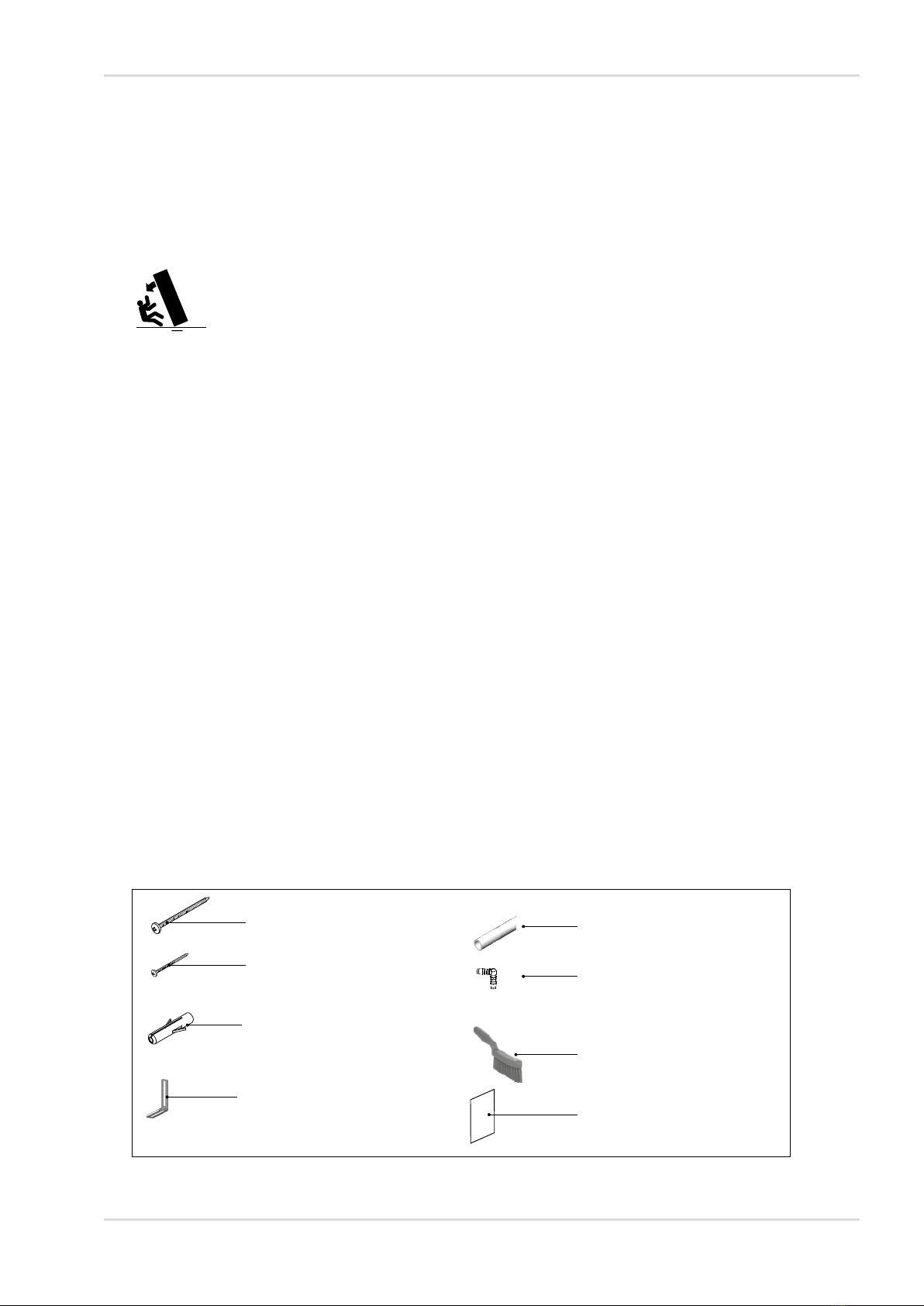

INSTALLATION
Unpacking
_________________________________________________________________
Handle the drying cabinet with care when it is standing on the pallet unsupported.
RISK OF TIPPING!
_________________________________________________________________
Check that the goods have not been damaged in transport. Any transport damage must be reported to the
retailer within 7 days.
_________________________________________________________________
After unpacking the product, check that it is free from damage. Any damage, faults or missing parts must be
reported to the retailer immediately.
_________________________________________________________________
Check that all transport safety devices have been removed before connecting the drying
cabinet.
_________________________________________________________________
Keep packaging materials such as plastics and polystyrene foam away from children.
_________________________________________________________________
The drying cabinet must be installed and kept indoors.
_________________________________________________________________
Full delivery should include:
• Cabinet with dehumidifier
• Installation kit for securing cabinet
• Installation instructions and user manual
Installation kit
Screw TRX 5x70
zinc-plated for 2
securing to wall
2Screw MRT 5 x 20
for bracket
4
Wall plug
2
Bracket for
securing to wall
2
Plastic hose 10 x 13,
1,5 m
Elbow for water hose
1
Hand brush for filter
1
Wall instructions
1

11
© 2021, Elon Group AB. All rights reserved.
REVERSING THE DOOR
The cabinet is delivered with the door hung on the right
or left. The door can be reversed if required.
If this is required, contact the manufacturer or the
manufacturer’s service representative.
Placement/Securing
_______________________________
The drying cabinet is only intended for use indoors in
a dry area.
_______________________________
Do not place the drying cabinet in an area where high-
pressure water is used for cleaning.
_______________________________
Levelling
The drying cabinet must be installed upright on a flat
surface, and be supported by all four feet.
The feet can be adjusted from outside the cabinet.
Securing to wall
The cabinet must be secured to the wall to prevent it
from tipping over.
The installation kit includes two angle brackets that can
be attached to the top of the cabinet, as illustrated,
using the screws supplied. The brackets have slotted
holes for adjusting the distance from the wall.
Secure the cabinet to the wall. Fixing screws, washers
and wall plugs are provided in the installation kit.
__________________________
WARNING!
The drying cabinet must not be used
unless it has been secured to the wall, as
it could tip forwards otherwise.
__________________________
Fixing bracket
Top of drying
cabinet

12 13
© 2021, Elon Group AB. All rights reserved.
ELECTRICAL SUPPLY
The drying cabinet must be connected to a 220–240
V, single-phase supply at 50 Hz, via an earthed wall
socket.
The drying cabinet is supplied ready for connection
with a power cord and earthed plug.
The fuse is rated at 10 A.
_______________________________
The drying cabinet must be connected to an earthed
wall socket using the power cord supplied, and must
not be connected permanently to the supply.
_______________________________
The socket must be positioned so that the appliance
can be easily unplugged if necessary.
_______________________________
Check that the electrical supply matches the data on
the rating plate and that the supply is earthed correctly
according to the relevant standard. We recommend
that the supply is fitted with a residual current device.
_______________________________
The socket must have its own fused circuit.
_______________________________
The manufacturer will not accept any responsibility if
electrical connections are not made as described in
this user manual.
_______________________________
ECODRYER 2.0
HELLO

13
© 2021, Elon Group AB. All rights reserved.
HELLO

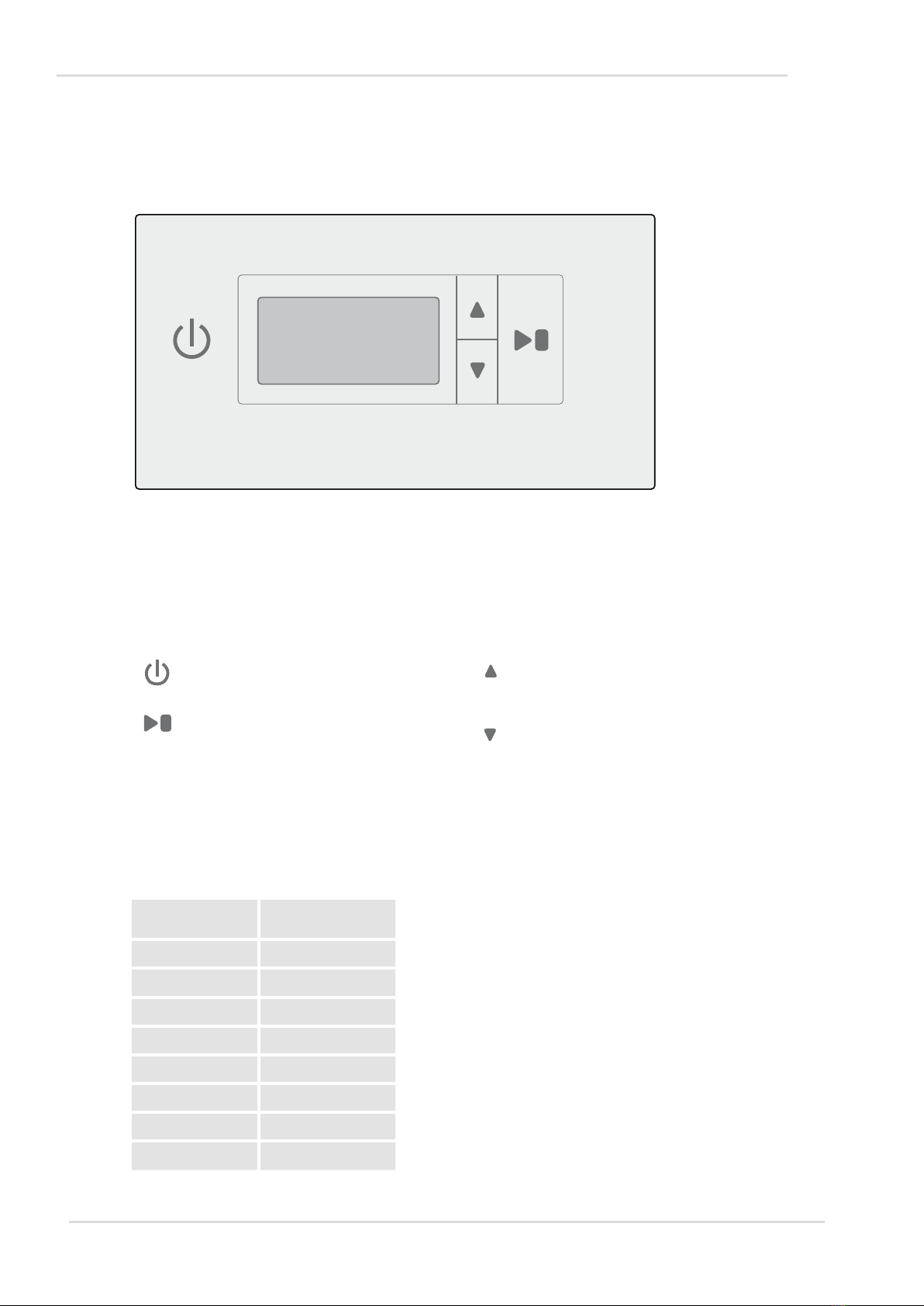

CONTROL PANEL
The drying cabinet has two automatic programmes to
suit different types of garments. These programmes
are selected from the programme menus and
controlled by four touch buttons on the menu panel. A
choice of languages is available.
Display
The display has two rows with 6 digits in each row. The
display shows the current parameter and the value
of this parameter when you set or adjust the drying
process. During the drying process it displays the
status.
Buttons
ON / OFF
Start / Stopp, to start or to stop
programme.
OK, to confirm choice and go to
next menu level.
ARROW UP, to increase value or step in
one direction between programmes
ARROW DOWN, to decrease value or step
in one direction between programmes.
Selection
1 Make sure the ON/OFF button is switched off.
The display should be dark.
2 Press and hold the arrow up and arrow down
buttons and press the ON/OFF button to turn
the cabinet “ON”. The display will light up
and the top row will flash “P105”, which is the
language setting parameter. If a different value
is displayed, use the arrow up or arrow down
button to advance to the correct parameter.
3 Press START/STOP to confirm.
The current language will flash. Each language
has a number as shown in the table below.
4 Use the arrow up and arrow down buttons to
choose the desired language.
5 To save the set value, press START/STOP.
6 To return to operating mode, press arrow down
and START/STOP.
Language setting
The following languages are available: English,
Swedish, Norwegian, Danish, Finnish, Russian,
French and German.
Language number Display
language
0English
1Swedish
2Norwegian
3Danish
4Finnish
5Russian
6French
7German

14 15
© 2021, Elon Group AB. All rights reserved.
START-UP
_______________________________
Read this user manual before starting to
use the drying cabinet.
_______________________________
_______________________________
WARNING! Read the safety instructions on page 39
before using the cabinet.
_______________________________
After installing and connecting the cabinet you should
wait at least 3 hours before starting to use it. This
is to allow the oil to run back into the compressor.
Otherwise the compressor may be damaged.
1 Check that the cabinet is securely attached to
the wall. See page 45.
2 Check that all packaging material has been
removed.
3 Clean the inside and outside of the drying
cabinet using warm water and a mild
detergent.
Then dry it carefully. See also the section on
‘Care’ later on in the manual.

15
© 2021, Elon Group AB. All rights reserved.
ARRANGING ITEMS FOR DRYING
There are three sets of hangers inside the cabinet.
Each set has a number of rails for hanging items to
dry.
• Hang the items to suit the amount of space they
take up – not how much they weigh.
• Raise the two lower sets of hangers if you need to
dry long items.
• Hang gloves, hats, scarves and the like on the
hangers on the inside of the door.
• Slide out the top set of hanger hooks to make it
easier to hang items. Slide these back when they
are not in use.
• Do not overload the drying cabinet. This causes
laundry to crease and leads to uneven drying. If
possible leave space between items.
• If there is a risk of discolouration from some items,
leave plenty of space around them.
• If you place shoes or the like on the shoe stand,
avoid obstructing the air flow.
• Avoid drying heavy garments together with lighter
items as they take much longer to dry.
• Lay knitted garments flat to dry. If these are hung
they will stretch excessively due to their weight when
wet.
• Avoid hanging items in the cabinet that are dripping
or soaking wet, as it is not designed to collect large
amounts of water.
This would also lead to very long drying times.
_________________________________________________________________
WARNING!
Do not dry garments or the like that have been contaminated with petrol or other volatile and flammable
solvents. This could lead to the formation of an explosive gas mixture.
_________________________________________________________________
User advice
• Always follow the advice on the care label, if
provided.
• If softener or antistatic agents are used, follow the
manufacturer’s instructions for these products.
• Remove laundry that is already dry. This reduces the
drying time for the remaining laundry.
_________________________________________________________________
NOTE!
When the cabinet is cold the door seal may not close completely. But once the cabinet is warm the seal will
expand and provide a complete seal.
_________________________________________________________________
NOTE!
If the seal does not close completely or if the door has a tendency to open by itself it may be because the filter is
not fitted correctly. Press the filter and filter holder firmly into place so that there is no air leakage
_________________________________________________________________

16 17
© 2021, Elon Group AB. All rights reserved.
DRYING PROGRAMME
The drying cabinet has two automatic programmes:
• Normal dry
• Extra dry
The automatic programmes stop the drying process
automatically when the laundry is dry.
Selecting the drying programme
• Normal dry – used for drying medium-weight
garments.
• Extra dry – used for drying heavier garments and for
deep-drying.
Starting the drying programme
• Last-used drying programme.
Press the power button to turn the cabinet “ON” – the
display lights up and shows the last programme that
was run.
If you want to use this programme press START/STOPP.
Or select a different drying programme using arrow up
orarrow down.
Then start the programme by pressing the START/STOP
button.
• Door open.
If the door is open when a drying programme is
selected and the START/STOP button is pressed, the
display will show “close door”.
Close the door, and the chosen drying programme
should start.
• Drying.
The animated status bar on the left of the display
shows that drying is in progress.
• Condensed water tank
When the condensed water tank is full the drying
process stops immediately and the display shows
“check water tank”. Empty the water tank and restart
the drying process.
• Cool-down
During the cool-down phase the display shows “cool”
and the 5-minute rest time is counted down.
• Programme finish
When the cool-down phase ends, the drying process
is complete and the display shows “finish” (flashing).
When the START/STOP button is pressed or the door is
opened the current programme ends and the display
shows the last-used programme.
_______________________________
NOTE!
In standby mode the display is switched off after 15
minutes and lights up again if one of the buttons on
the control panel is pressed or the door is opened.
_______________________________
NOTE!
Empty the condensed water tank after each drying
cycle.
_______________________________
Ending the drying programme
To interrupt the drying phase, press START/STOP.
Opening the door
If the door is opened during drying, the drying phase
will continue for 5 minutes. The display shows “close
door” and the programme will start a 5 minute count-
down.
If the door is closed within this 5-minute period the
drying phase will continue.
If the door is left open the drying phase will be
cancelled after 5 minutes and will have to be restarted
manually.
If you want to end the drying phase immediately,
without the 5-minute pause, press START/STOP.

17
© 2021, Elon Group AB. All rights reserved.
FINE-TUNING THE DRYING PROGRAMME
It is possible to fine-tune the two automatic
programmes to get the best results.
The settings for each programme are adjusted using
the control panel.
You should only do this if you feel that:
• The laundry is not being dried adequately.
• The laundry is being over-dried, or the drying time is
too long.
Introduction
The drying cabinet has two automatic programmes: Normal dry and Extra dry.
The automatic programmes stop the drying process automatically when the laundry is dry.
To decide when the laundry is dry, the measured value is compared with a default setting.
Parameter P 2072 is used for the Normal dry programme, and parameter P 2071 is used for the Extra dry
programme.
These are the two main parameters that can be adjusted to optimize the drying process.
• If you feel that the laundry is not being dried adequately by the:
Normal dry programme reduce the parameter value for P 2072.
Extra dry programme increase the parameter value for P 2071.
• If you feel that the laundry is being over-dried by the:
Normal dry programme increase the parameter value for P 2072.
Extra dry programme reduce the parameter value for P 2071.
The drying process should always be adjusted in small steps; start by adjusting the current value by 1–2 units up
or down, then check the results from the next drying cycle and make further adjustments if needed.
Method
The parameter list can be accessed using the control
panel. The list is displayed as follows:
the top row shows the current parameter, e.g. P 2071,
while the bottom row shows the set value.
1 Make sure the ON/OFF button on the cabinet
is turned off. The display should be dark.
2 Press and hold the ARROW UP and
ARROW DOWN buttons and press the ON/OFF
button to turn the cabinet “ON”. The display
will light up and show “P 105” and the default
setting for P 105. The row with the current
parameter will flash in the display.
3 Advance to the desired parameter by pressing
the ARROW UP or ARROW DOWN button
repeatedly. If you go too far you can simply
continue scrolling until the display shows the
right parameter.
4 When the display shows the desired
parameter, e.g. “P 2072”, press START/STOP
to confirm.
The row showing the set value for this
parameter will now flash.
5 Increase or decrease the value using the
ARROW UP or ARROW DOWN buttons.
6 To save the set value, press START/STOP.
7 To return to the operating value, press
ARROW DOWN and START/STOP.
Restoring default settings
1 Enter parameter display mode as described in
steps 1–2 above.
2 Press and hold the ARROW UP and
ARROW DOWN buttons and then press START/
STOP.
The default settings are restored and the
display shows the last-used programme.

18 19
© 2021, Elon Group AB. All rights reserved.
Shoe stand
Filter
Cleaning
_______________________________
NOTE!
Do not wash with a high-pressure washer!
_______________________________
Cleaning and maintenance must not be
carried out by children without supervision.
_______________________________
The walls of the cabinet can be cleaned with a damp
cloth and mild detergent.
Before each drying cycle, remove the shoe stand and
clean the filter underneath it.
Brush the filter clean using the brush supplied.
Replacement parts
Follow NIMO’s instructions for repairs and the
replacement of parts.
If the power cord is damaged for any reason it must
be replaced. Genuine spare parts can be obtained
from the retailer.
_______________________________
NOTE!
A replacement power cord should only be fitted
by the manufacturer, the manufacturer’s service
representative or a qualified
electrician!
_______________________________
CARE

19
© 2021, Elon Group AB. All rights reserved.
SERVICING
Before contacting the service department, make a note
of the model name, article number and serial number
of the drying cabinet.
This information can be found on the rating plate
inside the cabinet.
Rating plate (inside)
Model name
Article number
Serial number (12 digits)
Torkskåp CTS5195V
CTS5195V
116922 / 116923

20 21
© 2021, Elon Group AB. All rights reserved.
TROUBLESHOOTING
How to fix minor problems yourself
Questions What you can do
Drying cabinet does
not work
1. Check that power cord is plugged into a socket.
2. Check for tripped fuse.
3. Have you pressed Start button?
4. Is the door closed?
5. Is the water tank in place and is it empty?
Display shows
Check water tank

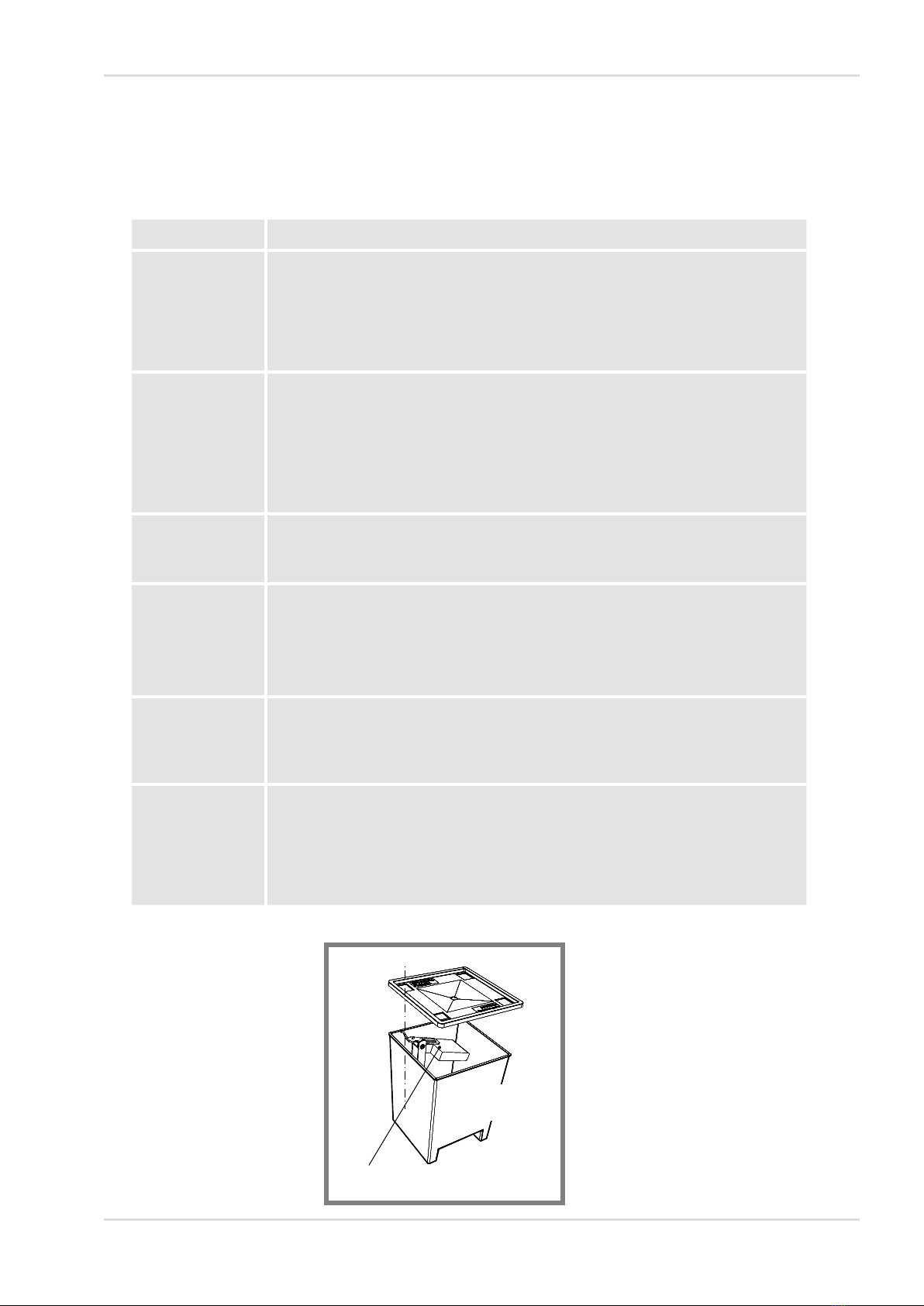

See diagram
1. Empty the water tank.
2. Check that the lid is fitted and that the float arm is free to move through the opening in
the lid.
3. Check that the water tank is oriented so that the float arm faces inwards in the
compartment.
4. If none of the above work, a fault in the pump may have tripped the circuit breaker. In
that case you need to consult a service technician.
The display shows
an alarm/error
code
This should not happen normally, but if an alarm or error code is shown, first try resetting
the alarm by pressing and holding the Start/Stop button for 5 seconds. If the problem
recurs you need to consult a service technician.
Drying takes a long
time
1. Clean the filter (preferably after each drying cycle).
2. Check that the water tank is empty.
3. Check that the correct programme has been chosen to suit the type of laundry.
4. Check that no items of laundry are extremely wet (poorly spin-dried).
5. Check whether too much laundry has been placed in the cabinet.
Laundry does not
dry
1. Check that the correct programme has been chosen to suit the type of laundry.
2. Check whether too much laundry has been placed in the cabinet.
3. Adjust parameters 2072 and 2071 as described in the section on parameter
adjustment.
Seal does not close
tightly/door opens
1. Check that the cabinet is upright. Check with a spirit level, and adjust the adjustable feet
if necessary.
2. Check that the filter and its holder are correctly fitted. The holder must be pressed down
against the heat pump unit below it in order to seal correctly.
3. Check that no litter, gravel or the like have been trapped beneath the filter, as this could
prevent a satisfactory seal.
This side to front
Float in water tank
