EMC VNX5500 User manual

This guide describes one of five models available in the VNX Series, the EMC®
VNX5500™. This guide is a parts location guide and provides illustrations of the part
number label locations of orderable parts for the EMC VNX5500 platform. Included in this
parts location guide are also tables describing the individual VNX5500 parts or
components and how these components are identified as either customer replaceable
units (CRUs) or field replaceable units (FRUs).
This guide is available online at https://mydocs.emc.com/VNX/relatedDocs.jsp. From the
VNX Hardware Parts heading, click on the desired guide. The guide will appear in your
browser.
Topics include:
◆VNX5500 Block and File platform stackup ................................................................. 4
◆VNX5500 components .............................................................................................. 8
◆Standby power supply (SPS) ..................................................................................... 9
◆Disk processor enclosure (DPE)................................................................................. 9
◆SP power supply/cooling module............................................................................ 13
◆SP........................................................................................................................... 14
◆Control Station........................................................................................................ 16
◆Data Mover enclosure ............................................................................................. 17
◆Data Mover power supply/cooling fan module......................................................... 18
◆Data Mover CPU module.......................................................................................... 19
◆Management module .............................................................................................. 22
◆I/O modules............................................................................................................ 22
◆Small form-factor pluggable (SFP) ........................................................................... 34
◆DIMMs .................................................................................................................... 37
◆Disk-array enclosure (DAE) ...................................................................................... 41
EMC®VNX™Family
VNX5500™
Parts Location Guide
P/N 300-013-314
Rev 01
June 26, 2012

2 EMC VNX5500 Parts Location Guide
Product software and hardware release revisions
IMPORTANT
The part numbers listed in this guide are for reference only. Part numbers can change over
time, and this document does not keep pace with those changes. The EMC parts inventory
system will automatically substitute for the latest part numbers as required.
Product software and hardware release revisions
As part of an effort to improve its product lines, EMC periodically releases revisions of its
software and hardware. Therefore, some functions described in this document might not
be supported by all versions of the software or hardware currently in use. The product
release notes provide the most up-to-date information on product features.
Contact your EMC representative if a product does not function properly or does not
function as described in this document.
Note: This document was accurate at publication time. New versions of this document
might be released on the EMC online support website. Check the EMC online support
website to ensure that you are using the latest version of this document.
Revision history
The following table presents the revision history of this document:
Where to get help
EMC support, product, and licensing information can be obtained as follows:
Product information — For documentation, release notes, software updates, or
information about EMC products, licensing, and service, go to the EMC online support
website (registration required) at:
https://Support.EMC.com
Technical support — For technical support, go to EMC online support and select Support.
On the Support page, you will see several options, including one to create a service
request. Note that to open a service request, you must have a valid support agreement.
Contact your EMC sales representative for details about obtaining a valid support
agreement or with questions about your account.
Revision Date Description
A01 June 26, 2012 First release of the
VNX5500 Parts Location
Guide
with a document part number

How this document is organized
EMC VNX5500 Parts Location Guide 3
How this document is organized
The major sections of this guide are listed in the following table.
Related documentation
EMC provides the ability to create step-by-step planning, installation, and maintenance
instructions tailored to your environment. To create VNX customized documentation, go
to: https://mydocs.emc.com/VNX/.
To download a PDF copy of the desired publication, go to the following sections:
◆For hardware-related books, go to the About VNX section, and then select Learn about
VNX. Next, follow the steps in the wizard.
◆For technical specifications, go to the About VNX section, and then select View
technical specifications. Next, follow the steps in the wizard.
◆For installation, adding, or replacing tasks, go to the VNX tasks section, and then
select the appropriate heading. For example, to download a PDF copy of the
VNX5500
Block Installation Guide
, go to Install VNX and follow the steps in the wizard.
Title Description
“VNX5500 Block and File
platform stackup” on page 4
Describes and shows the front and rear views of a typical
VNX5500.
“VNX5500 components” on
page 8
Provides a description of the components that comprise a
VNX5500. Along with a description, illustrations of each
component are also shown.
“Standby power supply (SPS)”
on page 9
Describes and illustrates the part number label locations of the
SPS.
“Disk processor enclosure
(DPE)” on page 9
Describes and illustrates the part number label locations of the
DPE and the components that comprise the DPE.
“Control Station” on page 16 Describes and illustrates the part number label locations of the
CS.
“Data Mover enclosure” on
page 17
Describes and illustrates the part number label locations of the
DME and the management module.
“I/O modules” on page 22 Describes and illustrates the part number label locations of the
I/O modules that comprise the DPE and the DME.
“Small form-factor pluggable
(SFP)” on page 34
Describes and illustrates the part number label locations of the
SFP transceiver modules used in the DME.
“DIMMs” on page 37 Describes and illustrates the part number label locations of the
memory module or dual-inline memory modules (DIMMs) used
in the DPE and the DME.
“Disk-array enclosure (DAE)” on
page 41
Describes and illustrates the part number label locations of the
three types of DAEs available for the VNX5500.

4 EMC VNX5500 Parts Location Guide
VNX5500 Block and File platform stackup
◆For server-related tasks, go to the Server tasks for the VNX5300, VNX5500, VNX5700,
and VNX7500 section, and then select the appropriate heading. For example, to
download a PDF copy of Adding or replacing hardware, go to Add or replace hardware
and follow the steps in the wizard.
VNX5500 Block and File platform stackup
The Block and File VNX5500 platform comprises a 1U standby power supply (SPS), 3U
disk processor enclosure (DPE), 1U Control Station and 2U Data Mover enclosures.
Note: Throughout this guide, figure references are placed in the Part number label location
heading of tables because some of the tables have part number locations, as described in
Table 4 on page 12 and some do not, as described in Table 1 on page 9, for example. This
format is used throughout this guide.
Front view
On the front, viewing from top to bottom, a Block and File VNX5500 platform includes the
following hardware:
◆One to two 2U Data Mover enclosures with one, two, or three Data Movers
◆One to two 1U Control Stations
◆One 3U DPE chassis with either a:
• 15 (3.5-inch) disk drives (hot-swappable)
or,
• 25 (2.5-inch) disk drives (hot-swappable)
◆One dual 1U standby power supply (SPS)
Figure 1 on page 5 shows an example of the front of a Block and File VNX5500 with a 3U,
15 (3.5-inch) DPE.

VNX5500 Block and File platform stackup
EMC VNX5500 Parts Location Guide 5
Figure 1 Example of the Block and File VNX5500 platform with a 3U, 15 (3.5-inch) DPE (front view)
DVD
3U, 15 (3.5-inch)
disk processor
enclosure (DPE)
SPS
VNX-000566
DVD
Control Station 0
Control Station 1
(optional)
AC AC AC AC
Data Mover
enclosure 0
AC AC
Data Mover
enclosure 1
(optional)

6 EMC VNX5500 Parts Location Guide
VNX5500 Block and File platform stackup

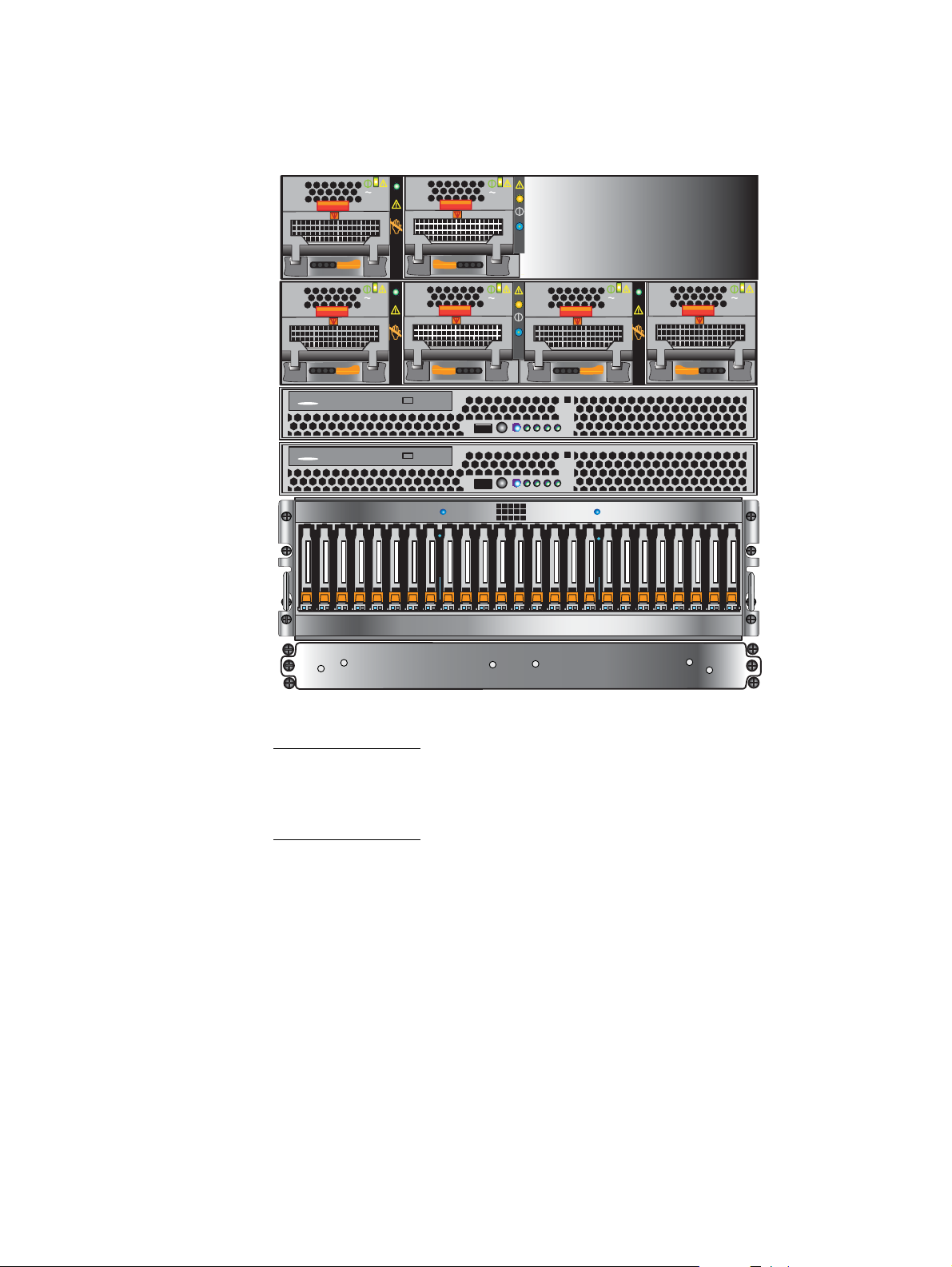

Figure 2 shows an example of the front of a Block and File VNX5500 with a 3U, 25
(2.5-inch) DPE.
Figure 2 Example of the Block and File VNX5500 platform with a 3U, 25 (2.5-inch) DPE (front view)
Note: A basic Block and File VNX5500 platform has one to two 2U Data Mover enclosures,
one to two 1U Control Stations, a 3U DPE, and a dual 1U SPS. In the following sections, the
illustrations and corresponding tables describe these individual components. These
descriptions are for illustrative purposes only.
Rear view
On the rear, viewing from top to bottom, a Block and File VNX5500 platform includes the
following hardware components (Figure 3 on page 7):
◆One to two 2U Data Mover enclosures with one, two, or three Data Movers
◆One to two 1U Control Stations
◆One 3U DPE with two storage processors (SP A and B); each SP has one CPU module
and one power supply/cooling module
◆One dual 1U SPS
DVD
3U, 25 (2.5-inch)
disk processor
enclosure (DPE)
SPS
VNX-000615
DVD
Control Station 0
Control Station 1
(optional)
AC AC AC AC
Data Mover
enclosure 0
24
0
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
0
AC AC
Data Mover
enclosure 1
(optional)

VNX5500 Block and File platform stackup
EMC VNX5500 Parts Location Guide 7

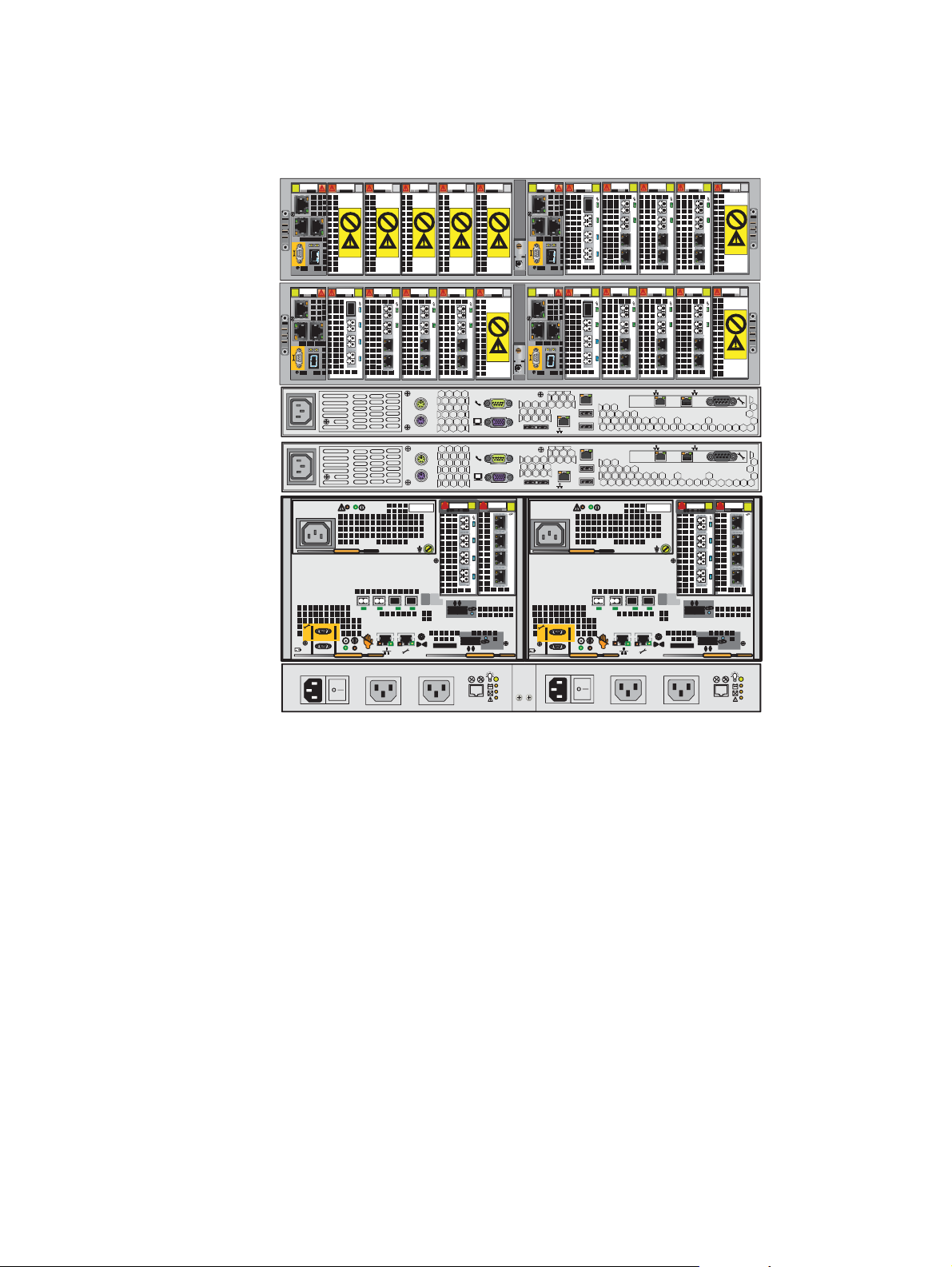

Figure 3 shows an example of the rear of a Block and File VNX5500 platform with a dual
SPS, a DPE, two Control Stations, two Data Mover enclosures with three Data Movers.
Figure 3 Example of Block and File VNX5500 platform (rear view)
VNX-000567
MGMT
B
A
CS
SPS
Disk
processor
enclosure
X4
2345
6Gb
SAS
8Gb
bre 1
0 X4
6Gb SAS
B
X4
2345
6Gb
SAS
8Gb
bre 1
0 X4
6Gb SAS
A
MGMT
B
A
CS
0123
0123
0123 012 3 012 3 0123
012 3 0123 012 3
012 3
Data Mover
enclosure 0
Control Station 0
Control Station 1
(optional)
0123
012 3
0123
012 3 0123
012 3
Data Mover
enclosure 1
(optional)
0123 0123 0123 0123
0123
PARTNUMBER
REV A09 A
0123
PARTNUMBER
REV A09 A
0123
PARTNUMBER
REV A09 A
0123
PARTNUMBER
REV A09 A

8 EMC VNX5500 Parts Location Guide
VNX5500 components
VNX5500 components
Viewing from the bottom to the top, the Block and File VNX5500 platform includes several
components. The following sections discuss each component in an illustration and table.
The illustration will show or point out the location of the part number label on the
component. The table will list the part number, describe the component or part, and tell
you if it is a FRU or CRU or both.
◆Dual 1U Standby power supply (SPS)
◆3U Disk processor enclosure (DPE)
• 3U, 15 (3.5-inch) disk drive
• 3U, 25 (2.5-inch) disk drive
• Storage processor (SP) power supply/cooling module
• Storage processor
◆1U Control Station (CS)
◆2U Data Mover enclosure (DME)
• DM power supply/cooling module
• DM CPU module
•Managementmodule
◆I/O modules
• SP I/O modules
• DM I/O modules
◆Small form-factor pluggable (SFP) transceiver modules
◆Dual in-line memory modules (DIMMs)
•SPDIMMs
• DM DIMMs
◆Disk-array enclosures (DAEs)
• 3U, 15 (3.5-inch) disk drive
• 2U, 25 (2.5-inch) disk drive
• 4U, 60 (2.5- or 3.5-inch) disk drive

Standby power supply (SPS)
EMC VNX5500 Parts Location Guide 9
Standby power supply (SPS)
The Block and File VNX5500 platform can support up to two 1U standby power supplies or
dual (SPSs) to provide temporary emergency power to the Block and File VNX5500
platform. Part numbers for the SPS are only on the rear of the product.

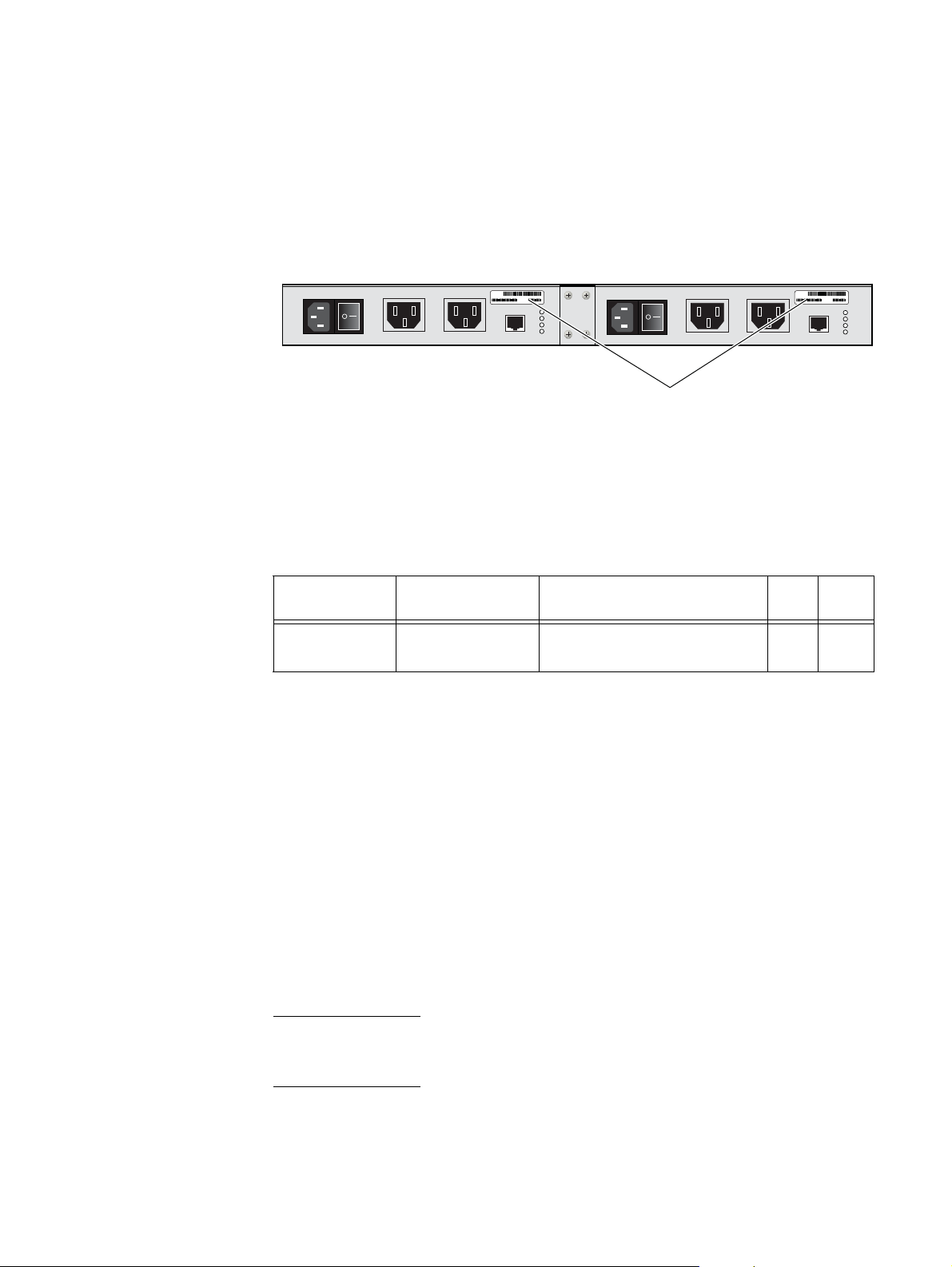

Figure 4 shows the part number location of a dual 1U SPS.
Figure 4 Example of a dual SPS
Table 1 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Disk processor enclosure (DPE)
The 3U DPE has part numbers visible on both the front and rear.
Front view
The DPE has two types of disk drive carriers:
◆3U, 15 (3.5-inch) disk drives
◆3U, 25 (2.5-inch) disk drives
DPE 3U, 15 (3.5-inch) disk drive
Figure 5 on page 10 shows the front view of the DPE 3U, 15 (3.5-inch) disk drives.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module (Figure 5 on
page 10).
900-XXX-0014 0082
A00REV
S/N
900-XXX-0014 0082
A00REV
S/N
Part Number (P/N) label CNS-001545
Table 1 SPS part number
Part number label
location (Figure 4) Part number Description FRU CRU
078-000-084
078-000-085
DC standby power supply (SPS)
1200W


10 EMC VNX5500 Parts Location Guide
Disk processor enclosure (DPE)
Figure 5 Example of the DPE 3U, 15 (3.5-inch) disk drive (front view)
Note: Figure 5 is for illustrative purposes only. The front of the disk modules may be a little
different than the ones in your particular cabinet.
Table 2 is an example of the parts available for the 3U, 15 (3.5-inch) DPE and lists the part
number label location, part number, description, and whether it is a FRU or CRU.
IMPORTANT
Due to the extensive variety of disk module types, Table 2 only lists two disk types. EMC
recommends that you refer to the latest
EMC VNX5500, VNX5700, and VNX7500 Series
Storage Systems Disk and OE Matrix
Guide to ensure that you have the correct part for
your configuration.
Part Number Label
VNX-000607
Table 2 DPE 3U, 15 (3.5-inch) disk module part numbers
Part number label
location (Figure 5) Part number Description (see note) FRU CRU
005049175 300 GB, 6 Gb/s SAS, 10k rpm 
005049249 600 GB, 6 Gb/s SAS, 15k rpm 
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).

Disk processor enclosure (DPE)
EMC VNX5500 Parts Location Guide 11
DPE 3U, 25 (2.5-inch) disk drive
Figure 6 shows the front view of the DPE 3U, 25 (2.5-inch) disk drives.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module (Figure 6).
Figure 6 Example of the DPE 3U, 25 (2.5-inch) disk drive (front view)
Note: Figure 6 is for illustrative purposes only. The front of the disk modules may be a little
different than the ones in your particular cabinet.
Table 3 is an example of the parts available for the 3U, 25 (2.5-inch) DPE and lists the part
number label location, part number, description, and whether it is a FRU or CRU.
IMPORTANT
Due to the extensive variety of disk module types, Table 3 only lists two disk types. EMC
recommends that you refer to the latest
EMC VNX5500, VNX5700, and VNX7500 Series
Storage Systems Disk and OE Matrix
Guide to ensure that you have the correct part for
your configuration.
24
0
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
0
Part Number Label
VNX-000603
Table 3 DPE 3U, 25 (2.5-inch) disk module part numbers
Part number label
location (Figure 6) Part number Description (see note) FRU CRU
005048946 300 GB, 6 Gb/s SAS, 10k rpm 
005049250 600 GB, 6 Gb/s SAS, 10k rpm 
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).

12 EMC VNX5500 Parts Location Guide
Disk processor enclosure (DPE)
Rear view
Figure 7 shows a 3U disk processor enclosure (DPE) with two storage processors (SP A
and B).
Figure 7 Example of a 3U DPE chassis with two SPs (A and B) and two I/O modules
Table 4 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
X4
2345
6Gb
SAS
8Gb
bre 1
0 X4
6Gb SAS
B
X4
2345
6Gb
SAS
8Gb
bre 1
0 X4
6Gb SAS
A
231
4
SP B
VNX-000614
SP A
0123
PART NUMBER
REV A09 A
0123
PART NUMBER
REV A09 A
0123
PART NUMBER
REV A09 A
0123
PART NUMBER
REV A09 A
Table 4 DPE chassis, SP, management module, and I/O module part numbers
Part number label
location (Figure 7) Part number Description FRU CRU
1 100-562-503
100-563-138
3U, 15 disk drive chassis and
midplane
3U, 25 disk drive chassis and
midplane




2 071-000-529 1U AC/DC, 875W, dual power
supply (for closer view, see Figure 8
on page 13)

3 303-092-102B Four-port 8-Gb/s FC (2/4/8 Gb/s) 
303-141-100A1Four-port 1-Gb/s copper iSCSI I/O
module

303-081-105B2Two-port 10-Gb/s optical with iSCSI
protocol I/O module

303-142-100A3Two-port 10-Gb/s FCoE I/O module 
303-164-104D-014Two-port 10-Gb/s RJ-45 Base-T
iSCSI/IP


Disk processor enclosure (DPE)
EMC VNX5500 Parts Location Guide 13
SP power supply/cooling module

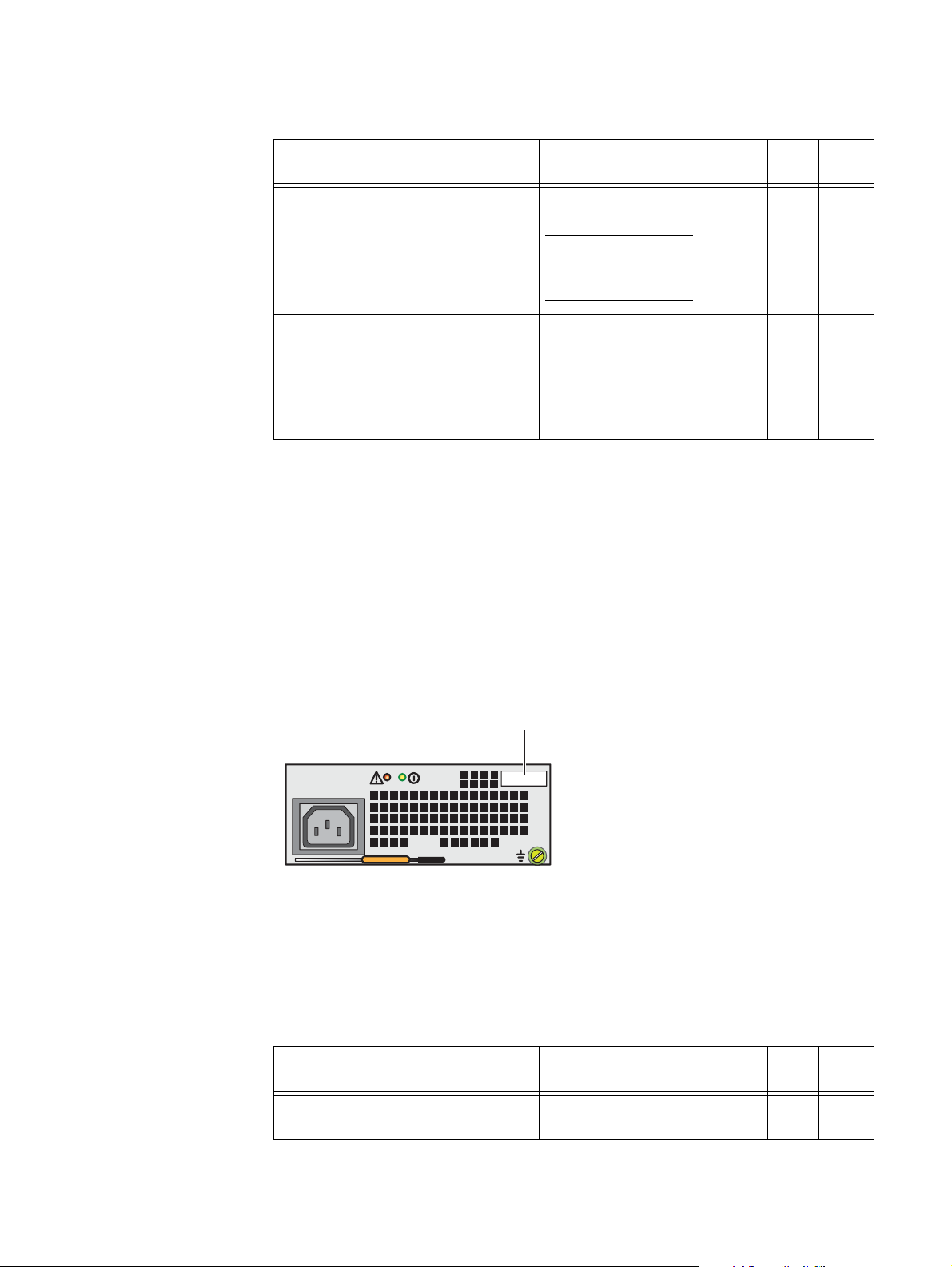

Figure 8 shows the part number label location on the power supply/cooling module used
in the Block and File VNX5500 platform SPs (A and B).
Figure 8 Example of a power supply module/cooling
Table 5 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
100-562-718 I/O module filler includes Do Not
Remove label
Note: This filler panel is only used
when the SP I/O module slots are
empty.
4 110-140-402B SP 2.0-GHz CPU, with 12 GB of
memory (for a closer view, see
Figure 9 on page 14)
110-140-420B SP 2.0-GHz CPU, without memory
(for a closer view, see Figure 9 on
page 14)

1. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 21 on page 25.
2. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 22 on page 26.
3. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 23 on page 27.
4. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 28 on page 32.
Table 4 DPE chassis, SP, management module, and I/O module part numbers (continued)
Part number label
location (Figure 7) Part number Description FRU CRU
Part number (P/N) label
VNX-000608
Table 5 Power supply module/cooling fan part number
Part number label
location (Figure 8) Part number Description FRU CRU
071-000-529 1U AC/DC, 875W, dual power
supply


14 EMC VNX5500 Parts Location Guide
Disk processor enclosure (DPE)
SP
Figure 9 shows the part number label location on the SP.
Figure 9 Example of the SP
Table 6 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
To access the SP CPU, you must first remove the SP from the 3U DPE (Figure 10 on
page 15). Then, you must remove the power supply/cooling fan modules (Figure 11 on
page 15).
X4
2345
6Gb
SAS
8Gb
bre 1
0 X4
6Gb SAS
0123
PART NUMBER
REV A09 A
0123
PART NUMBER
REV A09 A
SP part number (P/N) label
VNX-000613
Table 6 SP CPU part number
Part number label
location (Figure 9) Part number Description FRU CRU
110-140-402B SP 2.0-GHz CPU with 12 GB of
memory
110-140-420B SP 2.0 GHz CPU without memory 

Disk processor enclosure (DPE)
EMC VNX5500 Parts Location Guide 15

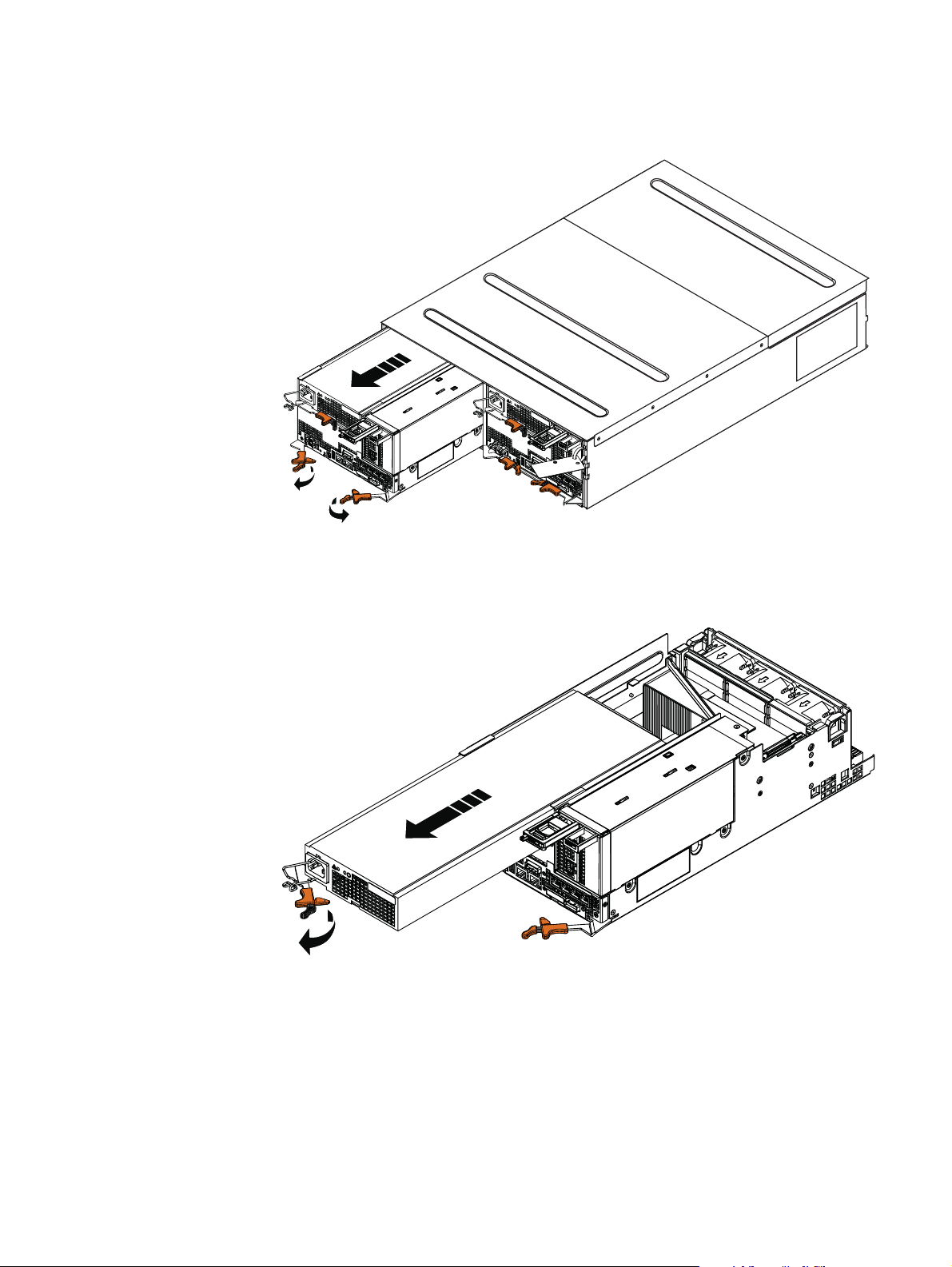

Figure 10 shows the SP CPU module partially removed from the front of the DPE.
Figure 10 Example of removing the SP from the 3U DPE
Figure 11 shows the power supply/cooling module being removed from the SP.
Figure 11 Example of removing the SP power supply/cooling module from the SP
The part number labels for the SP and the SP CPU module in Figure 12 are listed in Table 6
on page 14.
CL4594
CL4595

16 EMC VNX5500 Parts Location Guide
Control Station

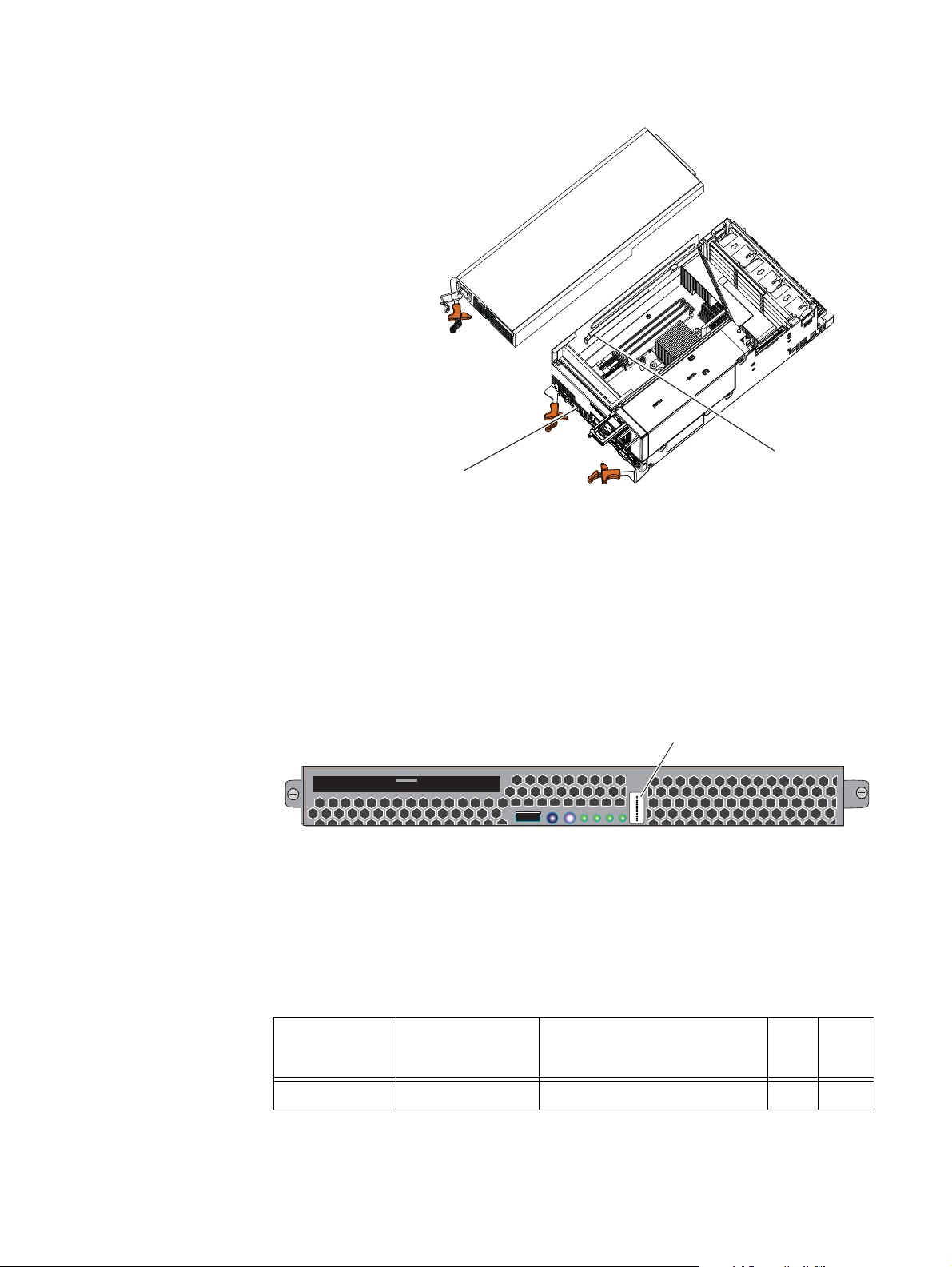

Figure 12 Example of the SP CPU with power supply/cooling module set aside
The SP CPU part number label is located on the motherboard of the SP CPU (Figure 12).
Control Station
Figure 13 shows the front view of the 1U Control Station.
Figure 13 Example of the Control Station (front view)
Table 7 shows the part number label location, part number, description, and whether it is
a FRU or CRU.
SP CPU
part number (P/N) label
VNX-000665
SP
part number (P/N) label
SP Power supply/cooling module
SN: FNM000XXX000XX PN: 900-XXX-0014 (NSXXX) NSXXX 0000 XXX 000
NSXXX 0000 XXX 000
Part Number (P/N) label
CNS-001544
Table 7 Control Station front view part number
Part number label
location
(Figure 13) Part number Description FRU CRU
100-520-665 Control Station (CS) 1U 

Data Mover enclosure
EMC VNX5500 Parts Location Guide 17
Data Mover enclosure
Figure 14 shows the front view of the 2U Data Mover enclosure.
Front view
Figure 14 Data Mover enclosure (front view)
Table 8 provides the part number label location, part number, description, and whether it
is a FRU or CRU.
AC AC AC AC
2 CNS-001723
1
Table 8 Data Mover enclosure front view part numbers
Part number label
location
(Figure 14) Part number Description FRU CRU
1 071-000-5431Data Mover enclosure 400 W, 2U,
single 12 V output power
supply/cooling fan module (for a
closer view, see Figure 15 on
page 18)

2 110-113-103B Data Mover 2.13-GHz CPU module
with 12 GB of memory (for a closer
view, see Figure 17 on page 19)
303-113-101B Data Mover 2.13-GHz CPU module
without memory (for a closer view,
see Figure 17 on page 19)

1. The part number label on the power supply/cooling fan module is located on the lower half of the pull
handle.

18 EMC VNX5500 Parts Location Guide
Data Mover enclosure
Data Mover power supply/cooling fan module

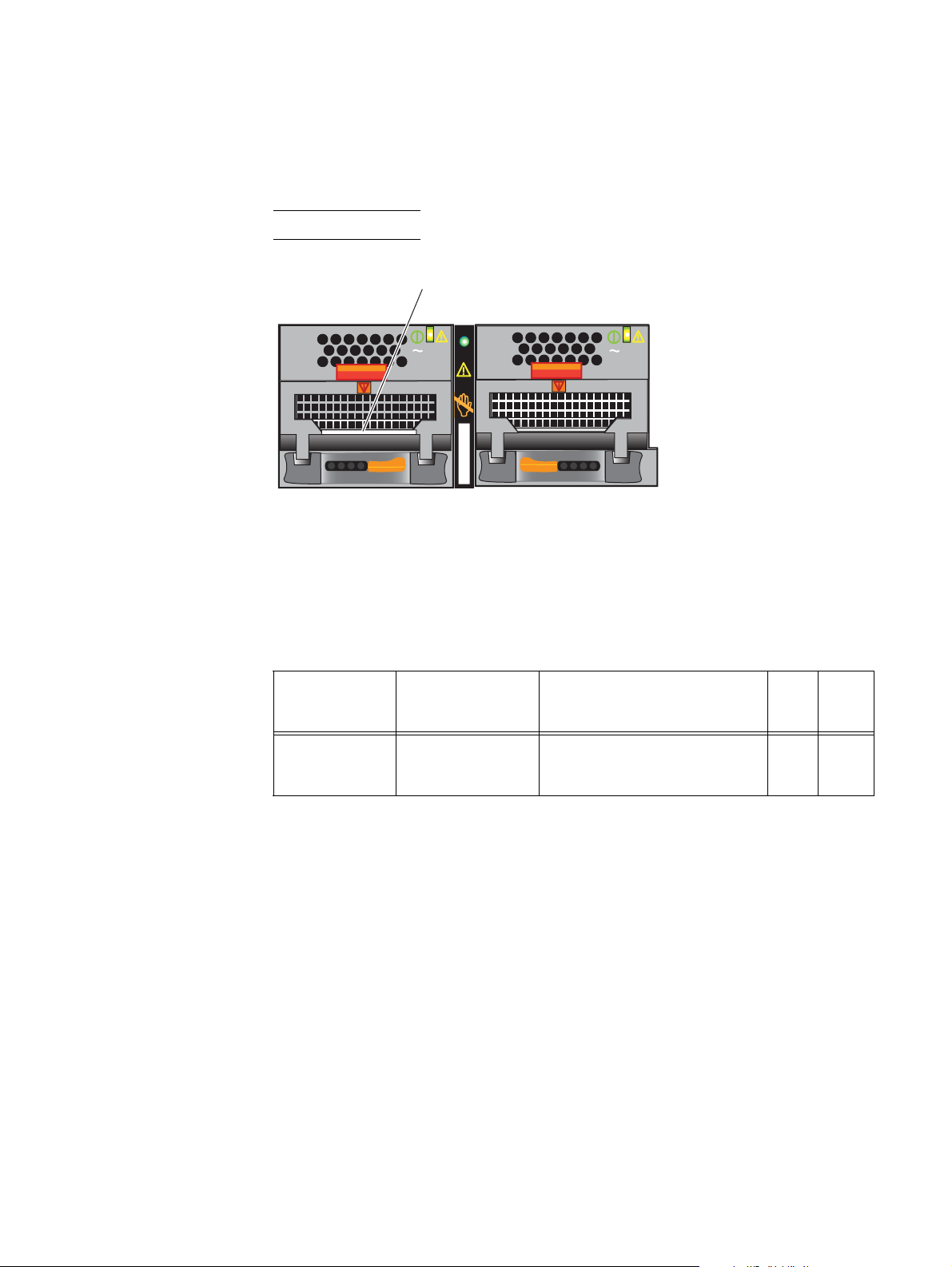

Figure 15 shows the front view of two power supply/cooling fan modules used in the 2U
Data Mover enclosure.
Note: The part number label is located on the lower half of the pull handle.
Figure 15 Example of a power supply module/cooling fan (front view)
Table 9 shows the part number label location, part number, description, and whether it is
a FRU or CRU.
AC AC
Part Number (P/N) label
CNS-001682
Table 9 Power supply module/cooling fan part number
Part number label
location
(Figure 15) Part number Description FRU CRU
071-000-543 Data Mover 400 W, 2U, single 12 V
output power supply/cooling fan
module


Data Mover enclosure
EMC VNX5500 Parts Location Guide 19
Data Mover CPU module
To access the Data Mover CPU, you must first remove the power supply/cooling fan
modules, as shown in Figure 16.
Figure 16 Example of removing the Data Mover power supply/cooling fan module from the Data
Mover enclosure
Figure 17 shows the Data Mover power supply/cooling (fan) module removed from the
front of the 2U Data Mover enclosure.
Figure 17 Example of the Data Mover CPU being removed from a Data Mover enclosure
Figure 17 shows the Data Mover CPU partially removed with the two power supply/cooling
(fan) modules set aside. The part number label for the Data Mover and the CPU module in
Figure 17 are listed in Table 10 on page 20.
CL3972
11
1
2
2
22
1
1
1
1
1
2
2
2
Data Mover part number (P/N) label
Power supply/cooling fan modules
Data Mover enclosure
Data Mover CPU
CNS-001683
Data Mover CPU
part number (P/N) label

20 EMC VNX5500 Parts Location Guide
Data Mover enclosure
Note: The DM CPU part numbers are located on the DM CPU sheet metal. You must remove
the DM from the DM enclosure (Figure 17 on page 19). You can also find the DM CPU part
number label located inside the DM CPU by looking through the blue plastic DIMM cover.
The part number label is located on the motherboard.
Rear view

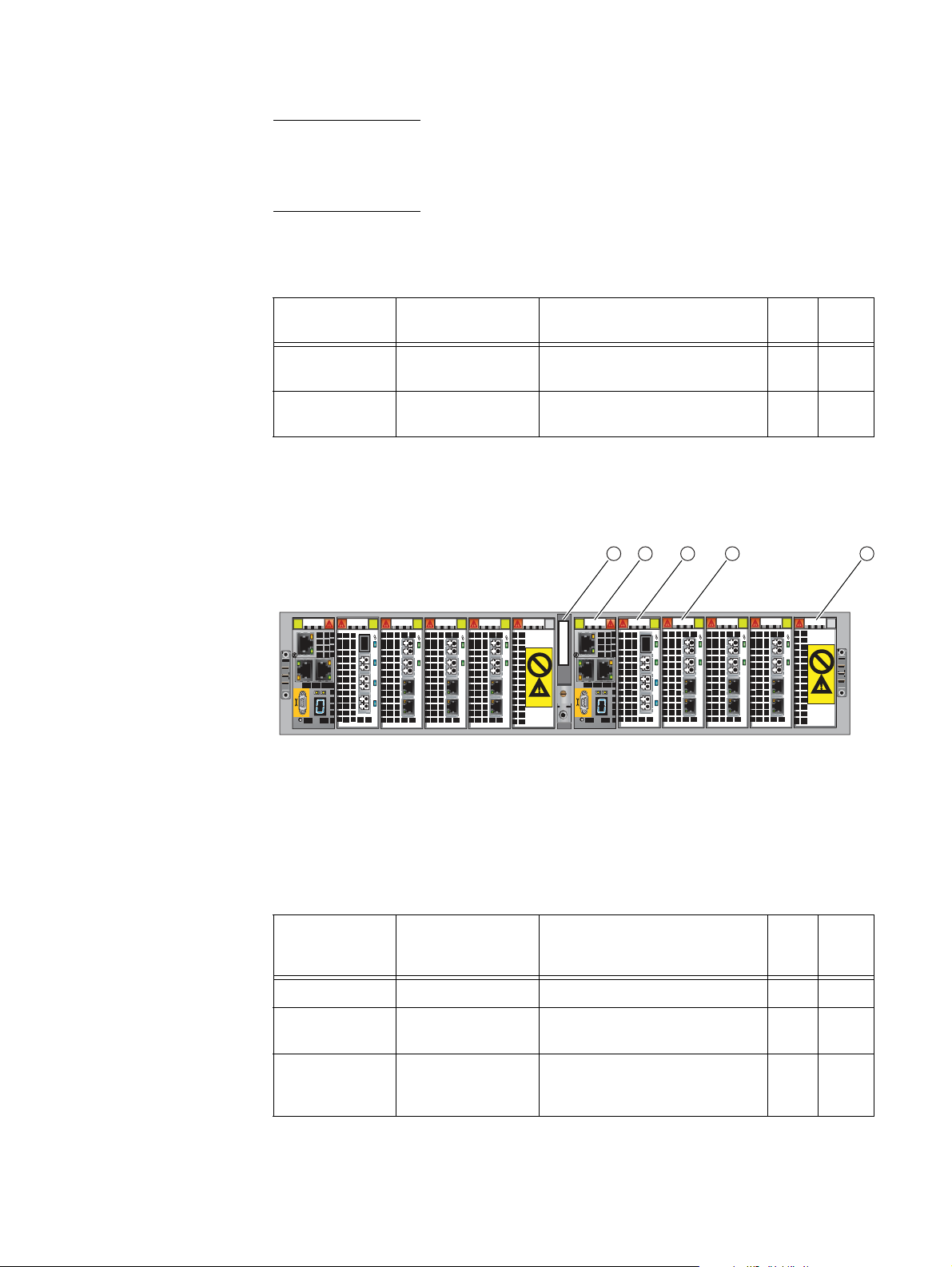

Figure 18 shows the rear view of a 2U Data Mover enclosure.
Figure 18 Data Mover enclosure rear view
Table 11 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
Table 10 Data Mover CPU part number
Part number label
location Part number Description FRU CRU
Figure 14 on
page 17
110-113-103B Data Mover 2.13-GHz CPU module
with 12 GB of memory
Figure 17 on
page 19
303-113-101B Data Mover 2.13-GHz CPU without
memory

0123
0123
0123 0123 0123 0123
0123
0123
012 3 0123
5321 4
CNS-001724
Table 11 Data Mover enclosure part numbers rear view
Part number label
location
(Figure 18) Part number Description FRU CRU
1 100-562-178 Data Mover enclosure (empty) 
2 110-130-100B Management module (for a closer
view, see Figure 19 on page 22)

3 303-092-102B Four-port 8-Gb/s Fibre Channel (FC)
I/O module (for a closer view, see
Figure 20 on page 24)

