EMC Iomega StorCenter ix2-dl User manual

Iomega ix2-dl Users Guide
D31593401

iii
Table of Contents
Setting up Your Device ...................................................................................................1
Setup Overview .........................................................................................................1
Set up My Iomega StorCenter If It's Not Discovered ..............................................................2
Discovering with Iomega Storage Manager ......................................................................2
Discovering the Iomega device without the Internet..........................................................2
Setup Page............................................................................................................... 3
Network Connection....................................................................................................4
Connecting the Iomega StorCenter ix2-dl to Your Network ..................................................4
Network Settings.....................................................................................................6
Manually Configuring the Network................................................................................7
Naming Your Iomega StorCenter ix2-dl .............................................................................8
Configuring Your Iomega StorCenter ix2-dl to Use Active Directory...........................................9
Enabling Active Directory Trusted Domains.....................................................................9
Obtaining Alerts About Your Iomega StorCenter ix2-dl ........................................................ 11
Using Your Iomega StorCenter ix2-dl in Various Time Zones.................................................. 12
Setting the Display Language for Your Iomega StorCenter ix2-dl............................................ 13
Printing Documents................................................................................................... 14
Setting up Personal Cloud, Security, and File Sharing ......................................................... 15
Sharing Files.............................................................................................................. 17
Sharing Overview ..................................................................................................... 17
Interfaces for Sharing ............................................................................................. 17
Shares................................................................................................................... 18
What are Shares and How Do I Organize Content with Them?............................................. 18
Adding Shares....................................................................................................... 19
Managing Shares.................................................................................................... 20
Deleting Shares..................................................................................................... 22

Iomega StorCenter ix2-dl User Guide
iv
Using Protocols to Share Files...................................................................................... 23
What Are Protocols and How Do I Use Them to Share Files? ............................................... 23
AFP File Sharing for Macs......................................................................................... 24
Bluetooth File Sharing ............................................................................................ 25
FTP File Sharing.................................................................................................... 26
NFS File Sharing.................................................................................................... 27
rsync: Synchronizing Files with Another Storage Device or Other Computers .......................... 28
TFTP.................................................................................................................. 29
Monitoring Your Device with an SNMP Management Tool................................................... 30
WebDAV: Managing Files Using HTTP or HTTPS............................................................... 31
Windows DFS: Creating a Distributed Windows File System................................................ 32
Windows File Sharing.............................................................................................. 33
Sharing Your Content with the World............................................................................. 34
Deleting a Slideshow .............................................................................................. 34
Automatically Sending Content to Multiple People at Once .................................................. 35
How to Set Up an Email Distribution Active Folder.......................................................... 35
Sharing Content using Social Media: Overview .................................................................. 36
Managing Your Content.............................................................................................. 37
Transferring Content to and from Your Iomega StorCenter ix2-dl with Copy Jobs ....................... 38
Copy Jobs Limitations............................................................................................. 38
Getting Content from a USB External Storage Device.......................................................... 39
Safely removing external storage............................................................................... 39
iSCSI: Creating IP-Based Storage Area Networks (SAN) ........................................................... 41
iSCSI Overview ........................................................................................................ 41
Adding iSCSI Drives ................................................................................................... 42
Enabling iSCSI Drives .............................................................................................. 42
Connecting to iSCSI Drives ....................................................................................... 42

Table of Contents
v
Managing iSCSI Drives ................................................................................................ 44
Changing Access Permissions .................................................................................... 44
Deleting iSCSI Drives ................................................................................................. 45
Storage Pool Management ............................................................................................. 47
Adding New Drives to Your Iomega StorCenter ix2-dl.......................................................... 47
Backing up and Restoring Your Content ............................................................................. 49
Backup and Restore Overview...................................................................................... 49
Backup of Data through RAID Protection ...................................................................... 49
Backing up to and Restoring from Your Device.................................................................. 50
Backing up Macs with Time Machine ........................................................................... 50
Copy Jobs Overview ............................................................................................... 51
Backing up Your Device.............................................................................................. 52
Copy Jobs............................................................................................................ 53
Mozy Backup ........................................................................................................ 61
Restoring Folders with Mozy Backup ........................................................................... 62
Amazon S3........................................................................................................... 63
Restoring Files with Amazon S3 ................................................................................. 64
Backing up with Iomega Personal Cloud ....................................................................... 65
Restoring with Personal Cloud................................................................................... 66
Securing Your Device and Contents .................................................................................. 67
What Is Security and Do I Need It?................................................................................. 67
Enabling Security and Creating an Administrator User......................................................... 68
Disabling Security.................................................................................................. 68
Limiting Access to Your Content by Creating Users ............................................................ 70
Users .................................................................................................................... 71
Users Overview..................................................................................................... 71
Adding Users........................................................................................................ 72

Iomega StorCenter ix2-dl User Guide
vi
Managing Users..................................................................................................... 74
Deleting Users ...................................................................................................... 76
Groups .................................................................................................................. 77
Groups Overview................................................................................................... 77
Adding Groups...................................................................................................... 78
Managing Groups................................................................................................... 79
Deleting Groups .................................................................................................... 80
Using Active Directory Domain to Manage Users and Groups ................................................. 81
Active Directory Users and Groups Overview ................................................................. 81
Managing Users and Groups with Active Directory........................................................... 82
Deleting Active Directory Users and Groups .................................................................. 84
Personal Cloud: Accessing Your Device From Anywhere in the World ......................................... 85
What Is an Iomega Personal Cloud ?............................................................................... 85
Iomega Personal Cloud Key Terms.............................................................................. 85
Is My Content Secure?................................................................................................ 87
Iomega Personal Cloud Setup Overview .......................................................................... 88
Creating an Iomega Personal Cloud ............................................................................... 89
Configuring Router Port Forwarding for Personal Cloud....................................................... 90
Router Port Forwarding........................................................................................... 90
Configuring Your Iomega Personal Cloud......................................................................... 92
Enabling Internet Access to the StorCenter ix2-dl........................................................... 92
Changing Personal Cloud Settings............................................................................... 92
Inviting People onto Your Iomega Personal Cloud .............................................................. 93
Joining a Trusted Device to an Iomega Personal Cloud........................................................ 94
Managing Trusted Devices on a Personal Cloud ................................................................. 95
Disconnecting Trusted Devices .................................................................................. 95
Deleting Trusted Devices......................................................................................... 95

Table of Contents
vii
Using Copy Jobs with an Iomega Personal Cloud................................................................ 96
Disabling or Deleting Your Iomega Personal Cloud ............................................................. 97
Accessing Content Using Your Iomega Personal Cloud ......................................................... 98
Informing Users What to Do with Iomega Personal Cloud ..................................................... 99
Sharing Content Using Social Media................................................................................. 101
Sharing Content using Social Media: Overview ................................................................. 101
Facebook.............................................................................................................. 102
Flickr................................................................................................................... 103
YouTube............................................................................................................... 104
Share Content through Iomega Personal Cloud................................................................. 105
Media Management..................................................................................................... 107
Media Management Overview ..................................................................................... 107
Scanning for media content..................................................................................... 107
Media Services Capabilities and Limitations.................................................................... 108
Sharing Media Content over the Internet........................................................................ 109
Enabling Internet Access from the Media Server Page .....................................................109
Media Aggregation................................................................................................... 110
Social Media Sharing ................................................................................................ 111
Streaming Music, Movies, and Pictures .......................................................................... 112
Example: Setting up iTunes..................................................................................... 112
Example: Setting up Xbox 360.................................................................................. 112
Photos ................................................................................................................. 113
Photos Overview .................................................................................................. 113
Streaming Pictures................................................................................................ 114
Creating a Slideshow on the Device Home Page ............................................................115
Automatically Resizing Your Photos ........................................................................... 116
Getting Pictures from Your Camera ........................................................................... 117

Iomega StorCenter ix2-dl User Guide
viii
Music................................................................................................................... 118
Music Overview.................................................................................................... 118
Streaming Music................................................................................................... 119
Torrents ............................................................................................................... 120
Torrent Overview ................................................................................................. 120
Enabling Torrent Downloads .................................................................................... 121
Deleting torrent jobs............................................................................................. 122
Configuring Your Router for Torrent Downloads ............................................................123
Torrent Active Folders ........................................................................................... 124
Videos.................................................................................................................. 126
Video Capabilities Overview.................................................................................... 126
Streaming Movies ................................................................................................. 127
Video Surveillance................................................................................................ 128
Adding Applications to Your Device................................................................................. 135
Application Overview ............................................................................................... 135
Application Manager ................................................................................................ 136
Starting or stopping an application............................................................................ 136
Adding applications............................................................................................... 136
Removing applications ........................................................................................... 136
Upgrading Your Device ................................................................................................ 137
Software Updates.................................................................................................... 137
Auto-update process: installing a device software update................................................ 137
Manual update process: installing a device software update.............................................137
Recovering Your Device Configuration.............................................................................. 139
Copying Your Iomega StorCenter ix2-dl Settings to Other Devices .........................................139
Backing up Device Configuration............................................................................... 139
Restoring a Configuration Backup.............................................................................. 139

Table of Contents
ix
Hardware Management................................................................................................ 141
About the StorCenter ix2-dl Components ....................................................................... 141
Front Panel......................................................................................................... 141
Rear Panel.......................................................................................................... 141
Energy Saving......................................................................................................... 143
Power Down Drives ............................................................................................... 143
Brightness .......................................................................................................... 143
Factory Reset......................................................................................................... 144
UPS Management .................................................................................................... 145
Adding New Drives to Your Iomega StorCenter ix2-dl.........................................................146
Troubleshooting Routers ........................................................................................... 147
Enabling the DMZ .................................................................................................... 147
Configuring Port Forwarding on Double NAT Networks .......................................................147
Bridging the Secondary Router.................................................................................... 148
Bridging the Primary Router....................................................................................... 148
Additional Support ..................................................................................................... 151
How to Get Help ..................................................................................................... 151
Support ................................................................................................................ 152
Legal...................................................................................................................... 153
StorCenter ix2-dl Trademark Page ............................................................................... 153
Regulatory Information............................................................................................. 154
FCC (United States)............................................................................................... 154
Canadian Verification ............................................................................................ 154
CE (European Community) ...................................................................................... 155
Manufacturer/Responsible Party............................................................................... 155
EU Representative................................................................................................ 155
Safety Information................................................................................................... 156

Iomega StorCenter ix2-dl User Guide
x
Limited Warranty.................................................................................................... 157
Drives and Media.................................................................................................. 157
Coverage ........................................................................................................... 157
Excluded Products and Problems............................................................................... 157
Remedies ........................................................................................................... 157
Obtaining Warranty Service..................................................................................... 157
Limitations......................................................................................................... 158
Open Source .......................................................................................................... 159

1
Setting up Your Device
Setup Overview
Setup with your Iomega StorCenter ix2-dl is easy. Remove it from the box, connect it to your
network or computer, and power it up. Then, launch a web browser, and enter the setup URL
identified in the Quick Install Guide. Iomega Setup launches and displays a message that your
StorCenter ix2-dl is online and ready to use.
You then can install client software that includes:
•Iomega Storage Manager
•Twonky Media Server for media aggregation
•Iomega QuikProtect for backups
Iomega Storage Manager is a management tool that helps you discover your StorCenter ix2-dl on your
network to simplify access to content on your StorCenter ix2-dl from your computer and allows you
to add your computer as a trusted device to an Iomega Personal Cloud . Refer to Iomega Storage
Manager online help for additional information. Twonky Media Server consolidates all media files on
devices on your network and presents them in a unified view. Iomega QuikProtect offers file backup
of your computer to an Iomega storage device.
From Iomega Setup, you can optionally create a Personal Cloud or begin using your StorCenter ix2-dl
by clicking Manage My Device.
How do I ...
set up my StorCenter ix2-dl if it's not discovered
create an Iomega Personal Cloud
set up media aggregation

Iomega StorCenter ix2-dl User Guide
2
Set up My Iomega StorCenter If It's Not Discovered
If, after you enter the setup URL identified in the Quick Install Guide, your Iomega device is not
discovered, you have two ways of discovering it.
Discovering with Iomega Storage Manager
You can install Iomega Storage Manager from Iomega Setup, which helps you discover your Iomega
device on your network.
Discovering the Iomega device without the Internet
You can access your Iomega device device without internet access as described by these methods for
Windows pcs or Macs:
•Windows 7 and Vista — Click Start, Computer, Network. Under Other Devices, you should see
your Iomega device listed. For example, if you have an EZ Media device, you can double-click
the device labeled IomegaEZ, and you will see the Iomega StorCenter Console for the Iomega
device .
•Windows XP — If you have not enabled UPnP Discovery, click Start, Help and Support. In the
Help and Support browser, search for UPnP, and follow the steps from “Install the UPnP
framework”. After UPnP is enabled, open Windows Explorer and in the Folders view, expand
My Network Places. You should see your Iomega device listed. For example, if you have an EZ
Media device, you can double-click the device labeled IomegaEZ, and you will see the Iomega
StorCenter Console for the Iomega device .
•Mac — Browse to your Iomega device through Finder, Shared, All and use Go, Connect to
Server to connect to Shares on your Iomega device .
How do I ...
set up my Iomega device
install Iomega Storage Manager

Setting up Your Device
3
Setup Page
The Setup page opens when you first access the Iomega StorCenter ix2-dl from the Home Page or the
Iomega Storage Manager . On this page, you can configure some basic device features by clicking the
appropriate link. The current setting of the feature displays above the link. You can also configure
all features shown on the Setup page by accessing the specific features directly.

Iomega StorCenter ix2-dl User Guide
4
Network Connection
Connecting the Iomega StorCenter ix2-dl to Your Network

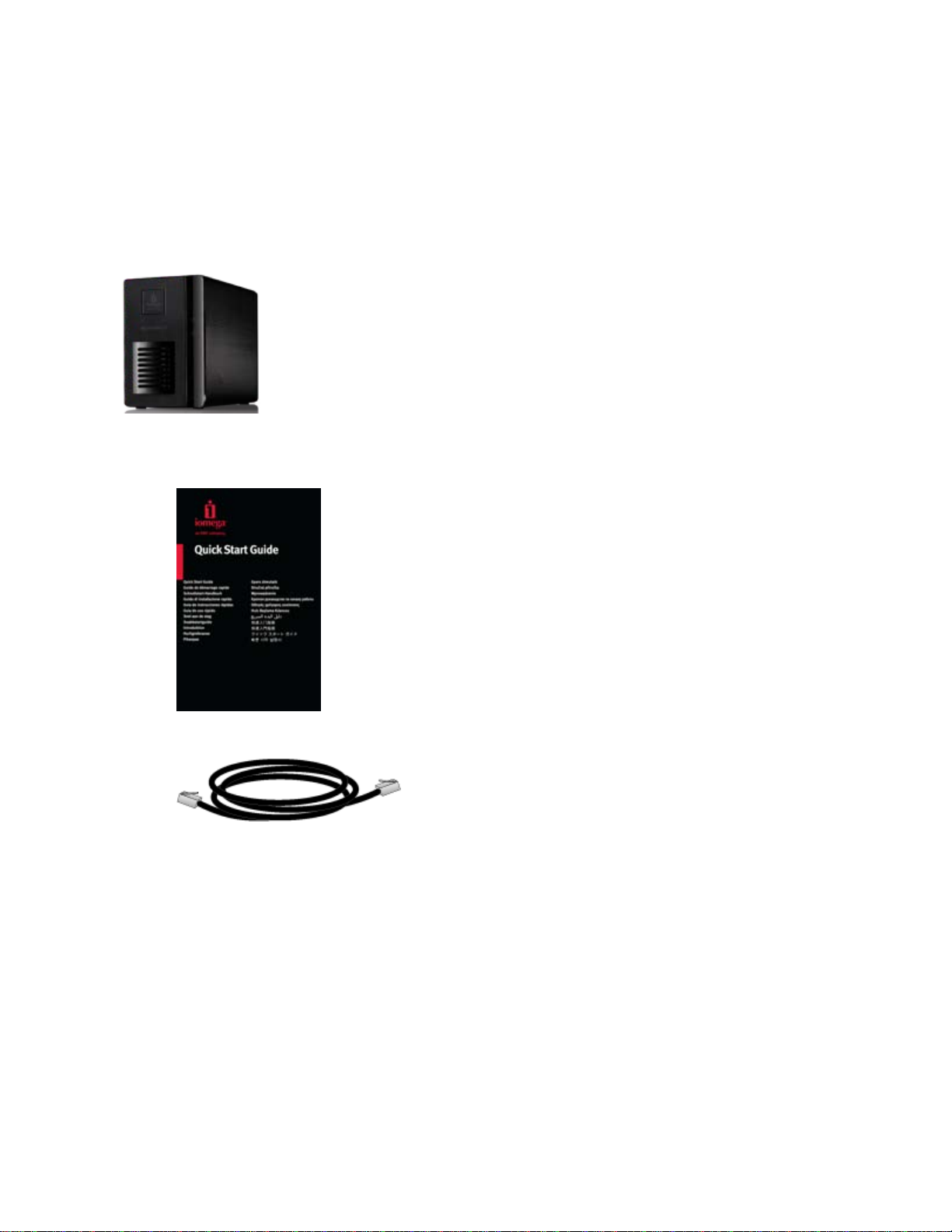

First, check the package contents.
Verify that the box contains the following items:
•StorCenter ix2-dl (models may vary)
•Power Cable
•Quick Start Guide
•Ethernet Cable
Package contents may vary.
Connecting the StorCenter ix2-dl
Initial Setup
If you have purchased more than one StorCenter ix2-dl , complete all steps on one device before
setting up additional devices.
1. Use the included network cable to connect the StorCenter ix2-dl to a network hub, switch or
directly to a computer.
2. Connect the included power cord to the back of the StorCenter ix2-dl and a power socket or
Uninterruptible Power Supply (UPS).
3. Your StorCenter ix2-dl should power on automatically.

Setting up Your Device
5
4. Start your computer and wait for the operating system to load.
5. For best results, use a computer that is connected to the same router, hub, or switch as the
StorCenter ix2-dl .
6. OPTIONAL: if desired, install the Iomega Storage Manager , QuikProtect, and Media Aggregation
software.
If you install the Iomega Storage Manager , its icon will appear in the System Tray (Windows)
or Menu Bar (Mac). The Iomega Storage Manager will automatically scan your network and
connect to available Shares.
If you receive a message from your operating system's firewall alerting you of network
activity, be sure to unblock communications.
Mac Users: Shares on the StorCenter ix2-dl will mount and appear on the Mac Desktop.
PC Users: Shares on the StorCenter ix2-dl will automatically be assigned a drive letter and
will be available in the Network Drives section under My Computer.

Iomega StorCenter ix2-dl User Guide
6
Network Settings
The Network page of your StorCenter ix2-dl is where you make changes to set up network
connectivity. The Network page displays your current network settings and enables those settings to
be modified. On this page, you can identify your DNS servers and WINS servers and how your system's
IP address is determined. Most system IP addresses and other network settings can normally be
configured automatically.
Manually Configuring Your Network
If you are comfortable with network technology and want to configure the network, refer to
Manually Configuring the Network.
Enabling Jumbo Frames for Each NIC
You can enable jumbo frames for each NIC in your StorCenter ix2-dl by expanding the Information
section for a NIC and selecting a jumbo frame size from the Jumbo Frame drop-down menu. Valid
jumbo frame sizes are 4,000 or 9,000 bytes. If you do not want jumbo frame support, select None
from the Jumbo Frame drop-down menu. Jumbo frame support is useful for transferring large files,
such as multimedia files, over a network. Jumbo frame support increases transfer speed by placing
large files in fewer data packets. It also reduces the demand on the device hardware by having the
CPU process more data in fewer data packets.
Jumbo frame support should only be enabled if you are sure your network is jumbo-frame
compatible and all network devices have been configured to support jumbo frames. It is
recommended that you confirm all network interface cards (NICs) are configured to support jumbo
frames before enabling this feature.

Setting up Your Device
7
Manually Configuring the Network
There are various settings in the network setup that you can manually configure.
1. Click Modify network settings.
2. Uncheck Automatically configure DNS, WINS, and all IP addresses (DHCP).
3. DNS Servers — enter the IP addresses of the DNS (Domain Name System) servers. DNS is used
for translating the domain name to IP addresses.
4. WINS Servers — enter the IP addresses of the WINS server.
5. From the Bonding Mode drop-down menu, choose one of the following:
•Transmission Load Balance — increases bandwidth by distributing the load across
multiple NICs.
•Link Aggregation — increases bandwidth by distributing the load across multiple
ports in a switch.
•Failover — provides recovery from a failure, so if one NIC should fail, your system
still has network connectivity with the other NIC.
6. Click Apply to save your settings.
If a DHCP server is unavailable for a network interface card (NIC), the device could auto-
assign an IP address, or you can uncheck the Automatically acquire network address
(DHCP) checkbox found in the Information section of a NIC.
7. You can change the following settings in the Information section:
•IP Address — the static IP address of the StorCenter ix2-dl . Use an available IP
address in the range used by the LAN.
•Subnet Mask — the subnet that the IP address belongs to. The default value is
255.255.255.0.
•Gateway — enter the gateway IP address in this field.
8. Click Apply to save your settings.

Iomega StorCenter ix2-dl User Guide
8
Naming Your Iomega StorCenter ix2-dl
You can provide a meaningful name for your StorCenter ix2-dl using the Device Identification page.
This page in the Iomega StorCenter ix2-dl Console enables you to change the Storage Device Name,
the Storage Device Descriptive Name, and the Workgroup Name.
Change any of these by editing the text fields. Click Apply to save your changes.
Device Name
Enter a name for the Iomega device . Use a name that will help you identify it on your network.
Device Descriptive Name
Enter a descriptive name for the Iomega device device. This name can provide additional detail that
identifies the device.
Workgroup Name
Enter a workgroup name for the Iomega device if you need to change the default name. The
workgroup name identifies a group of computers that share information with each other. Change the
workgroup name only if you explicitly define a workgroup on your network. Most users won't need to
change the workgroup name, unless they have explicitly defined a different workgroup on their
other computers.
How do I...
enable security

Setting up Your Device
9
Configuring Your Iomega StorCenter ix2-dl to Use Active Directory
If you have an existing Active Directory user organization, you can incorporate it into the Iomega
StorCenter ix2-dl Console .
Note: When you configure Active Directory, you enable security on your StorCenter ix2-dl .
1. To configure Active Directory, manually add the StorCenter ix2-dl to your DNS server. Set
the StorCenter ix2-dl DNS setting to point to your DNS server. On the Network page, uncheck
Automatically configure all network settings, type the IP address of your DNS Server in the
text box, and click Apply to save your settings.
2. Configure the StorCenter ix2-dl to join the Active Directory domain. Active Directory —
select Active Directory mode if you already have an existing user organization, such as
Active Directory, that you want to incorporate into the StorCenter ix2-dl .
3. Provide the following connectivity information:
•Domain Name — the actual name of your Active Directory domain, for example,
sohoad.com .
•Domain Controller — the actual name or IP address of your Active Directory Server, for
example, ad-server.sohoad.com or 10.14.50.12.
•Organizational Unit — an optional predefined subset of directory objects within an
Active Directory domain.
•Administrator Username — the Active Directory username with domain administrator
privilege.
•Administrator Password — the Active Directory password for the specified Active
Directory username.
•Users/Groups Refresh Interval — how often the StorCenter ix2-dl should refresh the
list of available users and groups from the Active Directory server.
•Enable Trusted Domains — enables your StorCenter ix2-dl to allow access to other
domains.
4. Click Apply to save your settings.
Enabling Active Directory Trusted Domains
By enabling Active Directory trusted domains on your StorCenter ix2-dl , you enable the importing of
users and groups from other trusted domains to your StorCenter ix2-dl device. Those users and
groups from other domains will then have access to features on your StorCenter ix2-dl , including
accessing folders and documents in Shares, and joining any Personal Cloud of which the device is a
member.
Now that you have enabled access to all trusted domains, you can add users and groups from those
trusted domains to your StorCenter ix2-dl . For more information, refer to Manage Users and Groups
with Active Directory.
How do I ...
enable security

Iomega StorCenter ix2-dl User Guide
10
