Emergi-Lite FPDL-32 User manual

1. - To prevent electrical shock, do not mate unit connector until installation is complete andCAUTION
power is supplied to the unit.A.C.
3. The battery is sealed, non-maintenance, and is not replaceable in the field. Please contact manu-
facturer for information on service. Do not attempt to service the battery please.
4. . The product is for use with grounded, UL Listed, indoor fixtures except in
heated air outlets or hazardous locations.
DO NOT USE OUTDOORS
5. The product requires an unswitched A.C. Power source of either 120 or 277 volts. Properly cap the
unused A.C. Lead.
6. Do not mount near gas or electric heaters.
7. The product should be mounted in locations and at heights where it will not readily be subjected to tam-
pering by unauthorized personnel.
9. The product is compatible with all A.C. magnetic and electronic ballasts including multiple lamp ballasts
with one lamp operating in the emergency mode.
FPDL-32
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Ni - Cd
INSTRUCTION MANUAL
EMERGILITE BRAND
2. - This fixture provides more than one power supply output source. To reduce the risk of
electrical shock, disconnect both normal and emergency sources by turning off the A.C. Branch circuit
and by disconnecting the unit connector.
CAUTION
8. The product will cold strike and operate one 2 through 4 (20-40W) instant start, rapid start, U shape
or circline, T8 through T12 fluorescent lamps, T5 28W fluorescent lamps, including energy saving and
long compacts for 90 minutes at reduced light output.
′′
10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
11. Do not use this equipment for other than intended use.
12. Install in accordance with the National Electrical Code and local regulations.
13. Installation and servicing should be performed by qualified personnel.
14. Lighting fixture manufacturers, electricians and end users need to ensure product system compatibility
before final installation.
15. The battery is sealed,non-maintenance,and is not replaceable in the field. Please contact
manufacturer for information on service. Do not attempt to service the battery please.
16. The rated operating time in the emergency mode with battery is 1-1/2 hours and the recharge
time shall not be less than 24 hours.
Page 1
CONTAINS NICKEL-CADMIUM
BATTERY.MUST BE RECYCLED
OR DISPOSED OF PROPERLY.
TEL [phone]:( ) - FAX [phone]:( ) -
H

INSTALLATION INSTRUCTIONS
1. MOUNTING THE FPDL-32
Remove the ballast channel cover. Mount the FPDL-32 in the ballast channel at least away from the A.C. Ballast(s).
12"
/
When battery packs are remote mounted, the remote distance can not exceed of the distance from ballast to
lamp specified by the A.C. Ballast manufacturer. For example, if the A.C. Ballast manufacturer recommends no
more than 25¡remote distance, then the battery pack should not exceed 12 . Under no circumstances should
the battery pack exceed a distance of 50¡from the lamp.
12
12
/
/¡
2. WIRING
Refer to the wiring diagrams on the back page for the appropriate wiring of lamp(s) and ballast. Install in accordance
with the National Electrical Code and local regulations. For additional wiring diagrams consult Customer Service.
4. WIRING THE A.C. INPUT
A. The and A.C. Ballast be on the same branch circuit.FPDL-32 must
B. The requires an A.C. Power source of either 120 or 277 volts. Select the proper voltage lead
and cap the unused lead.
unswitchedFPDL-32
C. When the is used with a switched fixture, the A.C. Input to the must be connected ahead of the
fixture switch. Refer to for switched and unswitched fixture wiring diagrams.
FPDL-32 FPDL-32
Illustration 3
Page 2
CAUTION: Before installing, make certain the A.C. Power is off and the battery
connector is disconnected.
3. INSTALLING THE LIGHTED
Recessed Troffer Fixture
Illustration 1.
- Select a convenient location with proper clearance in the ballast cover and drill or
punch a / hole ( / knockout). Insert the / bushing into the hole. Push the plastic tube through the bushing.
Route the leads of the through the plastic tube. Connect the LED wires from the unit to the
(V to Red, to White/Red). Push the entire assembly back into the tube until the lens collar rests against the plastic
tube. The plastic tube should be adjusted so that the is within / of the fixture lens. The
must be visible after installation. Refer to
78" 12" 78"
14"
INDICATOR LIGHT INDICATOR LIGHT
INDICATOR LIGHT INDICATOR LIGHT
iolet Brown
Strip Fixture -
Refer to Illustration 2.
Select a convenient location on the fixture so the can be seen after installation.
Allow for proper clearance inside the fixture and drill or punch a 1/2" hole. Remove the nut from the
. Push the housing into the 1/2" hole and secure with the nut. Connect the LED wires
from the .
TBTS
TBTS
TBTS
TBTS
(Violet to Red, Brown to White/Red)

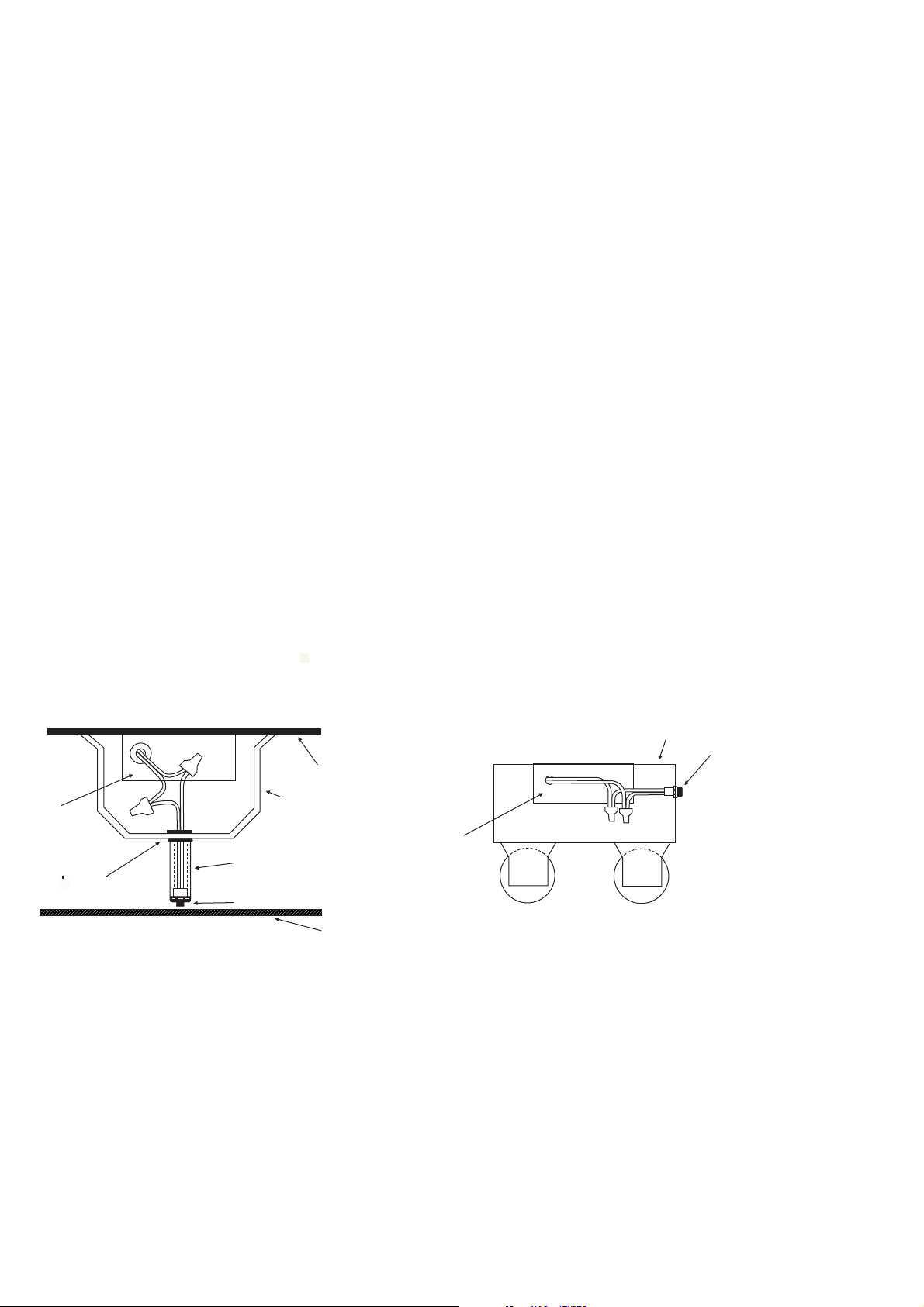

Illustration 1
Recessed Troffer Fixture
Illustration 2
Strip Fixture
7/8 BUSHING
FIXTURE
BALLAST CHANNEL COVER
PLASTIC TUBE
FIXTURE LENS OBSERVE PROPER POLARITY
FIXTURE
TBTS
TBTS
FPDL-32
FPDL-32

6. LABELS
Attach the appropriate labels adjacent to the . Annotate Re-lamping label for lamp type and wattage. The
Caution and the Re-lamping labels must be on the fixture in a readily visible location to anyone attempting to
service the fixture.
TBTS
7. COMPLETING INSTALLATION
When the installation is complete, switch the A.C. power on and join the unit connector.FPDL-32
OPERATION
Normal ode - A.C. power is present. The A.C. ballast operates the fluorescent lamp(s) as intended. The is in the
standby charging mode. The will be lit providing a visual indication that the battery is being charged.
FPDL-32
TBTS
TESTING & MAINTENANCE
Emergency ode - The A.C. Power fails. The senses the A.C. Power failure and automatically switches to the
. One lamp is illuminated, at reduced output, for a minimum of 90 minutes. When the A.C. Power is
restored, the switches the system back to the and resumes battery charging. See page 1 of the
Instruction Manual.
FPDL-32
FPDL-32
Emergency Mode
Normal Mode
Initial Testing - Allow the unit to charge approximately 1 hour, then press the to conduct a short discharge test.
Allow a 24 hour charge before conducting 90 minute test.
TBTS
The is a maintenance free unit, however, periodic inspection and testing is required. NFPA 101, Life Safety Code,
outlines the following schedule:
FPDL-32
onthly - Insure that the is illuminated. Conduct a 30 second discharge test by depressing the
. One lamp should operate at reduced output.
TBTS TBTS
Annually - Insure that the is illuminated. Conduct a full 11/2 hour discharge test. The unit should operate as
intended for the duration of the test.
TBTS
"Written records of testing shall be kept by the owner for inspection by the authority having jurisdiction."
SERVICING SHOULD BE PERFORMED BY QUALIFIED PERSONNEL.
Page 3
Pressing the red lens on the turns off the light on the and forces the unit into emergency
mode. This interrupts power to the emergency lamps only. The emergency lamp is now being lit by the unit and will be less
bright than the other lamps in the system. To simulate a BLACK OUT use the or circuit breaker to turn off A.C. Power.
TBTS TBTS
FPDL-32

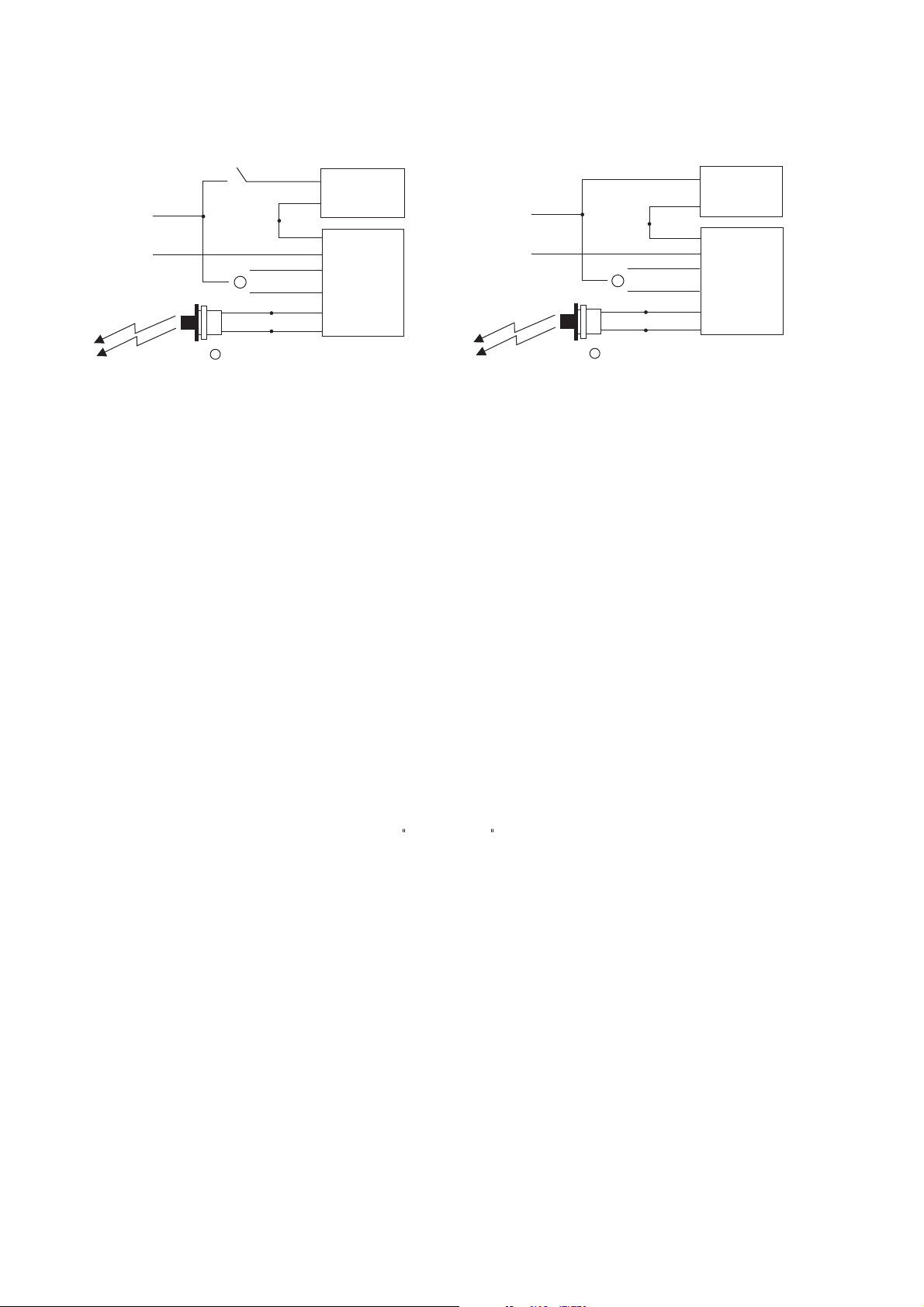

5. BALLAST WIRING BLOCK DIAGRAM
Illustration 3 Switched Fixture
BLACK
HOT A.C. LINE
COMMON
TBTS
WHITE
WHT/BLK
WHITE
(277V) ORG
(120V) BLK
1
1
WHT WHT/RED
+RED +RED
A.C. BALLAST
FPDL-32
Select proper voltage lead. Cap unused lead.
Unswitched Fixture
1
TBTS
1
WHT WHT/RED
+RED +RED
WHITE
WHT/BLK
WHITE
(277V) ORG
(120V) BLK
BLACK
HOT A.C. LINE
COMMON
A.C. BALLAST
Select proper voltage lead. Cap unused lead.
FPDL-32

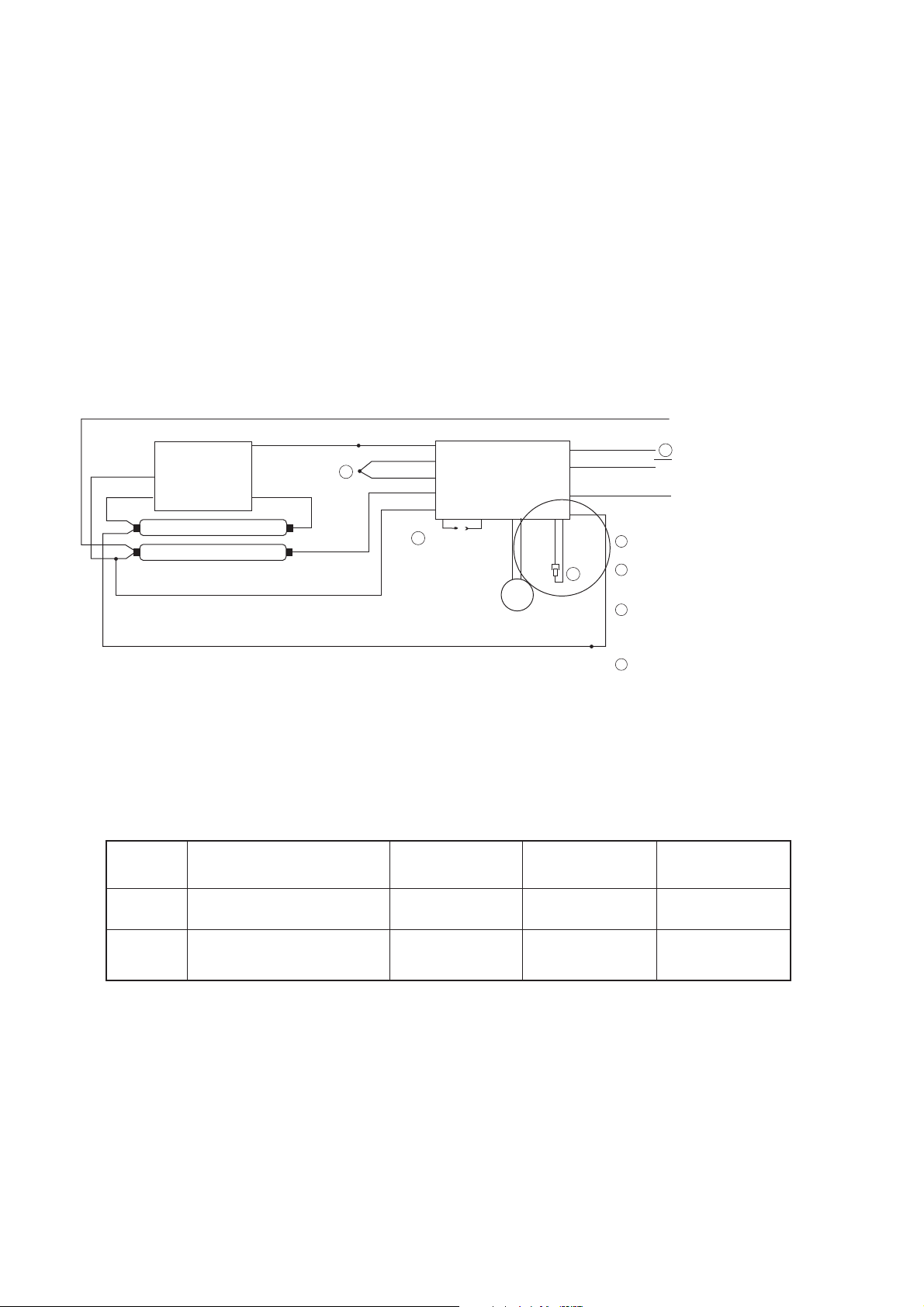

TYPICAL WIRING DIAGRAMS
Typical schematics only may be used other ballast, consult the factory wiring diagram
A.C.
Ballast
2
UNIT
CONNECTOR
BLACK
WHITE
RED
RED
*LAMP
BLUE
BLUE
BLUE
BLUE/WHT
YELL/BLK
RED
YELLOW
COMMON
*AC/EMERGENCY
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
A.C.
Ballast
*LAMP
LAMP
2
UNIT
CONNECTOR
COMMON
*AC/EMERGENCY
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
BLACK
WHITE
YELLOW
YELLOW
BLUE
BLUE
RED
RED
BLUE
BLUE/WHT
YELLOW
RED
A.C.
Ballast
*LAMP
LAMP
4
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
COMMON
*AC/EMERGENCY
2
UNIT
CONNECTOR
A.C.
Ballast
LAMP
*LAMP
LAMP
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
2
UNIT
CONNECTOR
COMMON
*AC/EMERGENCY
BLACK
WHITE
BLUE
BLUE
YELLOW
YELLOW
BLUE/WHT
BLUE/WHT
RED
RED
BLUE
BLUE/WHT
RED
YELLOW
A.C.
Ballast
LAMP
LAMP
*LAMP
4
2
UNIT
CONNECTOR
COMMON
*AC/EMERGENCY
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
BLACK
WHITE
RED
BLUE
BLUE
BLUE
BLUE/WHT
RED
YELLOW
BLACK
WHITE
RED
BLUE
BLUE
BLUE
BLUE
BLUE/WHT
RED
YELLOW
A.C.
Ballast
BLACK
WHITE
YELLOW
LAMP
LAMP
LAMP
*LAMP
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
2
UNIT
CONNECTOR
COMMON
*AC/EMERGENCY
YELLOW
BLUE
BLUE
RED
RED
BLUE
BLUE/WHT
RED
YELLOW
Page 4
YELL/BLK
YELL/BLK
YELL/BLK YELL/BLK
YELL/BLK
VIOLET
VIOLET
3
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
A.C.
Ballast
*LAMP
4
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
COMMON
*AC/EMERGENCY
2
UNIT
CONNECTOR
BLACK
WHITE
RED
BLUE BLUE
BLUE/WHT
RED
YELLOW
YELL/BLK
VIOLET
VIOLET
3
VIOLET
VIOLET
3
VIOLET
VIOLET
3
VIOLET
VIOLET
3
VIOLET
VIOLET
3
VIOLET
VIOLET

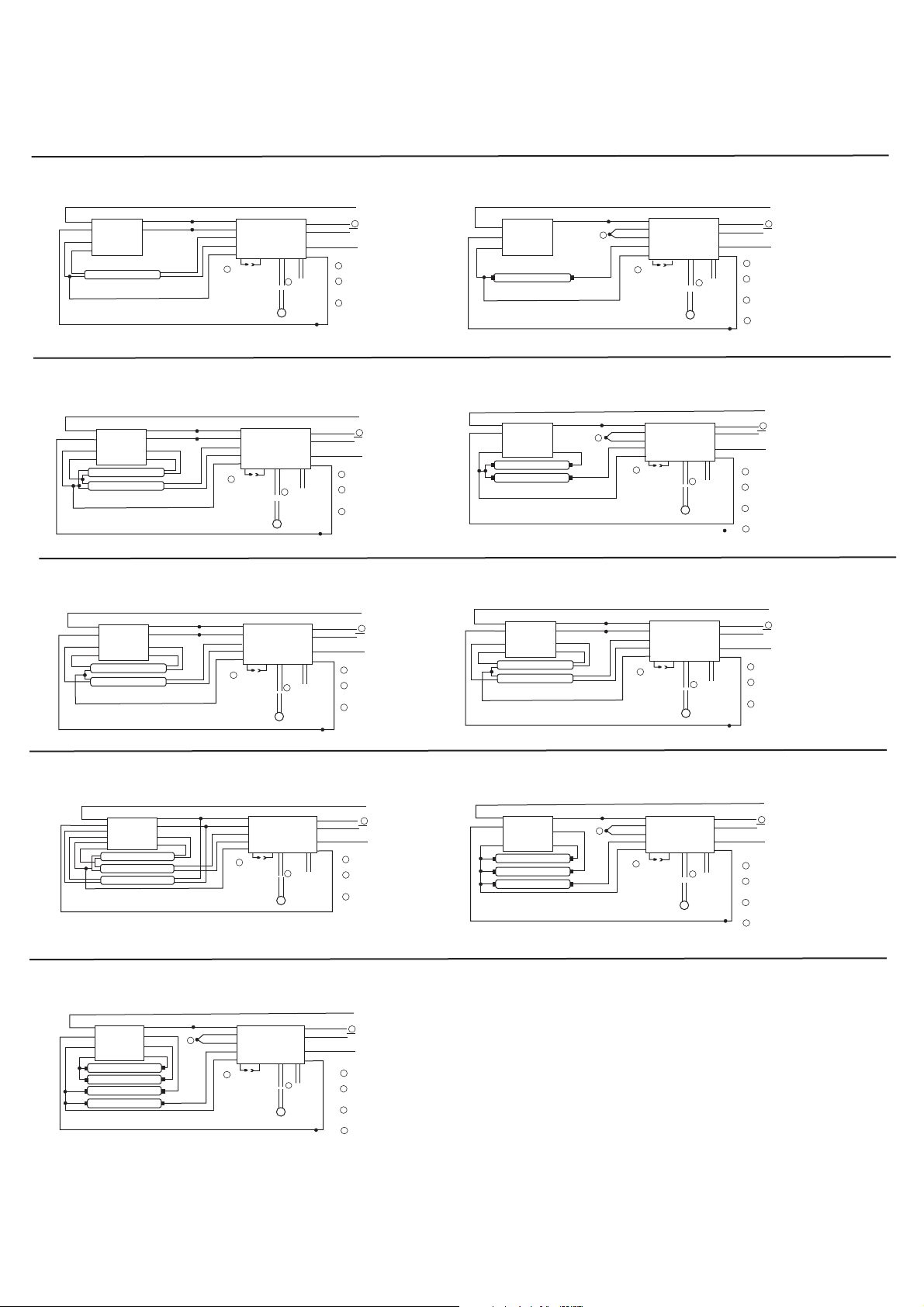

1. ONE LA P RAPID START BALLAST 2. ONE LA P INSTANT START BALLAST
3. TWO LA P RAPID START BALLAST 4. TWO LA P INSTANT START BALLAST
7. THREE LA P RAPID START BALLAST 8. THREE LA P INSTANT START BALLAST
9. FOUR LA P INSTANT START BALLAST
NOTE: Use the proper input voltage lead, cap unused lead
WHT/RED
RED
WHT/RED
RED
WHT/RED
RED
WHT/RED
RED
WHT/RED
RED
4
RED
WHT
WHT/RED
RED
WHT/RED
RED
TBTS
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
4
CONNECT BLU/WHT AND YELL/BLK
WIRES TOGETHER.
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
4
CONNECT BLU/WHT AND YELL/BLK
WIRES TOGETHER.
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
4
CONNECT BLU/WHT AND YELL/BLK
WIRES TOGETHER.
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
3
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
4
CONNECT BLU/WHT AND YELL/BLK
WIRES TOGETHER.
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
6.TWO LA POSRA SYLVANIA ONLYPROGRA
RAPIDSTART
A.C.
Ballast
*LAMP
LAMP
2
UNIT
CONNECTOR
COMMON
*AC/EMERGENCY
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
BLACK
WHITE
YELLOW
YELLOW
BLUE
BLUE
RED
RED
BLUE
BLUE/WHT
YELLOW
RED
YELL/BLK
VIOLET
VIOLET
3
5. TWO LA P T-5 SERIES YELLOW FILA ENT
WHT/RED
RED
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
A.C.
Ballast
*LAMP
LAMP
2
UNIT
CONNECTOR
COMMON
*AC/EMERGENCY
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
BLACK
WHITE
YELLOW
YELLOW
BLUE
BLUE
RED
RED
BLUE
BLUE/WHT
YELLOW
RED
YELL/BLK
VIOLET
VIOLET
3
WHT/RED
RED
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
2
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
3
TEST ACCESSORY LEADS-
REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER
POLARITY WIRING.
RED
WHT
RED
WHT
RED
WHT
RED
WHT
RED
WHT
TBTS
TBTS
TBTS
TBTS
TBTS
RED
WHT
TBTS
RED
WHT
TBTS
RED
WHT
FPDL-32
FPDL-32 FPDL-32
FPDL-32
FPDL-32
FPDL-32
FPDL-32
FPDL-32
FPDL-32

LAMP SELECTOR LEAD INSTRUCTIONS
This unit features Lamp Selector Leads (violet) for optimizing light
output of specified lamps. The unit is shipped from the factory with the
6 leads disconnected and capped.£
OPTION LAMP TYPE EMERGENCY
OPERATION *VIOLET LEADS WIRING
DIAGRAMS
1
2
2FTT8-T12
Single, Bipin(up to 20W)
4FT T8-T12
Single, Bipin( 20~40W)
For T5 Lamp MAX,28W
One Lamp
One Lamp
Connected
Disconnected
1,2,3,4,5,6,7,8,9
1,2,3,4,5,6,7,8,9
FPDL-32 Insert
Page 5
A.C.
Ballast
E ERGENCY
BALLAST
LAMP
*LAMP
*AC/EMERGENCY
COMMON
WHT/RED
RED (+)
TBTS /
CHARGE INDICATOR
2
UNIT
CONNECTOR
BLACK
WHITE
BLUE
RED
BLUE
BLUE/WHT
RED
YELLOW
YELL/BLK
4
VIOLET
VIOLET
3
ORG (277V)
BLK (120V)
WHITE
WHT/BLK
1
SWITCHED OR
UNSWITCHED
LINE
UNSWITCHED
COMMON
1
SELECT PROPER VOLTAGE
LEAD CAP UNUSED LEAD.
DO NOT MATE CONNECTOR UNTIL
INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
2
3
LAMP SELECTOR LEADS-REFER
TO INSTALLATION INSTRUCTIONS,
LAMP OPERATION SECTION FOR
VARIOUS OPTIONS.
4
CONNECT BLU/WHT AND YELL/BLK
WIRES TOGETHER.
A-0 Rev 0910
This unit can be used with most 2'-4' lamps. Refer to the chart below for the type of
lamp(s) operated and the number of lamps to be operated in emergency mode.
