Prolux MOVING WASH STROBE User manual

http://prolux.net.ua
17
MOVING WASH STROBE
USER MANUAL

http://prolux.net.ua
18
STATEMENT
The product has well capability and intact packing when leave factory.
All of the users should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also cannot be responsible for any malfunction & problem owing to
ignore the manual.
1. SAFETY INSTRUCTIONS
Please keep this User Guide for future consultation. If you sell the unit
to another user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before
using the unit.
Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to
avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while
operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by
taking its head only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it were
the temperature is higher than this Unit surface temperature may reach
up to 85℃.
DO NOT touch the housing bare hand during its operation. Turn off the
power and allow about 15 minutes for the unit to cool down before
replacing or serving.
The event of serious operating problem, stop using the unit
immediately. Never try to repair the unit by yourself. Repairs carried out

http://prolux.net.ua
19
by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance center. Always use the
same type of spare parts.
DO NOT touch any wire during operation as high voltage might be
causing
electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not
expose the unit to rain or moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the
housing or attempt any repairs yourself. In the unlikely event your unit
may require service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while
operating.
And make sure that the structure to which you are attaching the unit is
secure and can support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight of the
unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at
a place where is out of the touch of people.
2. TECHNICAL SPECIFICATIONS
Light Sources:
Zoom wash face: 6*60W 4IN1 RGBW LED;
Strobe face: 20*10W white led+384*0.5W 3in1 RGB Led
Beam Angle:4.5°- 55°

http://prolux.net.ua
20
PMMA high quality and high output optic
Power Consumption: 700w
Power Voltage: AC 100-260V, 50/60Hz
Control
DMX Channel:34/54 Channels
Control Protocol: DMX512/RDM
Pan/Tilt
Pan / Tilt : Infinite Rotation
Pan/Tilt Resolution: 8/16 bit
Magnetic coded reset system is adopted
Construction
Display:2.4 inch 180°reversible colorful TFT Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Power-Con in
Protection Rating: IP20
Reset the light fixture by menu or console
Equipped with Small and easy to operate Pan & Tilt fix lock

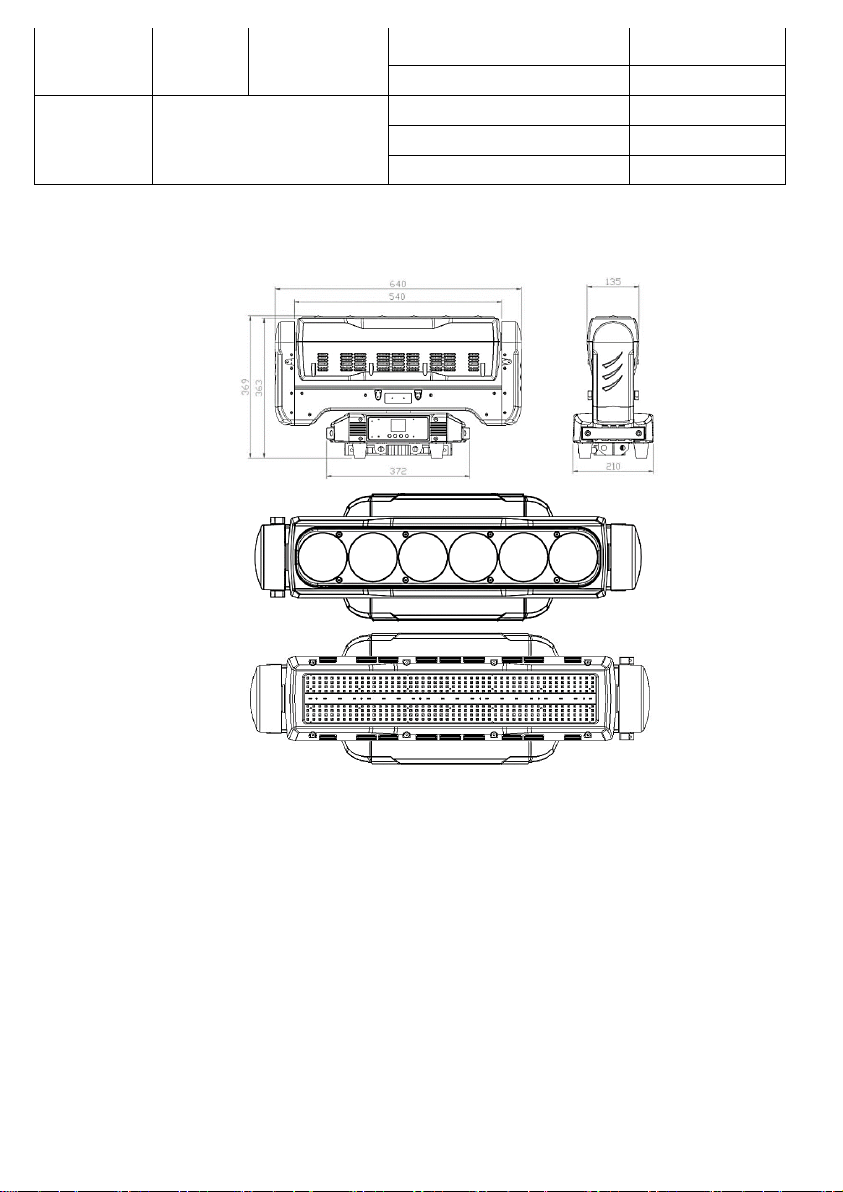

Dimension:640*210*400 mm
Net Weight:18 kg
Features
Double face moving head with beam, wash, strobe effect
Good to use for stage effect, background or stage shape
Dimmer:0~100% smooth dimming
Four dimmer model in optional( delay or without delay)
Led single controlled
Strong beam effects with high brightness
Led temperature protection & auto adjust led brightness
Fan run speed automatic based on the head temperature.
3. LUX DATA (6x60W wash face data)

http://prolux.net.ua
21
4. DISPLAY & MENU
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1 Press "Menu" to "Set DMX Address", and press "ENTER" keys to
enter
2 Show "Set DMX Address DMX Address:001", Press the "UP and
DOWN" keys to amended
3 Press "ENTER" keys to save and Exit, Press the "MENU" Keys does
not save and Exit
Menu
Pan Degree
540 degree
360 degree
Mic Sense
001 - 100,Sound sensitivity adjustment
Language
English
Chinese
Reset
Yes
No
Default
Yes
No
Adjust
Pass Word:up+down+up+down

http://prolux.net.ua
22
Pan
0 - 255
Tilt
0 - 255
Focus
0 - 255
Red
0 - 255
Green
0 - 255
Blue
0 - 255
White
0 - 255
Address
Setting from 001 - 512
Reverse
Forward or
reversed
setting
Pan
1.Yes
2.No
Tilt
1.Yes
2.No
Display
1.Yes
2.No
Inform
1.CH Value
Each channel value
2.Temp ℃
Temperature of led board
3.Soft V1.0
Show the version number
Mode
DMX 512
Control by DMX console
AUTO
Master
Alone
SOUND
Master
Alone
Manual
Master
Pan:0--
255
Manual
control (“1”
mean wash
zoom face;
“2” means
strobe face)
Tilt:0--255
Focus:0--
255
Red1:0--
255
Green1:
0--255
Blue1: 0--
255
White1: 0-
-255

http://prolux.net.ua
23
Alone
Strobe1:
0--255
Red2:0--
255
Greed2:
0--255
Blue2:0-
255
White2:0--
255
Strobe2:0-
255
Channel
45 channels
45
channel
mode
Channel
25 channels
25
channel
mode
5. DMX CHANNEL LIST
Model 1 - CH54
Channel
Function
Description
Value
CH-1
Pan
Pan adjustment
0 --- 255
CH-2
Pan fine
Pan fine adjustment
0 --- 255
CH-3
Tilt
Tilt adjustment
0 --- 255
CH-4
Tilt fine
Tilt fine adjustment
0 --- 255
CH-5
Pan/Tilt speed
from fast to slow
0 --- 255
CH-6
Pan infinite rotation
No function
0 --- 55
Rotating from slow to fast
56 --- 155
Rotating from slow to fast
156---255
CH-7
Tilt infinite rotation
No function
0 --- 55
Clockwise rotating from slow
to fast
56 --- 155
Anticlockwise rotating from
slow to fast
156---255
CH-8
strobe
No function
0-15

http://prolux.net.ua
24
6x60W
wash face
Strobe from fast to slow
16--214
Random strobe
215--225
CH-9
Dimmer
From dark to bright
0-255
CH-10
Dimmer mode
Model - 1
0 --- 49
Model - 2
50 --- 99
Model - 3
100--- 149
Model - 4
150--- 255
CH-11
zoom
Angle from big to small
0 --- 255
CH-12
Red - 1
From dark to bright
0 --- 255
CH-13
Green - 1
CH-14
Blue - 1
CH-15
White - 1
CH-16
Red - 2
0 --- 255
CH-17
Green - 2
CH-18
Blue - 2
CH-19
White - 2
CH-20
Red - 3
0 --- 255
0 --- 255
CH-21
Green - 3
CH-22
Blue - 3
CH-23
White - 3
CH-24
Red - 4
From dark to bright
0 --- 255
CH-25
Green - 4
CH-26
Blue - 4
CH-27
White - 4
CH-28
Red - 5
0 --- 255
CH-29
Green - 5
CH-30
Blue - 5
CH-31
White - 5
CH-32
Red - 6
0 --- 255
CH-33
Green - 6
CH-34
Blue - 6
CH-35
White - 6
CH-36
Static color
No function
0----15
R 100%,G up,B0%
16----35

http://prolux.net.ua
25
R down,G 100%,B0%
36----55
R 0%,G 100%,B up
56----75
R 0%,G100%,B up
76----95
R up,G0%,B100%
96----115
R 100%,G0%,B down
116----135
CH-36
Static color
R 100%,G up,B up
136----155
R100%,G down,B100%
156----175
R100%,G
100%,B100%,W100%
176----195
2800K
196----200
3200K
201----205
3500K
206----210
4000K
211----215
4500K
216----220
5000K
221----225
5500K
226----230
6000K
231----235
6500K
236----240
7000K
241----245
7500K
246----250
8000K
251----255
CH-37
No function
0 ----9
3 DMX value per effect
10 --- 99
CH-38
Effect
Jump change
100--- 149
gradual change
150--- 255
Patterns
Static Pattern -1
0 --- 9
Static Pattern -2
10 --- 19
Static Pattern -3
20 --- 29
Static Pattern -4
30 --- 39
Static Pattern -5
40 --- 49
Static Pattern -6
50 --- 59
Static Pattern -7
60 --- 69
Static Pattern -8
70 --- 79
Static Pattern -9
80 --- 89

http://prolux.net.ua
26
Static Pattern -10
90 --- 99
Static Pattern -11
100--- 109
Static Pattern -12
110--- 119
Static Pattern -13
120--- 129
Static Pattern -14
130--- 139
Static Pattern -15
140--- 149
Static Pattern -16
150--- 159
Dynamic Pattern -1
160--- 169
Dynamic Pattern -2
170--- 179
Dynamic Pattern -3
180--- 189
Patterns
Dynamic Pattern -4
190--- 199
Dynamic Pattern -5
200--- 209
Dynamic Pattern -6
210--- 219
Dynamic Pattern-7
220--- 229
Dynamic Pattern -8
230--- 255
CH-39
Pattern change speed
0 --- 255
CH-40
Pattern change fade
0 --- 255
CH-41
Pattern with Red color from dark to bright
0 --- 255
CH-42
Pattern with green color from dark to bright
CH-43
Pattern with blue color from dark to bright
CH-44
Pattern with white color from dark to bright
CH-45
Strobe face
Dimmer
From dark to bright
0--255
CH-46
Strobe
Led on
0---3
Synchronously strobe speed
from slow to fast
4--203
Random strobe
201--255
CH-47
Dimming of middle area white led from dark to
bright
0--255
CH-48
Dimming of two side red led from dark to bright
0--255
CH-49
Dimming of two side green led from dark to bright
0--255
CH-50
Dimming of two side blue led from dark to bright
0--255
CH-51
Dynamic
patterns
No function
0--9
Dynamic pattern 1
10--19
Dynamic pattern 2
20-29
10 DMX value per pattern
.......

http://prolux.net.ua
27
Dynamic pattern 16
160--255
CH-52
Patterns
translation
(work with CH
51)
Select pattern scene
0--255
CH-53
Pattern auto
run speed
(work with CH
51)
No function
0--9
forward run fast to slow
10--132
Reverse run slow to fast
133--255
CH-54
Reset
No function
0--9
Reset
10--132
No function
133-255
Model 2 - CH34
Channel
Function
Description
Value
CH-1
Pan
Pan adjustment
0 --- 255
CH-2
Pan fine
Pan adjustment
0 --- 255
CH-3
Tilt
Tilt adjustment
0 --- 255
CH-4
Tilt fine
Tilt adjustment
0 --- 255
CH-5
Pan/Tilt speed
from fast to slow
0 --- 255
CH-6
Pan infinite rotation
No function
0 --- 55
Clockwise rotating from slow
to fast
56 --- 155
Anticlockwise rotating from
slow to fast
156---255
No function
0 --- 55
Clockwise rotating from slow
to fast
56 --- 155
CH-7
Tilt infinite rotation
Anticlockwise rotating from
slow to fast
156---255
CH-8
6*60w
wash face
Strobe
No function
0 --- 15
from slow to fast
16 --- 214
Random strobe
215---255
CH-9
Dimmer
From dark to bright
0 --- 255
CH-10
Dimmer Model
Model - 1
0 --- 49
Model - 2
50 --- 99
Model - 3
100--- 149
Model - 4
150--- 255

http://prolux.net.ua
28
CH-11
6*60w
wash face
Zoom
Angle from big to small
0 --- 255
CH-12
Red
From dark to bright
0 --- 255
CH-13
Green
CH-14
Blue
CH-15
White
CH-16
6*60w
wash face
Static color
No function
0----15
R 100%,G up,B0%
16----35
R down,G 100%,B0%
36----55
R 0%,G 100%,B up
56----75
R 0%,G100%,B up
76----95
R up,G0%,B100%
96----115
R 100%,G0%,B down
116----135
R 100%,G up,B up
136----155
R100%,G down,B100%
156----175
R100%,G
100%,B100%,W100%
176----195
2800K
196----200
3200K
201----205
3500K
206----210
4000K
211----215
6*60w
wash face
Static color
4500K
216----220
5000K
221----225
5500K
226----230
6000K
231----235
6500K
236----240
7000K
241----245
7500K
246----250
8000K
251----255
CH-17
Effects
No function
0 ---- 9
3 DMX value per effect
10 --- 99
Jump change
100 --- 149
gradual change
150 --- 255
Pattern
Pattern -1
0 --- 19
Pattern -2
20 --- 29

http://prolux.net.ua
29
CH-18
6*60w
wash face
Pattern
Pattern -3
30 --- 39
Pattern -4
40 --- 49
Pattern -5
50 --- 59
Pattern -6
60 --- 69
Pattern -7
70 --- 79
Pattern-8
80 --- 89
Pattern -9
90 --- 99
Pattern -10
100 --- 109
Pattern -11
110 --- 119
Pattern -12
200 --- 255
CH-19
Pattern change speed
0 --- 255
CH-20
Pattern change fade
0 --- 255
CH-21
Pattern with Red from dark to bright
0 --- 255
CH-22
Pattern with Green from dark to bright
0 --- 255
CH-23
6*60w
face
Pattern with Blue from dark to bright
0 --- 255
CH-24
Pattern with White from dark to bright
0 --- 255
CH-25
Strobe
face
Dimmer
0-100% linear dimmer
0--255
CH-26
Strobe
Led on
0--3
Synchronously strobe from
slow to fast
4--203
Random strobe
204--255
CH-27
Middle white Led 0-100% dimmer
0--255
CH-28
Both side Red led 0-100% dimmer
0--255
CH-29
Both side Green led 0-100% dimmer
0--255
CH-30
Both side Blue led 0-100% dimmer
0--255
CH-31
Dynamic pattern
No function
0--9
Dynamic pattern 1
10--19
Dynamic pattern 2
20--29
Strobe
face
10 DMX value per pattern
......
Dynamic pattern 15
150--159
Dynamic pattern 16
160--255
CH-32
Pattern
translatio n
(work with
CH31)
Select pattern scene
0--255
CH-33
No function
0--9

http://prolux.net.ua
30
Pattern auto run
speed(w ork
with CH31)
Forward run from fast to
slow
10--132
Reverse fun from slow to fast
133-255
CH-34
Reset
No function
0 --- 79
Reset
80 --- 99
No
100 --- 255
6. Shape
7. Trouble shooting
Following are a few common problems that may occur during
оperation. Here are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not
work
1. Check the connection of power and main fuse.

http://prolux.net.ua
31
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors,
cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check
the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the pins
on connectors or on PCB of the unit
or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high
voltage cables that may cause damage
or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged, or the cable connected
to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition
Table of contents
Other Prolux Lighting Equipment manuals

Prolux
Prolux LED PAR 1818 User manual

Prolux
Prolux R02 Series User manual

Prolux
Prolux P-ML 350 User manual

Prolux
Prolux LED FOLLOW 600 User manual

Prolux
Prolux LED FOLLOW 350 User manual

Prolux
Prolux MATRIX BAR 2 IP Wi User manual

Prolux
Prolux LUX LED 740 User manual

Prolux
Prolux MATRIX BAR 6 IP User manual

Prolux
Prolux 611 695 User manual
