emerio FH-125938.1 User manual

- 1 -
Content – Inhalt – Teneur – Inhoud – Treść
Instruction manual –English......................................................................................- 2 -
Bedienungsanleitung –German...............................................................................- 15 -
Mode d'emploi –French ..........................................................................................- 30 -
Gebruiksaanwijzing –Dutch.....................................................................................- 45 -
Instrukcja obsługi – Polish........................................................................................- 60 -

- 2 -
Instruction manual English
         


Before use make sure to read all of the below instructions in
order to avoid injury or damage, and to get the best results
from the appliance. Make sure to keep this manual in a safe
place. If you give or transfer this appliance to someone else
make sure to also include this manual.
In case of damage caused by user failing to follow the
instructions in this manual the warranty will be void. The
manufacturer/importer accepts no liability for damages
caused by failure to follow the manual, a negligent use or use
not in accordance with the requirements of this manual.
1. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by
children without supervision.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
5. Children of less than 3 years should be kept away unless
continuously supervised.
6. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position
and they have been given supervision or instruction
concerning use of the appliance in a safe way and

- 3 -
understand the hazards involved. Children aged from 3
years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
7. 


8. This appliance contains a UV emitter. Do not
stare at the light source.
9. In order to avoid overheating, do not cover the
appliance.
10. The appliance must not be located immediately below a
socket outlet.
11. Do not use this appliance in the immediate surroundings of
a bath, a shower or a swimming pool.
12.  This appliance is not equipped with a device to
control the room temperature. Do not use this appliance in
small rooms when they are occupied by persons not
capable of leaving the room on their own, unless constant
supervision is provided.
13. Prior to cleaning or other maintenance, the appliance must
be disconnected from the supply mains.
14. Means “DO NOT COVER”.
15. Do not use this appliance if it has been dropped.
16. Do not use if there are visible signs of damage to the
appliance.
17. Use this appliance on a horizontal and stable surface.
18. Before inserting the plug into the mains socket, please
check that the voltage and frequency comply with the
specifications on the rating label.
19. Disconnect the mains plug from the socket when the
appliance is not in use and before cleaning.
20. Ensure that the mains cable is not hung over sharp edges
and keep it away from hot objects and open flames.

- 4 -
21. Do not immerse the appliance or the mains plug in water or
other liquids. There is danger to life due to electric shock!
22. To remove the plug from the plug socket, pull the plug. Do
not pull the power cord.
23. Do not plug or unplug the appliance from the electrical
outlet with a wet hand.
24. Never attempt to open the housing of the appliance, or to
repair the appliance yourself. This could cause electric
shock.
25. Never leave the appliance unattended during use.
26. This appliance is not designed for commercial use.
27. Do not use the appliance for other than intended use.
28. Do not wind the cord around the appliance and do not bend
it.
29. Do not place any objects on the air inlet or outlet. Make
sure that the ventilation openings are free of dust, lint, hair
and other obstacles that could impair the air flow.
30. Keep the appliance at least 1.5 meters away from the fire
source or tinder, and avoid direct sunlight.
31. It is forbidden to replace the power switch by the method
of plugging (unplugging) the power cord plug.
32. Do not use the appliance against the power outlet or under
the power outlet. The power outlet should be placed
behind the appliance when the heater function (warm
mode) is in use.
33. Do not share the socket with other high-power appliances.
34. This product must be equipped with a CE-approved fixed
socket that is consistent with the rated working current. Do
not use a mobile multi-purpose socket.

- 5 -
 

1. Air duct
2. Air outlet
3. LED display
4. Top cover
5. Air inlet
6. Base
7. Air duct
8. Top cover
9. Air inlet
10. Main body
11. Power cord

1. On/off button (can also be used to control the air volume, swing function and Wi-Fi reset)
2. Digital display of temperature (In cool mode, display in white; in warm mode, display in orange)
3. Digital display of humidity and other settings
4. Filter replacement alert
5. UV sterilization indicator light
6. Wi-Fi indicator light

- 6 -

Please place the appliance in a horizontal position. Please do not use the appliance in high temperature and
humidity (bathroom, kitchen).

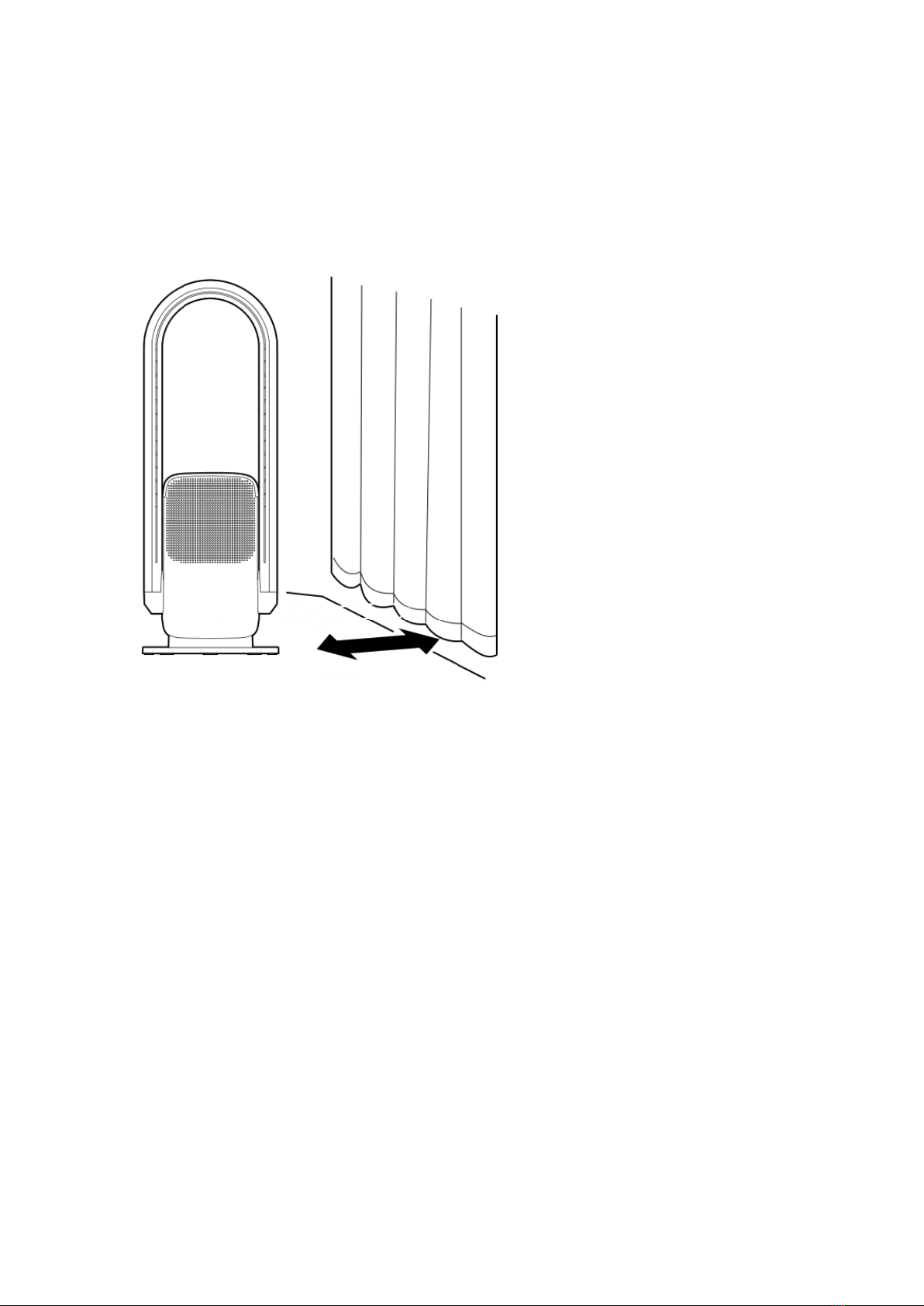

Avoid blocking the air inlet and air outlet when the product is in use. Please keep the product far away from
curtains.
Do not place anything within 1 meter in front of the air outlet to ensure that the airflow would not be
reduced.

1. Insert the plug into a suitable power outlet. Press the power switch to position “I“. The appliance is in standby
mode.
2. To turn on and off:
Press the on/off button on the control panel the buzzer will beep once and the appliance will start running.
Press and hold the on/off button for about 2 seconds, the buzzer will beep twice and the appliance will stop
running. Press the on/off button for about 5 seconds, the buzzer will beep three times and the appliance
enters into Wi-Fi pairing (see the section “”).
3. To set the oscillation function:
Press and hold the on/off buton on the control panel for 1 second the buzzer will beep once and the
appliance will start oscillating. Press and hold the on/off button for 1 second again the buzzer will beep once
and the appliance will stop oscillating.
The appliance starts working in cool mode by default; it sends out the cool air. Press the on/off button on the
control panel, you can adjust the air volume from 1 to 9 under cool mode. To switch to the warm mode, or use
more functions, please refer to below paragraphs and operate by the control panel or smart phone (after WiFi
connected).
 When the appliance runs in warm mode, the air duct will become hot. Shortly after the appliance is
turned off, the air duct may still be too hot to touch.
The air duct angle can be adjusted. Before the adjustment, make sure the product is turned off. Hold the
main body with one hand, push the air duct with another hand forward or backward in 15 degrees.
Keep a distance

- 7 -

This unit has a remote control. Please use 2x1.5V AAA batteries for this remote control.
Open the battery cover at the back of the remote control. Put in 2x1.5V AAA batteries appropriately. Close back
the battery cover. See the drawing below for reference.
If it is not in use for a long time, please take the batteries out of the remote control.


The remote control should be pointed at the signal receiver on the digital display to maximize the remote control
signal. Effective distance: 4M
The remote control and batteries are not toys. Please keep them out of children's reach.
1. On/off button
Press the on/off button to turn on the appliance. Press the button again to turn off the appliance.
2. Sleep mode button
battery cover
Please insert the battery correctly.

- 8 -
Press the sleep mode button the digital display will show “LL” and the wind speed will become minimum.
Press the button again to exit the mode. (You can also exit the mode by pressing the air volume button
“+”/“-”.) Sleep mode is inactive in the warm mode.
3. Max mode button
Press the max mode button the digital display will show “HH” and the wind speed will become maximum.
Press the button again to exit the mode. (You can also exit the mode by pressing the air volume button
“+”/“-”.) Max mode is inactive in the warm mode.
4. Oscillation button
Press the oscillation button to turn on the oscillation function. Press the button again to stop oscillating.
5. UV sterilization button
Press the UV sterilization button to turn on the UV sterilization function. The digital display will show “ ”.
The UV lamp inside the appliance will effectively kill bacteria/virus in the air. Press the button again to turn
the function off. This function will automatically shut down after 1 hour.
6. Cool mode button
Press the cool mode button to enter the cool mode. You can adjust the air volume under this mode by the
air volume button “+”/”-” (on the left side of the remote control).
Note: cool mode is the default mode when the appliance is turned on.
7. Air volume button
Press the button “+” on the left side of the remote control to increase the air volume. Press the button “-”
on the left side of the remote control to decrease the air volume. There are 9 level settings for cool mode.
There are 4 level settings for warm mode.
8. Warm mode button
Press the warm mode button to enter the warm mode. The digital display will show the ambient temperature.
You can adjust the air volume and the temperature under this mode.*
Note: under warm mode, max mode and sleep mode are not available.
9. Temperature button
Under warm mode, press the button “+”/”-” on the right side of the remote control to set the temperature
between 1-30℃.
Note: buttons do not work under cool mode.
10. Timer button
Press the timer button to set the working time from 1 to 8 hours. A small “” will flash on the lower right
corner of the digital display to indicate the timer is under setting/operation.
* The set temperature should be higher than the ambient temperature so that the warm mode function will be
turned on. When the ambient temperature reaches the set temperature the warm mode function will stop. The
appliance will send out a cool breeze for approx. 40 seconds and then turn into standby mode. When the
ambient temperature is lower than the set temperature the warm mode function will automatically activate.
Under warm mode, the default set temperature is 25℃. When the ambient temperature is below 0℃the digital
display will only show “01” instead of negative temperature value. After running over 9 hours under the warm
mode, the appliance will automatically stop running. Restart by pressing the on/off button on the control panel
or by using the remote control.
Note: the temperature can only be set by the remote control. The control panel does not support this operation.

1. This appliance may respond to the remote control of other devices.
2. If you use the remote control of this appliance, other devices may respond.

- 9 -
This is due to the overlapping frequencies of the remote control. There is no quality problem in the product itself.
To avoid misuse, keep the remote control away from other electrical devices during operation.

1. The digital display will extinguish in approx. 20 seconds with no operations. If you want to do further
operations, firstly press any button (except for the on/off button) on the remote control or the on/off button
on the control panel to turn on the digital display.
2. The on/off button on the remote control will turn the appliance to standby mode, not complete shutdown.
Please press the power switch on the main body to completely power off when this appliance is not in use.
If this appliance is not in use for a long time, please unplug the power cord.

This appliance is equipped with a purifying air filter which can purify the air.
After a total of 720 hours of operation, the filter replacement alert “ ” will light up on the LED display,
indicating that the filter needs to be replaced. Follow below steps.

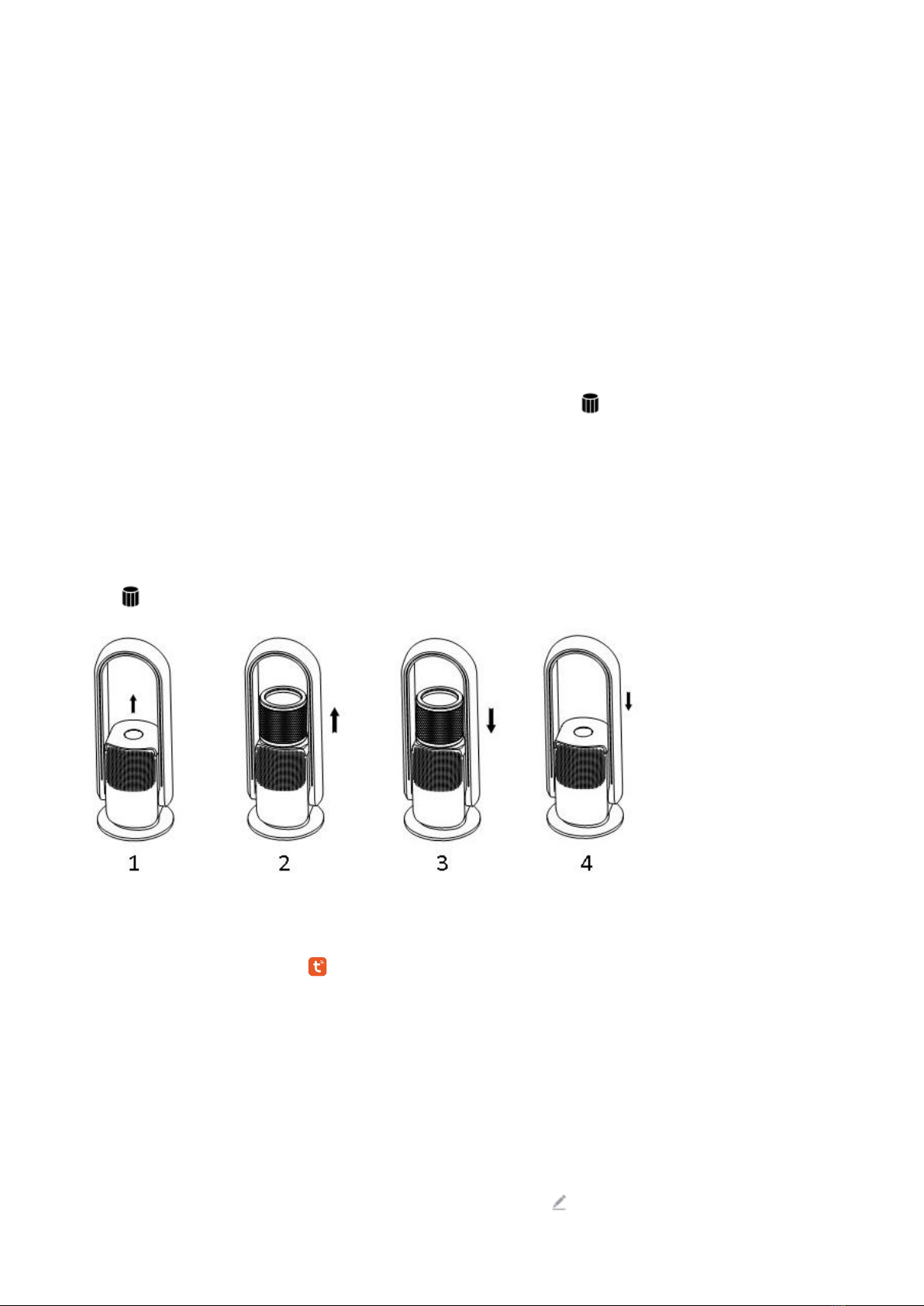

1. Lift and take off the top cover.
2. Lift out the old air filter.
3. Install the new filter into the main body of the product.
4. Reinstall the top cover. The magnetic lid will snap into the position automatically.
After the new filter has been replaced, long press the on/off button on the remote control for 5 seconds, the
alert “ ” will light off. The product will enter a new 720 hour cycle.


1. Search “Tuya smart” in App Store (for iOS) or Google play (for Android), download the application
“TuyaSmart” to your phone.
2. Sign up or log in to your account on Tuya. Check if the WI-FI indicator light is rapidly blinking. If not, long
press the on/off button on the control panel until buzzer beeps three times and the Wi-Fi indicator light
rapidly blinks.
3. When you open the application, there is a prompt asking you to add the appliance, or you can press the “+”
at right top or button “Add Device” to add your appliance. Select the “Small Home Appliances” and then the
icon “Fan”. After you confirm the Wi-Fi indicator light rapidly blinks, the appliance will be found too.
4. Press the icon “+” to add the appliance, and you will need to enter your Wi-Fi name and password. Please
use the 2.4 GHz Wi-Fi network. Note that the 5 GHz WI-Fi is not supported by this application.
5. The appliance will be added after a few seconds.
6. You can set the name for your device by pressing the pencil logo ( ) besides, and select the location of your

- 10 -
device. Then press “Done” at the top right corner.
7. Now you can operate the appliance in the interface below. Press the corresponding button to set your
appliance. Check the illustrations below.
a. Appliance name
b. Back to home page: press it, you can get back to the
home page, on which you can simply turn on or turn
off your appliance.
c. More settings: press it, you can have more settings.
The option “Share Device” allows you to share the
operation of the appliance to other people.
d. Mute button: press it to set the operation with or
without beep sounds
e. Air volume selection bar: move the round logo on the
bar to select a desired air volume. When the warm
mode is selected, the warm air volume has 4 levels to
adjust. When the warm mode is not selected, if none
of the max mode, sleep mode and fresh mode is
selected, the cool air volume has 9 levels to adjust, if
any of the max mode, sleep mode and fresh mode is
selected, the air volume adjustment is not supported.
f. Display of air volume level
g. Display of current room temperature
h. Set temperature
i. Temperature decreasing button (only active in warm
mode)
j. Temperature increasing button (only active in warm
mode)
k. On/off button: press it to turn on/off the appliance. (“off” means the standby state)
l. Oscillation button: press it to choose the function or not
m. UV sterilization button: press it to choose the function or not
n. Timer setting: press it to select the working hours
o. Max mode button: press it to choose the function or not
p. Sleep mode button: press it to choose the function or not
q. Fresh mode button: press it to choose the natural wind or not. This is a function available only by APP
control, no such button on the remote control.
r. Warm mode button: press it to choose the warm mode or not
:
For the detailed explanation of the same functions, please refer to the “Remote control” section.
To choose the max mode, sleep mode or fresh mode (only one mode can be chosen at one time), the warm
mode should be cancelled first.
The button will light in green when the corresponding function is chosen.
When the network environment for the appliance has been changed, it requires to be reconfigured.
To make the appliance enter into Wi-Fi pairing mode, long press the on/off button on the control panel until
buzzer beeps three times and the Wi-Fi indicator light rapidly blinks.
When the Wi-Fi indicator light rapidly blinks, the appliance is waiting to be paired. When the Wi-Fi indicator
light illuminates still, the appliance has been connected to the Wi-Fi.

- 11 -

This appliance is equipped with an overheat protection sensor and an automatic fail-safe that cuts power to the
unit if it is accidentally tipped over or overheats. If this sensor is triggered, unplug the machine and allow it to
cool. Check and remove any obstructions before restarting the appliance and be sure to place it on a hard and
level surface.

Unplug the appliance before cleaning and maintenance.
Please do not put the appliance on the water or splash it, which may cause damage to the machine.
Do not use banana oil, benzine, alcohol, bleach or metal objects to wipe the surface of the appliance, which
may cause discoloration of the surface.
Wipe the surface with a soft, dry cloth. If especially dirty, dilute with a mild detergent and wipe with a soft
cloth. Then wipe with a dry cloth.
Use a soft brush or a vacuum cleaner to clean the dust at the air inlet and outlet. Please clean it when there
is less dust. Too much dust will reduce the efficiency.

Operating voltage: 220-240V ~ 50-60Hz
Power consumption: 2000W
Cool mode power: 35 W
Max. transmitting power: 20 dBm
Frequency range: 2400 ~ 2483.5 MHz
We, Emerio, declare under our sole responsibility that the product: FH-125938.1 is in conformity with the
essential requirements and other relevant requirements of the RED Directive (2014/53/EU)
The complete CE declaration is available at the following address: www.emerio.eu

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal rights,
the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective
product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs
by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,
without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual,
will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we
hold responsible for material damage or personal injury caused by improper use if the instruction manual is not
properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case
please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.
Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of
said parts are not covered by the warranty and are to be paid.

Recycling – European Directive 2012/19/EU
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.

- 12 -


Manufactured by: Emerio Deutschland GmbH
Lerchenweg 3, 40789 Monheim am Rhein, Deutschland

- 13 -

Supplier: Emerio Deutschland GmbH
Lerchenweg 3
40789 Monheim am Rhein
Deutschland
Declare that the product detailed below:

Model identifier(s):
Item
Symbol
Value
Unit
Item
Unit



Nominal heat
output
Pnom
2,0
kW
manual heat charge control, with integrated
thermostat
[no]
Minimum heat
output
(indicative)
Pmin
1,6
kW
manual heat charge control with room
and/or outdoor temperature feedback
[no]
Maximum
continuous heat
output
Pmax,c
2,0
kW
electronic heat charge control with room
and/or outdoor temperature feedback
[no]



fan assisted heat output
[no]
At nominal heat
output
elmax
0,000
kW
     

At minimum
heat output
elmin
0,000
kW
single stage heat output and no room
temperature control
[no]
In standby mode
elSB
0,001
kW
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[no]
with electronic room temperature control
[yes]
electronic room temperature control plus
day timer
[no]
electronic room temperature control plus
week timer
[no]
    

room temperature control, with presence
detection
[no]
room temperature control, with open
window detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[yes]

- 14 -
with black bulb sensor
[no]
Contact details
Emerio Deutschland GmbH
Lerchenweg 3
40789 Monheim am Rhein
Deutschland
Satisfies the requirement of the Council Directives:
COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU)
2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to
ecodesign requirements for local space heaters
Regarding information for consumers on how to install, use and maintain the product, WEEE information, please
check the instruction manual provided with packaging.


    




Maximum fan flow rate
F
10,18
m3/min
Fan power input
P
24,8
W
Service value
SV
0,41
(m3/min)/W
Standby power consumption
PSB
0,9
W
Fan sound power level
LWA
55,2
dB(A)
Maximum air velocity
c
2,0
meters/sec
Measurement standard for service
value
IEC 60879:2019 –Comfort fans and regulators for household
and similar purposes –Methods for measuring performance
Contact details for obtaining more
information
Emerio Deutschland GmbH
Lerchenweg 3
40789 Monheim am Rhein
Deutschland
Satisfies the requirement of the Council Directives:
COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU)
2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to
ecodesign requirements for air conditioners and comfort fans
Regarding information for consumers on how to install, use and maintain the product, WEEE information, please
check the instruction manual provided with packaging.

- 15 -
Bedienungsanleitung German



Lesen Sie vor dem Gebrauch unbedingt die nachfolgenden
Anleitungen, um Verletzungen oder Beschädigungen zu
vermeiden und das beste Ergebnis mit dem Gerät zu erzielen.
Bewahren Sie diese Bedienungsanleitung an einem sicheren
Ort auf. Wenn Sie dieses Gerät an eine andere Person
weitergeben, stellen Sie sicher, dass Sie auch diese
Bedienungsanleitung aushändigen.
Im Falle von Beschädigungen, die durch die Missachtung der
Anleitungen in dieser Bedienungsanleitung verursacht
wurden, wird die Garantie ungültig. Der Hersteller/Importeur
haftet nicht für Schäden, die durch Missachtung der
Bedienungsanleitung, fahrlässigen Gebrauch oder Benutzung,
die nicht in Übereinstimmung mit den Anforderungen dieser
Bedienungsanleitung erfolgt, verursacht wurden.
1. Dieses Gerät kann von Kindern ab 8 Jahren und Personen
mit eingeschränkten körperlichen, sensorischen oder
geistigen Fähigkeiten oder mangelnder Erfahrung und
Kenntnis benutzt werden, wenn sie beaufsichtigt werden
oder in die sichere Benutzung des Gerätes unterwiesen
werden und die damit verbundenen Gefahren verstehen.
2. Kinder dürfen nicht mit dem Gerät spielen.
3. Die Reinigung und vom Benutzer auszuführende
Wartungsarbeiten dürfen von Kindern nur unter Aufsicht
durchgeführt werden.
4. Wenn die Netzanschlussleitung dieses Gerätes beschädigt
wird, muss sie durch den Hersteller oder seinen
Kundendienst oder eine ähnlich qualifizierte Person ersetzt
werden, um Gefährdungen zu vermeiden.
5. Kinder unter 3 Jahre sollten ferngehalten werden, außer sie

- 16 -
werden ständig beaufsichtigt.
6. Kinder ab 3 Jahre und unter 8 Jahre dürfen das Gerät nur
an- und ausschalten, unter der Voraussetzung, dass es an
die normale Betriebsposition platziert oder montiert wurde
und sie beaufsichtigt werden oder in der sicheren
Bedienung des Gerätes unterrichtet wurden und die
involvierten Gefahren verstehen. Kinder ab 3 Jahre und
unter 8 Jahre dürfen das Gerät nicht an das Stromnetz
anschließen, einstellen und reinigen oder
Wartungsarbeiten durchführen.
7.        
     
    

8. WARNUNG Dieses Gerät enthält einen UV-Strahler.
Nicht in die Lichtquelle blicken.
9.  Das Gerät nicht abdecken, um ein
Überhitzen zu vermeiden.
10. Das Gerät darf nicht direkt unter einer Steckdose platziert
werden.
11. Verwenden Sie dieses Gerät nicht in unmittelbarer Nähe
von Bädern, Duschen oder Schwimmbecken.
12.  Das Gerät verfügt über keine Vorrichtung zur
Regulierung der Zimmertemperatur. Benutzen Sie dieses
Gerät nicht in kleinen Räumen, wenn sich darin Personen
aufhalten, die den Raum nicht ohne Hilfe verlassen können;
es sei denn, sie werden konstant beaufsichtigt.
13. Vor dem Reinigen oder Pflegen muss der Netzstecker des
Geräts aus der Steckdose gezogen werden.
14. Bedeutet " Nicht abdecken ".
15. Benutzen Sie das Gerät nicht nach einem Sturz.
16. Bei sichtbaren Geräteschäden nicht benutzen.
17. Benutzen Sie das Gerät auf einer horizontalen und stabilen
Fläche.

- 17 -
18. Bevor Sie den Stecker mit der Netzsteckdose verbinden,
prüfen Sie bitte, ob die Spannung und die Frequenz mit den
Angaben auf dem Typenschild übereinstimmen.
19. Ziehen Sie den Netzstecker aus der Steckdose, wenn das
Gerät nicht benutzt und bevor es gereinigt wird.
20. Achten Sie darauf, dass das Netzkabel nicht über scharfe
Kanten hängt und halten Sie es von heißen Objekten und
offenen Flammen fern.
21. Tauchen Sie das Gerät oder den Netzstecker nicht in Wasser
oder andere Flüssigkeiten. Es besteht Lebensgefahr
aufgrund von Stromschlag!
22. Um den Stecker aus der Steckdose zu entfernen, ziehen Sie
am Stecker. Ziehen Sie nicht am Kabel.
23. Den Netzstecker des Gerätes nicht mit einer nassen Hand
aus der Steckdose ziehen oder mit der Steckdose verbinden.
24. Versuchen Sie unter keinen Umständen, das Gehäuse des
Gerätes zu öffnen oder das Gerät selbst zu reparieren. Dies
könnte einen Stromschlag verursachen.
25. Lassen Sie das Gerät während des Gebrauchs niemals
unbeaufsichtigt.
26. Dieses Gerät ist nicht für den gewerblichen Gebrauch
konzipiert.
27. Verwenden Sie das Gerät nur zu seinem
bestimmungsgemäßen Zweck.
28. Wickeln Sie das Kabel nicht um das Gerät und knicken Sie es
nicht.
29. Legen Sie keine Gegenstände vor die Luftein- und -auslässe
am Gerät. Die Lüftungsöffnungen müssen frei von Staub,
Flusen, Haaren und andere Hindernissen sein, die den
Luftstrom einschränken können.
30. Halten Sie das Gerät mindestens 1,5 Meter von einer
Feuerquelle oder Zunder entfernt, und vermeiden Sie
direkte Sonneneinstrahlung.
31. Der Netzschalter darf nicht durch Einstecken (Ausstecken)
des Netzkabelsteckers ersetzt werden.
32. Stellen Sie das Gerät nicht gegen die Steckdose oder unter

- 18 -
die Steckdose. Die Steckdose sollte hinter dem Gerät
platziert werden, wenn die Heizfunktion (Heizmodus)
verwendet wird.
33. An der Steckdose dürfen keine anderen Geräten mit hoher
Leistung gleichzeitig angeschlossen sein.
34. Dieses Produkt muss mit einer CE-geprüften festen
Steckdose ausgestattet sein, die dem Nennbetriebsstrom
entspricht. Verwenden Sie keine mobile
Mehrzwecksteckdose.

- 19 -


1. Luftkanal
2. Luftauslass
3. LED-Display
4. Obere Abdeckung
5. Lufteinlass
6. Unterteil
7. Luftkanal
8. Obere Abdeckung
9. Lufteinlass
10. Gehäuse
11. Netzkabel
Bedienfeld (LED-Display)
1. Ein-/Aus-Taste (kann auch zur Steuerung der Luftmenge, der Schwenkfunktion und zum Rücksetzen der
WLAN-Funktion verwendet werden)
2. Digitale Anzeige der Temperatur (im Kühl-Modus Anzeige in Weiß; im Heizmodus Anzeige in Orange)
3. Digitale Anzeige der Luftfeuchtigkeit und weitere Einstellungen
4. Filterwarnmeldung
5. UV-Entkeimungsanzeige
6. WLAN-Anzeige
