emerio MG-110558.1 User manual

MG-110558.1
Meat grinder (EN)
Fleischwolf (DE)
Hachoir à viande (FR)
Tritacarne (IT)

- 1 -
Content –Inhalt –Teneur –Contenuto
Instruction manual –English ......................................................................................- 2 -
Bedienungsanleitung –German .................................................................................- 8 -
Mode d'emploi –French ..........................................................................................- 15 -
Manuale d'istruzioni –Italian...................................................................................- 22 -

- 2 -
Instruction manual –English
IMPORTANT SAFEGUARDS
1. Please read through the instruction manual carefully
before using the device for the first time, and store it in a
safe place for future reference. If you ever give the device
to a new owner, ensure that you also pass on this
instruction manual.
2. Always disconnect the appliance from the supply if it is
left unattended and before assembling, disassembling or
cleaning.
3. This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
4. Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
7. Switch off the appliance and disconnect from supply
before changing accessories or approaching parts that
move in use.
8. There is a potential risk of injuries from misuse.
9. Regarding the instructions for cleaning the surfaces which
come in contact with food, please refer to the paragraph
“cleaning and maintenance” of the manual.
10. Household use only. Do not use for industrial purpose.
11. Close supervision is necessary when any appliance is used
near children.
12. When carrying the unit be sure to hold the motor housing
with both hands. Do not carry the unit by holding only the
hopper plate or head.
13. Never feed food by hand. Always use food pusher.

- 3 -
14. Do not grind hard food such as bones, nuts, etc.
15. Do not grind ginger and other materials with hard fiber.
16. Continuous running of meat grinder should be not more
than 10 min. Before it’s used again, it must cool down
enough, about 30 min.
17. Reverse function is prohibited while the appliance is
operating, wait at least one minute until grinder has come
to a complete stop, otherwise it may cause an abnormal
noise, vibration or a transitory electric spark in the
appliance. It could result easily damage to appliance and
make a user frightened.
18. After use, there will be a little food left in the grinder head.
This is normal. There might be a bit of black metal powder
adhering to the food ground in the end. Please pick them
out and throw away, do not eat them.
19. To avoid jamming, do not force to operate the unit with
excessive pressure.
20. Never try to replace the parts and repair the unit by
yourself.
21. To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
22. Never leave the appliance unattended during use.
23. The blade is sharp, always pay close attention during use.
24. Put the appliance on a flat, stable and firm surface.
25. Never let it near or close to the open fires or inflammable
materials.
26. Only use the accessories which came with the appliance.
Do not try to replace or change them or for other
purpose.
27. When the circuit breaker activates, do not switch on.
28. Regarding the instructions for the use of accessories and
operation times, please refer to the below paragraphs.

- 4 -
MG-110558.1 EN

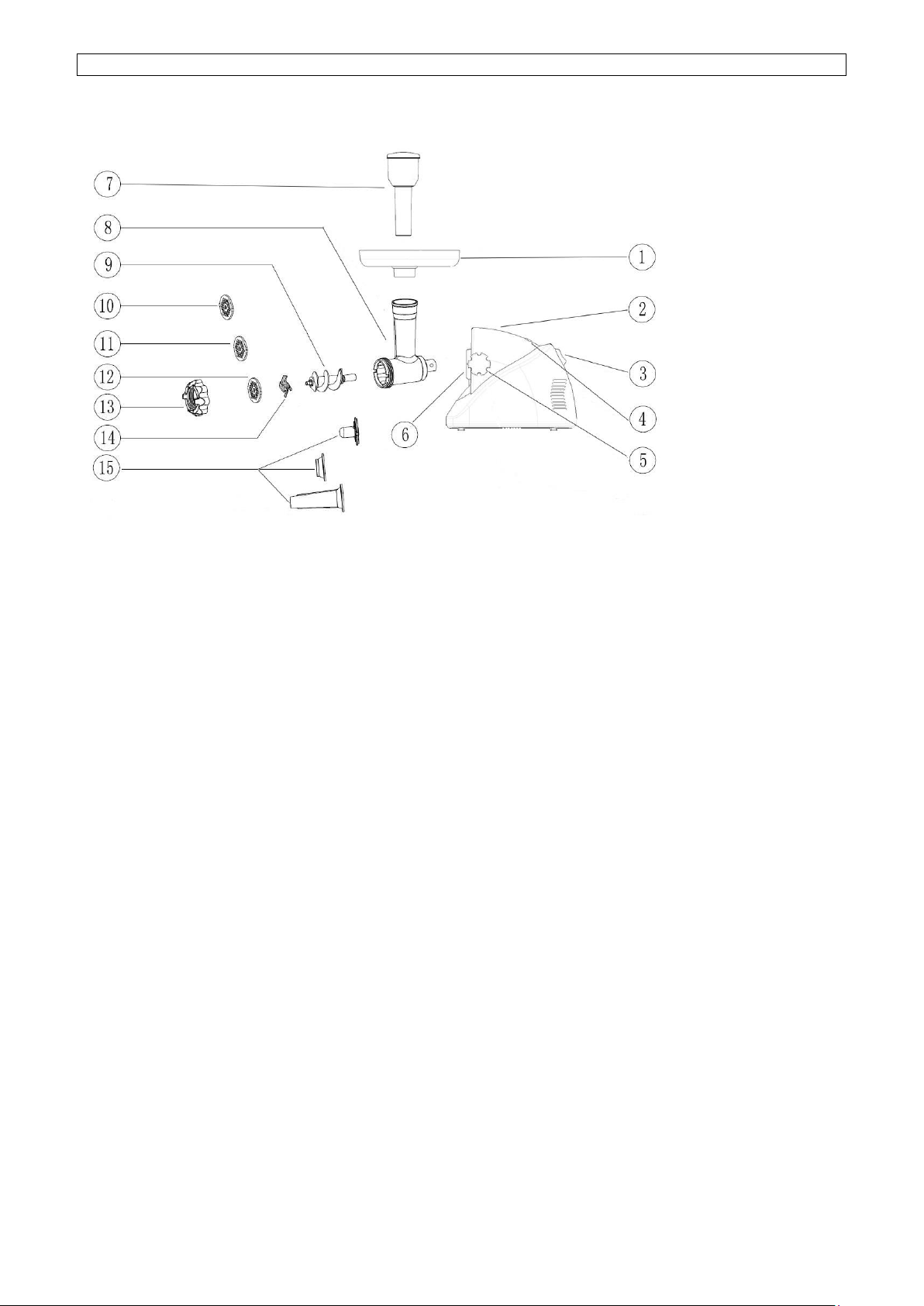

DESCRIPTION
1. Hopper plate
2. Motor housing
3. ON/OFF/ Reverse switch
(“I”: ON / “O”: OFF/ “II”: Reverse)
4. Reverse button
5. Locking knob
6. Head inlet
7. Food pusher
8. Head
9. Feed screw
10. Cutting plate (fine)
11. Cutting plate (medium)
12. Cutting plate (coarse)
13. Fixing ring
14. Cutting blade
15. Sausage and kibbe attachments
FOR THE FIRST TIME
1. Check that voltage indicated on the rating label corresponds to the mains voltage in your home.
2. Wash all parts (except motor housing) in warm soapy water. Rinse these parts thoroughly and then dry.
3. Sausage and kibbe attachments are stored in the food pusher. Take them out before using.
FOR USE
MINCING MEAT
Assembling:
1. Holding the head and insert it into the head inlet, tighten it by turn the locking knob clockwise to secure
the head.
2. Place the feed screw into the head, long end first, by turning the feed screw slightly until it is set into the
motor housing (fig.1).
3. Place the cutting blade onto the feed screw shaft with the blade facing the front as illustrated (fig.2). If it is
not fitted properly, meat will not be ground.
4. Place the desired cutting plate next to the cutting blade, fitting protrusions in the slots (fig.3).
5. Support or press the centre of the cutting plate with one finger then screw the fixing ring until tight with
another hand (fig.4). Do not over tighten.
6. Place the hopper plate on the head and fix into position. (fig.5)
7. Locate the unit on a firm place.
8. The air passage at the bottom and the side of the motor housing should be kept free and not blocked.

- 5 -

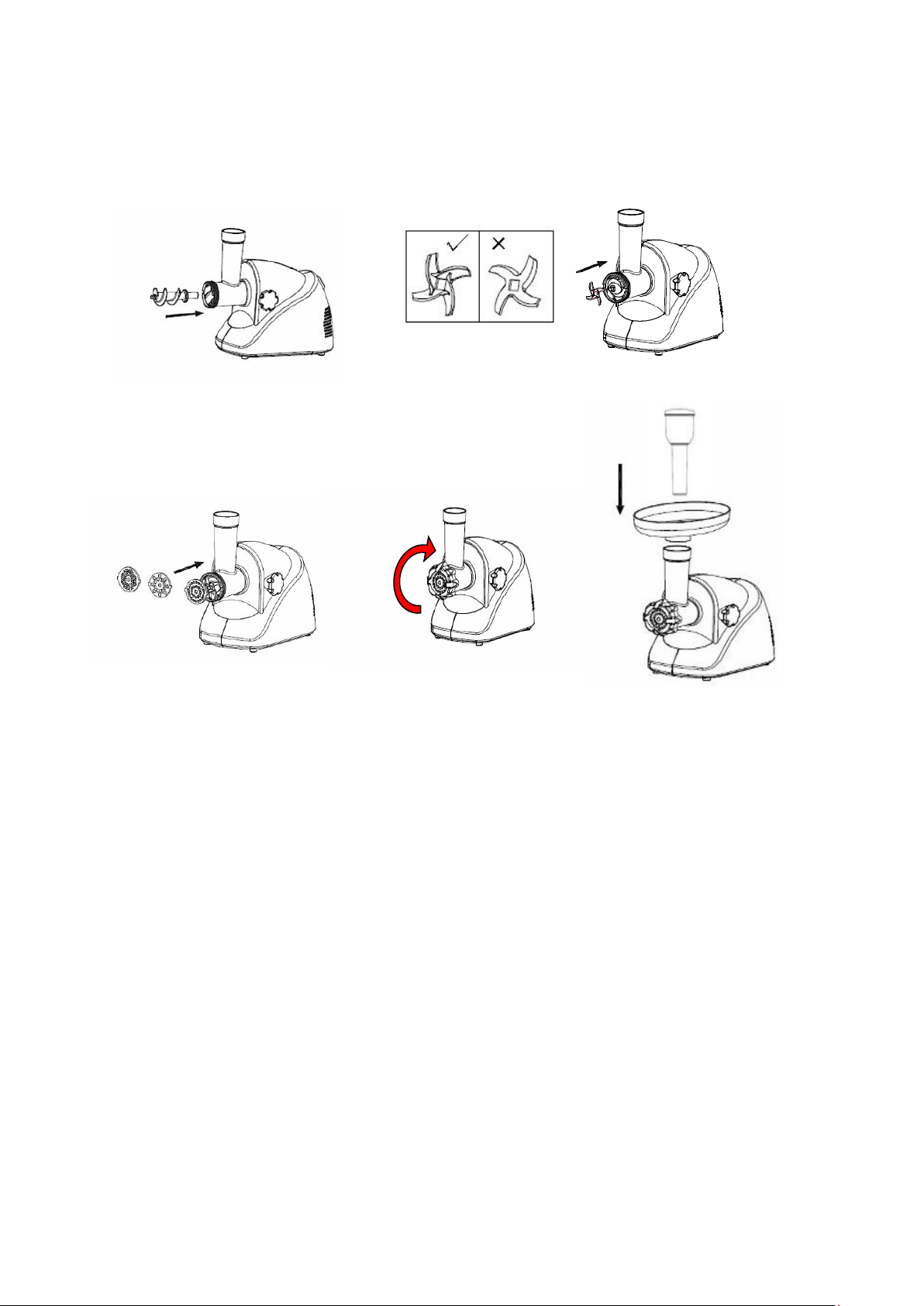

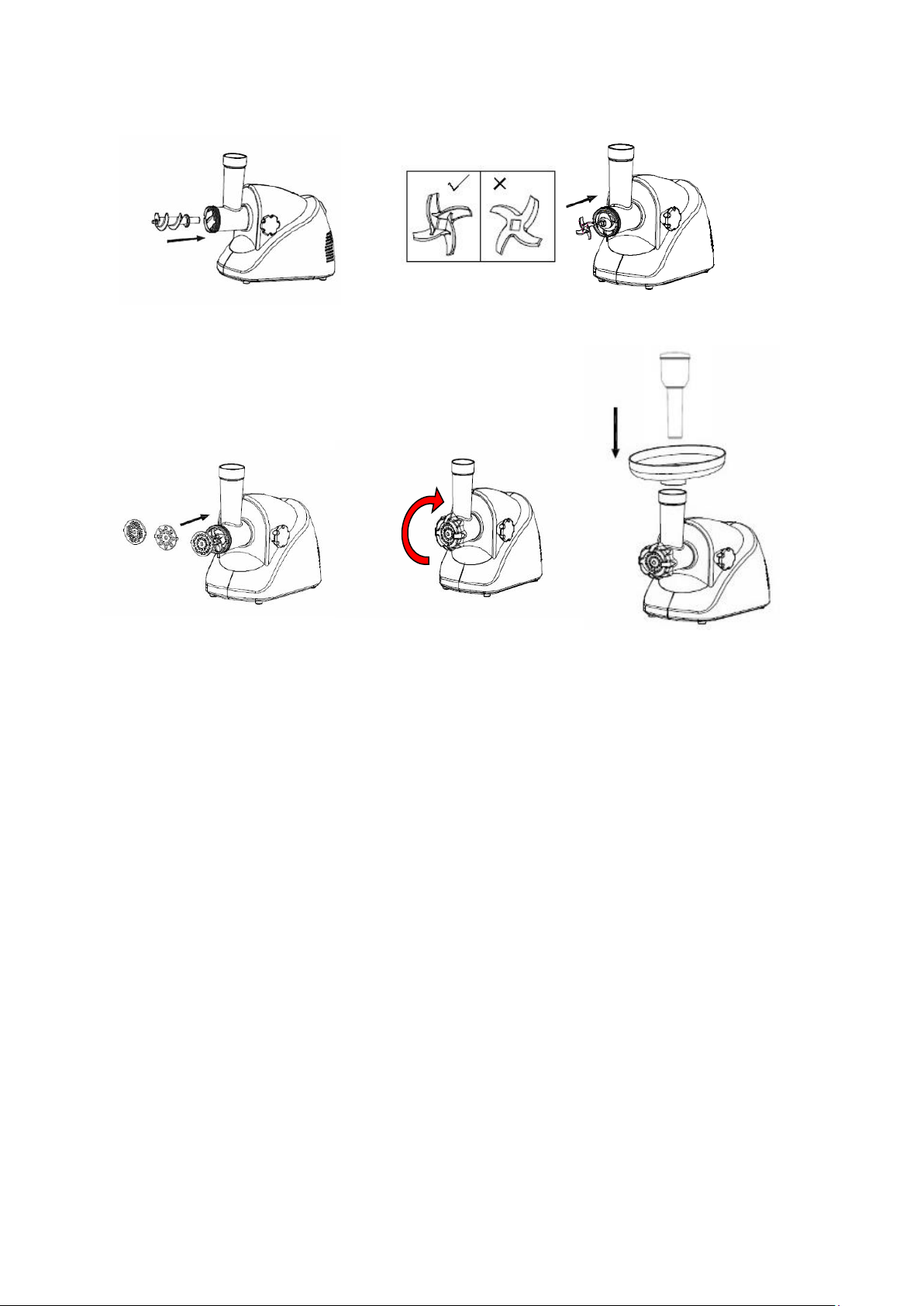

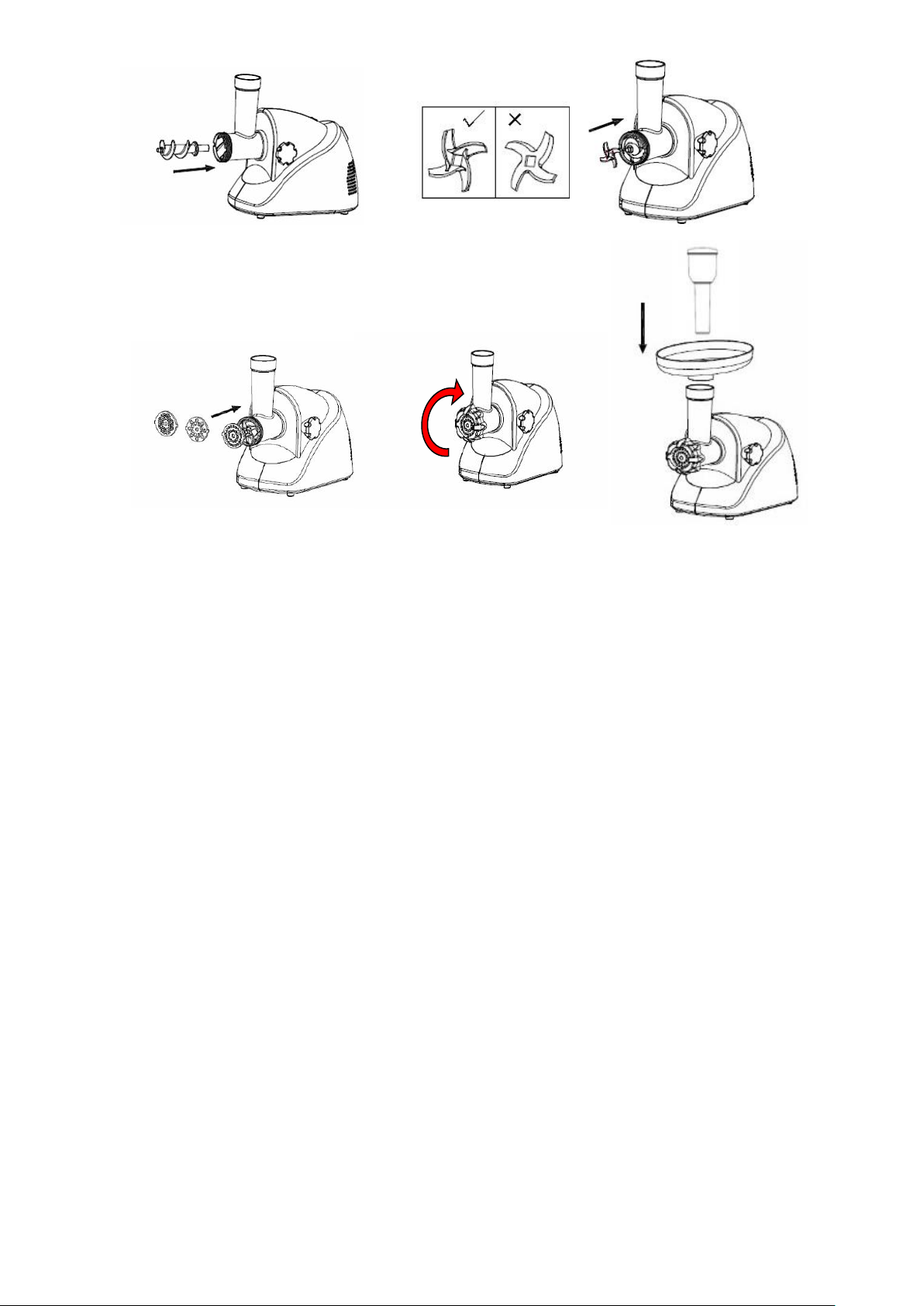

(fig.1) (fig.2)
(fig.3) (fig.4) (fig.5)
Operation:
1. Cut all foods into pieces or strips (Sinewless, boneless meat is recommended), so that they fit easily into
the hopper opening.
2. Before plug in, make sure the grinder has been assembled properly, and “I / O/ II” switch is in the “O”
position.
3. Place a wide, shallow bowl or plate beneath the grinder head to catch the food.
4. Plug in and turn the “I / O / II” switch to "I" position. The grinder starts to work.
5. Feed foods into the hopper plate. Use only the food pusher.
6. After use, switch the unit off and unplug it from the power supply.
Note:
1. The grinder must always be turned on before adding food.
2. Preferably operate the appliance under room temperature (23-25 ℃), please insert a break of
approximately 30 minutes after each continuous operation of 10 minutes. Working time should be
reduced accordingly when the temperature is high.
3. Raw meat of fish should be thoroughly chilled (not frozen) before grinding to reduce the loss of juices.
REVERSE FUNCTION
1. In case of jamming, switch the appliance off first.
2. When the appliance stops working, turn the “I / O / II” switch to "II" position, then press and hold the
“Reverse” button.
3. The feed screw will be rotating in the opposite direction, and the head will get empty.
4. If it doesn't work, switch the unit off, unplug and clean it.
MAKING SAUSAGE
1. First, mince the meat. Then, mix all ingredients, like oil, salt, pepper, hard liquor, etc., according to your
favor.
2. Let the casing for filling macerate in warm water to improve its elasticity.

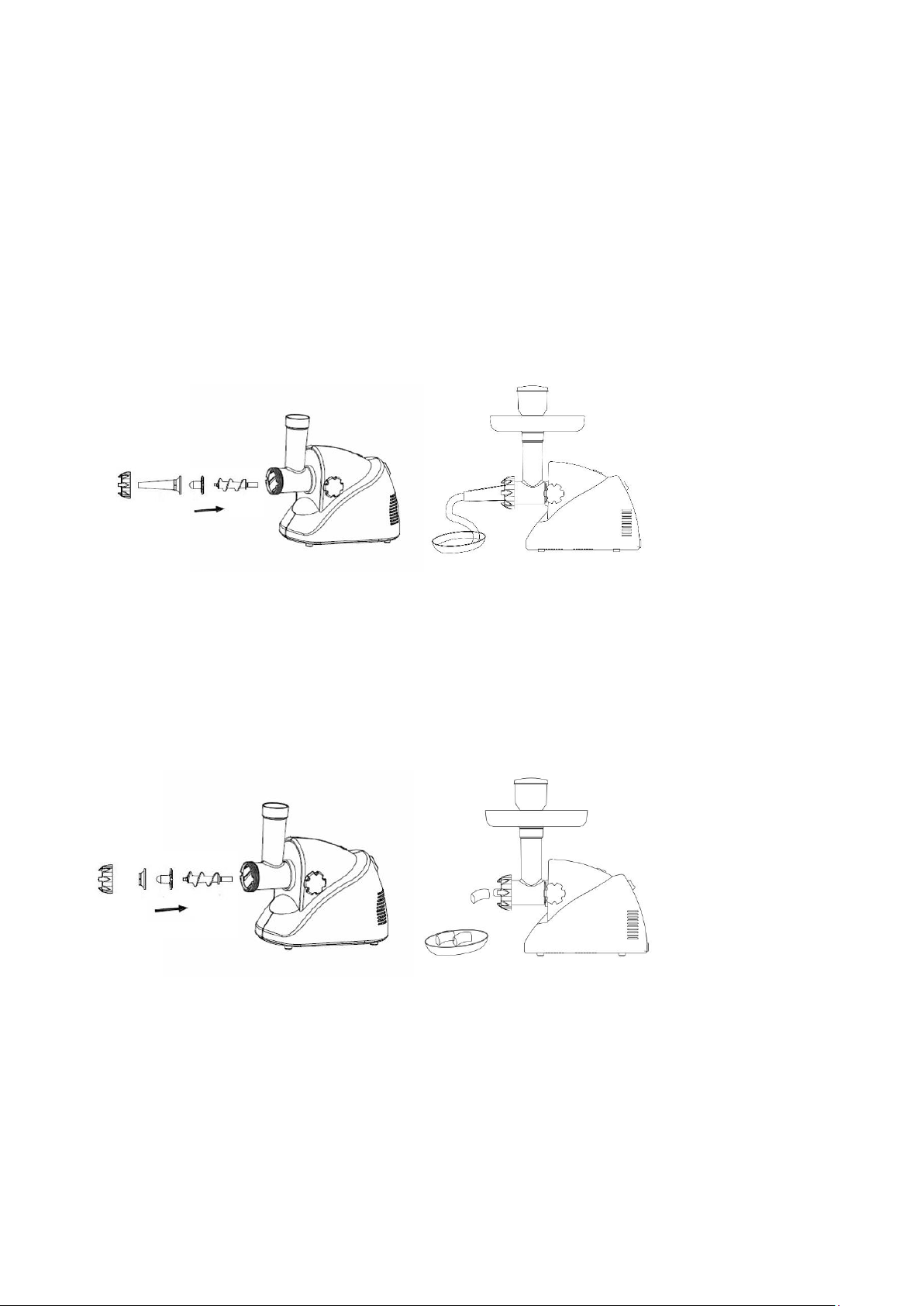

3. Disassemble the appliance to remove the cutting plate and cutting blade. Use the attachments for making
sausage and install like below.

- 6 -
4. Put the casing on the outlet opening of the appliance. Let 5 cm free on the end of the casing and tie it up
or skewer it.
5. Plug in and turn the “I / O / II” switch to "I" position. Feed the meat into the hopper plate and the
appliance starts to make sausage.
MAKING KIBBE
Use the attachments for making kibbe and install like below.
CLEANING AND MAINTENANCE
1. Always unplug the appliance when not in use, or before you removing parts and before cleaning.
2. Make sure that the motor has stopped completely. Then, disassemble the appliance.
3. Wash all parts except motor unit in warm soapy water, using care when handling the sharp blades. Rinse
these parts thoroughly and then dry.
4. Never use dishwasher to clean any part of this appliance.
5. Wipe motor unit with a damp cloth. Do not use harsh, abrasive cleaners.
6. Cutting blade and cutting plates should be coated with cooking oil after washing to keep them lubricated
and rust free. .
7. During extended grinding, fats from meats can build up inside the grinder tube slowing down grinding
deficiency and straining the motor. If this happens, you should stop the grinder, wash parts in warm water
and reassemble. If possible, alternate bread with the meat, this helps keep the feed screw clean.
TECHNICAL DATA
Operating voltage: 220-240V ~ 50/60Hz
Power consumption: 600W
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal
rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a
defective product, you can directly go back to the point of purchase.
13

- 7 -
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs
by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,
without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction
manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.
Neither can we hold responsible for material damage or personal injury caused by improper use if the
instruction manual is not properly executed. Damage to accessories does not mean free replacement of the
whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts
is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning,
maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair
are not covered by the warranty and are to be paid.
ENVIRONMENT FRIENDLY DISPOSAL
Recycling –European Directive 2012/19/EU
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Emerio Switzerland AG
Sihlbruggstrasse 107
6340 Baar
Switzerland

- 8 -
Bedienungsanleitung –German
WICHTIGE SICHERHEITSHINWEISE
1. Bitte lesen Sie die Bedienungsanleitung genau durch,
bevor Sie das Gerät das erste Mal in Betrieb nehmen und
bewahren Sie diese zum späteren Nachschlagen gut auf,
geben Sie sie ggf. an den Nachbesitzer weiter.
2. Ziehen Sie immer den Netzstecker des Gerätes aus der
Steckdose, wenn es unbeaufsichtigt ist und vor dem
Zusammenbauen, Zerlegen oder Reinigen.
3. Dieses Gerät darf nicht von Kindern benutzt werden.
Halten Sie das Gerät und sein Netzkabel außer Reichweite
von Kindern.
4. Geräte können von Personen mit eingeschränkten
körperlichen, sensorischen oder geistigen Fähigkeiten
oder mangelnder Erfahrung und Kenntnis benutzt werden,
wenn sie beaufsichtigt werden oder in die sichere
Benutzung des Gerätes unterwiesen werden und wenn sie
die damit verbundenen Gefahren verstehen.
5. Kinder dürfen nicht mit dem Gerät spielen.
6. Wenn das Netzkabel beschädigt ist, muss es vom
Hersteller, seinem Kundendienst oder einer ähnlich
qualifizierten Person ausgewechselt werden, um
Gefahren zu vermeiden.
7. Schalten Sie das Gerät aus und ziehen Sie den Netzstecker,
bevor Sie Zubehör auswechseln oder sich Teilen nähern,
die während des Betriebs in Bewegung sind.
8. Es besteht potenziell ein Verletzungsrisiko durch eine
falsche Benutzung.
9. Um Informationen zur Reinigung der Flächen zu erhalten,
die mit Lebensmitteln in Berührung kommen, lesen Sie
bitte den Abschnitt „Reinigung und Wartung“ in der
Bedienungsanleitung.
10. Das Gerät ist nur für den Einsatz im Haushalt konzipiert,
nicht für den gewerblichen Einsatz.

- 9 -
11. Lassen Sie das Gerät nicht unbeaufsichtigt, wenn es von
Kindern oder in ihrer Nähe benutzt wird.
12. Halten Sie zum Tragen des Geräts das Motorgehäuse mit
beiden Händen. Halten Sie das Gerät zum Tragen nicht an
der Einfüllschale oder am Schneckengehäuse.
13. Drücken Sie die zu verarbeitenden Lebensmittel
ausschließlich mit dem Stopfer in die Einfüllöffnung.
Keinesfalls die Finger benutzen.
14. Zerkleinern Sie keine harten Speisen, wie Knochen, Nüsse
usw.
15. Zerkleinern Sie keinen Ingwer oder andere Speisen mit
harten Fasern.
16. Den Fleischwolf nicht länger als 10 Minuten im
Dauerbetrieb laufen lassen. Vor der erneuten Benutzung
etwa 30 Minuten abkühlen lassen.
17. Die Rücklauffunktion darf während des Betriebs nicht
benutzt werden. Warten Sie mindestens eine Minute, bis
der Fleischwolf zum Stillstand gekommen ist. Andernfalls
kann es zu untypischen Geräuschen, Vibrationen oder zu
vorübergehenden Funken im Gerät kommen. Dadurch
kann das Gerät sehr leicht beschädigt werden.
18. Nach der Benutzung können Speisereste im
Schneckengehäuse bleiben. Das ist normal. Es kann etwas
schwarzes Metallpulver am Ende der Förderschnecke
befinden. Bitte wischen Sie es ab. Es darf nicht verzehrt
werden.
19. Um ein Blockieren des Antriebs zu vermeiden, führen Sie
die Speisen nicht mit übermäßigem Druck zu.
20. Ersetzen Sie niemals Teile und versuchen Sie nicht das
Gerät selbst zu reparieren.
21. Zum Schutz vor einem elektrischen Schlag das Gerät nicht
in Wasser oder andere Flüssigkeiten tauchen.
22. Im Falle von Beschädigungen muss das Netzkabel vom
Hersteller, einem autorisierten Kundendienstmitarbeiter
oder einer ähnlich qualifizierten Person ersetzt werden,
um Gefährdungen zu vermeiden.
