Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
Rosemount 3051S Electronic Remote Sensors
with HART®Protocol
Start
End
Step 1: Identify all 3051S ERS™System Components
Step 2: Mount Each 3051S ERS Sensor
Step 3: Consider Housing Rotation
Step 4: Set Switches
Step 5: Connect Wiring and Power Up
Step 6: Verify Configuration
Step 7: Calibrate the 3051S ERS System
Product Certifications
00825-0100-4804_AB.fm Page 1 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
2
© 2011 Rosemount Inc. All rights reserved. All marks property of owner. Rosemount and the Rosemount logotype are registered
trademarks of Rosemount Inc.
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN USA 55317
T (US) [phone]
T (Intnl) [phone]
F [phone]
Emerson Process Management
GmbH & Co. OHG
Argelsrieder Feld 3
82234 Wessling
Germany
T 49 (8153) 9390, F49 (8153) 939172
Emerson Process Management
Asia Pacific Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947/65 6777 0743
Beijing Rosemount Far East Instrument Co., Limited
No. 6 North Street, Hepingli, Dong Cheng District
Beijing 100013, China
T (86) (10) 6428 2233
F (86) (10) 6422 8586
IMPORTANT NOTICE
This installation guide provides basic guidelines for the Rosemount 3051S ERS System (reference
manual document number 00809-0100-4804). It does not provide instructions for diagnostics,
maintenance, service, or troubleshooting. This document is also available electronically on
www.rosemount.com.
WARNING
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with the appropriate
local, national, and international standards, codes, and practices. Please review the approvals
section of the 3051S ERS System reference manual for any restrictions associated with a safe
installation.
• Before connecting a Field Communicator in an explosive atmosphere, ensure the instruments in
the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.
• In an Explosion-proof/Flameproof installation, do not remove the transmitter covers when power
is applied to the unit.
Process leaks may cause harm or result in death.
• Install and tighten process connectors before applying pressure.
Electrical shock can result in death or serious injury.
• Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
Conduits/Cable Entries
• Unless otherwise marked, the conduit / cable entries in the 3051S ERS housing enclosure use a
1/2-14 NPT form. Only use plugs, adapters, glands, or conduit with a compatible thread form
when closing these entries.
00825-0100-4804_AB.fm Page 2 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
3
STEP 1: IDENTIFY ALL 3051S ERS SYSTEMS COMPONENTS
A complete 3051S ERS system contains two sensors. One is mounted on the high-pressure
(PHI) process connection, and the other is mounted on the low-pressure (PLO) process
connection. An optional remote display and interface may also be included (not pictured) if
ordered.
1. Look at the wire-on tag on the 3051S sensor to identify whether it is configured as the PHI or
PLO sensor.
2. Locate the second sensor that will be used in the 3051S ERS system:
• For new installations or applications, the second 3051S ERS sensor may have been shipped
in a separate box.
• If servicing or replacing part of an existing 3051S ERS system, the other sensor may already
be installed.
STEP 2: MOUNT EACH 3051S ERS SENSOR
Mount the PHI and PLO sensors at the correct process connections for the application. Common
3051S ERS installations are shown in Figure 1 and Figure 2.
Vertical Installation
In a vertical installation such as on a vessel or distillation column, the PHI sensor should be
installed at the bottom process connection. The PLO sensor should be installed at the top
process connection.

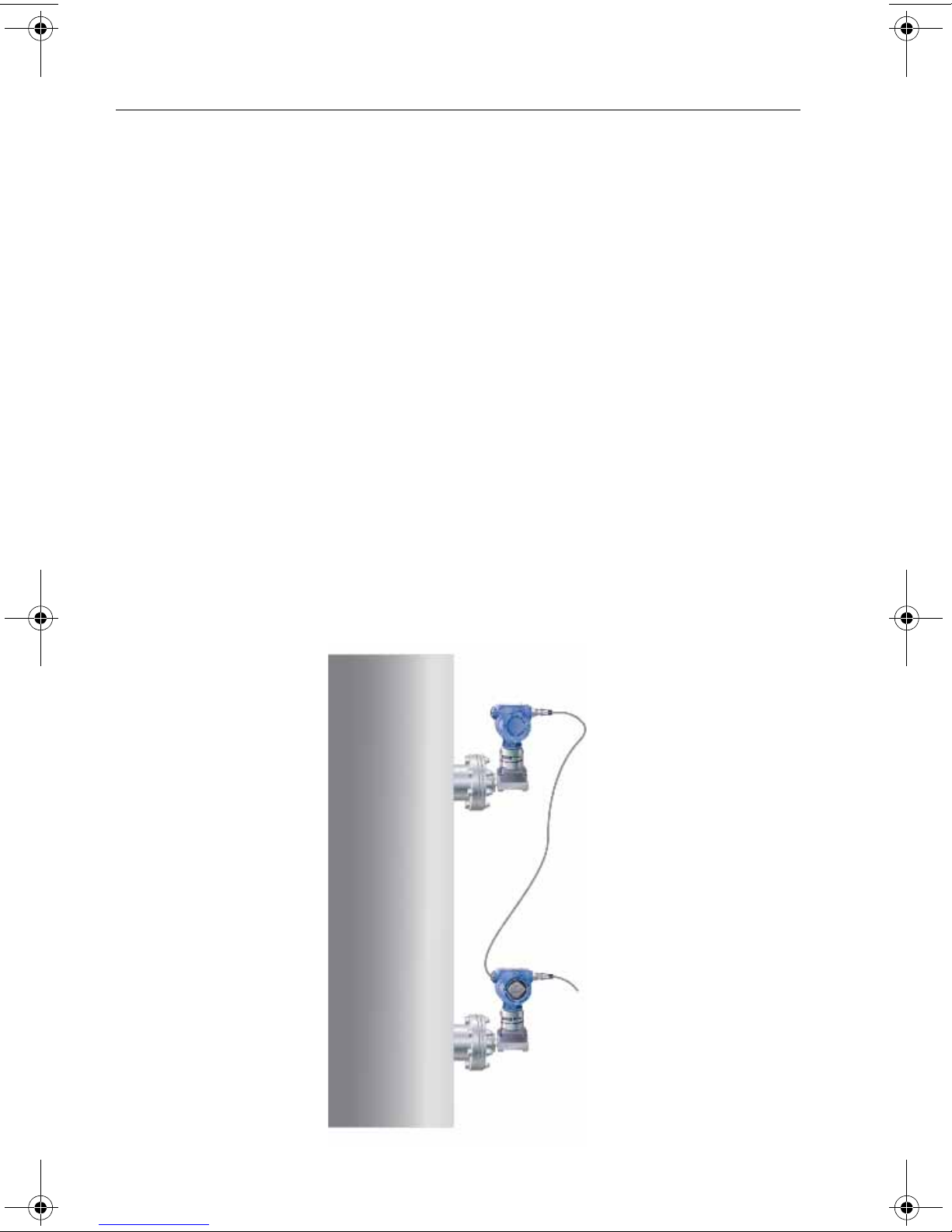

Figure 1. Vertical 3051S ERS Installation
PHI Sensor
PLO Sensor
00825-0100-4804_AB.fm Page 3 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
4
STEP 2 CONTINUED...
Horizontal Installation
In a horizontal installation, the PHI sensor should be installed at the upstream process
connection. The PLO sensor should be installed downstream.

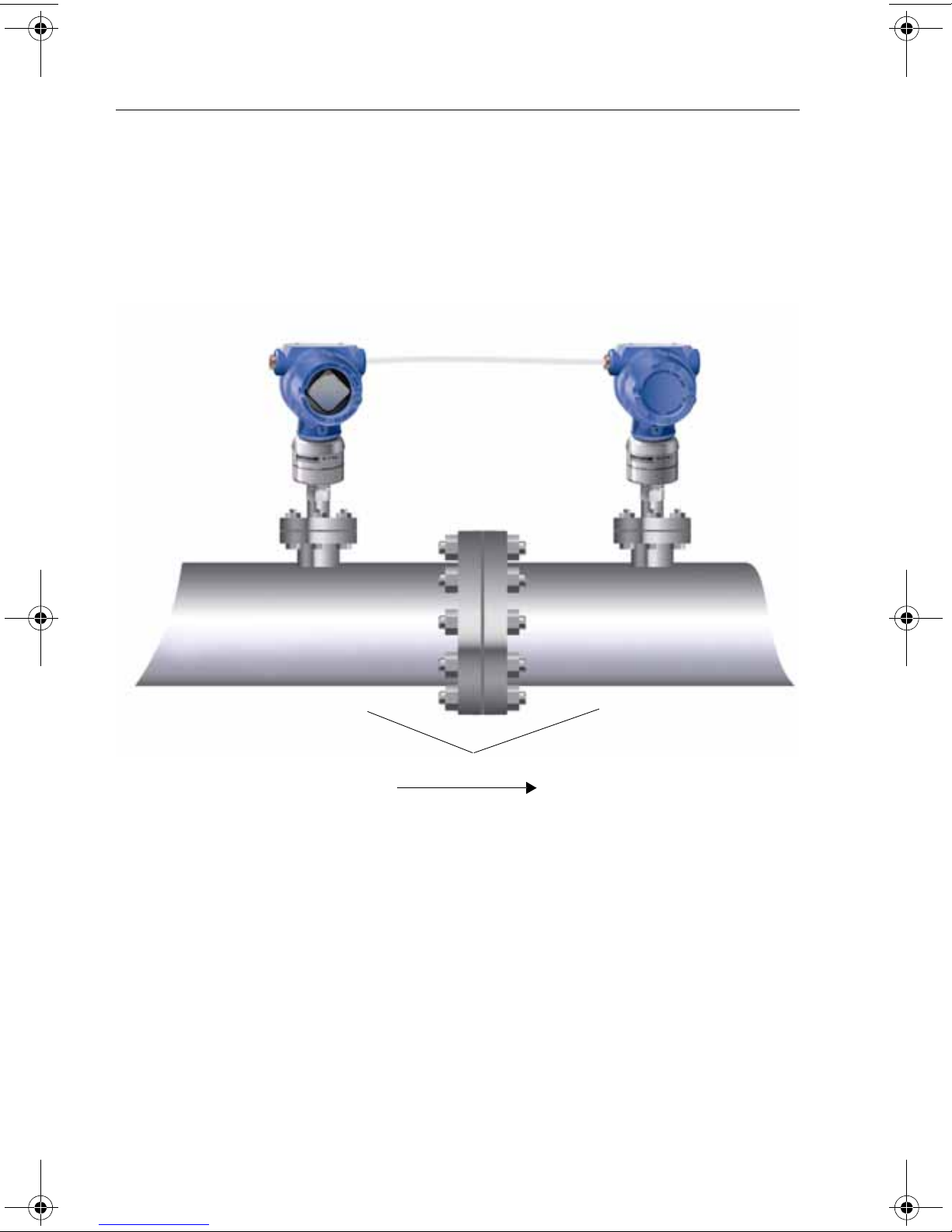

Figure 2. Horizontal 3051S ERS Installation
PHI Sensor PLO Sensor
Pressure Drop
00825-0100-4804_AB.fm Page 4 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
5
STEP 2 CONTINUED...
Mounting Bracket

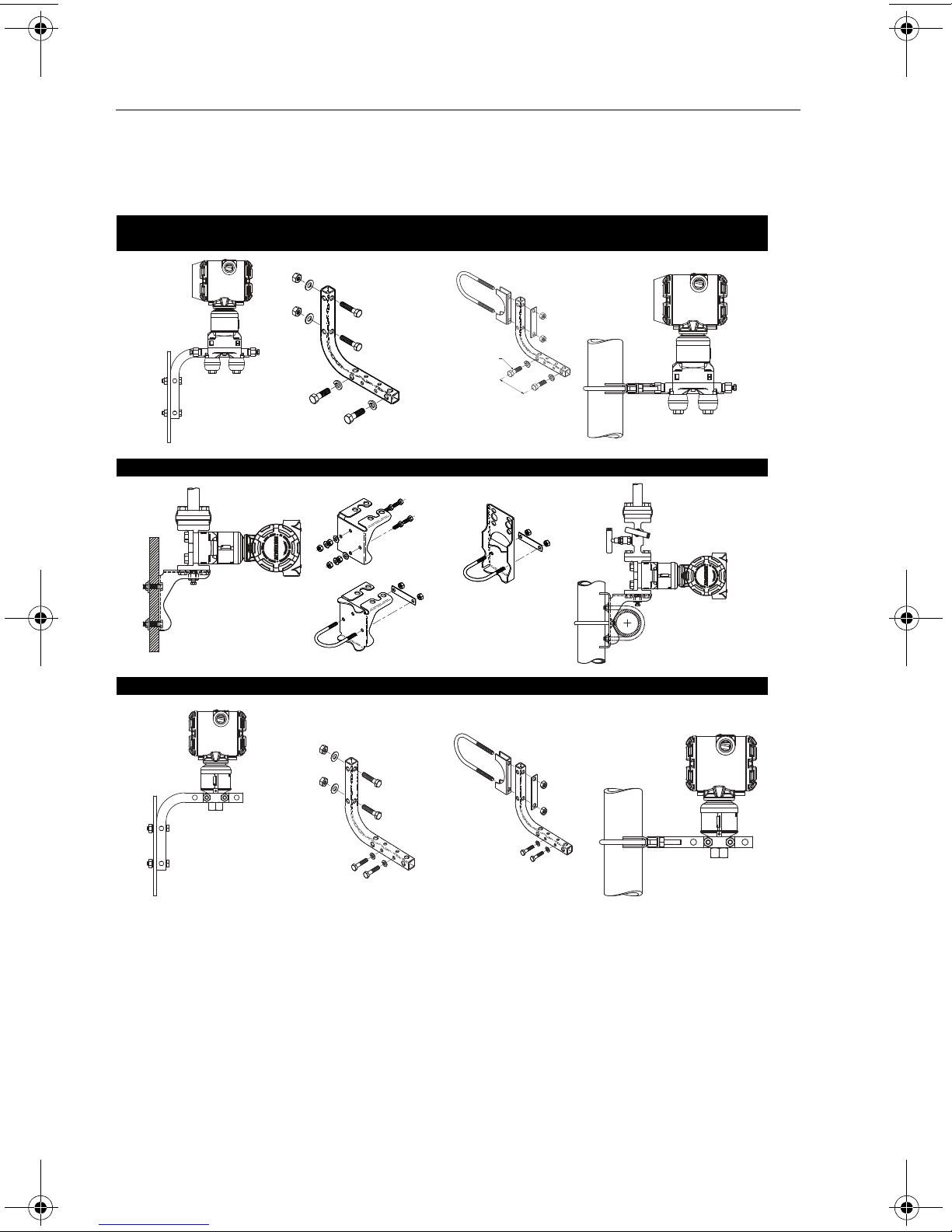

Figure 3. Mounting bracket assemblies
Panel Mount Pipe Mount
Coplanar™Flange
Traditional Flange
In-line
00825-0100-4804_AB.fm Page 5 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
6
STEP 2 CONTINUED...
Bolting
If the installation requires assembly of a process flange, manifold, or flange adaptors, follow
these assembly guidelines to ensure a tight seal for optimal performance characteristics of the
3051S ERS System. Only use bolts supplied with the transmitter or sold by Emerson Process
Management as spare parts. Figure 4 illustrates common transmitter assemblies with the bolt
length required for proper transmitter assembly.

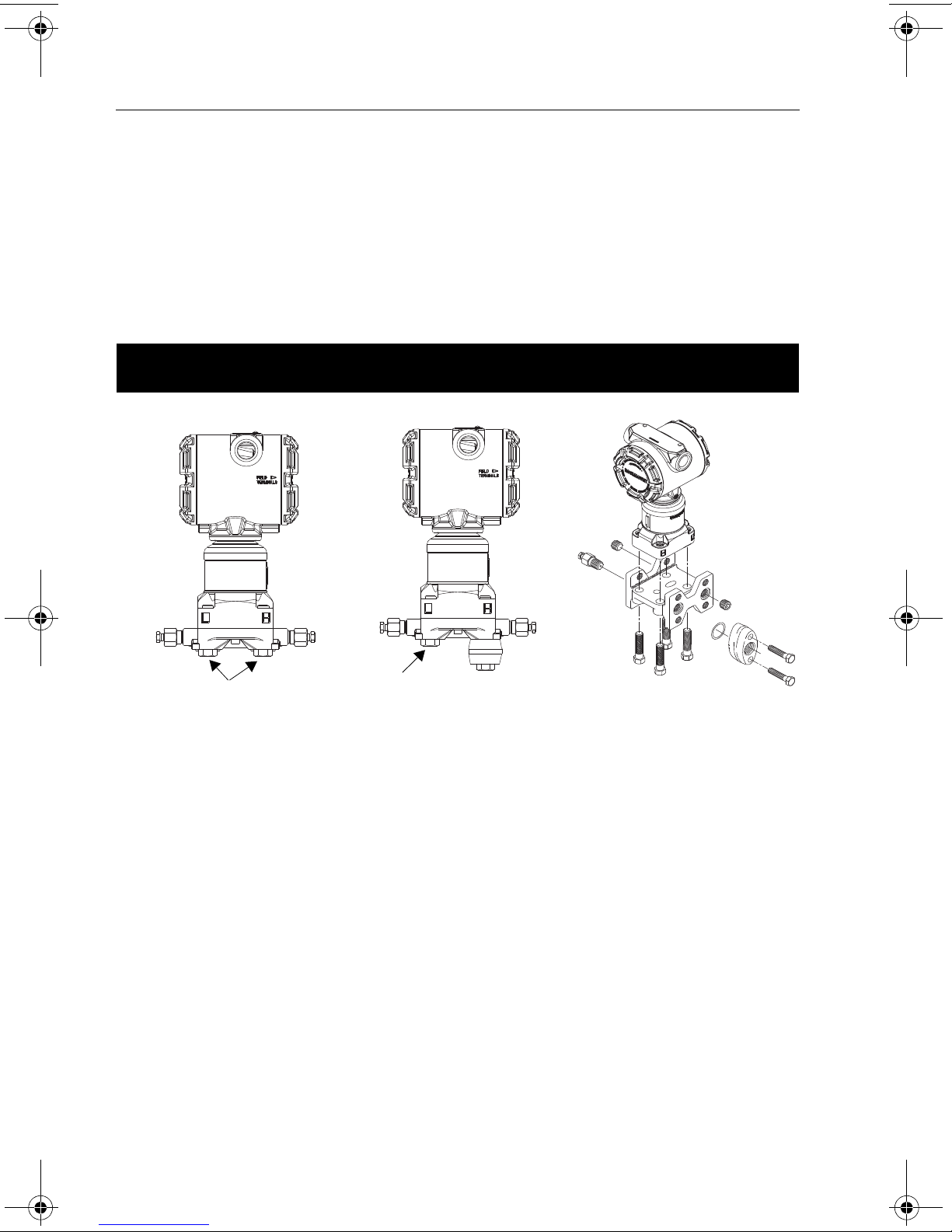

Figure 4. Common Transmitter Assemblies
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the marking on
the head of the bolt and referencing Figure 6. If bolt material is not shown in Figure 6, contact
your local Emerson Process Management representative for more information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication. Stainless steel bolts are coated with a lubricant
to ease installation, however no additional lubricant should be applied when installing either
type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern. See Figure 6 for initial
torque value.
4. Torque the bolts to the final torque value using the same crossing pattern. See Figure 6 for
final torque value.
5. Verify that the flange bolts are protruding through the module isolator plate before applying
pressure (See Figure 5).
Transmitter with Coplanar
Flange Transmitter with Coplanar Flange and Flange Adapters Transmitter with Traditional Flange and Flange Adapters
1.75 in. (44 mm) x 4
1.75 in.
(44 mm) x 2 2.88 in.
(73 mm) x 2
1.75 in.
(44 mm) x 4 1.5 in.
(38 mm) x 2
00825-0100-4804_AB.fm Page 6 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
7
STEP 2 CONTINUED...

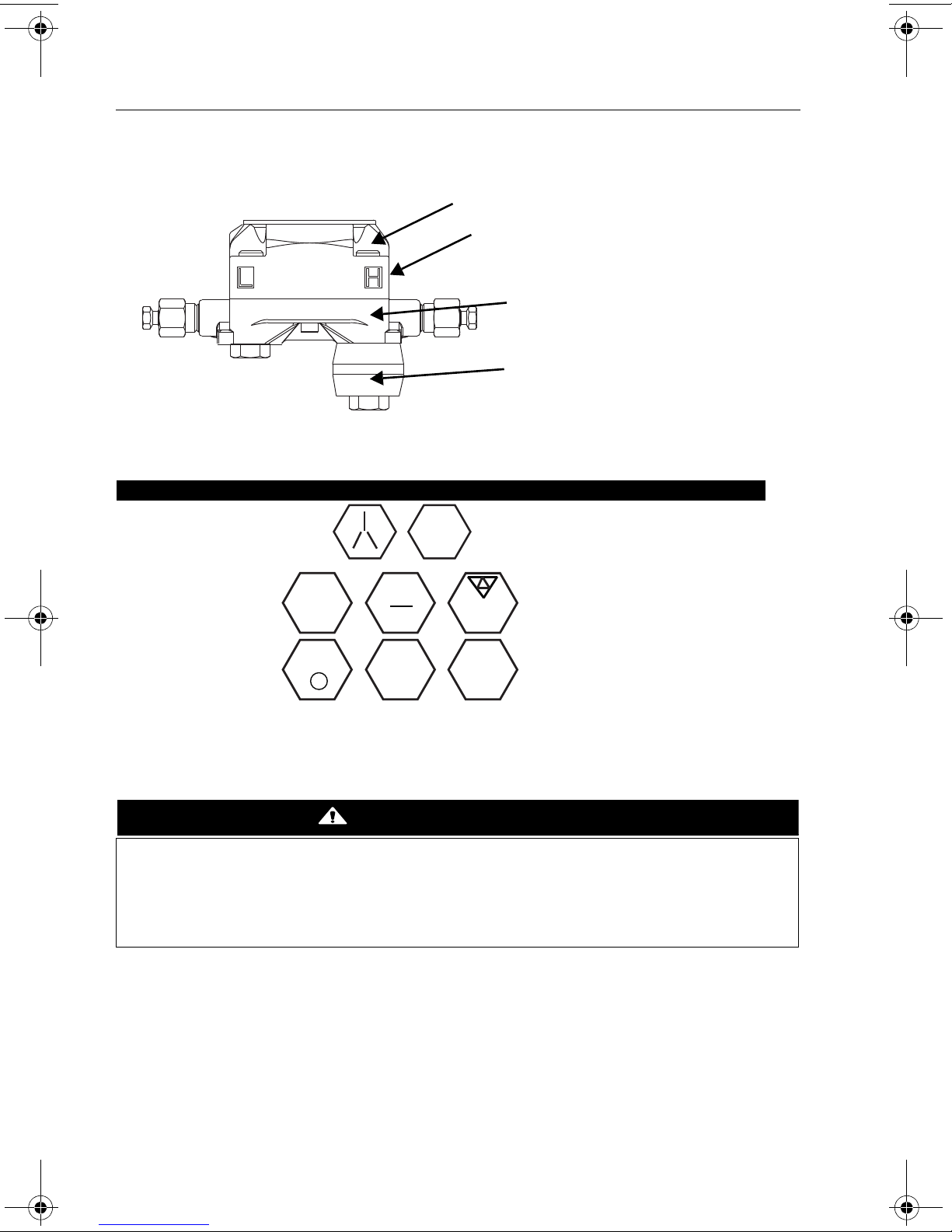

Figure 5. Module Isolator Plate
Figure 6. Torque Values for the Flange and Flange Adapters Bolts
O-rings with Flange Adapters
WARNING
When removing flanges or adapters, visually inspect the PTFE O-rings. Replace them if there
are any signs of damage such as nicks or cuts. If replacing O-rings, re-torque the flange bolts
after installation to compensate for seating of the PTFE O-ring.
Bolt Material Head Markings Initial Torque Final Torque
Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs.
Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs.
Use only the O-rings included with the flange adapter for the 3051S ERS sensor. Failure to
install proper fitting flange adapter O-rings may cause process leaks, which can result in
death or serious injury.
Bolt
Sensor Module
Isolator Plate
Coplanar Flange
Flange Adapters
B7M
316
316
316
SW
316
STM
316
R
B8M
00825-0100-4804_AB.fm Page 7 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
8
STEP 3: CONSIDER HOUSING ROTATION
NOTE
Do not rotate the housing on each transmitter more than 180 degrees without first performing a
disassembly procedure (see Section 2 of the 3051S ERS System reference manual
(00809-0100-4804) for more information). Over-rotation may sever the electrical connection
between the sensor module and feature board electronics.
STEP 4: SET SWITCHES
If the 3051S ERS Sensor is equipped with alarm and security hardware switches, verify the
desired configuration (default: alarm = HI, security = OFF).
1. If the sensor is installed, secure the loop and remove power.
2. Remove the housing cover opposite the field terminals side. Do not remove the housing
cover in explosive environments.
3. Slide the security and alarm switches into the preferred positions by using a small
screwdriver.
4. Reinstall the housing cover so that metal contacts metal to meet explosion-proof
requirements.

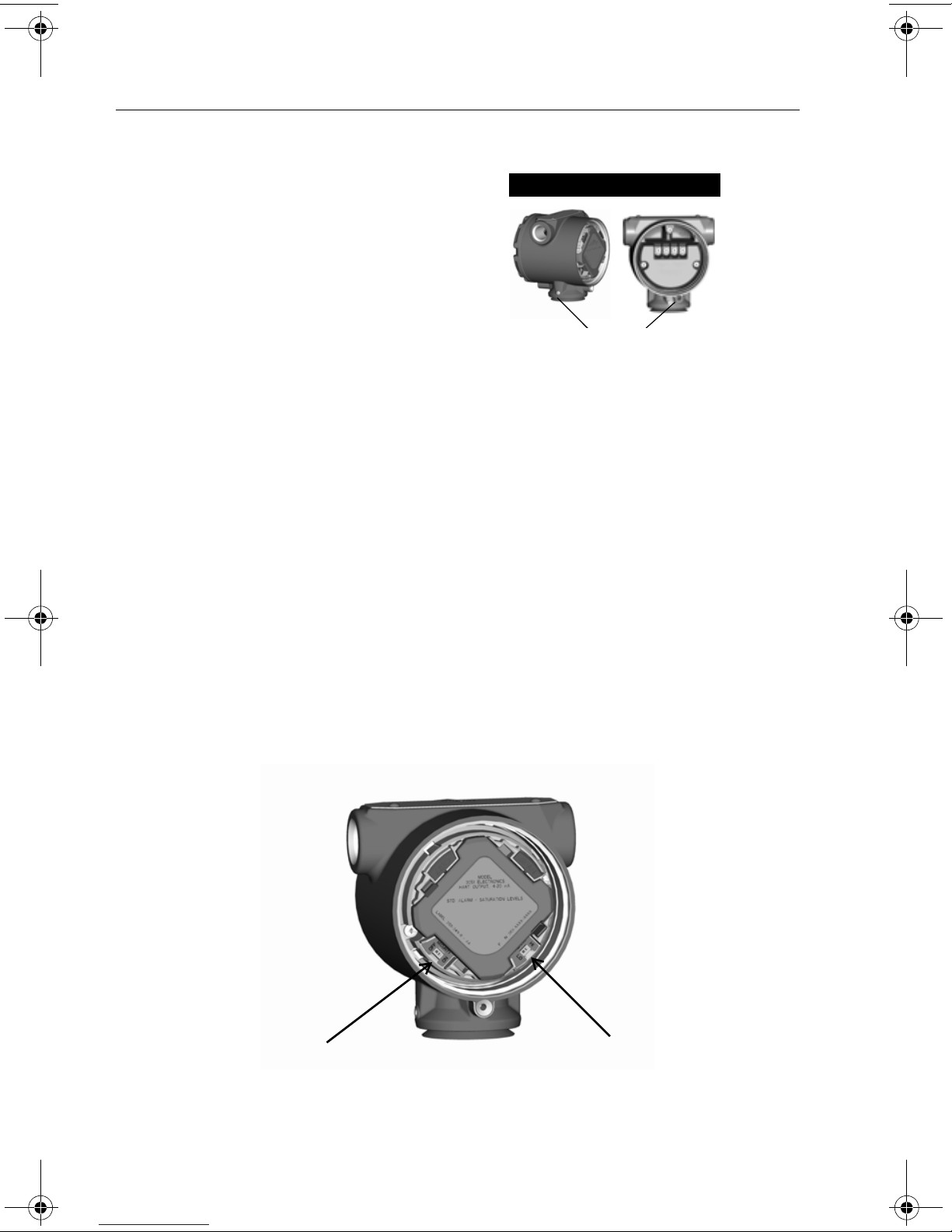

Figure 7. Transmitter Switch Configuration
To improve field access to wiring or to better view the
optional LCD display:
1. Loosen the housing rotation set screw.
2. Turn the housing up to 180° left or right of its
original (as shipped) position.
3. Retighten the housing rotation set screw.
PlantWeb Junction Box
Housing Rotation Set
Screw (3/32-in.)
Alarm
Switch
Security
Switch
00825-0100-4804_AB.fm Page 8 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
9
STEP 5: CONNECT WIRING AND POWER UP
A 3051S ERS System can be wired in a variety of configurations, depending on the hardware
that was ordered.
Standard 3051S ERS System (Figure 8)
1. Remove the housing cover labeled “Field Terminals” on both 3051S ERS sensors.
2. Using the 3051S ERS communication cable (if ordered) or an equivalent 4-wire shielded
assembly per the specifications detailed below, connect the 1, 2, A, and B terminals between
the two sensors per Figure 8.
3. Connect the 3051S ERS system to the control loop by connecting the + and - PWR / COMM
terminals to the positive and negative leads, respectively.
4. Plug and seal all unused conduit connections.
5. If applicable, install wiring with a drip loop. Arrange the drip loop so that the bottom is lower
than the conduit connections on the transmitter housings.
6. Reinstall and tighten the housing covers on both sensors so that metal contacts metal to meet
explosion-proof requirements.
3051S ERS System with Remote Display and Interface (Figure 9 and Figure 10)
1. Remove the housing cover labeled “Field Terminals” on both 3051S ERS sensors and the
remote housing.
2. Using the 3051S ERS communication cable (if ordered) or an equivalent 4-wire shielded
assembly per the specifications detailed below, connect the 1, 2, A, and B terminals between
the two sensors and remote housing in a “tree” (Figure 9) or “daisy-chain” (Figure 10)
configuration.
3. Connect the 3051S ERS system to the control loop by connecting the + and - PWR / COMM
terminals on the remote housing to the positive and negative leads, respectively.
4. Plug and seal all unused conduit connections.
5. If applicable, install wiring with a drip loop. Arrange the drip loop so that the bottom is lower
than the conduit connections on the transmitter housings.
6. Reinstall and tighten all housing covers so that metal contacts metal to meet explosion-proof
requirements.

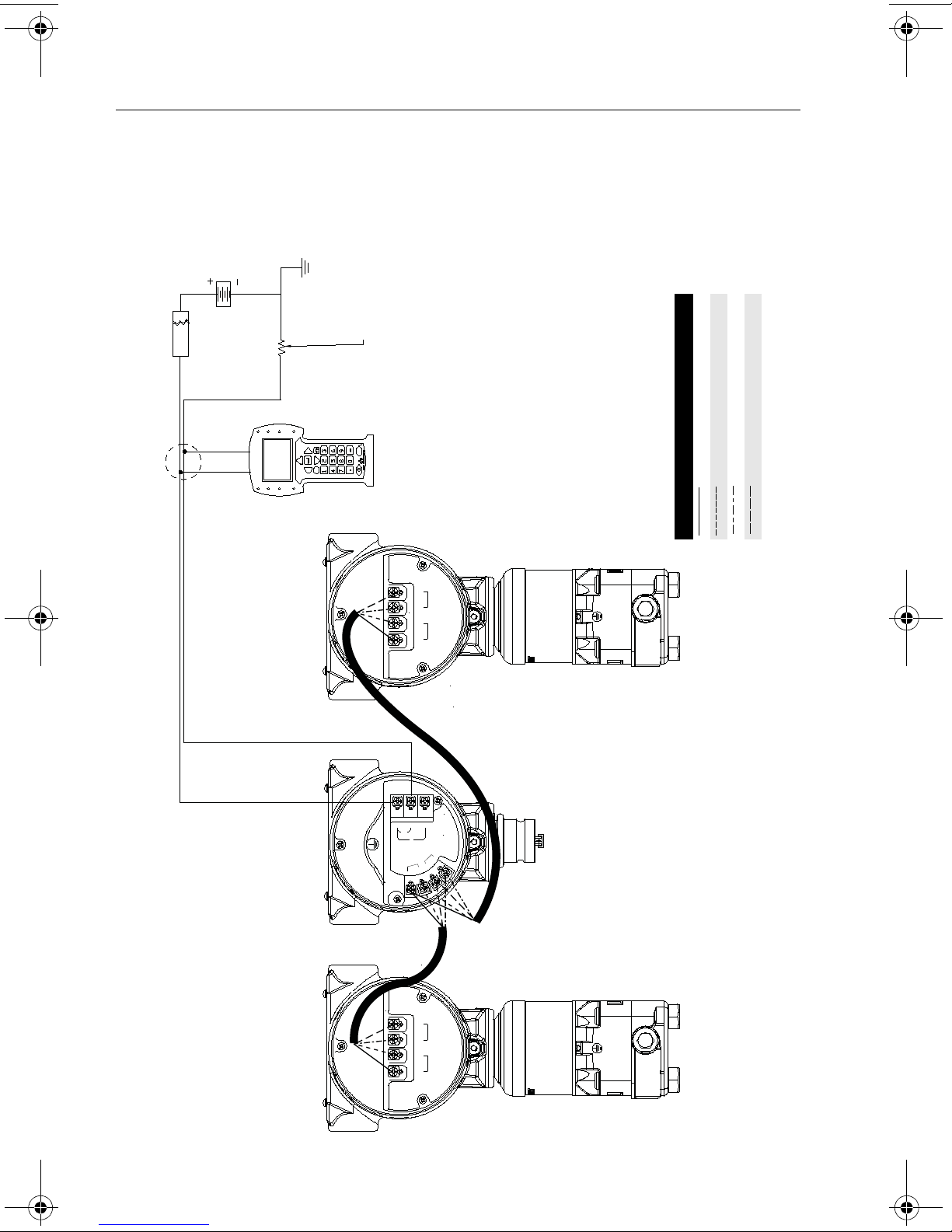

Wiring Diagrams
Figure 8 - Figure 10 show the wiring connections necessary to power a 3051S ERS System and
enable communications with a hand-held Field Communicator.
NOTE
The wiring connection between the sensors (and remote housing if applicable) must be made
directly. An intrinsically safe barrier or other high-impedance device will cause the 3051S ERS
system to malfunction if placed in between any of the 3051S ERS sensors.
3051S ERS Cable Specifications
Cable Type: Recommend Madison AWM Style 2549 cable. Other comparable cable may be
used as long as it has independent dual twisted shielded pair wires with an outer shield. The
Power wires (pin terminals 1 & 2) must be 22 AWG minimum and the communication wires (pin
terminals A & B) must be 24 AWG minimum.
Cable Length: Up to 100 feet (31 m) depending upon cable capacitance.
Cable Capacitance: The capacitance between the communication terminals (pin terminals A &
B) as wired must be less than 5000 picofarads total. This allows up to 50 picofarads per foot (0.3
m) for a 100 foot (31 m) cable.
Cable Outside Diameter (O.D): 0.270 inches (6.86 mm)
00825-0100-4804_AB.fm Page 9 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
10
Figure 8. Wiring Diagram for Standard 3051S ERS System
TEST
PWR/
COMM
+
_
_
12AB
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO ERS SECONDARY
Field
Communicator
250 Resistor needed for HART Communications

Power Supply
Wiring Legend
Wire Terminal Connection
Red 1
Black 2
White A
Blue B
00825-0100-4804_AB.fm Page 10 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
11
Figure 9. Wiring Diagram for 3051S ERS System with Remote Display in “Tree” Configuration.
TEST
PWR/
COMM
+
_
_
12A B
WIRE TO ERS PRIMARY
12A B
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO ERS SECONDARY
Field
Communicator
250 Resistor needed for HART Communications

Power Supply
Wiring Legend
Wire Terminal Connection
Red 1
Black 2
White A
Blue B
00825-0100-4804_AB.fm Page 11 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
12
Figure 10. Wiring Diagram for 3051S ERS System with Remote Display in “Daisy-Chain” Configuration.
TEST
PWR/
COMM
+
_
_
12A B 12AB
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO ERS SECONDARY
WIRE TO ERS PRIMARY
Field
Communicator
250 Resistor needed for HART Communications

Power Supply
Wiring Legend
Wire Terminal Connection
Red 1
Black 2
White A
Blue B
00825-0100-4804_AB.fm Page 12 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
13
Shield Grounding
Connect the shield from the 3051S ERS communication cable assembly to each housing case
as shown for the applicable wiring configuration in Figure 11.
Figure 11. Shield Grounding
12A B
WIRE TO ERS PRIMARY
12A B
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO
ERS
SECONDARY
12AB
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO
ERS
SECONDARY
1
2
A
B
WIRE TO
ERS
SECONDARY
12A B
WIRE TO ERS PRIMARY
12A B
WIRE TO ERS PRIMARY
Cable Shield
Cable Shield
Cable Shield
00825-0100-4804_AB.fm Page 13 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
14
Power Supply
The DC power supply should provide power with less than two percent ripple. The total
resistance load is the sum of the resistance of the two signal leads and the load resistance of the
controller, indicator, intrinsic safety barriers, and related components.
Figure 12. Load Limitation
STEP 6: VERIFY CONFIGURATION
STEP 6: VERIFY CONFIGURATION
As part of the basic commissioning process of the 3051S ERS System, the parameters in Table 1
should be verified / configured with a HART-compliant master (see Figure 8 – Figure 10 for
connecting a hand-held Field Communicator):
Table 1. Basic Configuration HART Fast Key Sequence
If Supply Voltage ≤16.74 Vdc
Maximum Loop Resistance = 277.8 * (Power Supply Voltage – 16.0)
If Supply Voltage >16.74 Vdc
Maximum Loop Resistance = 43.5 * (Power Supply Voltage – 12.0)
Function Fast Key Sequence
Device Tagging
•Tag 2, 1, 1, 1, 1
• Long Tag 2, 1, 1, 1, 2
•Descriptor 2, 1, 1, 1, 3
• Message 2, 1, 1, 1, 4
Units of Measure
•P
LO Pressure 2, 1, 1, 2, 1, 1
•P
LO Module Temperature 2, 1, 1, 2, 1, 2
• System DP 2, 1, 1, 2, 1, 3
•P
HI Module Temperature 2, 1, 1, 2, 1, 4
•P
HI Pressure 2, 1, 1, 2, 1, 5
Damping
•P
LO Pressure 2, 1, 1, 2, 2, 1
• System DP 2, 1, 1, 2, 2, 2
•P
HI Pressure 2, 1, 1, 2, 2, 3
Variable Mapping
• Primary Variable 2, 1, 1, 3, 1
•2
nd Variable 2, 1, 1, 3, 2
•3
rd Variable 2, 1, 1, 3, 3
•4
th Variable 2, 1, 1, 3, 4
Analog Output
• Primary Variable 2, 1, 1, 4, 1
• Upper Range Value 2, 1, 1, 4, 2
• Lower Range Value 2, 1, 1, 4, 3
Alarm and Saturation Levels 2, 1, 1, 5
Voltage (Vdc)
Load (Ohms)
Operating
Region
1322
206
0
16 16.74 42.4
00825-0100-4804_AB.fm Page 14 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
15
The items in Table 2 are considered “optional” and can be configured as necessary:
STEP 7: CALIBRATE THE 3051S ERS SYSTEM
Each 3051S ERS sensor is shipped fully calibrated per request or with the factory default of full
scale. After the 3051S ERS system has been installed and wired, either a zero trim or a lower
sensor trim should be performed on each sensor to compensate for installation effects.
• A zero sensor trim should be performed after installing a gage sensor on a vented tank. A
zero sensor trim should not be performed on an absolute sensor or on a gage sensor that is
at line pressure.
• A lower sensor trim should be performed after installing an absolute sensor or a gage sensor
that is at line pressure.
Additionally, a “System DP Zero” trim should be performed to establish a zero-based DP reading.
The System DP Zero trim should be performed after a zero/lower trim has been performed on
each sensor.
The steps outlined below detail the procedures for the sensor trims and the System DP zero trim.
3051S ERS System Calibration
1. Equalize or vent both 3051S ERS sensors and connect a Field Communicator as shown in
Figure 8 – Figure 10.
2. Input the following key sequence on the Field Communicator to trim each sensor and the DP
reading. Follow the commands prompted by the Field Communicator.
NOTES:
1. The “System DP Zero Trim” should be performed after the P-Hi and P-Lo sensor trims.
2. Refer to the 3051S ERS reference manual for the recommended calibration procedure for
performing a sensor trim at line pressure.
Table 2. Optional Configuration HART Fast Key Sequence
Function Fast Key Sequence
Device Display 2, 1, 3
Burst Mode
• Burst Mode 2, 1, 4, 1
• Burst Option 2, 1, 4, 2
Scaled Variable
• Linear (2-point) Scaled Variable 2, 1, 5, 1
• Non-Linear (Multipoint) Scaled Variable 2, 1, 5, 2
Change Module Assignments
• View Module 1 Assignment 2, 1, 6, 1
• View Module 2 Assignment 2, 1, 6, 2
• Set Module 1 = PHI, Module 2 = PLO 2, 1, 6, 3
• Set Module 1 = PLO, Module 2 = PHI 2, 1, 6, 4
• View Device Topology 2, 1, 6, 5
Table 3. ERS Calibration HART Fast Key Sequence
Function Fast Key Sequence
P-Hi Sensor Zero Trim 3, 4, 3, 1, 3
P-Hi Sensor Lower Trim 3, 4, 3, 1, 2
P-Lo Sensor Zero Trim 3, 4, 4, 1, 3
P-Lo Sensor Lower Trim 3, 4, 4, 1, 2
System DP Zero Trim 3, 4, 2, 1, 3
00825-0100-4804_AB.fm Page 15 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
16
PRODUCT CERTIFICATIONS
Approved Manufacturing Locations
Rosemount Inc. – Chanhassen, Minnesota, USA
Emerson Process Management GmbH & Co. – Wessling, Germany
Emerson Process Management Asia Pacific Private Limited – Singapore
Beijing Rosemount Far East Instrument Co., LTD – Beijing, China
Emerson Process Management (India) Pvt. Ltd. — Daman, India
Ordinary Location Certification for FM Approvals
As standard, the transmitter has been examined and tested to determine that the design meets
basic electrical, mechanical, and fire protection requirements by FM, a nationally recognized
testing laboratory (NRTL) as accredited by the Federal Occupational Safety and Health
Administration (OSHA).
European Directive Information
The EC declaration of conformity can be found on page 21. The most recent revision can be found at
www.rosemount.com.
Hazardous Locations Certifications
North American Certifications
FM Approvals
E5 Explosion-proof for Class I, Division 1, Groups B, C, and D; Dust Ignition-proof for Class II
and Class III, Division 1, Groups E, F, and G; hazardous locations; enclosure Type 4X,
conduit seal not required.
I5 Intrinsically Safe (Entity) for use in Class I, II and III, Division 1, Groups A, B, C, D, E, F and
G; Temperature Class T4 Ta= -50 ˚C to +70 ˚C in accordance with Control Drawing No.
3151-1306; Intrinsically Safe (Entity) for use in Class I, Zone 0, AEx ia IIC T4 Ta= -50 ˚C to
+70 ˚C; in accordance with Control Drawing No. 3151-1306; Non-incendive for use in Class
I, Division 2, Groups A, B, C, and D; Temperature Class T4 Ta= -50 ˚C to +70 ˚C in
accordance with Control Drawing No. 3151-1306; Dust Ignition-proof for use in Class II and
III, Division 1, Groups E, F, and G; Temperature Class T5 Ta= -50 ˚C to +85 ˚C; indoor and
outdoor, Type 4X Hazardous (Classified) Locations.
For entity parameters see control drawing 03151-1306.
Canadian Standards Association (CSA)
All CSA hazardous approved transmitters are certified per ANSI/ISA 12.27.01-2003.
E6 Explosion-proof for Class I, Division 1, Groups B, C, and D; Dust Ignition-Proof for Class II
and Class III, Division 1, Groups E, F, and G; suitable for Class I, Division 2, Groups A, B,
C, and D, CSA Enclosure Type 4X; conduit seal not required; Dual Seal.
I6 Intrinsically Safe for Class I, Division 1, Groups A, B, C, and D when connected in
accordance with Rosemount Drawings 03151-1316; Dual Seal.
For entity parameters see control drawing 03151-1316.
00825-0100-4804_AB.fm Page 16 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
17
European Certifications
I1 ATEX Intrinsic Safety
Certificate No. BAX01ATEX1303X II 1G
Ex ia IIC T4 (Ta = -60 °C to 70 °C)
1180
Special Conditions for Safe Use (X)
The apparatus is not capable of withstanding the 500 V test as defined in Clause 6.3.12 of
EN 60079-11. This must be considered during installation.
N1 ATEX Type n
Certificate No. BAS01ATEX3304X II 3 G
Ex nL IIC T4 (Ta= -40 °C to 70 °C)
Ui = 45 Vdc max
IP66
1180
Special Conditions for Safe Use (X)
The apparatus is not capable of withstanding the 500 V insulation test required by Clause
6.8.1 of EN 60079-15. This must be taken into account when installing the apparatus.
ND ATEX Dust
Certificate No.: BAS01ATEX1374X II 1 D
Ex tD A20 T105 °C (-20 °C Tamb 85 °C)
Vmax = 42.4 V max
A = 22 mA
IP66
1180
Special Conditions for safe use (X):
1. Cable entries must be used which maintain the ingress protection of the enclosure to at
least IP66.
2. Unused cable entries must be filled suitable blanking plugs which maintain the ingress
protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient range of the
apparatus and capable of withstanding a 7J impact test.
4. Each 3051S ERS transmitter must be securely screwed in place to maintain the ingress
protection of the enclosure. (The 3051S Super Module must be properly assembled to
the 3051S housing to maintain ingress protection.)
Table 4. Input Parameters
Loop / Power
Ui= 30 V
Ii= 300 mA
Pi= 1 W
Ci= 12 nF
Li = 33 H

00825-0100-4804_AB.fm Page 17 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
18
E1 ATEX Flameproof
Certificate No.: KEMA00ATEX2143X II 1/2 G
Ex d IIC T6 (-50 °C Tamb 65 °C)
Ex d IIC T5 (-50 °C Tamb 80 °C)
Vmax = 42.4 V
1180
Special Conditions for safe use (X):
1. Appropriate ex d blanking plugs, cable glands, and wiring need to be suitable for a
temperature of 90 °C.
2. This device contains a thin wall diaphragm. Installation, maintenance, and use shall
take into account the environmental conditions to which the diaphragm will be
subjected. The manufacturer's instructions for maintenance shall be followed in detail
to assure safety during its expected lifetime.
3. The 3051S ERS System does not comply with the requirements of EN 60079-1 Clause
5.2, Table 2 for all joints. Contact Emerson Process Management for information on
dimensions of flameproof joints.
Japanese Certifications
E4 TIIS Flameproof: Consult factory for availability
INMETRO Certifications
E2 INMETRO Flameproof: Consult factory for availability
I2 INMETRO Intrinsic Safety: Consult factory for availability
China Intrinsic Safety
E3 China Flameproof: Consult factory for availability
I3 China Intrinsically Safe: Consult factory for availability
IECEx Certifications
I7 IECEx Intrinsic Safety
Certificate No.: IECExBAS04.0017X
Ex ia IIC T4(Ta= -60 °C Tamb 70 °C)
IP66
Special conditions for safe use (X)
The apparatus is not capable of withstanding the 500 V test as defined in clause 6.3.12 of
IEC 60079-11. This must be taken into account during installation.
Table 5. Input Parameters
Loop / Power
Ui= 30 V
Ii= 300 mA
Pi= 1 W
Ci= 12 nF
Li = 33 H

00825-0100-4804_AB.fm Page 18 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011 Rosemount 3051S ERS System
19
N7 IECEx Type n
Certificate No.: IECExBAS04.0018X
Ex nC IIC T4 (Ta= -40 °C to 70 °C)
Ui= 45 Vdc Max
IP66
Special conditions for safe use (X)
The apparatus is not capable of withstanding the 500 V insulation test required by Clause 8
of IEC 60079-15.
E7 IECEx Flameproof and Dust (each listed separately)
IECEx Flameproof
Certificate No.: IECExKEM08.0010X
Ex d IIC T6 (-50 °C Tamb 65 °C)
Ex d IIC T5 (-50 °C Tamb 80 °C)
Vmax = 42.4 V
Special conditions for safe use (X)
1. Appropriate ex d blanking plugs, cable glands, and wiring needs to be suitable for a
temperature of 90 °C.
2. This device contains a thin wall diaphragm. Installation, maintenance, and use shall take
into account the environmental conditions to which the diaphragm will be subjected. The
manufacturer’s instructions for maintenance shall be followed in detail to assure safety
during its expected lifetime.
3. The 3051S does not comply with the requirements of IEC 60079-1 Clause 5.2, Table 2
for all joints. Contact Emerson Process Management for information on the dimensions
of flameproof joints.
IECEx Dust
Certificate No. IECExBAS09.0014X
Ex tD A20 T105°C (-20 °C ≤Ta mb ≤85 °C)
Vmax = 42.4 V
A = 22 mA
IP66
Special conditions for safe use (x)
1. Cable entries must be used which maintain the ingress protection of the enclosure to at
least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which maintain the
ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient range of the
apparatus and capable of withstanding a 7J impact test.
4. Each 3051S ERS sensor must be securely screwed in place to maintain the ingress
protection of the enclosure. (Each sensor module must be properly assembled to the
housing to maintain ingress protection.)
00825-0100-4804_AB.fm Page 19 Monday, January 24, 2011 9:23 AM

Quick Installation Guide
00825-0100-4804, Rev AB
January 2011
Rosemount 3051S ERS System
20
Combinations of Certifications
Stainless steel certification tag is provided when optional approval is specified. Once a device
labeled with multiple approval types is installed, it should not be reinstalled using any other
approval types. Permanently mark the approval label to distinguish it from unused approval
types.
K1 Combination of E1, I1, N1, and ND
K2 Combination of E2 and I2
K5 Combination of E5 and I5
K6 Combination of E6 and I6
K7 Combination of E7, I7, and N7
KA Combination of E1, E6, I1, and I6
KB Combination of E5, E6, I1, and I6
KC Combination of E5, E1, I5, and I1
KD Combination of E5, E6, E1, I5, I6, and I1
00825-0100-4804_AB.fm Page 20 Monday, January 24, 2011 9:23 AM
