Emerson CF712AB00 User manual

Part No. F40BP73000001 Form No. BP7300-1
READ AND SAVE THESE INSTRUCTIONS
PRO Series Ceiling Fan
Owner's Manual
®
Net Weight: 22.0 Lbs.
Model No.
CF712AB00 CF712ORB00
CF712AW00 CF712WB00
CF712BS00 CF712WW00
CF712OB00

WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a warning device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to
the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan
without blades.
2. All wiring must satisfy National and Local Electrical Codes. Use the National Electrical Code if Local Codes do
not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical
installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use
only U.L. outlet boxes listed as “Acceptable for Fan Support”, and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
4. The downrod furnished with the fan proves the minimum recommended floor to fan blade clearance for an
8 foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the
fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed by a licensed electrician.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically
approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any accessories
designated specifically for use this product by Emerson Electric Company could result in personal injury or
property damage.
WARNING: To Reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
2
WARNING
!
DATE CODE:
The date code of this fan may be found on
the box, stamped in ink on a white label.
You should record this data above and keep
it in a safe place for future use.

1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.
a. Fan motor assembly
b. Five fan blades
c. One ceiling cover with hanger bracket
d. Five blade flanges
e. One hanger ball/downrod assembly
f. Light fitter
g. Glass bowl
h. One loose parts bag containing:
1. Sixteen M5 x 6 washer
head blade screws
2. One rubber gasket
3. Two wood pendants
4. Two couplings
5. Three wire connectors
6. One clevis pin
7. One hairpin clip
8. One Phillips round
head flange screw
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
Three wire connectors (supplied).
MATERIALS
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would
be a 3-conductor (2-wire with ground) of the following
size:
3
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a
check mark in the box. This will insure that all steps have been completed and will be helpful in finding
your place should you be interrupted.
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 6). If you feel
you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Company. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Company could result in
personal injury or property damage.
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
2. Remove the fan housing assembly from the
protective plastic bag. Turn the upper styrofoam
pad over and carefully place the fan motor
assembly into the recess in the pad with the top of
the motor facing up.
A
BC
DH
F
G
E
WARNING
!
WARNING
!
WARNING
!

Installing The Hanger
Ball/Downrod Assembly
(For Standard Mounting)
1. Pass the 56" motor leads through the opening in
the ceiling cover. Be sure the cover is oriented
correctly.
2. Separate, untwist and unkink the three motor
leads. Route the motor leads through the hanger
ball/downrod assembly.
3. Loosen the two setscrews in the motor coupling.
Align the clevis pin holes in the downrod with the
holes in the motor coupling. Install the clevis pin
and secure with the hairpin clip (Figure 2). The
clevis pin must go through the holes in the motor
coupling and the holes in the downrod. Be sure to
push the straight leg of the hairpin clip through the
hole near the end of the clevis pin until the curved
portion of the hairpin clip snaps around the clevis
pin. The hairpin clip must be properly installed to
prevent the clevis pin from working loose. Pull on
the hanger ball to make sure the clevis pin is
properly installed.
4
HANGER
BALL/DOWNROD
ASSEMBLY
CEILING
COVER
SETSCREW
CLEVIS
PIN
HAIRPIN
CLIP
DECORATIVE
CAP
SETSCREW
MOTOR COUPLING
Figure 2
REMOVE AND RETAIN
TWO SCREWS AND LOCKWASHERS LOOSEN THE TWO SCREWS
IN THE KEYHOLE SLOTS
CEILING
COVER
HANGER
BRACKET
Figure 1
IMPORTANT
Your ceiling fan is designed to be installed
either in the standard manner, or in the
close-to-the-ceiling manner. Using the
standard method, the hanger ball/downrod
assembly will suspend the fan several inches
below the ceiling cover. Using the
close-to-the-ceiling method, the ceiling cover
installs directly on the fan motor housing,
thus mounting the fan 3-1/2 inches closer to
the ceiling than the standard method. In no
case should the fan blades be lower than
seven feet above the floor. Depending on
your desired mounting method, proceed to
“INSTALLING HANGER BALL/DOWNROD
ASSEMBLY” for standard mounting, or to
“INSTALLING CEILING COVER ON FAN
MOTOR HOUSING” for close-to-the-ceiling
mounting.
It is critical that the clevis pin in the motor coupling
is properly installed and the setscrews securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
WARNING
!
4. While pulling up on the hanger ball, securely
tighten the two setscrews in the motor coupling
(Figure 2).
NOTE: The setscrews must be properly installed
as described above, or fan wobble could result.
5.The fan comes with blue, black and white leads that
are 56” long. Measure up approximately
6 to 9-inches above top of hanger ball/downrod
assembly. Cut off excess leads and strip back
insulation 1/2-inch from end of leads.
1. Loosen the two screws in the keyholes slots of the
ceiling cover. Remove and retain the other two
screws and lockwashers (Figure 1).
2. Turn the ceiling cover and remove the hanger
bracket.
Removal Of The
Hanger Bracket

5
1. Unscrew (but do not remove) the two mounting
screws in the outlet box (Figure 6). Position the
hanger bracket on the outlet box so that the T-slots
in the hanger bracket are aligned with the outlet
box screws.
NOTE: The hanger bracket must be mounted
flush with the ceiling in order for the ceiling cover
to install properly. If necessary, use leveling
washers (not supplied) between the outlet box
and the hanger bracket.
2. Slide the hanger bracket onto the outlet box
screws. Center the bracket over the outlet box and
then securely tighten the screws (Figure 7).
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 5).
WARNING
!
FLOOR
7'
MIN.
Figure 5
HANGER
BRACKET
LOOSEN TWO
SCREWS (SUPPLIED
WITH OUTLET BOX)
OUTLET BOX
SLIDE THE HANGER
BRACKET ONTO
THE OUTLET BOX
SCREWS, THROUGH
THE T-SLOT
T-SLOT
Figure 6
Hanger bracket must seat firmly against outlet box. If
the outlet box is recessed, use leveling washers
between the hanger bracket and the outlet box until
the bracket is flush with the ceiling. If bracket and/or
outlet box are not securely attached, the fan could
wobble or fall.
WARNING
!
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support”.
WARNING
!

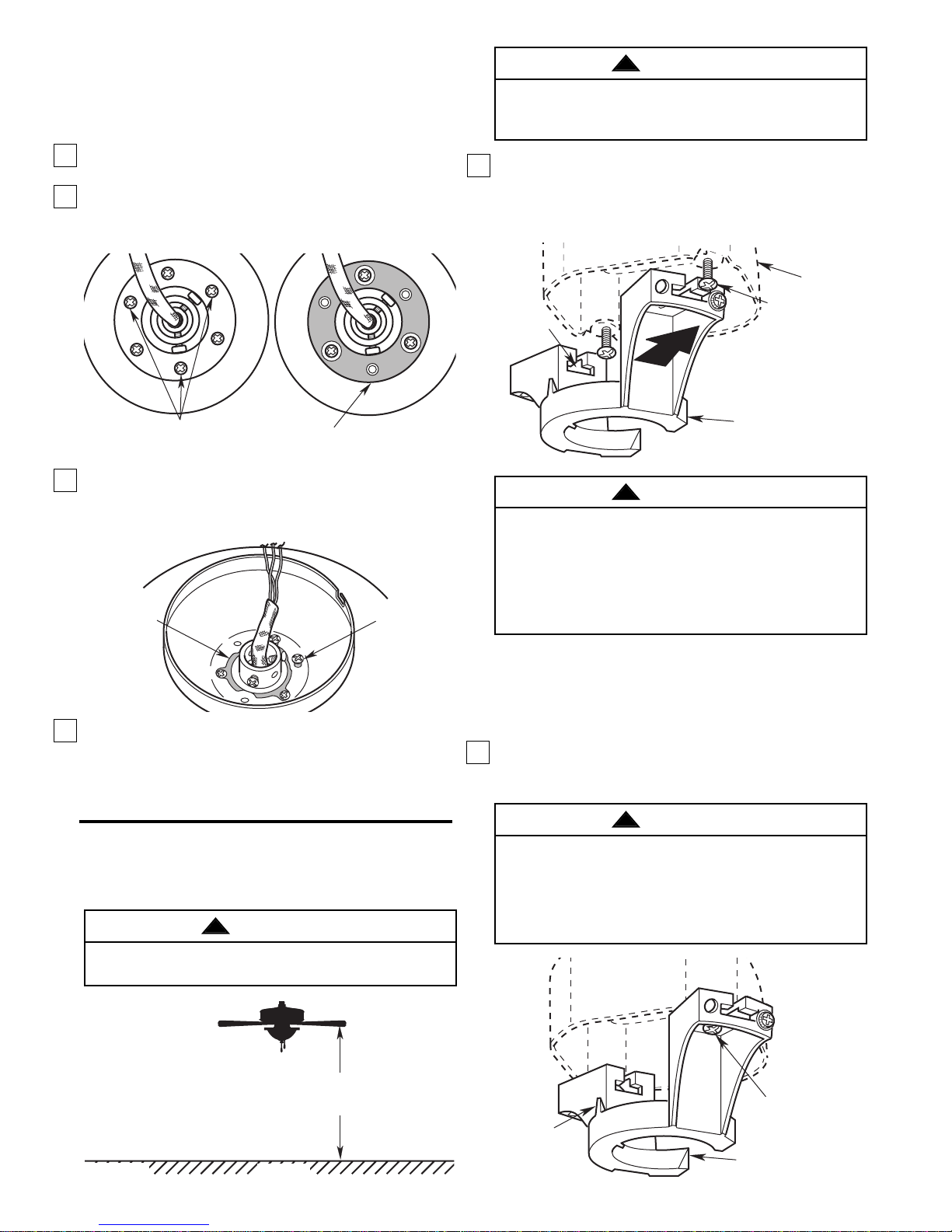

Installing The
Hanger Bracket
Installing The Ceiling Cover
On The Fan Motor Housing
(For Close-to-the-Ceiling Mounting)
1. Remove and retain three screws from the top of
the motor housing (Figure 3A).
2. Position the rubber gasket (supplied in parts bag)
on the motor housing (small holes in gasket
centered over the screw holes in the housing)
(Figure 3B).
3. Gently pry the decorative cap (Figure 2) from the
ceiling cover. Align the holes in the ceiling cover
with the holes in the motor housing and secure
using the three screws (Figure 4).
4. The fan comes with blue, black and white leads
that are 56” long. Measure up approximately 6 to
9-inches above the motor coupling. Cut off excess
leads and strip back insulation 1/2-inch from ends
of leads.
REMOVE SCREWS (3) INSTALL GASKET
Figure 3A Figure 3B
SCREW (3)
RUBBER
GASKET
Figure 4
To reduce the risk of fire, electrical shock, or personal
injury, mount fan to outlet box marked “Acceptable for
Fan Support”, and use screws supplied with outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
WARNING
!
HANGER BRACKET
HOOK
SECURELY
TIGHTEN
SCREWS
Figure 7

If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
1. Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the grounding conductor of supply (this
may be a bare wire or wire with green colored
insulation) (Figure 10). Securely connect wires
using wire connectors supplied.
NOTE: When wiring the ceiling fan for close-to-
the-ceiling mounting, there will be no green
grounding lead from the hanger ball.
6
Wiring The Ceiling Fan
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice,
as it must be grounded for safe operation.
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
WARNING
!
Electrical Requirements
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored and
capable of withstanding a load of at least 50 pounds.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local Codes and the ceiling fan must be properly
grounded as a precaution against possible
electrical shock.
WARNING
!

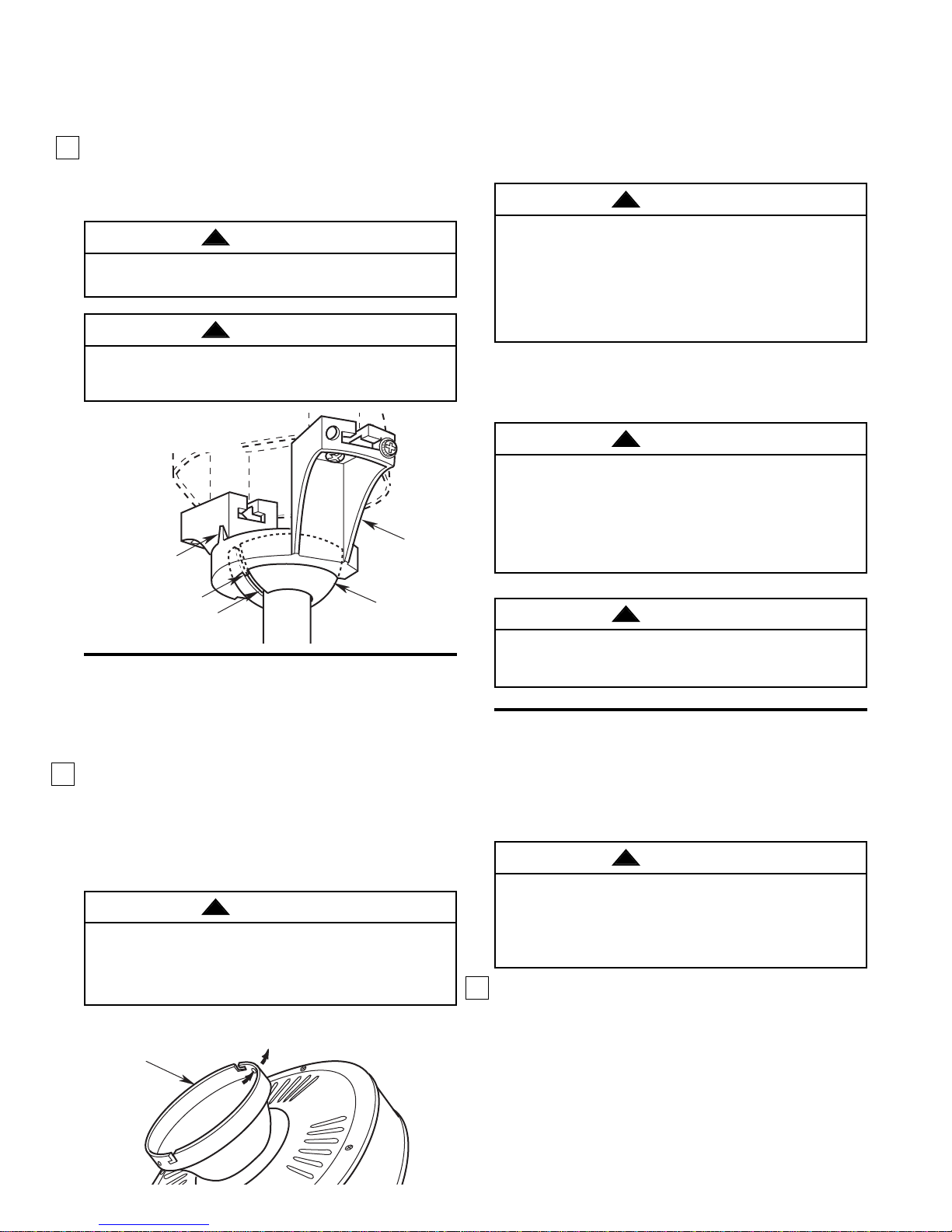

Hanging The Ceiling Fan
(Close-to-the-Ceiling Method with
Ceiling Cover Installed on
the Motor Housing)
1. Carefully lift the fan assembly up to the hanger
bracket. Pass the hook on the hanger bracket
(Figure 8) through one of the screw holes (not the
slots) in the ceiling cover (Figure 9). The hook
must pass from the inside of the ceiling cover to
the outside. The hook will hold the fan assembly
while connecting the wiring.
The hook must pass through the screw hole in the
ceiling cover from the inside to the outside. Any
other hanging method may cause the hook to break
and the fan to fall.
WARNING
!
CEILING
COVER
HOOK ON HANGER BRACKET MUST PASS THROUGH SCREW HOLE
IN CEILING COVER, INSIDE OF BRACKET TO OUTSIDE OF BRACKET
Figure 9
HANGER
BRACKET
HOOK
TAB
GROOVE HANGER
BALL
Figure 8
To reduce the risk of fire, electrical shock, or personal
injury, mount fan to outlet box marked “Acceptable for
Fan Support”, and use screws supplied with outlet box.
Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
To avoid fire or shock, do not pinch wires between
the hanger ball/downrod assembly and hanger
bracket.
WARNING
!
WARNING
!
Hanging The Ceiling Fan
(Standard Method Using
Hanger Ball/Downrod)
1. Carefully lift the fan assembly and seat the hanger
ball in the hanger bracket (Figure 8). The tab on
the hanger bracket must seat in the groove in the
hanger ball.
NOTE: CEILING COVER, SUPPLY
WIRES AND FAN WIRES OMITTED
FOR CLARITY.

RUBBER GROMMETS
BLADE FLANGE
ALIGNMENT POST
FAN BLADE
M5 x 6 WASHER
HEAD BLADE SCREW (3)
7
BLACK
FAN WIRE
BLUE
FAN WIRE
BLACK
SUPPLY (HOT)
SUPPLY
GROUND WIRE
GREEN GROUND
WIRE FROM HANGER
BRACKET
GREEN GROUND
WIRE FROM HANGER
BALL
WIRE CONNECTOR
WHITE SUPPLY
NEUTRAL)
WHITE FAN WIRE
Figure 10
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
3. Cut the speed control switch pull chain and the
light switch pull chain to the desired lengths.
Connect the wood pendants (supplied) to the pull
chains by sliding the pendants (small hole first)
onto the pull chains. Then attach the chain
couplings (supplied) to the end of the chains and
allow the pendants to fall down over the couplings.
LOOSEN THIS
SCREW
CEILING
COVER
TIGHTEN SCREW
REINSTALL SCREW AND
LOCKWASHER
Figure 11
Figure 12
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
Installing The Fan Blades
1. Make sure the three rubber grommets are firmly
seated on each of the blade flanges. Then mount
the blade flanges to the fan blades using three
M5 x 6 washer head blade screws per blade
(Figure 12).
2. Securely connect the fan motor white wire to the
supply white (neutral) wire using wire connector
supplied (Figure 10). Securely connect the fan
motor black wire and blue wire to the supply black
(hot) wire using wire connector supplied (Figure
10). After connections have been made, turn leads
upward and carefully push leads into the outlet
box, with the white and green leads on one side of
the outlet box and the black and blue leads on the
other side of the outlet box.
Installing The
Ceiling Cover
NOTE: When installing the ceiling fan using the
close-to-the-ceiling method, carefully lift the fan
assembly from the hook on the hanger bracket
and proceed as follows.
1. Lift the ceiling cover up to the hanger bracket.
Engage the slots in the ceiling cover with the
loosened screws in the bracket and turn the cover
counterclockwise (Figure 11). Be sure that the
lockwashers are between the screw heads and the
ceiling cover.
2. Reinstall the other two screws and lockwashers;
tighten all screws securely.
To reduce the risk of personal injury, do not bend the
blade flanges when installing the flanges, balancing
the blades, or cleaning the fan. Do not insert foreign
objects between rotating fan blades.
WARNING
!

Installing The Light Fitter
And Glass
1. Remove and retain the three screws securing the
switch housing cover to the switch housing.
(Figure 14) Remove and retain the two wire
connectors. Remove plug screw.
2. Remove and retain lockwasher and nut from the
light fitter. Insert the black and white wires from the
light fitter through the center hole in the switch
housing cover. Thread switch cup cover onto the
light fitter. Reinstall lockwasher and nut and tighten
securely (Figure 15).
3. Connect the white wire from the ceiling fan to the
white wire of the light fitter. Connect the blue wire
from the ceiling fan to the black wire of the light
fitter. Use wire connectors (previously removed) to
make connections.
4. Carefully tuck all wires and splices into the switch
housing.
8
SCREW (3)
SWITCH
HOUSING COVER
SWITCH
HOUSING
REMOVE AND RETAIN
THE TWO WIRE
CONNECTORS
PLUG SCREW
Figure 14
CAPTIVE
SCREW (2)
BLADE FLANGE
ALIGNMENT
SLOT
MOTOR HUB

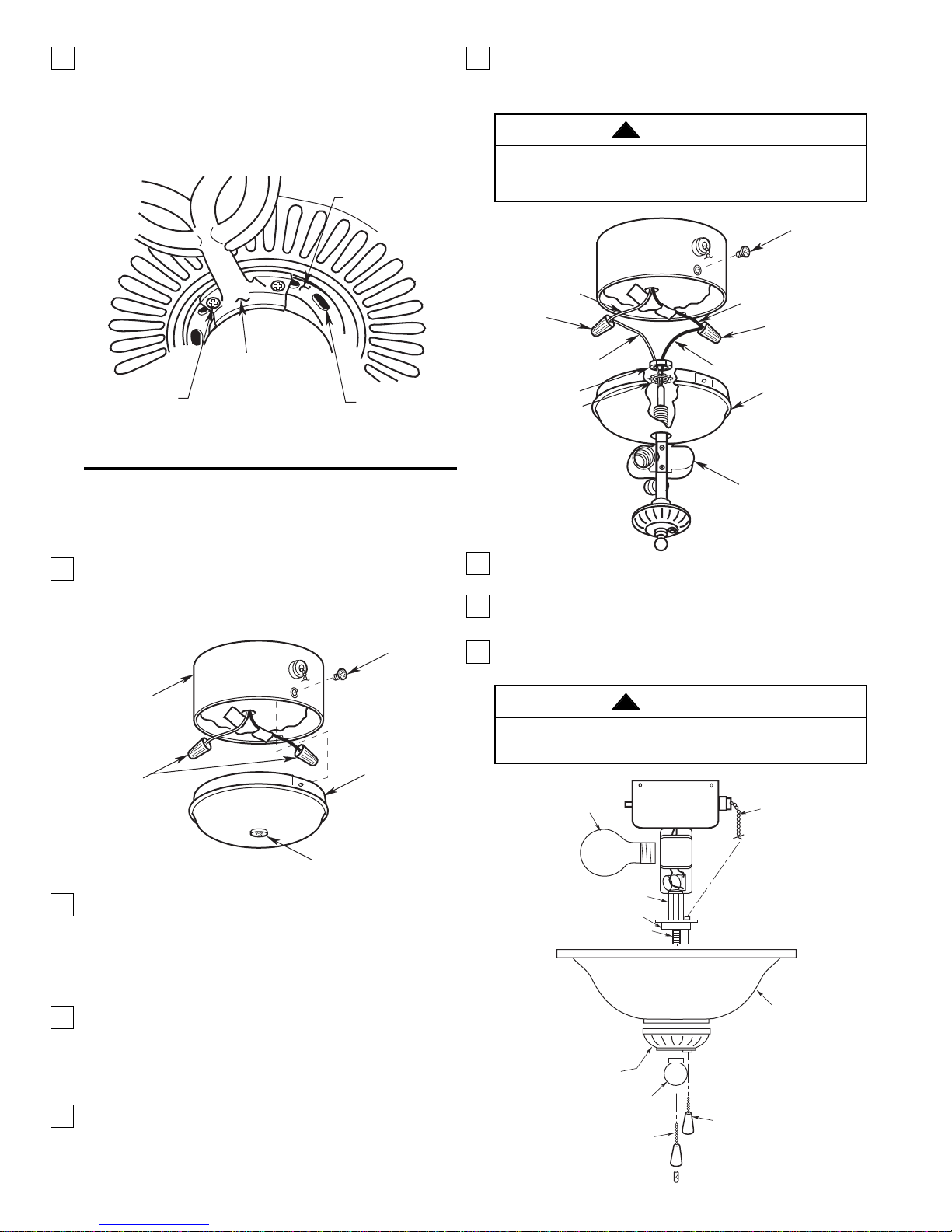

Figure 13
2. Mount one blade assembly to the motor hub by
mating the alignment post (Figure 12) of the flange
with one of the alignment slots in the motor hub
(Figure 13). Then tighten the two captive screws in
the flange to secure the flange to the motor hub.
Repeat this procedure for the other four blade
assemblies. Make sure all screws are tightened.
5. Attach the switch housing cover with light fitter to
the switch housing using the tree previously
removed screws.
6. Remove the finial nut and outer bowl cap from the
light fitter (Figure 16).
7. Pass the fan switch chain through the bushing in
the bowl cap (Figure 16).
8. Install two 60 watt maximum medium base light
bulbs (not supplied) into the light fitter sockets.
To avoid fire or electrical shock, be careful not to
pinch wires between the switch housing assembly
and the cover.
WARNING
!
SCREW (3)
SWITCH
HOUSING COVER
LIGHT FITTER
BLACK WIRE
BLUE WIRE
WHITE WIRE
WHITE WIRE
WIRE
CONNECTOR WIRE
CONNECTOR
NUT
LOCKWASHER
Figure 15
To avoid possible fire hazard, do not exceed wattage
indicated on the fitter.
WARNING
!
THREADED NIPPLE
BOWL CAP
LIGHT FITTER
OUTER BOWL CAP
GLASS BOWL
LIGHT BULB (2)
(Not Supplied)
FINIAL NUT
FAN SWITCH
CHAIN
PENDANTS (2)
LIGHT SWITCH
CHAIN
Figure 16

1. Restore electrical power to the outlet box by turning
the electricity on at the main fuse box.
2. Check the operation of the light by gently pulling on
the light switch pull chain.
3. Check the operation of the fan by gently pulling on
the speed control switch pull chain. The operation
sequence is as follows:
1st pull - High
2nd pull - Medium
4. Your fan is shipped from the factory with the
reversing switch positioned to circulate air
downward. If airflow is desired in opposite
direction, turn the fan off and wait for the blades to
stop turning, then slide the reversing switch to the
opposite position, and turn the fan on again. The
fan blades will turn in the opposite direction and
reverse the airflow.
9
Using Your Ceiling Fan
SPEED CONTROL
PULL CHAIN SWITCH
REVERSING
SWITCH
LIGHT PULL
CHAIN SWITCH
3rd pull - Low
4th pull - OFF
9. Position the glass bowl over the threaded nipple
and seat bowl on bowl cap (Figure 16). Pass the
fan pull chain through the bushing in the outer bowl
cap and install the cap on the threaded nipple.
Install nut finial finger tight.
CAUTION
Be sure that the fan switch chain does not make
contact with the light bulbs. If necessary
reposition the light fitter to avoid the fan switch
chain from touching the light bulbs.
10. Install pendants onto light fixture chain and fan
switch chain using couplings provided.
NOTE: It is advisable to periodically check the
tightness of the finial.
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth
to avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
Maintenance
Accessories
Do not use water when cleaning your ceiling fan. It
could damage the motor or the blades and create the
possibility of an electrical shock.
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Company. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Company could result in
personal injury or property damage.
The use of any other control not specifically
approved for this fan could result in fire, shock and
personal injury.
1. Ceiling Fan/Light Controls (see store or catalog).
2. Downrod Extension Kits (see store or catalog).
WARNING
!
WARNING
!
WARNING
!

10
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers.
2. Loose power line connections to the fan, or loose 2. Check line wire connections to fan and switch wire
switch wire connections in the switch housing. connections in the switch housing.
WARNING: Make sure main power is turned off.
3. Reversing switch in neutral position. 3. Make sure reversing switch position is all the way to one
side.
2. Fan sounds noisy. 1. Blades not attached to fan. 1. Attach blades to fan before operating.
2. Screws securing fan blade flanges to motor hub 2. Check to make sure the screws which attach the fan
are loose. flanges to the motor hub are tight.
3. Wire connectors inside switch housing rattling. 3. Check to make sure wire connectors in switch housing
are not rattling against each other or against the interior
wall of the switch housing.
WARNING: Make sure main power is turned off.
4. Motor noise caused by solid-state variable 4. Some fan motors are sensitive to signals from Solid-
speed control. State variable speed controls. If Solid-State Control
is used and motor noise results choose an alternative
control method.
5. Screws holding blades to flanges are loose. 5. Tighten screws securely.
3. Fan wobbles 1. Setscrews in motor coupling are loose. 1. Tighten both setscrews securely in the motor coupling.
excessively. 2. Setscrew in hanger ball/downrod assembly is 2. Tighten the setscrew in the hanger ball/downrod
loose. assembly.
3. Screws securing fan blade flanges to motor are 3. Check to be sure screws which attach the fan blade
loose. flanges to the motor are tight.
4. Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat firmly and
uniformly to the surface of the motor.
5. Hanger bracket and/or ceiling outlet box is not 5. Tighten the hanger bracket screws to the outlet box,
securely fastened. and/or secure outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade pair can
redistribute the weight and result in smoother operation.
WARNING: For your own safety, turn off power at fuse box or circuit breaker before trouble
shooting your fan.
!
!
!

11
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all
defects in workmanship and materials. You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for fifteen years from the date you purchased your ceiling fan. All other
components and accessories are covered by this warranty for one year from the date you purchased your ceiling fan.
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT
TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other
accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and
no replacement can be provided, Emerson Electric Co. will refund the actual purchase price of your fan. WE WILL SHIP
THE REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS
OR REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC CO.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP
YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest
authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to
Air Comfort Products, Division of Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all
model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized
service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service
center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be
responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover
any defects, malfunctions or failures caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and
tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided
when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral
warranties apply, and no employee, agent, dealer or other person is authorized to give any warranties on behalf of
Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND
EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL
DAMAGES. Incidental damages include but are not limited to such damages as loss of time and loss of use.
Consequential damages include but are not limited to the cost of repairing or replacing other property which was
damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.

Model No.
Key
No. Description CF712AB00 CF712WW00 CF712AW00 CF712BS00 CF712WB00 CF712OB00 CF712ORB00
* Hanger Pack Assembly, 762231 762231-1 762231-2 762231-4 762231-5 762231-7 762231-8
Consisting of:
1 Hanger Bracket — — — — — — —
2 Hanger Ball/
Downrod Assembly — — — — — — —
3 Ceiling Cover 762218 762218-1 762218-2 762218-4 762218-5 762218-7 762218-8
4 Light Fitter 762889 762889-1 762889-2 762889-3 762889-4 762889-5 762889-6
5 Glass Bowl 762888 762888 762888 762888 762888-1 762888-1 762888-1
6 Cover, Switch Housing 762894 762894-1 762894-2 762894-3 762894-4 762894-5 762894-6
7 Flange (Set of 5) 762215 762215-1 762215-2 762215-4 762215-5 762215-7 762215-8
8 Blade (Set of 5) 762228-2 762228-9 762228-8 762228-7 762228-11 762228-6 762228-10
* Parts Bag Containing: 762229 762229-1 762229-2 762229-5 762229 762229 762229
9 Wire Connector (3) — — — — — — —
10 Hairpin Clip — — — — — — —
11 Clevis Pin — — — — — — —
12 Pendant, Fan — — — — — — —
13 Coupling (2) — — — — — — —
14 Pendant, Light — — — — — — —
15 Screw, M5 x 6
Washer Head (16) — — — — — — —
16 Flange Screw,
Phillips Round Head (1) — — — — — — —
17 Rubber Gasket — — — — — — —
18 Finial Nut 762892 762892-1 762892-2 762892-3 762892-4 762892-5 762892-6
19 Outer Bowl Cap 762891 762891-1 762891-2 762891-3 762891-4 762891-5 762891-6
—Owner's Manual BP7300-1 BP7300-1 BP7300-1 BP7300-1 BP7300-1 BP7300-1 BP7300-1
Repair Parts Listing
Form No. BP7300-1
Part No. F40BP73000001 Printed in China 06/05
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
Before discarding packaging material, be certain all
parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• PART NUMBER • PART DESCRIPTION
• NAME OF ITEM • MODEL NUMBER
For repair parts, phone [phone].
7
8
3
2
10 11
9
1
16
6
19
13
18
14
15
5
13
12
4
17

13
