Emerson WESTFIELD CF680BQ00 User manual

LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and
materials. You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for ten years from the date you purchased your ceiling fan. All other components and accessories
are covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If
repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the
actual purchase price of your fan. We will ship the repaired product or replacement to you at no charge, but you are responsible for all costs or
removal, reinstallation and shipping of the product to Emerson Electric Co.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR
OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division
of Emerson Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air
Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions
or failures caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and
no employee, agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT
RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are
not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or
replacing other property which was damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply
to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Part No. F40BP73050001 Form No. BP7305-1
U.L. Model No.: CF680
READ AND SAVE THESE INSTRUCTIONS
WESTFIELD™
Net Weight: 24.7 Lbs.
Wet Location
52” Ceiling Fan
Owner's Manual
CF680BQ00 CF680ORB00
Model No. CF680WB00
BP7305 Westfield 6/30/06 12:10 AM Page 1

2
WARNING: To avoid fire, shock, and serious personal injury, follow these
instructions. Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock
service panel disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked,
securely fasten a warning device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the
fan. Always turn off the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before
wiring, and do not operate fan without blades.
2. The installation is to be in accordance with the National Electrical Code,
ANSI/NFPA 70-1999 and Local Codes. Use the National Electrical Code if Local
Codes do not exist. The ceiling fan must be grounded as a precaution against
possible electrical shock. Electrical installation should be made or approved
by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably
supporting at least 50 pounds. Use only U.L. outlet boxes listed as
“Acceptable for Fan Support”, and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for support of light fixtures are
not acceptable for fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
4. The downrod furnished with the fan provides the minimum recommended floor
to fan blade clearance for an 8 foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to
prevent accidental contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your
ceiling fan. If you do not know enough about electrical wiring, have your fan
installed by a licensed electrician.
NOTE: This fan is suitable for use with solid-state speed controls.
WARNING: This product is designed to use only those parts supplied with this
product and/or any accessories designated specifically for use with this product
by Emerson Electric Co. Substitution of parts or accessories not designated for
use with this product by Emerson Electric Co. could result in personal injury or
property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange
when installing the blade flanges, balancing the blades or cleaning the fan. Do not
insert foreign objects in between rotating fan blades.
!WARNING
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
BP7305 Westfield 6/30/06 12:10 AM Page 2

3
THIS FAN IS SUITABLE FOR DAMP LOCATIONS SUCH AS
COVERED PORCHES, COVERED PATIOS, AND COVERED DECKS...
ANYWHERE THERE IS A ROOF OVERHEAD.
This Manual is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
Do not install or use fan if any part is
damaged or missing. Call Toll-Free:
1-800-654-3545
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Tools Needed for Assembly
One Phillips head screwdriver
One wire stripper
One stepladder
Five wire connector (supplied)
Four 7-watt (max.) candelabra bulbs
Materials
Wiring, outlet box and box connectors
must be of type required by the local code.
The minimum wire would be a 3-conductor
(2-wire with ground) of the following sizes:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Before assembling your ceiling fan, refer
to section on proper method of wiring
your fan (page 10). If you feel you do not
have enough wiring knowledge or
experience, have your fan installed by a
licensed electrician.
!WARNING
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each
step is completed, place a check mark in the box. This will insure that all steps
have been completed and will be helpful in finding your place should you be
interrupted.
NOTE: If you are uncertain of part

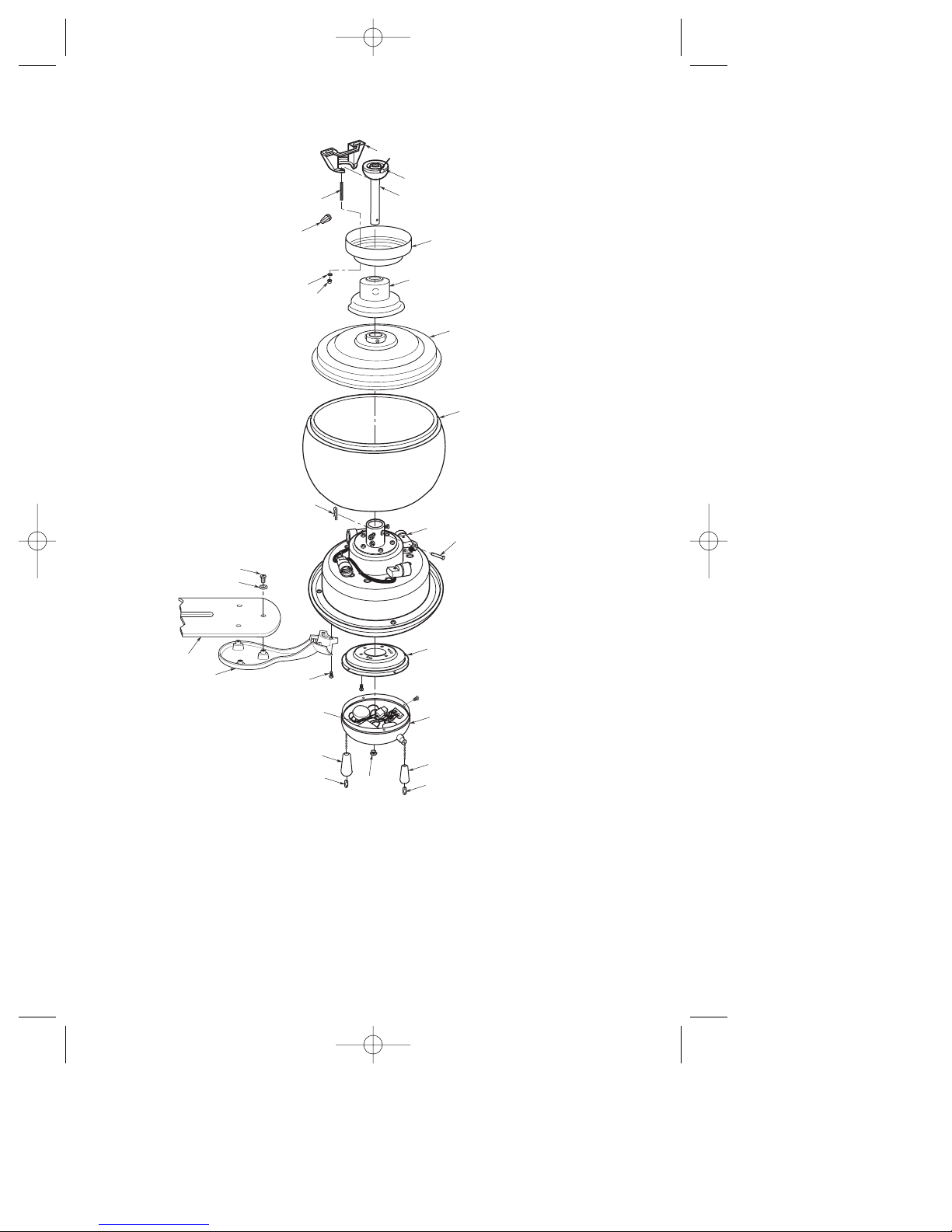

description, refer to exploded view
illustration.
a. Fan motor and housing assembly
b. One upper housing
c. One ceiling cover
d. Four blade flanges
e. Four fan blades
f. One upper housing cover
g. One center glass
h. One hanger bracket
i. One hanger ball/downrod assembly
j. One switch cup assembly
k. One switch cup adapter
1. Open styrofoam unit containing fan.
Remove top half of styrofoam unit.
Remove parts and check to see that
you have received the following parts:
BP7305 Westfield 6/30/06 12:10 AM Page 3

4
l. One loose parts bag containing:
1. Two 8-32 x 1-1/4” threaded studs
2. Two knurled knobs
3. Two lockwashers
4. Five wire connectors
5. One clevis pin/hairpin clip
assembly
6. Eleven 1/4-20 x 1/2” oval
head screws
7. Sixteen 10-32 x .30” pan
head screws
8. Sixteen #10 flat washers
9. Four 8-32 x 1/4” pan head screws
10. One pendant (large)
11. One pendant (small)
12. Two chain couplings
NOTE: Place the parts from the loose
parts bags in a small container to keep
them from being lost.
2. Remove the fan motor and housing
assembly from the protective plastic
bag. Place the fan assembly into the
lower foam pad with the bottom of the
motor facing up.
The lower foam pad serves as a holder
for the fan during the first stages of
assembly.
C
E
F
K
A
D
B
G
H
I
J
L
Your new ceiling fan will require a
grounded electrical supply line of 120 volts
AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored
and capable of withstanding a load of at
least 50 pounds.
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
If your fan is to replace an existing ceiling
light fixture, turn electricity off at the main
fuse or circuit breaker box at this time and
remove the existing light fixture.
Electrical Requirements
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
BP7305 Westfield 6/30/06 12:10 AM Page 4

5
IMPORTANT: The side of the fan blade
having the rib line MUST be facing
upward as shown in Figure 1.
1. Mount the fan blades to the blade
flanges using three 10-32 x .30” pan
head screws and three flat washers
(screws and washers supplied)
(Figure 1).
How to Assemble Your
Ceiling Fan
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
To reduce the risk of personal injury, do
not bend the blade flange when installing
the blade flanges, balancing the blades or
cleaning the fan. Do not insert foreign
objects in between rotating fan blades.
!WARNING
10-32 x .30"
PAN HEAD
SCREWS (3)
FLAT
WASHERS (3)
RIB LINE (THIS SIDE
OF BLADE UP)
FAN BLADE
BLADE
FLANGE
Figure 1

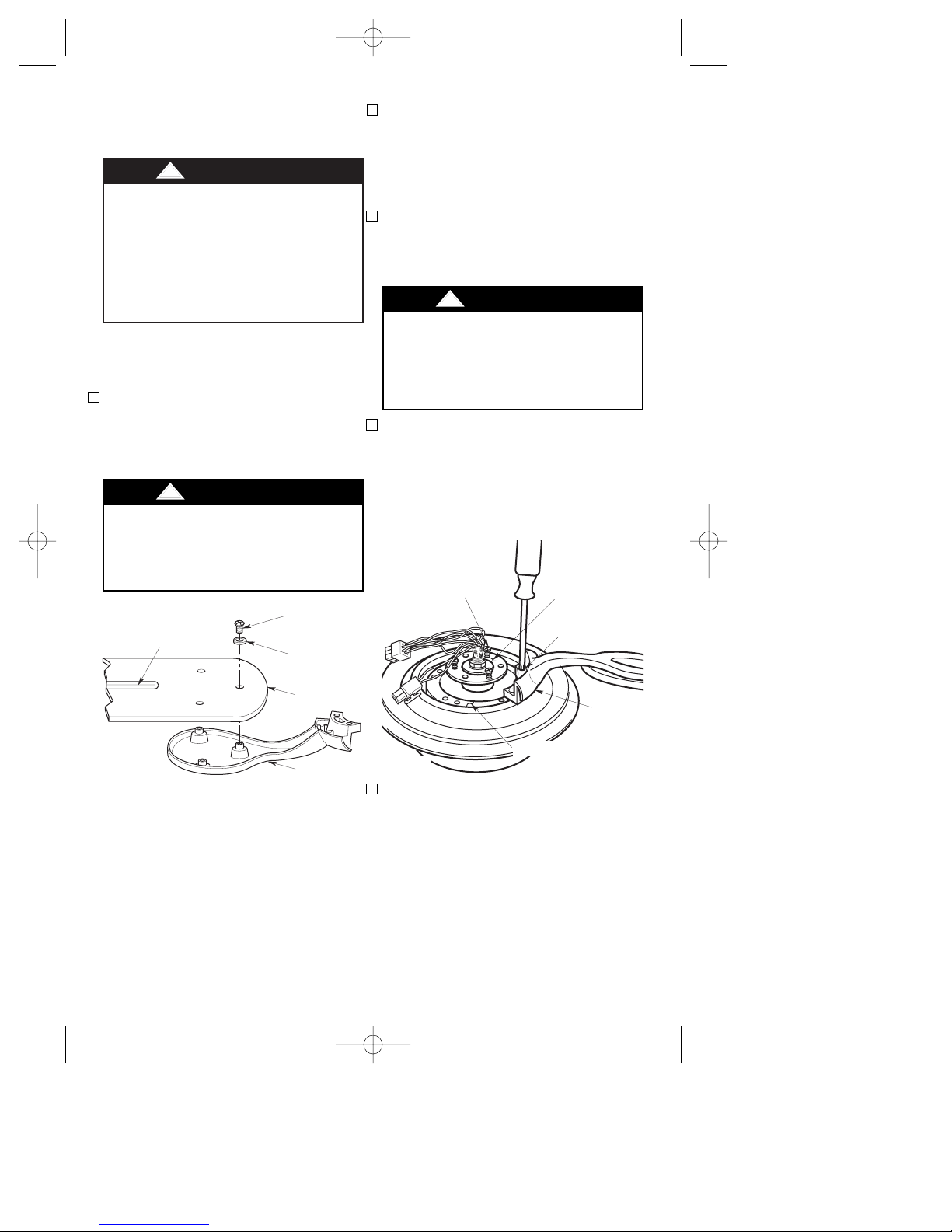

2. Remove and discard the four shipping
retainers securing the motor hub in the
motor housing.
NOTE: Take care not to scratch the fan
housing when installing the blade
assemblies.
3. Insert an 1/4-20 x 1/2” oval head screw
(supplied) into each of the two
recessed holes in one of the blade
flanges.
4. Position the blade flange on the motor
hub so that the screws in the blades
flange align with two threaded holes in
the motor hub (Figure 2). Loosely
tighten the screws at this time. Repeat
this procedure for the remaining four
blade assemblies.
5. Gently snug all flange screws to the
motor hub, working around the hub in a
clockwise sequence. Next, securely
tighten all flange screws, again working
in a clockwise sequence. Failure to
follow this procedure could result in fan
wobble. This completes the blade
installation.
1/4-20 x 1/2" OVAL
HEAD SCREWS (2)
BLADE
FLANGE
MOTOR FLANGE
REMOVE ONE PAN HEAD
SCREW/LOCKWASHER
MOTOR HUB
Figure 2
!WARNING
To reduce the risk of personal injury, do
not bend the blade flanges when
installing the flanges, balancing the
blades or cleaning the fan. Do not insert
foreign objects between rotating fan
blades.
BP7305 Westfield 6/30/06 12:10 AM Page 5

6. Remove and retain one of the three
pan head screw/lockwashers from the
motor flange (Figure 2); loosen the
other two pan head screws three or
four turns.
7. Position the switch cup adapter on the
motor flange so that the two screws
mate with the two keyhole slots in the
switch cup adapter (Figure 2).
NOTE: Make sure that the lockwashers
are positioned between the screw head
and the switch cup adapter.
8. Turn the switch cup adapter clockwise
and tighten both screws (Figure 3).
Reinstall the other pan head screw/
lockwasher in the remaining hole in the
switch cup adapter.
9. Carefully rest the switch cup assembly
on the fan blades, then engage the
large (9-pin) connector of the switch
cup assembly with the large motor
connector (Figure 4). Connect the
small (2-pin) connector of the switch
cup assembly with the small motor
connector. The two connectors are
keyed and color-coded and must be
mated correctly (color-to-color) before
they can be engaged. Make sure the
latches are engaged properly.
6
MOTOR FLANGE SWITCH CUP
ADAPTER
TIGHTEN TWO PAN
HEAD SCREWS
INSTALL ONE PAN HEAD
SCREW/LOCKWASHER
Figure 3
SWITCH CUP
ASSEMBLY
SMALL (2-PIN)
CONNECTORS
LARGE (9-PIN)
CONNECTORS
Figure 4

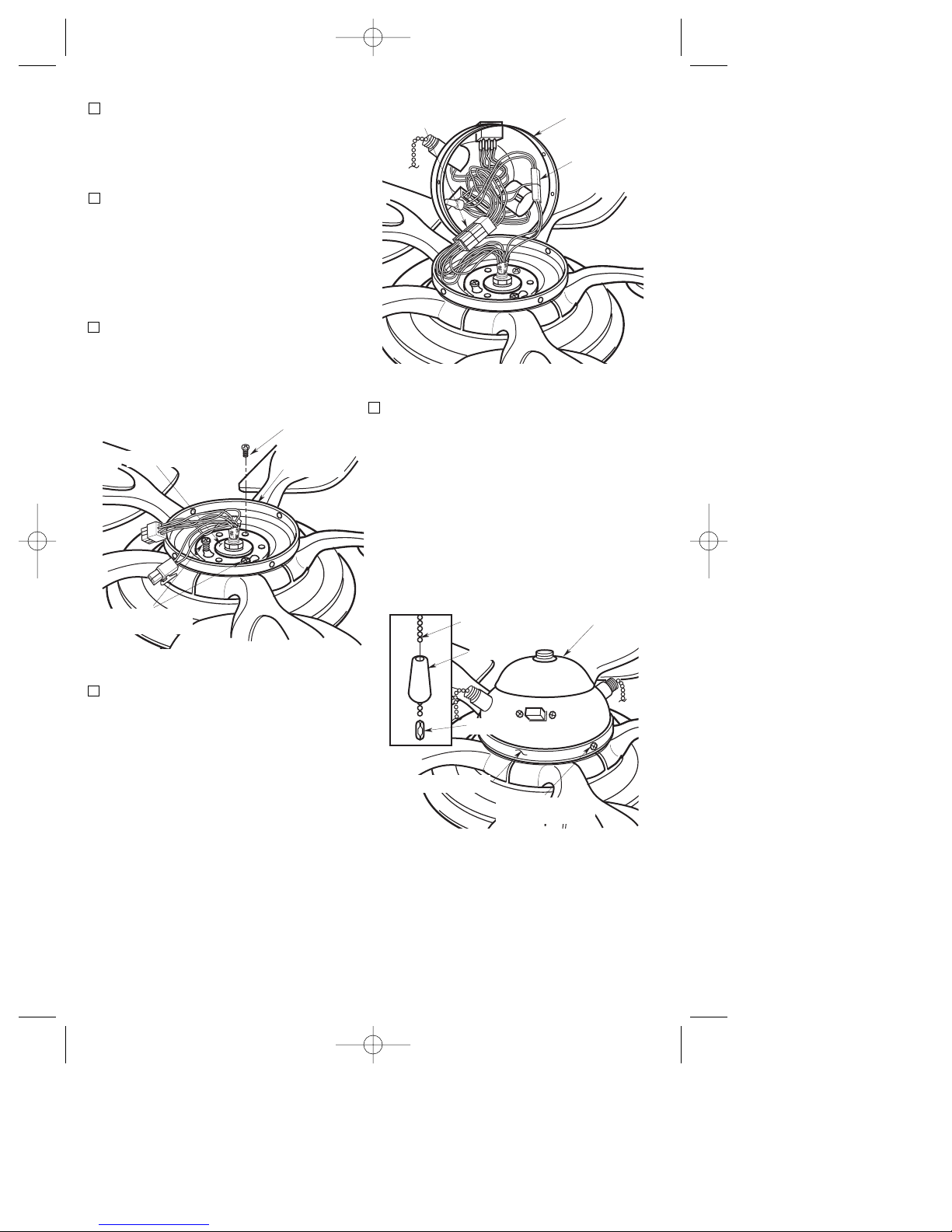

10. Position the switch cup assembly on
the switch cup adapter. Line up the
three holes in the switch cup with the
threaded holes in the switch cup
adapter and install four 8-32 x 1/4” pan
head screws (supplied) (Figure 5).
CAUTION: Before installing and
tightening the screws, be sure there
are no wires pinched between the
switch cup adapter and switch cup
assembly.
SWITCH CUP
ASSEMBLY
PULL CHAIN
8-32 x 1/4" PAN HEAD
SCREW (4)
SWITCH CUP ADAPTER
PENDANT
COUPLING
Figure 5
BP7305 Westfield 6/30/06 12:10 AM Page 6

7
11. Slip the longest pull chain through the
hole in the large pendant (supplied)
(Figure 5). Then secure the pendant
by snapping the coupling (supplied)
onto the end of the chain. Secure the
small pendant (supplied) to the short
chain in the same manner as above.
12. Carefully place the partially
assembled ceiling fan on the lower
styrofoam pad, with the switch cup
assembly positioned in the opening
and the blade assemblies resting on
the outer rim of the styrofoam pad.
13. Remove the hanger ball by loosening
the setscrew in the hanger ball until
the ball falls freely down the downrod
(Figure 6). Remove th pin from the
downrod, then remove the hanger
ball. Retain the pin and hanger ball for
reinstallation in step 20.
PIN
HANGER
BALL
SETSCREW
DOWNROD
Figure 6

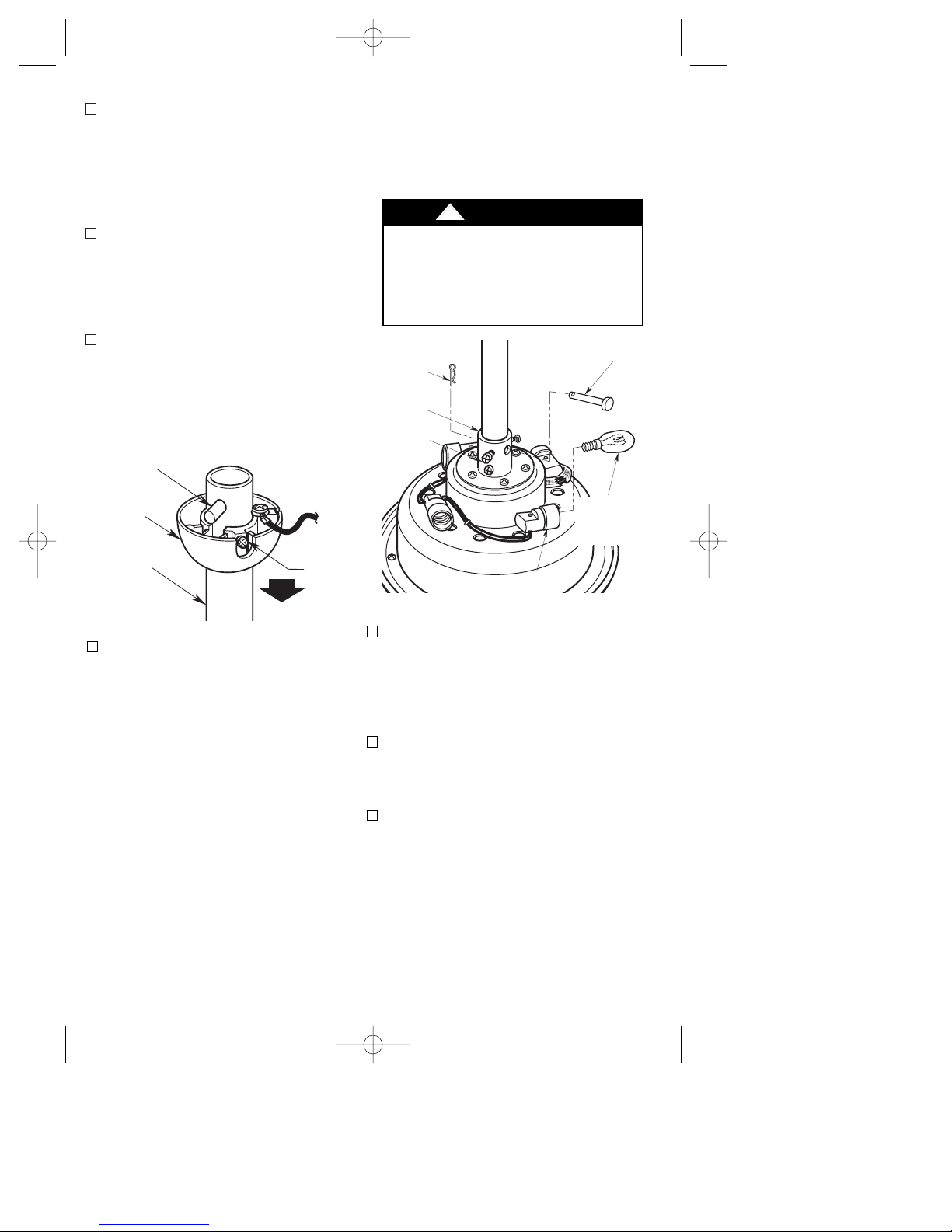

14. Unscrew the two upper setscrews
(Figure 7) until they clear the inside of
the motor coupling. Then separate,
untwist and unkink the three 80”
motor leads. Route the motor lead
wires through the downrod. Align the
clevis pin holes in the downrod with
the holes in the motor coupling. Install
the clevis pin and secure with the
hairpin clip (Figure 7). The clevis pin
must go through the holes in the
motor coupling and the holes in the
downrod. Be sure to push the straight
leg of the hairpin clip through the hole
near the end of the clevis pin until the
curved portion of the hairpin clip
snaps around the clevis pin.
!WARNING
It is critical that the clevis pin in the motor
coupling is properly installed and the
setscrews securely tightened. Failure to
verify that the pin and setscrews are
properly installed (as shown in Figure 7)
could result in the fan falling.
The hairpin clip must be properly
installed to prevent the clevis pin from
working loose. Pull up on the downrod
to make sure the clevis pin is properly
installed.
15. Tighten the two upper setscrews
(Figure 7) securely while pulling up on
the downrod.
NOTE: The setscrews must be properly
installed as described above, or fan
wobble could result.
16. Install four 7-watt (maximum)
candelabra bulbs (not supplied) in the
sockets on top of the motor housing
(Figure 7).
17. Place the center glass on the rim of
the fan motor and housing assembly;
make sure the center glass is seated
evenly in the housing flange
(Figure 8).
CLEVIS PIN
HAIRPIN
CLIP
MOTOR
COUPLING
SETSCREW (2)
SOCKET
7-WATT (MAX.)
CANDELABRA
BULB (4)
Figure 7
BP7305 Westfield 6/30/06 12:10 AM Page 7

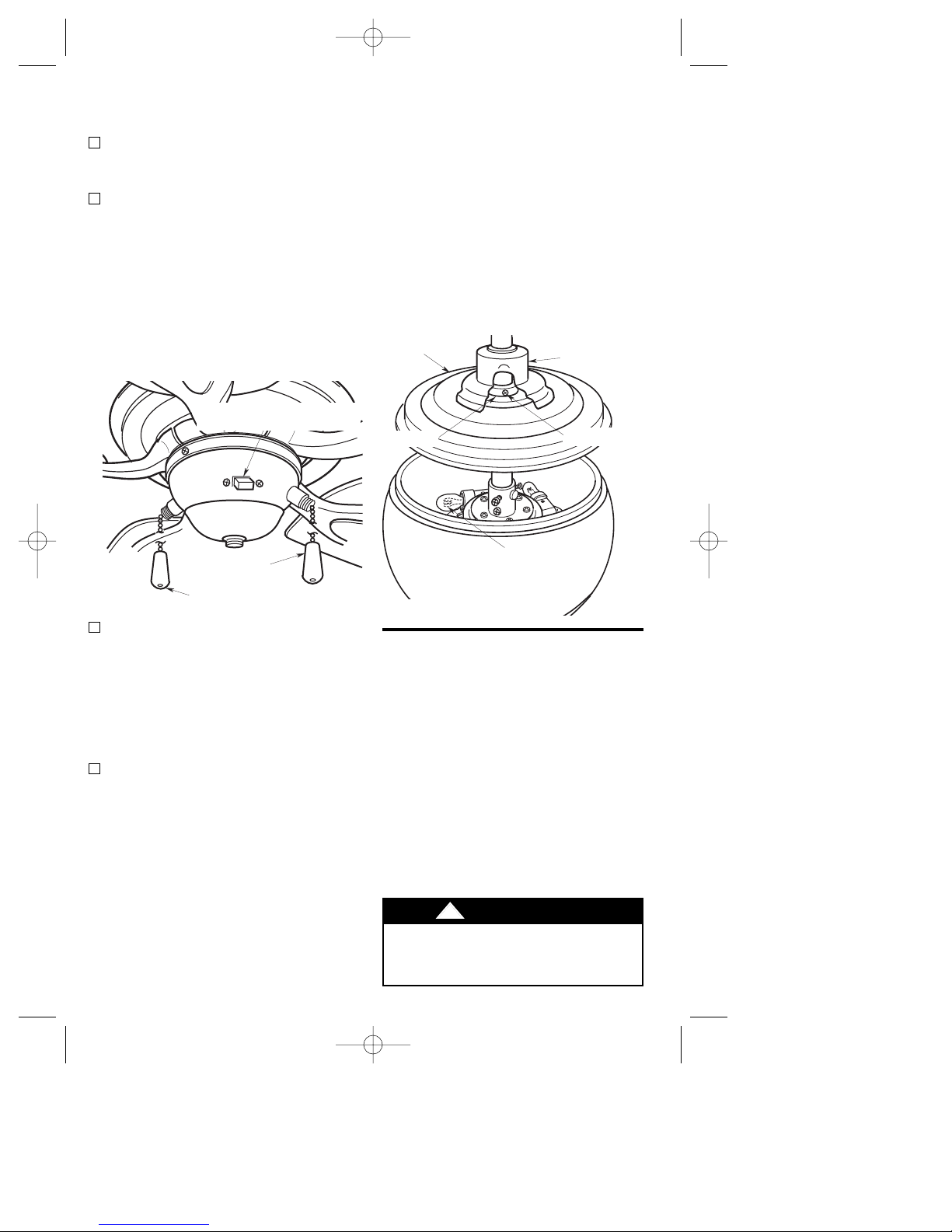

18. Slide the upper housing over the
downrod until it rests on the center
glass (Figure 8). Make sure the upper
housing is seated firmly on the rim of
the center glass, then tighten the
three setscrews in the upper housing
collar (Figure 9).
19. Make sure the grommet is properly
installed in the upper housing cover,
then slide the cover over the downrod
until it rests on the upper housing
(Figure 9).
8
SETSCREWS (3)
UPPER
HOUSING
COVER
GROMMET
COLLAR UPPER
HOUSING
Figure 9
FAN MOTOR
AND HOUSING
ASSEMBLY
UPPER
HOUSING
CENTER
GLASS
Figure 8

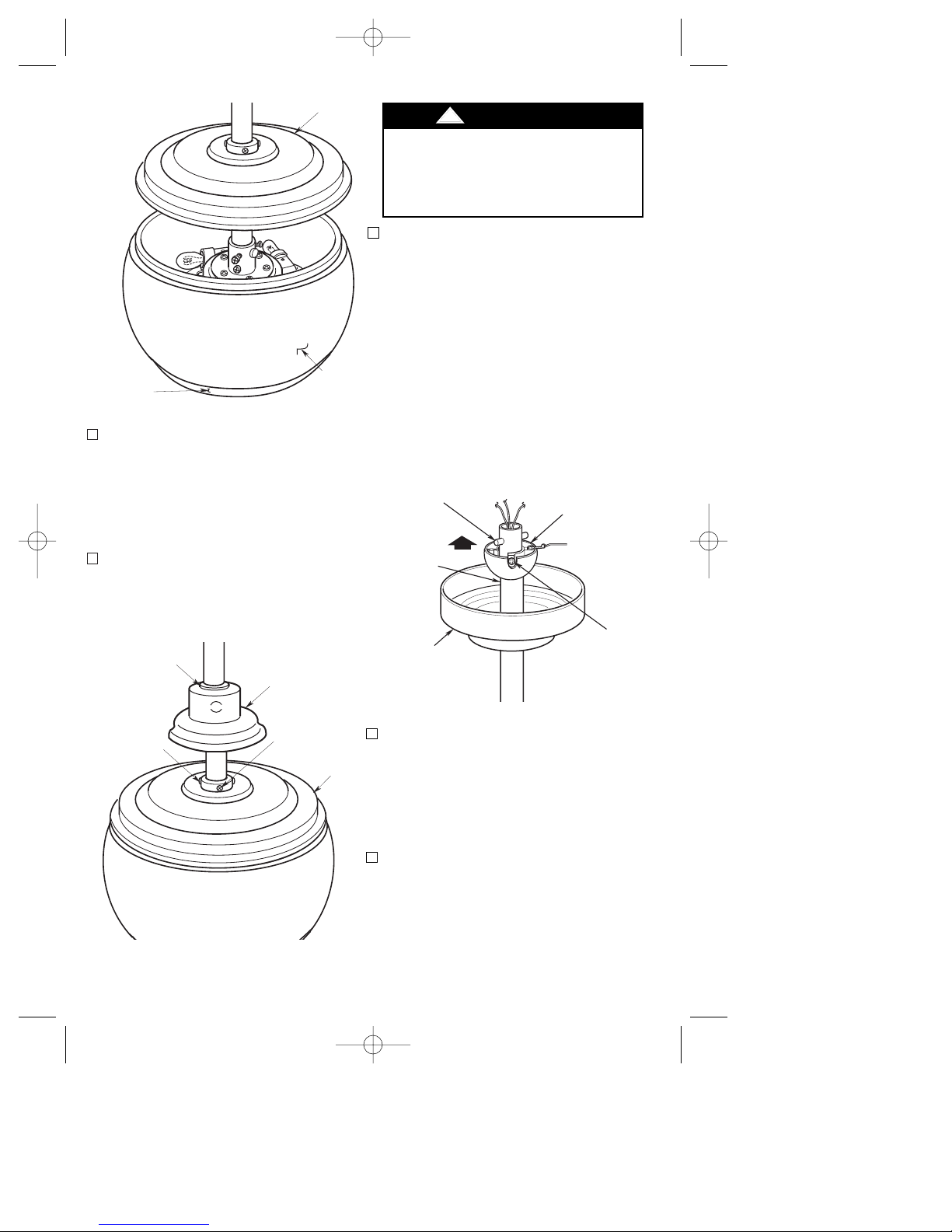

20. Place the ceiling cover over the
downrod. Then reinstall the hanger
ball (Figure 10) on the downrod as
follows. Route the three 80” motor
leads through the hanger ball and
slide the hanger ball over the
downrod. Position the pin through the
two holes in the downrod and align
the hanger ball so the pin is captured
in the groove in the top of the hanger
ball. Pull the hanger ball up tight
against the pin and securely tighten
the setscrew in the hanger ball. A
loose setscrew could create fan
wobble.
DOWNROD
CEILING COVER
PIN HANGERBALL
SETSCREW
Figure 10
21. The fan comes with blue, black and
white leads that are 80” long. Before
installing the fan, measure up
approximately 6 to 9-inches above top
of hanger ball/downrod assembly. Cut
off excess leads and strip back
insulation 1/2” from end of leads.
22. You have now completed the initial
assembly of your new ceiling fan. You
can now proceed with hanging and
wiring your fan.
!WARNING
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
BP7305 Westfield 6/30/06 12:10 AM Page 8

9
How to Hang
Your Ceiling Fan
The fan must be hung with at least 7' of
clearance from floor to blades (Figure 11).
!WARNING
The outlet box and joist must be securely
mounted and capable of supporting at
least 50 lbs. Use only a U.L. outlet box
listed as “Acceptable for Fan Support”.
!WARNING
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
CEILING
FLOOR
AT
LEAST
7'
Figure 11
2. Carefully lift the fan and seat the hanger
ball/downrod assembly on the hanger
bracket that was just attached to the
outlet box (Figure 13). Be sure the
groove in the ball is lined up with the tab
on the hanger bracket (Figure 12).
1. Securely attach the hanger bracket to
the outlet box using the two screws
supplied with the outlet box (Figure 12).
Hanger bracket must seat firmly against
outlet box. If the outlet box is recessed,
remove wall board until bracket contacts
box. If bracket and/or outlet box are not
securely attached, the fan could wobble
or fall.
!WARNING
TWO SCREWS
SUPPLIED
WITH
OUTLET BOX HANGER
BRACKET
TAB
OUTLET
BOX
Figure 12
Failure to seat tab in groove could cause
damage to electrical wires and possible
shock or fire hazard.
!WARNING
To avoid possible fire or shock, do not
pinch wires between the hanger
ball/downrod assembly and hanger
bracket.
!WARNING
NOTE: CEILING COVER, SUPPLY WIRES AND FAN
WIRES OMITTED FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD ASSEMBLY
1-1/4" THREADED
STUD (2)
Figure 13
BP7305 Westfield 6/30/06 12:10 AM Page 9

10
How to Wire
Your Ceiling Fan
If you feel that you do not have enough
electrical wiring knowledge or
experience, have your fan installed by a
licensed electrician.
CAUTION: To reduce the risk of
electrical shock, disconnect the electri-
cal supply circuit before installing the
fan, light kit or receiver.
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
Check to see that all connections are
tight, including ground, and that no bare
wire is visible at the wire connectors,
except for the ground wire. Do not
operate fan until blades are in place.
Noise and fan damage could result.
!WARNING
1. If you are going to use an optional
Emerson Remote Control/Receiver or
Wall Control/Receiver to operate your
ceiling fan, wire your fan in accordance
with the Control/Receiver Owner’s
Manual. After wiring, return to step 4.

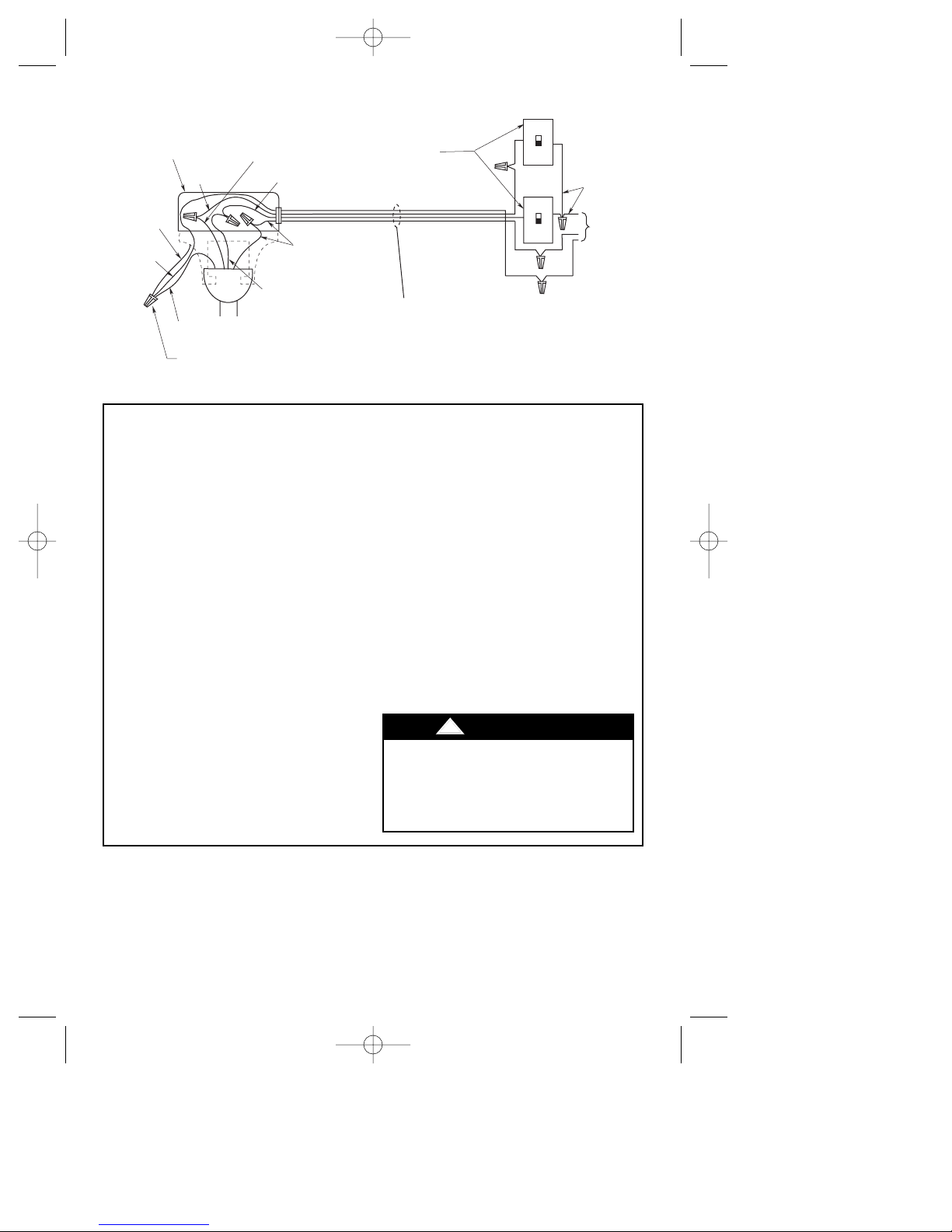

2. If you are going to control your fan
using two wall switches or optional
Emerson fan/light controls, you will
need a three-wire (with ground)
conductor cable between the ceiling
and wall outlet boxes. This will allow
you to operate the fan housing lights
and an optional Emerson Light
Fixture (if installed) from one
switch/control and the ceiling fan
from a separate switch. Refer to
Figure 14 and proceed as follows:
a. Connect the green grounding
lead from the hanger ball and the
green grounding lead from the
hanger bracket to the supply
grounding conductor (this may be
a bare wire or wire with green
colored insulation). Securely
connect wires with a wire
connector (supplied).
b. Securely connect the fan motor
white wire to the supply white
(neutral) wire using a wire
connector (supplied).
c. Securely connect the fan motor
black wire to the supply black
(hot) wire using a wire connector
(supplied).
d. Securely connect the fan motor
blue wire to the supply red (hot)
wire using a wire connector
(supplied).
e. After connections have been
made, separate the white and
green wires from the black, blue
and red wires.
f. Carefully turn the wires upward
and insert them up through the
open side of the hanger bracket
and into the outlet box. Push the
green and white wires into one
side of the outlet box; push the
black, blue and red wires into the
other side of the outlet box.
BP7305 Westfield 6/30/06 12:10 AM Page 10

BLACK BLACK FAN WIRE
LISTED OUTLET BOX
GREEN WIRE
(GROUND)
FROM
HANGER
BRACKET WHITE
GREEN WIRE (GROUND)
FROM HANGER BALL
GROUND
WIRE BLUE
RED
LISTED WIRE CONNECTOR (4)
LIGHT
SWITCH
TO 120
VOLT
SUPPLY
GROUND
WHT.
FAN SWITCH
BLACK
(HOT)
GROUND
THREE-CONDUCTOR CABLE
(WITH GROUND) BETWEEN
CEILING AND WALL OUTLET
BOXES
GENERAL PURPOSE
ON-OFF WALL
SWITCHES OR
OPTIONAL EMERSON
FAN/LIGHT CONTROLS
Figure 14
11
3. If you are going to use a single wall
switch or optional Emerson fan
control to control your ceiling fan,
housing lights, and optional Emerson
Light Fixture (if installed) simultane-
ously, you will need a standard two-
wire (with ground) conductor cable
between the ceiling and wall outlet
boxes. The fan speed and the
housing lights can then be operated
from the pull chain switches in the
switch cup housing (or by an optional
Emerson fan control); the optional
light fixture can be operated from the
light fixture switch. Refer to Figure 15
and proceed as follows:
a. Connect the green grounding
lead from the hanger ball and the
green grounding lead from the
hanger bracket to the supply
grounding conductor (this may
be a bare wire or wire with green
colored insulation). Securely
connect wires with a wire
connector (supplied).
b. Securely connect the fan motor
white wire to the supply white
(neutral) wire using a wire
connector (supplied).
c. Securely connect the fan motor
black wire and blue wire to the
supply black (hot) wire using a
wire connector (supplied).
d. After connections have been
made, separate the white and
green wires from the black and
blue wires.
e. Carefully turn the wires upward
and insert them up through the
open side of the hanger bracket
and into the outlet box. Push the
green and white wires into one
side of the outlet box; push the
black and blue wires into the
other side of the outlet box.
Check to see that all connections are
tight, including ground, and that no bare
wire is visible at the wire connectors,
except for the ground wire. Do not
operate fan until blades are in place.
Noise and fan damage could result.
!WARNING
BP7305 Westfield 6/30/06 12:10 AM Page 11

4. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 13).
5. Lift the ceiling cover up to the threaded
studs and turn until the studs protrude
through the holes in the ceiling cover
(Figure 16).
6. Secure the ceiling cover in place by
sliding lockwashers (supplied) over the
threaded studs and installing the two
knurled knobs (supplied) (Figure 16).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling.
THREADED
STUD (2)
CEILING
COVER
KNURLED
KNOB (2)
LOCKWASHER
(2)
12
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and not
pinched between the ceiling cover and
the ceiling.
!WARNING
BLACK FAN WIRE
LISTED OUTLET BOX
GREEN WIRE
(GROUND)
FROM
HANGER
BRACKET WHITE
GREEN WIRE (GROUND)
FROM HANGER BALL
GROUND
WIRE BLUE
BLACK
LISTED WIRE CONNECTOR (3)
GENERAL PURPOSE ON/OFF
WALL SWITCH OR OPTIONAL
EMERSON FAN CONTROL
TO 120
VOLT
SUPPLY
GROUND
WHT.
BLACK
(HOT)
GROUND
TWO-CONDUCTOR CABLE
(WITH GROUND) BETWEEN
CEILING AND WALL OUTLET
BOXES
Figure 15
Figure 16
7. Your ceiling fan is now installed, wired
and ready for use.
BP7305 Westfield 6/30/06 12:10 AM Page 12

13
Using Your Ceiling Fan Replacing Light Bulbs
Attaching Light Kit
1. Restore electrical power to the outlet
box by turning the electricity on at the
main fuse or circuit breaker box.
2. Check the operation of the fan by
gently pulling on the 4-position speed
control switch pull chain (large
pendant) (Figure 17). The operating
sequence is as follows:
THREE-SPEED
1st Pull—HIGH
2nd Pull—Medium
3rd Pull—Low
4th Pull—OFF
3. If airflow is desired in the opposite
direction, turn your fan off and wait for
the blades to stop turning. Then slide
the reversing switch (located under the
rubber boot) to the opposite position
(Figure 17), and turn the fan on again.
The fan blades will turn in the opposite
direction and reverse the airflow.
4. Turn the housing lights on/off by gently
pulling on the light control switch pull
chain (small pendant) (Figure 17).
LIGHT CONTROL
SWITCH PULL CHAIN
SPEED CONTROL
SWITCH PULL CHAIN
REVERSING SWITCH (UNDER
WATER-RESISTANT RUBBER BOOT)
Figure 17
UPPER HOUSING
COVER
7-WATT (MAX.)
CANDELABRA
BULB
UPPER HOUSING
SETSCREWS (3)
COLLAR
Figure 18
To replace a burned out light bulb, raise
the upper housing cover on the downrod
up to the ceiling cover (Figure 18). Loosen
the setscrews in the upper housing collar,
then raise the cover and remove the
defective bulb from the socket. Screw in
the replacement 7-watt (maximum)
candelabra base bulb and lower the upper
housing cover. Tighten the setscrews
securely and slide the upper housing
cover down the downrod.
CAUTION: To reduce the risk of
electrical shock, disconnect the electri-
cal supply circuit before installing the
fan and optional light kit and/or remote
control receiver.
To install an optional Emerson light kit,
remove the four screws securing the
switch cup assembly to the switch cup
adapter. Remove the threaded plug from
the switch cup and install the light kit in
accordance with the light kit Owner’s
Manual.
To avoid possible electrical shock, be
sure electricity is turned off at the main
service box before wiring.
!WARNING
BP7305 Westfield 6/30/06 12:10 AM Page 13

14
Do not use water when cleaning your
ceiling fan. It could damage the motor or
the blades and create the possibility of an
electrical shock.
!WARNING
The use of any other control not
specifically approved for this fan could
result in fire, shock and personal injury.
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Maintenance
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is
the only maintenance that is needed.
When cleaning, use only a soft brush or
lint free cloth to avoid scratching the finish.
Abrasive cleaning agents are not required
and should be avoided to prevent damage
to finish.
Accessories
1. Ceiling Fan Light Kits (see store or
catalog).
2. Downrod Extension Kits (see store or
catalog).
3. Ceiling Fan/Light Controls (see store or
catalog).
BP7305 Westfield 6/30/06 12:10 AM Page 14

15
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not 1.Fuse or circuit breaker 1. Check main and branch
start. blown. circuit fuses or circuit
breakers.
2.Loose power line 2. Check power line connections
connections to the fan, or to fan, and switch wire
loose switch wire connections in the switch cup.
connections in the switch
cup. WARNING: Make sure
main power is turned off.
2. Fan sounds 1.Blades not attached to fan. 1. Attach blades to fan before
noisy. operating.
2.Screws securing fan blade 2. Check to make sure the
flanges to motor are loose. screws which attach the
blade flanges to the motor
are tight.
3.Wire connectors inside 3. Check to make sure wire
switch cup rattling. connectors in switch cup
are not rattling against each
other or against the interior
wall of the switch cup.
WARNING: Make sure main
power is turned off.
4.Screws holding blades to 4. Tighten screws securely.
flanges are loose.
5.Loose screws in motor 5. Check to make sure all
housing. screws in motor housing
are snug (not over-tight).
3. Fan wobbles 1.Setscrews in motor coupling 1. Raise upper housing cover and
excessively. are not tightened securely. and upper housing, then
tighten setscrews securely.
2.Setscrew in the hanger ball/ 2. Tighten the setscrew in the
downrod assembly is loose. hanger ball/downrod
assembly.
3.Screws securing fan blade 3. Check to be sure screws
flanges to motor are loose. which attach the fan blade
flanges to the motor are
tight.
4.Fan blade flanges not 4. Check to be sure that the
seated properly. fan blade flanges seat firmly
and uniformly to the surface
of the motor. If flanges are
seated incorrectly, loosen
the flange screws and
retighten according to
Step 5 and Figure 2.
5.Hanger bracket and/or 5. Tighten the hanger bracket
ceiling outlet box is not screws to the outlet box,
securely fastened. and/or secure outlet box.
6.Fan blades out of balance. 6. Interchanging an adjacent
(side-by-side) blade pair can
redistribute the weight and
result in smoother operation.
Or use supplied balancing
kit to balance blades.
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX
OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.
!
!
!
BP7305 Westfield 6/30/06 12:10 AM Page 15

Repair Parts
32
1
5
416
6
21
11
10
14
15
13
24
25 23
17
18
19
26 9
22
12
20
8
7
15
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS,ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER
• NAME OF ITEM
• PART DESCRIPTION
• MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
16
BP7305 Westfield 6/30/06 12:10 AM Page 16

Part Numbers
Key Model No. Model No. Model No.
No. Description CF680BQ00 CF680ORB00 CF680WB00
* Hanger Pack, Consisting of: 761655-49 761655-50 761655-48
1 Hanger Bracket — — —
2 Hanger Ball — — —
3 Downrod — — —
* Parts Bag, Containing: 762952 762952 762952
4 Wire Connector (5) — — —
5 Threaded Stud 8-32 x 1/14” (2) — — —
6 Knurled Knob (2) — — —
7 Lockwasher (2) — — —
8 Hairpin Clip — — —
9 Clevis Pin — — —
10 Screw, Pan Head 10-32 x .30” (16) — — —
11 Washer, Flat (16) — — —
12 Screw, Oval Head 1/4-20 x 1/2” (11) — — —
13 Pendant, Large — — —
14 Pendant, Small — — —
15 Coupling, Chain (2) — — —
16 Cover, Ceiling 762649-BQ 762649-ORB 762649-WB
17 Cover, Upper Housing 762940-BQ 762940-ORB 762940-WB
18 Housing, Upper 762941-BQ 762941-ORB 762941-WB
19 Glass, Center 762942 762942 762942
20 Flange Set (full set for one fan) 762945-BQ 762945-ORB 762945-WB
21 Blade Set (full set for one fan) 762947 762947 762947
22 Adapter, Switch Cup 762949 762949 762949
23 Cup Assembly, Switch 762950-BQ 762950-ORB 762950-WB
24 Nut, Finial 762951-BQ 762951-ORB 762951-WB
25 Harness, Electrical 762953 762953 762953
26 Harness, Housing Lights 762954 762954 762954
— Owner's Manual BP7305 BP7305 BP7305
Repair Parts Listing
17
BP7305 Westfield 6/30/06 12:10 AM Page 17

18
Notes
BP7305 Westfield 6/30/06 12:10 AM Page 18

19
Notes
BP7305 Westfield 6/30/06 12:10 AM Page 19

Part No. F40BP73050001 Printed in China 07/06 Form No. BP7305-1
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
BP7305 Westfield 6/30/06 12:10 AM Page 20
