Surge and Signal Protection
for Business-Critical Continuity
Liebert Hybrid Advantage
Total Protection For Your High Availability Systems

Typical Hybrid Advantage Surge Current Sharing Data
0 5,000 10,000 15,000 20,000 25,000 30,000
100.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
0.0
Hybrid SAD ModuleInterceptor MOV Module
Total Surge Current (Amperes)
Percentage of Surge Current (%)
The Liebert Hybrid Advantage is the first hybrid product in the industry to offer a
true, coordinated multi-stage system of suppression. It integrates the fast response
time of the Silicone Avalanche Diode (SAD) with the high-energy capability of
the standard Liebert Interceptor MOV (Metal Oxide Varistor). Its patent-pending
Surge Current Transition Circuit continually monitors the operating level of the
SAD-switching to the secondary network of MOVs long before component failure
becomes a concern.
Other "hybrid" products fall into one of
two categories:
Self-sacrificing: This system significantly degrades or
fails with nominal fluctuations or high-energy events.
This design is extremely inconvenient to the customer,
and more importantly, it leaves an opportunity for
critical load upsets/failures.
Oversized components: Large components allow the
system to deal with nominal line voltage, as a result
clamping levels increase, defeating what it is designed
to do.
The Liebert Answer:
The transitional method
Our answer lies in a two-part design
that actively disconnects the nominally
close components during a sustained
overvoltage and transitions from a
sensitive SAD circuit to a hardier MOV
array when subjected to damaging
transient levels.
First, a solid state comparator network
actively switches the SAD components out
of the transient control circuit when
exposed to line voltages in excess of their
Maximum Continuous Operating Voltage
(MCOV). While SAD components are
removed from the system, an appropriately
sized transient control network is available
for continued protection. During this
disconnect phase, the nominal levels are
continually monitored until the system
voltage is stable, at which point the SAD
circuit is brought back on line.
Second, a regulated amount of high-
energy surge current is transitioned to
the secondary MOV suppression modules.
This is accomplished through an
impedance matching network utilizing a
series of controlled copper geometries in
conjunction with custom engineered
high-voltage/high-energy component
distribution. This ultimately limits the
amount of high-energy surge current
through the SAD module to an acceptable
level and diverting the remaining surge
current through the MOV module.
2
Multi-Stage System of Suppression
S•A•D Hybrid Technology

Model Configuration Surge Current Capability (kAmps) Dimensions* (inches)
Phase L-G L-L L-N N-G H x W x D
H1/H2xxxS111 Split Single Phase 250 125 125 125 20 x 16 x 9
3 wire and ground
H1/H2xxxY111 Three Phase Wye 250 125 125 125 20 x 16 x 9
H1/H2xxxD110 Three Phase Delta 250 125 125 20 x 16 x 9
3 wire and ground
H1/H2xxxH111 Three Phase Delta 250 125 125 125 20 x 16 x 9
Hi-Leg, 4 wire and ground
H1/H2xxxS222 Split Single Phase 320 160 160 160 24 x 20 x 9
3 wire and ground
H1/H2xxxY222 Three Phase Wye 320 160 160 160 24 x 20 x 9
4 wire and ground
H1/H2xxxD220 Three Phase Delta 320 160 160 24 x 20 x 9
3 wire and ground
H1/H2xxxH222 Three Phase Delta 320 160 160 160 24 x 20 x 9
Hi-Leg 4 wire and ground
Split Single Phase, 3 Wire plus Ground 120/240
Three Phase Wye, 4 Wire plus Ground 120/208, 230/400, 277/480
Three Phase Delta, 3 Wire plus Ground 208, 240, 400, 480
Three Phase Delta Hi-Leg, 4 Wire plus Ground 120/240
At a Glance
nUnique "Surge Current Transition
Circuit" allows for seamless
transition from primary (SAD
technology) to secondary
(MOV array technology)
suppression system. A true,
shared suppression system.
nIndustry’s only Active Disconnect
System protects against system
failure and degradation due to
overvoltages.
nLowest UL 1449 clamping voltages
achieved—330VAC line to neutral
for a 120/208V Wye unit.
nTechnology of choice for speed,
allowing picosecond response time.
nAll surge suppression components
used are computer tested and
matched. SAD’s are matched to +/-
1% and MOVs are matched to 1 volt
for optimum reliability and long life.
nMatched low impedance buss
system for both SAD and MOV
modules.
nLiebert Hybrid Advantage builds
upon industry standard
Interceptor® Series design. Unique
benefits include:
— Patented component level
monitoring — including neutral
to ground.
— Unique sand-packed silver fuse
network UL Rated at 300kAIC
for safety.
— Highest surge current capability
and survivability in the industry.
— 10-year warranty on parts and
5-year on-site labor, backed by
Emerson Power Service.
3

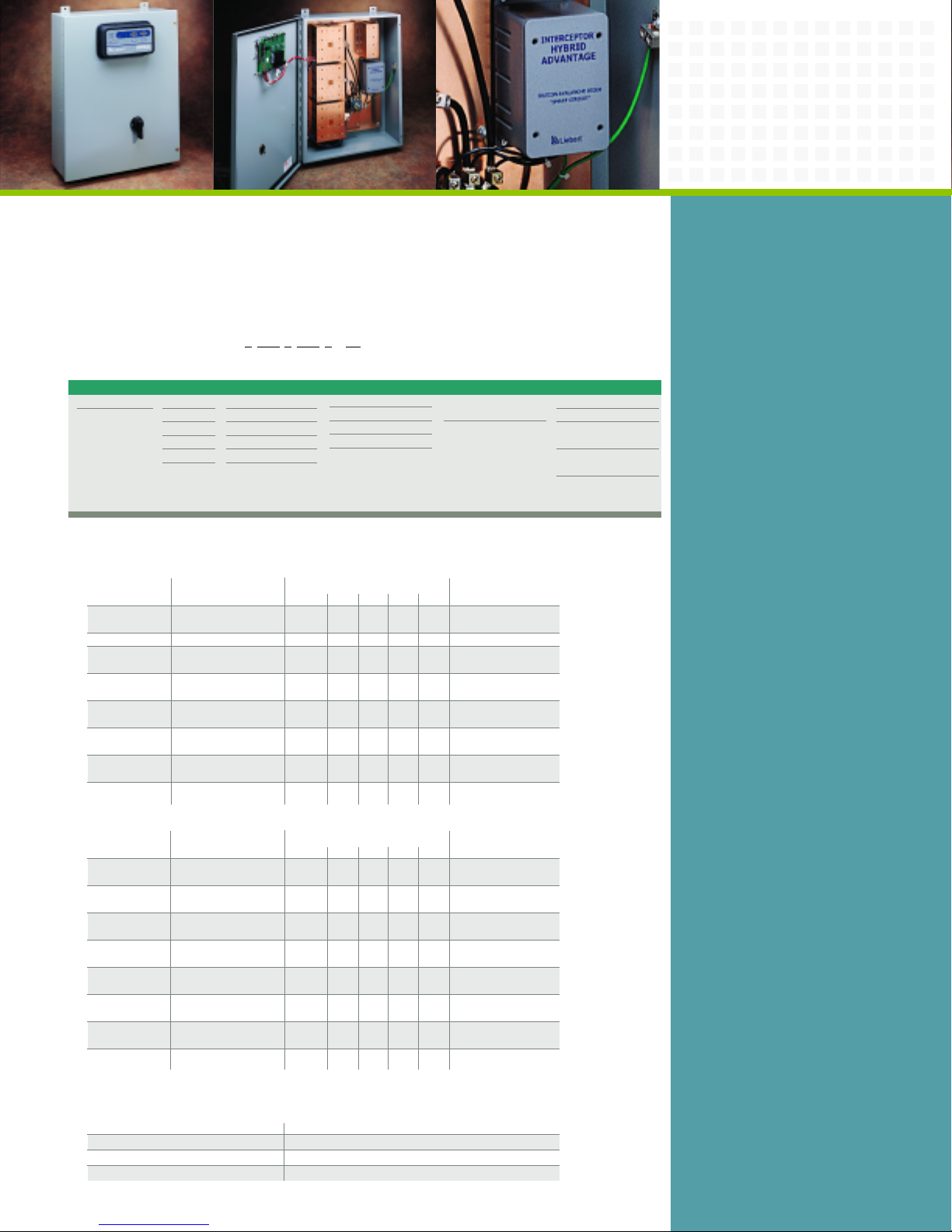

Liebert Hybrid Advantage Models
Medium Exposure Units (250kAmp and 320kAmp current capacity units)
Nominal Voltage Codes (substitute for xxx to complete model number)
Note: For other voltage configurations not listed, please consult factory.
The Liebert Hybrid Advantage features
the fast response time of the Silicone
Avalanche Diode (SAD).
SAD Surge Energy
1 250J
2 500J
L-N Voltage
120 120V
208 208V
230 230V
240 240V
277 277V
480 480V
Configuration
NSingle Phase L-N
L Single Phase L-L
SSplit Phase
Y3 Phase Wye
D 3 Phase Delta
H3 Phase Hi-Leg
Monitoring Options
01 LED
04 LED, Alarm
05 LED, Surge
Counter
06 LED, Alarm,
Surge Counter
03 LED, Alarm, Dual
Surge Counters
Connection Type
“blank” Compression
Lugs
RRotary
Disconnect
Specifying The Appropriate Model
All model numbers begin with a prefix. Use Chart A to build your Liebert Hybrid
Advantage starting with the SAD Surge Energy column. Moving left to right, choose the
correct configuration from each column for your application. Your completed model
number should look similar to the example below:
Example Part Number: H 2 120 Y444 R- 03
Chart A
Surge Current Rating
111 250kA Per Phase
222 320kA Per Phase
333 400kA Per Phase
444 750kA Per Phase
Model Configuration Surge Current Capability (kAmps) Dimensions* (inches)
Phase L-G L-L L-N N-G H x W x D
H1/H2xxxS333 Split Single Phase 400 200 200 200 24 x 24 x 9
3 wire and ground
H1/H2xxxY333 Three Phase Wye 400 200 200 200 24 x 24 x 9
4 wire and ground
H1/H2xxxD330 Three Phase Delta 400 200 200 24 x 24 x 9
4 wire and ground
H1/H2xxxH333 Three Phase Delta 400 200 200 200 24 x 24 x 9
Hi-Leg, 4 wire and ground
H1/H2xxxS444 Split Single Phase 750 375 375 375 30x 24 x 9
3 wire and ground
H1/H2xxxY444 Three Phase Wye 750 375 375 375 30x 24 x 9
4 wire and ground
H1/H2xxxD440 Three Phase Delta 750 375 375 30x 24 x 9
3 wire and ground
H1/H2xxxH444 Three Phase Delta 750 375 375 375 30x 24 x 9
Hi-Leg 4 wire and ground
High Exposure Units (400kAmp and 750kAmp current capacity units)
*Optional Disconnect Doesn’t Change Dimensions

Emerson Network Power.
The global leader in enabling Business-Critical Continuity.
EmersonNetworkPower.com
AC Power Systems
Connectivity
DC Power Systems
Embedded Power
Integrated Cabinet Solutions
Outside Plant
Power Switching & Controls
Precision Cooling
Site Monitoring
Surge & Signal Protection
Services
Liebert Corporation
1050 Dearborn Drive
P.O. Box 29186
Columbus, Ohio 43229
800 877 9222 Phone (U.S. &
Canada Only)
614 888 0246 Phone (Outside U.S.)
614 841 6022 FAX
Via Leonardo Da Vinci 8
Zona Industriale Tognana
35028 Piove Di Sacco (PD)
Italy
39 049 9719 111 Phone
39 049 5841 257 FAX
Emerson Network Power Asia Pacific
7/F., Dah Sing Financial Centre
108 Gloucester Rd, Wanchai
Hong Kong
852 25722201 Phone
852 28029250 FAX
liebert.com
Technical Support
800 288 6169 Toll-Free
607 724 2484 Phone
607 722 8713 Fax
Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co. ©2005 Emerson Electric Co.
Specifications
While every precaution has been taken to ensure accuracy and
completeness in this literature, Liebert Corporation assumes no
responsibility, and disclaims all liability for damages resulting
from use of this information or for any errors or omissions.
© 2005 Liebert Corporation. All rights reserved throughout
the world. Specifications subject to change without notice.
All names referred to are trademarks or registered trademarks
of their respective owners.
® Liebert and the Liebert logo are registered trademarks
of the Liebert Corporation.
SL-22060 (R3/06) Printed in USA
Connection Means Parallel Connected
Agency Listing UL 1449 Listed (Second Edition), UL 1283, CUL
Protection Modes All modes standard (L-N, L-G, N-G, L-L); Optional – any combination
Surge Current Capacity 250 to 750kAmps per phase depending on model
Primary Stage Joule H1 Models – 250 Joules
Rating (L-N) per phase H2 Models – 500 Joules
EMI/RFI Filtering 41 dB at 100 KHz, 31 dB at 1 MHz, 35 dB at 10 MHz, 53 dB at 100 MHz
Response Time Picosecond range
Repetitive Surge 15,000 - 120,000 10kA Category C3 surges per phase depending on model
Enclosure NEMA 12 standard Optional - NEMA 3R, 4, 4X and caseless
Line Frequency 47-63 Hertz
Line Voltage +/-15% nominal
Temperature -40 to +60 degrees C
Relative Humidity 0 to 95% noncondensing
Altitude 0 to 18,000 feet
Audible noise Less than 45 dBa
Warranty 10-years parts, 5-year labor
Standard Features Unit status indicators, Dual, isolated form C dry contacts
Optional Features Integral disconnect, Audible alarm, Transient counter – single or dual
