Emerson Rosemount 2110 User manual

Quick Start Guide
00825-0100-4029, Rev CB
November 2020
Rosemount™ 2110 Level Switch
Vibrating Fork

Contents
About this guide...........................................................................................................................3
Installation................................................................................................................................... 5
Prepare the electrical connections................................................................................................9
Connect wiring and power up.....................................................................................................14
Product certifications................................................................................................................. 17
Quick Start Guide November 2020
2 Rosemount 2110 Level Switch

1 About this guide
This Quick Start Guide provides basic guidelines for the Rosemount 2110.
Refer to the Rosemount 2110 Reference Manual for more instructions. The
manual and this guide are also available electronically at Emerson.com/
Rosemount.
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure the level switch is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Explosions could result in death or serious injury.
•The level switch must only be installed and operated in non-hazardous
(ordinary) locations.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Ensure the power to the level switch is off, and the lines to any other
external power source are disconnected or not powered while wiring the
level switch.
•Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
Process leaks could result in death or serious injury.
•Ensure the level switch is handled carefully. If the process seal is
damaged, gas might escape from the vessel (tank) or pipe.
November 2020 Quick Start Guide
Quick Start Guide 3

WARNING
Any substitution of non-recognized parts may jeopardize safety. Repair (e.g.
substitution of components) may also jeopardize safety and is not allowed
under any circumstances.
•Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize
safety. Unauthorized changes that interfere with the integrity of the
welds or flanges, such as making additional perforations, compromise
product integrity and safety. Equipment ratings and certifications are no
longer valid on any products that have been damaged or modified
without the prior written permission of Emerson. Any continued use of
product that has been damaged or modified without the written
authorization is at the customer’s sole risk and expense.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Hot surfaces
The flange and process seal may be hot at high process
temperatures.
Allow to cool before servicing.
Quick Start Guide November 2020
4 Rosemount 2110 Level Switch

2 Installation
2.1 Fork alignment in a pipe installation
Figure 2-1: Correct Fork Alignment for Pipe Installation
OK
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
2.2 Fork alignment in a vessel (tank) installation
Figure 2-2: Correct Fork Alignment for Vessel (Tank) Installation
OK
OK
OK
OK OK
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
November 2020 Quick Start Guide
Quick Start Guide 5

2.3 Mounting the threaded version
2.3.1 Seal and protect the threads
•Use anti-seize paste or PTFE tape according to site procedures.
A gasket may be used as a sealant for BSPP (G) threaded connections.
2.3.2 Threaded vessel (tank) or pipework connection
•Vertical installation.
A
B
•Horizontal installation.
A
B
A. Tighten using the hexagon nut only
B. Gasket for BSPP (G) threaded connection
Quick Start Guide November 2020
6 Rosemount 2110 Level Switch

2.3.3 Threaded flange connection
Procedure
1. Place the customer-supplied flange and gasket on the vessel (tank)
nozzle.
A
A. Gasket (customer supplied)
2. Tighten the bolts and nuts with sufficient torque for the flange and
gasket.
3. Screw the level switch into the flange thread.
A
B
A. Tighten using the hexagon nut only
B. Gasket for BSPP (G) threaded connection
November 2020 Quick Start Guide
Quick Start Guide 7

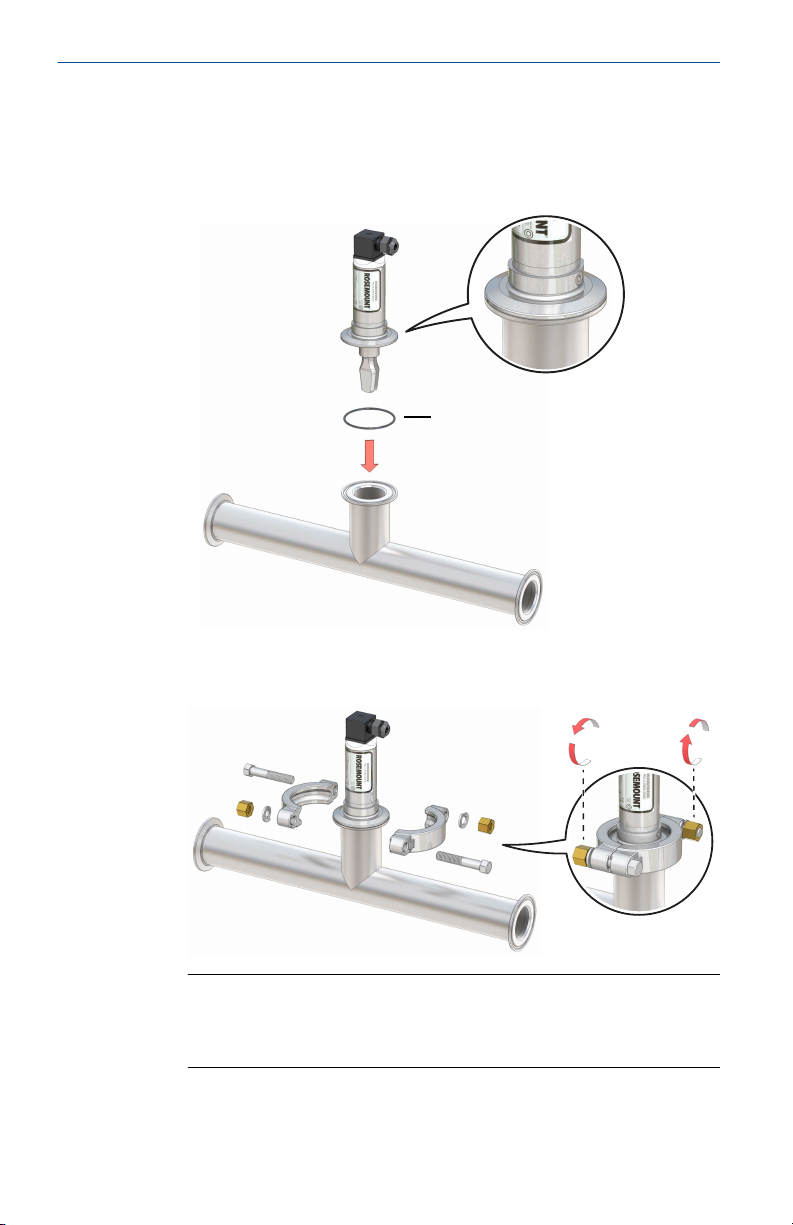

2.4 Mounting the Tri Clamp version
Procedure
1. Lower the level switch into the flange face.
A
A. Seal (supplied with Tri Clamp)
2. Fit the Tri Clamp.
Note
The Tri Clamp and seal are supplied in an accessory kit that has to be
ordered separately. See the Rosemount 2110 Product Data Sheet for
ordering information.
Quick Start Guide November 2020
8 Rosemount 2110 Level Switch

3 Prepare the electrical connections
Note
See the Rosemount 2110 Product Data Sheet for all electrical specifications.
3.1 Cable selection
Twisted-pairs and shielded wiring is recommended for environments with
high EMI (electromagnetic interference). Two wires can be safely connected
to each terminal screw. Maximum wire size is 15 AWG.
3.2 Cable glands/conduits
The cable gland is integrated in the four-position plug of the level switch. Do
not make any modifications to the level switch.
3.3 Power supply
The Direct Load electronics operate on 21 - 264 Vdc or 21 - 264 Vac (50/60
Hz) at the level switch terminals.
The PNP electronics operate on 18 - 60 Vdc at the level switch terminals.
3.4 Mode selection
Table 3-1 shows how the mode selection is determined from the wiring
connections. Modes are “Dry on, high level alarm” and “Wet on, low level
alarm”.
November 2020 Quick Start Guide
Quick Start Guide 9

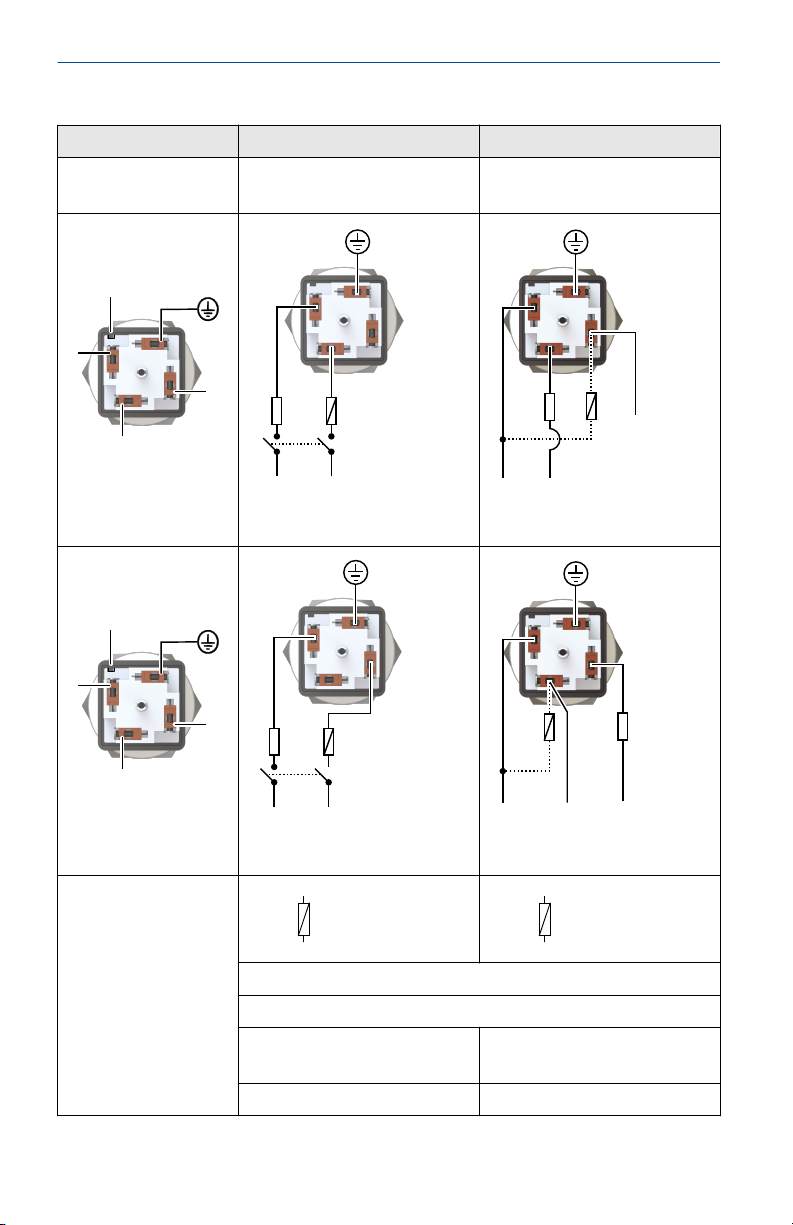

Table 3-1: Mode Selection By Customer Wiring
Modes Electronics option code 0 Electronics option code 1
Load switching: ac/dc
Direct load switching: ac/dc
PNP output: dc
PNP for PLC/SPS connection: dc
Dry = on, high level
alarm
1
3
2
Orientation
cut-out
PE (ground)
R
N (21-264 Vac,
50/60 Hz)
L1
0 V (21-264 Vdc)+V
2A
(T)
1
3
PE (ground)
R
PLC
input
(18-60 Vdc)
0 V +V
2A
(T)
1
2
3
Wet = on, low level
alarm
1
3
2
Orientation
cut-out
PE (ground)
R
N (21-264 Vac,
50/60 Hz)
L1
0 V (21-264 Vdc)+V
2A
(T)
1
2
PE (ground)
R
PLC
input
(18-60 Vdc)
0 V +V
2A
(T)
1
2
3
R = external load
(must be wired)
R = external load
Maximum inrush current: 5A (over current protected)
I maximum continuous: 500 mA
Voltage drop: 6.5 V @ 24 Vdc or
5.0 V @ 240 Vac
Voltage drop: less than 3 V
I load off: less than 3 mA I load off: less than 0.5 mA
Quick Start Guide November 2020
10 Rosemount 2110 Level Switch

3.5 Functions
Table 3-2 shows the switched electrical outputs from the PNP and Direct
Load electronics for each mode selection.
Table 3-2: Functions
Mode: dry on, high level alarm Mode: wet on, low level alarm
PLC (positive
output)
0 V
+V
PLC
Sig
∆U
<3V L
123
+- I/P
PLC
L
123
+- I/P
PLC
<100µA
∆U
<3V L
132
+- I/P
PLC
L
132
+- I/P
PLC
<100µA
PNP dc
0 V
+V
R
IL
∆U
<3V
123
+V 0 V
123
+V 0 V
<100µA
L
∆U
<3V
123
+V 0 V
123
+V 0 V
<100µA
L
Load switching
ac/dc
V
L /+V
R
IL
∆U
<12 V
0 V
N+V L1
1
3
<3 mA
0 V
N+V L1
1
3
∆U
<12 V
0 V
N+V L1
1
2
<3 mA
0 V
N+V L1
1
2
LED
Electrical load
= Load off= Load on
November 2020 Quick Start Guide
Quick Start Guide 11

3.6 Grounding
Always ground the housing in accordance with national and local
electrical codes.
Signal cable shield grounding
Make sure the instrument cable shield is:
•Trimmed close and insulated from touching the level switch housing.
•Continuously connected throughout the segment.
•Connected to a good earth ground at the power supply end.

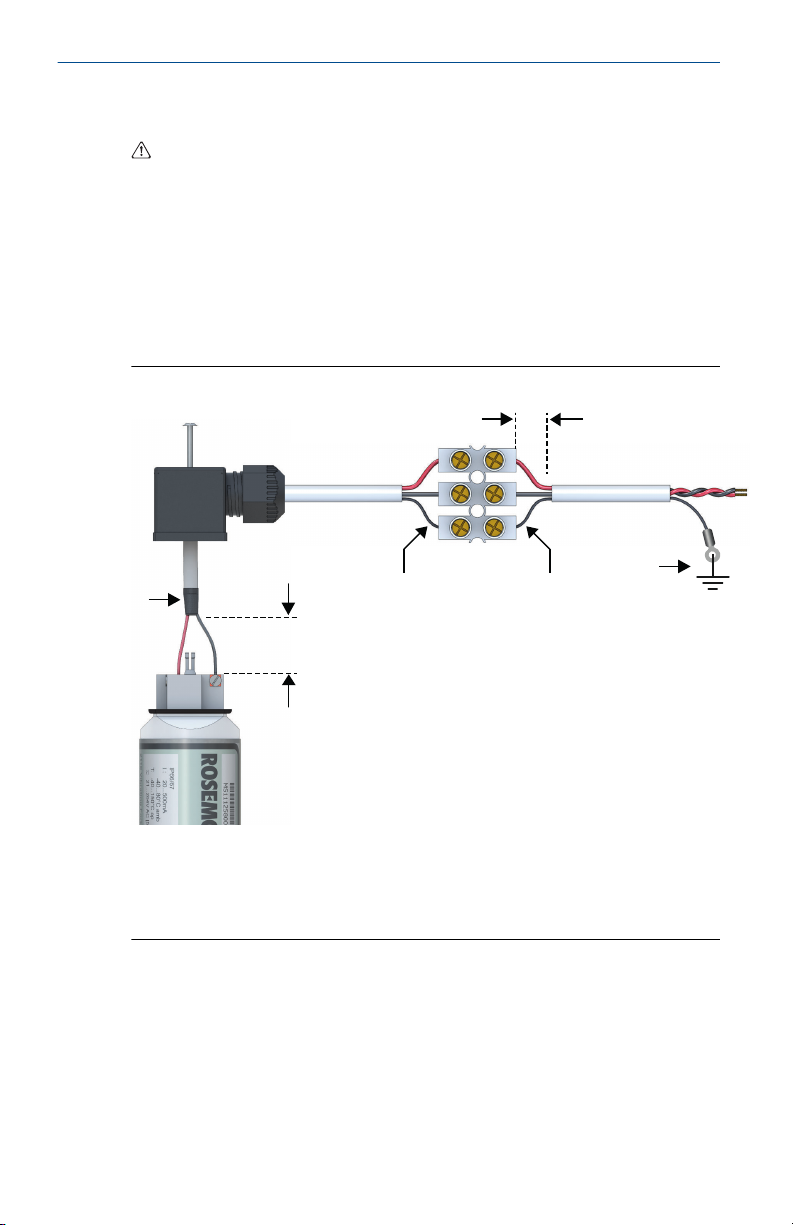

Figure 3-1: Signal Cable Shield Grounding at Power Supply End
B
B
C C
D
A
A. Trim shield and insulate
B. Minimize distance
C. Trim shield
D. Connect shield back to the power supply ground
Quick Start Guide November 2020
12 Rosemount 2110 Level Switch

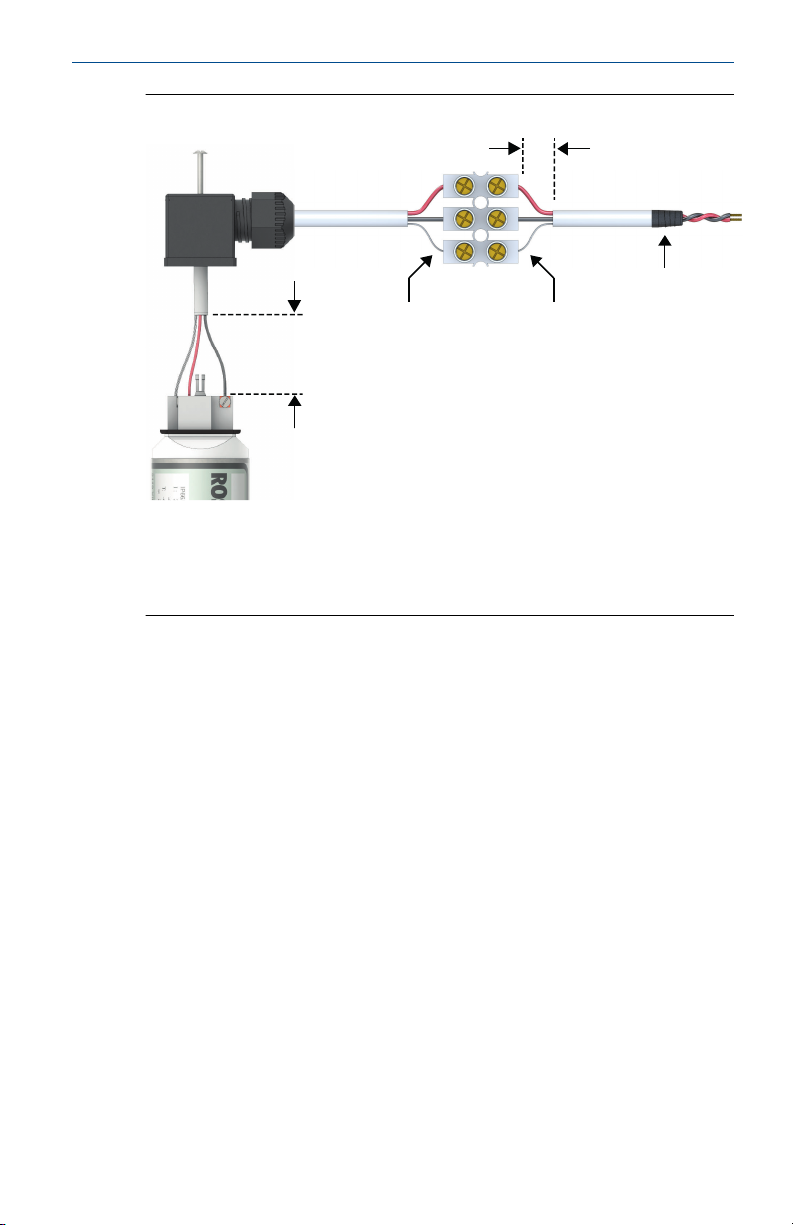

Figure 3-2: Signal Cable Shield Grounding at Instrument End
B
B
C C
A
A. Trim shield and insulate
B. Minimize distance
C. Trim shield
D. Connect shield back to the power supply ground
November 2020 Quick Start Guide
Quick Start Guide 13

4 Connect wiring and power up
The Rosemount 2110 meets IP66 and IP67 weatherproof ratings when
correctly assembled with the supplied connector and suitable cable. Ensure
seals are in place to maintain the weatherproof ratings.
Procedure
1. Verify the power supply is disconnected.
2. Remove the plug cover and cable gland.
Keep the fixing screw and screw seal safe.
A
A. Fixing screw and screw seal
3. Pull the cable through the cable gland.
Cable diameter 0.24 to 0.31 in. (6 to 8 mm).
A
A. PG9 cable gland provided
4. Connect the cable wires.
Table 3-1 shows the wiring connections for each electronics option.
Quick Start Guide November 2020
14 Rosemount 2110 Level Switch

5. Ensure proper grounding (see Grounding).
Make sure grounding is done according to national and local
electrical codes. Failure to do so may impair the protection provided
by the equipment.
6. Re-fit the plug cover and tighten the cable gland.
a) The plug cover can be re-fitted in any one of four positions.
B
B
B
A
A. Fork alignment indicator
B. Optional plug positions
b) Ensure the cable gland is pointing downwards or sideways.
OK OK
November 2020 Quick Start Guide
Quick Start Guide 15

c) Secure the plug cover with the plug screw and washer, and
tighten cable gland.
d) If possible, arrange the wiring with a drip loop.
7. Connect the power supply when ready to apply power.
Quick Start Guide November 2020
16 Rosemount 2110 Level Switch

5 Product certifications
5.1 European Union directive information
A copy of the EU Declaration of Conformity certificate can be found in the
section EU Declaration of Conformity. The most recent revision of the
certificate can be found at Emerson.com/Rosemount.
5.2 Hygienic approvals and compliance (surface finish codes
3, 4, 7, and 8)
3-A® (authorization 3632) and EHEDG (certificate: 102016)
ASME-BPE and FDA compliant
(See Instructions for hygienic installations)
5.3 Overfill approval
Certificate Z-65.11-236
TÜV-tested and approved for overfill protection according to the German
DIBt/WHG regulations. Certified under safety devices for tanks and piping
related to water pollution control.
5.4 Canadian Registration Number
CRN 0F04227.2C
The requirements of CRN are met when a Rosemount 2110 is configured
with a NPT threaded process connection.
5.5 Technical Regulation Customs Union (EAC), ordinary
locations mark
Certificate TCRU C-GB.AB72.B.01385
Standards EN61010-1
Pollution degree 2, Category II (264 V maximum)
Pollution degree 2, Category III (150 V maximum)
Certificate TCRU C-GB.AB72.B.01974
Standard EN61010-1
November 2020 Quick Start Guide
Quick Start Guide 17

5.6 Instructions for hygienic installations
The following instructions are for a Rosemount™ 2110 Level Switch (“level
switch”) with a 51 mm Tri Clamp fitting covered by 3-A authorization 3632
and EHEDG certificate 102016, and ASME-BPE and FDA compliance:
1. The level switch is suitable for installation on pipeline (with fork gap
in line with the flow) and on closed vessels (with the fork gap
vertical).
EHEDG only recommend horizontal stub mounting in pipelines:
OK OK
2. Installation of this equipment shall be carried out by suitably trained
personnel, in accordance with the applicable code of practice.
3. Inspection and maintenance of this equipment shall be carried out by
suitably trained personnel, in accordance with the applicable code of
practice.
4. If the level switch is installed in a stub then, to ensure clean-ability,
the length (L) must not exceed the diameter (D) with a minimum
diameter (D) of 46 mm.
L
D
Quick Start Guide November 2020
18 Rosemount 2110 Level Switch

5. The certification of the level switch relies upon the following
materials used in its construction:
a. Product contact surfaces
Probe: Stainless steel 316/316L
b. Non-product contact surfaces
Enclosure: Stainless steel 304 type
Lens: Nylon 12
Seals: Nitrile rubber
Connector: Nylon (PA6)
6. It is the responsibility of the user to ensure:
a. The materials listed in instruction 5 are suitable for the media
and cleaning (sanitisation) processes.
b. The installation of the level switch is drainable and cleanable.
c. That the joint requirements between the probe and the
vessel/pipe are compatible with the process media,
applicable standards, and code of practice. In EHEDG
applications, the seals (gaskets) used should be as defined in
the EHEDG position paper “Easy cleanable pipe couplings and
process connections”.
7. Cleaning-In-Place (CIP) routines up to 160 °F (71 °C) are suitable for
the level switch.
8. Steaming-In-Place (SIP) routines up to 302 °F (150 °C) are suitable for
the level switch.
November 2020 Quick Start Guide
Quick Start Guide 19

5.7 EU Declaration of Conformity
Figure 5-1: EU Declaration of Conformity (Page 1)
EU Declaration of Conformity
No: RMD 1069 Rev. H
2fo1egaP
We,
Rosemount Tank Radar AB
Layoutvägen 1
S-435 33 MÖLNLYCKE
Sweden
declare under our sole responsibility that the product,
Rosemount™ 2110 Compact Vibrating Fork Liquid Level Switch
manufactured by,
Rosemount Tank Radar AB
Layoutvägen 1
S-435 33 MÖLNLYCKE
Sweden
to which this declaration relates, is in conformity with the provisions of the European Union
Directives, including the latest amendments, as shown in the attached schedule.
Assumption of conformity is based on the application of the harmonized standards and, when
applicable or required, a European Union notified body certification, as shown in the attached
schedule.
(signature)
Manager Product Approvals
(function)
Dajana Prastalo
(name)
9/3/2020
(date of issue)
Quick Start Guide November 2020
20 Rosemount 2110 Level Switch
