Emerson Cooper-Atkins 20200 User manual

Cooper-AtkinsTM Multi-Function Thermometer Instructions
20200

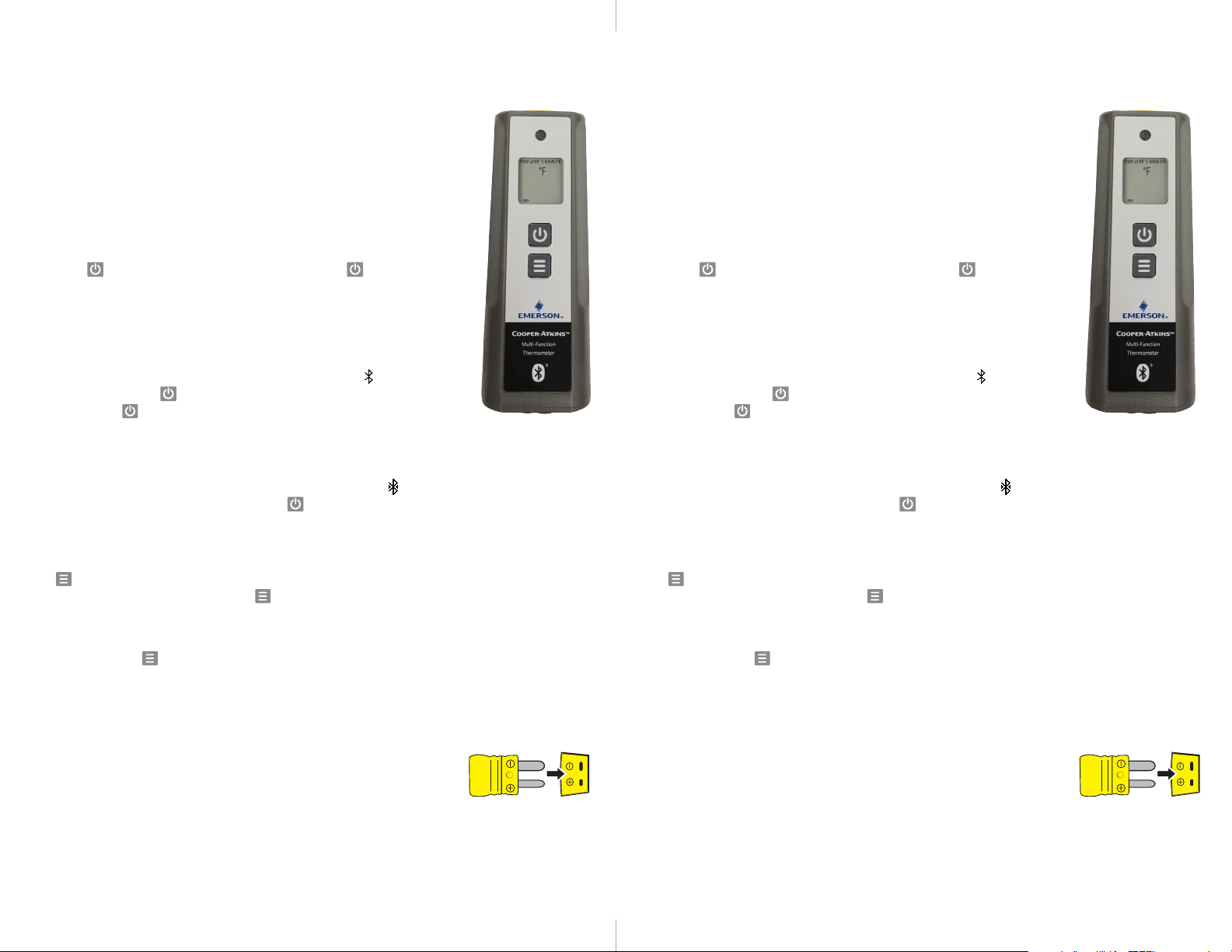

Overview
The 20200 Multi-Function Thermometer transmits temperatures
wirelessly to your mobile device via Bluetooth® Low Energy technology.
It can utilize any Cooper-Atkins’ type-K thermocouple temperature
probe, making it versatile for insertion, air, or surface temperature
measurement.
Turning the Instrument On and Off
Press the button to power-on. Press and hold the button for two
seconds to power-off.
Turning Bluetooth Wireless Technology On and Off
When the Multi-Function Thermometer is first turned on, Bluetooth
is also turned on and the instrument is ready to connect to a mobile
device. The LED will flash green and a Bluetooth symbol will show on
the display. Press the button to turn Bluetooth off. When Bluetooth
is off, press the button to turn it back on again. Bluetooth will remain
on for 20 seconds while waiting to connect to a mobile device.
Once the Multi-Function Thermometer is connected to an app running on a mobile device,
the LED will flash blue and the Bluetooth Connected symbol will show on the display. When
Bluetooth is connected, press and hold the button to disconnect and power-off the Multi-
Function Thermometer.
Recording Temperatures
The button on the Multi-Function Thermometer can be used to record temperatures.
When connected to an app, press the button to record the current temperature.
Changing the Temperature Scale
Press and hold the button for three seconds to toggle between Fahrenheit and Celsius. The
display on the Multi-Function Thermometer will show temperature in tenths of a degree in both
Fahrenheit and Celsius.
Connecting a Type K Probe
Any Type K thermocouple temperature probe can be used with the
Multi-Function Thermometer. Be sure you insert the probe connectors
positive (+) and negative (-) polarity correctly into the Type K connector.
Cooper-AtkinsTM Multi-Function Thermometer Instructions
20200
Overview
The 20200 Multi-Function Thermometer transmits temperatures
wirelessly to your mobile device via Bluetooth® Low Energy technology.
It can utilize any Cooper-Atkins’ type-K thermocouple temperature
probe, making it versatile for insertion, air, or surface temperature
measurement.
Turning the Instrument On and Off
Press the button to power-on. Press and hold the button for two
seconds to power-off.
Turning Bluetooth Wireless Technology On and Off
When the Multi-Function Thermometer is first turned on, Bluetooth
is also turned on and the instrument is ready to connect to a mobile
device. The LED will flash green and a Bluetooth symbol will show on
the display. Press the button to turn Bluetooth off. When Bluetooth
is off, press the button to turn it back on again. Bluetooth will remain
on for 20 seconds while waiting to connect to a mobile device.
Once the Multi-Function Thermometer is connected to an app running on a mobile device,
the LED will flash blue and the Bluetooth Connected symbol will show on the display. When
Bluetooth is connected, press and hold the button to disconnect and power-off the Multi-
Function Thermometer.
Recording Temperatures
The button on the Multi-Function Thermometer can be used to record temperatures.
When connected to an app, press the button to record the current temperature.
Changing the Temperature Scale
Press and hold the button for three seconds to toggle between Fahrenheit and Celsius. The
display on the Multi-Function Thermometer will show temperature in tenths of a degree in both
Fahrenheit and Celsius.
Connecting a Type K Probe
Any Type K thermocouple temperature probe can be used with the
Multi-Function Thermometer. Be sure you insert the probe connectors
positive (+) and negative (-) polarity correctly into the Type K connector.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Emerson is under license. Other trademarks and trade names are those of their respective owners.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Emerson is under license. Other trademarks and trade names are those of their respective owners.

Icons
The Multi-Function Thermometer uses international icons in lieu of messages on the
display screen.
Error Icons
When the temperature cannot be read for any reason, the temperature reading will be replaced with the
warning triangle icon. The reason for the failure will be depicted above the warning triangle in the status area.
The thermometer with adjustment bars icon indicates that there was a problem reading the factory-set
calibration constants in the instrument. The unit is most likely damaged and may need to be replaced.
The up-arrow icon indicates the current probe temperature is greater than the temperature range of the
Multi-Function Thermometer. Cool the probe tip temperature below 1000°F (538°C) before proceeding.
The down-arrow icon indicates the current temperature is lower than the temperature range of the
Multi-Function Thermometer. Warm the probe tip temperature above -100°F (-73°C) before proceeding.
The no probe icon indicates the probe is missing or damaged. Replace the missing or damaged probe.
The sleeping icon indicates the Multi-Function Thermometer is in light sleep mode.
Press or button to wake the thermometer up.
The battery warning icon indicates the battery level is too low to get an accurate reading.
Replace the 1.5V AA alkaline battery.
Bluetooth Low Energy Icons
Bluetooth Low Energy is on. The Multi-Function Thermometer is “advertising” and ready to connect.
Bluetooth Low Energy is on and the Multi-Function Thermometer is connected.
Blank Bluetooth Low Energy is off.
Icons
The Multi-Function Thermometer uses international icons in lieu of messages on the
display screen.
Error Icons
When the temperature cannot be read for any reason, the temperature reading will be replaced with the
warning triangle icon. The reason for the failure will be depicted above the warning triangle in the status area.
The thermometer with adjustment bars icon indicates that there was a problem reading the factory-set
calibration constants in the instrument. The unit is most likely damaged and may need to be replaced.
The up-arrow icon indicates the current probe temperature is greater than the temperature range of the
Multi-Function Thermometer. Cool the probe tip temperature below 1000°F (538°C) before proceeding.
The down-arrow icon indicates the current temperature is lower than the temperature range of the
Multi-Function Thermometer. Warm the probe tip temperature above -100°F (-73°C) before proceeding.
The no probe icon indicates the probe is missing or damaged. Replace the missing or damaged probe.
The sleeping icon indicates the Multi-Function Thermometer is in light sleep mode.
Press or button to wake the thermometer up.
The battery warning icon indicates the battery level is too low to get an accurate reading.
Replace the 1.5V AA alkaline battery.
Bluetooth Low Energy Icons
Bluetooth Low Energy is on. The Multi-Function Thermometer is “advertising” and ready to connect.
Bluetooth Low Energy is on and the Multi-Function Thermometer is connected.
Blank Bluetooth Low Energy is off.
Note: EMC Compliance: The instrument may
record temperature measurements beyond
the stated accuracy when exposed to radio
frequency disturbances between 250 Mhz
and 1000 Mhz with a field strength in excess
of 3.0V/m. This deviation is temporary and
the device will recover when the disturbance
is removed.
Note: EMC Compliance: The instrument may
record temperature measurements beyond
the stated accuracy when exposed to radio
frequency disturbances between 250 Mhz
and 1000 Mhz with a field strength in excess
of 3.0V/m. This deviation is temporary and
the device will recover when the disturbance
is removed.
Instrument Specifications
Temperature Range: -100° to 1000°F (-73° to 538°C)
Ambient Operating Range: 4° to 122°F (-20° to 50°C). 10% to 90% RH, non-condensing
Resolution: 1°F/0.1°C
Accuracy: ±0.5°F (±0.3°C) at ambient between 68° to 86°F (20° to 30°C). Add ±0.1° to
accuracy spec per 1° change to ambient temperature outside of 68° to 86°F.
RF Range: 100 ft open-field range
IPX7 waterproof rated
Altitude up to 2000 meters
Pollution Degree 2
Battery Life: 500 hours
5-year Warranty
Instrument Specifications
Temperature Range: -100° to 1000°F (-73° to 538°C)
Ambient Operating Range: 4° to 122°F (-20° to 50°C). 10% to 90% RH, non-condensing
Resolution: 1°F/0.1°C
Accuracy: ±0.5°F (±0.3°C) at ambient between 68° to 86°F (20° to 30°C). Add ±0.1° to
accuracy spec per 1° change to ambient temperature outside of 68° to 86°F.
RF Range: 100 ft open-field range
IPX7 waterproof rated
Altitude up to 2000 meters
Pollution Degree 2
Battery Life: 500 hours
5-year Warranty
