Emotiv EPOC X User manual

EPOC X User Manual

EPOC X
User Manual

Warranties and Copyright
EMOTIV does not warrant, guarantee or make representations concerning the content of
this document. All information is provided ‘as is’ without express or implied warranties of
any kind including, without limitation, the warranties of merchantability, quality and title.
EMOTIV reserves the right to change the content of this document and the features or
functionalities of its products and services at any time without obligation to notify anyone
of such changes.
Copyright
Copyright© 2020 EMOTIV. All rights reserved.
Brainwear® is a registered trademark.

Regulatory compliance
EMOTIV products are intended to be used for research applications and personal use
only. Our products are not sold as Medical Devices as defined in EU directive 93/42/EEC.
Our products are not designed or intended to be used for diagnosis or treatment of
disease.
FCC ID Number 2ADIH-EPOC03 and IC ID Number 12769A-EPOC03.
EMOTIV has tested EPOC X and confirms:
This device complies with the radio equipment directive (2014/53/EU).
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or experienced person for help.
Please Note: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject
to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Radiation Exposure Statement: This equipment complies with the IC RSS-102 radiation
exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 cm between the radiator and your
body.
Énoncé d'exposition aux rayonnements: Cet équipement est conforme aux limites
d'exposition aux rayonnements ioniques RSS-102 Pour un environnement incontrôlé. Cet
équipement doit être installé et utilisé avec un Distance minimale de 20 cm entre le
radiateur et votre corps.
EPOC X is fully compliant with the relevant standards for Europe / North America and
Australia and has been tested to the following standards by Bay Area Compliance
Laboratory:
SAFETY
UL/CSA/EN/IEC 62368-1 and CB certificate.
EMC

FCC 15B / ICES-003 Class B
AS/NZ CISPR32:2015 Class B
EN301 489-1, EN301 489-17, EN55032:2012/AC:2013, EN55035:2017, EN61000-3-
2, EN61000-3-3.
RF
FCC 15.247 / ISED RSS-247 / EN300 328 V2.1.1
EN62479 RF Exposure Evaluation
AS/NZ 4268

Introduction

Introduction to EPOC X
EPOC X is the 10th-anniversary edition of the award-winning EPOC headset. This
Brainwear® device has been designed for scalable and contextual human brain research —
providing access to professional-grade brain data with an improved and easy-to-use
design.

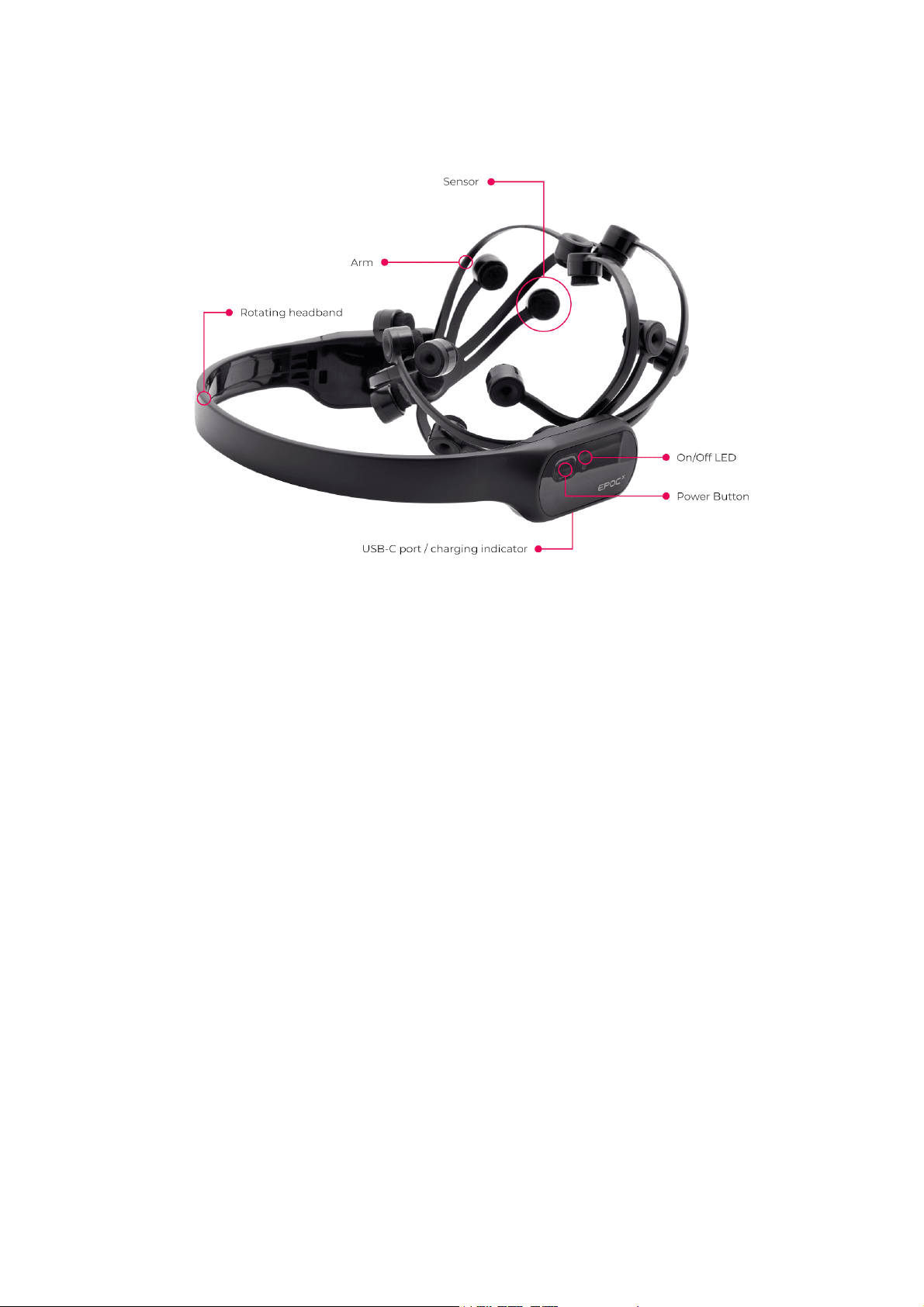

EPOC X features include:
14-channel EEG — for whole brain sensing
A rotating headband — for maximized wearability
Saline-based electrodes — with a new and easy to rehydrate design
Redesigned electroplated electrodes — to reduce oxidation and sensor breakages
Enhanced performance and connectivity — with our updated antenna and radio
Improved signal quality — with adjusted and relocated amplifiers

Coverage
EPOC X provides coverage of the frontal and prefrontal lobes; it also provides coverage of
the temporal, parietal and occipital lobes. The image above shows the sensor locations for
EPOC X using the international 10-20 system.
EPOC X has two electrode arms — each containing 9 locations (7 sensors + 2 references).
Two sensor locations (M1 / M2) already have comfort pads fitted as they are the
alternative reference positions (P3 / P4).

Application compatibility
Compatible with:

Technical specifications
Number of
Channels 14 (plus CMS/DRL references at P3/P4 locations M1/M2)
10-20 positions AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4
Sampling Method Sequential sampling. Single ADC
Sampling Rate 128 SPS / 256 SPS (2048 Hz internal)
EEG Resolution 14 bits 1 LSB = 0.51μV (16 bit ADC, 2 bits instrumental noise floor
is discarded), settings can be changed to 16-bit
Bandwidth 0.2 - 45Hz, digital notch filters at 50Hz and 60Hz
Filtering Built-in digital 5th order Sinc filter
Dynamic Range
(input referred) 8400 uV(pp)
Coupling Mode AC coupled
Connectivity Proprietary 2.4GHz wireless, BLE and USB (Extender only)
Battery Life Up to 9 hours (LiPo)
Impedance
Measurement Real-time contact quality using patented system
Motion Sensor ICM-20948
Accelerometer 3-axis +/-4g
Magnetometer 3-axis +/- 4900 uTesla
Motion Sampling 32 / 64 Hz

Motion
Resolution 14 / 16-bit (User Defined)
Quanterion
Output Yes
Sensor Material Ag/AgCl + Felt + Saline

Safety precautions
EPOC X is a consumer product; it is not intended to be used as a medical device or in
hazardous environments.
EPOC X is designed for use at room temperature; rapid changes in temperature will
affect the performance of the amplifiers and increase the noise floor.
EPOC X uses saline based sensors. Every effort has been made to stop water entering
the headset and protect the electronics inside. However, the headset is not waterproof.
Do not submerge your headset in water.
WARNING: EPOC X is powered by a lithium polymer battery that is rated for operation
in <50°c environments. It is not user replaceable. If you suspect that there is a fault with
the battery, please contact EMOTIV Support.
WARNING: Do not open the headset enclosure. Doing so will void the warranty and can
damage the headset.
WARNING: Do not charge EPOC X while wearing the device.
Précautions de Sécurité
EPOC X est un produit de consommation; il n'est pas destiné à être utilisé comme
appareil médical ou dans des environnements dangereux.
EPOC X est conçu pour une utilisation à température ambiante; des changements
rapides de température affecteront les performances des amplificateurs et
augmenteront le bruit de fond.
EPOC X utilise des capteurs à base de solution saline. Tous les efforts ont été faits
pour empêcher l'eau de pénétrer dans le casque et protéger l'électronique à l'intérieur.
Cependant, le casque n'est pas étanche. Ne plongez pas votre casque dans l'eau.
AVERTISSEMENT: EPOC X est alimenté par une batterie au lithium polymère conçue
pour fonctionner dans des environnements <50°c. Il n'est pas remplaçable par
l'utilisateur. Si vous pensez qu'il y a un problème avec la batterie, veuillez contacter le
support EMOTIV.
AVERTISSEMENT: n'ouvrez pas le boîtier du casque. Cela annulerait la garantie et
pourrait endommager le casque.
AVERTISSEMENT: ne chargez pas l'EPOC X lorsque vous portez l'appareil.

Getting started

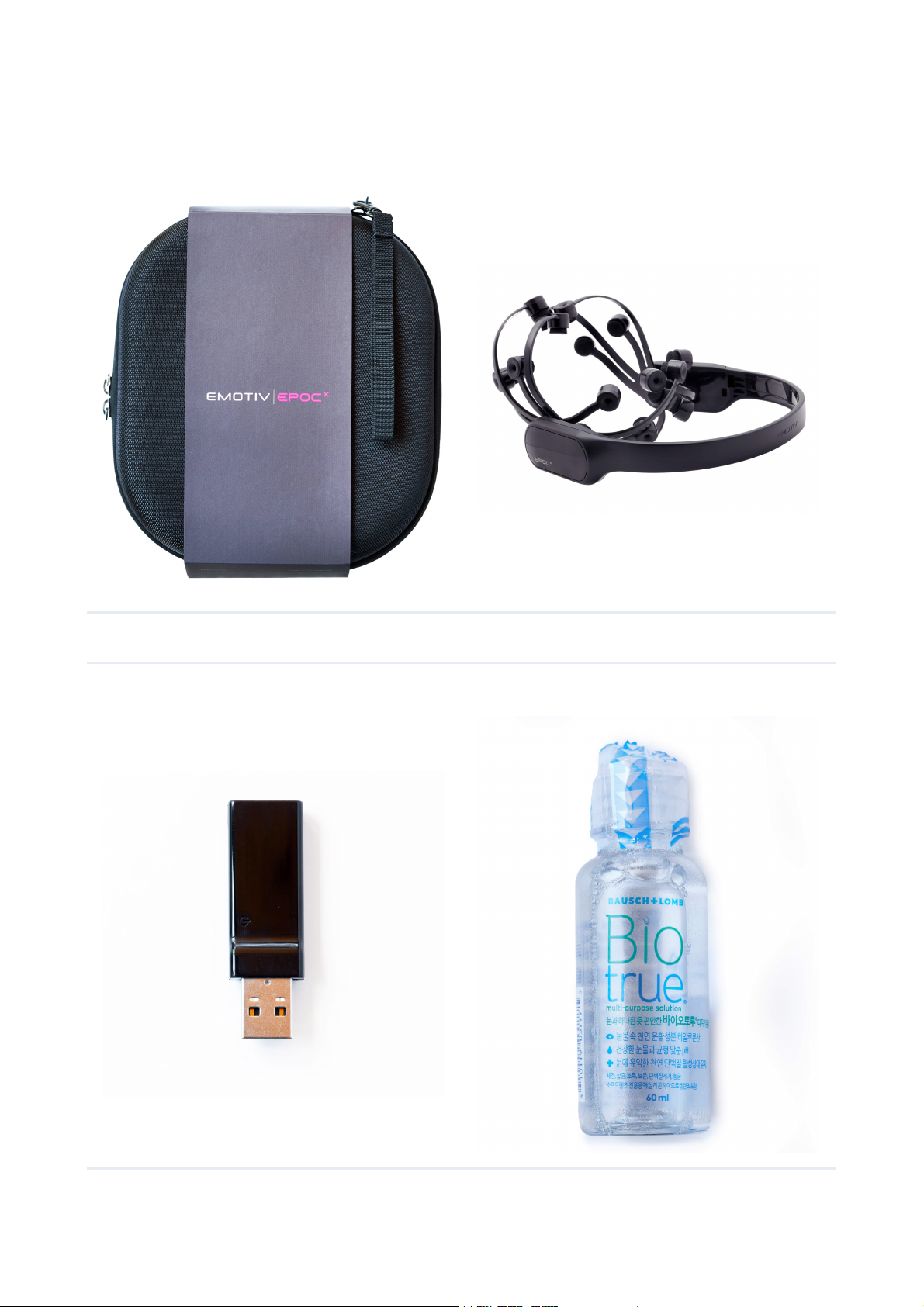

Package contents
1. Protective Travel Case 2. EPOC X Headset
3. USB Receiver Dongle 4. Sample saline fluid 60ml

5. USB-C Charging Cable 6. Sensor Felt Packs - 80 Pcs

Charging your EPOC X
Your EPOC X is charged and tested before shipping — so you can start using it straight
away.
Charging the battery
To optimize the use of your headset, we recommend that you fully charge it before making
recordings.
If the ON/OFF LED does not glow white when you turn your headset ON, it requires
charging.

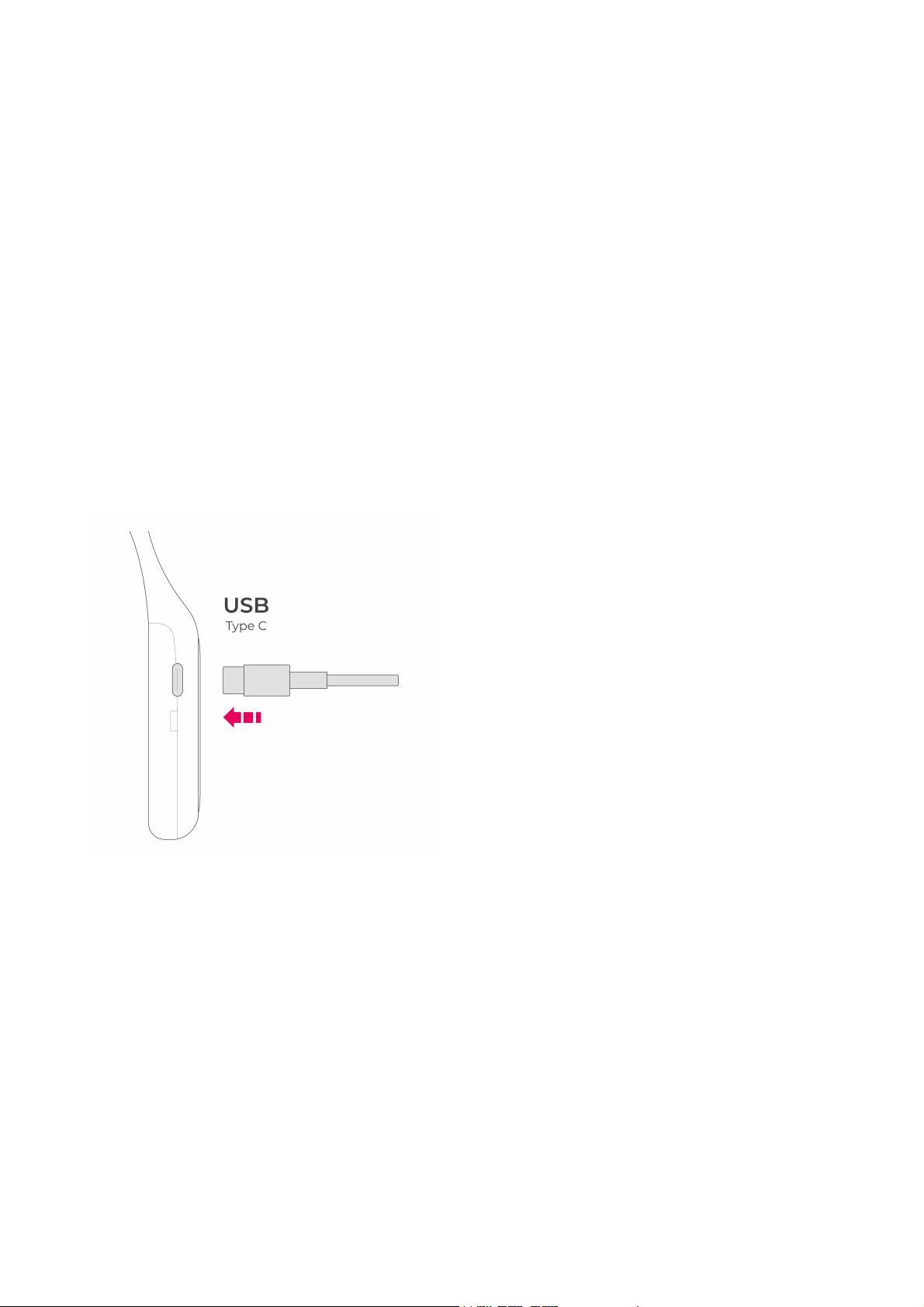

To charge the battery, plug the USB charging cable into the USB-C port located on the right-
side of the headset.
Then, connect the other end of the USB charging cable to a power outlet or PC/Mac.
The length of time it takes to fully recharge your headset depends on the remaining
capacity of the lithium polymer battery. Charging can take up to two hours.
If the headset is unused for a long period of time, the battery will become heavily depleted
of charge. If this happens, you may need to charge your headset for 24-hours.
If you have any issues charging your headset, please contact the EMOTIV Support team.

Charging behaviour
Action Description
Charging When the headset is
charging the orange LED is
displayed.
Charging
Complete
When the headset is fully
charged the LED turns green.

Charging
Failure
If there is an error during
charging the LED will turn red
or flash red.
