Emotiv EPOC+ User manual

EPOC+

EPOC+ User Manual
This document is intended to help you get started using the EMOTIV EPOC+ and includes
common tips for using it. If you have any queries beyond the scope of this document,
please contact us through our online support.

Introduction

About

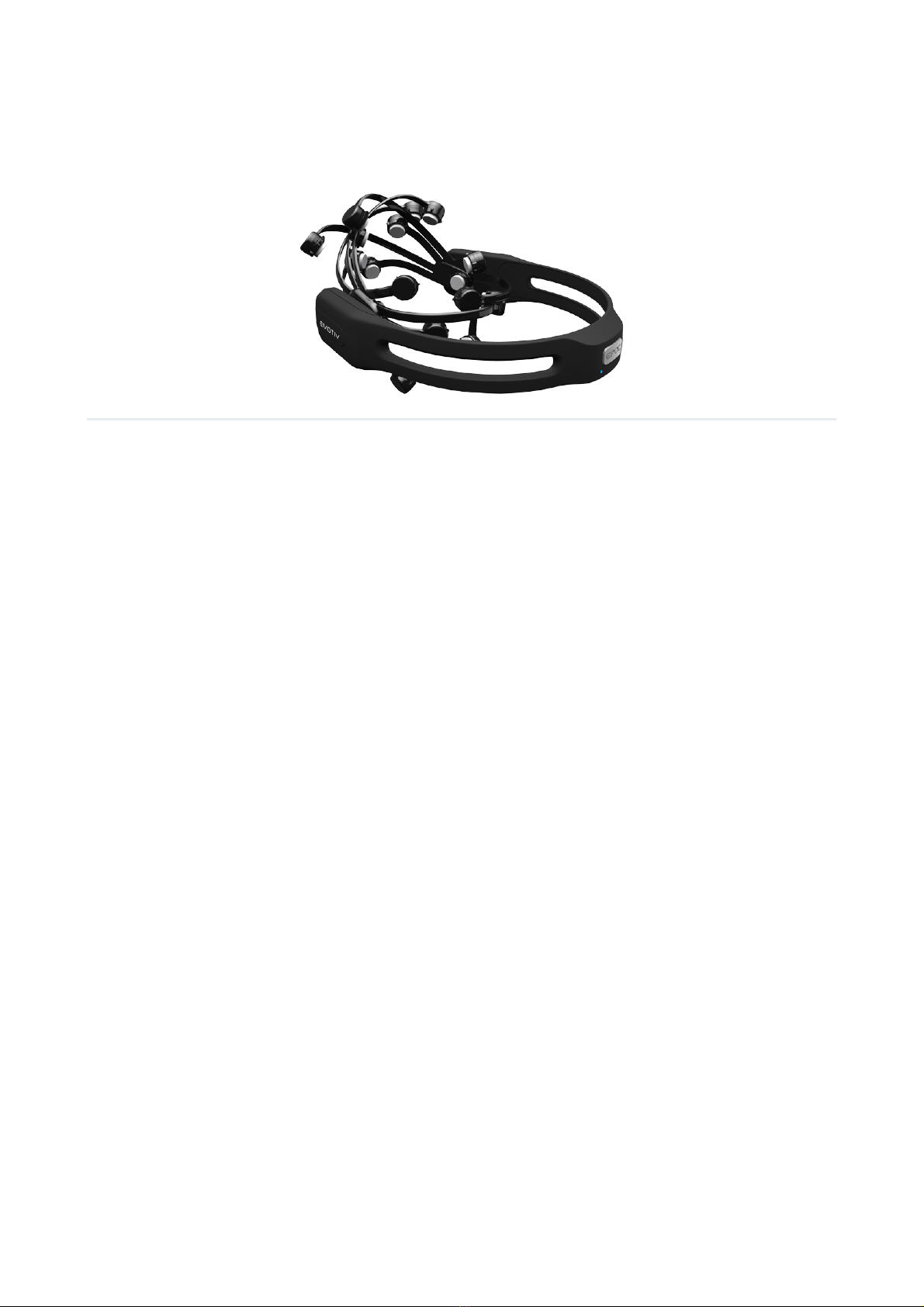

The EMOTIV EPOC+ is a portable, high resolution, 14-channel, EEG system. It was designed
to be quick and easy to fit and take measurements in practical research applications. It is
compatible with all EMOTIV software products.
EMOTIV products are intended to be used for research applications and personal use only.
Our products are not sold as Medical Devices as defined in EU directive 93/42/EEC. Our
products are not designed or intended to be used for diagnosis or treatment of disease.

Technical Specifications
Headset
Version EPOC v1.0 EPOC+ v1.1 EPOC+ V1.1A
Number of
Channels
14 (plus
CMS/DRL
references,
P3/P4 locations)
14 (plus CMS/DRL
references, P3/P4
locations)
14 (plus CMS/DRL
references, P3/P4
locations)
Channel
names
(International
10-20
locations)
AF3, F7, F3, FC5,
T7, P7, O1, O2,
P8, T8, FC6, F4,
F8, AF4
AF3, F7, F3, FC5, T7, P7,
O1, O2, P8, T8, FC6, F4,
F8, AF4
AF3, F7, F3, FC5, T7, P7,
O1, O2, P8, T8, FC6, F4,
F8, AF4
Sampling
Method
Sequential
sampling. Single
ADC
Sequential sampling.
Single ADC
Sequential sampling.
Single ADC
Sampling
Rate
128 SPS (2048
Hz internal)
128 SPS / 256 SPS
(2048 Hz internal)
128 SPS / 256 SPS
(2048 Hz internal)
EEG
Resolution
14 bits 1 LSB =
0.51μV (16 bit
ADC, 2 bits
instrumental
noise floor is
discarded)
14 bits 1 LSB = 0.51μV
(16 bit ADC, 2 bits
instrumental noise floor
is discarded), settings
can be changed to 16-bit
14 bits 1 LSB = 0.51μV
(16 bit ADC, 2 bits
instrumental noise floor
is discarded), settings
can be changed to 16-bit
Bandwidth
0.2 - 45Hz,
digital notch
filters at 50Hz
and 60Hz
0.2 - 45Hz, digital notch
filters at 50Hz and 60Hz
0.2 - 45Hz, digital notch
filters at 50Hz and 60Hz
Filtering
Built-in digital
5th order Sinc
filter
Built-in digital 5th order
Sinc filter
Built-in digital 5th order
Sinc filter

Dynamic
Range (input
referred)
8400 uV(pp) 8400 uV(pp) 8400 uV(pp)
Coupling
Mode AC coupled AC coupled AC coupled
Connectivity Proprietary
2.4GHz wireless
Proprietary 2.4GHz
wireless, BLE and USB
(Extender only)
Proprietary 2.4GHz
wireless, BLE and USB
(Extender only)
Battery
Capacity
LiPo battery
680mAh LiPo battery 680mAh LiPo battery 680mAh
Battery Life
(typical) 12 hours 12 hours 12 hours
Impedance
Measurement
Real-time
contact quality
using patented
system
Real-time contact quality
using patented system
Real-time contact quality
using patented system
IMU Part IDG500 LSM9DS0 ICM-20948
Accelerometer - 3-axis +/-8g 3-axis +/-4g
Gyroscope 2-axis +/-8g 3-axis +/- 500 dps Interpreted as Quaternion
Magnetometer - 3-axis +/- 12 gauss 3-axis +/- 4900 uTesla
Motion
Sampling 128 Hz 32 / 64 / 128 Hz (User Defined) 32 / 64 Hz
Motion
Resolution 10 bit 14 / 16-bit (User Defined) 14 / 16-bit (User Defined)
Quanterion No No Yes
Sensor
Material
Ag/AgCl + Felt +
Saline Ag/AgCl + Felt + Saline Ag/AgCl + Felt + Saline

Safety Precautions
EPOC+ is a consumer product; it is not intended to use for in-patient healthcare or in
hazardous environments.
EPOC+ is designed to use at room temperature; rapid changes in temperature will
affect the performance of the amplifiers and increase the noise floor.
EPOC+ uses saline based sensors and every effort has been made to protect the
electronics from water ingress, however it is not waterproof. Please do not submerge
your headset.
WARNING : EPOC+ is powered by a Lithium-Polymer battery that is rated for operation in
<45C environments. It is not user replaceable, please contact support if you suspect a fault
or have any questions.
WARNING : Do not open the enclosure. Doing so will void the warranty and can damage the
headset.
WARNING : Do not charge EPOC+ while wearing the device. In the unlikely event if your PC
has a faulty power supply, you and your headset could unintentionally become the ground
path. If EPOC+ detects a USB connection when turned on, it will stop communicating. If you
would like to use it tethered, please use an EMOTIV Extender. Extender provides USB
isolation and charging protection while tethered.

Regulatory Compliance
EMOTIV products are intended to be used for research applications and personal use
only. Our products are not sold as Medical Devices as defined in EU directive 93/42/EEC.
Our products are not designed or intended to be used for diagnosis or treatment of
disease.
The EPOC+ has been tested for EMC and Safety compliance as a consumer product under
the CB scheme. The following table outlines the compliance testing that has been obtained:
FCC ID Number 2ADIH-EPOC02 and IC ID Number: 12769A-EPOC02
EMOTIV has undertaken testing and confirms:
This device complies with the radio equipment directive (2014/53/EU).
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and radiates radio frequency energy. If it is not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected
- Consult the dealer or experienced person for help
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject
to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Note: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Our USB dongle has FCC ID Number XUE-USBD01.
Type Standards Tested
EMC and Telecom: Class B TSI EN 300 440-2 V1.4.1
EN 301 489-1
EN 301 489-3

AS/NZS CISPR22 :2009
AS/NZS 4268 :2008
FCC CFR 47 Part 15C
Safety EN 60950-1:2006
CB Certificate (TUV Rheinland Japan ) JPTUV-029914

Getting started

Package Contents
Within the EPOC+ package, you will find the following:
1. Headset 2. Hydrator Pack
3. Hydrator Fluid 4. Universal USB Receiver

5. Mini-B & a USB cable 6. Quick Start Guide

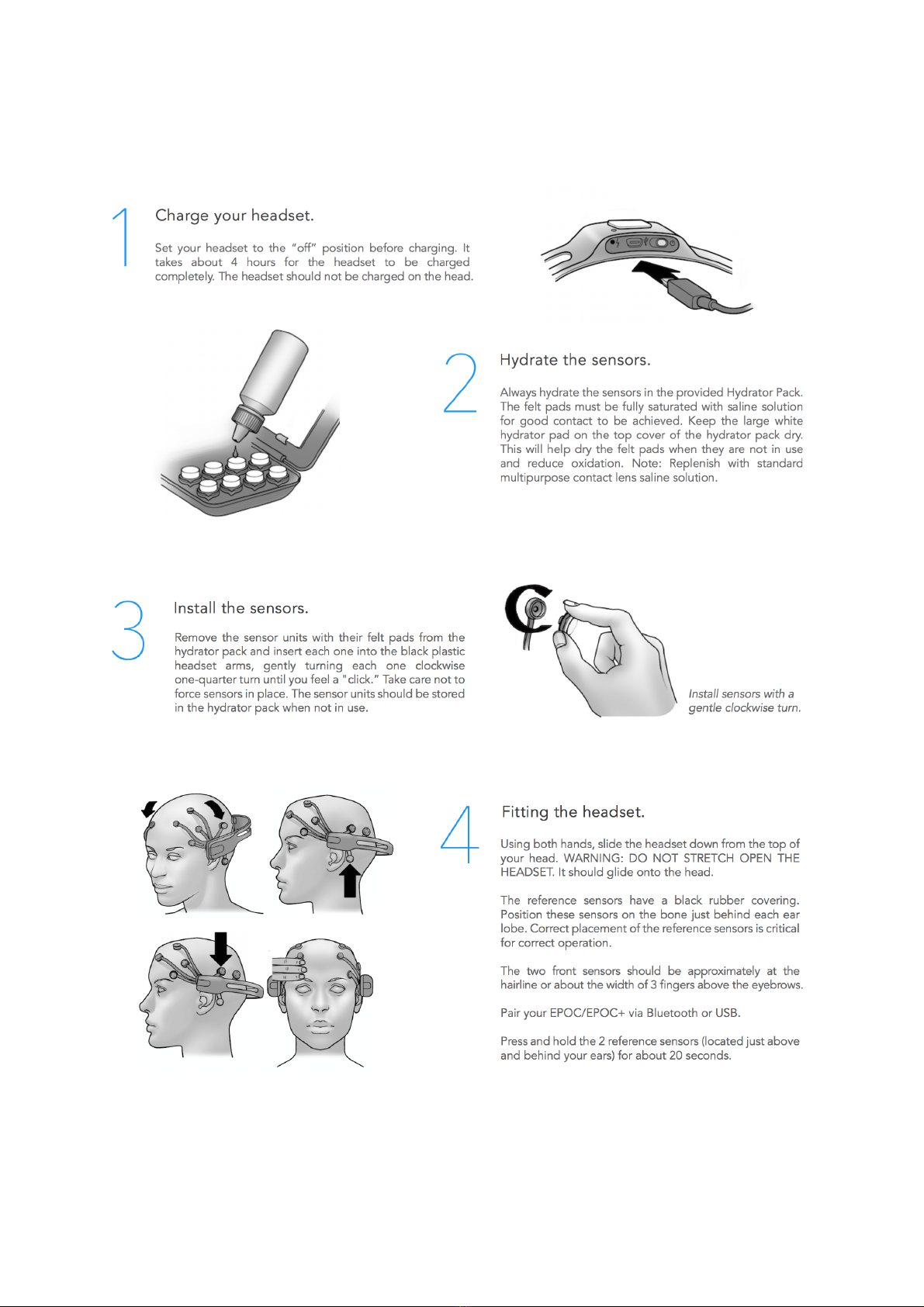

Assembly - Quick Start

Using your headset

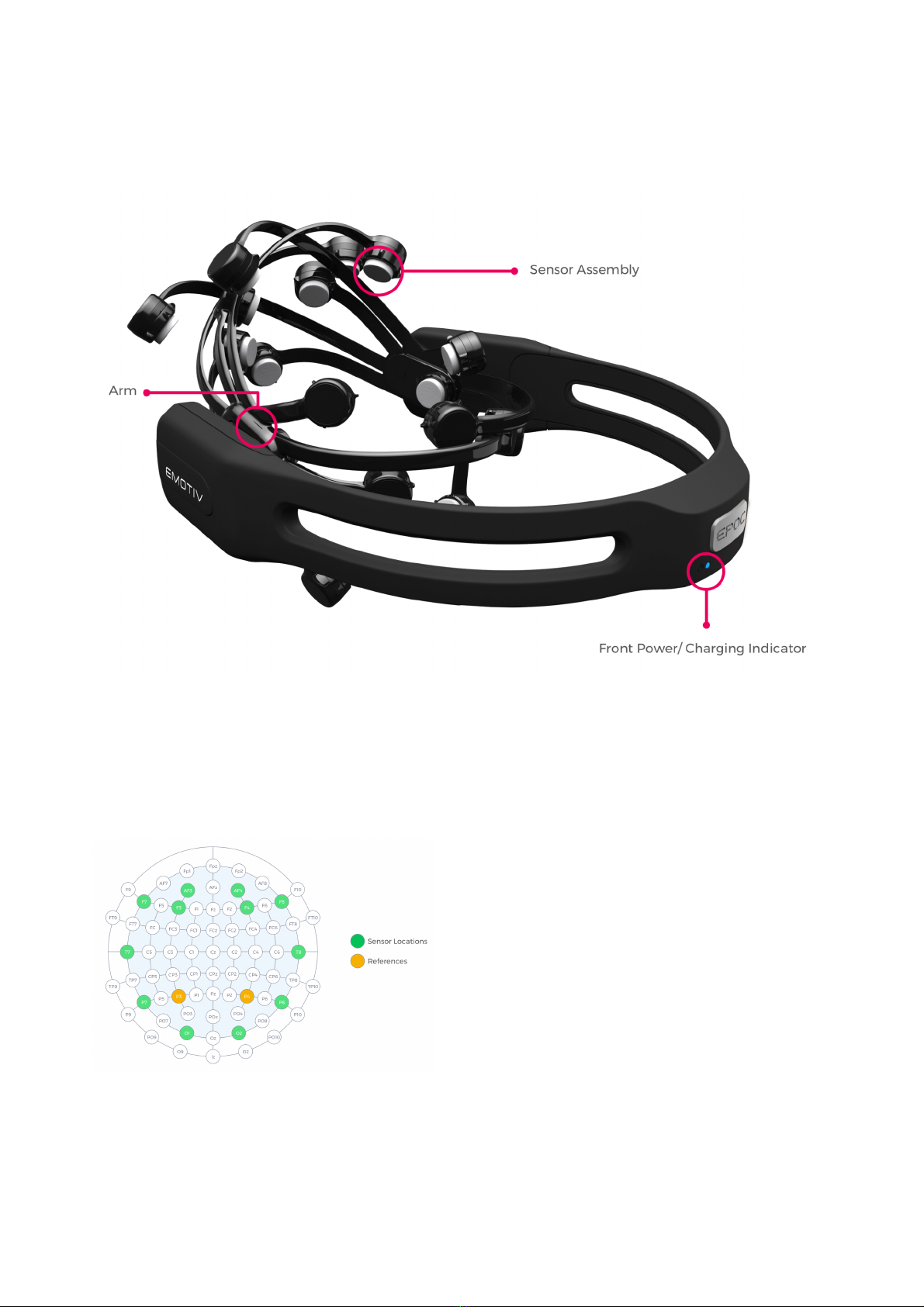

EPOC+ Headset Details
The EPOC+ has two electrode arms each containing 9 locations (7 sensors + 2 references).
Two sensor locations (M1 / M2) already have rubber sensors fitted because they are the
alternative positions for the default references (P3 / P4).
The EPOC+ is designed to provide good coverage of the frontal and prefrontal lobes and
also provides coverage of the temporal, parietal and occipital lobes. The images shown
above are the sensor locations for the EPOC+ using the international 10-20 system.

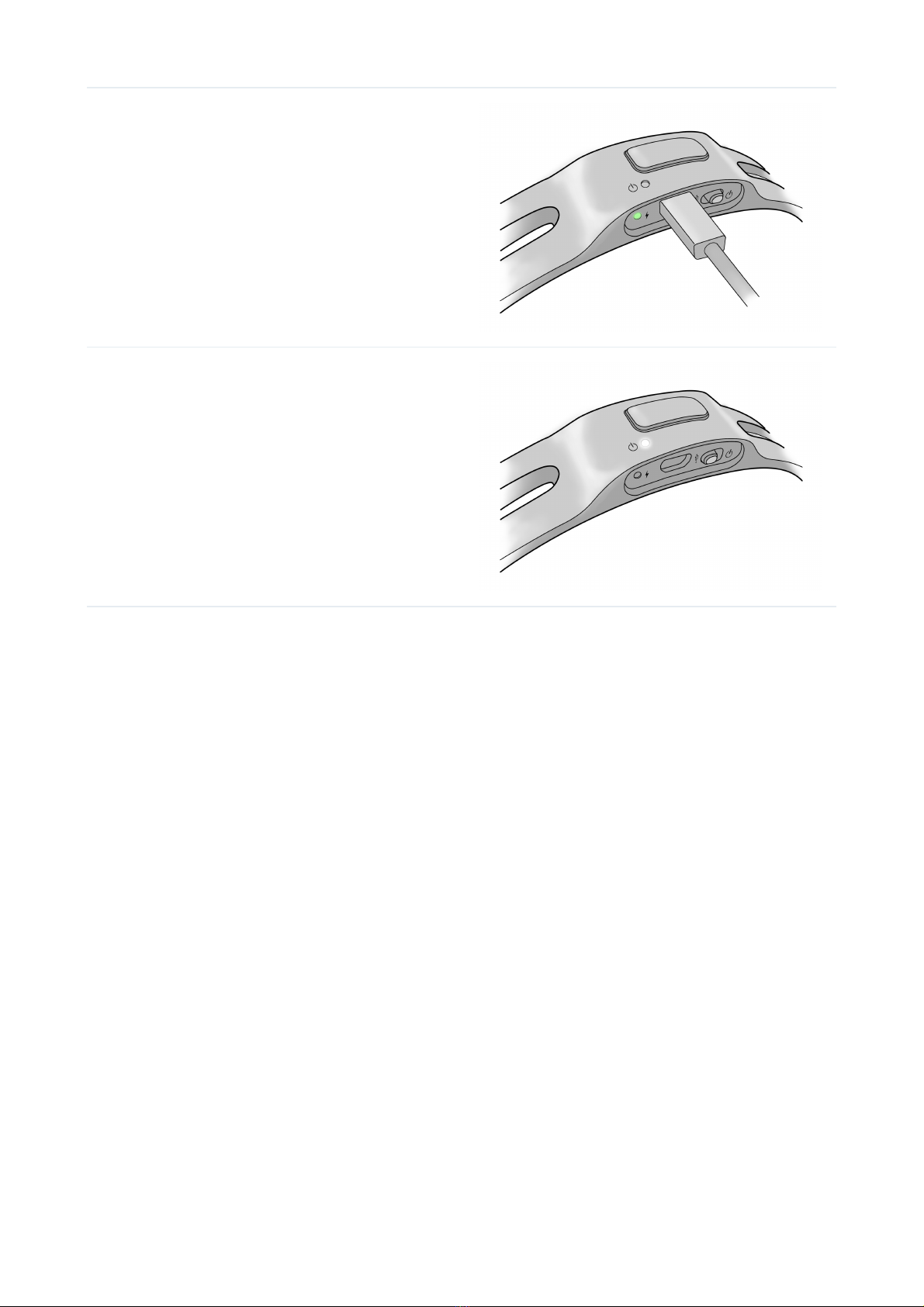

LED Indicators
The USB port, power switch and LED indicators are part of the control board which sits in
the middle of the EPOC+ headband. The power LED is located on the top surface and the
charging LED is on the USB face.

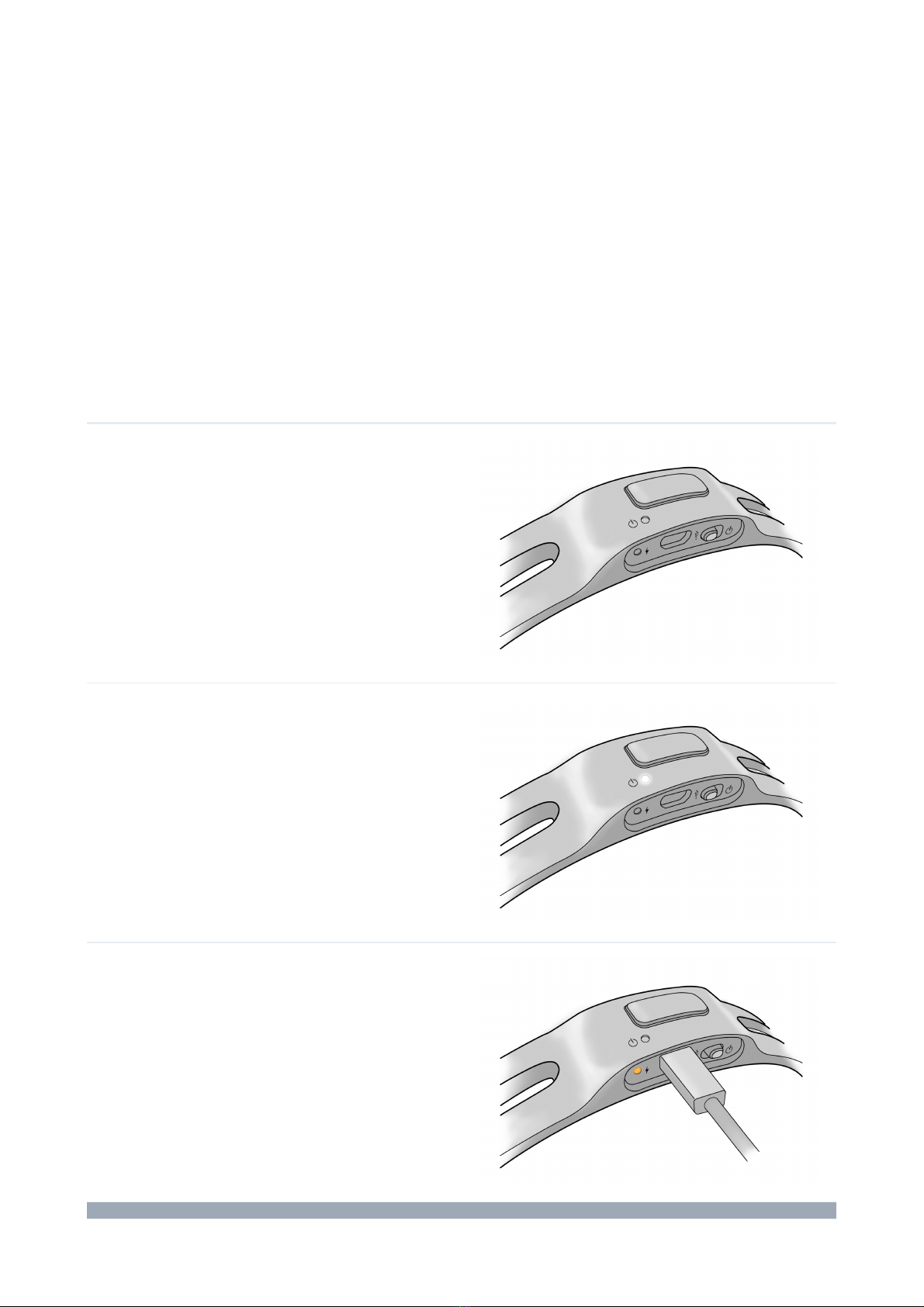

The following table outlines their behavior:
Action Power LED Charging
LED
Power OFF /
Battery Flat Off Off
Power On White Off
USB Connected
/ Charging Off Orange

Charging
Complete Off Green
Firmware
Failure
Fade On -
Fade Off Off

Charging

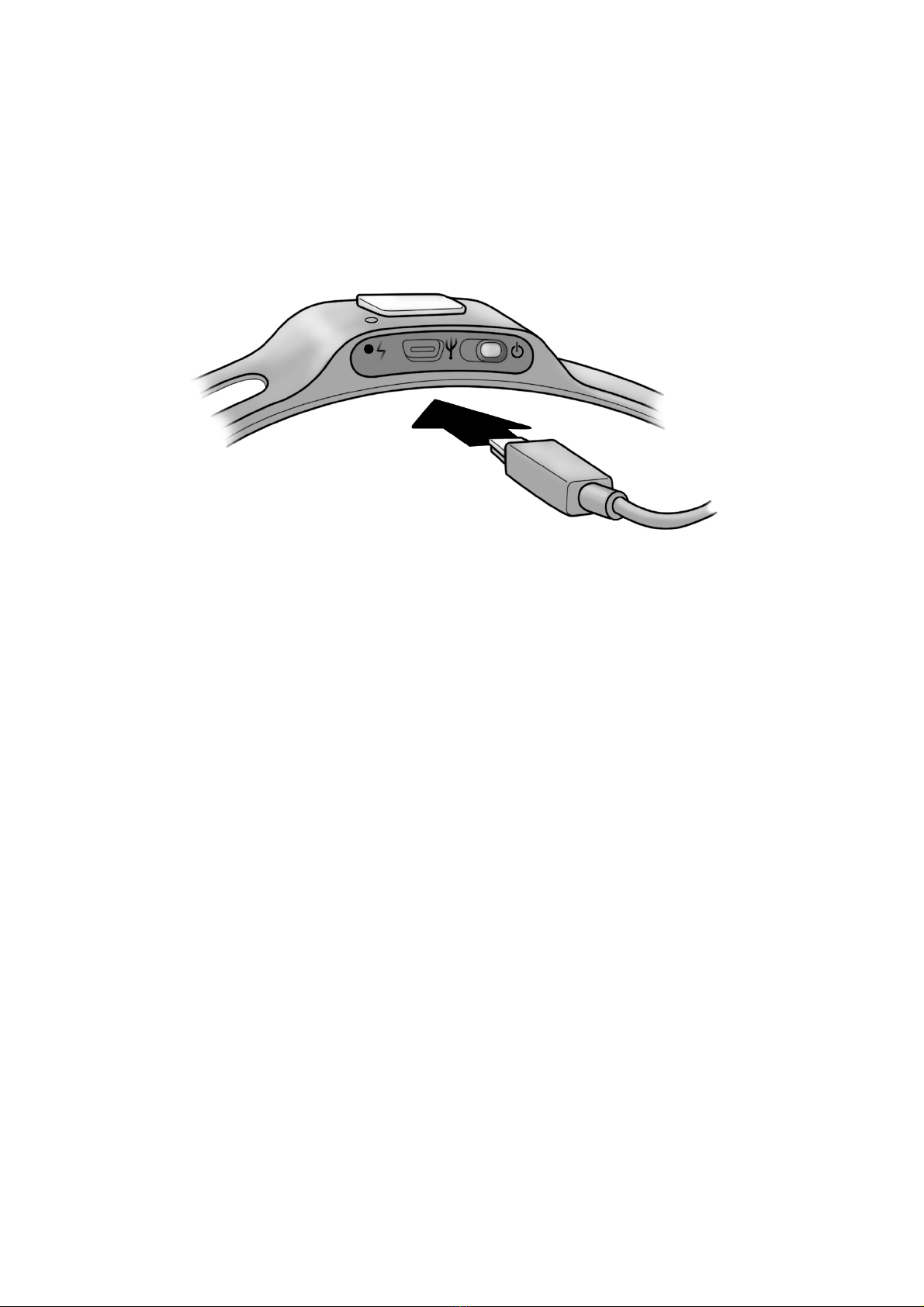

It is recommended that your headset is fully charged prior to capture recordings. The
charge time depends on the remaining capacity in the Lithium Polymer cell and can take up
to four hours. If the power LED does not glow white when you turn it On, your EPOC+
requires charging. Please plug-in the provided USB Mini-B cable into the headset as shown
above to USB port.
Note 1: The headset will charge faster if it is connected to a dedicated USB port.
Note 2: If the headset is heavily depleted or hasn’t been used for a few months, leave it
connected for 24 hours.

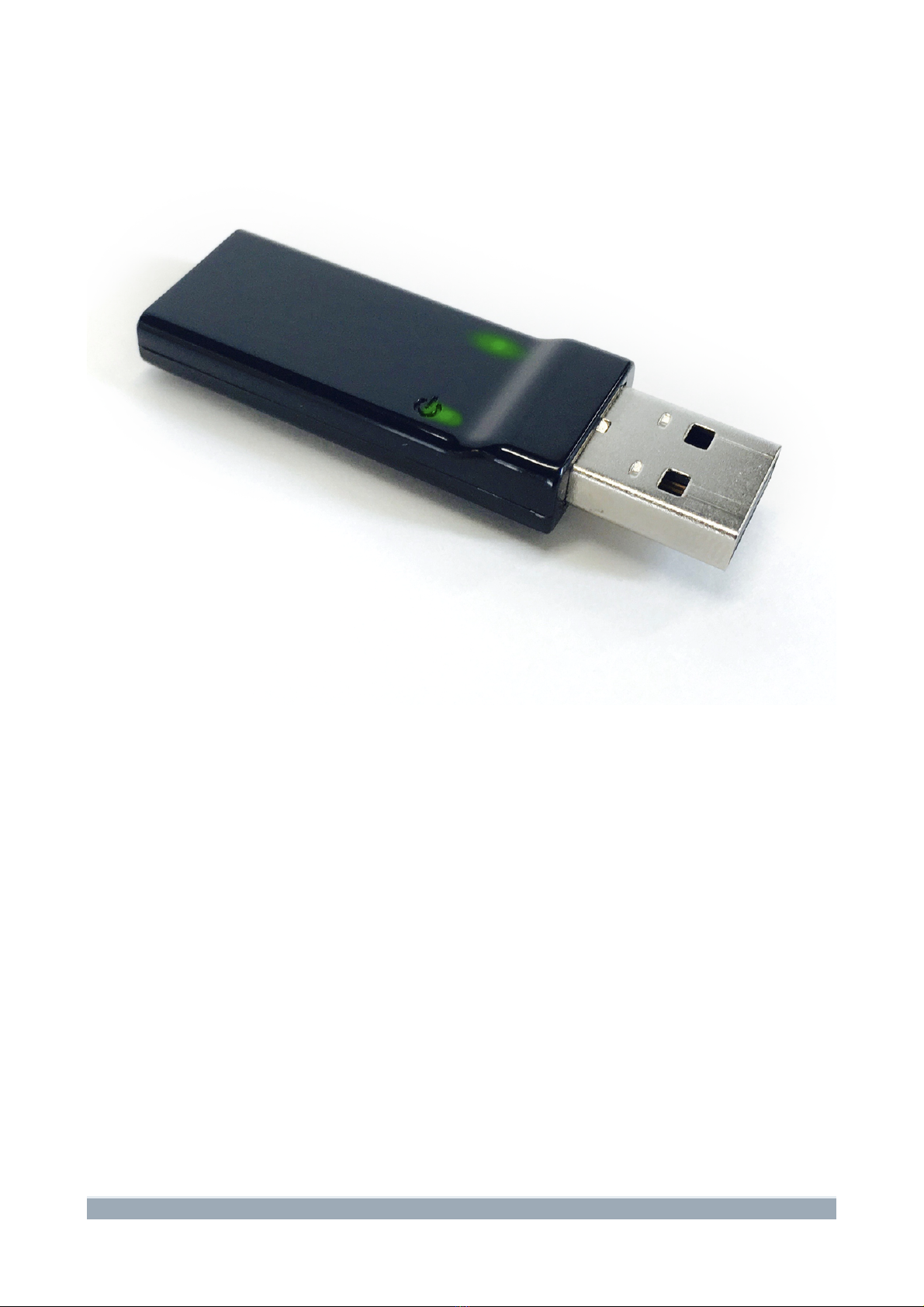

Universal USB Receiver (Dongle)
The universal USB receiver (dongle) uses a proprietary 2.4 GHz protocol to stream data
from the headset. We recommend using this to connect to your headset on a PC or Laptop;
once connected it remembers the serial number of the headset pairs to allow easy
reconnection. The dongle pairing also allows multiple headsets to co-exist and provides a
reliable high speed connection over Bluetooth Low Energy (BLE).
The headset supports BLE which allows connection to mobile devices (Android/iOS) and
some computers. EmotivPRO does support the native BLE radio on MacOS devices (2015
or later). On PC's however the implementation of Bluetooth varies by manufacturer and it is
not guaranteed to work and so we recommend using the dongle.
There are two green LED's on the top surface of the dongle and plastic lies at the bottom.
The following table explains about LED's.
Action LED Left (under power icon) LED Right
