Empire Comfort Systems VFSR-16-3, VFSR-18-3, VFSR-24-3, VFSR-30-3, VFSV-16-3, VFSV-18-3, VFSV-24-3, VFSV-30-3, VFSM-18-3, VFSM-24-3,... Quick start guide
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
Vented/Vent-Free Burner
This is an unvented gas-red heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventila-
tion air must be provided. Refer to page 9.
WARNING: If not installed, operated and
maintained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
WATER VAPOR: A BY-PRODUCT OF UNVENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion.
Anunventedroomheater producesapproximately
one (1) ounce (30ml) of water for every 1,000 BTU's
(.3KW's) of gas input per hour. Refer to page 8.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
Installer: Leave this manual with the
appliance.
Consumer: Retain this manual for future
reference.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WARNING: If the information in these instruc-
tions are not followed exactly, a re or explo-
sion may result causing property damage,
personal injury or loss of life.
EMPIRE
EMPIRE
Comfor t Systems
UNVENTED GAS LOG HEATER
MILLIVOLT MODELS
VFSR-(16,18,24,30)-4
VARIABLE MODELS
VFSV-(16,18,24,30)-3
MANUAL MODELS
VFSM-(18,24,30)-3
OR
VENTED DECORATIVE APPLIANCE
MANUAL MODELS
VFSM-(18,24,30)-3
VARIABLE MODELS
VFSV-(16,18,24,30)-3
Page 1
26333-3-1210Page 2
Section Page
Important Safety Information ......................................................................................................... 3
Safety Information for Users of LP Gas.......................................................................................... 4
Requirements for Canada .............................................................................................................. 5
Introduction..................................................................................................................................... 6
...................................................................................................................... 7
General Information........................................................................................................................ 8
Water Vapor: By Product of Unvented Room Heaters ................................................................... 8

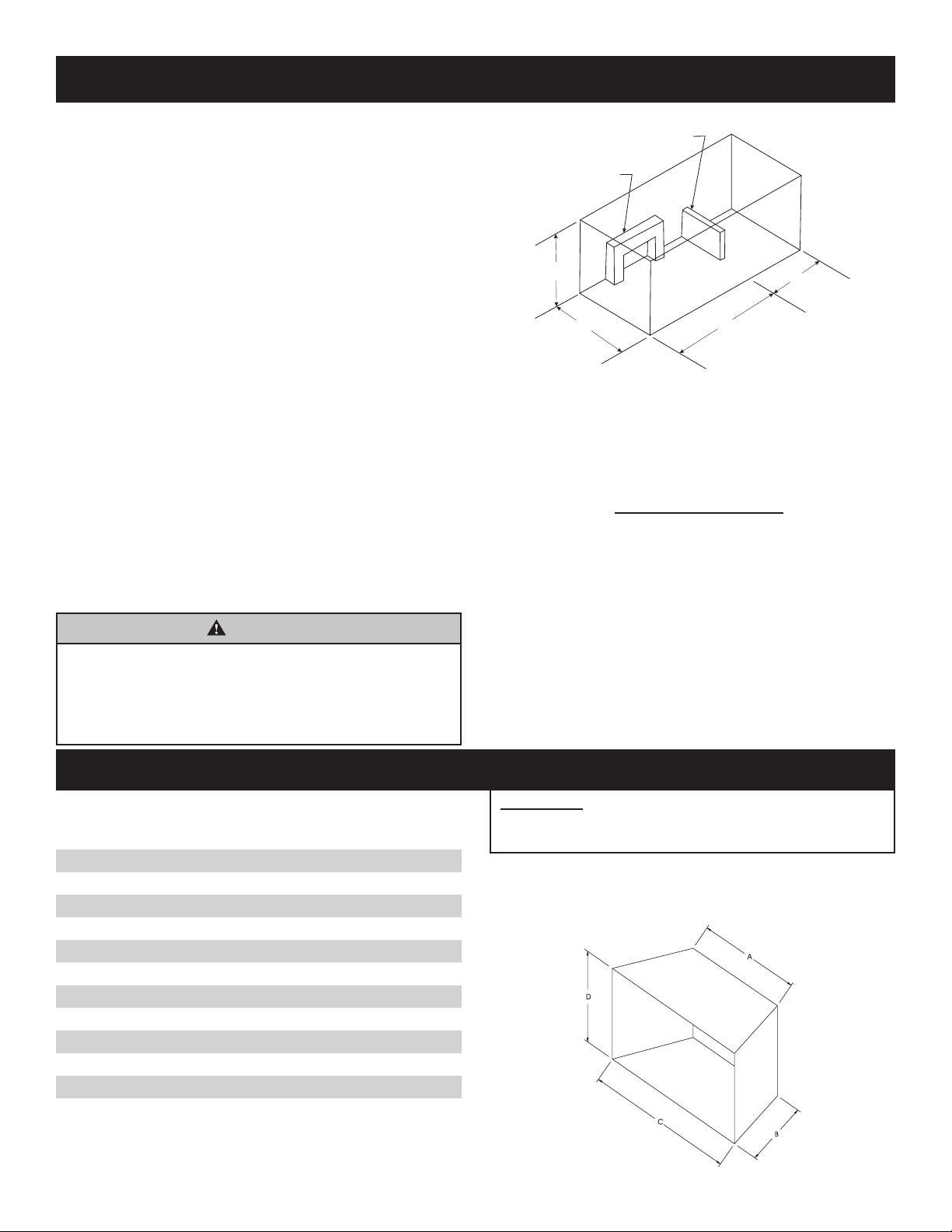

Provisions for Adequate Combustion and Ventilation Air ............................................................... 9

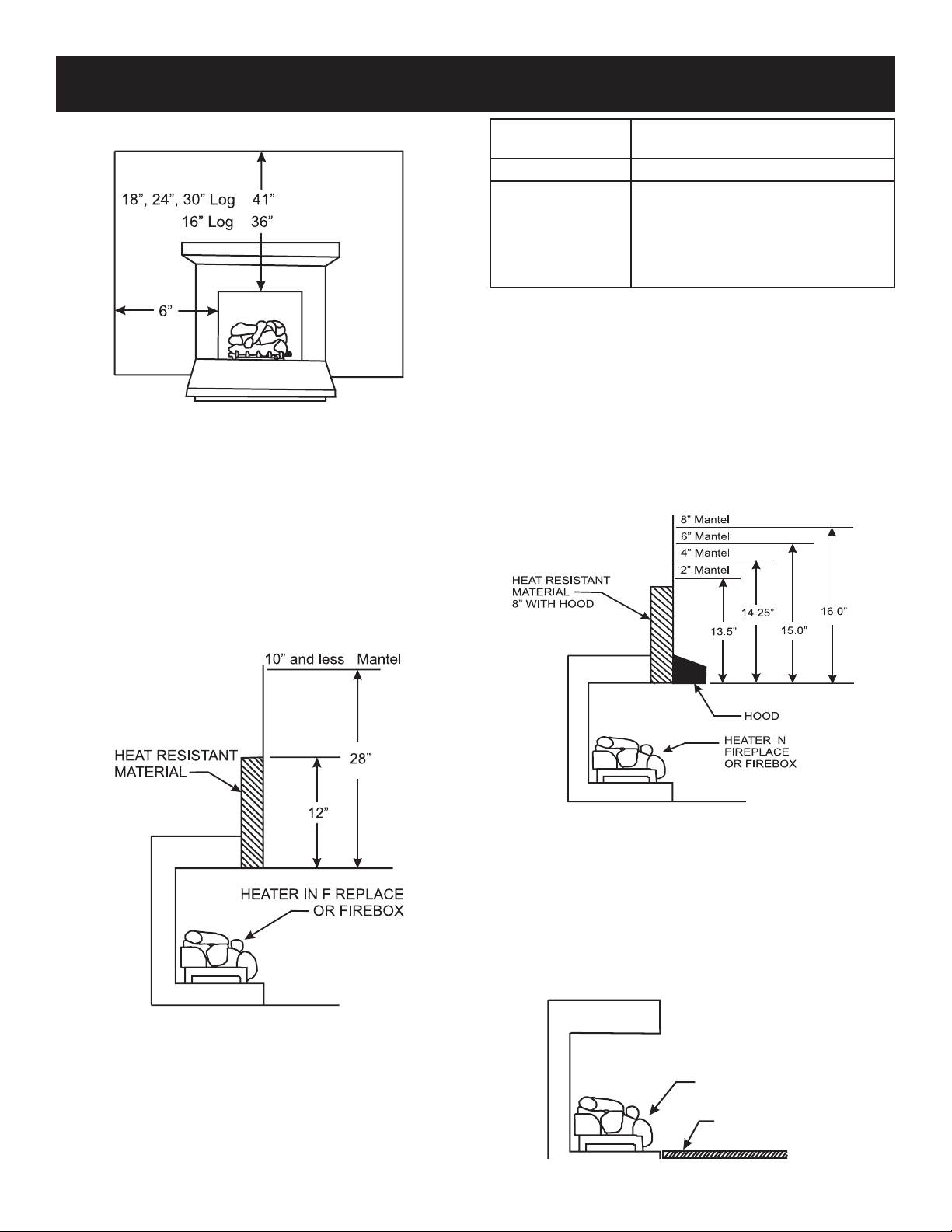

Clearances ................................................................................................................................9-10
Combustible Material.................................................................................................................... 11
Fireplace Preparation ................................................................................................................... 11
Installing as a Vented Appliance................................................................................................... 12
Before Fully Installing the Appliance ............................................................................................ 12
Gas Supply ................................................................................................................................... 13
Placement of Glowing Embers and Lava Rock ............................................................................ 14
Operation Instructions/Flame Appearance ................................................................................... 14
VFSR-(16, 18, 24, 30) Lighting Instructions ................................................................................ 15

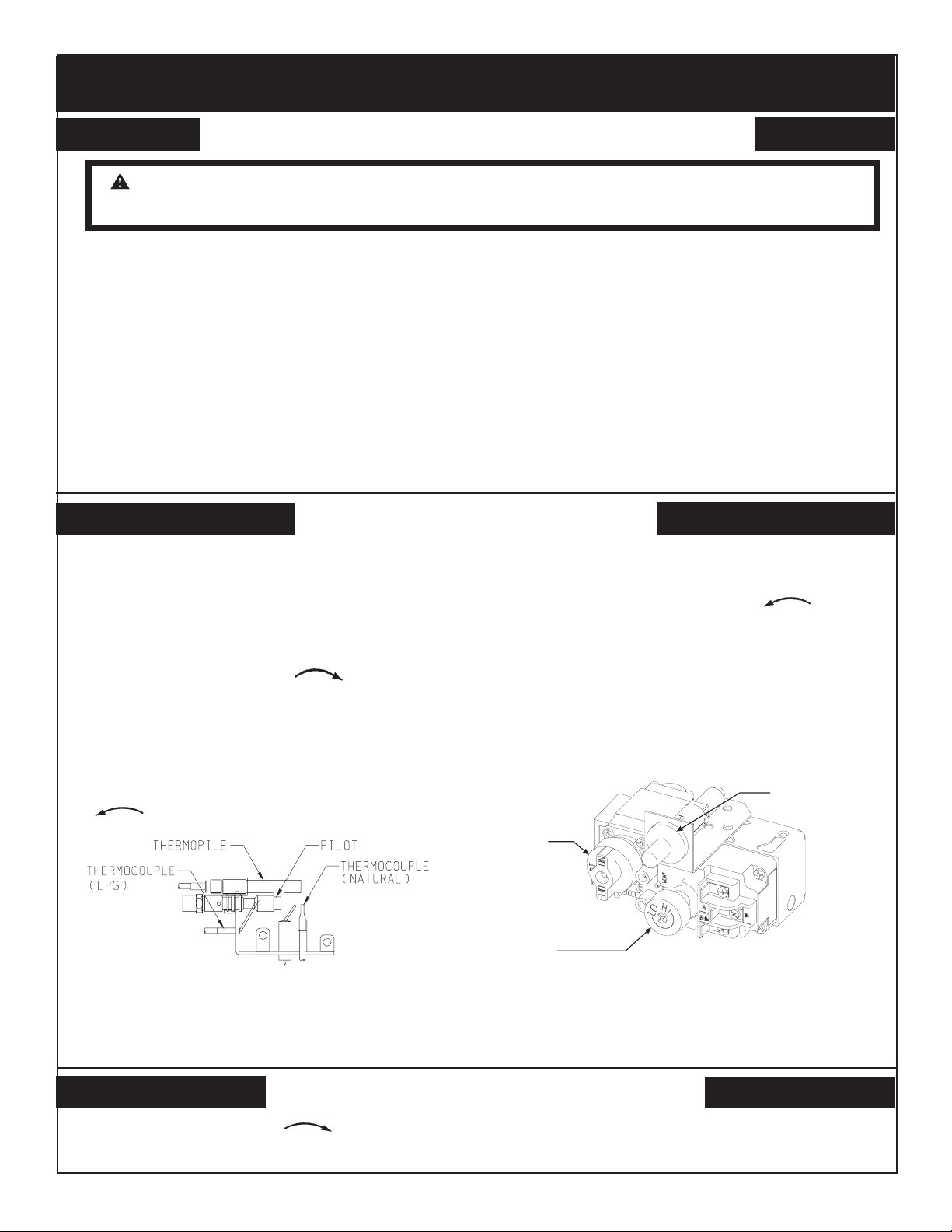

VFSV-(16, 18, 24, 30) Lighting Instructions ................................................................................. 16

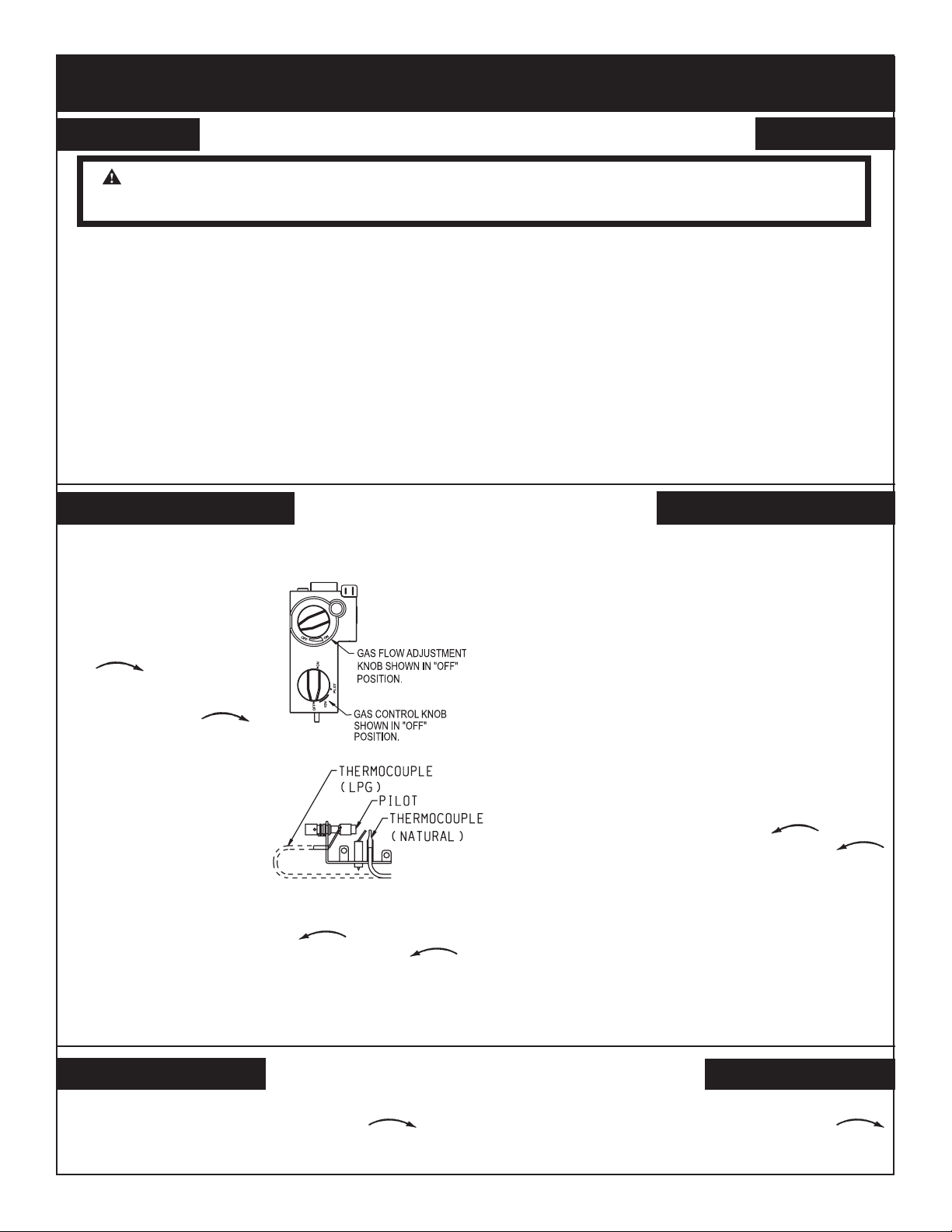

VFSM-(18, 24, 30) Lighting Instructions ...................................................................................... 17

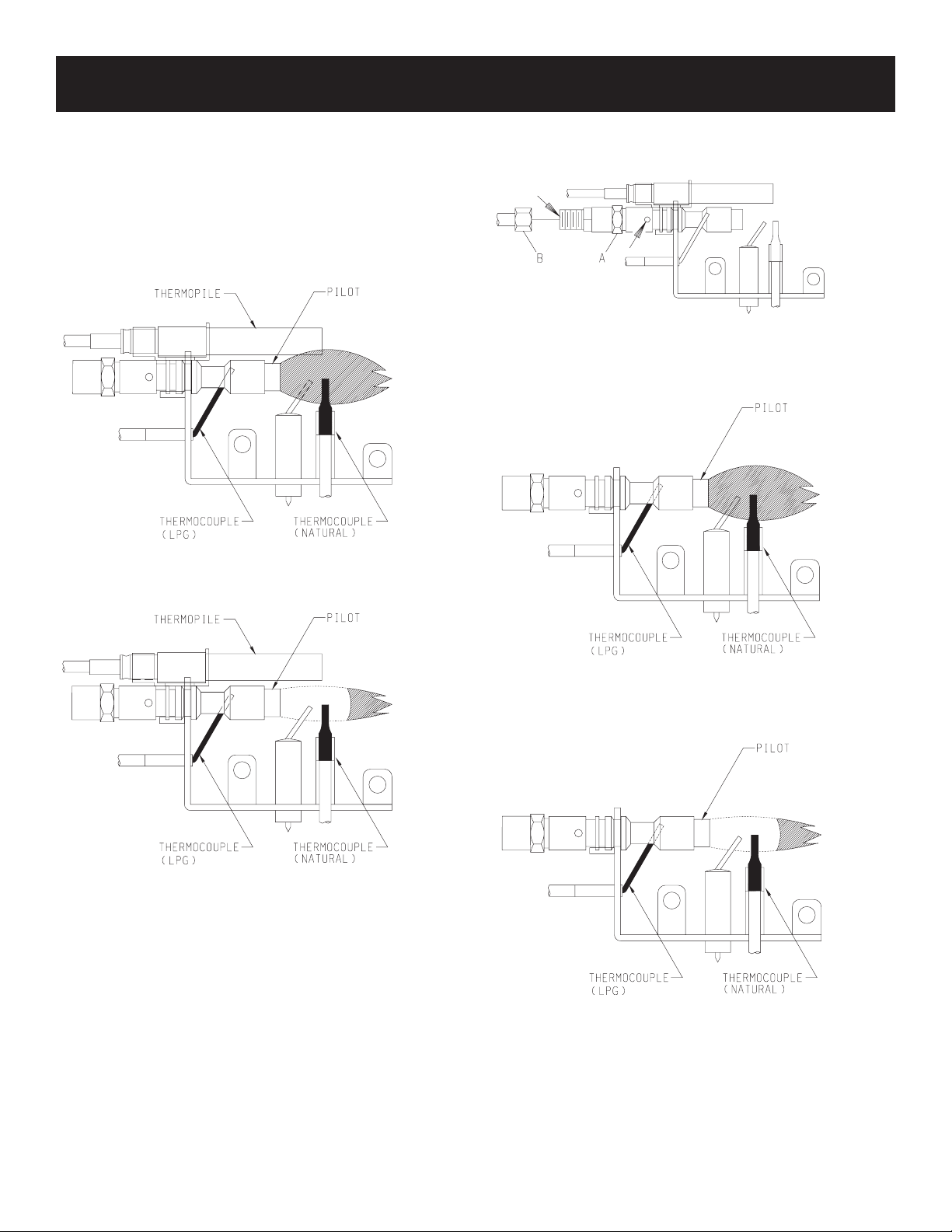

Pilot Flame Characteristics......................................................................................................18-19

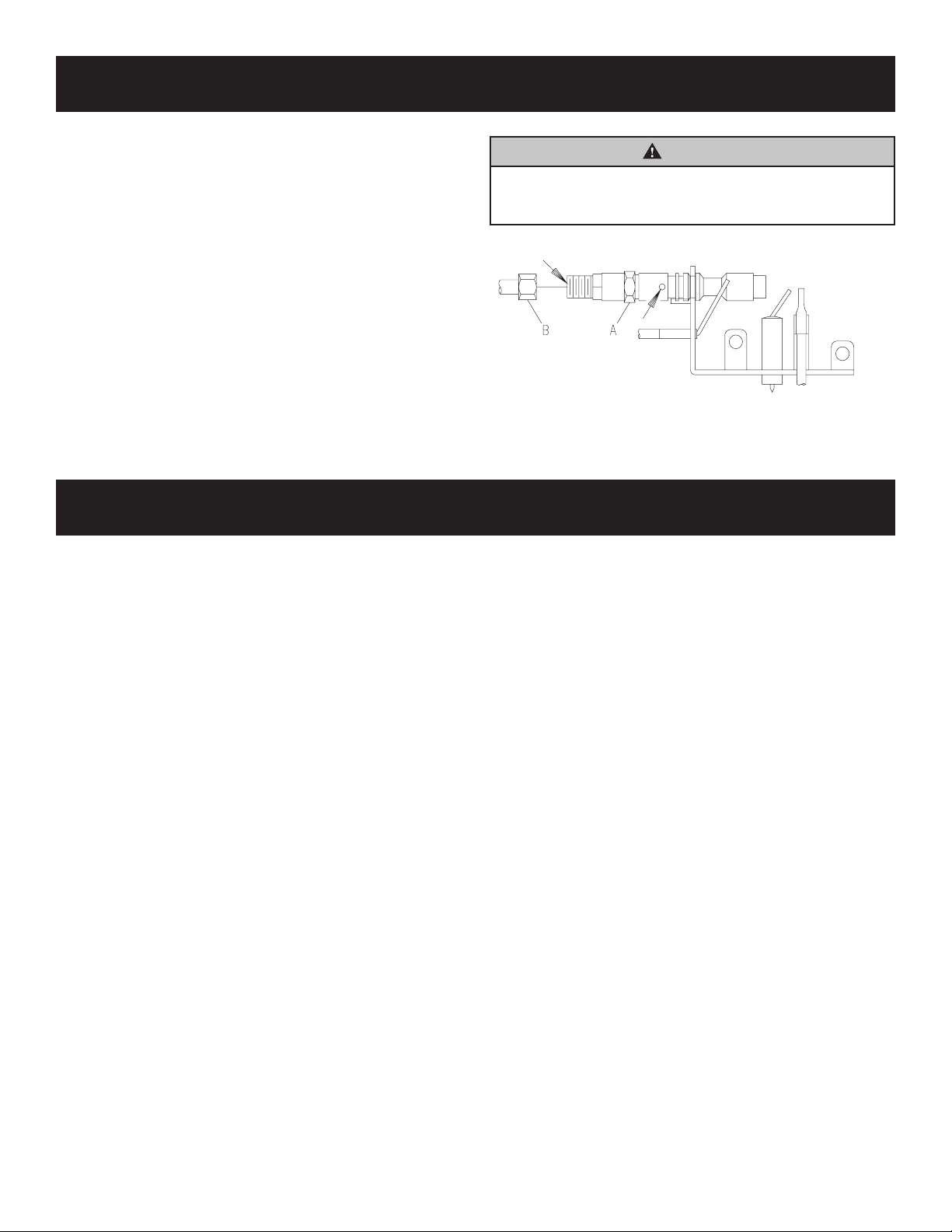

Cleaning and Servicing ................................................................................................................ 19
Wiring .......................................................................................................................................... 20
Troubleshooting............................................................................................................................ 21
Parts List....................................................................................................................................... 22
Parts View .................................................................................................................................... 23
Master Parts Distributor List ......................................................................................................... 24
How to Order Repair Parts ........................................................................................................... 24
Appliance Service History .......................................................................................................25-27
TABLE OF CONTENTS
26333-3-1210 Page 3
When used without adequate combustion and ventilation air,
heater may give off CARBON MONOXIDE, an odorless, poisonous
gas.
Do not install heater until all necessary provisions are
made for combustion and ventilation air. Consult the
written instructions provided with the heater for information
concerning combustion and ventilation air. In the absence
of instructions, refer to the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation,
or applicable local codes.
This heater is equipped with a PILOT LIGHT SAFETY SYSTEM
designed to turn off the heater if not enough fresh air is
available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and
control compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO DEATH.
headache, dizziness and/or nausea. If you have these signs,
heater may not be working properly. Get fresh air at once! Have
heater serviced.
Some people – pregnant women, persons with heart or lung
at high altitudes – are more affected by carbon monoxide than
others.
The pilot light safety system senses the depletion of oxygen at
its location. If this heater is installed in a structure having a high
vertical dimension, the possibility exists that the oxygen supply at
the higher levels will be less than that at the heater. In this type
of application, a fan to circulate the structure air will minimize this
effect. The use of this fan will also improve the comfort level in the
structure. When a fan is used to circulate air, it should be located
DANGER: Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if not avoid-
ed, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
6,000 Btu per hour shall not be installed in a bathroom
10,000 Btu per hour shall not be installed in a bedroom or
bathroom.
installed.
appliance.
-
face temperature and should stay away to avoid burns or clothing
ignition.
the same room as the appliance.
for Solid Fuel Burning Fireplaces. State or local codes may only
your state or local codes.
annual cleaning are necessary to avoid potential problems with
sooting. Sooting, resulting from improper installation or operation,
will occur as a result of drafts.
WARNING: Do not use a blower insert, heat exchanger insert
or other accessory not approved for use with this heater.
NFPA54.
NOTICE:
service person. The appliance should be inspected before use
cleaning may be required due to excessive lint from carpeting,
bedding material, etc. It is imperative that the control compart-
ment, burners and circulating air passageways of the appliance
be kept clean.
must be replaced prior to operating the appliance. Provide ad-
equate combustion and ventilation air.
-
structed.
-
bustion chamber and adequate accessibility clearance for servic-
ing and proper operation. NEVER obstruct the front opening of
the appliance.
and, unless other provisions for combustion air are provided, the
screen shall have an opening(s) for introduction of combustion
air.
operation.
permanently closed at time of appliance installation.
WARNING: Failure to keep the primary air opening(s) of the
burner(s) clean may result in sooting and property damage.
IMPORTANT SAFETY INFORMATION
WARNING
26333-3-1210Page 4
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must nd out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless
and colorless. You may not know all the following safety
precautions which can protect both you and your family from
an accident. Read them carefully now, then review them point
by point with the members of your household. Someday when
there may not be a minute to lose, everyone's safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
service, or make adjustments to appliances on the LP-Gas
odor of LP-Gas prior to and while lighting pilot lights or per-
forming service or making adjustments.
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
out of service for a time may develop internal rust which will
cause odor fade. If such conditions are suspected to exist,
a periodic sniff test of the gas is advisable. If you have any
question about the gas odor, call your LP-gas dealer. A
periodic sniff test of the LP-gas is a good safety measure
under any condition.
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
under no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in
occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having it
phone. Do not do anything that could ignite the gas.
that IMMEDIATELY.
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
Finally,
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP-GAS
26333-3-1210 Page 5
REQUIREMENTS FOR CANADA
This unit cannot be installed in a UNVENTED application,
this unit can only be installed as a VENTED application
with these requirements.
IMPORTANT SAFETY INFORMATION
-
tive Gas Appliances For Installation In Solid Fuel Burning
where a decorative gas log set is installed. This appliance is
Warning: -
trols can be dangerous. Improper installation or use of the
burns, explosion or carbon monoxide poisoning.
1. Please follow all local codes regarding installation,
combustion and ventilation air or in the absence of
local codes follow the National Fuel Gas Code ANSI
-
tion Code (Canada installation).
2. Proper installation, burner pan location and log
placement is important to achieve optimum look and
performance of your gas log set. The logs have been
designed for easy location and placement on the grate
and must be followed for proper operation.
3. Do not operate this log set with glass doors in the closed
log set is burning. Adequate combustion air must be
combustion air into the room. A damper clamp must

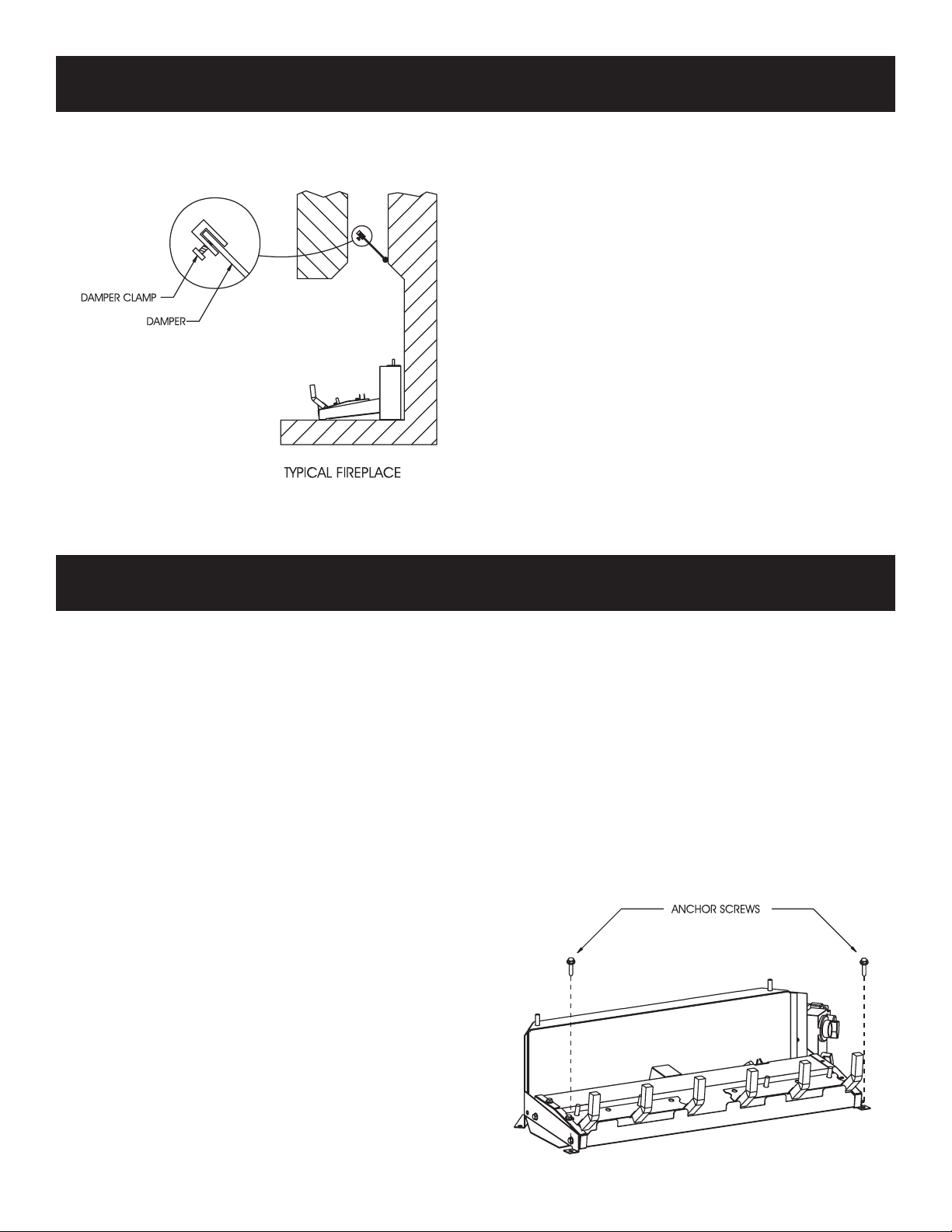

DAMPER CLAMP
4. Young children must be carefully supervised when
they are in the same room as the gas log while in
operation. Do not place stockings, clothing or any
5. Do not substitute or use materials other than those
supplied for use with the log set.
6. Also refer to IMPORTANT SAFETY INFORMATION on
page 4 of this manual
WARNING; DO NOT OPERATE THIS GAS LOG SET
WITH GLASS DOORS CLOSED
placed on or near the appliance.
operation.
components of this appliance are treated with certain
are not harmful but may produce annoying smoke and
smells as they are burned off during initial operation of
the appliance. This is a normal temporary occurrence.
A window should be opened during the initial bake out
period.
WARNING: Before installing in a solid fuel burning
chimney cleaner.
service person. The appliance should be inspected
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
Do not
Do keep the appliance area clear and free from
-
pors and liquids.
Do make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
Do not use this appliance if any part has been under
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
installed.
Appliances for Solid Fuel Burning Fireplaces. State or
local codes may only allow operation of this appliance
codes.
26333-3-1210Page 6
Attention: During initial use of log you will detect an odor as
the log is cured.
Notice:
smoke will occur. To prevent triggering of smoke alarms, ventilate
the room in which the unit is installed.
WARNING
This appliance is for installation only in a solid-fuel burning
masonry or UL 127 factory-built replace or in a listed
ventless rebox enclosure. It has been design certied for
these installations. Exception: DO NOT install this appliance
in a factory-built replace that includes instructions stating
it has not been tested or should not be used with unvented
gas logs.
WARNING
Any modication to this unvented gas heater or its controls
can be dangerous. Improper installation or use of the heater
can cause serious injury or death from re, burns, explosion
or carbon monoxide poisoning.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating value.
Contact the manufacturer or your gas company before changing
IMPORTANT: Read all instructions carefully before starting
installation. Failure to follow these installation instructions may
result in a possible re hazard and will void the warranty.
Save this manual for future reference.
Please read this manual before installing and using the
appliance.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
with unvented room heater/vented decorative appliance.
3. Installer should show owner how to start and operate unvented
room heater/vented decorative appliance.
Always consult your local Building Department regarding regulations,
codes or ordinances which apply to the installation of an unvented
room heater/vented decorative appliance.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases.
New Installation
VFSV Model - variable does not operate-ON is OFF/OFF is ON-
wires into the back of receiver are reversed.
appliance is installed.
A vented decorative appliance must be installed only in a
non-combustible material.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
ACCESSORIES
Description Color
For use with VFSV, VFSM and VFSR models
EK-1 Embers Kit
ELH-1 Fireplace Hood for Vent-Free Logs Black
ELH-2 Fireplace Hood for Vent-Free Logs Brass
For use with VFSR models only
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control with Ther-
mostat
FREC Electric Remote Control
FWS Wall Switch
TMV Wall Thermostat, Millivolt - Reed Switch
Notice: Thermostats are for Vent-Free Applications only.
INTRODUCTION
26333-3-1210 Page 7
PRODUCT SPECIFICATION
PRODUCT SPECIFICATION
Natural Gas Propane Gas
Variable Millivolt Manual Variable Millivolt Manual
Regulator pressure setting 3.5" W.C. 3.5" W.C. 6.0" W.C. 10.0" W.C. 10.0" W.C. 10.0" W.C.
Gas inlet pressure Max. 10.5" W.C. 10.5" W.C. 10.5" W.C. 13.0" W.C. 13.0" W.C. 13.0" W.C.
Min. 5.0" W.C. 5.0" W.C. 7.0" W.C. 11.0" W.C. 11.0" W.C. 11.0" W.C.
Model Gas Valve Type BTUH Max. Rate BTUH Med. Rate BTUH Min. Rate
VFSV-16 Natural Variable 25,000 — 17,500
VFSV-16 Propane Variable 22,500 — 15,750
VFSR-16 Natural Millivolt 25,000 — 17,500
VFSR-16 Propane Millivolt 22,500 — 15,750
VFSV-18 Natural Variable 32,000 — 19,000
VFSV-18 Propane Variable 32,000 — 19,000
VFSR-18 Natural Millivolt 32,000 — 22,000
VFSR-18 Propane Millivolt 32,000 — 22,000
VFSM-18 Natural Manual 32,000 27,000 22,000
VFSM-18 Propane Manual 32,000 27,000 22,000
VFSV-24 Natural Variable 36,000 — 20,000
VFSV-24 Propane Variable 36,000 — 20,000
VFSR-24 Natural Millivolt 36,000 — 25,000
VFSR-24 Propane Millivolt 36,000 — 25,000
VFSM-24 Natural Manual 36,000 27,000 22,000
VFSM-24 Propane Manual 36,000 27,000 22,000
VFSV-30 Natural Variable 38,000 — 20,000
VFSV-30 Propane Variable 38,000 — 20,000
VFSR-30 Natural Millivolt 38,000 — 26,000
VFSR-30 Propane Millivolt 38,000 — 26,000
VFSM-30 Natural Manual 38,000 27,000 22,000
VFSM-30 Propane Manual 38,000 27,000 22,000
26333-3-1210Page 8
room in which it is installed. Provisions for adequate combustion
and ventilation air must be provided.
Keep room area clear and free from combustible materials, gasoline
Unvented gas heaters are a supplemental zone heater. They are not
intended to be a primary heating appliance. Water vapor produced
by an unvented heater can create moisture problems in a home
when operated for extended periods of time.
During manufacturing, fabricating and shipping, various components
These chemicals are not harmful but may produce annoying smoke
and smells as they are burned off during the initial operation of the
appliance; possibly causing headaches or eye or lung irritation. This
is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in period will be slight and will disappear with
continued use.
This appliance must not be used with glass doors in the closed
position. This can lead to pilot outages and severe sooting outside
Do not use this room heater if any part has been under water.
heater and replace any part of the control system and any gas
control which has been under water.
WARNING
This appliance is equipped for (natural or propane) gas. Field
conversion is not permitted.
Before you get started
Carefully inspect the contents for shipping damage. If any parts are
missing or damaged, immediately inform the dealer from whom you
purchased the appliance. Do not attempt to install any part of the
appliance unless you have all parts in good condition.
Make sure you have received all parts:
Check your packing list to verify that all listed parts have been
received. You should have the following:
sheet metal anchoring screws.
coverage.
Millivolt controlled heater designed to be operated with optional
devices for ON/OFF functions.
Handle the gas log burner assembly by the grate and legs only.
Do not pick the unit up by the burner.
Gloves are recommended when handling logs to prevent skin
irritation. Logs are fragile - Handle with care.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be
person or through a representative is engaged in and is respon-
sible for (a) the installation, testing, or replacement of gas piping
or (b) the connection, installation, testing, repair, or servicing of
equipment; that is experienced in such work; that is familiar with all
precautions required, and that has complied with all the
requirements of the authority having jurisdiction.
State of Massachusetts: The installation must be made
Massachusetts.
room heaters shall provide to each purchaser a copy of 527
CMR-30 upon sale of the unit.
The installation must conform with local codes or, in the absence of
*Available from the American National Standards Institute, Inc. 11
West 42nd St., New York, N.Y. 10018.
High Altitudes: For altitudes/elevation above 2,000 feet ratings
should be reduced at the rate of 4 percent for each 1,000 feet above
sea level. Contact the manufacturer.
Water vapor is a by-product of gas combustion. An unvented room
heater produces approximately one (1) ounce (30ml) of water for
Unvented room heaters must be used as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source
(an entire house).
GENERAL INFORMATION
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
26333-3-1210 Page 9
H
WL1
L
2
FIREPLACE
DIVIDER
Example of Large Room with 1/2 Wall divider.
Figure 1
The following formula can be used to determine the maximum heater
Btu/Hr = (L1+ L2)FT x (W)FT x (H)FT x 1000
50
air by one of the methods described in the National Fuel Gas Code,
Adhere to all codes, or in their absence, the latest edition of THE
obtained from:
American National Standards InstituteNational Fire Protection Associa-
tion, Inc.
11 West 42nd St. Batterymarch Park
New York, NY 10018 Quincy, MA 02269
Minimum Dimensions For Solid Fuel Burning Fireplaces UL127
Factory Built Fireplaces (Figure 2)
instructions are minimum clearances to maintain in installing this
heater. Left and right clearances are determined when facing the
front of the heater. Figure 2
are provided for adequate combustion and ventilation air.
Btuh of the combined input rates of all appliances drawing combustion
to areas outside the space must draw return air from outside the space
openings into the space for combustion air. One opening must be within
12 inches of the ceiling and the other must be within 12 inches of the
inside or outside air is used to support combustion, the method by which
the air is brought to the space (vertical or horizontal duct) and by the
total input rate of all appliances in the space.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh
air for combustion and ventilation. However, in buildings of unusually
tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. Walls and ceilings exposed to the outside atmosphere have a
continuous water vapor retarder with a rating of one perm or
less with openings gasketed or sealed, and
b. Weatherstripping has been added on openable windows and
doors, and
c. Caulking or sealants are applied to areas such as joints around
-
tweenwall-ceilingjoints,betweenwallpanels,at penetrationsfor
plumbing, electrical, and gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide
additional fresh air.
WARNING
If the area in which the heater may be operated is smaller than that
construction, provide adequate combustion and ventilation air by
one of the methods described in the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and Ventilation, or applicable
local codes.
Glass Doors
Make sure that glass doors are open during all operations of
the logset. The opening of the glass door frame should be the
Follow these instructions to ensure safe installation.
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
CLEARANCES
Model A B C D
VFSV-16 18" 11 1/2" 24" 18"
VFSR-16 18" 11 1/2" 24" 18"
VFSV-18 17" 14" 28" 17"
VFSR-18 17" 14" 28" 17"
VFSM-18 21" 14" 32" 17"
VFSV-24 23" 14" 30" 18"
VFSR-24 23" 14" 30" 18"
VFSM-24 27" 14" 34" 18"
VFSV-30 26" 14" 34" 20"
VFSR-30 26" 14" 34" 20"
VFSM-30 30" 14" 38" 20"
26333-3-1210Page 10
Mantel Clearances with Hood (Figure 5)
opening. Non-combustible material must extend at least 8" above
material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Example: A mantel may project from the wall a maximum of 2" at a
minimum of 13-1/2" above the opening, and a maximum of 6" at a
minimum of 15" above the opening.
Figure 5
If your installation does not meet the above minimum clearances,
you must proceed to one of the following steps:
for Installing as a Vented Appliance.
Floor Clearance (Figure 6)
-
tibles is “0” inches.
Figure 6
Sidewall & Ceiling Clearances (Figure 3)
Figure 3
wall. The ceiling must be at least 36" (for the 16" log) and 41" (for
Mantel Clearances Without Hood (Figure 4)
opening. Non-combustible material must extend at least 12" above
material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Figure 4
If your installation does not meet the above clearances, you must
proceed to one of the following steps:
Installing as a Vented Appliance.
CLEARANCES (continued)
Non-Combustible
Material Distance
Requirements for Safe Installation
12" or more Non-combustible material
Less than 12" Non-combustible material must be ex-
tended to at least 8" with the installation
-
not extend non-combustible material at
least 8", you must operate heater with
HEATER IN FIREPLACE
OR FIREBOX
COMBUSTIBLE
MATERIAL
26333-3-1210 Page 11
FOR MASONRY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING
COMBUSTION PRODUCTS FROM DECORATIVE APPLIANCES
FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES
remove ashes, soot, creosote or other obstructions. Have this
cleaning performed annually after installation.
damper.
Install and operate the appliance as directed in this manual.
FOR FACTORY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING
COMBUSTION PRODUCTS FROM DECORATIVE APPLIANCES
FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES
Figure 7
No greeting card, stockings or ornamentation of any type should be
.
Figure 8
COMBUSTIBLE MATERIAL
FIREPLACE PREPARATION
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft) Minimum Opening** (sq. in.)
10 11.3 16.6 22.1
15 8.6 12.6 17.3
20 7.5 10.8 14.5
25 6.6 9.6 12.6
30 6.2 9.1 11.3
35 5.7 8.0 10.8
40 5.3 7.5 10.2
* Height is from hearth to top of chimney and the minimum height
is 10 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft) Minimum Opening** (sq. in.)
6 17.6 25.7 33.8
8 16.5 23.7 31.2
10 15.1 21.7 28.7
15 14.1 19.9 26.1
20 12.9 18.5 23.7
30 12.2 16.9 21.6
* Height is from hearth to top of chimney and the minimum height
is 6 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.
26333-3-1210Page 12
Notice: (Damper Clamp Installation)
When installing your log set as a vented installation the
damper clamp must be used.
When installing your log set as a vent-free installation the
damper clamp can be used to eliminate the potential for odors
Installing Damper Clamp (Figure 9)
door with furnace cement or high temperature silicone. Be
sure to check the damper for proper operation and verify that
Place the clamp over the lip of the damper and tighten the
hold down bolt until the clamp is securely attached to the
damper. This will prevent the damper from accidentally
closing.
Manual and millivolt controlled gas logs may be installed as
and National Fuel Gas Code. When the gas logs are oper-
ated with the damper open, non-combustible material and
minimum mantel requirements do not apply.
-
sealed, drafting may cause pilot outage or sooting. Use
damper.
You must secure the gas log heater to the replace
oor. If not, the entire unit may move when you adjust
the controls. Movement of unit may cause shifting
of the gas logs which leads to sooting and improper
burning. Grate movement could cause a gas leak.
Special care is required if you are installing the unit
into a sunken replace. You must raise the replace
oor to allow access to gas log controls. This will
insure adequate air ow and guard against sooting.
Raise the fireplace floor using noncombustible
materials.
Assembly Procedure: (Figure 10)
certain the front feet of the grate sit inside the front edge
2. An anchor hole is provided in the two bottom side mem-
bers of the grate frame. After centering the grate correctly,
Drill two (2) 5/32" diameter holes approximately 1-1/2"
deep for masonry screws or 1/8" hole for sheet metal
screws.
screws provided. Refer to Figure10.
Proper installation of the grate is essential to prevent any
movement of the gas logs and controls during opera-
tion.
Figure 10
Figure 9
INSTALLING AS A VENTED APPLIANCE
BEFORE FULLY INSTALLING THE APPLIANCE
26333-3-1210 Page 13
Check all local codes for requirements, especially for the size
and type of gas supply line required.
Notice:
your local codes allow copper tubing or galvanized.
Notice: Since some municipalities have additional local
codes, it is always best to consult your local authority and
installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of
the unit. Where none exists, or where its size or location is not
adequate, contact your local authorized installer for instal-
lation or relocation.
Compounds used on threaded joints of gas piping shall be
lines must be checked for leaks by the installer. This should
be done with a soap solution watching for bubbles on all
exposed connections, and if unexposed, a pressure test
should be made.
Never use an exposed ame to check for leaks. Appli-
ance must be disconnected from piping at inlet of control
valve and pipe capped or plugged for pressure test.
Never pressure test with appliance connected; control
valve will sustain damage!
A gas valve and ground joint union should be installed in the
gas line upstream of the gas control to aid in servicing. It is
required by the National Fuel Gas Code that a drip line be
installed near the gas inlet. This should consist of a vertical
length of pipe tee connected into the gas line that is capped
on the bottom in which condensation and foreign particles
may collect.

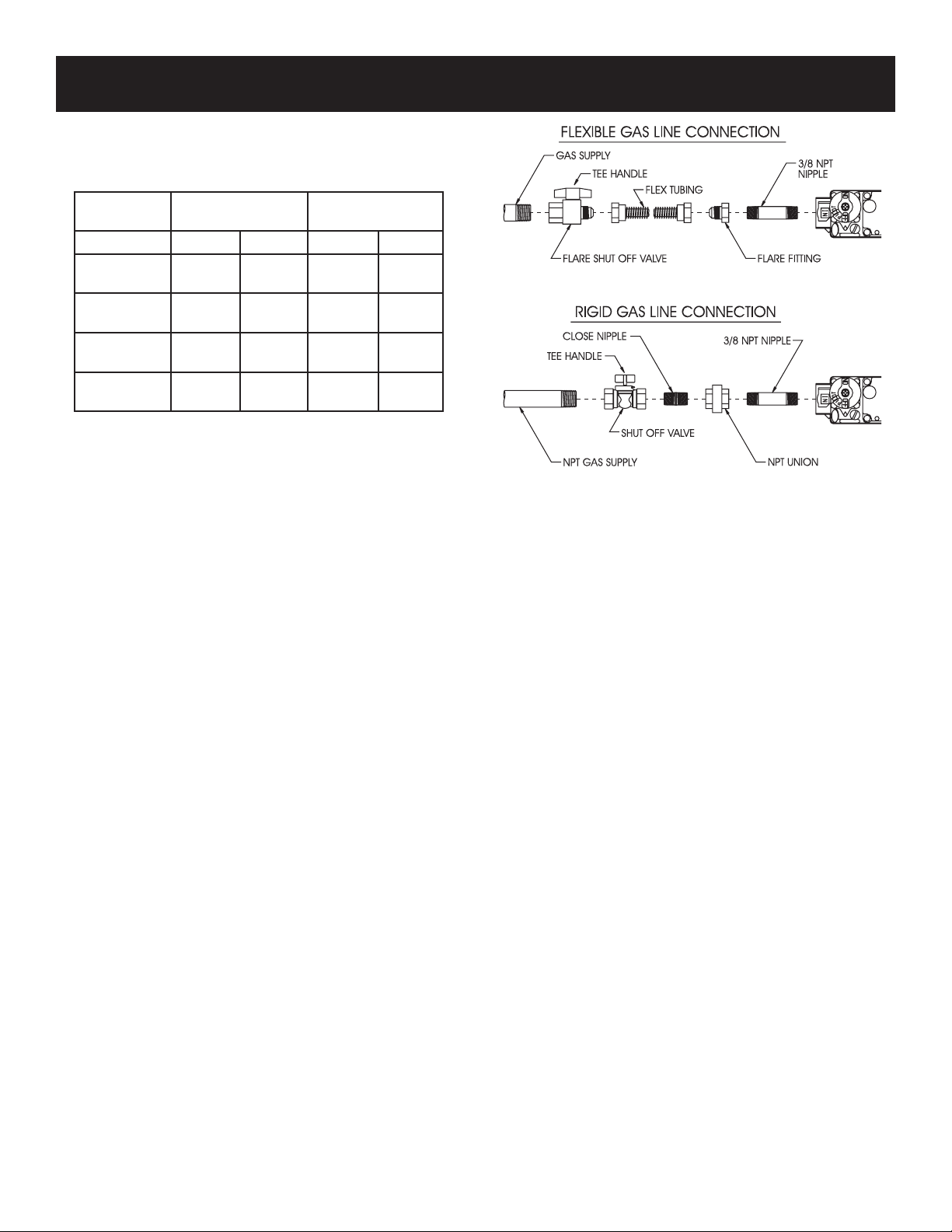

Figure 11
The use of the following gas connectors is recommended:
Tubing and Fittings
of Other Than All-Metal Construction
The above connectors may be used if acceptable by the
authority having jurisdiction. The state of Massachusetts
three feet in length.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8"
(3.175mm) N.P.T. plugged tapping, accessible for test
gauge connection, must be placed immediately upstream
of the gas supply connection to the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
3. The appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5 kPa).
Attention! If one of the procedures results in pressures in
excess of 1/2 psig (14" w.c.) (3.5 kPa) on the appliance gas
valve, it will result in a hazardous condition.
GAS SUPPLY
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm
26333-3-1210Page 14
Refer to Parts List, Page 21 to order loose material (rock
wool).
Placing Lava Rock in Front of Burner on Fireplace
Floor
The lava rocks are for decorative effect and are not required
ATTENTION: DO NOT PLACE LAVA ROCKS ON
BURNER, LOGS OR ROCK WOOL. THE LAVA ROCKS
SHOULD ONLY BE PLACED ON THE FIREPLACE
FLOOR.
Flames from the pilot (rear right back side of the pan burner)
log set is installed.
In normal operation at full rate after 10 to 15 minutes, the
Notice:
go up and down.
Glowing embers (rock wool) can cover the pan burner in
between the front and middle logs, but very little is necessary
to cover this area. Excess ember material causes the yellow
burning will result.
During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain oils,
but may produce annoying smoke and smells as they are
burned off during the initial operation of the appliance,
possibly causing headaches or eye or lung irritation. This is
a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the
burner at the highest setting. Provide maximum ventilation
by opening windows or doors to allow odors to dissipate. Any
odors remaining after this initial break-in will be slight and
will disappear with continued use.
Variable - Figure 13
Millivolt - Figure 14
Manual - Figure 15
Placement of the glowing embers (rock wool) is very indi-
vidual and light coverage will provide your best effects. We
recommend separation of the rock wool by hand and make
Place just enough embers on the burner to obtain the glow
Do not place embers (rock wool) over large ports in rear
portion of burner.
Rock wool should not be placed in the area of the pilot as-
sembly.
Replacement of loose material (glowing embers) must be
purchased from Empire Comfort Systems, Inc. Application
of excess loose material (glowing embers) may adversely
affect performance of the heater.
WARNING: All previously applied loose material must be
removed prior to reapplication.
PLACEMENT OF GLOWING EMBERS AND LAVA ROCK
OPERATION INSTRUCTIONS/FLAME APPEARANCE
26333-3-1210 Page 15
Notice: For easy access to valve for lighting pilot, remove branch
log and middle log from burner assembly before lighting.
1. STOP! Read the safety information label.
2. Make sure the manual shutoff valve is fully open.
3. This gas log set is equipped with an ignition device (piezo)
which lights the pilot. If piezo ignitor does not light the pilot,
refer to Step 7.
4. Turn gas control knob clockwise to the “OFF” posi-
tion, set the thermostat to the lowest setting and turn ON/OFF
switch to OFF position.
5. Wait ten (10) minutes to clear out any gas. Then smell for gas,
the safety information label. If you do not smell gas, go to the
next step.
6. From OFF position, turn the gas control knob counterclockwise
to “Pilot” position. Push in and hold control knob for
5 seconds.
7. With the control knob pushed in, repeatedly push the piezo
ignitor button until pilot is lit (or use a match to light pilot).
8. Continue pushing the control knob in for a further 60 seconds
the probe is warming up. Release the control knob.
9. Turn gas control knob counterclockwise to the “ON”
position.
10. After the pilot has been lit for one minute, the burner can be
turned on. Turn the ON/OFF switch to “ON” position or adjust
thermostat to desired setting.
11. If the gas logs will not operate, follow the instructions “To Turn
Off Gas To Appliance” and call your service technician or gas
supplier.
Wait 30 seconds before readjusting the heater when the control
knob has been turned down to a lower setting.
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Turn control knob clockwise to OFF position to
completely shut off the heater.
2. If applicable: Turn ON/OFF switch to OFF position and/or set
thermostat (if present) to lowest setting. If applicable: Turn off
all electric power to the heater.
VFSR-(16,18,24,30) LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
HI/LO
REGULATOR
CONTROL
KNOB
PIEZO IGNITOR
26333-3-1210Page 16
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
Notice: For easy access to valve for lighting pilot, remove branch
log and middle log from burner
assembly before lighting.
1. STOP! Read the safety
information.
2. Push in gas control knob
slightly and turn clockwise
t o the “OFF”
position. Do not force.
knob clockwise
either manually or with
remote control to “OFF”.
4. Wait ten (10) minutes to
clear out any gas. Then
smell for gas, including near
the floor. If you smell gas
STOP! Follow “B” in the
safety information. If you do
not smell gas, go to the next
step.
5. Find pilot - the pilot is attached
to rear of burner.
6. Turn gas knob counterclockwise to “IGN”.
7. Depress and turn gas control knob counterclockwise
to “PILOT”. A spark is produced when gas control knob is
turned between “IGN” and PILOT”. Repeatedly depress and
turn gas control knob between “IGN” and PILOT” until pilot is
ignited. Continue to hold the control knob in for about one (1)
minute after pilot is lit. Release knob and it will pop back up.
Pilot should remain lit. If it goes out, repeat steps 2 through
7.
and immediately call your service technician or gas
supplier.
control knob to OFF and call your service technician.
8. Attention! Gas control has an INTERLOCK latching device.
When the pilot is initially lit and the safety magnet is
energized (pilot stays on ) the INTERLOCK latching device
becomes operative. If the gas control is turned to the “OFF”
cannot be relighted until the safety magnet is de-energized
(approximately 60 seconds). There will be an audible “click”
when he safety magnet in the gas control is de-energized.
Pilot can now be relighted. Repeat steps 2 through 7.
9. Turn gas control knob counterclockwise to “ON”.
either manually or with remote control between “OFF” and
either
manually or with remote control to “OFF”.
2. Push in gas control knob slightly and turn clockwise
to “OFF”. Do not force.
FOR YOUR SAFETY READ BEFORE LIGHTING
VFSV-(16,18,24,30) LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
26333-3-1210 Page 17
1. STOP! Read the safety information.
2. Make sure the manual shutoff valve is fully open.
3. This heater is equipped with an ignition device (piezo) which
automatically lights the pilot.
4. Refer to Figure 15 for the location of the piezo ignitor and
control knob. Push in gas control knob slightly and turn
control knob clockwise to the OFF position.
NOTE: Knob cannot be turned to OFF unless knob is pushed
in slightly. Do not force.
5. Wait ten (10) minutes to clear out any gas. Then smell for
the instructions under ‘What To Do If You Smell Gas”. If you
do not smell gas, go to the next step.
6. From OFF position, push in gas control knob slightly and turn
counterclockwise to the PILOT position. Push in and
hold control knob for 5 seconds.
be necessary to press in the control knob for 30 seconds to
allow air to bleed out of the gas piping.
7. With the control knob pushed in, push and release the piezo
ignitor button to light the ODS pilot. The pilot is located on the
right rear side of the heater, behind the middle log and in front
of the rear log. If piezo ignitor does not light the pilot, refer to
“Match Lighting Instructions”.
8. Hold the control knob in for an additional 10 seconds to prevent
the ODS pilot from shutting off the gas while the thermocouple
is warming up.
9. Release the control knob.
* If the knob does not pop out when released, stop and
immediately call your service technician or gas supplier.
* If the ODS pilot will not stay lit after several tries, push and
turn the gas control knob clockwise to OFF and wait
15 seconds. Repeat steps 6 through 9.
10. Push in control knob and turn to desired setting (1, 2, 3). The
control knob must be set at either the low or high position,
and the control knob will pop out when positioned correctly.
Do not set the control knob at a position between pilot (1, 2,
3).
1. Turn control knob clockwise to OFF position to
completely shut off the heater.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
FOR YOUR SAFETY READ BEFORE LIGHTING
VFSM-(18,24,30) LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
26333-3-1210Page 18
cause the thermocouple to cool. When the thermocouple cools, the
heater will shut down.
VFSR PILOT
Correct pilot ame pattern.
Figure 16
Incorrect pilot ame pattern.
Figure 17
Cleaning and Maintenance/Pilot
Oxygen Depletion Sensor Pilot (Figure 18 )
Depletion Sensor as follows:
1. Clean the ODS pilot by loosening nut B from the pilot tubing.
When this procedure is required, grasp nut A with an open end
wrench.
2. Blow air pressure through the holes indicated by the arrows.
This will blow out foreign materials such as dust, lint and spider
webs. Tighten nut B also by grasping nut A.
Figure 18
VFSV AND VFSM PILOT
Correct Pilot Flame Pattern
Figure 19
Incorrect Pilot Flame Pattern
Figure 20
PILOT FLAME CHARACTERISTICS
26333-3-1210 Page 19
Annual inspection and cleaning by your dealer or
qualied service technician is recommended to prevent
malfunction and/or sooting.
TURN OFF HEATER AND ALLOW TO COOL BEFORE
CLEANING.
Remove logs, handling carefully by holding gently at each
end. Gloves are recommended to prevent skin irritation from
soap and water. Refer to manual for correct log placement.
PERIODIC CLEANING – Refer to parts diagram for
location of items discussed below.
heater.
attachment.
from inside burner box.
particles with brush. Failure to keep air intake hole clean
will result in sooting and poor combustion.
ANNUAL CLEANING/INSPECTION – Refer to parts
diagram for location of items discussed below.
particles with vacuum or brush. Failure to keep air intake
hole clean will result in sooting and poor combustion.
at air intake holes.
operation.
be full, up to the level of openings in burner top.
Cleaning and Maintenance/Pilot
Oxygen Depletion Sensor Pilot (Figure 21)
Depletion Sensor as follows:
1. Clean the ODS pilot by loosening nut B from the pilot tubing.
When this procedure is required, grasp nut A with an open end
wrench.
2. Blow air pressure through the holes indicated by the arrows.
This will blow out foreign materials such as dust, lint and spider
webs. Tighten nut B also by grasping nut A.
CAUTION
Never use needles, wires, or similar cylindrical objects to
clean the pilot to avoid damaging the calibrated ruby that
controls the gas ow.
Figure 21
PILOT FLAME CHARACTERISTICS (continued)
CLEANING AND SERVICING
26333-3-1210Page 20
Thermostats are not approved on vented decorative appliances.
Label all wires prior to disconnection when servicing controls. Wiring
errors can cause improper and dangerous operation. Verify proper
operation after servicing.
16", 18", 24" and 30" Gas Logs (Millivolt) thermopile is self powered
gas valve and does not require 110 volts. See Figure 22 to provide
optional wall switch, thermostat, or remote control. Maximum
length of 20 feet of 16 AWG to conductor wires is to be used with
all optional switches.
Use the two leads (black wires) from ON/OFF switch to attach
optional components.
Check System Operation
Millivolt system and all individual components may be checked with
a millivolt meter 0-1000 MV range.
Remote Receiver -VFSR-(16, 18, 24, 30)
Use the following steps to place the remote receiver adjacent to
the gas valve.
Attention:
1. The remote receiver can not be placed behind the gas valve
and burner assembly.
2. When facing the appliance, the remote receiver must be placed
to the right of the gas valve and burner assembly.
Notice: Do not let remote control receiver come in contact with
burner assembly.
behind bottom louver.
Refer to remote control installation and operating instructions for
more details on remote control.
750 Millivolt System
When you ignite the pilot, the thermocouple produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas
operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to buildup to a
Millivolt Control
The valve regulator controls the burner pressure which should be
checked at the pressure test point. Turn captured screw counter
clockwise 2 or 3 turns and then place tubing to pressure gauge over
test point (Use test point “A” closest to control knob). After taking
to re-seal. Do not over torque. Check for gas leaks.
VFSR
Notice: (Wiring harness located in envelope)
Connect the 2 - 1/4" terminals onto the TH and TH/TP terminals
on valve. Place decorative log to right of the gas valve and burner
assembly. When connecting to remote receiver, cut off 1/4" terminals
from wires attached to ON/OFF switch. Strip wires back about 1/4".
Connect stripped ends into remote receiver.
VFSR Wiring Diagram (Figure 22)
Figure 22
VFSV Wiring Diagram (Figure 23)
Figure 23
VFSV
Notice: (Wiring harness located in envelope)
Connect black/red 3/16" terminal wire from receiver to 3/16" terminal
on valve. Connect black 1/4" terminal wire from receiver to 1/4"
terminal on valve. Install remote receiver cover over receiver when
the right and forward of valve. (Do not put receiver behind logs.)
WIRING
Other manuals for VFSR-16-3, VFSR-18-3, VFSR-24-3, VFSR-30-3, VFSV-16-3, VFSV-18-3, VFSV-24-3, VFSV-30-3, VFSM-18-3, VFSM-24-3,...
1
This manual suits for next models
16
Table of contents
Other Empire Comfort Systems Gas Heater manuals
Empire Comfort Systems
Empire Comfort Systems VFYM-16RWO-2 Quick start guide
Empire Comfort Systems
Empire Comfort Systems LS-16C-2 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFNR-24N-1 User manual
Empire Comfort Systems
Empire Comfort Systems LTH718ST-1 User manual
Empire Comfort Systems
Empire Comfort Systems SR-18T-1 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFNR-24-1 Quick start guide
Empire Comfort Systems
Empire Comfort Systems FLINT HILL VFDR18LB10N-1 Quick start guide
Empire Comfort Systems
Empire Comfort Systems PIONEER LPR36-1 User manual
Empire Comfort Systems
Empire Comfort Systems VFCM-25-3 Quick start guide
Empire Comfort Systems
Empire Comfort Systems DVCT50CBP95N-1 User manual
Empire Comfort Systems
Empire Comfort Systems VFSM-30-3 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFRL1810 Series Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFSR-16-5 Quick start guide
Empire Comfort Systems
Empire Comfort Systems KENSINGTON LKF-2 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFSE-18-1 User manual
Empire Comfort Systems
Empire Comfort Systems VFD10CC series User manual
Empire Comfort Systems
Empire Comfort Systems Sr-30-1 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFRU24N-1 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFSR-16-4 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFSUR18-2 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFDR18LBW10N-4 Quick start guide
Empire Comfort Systems
Empire Comfort Systems VFSE-18-1 Quick start guide
Empire Comfort Systems
Empire Comfort Systems GREAT LAKES OAK LGLO 18-1 User manual
Empire Comfort Systems
Empire Comfort Systems VFSUR18-3 Quick start guide
Popular Gas Heater manuals by other brands
Medallion
Medallion MR10PT OWNER'S OPERATION AND INSTALLATION MANUAL
Desa
Desa BLP35ES owner's manual
HEATSTRIP
HEATSTRIP TGH34WN Operation, installation, and maintenance manual
Astria Fireplaces
Astria Fireplaces Blaze&Glow18MP Installation and operation instructions
EAS Electric
EAS Electric EPLEX42 instruction manual
SpaDealers
SpaDealers PRO24 manual
FMI
FMI Heat Majic FVF18P OWNER'S OPERATION AND INSTALLATION MANUAL
Comfort Glow
Comfort Glow Comfort Glow CGD3924N OWNER'S OPERATION AND INSTALLATION MANUAL
Termomax
Termomax TR14GRB user manual
Firegear
Firegear REVOLUTION L-360-CD SERIES Placement instructions
White Mountain
White Mountain CIVF-25-21 Installation instructions and owner's manual
Bryant
Bryant PAYNE 579C owner's manual
Carrier
Carrier 46BA Quick manual
Empire
Empire RH-25-2 Installation instructions and owner's manual
Svan
Svan SVCA34CAT user manual
Orbegozo
Orbegozo HCE 60 instruction manual
Desa
Desa Glo-Warm FA-20BB OWNER'S OPERATION AND INSTALLATION MANUAL
Superior
Superior VTDGT24NR Installation and operation instructions
