Empire Comfort Systems VFNR-24-1 Quick start guide

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
UNVENTED GAS LOG HEATER
MODELS
VENTED DECORATIVE APPLIANCE
MODELS
Vented/Vent-Free Burner
This is an unvented gas-red heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventila-
tion air must be provided. Refer to page 11.
WARNING: If not installed, operated and
maintained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
WATER VAPOR: A BY-PRODUCT OF UNVENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion.
An unvented room heater produces approximately
one (1) ounce (30ml) of water for every 1,000
BTU's (.3KW's) of gas input per hour. Refer to
page 10.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
Installer: Leave this manual with the
appliance.
Consumer: Retain this manual for future
reference.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
WARNING: If the information in these instruc-
tions are not followed exactly, a re or explo-
sion may result causing property damage,
personal injury or loss of life.
EMPIRE
EMPIRE
Comfort Systems
GAS-FIRED
MILLIVOLT
INTERMITTENT
PILOT
VFNR-24-1 VFNI-24-1
VFNR-30-1 VFNI-30-1
VARIABLE EXPANDED
INTERMITTENT
PILOT EXPANDED
VFXV-24-1 VFXI-24-1
VFXV-30-1 VFXI-30-1
MILLIVOLT
VFNR-24-1
VFNR-30-1
Page 1

28091-2-1212Page 2
Section Page
VFXI and VFNI Quick Start Guide...............................................................................................3-4
Safety Information for Users of LP-Gas ......................................................................................... 5
Important Safety Information .......................................................................................................... 6
Requirements for Canada .............................................................................................................. 7
Introduction..................................................................................................................................... 8
...................................................................................................................... 9
General Information...................................................................................................................... 10
Water Vapor: A By-Product of Unvented Room Heaters .............................................................. 10
Provisions for Adequate Combustion & Ventialation Air ............................................................... 11
Clearances .............................................................................................................................. 11-12
Combustible Material.................................................................................................................... 13
Fireplace Preparation ................................................................................................................... 13
Installing as a Vented Appliancd................................................................................................... 14
Before Fully Installing the Appliance ............................................................................................ 14
Gas Supply................................................................................................................................... 15
Placement of Glowing Embers and Lava Rock ............................................................................ 16
Operation Instructions/Flame Appearance ................................................................................... 16
VFNR-(24,30) Lighting Instructions .............................................................................................. 17
VFXV-(24,30) Lighting Instructions............................................................................................... 18
VFXI-(24,30) Lighting Instructions................................................................................................ 19
Pilot Flame Characteristics......................................................................................................20-21
Cleaning and Servicing ................................................................................................................ 21
GV34 Remote Control Instructions..........................................................................................22-23
GV34 Remote Control Wiring....................................................................................................... 24
VFXI and VFNI Remote Control Instructions...........................................................................25-28
VFXI and VFNI Remote Control Wiring........................................................................................ 29
Troubleshooting............................................................................................................................ 30
Parts List....................................................................................................................................... 31
Parts View .................................................................................................................................... 32
Master Parts Distrubotr List.......................................................................................................... 33
How To Order Repair Parts .......................................................................................................... 33
Warranty ....................................................................................................................................... 34
Appliance Service History ............................................................................................................ 35
TABLE OF CONTENTS

28091-2-1212 Page 3
VFXI and VFNI Remote Quick Start Instructions: Cut out this page and keep it near your remote.
Quick Start Guide - Intermittent Pilot Systems
To START the Fireplace:
If the pilot is NOT lit:
 
audible “beep” sound.
2. The pilot will ignite on the sixth beep. You may hear a clicking sound around the same
time as that beep, this is normal.
3. There will be a total of 14 beeps. The main burner will ignite approximately 15 seconds
after the pilot.
If the pilot IS lit.
 
5 seconds until there is a soft click, then release the button.
To ADJUST the Flame Height
 
 
displayed.
To SHUT OFF the Fireplace
1. To completely shut off the burner and ignitor, press and hold the “OFF” button until the

 
10 seconds and then release.
FOR MORE INFORMATION, SEE OPERATION INSTRUCTIONS.

28091-2-1212Page 4
THIS PAGE INTENTIONALLY LEFT BLANK

28091-2-1212 Page 5
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must nd out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the

in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless
and colorless. You may not know all the following safety
precautions which can protect both you and your family from
an accident. Read them carefully now, then review them point
by point with the members of your household. Someday when
there may not be a minute to lose, everyone's safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
 Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to

your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
           
service, or make adjustments to appliances on the LP-Gas
        
odor of LP-Gas prior to and while lighting pilot lights or per-
forming service or making adjustments.
 
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
 
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or

  
out of service for a time may develop internal rust which will
cause odor fade. If such conditions are suspected to exist,
a periodic sniff test of the gas is advisable. If you have any
question about the gas odor, call your LP-gas dealer. A
periodic sniff test of the LP-gas is a good safety measure
under any condition.
 
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
          
under no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in

occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having it

         
phone. Do not do anything that could ignite the gas.
 
that IMMEDIATELY.
 
 
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until

 
   
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
 Finally,
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP-GAS

28091-2-1212Page 6
When used without adequate combustion and ventilation
air, heater may give off CARBON MONOXIDE, an odorless,
poisonous gas.
Do not install heater until all necessary provisions are
made for combustion and ventilation air. Consult the
written instructions provided with the heater for information
concerning combustion and ventilation air. In the absence
of instructions, refer to the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation,
or applicable local codes.
This heater is equipped with a PILOT LIGHT SAFETY SYSTEM
designed to turn off the heater if not enough fresh air is
available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and
control compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO DEATH.
Early signs of carbon monoxide poisoning resemble the u,
with headache, dizziness and/or nausea. If you have these
signs, heater may not be working properly. Get fresh air at
once! Have heater serviced.
Some people – pregnant women, persons with heart or lung
disease, anemia, those under the inuence of alcohol, those
at high altitudes – are more affected by carbon monoxide
than others.
The pilot light safety system senses the depletion of oxygen
at its location. If this heater is installed in a structure having
a high vertical dimension, the possibility exists that the
oxygen supply at the higher levels will be less than that at
the heater. In this type of application, a fan to circulate the
structure air will minimize this effect. The use of this fan will
also improve the comfort level in the structure. When a fan
is used to circulate air, it should be located so that the air
ow is not directed at the burner.
DANGER: Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
   
6,000 Btu per hour shall not be installed in a bathroom
   
10,000 Btu per hour shall not be installed in a bedroom or bath-
room.
 -
stalled.
 

 
appliance.
 -
face temperature and should stay away to avoid burns or clothing
ignition.
 
the same room as the appliance.
 

for Solid Fuel Burning Fireplaces. State or local codes may only

your state or local codes.
          
annual cleaning are necessary to avoid potential problems with
sooting. Sooting, resulting from improper installation or operation,

 



will occur as a result of drafts.
 WARNING

 WARNING: Do not use a blower insert, heat exchanger insert
or other accessory not approved for use with this heater.
         
       

 

NFPA54.
 NOTICE  
service person. The appliance should be inspected before use

cleaning may be required due to excessive lint from carpeting,
bedding material, etc. It is imperative that the control compart-
ment, burners and circulating air passageways of the appliance
be kept clean.
 
must be replaced prior to operating the appliance. Provide ad-
equate combustion and ventilation air.
    -
structed.
 -
bustion chamber and adequate accessibility clearance for servic-
ing and proper operation. NEVER obstruct the front opening of
the appliance.
 

 
and, unless other provisions for combustion air are provided, the
screen shall have an opening(s) for introduction of combustion
air.
 

 
operation.
 
permanently closed at time of appliance installation.
 WARNING: Failure to keep the primary air opening(s) of the
burner(s) clean may result in sooting and property damage.
 WARNING


IMPORTANT SAFETY INFORMATION
WARNING

28091-2-1212 Page 7
REQUIREMENTS FOR CANADA
This unit cannot be installed in an UNVENTED application, this
unit can only be installed as a VENTED application with these
requirements.
IMPORTANT SAFETY INFORMATION
        
Gas Appliances For Installation In Solid Fuel Burning Fireplaces.

gas log set is installed. This appliance is for installation only in


Warning:          
can be dangerous. Improper installation or use of the gas log set
          
carbon monoxide poisoning.
1. Please follow all local codes regarding installation, combus-
tion and ventilation air or in the absence of local codes follow

CAN/CGA-B149, Installation Code (Canada installation).
2. Proper installation, burner pan location and log placement is
important to achieve optimum look and performance of your
gas log set. The logs have been designed for easy location
and placement on the grate and the log placement instruc-
tions must be followed for proper operation.
3. Do not operate this log set with glass doors in the closed posi-

burning. Adequate combustion air must be provided for proper



adequate combustion air into the room. A damper clamp must

-
ING DAMPER CLAMP section.
4. Young children must be carefully supervised when they are in
the same room as the gas log while in operation. Do not place


5. Do not substitute or use materials other than those supplied
for use with the log set.
6. Also refer to IMPORTANT SAFETY INFORMATION in the

WARNING; DO NOT OPERATE THIS GAS LOG SET WITH
GLASS DOORS CLOSED
 
or near the appliance.
 -
eration.
 -

bonding agents. These bonding agents are not harmful but
may produce annoying smoke and smells as they are burned
off during initial operation of the appliance. This is a normal
temporary occurrence. A window should be opened during the
initial bake out period.
 
 WARNING:        -

-
er.
 
person. The appliance should be inspected before use and

cleaning may be required due to excessive lint from carpet-
ing, bedding materials, hair from pets, etc. It is imperative that
control compartments, burners and circulating air passage-
ways of the appliance be kept clean.
 Do not

 Do keep the appliance area clear and free from combustible

     
-

 Do make a periodic visual check of pilot and burners. Clean
and replace damaged parts.
 Do not use this appliance if any part has been under water.

appliance and to replace any part of the control system and
any gas control which has been under water.
 -
stalled.
 -
ances for Solid Fuel Burning Fireplaces. State or local codes
-
ration. Check your regional or local codes.

28091-2-1212Page 8
Attention: During initial use of log you will detect an odor as
the log is cured.
Notice:
smoke will occur. To prevent triggering of smoke alarms, ventilate
the room in which the unit is installed.
WARNING
This appliance is for installation only in a solid-fuel burning
masonry or factory-built replace or in a listed ventless
rebox enclosure. It has been design certied for these
installations. Exception: DO NOT install this appliance in
a factory-built replace that includes instructions stating
it has not been tested or should not be used with unvented
gas logs.
WARNING
Any modication to this unvented gas heater or its controls
can be dangerous. Improper installation or use of the heater
can cause serious injury or death from re, burns, explosion
or carbon monoxide poisoning.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating value.
Contact the manufacturer or your gas company before changing

IMPORTANT: Read all instructions carefully before starting
installation. Failure to follow these installation instructions may
result in a possible re hazard and will void the warranty.
Save this manual for future reference.
Please read this manual before installing and using the
appliance.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
 
with unvented room heater/vented decorative appliance.
3. Installer should show owner how to start and operate unvented
room heater/vented decorative appliance.
Always consult your local Building Department regarding regulations,
codes or ordinances which apply to the installation of an unvented
room heater/vented decorative appliance.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases.
New Installation
VFSN Model - variable does not operate-ON is OFF/OFF is ON-
wires into the back of receiver are reversed.

appliance is installed.
A vented decorative appliance must be installed only in a

non-combustible material.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
ACCESSORIES
Description Color
For use with VFN(R,I) AND VFX(V,I) models
EK-1 Embers Kit
ELH-1 Fireplace Hood for Vent-Free Logs Black
ELH-2 Fireplace Hood for Vent-Free Logs Brass
DCG-24-BL Decorative Cast Grate Black
For use with VFNR models only
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control with Thermo-
stat
FREC Electric Remote Control
FWS Wall Switch
TMV Wall Thermostat, Millivolt - Reed Switch
Notice: Thermostats are for Vent-Free Applications only.
INTRODUCTION

28091-2-1212 Page 9
PRODUCT SPECIFICATION
PRODUCT SPECIFICATION
Natural Gas Propane Gas
Variable Millivolt Intermittent Variable Millivolt Intermittent
Regulator pressure setting 3.5" W.C. 3.5" W.C. 7.0" W.C. 10.0" W.C. 10.0" W.C. 10.0" W.C.
Gas inlet pressure Max. 10.5" W.C. 10.5" W.C. 10.5" W.C. 13.0" W.C. 13.0" W.C. 13.0" W.C.
Min. 5.0" W.C. 5.0" W.C. 7.0" W.C. 11.0" W.C. 11.0" W.C. 11.0" W.C.
Model Gas Valve Type BTUH Max. Rate BTUH Med. Rate BTUH Min. Rate
VFXV-24 Natural Variable 38,000 - 27,000
VFXV-24 Propane Variable 38,000 - 28,000
VFNR-24 Natural Millivolt 38,000 - 27,000
VFNR-24 Propane Millivolt 38,000 - 28,000
VFNI-24 Natural Intermittent 38,000 - 27,000
VFNI-24 Propane Intermittent 38,000 - 28,000
VFXI-24 Natural Intermittent 38,000 - 26,000
VFXI-24 Propane Intermittent 38,000 - 26,000
VFXV-30 Natural Variable 40,000 - 29,000
VFXV-30 Propane Variable 40,000 - 30,000
VFNR-30 Natural Millivolt 40,000 - 29,000
VFNR-30 Propane Millivolt 40,000 - 30,000
VFNI-30 Natural Intermittent 40,000 - 30,000
VFNI-30 Propane Intermittent 40,000 - 30,000
VFXI-30 Natural Intermittent 40,000 - 30,000
VFXI-30 Propane Intermittent 40,000 - 30,000
Notice: Thermostats are for Vent-Free Applications only.

28091-2-1212Page 10

room in which it is installed. Provisions for adequate combustion
and ventilation air must be provided.
Keep room area clear and free from combustible materials, gasoline

Unvented gas heaters are a supplemental zone heater. They are not
intended to be a primary heating appliance. Water vapor produced
by an unvented heater can create moisture problems in a home
when operated for extended periods of time.
During manufacturing, fabricating and shipping, various components

These chemicals are not harmful but may produce annoying smoke
and smells as they are burned off during the initial operation of the
appliance; possibly causing headaches or eye or lung irritation. This
is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in period will be slight and will disappear with
continued use.
This appliance must not be used with glass doors in the closed
position. This can lead to pilot outages and severe sooting outside

Do not use this room heater if any part has been under water.

heater and replace any part of the control system and any gas
control which has been under water.
WARNING
This appliance is equipped for (natural or propane)
gas. Field conversion is not permitted.
Before you get started
Carefully inspect the contents for shipping damage. If any parts are
missing or damaged, immediately inform the dealer from whom you
purchased the appliance. Do not attempt to install any part of the
appliance unless you have all parts in good condition.
Make sure you have received all parts:
Check your packing list to verify that all listed parts have been
received. You should have the following:
 
 
sheet metal anchoring screws.
 
coverage.
 
 
 
Millivolt controlled heater designed to be operated with optional
devices for ON/OFF functions.
 
 
Handle the gas log burner assembly by the grate and legs only.
Do not pick the unit up by the burner.
Gloves are recommended when handling logs to prevent skin
irritation. Logs are fragile - Handle with care.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be


person or through a representative is engaged in and is respon-
sible for (a) the installation, testing, or replacement of gas piping
or (b) the connection, installation, testing, repair, or servicing of
equipment; that is experienced in such work; that is familiar with all
precautions required, and that has complied with all the
requirements of the authority having jurisdiction.
State of Massachusetts: The installation must be made
          
Massachusetts.

room heaters shall provide to each purchaser a copy of 527
CMR-30 upon sale of the unit.
The installation must conform with local codes or, in the absence of

*Available from the American National Standards Institute, Inc. 11
West 42nd St., New York, N.Y. 10018.
High Altitudes: For altitudes/elevation above 2,000 feet ratings
should be reduced at the rate of 4 percent for each 1,000 feet above
sea level. Contact the manufacturer.
Water vapor is a by-product of gas combustion. An unvented room
heater produces approximately one (1) ounce (30ml) of water for

Unvented room heaters must be used as supplemental heat
(a room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
 
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source
(an entire house).
GENERAL INFORMATION
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS

28091-2-1212 Page 11
H
WL1
L
2
FIREPLACE
DIVIDER
Example of Large Room with 1/2 Wall divider.
Figure 1
The following formula can be used to determine the maximum heater

Btu/Hr = (L1+ L2)FT x (W)FT x (H)FT x 1000
50


air by one of the methods described in the National Fuel Gas Code,

Adhere to all codes, or in their absence, the latest edition of THE
       
obtained from:
American National Standards InstituteNational Fire ProtectionAssocia-
tion, Inc.
11 West 42nd St. Batterymarch Park
New York, NY 10018 Quincy, MA 02269
Minimum Dimensions For Solid Fuel Burning Fireplaces UL127
Factory Built Fireplaces (Figure 2)
Model A B C D
VFNI-24 24" 14" 30" 18"
VFNR-24 24" 14" 30" 18"
VFXI-24 24" 16" 30" 18"
VFXV-24 24" 16" 30" 18"
VFNI-30 27" 14" 34" 18"
VFNR-30 27" 14" 34" 18"
VFXI-30 27" 16" 34" 18"
VFXV-30 27" 16" 34" 18"

instructions are minimum clearances to maintain in installing this
heater. Left and right clearances are determined when facing the
front of the heater.
Figure 2

are provided for adequate combustion and ventilation air.

Btuh of the combined input rates of all appliances drawing combustion


to areas outside the space must draw return air from outside the space

openings into the space for combustion air. One opening must be within
12 inches of the ceiling and the other must be within 12 inches of the

inside or outside air is used to support combustion, the method by which
the air is brought to the space (vertical or horizontal duct) and by the
total input rate of all appliances in the space.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh
air for combustion and ventilation. However, in buildings of unusually
tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. Walls and ceilings exposed to the outside atmosphere have a
continuous water vapor retarder with a rating of one perm or
less with openings gasketed or sealed, and
b. Weatherstripping has been added on openable windows and
doors, and
c. Caulking or sealants are applied to areas such as joints around
-
tweenwall-ceilingjoints,between wall panels,atpenetrations for
plumbing, electrical, and gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide
additional fresh air.
WARNING
If the area in which the heater may be operated is smaller

unusually tight construction, provide adequate combustion and
ventilation air by one of the methods described in the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and
Ventilation, or applicable local codes.
Glass Doors
Make sure that glass doors are open during all operations of
the logset. The opening of the glass door frame should be the

Follow these instructions to ensure safe installation.

PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
CLEARANCES

28091-2-1212Page 12
Mantel Clearances with Hood (Figure 5)
       
opening. Non-combustible material must extend at least 8" above

material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Example: A mantel may project from the wall a maximum of 2" at a
minimum of 13-1/2" above the opening, and a maximum of 6" at a
minimum of 15" above the opening.
Figure 5
If your installation does not meet the above minimum clearances,
you must proceed to one of the following steps:
 
for Installing as a Vented Appliance.
 
 
Floor Clearance (Figure 6)
-
tibles is “0” inches.
Figure 6
Sidewall & Ceiling Clearances (Figure 3)
Figure 3

wall. The ceiling must be at least 36" (for the 16" log) and 41" (for

Mantel Clearances Without Hood (Figure 4)
       
opening. Non-combustible material must extend at least 12" above

material behind it.
Heat resistant materials such as slate and marble must be at least
1/2" thick. Sheet metal should not be installed onto combustible
material.
Figure 4
If your installation does not meet the above clearances, you must
proceed to one of the following steps:
 
 
Installing as a Vented Appliance.
 
 
CLEARANCES (continued)
Non-Combustible
Material Distance
Requirements for Safe Installation
12" or more Non-combustible material
Less than 12" Non-combustible material must be ex-
tended to at least 8" with the installation
-
not extend non-combustible material at
least 8", you must operate heater with

24”, 30” Log 41”
6”
HEATER IN FIREPLACE
OR FIREBOX
COMBUSTIBLE
MATERIAL

28091-2-1212 Page 13
FOR MASONRY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING
COMBUSTION PRODUCTS FROM DECORATIVE APPLIANCES
FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES
 
 
remove ashes, soot, creosote or other obstructions. Have this
cleaning performed annually after installation.
 


damper.
Install and operate the appliance as directed in this manual.
FOR FACTORY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING
COMBUSTION PRODUCTS FROM DECORATIVE APPLIANCES
FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES



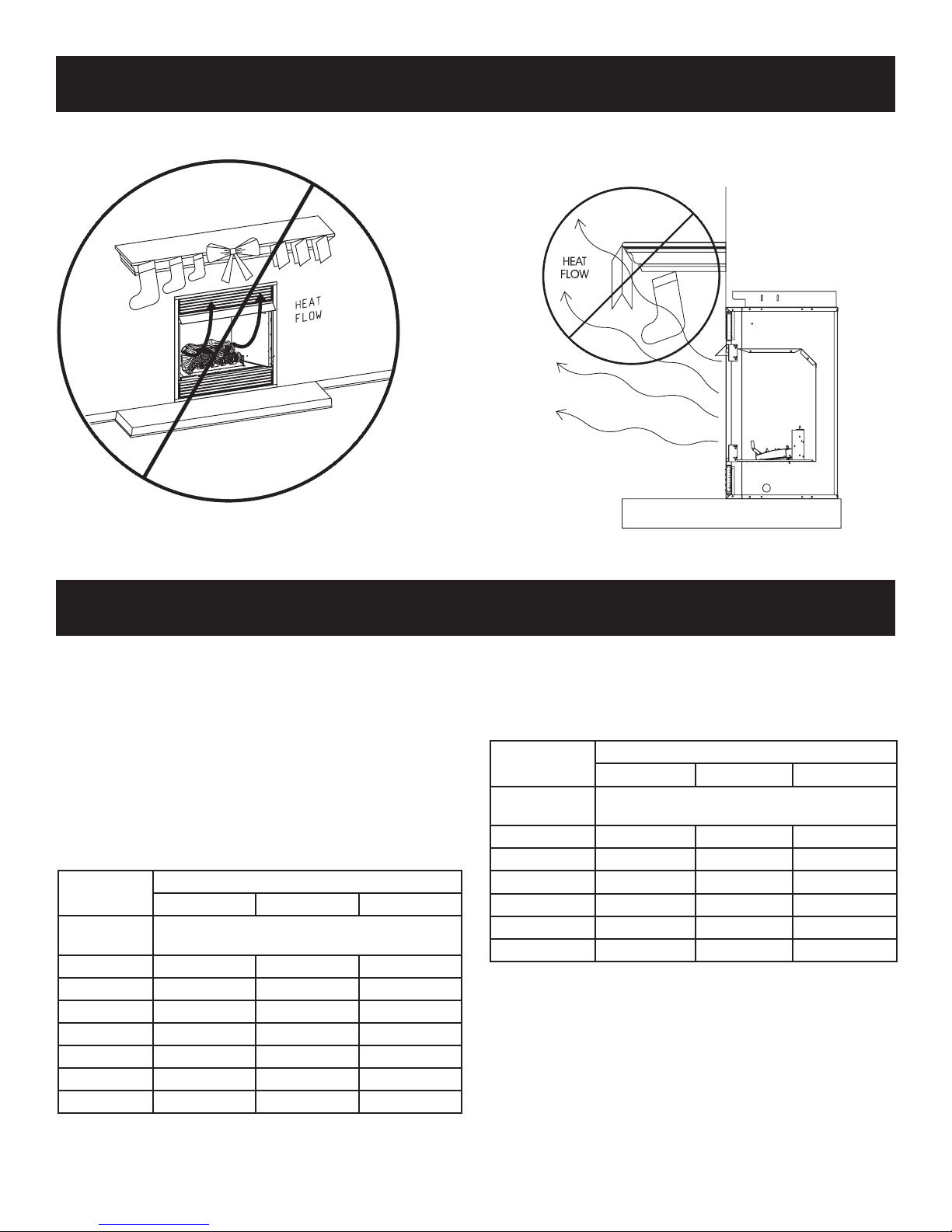

Figure 7
No greeting card, stockings or ornamentation of any type should be

.
Figure 8
COMBUSTIBLE MATERIAL
FIREPLACE PREPARATION
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft) Minimum Opening** (sq. in.)
10 11.3 16.6 22.1
15 8.6 12.6 17.3
20 7.5 10.8 14.5
25 6.6 9.6 12.6
30 6.2 9.1 11.3
35 5.7 8.0 10.8
40 5.3 7.5 10.2
* Height is from hearth to top of chimney and the minimum height
is 10 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft) Minimum Opening** (sq. in.)
6 17.6 25.7 33.8
8 16.5 23.7 31.2
10 15.1 21.7 28.7
15 14.1 19.9 26.1
20 12.9 18.5 23.7
30 12.2 16.9 21.6
* Height is from hearth to top of chimney and the minimum height
is 6 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.

28091-2-1212Page 14
Notice: (Damper Clamp Installation)
When installing your log set as a vented installation the damper
clamp must be used.
When installing your log set as a vent-free installation the damper
clamp can be used to eliminate the potential for odors when burning

Installing Damper Clamp (Figure 9)

is equipped with an ash dump be sure to seal the door with furnace
cement or high temperature silicone. Be sure to check the damper

Place the clamp over the lip of the damper and tighten the hold
down bolt until the clamp is securely attached to the damper. This
will prevent the damper from accidentally closing.
Manual and millivolt controlled gas logs may be installed as a vented
 
Fuel Gas Code. When the gas logs are operated with the damper
open, non-combustible material and minimum mantel requirements
do not apply.
 
 

cause pilot outage or sooting. Use a heat resistant sealant. Do


 

You must secure the gas log heater to the replace oor. If
not, the entire unit may move when you adjust the controls.
Movement of unit may cause shifting of the gas logs which
leads to sooting and improper burning. Grate movement
could cause a gas leak.
Special care is required if you are installing the unit into a
sunken replace. You must raise the replace oor to allow
access to gas log controls. This will insure adequate air
ow and guard against sooting. Raise the replace oor
using noncombustible materials.

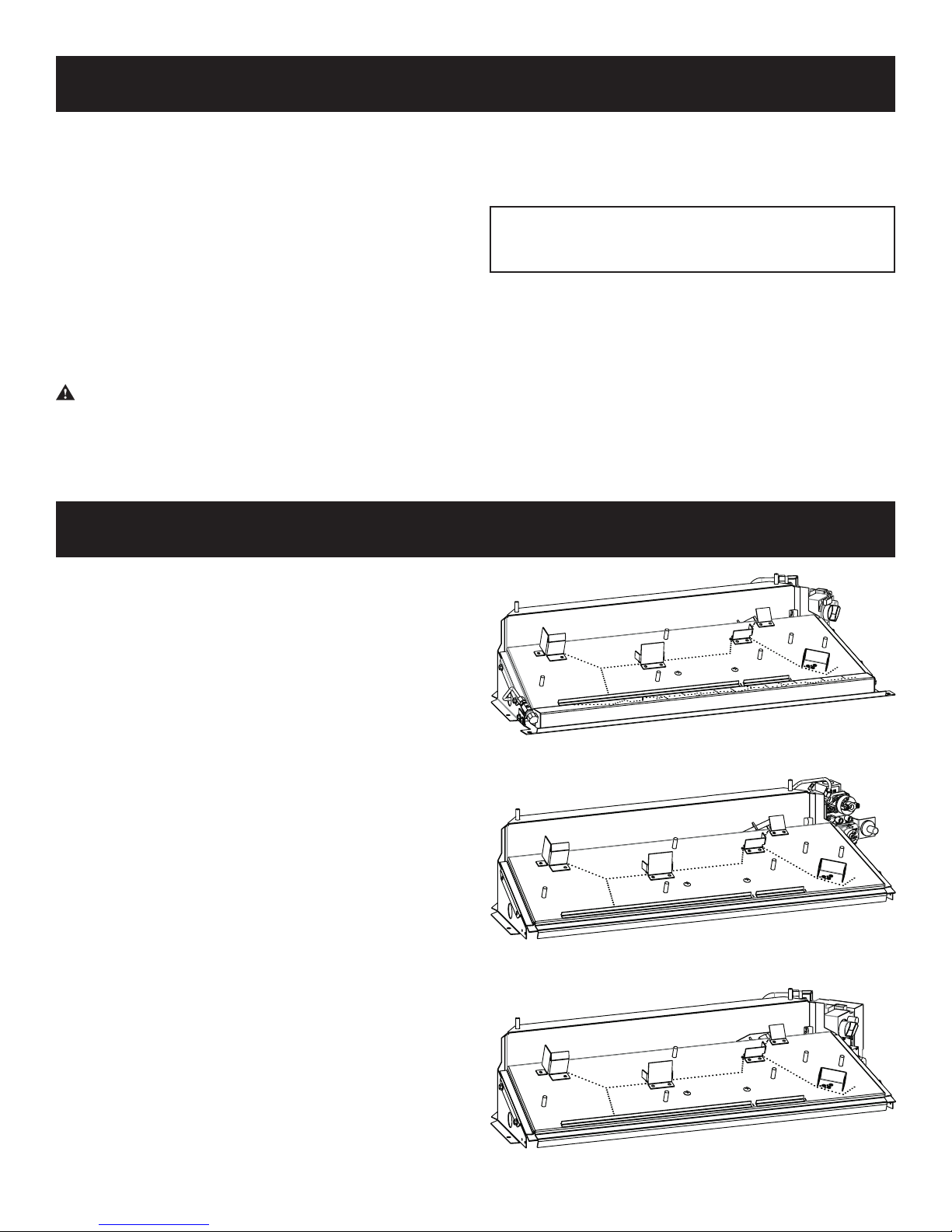

Assembly Procedure: (Figures 10 and 11)
1. Center the gas log unit in the fireplace or firebox. Make
certain the front feet of the grate sit inside the front edge of the

2. An anchor hole is provided in the two bottom side burner sup-
port. After centering the burner correctly, mark the hole positions

approximately 1-1/2" deep for masonry screws or 1/8" hole for
sheet metal screws.
 
provided. Refer to Figure10.
Proper installation of the grate is essential to prevent any
movement of the gas logs and controls during operation.
Figure 10
Figure 11
Figure 9
INSTALLING AS A VENTED APPLIANCE
BEFORE FULLY INSTALLING THE APPLIANCE

28091-2-1212 Page 15
Check all local codes for requirements, especially for the size and
type of gas supply line required.
Notice:
codes allow copper tubing or galvanized.
Notice: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of
the unit. Where none exists, or where its size or location is not
adequate, contact your local authorized installer for installation or
relocation.
Compounds used on threaded joints of gas piping shall be resistant

checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required by
the National Fuel Gas Code that a drip line be installed near the gas
inlet. This should consist of a vertical length of pipe tee connected
into the gas line that is capped on the bottom in which condensation
and foreign particles may collect.
Figure 12
The use of the following gas connectors is recommended:
 
and Fittings
 
Than All-Metal Construction
The above connectors may be used if acceptable by the authority

appliance connector cannot exceed three feet in length.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8" (3.175mm)
N.P.T. plugged tapping, accessible for test gauge connection,
must be placed immediately upstream of the gas supply
connection to the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 psig (3.5 kPa).
3. The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14" w.c.) (3.5 kPa) on the appliance gas valve, it will
result in a hazardous condition.
GAS SUPPLY
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm

28091-2-1212Page 16
Placing Lava Rock in Front of Burner on Fireplace Floor


operation.
ATTENTION: DO NOT PLACE LAVA ROCKS ON
BURNER, LOGS OR ROCK WOOL. THE LAVA ROCKS
SHOULD ONLY BE PLACED ON THE FIREPLACE FLOOR.
Flames from the pilot (rear right back side of the pan burner) as

is installed.


Notice:
up and down.
Glowing embers (rock wool) can cover the pan burner in between
the front and middle logs, but very little is necessary to cover this

orange and stringy. Apply just enough to obtain slow glow and a




patterns. Sooting and improper burning will result.
During manufacturing, fabricating and shipping, various components

These chemicals are not harmful, but may produce annoying smoke
and smells as they are burned off during the initial operation of the
appliance, possibly causing headaches or eye or lung irritation. This
is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in will be slight and will disappear with
continued use.
Variable - Figure 13
Millivolt - Figure 14
IP - Figure 15
Placement of the glowing embers (rock wool) is very individual
and light coverage will provide your best effects. We recommend
separation of the rock wool by hand and make your coverage as

Place just enough embers on the burner to obtain the glow and a

Do not place embers (rock wool) over large ports on any portion
of burner.
Rock wool should not be placed in the area of the pilot assembly.
Replacement of loose material (glowing embers) must be purchased
from Empire Comfort Systems, Inc. Application of excess loose
material (glowing embers) may adversely affect performance of
the heater.
WARNING: All previously applied loose material must be
removed prior to reapplication.
Refer to Parts List, Page 31 to order loose material (rock wool).
PLACEMENT OF GLOWING EMBERS AND LAVA ROCK
OPERATION INSTRUCTIONS/FLAME APPEARANCE

28091-2-1212 Page 17
Notice: For easy access to valve for lighting pilot, remove branch
log and middle log from burner assembly before lighting.
1. STOP! Read the safety information label.
2. Make sure the manual shutoff valve is fully open.
3. This gas log set is equipped with an ignition device (piezo)
which lights the pilot. If piezo ignitor does not light the pilot,
refer to Step 7.
4. Turn gas control knob clockwise to the “OFF” posi-
tion, set the thermostat to the lowest setting and turn ON/OFF
switch to OFF position.
5. Wait ten (10) minutes to clear out any gas. Then smell for gas,

the safety information label. If you do not smell gas, go to the
next step.
6. From OFF position, turn the gas control knob counterclockwise
to “Pilot” position. Push in and hold control knob for
5 seconds.
7. With the control knob pushed in, repeatedly push the piezo
ignitor button until pilot is lit (or use a match to light pilot).
8. Continue pushing the control knob in for a further 60 seconds

the probe is warming up. Release the control knob.
9. Turn gas control knob counterclockwise to the “ON”
position.
10. After the pilot has been lit for one minute, the burner can be
turned on. Turn the ON/OFF switch to “ON” position or adjust
thermostat to desired setting.
11. If the gas logs will not operate, follow the instructions “To Turn
Off Gas To Appliance” and call your service technician or gas
supplier.
Wait 30 seconds before readjusting the heater when the control
knob has been turned down to a lower setting.
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Turn control knob clockwise to OFF position to
completely shut off the heater.
2. If applicable: Turn ON/OFF switch to OFF position and/or set
thermostat (if present) to lowest setting. If applicable: Turn off
all electric power to the heater.
VFNR-(24,30) LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
HI/LO
REGULATOR
CONTROL
KNOB
PIEZO IGNITOR

28091-2-1212Page 18
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
Notice: For easy access to valve for lighting pilot, remove branch
log and middle log from burner
assembly before lighting.
1. STOP! Read the safety
information.
2. Push in gas control knob
slightly and turn clockwise
to the “OFF”
position. Do not force.
    
knob clockwise
either manually or with
remote control to “OFF”.
4. Wait ten (10) minutes to
clear out any gas. Then
smell for gas, including near
the floor. If you smell gas
STOP! Follow “B” in the
safety information. If you do
not smell gas, go to the next
step.
5. Find pilot - the pilot is attached
to rear of burner.
6. Turn gas knob counterclockwise to “IGN”.
7. Depress and turn gas control knob counterclockwise
to “PILOT”. A spark is produced when gas control knob is
turned between “IGN” and PILOT”. Repeatedly depress and
turn gas control knob between “IGN” and PILOT” until pilot is
ignited. Continue to hold the control knob in for about one (1)
minute after pilot is lit. Release knob and it will pop back up.
Pilot should remain lit. If it goes out, repeat steps 2 through
7.
          
and immediately call your service technician or gas
supplier.
 
control knob to OFF and call your service technician.
8. Attention! Gas control has an INTERLOCK latching device.
When the pilot is initially lit and the safety magnet is
energized (pilot stays on ) the INTERLOCK latching device
becomes operative. If the gas control is turned to the “OFF”
           
cannot be relighted until the safety magnet is de-energized
(approximately 60 seconds). There will be an audible “click”
when he safety magnet in the gas control is de-energized.
Pilot can now be relighted. Repeat steps 2 through 7.
9. Turn gas control knob counterclockwise to “ON”.
      
either manually or with remote control between “OFF” and

       either
manually or with remote control to “OFF”.
2. Push in gas control knob slightly and turn clockwise
to “OFF”. Do not force.
FOR YOUR SAFETY READ BEFORE LIGHTING
VFXV-(24,30) LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE

28091-2-1212 Page 19
TO TURN OFF GAS TO APPLIANCE
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
LIGHTING INSTRUCTIONS
VFXI-(24,30) & VFNI(24,30) LIGHTING INSTRUCTIONS
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
1. STOP! Read the safety information above.
2. Open bottom louver assembly (if applicable).
3. Press the "I/O" (ON/OFF) button on the valve face to "OFF."
 


the next step.
LIGHTING PROCEDURE - HANDSET METHOD
1. Turn control arrow on valve face to "ON." Press the "I/O" but-
ton to "I." Press the "OFF" and "UP" buttons on the handset,

5 short "beeps." Ignitor will spark and will continue until pilot
is lit. For full Remote Control operation see Appliance Instal-
lation manual.
LIGHTING PROCEDURE - MANUAL METHOD
1. Press the "I/O" (ON/OFF) button to "I."
2. Turn control arrow on valve face to "MAN."
3. Using a small bladed screwdriver, press and hold button
within hole on control. Manually depress piezo igniter button
to light pilot. If pilot does not light, steps 2-3 can be immedi-
ately repeated. If the pilot will not stay lit after several tries,
follow the instructions "To Turn Off Gas to Appliance" and call
your service technician or gas supplier.
 
counterclockwise and the main burner will ignite.

“I/O”
(ON/OFF)
SWITCH
CORRECT PILOT FLAME INCORRECT PILOT FLAME
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOCOUPLE
(LPG)
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOCOUPLE
(LPG)
MAN
NO
75 OF
SET
OFF
Press firmly
at same time
PRESS IN
& HOLD
MAN
TO IGNITE PILOT
HANDSET MODE
To Ignite Burner
MANUAL MODE
PIEZO
IGNITER
MANUAL MODE . To fully shut down, press "I/O"
button to "O."
HANDSET MODE - Press "OFF" button on handset. To fully shut down, press "I/O" button to "O."

28091-2-1212Page 20


         
          



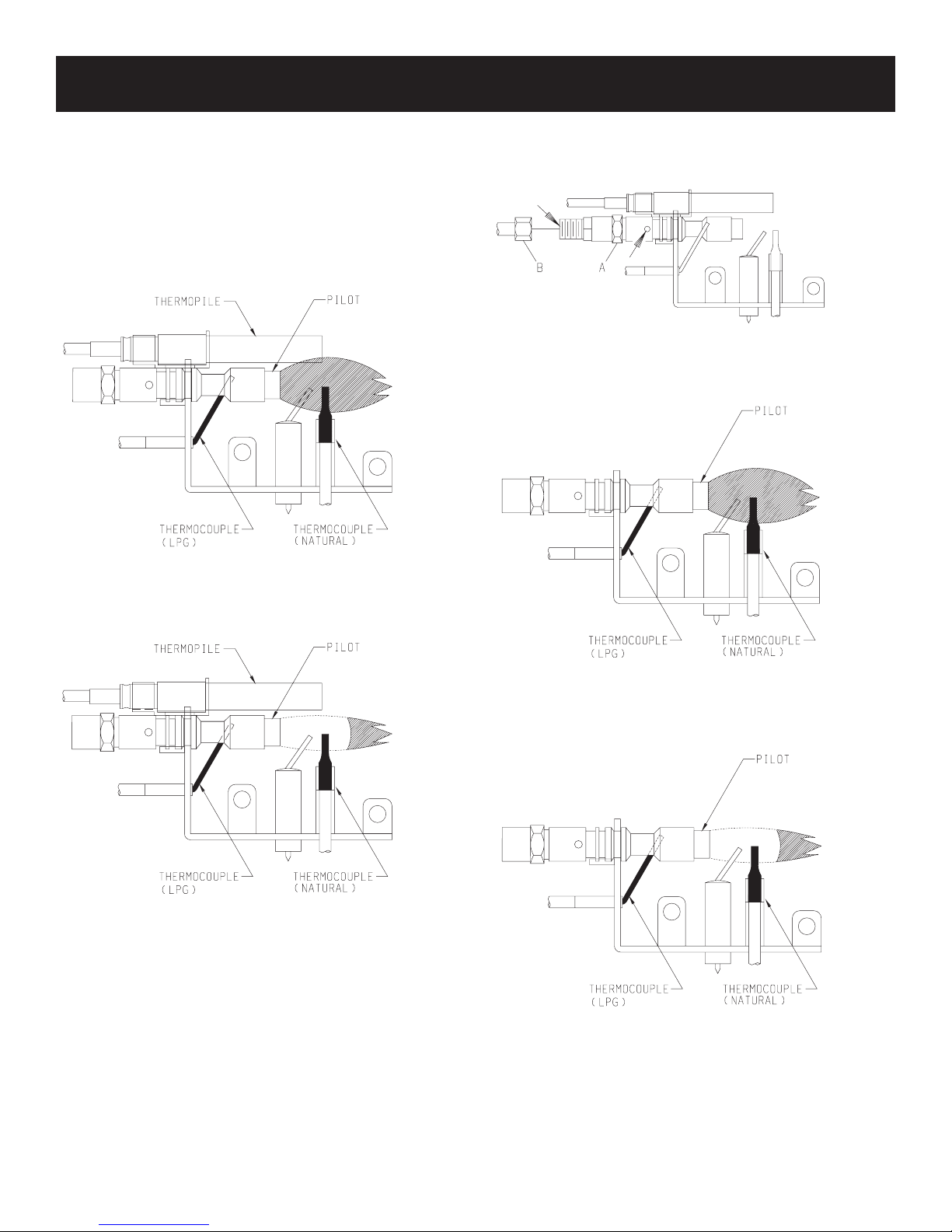

cause the thermocouple to cool. When the thermocouple cools, the
heater will shut down.
VFNR PILOT
Correct pilot ame pattern.
Figure 16
Incorrect pilot ame pattern.
Figure 17

 
Cleaning and Maintenance/Pilot
Oxygen Depletion Sensor Pilot (Figure 18 )
           
Depletion Sensor as follows:
1. Clean the ODS pilot by loosening nut B from the pilot tubing.
When this procedure is required, grasp nut A with an open end
wrench.
2. Blow air pressure through the holes indicated by the arrows.
This will blow out foreign materials such as dust, lint and spider
webs. Tighten nut B also by grasping nut A.
Figure 18
VFNI, VFXV, AND VFXI PILOT
Correct Pilot Flame Pattern
Figure 19
Incorrect Pilot Flame Pattern
Figure 20

 
PILOT FLAME CHARACTERISTICS
