Empire Comfort Systems VFRL1810 Series Quick start guide

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
UNVENTED GAS HEATER
MODELS
VFRL1810(N,P)-1
VFRL(18,24,30)(N,P)-1
VFIL(18,24,30)(N,P)-1
VENTED DECORATIVE APPLIANCE
MODELS
VFRL1810(N,P)-1
VFRL(18,24,30)(N,P)-1
Vented/Vent-Free Loft Burner
EMPIRE
EMPIRE
Comfor t Systems
GAS-FIRED
This is an unvented gas-red heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventila-
tion air must be provided. Refer to page 11.
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
WATER VAPOR: A BY-PRODUCT OF UNVENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion.
An unvented room heater produces approximately
one (1) ounce (30ml) of water for every 1,000 BTU's
(.3KW's) of gas input per hour. Refer to page 8.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
WARNING: If the information in this manual are
not followed exactly, a re or explosion may re-
sult causing property damage, personal injury
or loss of life.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
— Installation and service must be performed
by a qualied installer, service agency or the
gas supplier.
Page 1

26532-5-0311Page 2
TABLE OF CONTENTS
SECTION PAGE
Quick Start Guide ..............................................................................................................................3
Important Safety Information .............................................................................................................5
Safety Information for Users of LP-Gas.............................................................................................6
Introduction........................................................................................................................................7
.......................................................................................................................8
Water Vapor: A By-Product of Unvented Room Heaters ................................................................... 8
General Information...........................................................................................................................9
Requirements for Canada ...............................................................................................................10
Provisions for Adequate Combustion & Ventilation Air .................................................................... 11
Clearances ...............................................................................................................................12 - 13
Combustible Material.......................................................................................................................13
Fireplace Preparation ......................................................................................................................14
Installing as a Vented Appliance......................................................................................................14
Before Fully Installing the Appliance.........................................................................................15 - 16
Gas Supply......................................................................................................................................17
Operation Instructions/Flame Appearance ...................................................................................... 18
Wiring - VFRL Models .....................................................................................................................19
VFRL(18,24,30) Lighting Instructions..............................................................................................20
VFRL1810(N,P) Lighting Instructions..............................................................................................21
VFIL Series Operating Instructions..................................................................................................22
VFIL Series Remote Electronic Ignition and Control System ...................................................23 - 26
VFIL(18,24,30) Lighting Instructions................................................................................................27
VFIL(18,24,30) Wiring Diagram.......................................................................................................28
Pilot Flame Characteristics.......................................................................................................29 - 30
Cleaning and Servicing....................................................................................................................30
Troubleshooting: Symptoms, Possible Causes and Corrections..................................................... 31
Decorative Top Cover Accessory Installation ...........................................................................32 - 33
VFIL Parts List .................................................................................................................................34
VFIL Parts View...............................................................................................................................35
VFRL Parts List ............................................................................................................................... 36
VFRL Parts View .............................................................................................................................37
Master Parts Distributor List ............................................................................................................ 38
How To Order Repair Parts .............................................................................................................38
Service Notes ..................................................................................................................................39

26532-5-0311 Page 3
Quick Start Guide
To START the Fireplace:
If the pilot is NOT lit:
 
audible “beep” sound.
2. The pilot will ignite on the sixth beep. You may hear a clicking sound around the same
time as that beep, this is normal.
3. There will be a total of 14 beeps. The main burner will ignite approximately 15 seconds
after the pilot.
If the pilot IS lit.
 
5 seconds until there is a soft click, then release the button.
To ADJUST the Flame Height
 
 

To SHUT OFF the Fireplace
1. To completely shut off the burner and ignitor, press and hold the “OFF” button until the

 
10 seconds and then release.
FOR MORE INFORMATION, SEE OPERATION INSTRUCTIONS.
VFIL Remote Quick Start Instructions: Cut out this page and keep it near your remote.

26532-5-0311Page 4
THIS PAGE INTENTIONALLY LEFT BLANK

26532-5-0311 Page 5
WARNING
When used without adequate combustion and ventilation air,
heater may give off CARBON MONOXIDE, an odorless, poisonous
gas.
Do not install heater until all necessary provisions are
made for combustion and ventilation air. Consult the
written instructions provided with the heater for information
concerning combustion and ventilation air. In the absence of
instructions, refer to the National Fuel Gas Code, ANSI Z223.1/
NFPA 54, Air for Combustion and Ventilation, or applicable
local codes.
This heater is equipped with a PILOT LIGHT SAFETY SYSTEM
designed to turn off the heater if not enough fresh air is
available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and
control compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO DEATH.
Early signs of carbon monoxide poisoning resemble the u, with
headache, dizziness and/or nausea. If you have these signs,
heater may not be working properly. Get fresh air at once! Have
heater serviced.
Some people – pregnant women, persons with heart or lung
disease, anemia, those under the inuence of alcohol, those
at high altitudes – are more affected by carbon monoxide than
others.
The pilot light safety system senses the depletion of oxygen at
its location. If this heater is installed in a structure having a high
vertical dimension, the possibility exists that the oxygen supply
at the higher levels will be less than that at the heater. In this type
of application, a fan to circulate the structure air will minimize
this effect. The use of this fan will also improve the comfort level
in the structure. When a fan is used to circulate air, it should be
located so that the air ow is not directed at the burner.
• An unvented room heater having an input rating of more than
6,000 Btu per hour shall not be installed in a bathroom
• An unvented room heater having an input rating of more than
10,000 Btu per hour shall not be installed in a bedroom or
bathroom.
• Never burn solid fuels in a replace where a gas log set is
installed.
• Due to high temperatures, the appliance should be located
out of trafc and away from furniture and draperies.
• Do not place clothing or other ammable material on or near
the appliance.
• Children and adults should be alerted to the hazards of high
surface temperature and should stay away to avoid burns
or clothing ignition.
• Young children should be carefully supervised when they
are in the same room as the appliance.
• This unit complies with ANSI Z21.11.2 Unvented Heaters
and it also complies with ANSI Z21.60 Decorative Vented
Appliances for Solid Fuel Burning Fireplaces. State or local
codes may only allow operation of this appliance in a vented
conguration. Check your state or local codes.
• Correct installation of burner, proper location of the heater
and annual cleaning are necessary to avoid potential
problems with sooting. Sooting, resulting from improper
installation or operation, can settle on surfaces outside the
replace.
• Avoid any drafts that could alter burner ame patterns. Do
not allow fans to blow directly into the replace. Do not place
a blower inside burn box area of rebox. Ceiling fans will
create drafts that alter burner ame patterns. Sooting and
improper burning will occur as a result of drafts.
• WARNING: Do not allow fans to blow directly into the replace.
Avoid any drafts that alter burner ame patterns.
• WARNING: Do not use a blower insert, heat exchanger insert
or other accessory not approved for use with this heater.
• Periodic examination and cleaning of the venting system of
the solid-fuel burning replace, including frequency of such
examination and cleaning, by a qualied agency.
• The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA54.
• NOTE: Installation and repair should be done by a qualied
service person. The appliance should be inspected before
use and at least annually by a qualied service person.
More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative
that the control compartment, burners and circulating air
passageways of the appliance be kept clean.
• Any safety screen or guard removed for servicing an ap-
pliance must be replaced prior to operating the appliance.
Provide adequate combustion and ventilation air.
• The ow of combustion and ventilation air MUST NOT be
obstructed.
• Provide adequate clearances around air openings into the
combustion chamber and adequate accessibility clearance
for servicing and proper operation. NEVER obstruct the front
opening of the appliance.
• An unvented room heater intended for installation in a
solid-fuel burning replace shall comply with the following
instructions.
• A replace screen must be in place when the appliance is
operating and, unless other provisions for combustion air are
provided, the screen shall have an opening(s) for introduction
of combustion air.
• Solid-fuels shall not be burned in a masonry or UL 127
factory-built replace in which an unvented room heater is
installed.
• Any glass doors shall be fully opened when the appliance
is in operation.
• Any outside air ducts and/or ash dumps in the replace shall
be permanently closed at time of appliance installation.
• WARNING: Failure to keep the primary air opening(s) of
the burner(s) clean may result in sooting and property
damage.
• WARNING: Before installing in a solid-fuel burning replace,
the chimney ue and rebox must be cleaned of soot,
creosote, ashes and loose paint by a qualied chimney
cleaner.
IMPORTANT SAFETY INFORMATION

26532-5-0311Page 6
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must nd out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the

in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precautions
which can protect both you and your family from an accident.
Read them carefully now, then review them point by point
with the members of your household. Someday when there
may not be a minute to lose, everyone's safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
 Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to

your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
 
or make adjustments to appliances on the LP-Gas system. If

prior to and while lighting pilot lights or performing service or
making adjustments.
 
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
 
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or

    
out of service for a time may develop internal rust which will
cause odor fade. If such conditions are suspected to exist,
a periodic sniff test of the gas is advisable. If you have any
question about the gas odor, call your LP-gas dealer. A
periodic sniff test of the LP-gas is a good safety measure
under any condition.
 
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
 -
der no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in

occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having it

         
phone. Do not do anything that could ignite the gas.
 
that IMMEDIATELY.
 
 
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until

 
     
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
 Finally
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP-GAS

26532-5-0311 Page 7

smoke will occur. To prevent triggering of smoke alarms, ventilate
the room in which the unit is installed.
WARNING: This appliance is for installation only in a solid-fuel
burning masonry or UL 127 factory-built replace or in a listed
ventless rebox enclosure. It has been design certied for
these installations. Exception: DO NOT install this appliance
in a factory-built replace that includes instructions stating
it has not been tested or should not be used with unvented
gas logs.
WARNING: Any modication to this unvented gas heater or
its controls can be dangerous. Improper installation or use
of the heater can cause serious injury or death from re,
burns, explosion or carbon monoxide poisoning.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating value.
Contact the manufacturer or your gas company before changing

IMPORTANT: Read all instructions carefully before starting
installation. Failure to follow these installation instructions may
result in a possible re hazard and will void the warranty.
Save this manual for future reference.
Please read this manual before installing and using the
appliance.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
 
with unvented room heater/vented decorative appliance.
3. Installer should show owner how to start and operate unvented
room heater/vented decorative appliance.
Always consult your local Building Department regarding regulations,
codes or ordinances which apply to the installation of an unvented
room heater/vented decorative appliance.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases.

appliance is installed.
A vented decorative appliance must be installed only in a solid-

combustible material.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
OPTIONAL ACCESSORIES
Accessory Description Color
ELH-1 Fireplace Hood for Vent-Free Logs Black
ELH-2 Fireplace Hood for Vent-Free Logs Brass
OPTIONAL ACCESSORIES for VFRL ONLY
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control with
Thermostat
FRBTP Battery Operated Programmable Remote Control
FREC Electric Remote Control
FWS-1 Wall Switch
TRW Remote Wall Thermostat (Wireless)
TMV Wall Thermostat, Millivolt - Reed Switch
Note: Thermostats are for Vent-Free Applications only.
INTRODUCTION
Optional Decorative Accessories
Part
Number Description Model Used On Part Number Description Model Used On
DG18BUC Decorative Glass - Blue Clear VF(R,I)L(18,1810) DT18PB Decorative Top Cover - Polished Black VF(R,I)L(18,1810)
DG18BKP Decorative Glass - Black Polished VF(R,I)L(18,1810) DT18SS Decorative Top Cover - Brushed Stainless VF(R,I)L(18,1810)
DG18CLF Decorative Glass - Clear Frosted VF(R,I)L(18,1810) DT24PB Decorative Top Cover - Polished Black VF(R,I)L24
DG24BUC Decorative Glass - Blue Clear VF(R,I)L24 DT24SS Decorative Top Cover - Brushed Stainless VF(R,I)L24
DG24BKP Decorative Glass - Black Polished VF(R,I)L24 DT30PB Decorative Top Cover - Polished Black VF(R,I)L30
DG24CLF Decorative Glass - Clear Frosted VF(R,I)L24 DT30SS Decorative Top Cover - Brushed Stainless VF(R,I)L30
DG30BUC Decorative Glass - Blue Clear VF(R,I)L30
DG30BKP Decorative Glass - Black Polished VF(R,I)L30
DG30CLF Decorative Glass - Clear Frosted VF(R,I)L30

26532-5-0311Page 8
PRODUCT SPECIFICATIONS
Water vapor is a by-product of gas combustion. An unvented room
heater produces approximately one (1) ounce (30ml) of water for

Unvented room heaters must be used as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
 
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source
(an entire house).
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Model Gas Valve Type Regulator Pressure
Setting
Gas Inlet Pressure
Max
Gas Inlet Pressure
Minimum
VFRL(18,24,30) Natural Millivolt 3.5" W.C. 10.5" W.C. 4.5" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
VFRL1810 Natural Millivolt 3.5" W.C. 10.5" W.C. 45.0" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
VFIL18 Natural Intermittent Pilot 4.0" W.C. 10.5" W.C. 4.5" W.C.
Propane 10.0" W.C. 13.0" W.C. 11.0" W.C.
VFIL(24,30) Natural Intermittent Pilot 3.5" W.C. 10.5" W.C. 4.5" W.C.
Propane 10.0 W.C. 13.0" W.C. 11.0" W.C.
Model BTU/hr.
Maximum Rate
BTU/hr.
Medium Rate
BTU/hr.
Minimum Rate
Air Shutter Open-
ing
VFRL1810N 10,000 N/A N/A Closed
VFRL1810P 10,000 N/A N/A 1/8" Dia. Pin
VF(RL,IL)18N 26,000 N/A 19,000 Closed
VF(RL,IL)18P 26,000 N/A 20,500 1/8"
VF(RL,IL)24N 36,000 N/A 24,000 Closed
VF(RL,IL)24P 36,000 N/A 27,000 1/8"
VF(RL,IL)30N 40,000 N/A 28,000 Closed
VF(RL,IL)30P 40,000 N/A 30,000 1/8"
Note: Thermostats are for Vent-Free Applications only.

26532-5-0311 Page 9
         
from the room in which it is installed. Provisions for adequate
combustion and ventilation air must be provided.
Keep room area clear and free from combustible materials,

Unvented gas heaters are a supplemental zone heater. They
are not intended to be a primary heating appliance. Water
vapor produced by an unvented heater can create moisture
problems in a home when operated for extended periods
of time.
During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain oils,

may produce annoying smoke and smells as they are burned
off during the initial operation of the appliance; possibly
causing headaches or eye or lung irritation. This is a normal
and temporary occurrence.
The initial break-in operation should last 2-3 hours with the
burner at the highest setting. Provide maximum ventilation
by opening windows or doors to allow odors to dissipate. Any
odors remaining after this initial break-in period will be slight
and will disappear with continued use.
This appliance must not be used with glass doors in the
closed position. This can lead to pilot outages and severe

Do not use this room heater if any part has been under water.

room heater and replace any part of the control system and
any gas control which has been under water.
WARNING: This appliance is equipped for (natural or
propane) gas. Field conversion is not permitted.
Before you get started
Carefully inspect the contents for shipping damage. If any
parts are missing or damaged, immediately inform the dealer
from whom you purchased the appliance. Do not attempt to
install any part of the appliance unless you have all parts in
good condition.
Make sure you have received all parts:
Check your packing list to verify that all listed parts have been
received. You should have the following:
 
 
sheet metal anchoring screws and damper clamp.
The millivolt controlled heater may be operated with optional
devices for REMOTE/OFF/ON functions.
a. Wall switch or thermostat with wire.
b. Hand held remote control with ON/OFF switch or
thermostat.
Note: The VFIL series intermittent pilot heaters include a
thermostatic remote control transmitter and receiver.
Handle the gas burner assembly by the sides only. Do
not pick the unit up by the burner.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equip-


or company that either in person or through a representa-
tive is engaged in and is responsible for (a) the installation,
testing, or replacement of gas piping or (b) the connection,
installation, testing, repair, or servicing of equipment; that is
experienced in such work; that is familiar with all precautions
required, and that has complied with all the requirements of
the authority having jurisdiction.
State of Massachusetts: The installation must be made

of Massachusetts.
Sellers of unvented propane or natural gas-fired
supplemental room heaters shall provide to each purchaser
a copy of 527 CMR-30 upon sale of the unit.
In the State of Massachusetts, unvented propane and
       
bedrooms and bathrooms.
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1.*
*Available from the American National Standards Institute, Inc. 11 West
42nd St., New York, N.Y. 10018.
High Altitude
When installing this unit at an elevation above 2,000 feet (in
the United States), it may be necessary to decrease the input

Generally, input should be reduced 4 percent for each 1,000
feet above sea level. However, if the heating value of the gas
has been reduced, this general rule may not apply. Check

GENERAL INFORMATION

26532-5-0311Page 10
REQUIREMENTS FOR CANADA
This unit cannot be installed in a UNVENTED application,
this unit can only be installed as a VENTED application
with these requirements.
IMPORTANT SAFETY INFORMATION
This unit complies with ANSI Z21.60and CGA 2.26 Decora-
tive Gas Appliances For Installation In Solid Fuel Burning
          
where a decorative gas appliance is installed. This appli-


Warning: -
trols can be dangerous. Improper installation or use of the

burns, explosion or carbon monoxide poisoning.
1. Please follow all local codes regarding installation,
combustion and ventilation air or in the absence of
local codes follow the National Fuel Gas Code ANSI
Z223.1(U.S. installation), or CAN/CGA-B149, Installa-
tion Code (Canada installation).
2. Proper installation and burner location is important to
achieve optimum look and performance of your gas ap-
pliance. The optional accessories have been designed
for easy location and placement on the burner base.
3. Do not operate this appliance with glass doors in the
        
when the appliance is burning. Adequate combustion
        


-
equate combustion air into the room. A damper clamp
must
 -
ING DAMPER CLAMP
4. Young children must be carefully supervised when they
are in the same room as the gas appliance while in op-
        -

5. Do not substitute or use materials other than those

6. Also refer to IMPORTANT SAFETY INFORMATION on
page 5 of this manual.
WARNING; DO NOT OPERATE THIS GAS APPLIANCE
WITH GLASS DOORS CLOSED
        
placed on or near the appliance.
          
during operation.
 
components of this appliance are treated with certain
       
are not harmful but may produce annoying smoke and
smells as they are burned off during initial operation of
the appliance. This is a normal temporary occurrence.
A window should be opened during the initial bake out
period.
 
 WARNING: -
        

chimney cleaner.
         
service person. The appliance should be inspected

person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
 Do not  -

 Do keep the appliance area clear and free from com-

and liquids.
 


 Do make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
 Do not use this appliance if any part has been under
      
to inspect the appliance and to replace any part of the
control system and any gas control which has been un-
der water.
          -
ance is installed.
 
Appliances for Solid Fuel Burning Fireplaces. State or
local codes may only allow operation of this appliance
        
codes.

26532-5-0311 Page 11

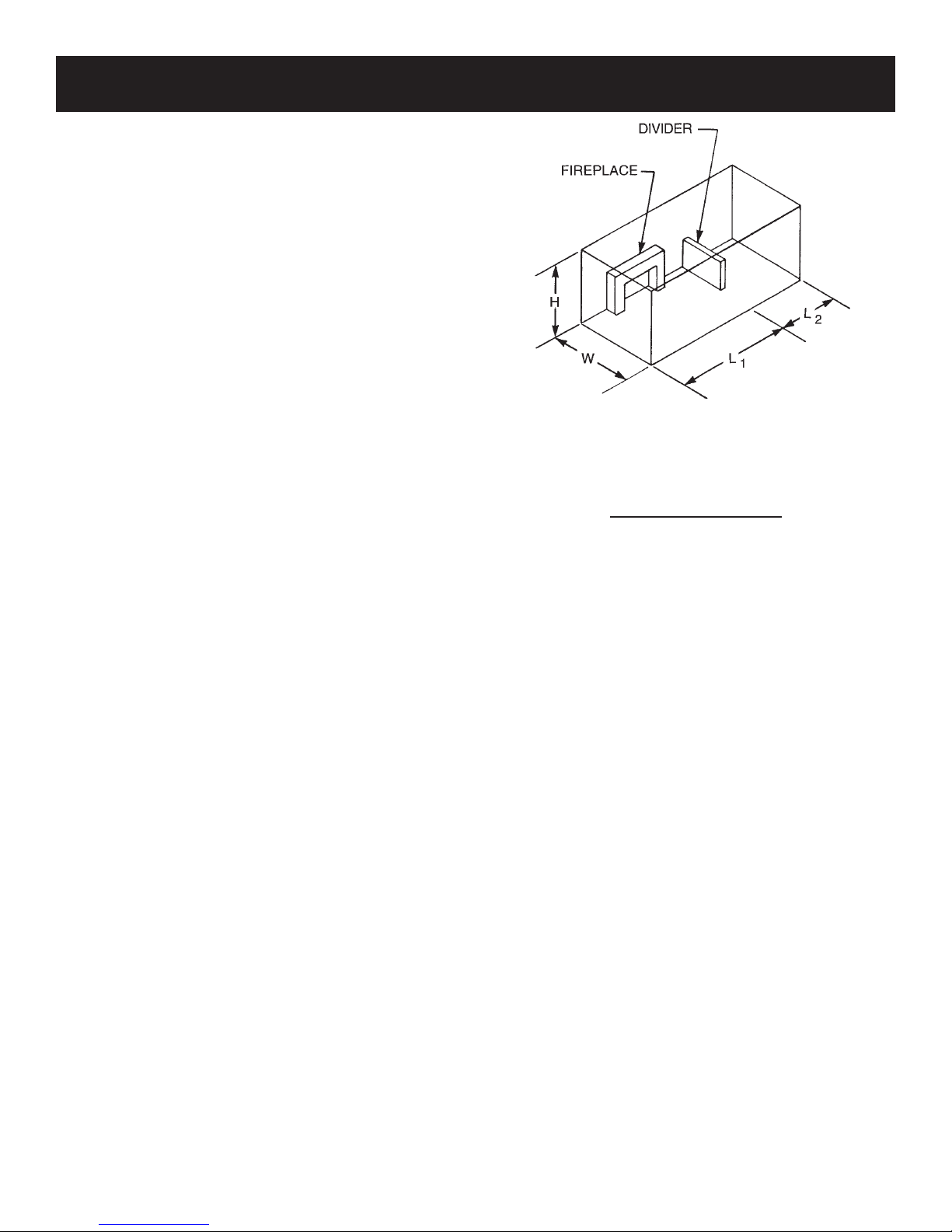

Example of Large Room with 1/2 Wall divider.
Figure 1
The following formula can be used to determine the maximum heater

Btu/Hr = (L1+ L2)FT x (W)FT x (H)FT x 1000
50
If the area in which the heater may be operated is smaller than that

ventilation air by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1/NFPA54.
Adhere to all codes, or in their absence, the latest edition of THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA54 which can be
obtained from:
American National Standards Institute
11 West 42nd St.
New York, NY 10018
OR
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
-
sions are provided for adequate combustion and ventilation air.

1,000 Btuh of the combined input rates of all appliances drawing
combustion air from that space. Small areas such as equipment

which supply heated air to areas outside the space must draw return
air from outside the space through tightly sealed return air ducts. A
-
tion air. One opening must be within 12 inches of the ceiling and

of these openings is determined by whether inside or outside air is
used to support combustion, the method by which the air is brought
to the space (vertical or horizontal duct) and by the total input rate
of all appliances in the space.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is dened as construction
where:
a. Walls and ceilings exposed to the outside atmosphere have
a continuous water vapor retarder with a rating of one perm
or less with openings gasketed or sealed, and
b. Weather-stripping has been added on openable windows
and doors, and
c. Caulking or sealants are applied to areas such as joints
around window and door frames, between sole plates and

penetrations for plumbing, electrical, and gas lines, and at
other openings.
If your home meets all of the three criteria above, you must
provide additional fresh air.
Warning: If the area in which the heater may be operated is smaller
     
unusually tight construction, provide adequate combustion and
ventilation air by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventila-
tion, or applicable local codes.
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR

26532-5-0311Page 12

Mantel Clearances Without Hood (Figure 4)



you must have non-combustible material behind it.
Heat resistant materials such as slate and marble must be
at least 1/2" thick. Sheet metal should not be installed
onto combustible material.
Figure 4
If your installation does not meet the above clearances, you
must proceed to one of the following steps:
 
 
for Installing as a Vented Appliance.
 
 
Non-Combustible
Material Distance
Requirements for Safe Installation
12" or more Non-combustible material
Less than 12" Non-combustible material must be
extended to at least 8" with the installa-

cannot extend non-combustible material
at least 8", you must operate heater with


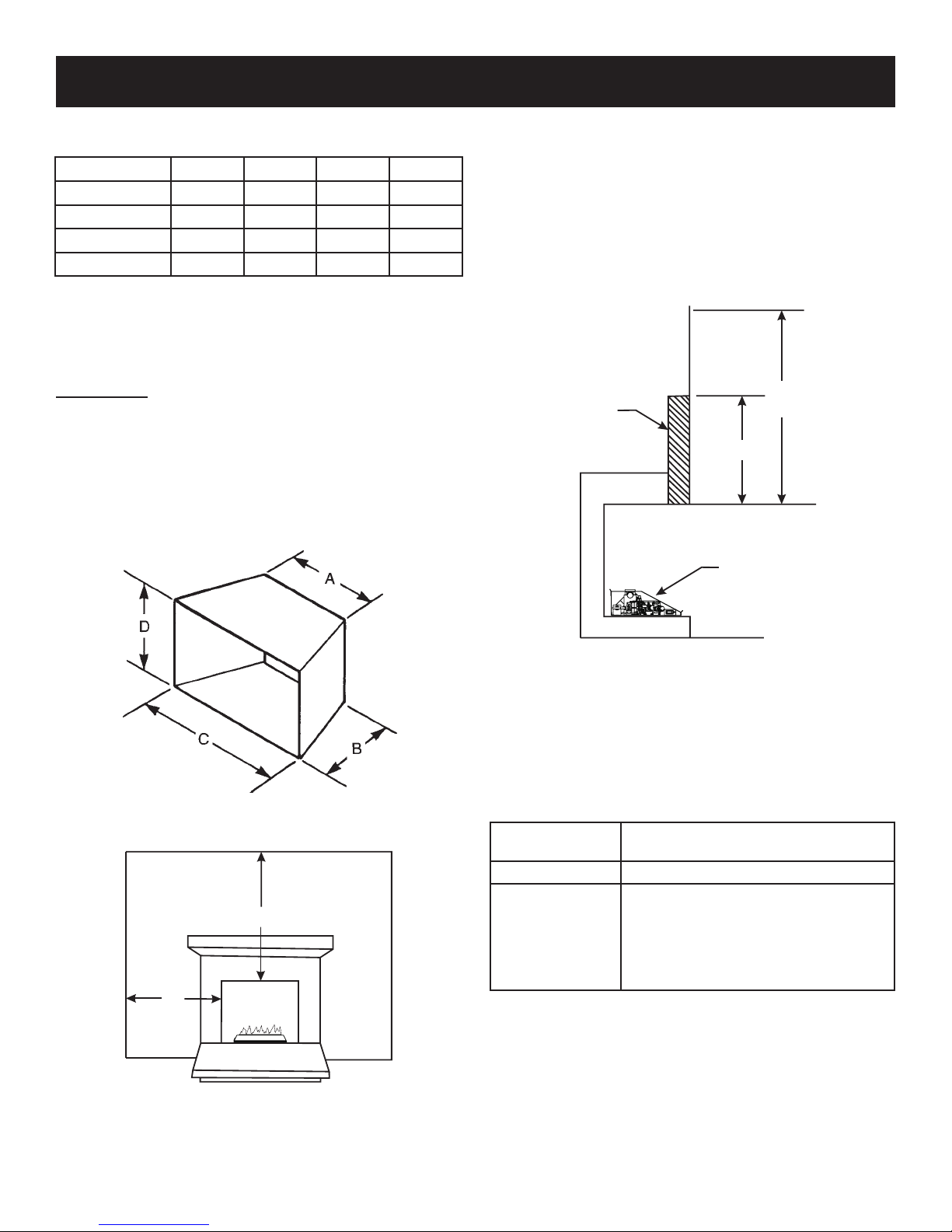

Minimum Dimensions For Solid Fuel Burning Fireplaces
UL127 Factory Built Fireplaces (Figure 2)
Model A B C D
VF(R,I)L1810 21" 13" 28" 17"
VF(R,I)L18 21" 13" 28" 17"
VF(R,I)L24 27" 13" 34" 18"
VF(R,I)L30 33" 13" 40" 20"
The dimensions shown and defined in the fireplace
manufacturer’s instructions are minimum clearances to
maintain in installing this gas appliance. Left and right
clearances are determined when facing the front of the
appliance.
Glass Doors
Make sure that glass doors are open during all operations
of the Loft Burner. The opening of the glass door frame
should be the dimension used for the minimum front

Follow these instructions to ensure safe installation.

hazard.
Figure 2
Sidewall & Ceiling Clearances (Figure 3)
Figure 3
-
bustible wall. The ceiling must be at least 41" (for 18", 24"
CLEARANCES
28”
12”
HEAT RESISTANT
MATERIAL
12” WITHOUT
HOOD
10” and less Mantel
LOFT BURNER IN
FIREPLACE OR
FIREBOX
6”
41”

26532-5-0311 Page 13

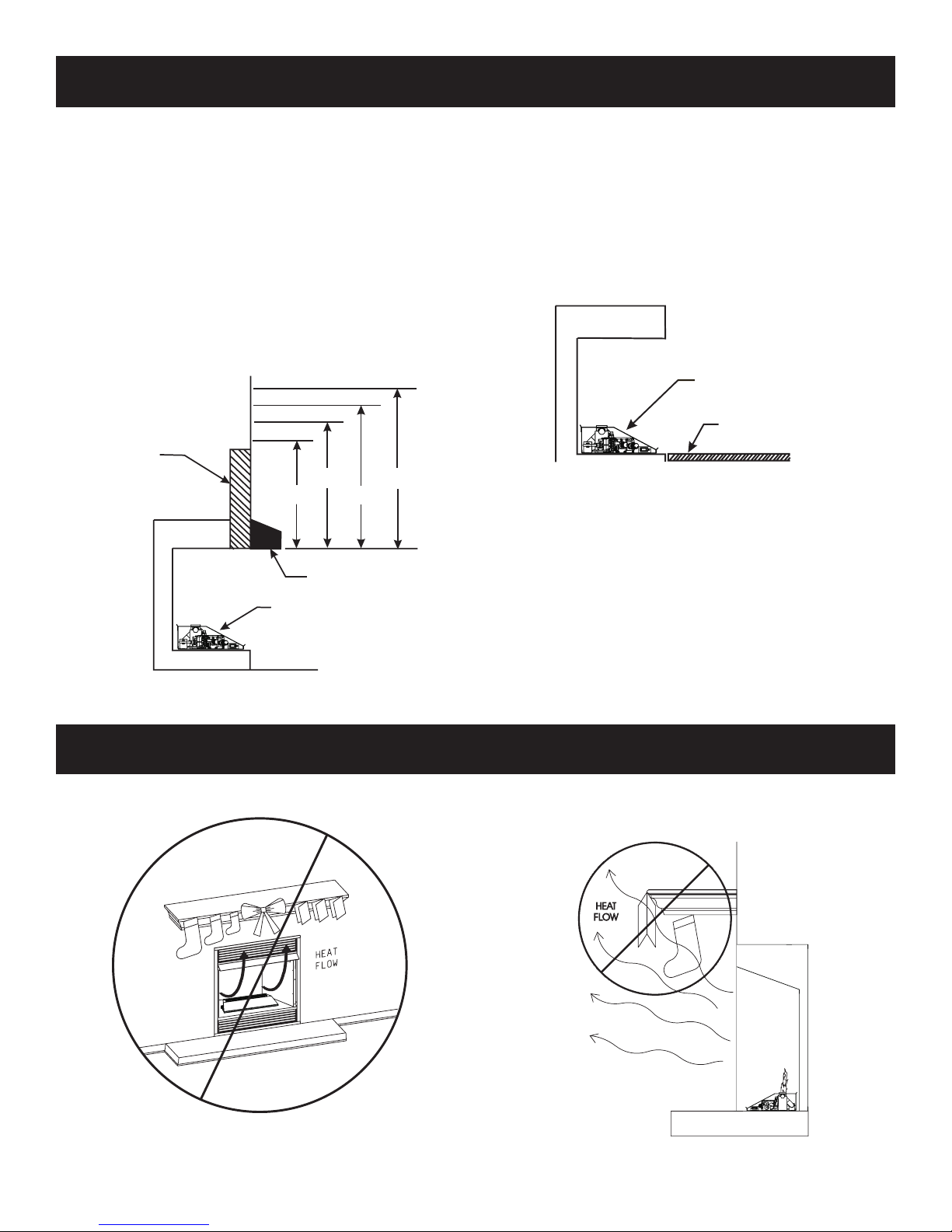

Do not attach combustible material to the mantel of your

Figure 7
No greeting card, stockings or ornamentation of any type
-

Figure 8
COMBUSTIBLE MATERIAL
Figure 5
Figure 6
CLEARANCES (continued)
COMBUSTIBLE
MATERIAL
LOFT BURNER
IN FIREPLACE OR
FIREBOX
LOFT BURNER IN
FIREPLACE OR
FIREBOX
13.5”
14.25”
15.0”
16.0”
HOOD
HEAT RESISTANT
MATERIAL
8” WITH HOOD
8” Mantel
6” Mantel
4” Mantel
2” Mantel
If your installation does not meet the above minimum clear-
ances, you must proceed to one of the following steps:
 
14 for Installing as a Vented Appliance.
 
 
Floor Clearance (Figure 6)
         
combustibles is “0” inches.
Mantel Clearances with Hood (Figure 5)

opening. Non-combustible material must extend at least 8"

non-combustible material behind it.
Heat resistant materials such as slate and marble must be
at least 1/2" thick. Sheet metal should not be installed onto
combustible material.
Example: A mantel may project from the wall a maximum of 2"
at a minimum of 13 1/2" above the opening, and a maximum
of 6" at a minimum of 15" above the opening.

26532-5-0311Page 14
Notice (Damper Clamp Installation)
When installing your gas appliance as a vented installation
the damper clamp must be used.
When installing your gas appliance as a vent-free installation
the damper clamp can be used to eliminate the potential for

Installing Damper Clamp (Figure 9)


door with furnace cement or high temperature silicone. Be
sure to check the damper for proper operation and verify that

Place the clamp over the lip of the damper and tighten the
hold down bolt until the clamp is securely attached to the
damper. This will prevent the damper from accidentally
closing.
The gas appliance may be installed as a vented decorative
gas appliance in compliance with ANSI Z21.60 and National
Fuel Gas Code. When the gas appliance is operated with
the damper open, non-combustible material and minimum
mantel requirements do not apply.
Figure 9
INSTALLING AS A VENTED APPLIANCE
DAMPERDAMPER
TYPICAL FIREPLACE
DAMPER CLAMP
FOR MASONRY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING
COMBUSTION PRODUCTS FROM DECORATIVE APPLIANCES
FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES
* Height is from hearth to top of chimney and the minimum height
is 6 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.
 
 
remove ashes, soot, creosote or other obstructions.
Have this cleaning performed annually after installation.
 


damper.
Install and operate the appliance as directed in this manual.
FOR FACTORY BUILT FIREPLACES
FREE OPENING AREA OF CHIMNEY DAMPER FOR VENTING
COMBUSTION PRODUCTS FROM DECORATIVE APPLIANCES
FOR INSTALLATION IN SOLID FUEL BURNING FIREPLACES
* Height is from hearth to top of chimney and the minimum
height is 10 feet.
** Chart shows minimum opening (sq. in.) for given height and
input rate.
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft) Minimum Opening** (sq. in.)
10 11.3 16.6 22.1
15 8.6 12.6 17.3
20 7.5 10.8 14.5
25 6.6 9.6 12.6
30 6.2 9.1 11.3
35 5.7 8.0 10.8
40 5.3 7.5 10.2
Appliance Input Rate (BTU/hr)
20 30 40
Chimney
Height* (ft) Minimum Opening** (sq. in.)
6 17.6 25.7 33.8
8 16.5 23.7 31.2
10 15.1 21.7 28.7
15 14.1 19.9 26.1
20 12.9 18.5 23.7
30 12.2 16.9 21.6
FIREPLACE PREPARATION

26532-5-0311 Page 15
 
         
           -
sealed, drafting may cause pilot outage or sooting. Use

damper.



You must secure the gas appliance to the replace
oor. If not, the entire unit may move when you adjust
the controls. Movement of unit may cause shifting
of the optional decorative glass. Burner movement
could cause a gas leak.
Special care is required if you are installing the unit
into a sunken replace. You must raise the replace
oor to allow access to gas controls. This will insure
adequate air ow and guard against sooting. Raise
the replace oor using noncombustible materials.
Installation of Burner Support Legs
Four (4) Burner Support Legs are included with the Loft
Burner. Installation is optional if you have a VFRL (millivolt
series burner.
           
VFRL (millivolt) series burner without the Support
Legs installed, the remote receiver box must be
       
heat. However, the remote receiver may be placed
under the elevated Loft Burner by installing the (4)
Burner Support Legs. See Figure 10.
If the Support Legs are to be installed, simply bend each
of the (4) legs into a "U" shape to match the drawing in
Figure 11. Next, install the legs into the bottom base. Line
up the three tabs on each leg with the slots provided,
using pliers twist each of the tabs slightly in order to
secure the legs to the bottom base.
        
on the VFIL (remote ignition) series burners. These
models include a remote receiver box that must be
placed under the bottom base of the Loft Burner
assembly to shield the receiver batteries from
excessive heat. See Figure 17.
To install the Support Legs, simply bend each of the (4)
legs into a "U" shape to match the drawing in Figure 11.
Next, install the legs into the bottom base. Line up the
three tabs on each leg with the slots provided, using
pliers, twist each of the tabs slightly to secure the legs
to the bottom base. See Figure 10.
Figure 10
Figure 11
BEFORE FULLY INSTALLING THE APPLIANCE
BOTTOM BASE ASSEMBLY
(TOP VIEW)
TWIST TABS SLIGHTY WITH PLIERS
TO LOCK SUPPORTS TO BASE.
BOTTOM BASE ASSEMBLY
(VIEW OF UNDERSIDE)
BEND UP HERE
BEND UP HERE
BEND LEGS
TO MATCH
ANGLES

26532-5-0311Page 16
BEFORE FULLY INSTALLING THE APPLIANCE
Set Up Procedure: (Figures 12a and 12b)
1. Remove top cover assembly as illustrated by Figure 15.
Remove three (3) #8 x 1/2" Phillips Head screws from
the front edge, then gently lift upward on the top cover
assembly to pivot. Shift the top cover to the right and

2. Set top cover assembly to the side until all gas connec-
tions, wiring, base securement and leakage tests are
conducted.
 
Make certain the front edge of the burner sits inside the

4. Anchor holes are provided in the bottom base (or optional
support legs) of the burner housing. After centering the
burner base correctly, mark the hole positions on the

approximately 1-1/2" deep for masonry screws or 1/8"
hole for sheet metal screws.
 
using the screws provided. Refer to Figure 12a or 12b.
6. Reinstall top cover to base with three (3) #8 x 1/2"
screws.
Proper installation of the base is essential to prevent
any movement of the burner and controls during opera-
tion.

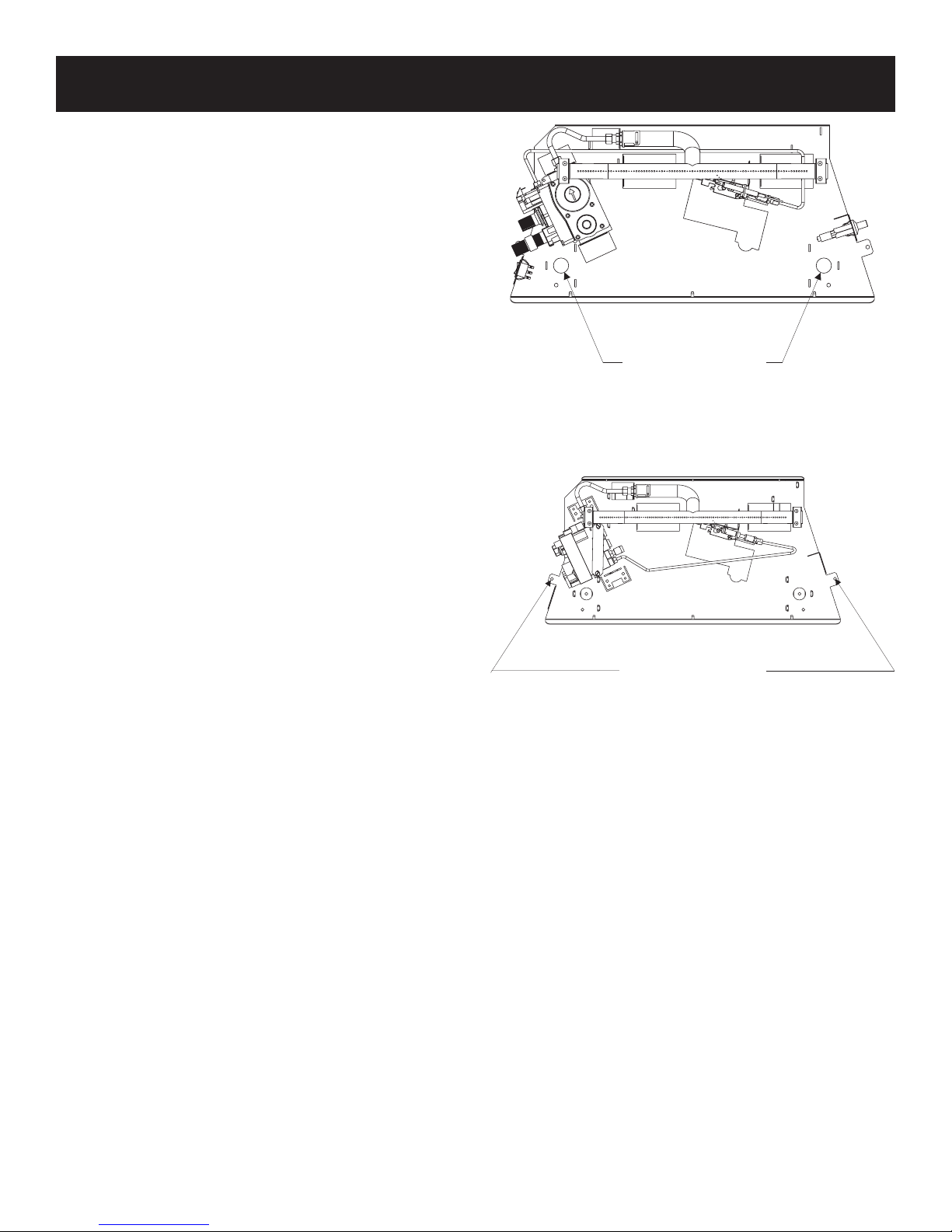

ANCHOR SCREW
LOCATIONS
VFRL Series without support legs installed
Figure 12a
ANCHOR SCREW
LOCATIONS
VFIL Series with support legs installed
Figure 12b

26532-5-0311 Page 17
Check all local codes for requirements, especially for the size
and type of gas supply line required.
Note: 
local codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes,
it is always best to consult your local authority and installation
code.
Note: The gas line may be routed from either side of the

Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity
of the unit. Where none exists, or where its size or location
is not adequate, contact your local authorized installer for
installation or relocation.
Compounds used on threaded joints of gas piping shall be

lines must be checked for leaks by the installer. This should
be done with a soap solution watching for bubbles on all
exposed connections, and if unexposed, a pressure test
should be made.
Never use an exposed ame to check for leaks. Appli-
ance must be disconnected from piping at inlet of control
valve and pipe capped or plugged for pressure test.
Never pressure test with appliance connected; control
valve will sustain damage!
A gas valve and ground joint union should be installed in the
gas line upstream of the gas control to aid in servicing. It is
required by the National Fuel Gas Code that a drip line be
installed near the gas inlet. This should consist of a vertical
length of pipe tee connected into the gas line that is capped
on the bottom in which condensation and foreign particles
may collect.
Figure 13
The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings
— ANS Z21.45 Assembled Flexible Appliance Connectors
of Other Than All-Metal Construction
The above connectors may be used if acceptable by the
authority having jurisdiction. The state of Massachusetts

three feet in length.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8"
(3.175mm) N.P.T. plugged tapping, accessible for test
gauge connection, must be placed immediately upstream
of the gas supply connection to the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
3. The appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5 kPa).
Caution: If the gas pressure exceeds the maximum limits
listed on page 8 of this manual or on the installed gas valve,
it will result in a hazardous condition.
Recommended Gas Pipe Diameter
Pipe Length
Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm
GAS SUPPLY

26532-5-0311Page 18
Flames from the pilot (near the center of the burner) as well

assembly is installed and initially operated.


NOTE:
go up and down.
         
          


burning will result.
During manufacturing, fabricating, and shipping, various
components of this appliance are treated with certain oils,

but may produce annoying smoke and smells as they are
burned off during the initial operation of the appliance,
possibly causing headaches or eye or lung irritation. This is
a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the
burner at the highest setting. Provide maximum ventilation
by opening windows or doors to allow odors to dissipate. Any
odors remaining after this initial break-in will be slight and
will disappear with continued use.
OPERATION INSTRUCTIONS/FLAME APPEARANCE
PILOT ASSEMBLY
PIEZO IGNITOR
SWITCH,
REMOTE OFF/ON
ON/OFF/PILOT
CONTROL KNOB
TOP COVER
ASSEMBLY
NOTE: TOPCOVER ASSEMBLYROTATED
UP FOR ACCESSIBILITY
GAS LINE CONNECTION (3/8 NPT)
NOTE: FLEXLINE, SHUTOFF
VA LV E AND OTHER CONNECTORS
TO BE SUPPLIED BY INSTALLER.
BURNER TUBE
ROTAT ETOP UPWARD
Figure 14
To remove top cover to gain access to gas valve for hookup
of gas line and burner securement, remove three (3) #8 x
1/2" screws at the lower front of the burner assembly, then
rotate the top cover upward.
TOP COVER ASSEMBLY
SCREW (3)
SHIFT RIGHT
Figure 15
To remove the top cover, rotate the cover upward, shift 3/8"
to the right, then rearward to release the locking tabs at the
back of the burner base.

26532-5-0311 Page 19
Thermostats are not approved on vented decorative
appliances.
Label all wires prior to disconnection when servicing controls. Wiring
errors can cause improper and dangerous operation. Verify proper
operation after servicing.
18", 24" and 30" gas appliance (Millivolt) thermopile self powers
the gas valve and does not require 110 volts. See Figure 16 to
provide optional wall switch, thermostat, or remote control. Maximum
length of 20 feet of 16 AWG conductor wires should be used with
all optional switches.
Check System Operation
Millivolt system and all individual components may be checked with
a millivolt meter 0-1000 MV range.
Remote Receiver
Use the following steps to place the remote receiver to the burner
base assembly.
Attention:
1. The remote receiver can not be placed behind or inside the
gas burner assembly. The remote receiver should be located

2. The remote receiver must be placed away from the gas
appliance base. The receiver can be placed under the burner


hearth extension.
Note: Do not let remote control receiver come in contact with the
top of the appliance.

remote control receiver behind the bottom operable louver.
Refer to remote control installation and operating instructions for
more details on remote control.
750 Millivolt System
When you ignite the pilot, the thermocouple produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas
   
operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to buildup to a

Millivolt Control
The valve regulator controls the burner pressure which should be
checked at the pressure test point. Turn captured screw counter
clockwise 2 or 3 turns and then place tubing to pressure gauge over
test point (Use test point “A” closest to control knob). After taking

to re-seal. Do not over torque. Check for gas leaks.
REMOTE/OFF/ON SWITCH
A DISTANCE/FERME/OUVERT
INTERRUPTEUR
IF ANY OF THE ORIGINAL WIRE
AS SUPPLIED WITH THIS UNIT
MUST BE REPLACED, IT MUST BE
REPLACED WITH NUMBER 18, 150°C
WIRE OR ITS EQUIVALENT.
SI UN DES FILS ELECTRIQUES
ORIGINAUX, VENANT DU FABRICANT
AVEC CETTE UNITE, DOIT ETRE
REMPLACE, VOUS DEVEZ LE
REMPLACER AVEC UN FIL
ELECTRIQUE DE NUMERO 18,
150 °CDUL'EQUIVALENT.
THERMOPILE
GAS VALVE
THERMOCOUPLE
(NATURAL)
OFF
ON
REMOTE
(OPTIONAL) REMOTE CONTROL RECEIVER
(FACULTATIVE) CONTROLEEDISTANCE
DU RECEPTEUR
(OPTIONAL) WALL SWITCH
INTERRUPTEUR MURAL
(FACULTATIVE)
(OPTIONAL) THERMOSTAT
(FACULATIVE) THERMOSTAT
WIRING DIAGRAM
GAS VALVE
VALVEDE GAZ
REMOTE/OFF/ON SWITCH
A DISTANCE/OUVERT/
FERME INTERRUPTEUR
REMOTE CONTROL RECEIVER/
THERMOSTAT/ CONTROLE E
DISTANCE DU RECEPTEUR
H N
VEILLEUSE
PILOT
THERMOCOUPLE
(LPG)
WIRING - VFRL MODELS
Figure 16

26532-5-0311Page 20
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the oor because some
gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it, call a qualied service
technician. Force or attempted repair may result in a re
or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Open bottom louver assembly (if applicable).
2. Set REMOTE/OFF/ON switch to OFF.
3. Turn off all electric power to the appliance if service is
to be performed (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF". Do not force.
5. Close bottom louver assembly (if applicable).
1. STOP! Read the safety information above on this page.
2. Open bottom louver assembly (if applicable).
3. Set REMOTE/OFF/ON switch to
"OFF".
4. Turn off all electric power to the
appliance (if applicable).
5. Push in gas control knob slightly
and turn clockwise to
"OFF".
NOTE: Knob cannot be turned from "PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wait ten (10) minutes to clear out
any gas. Then smell for gas, includ-

STOP! Follow "B" in the safety
information above. If you do not
smell gas, go to the next step.
7. Find pilot - Follow metal tube from
gas control. The pilot is located
next to the burner, near the right
side.
8. Turn gas control knob counterclockwise
to "PILOT".
9. Push in control knob all the way and hold in. Repeatedly push
the Piezo Ignitor Button until the pilot is lit. Continue to hold
the control knob in for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
  -
       
supplier.
  
control knob to "OFF" and call your service technician or
gas supplier.
10. Turn gas control knob counterclockwise to "ON".
11. Set REMOTE/OFF/ON switch to desired setting.
12. Turn on all electric power to the appliance (if applicable).
13. Close bottom louver assembly (if applicable).
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
VFRL(18,24,30) LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
