INSTALLATION INSTRUCTIONS
AND
OWNER’S MANUAL
EMPIRE
EMPIRE
Comfort Systems
DIRECT VENT
GAS FIREPLACE HEATER
MODELS
DV25IN33L(N,P)-3
DV25IN73L(N,P)-1
DV(33,35)IN33(N,P)-4
DV(33,35)IN73(N,P)-2
GAS-FIRED
UL FILE NO. MH30033
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not

kit is used.
WARNING: If not installed, operated and maintained
in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
FIREPLACE INSERT
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instructions
        
result causing property damage, personal injury
or loss of life.
 
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
  
  
any phone in your building.
        
neighbor’s phone. Follow the gas supplier’s
instructions.
  

— Installation and service must be performed by a
-
plier.

32227-0-0513Page 2
TABLE OF CONTENTS
Important Safety Information.............................................................................................. 3
Safety Information for Users of LP Gas ............................................................................. 4
Introduction ........................................................................................................................ 5
Specications..................................................................................................................... 6
Fireplace Insert Dimensions .............................................................................................. 7
Mantle and Trim Clearances .............................................................................................. 8
Gas Supply ........................................................................................................................ 9

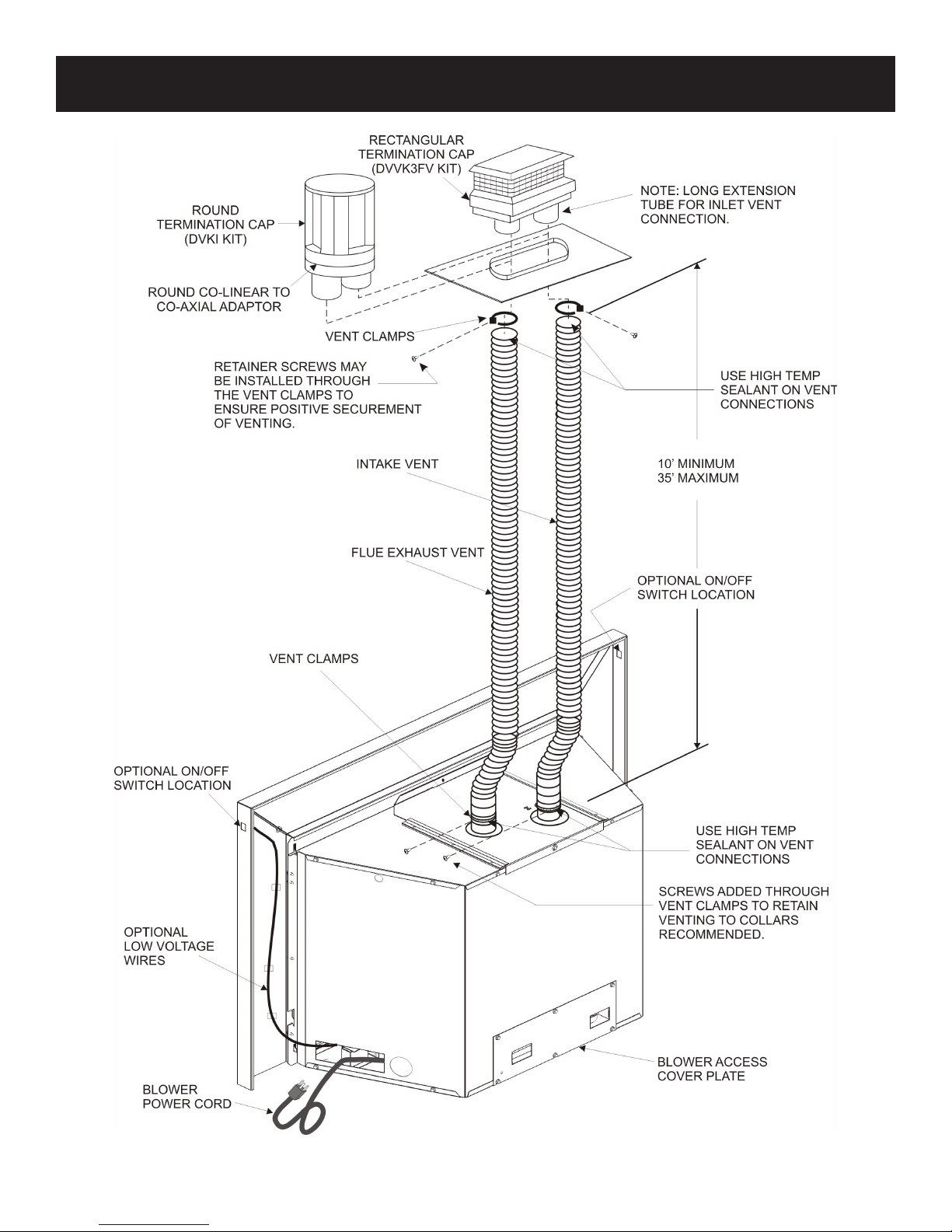

Venting and Installation...............................................................................................10-12
Vertical Termination.......................................................................................................... 13
Alternate ON/OFF Switch Installation .............................................................................. 14
Surround Panel Installation.............................................................................................. 15
Blower Accessory Information.......................................................................................... 16
Log Placement ................................................................................................................. 17
Operating Instructions...................................................................................................... 18
Standing Pilot Lighting Instructions.................................................................................. 19
Standing Pilot Wiring........................................................................................................ 20
Standing Pilot Troubleshooting ........................................................................................ 21
IPI Electronic System Operating Instructions................................................................... 22
IPI Electronic System Wiring Diagram ............................................................................. 23
Intermittent Pilot Lighting Instructions .............................................................................. 24
Intermittent Control System Troubleshooting................................................................... 25
Intermittent Control System Troubleshooting..............................................................26-27
Insert Maintenance and Service ...................................................................................... 28
Decorative Accessories..............................................................................................29 -30
Parts View ....................................................................................................................... 31
Parts List .....................................................................................................................32-33
Master Parts Distributor List............................................................................................. 34
How To Order Repair Parts.............................................................................................. 34
Warranty........................................................................................................................... 35
SECTION PAGE

32227-0-0513 Page 3
DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED
Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.
DANGER: Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal
injury.
 
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
 
they are in the same room as the appliance.
 
placed on or near the appliance.
 
proper operation should be maintained.
       
(wood, coal, paper or cardboard etc.) be used in
this appliance.
        

vapor and liquids.
        
       
appliance.
 
be obstructed in any way.
         
     

 

draperies.
 
the appliance must be replaced prior to operating

service person.
 
 
 Installation and repair should be done by a
QUALIFIED SERVICE PERSON. The appliance
should be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating
air passageways of the appliance be kept clean.
   

      
installation codes and the requirements of the gas
supplier.
  keep the appliance area clear and free from

vapors and liquids.
  examine venting system periodically and replace
damaged parts.
 make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
CAUTION
         
glass. If the glass is cracked or damaged in any way,
it should be replaced only with a complete glass frame
assembly from Empire. See parts list on Pages 32 and
33 for ordering.
 
      
technician to inspect the heater and to replace any
part of the control system and any gas control which
has been under water.
 
an appliance must be replaced prior to operating
the appliance.
IMPORTANT SAFETY INFORMATION

32227-0-0513Page 4
SAFETY INFORMATION FOR USERS OF LP-GAS

and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an ac-
cident. Read them carefully now, then review them point by
point with the members of your household. Someday when
there may not be a minute to lose, everyone’s safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas
because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
• Donotoperateelectricswitches,lightmatches,useyourphone.
Do not do anything that could ignite the gas.
• Geteveryoneoutofthebuilding,vehicle,trailer,orarea.Do
that IMMEDIATELY.
• Closeallgastankorcylindersupplyvalves.
• LP-Gasisheavierthanairandmaysettleinlowareassuch
asbasements.Whenyouhavereasontosuspectagasleak,
keepoutof basements andotherlow areas.Stay out until
reghtersdeclarethemtobesafe.
• Useyourneighbor’sphoneandcallatrainedLP-Gasservice
personandthere department.  Eventhoughyoumay not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, lettheservicemanandreghterscheckforescaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
checkandrelightthegasapplianceforyou.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell

you can smell the odorant in propane.Smokingcandecrease
your ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors in
theareamaskthegasodor.Peoplemaynotsmellthegasodoror
theirmindsareonsomethingelse.Thinkingaboutsmellingagas
odorcanmakeiteasiertosmell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. Forexample,ifthereisanundergroundleak,the
movementofthegasthroughsoilcanltertheodorant.Odorantsin
LP-Gas also are subject to oxidation. This fading can occur if there
isrustinsidethestoragetankorinirongaspipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That will
takesomeoftheodorantoutofthegas,reducingitsodorintensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor.Ifyoudetectanyodor,treatitasaseriousleak.Immediately
go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it to
ndoutwhatthepropaneodorsmellslike.Ifyoususpectthat
yourLP-Gashasaweakorabnormalodor,callyourLP-Gas
Dealer.
• Ifyouarenotqualied,donotlightpilotlights,performservice,
ormakeadjustmentstoappliancesontheLP-Gassystem.If
youarequalied,consciouslythinkabouttheodorofLP-Gas
prior to and while lighting pilot lights or performing service or
makingadjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilotlights,performservice,ormakeadjustmentsinanarea
where the conditions are such that you may not detect the odor
iftherehasbeenaleakofLP-Gas.
• Odorfade,duetooxidationbyrustoradsorptiononwallsof
newcylindersandtanks,ispossible.Therefore,peopleshould
beparticularlyalertandcarefulwhennewtanksorcylinders
areplacedinservice.Odorfadecanoccurinnewtanks,or
reinstalledoldtanks,iftheyarelledandallowedtosettoo
longbeforerelling.Cylindersandtankswhichhavebeenout
of service for a time may develop internal rust which will cause
odor fade. If such conditions are suspected to exist, a periodic
sniff test of the gas is advisable. If you have any question
about the gas odor, call your LP-gas dealer. Aperiodic
sniff test of the LP-gas is a good safety measure under
any condition.
• If,atanytime,youdonotsmelltheLP-Gasodorantandyou
thinkyoushould,assumeyouhavealeak.Thentakethesame
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• Ifyouexperienceacomplete“gasout,”(thecontainerisunder
novaporpressure),turnthetankvalveoffimmediately.Ifthe
container valve is left on, the container may draw in some air
throughopeningssuchaspilotlightorices.Ifthisoccurs,some
new internal rusting could occur. If the valve is left open, then
treatthecontainerasanewtank.Alwaysbesureyourcon-
tainer is under vapor pressure by turning it off at the container
beforeitgoescompletelyemptyorhavingitrelledbeforeitis
completely empty.

32227-0-0513 Page 5
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycardsupplied
withthereplace.
3. Installer should show owner how to start and operate the
replace.
Thisdirect ventgas replaceheater isdesigned tooperatewith
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
WARNING
This unit is not for use with solid fuels

This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation, to ensure
compliance with local codes-including permits and inspections.
Thereplaceinsert,wheninstalled,mustbeelectricallygroundedin
accordance with local codes or, in absence of local codes, with the
National Electric Code ANSI/NFPA 70 or Canadian Electric code,
CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.

Installationandreplacementofgaspiping,gasutilizationequipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm“qualiedagency”
meansanyindividual,rm,corporationorcompanywhicheitherin
person or through a representative is engaged in and is responsible for
(a)theinstallationorreplacementofgaspipingor(b)theconnection,
installation,repairorservicingofequipment,whoisexperiencedin
suchwork,familiarwithallprecautionsrequiredandhascomplied
withalltherequirementsoftheauthorityhavingjurisdiction.
State of Massachusetts: The installation must be made by
alicensedplumberorgastterintheCommonwealthof
Massachusetts.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1 in
Canada. *Available from the American National Standards Institute,
Inc. 11 West 42nd St., New York, N.Y. 10036.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
        
        
carbon monoxide poisoning
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
Wheninstallingthis unit atanelevation above2000feet (in the
United States) it may be necessary to decrease the input rating by
changingtheexisting burnerorice toasmaller size.Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
thisgeneralrulemaynotapply.Checkwithlocalgasutilityforproper
oricesizeidentication.
Canadian High Altitude
Altitude:0-4500feet(0-1370m)
Wheninstallingthisunitatanelevationabove4500feet(inCanada),
checkwithlocalauthorities.
Consult your local gas utility for assistance in determining the proper
oriceforlocation.
Preparation
Thisdirectventgasreplaceinsertanditscomponentsaretested
and safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
checkglasscondition.Donotinstallunitwithdamaged,incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximumbenetandsafety.Failuretofollowthemwillvoidyour
warrantyandmaypresentarehazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged replace insert or vent system
component.
• Modicationofthereplaceinsertordirectventsystem.
• InstallationotherthanasinstructedbyEmpireComfortSystems,
Inc.
• Improperpositioningofthelogsorglassdoorassembly.
• Installationand/oruseofanycomponentpartnotmanufactured
or approved by manufacturer.
• Thisappliancecomesstandardwitha120VACcordassembly
to accommodate control options and the blower accessory. An
outletboxmaybeinstalledinabottombackcorneroftheexisting
solidfuelmasonryorfactorybuiltreplacetopluginthecord
assembly, or the supplied power cord may be routed out onto
the hearth to a nearby outlet.
• A 120 VAC circuit fort this product must be protected with
ground-fault circuit-interrupter protection, in compliance with the
applicable electrical codes, when it is installed in locations such
asinbathroomsornearsinks.
• Lowvoltageand120VACvoltagecannotbesharedwithinthe
same wall box.
• Oncetheapplianceinstallationiscompleted,theinstallershould
checkthatcontrolcompartmentwiringissecuredinamanner
as to not interfere with door latches, valve controls, or the louver
assembly.
INTRODUCTION

32227-0-0513Page 6
SPECIFICATIONS
Surround
 Description
S253BL ContemporaryBlackSurroundforDV25IN,6x
3 inch
S333BL ContemporaryBlackSurroundforDV33IN,6x
3 inch
S353BL ContemporaryBlackSurroundforDV35IN,6x
3 inch
S256BL ContemporaryBlackSurroundforDV25IN,6x
6 inch
S336BL ContemporaryBlackSurroundforDV33IN,6x
6 inch
S356BL ContemporaryBlackSurroundforDV35IN,6x
6 inch
DS25661BL
3-sidedBlackSurroundforDV25IN,6x6inch-
RequiredtouseanyDecorativeDoors,Fronts,
or Contemporary Frames
DS33661BL
3-sidedBlackSurroundforDV33IN,6x6inch-
RequiredtouseanyDecorativeDoors,Fronts,
or Contemporary Frames
DS35661BL
3-sidedBlackSurroundforDV33IN,6x6inch-
RequiredtouseanyDecorativeDoors,Fronts,
or Contemporary Frames
SC256BL Traditional Cast Iron Surround for DV25IN, 6 x
6 inch
SC336BL Traditional Cast Iron Surround for DV33IN, 6 x
6 inch
SC356BL Traditional Cast Iron Surround for DV35IN, 6 x
6 inch
Surround
Cover Description
C253BL Surround Bottom Cover for DV25IN for S253BL
C333BL Surround Bottom Cover for DV33IN for S333BL
C353BL Surround Bottom Cover for DV35IN for S353BL
C256BL Surround Bottom Cover for DV25IN for S256BL
C336BL Surround Bottom Cover for DV33IN for S336BL
C356BL Surround Bottom Cover for DV35IN for S356BL
Shroud Description
SH1BL Shroud,Black(Forreplaceopeningsupto48”x36”
-Requiresasurround)
Firescreen Description
DVFS25TBL Firescreen accessory for DV25IN series
DVFS25TBL Firescreen accessory for DV33IN series
DVFS25TBL Firescreen accessory for DV35IN series
For additional information on decorative accessories, refer to
pages 29 and 30.
DV25IN(3,7)3L MODELS LP Nat
Input Btu/hr Maximum 25,000 25,000
Input Btu/hr Minimum 17,000 17,000
KWH(Maximum) 7.3 7.3
KWH(Minimum) 5 5
Orice #53(0.0596) #42(0.0935)
Air Shutter Opening Full Open 1/8”
DV33IN(3,7)3L MODELS LP Nat
Input Btu/hr Maximum 33,000 33,000
Input Btu/hr Minimum 25,000 23,000
KWH(Maximum) 9.57 9.57
KWH(Minimum) 7.30 6.67
Orice 1.55 mm #36(0.1065)
Air Shutter Opening Full Open 1/4”
DV35IN(3,7)3L MODELS LP Nat
Input Btu/hr Maximum 35,000 35,000
Input Btu/hr Minimum 27,000 25,000
KWH(Maximum) 10.15 10.15
KWH(Minimum) 7.83 7.30
Orice 1.65mm(.065) #35(.110)
Air Shutter Opening Full Open 3/16”
Venting
 Description Contents
DVKI Vertical Vent
Kit171/2’
Onepieceof35’FlexVent(split
for171/2’ventrun),Round
Cap, Flashing, connectors, and
clamps. Recommended when
installing to an existing round
replacechimneypipe.
DVVK3FV Vertical Vent
Kit25’
Twopiecesof25’FlexVent,Rect-
angle Cap, Flashing, connectors,
and clamps Recommended when
installingtoasquareorrectangu-
larclayue.
DVK35 Vent
Extension Kit
35’exventextensionsection
with 2 connectors and 4 clamps
NOTICE: Wheninstallingventcaps,speciallocallymadeash-
ingsmayberequiredtoproperlysealtheventsystemtothe
existing chimney termination.
Remote Control
Accessories
Description
FRBC Millivolt Battery Remote ON/OFF
FRBTC Millivolt Battery Remote Thermostat
TRW Millivolt WIRELESS Wall Thermostat
TMV Millivolt Reed Switch Wall Thermostat
FWS-1 Millivolt Wall Switch

32227-0-0513 Page 7
FIREPLACE INSERT DIMENSIONS
Figure 1
Whenplanningareplaceinsertinstallation,it’snecessaryto
determine:
• Theventsystemcongurationtobeused.
• Gassupplypiping.
• Whetheroptionalaccessories-devicessuchasawallswitch
or remote control - are desired.
• Electricalsupplyrequirementsforblower.
• Properopeningsizeofreplacerequiredforinstallationof
thereplaceinsert.
DV FIREPLACE INSERT DIMENSIONS
MODEL A B C D E F G H I J K L M N
DV25IN 19-3/4” 28 14-1/2” 11-1/8” 25-1/4” 12-3/4” 17” 18-5/16” 27” 6-3/4” 9” 20” 25-5/8” 40”
DV33IN 22-3/4” 31 16 14-1/8” 28-1/4” 14-1/4” 18-3/4” 21-5/16” 30” 8-1/4” 10-1/2” 21-1/2” 28-5/8” 43”
DV35IN 24-3/4” 34 16 16-1/8” 31-1/4” 14-1/4” 21-3/4” 23-5/16” 33” 8-1/4” 10-1/2” 23” 30-5/8” 46”
A
D
C
B
Figure 2

MINIMUM FIREPLACE OPENING DIMENSIONS
MODEL
NO.
HEIGHT
A*
FRONT
WIDTH
B
DEPTH
C
REAR
WIDTH
D
DV25IN 18-3/8” 27-1/2” 12-3/4” 17-1/4”
DV33IN 21-3/8” 30-1/2” 14-1/4” 19”
DV35IN 23-3/8” 33-1/2” 14-1/4” 22”
*NOTICE:Ifthereplacelinteliswiderthan8”(203mm),the
heightofthereplaceopeningmustbeincreasedafewinchesto
allowforagradualoffsetintheexhaustand/orintakeventpipes.

32227-0-0513Page 8
MANTLE AND TRIM CLEARANCES
Figure 3
Distance from
Face of Fireplace
Height Above Top of Insert
A 10” N 23”
B 9-1/4” O 22”
C 8-3/4” P 21”
D 8” Q 20”
E 7-1/4” R 19”
F 6-1/2” S 18”
G 6” T 17”
H 5-1/4” U 16”
I 4-1/2” V 15”
J 3-3/4” W 14”
K 3” X 13”
L 2-1/2” Y 12”
M 1-3/4” Z 11”
Figure 4
Combustible Material
Nogreetingcards,stockingsorornamentationofanytypeshould
beplacedonorattachedtothereplace.Theowofheatcan
ignite combustibles.

32227-0-0513 Page 9
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. The insert has a Flexline with shutoff valve located on
the right side when facing the unit. See Figures 5 and 6. Consult
the current National Fuel Gas Code, ANSI Z223.1 CAN/CGA-B149
(.1or.2)installationcode.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10ft
0-3m
1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40ft
4-12m
1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100ft
13-30m
1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150ft
31-46m
3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
NOTICE:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
NOTICE:Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANS Z21.45Assembled FlexibleAppliance Connectors of Other
Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Figure 5
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
LP(Propane) 10.8" 11.0" 14.0"
ManifoldPressure(inchesw.c.)
Normal(HI)
Natural Gas 3.5"
LP(Propane) 10.0"
Installing the Main Gas Cock
Eachapplianceshouldhaveitsownmanualgascock.
Amanualmaingascockshouldbelocatedinthevicinityoftheunit.
Wherenoneexists,orwhereitssizeorlocationisnotadequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checkedforleaksbytheinstaller.Thisshouldbedonewithasoap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.

be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with

NOTICE: Themillivoltgascontrolsareequippedwithacaptured
screw type pressure test point, therefore it is not necessary to
provide a 1/8” test point up stream of the control.
Whenusingcopperorexconnectoruseonlyapprovedttings.
Theapplianceandit’sindividualshutoffvalvemustbedisconnected
from supply piping system during any pressure testing of that system
attestpressuresinexcessof1/2psig(3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testingofthegassupplypipingsystemattestpressuresequalto
orlessthan1/2psig(3.5kPa).
Attention! If one of the procedures results in pressures in excess of
1/2psig(14”w.c.)(3.5kPa)onthereplacegasvalve,itwillresult
in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressureofapproximately3.5”w.c.(.871kPa)atthevalveoutlet
with the inlet pressure to the valve from a minimum of 4.5” w.c.
(1.120kPa)forthepurposeofinputadjustmenttoamaximumof
14.0”w.c.(3.484kPa).Propanegasmodelswillhaveamanifold
pressure approximately 10.0” w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8” w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0”w.c.(3.484kPa).
Figure 6

32227-0-0513Page 10
VENTING AND INSTALLATION
1. Beforebeginning,removeglassdoorandlog packagefrom
unit.Alsochecktomakesurethereisnohiddendamageto
theunit.Takeaminuteandplanoutthegas,ventingandelec-
tricalroute.Itisbesttostartwiththegaslinerst,followedby
thechimneylinerandelectricalsupplyrequirements.
2. Minimum replace opening requirements are shown in
Figure 2ofthisinstallationmanual.Therebrick(refractory),
glass doors, screen rails, screen mesh and log grates can be
removed from a factorybuiltreplace in order to gain mini-
mum gas insert opening requirements prior to installing the
gasreplaceinsert.
3. This insert requires no hearth extensions. Combustible ma-
terial on the oor may be installed up to the insert. Do not
obstructthelowerlouveroftheinsert.Theoriginalreplace
cannot be returned to solid fuel in this condition.
4. Themetaloor of thesolidfuel reboxmaybe removed to
facilitate the installation of the insert. CLEARANCE TO COM-
BUSTIBLE MATERIAL UNDER THE INSERT IS 1/4”. YOU
MUST USE THE LEVELING LEGS TO RAISE THE INSERT
A MINIMUM OF 1/4” IF THE INSERT IS TO SIT ON COM-
BUSTIBLE MATERIAL. The side walls and top structure of the
rebox may not be altered with the exception of removable
bafesanddampers.Smokeshields,shelvesandbafesmay
be removed if attached with mechanical fasteners. The origi-
nalreplacecannotbereturnedtosolidfuelinthiscondition.
5. The original specied clearances of a factory-built re-
place must be maintained, with the exception of the hearth.
Clearances on a masonry replace must be maintained
at 12” from the opening for combustible projections over
1 1/2”. Clearances for combustible projections under
1 1/2” must be maintained at 6” from the opening per
NFPA211. Plan the surround size accordingly. A surround
must be used with the insert. UNDER NO CIRCUMSTANCE
CAN COMBUSTIBLE MATERIAL BE PLACED BEHIND THE
SURROUND!
6. The insert surround is tested and approved with this gas in-
sert and may cover existing air circulation vents or grills on the
solidfuelreplaceitisinstalledinto.Ifthesurrounddoesnot
cover the entire ventilation grill surface, the exposed grill area
should be left open.
NOTICE: Surround panel kits have been tested and approved
to cover existing air circulation vents or grills.
NOTICE

WARNING
Only the surround as supplied may be used to cover inte-
-
ponents such as shrouds, sheet metal plates, etc. may be
used to seal off vents.
7. To assure top performance, safety and efciency, inserts
mustbeinstalledwithanapproveduelinerasperCAN/CGA
B-149 or National Fuel Code ANSI Z223 and these instruc-
tions.
NOTICE: The following statement is also provided on a sepa-
rate label plate in the instruction packet. Prior to installation

-
erence as required.
WARNING

only and cannot be used for burning wood or solid fuels un-

has been reapproved by the authority having jurisdiction.
8. Thesolidfuelreplaces’uedampermustbefullylockedin
theopenpositionorremovedforinstallationofthegasre-
place insert.
9. Thereplaceandreplacechimneymustbecleanedandin
goodworkingorderandconstructedofnoncombustiblemate-
rials.
10. Makesurethatallchimneycleanoutstproperlysoaircannot
leakintothechimney.
11. Install the insert without the surround panels attached and
makeallgas,venting,andelectricalconnections.
12. To complete the installation, install surround panel assembly.
Please refer to instructions included with the surround panel
kit.
CAUTION
Ensure there are no obstructions to side air passages of
decorative trim once installed on insert.
INSTALLING THE VENT SYSTEM
Vent System Installation Precautions
Before starting installation of vent kits, the installer should read
these instructions and the Vent Kit Instructions to ensure that a
proper vent installation is completed. Consult your local Building
Codes before beginning the Installation.
WARNING
THIS GAS INSERT AND VENT ASSEMBLY MUST BE
VENTED DIRECTLY TO THE OUTSIDE AND MUST NEVER BE
ATTACHED TO A CHIMNEY SERVING A SEPARATE SOLID
FUEL BURNING APPLIANCE. EACH GAS APPLIANCE
MUST USE A SEPARATE VENT SYSTEM. COMMON VENT
SYSTEMS ARE PROHIBITED.

32227-0-0513 Page 11
VENTING AND INSTALLATION
Vent System Approvals
Figure 8 shows the vent termination caps and systems approved
for use with these models. Approved vent system terminations are
labeledforidentication.3-inchdiameterlistedexiblealuminum
or stainless steel gas vent is used for both the incoming combustion
air and exhaust vent pipes. NO OTHER VENTING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation instructions
areincludedwitheachventterminationkitandshouldbeusedin
conjunction with this manual.

The vent system on this model CANNOT be terminated horizontally.
Vertical Venting
The inlet and exhaust vent pipes MUST be connected to the proper
collars on the unit AND to the termination cap or the unit will not
operate.Theintakeventcollarisidentiedbyastamped“I”onthe
top collar sliding vent plate assembly.
WARNING
MAJOR U.S. BUILDING CODES SPECIFY MINIMUM
CHIMNEY AND/OR VENT HEIGHT ABOVE THE ROOF TOP.
THESE MINIMUM HEIGHTS ARE NECESSARY IN THE
INTEREST OF SAFETY. SEE FIGURES 8 THROUGH 10 FOR
MINIMUM HEIGHTS, PROVIDED THE TERMINATION CAP IS
AT LEAST 2-FEET FROM A VERTICAL WALL AND 2-FEET
BELOW A HORIZONTAL OVERHANG.
Note: This also pertains to vertical vent systems installed on the
outside of the building.
WARNING
THE EXHAUST PIPE MUST ONLY BE CONNECTED TO THE
EXHAUST STARTING COLLAR OF THE UNIT AND TO THE
EXHAUST COLLAR OF THE TERMINATION CAP.
THE INLET AIR PIPE MUST ONLY BE CONNECTED TO THE
INLET AIR STARTING COLLAR OF THE UNIT AND TO THE
INLET AIR COLLAR OF THE TERMINATION CAP. BOTH THE
INLET VENT AND THE FLUE VENT MUST BE CONNECTED
FROM THE INSERT TO THE VENT TERMINATION CAP.
NOTICE: The minimum vertical vent rise is 10 feet and the
maximum vertical vent rise is 35 feet. These dimensions are
measured from the starting collars of the unit to the end of the last
section of vent pipe. See Figure 8.
NOTICE: The damper of the masonry chimney may need to be
removedtoallowinstallationoftheexible-ventpipe.
When installing into a zero clearance, factory built wood-burning
replace,theuseoftheDVKIRoundVerticalTerminationKitshould
allow you to mount the vent adaptor and cap to the exposed round
chimney pipe easily.
Connecting the Vent Pipe
CAUTION
Sharp edges. Always use gloves when installing.
Installthe3-inchexibleventpipesdownthroughthechimney.
Attach the pipe-to-cap adaptor to the termination cap and the top of
theexibleventpipe,theninstallthecaptothetopofthechimney.
Remove the vent slide plate assembly from the top of the insert.
See Figure 7. Trim off excess venting then attach and secure
thebottomends of theexpipes tothestarting collars withthe
adjustable band clamps provided. Slide the gas insert into place,
andpositionanyexcessexventpipebackupintothechimney.
Begininstallationoftheinsertintothereplaceopening.Alignthe
vent slide plate assembly with the guides located on top of the
insert.Worktheinsertinchbyinchintothereplacecavityasyou
pull forward on the vent slide plate assembly. Do not use excessive
force on the vent slide plate. Once the vent slide plate is close to
seating,install theblackbuttonhead5/16-18x21/2”longbolt
throughthecenterholeoftheinserttopange,andintothevent
slideplatenut.Usingthehexkeywrenchprovided,tightenthebolt
until the vent slide plate is seated forward completely.
Positioning, Leveling, and Securing Insert
1. Place the insert into position.
NOTICE:Thefrontangesoftheinsert(withoutsurroundpanels)
shouldbesetatapproximately1”(inch)infrontofthefaceofthe
replace.
2. Leveltheinsertfromsidetosideandfronttoback.
3. If necessary, use the leveling bolts included in the instruction
pack.Screwthelegsintothenutsinstalledinthebottomof
the insert. Turn legs in until insert is level.
Note: If desired, it is acceptable to attach metal strapping or
brackets(notprovided)fromthereplacecavitytotheinsert
outer jacket to secure the Fireplace Insert to the replace
hearth or opening.
CAUTION
TO AVOID DOWNDRAFTS AND/OR COLD AIR PROBLEMS,
IT IS RECOMMENDED TO SEAL OFF THE AREA BETWEEN
THE TERMINATION CAP AND THE TOP OF THE SOLID-
FUEL CHIMNEY OPENING INTO WHICH THE VENT CAP
HAS BEEN INSTALLED.
Figure 7

32227-0-0513Page 12
Figure 8
VENTING AND INSTALLATION

32227-0-0513 Page 13
VERTICAL TERMINATION
Determining Minimum Vent Height Above the Roof.
WARNING
Major U.S. building codes specify minimum chimney and/or
vent height above the roof top. These minimum heights are


ROOF PITCH H(Min.)
Flat to 6/12 12"(305mm)
6/12 to 7/12 15"(381mm)
Over 7/12 to 8/12 18"(457mm)
Over 8/12 to 16/12 24"(610mm)
Over 16/12 to 21/12 36"(914mm)

Note that for steep roof pitches, the vent height must be increased.
In high wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft, or
down-drafting. In these cases, increasing the vent height may solve
this problem.
Figure 10
When terminating the vent cap near an exterior wall or overhang,
maintain minimum clearances as shown in Figure 10.
Vertical Through the Roof Applications
The Gas Fireplace Insert has been approved for:
a) Verticalinstallationsupto35feetinheight(topofinserttocap).
b) Twosetsof45degreeelbowoffsets(bendsinexvent)within
the vertical installation. From 0 to a maximum of 8 ft. of vent
pipe can be used between elbows.
c) Wallstrapsmustbeusedtosupportoffsetpipeevery4’.
Thisapplicationwillrequirethatyourstdeterminetheroofpitch
and use the appropriate venting components.
General Maintenance
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect are as follows:
1. Checkareasoftheventingsystemwhichareexposedtothe
elements for corrosion. These will appear as rust spots or
streaksand,inextremecases,holes.Thesecomponentsshould
immediately be replaced.
2. Removethecapandshineaashlightdownthevent.Remove
any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
dropletsformingintheexventingandsubsequentlydripping
out at joints or seams. Condensate can cause corrosion of caps,
pipeandttings.Itmaybecausedbyhavingexcessivelateral
runs, or having exterior portions of the system exposed to cold
weather.
4. Inspectjointstoverifythatnopipesectionsorttingshavebeen
disturbedand,consequently,loosened.Also,checkmechanical
supports,suchaswallstrapsorplumbers’tapeforrigidity.

32227-0-0513Page 14
ALTERNATE ON/OFF SWITCH INSTALLATION
WIRING THE FIREPLACE
NOTICE: Electrical wiring must be installed by a licensed
electrician.
CAUTION
DISCONNECT REMOTE CONTROLS IF YOU ARE ABSENT
FOR EXTENDED TIME PERIODS. THIS WILL PREVENT AC-
CIDENTAL FIREPLACE OPERATION.
Installation of Alternate Surround Panel ON/OFF Switch
An ON/OFF switch and wire assembly are provided. They are in-
cludedintheinstructionpacket.
Do not cut wire or insulation on metal edges.
NOTICE: Refer to surround panel installation section on page
15 for additional information on attachment.
Contemporary Surrounds
1. Find the coiled low voltage wire assembly and ON/OFF switch
locatedintheinstructionpacket.
2. Millivolt Valve - Attach the ag terminal ends to the
“TH/TP” and “TH” terminals on the front terminal block
of the gas valve. See Figure 13.
“IP” Valve-Locatethetwo5-1/2”longblackwiresconnected
totheON/OFF switch. Disconnectthesetwo blackwiresat
thegreenandwhitewireconnections.Attachtheagtermi-
nals(the lowvoltagewireassemblyfoundintheInstruction
Packet)tothegreenandwhitewireconnections.
3. Runthelowvoltagealternateswitchwiresupthebackofthe
right or left surround panel. Then secure the wires with wire
clips provided. See Figure 11.
Figure 11
Insert ON/OFF switch into side panel then attach wire assem-
bly from valve terminals.
4. Removetheswitchknockoutonthesidesurroundpanel,then
install the ON/OFF switch.
5. Connect the low voltage wires from the gas valve to the
ON/OFF switch.
6. Attach the surround panel assembly to the insert. Place the
surround panel assembly against the face of the insert and
align the lower retaining tabs with the notches on the insert
sides. Lift the surround panel assembly slightly until the bot-
tomreturnange(toppanel)ispositionedoverthetopange
on the insert. This secures the surround panel assembly to
the insert without screws.
Traditional Cast Iron Surrounds
1. Find the coiled low voltage wire assembly and ON/OFF switch
locatedintheinstructionpacket.
2. Attachtheagterminalendstothe“TH/TP”and“TH”termi-
nalsonthefrontterminalblockofthegasvalve.See Figure
13.
Figure 12
NOTICE: For right side leg installation, reverse switch posi-
tion in bracket.
3. Runthelowvoltagealternateswitchwiresupthebackofthe
right or left cast surround leg. Then secure them with the wire
clips provided.
4. InstalltheswitchbracketwithscrewsasshowninFigure 12
tothebackofthecastsurroundleg.
5. Install ON/OFF switch, and connect low-voltage wires from
gas valve.
6. Attach cast surround panel assembly to the insert. Place the
cast surround assembly against the face of the insert and
align the lower retaining tabs with the notches on the insert
sides. Lift the cast surround assembly slightly until the bottom
returnange(toppanel)ispositionedoverthetopangeon
the insert. This secures the cast surround assembly to the
insert without screws.
Figure 13

32227-0-0513 Page 15
SURROUND PANEL INSTALLATION
INSTALLING THE TRIM SURROUNDS
Combustible materials MUST NEVER overlap onto the front face.
WARNING
WHEN FINISHING THE FIREPLACE INSERT, NEVER OB-
STRUCT OR MODIFY THE AIR INLET/OUTLET LOUVERS
ON THE FIREPLACE INSERT IN ANY MANNER.
Figure 14
Figure 15

32227-0-0513Page 16
BLOWER ACCESSORY INFORMATION
The appliance, when installed must be electrically connect-
ed and grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1 Cana-
dian Electrical Code.
U.S. Installations, follow local codes and the National Elec-
trical Code, ANSI/NFPA No. 70.
Should this blower require servicing, the power supply
must be disconnected. For rewiring of any replacement
components, refer to Figures 16 and 17 and the parts list
on pages 32 and 33.
BLOWER ACCESSORY
Operation
Thereplaceinsertisequippedwithafactoryinstalledblowerthat
includesafancontrolswitch,plusarheostat(speedcontrol).
Thespeedcontrolknobislocatedbehindthelowerlouveratthe
right side of the insert.
From a cold start, the temperature activated fan control switch will
normallytake5-10minutestoheatupandenergizetheblower.
Once the blower is energized, adjust the blower speed control as
desired, then replace the lower louver.
When the insert is shut off, it may take 30-40 minutes for  the
heatedunittodissipate(cooldown)enoughfortheblowertoshut
off automatically. NOTICE: The blower shut off times will vary on
blower speed and BTU input level setting control by adjustment of
theHI/LOknoblocatedonthegasvalve.
Blower removal instructions
Servicing or removal of the blower system must be performed by
aqualiedserviceperson.
Iftheblowerassembly(Item45,page33)mustbereplaced,the
following steps are recommended for removal:
1. Turn off gas and disconnect the electrical supply.
2. Remove the glass door assembly.
3. Remove the log set.
4. Remove the front surround panel assembly by lifting upward
and outward to detach.
5. Remove the 5/16” x 2-1/2” center bolt that retains the Vent
Slide plate assembly.
6. Removetheinsertfromthereplacecavitybypullingforward
on the insert, and at the same time, sliding the vent plate
rearward until disengaged.
7. As the insert is moved outward, the gas line may need to be
disconnectedattheinsertshutoffvalve.Ifso,makesurethe
main gas line is shut off that supplies gas to the insert.
8. Once the insert is pulled out, the blower assembly can be
removedbylocatingthe(6)screwsonthelowerbackofthe
insert that retains the blower base plate.
9. When the screws are removed, gently pull the blower
assembly outward.
10. Disconnect the two ¼” wire terminals from the motor.
11. Removethe(4)screwsthatretaintheblowerassemblytothe
base plate, and set blower aside.
12. Install the replacement blower, and re-install the insert by
reversing above steps.
Figure 16
Figure 17

32227-0-0513 Page 17
LOG PLACEMENT
Before you begin: This replace insert is supplied with a set of
sevenceramicberlogs.Donothandletheselogswithyourbare
hands.Alwayswearglovestopreventskinirritationfromceramic
bers.Afterhandlinglogs,washyourhandsgentlywithsoapand
watertoremoveanytracesofber.
The positioning of logs is critical to safe and clean operation of this
replace.Sootingandotherproblemsmayresultifthelogsarenot
properlyandrmlypositionedinthereplace.RefertoFigure 18 and
and corresponding WARNING when completing follow-
ing log placement steps.
1. Remove top louver, grasp louver, lift and pull forward.
2. Lower bottom louver, lift and hinge forward.
3. Release two glass frame spring clamps at bottom of the glass
door assembly.
4. Swing the bottom of the glass door outward approximately
10-15 degrees, then grasping the edges, gently lift upward to
remove the door assembly, and set aside.
5. Remove the foam packaging that contains the log set from
insidetherebox.
6. Carefullyunpackthelogsandtwigs.Spreadthemoutforeasy
identication.
7. Begin with the front left and front right logs. Place these so that
they are centered left to right on the front log support ledge.
Theatbottomswillrestontopofthefrontlogsupportledge,
and they must be position all the way forward and touching
thebackofthegratetangs.Twosmalltabsonthelogsupport
keepthetwofrontlogsfromshiftingrearward.Important:The
frontrightloghasasmallknotasshowninFigure18.
8. Next install the large rear log. It will be centered left to right
andplacedall the waytothe backofthe rebox, ontopof
the rear log support. NOTICE: DV25IN models incorporate
twosmalltabsintherearlogsupportthatkeepthebacklog
positioned correctly. DV33IN models have one small tab in
therearlogsupporttoensurethebacklog isinthecorrect
position. The DV35IN models will have two tabs bent forward
in the rear log support to ensure proper left to right positioning
ofthelog,plusonesmalltabnearthecenterthatkeepsthe
backlogfromshiftingforward.
9. Locate the center left log. It will have two locator pin holes
onthebottomat surface.Alignthetwoholes with the two
left pins on the burner assembly. Make sure this log is not
raisedupoffoftheburner.Theat bottomsurfacemustbe
completelyrestingatonthetopoftheburnersurface.
10. Install the center right log. It will also have two locator pin
holesonthebottomat surface.Alignthesetwo holeswith
thetworightpinsontheburnerassembly.Makesurethislog
isnotraisedupoffoftheburner.Theatbottomsurfacemust
becompletelyrestingatonthetopoftheburnersurface.
11. Add the right twig by placing the locator pin hole on the bottom
of the twig with the pin on top of the center right log. The tip of
the right twig will rest on top of the rear log near the right end.
12. Add the left twig by placing the locator pin hole on the bottom
of the twig with the pin on top of the center left log. The long
branch of the left twig will rest in a small groove on top of the
rearlog.Note:Theatsideofthetwigwillfacetheleftside
liner. This groove is near the left end of the rear log.
13. Replacetheglassdoorassemblyontothereplaceinsert.
14. Secure the glass door with the two spring clamps located
undertherebox.
15. Re-install the upper and lower louver assemblies by aligning
theendtabswiththeslotsprovidedintheouterfaceanges
of the insert.
CAUTION
Decorative Rock is not included with the Fireplace Insert,
however it may be purchased separately and placed only on the
reboxoor.DoNotplacedecorativerockorrockwoolonthe
logs or burner assembly.
Figure 18
WARNING
Failure to position the parts in accordance with this dia-

this appliance may result in property damage or personal
injury.

NOTICE:Center the front two logs on the front log support ledge.
Thenmakesuretheyarepositionedallthewayforwardandtouch-
ingthebackedgesofthegratetanguprights.Thebottomofthe
twofrontlogsareatandmustsitontopofthefrontlogsupport
ledge.

32227-0-0513Page 18
OPERATING INSTRUCTIONS
The OWNER should carefully read and follow these operating
instructions at all times. Lower the door assembly to view the gas
controlsforthereplace.
Initial Lighting
Upon completing the gas line or turning the gas valve on after it has
been in the “OFF” position, a small amount of air will be in the lines.
Whenrstlightingthereplace,itwilltakeafewminutesforthe
lines to purge themselves of this air. Once the purging is complete,
thereplacewilllightandoperatesatisfactorily.
Subsequentlightingsoftheappliancewillnotrequiresuchpurging
if the gas valve is not turned to “OFF.”
Pilot Flame (Figure 21)
Thethermopile/thermocouple(standingpilot)tipsshouldbecovered
withame.
Figure 21
750 Millivolt System
Thestanding pilot(750millivolt system)is acontinuousburning
pilot. The pilot remains ON even when the main burner is OFF.
Whenyouignitethepilot,thethermopileproducesmillivolts(electrical
current) which energizes the magnet in the gas valve. After 30
seconds to 1 minute time period you can release the gas control
knobandthepilotwillstayON.Allowyourpilotametooperatean
additionalone(1)totwo(2)minutesbeforeyouturnthegascontrol
knobfromthePILOTpositiontotheONposition.Thistimeperiod
allows the millivolts (electrical current) to build-up to a sufcient
level allowing the gas control to operate properly.
1. Follow the SAFETY and LIGHTING INSTRUCTIONS for
standing pilot controls found in this manual and on labels found
in control compartment behind the door assembly.
WARNING
During the initial purging and subsequent lightings, never
allow the gas valve control knob to remain depressed in the

least once every second.
2. Duringtheoperatingseason,leavethecontrolvalveknobin
the“ON”position.Thiswillallowthepilotametoremainlit.
TurntheburnerameonoroffwiththereplaceREMOTE/
OFF/ON switch, wall switch or remote controls.
NOTICE:The gas control valve allows you to increase or decrease
theheightofthemainburnerame.Thecontrolvalvehasapressure
regulator with a knob as shown in Figure 20. Rotate the knob
clockwiseto“HI”toincreasetheameheightandcounterclockwise
to“LO”todecreasetheameheight.
3. When the operating season is over, turn the REMOTE/OFF/ON
switch to “OFF” and the control valve to “OFF”. The system,
including the pilot light, will be shut down.
Figure 20

32227-0-0513 Page 19
1. Stop! Read the safety information above.
2. Set REMOTE/OFF/ON switch to OFF.
3. Turnoffallelectricpowertotheappliance(ifapplicable).
4. Lower bottom louver assembly.
5. Pushingascontrolknobslightlyandturnclockwise
to "OFF."
Note:Knob cannot be turned from "PILOT" to "OFF" unless
knobispushedinslightly.Donotforce.
6. Waitten(10)minutestoclearoutanygas.Thensmellforgas,
includingneartheoor.Ifyouthensmellgas,STOP!Follow
"B" in the safety information above. If you do not smell gas,
go to the next step.
7. Find pilot - Follow metal tube from gas
control. The pilot is behind the burner
on the right side.
8. Turngascontrolknobcounterclockwise
to "PILOT."
9. Pushincontrolknoballthewayandholdin.Repeatedlypush
the piezo ignitor button until the pilot is lit. Continue to hold the
controlknobintheforaboutone(1)minuteafterthepilotis
lit.Releaseknob,anditwillpopbackup.Pilotshouldremain
lit. If it goes out, repeat steps 5 through 9.
• Ifthecontrolknobdoesnotpopupwhenreleased,STOP
andIMMEDIATELYcallaqualiedservicetechnicianor
gas supplier.
• Ifthepilotwillnotstaylitafterseveraltries,turnthegas
controlknobto"OFF"andcallyourservicetechnicianor
gas supplier.
10. Turngascontrolknobcounterclockwise to "ON."
11. Close bottom louver assembly.
12. Turnonallelectricpowertotheappliance(ifapplicable).
13. Set REMOTE/OFF/ON switch to desired setting.
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING:Ifyoudonotfollowtheseinstructionsexactly,areorexplosionmayresult
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When
lighting the pilot, follow these instructions exactly.
B. Before lighting smell all around the appliance area for gas. Be
suretosmellnexttotheoorbecausesomegasisheavier
thanairandwillsettleontheoor.
What To Do If You Smell Gas
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch;
• Donotuseanyphoneinyourbuilding.
• Immediatelycallyourgassupplierfromaneighbor'sphone.
Followthegassupplier'sinstructions.
• Ifyoucannotreachyourgassupplier,calltheredepart-
ment.
C.Useonlyyourhandtopushinorturnthegascontrolknob.
Neverusetools.Iftheknobwillnotpushinorturnbyhand,
don'ttrytorepairit;callaqualiedservicetechnician.Force
orattemptedrepairmayresultinareorexplosion.
D. Do not use this appliance if any part has been under water.
Immediatelycallaqualiedservicetechniciantoinspectthe
appliance and to replace any part of the control system and
any gas control which has been under water.
LIGHTING INSTRUCTIONS
1. Set REMOTE/OFF/ON switch to OFF.
2. Turn off all electric power to the appliance if service is to be
performed(ifapplicable).
3. Lower bottom louver assembly.
4. Pushingascontrolknobslightlyandturnclockwise
to "OFF." Do not force.
5. Close bottom louver assembly.
TO TURN OFF GAS TO FIREPLACE
STANDING PILOT LIGHTING INSTRUCTIONS

32227-0-0513Page 20
STANDING PILOT WIRING
STANDING PILOT WIRING DIAGRAM
Figure 22
For Standing Pilot Ignition Wiring
Appliance Requirements
WARNING
DO NOT CONNECT 110-120 VAC TO THE GAS CONTROL
VALVE OR THE APPLIANCE WILL MALFUNCTION AND THE
VALVE WILL BE DESTROYED.
Optional Wall Switch
Position the wall switch in the desired position on a wall. Run a
maximumof25feet(7.8m)orlesslengthof18A.W.G.minimum
wireandconnectittothereplacevalvepigtails.
WARNING
DO NOT CONNECT THE 110-120 VAC TO THE WALL SWITCH
OR THE CONTROL VALVE WILL BE DESTROYED.
WARNING
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN
SERVICING CONTROL. WIRING ERRORS CAN CAUSE IM-
PROPER AND DANGEROUS OPERATION. VERIFY PROPER
OPERATION AFTER SERVICING.
