INSTALLATION INSTRUCTIONS
AND
OWNER’S MANUAL
WARNING: If not installed, operated and maintained
in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel or
from fuel combustion which can cause death or seri-
ous illness.
NOT INTENDED FOR USE AS A PRIMARY HEAT
SOURCE. This appliance is tested and approved as
either supplemental room heat or as a decorative
appliance. It should not be factored as primary heat
in residential heating calculations.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not

kit is used.
The Keystone "B" Vent Zero Clearance Gas
Fireplace
WARNING: If the information in this manual is not

property damage, personal injury or loss of life.
-         
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
● Do not try to light any appliance.
● Do not touch any electrical switch; do not use any
phone in your building.
 
phone. Follow the gas supplier's instructions.
 
department.
- Installation and service must be performed by
       
supplier.
GAS-FIRED
Installer: Leave these instructions with the consumer.
Consumer: Retain these instructions for future use.
B-VENT
GAS FIREPLACE
MODEL SERIES
millivolt
BVD34FP30(F,L)N-1
BVD36FP32(F,L)N-1
BVP42FP32(F,L)N-2
DiRECt iGNitioN
BVD34FP50(F,L)N-1
BVD36FP52(F,L)N-1
BVP42FP52(F,L)N-2
UL FILE NO. MH45034

22679-1-0408Page 2
Important Safety Information....................................................................................................3
Safety Information for Users of LP Gas....................................................................................4
Introduction ..............................................................................................................................5
Specications.............................................................................................................................6

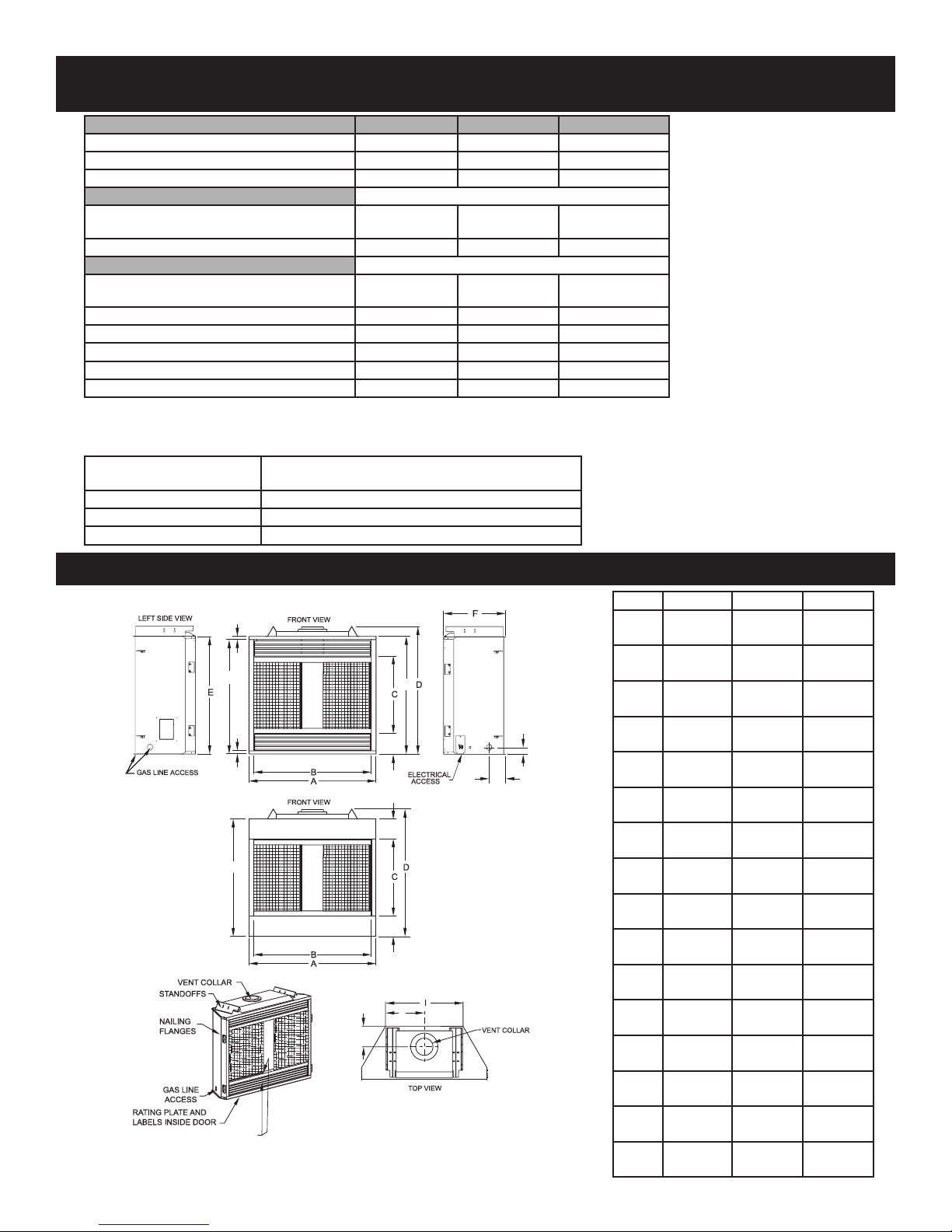

Fireplace Dimensions................................................................................................................6
Clearances .................................................................................................................................7
Locating Fireplace.....................................................................................................................7

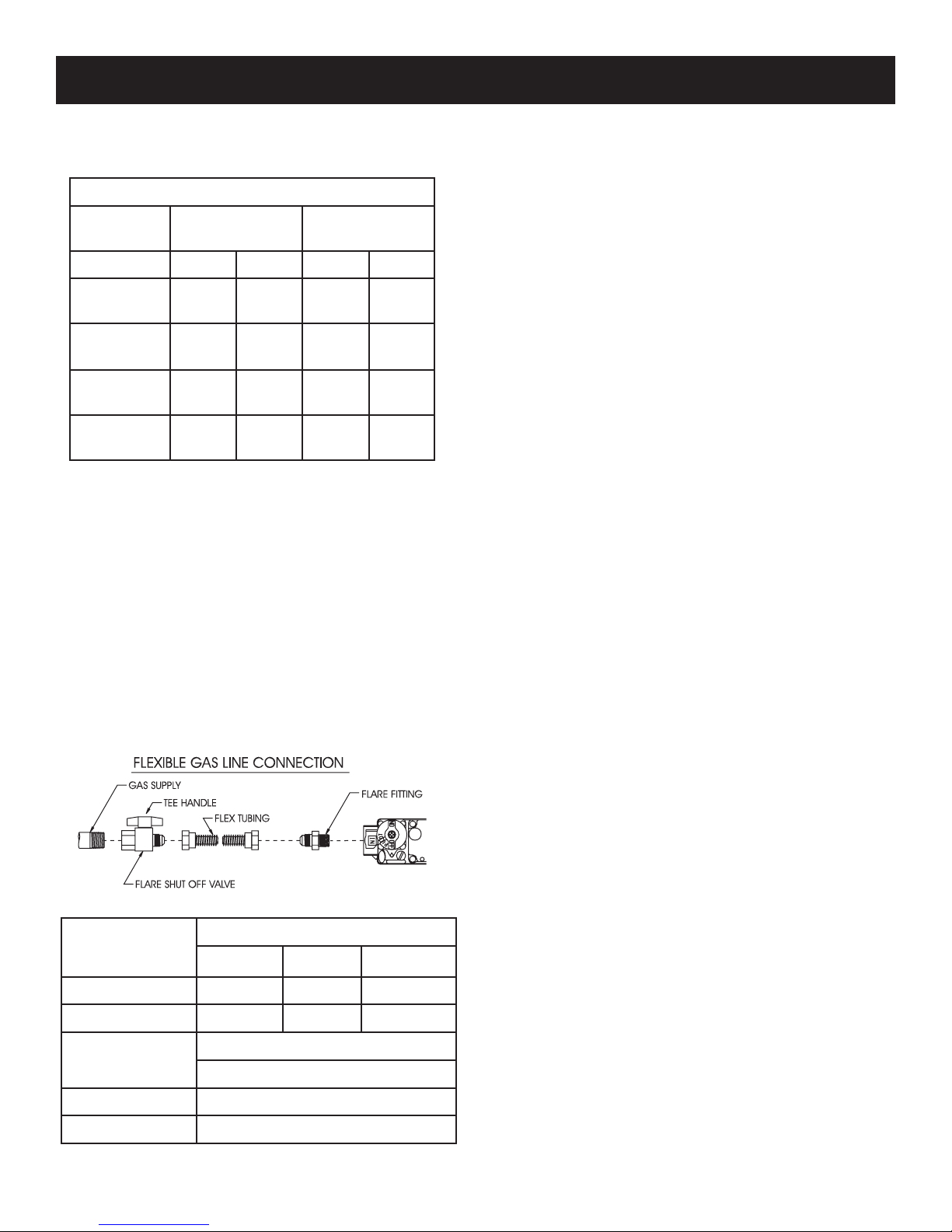

Gas Supply .............................................................................................................................8-9
Installation .........................................................................................................................10-11
Venting................................................................................................................................12-13

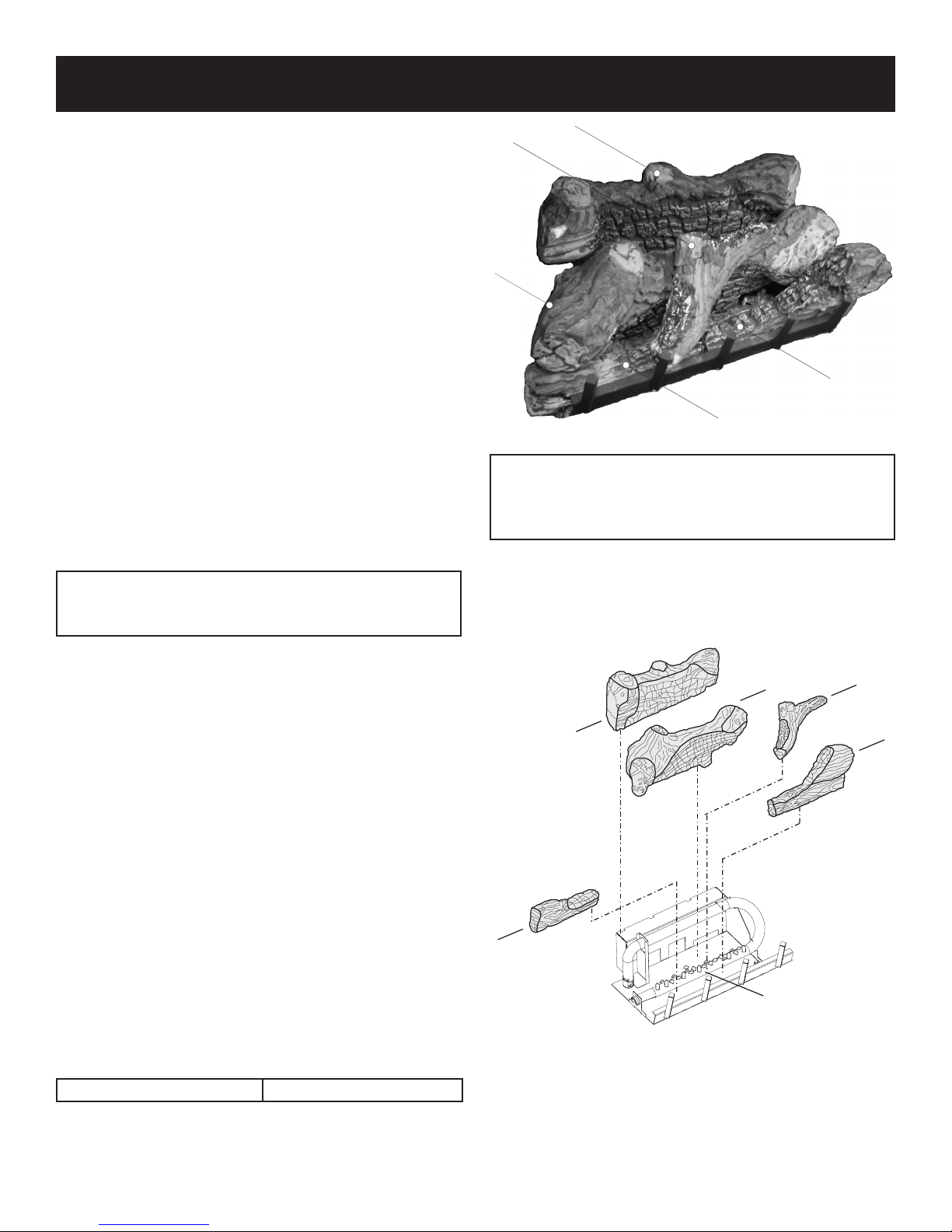

Log Placement (BVD34 and BVD36) (5 Log Set) .................................................................14
Log Placement (BVP42) (4 Log Set) ......................................................................................15
Operating Instructions ........................................................................................................16-17
Standing Pilot Wiring Diagram ...............................................................................................18
Standing Pilot Lighting Instructions........................................................................................19
Standing Pilot Troubleshooting...............................................................................................20
Standing Pilot Propane/LP Gas Conversion.......................................................................21-22
Direct Ignition Wiring Diagram ..............................................................................................23
Optional Remote Control (120V Direct Ignition) ...................................................................23
Direct Ignition Lighting Instructions.......................................................................................24
Direct Ignition Troubleshooting ..............................................................................................25
Direct Ignition Propane/LP Gas Conversion......................................................................25-26
Maintenance and Service.........................................................................................................27
BVD34 and BVD36 Parts List ................................................................................................28
BVD34 and BVD36 Parts View..............................................................................................29
BVP42 Parts List.....................................................................................................................30
BVP42 Parts View...................................................................................................................31
FBB4 Optional Variable Speed Blower Installation Instructions.......................................32-33
Junction Box Wiring Installation Instructions.........................................................................34
Optional Accessories ...............................................................................................................35
Decorative Accessories............................................................................................................36
How To Order Repair Parts .....................................................................................................37
Service Notes......................................................................................................................37-39
Section Page
TABLE OF CONTENTS

22679-1-0408 Page 3
Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.
        
tile or other combustible material other than wood

or wood panel extending the full width and depth of
the appliance.
 
base as used on wood stoves. The protection is for
rugs that are extremely thick and light colored tile.
 
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
 
they are in the same room as the appliance.
 
placed on or near the appliance.
 
proper operation.
 
serving a separate solid-fuel burning appliance.
        

vapor and liquids.
       
(wood, coal, paper or cardboard etc.) be used in this
appliance.
 
be obstructed in any way.
 

draperies.
 
be replaced prior to operating the appliance. Work

 
 
 Installation and repair should be done by a
The appliance
should be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating
air passageways of the appliance be kept clean.
 

 
and the requirements of the gas supplier.
  keep the appliance area clear and free from

vapors and liquids.
  examine venting system periodically and replace
damaged parts.
 makeaperiodicvisualcheckof pilotandburners.
Clean and replace damaged parts.
 

to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
 
an appliance must be replaced prior to operating
the appliance.
IMPORTANT SAFETY INFORMATION

22679-1-0408Page 4
Some people cannot smell well. Some people cannot smell the

can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-Gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movementofthegasthroughsoilcanltertheodorant.Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.

and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
by point with the members of your household. Someday when
there may not be a minute to lose, everyone’s safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
•  Your local LP-Gas
Dealercangiveyoua“ScratchandSniff”pamphlet.Useittond
out what the propane odor smells like. If you suspect that your
LP-Gas has a weak or abnormal odor, call your LP-Gas Dealer.
• Ifyou are notqualied, do not lightpilot lights, perform
service, or make adjustments to appliances on the LP-Gas system.
Ifyouarequalied,consciouslythinkabouttheodorofLP-Gas
prior to and while lighting pilot lights or performing service or
making adjustments.
• Sometimesa basement or a closed-up househas a musty
smell that can cover up the LP-Gas odor. Do not try to light pilot
lights, perform service, or make adjustments in an area where the
conditions are such that you may not detect the odor if there has
been a leak of LP-Gas.
• Odorfade,duetooxidationbyrustoradsorptiononwalls
of new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders are
placed in service. Odor fade can occur in new tanks, or reinstalled
oldtanks, if they arelled and allowed to set too long before
relling.Cylindersandtankswhichhavebeenoutofservicefor
a time may develop internal rust which will cause odor fade. If
such conditions are suspected to exist, a periodic sniff test of the
gas is advisable. If you have any question about the gas odor,
call your LP-Gas dealer. A periodic sniff test of the LP-Gas is
a good safety measure under any condition.
• If,atanytime,youdonotsmelltheLP-Gasodorantandyou
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when you
do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container is
under no vapor pressure), turn the tank valve off immediately. If
the container valve is left on, the container may draw in some air
throughopeningssuchaspilotlightorices.Ifthisoccurs,some
new internal rusting could occur. If the valve is left open, then
treat the container as a new tank. Always be sure your container
is under vapor pressure by turning it off at the container before it
goescompletelyemptyorhavingitrelledbeforeitiscompletely
empty.
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Geteveryoneoutofthebuilding,vehicle,trailer,orarea.Do
that IMMEDIATELY.
• Closeallgastankorcylindersupplyvalves.
• LP-Gasisheavierthanairandmaysettleinlowareassuch
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
reghtersdeclarethemtobesafe.
• Useyourneighbor’sphoneandcallatrainedLP-Gasservice
personandthere department.Eventhoughyou maynot
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally,lettheservicemanandreghterscheckforescaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That’s your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP GAS

22679-1-0408 Page 5
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycardsupplied
withthereplace.
3. Installer should show owner how to start and operate the
replace.
This is a B-Vent gas appliance and must be installed with a listed B-
Vent vent system. The information contained in this manual pertains
to all models and gas control systems unless otherwise noted.
Warning: This unit is not for use with solid fuels.

This replace is design certied in accordance with American
National Standard/CSA Standard ANSI Z.21-50/CSA 2.22 and by
Underwriters Laboratories as a Vented Gas Appliance and shall be
installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
The replace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 if an external electrical
source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A.

Installationandreplacementofgaspiping,gasutilizationequipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm“qualiedagency”
meansanyindividual,rm,corporationorcompanywhicheitherin
person or through a representative is engaged in and is responsible
for (a) the installation or replacement of gas piping or (b) the
connection,installation,repairorservicingofequipment,whois
experiencedinsuchwork,familiarwithallprecautionsrequired
andhascompliedwithalltherequirementsoftheauthorityhaving
jurisdiction.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1
in Canada. *Available from the American National Standards Institute, Inc. 11
West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown on
the rating plate is the responsibility of the person and company
making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changingtheexistingburneroricetoasmallersize.Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for
properoricesizeidentication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the
properoriceforlocation.
Preparation
Thisgas replaceand its componentsare tested andsafe when
installed in accordance with this Installation Manual. Report to
your dealer any parts damaged in shipment, specically check
glass condition. Do not install unit with damaged, incomplete, or
substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximumbenetandsafety.Failuretofollowthemwillvoidyour
warrantyandmaypresentarehazard.
The warranty will be voided by, and the warrantor disclaims any
responsibility for the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modicationofthereplaceorventsystem.
• InstallationotherthanasinstructedbyEmpireComfortSystems,
Inc.
• Improperpositioningofthelogs,glassdoor,optionalaccessories
or decorative rock.
• Installationand/oruseofanycomponentpartnotmanufactured
or approved by manufacturer.

Optional glass door kits manufactured with tempered glass
may be installed in hazardous locations such as bathtub
enclosuresasdenedbytheConsumerProductSafetyCommission
(CPSC).Thetemperedglasshasbeentestedandcertiedtothe
requirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certication Council SGCC# 1595 and 1597.
Architectural Testing, Inc. Reports 02-31919.01 and
02-31917.01).
This statement is in compliance with CPSC 16 CFR Section
1201.5 "Certication and labeling requirements" which refers
to 15 U.S. Code (USC) 2063 stating "...Such certicate shall
accompany the product or shall otherwise be furnished to any dis-
tributor or retailer to whom the product is delivered."
INTRODUCTION
State of Massachusetts: The installation must be made
by a licensed plumber or gas tter in the Commonwealth of
Massachusetts. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Warning: ANY CHANGE TO THIS FIREPLACE OR ITS
CONTROLS CAN BE DANGEROUS.
Improperinstallationoruseofthereplacecancauseserious
injuryordeathfromre,burns,explosions,orcarbonmonoxide
poisoning.

22679-1-0408Page 6
Figure 1
Dim   
A37"
940mm
39"
990mm
43"
1092mm
B34"
864 mm
36"
914mm
40"
1,016mm
C22 7/8"
581mm
24 7/8"
632mm
24 7/8"
632mm
D35 5/8"
905 mm
37 5/8"
956 mm
37 5/8"
956 mm
E32 3/4"
832mm
34 3/4"
883 mm
34 3/4"
883 mm
F14 7/8"
378mm
18 3/8
467mm
18 3/8"
467mm
G6 3/8"
162mm
6 3/8"
162mm
6 3/8"
162mm
H5 7/8"
149mm
8 3/8"
213mm
6 3/8"
162mm
I24 1/2"
622mm
22 1/2"
572mm
26 1/2"
673mm
J12 1/4"
311mm
11 1/4"
286mm
13 1/4"
337mm
K1 1/4"
32mm
1 1/4"
32mm
1 1/4"
32mm
L31 3/4"
807mm
33 3/4"
857mm
33 3/4"
857mm
M32 11/16"
830mm
34 11/16"
881mm
34 11/16"
881mm
N2 1/16"
53mm
2 1/16"
53mm
2 1/16"
53mm
O5 5/8"
143mm
5 5/8"
143mm
5 5/8"
143mm
P4 7/8"
124mm
4 7/8"
124mm
4 7/8"
124mm
Remote Control Options &
Accessories
Description
FRBC MILLIVOLT BATTERY REMOTE ON/OFF
FREC DIRECT IGNITION/MILLIVOLT 120V ON/OFF REMOTE
FWS-1 DIRECT IGNITION/MILLIVOLT WALL SWITCH
BVD34FP BVD36FP BVP42FP
Input Btu/hr Maximum 21,000 25,000 30,000
KWH (Maximum) 6.2 7.3 8.8
B-Vent Size 4" Diameter 6" Diameter 6" Diameter
NAT. (Standard)
Orice #44 (.086)
P-252
#42 (.0935)
P-286
#37 (.104)
P-213
Air Shutter Opening 1/8" (3.2mm) 1/8"(3.2mm) 1/8" (3.2mm)
*LP(ConversionKitRequired)
Orice 1.35mm
P-289
1.45 mm
P-208
1.65mm
P-250
Air Shutter Opening 5/16" (7.9mm) 5/16" (7.9mm) Full Open
Height without standoff 32 3/4"(832mm) 34 3/4"(883mm) 34 3/4"(883mm)
Width 37" (940mm) 39" (990mm) 43" (1,092mm)
Depth 14 7/8" (378mm) 18 3/8" (467mm) 18 3/8" (467mm)
Gas Inlet Shutoff Valve (Pipe) 1/2 NPT 1/2 NPT 1/2NPT
NOTE: Air shutter
settings are factory
minimum settings. Some
venting configurations
may require minor air
shutter adjustments for
optimum performance.
RIGHT SIDE VIEW
J
H
GAS CONTROLS BEHIND LOWER
LOUVER OR UNDER SLIDING
HEARTH ACCESS DOOR
K
K
L
M
M
G
O
N
P
G
*NOTE:LPConversionkitsareincludedonthe120v.directignitionmodelreplaces.Formillivoltmodels,usekit
#19160 for BVD34FP Series, kit #19161 for BVD36FP Series, and kit #19162 for BVP42FP Series.
SPECIFICATIONS
FIREPLACE DIMENSIONS

22679-1-0408 Page 7
Mantel Chart (Figure 3)
Figure 3

Clearancefromtopfrontedgeofreplacetoceilingis36"
Clearancefromsideofreplacetoadjacentsidewallis6".

Figure 5
Note: When you install your
Fireplace on wall corner
positions, a minimum of 6 inches
clearance must be maintained
from the perpendicular side wall
and the screened opening of the
appliance.
Figure 2
Combustible Material
No greeting cards, stockings or ornamentation of any type should
be placed on or attached to the replace. The ow of heat can
ignite combustibles.
Clearance to Combustibles
Back 0" (0 mm)
Side 0" (0 mm)
Floor 0" (0 mm)
Top Stand-off 0" (0 mm)
Top Framing Edge 1" (25mm)
12”
TOP EDGE OF FIREPLACE
12”(305mm)
10”(254mm)
MANTEL
COMBUSTIBLE TRIM AND MANTELS
ALLOWED IN SHADED AREA
1/4”
(6.35mm)
3”
4”
5”
6”
8”
10 3/4”
3/4”
1½”
21/4”
3”
33/4”
4½”
6”
8”
1”
2”
SEE MANTLE CHART FOR
MAXIMUM MANTLE DEPTH
NAILING
FLANGES
GLASS FRONT
(OPTIONAL)
TOP FRAMING
LEDGE
FINISHED WALL
(COMBUSTIBLE)
SEE MANTLE CHART
FOR MINIMUM HEIGHT
OF MANTLE ABOVE UNIT
2"x4" HEADER
STAND OFF
3" (76 mm) HEIGHT
ABOVE TOPOF
FIREPLACE
CLEARANCES
LOCATING FIREPLACE

22679-1-0408Page 8
Figure 6
The gas pipeline can be brought in through the right or left side of
the appliance. Consult the current National Fuel Gas Code, ANSI
Z223.1 CAN/CGA-B149 (.1 or .2) installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of
the unit. Where none exists, or where its size or location is not
adequate, contact your local authorized installer for installation
or relocation.
Compounds used on threaded joints of gas piping shall be resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.

be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: Themillivoltgascontrolsareequippedwithacaptured
screw type pressure test point, therefore it is not necessary to provide
a 1/8" test point up stream of the control.
Ondirectignitionvalves,hexplugsmaybereplacedwithhosettings
forpressurechecks,thenreinstalledbeforeoperatingreplace.
Whenusingcopperorexconnectoruseonlyapprovedttings.
The appliance and it’s individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testingofthegassupplypipingsystemattestpressuresequaltoor
less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess
of1/2psig(14"w.c.)(3.5kPa)onthereplacegasvalve,itwill
result in a hazardous condition.
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0"
Recommended Gas Pipe Diameter
Pipe Length
(Feet)
Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40 1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100 1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150 3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
Note:Neveruseplasticpipe.Checktoconrmwhetheryourlocal
codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSZ21.24ApplianceConnectorsof CorrugatedMetalTubing
and Fittings.
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
havingjurisdiction.ThestateofMassachusettsrequiresthataexible
appliance connector cannot exceed three feet in length.
GAS SUPPLY

22679-1-0408 Page 9
FROM FRONT OF
APPLIANCE TO
GAS LINE HOLE
3½”
GAS LINE HOLE
BVD34 SERIES-10”
BVD,P (36,42)-13½”
Figure 7
BURNER ASSEMBLY
REAR TAB (BURNER BASE)
LOCATIONS
FLEXIBLE GAS CONNECTOR
GAS SUPPLY LINE
FIREBOX BOTTOM
CUTOUT ACCESS
SLIDING
VALVE ACCESS
COVER
PIEZO
IGNITER
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5" w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8" w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa).
Figure 8
GAS SUPPLY (CONT)

22679-1-0408Page 10
Framing dimension "A" includes a three inch clearance for

Framing and Finishing
1. Choose unit location.
 2. Frameinreplacewithaheaderacrossthetop.Itisimportant
toallowforthenishedfacethicknesswhensettingthedepth
of the frame. See Figures 9 & 11.
 3. Attachreplacetoframingusing(4)adjustablenailinganges.
Preset depth to suit facing material (adjustable to 1/2", 5/8" or
3/4" depths).
4. Use (8) 1/2" hex-head screws supplied in hardware package to
screwthroughslottedholesinnailinganges,thenscrewinto
pre-drilledholesonreplaceside.Measurefromfaceofreplace
tofaceofthenailingangestodeterminenaldepth.

Note: Maintain one inch (1") of clearance around vertical vent pipe.
FollowtheB-Ventsysteminstructionsforinstallationrequirements
and clearances. Failure to follow the B-Vent manufacturer's
instructionsmaycauseimproperdraftandpossiblerehazard.
Figure 10
B-
TO
COMBUSTIBLES
NAILOR OTHER SUITABLE FASTENER
MOUNTING
BRACKETS

A fresh air kit is available as an optional feature with this appliance.
The fresh air kit helps to decrease the amount of room air taken by
utilizing outside air for combustion. It is strongly recommended that
it be installed. Installation of the fresh air kit should be performed
attheframingstageofthereplaceinstallation.
Thefreshairkitinstallsontheleftsideofthereplace.
To install the BVA1 fresh air kit, refer to the installation instructions
provided with the kit.
Note: The outside air kit can terminate at any level with the
exception that it must terminate at least 1 ft below the vent
termination cap. The fresh air kit inlet hood should be positioned
at least 2 ft above the ground level, in a manner that will not
allow snow, leaves, etc. to block the inlet.
WARNING: Exhaust products of gasoline engines are



the air.
Figure 9
Framing (Figure 11)
Fireplaceframingcanbebuiltbeforeorafterthereplaceissetin
place. Framing should be positioned to accommodate wall covering
and replace facing material. The replace framing should be
constructed of 2 x 4 lumber or heavier. The framing headers may
restonthereplacestandoffs.RefertoFigure11for minimum
framing dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND

DETAILS BEFORE FRAMING CONSTRUCTION
BEGINS.
INSTALLATION

22679-1-0408 Page 11
Note: Dimension"C"istheminimumwiththereplacefaceextending1/2"infront
oftheframingtoallowfornishingmaterials.
Figure 11
Attention: Add 3-3/4" to “A” dimensions when using a ush
mantel base.
Attention: If a base or mantel is not used and the appliance is
installed directly on carpeting, tile or other combustible material
otherthanwoodooring,itshallbeinstalledonametalorwood
panel extending the full width and depth of the appliance. The
vertical dimension in Figure 11 must be adjusted when a metal or
wood panel is placed beneath the appliance.
Finishing (Figure 12)
Finish the walls with the material of your choice. Only non-
combustiblematerials may beused to cover theblack replace
front.
      
or modify the air inlet/outlet louvers in any manner.
Provide adequate clearances around air openings into the
combustion chamber.
Caution: Ifthejointsbetweenthenishedwallandthereplace
surround (top and sides) are sealed, a 300°F minimum sealant
materialmustbeused.Thesejointsarenotrequiredtobesealed.
Only non-combustible material (using 300°F minimum adhesive if
needed),canbeappliedasfacingtothereplacesurround.
Combustible Surround Installation
Figure 12
Attention: Cold climate installation recommendation:
When installing this unit against a non-insulated exterior
wall, it is recommended that the outer walls be insulated
to conform to applicable insulation codes.
FINISHED WALL
JOINT BETWEEN FINISHED WALL AND
UNIT SEALED WITH 300°F149
MATERIAL (SEALANT IS OPTIONAL)
°C
SEALANT
COMBUSTIBLE SURROUND
MANTELSHELF
2X4
HEADER
STAND OFF
FRONT TRIM OR NON-COMBUSTIBLE
MATERIAL MAY OVERLAP BLACK PAINTED
FACE (INSTALLATION IS OPTIONAL)
INSTALLATION (CONT)
Minimum Framing Dimensions
BVD34 BVD36 BVP42
"A" 35 3/4"
(908mm)
37 3/4"
(959mm)
37 3/4"
(959mm)
"B" 37 3/8"
(949mm)
39 3/8"
(1,000mm)
43 3/8"
(1,102mm)
"C" 14 3/8"
(378mm)
17 7/8"
(454mm)
17 7/8"
(454mm)

22679-1-0408Page 12

Inplanningtheinstallationforthereplace,itisnecessarytoinstall
certain components before the appliance is completely positioned
and installed. These include the vent system, gas piping for the
appliance, Fresh Air Kit, and the electrical wiring. (The fan option
is available for louvered models only. Electric ignition models will
requireelectricalservicetojunctionbox).
The appliance can be mounted on any of the following surfaces:
1. Aat,hardcombustible(burnable)surface.
2. A raised wooden platform.
3. Four (4) corner supports. (Example: Four (4) concrete masonry
blocks.) These supports must be positioned so they contact all
four (4) perimeter edges on the bottom of the unit.
Locate and mark the center point of the vent pipe using a nail on
the underside of the roof. Drive the nail through the center point.
Mark the outline of the roof hole around this center point.
NOTE: Size of the roof hole dimensions depend on the pitch of
the roof. There must be a 1 inch clearance (25mm) to the
vertical pipe sections. This clearance is to all combustible
material.
Cover the opening of the vent pipe and cut and frame the roof hole.
Use framing lumber the same size as the roof rafters and install the
frame securely. Flashing anchored to frame must withstand high
winds. The storm collar is placed over this joint to make a water-
tight seal. Non-hardening sealant should be used to completely seal
thisashinginstallation.

WARNING: Major U.S. building codes specify minimum
chimney and/or vent height above the roof top. These
minimum heights are necessary in the interest of safety. These
.
Figure 13
Note that for steep roof pitches, the vent height must be increased.
In high wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft,
or down-drafting. In these cases, increasing the vent height may
solve this problem.
General Maintenance
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect are as follows:
1. Check areas of the venting system which are exposed to the
elements for corrosion. These will appear as rust spots or
streaks and, in extreme cases, holes. These components should
immediately be replaced.
2. Removethecapandshineaashlightdownthevent.Remove
any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
dropletsformingintheinnerlinerandsubsequentlydripping
out at joints. Condensate can cause corrosion of caps, pipe and
ttings.Itmaybecausedbyhavingexcessivelateralruns,too
many elbows and exterior portions of the system being exposed
to cold weather.
4. Inspectjointstoverifythatnopipesectionsorttingshavebeen
disturbedand,consequently,loosened.Also,checkmechanical
supports, such as wall straps or plumbers’ tape for rigidity.
Aremovable panel or other means must be provided in the enclosure
forvisualinspectionoftheueconnection.
NOTE: This also pertains to vertical vent systems installed on the
outside of the building.

A chase is a vertical box-like structure built to enclose the gas
appliance and/or it’s vent system. Vertical vent runs on the outside
ofabuildingmaybe,butarenotrequiredtobeinstalledinsidea
chase.

the chase may vary with the type of building. These instructions
are not substitutes for the requirements of local building
codes. Therefore, your local building codes must be checked
to determine the requirements for these steps.
NOTE: When installing this vent system in a chase, it is always
good building practice to insulate the chase as you would the
outside walls of your home. This is especially important for cold
climate installations. Upon completion of building your chase
framing, install the vent system by following the instructions in
this manual. Remember to build the chase large enough so that
minimum clearance of combustible materials (including insulation)
to the vent system are maintained.
WARNING! This appliance must not be connected to a
         
burning appliance.
VENT CAP
GAS VENT
H
LOWEST
DISCHARGE
OPENING
H (Min.)-Minimum height from
roof to lowest discharge opening
ROOF PITCH IS X/12
ROOF PITCH H (Min.)
Flat to 6/12 12" (305 mm)
6/12 to 7/12 15" (381 mm)
Over 7/12 to 8/12 18" (457 mm)
Over 8/12 to 16/12 24" (610 mm)
Over 16/12 to 21/12 36" (914 mm)
VENTING

22679-1-0408 Page 13

Model BVD34FP series uses a 4" B-Vent for operation.
Models BVD36FP and BVP42FP series use a 6" B-Vent for
operation.

Clearances
Ventclearancesareperventmanufacturer'sspecications

Various venting congurations are shown in Figures 14 and 15
from which maximum vent runs can be determined.



Figure 15
Vent supports are per
vent manufacturer’s
specifications
Minimum clearances are
per vent manufacturer’s
specifications
40 ft. Max.
11 ft. Min.
90-degree or
45-degree Elbows
Straight Section 2 ft. Minimum offtop of
unit before using elbows
Vent supports per
manufacturers vent
specifications
Horizontalvent
to maintaina1/4”
rise per ft. Min.
11 ft. Min.
Maximum horizontal
distanceis50% of
vertical ventheight
5ft. Max.
Horizontal at
11 ft. Min.
Vertical

Always maintain minimum clearances or greater around
the vent system. Do not pack air spaces with insulation or
other material.
VENTING (CONT)

22679-1-0408Page 14
1
4
5
3
2
Before you begin: if you are installing logs into the BVD34 or
BVD36model, thenthisreplace issupplied with aset of ve
ceramicberlogs.Donothandletheselogswithyourbarehands!
Alwayswearglovestopreventskinirritationfromceramicbers.
After handling logs, wash your hands gently with soap and water
toremoveanytracesofbers.
The positioning of the logs is critical to the safe and clean operation
ofthisreplace.Sootingandotherproblemsmayresultifthelogs
arenotproperlyandrmlypositionedinthereplace.Pleaserefer
to Figure 16 and Figure 17 and corresponding WARNING when
completing following log placement instructions.
 1. Placefrontlogs(#1and#2)betweenfrontgrateangeand
main burner. Align notches on front logs with locator tabs in
base.
2. Place middle log (#3) between front and rear loop of burner.
Note: Do not place log on top of pilot assembly.
 3. Placerearlog(#4)onrearlogshelf.Bottomangeoflogmust
be placed between the log shelf and burner tube.
 4. Placebranch(#5)onto(#1)logandatareaon(#3)log.The
bottom of the branch is to be placed behind the grate tang that
is second from the left.
5. Place decorative rock in front of grates and sides of main burner
pan.
ATTENTION: Do not place decorative rock on logs or burner.
The decorative rock should only be placed on the replace
oor.
EMBER MATERIAL PLACEMENT ON BURNER
6. After all logs are positioned properly, apply Rockwool ember
material to the front burner port area. To apply, carefully
separate the ember material into small amounts no larger than
"dime size" pieces. Fluffed up pieces one layer thick on top
of the burner generally works best, and will provide the best
ember glow. Do not place ember material more than one layer
thick. No more than (1) small packet of ember material (part
no. 15999) evenly placed on the burner, is recommended on
BVD34 and BVD36 models. Using additional ember material
will decrease the amount of ember glow effect. Extra ember
material should be saved for future ember applications as
necessary. See Figure 17.
Figure 16
WARNING: Failure to position the parts in accordance
         
approved with this appliance may result in property
damage or personal injury.
Attention: Do not use Figure 16 or Figure 17 to order logs. Refer
to parts list on page 28 and parts view on page 29 to order logs
and/orembermaterialforyourappropriatereplacemodel.
Figure 17
1
2
35
4
EMBER MATERIAL
PLACEMENT
LOG PLACEMENT (5 LOG SET)
Optional Platinum Bright Ember Kits are available from your
Fireplace Dealer. These embers may be used with all BVD/BVP
Seriesreplaces.Orderanduseasindicatedasbelow.
Platinum Bright Embers PE-20-1
Note: A signle layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.

22679-1-0408 Page 15
Attention: Do not use Figure 61 or Figure 62 to order logs. Refer
to parts view on page 57 and parts list on pages 58 and 59 to
orderlogsand/orembermaterialforyourappropriatereplace
model.
Beforeyoubegin:Thisreplaceissuppliedwithasetofthree
ceramicberlogs.Donothandletheselogswithyourbarehands.
Alwayswearglovestopreventskinirritationfromceramicbers.
After handling logs, wash your hands gently with soap and water
toremoveanytracesofber.
The positioning of logs is critical to safe and clean operation of
thisreplace.Sootingandotherproblemsmayresultifthelogs
arenotproperlyandrmlypositionedinthereplace.Please
refer to Figure 18, Figure 19, and Figure 20 and corresponding
WARNING, when completing the following log placement
steps.
1. Remove top louver, grasp louver, lift and pull forward.
2. Lower bottom louver, lift and hinge forward.
3. Release two glass frame spring clamps at bottom of
rebox
4. Place rear (#1) log onto two (2) pins on rear log support.
5. Place left, front (#2) log onto two (2) left, front pins on burner
pan.
6. Place right, front (#3) log onto two (2) right, front pins on
burner pan.
7. Place Branch (#4) onto one (1) pin on rear log
8. Place decorative rock in front of grates and sides of main
burner.
9. After all logs are properly positioned, place small "dime"
size pieces of Rockwool lightly across the front round
"blueame" ports. Place the ember material (Rockwool
pieces) side by side. Do not stack more than one layer of
embers across the burner ports. See Figure 18.
10.Replaceglassdoorontorebox.
11. Secure the two glass frame spring clamps at bottom of
rebox.
12. Align the tabs on top louver brackets with slots in front posts
to secure top louver.
13. Close bottom louver. Lift slightly to engage the end tabs into
theslotsinreplacesidestocloselouverpanel.
Figure 19
Figure 18
Figure 20
ATTENTION: Do not place decorative rock on logs or on
burner. The decorative rock should only be placed on the

WARNING: Failure to position the parts in accordance
         
approved with this appliance may result in property damage
or personal injury.

#4-TOP BRANCH
#1-REAR LOG
#3-FRONT
RIGHT LOG
#2-FRONT
LEFT LOG
EMBER
PLACEMENT
REAR LOG
LOCATORTABS
FRONT LOG
LOCATOR PINS

22679-1-0408Page 16
The OWNER should carefully read and follow these operating
instructions at all times. Lower the door assembly to view the gas
controlsforthereplace.
Initial Lighting
Upon completing the gas line or turning the gas valve on after it
has been in the “OFF” position, a small amount of air will be in the
lines.Whenrstlightingthereplace,itwilltakeafewminutes
for the lines to purge themselves of this air. Once the purging is
complete,thereplacewilllightandoperatesatisfactorily.
Subsequentlightingsoftheappliancewillnotrequiresuchpurging
if the gas valve is not turned to “OFF.”
Pilot Flame (Figure 22)
The thermopile (standing pilot) tips should be covered with
ame.
Figure 22
750 Millivolt System
The standing pilot (750 millivolt system) is a continuous burning
pilot. The pilot remains ON even when the main burner is OFF.
When you ignite the pilot, the thermopile produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas
controlknobandthepilotwillstayON.Allowyourpilotameto
operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to build-up to
asufcientlevelallowingthegascontroltooperateproperly.
1. Follow the SAFETY and LIGHTING INSTRUCTIONS for
standing pilot controls found in this manual and on labels found
in control compartment behind the door assembly.
CAUTION:Duringtheinitial purging andsubsequentlightings,
never allow the gas valve control knob to remain depressed in

at least once every second.
2. During the operating season, leave the control valve knob in
the“ON”position.Thiswillallowthepilotametoremainlit.
Turntheburnerameonoroffwiththereplacewallswitch
or remote controls.
3. When the operating season is over, turn the wall switch or
remote to “OFF” and the control valve to “OFF”. The system,
including the pilot light, will be shut down.
Figure 21
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
VENT
P I L O T
IN
OPERATING INSTRUCTIONS

22679-1-0408 Page 17
STANDING PILOT OPERATING INSTRUCTIONS
Thereplaceisequippedwitha15 foot length of wire that can be
used to connect the valve to a wall switch (installer provided) or
remote control receiver.
See instructions packed with each of the following optional switches
or controls for proper installation, operation, and maintenance.
Wall Switch, FWS-1 (optional)
On millivolt valve models, a 15' wall switch wire is included.
Connect the two leads to a wall switch (installer supplied). See
Figure 23.
FRBC Battery Operated Remote Control
To connect the FRBC remote to the millivolt gas valve on your
"B-Vent" Fireplace, disconnect one wire terminal lead (wall
switch wire) from gas valve, seperate/split wall switch wire lead
approximately 18 inches. Cut the removed lead 12 inches long
and strip both cut ends. After stripping and baring the wire ends,
connect the two stripped ends to the remote receiver. Reconnect
the 1/4" insulated wire terminal (short 18" wire) to the gas valve
wire terminal. See Figure 23.
Electric (120 volt) Operated Remote Control, FREC

Note: Ifyouhavealouveredmodelreplaceandwillbeinstalling
thebloweroption,thereplacejunctionboxreceptacleshouldbe
wiredinaccordance withFigure28forproperindependentoperation
of the FREC remote and the optional FBB4 Blower kit.
To connect the FREC Remote to the millivolt gas valve on your
"B"-Ventreplace,disconnectbothoftheinsulatedwallswitch
wire terminal leads from the gas valve and discard the wall switch
wire. Connect the two wire leads from the FREC receiver to the
TH and TH/TP terminals on the gas valve.
Next, attach the short power cord to the remote receiver, then plug
the power cord into the junction box receptacle located at the bottom
rightsideofthereplace.
Theremotereceivershouldbelocatedontheoorofthereplace
to the right of the gas valve.
Attention: The Velcro loop and hook are not necessary in this
installation but can be used to secure remote receiver.
Refer to remote control installation and operating instructions for
more details on remote control.
Millivolt Control
The valve regulator controls the burner pressure which should be
checked at the pressure test point. Turn captured screw counter
clockwise 2 or 3 turns and then place tubing to pressure gauge over
test point (Use test point “A” closest to control knob). After taking
pressurereading,besureandturncapturedscrewclockwisermly
tore-seal.Donotovertorque.Checkforgasleaks.
Millivoltthermopileisselfgenerating.Gasvalvedoesnotrequire
24 volts or 110 volts.
Check System Operation
Millivolt system and all individual components may be checked
with a millivolt meter 0-1000 MV range.
It is important to use wire of a gauge proper for the length of the
wire:
Recommended Wire Gauges
Maximum Length Wire Gauge
1' to 10' 18
10' to 25' 16
25' to 35' 14

prior to installing the remote control optional equipment.
OPERATING INSTRUCTIONS (CONT)

22679-1-0408Page 18
Figure 23
THERMOPILE
GAS VALVE
(OPTIONAL) REMOTE CONTROL RECEIVER
DU RECEPTEUR(FACULTATIVE) CONTROLEEDISTANCE
WALL SWITCH
INTERRUPTEUR MURAL
(OPTIONAL) THERMOSTAT
(FACULATIVE) THERMOSTAT
GAS VALVE
VALVE DE GAZ
WALL SWITCH/REMOTE
CONTROL RECEIVER/
THERMOSTAT
CONTROLEEDISTANCE
DU RECEPTEUR
HN
PILOT
VEILLEUSE
LIMIT SWITCH
V EN T
P I L O T
IN
STANDING PILOT WIRING DIAGRAM

22679-1-0408 Page 19
1. STOP! Read the safety information above.
2. Set wall switch or remote to "OFF."
3. Turn off all electric power to the appliance (if
applicable).
       
door.
5. Push in gas control knob slightly
and turn clockwise to
"OFF."
 
from "PILOT" to "OFF" unless
knob is pushed in slightly. Do not
force.
6. Wait ten (10) minutes to clear out
any gas. Then smell for gas, including

Follow "B" in the safety information
on reverse. If you do not smell gas, go
to the next step.
7. Find pilot - Follow metal tube from
gas control. The pilot is behind the
burner on the right side.
8. Turn gas control knob counterclockwise
to "PILOT."
9. Push in control knob all the way and hold in. Repeatedly

to hold the control knob in for about one (1) minute after
the pilot is lit. Release knob, and it will pop back up. Pilot
should remain lit. If it goes out, repeat steps 5 through 9.
           
    
gas supplier.
 
control knob to "OFF" and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise to "ON."
11. Close bottom louver assembly, or close valve access door.
12. Turn on all electric power to the appliance (if appli-
cable).
13. Set wall switch or remote to "ON."
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE
TO TURN OFF GAS TO FIREPLACE
1. Set wall switch or remote to "OFF."
2. Turn off all electric power to the appliance if service is to
be performed (if applicable).
3. Open bottom louver assembly, or open valve access
door.
         
to "OFF." Do not force.
5. Close bottom louver assembly, or close valve access
door.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area


WHAT TO DO IF YOU SMELL GAS
 
 
 
         
phone.
 
            
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in orturn by hand,


D. Do not use this appliance if any part has been under water.

the appliance and to replace any part of the control system
and any gas control which has been under water.
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
VENT
P I L O T
IN
ELECTRODE
PILOT
THERMOPILE
STANDING PILOT LIGHTING INSTRUCTIONS

22679-1-0408Page 20
With proper installation and maintenance, your new Gas Fireplace will provide years of trouble-free service. If you do experi-

problems and the corrective action to be taken.
1. Spark ignitor will not light pilot after repeated triggering

a. Defective ignitor (no spark electrode)
—Check for spark at electrode and pilot; if no spark and
electrode wire is properly connected, replace ignitor.
b. No gas or low gas pressure.
 —Check remote shut off valves from replace. Usually
there is a valve near the main. There can be more than one
(1)valvebetweenthereplaceandmain.
—Low pressure can be caused by a variety of situations
such as a bent line, too narrow diameter of pipe, or low line
pressure. Consult with plumber or gas supplier.
c. No LP in tank.
 —CheckLP(propane)tank.Relltank.
2. Pilot will not stay lit after carefully following lighting
instructions.
a. Defective thermopile.
 —Check that pilot ame impinges on thermopile. Clean
and/oradjustpilotformaximumameimpingement.
—Ensure the thermopile connections at the gas valve are
fully tight.
3. Pilot burning, no gas to burner, valve knob “ON.”
a. Wall switch, remote control or wires defective.
—Check wires for proper connections. Place jumper wires
across terminal at switch. If burner comes on, replace
defective switch. If OK, place jumper wires across switch
wires at gas valve-if burner comes on, wires are faulty or
connections are bad.
b. Thermopilemaynotbegeneratingsufcientmillivolts.
 —Ifthepilotameisnotcloseenoughphysicallytothe
thermopile,adjustthepilotame.
—Be sure the wire connections from the thermopile at the
gas valve terminals are tight and the thermopile is fully
inserted into the pilot bracket.
—Check the thermopile with a millivolt meter. Take the
reading at TH-TP& TPterminals of the gas valve. The meter
should read 350 millivolts minimum, while holding the valve
knob depressed in the PILOT position, with the pilot lit, and
the switch in the OFF position. Replace the faulty thermopile
ifthereadingisbelowthespeciedminimum.
—With the pilot in the ON position, disconnect the thermopile
leads from the valve. Take a reading at the thermopile leads.
The reading should be 350 millivolts minimum. Replace the
thermopile if the reading is below the minimum.
c. Defective valve.
—Turn valve knob to ON. Place Remote/Off/On switch to
ON. Check with millivolt meter at thermopile terminals.
Millivolt meter should read greater than 200 millivolts. If the
reading is okay and the main burner does not ignite, replace
the gas valve.
d. Pluggedmainburnerorice.
 —Checkmainburneroriceforblockageandremove.
 
a. Pilotamemaybetoohighortoolow,orblowing(high),
causing pilot safety to drop out.
 —Cleanandadjustameformaximumameimpingementon
the thermocouple. Follow lighting instructions carefully.
5. The pilot and main burner extinguish while in operation.
a. No LP (Propane) in tank.
CheckLP(Propane)tank.Rellfueltank.
b. Bad thermopile or thermocouple.
—Replace if necessary.
c. Improper vent cap installation.
—Check for proper installation and freedom from debris or
blockage.
6. (Glass) Sooting
a. Flame impingement on logs.
—Check and adjust log position. Contact Empire Comfort
Systems, Inc.
b. Debris around throat of main burner.
—Inspect the opening at the base of the main burner. It is
imperative that NO material be placed in this opening.
STANDING PILOT TROUBLESHOOTING
