INSTALLATION INSTRUCTIONS
AND
OWNER’S MANUAL
Mantis
PowerHumidifierBurnersExhaust
Fan
Blower
Hi
Med
Low
FrontRear
POWER-VENT
HIGH-EFFICIENCY
FIREPLACE WITH
BAY WINDOW
MODELS
PV-28SV50-(BN,BP)-1
PV-28SV55-(CN,CP,GN,GP)-1
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer’s in-
structions, this product could expose you to sub-
stances in fuel or from fuel combustion which can
cause death or serious illness.
Installer: Leave this manual with the
appliance.
Consumer: Retain this manual for future
reference.
— Do not store or use gasoline or other flamma-
ble vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING: If the information in these in-
structions are not followed exactly, a fire or ex-
plosion may result causing property damage,
personal injury or loss of life.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
™
EMPIRE
EMPIRE
Comfort Systems
This appliance is NOT to be installed in Canada.

22618-17-0308Page 2
TABLE OF CONTENTS
Important Safety Information ......................................................................................................................................... 3
Safety Information for Users of LP-Gas ......................................................................................................................... 4
Requirements for Massachusetts ..................................................................................................................................... 5
Gas Supply ...................................................................................................................................................................... 6
Introduction ..................................................................................................................................................................... 7
Installation Instructions – General Safety Information ................................................................................................... 8
Specifications .................................................................................................................................................................. 8
Clearances for Direct Vent .............................................................................................................................................. 9
Heater Installation for Direct Vent .................................................................................................................................. 9
Clearances for Single Flue ............................................................................................................................................ 10
Heater Installation for Single Flue ................................................................................................................................ 10
Specifications ........................................................................................................................................................ 11 – 14
Clearance to Combustibles ........................................................................................................................................... 15
Rough Framing Dimensions ......................................................................................................................................... 16
Insert Into Masonry Fireplace ....................................................................................................................................... 16
Wall Clearances ............................................................................................................................................................. 17
Log Set Installation Instructions ................................................................................................................................... 18
Vent Examples for Single Flue .............................................................................................................................. 19 - 21
PVVK-CFA Flex Vent Kit ............................................................................................................................................. 22
PVVK-SH Horizontal Vent Adaptor Kit ....................................................................................................................... 23
Horizontal Examples for Colinear Direct Vent ............................................................................................................. 24
Vertical Examples for Colinear Direct Vent ........................................................................................................... 25 - 26
PVCA Horizontal Colinear Direct Vent Adaptor .......................................................................................................... 27
PVVTC Termination Cap Vent Kit ............................................................................................................................... 28
PVCT Colinear Transition Vent Kit .............................................................................................................................. 29
Direct Vent Installation Instructions ...................................................................................................................... 30 - 31
PVVK-24H and PVVK-48H Vent Kit ................................................................................................................... 32 - 33
Gas Connection Installation Instructions ...................................................................................................................... 34
Operating Instructions Checklist ................................................................................................................................... 35
Lighting Instructions .............................................................................................................................................. 36 - 37
Fan Operation ................................................................................................................................................................ 38
Gas Conversion Instructions .................................................................................................................................. 39 - 40
Automatic Humidifier Operation .................................................................................................................................. 41
Optional Controllers ................................................................................................................................................ 42 - 43
Wiring ........................................................................................................................................................................... 44
General Information ...................................................................................................................................................... 45
Maintenance ........................................................................................................................................................... 45 - 46
Unit Operating Faults .................................................................................................................................................... 47
Resetting the Heater ...................................................................................................................................................... 47
Log Placement .............................................................................................................................................................. 47
Main Convection Fan .................................................................................................................................................... 48
Heat Exchanger ............................................................................................................................................................. 48
Surround Installation Instructions ................................................................................................................................. 48
Pedestal Installation Instructions .................................................................................................................................. 49
Parts List ................................................................................................................................................................ 50 - 51
Parts View .............................................................................................................................................................. 52 - 53
Warranty Terms ............................................................................................................................................................. 54
How To Order Repair Parts ........................................................................................................................................... 55
Service Notes ......................................................................................................................................................... 55 - 56
SECTION PAGE

22618-17-0308 Page 3
IMPORTANT SAFETY INFORMATION
THIS IS A HEATING APPLIANCE
DO NOT OPERATE THIS APPLIANCE WITHOUT FRONT PANEL INSTALLED.
• Due to high temperatures the appliance should be lo-
cated out of traffic and away from furniture and draper-
ies.
• Children and adults should be alerted to the hazards
of high surface temperatures and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance.
• Clothing or other flammable material should not be
placed on or near the appliance.
• Any safety screen or guard removed for servicing an ap-
pliance must be replaced prior to operating the appli-
ance.
• Keep burner and control compartment clean.
• Vent cap hot while furnace is in operation.
• For manufactured home (USA only) or mobile home or
residential installation convertible for use with natu-
ral gas and liquefied petroleum gases when provision
is made for the simple conversion from one gas to the
other.
• Installation and repair should be done by a QUALI-
FIED SERVICE PERSON. The appliance should be in-
spected before use and at least annually by a qualified
service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding materials,
etc. It is imperative that control compartments, burners
and circulating air passageways of the appliance be kept
clean.
• DO NOT put anything around the furnace that will ob-
struct the flow of combustion and ventilation air.
• DO keep the appliance area clear and free from combus-
tible material, gasoline and other flammable vapors and
liquids.
• Do examine venting system periodically and replace
damaged parts.
• Do make a periodic visual check of burner. Clean and
replace damaged parts.
• DO NOT use this heater if any part has been under wa-
ter. Immediately call a qualified service technician to in-
spect the heater and to replace any part of the control
system and any gas control which has been under wa-
ter.

22618-17-0308Page 4
SAFETY INFORMATION FOR USERS OF LP-GAS
Propane (LP-Gas) is a flammable gas which can cause fires and
explosions. In its natural state, propane is odorless and colorless.
You may not know all the following safety precautions which can
protect both you and your family from an accident. Read them
carefully now, then review them point by point with the mem-
bers of your household. Someday, there may not be a minute to
lose, everyone’s safety will depend on knowing exactly what to
do. If, after reading the following information, you feel you still
need more information, please contact your gas supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
firefighters declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas ser-
vice person and the fire department. Even though you may
not continue to smell gas, do not turn on the gas again. Do
not re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for es-
caped gas. Have them air out the area before you return.
Properly trained LP-Gas service people should repair the
leak, then check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can filter the odorant. Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That
will take some of the odorant out of the gas, reducing its odor
intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest
gas odor. If you detect any odor, treat it as a serious leak. Imme-
diately go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it
to find out what the propane odor smells like. If you suspect
that your LP-Gas has a weak or abnormal odor, call your
LP-Gas Dealer.
• If you are not qualified, do not light pilot lights, perform ser-
vice, or make adjustments to appliances on the LP-Gas sys-
tem. If you are qualified, consciously think about the odor of
LP-Gas prior to and while lighting pilot lights or performing
service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks or
cylinders are placed in service. Odor fade can occur in new
tanks, or reinstalled old tanks, if they are filled and allowed
to set too long before refilling. Cylinders and tanks which
have been out of service for a time may develop internal
rust which will cause odor fade. If such conditions are sus-
pected to exist, a periodic sniff test of the gas is advisable. If
you have any question about the gas odor, call your LP-gas
dealer. A periodic sniff test of the LP-gas is a good safety
measure under any condition.
• If, at any time, you do not smell the LP-Gas odorant and
you think you should, assume you have a leak. Then take
the same immediate action recommended above for the oc-
casion when you do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container is un-
der no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in
some air through openings such as pilot light orifices. If this
occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having it
refilled before it is completely empty.

22618-17-0308 Page 5
REQUIREMENTS FOR MASSACHUSETTS
For all side wall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part
for residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than seven (7) feet above finished grade in the area of
the venting, including but not limited to decks and porches, the
following requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS.
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas fitter shall
observe that a hard wired carbon monoxide detector with an
alarm and battery back-up is installed on the floor level where
the gas equipment is to be installed. In addition, the installing
plumber or gas fitter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm is
installed on each additional level of the dwelling, building or
structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner
to secure the services of qualified licensed professionals for
the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
floor level.
b. In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that
during said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall be
installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each
carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/
UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be
permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line
with the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) inch in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side
wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a) 1
through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does not
provide the parts for venting the flue gases, but identifies
“special venting systems”, the following requirements
shall be satisfied by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for
that system shall include a parts list and detailed
installation instruction.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for
venting instructions, and/or all venting design instructions
shall remain with the appliance or equipment at the
completion of the installation.

22618-17-0308Page 6
Consult the current National Fuel Gas Code, ANSI Z223.1 CAN/
CGA-B149 (.1 or .2) installation code.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5 mm
1/2”
12.7mm
3/8”
9.5 mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9 mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2 mm
3/4”
19mm
Note: Never use plastic pipe. Check to confirm whether your local
codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal Tubing
and Fittings
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a flexible
appliance connector cannot exceed three feet in length.
Figure 1
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the
unit. Where none exists, or where its size or location is not ad-
equate, contact your local authorized installer for installation or
relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liquefied petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed flame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip line be installed near
the gas inlet. This should consist of a vertical length of pipe tee
connected into the gas line that is capped on the bottom in which
condensation and foreign particles may collect.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8" (3 mm) N.P.T.
plugged tapping, accessible for test gauge connection, must be
placed immediately upstream of the gas supply connection to
the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2
psig (3.5 kPa).
3. The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14" w.c.) (3.5 kPa) on the fireplace gas valve, it will
result in a hazardous condition.
Checking Manifold Pressure
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.872 kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 5.0" w.c.
(1.245 kPa) for the purpose of input adjustment to a maximum of
10.5" w.c. (2.614 kPa) Propane gas models will have a manifold
pressure approximately 7.0" w.c. (2.49 kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 11.0" w.c.
(2.739 kPa) for the purpose of input adjustment to a maximum of
13.0" w.c. (3.237 kPa).
A 1/8" (3 mm) N.P.T. plugged tapping, accessible for test gauge
connection, is located on the outlet side of the gas control.
GAS SUPPLY
FLEX TUBING
3/8 NPT
NIPPLE
FLARE FITTING
GAS VALVE
SOLENOID FLARE SHUT OFF VALVE

22618-17-0308 Page 7
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall be
performed only by a qualified agency. The term “qualified agen-
cy” mean any individual, firm, corporation or company which
either in person or through a representative is engaged in and is
responsible for (a) the installation or replacement of gas piping or
(b) the connection, installation, repair or servicing of equipment,
who is experienced in such work, familiar with all precautions re-
quired and has complied with all the requirements of the authority
having jurisdiction.
The installation must conform with local codes, or in the absence
of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA
54 or Natural Gas and Propane Installation Code, CSA B149.1.
* Available from the American National Standards Institute, Inc.,
11 West 42nd St., New York, NY 10036.
A manufactured home (USA only) or mobile home OEM instal-
lation must conform with the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured Home
Installations, ANSIZ225.1, or Standard for Gas Equipped Recre-
ational Vehicles and Mobile Housing, CSA Z240.0.
High Altitudes
For altitudes/elevations above 2,000 feet (610 m), input ratings
should be reduced at the rate of 4 percent for each 1,000 feet (305
m) above sea level, this may be accomplished by reducing mani-
fold pressure. The maximum allowable reduction in manifold
pressure for Natural gas shall be from 3.5” w.c. (.872 kPa) to 2.8”
w.c. (.697 kPa). The maximum allowable reduction in manifold
pressure for Propane (LP) gas shall be from 10.0” w.c. (2.49 kPa)
to 8.0” w.c. (1.99 kPa). For Canadian high altitude applications,
this appliance is suitable for installation at elevations between 0
feet (0 m) and 4,500 feet (1,372 m) without change.
Canada:
This appliance is NOT to be installed in Canada.
Introduction
Always consult your local Building Department regarding regu-
lations, codes or ordinances which apply to the installation of a
direct vent wall furnace.
Instructions to Installer
1. Installer must leave instruction manual with owner after in-
stallation.
2. Installer must have owner fill out and mail warranty card sup-
plied with furnace.
3. Installer should show owner how to start and operate furnace
and thermostat.
4. Installer must locate unit near a grounded wall receptacle for
115VAC power and must provide gas supply and vent the
unit properly for safe operation.
General Information
This series is designed certified in accordance with American
National Standard/CSA Standard Z21.88 and CSA 2.33 by the
Canadian Standards Association as a Gas Fireplace Heater to be
installed according to these instructions.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and com-
pany making the change.
Important
All Correspondence should refer to complete Model Number, Se-
rial Number and type of gas.
Notice: During initial firing of this unit, oil from the heat exchang-
er may bake out and smoke may occur. To prevent triggering of
smoke alarms, ventilate the room in which the unit is installed.
Installation in Residential Garages
Gas utilization equipment in residential garages shall be installed
so that all burners and burner ignition devices are located not less
than 18” (457 mm) above the floor.
Such equipment shall be located, or protected, so it is not subject
to physical damage by a moving vehicle.
Warning:
Any change to this furnace or its control can be dangerous.
This is a heating appliance and any panel, door or guard
removed for servicing an appliance must be replaced prior
to operating the appliance.
Sate of Massachusetts: The installation must be made by a
licensed plumber or gas fitter in the Commonwealth of Mas-
sachusetts.
INTRODUCTION

22618-17-0308Page 8
Model PV28SV50
Input BTU/HR (KW/H) 19,000 Rear - 9,000 Front
Height 25 1/8”
Width 28 3/16”
Depth 17 5/8”
Gas Inlet (Pipe) 3/8” Flair
Electrical - Unit has a 5’ (1.5 m) 3 pronged cordset for con-
nection to an approved 115 VAC 60 Hz maximum
AMPs - 5A wall receptacle.
Accessories
Part Number Description
PV-2H Top Cover - Slim Assembly
PV-4H Top Cover - Short Assembly
PVPK Pedestal Kit
PVE-1 6” Surround Assembly
PVSH Rear Shroud
TRW Wall Thermostat - Wireless Remote
FRBTC Battery Operated Remote w/Thermostat
FRBTP Battery Operated Remote w/Programmable Ther-
mostat
TMV2 Two-Stage Thermostats
CIPFP-1 Floor Pad Kit
CIFPB-1C Corner Floor Pad Kit
PVVK24H Direct Vent 24” Vent Kit
PVVK48H Direct Vent 48” Vent Kit
PVVK-SH Single Flue Horizontal Vent Kit
PVVK-SV Single Flue Vertical Vent Kit
PVVK-CFA Flex Vent Kit
PVCT Colinear Transition
PVVTC Vertical Termination Cap - 1.5”
PVCA Colinear Adapter
SPECIFICATIONS
INSTALLATION INSTRUCTIONS - GENERAL SAFETY INFORMATION
1. This installation must conform with local codes or, in the ab-
sence of local codes with NFPA54.
2. Provide adequate clearances around the product for servic-
ing and ensure there are no obstructions to the combustion
air intake situated at the back of the heater. Refer to Page 15,
Figures 7 through 10.
3. The appliance must be installed on a flat, solid continuous
surface (i.e. wood, metal, concrete). Please Note: Rough or
uneven surfaces can cause vibration or humming in the heat-
er.
4. The Mantis Power-Vent High-Effeciency Fireplace can be in-
stalled in a wide variety of ways and will fit nearly any room
layout. It may be installed in a recessed position, framed out
into the room, or across a corner. For installation options re-
fer to page 15.
5. This appliance (Insert and Freestanding Models) needs to be
installed in such a way that the heater can be removed at all
times to service the heater exchanger and flue fan located in
the rear section of the heater.
Note: Under no circumstances should the appliance be in-
stalled under conditions which would not allow for
easy removal of the appliance to carry out routine
inspection and service to the appliance, to do so will
void the warranty.
Note: On Single Wall flue pipe installations (imitation zero
clearance fireplace) a minimum of 2” (50.8 cm) clear-
ance must be provided at the rear of the heater to enable
the heater to get sufficient combustion air to the air inlet
located at the rear of heater. Refer to installation instruc-
tions on page 15, Figures 7 through 10.
Note: Where a mantel surround is being used on insert installa-
tions and zero clearance fireplace installations, the com-
bustion air intake slot located in the top mantel surround
must have no obstructions to allow combustion air to en-
ter through the slot to the combustion air inlet located at
the back of the heater.

22618-17-0308 Page 9
1. Pick a location on a wall with a clear space in the room. In
selecting a location for installation, it is necessary to provide
adequate accessibility clearances for servicing and proper
installation. Be sure to locate the unit close enough to a 110
VAC wall receptacle to properly power appliance.
2. When facing the front of the furnace the minimum clearances
from casing to combustible construction are 0” (0 mm) on top,
0” (0 mm) on each side, recommend 4” (102 mm) on sides
for servicing and 0” (0 mm) from the floor, 0” (0 mm) to rear
wall and 40” (1,016 mm) from Mantis top to ceiling.
3. The minimum distance from the center of the vent cap to the
nearest outside corner or obstruction is 12” (305 mm).
4. The minimum wall depth is 4” (102 mm) and the maximum
is 48” (121.92 cm).
The vent terminal of a direct vent appliance, with an input of
50,000 BTU (14.6KW) per hour or less shall be located at least
9” (229 mm) from any opening through which flue gases could
enter a building.
The bottom of the exhaust vent terminal and the air intake shall
be located at least 12” (305 mm) above grade and must be vented
outside.
WARNING: The nearest point of the vent cap should be
a minimum horizontal distant of six (6) feet (1.83 m) from
any pressure regulator. In case of regulator malfunction,
the six (6) feet (1.83 m) distance will reduce the chance of
gas entering the vent cap.
Installation on Rugs and Tile
If this appliance is to be installed directly on carpeting, tile, or other
combustible material, other than wood flooring, the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.
The base referred to above does not mean the fire-proof base as
used on wood stoves. The protection is primarily for rugs that may
be extremely thick and light-color tile that can discolor.
Locating Wall Opening
The recommended location for this furnace is on an outside wall.
Locate wall studs so that wall vent opening will be located between
wall studs. The wall opening required for venting is a 3 1/2” (89
mm) minimum diameter opening.
Refer to Figures 3 and 6 for positioning the heater on wall and for
locating gas line connection and vent opening. Furnace can sit on
the floor.
CLEARANCES FOR DIRECT VENT
HEATER INSTALLATION FOR DIRECT VENT
1 9/16”
4 3/32”
Figure 2

22618-17-0308Page 10
1. Pick a location on a wall with a clear space in the room. In
selecting a location for installation, it is necessary to provide
adequate accessibility clearances for servicing and proper
installation. Be sure to locate the unit close enough to a 115
VAC wall receptacle to properly power appliance.
2. When facing the front of the furnace, the minimum clearances
from casing to combustible construction are 0” (0 mm) on top,
0” (0 mm) on each side, recommend 4” (102 mm) for servicing
and 0” (0 mm) from the floor and 2” (51 mm) to rear wall for
servicing and installation.
3. The minimum distance from the center of the vent cap to the
nearest outside corner or obstruction is 12” (305 mm).
The bottom of the exhaust vent terminal and the air intake shall
be located at least 12” (305 mm) above grade and must be vented
outside.
WARNING: The nearest point of the vent cap should be a
minimum horizontal distance of six (6) feet (1.83 m) from
any pressure regulator. In case of regulator malfunction,
the six (6) feet (1.83 m) distance will reduce the chance of
gas entering the vent cap.
Installation on Rugs and Tile
If this appliance is to be installed directly on carpeting, tile, or other
combustible material, other than wood flooring, the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.
The base referred to above does not mean the fire-proof base as
used on wood stoves. The protection is primarily for rugs that may
be extremely thick and light-color tile that can discolor.
Locating Wall Opening
The recommended location for this heater is on an outside wall (the
unit can be located on an inside wall but must not exceed 40’ (12.19
m) in exhaust vent length). Locate wall studs so that wall vent opening
will be located between wall studs. The wall opening required for
venting is a 1 7/8” (48 mm) minimum diameter opening.
Refer to Figures 3 to 6 for positioning the heater on wall and for
locating gas line connection and vent opening. Heater can sit on
the floor.
CLEARANCES FOR SINGLE FLUE
HEATER INSTALLATION FOR SINGLE FLUE

22618-17-0308 Page 11
SPECIFICATIONS
Heater with Pedestal and Single Flue Adaptor
1 Flue Outlet 1 1/2” PVC Pipe
2 Air Inlet
3 Electric Cord
4 3/8” Flare Connection (Inside)
5 Single Flue Adaptor Model #PVVK-SH (required)
Figure 3

22618-17-0308Page 12
SPECIFICATIONS - (continued)

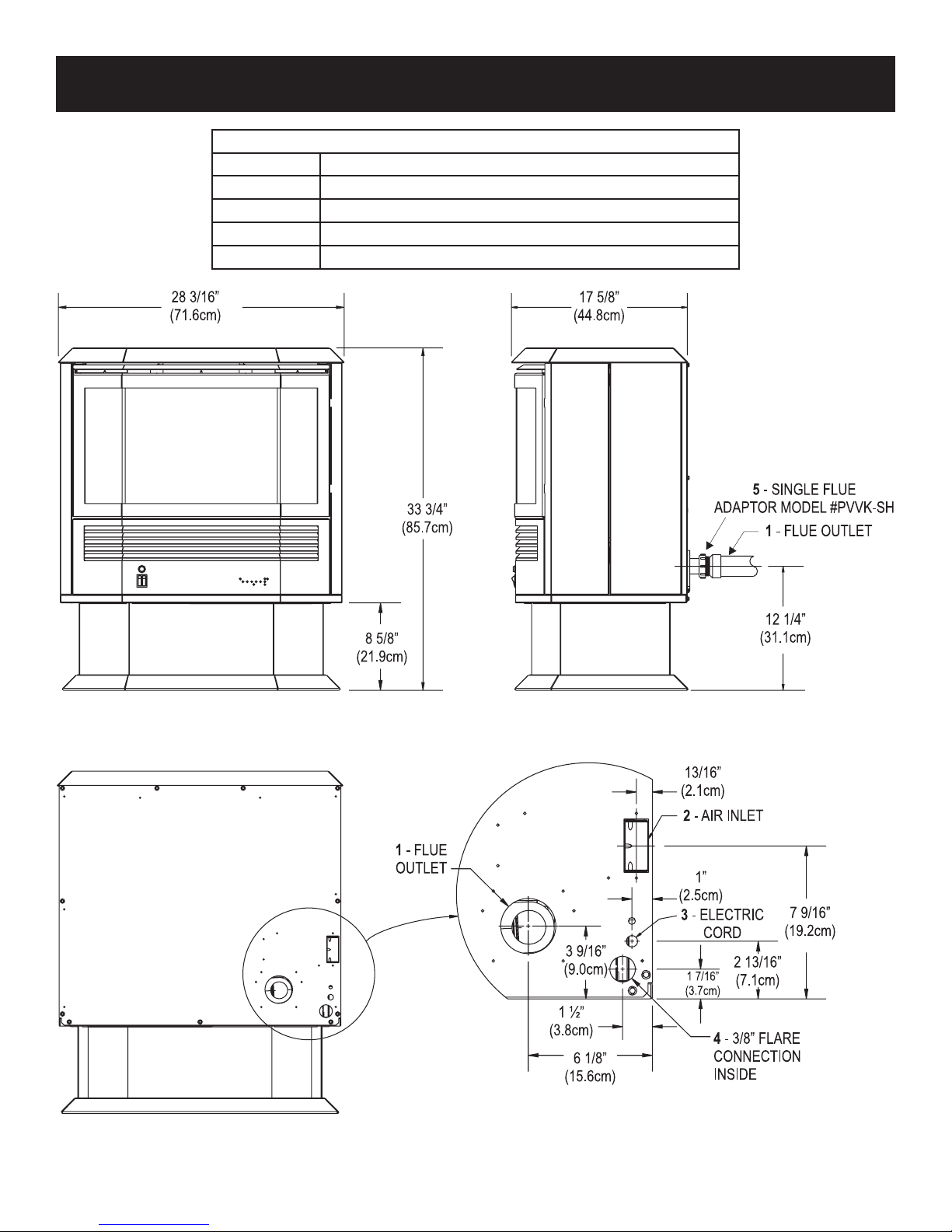

Figure 4
Heater without pedestal
1 Flue Outlet 1 1/2” PVC Pipe
2 Air Inlet
3 Electric Cord
4 3/8” Flare Connection (Inside)
5 Single Flue Adaptor Model #PVVK-SH (required)

22618-17-0308 Page 13
SPECIFICATIONS - (continued)
Figure 5
Fireplace Insert with Mantel Surround with Slim Top Panel
1 Flue Outlet 1 1/2” PVC Pipe
2 Air Inlet
3 Electric Cord
4 3/8” Flare Connection (Inside)
5 Single Flue Adaptor Model #PVVK-SH (Required)
6 Surround Model #PVE-1
7 Top Cover Kit, Slim Model #PV2H
Caution: Do not block louver in surround.
Note: Verify fireplace opening dimensions using Figure 9, page 15.

22618-17-0308Page 14
SPECIFICATIONS - (continued)

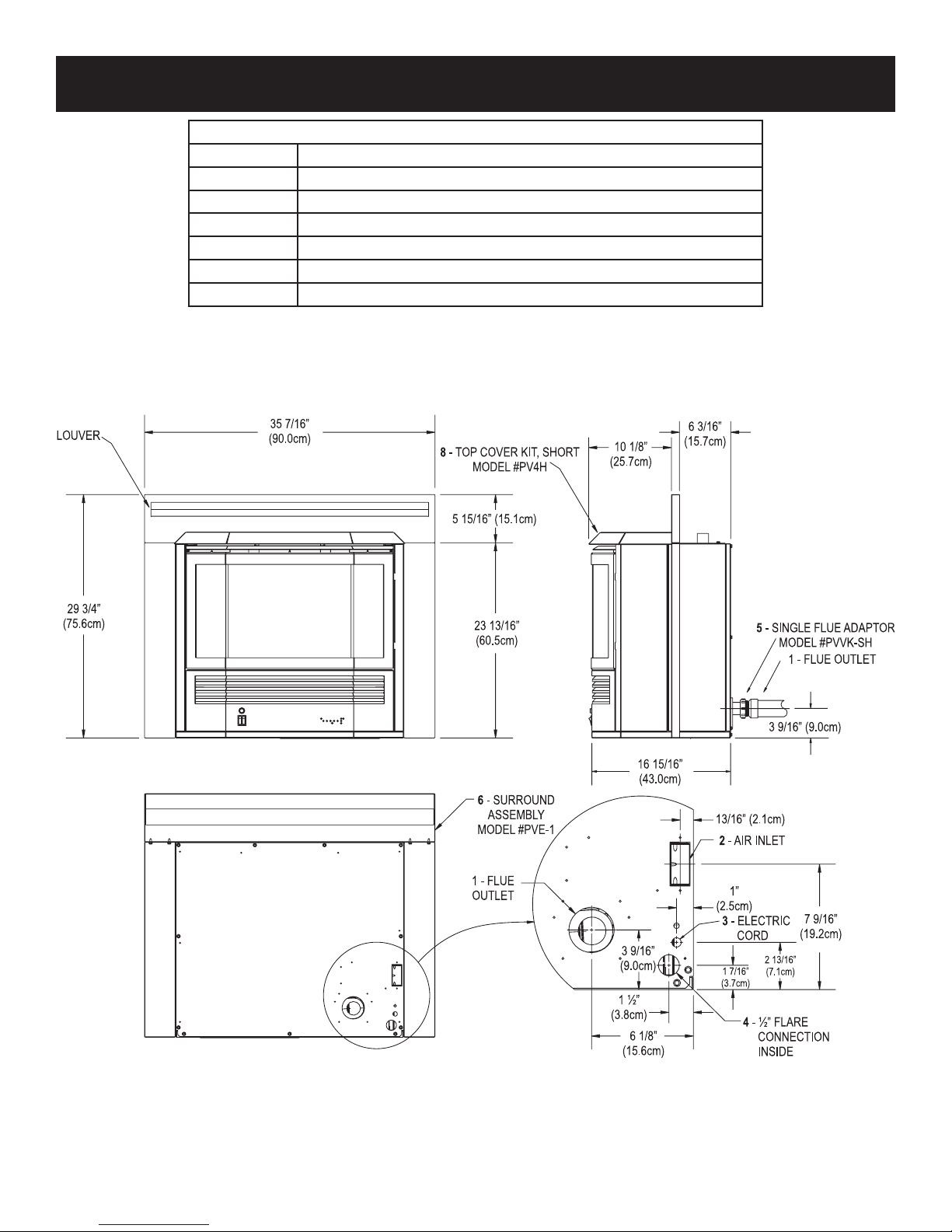

Figure 6
Fireplace Insert with Mantel Surround with Short Top Panel
1 Flue Outlet 1 1/2” PVC Pipe
2 Air Inlet
3 Electric Cord
4 3/8” Flare Connection (Inside)
5 Single Flue Adaptor Model #PVVK-SH (Required)
6 Surround Model #PVE-1
8 Top Cover Kit, Short Model #PV4H
Caution: Do not block louver in surround.
Note: Verify fireplace opening dimensions using Figure 9, page 15.

22618-17-0308 Page 15
CLEARANCE TO COMBUSTIBLES
Freestanding Models
Freestanding Units
A Rear Wall to Heater 0” (2” Single Flue and 1 1/4” Direct Vent for Serviceability)
B Side Wall to Heater 0” (4” recommended for serviceability)
C Corner Installation 0”
D Mantel Clearance See Figure 11
Fireplace Insert
Note: The Mantis Power-Vent High-Efficiency Fireplace has been tested and approved for zero clearance to combustible materials.
Empire Comfort Systems, Inc. recommends that clearances as listed above should be maintained to allow for removal of the
product for servicing.
CC
A
B B
Figure 7 Figure 8
Single Flue
Requires surround for combustion air.
Do not cover surround louver.
Figure 9
Mantel and Ceiling Clearances
Figure 11
Direct Vent Installation Shown
Single Flue requires surround for combustion air.
Figure 10
12”
18”
24”
8”
6”
4”
COMBUSTIBLE TRIM AND MANTELS
ALLOWED IN SHADED AREA
40”
CEILING

22618-17-0308Page 16

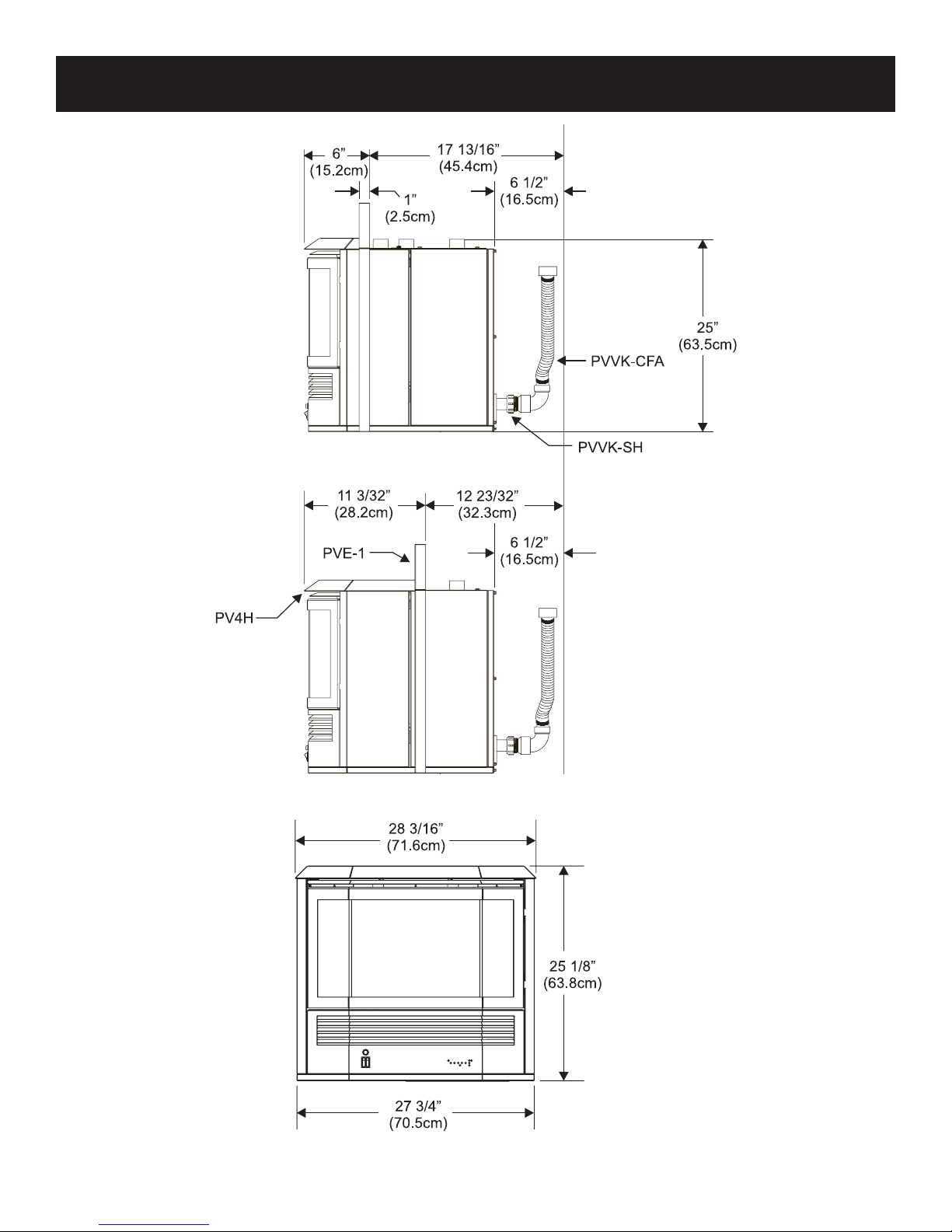

ROUGH FRAMING DIMENSIONS
INSERT INTO MASONRY FIREPLACE
A - 13 /34” MIN. CO-LINEAR
8 1/2” WHEN USING DIRECT VENTING
PVVK-24H/PVVK-48H
NOTE: DIMENSIONS FOR USE WITH SHORT TOP
PV4H. THIS IS RECOMMENDED FOR UNIT
SERVICEABILITY.
B - 25 1/8”
C - 28”
NOTE: IF TRIM AROUND HEATER IS NECESSARY,
THE SURROUND KIT PVE-1 MUST BE USED,
AND SUBTRACT 1” FROM (A) DIMENSION.
A - 12 3/4” MIN. SHORT TOP PV4H
17 13/16” MIN. SLIM TOP PV2H
USING PVE-1 SURROUND KIT
B - 25 1/8” MIN. DIRECT VENT
26 1/2” MIN. SINGLE FLUE
29” MAX
C - 28” MIN. NO SURROUND
33” MIN. WITH PVE-1 SURROUND
35” MAX. WITH PVE-1 SURROUND
Figure 13
Figure 12

22618-17-0308 Page 17
WALL CLEARANCES
Figure 14

22618-17-0308Page 18
All Logs
The positioning of the logs is critical to the safe and clean opera-
tion of this heater. Sooting and other problems may result if the
logs are not properly and firmly positioned in the appliance.
6. Prior to positioning of top left log and top right log, inspect
front burner and rear burner for particles or dust accumula-
tion on top of burners. If any particles or dust is visible on top
of front or rear burners, remove particles before placing top
left log and top right log into position.
7. Position top left log into locating pin on rear log and rest on
center log. See Figure 15.
8. Position top right log into locating slot on rear log. See Fig-
ure 15.
9. After top left log and top right log have been placed in posi-
tion and safety check has been carried out, install door and
latch securely with latches located on right and left side of
heater.
LOG SET INSTALLATION INSTRUCTIONS
Log Installation
The gas log set (front left log, front right log, center log and rear
log) is pre-set and installed in the factory. Only the top left log and
top right log are packaged separately inside the firebox for instal-
lation by the installer.
1. To access the log set parcel, lift off top panel.
2. Pivot left and right panels open.
3. Unlatch main door latches located on right and left hand side
of the heater, remove door.
4. Carefully remove top left log and top right log from firebox
and remove cardboard protection from center log and middle
log and all packaging materials.
Note: Positions of front left log, front right log, center log,
and rear log have been preset at the factory and their loca-
tions should not be changed. Check that logs have not been
damaged in transit.
5. Carefully remove wrapping from top left log and top right
log.
Note: Before you begin: Do not handle these logs with your bare
hands! Always wear gloves to prevent skin irritation. After
handling logs, wash your hands gently with soap and wa-
ter.
FRONT RIGHT LOG
FRONT LEFT LOG
CENTER LOG
TOP LEFT LOG
REAR LOG
TOP RIGHT LOG
LOG SET DIAGRAM - A
The Gas Log Kit contains the following:
1) Rear Log
2) Center Log
3) Top Right Log
4) Top Left Log
5) Front Left Log
6) Front Right Log
1 - REAR LOG
3 - TOP RIGHT LOG
6 - FRONT RIGHT LOG
2 - CENTER LOG
5 - FRONT LEFT LOG
4 - TOP LEFT LOG
Figure 15
Figure 16

22618-17-0308 Page 19
VENT EXAMPLES FOR SINGLE FLUE
Max Vent Run - 40 ft. Equivalent With Three (3) 90° Elbows
Special Note: The vent terminal 90° elbow and first 90° elbow off back of the heater, when within 6” (15.2 cm), do not contrib-
ute to the overall vent length measurement. For each 45° elbow installed in the horizontal run, the length of the horizontal run
MUST be reduced by 1.5 feet (45 cm). This does not apply if the 45° elbows are installed on the vertical part of the vent system.
Reduce the length of the horizontal run 3 feet (91.4 cm) for every 90° elbow.
Note: On horizontal runs, a P.V.C. support clamp needs to be installed every 3 feet. No “sags” in horizontal vent runs; water will settle
in the pipe.
When installing a single flue horizontal, the minimum vent length protruding from the outside wall is 6” (15.2 cm). See Figure 17.
Minimum vent from the rear of the unit is 12”.
Note: Horizontal discharge 90° elbow must be pointed downward. See Figure 18. All horizontal runs require either a 1/4” per foot rise
to run condensation back to the heater, or a 1/4” per foot downward slope to run condensation away from the heater.
Note: All PVC vent run piping can be purchased at a local hardware store. Schedule 40 PVC pipe should be used and cemented.
PVVK-CFA Flex Kit and PVVK-SH Horizontal Vent Adaptor Kit are available from Empire Comfort Systems, Inc.
Figure 17
Single Flue - Straight Out Back
Min 6” Outside Wall
Min 2” From Unit to Wall for Intake Air
Min vent length 12”
Figure 18
Single Flue - Horizontal Tall Vent Run
Example Calculation Max Vent Run 40’
H = 5’ + 2’ = 7’
V = 27’
(2) - 90° = 6’
Total = 40’
EXTERIOR GRADE
12” MIN.
6” MIN.
MIN. 2”
12” MIN.

22618-17-0308Page 20
VENT EXAMPLES FOR SINGLE FLUE (cont.)
Figure 19
Single Flue - Vertical Vent Run
H = 36’
V = 1’
(1) - 90° = 3’
Total = 40’
SINGLE FLUE ADAPTOR
MODEL #PVVK-SH
Figure 21
Single Flue - Venting with Shroud Installed
Shroud Kit Model# PVSH
Figure 20
Venting for Existing Fireplace Installation
V = 40’
Total = 40’
