Empire Comfort Systems DVCT40CSP95P Planning guide












GAS-FIRED

HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
DANGER

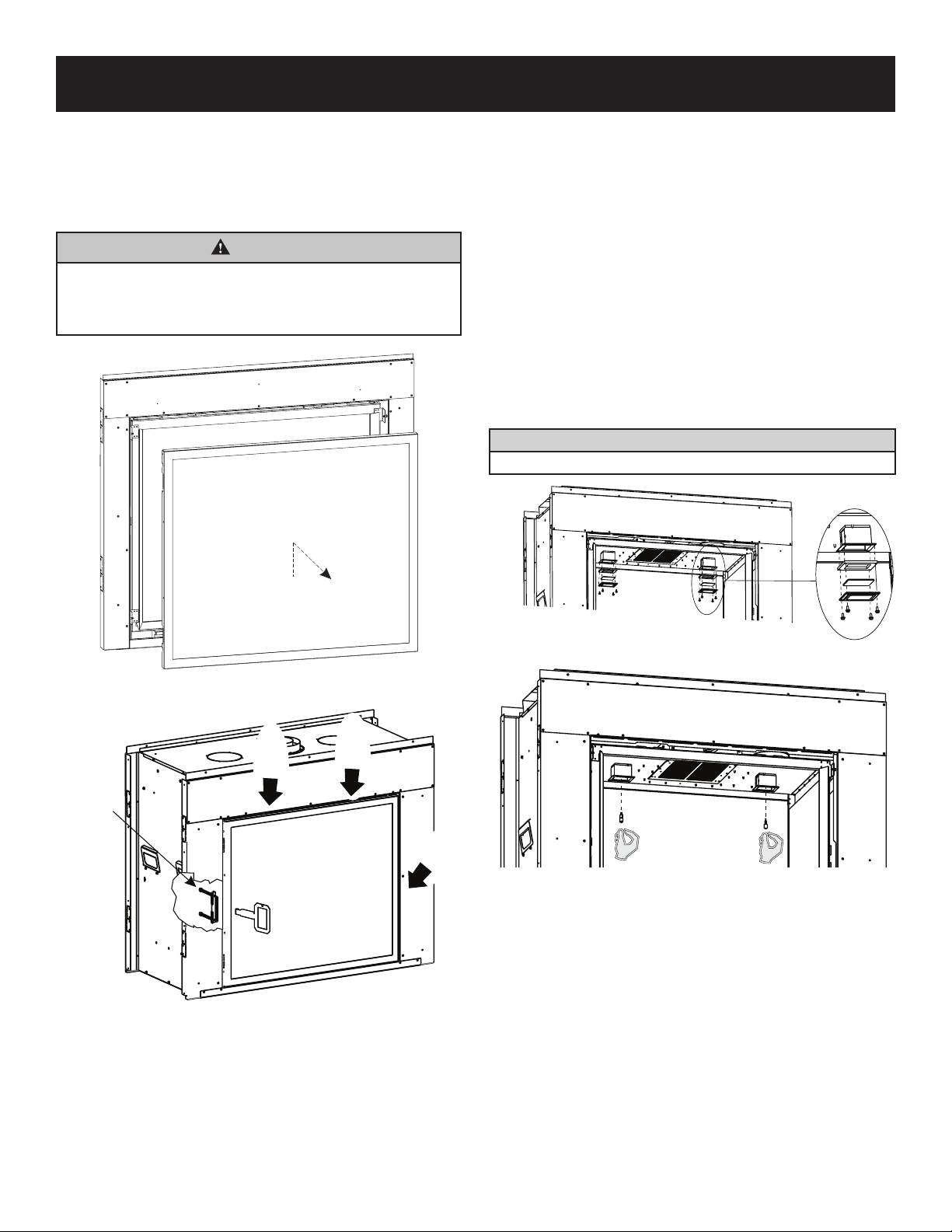

A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
DIRECT VENT
ZERO CLEARANCE GAS
FIREPLACE HEATER SERIES:
DVCT40CSP95(N,P)-1
HOMEOWNER’S MANUAL

40652-0-0719

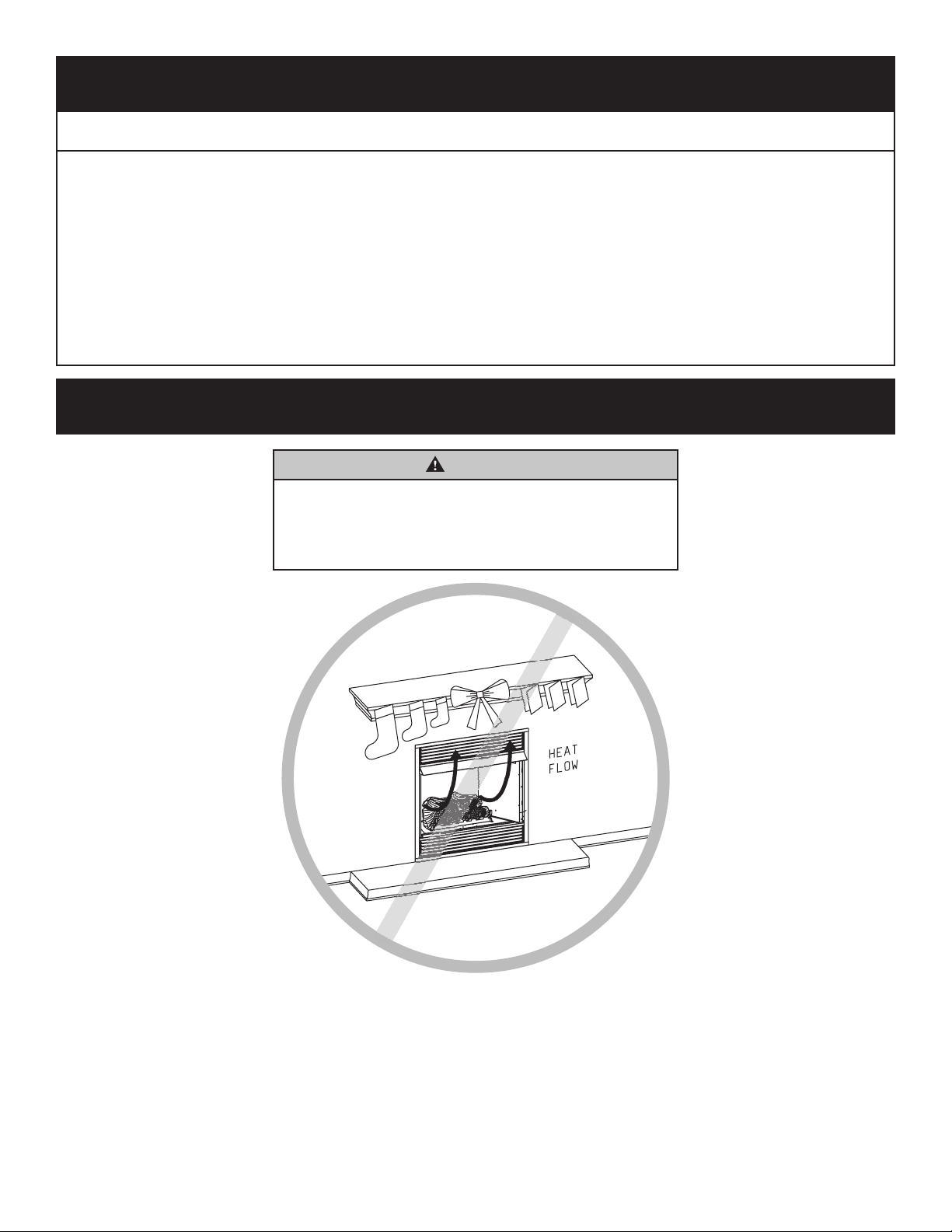

WARNING
Do not attach combustible material above your replace. This
is a re hazard. No greeting card, stockings or ornamentation
of any type should be placed on or attached to the replace.
This is a heating appliance. The ow of heat can ignite
combustibles.
Figure 1

COMBUSTIBLE MATERIAL
TABLE OF CONTENTS
SECTION PAGE
 







40652-0-0719 

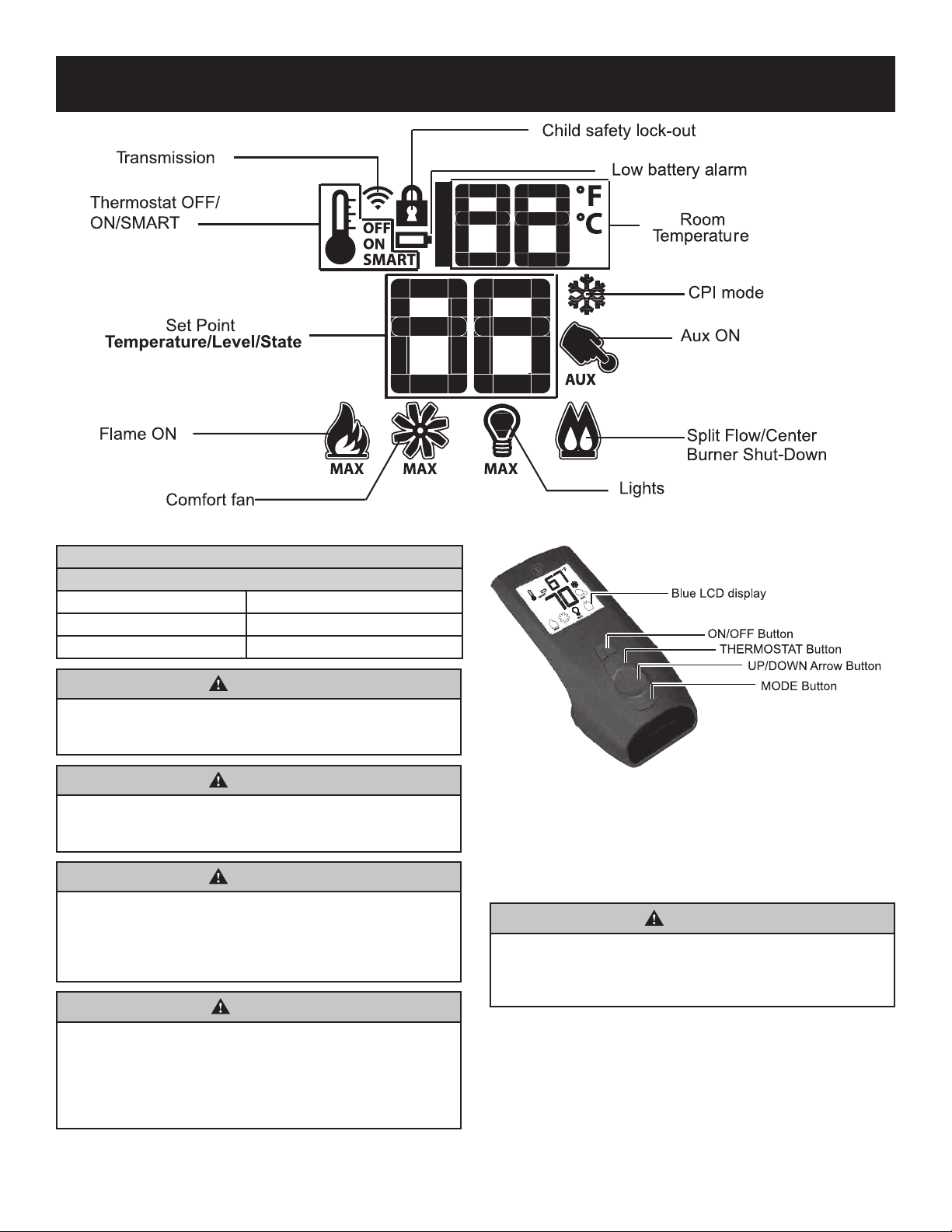

MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
Figure 2
TECHNICAL DATA
Remote Control
 
 
 
WARNING
The transmitter and receiver are radio frequency devices.
Placing the receiver in or near metal may severely reduce
the signal range.
WARNING
Turn “off” the main gas supply and electrical supply to the
appliance during installation and/or maintenance of the
receiver device.
WARNING
FIRE HAZARD. CAN CAUSE SEVERE INJURY OR DEATH.
The Receiver causes ignition of the appliance. The appliance
can turn on suddenly. Keep away from the appliance burner
when operating the remote system or activating manual
bypass of the remote system.
CAUTION
PROPERTY DAMAGE HAZARD.
EXCESSIVE HEAT CAN CAUSE PROPERTY DAMAGE.
The appliance can stay lit for many hours. Turn off the
appliance if it is not going to be attended for any length of
time. Always place the Transmitter where children can not
reach it.
Figure 3
NOTE:

NOTE:

NOTE:

CAUTION
FIRE OR EXPLOSION HAZARD.
Can cause property damage, sever injury or death. Do not
attempt to take apart the gas control or to clean it. Improper
assembly and cleaning can cause unreliable operation.

40652-0-0719
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS

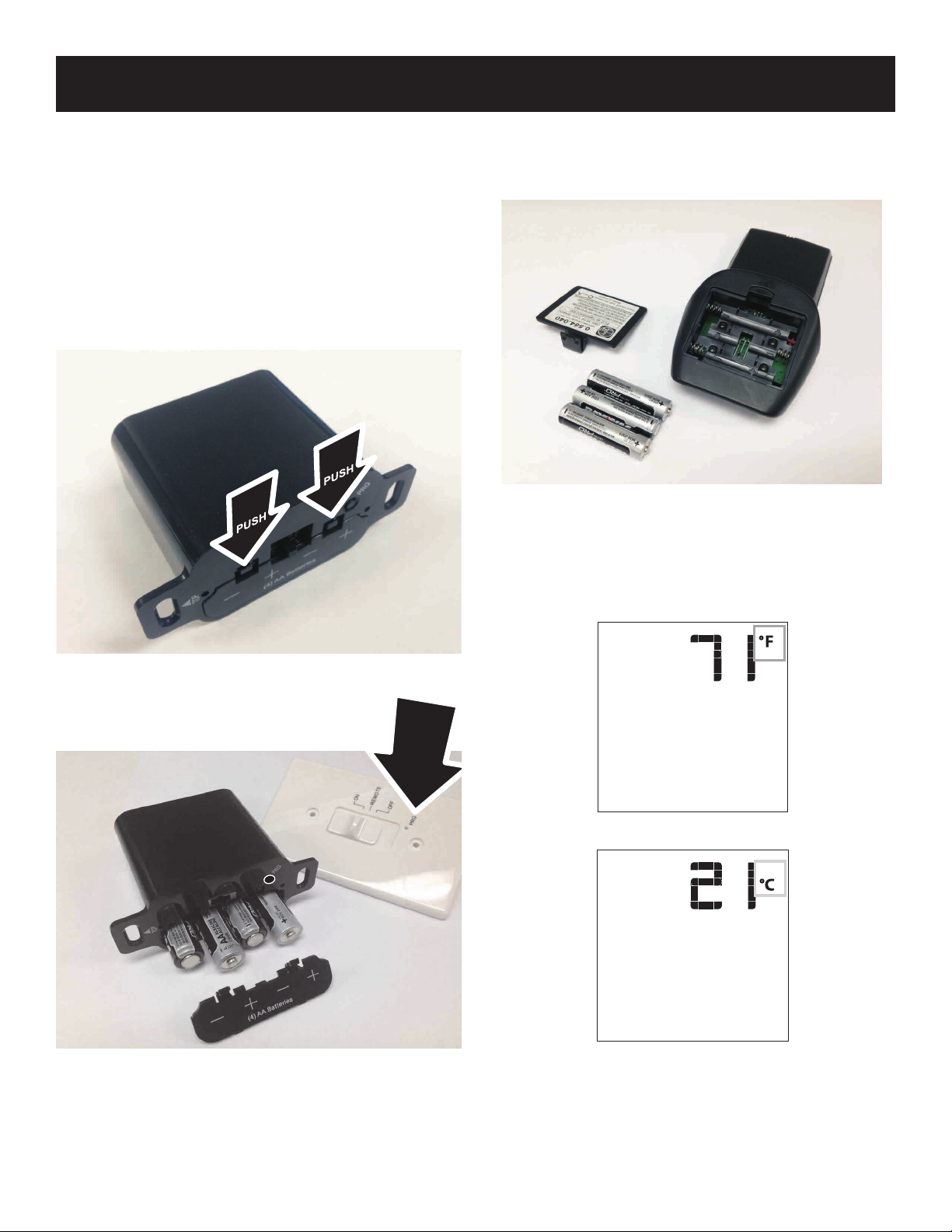

Initializing the System for the First Time
 
See Figure 4

See Figure 5.
 
See Figure 6.
 
See Figure 5.
 


See Figure 5.
Figure 4
SWI
BUTTON
Figure 5
 



Figure 6
Temperature Indication Display °C or °F



See Figures 7 and 8.
Figure 7
Figure 8

40652-0-0719 
Turn On the Appliance





Turn OFF the Appliance


See Figure 9.


Remote Control Display - Figure 9
Remote Flame Control







See Figures 10 through 13

OFF
Flame Off - Figure 10
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
OFF
Flame Level 1 - Figure 11
OFF
Flame Level 5 - Figure 12
OFF
Flame Level Maximum - Figure 13

40652-0-0719
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
The Thermostat Feature may be disabled if desired.

 
 


Room Thermostat (Transmitter Operation)



See Figure 3

See Figure 14.


See Figure 15.

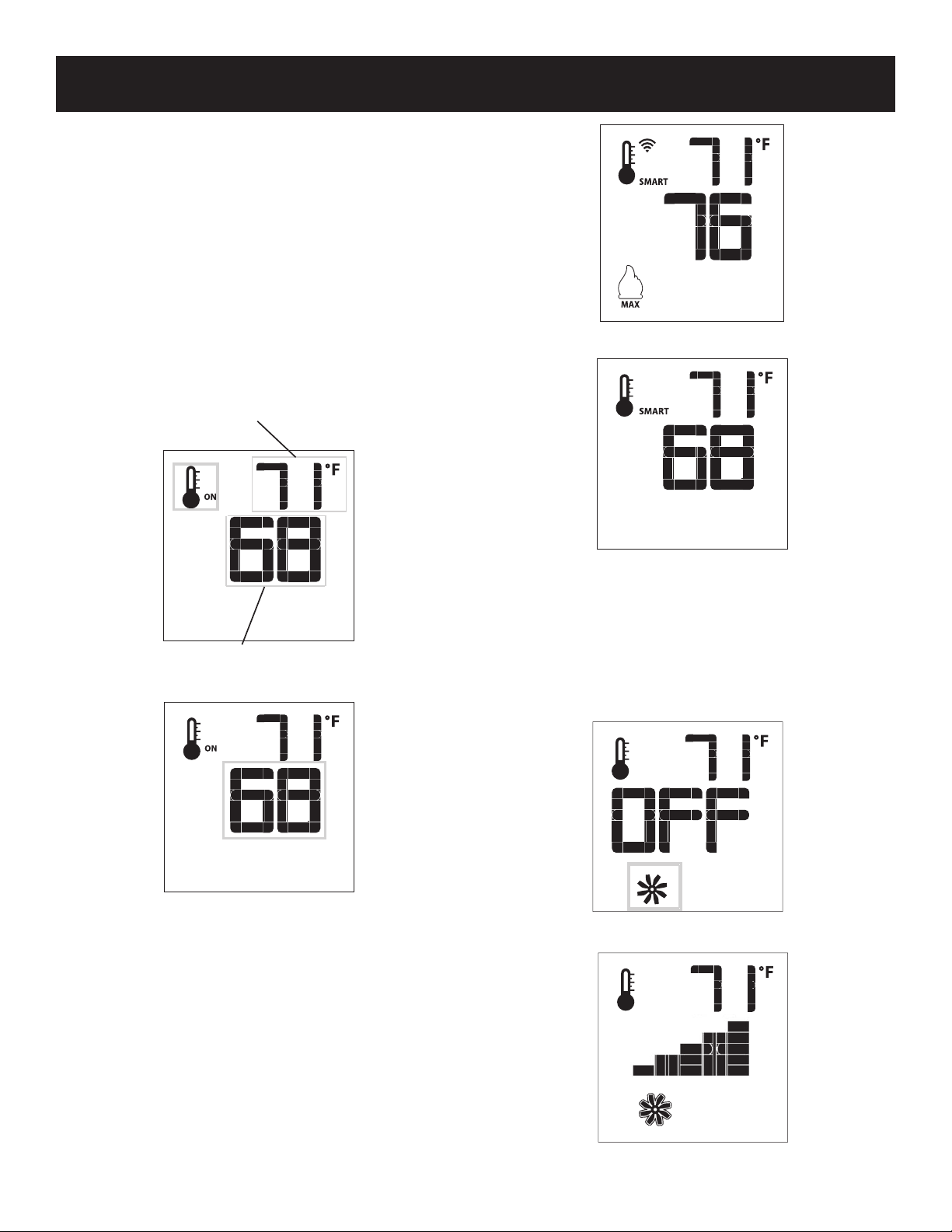

SET TEMPERATURE
ROOM TEMPER ATURE
Figure 14
Figure 15
Smart Thermostat (Transmitter Operation)






See Figure 16

See Figure 17.
NOTE

Figure 16
Figure 17
Blower Control (Fan)



Figure 3
See Figure 18Figure
56See Figure 19

OFF
Figure 18
OFF
Figure 19

40652-0-0719 
Remote Dimmer Control (Light)



Figure 3See Figures 20 and 21.

Figure 3

NOTE
OFF
Figure 20
OFF
Figure 21
Split Flow Control

Figure 3
See Figures 22 and 23



OFF
Figure 22
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
OFF
Figure 23
Remote Auxiliary Relay Control (optional with this replace)

Figure 3
Figures 24 & 25


Figure 24
Figure 25

40652-0-0719
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS

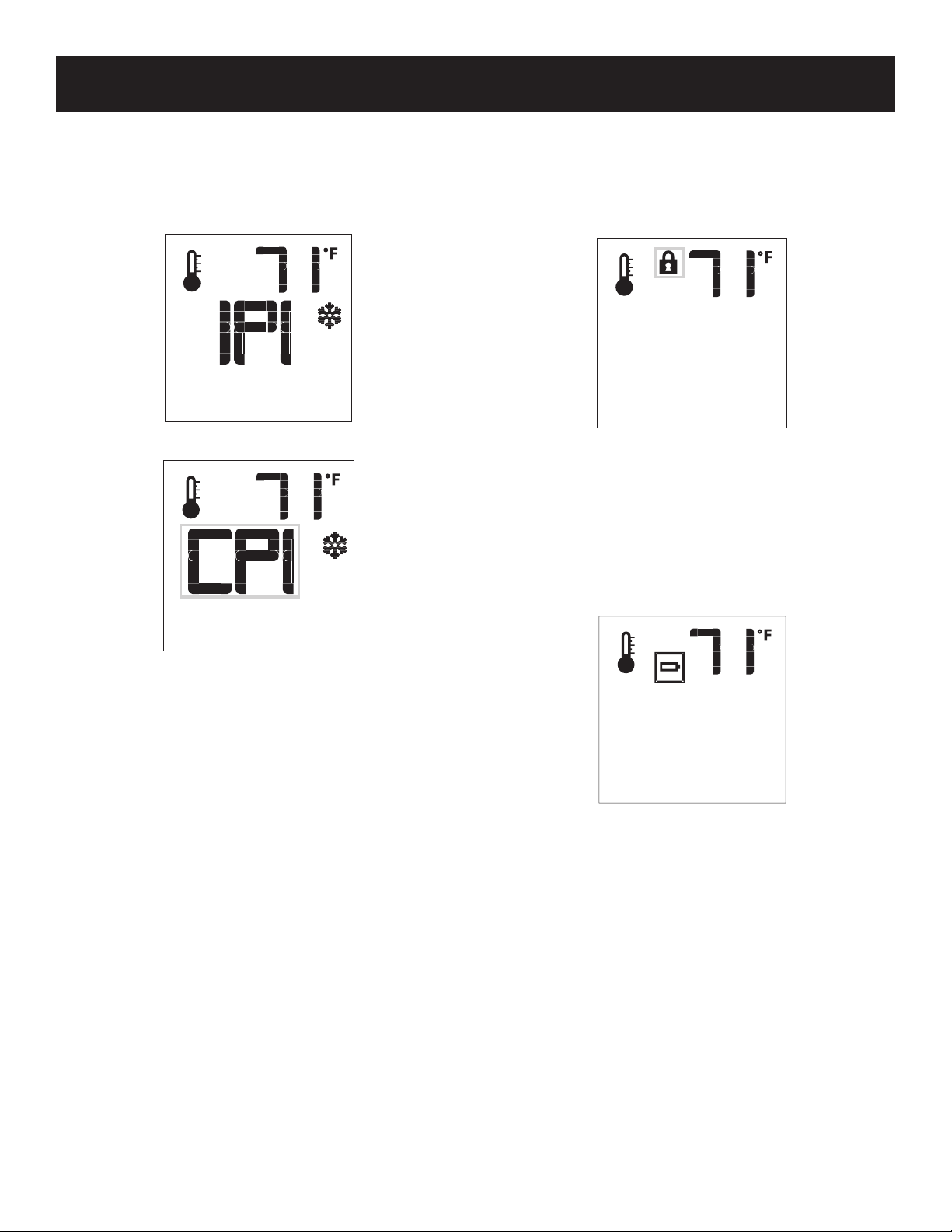

Continuous Pilot/ Intermittent Pilot (CPI/IPI) Selection
Figure
3See Figures 26 and 27.



OFF
Figure 26
OFF
Figure 27
Button Lock
T 
 
See Figure 28.


OFF
Figure 28
Low Battery Power Detection - Transmitter





See Figure 29

OFF
Figure 29

40652-0-0719 
Lockout State Denition








 

 
 






 




Using the Fireplace without a Remote Control





Battery Backup Operation




Low Battery Detection




MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS

40652-0-0719

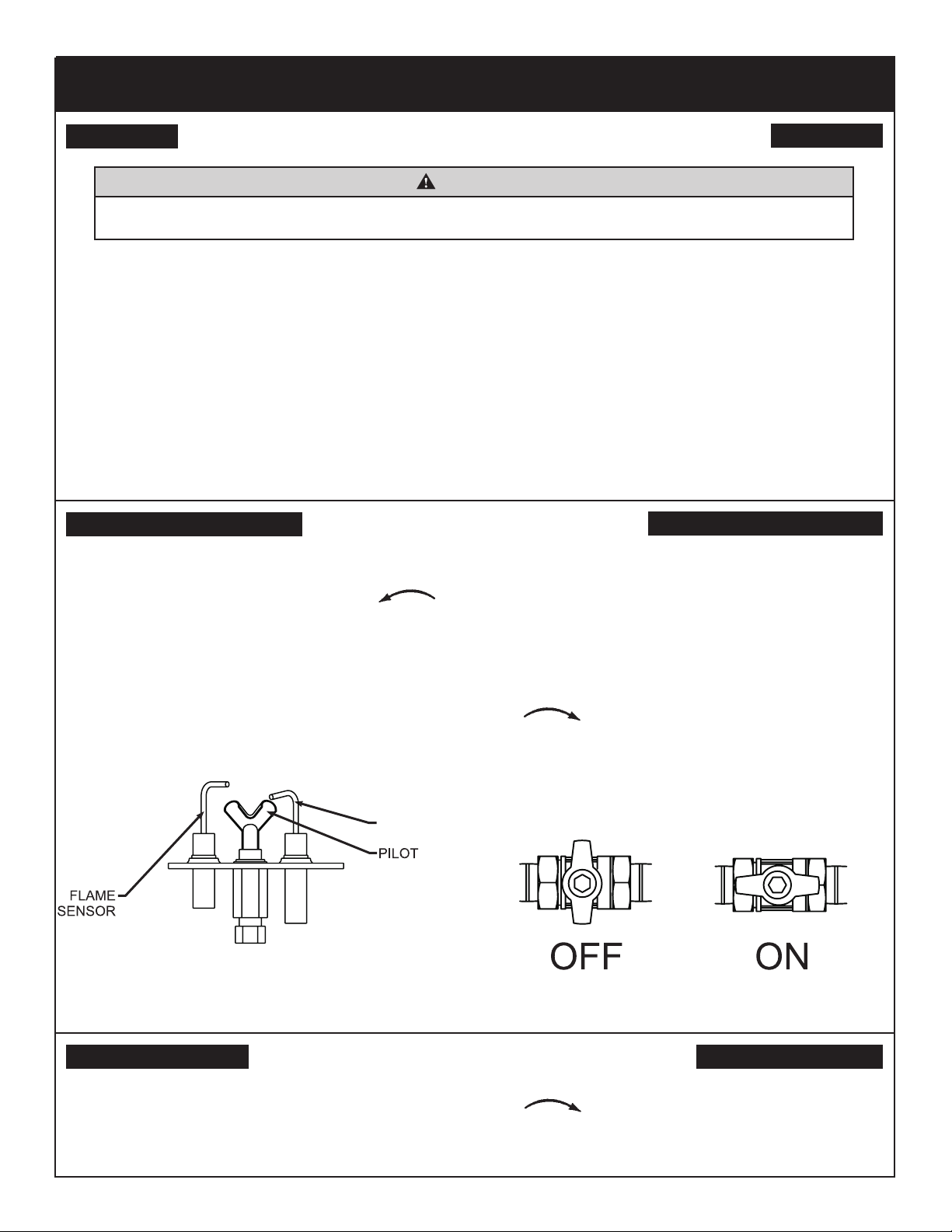

FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance must be lighted with the remote control.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING, smell around the appliance area for
gas. Be sure to smell next to the oor because some
gases are heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions. If you can not reach your gas
supplier, call the re department.
C. Use only the remote control to operate the valve. Never
use tools. If valve does not operate, don't try to repair it,
call a qualied service technician. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has been underwater.
Immediately call a qualied service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been underwater.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Turn off all electric power to the appliance if service is to
be performed (if applicable).
2. Locate On/Off gas shut-off knob and turn clockwise to
"OFF." Do not force.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Turn OFF electric power to the appliance.
3. Turn gas shut-off knob counterclockwise to
"ON" position.
4. Wait ten minutes to clear out any gas. Then smell for gas,
including near the oor. If you smell gas, STOP! Follow
"B" in the safety information above on this label. If you
do not smell gas, go to the next step.
5. Turn ON electric power to the appliance.
6. Using the remote control, turn main ame to "ON." Refer
to the Multifunction Remote Operating Instructions for
more information. If the pilot does not light within 60
seconds, stop and go back to Step 4.
7. Refer to remote control instructions for detailed
information, control features, and operation. Note:
Refer to Multifunction Remote operating instructions
for selection of continuous standing pilot mode or
intermittent pilot mode. If the pilot or burner does not stay
lit (in the standing pilot mode), stop and immediately call
a qualied service technician or gas supplier.
8. If the burner or pilot does not operate properly after
several tries, turn the gas shut-off knob clockwise
to "OFF" and call your service technician or
gas supplier.
9. Operation of the gas valve, blower, and/or optional light
must be controlled by using the hand held remote control.
Refer to remote instructions for detailed operation
information.
IGNITOR
WARNING
If you do not follow these instructions exactly, a re or explosion may result causing property damage,
personal injury or loss of life.
GAS SHUT-OFF VALVE
