Empire Comfort Systems VFD26FM(2 Quick start guide

INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
UNVENTED
GAS FIREPLACE
MODELS
VFD26FM(2,3)0(N,W,C)(N,P)-2
VFD26FP(2,3)0L(N,P)-2
VFD26FP70L(N,P)-1
VFD26FP30L10(N,P)-3
VFD26FP70L10(N,P)-1
Vent-Free Gas Fireplaces
This appliance may be installed in an aftermarket,
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas in-
dicated on the rating plate. This appliance is not con-
vertible for use with other gases.
WARNING
If the information in these instructions are not fol-
-
ing property damage, personal injury or loss of life.
 
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
  
  
any phone in your building.
        
neighbor’s phone. Follow the gas supplier’s
instructions.
  

— Installation and service must be performed by a
-
plier.
EMPIRE
EMPIRE
Comfort Systems
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to pages 9 and 10.
WATER VAPOR: A BY-PRODUCT OF UNVENTED
ROOM HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one
ounce (30ml) of water for every 1,000 BTU's (.3KW's)
of gas input per hour. Refer to page 8.
WARNING
If not installed, operated and maintained in accor-
dance with the manufacturer's instructions, this
product could expose you to substances in fuel or
from fuel combustion which can cause death or seri-
ous illness.
Page 1

30816-1-0912Page 2
TABLE OF CONTENTS
IMPORTANT SAFETY INFORMATION ......................................................................................... 3
SAFETY INFORMATION FOR USERS OF LP-GAS..................................................................... 4
INTRODUCTION ........................................................................................................................... 5
BUILT-IN FIREPLACE INSTALLATION ......................................................................................... 6
FIREPLACE DIMENSIONS ........................................................................................................... 7
SPECIFICATIONS ......................................................................................................................... 8
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS........................................ 8
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR...................................9-10
CONNECTING THE GAS ............................................................................................................ 10
GAS SUPPLY .............................................................................................................................. 11
CLEARANCES ............................................................................................................................ 12
COMBUSTIBLE MATERIAL ........................................................................................................ 12
INSTALLATION OF FIREPLACE AND MANTEL....................................................................13-14
OUTER TRIM INSTRUCTIONS................................................................................................... 15
HOOD INSTRUCTIONS .............................................................................................................. 15
LOG PLACEMENT ...................................................................................................................... 16
PLACEMENT OF GLOWING EMBERS (ROCK WOOL)............................................................. 17
OPERATION INSTRUCTIONS/FLAME APPEARANCE.............................................................. 18
MAINTENANCE........................................................................................................................... 18
10,000 BTU MILLIVOLT LIGHTING INSTRUCTIONS................................................................. 19
MILLIVOLT LIGHTING INSTRUCTIONS..................................................................................... 20
INTERMITTENT PILOT LIGHTING INSTRUCTIONS ................................................................. 21
HYDRAULIC THERMOSTAT LIGHTING INSTRUCTIONS ......................................................... 22
PILOT FLAME CHARACTERISTICS .....................................................................................23-24
MAIN BURNER AND THERMOSTAT OPERATION .................................................................... 25
MILLIVOLT WIRING .................................................................................................................... 26
MILLIVOLT TROUBLESHOOTING.............................................................................................. 27
IP ELECTRONIC SYSTEM OPERATING INSTRUCTIONS........................................................ 28
IP ELECTRONIC SYSTEM WIRING DIAGRAM ......................................................................... 29
INTERMITTENT CONTROL SYSTEM TROUBLESHOOTING ..............................................30-32
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS...................................................... 33
PARTS LIST............................................................................................................................34-35
PARTS VIEW ............................................................................................................................... 36
FBBX BLOWER KIT EXTENSION INSTALLATION INSTRUCTIONS ...................................37-38
FBB4 OPTIONAL VARIABLE SPEED BLOWER......................................................................... 38
FPP26E OPTIONAL BRICK LINER KIT INSTALLATION INSTRUCTIONS ................................ 39
MASTER PARTS DISTRIBUTOR LIST ....................................................................................... 40
HOW TO ORDER REPAIR PARTS ............................................................................................. 40
WARRANTY ................................................................................................................................ 41
APPLIANCE SERVICE HISTORY ..........................................................................................42-43
SECTION PAGE

30816-1-0912 Page 3
When usedwithoutadequate combustionand ventilationair, heater
may give off CARBON MONOXIDE, an odorless, poisonous gas.
Do not install heater until all necessary provisions are
made for combustion and ventilation air. Consult the writ-
ten instructions provided with the heater for information
concerning combustion and ventilation air. In the absence
of instructions, refer to the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and Ventilation, or ap-
plicable local codes.
This heater is equipped with a PILOT LIGHT SAFETY SYSTEM
designed to turn off the heater if not enough fresh air is avail-
able.
DO NOT TAMPER WITH PILOT LIGHT SAFETY SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and
control compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO DEATH.

headache, dizziness and/or nausea. If you have these signs, heater
may not be working properly. Get fresh air at once! Have heater
serviced.
Some people — pregnant women, persons with heart or lung dis-

altitudes — are more affected by carbon monoxide than others.
The pilot light safety system senses the depletion of oxygen at
its location. If this heater is installed in a structure having a high
vertical dimension, the possibility exists that the oxygen supply
at the higher levels will be less than that at the heater. In this type
of application, a fan to circulate the structure air will minimize this
effect. The use of this fan will also improve the comfort level in the
structure. When a fan is used to circulate air, it should be located

WARNING
DANGER: Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a hazardous situation which, if not avoid-
ed, could result in death or serious injury.
CAUTION: Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE: Addresses practices not related to personal injury.
 
6,000 Btu per hour shall not be installed in a bathroom.
          
than 10,000 Btu per hour shall not be installed in a bedroom
or bathroom.
 

 
surface temperature and should stay away to avoid burns
or clothing ignition.
   
are in the same room with the appliance.
 
the appliance.
 Installation and repair should be done by a QUALIFIED
SERVICE PERSON. This appliance should be inspected before
use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive
lint from carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating air
passageways of the appliance be kept clean.
 


any gas control which has been under water.
 
place. Do not close glass doors while operating heater.
 
operation.
      
components of this appliance are treated with certain oils,
        
harmful but may produce annoying smoke and smells as
they are burned off during initial operation of the appliance.
This is a normal temporary occurrence. A window should be
opened during the initial bake out period.
 
        
avoid potential problems with sooting. Sooting, resulting
from improper installation or operation, can settle on

installation.
 WARNING: Do not allow fans to blow directly into the

 WARNING: Do not use a blower insert, heat exchanger
insert or other accessory not approved for use with this
heater.
 
        

fresh air is not available.
        
materials, gasoline and other flammable vapors and
liquids.
THIS IS A HEATING APPLIANCE
IMPORTANT SAFETY INFORMATION

30816-1-0912Page 4

and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point by
point with the members of your household. Someday when
there may not be a minute to lose, everyone's safety will depend
on knowing exactly what to do. If, after reading the following
information, you feel you still need more information, please
contact your gas supplier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it
tondoutwhatthepropaneodorsmellslike.Ifyoususpect
thatyourLP-Gashasaweakorabnormalodor,callyour
LP-Gas Dealer.
• If you are not qualied, do not light pilot lights, perform
service,ormakeadjustmentstoappliancesontheLP-Gas
system.Ifyouarequalied,consciouslythinkabouttheodor
of LP-Gas prior to and while lighting pilot lights or performing
serviceormakingadjustments.
• Sometimesabasementoraclosed-uphousehasamusty
smell that can cover up the LP-Gas odor. Do not try to light
pilotlights,performservice,ormakeadjustmentsinanarea
where the conditions are such that you may not detect the
odoriftherehasbeenaleakofLP-Gas.
• Odorfade,duetooxidationbyrustoradsorptiononwalls
ofnewcylindersandtanks,ispossible.Therefore,people
shouldbeparticularlyalertandcarefulwhennewtanksor
cylinders are placed in service. Odor fade can occur in new
tanks,orreinstalledoldtanks,iftheyarelledandallowed
tosettoolongbeforerelling.Cylindersandtankswhich
havebeenoutofserviceforatimemaydevelopinternal
rust which will cause odor fade. If such conditions are sus-
pectedtoexist,aperiodicsnifftestofthegasisadvisable.
If you have any question about the gas odor, call your
LP-gas dealer. Aperiodic sniff test of the LP-gas is a
good safety measure under any condition.
• If,atanytime,youdonotsmelltheLP-Gasodorantand
youthinkyoushould,assumeyouhavealeak.Thentake
the same immediate action recommended above for the
occasion when you do detect the odorized LP-Gas.
• Ifyouexperienceacomplete"gasout,"(thecontaineris
undernovaporpressure),turnthetankvalveoffimmediately.
If the container valve is left on, the container may draw in
someairthroughopeningssuchaspilotlightorices.Ifthis
occurs, some new internal rusting could occur. If the valve
isleftopen,thentreatthecontainerasanewtank.Always
besureyourcontainerisundervaporpressurebyturning
itoffat the containerbeforeitgoescompletelyemptyor
havingitrelledbeforeitiscompletelyempty.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell

out if you can smell the odorant in propane.Smokingcan
decreaseyourabilitytosmell.Beingaroundanodorforatime
canaffectyoursensitivityorabilitytodetectthatodor.Some-
timesotherodorsintheareamaskthegasodor.Peoplemay
not smell the gas odor or their minds are on something else.
Thinkingaboutsmellingagasodorcanmakeiteasiertosmell.
The odorant in LP-gas is colorless, and it can fade under
some circumstances. Forexample,ifthereisanunderground
leak,themovementofthegasthroughsoilcanltertheodor-
ant.OdorantsinLP-Gasalsoaresubjecttooxidation.This
fadingcanoccurifthereisrustinsidethestoragetankorin
iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or
intowalls,masonryandothermaterialsandfabricsinaroom.
Thatwilltakesomeoftheodorantoutofthegas,reducingits
odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity
could vary at different levels. Since it is heavier than air, there
maybemoreodoratlowerlevels.Alwaysbesensitivetothe
slightest gas odor. If you detect any odor, treat it as a serious
leak.Immediatelygointoactionasinstructedearlier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
• Donotoperateelectricswitches,lightmatches,useyour
phone. Do not do anything that could ignite the gas.
• Geteveryoneoutofthebuilding,vehicle,trailer,orarea.
Do that IMMEDIATELY.
• Closeallgastankorcylindersupplyvalves.
• LP-Gasisheavierthanairandmaysettleinlowareas
suchasbasements.Whenyouhavereasontosuspect
agasleak,keepoutofbasementsandotherlowareas.
Stayoutuntilreghtersdeclarethemtobesafe.
• Useyourneighbor'sphoneandcallatrainedLP-Gasservice
personandtheredepartment.Eventhoughyoumaynot
continue to smell gas, do not turn on the gas again. Do
notre-enterthebuilding,vehicle,trailer,orarea.
• Finally,lettheservicemanandreghterscheckfores-
capedgas.Havethemairouttheareabeforeyoureturn.
Properly trained LP-Gas service people should repair the
leak,thencheckandrelightthegasapplianceforyou.
SAFETY INFORMATION FOR USERS OF LP-GAS

30816-1-0912 Page 5
shown on the rating plate is the responsibility of the person
and company making the change.
Important
AllcorrespondenceshouldrefertocompleteModelNumber,Serial
Numberandtypeofgas.
Attention: During initial use of ceramic log you will detect an
odor as the ceramic log cures.
Notice:Duringinitialring,itspaintwillbakeoutcausingsmoke.
Topreventtriggeringofsmokealarms,ventilatetheroominwhich
the unit is installed.
Installation on Rugs and Tile
If this appliance is installed directly on carpeting, tile or other
combustiblematerialotherthanwoodooringtheapplianceshall
beinstalledonametalorwoodpanelextendingthefullwidthand
depth of the appliance.
Thebasereferredtoabovedoesnotmeanthere-proofbaseas
usedonwoodstoves.Theprotectionisforrugsthatareextremely
thickandlightcoloredtile.
Solid-fuelsshallnotbeburnedinamasonryorUL 127 factory-
builtreplaceinwhichanunventedroomheaterisinstalled.

Installationand replacement ofgas piping,gas utilization equip-
mentoraccessoriesandrepairandservicingofequipmentshall
be performed only by a  qualied agency.  The term "qualied
agency"meansanyindividual,rm,corporationorcompanywhich
either in person or through a representative is engaged in and is
responsiblefor(a)theinstallationorreplacementofgaspipingor
(b)theconnection,installation,repairorservicingofequipment,who
isexperiencedinsuchwork,familiarwithallprecautionsrequired
andhascompliedwithalltherequirementsoftheauthorityhaving
jurisdiction.
State of Massachusetts: The installation must be made by a
licensed plumber or gas tter in the Commonwealth of Mas-
sachusetts.
Sellersofunventedpropaneornaturalgas-redsupplemental
room heaters shall provide to each purchaser a copy of 527 CMR
30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-red space heaters shall be prohibited in bedrooms and
bathrooms.
Theinstallationmustconformwithlocalcodesor,intheabsence
of local codes, with the National Fuel Gas Code, ANSI Z223.1.*
*Available from theAmerican National Standards Institute, Inc. 1430
Broadway, New York, N.Y. 10018.
High Altitudes
Foraltitudes/elevationsabove2,000feet(610m),ratingsshouldbe
reducedattherateof4percentforeach1,000feet(305m)above
sealevel.Contactthemanufactureroryourgascompanybefore
changingspud/oricesize.
WARNING
Failure to keep the primary air opening(s) of the burner(s)
clean may result in sooting and property damage.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycardsupplied
with unvented room heater.
3. Installer should show owner how to start and operate unvented
room heater.
Always consult your local Building Department regarding regula-
tions, codes or ordinances which apply to the installation of an
unvented room heater.
Thisappliancemaybeinstalledinanaftermarket*manufactured
(mobile)home,wherenotprohibitedbystateorlocalcodes.
*Aftermarket: Completionofsale,notforpurposeofresale,from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
ratingplate.Thisapplianceisnotconvertibleforusewithothergases.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating value.
Contactthemanufactureroryourgascompanybeforechanging
spud/oricesize.
WARNING
ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN
BE DANGEROUS.
Improper installation or use of the heater can cause seri-
         
monoxide poisoning.
Operation
Thisunventedreplacerequiresnooutsideventing.Stateandlocal
codesinsomeareasprohibittheuseofunventedreplace.
VFD26F(M,P)3 Series, Millivolt controls
Thevalveregulatorcontrolstheburnerpressurewhichshouldbe
checkedatthepressuretestpoint.Turncapturedscrewcounter
clockwise2or3turnsandthenplacetubingtopressuregaugeover
testpoint(Usetestpoint“A”closesttocontrolknob).Aftertaking
pressurereading,besureandturncapturedscrewclockwisermly
tore-seal.Donotovertorque.Checkforgasleaks.
Millivolt System
When you ignite the pilot, the thermocouple produces millivolts
(electrical current) which energizes the magnet in the gas valve.After
30 seconds to 1 minute time period you can release the gas control
knobandthepilotwillstayON.Allowyourpilotametooperate
anadditionalonetotwominutesbeforeyouturnthegascontrol
knobfromthePILOTpositiontotheONposition.Thistimeperiod
allows the millivolts (electrical current) to build-up to a sufcient
level allowing the gas control to operate properly.
WARNING
Thisapplianceisequippedfornaturalgasorpropanegas.Field
conversion is not permitted.
General Information
ThisseriesisdesigncertiedinaccordancewithAmericanNational
StandardZ21.11.2bytheCanadianStandardsAssociationasan
UnventedRoomHeaterandshouldbeinstalledaccordingtothese
instructions.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
INTRODUCTION

30816-1-0912Page 6
BUILT-IN FIREPLACE INSTALLATION
Built-In Fireplace Installation
Built-ininstallationofthisreplaceinvolvesinstallingthereplace
intoaframed-inenclosure.Thismakesthefrontofthereplace
ush with a wall. If installing a mantel above the replace, you
must follow the clearances shown in Figure 9. Follow the instruc-
tionsbelowtoinstallthereplaceinthismanner.
Frame in rough opening. Use dimensions show in Figure 1 for a
conventional rough opening. Use dimensions shown in Figure 2
forcornerroughopening.Besuretoprovidegaslineforreplace
andelectricalpowerforoptionalblowerassembly.
1. Attachtwonailingangestoreboxsideswithtwo10x1/2"
screwsforeachnailingange.
2. Gaslineconnectionsmustbemadeatthistime.Whenfacing
the appliance, the gas supply will enter on the right-hand side.
See "Gas Supply" page 11.
3. Insertreplaceintoenclosure.
4. Attachnailingangestoframingwithascrewornail.
5. Finishedwallsurfacewillbeushtotheleadingedgeofre-
place top and sides.
6. Installationofbuilt-inreplaceiscompleted. Figure 2
Figure 3
Figure 1
Rough Opening for Installing in Wall
Rough Opening for Installing in Corner

30816-1-0912 Page 7
FIREPLACE DIMENSIONS
GAS LINE
OPENING JUNCTION BOX
ASSEMBLY
GAS LINE
OPENING
J
I
K
B
C
G
AD
E
Figure 4
VFD26 Series Dimensions
IndexLetter Dimension
A30 1/4"
768mm
B30"
762mm
C13 1/8"
333mm
D18 1/8"
460mm
E26"
660mm
G25"
635mm
I36 1/4"
921mm
J36 1/4"
921mm
K51 1/4"
1302mm

30816-1-0912Page 8
SPECIFICATIONS
Model VFD26F(M,P)(3,7) VFD26F(M,P)2 VFD26FP(3,7)0L10
InputMaximum 20,000 20,000 10,000
Minimum 14,000 14,000 N/A
NAT
Orice 2.10 mm (P-288) #49 (.073") P-265 #53 (.0595") P-214
Air Shutter Opening 1/8" 1/8" 1/8"
LP
Orice #55 (.052") P-182 #55 (.052") P-182 #64 (.036") P-193
Air Shutter Opening 1/4" 1/4" 1/4"
Fireplace Dimensions
Height 30 1/4" 30 1/4" 30 1/4"
Depth 13 1/8" 13 1/8" 13 1/8"
Front Width 30" 30" 30"
Rear Width 25" 25" 25"
Gas Inlet 3/8" 3/8" 3/8"
Accessories
FBBX BlowerExtensionKit(MUSTorderFBB4)
FBB4 Automatic Blower (MUST order FBBX)
VPS26HP Bottom Trim Kit
VF2H26HP Hammered Pewter Hood Kit
VPF26HP Hammered Pewter Trim Kit
FPP26E BrickLiner
VPL26HP Hammered Pewter Slat Louver
Accessories for Millivolt VFD26F(M,P)(3,7) Only
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control w/Thermostat
FREC Electric Remote Control
FWS-1 Wall Switch
TMV Wall Thermostat, Millivolt - Reed Switch
TRW Wireless Remote Wall Thermostat
Watervaporisaby-productofgascombustion.Anunventedroom
heaterproducesapproximatelyoneounce(30ml)ofwaterforevery
1,000BTU's(.3KW's)ofgasinputperhour..
Unvented room heaters are recommended as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem.Inmostapplications,thewatervaporenhancesthelow
humidityatmosphereexperiencedduringcoldweather.
The following steps will help insure that water vapor does not
becomeaproblem.
1. Be sure the heater is sized properly for the application, including
amplecombustionairandcirculationair.
2. Ifhighhumidityisexperienced,adehumidiermaybeusedto
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source.
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS

30816-1-0912 Page 9
3. AddtheBTU/Hrofallfuelburningappliancesinthespace.
Vent-free heater BTU/Hr
Gas water heater BTU/Hr
Gas furnace BTU/Hr
Vented gas heater BTU/Hr
Gasreplacelogs BTU/Hr
Othergasappliances* + BTU/Hr
Total = BTU/Hr
Example: Ventedgasheater 20,000 BTU/Hr
  Vent-freeheater + 18,000 BTU/Hr
Total = 38,000 BTU/Hr
*Donotincludedirect-ventgasappliances.Directventdraws
combustionairfromtheoutdoorsandventstotheoutdoors.
4. ComparethemaximumBTU/Hrthespacecansupportwiththe
actual amount of BTU/Hr used.
BTU/Hr(maximumthespacecansupport)
BTU/Hr (actual amount of BTU/Hr used)
 Example:
  25,600 BTU/Hr(maximumthespacecansupport)
38,000 BTU/Hr (actual amount of BTU/Hr used)
WARNING
Iftheareainwhichtheheatermaybeoperatedissmallerthanthat
denedasanunconnedspaceorifthebuildingisofunusually
tightconstruction,provideadequatecombustionandventilation
airbyoneofthemethodsdescribedintheNational Fuel Gas
Code,ANSIZ223.1/NFPA54,AirforCombustionandVentilation,
orapplicablelocalcodes.
Thespaceintheaboveexampleisaconnedspacebecausethe
actualBTU/HrusedismorethanthemaximumBTU/HRthespace
can support. You must provide additional fresh air. Your options
are as follows:
A. Reworkworksheet,addingthespaceofanadjoiningroom.If
theextraspaceprovidesanunconnedspace,removedoor
toadjoiningroomoraddventilationgrillsbetweenrooms.See
Ventilation Air From Inside Building.
B. Vent room directly to the outdoors. See Ventilation Air From
Outdoors.
C. InstallalowerBTU/Hrheater,iflowerBTU/Hrsizemakesroom
unconned.
IftheactualBTU/HrusedislessthanthemaximumBTU/Hrthe
spacecansupport,thespaceisanunconnedspace.Youwillneed
no additional fresh air ventilation.
WARNING

space.
Thisheater shall not be installedin a conned space orunusu-
allytightconstructionunlessprovisionsareprovidedforadequate
combustionandventilationair.
Aconnedspaceisanareawithvolumelessthan50cubicfeetper
1,000Btuhofthecombinedinputratesofallappliancesdrawing
combustionairfromthatspace.Smallareassuchasequipment
roomsareconnedspaces.Furnacesinstalledinaconnedspace
which supply heated air to areas outside the space must draw return
air from outside the space through tightly sealed return air ducts. A
connedspacemusthave2openingsintothespaceforcombus-
tionair.Oneopeningmustbewithin12inchesoftheceilingand
theothermustbewithin12inchesoftheoor.Therequiredsizing
oftheseopeningsisdeterminedbywhetherinsideoroutsideairis
usedtosupportcombustion,themethodbywhichtheairisbrought
tothespace(verticalorhorizontalduct)andbythetotalinputrate
of all appliances in the space.
Unusually Tight Construction
Theairthatleaksarounddoorsandwindowsmayprovideenough
freshairforcombustionandventilation.However,inbuildingsof
unusually tight construction, you must provide additional fresh air.
      
where:
a. Wallsandceilingsexposedtotheoutsideatmospherehave
a continuous water vapor retarder with a rating of one perm
orlesswithopeningsgasketedorsealed,and
b. Weatherstrippinghasbeenaddedonopenablewindowsand
doors, and
c. Caulking or sealants are applied to areas such as joints
aroundwindowanddoorframes,betweensoleplatesand
oors,betweenwall-ceilingjoints,betweenwallpanels,at
penetrationsforplumbing,electrical,andgaslines,andat
other openings.
 Ifyourhomemeetsallofthethreecriteriaabove,youmustprovide
additional fresh air. See “Ventilation Air From Outdoors,” page
10.

Usethisworksheettodetermineifyouhaveaconnedorunconned
space.
Space: Includes the room in which you will install heater plus any
adjoining rooms with doorless passageways or ventilation grills
betweentherooms.
1.Determinethevolumeofthespace(lengthxwidthxheight).
 LengthxWidthxHeight= cu. ft. (volume of
space)
Example:Spacesize16ft.(length)x10ft.(width)x8ft.(ceiling
height) = 1,280 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills
or openings, add the volume of these rooms to the total volume
of the space.
2. Divide the space volume by 50 cubic feet to determine the
maximumBTU/Hrthespacecansupport.
(volumeofspace)÷50cu. ft. = (maximum
BTU/Hr the space can support)
Example:1,280cu.ft.(volumeofspace)÷50cu.ft.=25.6or
25,600(maximumBTU/Hrthespacecansupport)
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR

30816-1-0912Page 10
VENTILATION AIR
Ventilation Air From Inside Building
Thisfreshairwouldcomefromanadjoiningunconnedspace.When
ventilatingtoanadjoiningunconnedspace,youmustprovidetwo
permanent openings: one within 12" of the ceiling and one within
12"oftheooronthewallconnectingthetwospaces(seeoptions
1 and 2, Figure 5). You can also remove door into adjoining room
(see option 3, Figure 5). Each ventilation grill or opening shall have
aminimumfreeareaofonesquareinchper1,000BTU/HRofthe
totalinputratingofthegasequipmentintheconnedspace.
Figure 5
WARNING
Rework worksheet, adding the space of the adjoining

fresh air to supply all appliances in both spaces.
Ventilation Air From Outdoors
Provideextrafreshairbyusingventilationgrillsorducts.Youmust
provide two permanent openings: one within 12" of the ceiling and
onewith12"oftheoor.Connecttheseitemsdirectlytotheoutdoors
or spaces open to the outdoors. These spaces include attics and
crawl spaces. In most cases for direct communication with the
outdoors or direct communication through a vertical duct a free
areaopeningofonesquareinchper4,000BTU/HRofheaterinput
rating for each grill. If a horizontal duct is used, a grill free area or
ductopeningshallhaveafreeareaopeningofonesquareinchper
2,000 BTU/HR for each grill. Follow the National Fuel Code, ANSI
Z223.1/NFPA 54, Air for Combustion and Ventilation, or applicable
local codes,forrequiredsizeofventilationgrillsorducts.
IMPORTANT: Do not provide openings for inlet or outlet air into attic
if attic has a thermostat-controlled power vent. Heated air entering
the attic will activate the power vent.
Figure 6
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
CONNECTING THE GAS
The inlet connection is located on the right side of the gas valve.
Attach gas inlet line to gas valve.
IfinstallingtheanOptionalBlower,itmustbeinstalledbefore
connecting the gas line.

30816-1-0912 Page 11
Checkalllocalcodesforrequirements,especiallyforthesizeand
typeofgassupplylinerequired.
Recommended Gas Pipe Diameter
Pipe Length
Schedule 40 Pipe
Inside Diameter
Tubing,TypeL
Outside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
1/2”
12.7mm
3/8”
9.5mm
1/2”
12.7mm
3/8”
9.5mm
10-40 feet
4-12 meters
1/2”
12.7mm
1/2”
12.7mm
5/8”
15.9mm
1/2”
12.7mm
40-100 feet
13-30 meters
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
1/2”
12.7mm
100-150 feet
31-46 meters
3/4”
19mm
1/2”
12.7mm
7/8”
22.2mm
3/4”
19mm
NOTICE: Neveruseplasticpipe.Checktoconrmwhetheryour
localcodesallowcoppertubingorgalvanized.
NOTICE:Since some municipalities have additional local codes, it is
alwaysbesttoconsultyourlocalauthorityandinstallationcode.
Installing a New Main Gas Cock
Eachapplianceshouldhaveitsownmanualgascock.
Amanualmaingascockshouldbelocatedinthevicinityoftheunit.
Wherenoneexists,orwhereitssizeorlocationisnotadequate,
contact your local authorized installer for installation or relocation.
Compoundsusedonthreadedjointsofgaspipingshallberesistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checkedforleaksbytheinstaller.Thisshouldbedonewithasoap
solutionwatchingforbubblesonallexposedconnections,andif
unexposed,apressuretestshouldbemade.
WARNING

must be disconnected from piping at inlet of control valve and
pipe capped or plugged for pressure test. Never pressure test

Agasvalveandgroundjointunionshouldbeinstalledinthegas
lineupstreamofthegascontroltoaidinservicing.Itisrequiredby
theNationalFuelGasCodethatadriplinebeinstallednearthegas
inlet. This should consist of a vertical length of pipe tee connected
intothegaslinethatiscappedonthebottominwhichcondensation
and foreign particles may collect.
The use of the following gas connectors is recommended:
— ANSZ21.24ApplianceConnectorsofCorrugatedMetalTubing
and Fittings
— ANSZ21.45AssembledFlexibleApplianceConnectorsofOther
Than All-Metal Construction
Theaboveconnectorsmaybeusedifacceptablebytheauthority
havingjurisdiction.ThestateofMassachusettsrequiresthataex-
ibleapplianceconnectorcannotexceedthreefeetinlength.
Pressure Testing of the Gas Supply System
1. Tochecktheinletpressuretothegasvalve,a1/8"(3mm)N.P.T.
pluggedtapping,accessiblefortestgaugeconnection,must
beplacedimmediatelyupstreamofthegassupplyconnection
to the appliance.
2. The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressuretestingofthatsystemattestpressuresinexcessof
1/2psig(3.5kPa).
3. The appliance must be isolated from the gas supply piping
systemby closingits individualmanual shutoffvalveduring
any pressure testing of the gas supply piping system at test
pressuresequaltoorlessthan1/2psig(3.5kPa).
Figure 7
WARNING
Ifoneoftheaboveproceduresresultsinpressuresinexcessof
1/2psig(14"w.c.)(3.5kPa)ontheappliancegasvalve,itwill
result in a hazardous condition.
Checking Manifold Pressure
3 Series Millivolt Natural gas will have a manifold pressure of
approximately3.5"w.c.(.871kPa)formaximuminputor1.7"w.c.
(.423kPa)forminimuminputatthepressureregulatoroutletwith
the inlet pressure to the pressure regulator from a minimum of 5.0"
w.c.(1.120kPa)forthepurposeofinputadjustmenttoamaximum
of10.5"w.c.(2.614kPa).
2 Series Hydraulic Thermostat Natural gas will have a manifold
pressure of approximately 6.0" w.c. (1.49kPa) at the pressure
regulator outlet with the inlet pressure to the pressure regulator
from a minimum of 7.0" w.c. (1.74kPa) for the purpose of input
adjustmenttoamaximumof10.5"w.c.(2.615kPa).
3 Series Millivolt Propane gas will have a manifold pressure
approximately 10.0"w.c. (2.49kPa) for maximum input or
6.3"w.c. (1.568kPa) for minimum input at the pressure regulator
outlet with the inlet pressure to the pressure regulator from
a minimum of 11.0"w.c. (2.739kPa) for the purpose of input
adjustmenttoamaximumof13.0"w.c.(3.237kPa). 
2 Series Hydraulic Thermostat Propane gas will have a manifold
pressureapproximately10.0"w.c.(2.49kPa)atthepressureregulator
outlet with the inlet pressure to the pressure regulator from a minimum
of11.0"w.c. (2.739kPa) for the purposeof input adjustment to a
maximumof13.0"w.c.(3.237kPa).
GAS SUPPLY

30816-1-0912Page 12
Minimum Wall and Ceiling Clearances
36”
(91.44 cm)
2” (5.08 cm)
Figure 8
         
combustible material.
When facing the front of the appliance the minimum clearances to
combustibleconstruction(material)arethefollowing:
 1. Clearancesfromtherightsideorleftsideofthereplaceopening
toanycombustiblewallormaterialshouldnotbelessthan2
inches.
 2. Clearancesfromthetopofthereplaceopeningtotheceiling
shouldnotbelessthan36inches.
Mantel Clearances for Built-in Installation
Figure 9
Donotattachcombustiblematerialtothemantelofyourreplace.
Thisisarehazard.
HEAT
FLOW
Figure 10
Nogreetingcards,stockingsorornamentationofanytypeshouldbe
placedonorattachedtothereplace.Thisisaheatingappliance.
Theowofheatcanignitecombustibles.
Figure 11
CLEARANCES
COMBUSTIBLE MATERIAL
COMBUSTIBLES
ALLOWED
4”
(10.2cm)
5½”
(14.0cm)
2½”
(63.0cm)
4 3/4”
(12.1cm)
6”
(15.2cm)
8 3/4”
(22.2cm)
8”
(20.3cm)
9½”
(24.1cm)
10”
(25.4cm)
10 1/4”
(26.0cm)
12”
(30.5cm)
11”
(27.9cm)
TOPOF FRAME 0
MANTEL

1. Removereplacefromcarton.
2. Removemanteltopandfrontbasefrommantelassembly.
3. Removescrewattachedtoreplacetopandthrough
"LBracket"attachedtobackofbreastboard.
4. Removemantelassemblyfromreplace.
5. Removeshrinkwrapandlogsfromreplace.
6. Placebackbaseandreplaceindesiredlocation.
7. Connect gas line and electrical wiring at this time in accor-
dance with local codes.
ELECTRICAL
CONNECTION
OPENING
GAS LINE
CONNECTION
OPENING
8. Placemantelassemblyaroundreplaceandcenter.Replace
thescrewremovedinstep3tosecurereplacetomantel
assembly.
30816-1-0912 Page 13
INSTALLATION OF FIREPLACE AND MANTEL

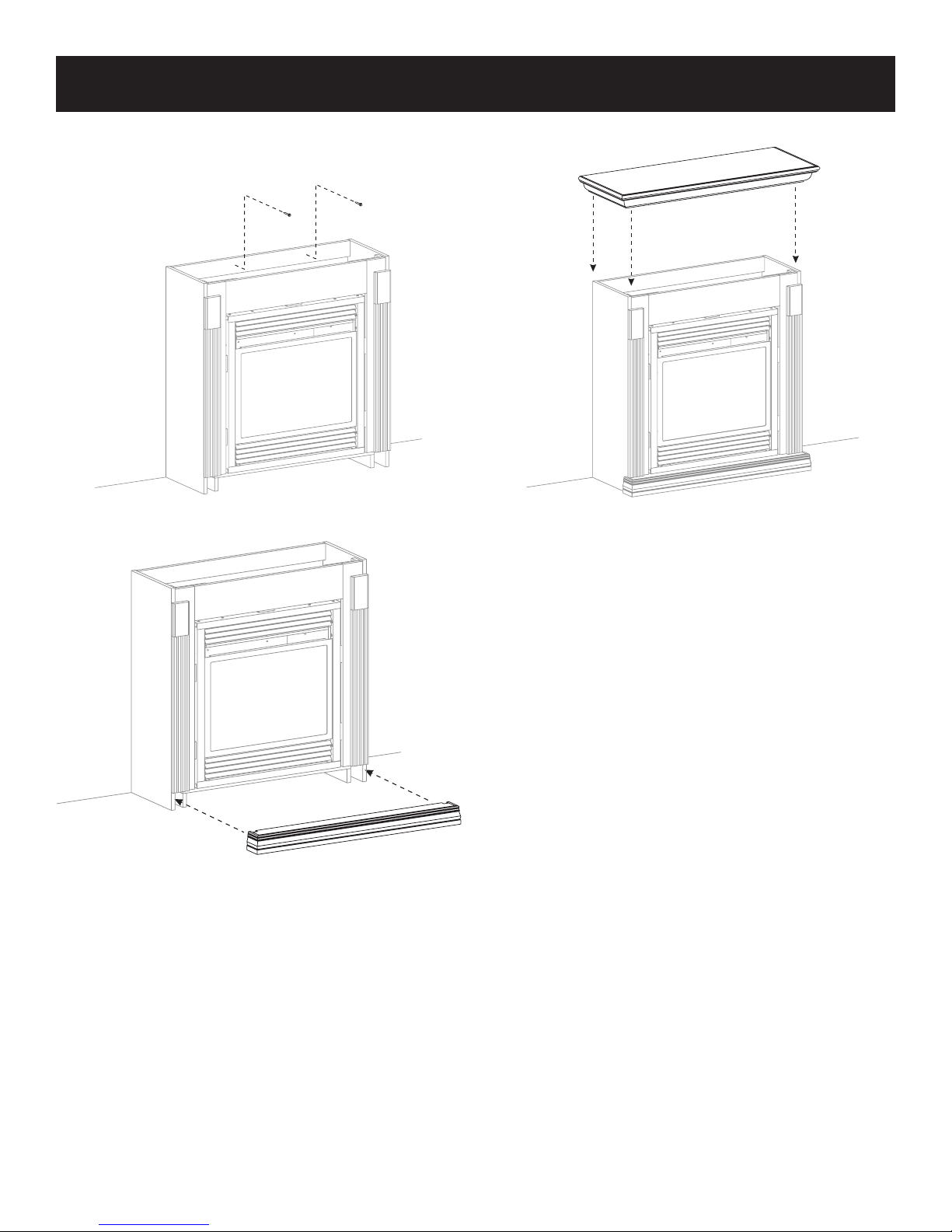

11. Placemanteltopontomantelassembly.
12. Install outer trim. See Page 15.
13. InstallberlogspertheLogPlacementInstructions.See
Page 16.
14. Install hood. See Page 15.
9. Attachmantelassemblytostudsinthewallthroughthe
"backbrace"usingtwo3"drywallscrewsprovided.
10. Slidefrontbaseunderfrontofmantelassembly.
30816-1-0912Page 14
INSTALLATION OF FIREPLACE AND MANTEL

30816-1-0912 Page 15
OUTER TRIM INSTRUCTIONS
1. Remove upper louver, grasp louver at left and right ends; lift and pull forward.
2. Openbottomlouver,thenlifttoremove.
3. Installtherightframeandleftframetothereplace.Alignclearanceholesinframewithscrewholesinreplace.Attachrightframe
andleftframetoreplace.Usetwo8x1/2”Phillipsscrewsforeachframe.
4. Inserttopframeintointerior,topofreplace.Alignclearanceholesintopframewithscrewholesinreplace.Attachtopframeto
replace.Usetwo8x1/2”Phillipsscrewsfortopframe.
5. Replacebottomlouver.
6. Replace top louver.
3-PIECE FRAME KIT
SIDE TRIM
HOOD INSTRUCTIONS
1. Remove upper louver, grasp louver at left and right ends; lift and pull forward.
2. Removescreenframeassembly.
3. Outertrimmustbeinstalledbeforeinstallinghood.
4. Placethetophoodangeontopoftherebox,theninstallonescrew(A)atthecenteronventfreereplacethroughthereboxtop
frombelow.
5. Install one screw (B) at each end of the hood as shown.
6. Replace upper louver.
7. Replacescreenframeassembly.
CAUTION
Ahoodmustbeinstalledpriortooperationofappliance.

30816-1-0912Page 16
LOG PLACEMENT
 1. Placefrontlogs(#1and#2)betweenfrontgrateangeand
mainburner.Alignnotchesonfrontlogswithlocatortabsin
base.
 2. Placemiddlelog(#3)betweenfrontandrearloopofburner.
NOTICE:Donotplacelogontopofpilotassembly.
 3. Placerearlog(#4)onrearlogshelf.Bottomangeoflogmust
beplacedbetweenthelogshelfandburnertube.
4. This step is optional for VFD26FP3L10 log sets. Place front
twig(#5)onto(#1)logandatareaon(#3)log.Thebottom
ofthefronttwigistobeplacedbehindthegratetangthatis
second from the left.
Attention: Do not use Figures 12 and 13 to order logs. Refer to
Pages 34 to 35, Parts list and Page 36, Parts View to order logs.
Refer to Figure 12 for the following warning.
CAUTION
Failure to position the parts in accordance with this diagram or
failure to use only parts specically approved with this heater
may result in property damage or personal injury.
Figure 12
1
4
5
3
2
Figure 13

Replacement Loose Material
(glowing embers)
Part Number
RockWool 15998
PlatinumBrightEmbers PE-20-1
30816-1-0912 Page 17
Providedwiththelogsetisasmallbagofglowingembers(rock
wool)tobeplacedbetweenlogsontheatmetalsurfaceofthe
burner.
Placementofthe embers (rock wool)isvery individual andlight
coverageoftheareasindicatedwillprovideyourbesteffects.We
recommendseparationoftherockwoolbyhandandmakeyour
coverageaslightanduffyaspossible.
Placejustenoughembers(rockwool)ontheburnertoobtainthe
glowandagoldyellowame.
Donotplacerockwooloverlargeportsinrearportionofburner.
A thin layer of rock wool should be placed under open space
betweenthefrontandmiddlelogs.
Rockwoolshouldnotbeplacedintheareaofthepilotassembly.
Glowing embers (rock wool) can cover the burner in between
thefrontandmiddlelogs,butverylittleisnecessarytocoverthis
area.Excessembermaterialcausestheyellowametobecome
orangeandstringy.Applyjustenoughtoobtainslowglowanda
gold,yellowame.
Replacementofloosematerial(glowingembers)mustbepurchased
from Empire Comfort Systems, Inc.Application of excess loose
material (glowing embers) may adversely affect performance of
the heater.
WARNING
Allpreviouslyappliedloosematerialmustberemovedpriorto
reapplication.
RefertoPartsList,Pages34to35toorderloosematerial(rock
wool).
NOTICE:A single layer of embers is to be used when applying
PlatinumBrightEmbers(aloneorincombinationwithproduction
embers)totheburner.
PLACEMENT OF GLOWING EMBERS (ROCK WOOL)
Figure 14

30816-1-0912Page 18
Flamesfromthepilot(rearrightbacksideoftheburner)aswell
as the main ame should be visually checked as the log set is
installed.
Innormaloperation atfullrateafter10to15minutes,theame
appearanceshouldbesetsofyellowames.
NOTICE:Allameswillberandombydesign,ameheightwillgo
up and down.
Avoidanydraftsthatalterburneramepatterns.Donotallowfansto
blowdirectlyintoreplace.Donotplaceablowerinsidetheburner
areaoftherebox.Ceilingfansmaycreatedraftsthatalterame
patterns.Sootingandimproperburningwillresult.
Duringmanufacturing,fabricatingandshipping,variouscomponents
ofthisappliancearetreatedwithcertainoils,lmsorbondingagents.
Thesechemicalsarenotharmful,butmayproduceannoyingsmoke
andsmellsastheyareburnedoffduringtheinitialoperationofthe
appliance,possiblycausingheadachesoreyeorlungirritation.This
is a normal and temporary occurrence.
Theinitialbreak-inoperationshouldlast2-3hourswiththeburner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in will be slight and will disappear with
continued use.
PERIODIC CLEANING – Refer to parts diagram for location of
items discussed below.
• Donotusecleaninguidtocleanlogsoranypartofheater.
• Logs - brush with soft bristle brush or vacuum with brush
attachment.
• Remove loose particles and dust from the burner areas,
controls, piezo covers and grate.
• Inspectandcleanburnerairintakehole.Removelintorparticles
withbrush.Failuretokeepairintakeholecleanwillresultin
sootingandpoorcombustion.
ANNUAL CLEANING/INSPECTION – Refer to parts diagram for
location of items discussed below.
• Inspectandcleanburnerairintakehole.Removelintorparticles
withvacuumorbrush.Failuretokeepairintakeholecleanwill
resultinsootingandpoorcombustion.
• Inspectandcleanallburnerports.
• InspectODSpilotforoperationandaccumulationoflintatair
intakeholes.
• Verifyamepatternandlogplacementforproperoperation.
• Verifysmoothandresponsiveignitionofmainburner.
OPERATION INSTRUCTIONS/FLAME APPEARANCE
Keepthecontrolcompartment,logsandburnerareasurrounding
thelogscleanbyvacuumingorbrushingareaatleasttwiceayear.
WARNING
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN
COOL.
Alwaysturnoffgastothepilotbeforecleaning.Forrelighting,refer
to lighting instructions located on the rating plate of the log set.
Neverobstructtheowofthecombustionandventilationair.Keep
thefrontofthereplaceclearofallobstaclesandmaterials.
Leaveatleast36"clearancefromthefrontofthereplace.
Screenshouldbeclosedduringoperation.
MAINTENANCE

30816-1-0912 Page 19
WARNING:
result, causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area


WHAT TO DO IF YOU SMELL GAS
  
  
phone in your building
  
phone. Follow the gas supplier's instructions.
    
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or


or explosion.
D. Do not use this appliance if any part has been under water.

the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Openbottomlouverassembly(ifapplicable).
2. Set REMOTE/OFF/ON switch to "OFF."
3. Turnoffallelectricpowertotheapplianceifserviceistobe
performed(ifapplicable).
4. Pushingascontrolknobslightlyandturnclockwise
to "OFF". Do not force.
5. Closebottomlouverassembly(ifapplicable).
1. STOP!Readthesafetyinformationaboveonthispage.
2. Openbottomlouverassembly(ifapplicable).
3. Set REMOTE/OFF/ON switch to
"OFF".
4. Turn off all electric power to the
appliance(ifapplicable).
5. Pushingascontrolknobslightly
andturnclockwise to "OFF".
NOTE:Knobcannotbeturnedfrom"PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wait ten minutes to clear out any gas. Then
smell for gas, including near the
oor.Ifyousmellgas,STOP!Fol-
low "B" in the safety information
above.Ifyoudonotsmellgas,go
tothenextstep.
7. Findpilot-Followmetaltubefrom
gas control. The pilot is located
next to the burner, near the right
side.
8. Turn gas control knob counterclockwise
to "PILOT".
9. Pushincontrolknoballthewayandholdin.Repeatedlypush
the Piezo Ignitor Button until the pilot is lit. Continue to hold
thecontrolknobinforaboutoneminuteafterthepilotislit.
Releaseknob,anditwillpopbackup.Pilotshouldremainlit.
If it goes out, repeat steps 5 through 9.
 • Ifknobdoesnotpopupwhenreleased,STOPandIM-
MEDIATELY call a qualied service technician or gas
supplier.
 • Ifthepilotwillnotstaylitafterseveraltries,turnthegas
controlknobto"OFF"andcallyourservicetechnicianor
gas supplier.
10. Turngascontrolknobcounterclockwise to "ON".
11. Set REMOTE/OFF/ON switch to desired setting.
12. Turnonallelectricpowertotheappliance(ifapplicable).
13. Closebottomlouverassembly(ifapplicable).
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
10,000 BTU MILLIVOLT LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE

30816-1-0912Page 20
MILLIVOLT LIGHTING INSTRUCTIONS
WARNING:
result, causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area


WHAT TO DO IF YOU SMELL GAS
  
  
phone in your building
  
phone. Follow the gas supplier's instructions.
    
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or


or explosion.
D. Do not use this appliance if any part has been under water.

the appliance and to replace any part of the control system
and any gas control which has been under water.
1. Openbottomlouverassembly(ifapplicable).
2. Set REMOTE/OFF/ON switch to "OFF."
3. Turnoffallelectricpowertotheapplianceifserviceistobe
performed(ifapplicable).
4. Pushingascontrolknobslightlyandturnclockwise
to "OFF". Do not force.
5. Closebottomlouverassembly(ifapplicable).
1. STOP!Readthesafetyinformationaboveonthispage.
2. Openbottomlouverassembly(ifapplicable).
3. Set REMOTE/OFF/ON switch to
"OFF".
4. Turn off all electric power to the
appliance(ifapplicable).
5. Push in gas control knob slightly
and turn clockwise to
"OFF".
NOTE:Knobcannotbeturnedfrom"PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wait ten minutes to clear out any
gas. Then smell for gas, including
near the oor. If you smell gas,
STOP! Follow "B" in the safety
information above. If you do not
smellgas,gotothenextstep.
7. Findpilot-Followmetaltubefrom
gas control. The pilot is located
next to the burner, near the right
side.
8. Turn gas control knob counterclockwise
to "PILOT".
9. Pushincontrolknoballthewayandholdin.Repeatedlypush
the Piezo Ignitor Button until the pilot is lit. Continue to hold
thecontrolknobinforaboutoneminuteafterthepilotislit.
Releaseknob,anditwillpopbackup.Pilotshouldremainlit.
If it goes out, repeat steps 5 through 9.
 • Ifknobdoesnotpopupwhenreleased,STOPandIM-
MEDIATELY call a qualied service technician or gas
supplier.
 • Ifthepilotwillnotstaylitafterseveraltries,turnthegas
controlknobto"OFF"andcallyourservicetechnicianor
gas supplier.
10. Turngascontrolknobcounterclockwise to "ON".
11. Set REMOTE/OFF/ON switch to desired setting.
12. Turnonallelectricpowertotheappliance(ifapplicable).
13. Closebottomlouverassembly(ifapplicable).
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
GAS CONTROL KNOB
SHOWN IN "OFF" POSITION.
THERMOCOUPLE
(NATURAL)
ELECTRODE
PILOT
THERMOPILE
REMOTE
OFF
ON
THERMOCOUPLE
(LPG)
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
