Empire Comfort Systems Tahoe DVP36PP32EN-1 Quick start guide

DIRECT VENT
GAS FIREPLACE HEATER
MODEL SERIES
DVP36PP32EN-1
DVP36PP32EP-1
DVP36SP32EN-1
DVP36SP32EP-1
UL FILE NO. MH30033
INSTALLATION INSTRUCTIONS
AND
OWNER’S MANUAL
WARNING: If not installed, operated and maintained
in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel or
from fuel combustion which can cause death or seri-
ous illness.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
The Tahoe Direct Vent Zero Clearance Gas
Fireplace Heater
GAS-FIRED
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may re-
sult causing property damage, personal injury or
loss of life.
Page 1

24325-0-0708Page 2
Carton Contents ..............................................................................................................................................................3
Hardware Package ..........................................................................................................................................................3
Important Safety Information .........................................................................................................................................4
Safety Information for Users of LP Gas .........................................................................................................................5
Requirements for Massachusetts .....................................................................................................................................6
Introduction .....................................................................................................................................................................7
Specifications ..................................................................................................................................................................8
Fireplace Dimensions ......................................................................................................................................................9
Clearances .....................................................................................................................................................................10
Optional EMPT Series Mantel Installation - Peninsula Models Only ..........................................................................11
Locating Fireplace ........................................................................................................................................................12
Gas Supply ....................................................................................................................................................................13
Rear Vent Conversion ...................................................................................................................................................14
Special Vent Systems ....................................................................................................................................................14
Planning Installation .....................................................................................................................................................15
Fireplace Installation Instructions ........................................................................................................................... 15-16
Installation ............................................................................................................................................................... 17-19
Venting Fireplace - Top .......................................................................................................................................... 20-22
DVVK-4FV Direct Vent Termination Kit ............................................................................................................... 23-29
Examples - Top Vent Run .............................................................................................................................................30
Venting Fireplace - Rear ..............................................................................................................................................31
Examples - Rear Vent Run ............................................................................................................................................32
Termination Clearances ................................................................................................................................................33
Vent Clearances .............................................................................................................................................................34
Vent System Identification ............................................................................................................................................35
Framing and Finishing ............................................................................................................................................ 36-37
Horizontal Termination .................................................................................................................................................38
DVVK-4RE Vent Kit Installation Instructions ....................................................................................................... 39-41
DVVK-4F Flex Vent Instructions .................................................................................................................................42
Vertical Termination ................................................................................................................................................ 43-44
Placement of Glowing Embers .....................................................................................................................................45
Operation Instructions / Flame Appearance ..................................................................................................................46
Operating Instructions ............................................................................................................................................. 47-48
Standing Pilot Wiring Diagram .....................................................................................................................................49
Standing Pilot Lighting Instructions .............................................................................................................................50
Standing Pilot Troubleshooting ....................................................................................................................................51
Maintenance and Service ..............................................................................................................................................52
Parts List .......................................................................................................................................................................53
DVP36SP Parts View ....................................................................................................................................................54
DVP36PP Parts View ....................................................................................................................................................55
Wiring Instructions for Installing a Dual Switch / Receptacle .....................................................................................56
Accent Lamp .................................................................................................................................................................57
Optional FBB5 Blower Installation Instructions .................................................................................................... 58-60
Accessories ...................................................................................................................................................................61
How To Order Repair Parts ...........................................................................................................................................62
Service Notes .......................................................................................................................................................... 62-63
Section Page
TABLE OF CONTENTS

24325-0-0708 Page 3
CARTON CONTENTS
Fireplace Assembly
Installation Package
3/8" x 12" Flexline
Rockwool Packet
Installation Instructions
Serial Number Tag
Recepticle, 3-Prong
Warranty Card
Cover, Junction Box
Hardware Package (See Figure Below)
Romex Connector (2)
#10 x 1/2" Phillips Hex Head Screw
#8-18 x 1/2" Phillips Truss Head Screw
Nailing Flange

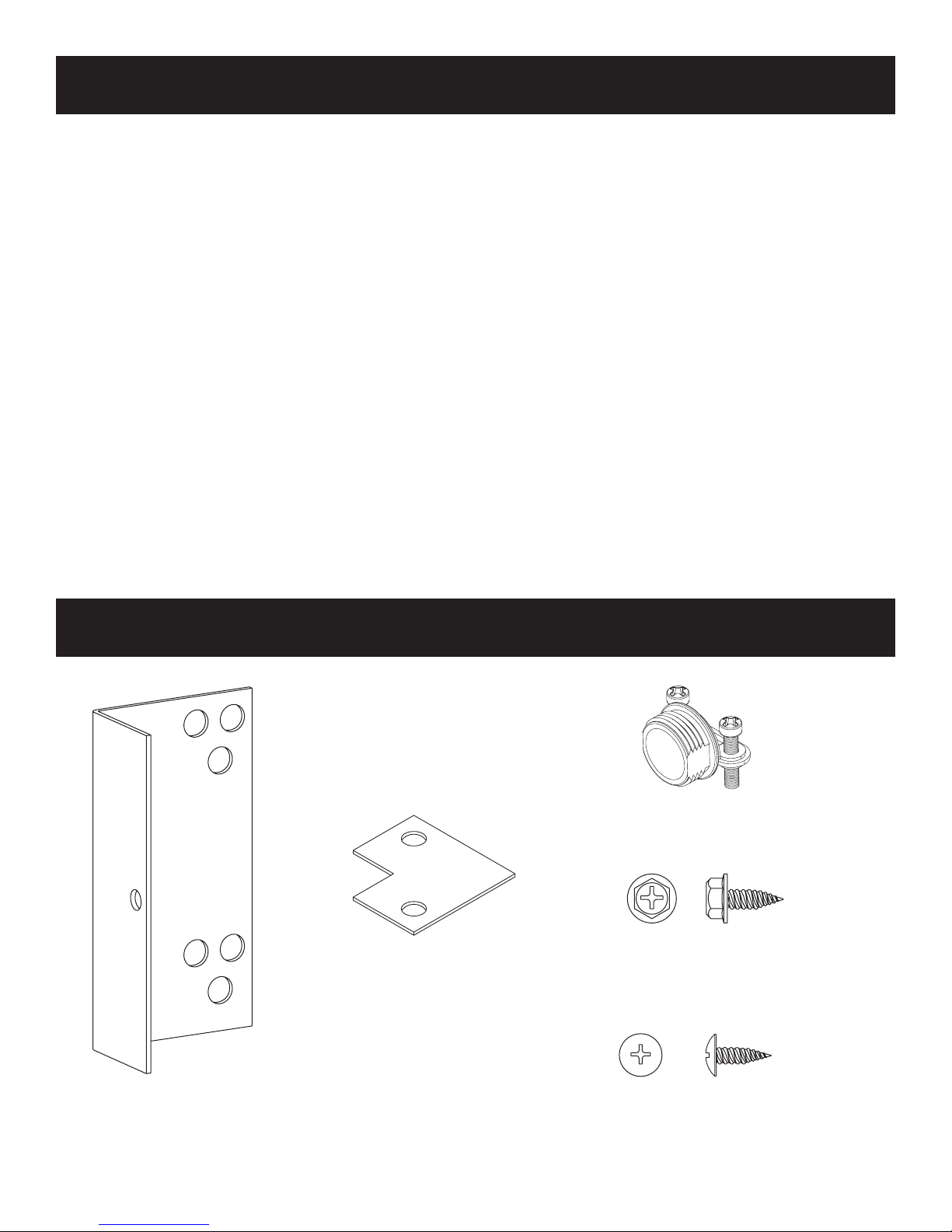

HARDWARE PACKAGE
Note: Hardware shown to scale where possible.
#10 X ½” PHILLIPS HEX HEAD SCREW
(24 - PENINSULA MODELS)
(16 - SEE-THROUGH MODELS)
NAILING FLANGE (8)
CORNER TIE - CANOPY
(2 - PENINSULA MODELS)
ROMEX CONNECTOR (2)
#8-18 x ½” PHILLIPS TRUSS HEAD SCREW
(4 - PENINSULA MODELS)
Additional Parts for Peninsula Models Only:
Canopy, End*
Canopy, Right*
Canopy, Left*
End Shield*
Canopy Corner Tie*
*Note: Installation required when using EMPT series
Peninsula Mantle
Canopy Hardware Package
Corner Tie - Canopy (2)
#10 x 1/2" Phillips Hex Head Screw (8)
#8-18 x 1/2" Phillips Truss Head Screw (4)

24325-0-0708Page 4
DO NOT OPERATE THIS APPLIANCE WITHOUT ALL GLASS DOOR PANELS INSTALLED
Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.
• If this appliance is installed directly on carpeting,
tile or other combustible material other than wood
flooring the appliance shall be installed on a metal
or wood panel extending the full width and depth of
the appliance.
The base referred to above does not mean the fireproof
base as used on wood stoves. The protection is for rugs
that are extremely thick and light colored tile.
• Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance.
• Clothing or other flammable material should not be
placed on or near the appliance.
• Adequate accessibility clearances for servicing and
proper operation.
• This appliance must not share or be connected to a flue
serving a separate solid-fuel burning appliance.
• Keep the area around your appliance clear of
combustible materials, gasoline and other flammable
vapor and liquids.
• Under no circumstances should any solid fuels (wood,
coal, paper or cardboard etc.) be used in this appli-
ance.
• The flow of combustion and ventilation air must not
be obstructed in any way.
• Due to high temperatures the appliance should be
located out of traffic and away from furniture and
draperies.
• The glass front or any part removed for servicing
the appliance must be replaced prior to operating
the appliance. Work should be done by a qualified
service person.
• Keep burner and control compartment clean.
• Vent cap is hot while fireplace is in operation.
• Installation and repair should be done by a
QUALIFIED SERVICE PERSON. The appliance
should be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating
air passageways of the appliance be kept clean.
• DO NOT put anything around the fireplace that will
obstruct the flow of ventilation air.
• Clearance in accordance with local installation codes
and the requirements of the gas supplier.
• DO keep the appliance area clear and free from
combustible material, gasoline and other flammable
vapors and liquids.
• DO examine venting system periodically and replace
damaged parts.
• DO make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
• CAUTION: The glass used in your fireplace is
tempered glass. If the glass is cracked or damaged in
any way, it should be replaced only with a complete
glass frame assembly from Empire. See parts list on
Pages 53 through 55 for ordering.
• DO NOT use this fireplace if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
• Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the
appliance.
IMPORTANT SAFETY INFORMATION

24325-0-0708 Page 5
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-Gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can filter the odorant. Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a flammable gas which can cause fires
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
by point with the members of your household. Someday
when there may not be a minute to lose, everyone’s safety
will depend on knowing exactly what to do. If, after read-
ing the following information, you feel you still need more
information, please contact your gas supplier.
• Learn to recognize the odor of LP-Gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it to
find out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualified, do not light pilot lights, perform service,
or make adjustments to appliances on the LP-Gas system. If
you are qualified, consciously think about the odor of LP-Gas
prior to and while lighting pilot lights or performing service
or making adjustments.
• Sometimes a basement or a closed-up house has a musty smell
that can cover up the LP-Gas odor. Do not try to light pilot
lights, perform service, or make adjustments in an area where
the conditions are such that you may not detect the odor if
there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalled old tanks, if they are filled and allowed to set too
long before refilling. Cylinders and tanks which have been
out of service for a time may develop internal rust which will
cause odor fade. If such conditions are suspected to exist, a
periodic sniff test of the gas is advisable. If you have any
question about the gas odor, call your LP-Gas dealer. A
periodic sniff test of the LP-Gas is a good safety measure
under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container is under
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air
through openings such as pilot light orifices. If this occurs,
some new internal rusting could occur. If the valve is left
open, then treat the container as a new tank. Always be sure
your container is under vapor pressure by turning it off at the
container before it goes completely empty or having it refilled
before it is completely empty.
• Do not operate electric switches, light matches, use your phone.
Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such as
basements. When you have reason to suspect a gas leak, keep
out of basements and other low areas. Stay out until firefighters
declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas service
person and the fire department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That’s your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP GAS

24325-0-0708Page 6
REQUIREMENTS FOR MASSACHUSETTS
For all side wall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part
for residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than seven (7) feet above finished grade in the area of
the venting, including but not limited to decks and porches, the
following requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS.
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an
alarm and battery back-up is installed on the floor level where
the gas equipment is to be installed. In addition, the installing
plumber or gasfitter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm is
installed on each additional level of the dwelling, building or
structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner
to secure the services of qualified licensed professionals for
the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
floor level.
b. In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that
during said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall be
installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each
carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/
UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be
permanently mounted to the exterior of the building at a
minimum height of eight (8) feet above grade directly in line
with the exhaust vent terminal for the horizontally vented gas
fueled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) inch in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side
wall horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed in
accordance with the provisions of 248 CMR 5.08(2)(a) 1
through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does not
provide the parts for venting the flue gases, but identifies
“special venting systems”, the following requirements
shall be satisfied by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for
that system shall include a parts list and detailed
installation instruction.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for
venting instructions, and/or all venting design instructions
shall remain with the appliance or equipment at the
completion of the installation.

24325-0-0708 Page 7
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card supplied
with the fireplace.
3. Installer should show owner how to start and operate the
fireplace.
This direct vent gas fireplace heater is designed to operate with all
combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
Warning: This unit is not for use with solid fuels.
Appliance Certification
This fireplace is design certified in accordance with American
National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
The fireplace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with the
National Electric Code ANSI/NFPA 70 or Canadian Electric code,
CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performed only by a qualified agency. The term “qualified agency”
means any individual, firm, corporation or company which either in
person or through a representative is engaged in and is responsible
for (a) the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment, who is
experienced in such work, familiar with all precautions required
and has complied with all the requirements of the authority having
jurisdiction.
State of Massachusetts: The installation must be made by
a licensed plumber or gas fitter in the Commonwealth of
Massachusetts.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1
in Canada. *Available from the American National Standards Institute, Inc. 11
West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown on
the rating plate is the responsibility of the person and company
making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for
proper orifice size identification.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the
proper orifice for location.
Preparation
This direct vent gas fireplace and its components are tested and safe
when installed in accordance with this Installation Manual. Report
to your dealer any parts damaged in shipment, specifically check
glass condition. Do not install unit with damaged, incomplete, or
substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximum benefit and safety. Failure to follow them will void your
warranty and may present a fire hazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Empire Comfort Systems,
Inc.
• Improper positioning of the logs, glass door or decorative
rock.
• Installation and/or use of any component part not manufactured
or approved by manufacturer.
INTRODUCTION
Warning: ANY CHANGE TO THIS FIREPLACE OR ITS
CONTROLS CAN BE DANGEROUS.
Improper installation or use of the fireplace can cause
serious injury or death from fire, burns, explosions, or
carbon monoxide poisoning.

24325-0-0708Page 8
Remote Control
Options &
Accessories
Description
FRBC Millivolt Battery Remote ON/OFF
FRBTC Millivolt Battery Remote T-Stat
FRBTP Millivolt Battery Remote with Thermostat
TRW Millivolt Wireless Wall Thermostat
TMV Millivolt Reed Switch Wall Thermostat
FWS-1 Millivolt Wall Switch
FREC Electric Remote
Venting
Options
Description
DVVK-4TSP
(DVVK-4TS)
Top Vent Kit (Horz.) - 5" to 7" wall thickness
DVVK-4TP
(DVVK-4T)
Top Vent Kit (Horz.) - 8" to 11" wall thickness
DVVK-4RP
(DVVK-4R)
Rear Vent Kit (Horz.) - 5" to 7" wall thickness
DVVK-4VP
(DVVK-4V)
Vertical Vent Kit
DVVK-4F Horizontal Flex Vent Kit (4' Flex)
DVVK-4RE Horizontal Round Termination wall thickness -
5" to 13 3/4"
DV822 Vinyl Siding Kit for DVVK-4RE
DVVK-4FV Vertical Flex Vent Kit (6' Flex / 4' Rigid = 10' Total)
DVEK-10 10' Vent Extension Kit
DVEK-25 25' Vent Extension Kit
NOTE: Air shutter settings are factory minimum settings. Some
venting configurations may require minor air shutter adjustments
for optimum performance.
SPECIFICATIONS
DVP36(SP,PP) Nat Models
Input Btu/hr Maximum 35,000
Btu/hr Minimum (millivolt only) 24,000
KWH (Maximum) 10.15
(Minimum) 6.96
Orifice #33
Air Shutter Opening 5/16"
DVP36(SP,PP) LP Models
Input Btu/hr Maximum 35,000
Btu/hr Minimum (millivolt only) 28,000
KWH (Maximum) 10.15
(Minimum) 8.12
Orifice 1.75 mm
Air Shutter Opening FULL OPEN
DVP36(SP,PP) Nat and LP Models
Height without standoff 34 3/4" (883 mm)
Width, Face 39"
Depth 24"
Gas Inlet Shutoff Valve (pipe) 1/2" NPT

24325-0-0708 Page 9

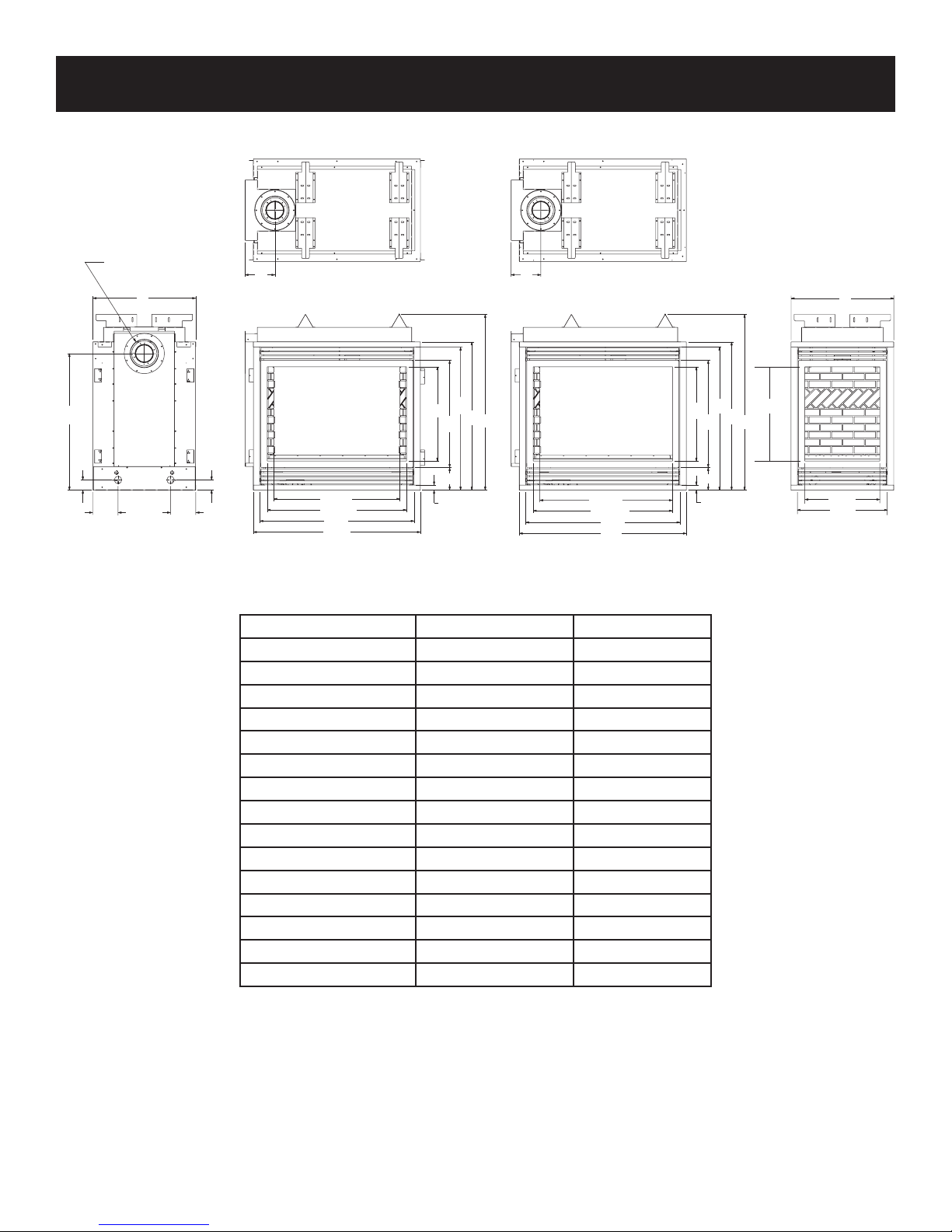

Figure 1
FIREPLACE DIMENSIONS
7 7
31 7/8
L L
K K
C C
B B
E E
32 ½ 32 ½
F31
D D
M M
N N
A A
H H
J
I I 17 ½
21
HORIZONTAL
VENT CONNECTION
SEE THRU PENINSULA
J
G
MODEL DVP36SP32E DVP36PP32E
A 34 3/4” 34 3/4”
B 39" 39"
C 24” 24”
D 22" 22"
E 36” 36”
F 29 1/4” 32 5/8”
G 22” 22”
H 41 1/8” 41 1/8”
I 1 1/4” 1 1/4”
J 5 3/8" 5 3/8"
K 2 1/2” 2 1/2”
L 6” 6”
M 25" 25"
N 33 1/2” 33 1/2”
MAX WEIGHT (LB) 240 230

24325-0-0708Page 10
Figure 2
Combustible Material
Do not attach combustible material to the mantel of your fireplace.
This is a fire hazard. No greeting cards, stockings or ornamentation
of any type should be placed on or attached to the fireplace. This is
a heating appliance. The flow of heat can ignite combustibles.
Mantel Chart (Figure 3)
Figure 3
MANTEL
18 3/8”
17 1/8”
14 3/8”
12 3/8”
11 3/8”
10 3/8”
9 3/8”
8 3/8”
7 3/8” 6 3/8”
2 1/4”
1 1/2”
3/4”
8”
6”
4 1/2”
3 3/4”
3”
12” (305mm)
10” (254mm)
TOP EDGE OF FIREPLACE
COMBUSTIBLE TRIM AND MANTELS
ALLOWED IN SHADED AREA
Clearance to Combustibles
Air Drop (End) 1/2" (12.7 mm)
Side 1/2" (12.7 mm)
Floor 0" (0 mm)
Top Stand-off 0" (0 mm)
Top Framing Edge 6 3/8" (161.7 mm)
GLASS FRONT
6 3/8”
SEE MANTLE CHART FOR
MAXIMUM MANTLE DEPTH
2” x 4” HEADER
STAND OFF
3” (76 mm) HEIGHT
ABOVE TOP OF
FIREPLACE
NAILING
FLANGES
TOP FRAMING
LEDGE
NON-COMBUSTIBLE
FIRST 6 3/8” (SEE
MAGNIFIED VIEW)
FINISHED WALL
(COMBUSTIBLE)
SEE MANTLE CHART
FOR MINIMUM HEIGHT
OF MANTLE ABOVE UNIT
CLEARANCES
Figure 4a - See Through Fireplace Clearances
36”
MIN.
42”
MIN.
(CEILING TO
TOP OF DOOR)
1 3/4” MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
36”
MIN.
42”
MIN.
(CEILING TO
TOP OF DOOR)
1 3/4” MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 4b - Peninsula Fireplace Clearances

24325-0-0708 Page 11

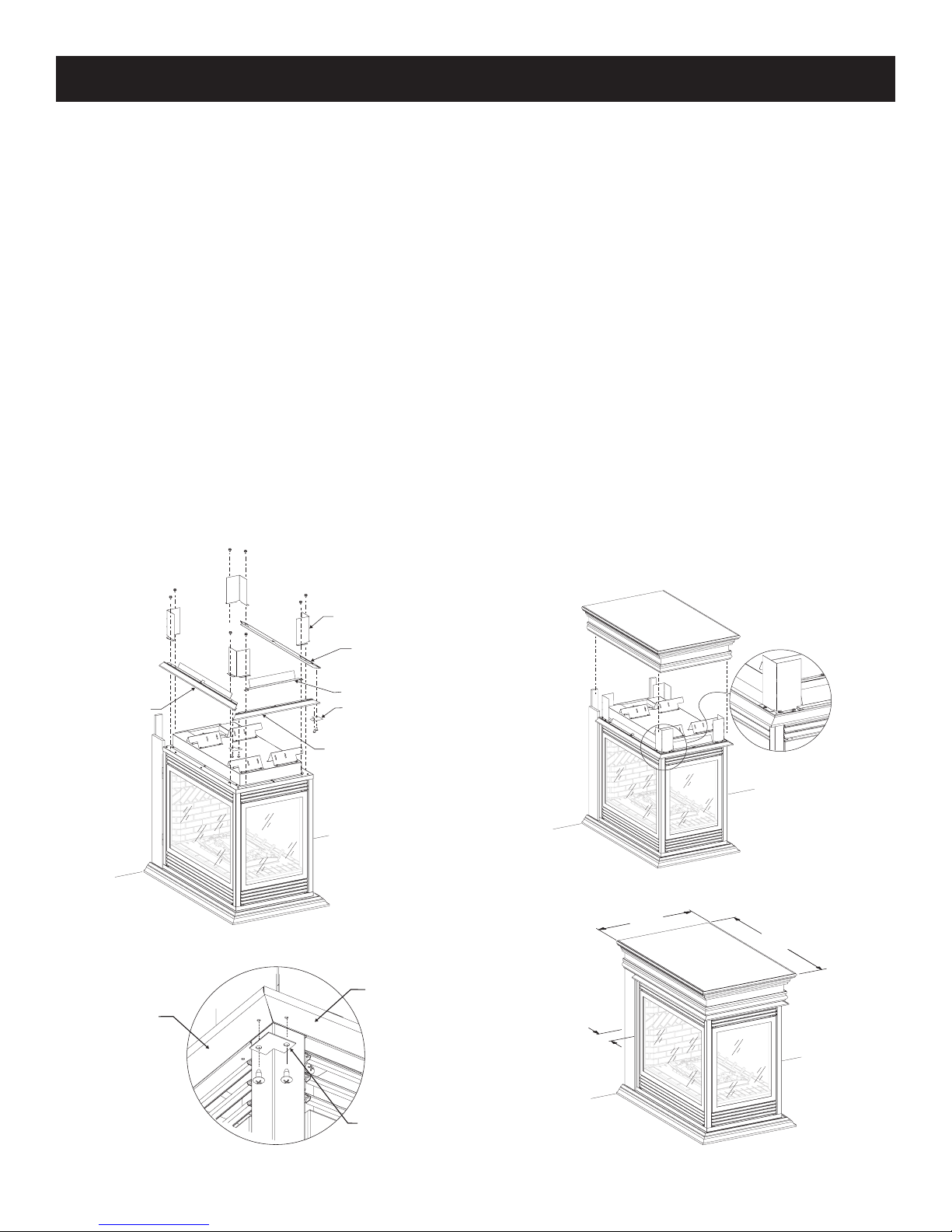

OPTIONAL EMPT SERIES MANTLE INSTALLATION - PENINSULA MODELS ONLY
MANTEL SHELF
SUPPORT
FRONT CANOPY
REAR CANOPY
END CANOPY
END SHIELD
CANOPY CORNER TIE
47 7/8”
(1216 MM)
30 1/8”
(765 MM)
5 7/8”
(149 MM)
Figure 5
Figure 6
Figure 7
The Peninsula Direct Vent fireplaces include a 3-Piece Canopy and End
Shield. These additional parts must be installed on the fireplace if the
EMPT series Mantel top is to be used.
Note: The 3-piece canopy and End Shield is not required if the fireplace
is to be finished off using an installation method as shown in Figure 4b.
Attention: For installation of the EMPT Mantel base and/or Mantel top
components, reference the assembly instructions included with the man-
tel.
Attention: The fireplace venting must start off horizontally when using
the EMPT mantel. Once through the wall, the vent system may be run
vertically or continue with a horizontal termination. Reference the vent-
ing section for additional mantel information.
Installing the 3-Piece Canopy and End Shield
Prior to installing the Peninsula mantel, install the 3-piece canopy and
End Shield in conjunction with the (4) Mantel Corner Brackets (included
with the Mantel Top) as shown in Figure 5a. Refer to the instructions
included with the EMPT Mantel Top for additional installation details.
1. Install (2) of the Mantel Corner Brackets at the vent end corners
first. Loosely attach each bracket with one #10 x 1/2" Hex Head
screw through the rear flange and into the pilot hole on top of the
fireplace. See Figure 5.
2. Position the Rear Canopy with the mitered corner to the open end
of the fireplace. The canopy will slide under the flange of the Rear
Mantel Corner Bracket. Align the holes in the canopy with the cor-
ner bracket and loosely install a #10 x 1/2" Hex Head screw to re-
tain.
3. Position the Front Canopy with the mitered corner to the open end
of the fireplace. The canopy will slide under the Rear Mantel Cor-
ner Bracket. Align the holes in the Canopy and Corner Bracket and
loosely install a #10 x 1/2" Hex Head screw to retain.
4. Place the other (2) Mantel Corner Brackets on top of the Front and
Rear Canopies near the open end of the fireplace and loosely install
a #10 x 1/2" screw through the corner bracket and canopy, then into
the pilot holes provided. Do not tighten the screws.
5. Install the End Canopy by sliding it under the Open End Mantel Cor-
ner Bracket flanges and align mounting holes. Then, place the End
Shield above the End Canopy and Mantel Corner Brackets, align
holes, then loosely secure all three parts with #10 x 1/2" screws to
the fireplace.
6. Adjust the canopies left to right as needed so that the mitered cor-
ners meet, then tighten all previously installed screws to secure end
shield, canopies, and mantel corner brackets.
7. To finish canopy installation, install two (2) canopy corner tie brack-
ets at the underside of the canopy corners as illustrated by Figure
5a. Use a Phillips screwdriver to install two (2) #8 x 1/2 black
sheet metal screws to attach each corner bracket. Before tightening
screws, align the canopy mitered corners together then secure.
Figures 5 and 6 show placement of the corner brackets, canopies, and
the end shield. Figure 7 shows a finished view of the fireplace mantel,
top and base.
CANOPY CORNER TIE
END CANOPY
FRONT CANOPY
Figure 5a

24325-0-0708Page 12
Figure 8
Note:** Island (C) and Room Divider (D) installation is possible as long as the horizontal portion of the vent system (H) does not exceed
20 feet with a minimum vertical run of 8 feet. See details in Venting Section.
*When you install your Direct Vent Fireplace, a minimum of 1 3/4 inches clearance must be maintained from the perpendicular wall
and the front opening of the appliance. However, on the vent end of the fireplace, if placed against a wall, the perpendicular side wall
clearance from the opening would be 2 1/2 inches.
(C) ISLAND
INSTALLATION
(SEE-THRU)
(H)
(D) ROOM DIVIDER
INSTALLATION
(PENINSULA)
(D) ROOM DIVIDER
INSTALLATION
(SEE-THRU)
2 1/2”
(REF.)
2 1/2”
(REF.)
LOCATING FIREPLACE

24325-0-0708 Page 13
Figure 9

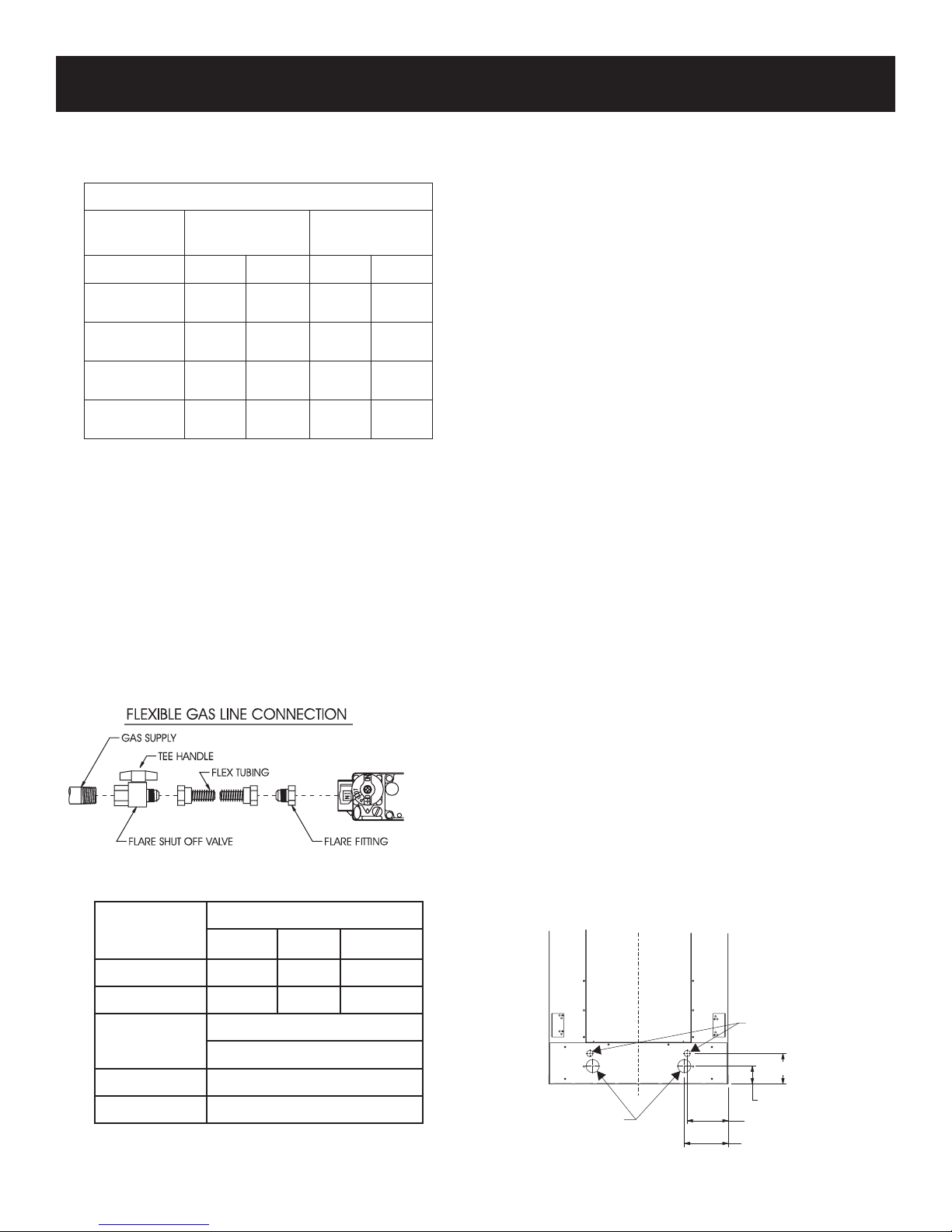

The gas pipeline can be brought in through the right or left side of
the appliance. Consult the current National Fuel Gas Code, ANSI
Z223.1 CAN/CGA-B149 (.1 or .2) installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the unit.
Where none exists, or where its size or location is not adequate, con-
tact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liquefied petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed flame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: The millivolt gas controls are equipped with a captured
screw type pressure test point, therefore it is not necessary to provide
a 1/8" test point up stream of the control.
When using copper or flex connector use only approved fittings.
The appliance and it’s individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to or
less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14" w.c.) (3.5 kPa) on the fireplace gas valve, it will
result in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5" w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8" w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa).
ELECTRICAL ACCESS
GAS LINE ACCESS
4 1/8
2 3/8
5 1/2
5 7/8
Figure 10
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0"
Note: Never use plastic pipe. Check to confirm whether your
local codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a flexible
appliance connector cannot exceed three feet in length.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10ft
0-3m
1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40ft
4-12m
1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100ft
13-30m
1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150ft
31-46m
3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
GAS SUPPLY

24325-0-0708Page 14
REAR VENT CONVERSION
Converting flue take-off to rear venting
When switching out the flue and inlet vent collars to run horizontally
off the rear vent, the following steps must be taken.
1. Remove the inlet vent collar (8 screws) and flue collar (4 screws)
from the top of the fireplace, and set to the side.
2. Remove the inlet cover plate (4 screws) and flue cover plate
(4 screws) located on the back of the fireplace. These will be
used to close the top flue and inlet openings.
3. Install flue cover plate over the top flue opening with 4
screws.
4. Reinstall the inlet cover plate over the top inlet opening with 4
screws. See Figure 11.
5. Install the flue collar assembly to the rear flue with 4 screws.
6. Install the inlet vent collar to the rear of the fireplace with 8
screws.
7. This completes the conversion for a rear vent application.
SPECIAL VENT SYSTEMS
The following vent systems are acceptable for use with the DVP36(SP,PP) series fireplaces:
• Simpson Duravent® PRO Series 4" - 6 ⅝"
• Selkirk Direct-Temp® 4" - 6 ⅝"
• Metal-Fab Sureseal® 4" - 6 1/2" (Note: Adapter pipe starter required)
• Empire Horizontal Round Termination Kit DVVK-4RE, refer to page 39.
• Empire Flexvent Kit DVVK-4F, refer to page 42.
• Empire Flexvent Kit DVVK-4FV Vertical Flex Vent Kit, refer to page 23.
INLET VENT COLLAR
INLET VENT COLLAR
FLUE OUTLET COLLAR
FLUE OUTLET COLLAR
INLET VENT
COVER PLATE
INLET VENT
COVER PLATE
FLUE COVER PLATE
(See note above.)
FLUE COVER PLATE
VERTICAL VENTING HORIZONTAL VENTING
Note: It is recommended that the
flue cover plate tab be pulled
outward prior to removal.
This will ensure that the plate
is not accidentally dropped
inside the rear air chamber.

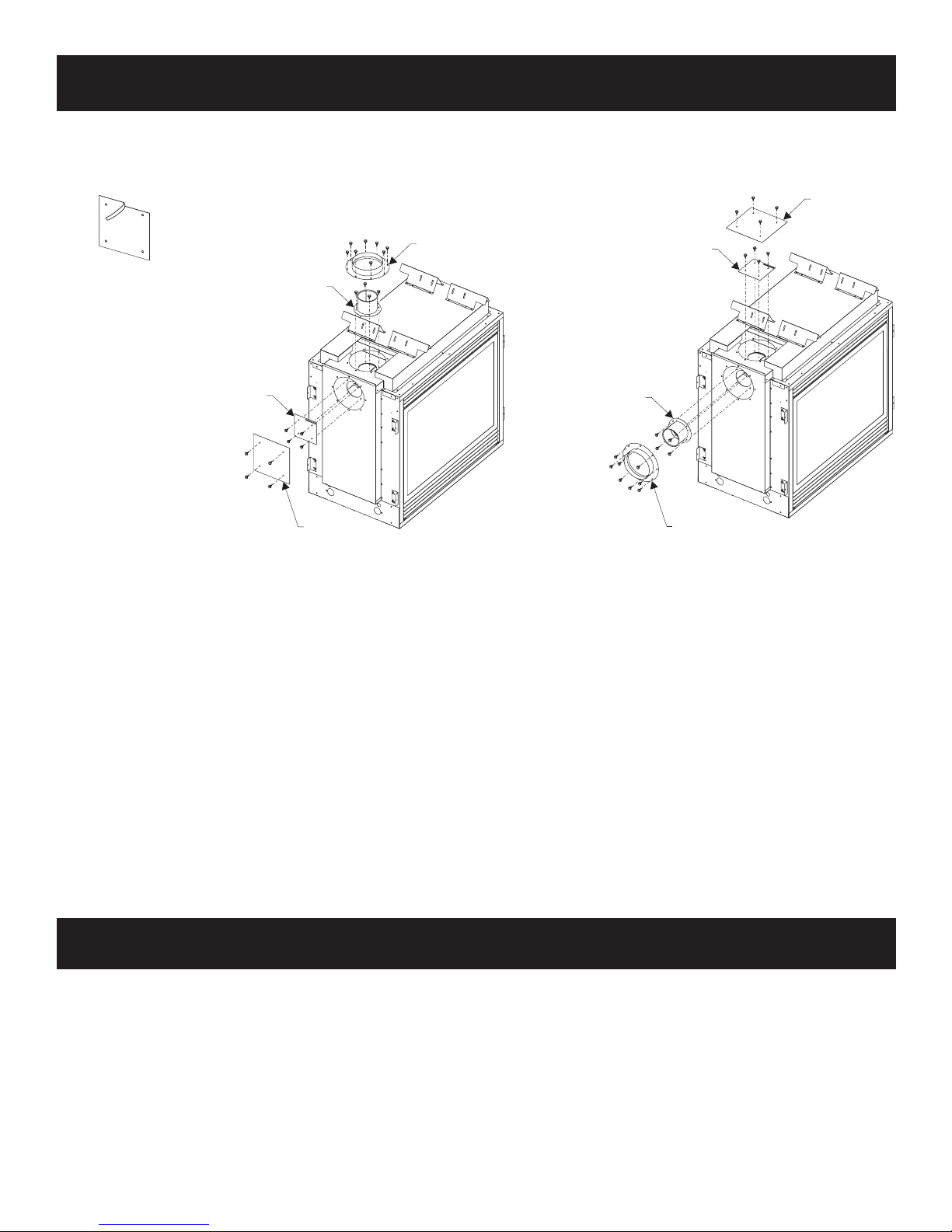

Figure 11

24325-0-0708 Page 15
Fireplace Framing
Framing can be built before or after the fireplace is set in place.
Framing should be constructed to accommodate wall covering
and fireplace facing material. The fireplace framing should be
constructed of 2 x 4 lumber or heavier. The framing headers may
rest on the top standoff spacers. Refer to Figure 12 for framing
dimensions.
Note: On Peninsula models, a maximum weight of 250 lbs. must
not be exceeded when construction materials are supported by the
top standoff spacers.
FIREPLACE INSTALLATION INSTRUCTIONS
Fireplace Framing Dimensions (in inches)
"A" "B" "C"*
Model Framing
Height
Framing
Width
Framing
Depth
DVP36SP 41 1/2" 40" 23"*
DVP36PP 41 1/2" 39"** 23"*
Attention: Add height of base to "A" Dimension when elevat-
ing fireplace if installing on an elevated base.
Framing dimension A includes a three inch clearance for
standoffs on top of fireplace.
*Dimension "C" assumes use of 1/2" wall board flush to both
front faces.
** Peninsula model framing width assumes use of 1/2" wall
board flush to the end face.
A
B
C
A
B
C
Framing - Peninsula
Framing - See-Through

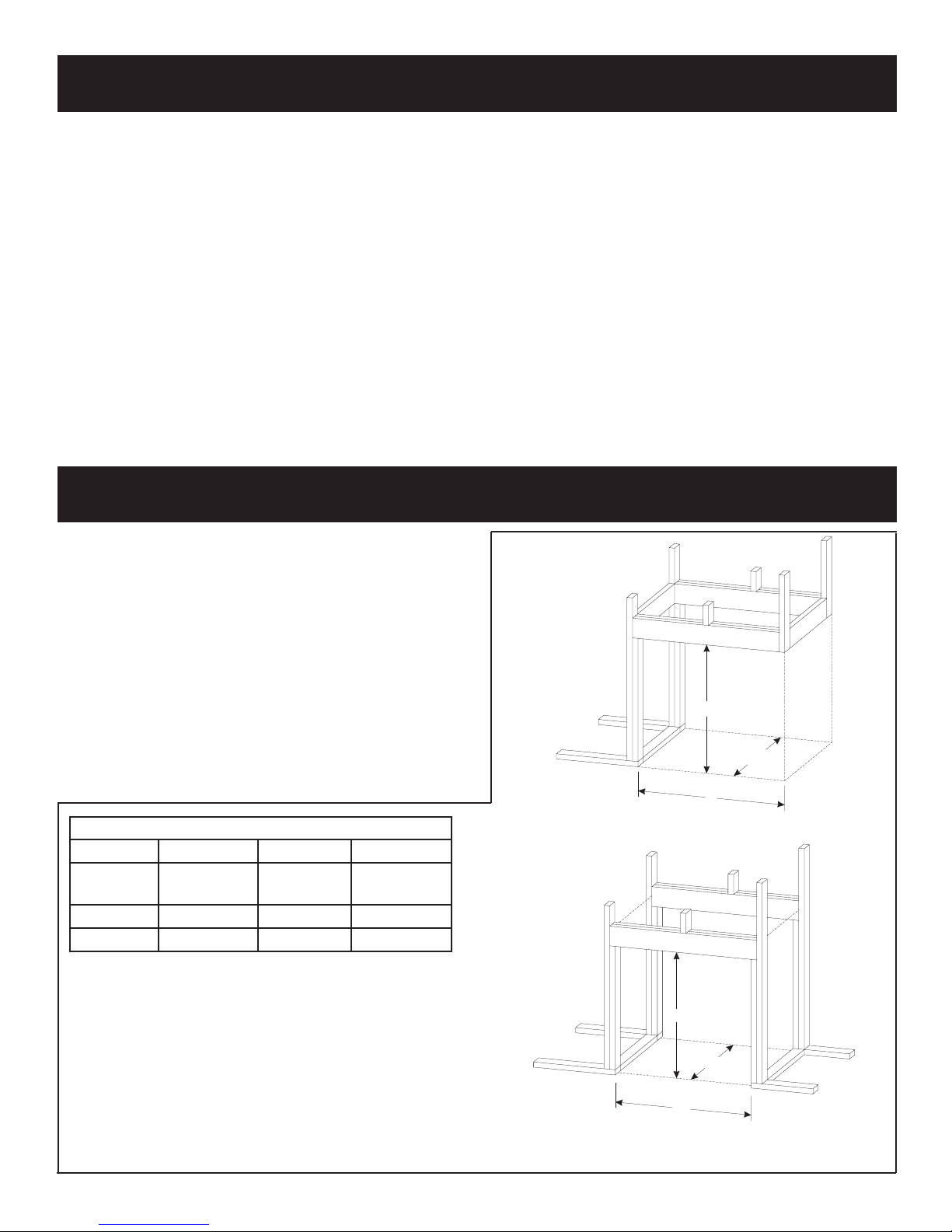

Figure 12
In planning the installation for the fireplace, it is necessary to
determine where the unit is to be installed and whether optional
accessories are desired. Gas supply piping should also be planned
at this time. A gas shutoff must be installed in this line.
The fireplace can be mounted on any of these surfaces:
1. A flat hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible
material.
3. Four (4) corners of the fireplace so contact is made on all four
perimeter edges on the bottom of the unit.
(Example: Four (4) concrete masonry blocks.)
If the fireplace is installed directly on carpeting, tile or other
combustible material other than wood flooring, it should be
installed on a metal or wood panel extending the full width
and depth of the unit.
At this point, you should have decided what components to include
in your installation, and where the fireplace is to be located. If this
has not been done, stop and consult your dealer for assistance with
this planning.
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,
plus other Decorative Frame, Hood, and Door accessory kits may
be installed after the fireplace is secured to the framing.
Refer to the instructions provided with each of the optional
accessory kits for proper installation and operation.
PLANNING INSTALLATION

24325-0-0708Page 16
Locating Fireplace
Place fireplace in framed opening. Attach the framing brackets to
the fireplace and secure to framing. Different hole locations can
be used for finishing materials with thicknesses of 3/8", 1/2" and
3/4". Secure the brackets with screws provided using two (2) per
framing bracket. See Figure 13.
Framing brackets should fit directly against framing material. Use
at least one (1) nail or screw per bracket to secure in place.
IMPORTANT! Check squareness of all openings of the fireplace
prior to securing to the framed openings. See Figure 14.
NOTE: On See-Through models, framing brackets may be placed
on one side of the facing openings. This allows the fireplace to be
inserted into the pre-framed opening.
Figure 13
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
FIREPLACE OPENING

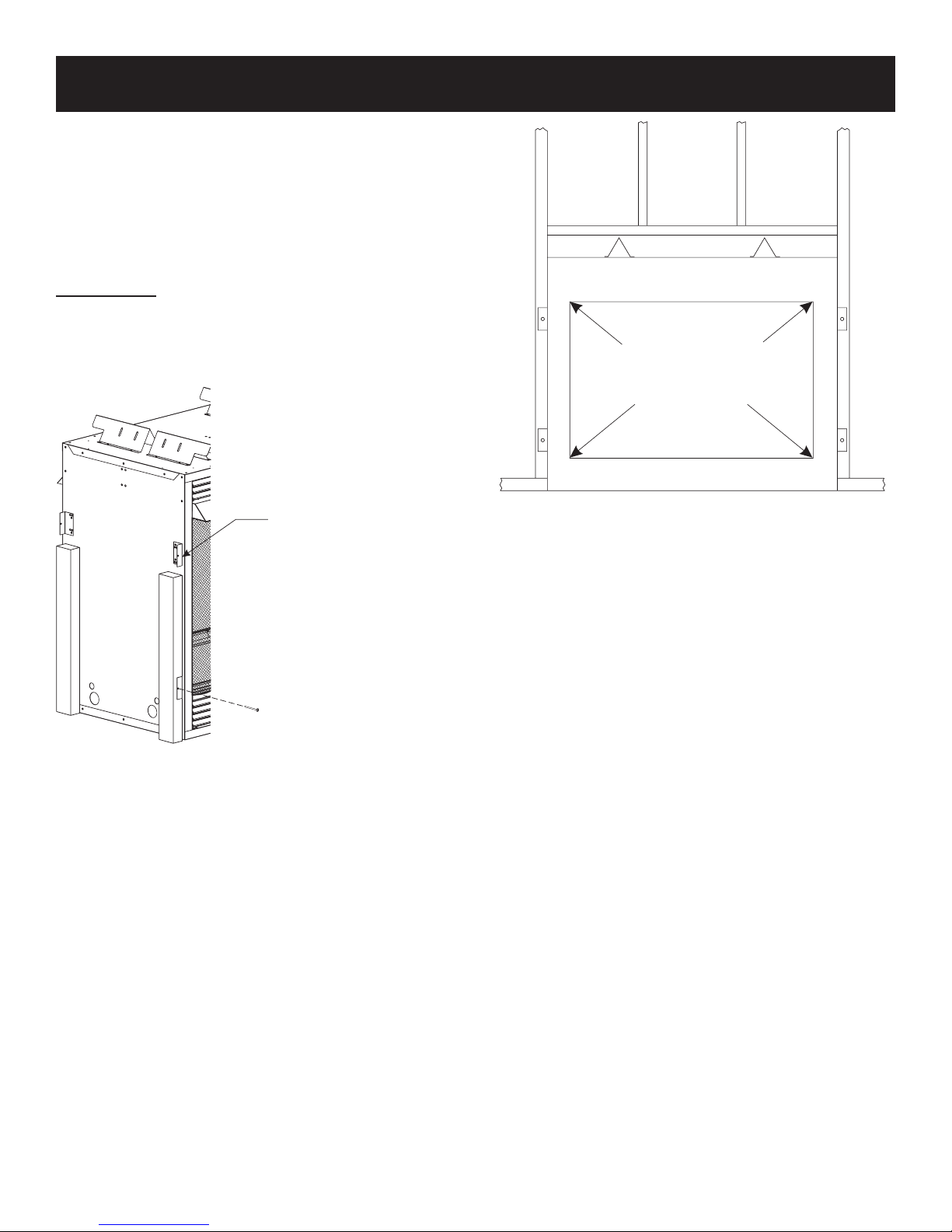

Figure 14
FIREPLACE INSTALLATION INSTRUCTIONS (continued)
ATTACH (4)
FRAMING BRACKETS
TO SIDE(S) OF FIREPLACE
PRIOR TO INSTALLING
UNIT TO FRAMED OPENING

24325-0-0708 Page 17
INSTALLATION
Note: For finishing to top of fireplace, refer to Figure ______.
Attention: Add 3-3/4" to “A” dimensions when using a flush
mantel base.
Attention: If a base or mantel is not used and the appliance is
installed directly on carpeting, tile or other combustible material
other than wood flooring, it shall be installed on a metal or wood
panel extending the full width and depth of the appliance. The
vertical dimension must be adjusted when a metal or wood panel
is placed beneath the appliance.
Finishing (Figures 16 and 17)
Finish the walls with the material of your choice. Figure 3 on page
10 shows the minimum vertical and corresponding maximum
horizontal dimensions of mantels or other combustible projections
above the top front edge of the fireplace.
Only non-combustible materials may be used to cover the black
fireplace front.
Warning: When finishing the fireplace never obstruct
or modify the air inlet/outlet louvers in any manner.
Provide adequate clearances around air openings into the
combustion chamber.
Caution: If the joints between the finished wall and the fireplace
surround (top and sides) are sealed, a 300°F minimum sealant
material must be used. These joints are not required to be sealed.
Only non-combustible material (using 300°F minimum adhesive if
needed), can be applied as facing to the fireplace surround.
Flush Wall Installation - See Through Models
Figure 16
Flush Mount Mantel Installation - See-through Models Only
(Figure 15)
The fireplace must extend 3/4" beyond finished wall surface when
using a flush mount mantel on see-through models. Refer to Figure
15 to locate nailing flanges on fireplace sides. Use eight (8) 1/2"
hex-head screws supplied in hardware package to attach nailing
flanges to fireplace sides.
Figure 15
Framing (See Figure 12)
Fireplace framing can be built before or after the fireplace is set in
place. Framing should be positioned to accommodate wall covering
and fireplace facing material. The fireplace framing should be
constructed of 2 x 4 lumber or heavier. The framing headers may
rest on the fireplace standoffs.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS, AND WALL COVERING
DETAILS BEFORE FRAMING CONSTRUCTION
BEGINS.
Framing dimension "A" (Figure 12) includes the clearance
for standoffs on fireplace. After installing fireplace into
framing, the finished non-combustible wall surface must
extend down to the top edge of the fireplace face.
NAIL OR OTHER
SUITABLE FASTENER
FRAMING
6 3/8” (162 mm) OF NON-COMBUSTIBLE MATERIAL
FINISHED WALL
FRONT TRIM OR NON-
COMBUSTIBLE MA TERIAL
(INSTALLA TION IS OPTIONAL)
JOINT BETWEEN FINISHED
WALL AND UNIT SEALED
WITH 300° F, 149° C SEALANT
MATERIAL (SEALANT IS OPTIONAL)

24325-0-0708Page 18
Figure 18
Vent Pipe Clearance
Note: Maintain one inch (1") of clearance around vertical vent
pipe. See Figure 18. For horizontal vent, maintain a minimum 1"
clearance to the bottom and sides of the vent, and 3" clearance to
combustibles above the vent pipe. See Figure 19.
VENT PIPE
1” MINIMUM CLEARANCE
AROUND VENT PIPE
Top of Vent
3” (76mm)
1” (25mm)
1” (25mm)
6 5/8” Diameter - Hard Pipe
7” Diameter - Flex Pipe
intake vent
4” Diameter flue
Combustibles NOT
allowed in shaded
area

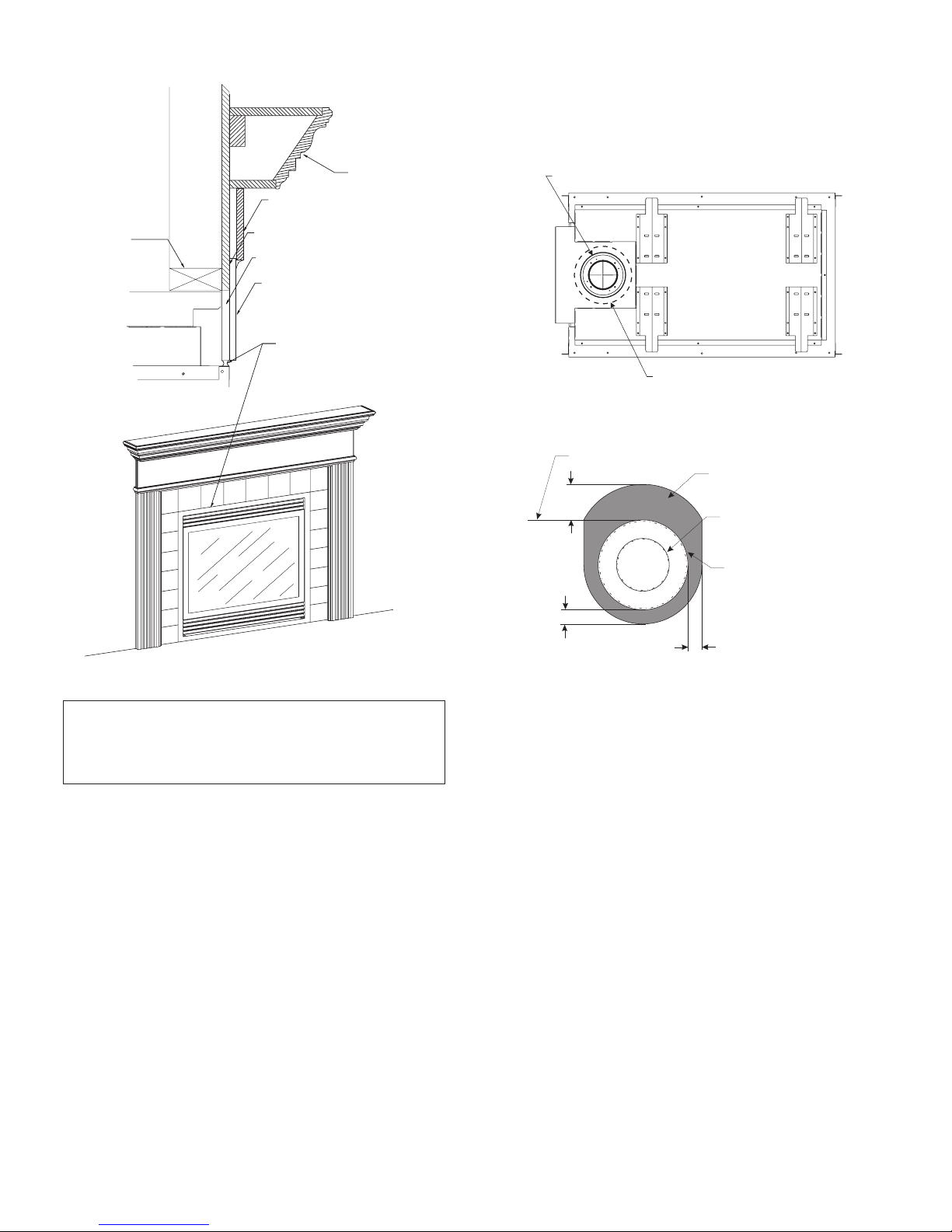

Figure 19
Combustible Surround Installation
Figure 17
Attention: Cold climate installation recommendation: When
installing this unit against a non-insulated exterior wall, it is
recommended that the outer walls be insulated to conform
to applicable insulation codes.
Vent Runs
In planning the installation for the fireplace, it is necessary to install
certain components before the appliance is completely positioned
and installed. These include the direct vent system, gas piping for the
appliance and the electrical wiring. (If the fan option is used.)
In addition to non-combustible surfaces, the appliance can be
mounted on any of the following surface options:
1. A flat, hard combustible (burnable) surface.
2. A raised wooden platform.
3. Four (4) corner supports. (Example: Four (4) concrete masonry
blocks.) These supports must be positioned so they contact all
four (4) perimeter edges on the bottom of the unit.
FINISHED WALL
COMBUSTIBLE SURROUND
MANTELSHELF
2X4
HEADER
STAND OFF
6 3/8” OF NON-COMBUSTIBLE
MATERIAL
FRONT TRIM OR
NON-COMBUSTIBLE
MATERIAL (INSTALLATION
IS OPTIONAL)
JOINT BETWEEN FINISHED
WALL AND UNIT SEALED WITH
300°F (149°C) SEALANT MATERIAL
(SEALANT IS OPTIONAL)

24325-0-0708 Page 19

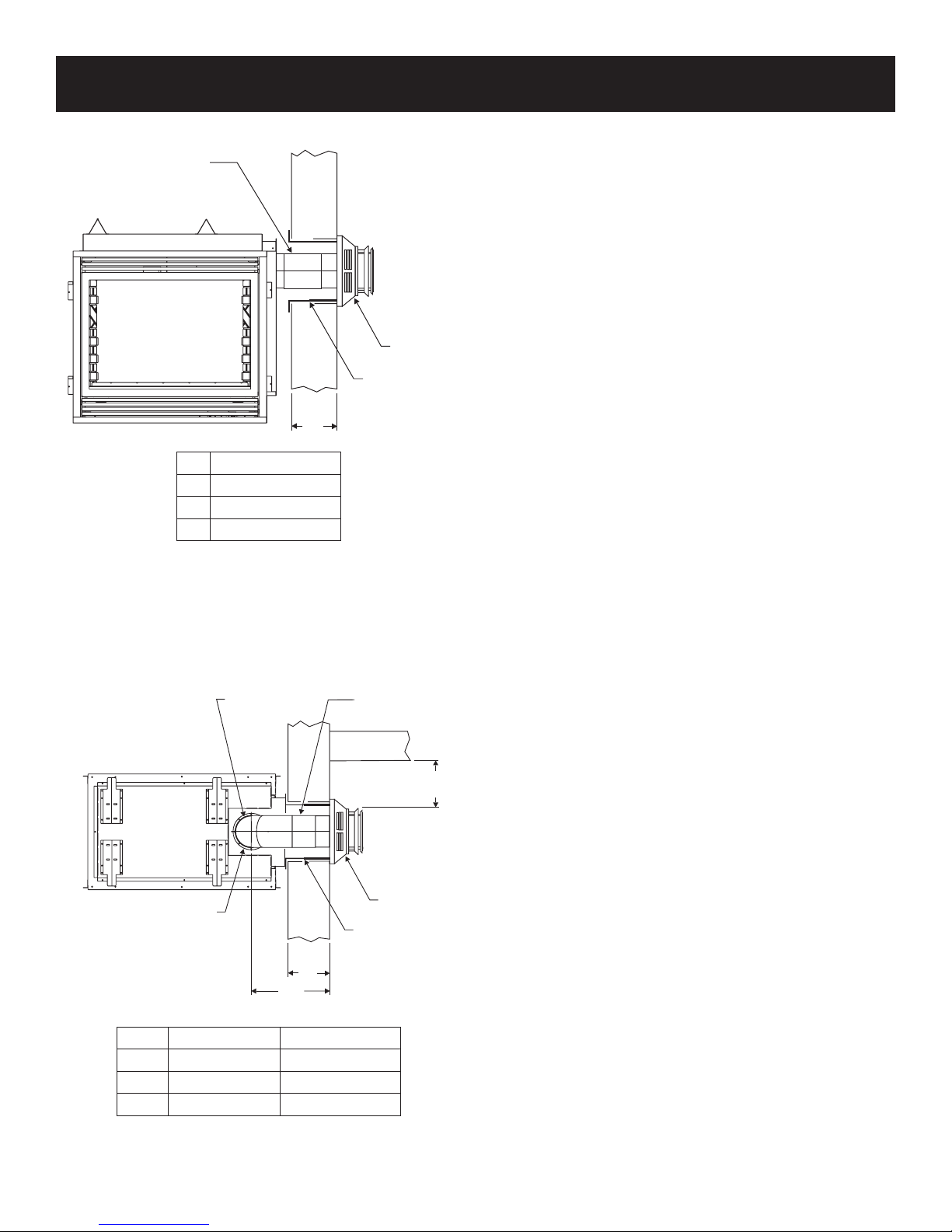

Figure 21
“A” PIPE LENGTH
VENT CAP
WALL FIRESTOP/
THIMBLE
“B”
"A" "B"
6" 5 1/8" to 6 1/2"
9" 8 1/8" to 9 1/2"
12" 11 1/8" to 12 1/2"
90º ELBOW “A”
PIPE
LENGTH
VENT CAP
NOTE: 1 FOOT VERTICAL VENT (MIN.)
REQUIRED WHEN TOP VENTING
WITH HORIZONTAL TERMINATION
9” (229 MM)
MINIMUM
WALL FIRESTOP/
THIMBLE
“C”
“B”
"A" "B" "C"
6" 11 1/4" to 12 3/4" 4 3/4" to 6 1/4"
9" 14 1/4" to 15 3/4" 7 3/4" to 9 1/4"
12" 17 1/4" to 18 3/4" 10 3/4" to 12 1/4"
INSTALLATION (continued)
HORIZONTAL ONLY, STRAIGHT OUT THE BACK
Figure 20
VERTICAL, 90° ELBOW TO
HORIZONTAL OUT THE WALL

24325-0-0708Page 20
To Use the Vent Graph (Figure 22)
1. Determine the height of the center of the horizontal
vent pipe. Using this dimension on the Sidewall Vent
Graph, locate the point it intersects with the slanted
graph line.
2. From the point of this intersection, draw a vertical
line to the bottom of the graph.
3. Select the indicated dimension, and position the unit
in accordance with same.
EXAMPLE A: (Top Vent Connections with Vertical
Termination).
If the vertical dimension from the floor of the unit is
35 feet, the horizontal run to the outer wall flange must
not exceed 6.5 feet.
EXAMPLE B: (Top Vent Connections with Vertical
Termination)
If the vertical dimension from the floor of the unit is
6.5 feet, the horizontal run to the outer wall flange must
not exceed 14.5 feet.
SPECIAL NOTE: For each 45 degree elbow installed
in the horizontal run, the length of the horizontal run
MUST be reduced by 18" (45cm). This does not apply
if the 45 degree elbows are installed on the vertical part
of the vent system. Reduce 3' for every 90° elbow.
Example: According to the chart the maximum
horizontal vent length is 20' and if two 45 degree
elbows are required in the horizontal vent it must be
reduced to 17'.
The maximum number of 45 degree elbows permitted
per side wall installation is two (2). These elbows can
be installed in either the vertical or horizontal run.
Note: On vertical venting the first elbow is not
counted.
Figure 22
Acceptable vertical and horizontal vent run.
Rigid Venting - 40' maximum vertical and 20' maximum
horizontal
Flex Venting - 35' maximum vertical and 20' maximum
horizontal
Unacceptable vertical and horizontal vent run.
TOP EXIT - VERTICAL AND HORIZONTAL TERMINATION
(DIMENSIONS IN FEET)
NOTE: FLEX VENT
MAXIMUM HEIGHT
IS 35 FEET
VERTICAL DIMENSION FROM THE BOTTOM OF THE UNIT
TO THE CENTER OF THE FLUE OUTLET
WITH VERTICAL OR HORIZONTAL TERMINATION CAPS
TOP VENT
CONNECTION
TOP VENT CONNECTION
OF VENTING WITH
HORIZONTAL TERMINATION
HORIZONTAL RUN
Venting Graph (Dimensions in Feet)
VENTING FIREPLACE - TOP
