INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
The Breckenridge
Deluxe Vent-Free Universal Fireboxes
DO NOT ATTEMPT TO MODIFY OR ALTER THE
CONSTRUCTION OF THE FIREBOX OR ITS COMPO-
NENTS. ANY MODIFICATION OR ALTERATION OF
CONSTRUCTION MAY VOID THE WARRANTY OF
THIS FIREBOX.
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURE
AND SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPER-
VISED WHEN THEY ARE IN THE SAME ROOM AS THE
FIREBOX.
FOR USE ONLY WITH A LISTED GAS-FIRED UN-
VENTED DECORATIVE ROOM HEATER NOT TO
EXCEED 40,000 BTU/H.
DO NOT BUILD A WOOD FIRE.
UNIVERSAL FIREBOX FOR ALL
VENT-FREE LOG SETS
MODELS
VFD32FB0L-1 VFD36FB0L-1 VFD42FB0L-1
VFD32FB2DL-1 VFD36FB2DL-1 VFD42FB2DL-1
VFD32FB2CL-1 VFD36FB2CL-1 VFD42FB2CL-1
VFD32FB0F-1 VFD36FB0F-1 VFD42FB0F-1
VFD32FB2DF-1 VFD36FB2DF-1 VFD42FB2DF-1
VFD32FB2CF-1 VFD36FB2CF-1 VFD42FB2CF-1
Effective Date
December 2006
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property dam-
age. Refer to this manual. For assistance or additional in-
formation, consult a qualified installer, service agency or the
gas supplier.
Carefully review the instructions supplied with the decora-
tive type unvented room heater for the minimum fireplace
size requirement.
DO NOT INSTALL A VENT-FREE LOG SET IN THIS
FIREBOX, UNLESS THIS FIREBOX MEETS THE
MINIMUM DIMENSIONS REQUIRED FOR THE
INSTALLATION.
GAS-FIRED
ANSI Z21.91 Ventless Fireplace Enclosures for Gas Fired Dec-
orative Type Unvented Room Heaters
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appli-
ance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
WARNING: If the information in these instructions are
not followed exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.

23200-0-1206Page 2
SECTION PAGE
Important Safety Information .................................................................................................3
Introduction ............................................................................................................................3
Clearances ..............................................................................................................................4
Firebox Installation Instructions ......................................................................................... 4-7
Installing Hood ................................................................................................................... 7-8
Gas Line Connection .............................................................................................................8
Optional Fresh Air Kit Installation Instructions ............................................................... 9-11
Optional Single Speed Blower Installations Instructions ............................................... 12-14
Junction Box Wiring Installation Instructions ......................................................................15
Maintenance .........................................................................................................................15
Parts List ....................................................................................................................... 16-17
How to Order Repair Parts ...................................................................................................17

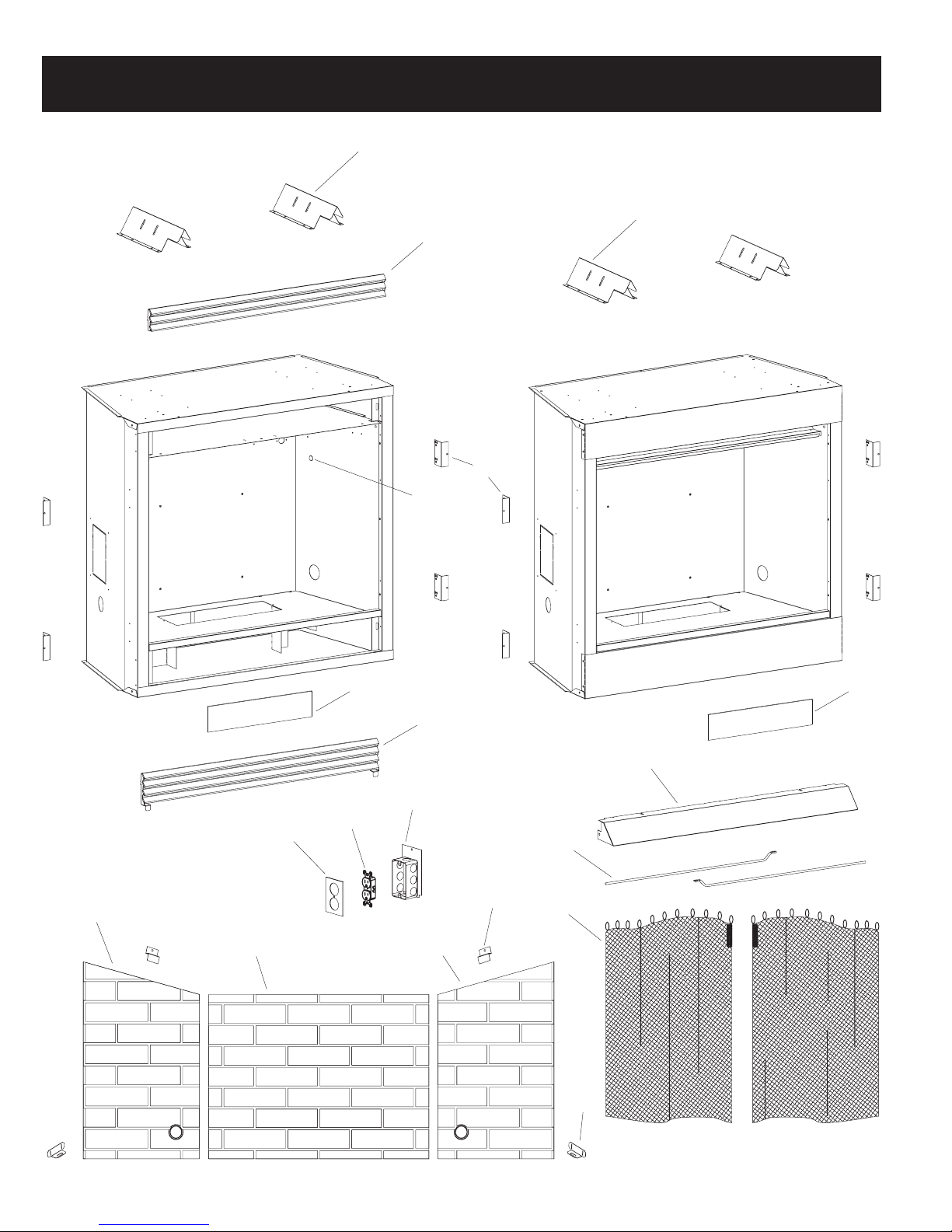

Parts View .............................................................................................................................18
Accessories ..................................................................................................................... 19-20
TABLE OF CONTENTS

Page 323200-0-1206
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTE: Installation and repair should be done by a quali-
fied service person. The appliance should be inspected
before use and at least annually by a qualified service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It
is imperative that control compartment, burners and
circulating air passageways of the appliance be kept
clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the ap-
pliance. Provide adequate combustion and ventilation
air.
The flow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems, Inc. firebox and its
components have been tested and will operate safely when
installed in accordance with this installation manual.
Read all instructions before starting installation, then
follow these instructions carefully during installation
to maximize firebox benefit and safety. Report to your
dealer any parts damaged in shipment.
The Empire Comfort Systems, Inc. warranty will be
voided by, and Empire Comfort Systems, Inc. disclaims
any responsibility for the following actions:
- Installation of any damaged firebox.
- Modification of the firebox or any of the components
parts thereof.
- Installation other than as instructed by Empire
Comfort Systems, Inc.
- Installation and/or use of any component part or
accessory not approved by Empire Comfort Systems,
Inc. in combination or assembly with a Empire
Comfort Systems, Inc. firebox, not withstanding any
independent testing laboratory or other third party
approval of such component part or accessory.
Any such action may create a possible fire hazard.
Consult your local building codes.
Firebox Screen.
The firebox screen must be in place when the firebox is
operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card
supplied with firebox.
3. Installer should show owner how to start and operate log set
that is installed into firebox.
Important
All correspondence should refer to complete Model Number,
Serial Number.
Notice: During initial firing of this firebox with a log set installed, its
paint will bake out, and smoke will occur. To prevent triggering of
smoke alarms, ventilate the room in which the unit is installed.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualified agency. The term "qualified
agency" means any individual, firm, corporation or company
which either in person or through a representative is engaged in
and is responsible for (a) the installation or replacement of gas
piping or (b) the connection, installation, repair or servicing of
equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
State of Massachusetts: The installation must be made by
a licensed plumber or gas fitter in the Commonwealth of
Massachusetts. The state of Massachusetts requires that a
flexible appliance connector cannot exceed three feet in
length.
Sellers of unvented propane or natural gas-fired supplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-fired space heaters shall be prohibited in bedrooms and
bathrooms.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA 54.*
*Available from the American National Standards Institute, Inc., 11 West
42nd St., New York, N.Y. 10036.
IMPORTANT SAFETY INFORMATION
INTRODUCTION

23200-0-1206Page 4

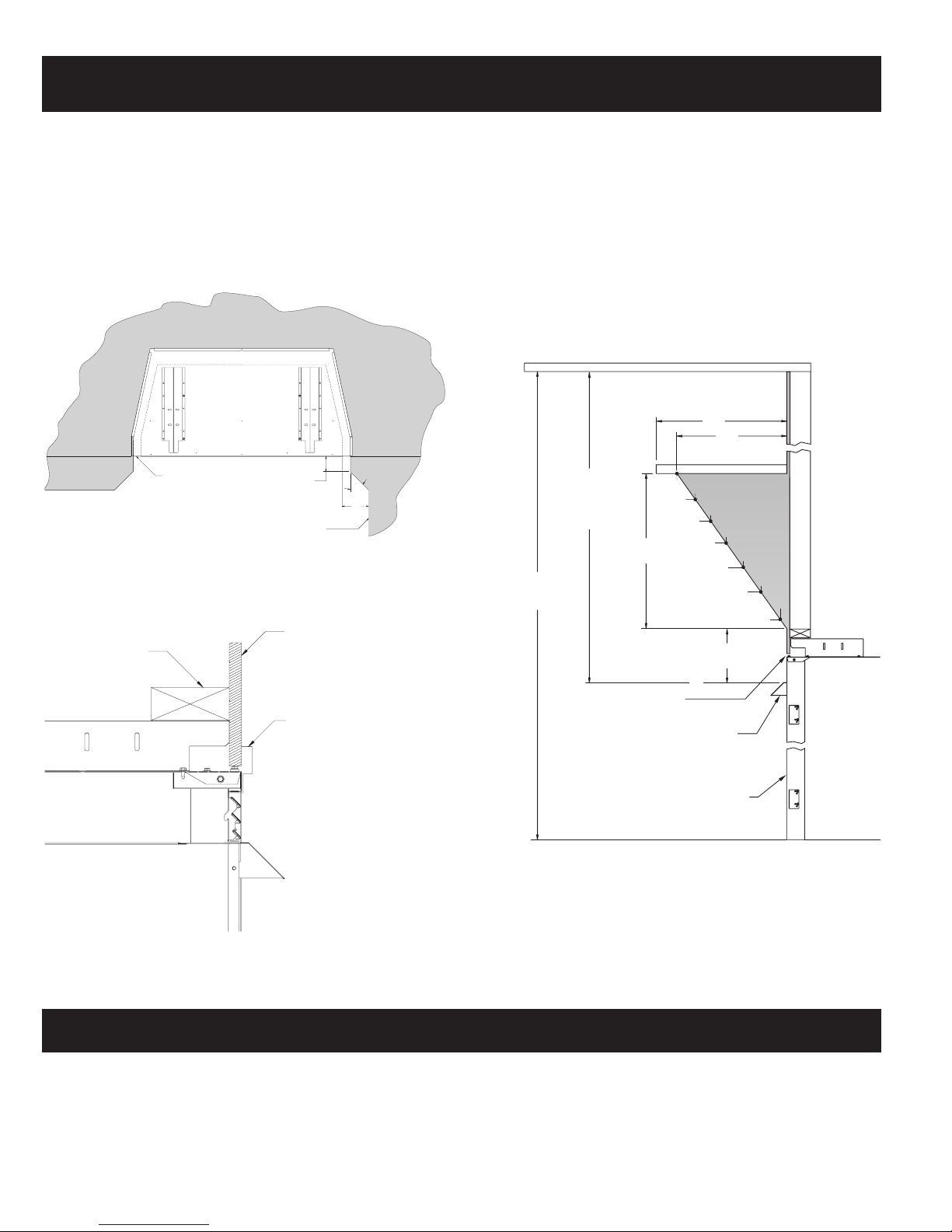

Clearances to combustibles
Sidewall Clearances: The clearance from the inside of the firebox
to perpendicular combustible side wall should not be less than
6". See Figure 1.
Firebox Side and Back Clearances: The firebox outer casing side
and back flanges are zero clearance to combustibles.
Top Framing and Finishing: Combustible framing may rest on
top of standoffs. Combustible finishing materials may extend
to the top standoff screws on the front edge of the outer wrap.
See Figure 2.
Ceiling Clearances: The ceiling height should not be less than 42"
from the top of the hood. See Figure 3.
Mantel Clearances: Vent free firebox models must use the hood
supplied with the firebox, or one of the optional hood kits
available for each model. If a combustible mantel is installed,
it must meet the clearance requirements detailed below.
Grate Clearance: The minimum clearance between the front legs
of the grate and front edge of the firebox is 2".
Leave at least 36" clearance from the front of the firebox.
Any vent-free Gas Log Heater must be “For use with approved
ANSI Z21.11.2 unvented room heater.”
Follow and complete the installation instructions of the gas log set
and the requirements of this firebox.
Check all fittings for leaks before lighting the gas log set.
In planning the installation for the firebox, it is necessary to
determine where the unit is to be installed and whether optional
accessories are desired. Gas supply piping should also be planned
at this time.
A gas shut off must be in this line.
45°
6”
3”
MAX.
PERPENDICULAR
SIDE WALL
FRONT FACE (SIDE)
FIREBOX
(TOP VIEW)
COMBUSTIBLE
MATERIALS ALLOWED
IN SHADED AREAS
FIREBOX
STAND OFF
FINISH WITH TRIM KIT OR
NON-COMBUSTIBLE MATERIAL
AS DESIRED.
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2X4
HEADER
MANTEL
HOOD
13”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOP OF HOOD)
11 1/2”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
10”
22”
8”
20”
6 ½”
18”
5”
16”
3 ½”
14”
2”
12 ½”
3/4”
24 ½”
0”
Figure 1
Figure 2
Figure 3
CLEARANCES
FIREBOX INSTALLATION INSTRUCTIONS

Page 523200-0-1206

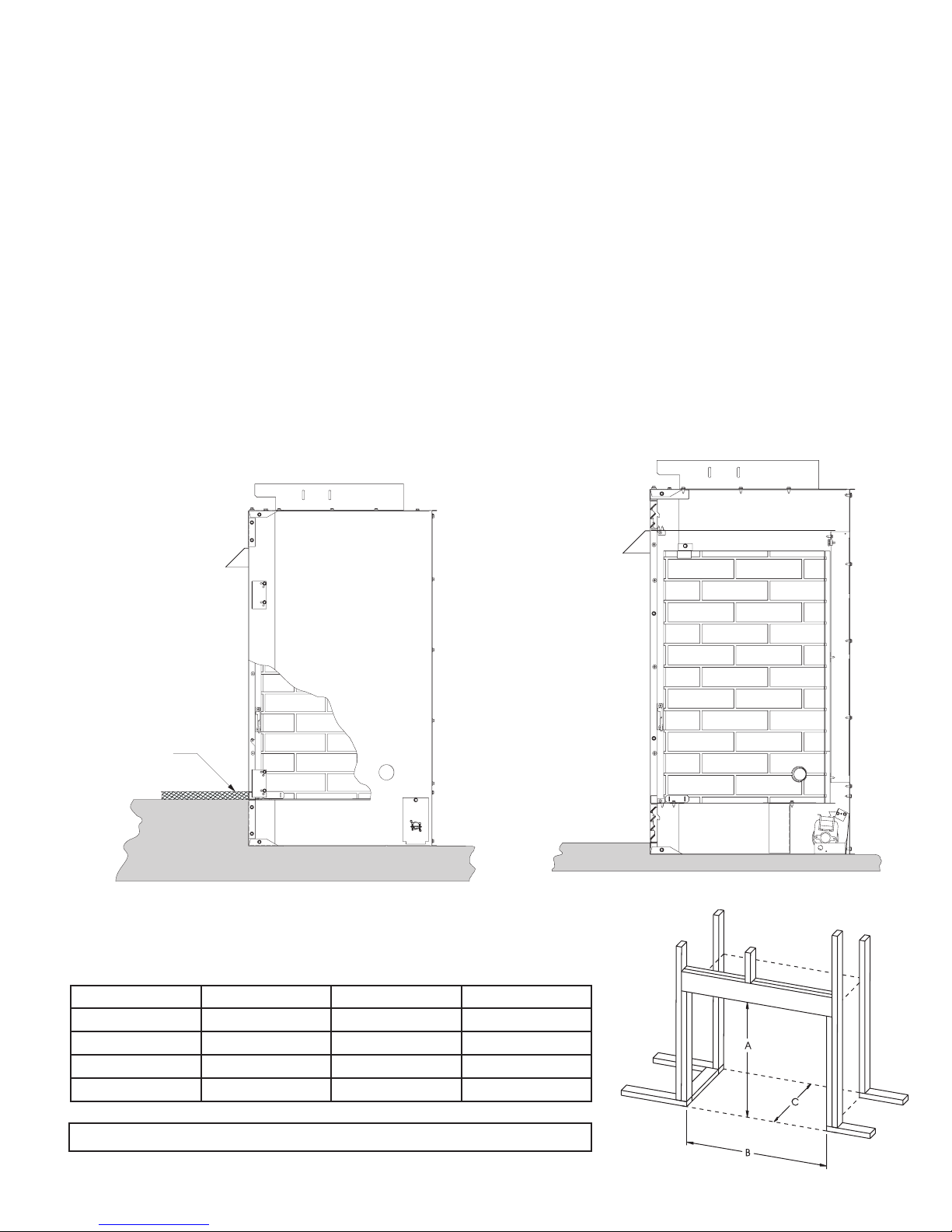

Deluxe Vent-Free Firebox Framing Dimensions (in inches)
"A" "B" "C"
Model Framing Height Framing Width Framing Depth
VFD32FB 36 1/8" 35" 17"
VFD36FB 38 1/8" 40" 19 3/8"
VFD42FB 38 1/8" 44" 19 3/8"
Attention: Add 3-3/4" to "A" Dimension when using flush mantel base.
Framing dimension A includes a three inch clearance for standoffs on firebox.
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,
Full Cabinet Mantels, plus other Decorative Frame, Hood, and
Door accessory kits may be installed after the firebox is secured
to the framed opening.
Refer to the instructions provided with each of the optional
accessory kits for proper installation and operation.

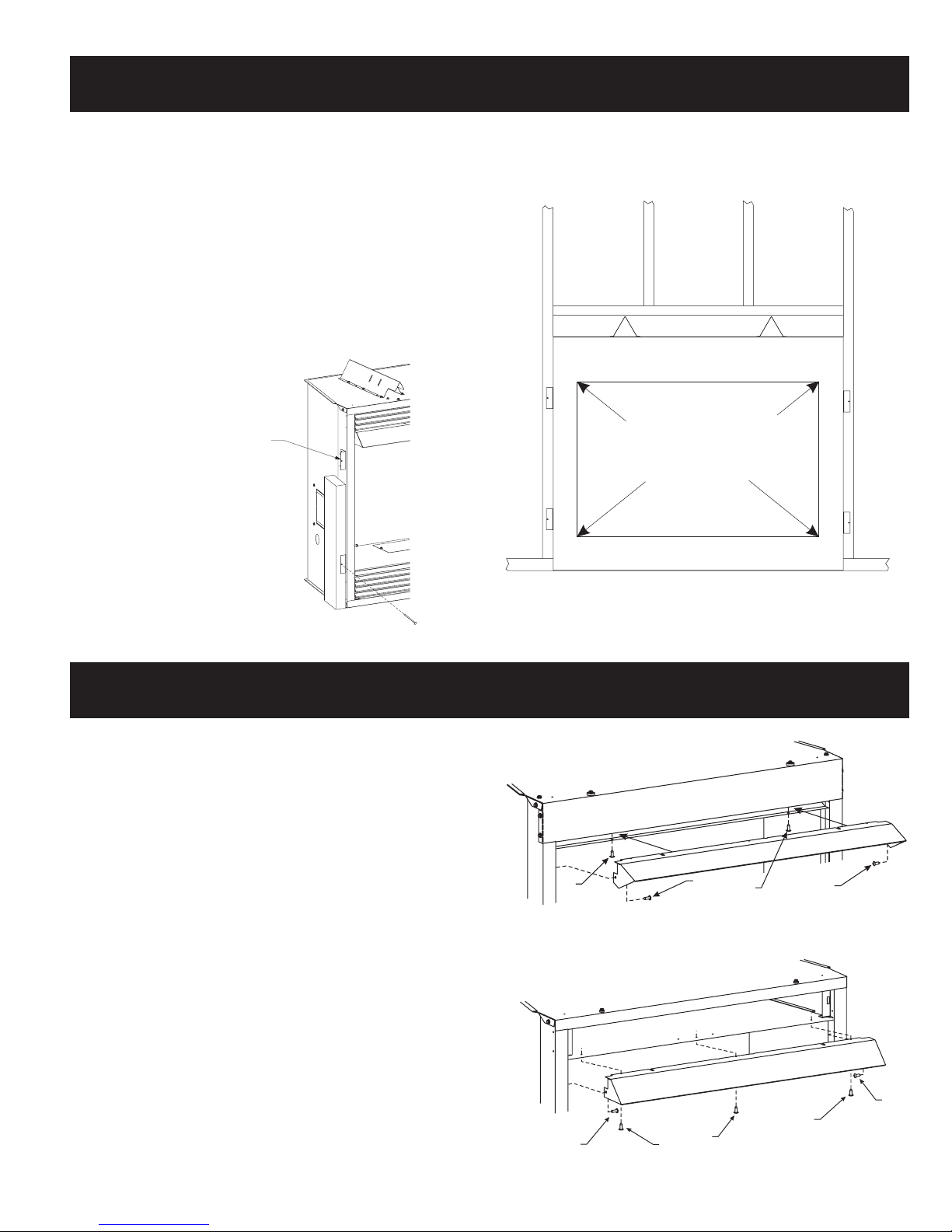

Firebox Framing
Firebox framing can be built before or after the firebox is set
in place. Framing should be positioned to accommodate wall
covering and firebox facing material. The firebox framing should
be constructed of 2 x 4 lumber or heavier. The framing headers
may rest on the top of the firebox standoffs. Refer to Figures 6
and 7 for firebox framing dimensions.
The firebox can be mounted on any of these surfaces:
1. A flat hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible
material.
3. Recessed into the floor as illustrated by Figure 4 (flush face),
and Figure 5 (louvered models).
4. Supported under all (4) corners of the firebox so that contact
is made on all four perimeter edges on the bottom of the unit
(Example: Four (4) concrete masonry blocks).
If the firebox is installed directly on carpeting, tile or other
combustible material other than wood flooring, it should be installed
on a metal or wood panel extending the full width and depth of
the unit.
At this point, you should have decided what components to include
in your installation, and where the firebox is to be located. If this
has not been done, stop and consult your dealer for assistance with
this planning.
Planning Your Installation
Please note that the optional BVA1 Fresh Air kit available for use
with the Vent Free Firebox must be installed at the time of the initial
installation. Refer to pages 9, 10, and 11 for detailed instructions
for the air kit.
COMBUSTIBLE MATERIALS ALLOWED
NON-COMBUSTIBLE
FINISHING MATERIAL
TO FIREBOX OPENING
FLUSH
FACE
MODELS
LOUVERED
FIREBOX
MODELS
COMBUSTIBLE MATERIALS ALLOWED
Figure 4
Figure 5
Figure 6

23200-0-1206Page 6

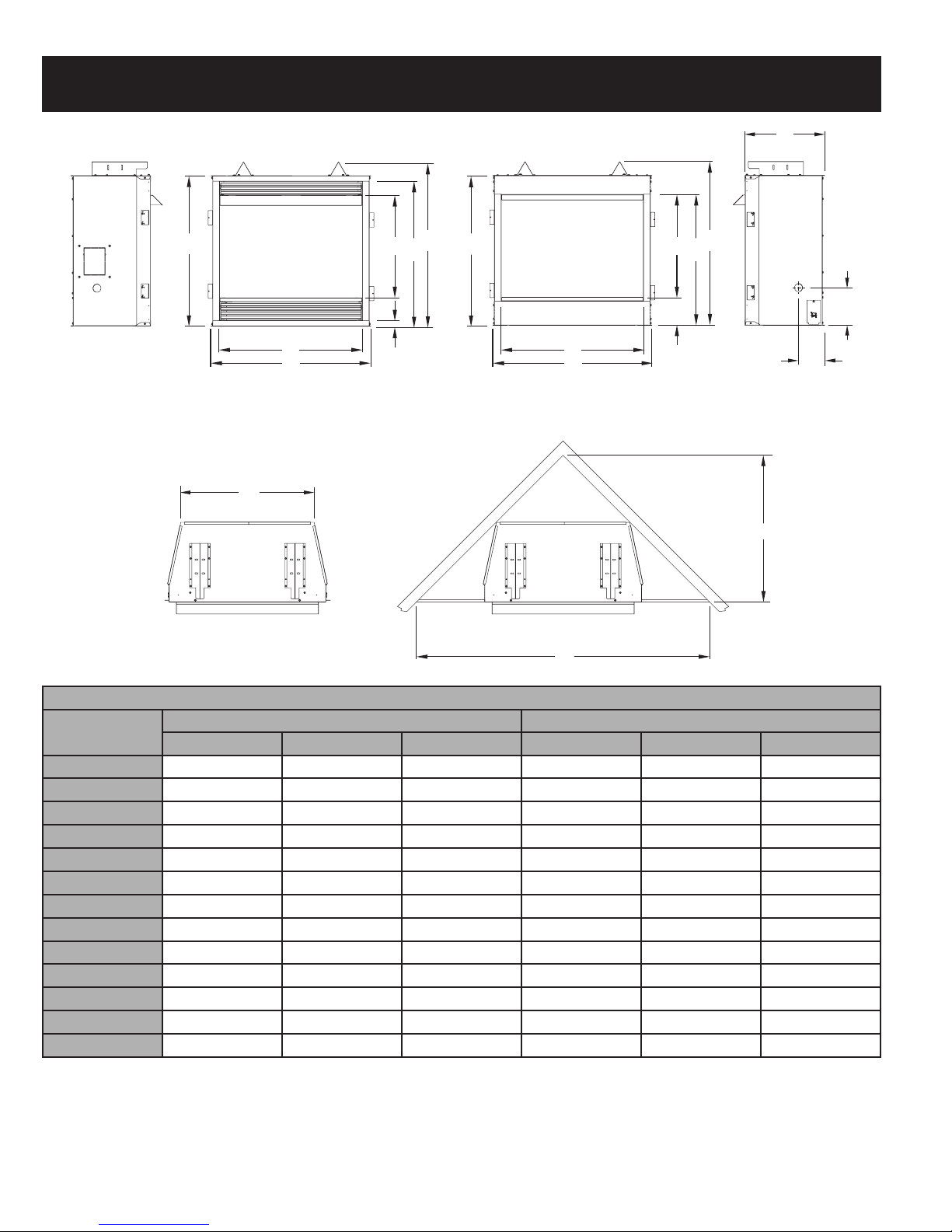

Figure 7
Firebox Dimensions
H
J
K
I
A
G
F
B
E
H
I
A
G
F
B
E
C
D
L
M
DELUXE
LOUVERED
DELUXE
FLUSH
FIREBOX INSTALLATION INSTRUCTIONS (continued)
DELUXE
REFERENCE
LETTER
LOUVERED FLUSH
VFD32 VFD36 VFD42 VFD32 VFD36 VFD42
A 35 5/8" 37 5/8" 37 5/8" 35 5/8" 37 5/8" 37 5/8"
B 34 1/2" 39 1/2" 43 1/2" 34 1/2" 39 1/2" 43 1/2"
C 17 7/16" 19 13/16" 19 13/16" 17 7/16" 19 13/16" 19 13/16"
D 29" 33" 37" 29" 33" 37"
E 33" 35" 35" 33" 35" 35"
F 31" 36" 40" 31" 36" 40"
G 22 3/8" 24 3/8" 24 3/8" 22 3/8" 24 3/8" 24 3/8"
H 1 1/4" 1 1/4" 1 1/4" 6 1/8" 6 1/8" 6 1/8"
I 31 1/2" 33 1/2" 33 1/2" 28 9/16" 30 9/16" 30 9/16"
J 8 3/8" 8 3/8" 8 3/8" 8 3/8" 8 3/8" 8 3/8"
K 5 3/4" 5 3/4" 5 3/4" 5 3/4" 5 3/4" 5 3/4"
L 31 13/16" 36 3/16" 38 3/16" 31 13/16" 36 3/16" 38 3/16"
M 63 3/8" 72 3/8" 76 3/8" 63 3/8" 72 3/8" 76 3/8"

Page 723200-0-1206
Locating Firebox
Place firebox in framing opening. Use the four (4) framing brackets
provided on the firebox to attach firebox to framing. Different hole
locations can be used for finishing materials with thicknesses of
3/8", 1/2" and 3/4". Attach these materials with screws provided,
two (2) per framing bracket. See Figure 8.
Framing brackets should fit directly against framing material. Use
at least one (1) nail per bracket to secure in place.
Check squareness of the firebox prior to securing to framed opening.
See Figure 9.
Figure 8
A black hood that is furnished with each firebox (or optional hood)
MUST be installed before the firebox is used. Failure to do so may
create a possible fire hazard. The hood is located behind upper
louver, or inside the firebox on flush face units. If brass, stainless
steel, or hammered pewter hoods are desired, they can be purchased
as an option. Attachment is the same as the standard black hood.
Flush Face Models
1. On flush face models, loosen the two screws (A) holding firebox
top to face panel, then slide the hood flange between the firebox
top and face panel and re-tighten the screws.
2. Install one (1) screw at each end of the hood as shown (C).
Louvered Models
1. If you have a louvered model, remove upper louver.
2. Place the top hood flange on top of the firebox, then install three
screws through the firebox top from below and screw into the
pilot holes in the hood flange (B).
3. Install one (1) screw at each end of the hood as shown (C).
4. Re-install louver.
Caution: The hood must be installed prior to operation of appliance.
See Figure 10
ATTACH (4)
FRAMING BRACKETS
TO SIDES OF FIREBOX
PRIOR TO INSTALLING
UNIT TO FRAMED OPENING
ACAC
B
C
B
C
B
Louvered Models
Flush Face Models
Figure 10
FIREBOX OPENING
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
Figure 9
FIREBOX INSTALLATION INSTRUCTIONS (continued)
INSTALLING HOOD

23200-0-1206Page 8
The firebox is designed to accept a 3/8-inch gas line for an approved
vent-free gas logset. Have the line installed by a qualified service
person in accordance with all building codes. Consult local building
codes to properly size the gas supply line leading to the 3/8-inch
hook-up at the unit. The state of Massachusetts requires that a
flexible appliance connector cannot exceed three feet in length.
Gas access holes are provided on both sides of the firebox. See
Figure 11. On models with ceramic brick panels installed, carefully
remove the indented knockout in the ceramic brick panel using a
drill or utility knife. See Figure 12.
When installing optional ceramic fiber side panels into firebox,
lay panel on a flat surface. Remove the gas line knockout (round
depression) in the appropriate side panel using a drill or utility
knife.
After the brick panel knockout is removed, the firebox wrap may
have a round metal knockout that must be removed also. Use a
screwdriver to punch out the metal knockout.
Check gas type. Use only the gas type indicated on the gas log
set rating plate. If the gas listed on the plate is not your type of
gas supply, DO NOT INSTALL. Contact your dealer for proper
model.
Always use an external regulator for all LP fireboxes to reduce the
supply tank pressure to a maximum of 14" w.c. This is in addition
to the regulator fitted to the log set.
WA R N I N G : C O N N E C T I O N D I R E C T LY TO A N
UNREGULATED L.P. TANK CAN CAUSE EXPLOSION.
Install only a ANSI Z21.11.2 vent-free log set into this firebox.
Figure 11
Extended Hoods
If your non-combustible facing material is over 1" in thickness that will be used to finish this firebox, an extended hood is available that
will extend out 2" farther out into the room. Contact your local dealer for details.
Finishing
All joints (top, bottom and sides), where the wall or decorative facing material meets the firebox surround should be sealed with a non-
combustible material.
Hearth extensions are recommended, but not required for these fireboxes.
VB4H32BL Standard Black VB4H36BL Standard Black VB4H42BL Standard Black
VB4H32BR Polished Brass VB4H36BR Polished Brass VB4H42BR Polished Brass
VB4H32SS Stainless Steel VB4H36SS Stainless Steel VB4H42SS Stainless Steel
VB4H32HP Hammered Pewter VB4H36HP Hammered Pewter VB4H42HP Hammered Pewter
GAS ACCESS HOLES
Figure 12
INSTALLING HOOD (continued)
GAS LINE CONNECTION

Page 923200-0-1206
OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS
FOR DELUXE AND PREMIUM FIREBOXES
4. Next, with the vise grip attached, feed the long control rod
through the small rectangular opening at the left side of the
firebox face. Carefully position the rod and bracket so that
the bracket can be secured to the inside opening of the firebox
with two screws. See Figure 16. Do not remove vise grips at
this time.
5. Working from the side cutout opening, place the slightly
opened air door assembly into the cutout opening as shown
in Figure 17.
6. While holding the door assembly in your left hand, grasp the
vise grip (attached to the long control rod). Rotate and move
the control rod around until the inside end of the rod is mated
The optional BVA1 Fresh Air Kit is designed to introduce outside
air to the fireplace or firebox as desired.
It must be installed prior to, or at the time of fireplace or firebox
installation to framing.
The Fresh Air kit must be installed prior to the installation of wall-
board or other finishing materials around the unit.
Tools needed: Gloves, Metal snips, Vise-Grip, ¼” Nut Driver,
Standard Screwdriver
Caution: Sharp edges
Air Door Installation for Vent Free Firebox Models:
VFD(32,36,42)FB

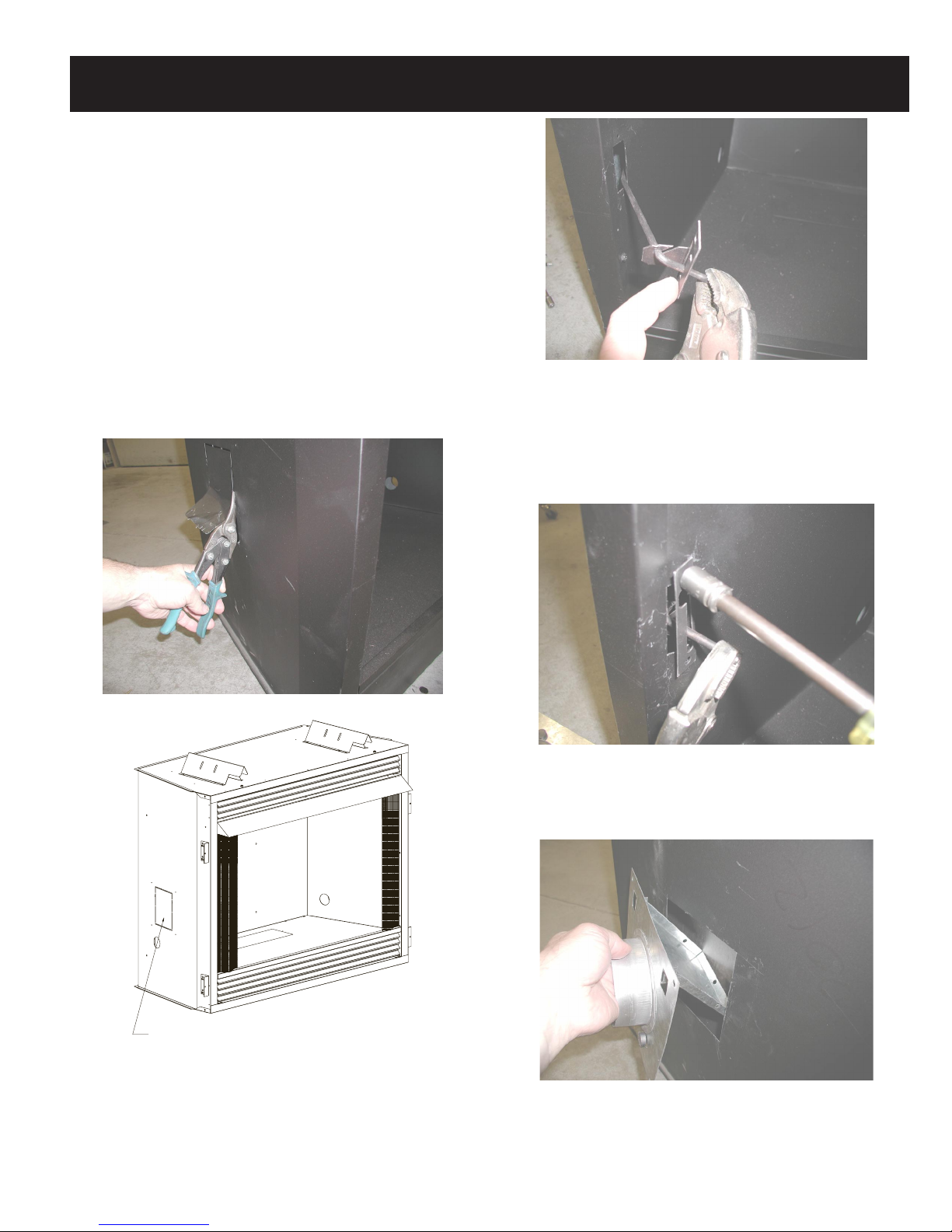

1. Begin by removing the rectangular cutout located on the left
side of the firebox. Use gloves and sheet metal snips to cre-
ate the opening for the Air Door assembly to install into. See
Figures 13 and 14.
2. Move the left hand curtain screen to the center of the firebox
opening.
3. Grasp the long control rod lever with control bracket (items 7
and 8 in Fresh Air Kit Parts List) securely with a vise grips
as shown in Figure 15.
Figure 13
Figure 15
Figure 16
Figure 17
TO INSTALL BVA-1 FRESH AIR KIT,
REMOVE RECTANGULAR CUT-OUT WITH
SHEET METAL CUTTERS
Figure 14

23200-0-1206Page 10
with the hole in the front flange of the movable air door. See
Figure 18.
7. Once the control rod is fed through the air door hole, gently
lift the outer air door plate assembly inward and upward until
the mounting holes in the plate line up with the pilot holes in
the side wrap.
8. Install (4) screws to retain the Air Door assembly. See Fig-
ure 20.
9. Remove vise grip from control rod, then check the operation
of the Air Door. The control lever should open the air door
Figure 18
Figure 21
OUTSIDE AIR
ROD BRACKET
OPEN
FRESH AIR ROD
(CONTROL LEVER)
LEFT SIDE VIEW
OF FIREBOX OPENING
TOP CUTAWAY
VIEW
DAMPER
ASSEMBLY
OUTER
CASING
FRESH AIR
ROD
OUTSIDE AIR
ROD BRACKET
Figure 20
OUTSIDE AIR
ROD BRACKET
OPEN
FRESH AIR ROD
(CONTROL LEVER)
LEFT SIDE VIEW
OF FIREBOX OPENING
TOP CUTAWAY
VIEW
DAMPER
ASSEMBLY
OUTER
CASING
FRESH AIR
ROD
OUTSIDE AIR
ROD BRACKET
when rotated upward, and can be locked open by pulling for-
ward into the notch at the top of the control lever bracket.
10. To close, simply disengage by letting the lever rotate down-
ward. The air door will remain closed by magnetic action.
See Figure 21.
Figure 19
1
2
8
4
7
6
5
3
FRESH AIR KIT PARTS LIST
INDEX
NO.
PART
NO. DESCRIPTION
QUANTITY
SUPPLIED
1 10124 OUTSIDE AIR HOOD 1
2 18476 OUTSIDE AIR TUBE ASSEMBLY 1
3 R8196 WASHER, SILICONE (BV) 1
4 19548 DAMPER ASSEMBLY 1
5 R8047 TUBULAR CLIP (BV) 1
6 R8189 ROD, FRESH AIR (BV) 1
7 R8703 ROD, AIR CONTROL (FB) 1
8 20473 BRACKET, OUTSIDE AIR ROD (FB) 1

Page 1123200-0-1206
Completion of Air Kit installation
1. Determine the length of 4” Dia. rigid or flex duct connector
(installer supplied) you will need from the firebox/fireplace
to the exterior surface of the outside wall, where the air kit
hood will be installed. Add a few extra inches to the length
to allow for easier attachment of the outside duct connection
prior to securing the outside rain cap hood to the building.
2. Secure the 4” dia. duct to the Air Door assembly collar on the
firebox/fireplace with band clamps or screws.
3. Run the other end of the duct through the exterior wall cut-
out.
4. From the outside of the building, connect the duct to the
collar on the outside air vent assembly with band clamp or
screws to secure.
5. Mate the outside rain cap hood over the air vent, seal with
caulk as necessary, then secure with screws provided to the
exterior wall surface. See Figure 22 and 23.
6. Figure 24 illustrates the various options for installation of the
air duct run possibilities.
OUTSIDE
HOOD
4” DIA. AIR DUCT
CONNECTOR
(INSTALLER SUPPLIED)
OUTSIDE PLATE/VENT
SCREEN ASSEMBLY AIR DOOR
ASSEMBLY
FIREBOX OR
FIREPLACE
Figure 22
Figure 23
Caulk and Install Duct Termination
WALL
DUCT TERMINATION
RAIN CAP
CAULKING
Figure 24

23200-0-1206Page 12

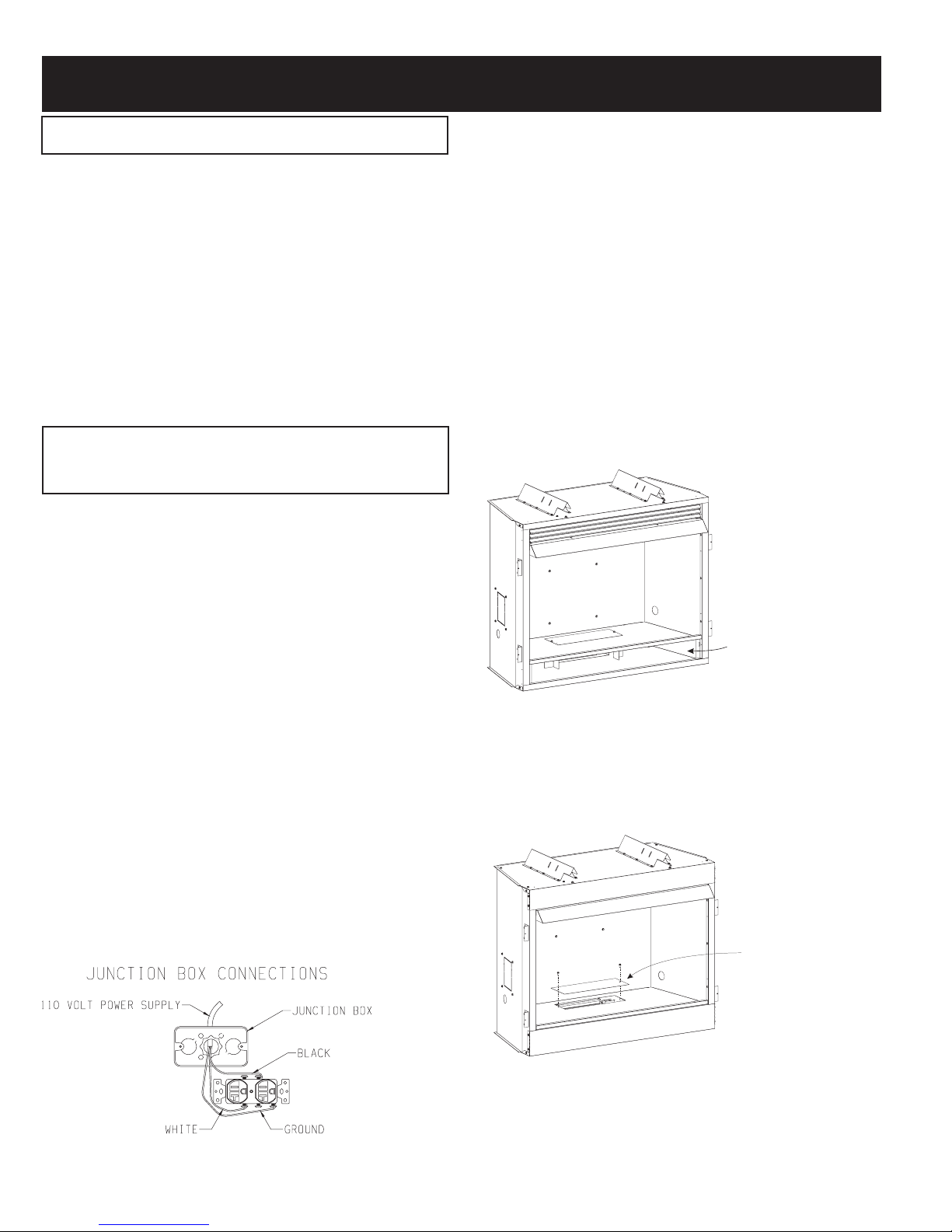

OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
Attention: Install blower assembly before connecting gas inlet
supply line.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an exter-
nal electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can
be purchased, plugged into the ungrounded receptacle and its wire
connected to the receptacle mounting screw. With this wire com-
pleting the ground, the appliance cord plug can be plugged into
the adapter and be electrically grounded.
Caution: Label all wires prior to disconnection when servic-
ing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Note: Junction box on right side of firebox must be pre-wired at
time of firebox installation for use with blower assembly. A
standard wall ON/OFF wall switch or optional SCV1 Vari-
able Speed Control Kit should be installed to activate pow-
er to the Firebox, and control the operation of the FBB5
Blower assembly. It is recommended that installation of the
wiring be performed by a qualified electrician. See Figure
25.
1. If installed, turn OFF gas supply to firebox/gas log.
2. If applicable, turn OFF electric supply to firebox.
CAUTION: ALL WIRING SHOULD BE DONE BY
A QUALIFIED ELECTRICIAN AND SHALL BE IN
COMPLIANCE WITH ALL LOCAL, CITY AND STATE
BUILDING CODES. BEFORE MAKING THE ELECTRI-
CAL CONNECTION, MAKE SURE THAT MAIN POWER
SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN
INSTALLED, MUST BE ELECTRICALLY GROUNDED
IN ACCORDANCE WITH LOCAL CODES, WITH THE
NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LAT-
EST EDITION).
A factory installed junction box is located on the lower right
side of the firebox. Wiring must be fed to the junction box
and attached to the receptacle that is provided. From right
side of the firebox, remove the screw securing the junction
box assembly. Leave approximately 6” of wire in the junction
box for connection.
Attach black wire to one side of the receptacle and white wire
to opposite side of receptacle. The ground wire should be at-
tached to the green (ground) screw.
Install the recepticle into the junction box. Attach cover
plate.
Attention: If installed, do not damage gas inlet supply line
when blower assembly is inserted into firebox. In some cases,
removal the gas inlet supply line may be necessary.
3. Determine which type of firebox you have prior to installa-
tion. See Figures 26 and 27.
Figure 25
REMOVE BOTTOM LOUVER TO
INSTALL BLOWER ASSEMBLY
Figure 26
REMOVE COVER PLATE TO
INSTALL BLOWER ASSEMBLY
Figure 27
Deluxe Louvered
Models
Deluxe Flush Face
Models

Page 1323200-0-1206
4. Insert blower assembly into interior, bottom of firebox. Posi-
tion blower assembly so that you align the notch on back of
blower assembly with the center screw on firebox back, then
push the blower assembly against firebox back. The blower
wheel must be centered with the back wall of the firebox. The
magnets on the back and bottom of blower assembly will suf-
ficiently hold blower assembly in place.
Note: For field installation of blower assembly, it may be easier to
remove rear cover panel to install blower. This eliminates
the need to remove brick liner panels, but the blower would
have to be installed prior to installing the firebox into a
wall or chase. See Figure 28.
5. Once the blower assembly is in position, locate the plug but-
ton in the top right rear corner of the firebox. Remove the
plug with a standard screwdriver and discard plug.
6. Next, find the fan control switch and wire assembly. Feed the
wires through the hole at the top of the firebox, and secure the
fan control switch with (2) #6 screws provided. See Figure
29.
7. The fan control wires will slide down between the firebox
and outer wrap near the blower assembly. See Figure 29.
8. One fan control wire will have a 1/4” female terminal that
must be attached to the open terminal on the blower motor.
See Figure 32, Connection A.
9. The other fan control wire has a 1/4” male terminal. Attach
this terminal to the open terminal on the blower power cord.
See Figure 32, Connection B
10. Route the wires away from moving parts of the blower as-
sembly and retain wires together near the blower motor using
the plastic purse clip provided.
11. To complete the installation, plug the power cord into the
junction box receptacle at the right rear corner of the firebox
outer wrap. See Figure 30.
12. If room permits, the power cord can be located from the out-
side of the unit looking through the junction box access hole
(with the junction box removed), then plug up the power cord
before reinstalling the pre-wired junction box.
13. Once all connections are made electrically, it is recommend-
ed that you test the blower fan control operation by turning
on power to the blower (Caution: 110 Volt). Then apply heat
to the fan control switch inside the firebox with a lighter or
match until blower is activated. Once blower is activated,
check for proper operation. Do not place hands near blower
assembly or other wiring while power is on.
14. Replace blower access plate and/or reinstall the brick liner
panels if provided.
15. This completes the installation of the optional FBB5 Blower
kit accessory.
Note: This blower is equipped with a heat activated fan control
switch. Blower will operate when the firebox warms up,
and will turn off automatically when the firebox cools
down.
REAR COVER PANEL MAY BE
REMOVED TO INSTALL BLOWER
REINSTALL COVER AFTER
BLOWER IS INSTALLED
Figure 28
FAN CONTROL
SWITCH LOCATION
FAN CONTROL WIRES
Figure 29
Figure 30
BLOWER POWER CORD

23200-0-1206Page 14
Blower Motor
The blower motor does not have oiling holes. Do not attempt to
oil the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic
cleaning. If the air output decreases or the noise level increases,
it indicates a dirty blower wheel. Remove fan and clean blower
wheels.
Warning: Unplugging of blower accessory will not stop the
heater from cycling. To turn off gas to the heater (millivolt
model): push in gas control knob slightly and turn clockwise
to “OFF.” Do not force. To turn off gas on direct ignition
model, turn gas line valve to “OFF.”

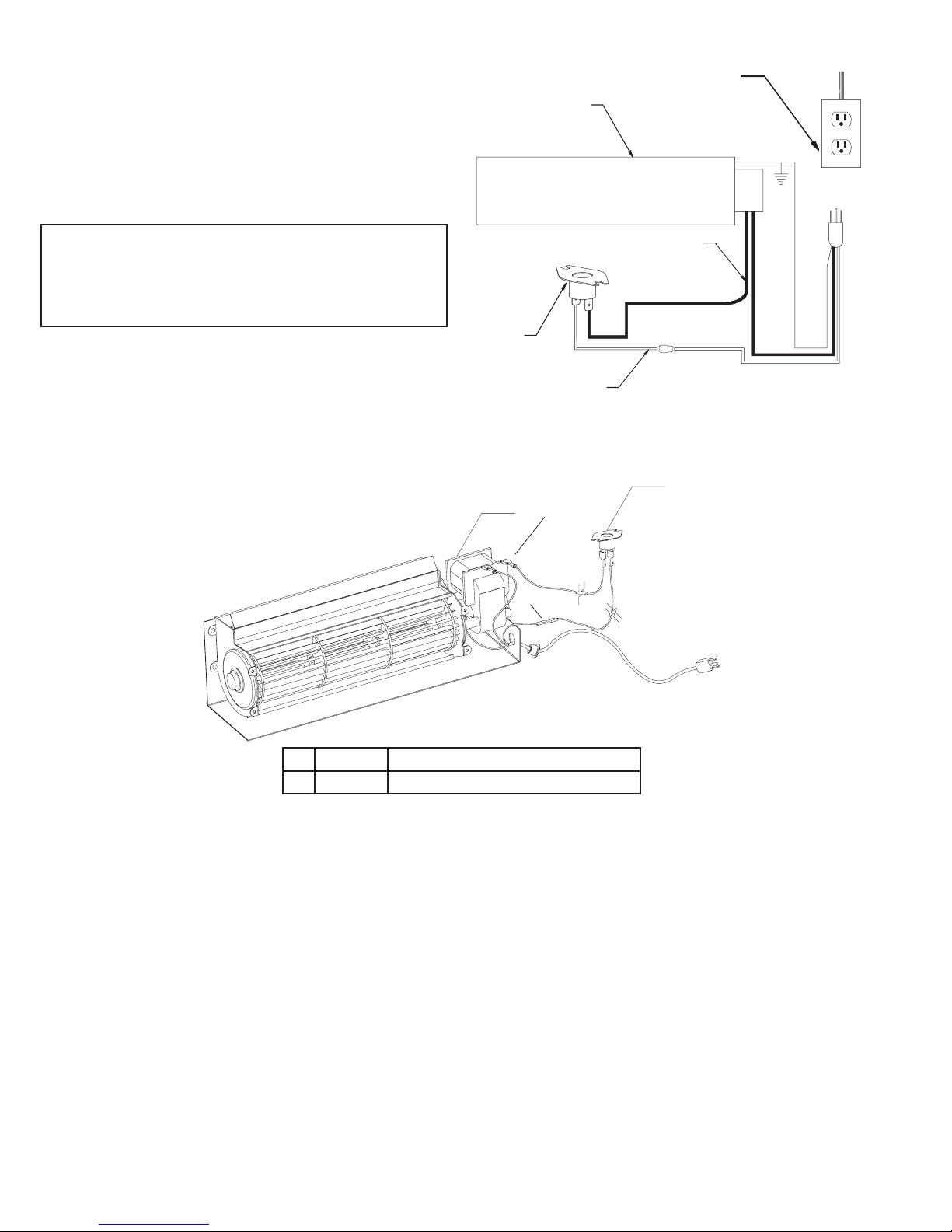

1 FBB5 BLOWER ASSEMBLY COMPLETE
2 R8199 FAN CONTROL SWITCH
1
2
A
B
110 VOLT AC
JUNCTION BOX
WHITE
FAN
SWITCH
BLACK
FAN/MOTOR
ASSEMBLY
Figure 31
Figure 32

Page 1523200-0-1206
CAUTION: ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE
WITH ALL LOCAL, CITY AND STATE BUILDING CODES. BEFORE MAKING THE ELECTRICAL CONNECTION,
MAKE SURE THAT MAIN POWER SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN INSTALLED, MUST BE
ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES OR, IN THE ABSENCE OF LOCAL CODES,
WITH THE NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LATEST EDITION)

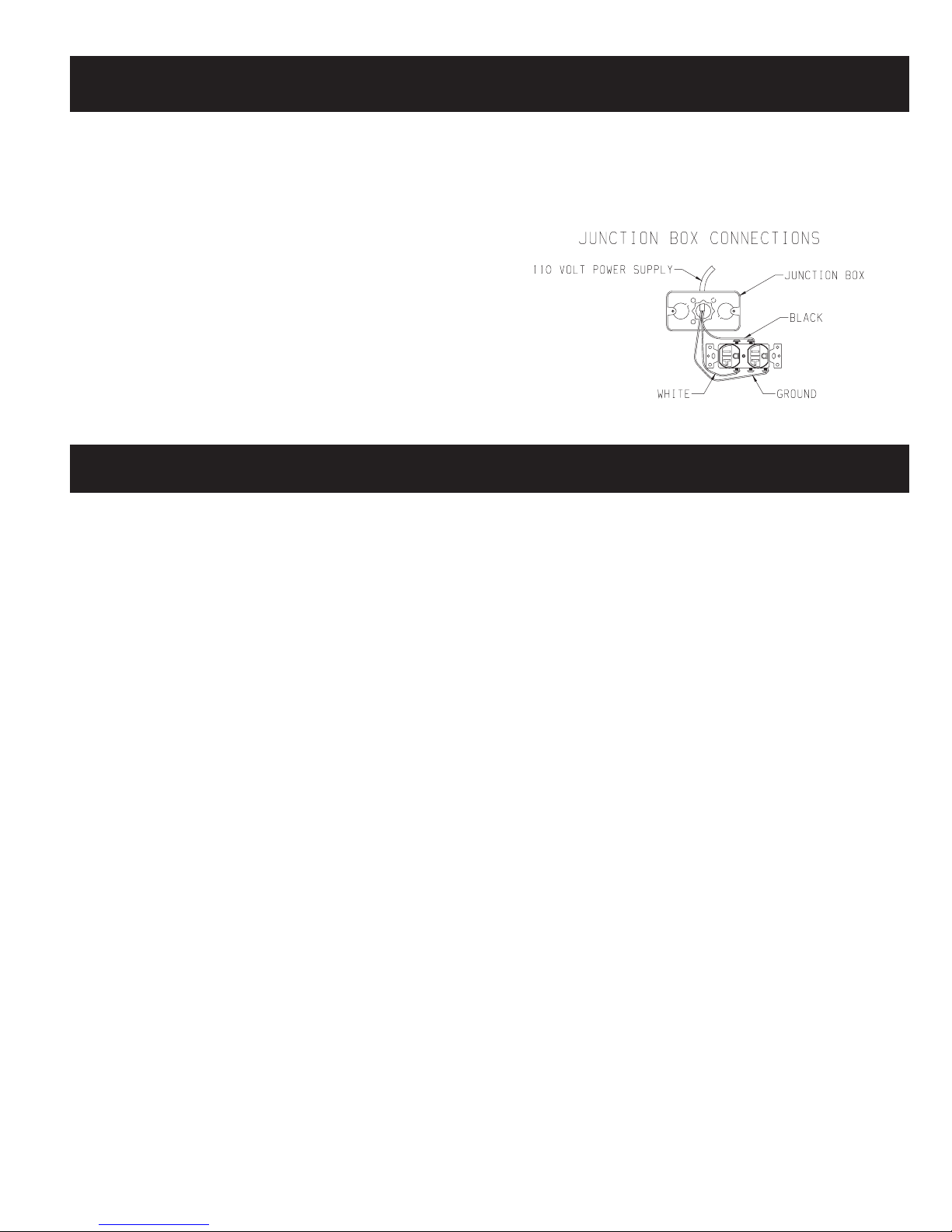

A factory installed junction box is located on the lower right
hand side of the firebox. Wiring must be fed to the junction
box and attached to the receptacle that is provided. Remove the
knockout in the installed junction box to accept wiring into the
junction box. Install a UL listed cable clamp (not supplied) in the
knockout hole. Leave approximately 6" of wire in the junction
box for connection.
Attach black wire to one side of the receptacle and white wire to
opposite side of receptacle. The ground wire should be attached
to the green (neutral) screw.
Install the receptacle into the junction box. Attach cover plate.
Keep the control compartment, logs and burner area surrounding the
logs clean by vacuuming or brushing area at least twice a year.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN
COOL.
Always turn off gas to the pilot before cleaning. For relighting,
refer to lighting instructions located on the log set.
Never obstruct the flow of the combustion and ventilation air. Keep
the front of the firebox clear of all obstacles and materials.
Screens must be closed during operation.
Figure 33
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS
MAINTENANCE

23200-0-1206Page 16
PARTS LIST
ITEM
PART NUMBER
DESCRIPTIONVFD32FB0L VFD32FB2DL VFD32FB2CL VFD32FB0F VFD32FB2DF VFD32FB2CF
1 17149 17149 17149 17149 17149 17149 TOP STANDOFF
2 17169 17169 17169 N/A N/A N/A UPPER LOUVER
3 10554 10554 10554 10554 10554 10554 FRAMING BRACKET
4 17170 17170 17170 N/A N/A N/A LOWER LOUVER
5 17162 17162 17162 17162 17162 17162 JUNCTION BOX ASSEMBLY
6 R3492 R3492 R3492 R3492 R3492 R3492 RECEPTICLE
7 R3491 R3491 R3491 R3491 R3491 R3491 COVER, JUNCTION BOX
8 N/A 20447 20448 N/A 20447 20448 BRACKET, TOP BRICK RE-
TAINER
9 N/A 19401 19401 N/A 19401 19401 BRACKET, BOTTOM BRICK
RETAINER
10
N/A R8665 VBP32SA N/A R8662 VBP32SA
BRICK PANEL RIGHT
11 BRICK PANEL BACK
12 BRICK PANEL LEFT
13 20020 20020 20020 20486 20486 20486 HOOD
14 R7051 R7051 R7051 R7051 R7051 R7051 ROD, SCREEN
15 R8137 R8137 R8137 R8137 R8137 R8137 SCREEN CURTAIN
16 R8727 R8727 R8727 R8727 R8727 R8727 HOLE PLUG
17 19990 19990 19990 19990 19990 19990 BLOWER COVER PLATE
ITEM
PART NUMBER
DESCRIPTIONVFD36FB0L VFD36FB2DL VFD36FB2CL VFD36FB0F VFD36FB2DF VFD36FB2CF
1 17247 17247 17247 17247 17247 17247 TOP STANDOFF
2 18807 18807 18807 N/A N/A N/A UPPER LOUVER
3 10554 10554 10554 10554 10554 10554 FRAMING BRACKET
4 18808 18808 18808 N/A N/A N/A LOWER LOUVER
5 17162 17162 17162 17162 17162 17162 JUNCTION BOX ASSEMBLY
6 R3492 R3492 R3492 R3492 R3492 R3492 RECEPTICLE
7 R3491 R3491 R3491 R3491 R3491 R3491 COVER, JUNCTION BOX
8 N/A 20447 20448 N/A 20447 20448 BRACKET, TOP BRICK RE-
TAINER
9 N/A 19401 19401 N/A 19401 19401 BRACKET, BOTTOM BRICK
RETAINER
10
N/A R8668 VBP36SA NA R8668 VBP36SA
BRICK PANEL RIGHT
11 BRICK PANEL BACK
12 BRICK PANEL LEFT
13 20145 20145 20145 21087 21087 21087 HOOD
14 R7052 R7052 R7052 R7052 R7052 R7052 ROD, SCREEN
15 R8148 R8148 R8148 R8148 R8148 R8148 SCREEN CURTAIN
16 R8727 R8727 R8727 R8727 R8727 R8727 HOLE PLUG
17 19990 19990 19990 19990 19990 19990 BLOWER COVER PLATE

Page 1723200-0-1206
Parts can be ordered through your service person or dealer. For best results, the service person or dealer should order parts through the distributor.
Parts can be shipped directly to the service person/dealer.
All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number from the name plate on your equipment.
Then determine the Part Number (not the Index Number) and the Description of each part from the following appropriate illustration and list. Be sure
to give all this information.
Firebox Model Number Part Description
Firebox Serial Number Part Number
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, fires and all causes beyond our control.
HOW TO ORDER REPAIR PARTS
ITEM
PART NUMBER
DESCRIPTIONVFD42FB0L VFD42FB2DL VFD42FB2CL VFD42FB0F VFD42FB2DF VFD42FB2CF
1 17247 17247 17247 17247 17247 17247 TOP STANDOFF
2 17187 17187 17187 N/A N/A N/A UPPER LOUVER
3 10554 10554 10554 10554 10554 10554 FRAMING BRACKET
4 17188 17188 17188 N/A N/A N/A LOWER LOUVER
5 17162 17162 17162 17162 17162 17162 JUNCTION BOX ASSEMBLY
6 R3492 R3492 R3492 R3492 R3492 R3492 RECEPTICLE
7 R3491 R3491 R3491 R3491 R3491 R3491 COVER, JUNCTION BOX
8 N/A 20447 20448 N/A 20447 20448 BRACKET, TOP BRICK RE-
TAINER
9 N/A 19401 19401 N/A 19401 19401 BRACKET, BOTTOM BRICK
RETAINER
10
N/A R8671 VBP42SA N/A R8671 VBP42SA
BRICK PANEL RIGHT
11 BRICK PANEL BACK
12 BRICK PANEL LEFT
13 19984 19984 19984 19984 19984 19984 HOOD
14 R7053 R7053 R7053 R7053 R7053 R7053 ROD, SCREEN
15 R8148 R8148 R8148 R8148 R8148 R8148 SCREEN CURTAIN
16 R8727 R8727 R8727 R8727 R8727 R8727 HOLE PLUG
17 19990 19990 19990 19990 19990 19990 BLOWER COVER PLATE

23200-0-1206Page 18
PARTS VIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
16
17 17

Page 1923200-0-1206
Accessory Description Model Numbers
Fan Kit
1
2
Designed to provide forced air flow. FBB5
Variable Speed Control Kit
Wall mounted variable speed control for use with
FBB5 blower SCV-1
Brick Liners
Deluxe Firebox
VBP32SA
VBP36SA
VBP42SA
Fresh Air Kit
1
2
8
4
7
6
5
3
Deluxe and Premium Fireboxes BVA-1
Frame Kits
Standard 3-Piece Frame Kits
Brass, Stainless Steel, or Hammered Pewter
Extruded Aluminum Frame Kits
Brass, Stainless Steel, or Hammered Pewter
Contact dealer for all available
optional frame kits
Standard Hood Brass hood = BR
Stainless Steel = SS
Hammered Pewter = HP
Contact dealer for all available
optional hood accessories
ACCESSORIES

23200-0-1206Page 20
Extended 4" Hoods
Extended hoods that extend out 2" farther than the standard
hoods, to accommodate thicker surround materials.
Available as optional kits in Brass, Hammered Pewter, and
Stainless Steel finishes.
Contact dealer for all available
optional hood accessories
Louvers
Styles include Slat, Mission, Arch, and Leaf Patterns.
Available as optional kits in Brass, Hammered Pewter, and
Stainless Steel finishes.
Contact dealer for all available
optional louver accessories
Bottom Trim Strip
Available as optional kits in Brass, Hammered Pewter, and
Stainless Steel finishes.
Contact dealer for all available
optional trim accessories
Decorative Door Kits Available as optional kits in Brass, Hammered Pewter, and
Stainless Steel finishes.
Contact dealer for all available
optional frame kit accessories
Decorative Frame Kits Available as optional kits in Brass, Hammered Pewter, and
Stainless Steel finishes.
Contact dealer for all available
optional decorative door kit
accessories
Empire Comfort Systems, Inc.
918 Freeburg Ave. Belleville, IL 62220
PH: 618-233-7420 or 800-851-3153
FAX: [phone] or 800-443-8648
[email protected]
www.empirecomfort.com
ACCESSORIES (continued)
