Empire Comfort Systems OP36FP32MN-3 Quick start guide

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
OUTDOOR GAS FIREPLACE
MODELS
OP36FP32M(N,P)-3
OP42FP32M(N,P)-3
OP36FP72M(N,P)-3
OP42FP72M(N,P)-3
GAS-FIRED
!
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
WARNING
For Outdoor Use Only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or re department.
WARNING
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read the
installation, operation and maintenance
instructions thoroughly before installing or
servicing this equipment.
WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
This series is design certied in accordance with American
National Standard Z21.97 as an Outdoor Ventless Fireplace and
should be installed according to these instructions.
File No: MH 48188
Page 1

33858-1-0615Page 2
TABLE OF CONTENTS
SECTION PAGE
Before Your Start ......................................................................................................3
Carton Contents & Hardware Package ....................................................................3
Important Tips to Keep a Good Flame .....................................................................4
Product Specications ..............................................................................................5
Accessories ..............................................................................................................5
Important Safety Information ....................................................................................6
Safety Information for Users of LP-Gas ...................................................................7
Homeowner Reference Information .........................................................................8
Introduction .........................................................................................................8 - 9
Fireplace Dimensions .............................................................................................10
Gas Supply .............................................................................................................11
Clearances ......................................................................................................12 - 13
Planning Installation ...............................................................................................14
Fireplace Installation Instructions ....................................................................15 - 16
Gas Line Connections ............................................................................................16
Millivolt Lighting Instructions - OP(36,42)FP3 ........................................................17
IP Lighting Instructions - OP(36,42)FP7 ................................................................18
Millivolt Pilot and Main Burner Flame Characteristics - OP(36,42)FP3 ..................19
Wiring .....................................................................................................................20
IP Remote Control Installation & Operation - OP(36,42)FP7 .................................21
Cleaning and Service .............................................................................................22
Troubleshooting ......................................................................................................23
Parts View ..............................................................................................................24
Parts List .........................................................................................................24 - 25
Master Parts Distributor List ...................................................................................26
How to Order Repair Parts .....................................................................................26
Warranty Terms ......................................................................................................27

33858-1-0615 Page 3
BEFORE YOU START
Sample Warnings and Denitions:
DANGER
Indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE: Indicates information considered important but not
hazard related.
WARNING
If the these instructions are not followed exactly, a re or
explosion may result causing property damage, personal injury
or loss of life.
WARNING
If not installed, operated and maintained in accordance with
the manufacturer's instructions, this product could expose you
to substances in fuel or from fuel combustion which can cause
death or serious illness.
1. Read the safety information on Pages 6 - 7.
2. Determine where to install replace. See page 14.
3. What accessories are going to be installed? See page 5.
4. Frame the opening. See page 15.
5. Install shutoff valve. See page 11.
6. Install optional drain tray. Refer to the instructions provided
with the drain tray.
7. Install the replace. See pages 15 - 16.
8. Install the gas lines. See page 11.
9. Install hood or optional extension hood and optional bifold
door.
10. Light the replace. See pages 17 and 18.
11. If applicable, show the homeowner how to operate the
remote. See page 21.
12. Show the homeowner how to do basic maintenance. See
page 22.
CARTON CONTENTS & HARDWARE PACKAGE
3
2
1
4
5
6
Index
No.
Description Quantity
30 Series 70 Series
1 Fireplace 1 1
2 Hood 1 1
3Shut-Off Valve 1 1
4 AA Battery 0 4
5Remote & Battery (A23) 0 1
6Battery Pack & Wire Assembly 0 1
Provided Hardware for hood installation.
SCREW
, 10-32 X ½ TYPE F PHILLIPS PAN HEAD SS (QTY 4)
NOTICE: See parts illustration and list on pages 24 and 25 for
ordering replacement parts.
NOTICE: Do not order batteries, bolts, screws, washers or nuts.
These items can be purchased at hardware stores.

33858-1-0615Page 4
1. Ensure the air shutter is set to the specication. See
Figures 1 to 3 and table on page 5.
2. Ensure burner, venturi, and air shutter are free of dirt,
lint, animal hair (i.e. cat and dog) or anything that may
block air ow. See Cleaning and Service, page 22.
3. Do not allow fans to blow directly into or at the
replace. Avoid any drafts that alter the ame patterns.
Pay particular attention to ceiling fans.
4. Do not place debris, additional logs or other articles
not specied in this manual inside the replace.
5. Do not use rock wool (embers) in replace.
6. Have your dealer or qualied service technician
perform an annual inspection and cleaning to prevent
malfunction.
7. Install logs according to the installation instructions. Do
not alter log placement from the prescribed layout in
manual provided with the log set.
IMPORTANT TIPS TO KEEP A GOOD FLAME
IMPORTANT NOTICE
INSTALLER - SERVICE PERSON - HOMEOWNER
Verify the air shutter opening is set correctly. Refer to the
tables for specic air shutter settings for each model.
Natural Gas Models - Set air shutter to 1/8 inch. See
Figures 1 and 2, and Table 1 on page 5.
Figure 1 - Air shutter at 1/8-inch opening
Verify air shutter opening with a 1/8-inch drill bit. See
Figure 2.
Figure 2 - 1/8 inch opening shown
LP Gas Models – Verify air shutter is "fully open."
See Figure 3 and Table 2 on page 5.
.
Figure 3 - Air Shutter Fully Open

33858-1-0615 Page 5
PRODUCT SPECIFICATIONS
All Fireplace Sizes
Natural Gas
(inches w.c.)
Propane Gas
(inches w.c.)
MV IP MV IP
Manifold pressure setting
on "HI" 3.5 3.5 10.0 10.0
Gas inlet pressure
Maximum 10.5 10.5 13.0 13.0
Gas inlet pressure
Minimum 4.5 4.5 10.8 10.8
Table 1 - Air Shutter Opening
Natural Gas Models
Model Air Shutter Opening (inches)
OP36FP32MN 1/8
OP42FP32MN 1/8
OP36FP72MN 1/8
OP42FP72MN 1/8
Table 2 - Air Shutter Opening
LP Gas Models
Model Air Shutter Opening
OP36FP32MP Fully Open
OP42FP32MP Fully Open
OP36FP72MP Fully Open
OP42FP72MP Fully Open
Model Gas
Type
Valve
Type Orice BTU/H Max
BTU/H
Min
OP36FP32 LP MILLIVOLT #45 50,000 36,000
OP36FP32 NAT MILLIVOLT #29 50,000 38,000
OP42FP32 LP MILLIVOLT #45 50,000 36,000
OP42FP32 NAT MILLIVOLT #29 50,000 38,000
OP36FP72 LP IP #45 50,000 36,000
OP36FP72 NAT IP #29 50,000 38,000
OP42FP72 LP IP #45 50,000 36,000
OP42FP72 NAT IP #29 50,000 38,000
Model Number Description
BD36SS 36-Inch Bi-fold Glass Doors
BD42SS 42-Inch Bi-fold Glass Doors
DT36SS 36-Inch Drain Tray - Stainless Steel
DT42SS 42-Inch Drain Tray - Stainless Steel
WD36SS 36-Inch Weather Door - Stainless Steel
WD42SS 42-Inch Weather Door - Stainless Steel
VB4H36SS 36-Inch Extended Hood - Stainless Steel
VB4H42SS 42-Inch Extended Hood - Stainless Steel
FRBC Battery Remote (millivolt units only)
FWS1 Wall Switch (millivolt units only)
OLX24WR 7-Piece Log Set (Required for OP36FP models)
OLX30WR 7-Piece Log Set (Required for OP42FP models)
The following accessories may be obtained from your Empire Comfort Systems dealer. Contact your Empire Dealer for more accessory
options. If you need additional information beyond what your dealer can furnish, contact Empire Comfort Systems Inc., 918 Freeburg
Ave., Belleville, Illinois 62220-2623.
ACCESSORIES
Gas Conversion Kits
Kit Number Description Model Used On
31996 Conversion Kit - NAT to LP OP36FP32MN
31997 Conversion Kit - LP to NAT OP36FP32MP
31998 Conversion Kit - NAT to LP OP42FP32MN
31999 Conversion Kit - LP to NAT OP42FP32MP
31992 Conversion Kit - NAT to LP OP36FP72MN
31993 Conversion Kit - LP to NAT OP36FP72MP
31994 Conversion Kit - NAT to LP OP42FP72MN
31995 Conversion Kit - LP to NAT OP42FP72MP

33858-1-0615Page 6
IMPORTANT SAFETY INFORMATION
FOR THE INSTALLER
• Leave these instructions with the homeowner
• Replace any guard or protective device removed for
servicing prior to operating the replace.
• Installation and repair should be done by a qualied service
person.
• Keep the control compartments, burner, and circulating air
passageways of the replace clean.
• During manufacture, this replace is treated with oils, lms
and bonding agents. These are not harmful but may produce
smoke and odor as they burn off during initial operation. This
is normal.
• Any modication to this replace or to controls can be
dangerous. Improper installation or use of the replace can
cause serious injury or death from re, burns, explosion or
carbon monoxide poisoning.
• Follow all local codes regarding installation, combustion and
ventilation air or in the absence of local codes follow the
National Fuel Gas Code ANSI Z223.1 (US installation), or
CAN/CGA-B149, installation Code (Canada installation).
• Use Non-Combustible Materials where indicated for the
replace installation. Non-combustible materials do not ignite
or burn as a result of using the replace. These include
metal, brick, ceramic, concrete, slate, glass, and plaster.
Adhesives must be rated for high temperatures (300°F +).
Any mechanical fasteners used to install material must also
be non-combustible, including wall anchors and tile spacers.
Materials that pass the ASTM E 136 test (Standard Test
Method for Behavior of Materials in a Vertical Tube Furnace
at 750C) are considered non-combustible.
FOR THE HOMEOWNER
• This replace should be inspected before use and at least
annually by a qualied service person. More frequent
cleaning may be required due to insects, pollen build up,
dust, etc.
• Make a periodic visual check of the spark probe and burners.
Have a qualied service technician clean and replace
damaged parts.
• Do not use this replace if any part has been underwater.
Immediately call a qualied service technician to inspect the
replace and to replace any part of the control system and
any gas control which has been under water.
• Do not operate this replace with glass doors or weather
door in the closed position. A rebox screen must be in place
when the burner is being used.
• Alert children and adults to the hazards of high surface
temperatures. Keep children and other at-risk individuals
away to avoid burns or clothing ignition.
• Carefully supervise young children when they are in the
same area as the replace.
• Do not place debris, additional logs, or other articles in the
replace.
• Do not hang or place clothing or other ammable materials
on or near the replace.
• Do not allow Combustible Materials adjacent to or in contact
with the replace. Combustible materials include wood, or
other materials that will burn even when treated with re-
retardant chemicals.
• Keep replace area clear and free from combustible
materials, gasoline and other ammable vapors and liquids.
• Do not allow fans (ceiling fans, box fans, etc) to blow directly
into or at the replace.

33858-1-0615 Page 7
SAFETY INFORMATION FOR USERS OF LP-GAS
Propane (LP-Gas) is a ammable gas which can cause res
and explosions. In its natural state, propane is odorless
and colorless. You may not know all the following safety
precautions which can protect both you and your family
from an accident. Read them carefully now, then review
them point by point with the members of your household.
Someday when there may not be a minute to lose,
everyone’s safety will depend on knowing exactly what
to do. If, after reading the following information, you feel
you still need more information, please contact your gas
supplier.
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas
because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
• Do not operate electric switches, light matches, or use your
phone. Do not do anything that could ignite the gas.
• Immediately get everyone out of the area.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
reghters declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas service
person and the re department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the area.
• Finally, let the service man and reghters check for
escaped gas. Have them air out the area before you return.
Properly trained LP-Gas service people should repair the
leak, then check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell
the odor of the chemical put into the gas. You must nd
out if you can smell the odorant in propane. Smoking can
decrease your ability to smell. Being around an odor for a time
can affect your sensitivity or ability to detect that odor. Sometimes
other odors in the area mask the gas odor. People may not smell
the gas odor or their minds are on something else. Thinking
about smelling a gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and the odor can fade
under some circumstances. For example, if there is an
underground leak, the movement of the gas through soil can lter
the odorant. Odorants in LP-Gas also are subject to oxidation.
This fading can occur if there is rust inside the storage tank or in
iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That
will take some of the odorant out of the gas, reducing its odor
intensity.
LP-Gas may condense in a closed area, and the odor intensity
could vary at different levels. Since it is heavier than air, there
may be more odor at lower levels. Always be sensitive to the
slightest gas odor. If you detect any odor, treat it as a serious
leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it
to nd out what the propane odor smells like. If you suspect
that your LP-Gas has a weak or abnormal odor, call your LP-
Gas Dealer.
• If you are not qualied, do not perform service, or make
adjustments to appliances on the LP-Gas system. If you are
qualied, consciously think about the odor of LP-Gas prior
to and while lighting burner or performing service or making
adjustments.
• Do not try to light the burner, perform service, or make
adjustments in an area where the conditions are such that
you may not detect the odor if there has been a leak of LP-
Gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks or
cylinders are placed in service. Odor fade can occur in new
tanks, or reinstalled old tanks, if they are lled and allowed
to set too long before relling. Cylinders and tanks which
have been out of service for a time may develop internal rust
which will cause odor fade. If such conditions are suspected
to exist, a periodic sniff test of the gas is advisable. If you
have any question about the gas odor, call your LP-
Gas dealer. A periodic sniff test of the LP-gas is a good
safety measure under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Take the same
immediate action recommended for the occasion when you
do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container
is under no vapor pressure), turn the tank valve off
immediately. If the container valve is left on, the container
may draw in some air through openings. If this occurs, some
new internal rusting could occur. If the valve is left open,
then treat the container as a new tank. Always be sure your
container is under vapor pressure by turning it off at the
container before it goes completely empty or having it relled
before it is completely empty.

33858-1-0615Page 8
Important
• Before contacting your dealer or Empire regarding this
replace, please complete the Homeowner Reference
Information above.
• Do not burn solid fuels in this appliance.
• The maximum gas inlet supply pressure is 13 inches for LP
and 10.5 inches for NAT.
• If a replace is equipped with a gas pressure regulator
connect to a xed fuel piping system:
• The required manifold pressure in inches water column
(w.c.) is 10 inches for LP and 3.5 inches for NAT when
on "HI".
• Disconnect the replace and its shutoff valve from the
gas supply piping system during any pressure testing in
excess of 1/2 psi (3.5 kPa).
• Close the shutoff valve to isolate the replace from the
gas supply during any pressure test equal to or less
than 1/2 psi (3.4 kPa).
Moisture Control
• This outdoor replace will shed moderate amounts of water,
but is not waterproof. Water and condensing water vapor
may enter the chase under certain conditions.
• The replace will not perform as an exterior wall. Moisture
penetration must be considered for construction that places
the replace in structure walls or on moisture sensitive
surfaces.
• When installed on exterior walls: Construct the replace
chase outside the structure's weather envelope. Where the
platform meets the wall, use a ashing detail similar to that
required for attached decks. Chase platforms, including
hearths should slope away from the structure at 1/4 inch per
foot. The replace can be shimmed level.
• When installed on surfaces where water may collect or
cause damage: It is recommended a slope of 1/4 inch per
foot towards the drain port. The replace can be shimmed
level.
• Hearths should slope away from the front of the replace
and chase at 1/4 inch per foot.
• We recommend a weather door or bifold door accessory to
protect the replace from moisture. Never install the replace
where moisture cannot drain off easily.
Instructions to Installer
1. Leave instruction manual with owner.
2. Show homeowner the Product Registration Card supplied with
replace.
3. Fill in the Homeowner Reference Information above.
4. Show owner how to start and operate outdoor replace.
Consult your local Building Department regarding regulations,
codes or ordinances which apply to the installation of an outdoor
replace.
WARNING
Any change to this replace or its controls can be dangerous.
Improper installation or use of the appliance can cause serious
injury or death from re, burns, explosion or carbon monoxide
poisoning.
Cleaning Instructions at Installation
This appliance is built using mostly high-grade stainless steel to
resist rust-through. In outdoor applications, all stainless steel will
develop a dull patina and, depending on the local environment
and on the materials used in the installation, may develop some
surface oxidation (rust). This does not affect the performance of
the replace, and does not require any action to correct. If you
prefer keeping your replace front looking factory-fresh, clean it
as required with stainless steel cleaner.
When installation application includes highly acidic materials
such as acid wash or stone etching, do not remove the protective
PVC lm from the stainless steel until after this application is
complete. Once the lm has been removed, clean appliance
immediately with a stainless steel cleaner.
Please note that areas where the lm has been formed (corners,
hems, etc.) may require extra cleaning to remove lm residue.
Ensure that all protective lm has been removed from the
replace prior to burning.
INTRODUCTION
HOMEOWNER REFERENCE INFORMATION
We recommend that you record the following information about your replace.
Model Number: _____________________________ Date purchased: ________________________
Serial Number: _____________________________ Location of replace: _____________________
Dealer Name: ______________________________ Dealer Phone: _________________________
Notes: ______________________________________________________________________________

33858-1-0615 Page 9
INTRODUCTION
Screened Porch Installation
The replace may be installed safely and is design certied by UL
to be installed in a screened porch with the following guidelines.
Minimum Porch Area 96 sq ft
Minimum Ceiling Height 84 inches
See page 14 - Planning Installation
Installation on Rugs and Tile
If this replace is installed directly on carpeting, tile or other
combustible material (other than wood ooring or decking), the
replace shall be installed on a metal or wood panel extending
the full width and depth of the appliance.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualied agency. The term "qualied
agency" means any individual, rm, corporation or company
which either in person or through a representative is engaged
in and is responsible for (a) the installation or replacement of
gas piping or (b) the connection, installation, repair or servicing
of equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
Commonwealth of Massachusetts: The installation must be
made by a licensed plumber or gas tter in the Commonwealth
of Massachusetts.
High Altitudes
For altitudes above 2,000 feet, ratings should be reduced at the
rate of 4 percent for each 1,000 feet above sea level. Contact the
manufacturer or your gas company before changing orice size.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect
the Btu output of the unit. Contact the gas company for the
heating value. Then, contact the manufacturer to verify what
orice is needed for operation of the replace.

33858-1-0615Page 10 Figure 4
FIREPLACE DIMENSIONS
INDEX
LETTER DIMENSION DESCRIPTION DIMENSIONS (in inches)
OP36 OP42
A The maximum height of rebox face (excluding standoffs) 35-1/16 35-1/16
BThe maximum width of the rebox face (excluding nailing anges) 40 44
C The maximum depth of the rebox 19 19
D The height of the rebox opening 24-1/4 24-1/4
E The width of the rebox opening 36 40
F The interior depth of the rebox 15-9/16 15-9/16
G The rear exterior width of the rebox 31-7/8 35-7/8
K Height from the bottom of the box to the gas line opening 2-7/8 2-7/8
L Depth from the front of the box to gas line opening 10-3/8 10-3/8
M Depth from rear of box to gas line opening 8-9/16 8-9/16
QDistance from oor to replace opening 6-3/16 6-3/16
S Overall height to header (not shown) 35-13/16 35-13/16
TInterior front height of rebox 24-3/16 24-3/16
U Interior rear height of rebox 19-1/4 19-1/4
V Interior front width of rebox 34-5/16 38-5/16
WInterior rear width of rebox 28 32
X Corner install depth 34-11/16 36-3/4
Y Corner install width 69-5/16 73-5/16
Z Corner install wall length 49-1/16 51-15/16
B
E
A
D
C
M
K
Q
L
G
X
Y
INNER FIREBOX DIMENSIONS
T
W
V
F
U
TOP VIEW SIDE VIEW
OUTER FIREBOX DIMENSIONS
Z
GAS INLET HOLES
BOTH SIDES

33858-1-0615 Page 11
The replace installation must conform with local codes, or in the
absence of local codes with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54; International Fuel Gas Code, Natural Gas and
Propane Installation Code, CSA B149.1; or Propane Storage and
Handling Code, B149.2, as applicable.
Check all local codes for requirements, especially for the size and
type of gas supply line required.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. LP Nat. LP
(Dimensions in inches)
0-10 feet 1/2 3/8 1/2 3/8
10-40 feet 1/2 1/2 5/8 1/2
40-100 feet 1/2 1/2 3/4 1/2
100-150 feet 3/4 1/2 7/8 3/4
NOTICE: Check to conrm whether your local codes allow
copper tubing or galvanized.
NOTICE: Because some municipalities have additional local
codes, consult your local authority and installation code.
Installing a New Gas Shut-Off Valve
Each appliance must have its own manual gas shut-off valve
located in the vicinity of the unit. Where none exists, or where
its size or location is not adequate, contact your local authorized
installer for replacement or relocation.
Test for leaks. Turn replace off. Compounds used on threaded
joints of gas piping shall be resistant to the action of liqueed
petroleum gases. The installer must check all gas connections
for leaks. Perform all leak tests with a leak test solution or soap
solution. Rinse off all solution once testing is complete. Perform a
pressure test on all unexposed connections.
Never use an exposed ame to check for leaks. Never
pressure test with appliance connected; control valve will
sustain damage. Disconnect the appliance from piping at the
control valve inlet and cap the pipe before pressure testing.
Install a gas valve and ground joint union in the gas line upstream
of the gas control to aid in servicing. The National Fuel Gas
Code requires installing a drip line near the gas inlet. The drip
line consists of a vertical length of capped pipe installed before
the gas inlet to collect condensation and foreign particles. See
Figure 5.
GAS SUPPLY PLUMBING
MANUAL
SHUT-OFF VALVE
GAS SUPPLY
INLET
1/8 NPT PLUGGED
HOLE FOR
TEST GAGE
DRIP LEG
3” MINIMUM
TO CONTROL
VALVE
Figure 5
The use of the following gas connectors is recommended:
— ANSI Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction The Commonwealth of Massachusetts
requires that a exible appliance connector cannot exceed 3 feet.
Figure 6
GAS SUPPLY

33858-1-0615Page 12

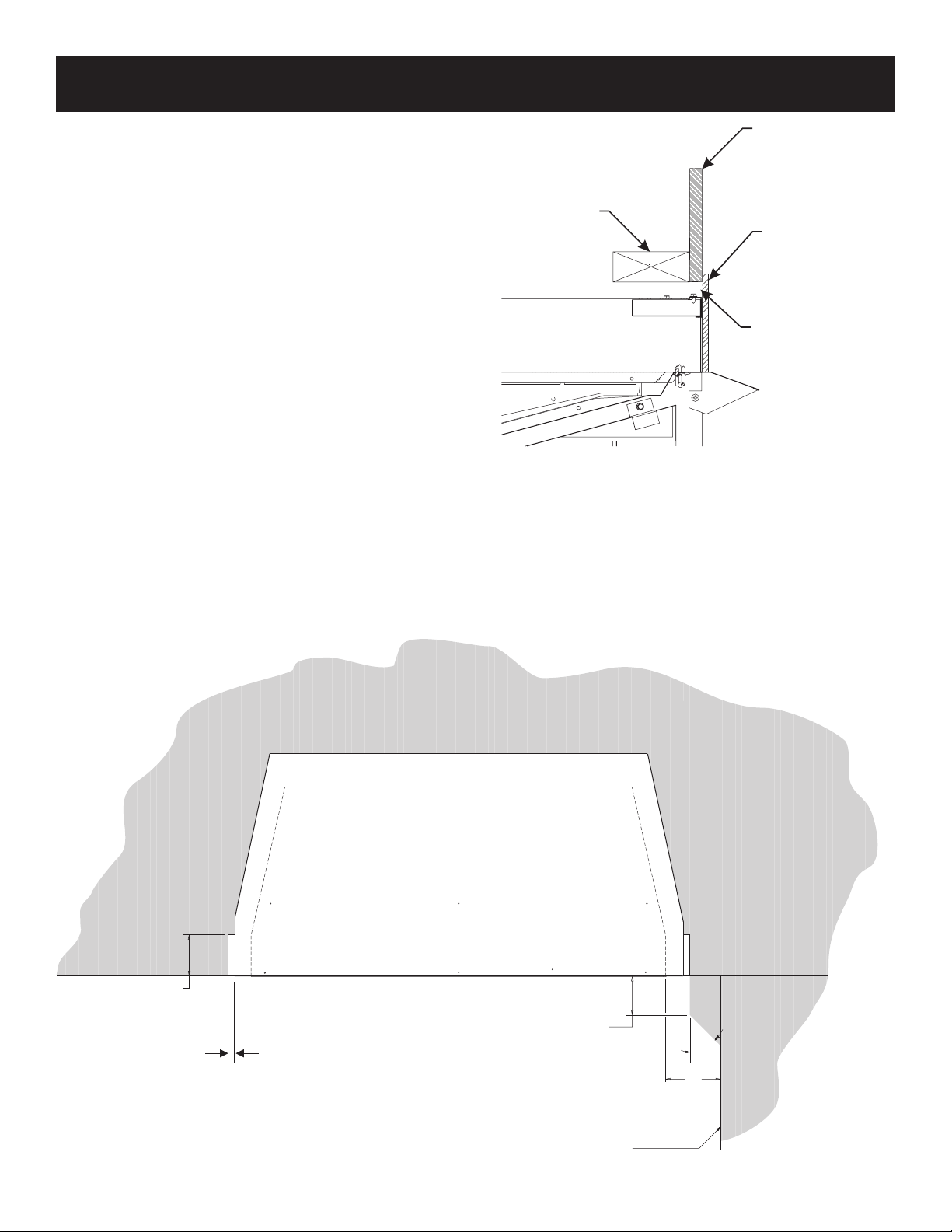

CLEARANCES
Top Framing and Finishing: Combustible framing materials
requires 3/4 inch across top of unit. See Figure 7.
Sidewall Clearances: The clearance from the inside of the
replace to perpendicular combustible side wall must not be
less than 6 inches. See Figure 8.
Fireplace Face Clearance: For the rst 1-3/4 inch back from
face leave 3/8 inch side clearance. See Figure 8.
Fireplace Side and Back Clearances: The replace outer
casing side (after the rst 1-3/4 inch mentioned above) and
back anges are zero clearance to combustibles.
Fireplace Front Clearance: Leave at least 36 inches clearance
from the front of the replace into the room.
Ceiling Clearances: The ceiling height must not be less than
84 inches from the oor. See Figure 9.
Mantel Clearances: Vent free replace models must use the
hood supplied with the replace, or the optional extension
hood available for each model. If a combustible mantel is
installed, it must meet the clearance requirements detailed
below.
Figure 8
6"
MIN.
FIREBOX
(TOP VIEW)
FRONT FACE (SIDE)
3”
MAX.
1 3/4”
PERPENDICULAR
SIDE WALL
COMBUSTIBLE
MATERIALS ALLOWED
IN SHADED AREAS
45°
3/8”GAP REQUIRED
BOTH SIDES
FIREBOX WALL
OUTER WRAPPER
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2 X 4
TOP PLATE
3/4" GAP REQUIRED
ACROSS ENTIRE TOP
OF FIREPLACE
NON-COMBUSTIBLE
BOARD OR FACING
Figure 7 - Clearances to Combustibles

33858-1-0615 Page 13
HOOD
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
FLOOR
WALL FACING
A
B
C
D
E
F
9 3/4”
28 1/2”
MIN.
18 3/4”
MIN.
3/4”TO COMBUSTIBLES
REQUIREDACROSS
ENTIRETOP EDGE
OF FIREPLACE
53 1/2”
MIN.
COMBUSTIBLES
ALLOWED
WALL STUD
INDEX
LETTER
Dimensions (inches)
DISTANCE FROM
WALL SURFACE
DISTANCE ABOVE
FIREPLACE HOOD
A 2 18-3/4
B4 21-1/2
C624-1/4
D 8 27
E 10 27-3/4
F 12 28-1/2
Figure 9
CLEARANCES
Television Considerations
Installing a television above a replace has become increasingly
popular; however, the area above any replace gets hot and most
TV manufacturers recommend against placing their products
near a heat source.
If you install a television above this replace, Empire Comfort
Systems accepts no responsibility for damage or injuries. Follow
the television manufacturer’s installation instructions, including
any recommendations regarding proximity to heat sources.
If you have a TV above your replace, turn off the replace and
let it cool completely before servicing or touching any buttons on
the TV.

33858-1-0615Page 14
PLANNING INSTALLATION
In planning the installation for the replace, rst determine where
the unit will be installed, and then plan the gas supply piping.
The replace can be mounted on any of these surfaces:
1. A at combustible or non-combustible surface.
2. A raised platform made of combustible material.
3. Four corners of the replace so contact is made on all four
perimeter edges on the bottom of the unit.
(Example: Four masonry blocks - if allowed by local codes)
If the replace will be installed directly on carpeting, tile or other
combustible material other than wood ooring, your must rst
install a metal or wood panel extending the full width and depth
of the unit.
Decide what additional components to include in your installation.
Consult your dealer for assistance.
This replace is intended for installation on an outdoor patio or
in your yard. This replace shall be used only outdoors in a well
ventilated space and shall NOT be used in a building, garage, or
other enclosed area.
Install the replace in an area sheltered from direct wind, which
may cause erratic ames and main burner outage. Erratic ames
could also cause soot on logs, walls or ceiling. Flame outages
and sooting are nuisances but pose no safety issues.
Typical installation may include covered patio, screened porch,
gazebo or an outside wall of a house.
• Minimum porch area – 96 sq ft
• Minimum ceiling height – 84 inches

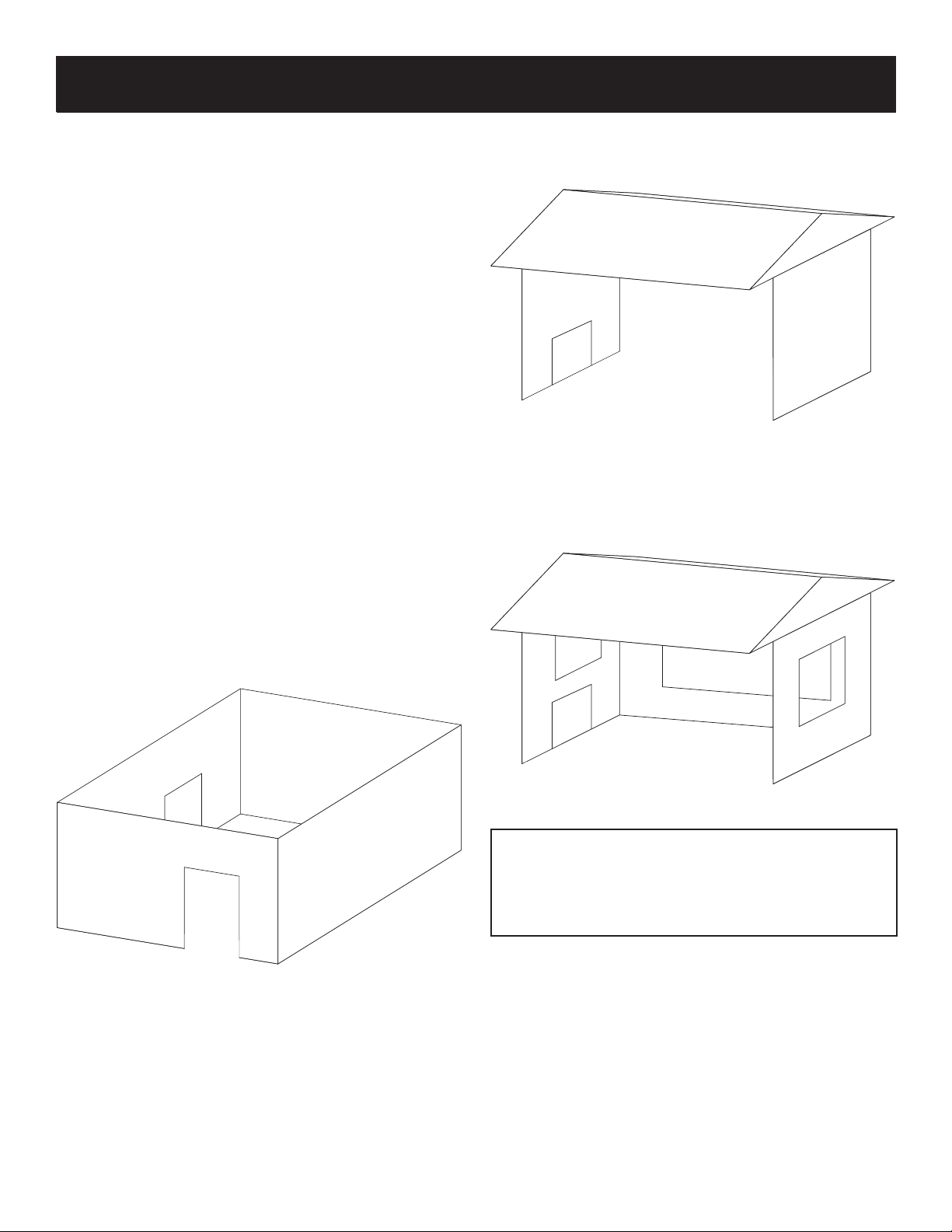

Installation in partial enclosures must conform to one of the
following conditions:
• With walls on all sides, but with no overhead cover. See
Figure 10.
FIREPLACE
Figure 10
• Within a partial enclosure with an overhead cover and no
more than two side walls. These side walls may be parallel,
as in a breezeway or at right angles to each side. See
Figure 11.
FIREPLACE
Figure 11
• If the replace is installed within a partial enclosure – such
as a porch, cabana, or pool-side bar – 30% or more of
the perimeter of the structure must remain permanently
open. The openings cannot be screened or have operable
windows/shutters. See Figure 12.
FIREPLACE
Figure 12
ATTENTION:
Vinyl Soft, Vinyl Ceiling, Vinyl Overhang Disclaimer
Clearances are to heat resistant material (i.e. wood, metal).
This does not include vinyl. Empire Comfort Systems Inc.
will not be held responsible for heat damage caused to vinyl
overhangs, vinyl ceilings or vinyl ventilated/unventilated softs.
PLANNING INSTALLATION

33858-1-0615 Page 15
FIREPLACE INSTALLATION INSTRUCTIONS
FOR
A RAISED HEARTH:
COVER
ANY COMBUSTIBLE
MA
TERIALS WITH
NON-COMBUSTIBLE
MA
TERIAL THE WIDTH
OF
THE FIREPLACE
OPENING
AND EXTENDING
AT
LEAST 16 INCHES FROM
THE FIREPLACE
BOTTOM OF
FIREPLACE
OPENING
COMBUSTIBLE MATERIALS
HEARTH PLATFORM
Figure 13
NOTICE: Hearth is not required if replace is installed on nished
oor.

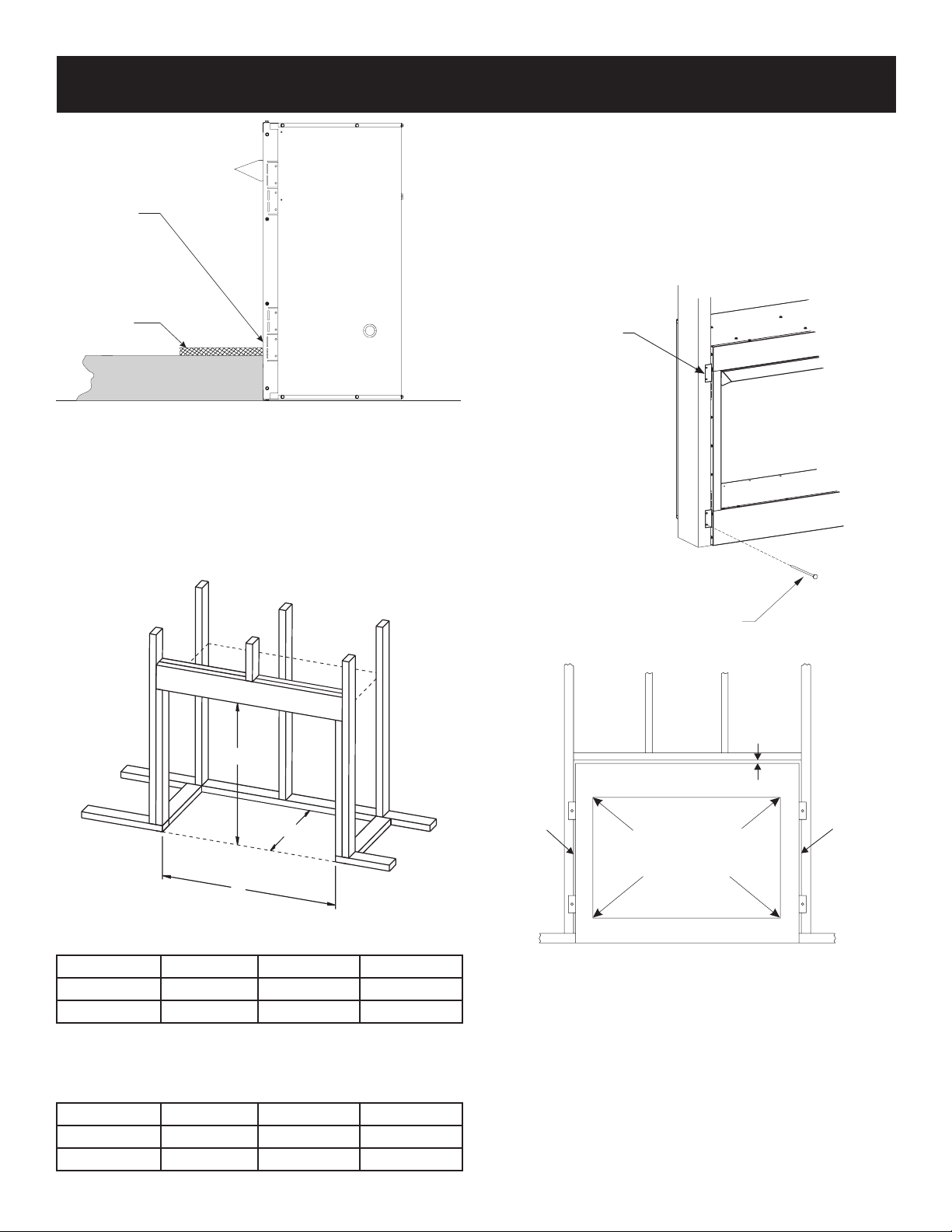

Fireplace Framing
Fireplace framing can be built before or after the replace is set
in place. The replace framing should be constructed of metal
studs or 2 x 4 lumber or heavier. The framing top plate or header
may be as close as 3/4 inch to the top of the replace. Refer to
Figure 14 for replace framing dimensions.
A
B
C
Premium Fireplace Framing Dimensions
(inches)
Model A BC
OP36FP 36 41 19-1/4
OP42FP 36 45 19-1/4
Premium Fireplace Framing Dimensions -
If Installing Optional Drain Tray
(inches)
Model A BC
OP36FP 37 41 19-1/4
OP42FP 37 45 19-1/4
Figure 14
Locating Fireplace
Place replace in framing opening. Use the tabs on the side of
the replace to attach replace to framing. Different tab locations
can be used for wall materials with a thickness of 1/2 inch or
5/8 inch. See Figure 15.
Framing tabs should t directly against framing material. Use at
least one nail per bracket to secure in place.
Check squareness of the replace prior to securing to framed
opening. See Figure 16.
FRAMING TABS
FRAMING HARDWARE
NOT INCLUDED
Figure 15
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
FIREPLACE OPENING
3/4" GAP
REQUIRED
3/8" GAP
REQUIRED
3/8" GAP
REQUIRED
Figure 16
Extended Hoods
If the non-combustible facing material used to nish the replace
is over 1 inch thick, an extended hood that extends 2 inch farther
out into the room is recommended. Contract your Empire Dealer
for details.
VB4H36SS Stainless Steel Extended Hood
VB4H42SS Stainless Steel Extended Hood
NOTICE: Do not break knockouts in concrete liners. Gas inlet
connects to valve below rebox oor.

33858-1-0615Page 16
Finishing
All joints (top, bottom and sides), where the wall or decorative
facing material meets the replace surround should be sealed
with a 300°F minimum sealant material.
NOTICE: When installation application includes highly acidic
materials such as acid wash or stone etching, protect replace
nish with plastic stretch lm. Once the lm has been removed
clean appliance immediately with a stainless steel cleaner.
Please note that areas where the lm has been formed (corners,
hems, etc.) may require extra cleaning to remove lm residue.
Ensure that all protective lm has been removed from the
replace prior to burning.
Cleaning Instructions at Installation
This appliance is built using mostly high-grade stainless steel to
resist rust-through. In outdoor applications, all stainless steel will
develop a dull patina and, depending on the local environment
and on the materials used in the installation, may develop some
surface oxidation. This does not affect the performance of the
replace, and does not require any corrective action. If you prefer
keeping your replace front looking factory-fresh, clean it with
stainless steel cleaner.

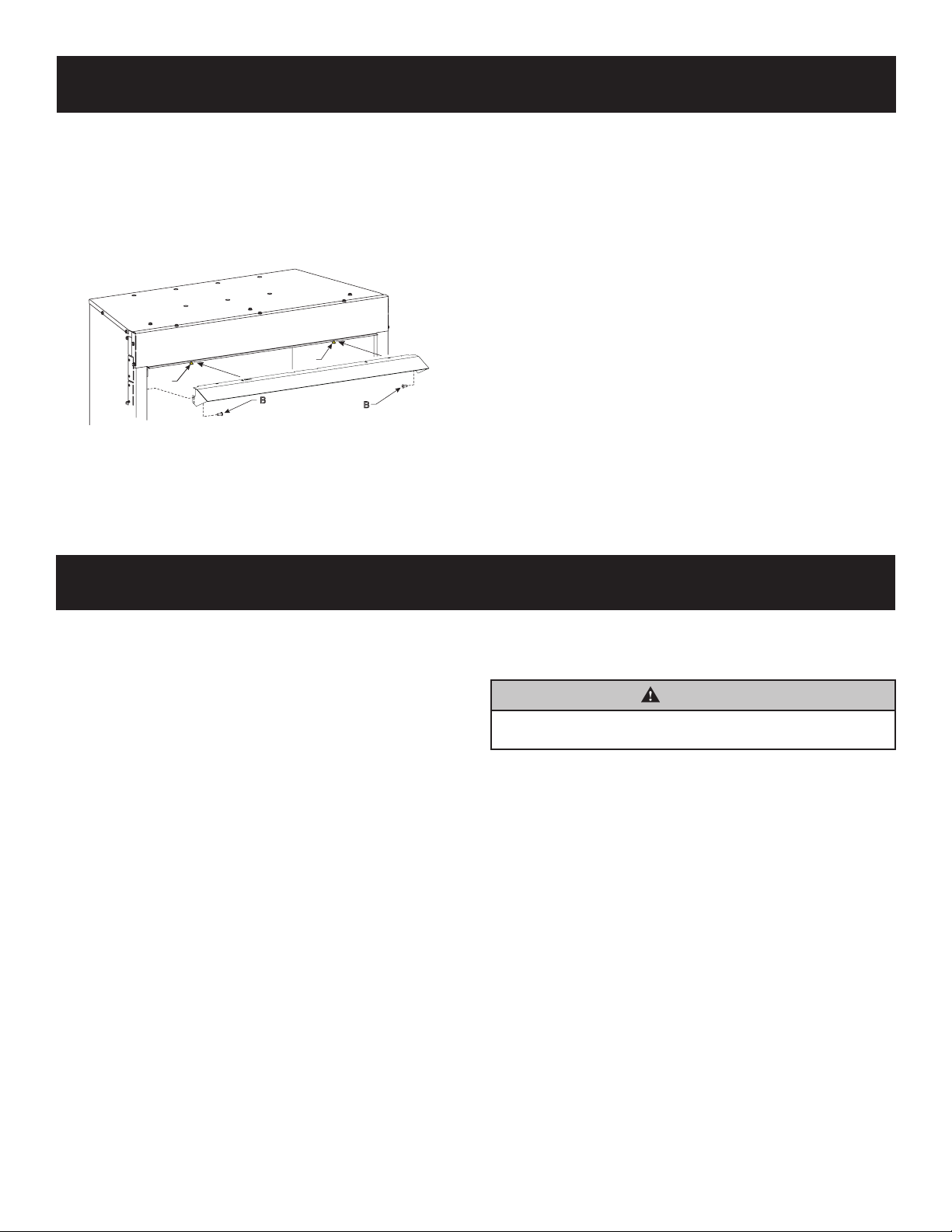

FIREPLACE INSTALLATION INSTRUCTIONS
Install the Hood
Failure to install the furnished hood (or optional extension hood)
before the replace is used may create a re hazard.
1. Loosen the two screws (A) holding replace top to face panel,
then slide the hood ange between the replace top and face
panel and re-tighten the screws. See Figure 17.
2. Install one screw at each end of the hood as shown (B). See
Figure 17.
BB
A
A
Figure 17
GAS LINE CONNECTION
The gas line must be installed by a qualied service person
in accordance with all building codes. The Commonwealth of
Massachusetts requires that a exible appliance connector
cannot exceed 3 feet.
A ex-line and shut-off valve have been provided. The gas shut-
off valve must be located outside of the unit in an accessible
area.
Check the rating plate on the replace (on a chain by the gas
valve) to ensure it shows the correct gas type. If the gas listed on
the rating plate does not match the gas supply to the home, do
not connect the replace. Contact your dealer for proper model.
Use an external regulator for all LP replaces to reduce the
supply tank pressure to a maximum of 13 inches w.c. This is in
addition to the regulator tted to the replace.
WARNING
Connection directly to an unregulated LP supply can cause an
explosion.

33858-1-0615 Page 17
1. STOP! Read the safety information above.
2. Set the ON/OFF switch to "OFF."
3. Turn off all electric power to the appliance (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF."
5. Wait ten (10) minutes to clear out any gas. Then smell for
gas, including near the oor. If you smell gas, STOP! Follow
"B" in the safety information above. If you do not smell gas,
go to the next step.
NOTICE: Knob cannot be turned from "PILOT" to "OFF"
unless knob is pushed in slightly. Do not force.
6. Find pilot - follow metal tube from gas control. The pilot is in
front of the middle log on the right side.
7. Turn gas control knob counterclockwise to
"PILOT."
8. Push in control knob all the way and hold in. Immediately
light the pilot with a match and lighter rod that is provided
with the burner. Continue to hold the control knob in for
about one (1) minute after the pilot is lit. Release knob,
and it will pop back up. Pilot should remain lit. If it goes out,
repeat steps 4 through 8.
If knob does not pop up when released, stop and
immediately call a qualied service technician or gas
supplier.
If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician or
gas supplier.
9. Turn gas control knob counter clockwise to
"ON."
10. Set the ON/OFF switch to "ON."
1. Locate On/Off gas shut-off valve and turn clockwise to
"OFF." Do not force.
A. This appliance has a pilot which must be lighted
by hand. When lighting the pilot, follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle
on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
re department.
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, don't try to force it; call
a qualied service technician. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualied service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been under water.
WARNING
• Any glass doors shall be opened when the appliance is in operation.
• A replace screen must be in place when the appliance is operating and, unless other provisions for combustion
air are provided, the screen shall have an opening(s) for introduction of combustion air.
GAS CONTROL KNOB SHOWN
IN "OFF" POSITION.
PILOT
HOOD
THERMOPILE

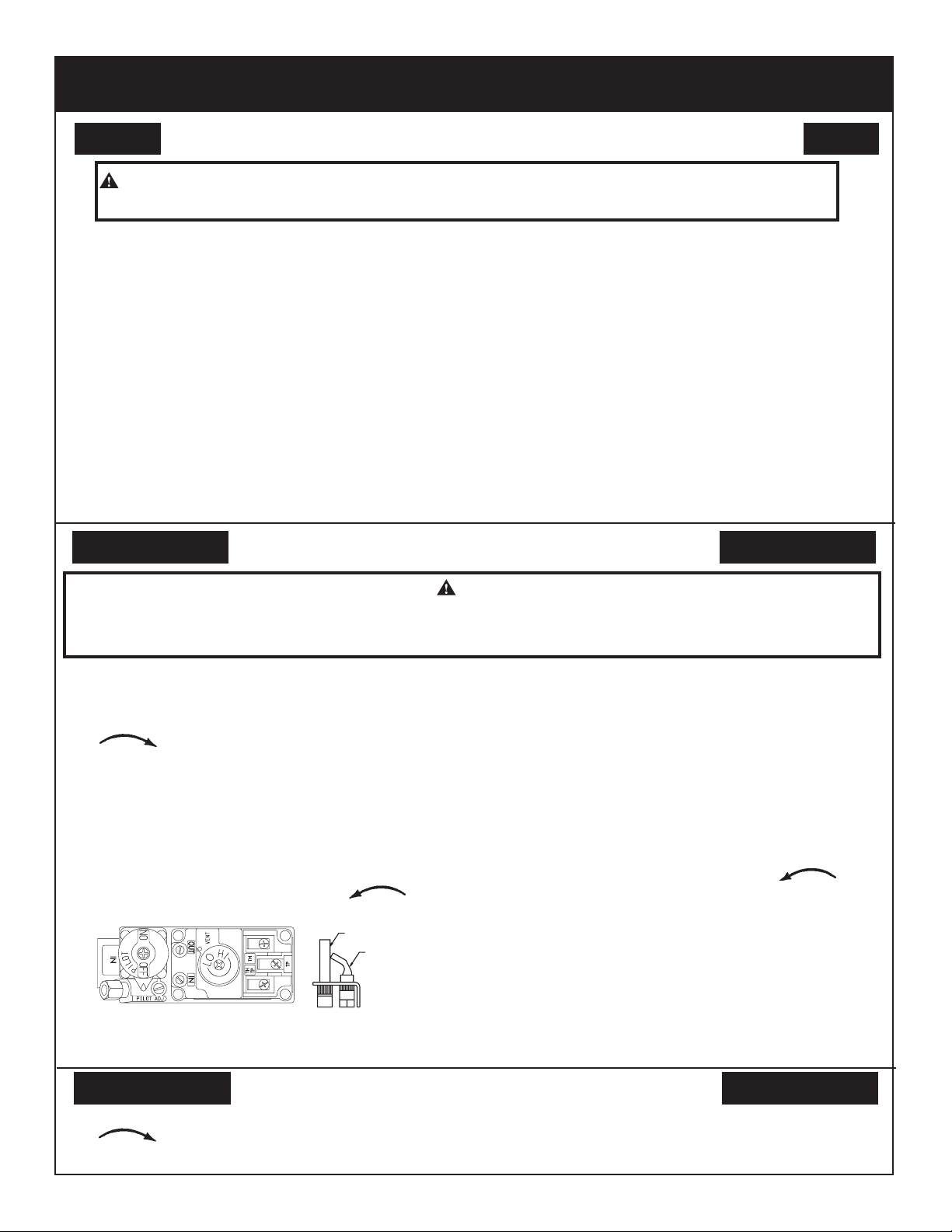

MILLIVOLT LIGHTING INSTRUCTIONS - OP(36,42)FP32
TO TURN OFF GAS TO APPLIANCE
LIGHTING INSTRUCTIONS
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.

33858-1-0615Page 18
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.
A. BEFORE LIGHTING, smell around the appliance area
for gas. Be sure to smell next to the oor because
some gas in heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions. If you can not reach your gas
supplier, call the re department.
B. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in
or turn by hand, don't try to repair it, call a qualied
service technician. Force or attempted repair may
result in a re or explosion.
C. Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. Locate On/Off gas shut-off valve and turn clockwise to
"OFF." Do not force.
1. STOP! Read the safety information above.
2. Turn gas shut-off valve counterclockwise to
"ON" position.
3. Wait ten (10) minutes to clear out any gas. Then smell for
gas, including near the oor. If you smell gas, STOP! Follow
"B" in the safety information above on this label. If you do
not smell gas, go to the next step.
4. Find spark and sensor probes.
5. Using the remote control, turn main ame to "ON." If the
burner does not light within 60 seconds, stop and go to
Step 3.
NOTICE: See Troubleshooting, page 23.
6. If the burner does not stay lit, stop and immediately call a
qualied service technician or gas supplier.
7. If the burner does not operate properly after several tries,
turn the gas control knob clockwise to "OFF"
and call your service technician or gas supplier.
8. Operation of the gas valve must be controlled by using the
hand-held remote control. Refer to remote instructions for
detailed operation information. See page 21.
OFF ON
IP LIGHTING INSTRUCTIONS - OP(36,42)FP72
SENSING
PROBE SPARK PROBE

33858-1-0615 Page 19
Pilot Flame Pattern
Figure 18 shows a correct pilot ame pattern. The correct ame
will be blue and will extend beyond the thermopile. The ame will
surround the thermopile just below the tip. A slight yellow ame
may occur where the pilot ame and main burner ame meet.
After prolonged use, the replace’s pilot burner may require
cleaning to maintain the proper ame. Clean with canned air. Let
pilot sit to dry.
To Remove Pilot Orice
1. Disconnect the pilot supply line at the pilot burner.
2. Remove pilot orice from pilot burner. It may be necessary to
tap on pilot burner in order to remove the pilot orice.
System Check
A millivolt meter set to the 0-1000 mV range is required to check
the system. Millivolt (mV) readings should be:
• Across the thermopile terminals, 400-450 mV with
thermostat OFF.
• Across the thermopile terminals, 150-250 mV with
thermostat ON.
• Across the optional switch wires at the valve, less than 30
mV with optional switch ON.
• Across the optional switch wires at the optional switch,
less than 5 mV with optional switch ON. Strong winds,
dirty pilot and low pressure will reduce readings.
}TO
THERMOPILE
OPTIONS
OPTIONS
Figure 18
MILLIVOLT PILOT AND MAIN BURNER FLAME
CHARACTERISTICS
Pilot Flame Pattern
Figure 19
If pilot ame pattern is incorrect
• See Troubleshooting, page 23.
Main Burner Flame Pattern
The main burner ame will be blue and yellow.
Main Burner Flame Ignition and Extinction
When the main burner is ignited it will take a few seconds for the
full ame pattern to develop.
When the main burner is extinguished it will take a few seconds
for the ames to disappear. It is normal to have the ames burn
down, as the remaining gas is burned.

33858-1-0615Page 20
Figure 20 - Millivolt Wiring
(OPTIONAL) WALL SWITCH
(OPTIONAL) REMOTE CONTROL RECEIVER
OFF ON SWITCH
THERMOPILE
OFF
ON
BLACK
BLACK
IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THIS UNIT MUST BE
REPLACED, IT MUST BE REPLACED WITH NO. 18, 150ºC WIRE OR ITS
EQUIVALENT
WIRING
Figure 21 - IP Wiring
MAIN
PILOT
Learn MOTOR COMM.
POWER
IPI
Remote/Off
S I
ADJ.
(GND)
HI/LO
Solenoid
ORANGE
(IGNITOR)
BLACK
(SENSOR)
BLACK
ORANGE GREEN
WHITE
BROWN
SPARKER
GAS CONTROL
VALVE
ELECTRONIC
CONTROL MODULE
AF-4000 B/P
RED BLACK
BLACK
BROWN
RED
ORANGE
N/A
CUSTOMER PROVIDED
WALL SWITCH
RED
BLACK
NOTICE: Do not connect 120V to this unit.
NOTICE for IP replaces only: The replace may be operated
without the remote by connecting the brown control module wires
to a wall switch. The remote/off switch on the control module
must be in the "OFF" position.
NOTICE: For remote use, slide switch on battery box to "ON"
position.
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Millivolt thermopile is self-powered. The gas valve does not
require 120 volts. Maximum length of 20 ft of 16 AWG to
conductor wires is to be used with all optional switches.
Use the two leads (Red and Green) to attach optional controls.
