Empire Comfort Systems VFP36SB2EL-1 Quick start guide

INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
The Breckenridge Premium Vent-Free
Universal Fireboxes
DO NOT ATTEMPT TO MODIFY OR ALTER THE
CONSTRUCTION OF THE FIREBOX OR ITS COMPO-
NENTS. ANY MODIFICATION OR ALTERATION OF
CONSTRUCTION MAY VOID THE WARRANTY OF
THIS FIREBOX.
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURE
AND SHOULD STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SU-
PERVISED WHEN THEY ARE IN THE SAME ROOM AS
THE FIREBOX.
FOR USE ONLY WITH A LISTED GAS-FIRED UN-
VENTED DECORATIVE ROOM HEATER NOT TO
EXCEED 40,000 BTU/H.
DO NOT BUILD A WOOD FIRE.
UNIVERSAL FIREBOX FOR ALL
VENT-FREE LOG SETS
SEE-THROUGH FIREBOX MODELS:
VFP36SB2EL-1
VFP36SB2EF-1
PENINSULA FIREBOX MODELS:
VFP36PB2EL-1
VFP36PB2EF-1
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property dam-
age. Refer to this manual. For assistance or additional infor-
mation, consult a qualified installer, service agency or the
gas supplier.
Carefully review the instructions supplied with the decora-
tive type unvented room heater for the minimum fireplace
size requirement.
DO NOT INSTALL A VENT-FREE LOG SET IN THIS
FIREBOX, UNLESS THIS FIREBOX MEETS THE
MINIMUM DIMENSIONS REQUIRED FOR THE
INSTALLATION.
GAS-FIRED
ANSI Z21.91 Ventless Fireplace Enclosures for use with any
ANSI Z21.11.2 Gas Fired Decorative Type Unvented Room
Heaters
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appli-
ance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
WARNING: If the information in these instructions are
not followed exactly, a fire or explosion may result caus-
ing property damage, personal injury or loss of life.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Page 1

24117-0-0508Page 2
SECTION PAGE
Important Safety Information ............................................................................................... 3
Introduction ........................................................................................................................... 3
Clearances ....................................................................................................................... 4 - 5
Firebox Installation Instructions ....................................................................................... 6 - 8
Installing Hood ................................................................................................................ 8 - 9
Gas Line Connection ............................................................................................................. 9
Wiring Instructions for Installing a Dual Switch / Receptacle ............................................ 10
LK2 Accent Light Accessory .............................................................................................. 10
Optional Single Speed Blower Installation Instructions ............................................. 11 - 13
Maintenance ........................................................................................................................ 13
Parts List .............................................................................................................................. 14
See-Through Firebox Parts View ........................................................................................ 15
Peninsula Firebox Parts View .............................................................................................. 16
Accessories .................................................................................................................. 17 - 18
How To Order Repair Parts ................................................................................................. 18
Quick Reference .......................................................................................................... 19 - 22
Service Notes ................................................................................................................. 22-23
TABLE OF CONTENTS

24117-0-0508 Page 3
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTE: Installation and repair should be done by a quali-
fied service person. The appliance should be inspected
before use and at least annually by a qualified service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It
is imperative that control compartment, burners and
circulating air passageways of the appliance be kept
clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the ap-
pliance. Provide adequate combustion and ventilation
air.
The flow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems Inc. firebox and its
components have been tested and will operate safely when
installed in accordance with this installation manual.
Read all instructions before starting installation, then
follow these instructions carefully during installation
to maximize firebox benefit and safety. Report to your
dealer any parts damaged in shipment.
The Empire Comfort Systems Inc. warranty will be
voided by, and Empire Comfort Systems Inc. disclaims
any responsibility for the following actions:
- Installation of any damaged firebox.
- Modification of the firebox or any of the components
parts thereof.
- Installation other than as instructed by Empire
Comfort Systems Inc.
- Installation and/or use of any component part or
accessory not approved by Empire Comfort Systems
Inc. in combination or assembly with a Empire
Comfort Systems Inc. firebox, not withstanding any
independent testing laboratory or other third party
approval of such component part or accessory.
Any such action may create a possible fire hazard.
Consult your local building codes.
Firebox Screen.
The firebox screen must be in place when the firebox is
operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card
supplied with firebox.
3. Installer should show owner how to start and operate log set
that is installed into firebox.
Important
All correspondence should refer to complete Model Number,
Serial Number.
Notice: During initial firing of this firebox with a log set installed, its
paint will bake out, and smoke will occur. To prevent triggering of
smoke alarms, ventilate the room in which the unit is installed.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualified agency. The term "qualified
agency" means any individual, firm, corporation or company
which either in person or through a representative is engaged in
and is responsible for (a) the installation or replacement of gas
piping or (b) the connection, installation, repair or servicing of
equipment, who is experienced in such work, familiar with all
precautions required and has complied with all the requirements
of the authority having jurisdiction.
State of Massachusetts: The installation must be made
by a licensed plumber or gas fitter in the Commonwealth
of Massachusetts. The state of Massachusetts requires that
a flexible appliance connector cannot exceed three feet in
length.
Sellers of unvented propane or natural gas-fired supplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-fired space heaters shall be prohibited in bedrooms and
bathrooms.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA 54.*
*Available from the American National Standards Institute, Inc., 11 West
42nd St., New York, N.Y. 10036.
IMPORTANT SAFETY INFORMATION
INTRODUCTION

24117-0-0508Page 4
Sidewall Clearances: The clearance from the inside of the firebox to perpendicular combustible side wall should not be less than 1 3/4".
See Figures 1a and 1b.
Combustible material clearance from front of firebox: 36" minimum
Firebox Side and Back Clearances: The firebox outer casing side(s) require a minimum 1/2" clearance to combustibles.
Top Framing and Finishing: Combustible framing may rest on top of standoffs. Combustible finishing materials may extend to the top
standoff screws on the front edge of the top outer wrap. See Figures 2a and 2b.
CLEARANCES
FIREBOX
STAND OFF
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2X4
HEADER
TOP OUTER
WRAP
FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL AS DESIRED.
Figure 1a - See Through Firebox Clearances
Figure 2a - Louvered Models
36”
MIN.
42”
MIN.
(CEILING TO
TOP OF HOOD)
1 3/4” MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
36”
MIN.
42”
MIN.
(CEILING TO
TOP OF HOOD)
1 3/4” MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 1b - Peninsula Firebox Clearances
Figure 2b - Flush Models
FIREBOX
STAND OFF
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2X4
HEADER
TOP OUTER
WRAP
FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL AS DESIRED.

24117-0-0508 Page 5
Figure 3a - Mantel Clearances with Standard Hood Figure 3b - Mantel Clearances with Optional Extended Hood
MANTEL
STANDARD
HOOD
17 ½”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOP OF HOOD)
4 ½”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
8”
6 ½”
5”
3 ½”
1 ½”
0”
6 ½”
9”
11”
13”
15”
MANTEL
13”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOP OF HOOD)
8”
MIN.
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
22”
8”
20”
6 ½”
18”
5”
16”
3 ½”
14 ½”
2 ½”
24 ½”
0”
FIREBOX
FACE
EXTENDED HOOD
(VB4H SERIES)
(NOT AVAILABLE ON
PENINSULA OPEN END)
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
CLEARANCES
Ceiling Clearances: The ceiling height should not be less than 42" from the top of the hood. See Figures 3a and 3b.
Mantel Clearances: Vent free firebox models must use the hood supplied with the firebox, or one of the optional hood kits available for
each model. If a combustible mantel is installed, it must meet the clearance requirements detailed below.
Grate Clearance: The minimum clearance between the front legs of the grate and the front edges of the firebox is 1 1/2".

24117-0-0508Page 6
Any vent-free Gas Log Heater must be “For use with approved
ANSI Z21.11.2 unvented room heater.”
Follow and complete the installation instructions of the gas log set
and the requirements of this firebox.
Check all fittings for leaks before lighting the gas log set.
In planning the installation for the firebox, it is necessary to
determine where the unit is to be installed and whether optional
accessories are desired. Gas supply piping should also be planned
at this time.
A gas shut off must be in this line.
The firebox can be mounted on any of these surfaces:
1. A flat hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible
material.

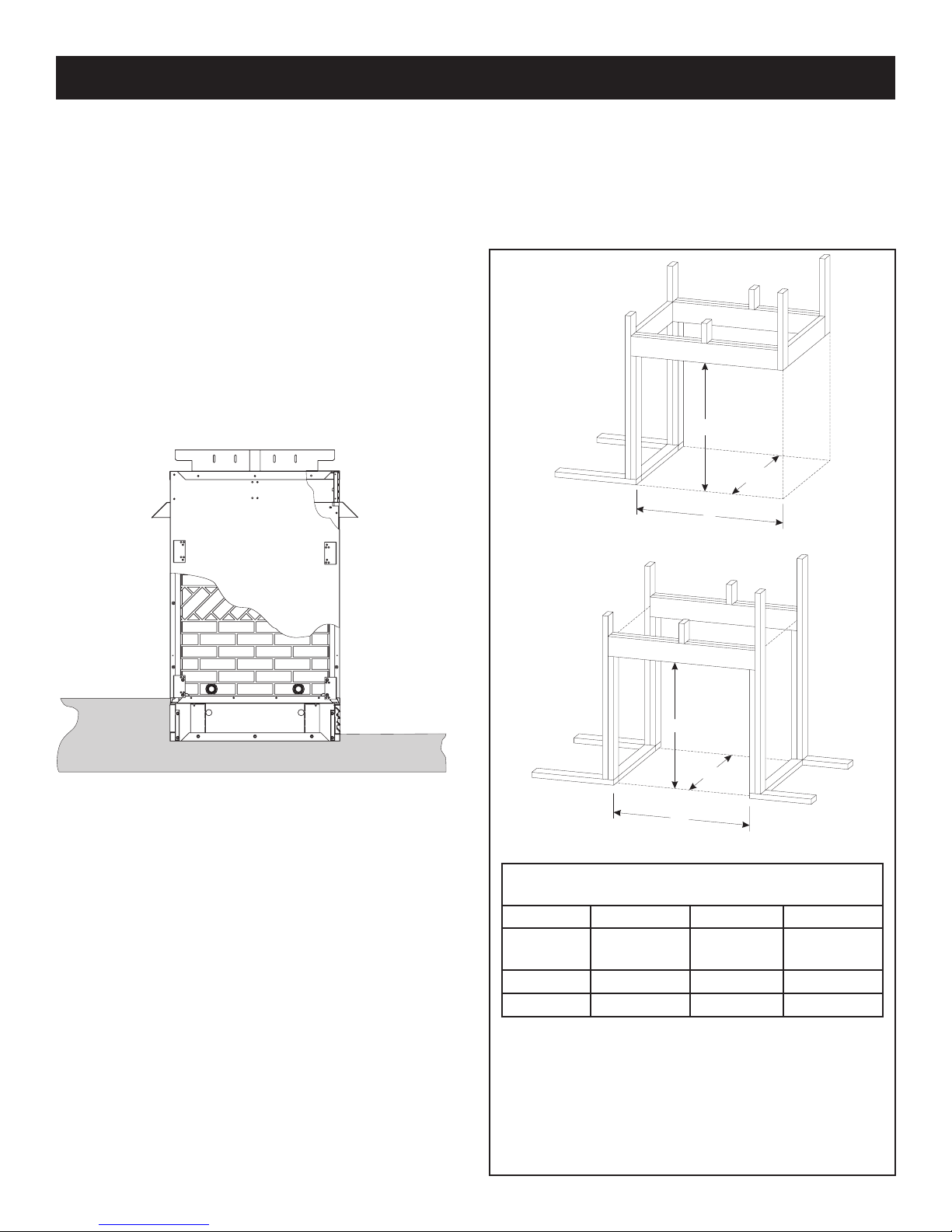

3. Recessed into the floor as illustrated by Figure 4.
4. Supported under all (4) corners of the firebox so that contact
is made on all four perimeter edges on the bottom of the unit
(Example: Four (4) concrete masonry blocks).
If the firebox is installed directly on carpeting, tile or other
combustible material other than wood flooring, it should be installed
on a metal or wood panel extending the full width and depth of
the unit.
At this point, you should have decided what components to include
in your installation, and where the firebox is to be located. If this
has not been done, stop and consult your dealer for assistance with
this planning.
Planning Your Installation
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,
plus other Decorative Frame, Hood, and Door accessory kits may
be installed after the firebox is secured to the framing.
Refer to the instructions provided with each of the optional
accessory kits for proper installation and operation.
Firebox Framing
Firebox framing can be built before or after the firebox is set
in place. Framing should be constructed to accommodate wall
Figure 4
Figure 5
FIREBOX INSTALLATION INSTRUCTIONS
FLUSH FACE LOUVERED
COMBUSTIBLE MATERIALS ALLOWED
Premium Vent-Free Firebox Framing Dimensions (in
inches)
"A" "B" "C"*
Model Framing
Height
Framing
Width
Framing
Depth
VFP36SB 41 1/2" 40" 23"*
VFP36PB 41 1/2" 39"** 23"*
Attention: Add height of base to "A" Dimension when elevat-
ing firebox if installing on an elevated base.
Framing dimension A incudes a three inch clearance for
standoffs on firebox.
*Dimension "C" assumes use of 1/2" wall board flush to both
front faces.
** Peninsula model framing width assumes use of 1/2" wall
board flush to the end face.
A
B
C
A
B
C
Framing - Peninsula
Framing - See-Through
covering and firebox facing material. The firebox framing should
be constructed of 2 x 4 lumber or heavier. The framing headers
may rest on the top of the firebox standoffs. Refer to Figure 5 for
firebox framing dimensions.
Note: On Peninsula models, a maximum weight of 250 lbs. is
recommended when construction materials are supported by the
top standoff spacers.

24117-0-0508 Page 7
Figure 6

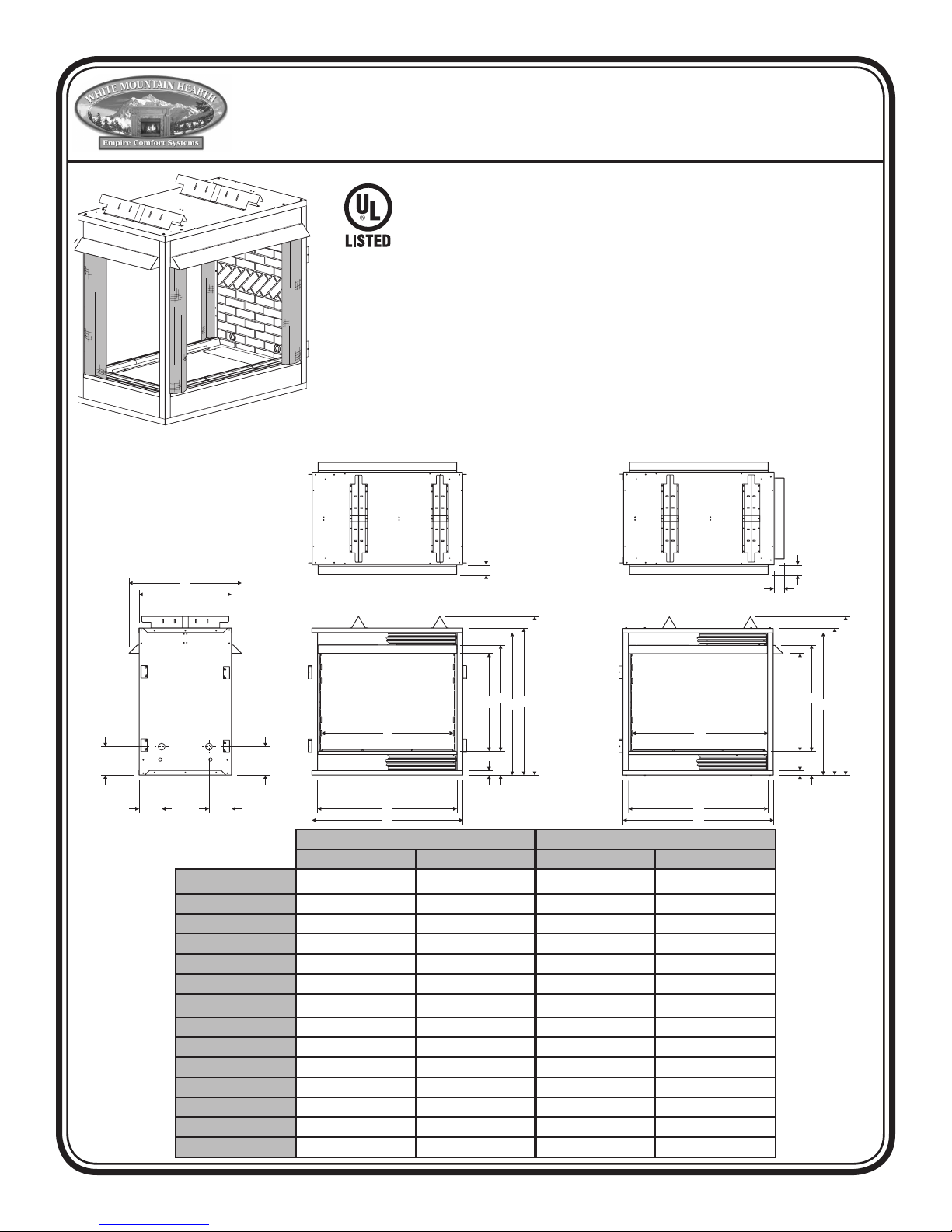

Firebox Dimensions
FIREBOX INSTALLATION INSTRUCTIONS (continued)
LOUVERED PANELS FLUSH PANELS
VFP36SB VFP36PB VFP36SB VFP36PB
A38 1/8" 38 1/8" 38 1/8" 38 1/8"
B39" 39" 39" 39"
C24" 24" 24" 24"
D25 1/2" 25 1/2" 25 1/2" 25 1/2"
E36" 36" 36" 36"
F34 1/4" 35 1/4" 34 1/4" 35 1/4"
G29 1/8" 29 1/8" 29 1/8" 29 1/8"
H41 1/8" 41 1/8" 41 1/8" 41 1/8"
I1 1/4" 1 1/4" 1 1/4" 1 1/4"
J6 1/8" 6 1/8" 6 1/8" 6 1/8"
K8 1/2" 8 1/2" 8 1/2" 8 1/2"
L6" 6" 6" 6"
M27 5/8" 27 5/8" 27 5/8" 27 5/8"
N36 7/8" 36 7/8" 36 7/8" 36 7/8"
SEE THRU
LOUVERED
OR
FLUSH
PENINSULA
LOUVERED
OR
FLUSH
H
B
C
A
N
E
M
J
D
F
G
H
B
A
N
E
M
J
D
I
2 9/16”
2 9/16”
K
L
K
L
F
I
2 9/16”

24117-0-0508Page 8
Locating Firebox

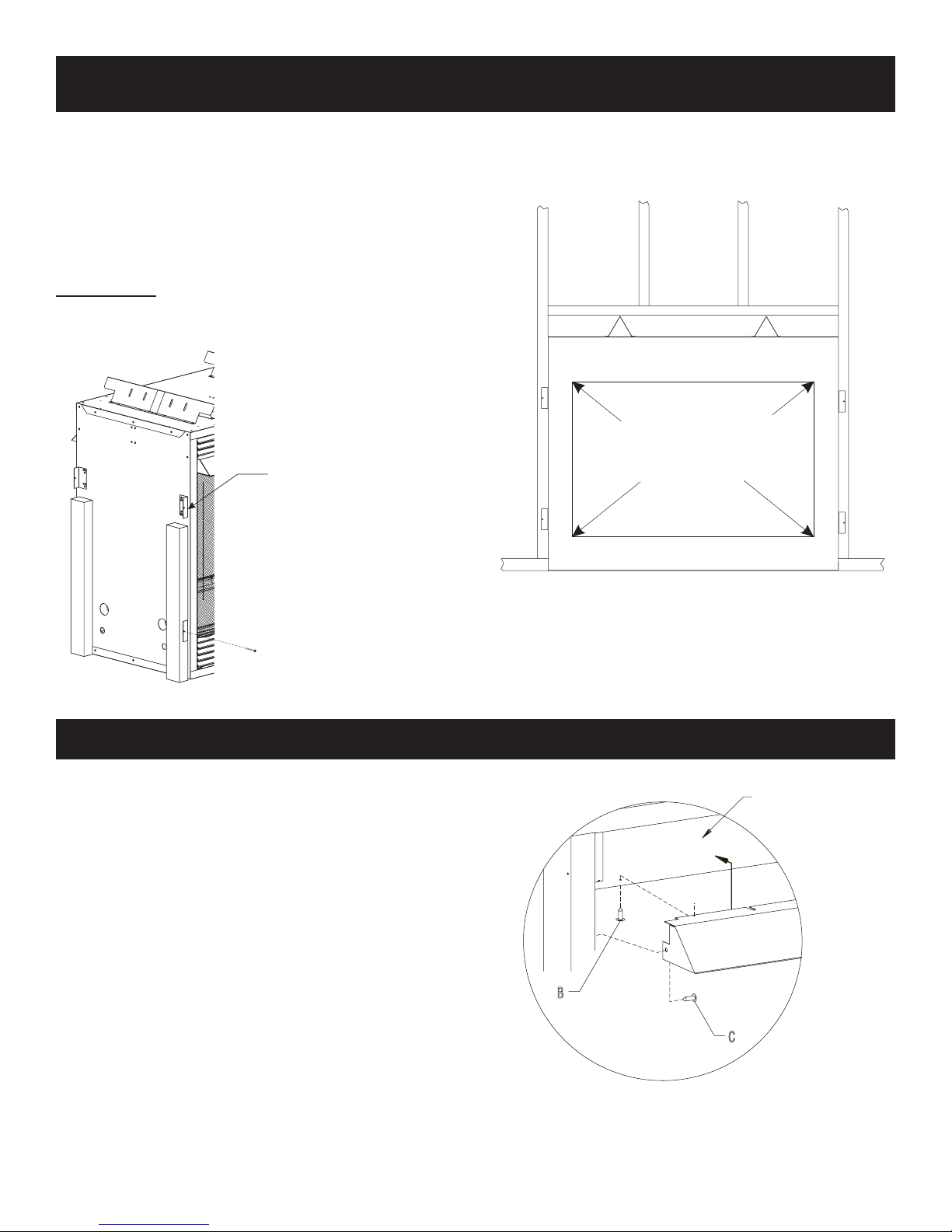

Place firebox in framed opening. Attach the framing brackets to
the firebox and secure firebox to framing. Different hole locations
can be used for finishing materials with thicknesses of 3/8", 1/2"
and 3/4". Secure the brackets with screws provided using two (2)
per framing bracket. See Figure 7.
Framing brackets should fit directly against framing material. Use
at least one (1) nail or screw per bracket to secure in place.
IMPORTANT! Check squareness of the firebox prior to securing
to framed opening. See Figure 8.
Figure 7
Black hoods are furnished with each firebox (or the optional
hood(s)) and MUST be installed before the firebox is used. Failure
to do so may create a possible fire hazard. For shipping purposes,
the hoods are located behind the upper louver(s), or inside the
firebox on flush face units. If brass, stainless steel, or hammered
pewter hoods are desired, they can be purchased as an option.
Attachment is the same as the standard black hood.
Louvered Models
1. Remove upper louver, or flush panel.
2. Place the top hood flange on top of the inner firebox top, then
install three screws through the firebox top from below and
screw into the pilot holes in the hood flange (B).
3. Install one (1) screw at each end of the hood as shown (C).
4. Re-install louver(s) or flush panel(s).
Caution: All hoods must be installed prior to operation of
appliance. See Figure 9. Figure 9
FIREBOX OPENING
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
Figure 8
FIREBOX INSTALLATION INSTRUCTIONS (continued)
INSTALLING HOOD
B
C
INNER FIREBOX TOP
Louvered Models
ATTACH (4)
FRAMING BRACKETS
TO SIDE(S) OF FIREBOX
PRIOR TO INSTALLING
UNIT TO FRAMED OPENING

24117-0-0508 Page 9
The firebox is designed to accept a gas line for an approved vent-
free gas logset. Have the line installed by a qualified service person
in accordance with all building codes. Consult local building codes
to properly size the gas supply line leading to the connection of the
logset burner. The state of Massachusetts requires that a flexible
appliance connector cannot exceed three feet in length.
Gas access holes are provided through the side panel(s) of
the firebox. See Figure 10. Carefully remove the indented
knockout in the ceramic brick panel using a drill or utility knife.
See Figure 11.
Check gas type. Use only the gas type indicated on the gas log
set rating plate. If the gas listed on the plate is not your type of
gas supply, DO NOT INSTALL. Contact your dealer for proper
model.
Always use an external regulator for all LP fireboxes to reduce the
supply tank pressure to a maximum of 14" w.c. This is in addition
to the regulator fitted to the log set.
WA R N I N G : C O N N E C T I O N D I R E C T LY TO A N
UNREGULATED L.P. TANK CAN CAUSE EXPLOSION.
Install only a ANSI Z21.11.2 vent-free log set into this firebox.
Figure 10
Extended Hoods
If your non-combustible facing material is over 1" in thickness and will be used to finish this firebox, extended hoods are available that
will extend out 2" farther into the room. Extended hoods are not available for the peninsula open ends. Contact your local dealer for
details.
Finishing
All joints (top, bottom and sides), where the wall or decorative facing material meets the firebox surround should be sealed with a non-
combustible material.
Hearth extensions are required for these fireboxes.
Flush panels, louvers, and decorative louver panels are interchangeable, and may be mixed and matched as desired (i.e. Flush panel on
bottom with louvered panel at top, or vice versa).
Extended Hoods
VB4H36BL Standard Black (1 each)
VB4H36BR Polished Brass (1 each)
VB4H36SS Stainless Steel (1 each)
VB4H36HP Hammered Pewter (1 each)
Figure 11
INSTALLING HOOD (continued)
GAS LINE CONNECTION
GAS LINE
ACCESS
HOLES

24117-0-0508Page 10

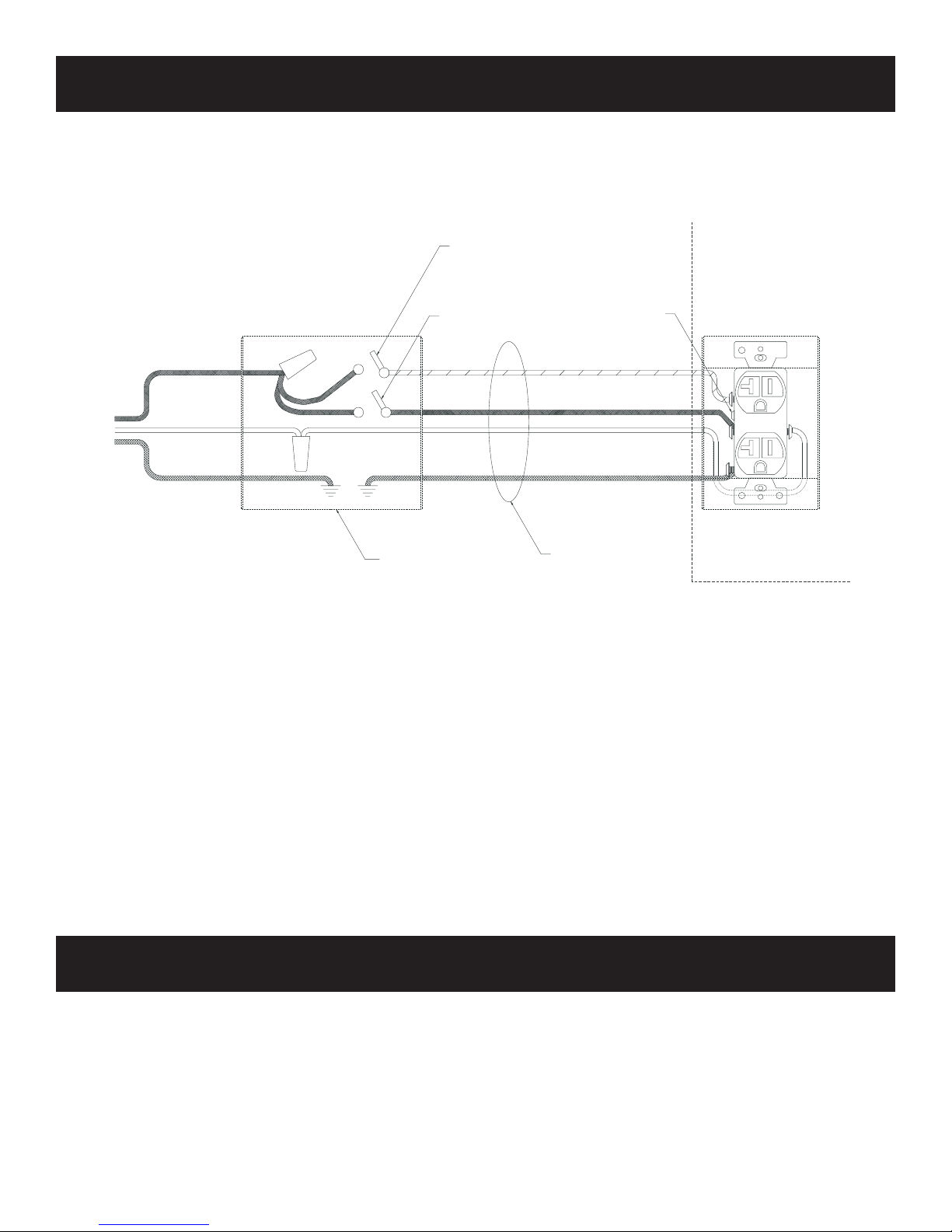

WIRING INSTRUCTIONS FOR INSTALLING A DUAL SWITCH / RECEPTACLE
In order to install both the optional Blower and Accent Light ac-
cessories, it will be necessary to install the junction box so that
the Duplex Receptacle wiring is split. This will allow each side of
the receptacle to operate independently off separate wall switches.
See diagram below.
Note: To operate the FBB5 Blower accessory with a variable
speed control, the SCV1 Variable Speed Control Kit should be in-
stalled to control the power to one side of the duplex receptacle.
#1
ACCENT LIGHT
WALL SWITCH
#2
BLOWER
WALL
SWITCH
REMOVE TAB ON HOT SIDE
OF DUPLEX RECEPTACLE
TO SPLIT LUGS
PLUG
FOR
CONTROLS
PLUG
FOR
BLOWER
FIREPLACE
CONTROL
COMPARTMENT
DUAL SWITCH ELECTRICAL WIRING TO FIREPLACE RECEPTACLE
RED
BLACK
WHITE
3-WIRE, GROUNDED
CONDUCTOR
(BY OTHERS)
DOUBLE SWITCH BOX
(INSTALLER PROVIDED)
BLACK
WHITE
GROUND
TO 120V
CIRCUIT
BREAKER
LK2 ACCENT LIGHT ACCESSORY
1. To wire Junction Box Receptacle, remove the tab on the side
of the receptacle (hot side) to split receptacle. This will be
required to separate blower and Accent Light circuits.
2. Power for switched and live sides of Duplex Receptacle must
come from the same power source. (One circuit breaker on
main panel must switch all power off.)
3. From the wall box to the fireplace a 3-wire conductor with
ground is recommended, however (2) two-wire conductors
with grounds may be used in place of a 3-wire conductor with
a ground if the black wires from the Accent Light and blower
accessories are identified.
4. Two wall switches may be used to activate the two receptacle
plugs independently.
Note: Wiring to the Junction Box should be run through the 7/8"
diameter access hole located on one of the sides of the fireplace
outer wall. A Romex type connector is provided and should be
used to protect and restrain the wiring where it passes through
the fireplace outer wall. The Junction Box should be positioned in
the lower compartment of the fireplace/firebox so that it does not
interfere with moving parts of the blower assembly. The Junction
Box incorporates magnets on the bottom side to retain and reduce
the chance of movement or vibration during blower operation.
Note: If only the blower option is to be installed, wiring may be
performed as described and illustrated in the following Blower
Installation section.
An Accent Light Kit model LK2 is available for installation in
the top of the firebox. Providing the junction box has been pre-
wired with separate circuits as described in the "Wiring for a dual
switch/receptacle" section, the Accent Light kit may be installed
at any time on louvered models, or on flush panel models prior to
the upper panels being covered with finishing materials.
Follow the instructions provided with the LK2 Accent Light kit
for proper installation in the fireplace/firebox.

24117-0-0508 Page 11
BLOWER AND JUNCTION
BOX ACCESS COVER
PLATE
Attention: Install blower assembly before connecting gas inlet
supply line.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an exter-
nal electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can
be purchased, plugged into the ungrounded receptacle and its wire
connected to the receptacle mounting screw. With this wire com-
pleting the ground, the appliance cord plug can be plugged into
the adapter and be electrically grounded.
Caution: Label all wires prior to disconnection when servic-
ing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Note: Junction box is to be located in the lower compartment of
the firebox and must be pre-wired at time of firebox instal-
lation for use with blower assembly. A standard ON/OFF
wall switch or optional SCV1 Variable Speed Control Kit
should be installed to activate power to the Junction Box
and provide power for the operation of the FBB5 Blower
assembly. It is recommended that installation of the wir-
ing be performed by a qualified electrician. See Figures 12
and 13.
1. If installed, turn OFF gas supply to firebox/gas log.
2. If applicable, turn OFF electric supply to firebox.
CAUTION: ALL WIRING SHOULD BE DONE BY
A QUALIFIED ELECTRICIAN AND SHALL BE IN
COMPLIANCE WITH ALL LOCAL, CITY AND STATE
BUILDING CODES. BEFORE MAKING THE ELECTRI-
CAL CONNECTION, MAKE SURE THAT MAIN POWER
SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN
INSTALLED, MUST BE ELECTRICALLY GROUNDED
IN ACCORDANCE WITH LOCAL CODES, WITH THE
NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LAT-
EST EDITION).
To install the blower kit, access the junction box, or install a light
kit, remove the access cover plate and/or lower louvers or flush
panels as illustrated by figures 13 and 14.
A factory included junction box is located on the lower right
side of the firebox. Wiring must be fed through the 7/8" di-
ameter hole provided on the lower side of the firebox, and
secured to the outer wrap with the clamp provided. Leave
approximately 6” of wire in the junction box for connection.
Attach black wire to one side of the receptacle and white wire
to opposite side of receptacle. The ground wire should be at-
tached to the green (ground) screw. See Figure 12.
Install the receptacle into the junction box as illustrated.
Attach cover plate. Place Junction Box so that it is approxi-
mately 8 to 12" away from the outer wrap wall. Secure wiring
at outer wrap of fireplace with wire clamp provided.
Attention: If installed, do not damage gas inlet supply line
when blower assembly is inserted into firebox. In some cases,
removal of the gas inlet supply line may be necessary.
3. Determine which type of firebox you have prior to installa-
tion. See Figures 13 and 14.

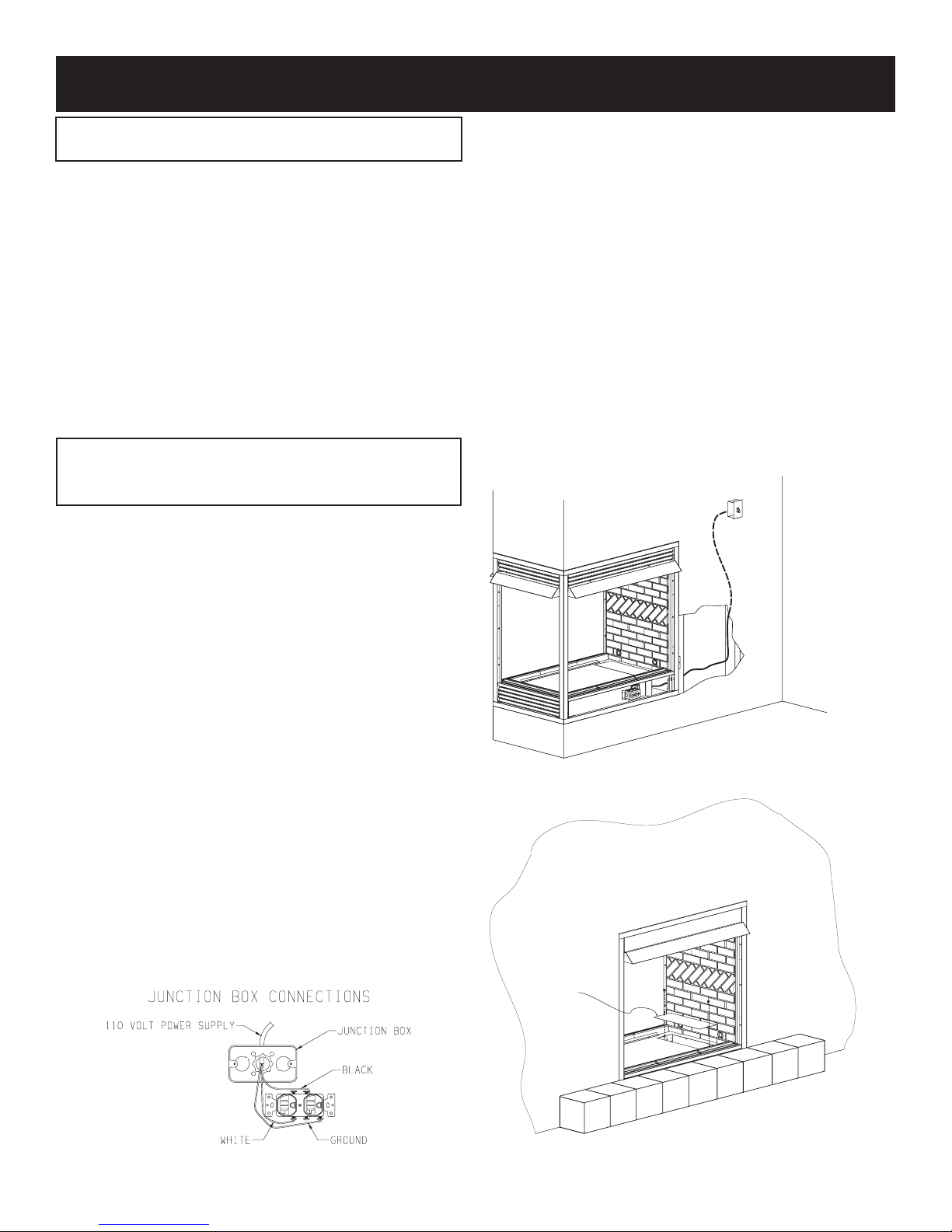

Figure 12
Figure 13
Figure 14
Flush Or Louvered
Models
Flush Face Models With
Raised Hearth Extensions
OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS

24117-0-0508Page 12
4. Insert blower assembly into interior, bottom of firebox. Po-
sition blower assembly so that you align the notch on back
of blower assembly with the center screw on side/end panel,
then push the blower assembly against firebox outer panel.
The blower wheel must be centered with the side/end wall of
the firebox. The magnets on the back and bottom of blower
assembly will sufficiently hold blower assembly in place. See
Figure 16.
5. Once the blower assembly is in position, locate the plug but-
ton in the top corner of the firebox. Remove the plug with a
standard screwdriver and discard plug.
6. Next, find the fan control switch and wire assembly. Feed
the wires through the hole at the top of the firebox. Feed the
wires over the firebox top and down between the firebox side
and outer wrap then, secure the fan control switch with (2) #6
screws provided. See Figure 15.
7. The fan control wires will slide down between the firebox
and outer wrap near the blower assembly. See Figure 16.
8. One fan control wire will have a 1/4” female terminal that
must be attached to the open terminal on the blower motor.
See Figure 19, Connection A.
9. The other fan control wire has a 1/4” male terminal. Attach
this terminal to the open terminal on the blower power cord.
See Figure 19, Connection B
10. Route the wires away from moving parts of the blower as-
sembly and retain wires together near the blower motor using
the plastic purse clip provided.
11. To complete the installation, plug the power cord into the
junction box receptacle previously installed in the bottom of
the firebox. See Figures 16 and 18.
12. Once all connections are made electrically, it is recommend-
ed that you test the blower fan control operation by turning
on power to the blower (Caution: 110 Volt). Then apply heat
to the fan control switch inside the firebox with a lighter or
match until blower is activated. Once blower is activated,
check for proper operation. Do not place hands near blower
assembly or other wiring while power is on.
13. Replace blower access plate and louvers or flush panels. See
Figures 13 and 14.
14. This completes the installation of the optional FBB5 Blower
kit accessory.
Note: This blower is equipped with a heat activated fan control
switch. Blower will operate when the firebox warms up,
and will turn off automatically when the firebox cools
down. The time will vary for the activation of the fan con-
trol switch depending on several factors including firebox/
log set sizing, BTU input variables, and log set position-
ing. Generally, it may take from 5 to 20 minutes to activate
blower/fan control from a cold start.
Figure 15
Figure 17
FAN CONTROL
SWITCH LOCATION
USE SCVI VARIABLE SPEED
CONTROL OPTION, OR STANDARD
ON/OFF WALL SWITCH TO
OPERATE OPTIONAL BLOWER
Figure 16
JUNCTION
BOX
HEARTH
POWER CORD BLOWER ASSEMBLY
(CENTER AND INSTALL
AGAINST OUTER WRAP
AS SHOWN)
WIRES
FROM FAN
CONTROL
SWITCH
OUTER
WRAP

24117-0-0508 Page 13
Blower Motor
The blower motor does not have oiling holes. Do not attempt to
oil the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic
cleaning. If the air output decreases or the noise level increases,
it indicates a dirty blower wheel. Remove fan and clean blower
wheels.
1 FBB5 BLOWER ASSEMBLY COMPLETE
2 R8199 FAN CONTROL SWITCH
1
2
A
B
110 VOLT AC
JUNCTION BOX
WHITE
FAN
SWITCH
BLACK
FAN/MOTOR
ASSEMBLY
Figure 18
Figure 19
Keep the control compartment, logs and burner area surrounding the
logs clean by vacuuming or brushing area at least twice a year.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN
COOL.
Always turn off gas to the pilot before cleaning. For relighting,
refer to lighting instructions located on the log set.
Never obstruct the flow of the combustion and ventilation air. Keep
the front of the firebox clear of all obstacles and materials.
Screens must be closed during operation.
MAINTENANCE

24117-0-0508Page 14
PARTS LIST
Use Only Manufacturer’s Replacement Parts. Use of Any Other Parts Could Cause Injury Or Death.
Index
Number
Part Number Description
VFP36SB2EL VFP36SB2EF VFP36PB2EL VFP36PB2EF
1 - - - - FIREBOX ASSEMBLY
2 17149 17149 17149 17149 TOP STANDOFF
3 R9655 R9655 R9655 R9655 INSULATION - TOP
4 24067 24067 24067 24067 INSULATION SUPPORT
5 R7052 R7052 R7052 R7052 SCREEN ROD
6 - - R9633 R9633 SCREEN ROD
7 R9631 R9631 R9631 R9631 BRICK PANEL - SIDE BULK
8 19945 19945 19945 19945 BRICK LINER BRACKET
9 20145 20145 20145 20145 HOOD
10 - - 24056 24056 PENINSULA HOOD
11 20073 20073 20073 20073 INNER AIR BAFFLE
12 18807 18807 18807 18807 LOUVER ASSEMBLY - UPPER
13 18808 18808 18808 18808 LOUVER ASSEMBLY - LOWER
14 - - 24059 24059 UPPER LOUVER ASSEMBLY
15 - - 24058 24058 LOWER LOUVER ASSEMBLY
16 19990 19990 19990 19990 BLOWER COVER PLATE
17 23004 23004 23004 23004 HEARTH RETAINER
18 R9293 R9293 R9293 R9293 HEARTH LEDGE - LEFT
19 R9295 R9295 R9295 R9295 HEARTH LEDGE - CENTER
20 R9292 R9292 R9292 R9292 HEARTH LEDGE - RIGHT
21 - - R9634 R9634 HEARTH LEDGE
22 10554 10554 10554 10554 NAILING FLANGE
23 - 24051 - 24051 FLUSH PANEL - UPPER - LONG
24 - 24052 - 24052 FLUSH PANEL - LOWER - LONG
25 - - - 24054 FLUSH PANEL - UPPER - SHORT
26 - - - 24053 FLUSH PANEL - LOWER - SHORT
27 19401 19401 19401 19401 BRICK LINER BRACKET - LOWER
See Page 15 for See-Through Models VFP36SB2E(L,F) Parts View for ordering parts.
See Page 16 for Peninsula Models VFP36PB2E(L,F) Parts View for ordering parts.

24117-0-0508 Page 15

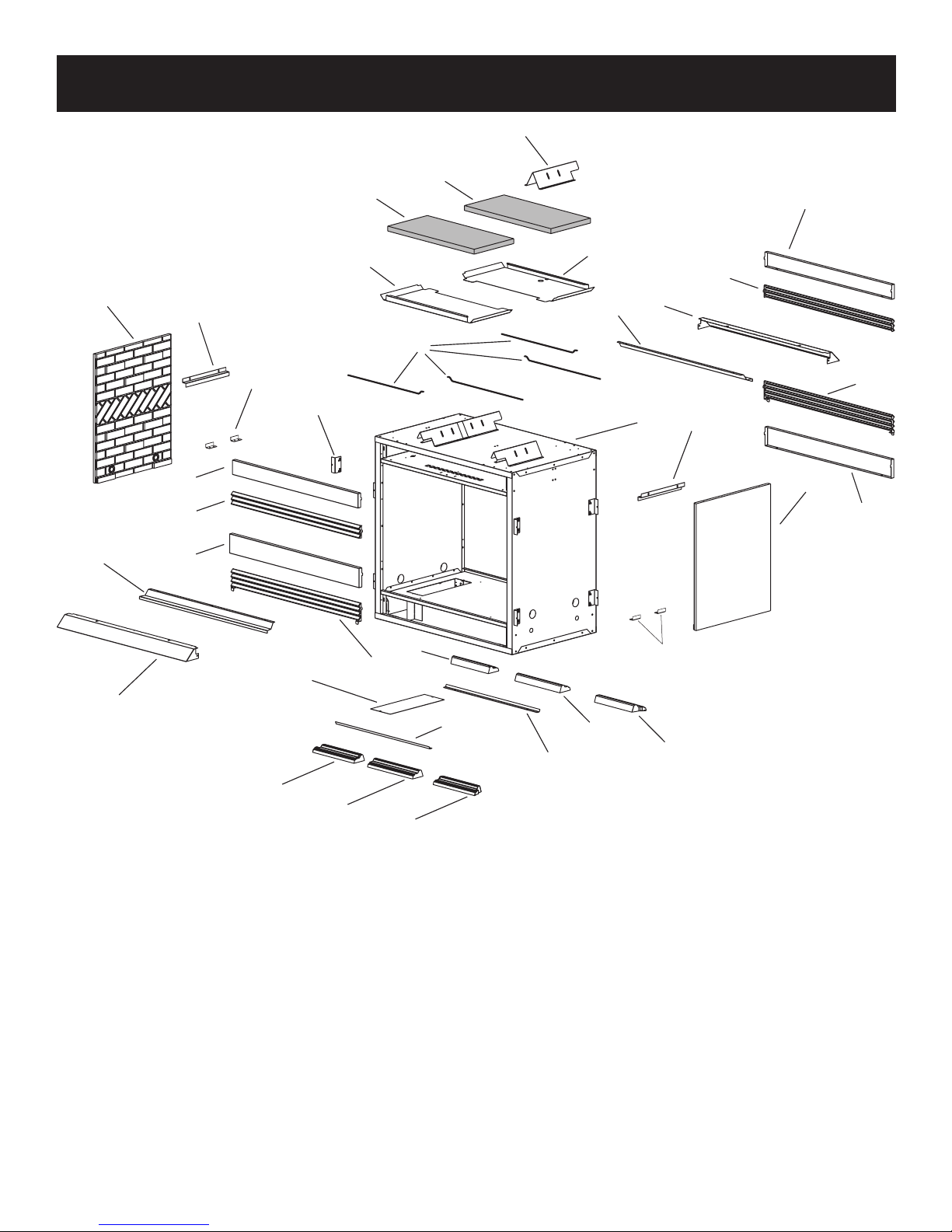

SEE-THROUGH FIREBOX PARTS VIEW
1
2
3
4
5
8
78
9
11
12
13
16
17
18
19
20
22
7
24
23
27
23
12
13
9
11
24
20
19
18
27
17
3
4

24117-0-0508Page 16
PENINSULA FIREBOX PARTS VIEW
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21
22
25
26
23
24
27
12
23
24
13
9
11
3
4
20 19
18
17

24117-0-0508 Page 17
Accessory Description Model Numbers
Fan Kit
Designed to provide forced air flow.
Note: For use with louvered or flush panel models.
FBB5
Variable Speed Control Kit
Wall mounted variable speed control for use with
FBB5 blower SCV-1
Frame Kits
Standard 3-Piece Frame Kits
Black, Brass, Stainless Steel, or Hammered Pewter
Extruded Aluminum Frame Kits
Black, Brass, Stainless Steel, or Hammered Pewter
For use with See-Through models:
VFP36SB2E(L,F) ONLY
Contact dealer for all available
optional frame kits
Bottom Trim Strip
Available as optional kits in Black, Brass, Ham-
mered Pewter, and Stainless Steel finishes.
For VFP36SB2E(F,L) ONLY
Contact dealer for all available
optional trim accessories
Standard Hood Brass hood = BR
Stainless Steel = SS
Hammered Pewter = HP
Contact dealer for all available
optional hood accessories
Accent Light Kit
Optional light kit that installs in top of firebox to
enhance logset. Operates with a Rheostat control to
vary brightness of light for desired effect.
LK2
ACCESSORIES

24117-0-0508Page 18
Extended 4" Hoods Extended hoods that extend out 2" farther than the stan-
dard hoods, to accommodate thicker surround materials.
Available as optional kits in Black, Brass, Hammered
Pewter, and Stainless Steel finishes.
Note: Not available for Peninsula open ends.
Contact dealer for all available
optional hood accessories
Louvers
Styles include Slat, Mission, Arch, and Leaf Patterns.
Available as optional kits in Black, Brass, Hammered
Pewter, and Stainless Steel finishes.
Contact dealer for all available
optional louver accessories
Decorative Door Kits Available as optional kits in Black, Brass, Hammered
Pewter, and Stainless Steel finishes.
Contact dealer for all available
optional frame kit accessories
Decorative Frame Kits Available as optional kits in Black, Brass, Hammered
Pewter, and Stainless Steel finishes.
Contact dealer for all available
optional decorative door kit
accessories
Mantel Systems Available in various styles and finishes. Contact dealer for all available
mantel options.
Flush Panel Kits
Flush panel kits may be used to replace louvered panels
as desired for the See-Through and Peninsula firebox
models.
Available in black only.
FPK22 (For Peninsula open end)
FPK36 (For See-Through and
Peninsula front openings)
ACCESSORIES (continued)
Parts can be ordered through your service person or dealer. For best results, the service person or dealer should order parts through the distributor.
Parts can be shipped directly to the service person/dealer.
All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number from the name plate on your equipment.
Then determine the Part Number (not the Index Number) and the Description of each part from the following appropriate illustration and list. Be sure
to give all this information.
Firebox Model Number Part Description
Firebox Serial Number Part Number
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, fires and all causes beyond our control.
HOW TO ORDER REPAIR PARTS

24117-0-0508 Page 19
Web Site: www.empirecomfort.com
The Breckenridge Premium Vent-Free
Universal Fireboxes
SEE-THROUGH FIREBOX MODELS:
VFP36SB2EL-1
VFP36SB2EF-1
PENINSULA FIREBOX MODELS:
VFP36PB2EL-1
VFP36PB2EF-1
Empire Comfort Systems
918 Freeburg Avenue
Belleville, Illinois 62220-2623
GAS-FIRED
LOUVERED PANELS FLUSH PANELS
VFP36SB VFP36PB VFP36SB VFP36PB
A38 1/8" 38 1/8" 38 1/8" 38 1/8"
B39" 39" 39" 39"
C24" 24" 24" 24"
D25 1/2" 25 1/2" 25 1/2" 25 1/2"
E36" 36" 36" 36"
F34 1/4" 35 1/4" 34 1/4" 35 1/4"
G29 1/8" 29 1/8" 29 1/8" 29 1/8"
H41 1/8" 41 1/8" 41 1/8" 41 1/8"
I1 1/4" 1 1/4" 1 1/4" 1 1/4"
J6 1/8" 6 1/8" 6 1/8" 6 1/8"
K8 1/2" 8 1/2" 8 1/2" 8 1/2"
L6" 6" 6" 6"
M27 5/8" 27 5/8" 27 5/8" 27 5/8"
N36 7/8" 36 7/8" 36 7/8" 36 7/8"
SEE THRU
LOUVERED
OR
FLUSH
PENINSULA
LOUVERED
OR
FLUSH
H
B
C
A
N
E
M
J
D
F
G
H
B
A
N
E
M
J
D
I
2 9/16”
2 9/16”
K
L
K
L
F
I
2 9/16”
36-inch Firebox accomodates the following Log Sets:
Refractory Log Set: LSU-18RR, LSU-24RR, LSU-30RR
Ceramic Fiber Log Set: LSU-18SF, LSU-24SF, LSU-30SF
Banded Brick Liners are made from Ceramic Fiber for rich detail and lasting beauty. Banded Brick
Liners have dark "creamed-coffee" bricks with charcoal mortar in running bond courses, plus an
accent band of diagonal bricks.

24117-0-0508Page 20
Web Site: www.empirecomfort.com
The Breckenridge Premium Vent-Free Universal Fireboxes
SEE-THROUGH FIREBOX MODELS: PENINSULA FIREBOX MODELS:
VFP36SB2EL-1 VFP36PB2EL-1
VFP36SB2EF-1 VFP36PB2EF-1
Empire Comfort Systems
918 Freeburg Avenue
Belleville, Illinois 62220-2623
Mantel Clearances with Standard Hood
MANTEL
STANDARD
HOOD
17 ½”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOP OF HOOD)
4 ½”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
8”
6 ½”
5”
3 ½”
1 ½”
0”
6 ½”
9”
11”
13”
15”
Mantel Clearances with Optional Extended Hood
MANTEL
13”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOP OF HOOD)
8”
MIN.
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
22”
8”
20”
6 ½”
18”
5”
16”
3 ½”
14 ½”
2 ½”
24 ½”
0”
FIREBOX
FACE
EXTENDED HOOD
(VB4H SERIES)
(NOT AVAILABLE ON
PENINSULA OPEN END)
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
Combustible material clearance from front of firebox: 36" minimum
Sidewall Clearances: The clearance from the inside of the firebox to perpendicular combustible side wall should not be less than 1 3/4".
Firebox Side and Back Clearances: The firebox outer casing side(s) require a minimum 1/2" clearance to combustibles.
Top Framing and Finishing: Combustible framing may rest on top of standoffs. Combustible finishing materials may extend to the top standoff screws on the
front edge of the top outer wrap.
Ceiling Clearances: The ceiling height should not be less than 42" from the top of the hood.
Mantel Clearances: Vent free firebox models must use the hood supplied with the firebox, or one of the optional hood kits available for each model. If a com-
bustible mantel is installed, it must meet the clearance requirements detailed below.
Grate Clearance: The minimum clearance between the front legs of the grate and the front edges of the firebox is 1 1/2".
Clearances
