Empire Comfort Systems DVCT35CBN95 Planning guide

Page 1
DIRECT VENT
GAS FIREPLACE HEATER
FIREPLACE
INSERT MODELS
DVCT(30,35)CBN95(N,P)-1
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
This replace is design
certied in accordance
with American National
Standard/CSA Standard
ANSI Z21.88/CSA 2.33
and by Underwriters
Laboratories as a Direct
Vent Gas Fireplace
Heater and shall be
installed according to
these instructions.
GAS-FIRED
UL FILE NO. MH30033
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
This appliance may be installed into a listed
wood-burning replace in an aftermarket,
permanently located, manufactured home
(USA only) or mobile home, where not
prohibited by state or local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
DANGER
HOMEOWNER’S MANUAL
38101

38101-1-0318Page 2
TABLE OF CONTENTS
Combustible Material .................................................................................................................................. 2
Homeowner Reference Information ............................................................................................................ 2
Multifunction Remote Operating Instructions ......................................................................................... 3 - 9
Seasonal Shutdown .................................................................................................................................... 9
Intermittent Pilot Lighting Instructions ....................................................................................................... 10
Maintenance And Service .................................................................................................................. 11 - 12
Important Safety Information .................................................................................................................... 13
Safety Information For Users Of Propane Gas ......................................................................................... 14
Requirements For Massachusetts ............................................................................................................ 15
Warranty ................................................................................................................................................... 16
SECTION PAGE
COMBUSTIBLE MATERIAL
WARNING
Do not attach combustible material above your replace.
This is a re hazard. No greeting card, stockings or
ornamentation of any type should be placed on or attached
to the replace. This is a heating appliance. The ow of heat
can ignite combustibles.
Figure 1
GENERIC MODEL SHOWN
Television Considerations
Installing a television above a replace has become increasingly
popular; however, the areas above any replace gets hot and most
TV manufacturers recommend against placing their products near
a heat source.
If you install a television above this replace insert, Empire Comfort
Systems accepts no responsibility for damage or injuries. Follow
the television manufacturers installation instructions, including
any recommendations regarding proximity to heat sources.
If your have a TV above your replace turn off the replace and
let it cool completely before servicing or touching any buttons on
the TV.
We recommend that you record the following information about your replace.
Model Number: _____________________________ Date purchased: ________________________
Serial Number: _____________________________ Location of replace: _____________________
Dealer Name: ______________________________ Dealer Phone: _________________________
Notes: ______________________________________________________________________________
HOMEOWNER REFERENCE INFORMATION

38101-1-0318 Page 3

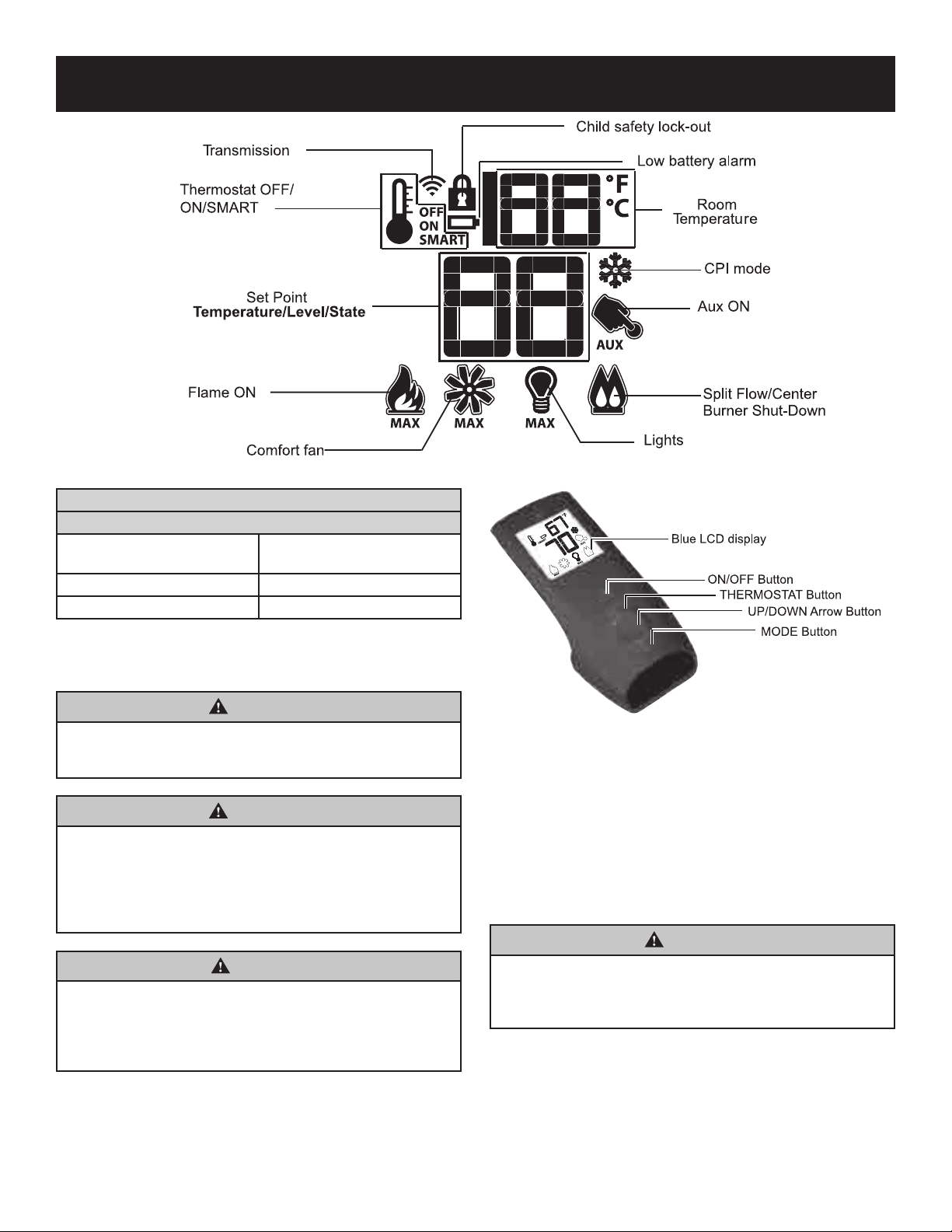

MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
TECHNICAL DATA
Remote Control
Supply voltage 4.5 V (three 1.5 V
AAA batteries)
Ambient temperature ratings 0-50°C (32 - 122°F)
Radio frequency 315 MHz
NOTICE: The transmitter and receiver are radio frequency
devices. Placing the receiver in or near metal may severely reduce
the signal range.
WARNING
Turn “OFF” the main gas supply and electrical supply to
the appliance during installation and/or maintenance of the
receiver device.
WARNING
FIRE HAZARD.
Can cause severe injury or death. The receiver causes
ignition of the appliance. the appliance can turn on
suddenly. Keep away from the appliance burner when
operating the remote system or activating manual bypass
of the remote system.
CAUTION
PROPERTY DAMAGE HAZARD.
Excessive heat can cause property damage. The appliance
can stay lit for many hours. Turn off the appliance if it is
not going to be attended for any length of time. Always
place the transmitter where children can not reach it.
Figure 2
Figure 3
NOTICE: This control system includes a Battery Back-up pack
that allows the Fireplace to operate in the event of a power outage.
NOTICE: The Accent Light will not operate during a power outage.
NOTICE: Replace all Batteries at least once each year, preferably
before at the beginning of the season.
CAUTION
FIRE OR EXPLOSION HAZARD.
Can cause property damage, sever injury or death. Do not
attempt to take apart the gas control or to clean it. Improper
assembly and cleaning can cause unreliable operation.

38101-1-0318Page 4
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS

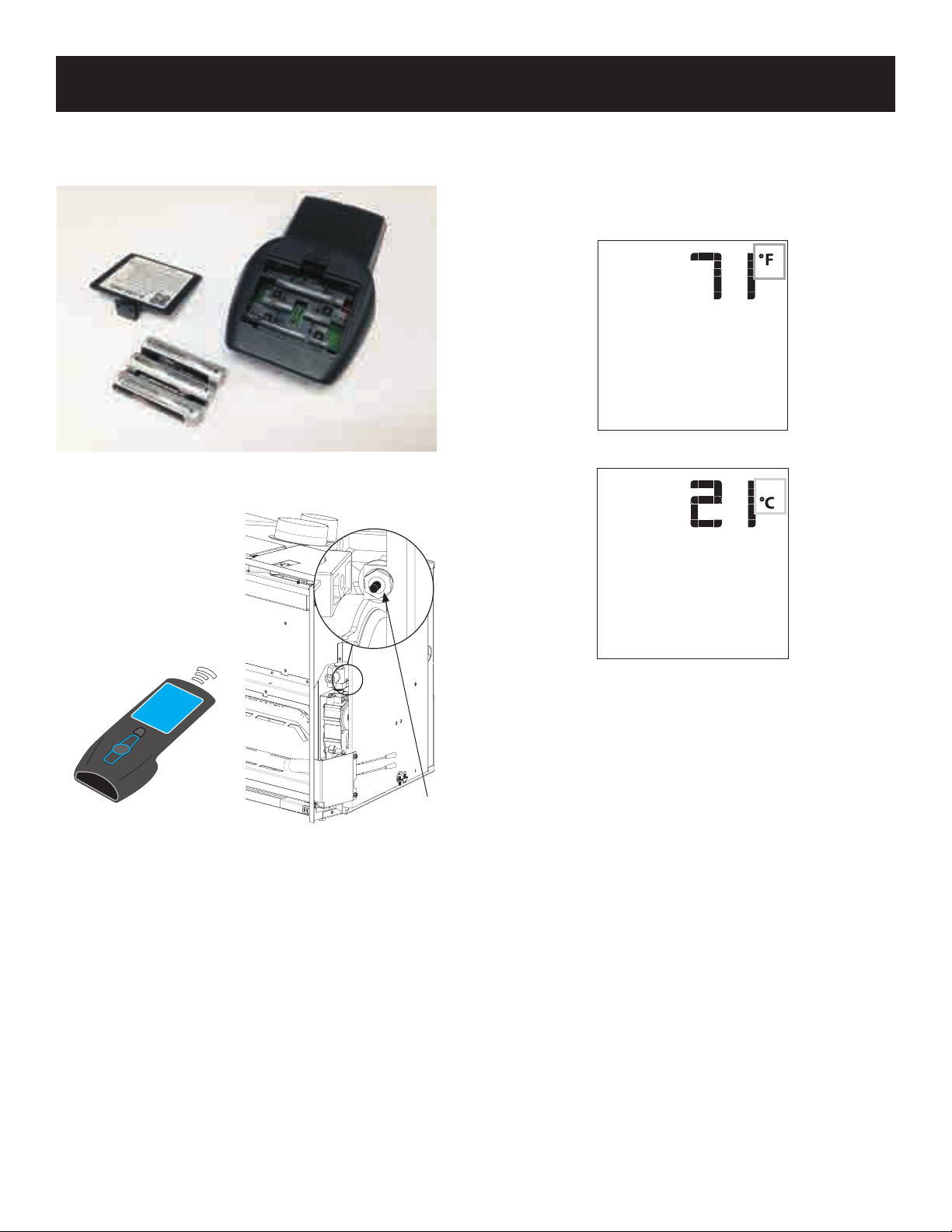

Initializing the System
1. Install three AAA batteries into the battery bay located on the
base of the transmitter. See Figure 4.
Figure 4
2. Push the sync button to the right of the insert. See Figure 5.
Figure 5
3. With the batteries already installed in the transmitter, push the
ON button. See Figure 3. The receiver will “beep” four times
to indicate the transmitter’s command is accepted and sets
to the particular code of that transmitter. The system is now
initialized.
Temperature Indication Display °C or °F
With the system in the “OFF” position, press the Thermostat
Button and the Mode Button at the same time. Look at the LCD
screen on the transmitter to verify that a °C or °F is visible to the
right of the Room Temperature display. See Figures 6 and 7.
Figure 6
Figure 7
SYNC
BUTTON

38101-1-0318 Page 5
Turn On the Appliance
With the system OFF, press the ON/OFF Button on the Transmit-
ter. The Transmitter display will show some other active Icons on
the screen. At the same time the Receiver will activate the appli-
ance. A single “beep” from the Receiver will conrm reception of
the command.
Turn OFF the Appliance
With the system ON, press the ON/OFF Button on the Transmit-
ter. The Transmitter LCD display will only show the room tem-
perature. See Figure 8. At the same time the Receiver will turn
off the appliance. A single “beep” from the Receiver conrms
reception of the command.
Remote Control Display - Figure 8
Remote Flame Control
The Proame has six ame levels. With the system on, and the
ame level at the maximum in the appliance, pressing the Down
Arrow Button once will reduce the ame height by one step until
the ame is turned off.
The Up Arrow Button will increase the ame height each time it
is pressed. If the Up Arrow Button is pressed while the system is
on but the ame is off, the ame will come on in the high position.
See Figures 9 through 12. A single “beep” will conrm reception
of the command.
OFF
Flame Off - Figure 9
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
OFF
Flame Level 1 - Figure 10
OFF
Flame Level 5 - Figure 11
OFF
Flame Level Maximum - Figure 12.

38101-1-0318Page 6
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The
thermostat can be set to a desired temperature to control the
comfort level in a room. To activate this function, press the
Thermostat Button (Figure 3). The LCD display on the Transmit-
ter will change to show that the room thermostat is “ON” and the
set temperature is now displayed. See Figure 13. To adjust the
set temperature, press the Up or Down Arrow Buttons until the
desired set temperature is displayed on the LCD screen of the
Transmitter. See Figure 14.
SET TEMPERATURE
ROOM TEMPER ATURE
Figure 13
Figure 14
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in ac-
cordance to the difference between the set point temperature
and the actual room temperatures. As the room temperature gets
closer to the set point the Smart Function will modulate the ame
down. To activate this function, press the Thermostat Button until
the word “SMART” appears to the right of the temperature bulb
graphic. See Figure 15. To adjust the set temperature, press the
Up or Down Arrow Buttons until the desired set temperature is
displayed on the LCD screen of the Transmitter. See Figure 16.
NOTICE: When Smart Thermostat is activated, manual ame
height adjustment is disabled.
Figure 15
Figure 16
Blower Control (Fan)
If the appliance is equipped with a hot air circulating fan, the
speed of the fan can be controlled by the Proame system. The
fan speed can be adjusted through six speeds. To activate this
function, use the Mode Button (Figure 3) to index the fan control
icon. See Figure 17. Use the Up/Down Arrow Buttons (Figure
56) to turn on off or adjust the fan speed. See Figure 18. A single
“beep” will conrm reception of the command.
OFF
Figure 17
OFF
Figure 18

38101-1-0318 Page 7

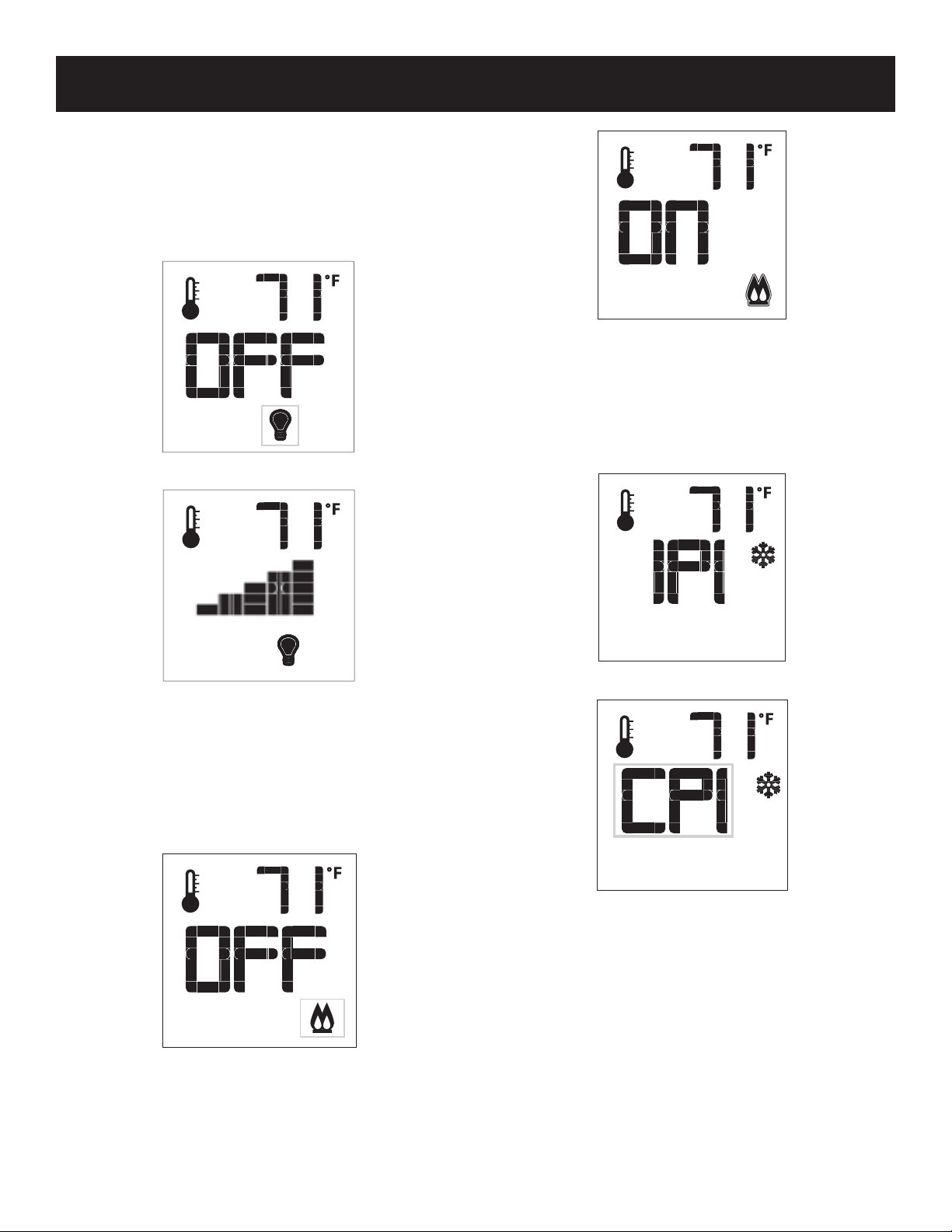

Remote Dimmer Control (Light)
To activate the light, use the Mode Button (Figure 3)
to index to the light icon. See Figures 19 and 20.
The intensity of the output can be adjusted through six levels.
Use the Up/Down Arrow Buttons (Figure 3) to adjust the output
level. A single “beep” will conrm reception of the command.
NOTICE: This function is available only with the IFC control Module.
OFF
Figure 19
OFF
Figure 20
Split Flow Control
The secondary burner is controlled by the split Flow. To activate
this function use the Mode Button (Figure 3) to index to the SPLIT
FLOW mode icon. See Figures 21 and 22.
Pressing the Up Arrow Button will activate the secondary burner.
Pressing the Down Arrow Button will turn off the secondary
burner. A single “beep” will conrm the reception of the command.
OFF
Figure 21
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
OFF
Figure 22
Continuous Pilot/Intermittent Pilot (CPI/IPI) Selection
With the system in “OFF” position press the Mode Button
(Figure 3) to index to the CPI mode icon. See Figures 25
and 26. Pressing the Up Arrow Button will activate the CPI.
Pressing the Down Arrow Button will return to IPI. A single “beep”
will conrm the reception of the command.
OFF
Figure 25
OFF
Figure 26

38101-1-0318Page 8
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
Button Lock
T his function will lock the Buttons to avoid unsupervised operation.
To ac tivate this function, press the MODE and UP Buttons at the
same time. See Figure 27.
To deactivate this function, press the MODE and UP Buttons at
the same time.
OFF
Figure 27
Low Battery Power Detection - Transmitter
The life span of the remote control batteries depends on various
factors: quality of the batteries used, the number of ignitions of
the appliance, the number of changes to the room thermostat set
point, etc.
When the transmitter batteries are low, an Icon will appear on
the LCD display of the transmitter See Figure 28 before all
battery power is lost. When the batteries are replaced this Icon
will disappear.
OFF
Figure 28

38101-1-0318 Page 9
When the IFC board goes into lockout:
1. both the Pilot and the Main Burner solenoids in the gas valve
are de-energized;
2. a diagnostic code is sent through the diagnostic red LED.
3. the IFC board will ignore any burner ignition command and
remain in the OFF state unless the unlock command se-
quence is met.
The causes of lockout must be investigated under safe
conditions by the user and/or the service personnel.
To reset the IFC from a lockout state, perform the following
procedure:
• Turn off the system power supplies (to the wall control or
remote control) for two or three seconds and then restore
power.
• Attempt to operate the insert. If the system returns to a
lockout state, contact your dealer for a service call.
Battery Backup Operation
Install batteries (See initialization sequence on page 4 or 11).
In case of power loss, the replace will switch to battery mode
automatically. The replace will operate normally without the fan
or light control when in battery mode.
Low Battery Detection
When the backup batteries are low, a double-beep will be emitted
when the module receives an on/off command. No commands
will be accepted until the batteries are replaced or the A/C power
is restored.
Lockout State Denition
A lockout state is reached when an ignition error occurs. This
could mean both an irregular ame detection and/or too many
unsuccessful ignition attempts. This state is a safe condition for
the appliance and is entered automatically by the IFC board.
The lockout state will remain set in memory as long as the power
supplies are applied.
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS
SEASONAL SHUTDOWN
1. At the end of the heating season turn off the replace insert
to prevent accidentall starting. Remove the barrier screen
and locate the switch at the lower right corner. Push the
switch to the OFF position. See Figure 29. Replace the
barrier screen.
SEASONAL ON/OFF
SWITCH LOCATION
Figure 29
2. Turn off gas to replace using the external shutoff valve (not
provided with insert). See page 10.
3. Remove the batteries from the transmitter and battery
backup. Purchase fresh batteries before the start of the next
heating season. See page 11.

38101-1-0318Page 10
FOR YOUR SAFETY READ BEFORE LIGHTING
1. Turn off all electric power to the appliance if service is to be
performed (if applicable).
2. Turn gas shut-off valve to “OFF” position.
TO TURN OFF GAS TO FIREPLACE
A. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot
by hand, use the remote control. Before lighting the pilot,
ensure that the master switch is on. When lighting the pilot,
follow these instructions exactly.
B. Before lighting smell all around the appliance area for gas.
Be sure to smell next to the oor because some gas is
heavier than air and will settle on the oor.
What To Do If You Smell Gas
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only the remote control or manual remote receiver
switch to operate the gas valve. Never use tools. If valve
does not operate, don’t try to repair it, call a qualied service
technician. Force or attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
INTERMITTENT PILOT LIGHTING INSTRUCTIONS
WARNING
If you do not follow these instructions exactly, a re or explosion may result causing property damage,
personal injury or loss of life.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Turn OFF electric power to the appliance.
3. Remove front surround panel assembly or bottom louver if
included.
4. Turn gas shut-off valve counterclockwise to “On”
position.
5. Wait ten minutes to clear out any gas. Then smell for gas,
including near the oor. If you smell gas, STOP! Follow “B”
in the safety information above on this page. If you do not
smell gas, go to the next step.
6. Turn ON electric power to the appliance.
7. Turn main ame to on. If the pilot does not light within 60
seconds, stop and go to Step 5.
8. If the burner or pilot does not operate properly after several
tries, turn the gas shut-off valve clockwise to
“OFF” and call your service technician or gas supplier.
9. Replace the front surround assembly or close bottom louver
assembly (if applicable).
10. Operation of the gas valve is controlled by a manual on/
off switch or a hand held remote control. Refer to remote
instructions for detailed operation information.
GAS SHUT-OFF VALVE

38101-1-0318 Page 11
NOTICE: It is normal for steel appliances to make expansion/
contraction noises as they heat up or cool down. Similar noises
are found with your furnace or car engine.
It is normal for your gas replace to give off some odor the rst
time it is burned. This is due to the curing of the paint and any
oil from the manufacturing process. If odor becomes offensive,
open windows.
Burn the replace for at least six hours the rst time you use
it. Keep the fan in the “OFF” mode during this time.
NOTICE: Turn off the gas before servicing appliance.
Have a qualied service person perform the following
(inspections) at the beginning of each heating season:
• Check Vent System
Inspect the replace and venting system before initial use and
at least annually. Inspect the external vent cap on a regular
basis to make sure no debris is interferes with the air ow.
• Clean Burner and Control Compartment
Keep the control compartment, logs, and burner areas surrounding
the logs clean by vacuuming or brushing at least twice a year.
• Cleaning Procedure
1. Turn off pilot light using your remote. Allow the replace
to cool completely.
2. Remove barrier screen and glass front. See page 12.
3. Remove all logs and coals. Place them in a safe location.
4. Vacuum burner compartment.
5. Replace glowing embers, logs, and coals.
6. Re-install glass front and barrier screen.
7. Ignite pilot. See page 10.
8. Operate the pilot burner. If it appears abnormal contact
your dealer for service.
Cleaning the Glass
Clean the glass periodically. We recommend gas replace glass
cleaner. During start-up, condensation forms on the inside of the
glass causing lint, dust and other airborne particles to cling to the
glass. Also initial paint curing may deposit a lm on the glass. Allow
the replace to cool and then clean the glass two or three times with
gas replace glass cleaner or a non-abrasive household cleaner
and warm water. After that, clean the glass two or three times during
each heating season or more often if necessary.
WARNING
Clean glass with cleaner designed for replaces.
Do not use Ammonia based or abrasive cleaners on glass.
Do not attempt to clean glass when glass is hot.
Wiring
If any of the original wire supplied with this unit must be replaced,
order from an Empire dealer.

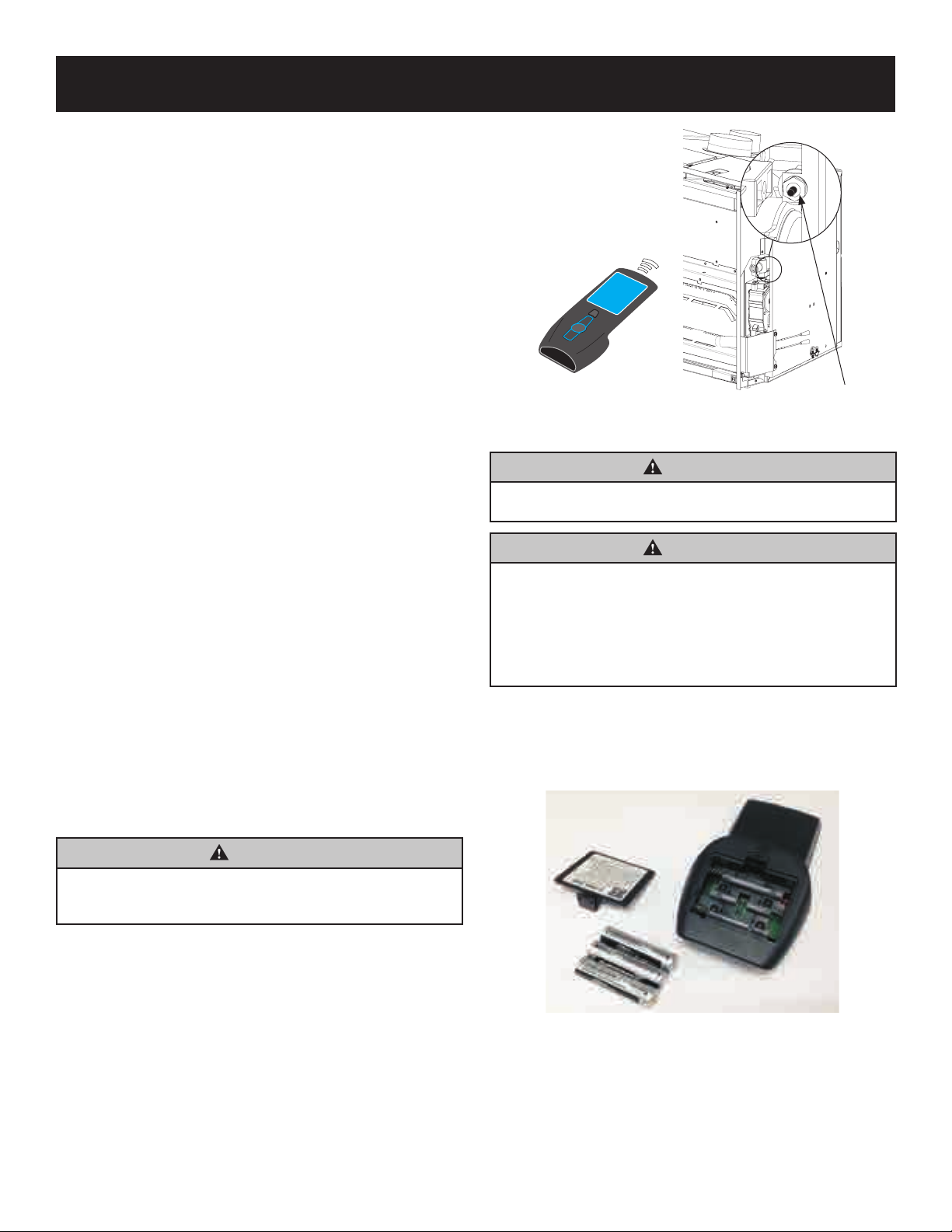

Restore Communication Between Remote Transmitter
and Fireplace Insert
1. Press remote sync button to the right of the insert.
See Figure 30.
2. Press the ON button on remote transmitter. An audible
four beeps will be heard.
Figure 30
Glass - General Information
WARNING
Do not operate appliance with the glass front removed,
cracked, or broken.
WARNING
1. Avoid breaking the glass.
2. Do not operate this appliance without the glass front
or with a broken glass front. Have a qualied service
person replace damaged glass and gasket using materials
specied by Empire Comfort Systems.
3. Do not abuse or strike the glass.
4. The use of substitute glass will void all product warranties.
Replace Batteries In Remote Transmitter
1. Locate the cover on the base of the remote transmitter.
2. Remove the cover and replace existing batteries with three
AAA batteries .
3. Replace cover. See Figure 31.
Figure 31
Replace Batteries In Backup Pack
Remove glass front and barrier screen (see glass and barrier
screen removal). Locate backup pack on right side of insert. Pull
it up to get access to its cover. Using Phillips head screwdriver
remove cover and existing batteries. Replace with four AA
batteries. Reinstall cover and tighten screw with screwdriver.
MAINTENANCE AND SERVICE
SYNC
BUTTON

38101-1-0318Page 12
MAINTENANCE AND SERVICE
Barrier & Glass Removal
1. Lift barrier screen and pull towards you.
2. Use the Glass Latch Tool to grip the latch bar and pry it over
the Glass Frame hook anges. Tilt the Glass Frame towards
you and pull upwards to remove it from the unit. See Figures
32 and 33.
CAUTION
Ensure that the latch tool is completely hooked around the
latch before trying to disengage the clips. Glass clips are
tightly sprung. If the latch tool slips off of the latch while
pulling, injury may occur.
Figure 32
Figure 33
Light Bulb(s) Replacement
1. Remove the following items:
• barrier screen
• glass frame assembly
This unit comes standard with a light that is attached to the roof of
the replace. To access the light bulb you will remove the following
items by removing four screws. See Figure 34.
• metal bezel
• glass
• gasket
NOTICE: Use gloves when handling light bulb, oils on your hand
will diminish the lifespan of the light bulb.
2. Remove old light bulb and replace with new one.
See Figure 35.
NOTICE: You may order light bulbs from your local Empire dealer
or purchase them from your local hardware store.
LIGHT BULB SPECIFICATIONS
35w Clear Halogen, Bi-Pin 6.35mm base,120vac, UL
Figure 34
Figure 35

38101-1-0318 Page 13
IMPORTANT SAFETY INFORMATION
For the Homeowner
• This replace must be installed and serviced by your dealer
or a qualied service technician. Other than cleaning the
glass and replacing the light bulbs, there are no user-
serviceable components.
• Keep the area around the replace clean and free of debris.
This replace requires an unimpeded ow of air to circulate
warm air. Do not place objects on or around the replace that
may restrict air ow.
• Keep the area around the replace free of combustible
materials – including drapery, upholstered furniture, paper,
boxes, and clothing. Never hang stockings or cards above
the replace.
• Never operate the replace with the glass front removed or
damaged. Any part removed for cleaning or servicing must
be replaced prior to operating the replace.
• The replace gets hot during operation and may remain hot
for an hour after use. When operated by thermostat, the
replace will turn on and off automatically.
• This replace may become hot enough to burn skin and
ignite clothing after prolonged contact. To prevent injury, alert
people in your home – especially children – to the hazards of
high surface temperatures and warn them to stay away from
the replace.
• Supervise children whenever the replace is hot. Young
children and others may be susceptible to accidental
contract burns. Have your dealer install a physical barrier if
there are at-risk individuals in your home. To restrict access
to a replace or stove, install an adjustable safety gate to
keep toddlers, young children, and other at-risk individuals
out of the room and away from hot surfaces.
• The vent cap, located on the outside of your home, will also
become very hot. Alert everyone, adults and children, to stay
clear and avoid touching the vent cap. Keep the area around
the vent cap clear of combustibles, including shrubs and trees.
• Do not use this replace if any part has been underwater.
Have a qualied technician inspect the replace and replace
any part that has been underwater. In the event of a natural
disaster (tornado, earthquake, re, etc.) have a qualied
technician inspect the replace for damage or potential gas
leaks. Repair or replace any damaged components before
operating this replace.
• Never burn solid fuels such as wood, coal, paper or
cardboard in this replace.
Annual Inspection
• Have the replace inspected annually before use.
• More frequent inspection and cleaning may be required if the
replace is installed in an area exposed to pet hair or dust,
or to excessive lint from new carpeting or bedding materials.
During the annual checkup, the technician will:
• Inspect the pilot (ame safety system) and burner(s) for
proper operation and replace any damaged parts.
• Check the glass and gasket for proper seal.
• Vacuum and clean any foreign debris in the rebox that is
not supposed to be there.
• Clean Glass with a suitable replace glass cleaner. Abrasive
cleaners must not be used. Be careful not to scratch the
glass when cleaning.
• Check the barrier screen for t and structural integrity. See
Figure 32.
• Check all latches or other door retention components for
proper operation, tension, and relief mechanisms are free
from obstructions. See Figure 33.
• Inspect the log set (if applicable) and decorative media (if
applicable) for debris or damage.
• Freshen up the glowing embers if applicable.
• Replace batteries in the remote transmitter and receiver if
applicable.
• Inspect the venting and vent termination cap for damage,
corrosion, sooting, or obstruction and correct if present.
• Inaddition,cleanandinspectthereplacefollowingany
remodelingworkinyourhome.

38101-1-0318Page 14
SAFETY INFORMATION FOR USERS OF PROPANE GAS
Propane is a ammable gas which can cause res and
explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety
precautions which can protect both you and your
family from an accident. Read them carefully now, then
review them point by point with the members of your
household. Someday when there may not be a minute to
lose, everyone’s safety will depend on knowing exactly
what to do. If, after reading the following information,
you feel you still need more information, please contact
your gas supplier.
PROPANE GAS WARNING ODOR
If a gas leak happens, you should be able to smell the
gas because of the odorant put in the Propane Gas.
That’s your signal to go into immediate action!
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area.
Do that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• Propane Gas is heavier than air and may settle in low
areas such as basements. When you have reason to
suspect a gas leak, keep out of basements and other
low areas. Stay out until reghters declare them to be
safe.
• Use your neighbor’s phone and call a trained Propane
Gas service person and the re department. Even though
you may not continue to smell gas, do not turn on the
gas again. Do not re-enter the building, vehicle, trailer,
or area.
•Finally, let the service man and reghters check for
escaped gas. Have them air out the area before you
return. Properly trained Propane Gas service people
should repair the leak, then check and relight the gas
appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot
smell the odor of the chemical put into the gas. You
must nd out if you can smell the odorant in propane.
Smoking can decrease your ability to smell. Being around an
odor for a time can affect your sensitivity or ability to detect
that odor. Sometimes other odors in the area mask the gas
odor. People may not smell the gas odor or their minds are
on something else. Thinking about smelling a gas odor can
make it easier to smell.
The odorant in Propane Gas is colorless, and it can fade
under some circumstances. For example, if there is an
underground leak, the movement of the gas through soil can
lter the odorant. Odorants in Propane Gas also are subject
to oxidation. This fading can occur if there is rust inside the
storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or
into walls, masonry and other materials and fabrics in a room.
That will take some of the odorant out of the gas, reducing
its odor intensity.
Propane Gas may stratify in a closed area, and the odor
intensity could vary at different levels. Since it is heavier than
air, there may be more odor at lower levels. Always be sensitive
to the slightest gas odor. If you detect any odor, treat it as a
serious leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
•Learn to recognize the odor of Propane Gas. Your
local Propane Gas Dealer can give you a “Scratch and
Sniff” pamphlet. Use it to nd out what the propane odor
smells like. If you suspect that your Propane Gas has a
weak or abnormal odor, call your Propane Gas Dealer.
• If you are not qualied, do not light pilot lights, perform
service, or make adjustments to appliances on the
Propane Gas system. If you are qualied, consciously think
about the odor of Propane Gas prior to and while lighting
pilot lights or performing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the Propane Gas odor. Do not try
to light pilot lights, perform service, or make adjustments
in an area where the conditions are such that you may not
detect the odor if there has been a leak of Propane Gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks
or cylinders are placed in service. Odor fade can occur
in new tanks, or reinstalled old tanks, if they are lled
and allowed to set too long before relling. Cylinders
and tanks which have been out of service for a time
may develop internal rust which will cause odor fade. If
such conditions are suspected to exist, a periodic sniff
test of the gas is advisable. If you have any question
about the gas odor, call your Propane Gas Dealer.
Aperiodic sniff test of the Propane Gas is a good
safety measure under any condition.
• If, at any time, you do not smell the Propane Gas odorant
and you think you should, assume you have a leak. Then
take the same immediate action recommended above for
the occasion when you do detect the odorized Propane Gas.
• If you experience a complete “gas out,” (the container
is under no vapor pressure), turn the tank valve off
immediately. If the container valve is left on, the container
may draw in some air through openings such as pilot light
orices. If this occurs, some new internal rusting could
occur. If the valve is left open, then treat the container
as a new tank. Always be sure your container is under
vapor pressure by turning it off at the container before
it goes completely empty or having it relled before it is
completely empty.

38101-1-0318 Page 15
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven feet
above nished grade in the area of the venting, including
but not limited to decks and porches, the following
requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side
wall horizontal vented gas fueled equipment, the
installing plumber or gastter shall observe that a hard
wired carbon monoxide detector with an alarm and
battery back-up is installed on the oor level where
the gas equipment is to be installed. In addition,
the installing plumber or gastter shall observe that
a battery operated or hard wired carbon monoxide
detector with an alarm is installed on each additional
level of the dwelling, building or structure served by
the side wall horizontal vented gas fueled equipment.
It shall be the responsibility of the property owner to
secure the services of qualied licensed professionals
for the installation of hard wired carbon monoxide
detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space
or an attic, the hard wired carbon monoxide
detector with alarm and battery back-up may be
installed on the next adjacent oor level.
b. In the event that the requirements of this
subdivision can not be met at the time of
completion of installation, the owner shall have
a period of thirty days to comply with the above
requirements; provided, however, that during
said thirty day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and be ANSI/UL 2034 listed and IAS
certied.
3. SIGNAGE. A metal or plastic identication plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight feet above grade
directly in line with the exhaust vent terminal for the
horizontally vented gas fueled heating replace or
equipment. The sign shall read, in print size no less
than 1/2 inch in size, “GAS VENT DIRECTLY BELOW.
KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a) 1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or
structure separate from the dwelling, building
or structure used in whole or in part for
residential purposes.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT
PROVIDED. When the manufacturer of a Product
Approved side wall horizontally vented gas fueled
equipment does not provide the parts for venting
the ue gases, but identies “special venting
systems”, the following requirements shall be
satised by the manufacturer:
1. The referenced “special venting system”
instructions shall be included with the replace
or equipment installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions
for that system shall include a parts list and
detailed installation instruction.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the replace or
equipment at the completion of the installation.
REQUIREMENTS FOR MASSACHUSETTS

38101-1-0318Page 16
www.empirecomfort.com
Empire Comfort Systems Inc.
Belleville, IL
If you have a general question
about our products, please e-mail
us at [email protected].
If you have a service or repair
question, please contact your dealer.
WARRANTY
Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods speci-
ed below. Hearth products must be installed by a qualied technician and must be maintained and operated safely, in accordance with
the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. All warranty repairs
must be accomplished by a qualied gas appliance technician.
Limited Lifetime Parts Warranty – Combustion Chamber, Heat Exchanger, and Factory-Installed Glass
If the combustion chamber, heat exchanger (see parts list) or factory-installed glass fails because of defective
workmanship or material, Empire will repair or replace at Empire’s option.
Limited Three-Year Parts Warranty – All Other Components
(Except Remote Controls, Thermostats, Accessories and Replacement Parts)
Should any part fail because of defective workmanship or material within three years from the date of purchase,
Empire will repair or replace at Empire’s option..
Limited One-Year Parts Warranty – Remote Controls, Thermostats, Lighting System, Accessories, and Parts
Should any remote control, thermostat, lighting system, accessory, or other part fail because of defective workmanship
within one year from the date of purchase, Empire will repair or replace at Empire’s option.
Duties of the Owner
The appliance must be installed by a qualied installer and operated in accordance with the instructions furnished
with the appliance.
A bill of sale, canceled check, or payment record should be kept to verify purchase date and establish warranty period.
Ready access to the appliance for service.
What Is Not Covered
Damages that might result from the use, misuse, or improper installation of this appliance.
Travel, diagnostic costs and freight charges on warranted parts to and from the factory.
Claims that do not involve defective workmanship or materials.
Unauthorized service or parts replacements.
Removal and reinstallation cost.
Inoperable due to improper or lack of maintenance.
How To Get Service
To make a claim under this warranty, please have your receipt available and contact your installing dealer. Provide the dealer
with the model number, serial number, type of gas, and purchase verication. The installing dealer is responsible for providing
service and will contact the factory to initiate any warranted parts replacements. Empire will make replacement parts available
at the factory. Shipping expenses are not covered.
If, after contacting your Empire dealer, service received has not been satisfactory, contact: Consumer Relations Department,
Empire Comfort Systems Inc., PO Box 529, Belleville, Illinois 62222, or send an e-mail to [email protected] with
“Consumer Relations” in the subject line.
Your Rights Under State Law
This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state.
