OWL™
Microwave Motion & Infrared Presence Sensor
Instruction Manual
The OWL is a vehicle motion and presence sensor that utilizes microwave and infrared technology to
activate automatic doors and industrial gates. The OWL’s microwave sensor detects moving vehicles, while
the infrared presence sensor can detect vehicles and pedestrians. The sensor features two relay outputs,
one for vehicle motion detection, and the other for presence detection. The OWL features settings for fine-
tuning the presence detection area, direction detection, hold time, and more.
The OWL-RC remote control is required for programming and servicing the OWL.
Cautions and Warnings
Install the OWL according to instructions from the door operator manufacturer. Comply
with all applicable codes and safety regulations.
When drilling, ensure no damage can be caused in desired mounting location, e.g. hidden
wires, waterlines, etc.
Specifications
Mounting Height
11.5-21.3 ft (3.5-6.5 m)
Supply Voltage
12-24 VDC/AC
Max Current Draw
150 mA @ 12 VDC
Operating Temperature
-4 to 140ºF (-20 to 60ºC)
Operating Humidity
Below 80%
Dimensions
9” (229 mm) x 5” (127 mm) x 5” (127 mm)
Connection
32 ft (10 m) 8 conductor cable directly from sensor
Weight
2.87 lbs (1.3 kg)
Environmental Rating
IP65
Vertical Directionality
16-32º wall or ceiling mount
Horizontal Directionality
±10º
Microwave (Vehicle Motion)
Infrared (Presence)
Operating Frequency
24.150 GHz
Detection Range
Depends on sensor height and
housing angle
Max. Range: 23 ft (7 m)
Max. Width: 19.7 ft (6 m)
Depends on sensor height and
housing angle
Max. Range: 18 ft (5.5 m)
Max. Width: 26.2 ft (8 m)
Relay Output
NO or NC (adjustable)
NO or NC (adjustable)
Relay Contact Rating
Max. 48 VDC
Max. 300 mA
Max. 48 VDC
Max. 300 mA
Relay Hold Time
Typ. 500 ms
Presence (30 sec to Infinite, adjustable)
Adjustable Tilt Angle
-10 to 25º

EMX Industries, Inc. Tech Support: 216-518-9889 2/10
OWL_Rev1.0_092220 [email protected]
Ordering Information
•OWL
Vehicle Motion and Presence Sensor, includes 32 ft (10 m) of cable and two
mounting screws
•OWL-RC
Remote control, required for programming the OWL
Components and Indicators
OWL
1. Indicator LEDs
2. Hinge Screw
3. Angle Indicator
4. Mounting Bracket
5. Right Infrared Array
6. Microwave Tilt Adjustment
Screw
7. Left Infrared Array
OWL-RC
1. Setting Select Buttons ( thru )
2. Function Select Buttons ( thru )
3. Command Buttons ( )
1
6
4
3
2
5
7
1
2
3

EMX Industries, Inc. Tech Support: 216-518-9889 3/10
OWL_Rev1.0_092220 [email protected]
Installation
1. Unscrew the Philips-head hinge screws from the left and right side. Remove the sensor from the
mounting bracket.
2. In the desired location, install the mounting bracket at a height between 11.5 and 21.3 ft (3.5 and 6.5
m). Drill 1/8” (3.5 mm) mounting holes as shown in the diagram and attach with the provided screws.
3. Re-attach the sensor to the mounting bracket using the Philips-head hinge screws from Step 1.
Adjust to the desired angle, and tighten the hinge screws until snug.
32º (Far)
16º
(Near)
For ceiling
mount
For wall mount
32º (Far)
16º
(Near)
Far angles will
provide maximum
range
Near angles will
result in minimum
range

EMX Industries, Inc. Tech Support: 216-518-9889 4/10
OWL_Rev1.0_092220 [email protected]
4. Wire the OWL to the door operator per the wiring table below.
Wire Color
Description
Red
Power input + (12 to 24 VDC/VAC)
Black
Power input –(12 to 24 VDC/VAC)
White
Presence relay
Green
Presence relay
Yellow
Vehicle motion relay
Blue
Vehicle motion relay
Gray
Do not connect
Brown
Do not connect
5. Apply power and allow 10 seconds for unit to stabilize. The green LED will be flashing during this time.
Once stabilized (solid green LED), the sensor is operating, and the settings can now be configured.
LED Indicators
Green flashing
Sensor initialization
Green on
Standby
Red on
Presence output activated
Red flashing
Vehicle motion output activated
Yellow
Infrared sensor is detecting door
movement
Green/Red flashing
Internal sensor error
Instructions continue on next page

EMX Industries, Inc. Tech Support: 216-518-9889 5/10
OWL_Rev1.0_092220 [email protected]
Vehicle Motion Detection
The OWL’s microwave sensor will only detect moving vehicles (cars, forklifts, etc.). When a moving vehicle
is detected, it will activate the vehicle motion output relay. If the microwave sensor is detecting people,
lower the microwave sensitivity.
The microwave sensor’s detection area may be changed by adjusting the angle of the sensor
in the bracket, changing the tilt angle of the module inside the sensor, or configuring the
microwave sensitivity setting ( ).
The microwave sensor can also be configured to ignore all cross traffic (vehicles moving parallel to the
door) and departing vehicles (see Programmable Parameters on page 7).
Presence Detection
The OWL uses a pair of 6 x 5 infrared LED arrays to detect the presence of vehicles and people.
When detection occurs, it will activate the presence output relay.
The presence output of the OWL is initially triggered by motion. The amount of motion required to trigger
presence detection is controlled by the infrared sensitivity setting ( ). The higher the setting,
the less motion required to activate the presence detection and output. Once triggered, the output will
remain on until the object(s) being detected leave the detection area, or until the configurable presence
timer has run out (at which time the presence sensor will relearn the environment).
The detection area can be changed by adjusting the angle of the sensor in the bracket, or by configuring
the infrared LED array settings. The farthest rows of the infrared LED array may be turned off sequentially.
The outside columns of the infrared LED array may be turned off in pairs on the left and right side
of the array.
The OWL’s infrared presence sensor can be set to detect vehicles only, ignoring pedestrian traffic
( ). The sensor can distinguish between the two based on the amount of light diffused.
Top-down example of an OWL installation,
demonstrating how
turning off columns and rows affects the infrared
array

EMX Industries, Inc. Tech Support: 216-518-9889 6/10
OWL_Rev1.0_092220 [email protected]
Programming the OWL
1. If a security code has been programmed on the sensor, then it must be entered before settings can
be changed. Unlock the sensor by pressing the button, then entering the four-digit security code,
and press the enter button ( ).
Unlock Sensor
Function
Four-Digit Security Code
Enter
2. To change a setting, point the end of the remote at the sensor, and press the button of the function
to be changed. The green LED on the front of the sensor will turn off, and other LEDs on the front of
the sensor will turn on.
3. Press one of the possible setting value options ( thru ). The green LED on the front of the
sensor will flash the same number of times as the setting selected.
Not all functions use thru as a valid range of setting values. Please see page 7 for
more information.
4. Press the enter button ( ). The green LED on the front of the sensor will flash four times.
Make sure there are no vehicles in the presence detection area when saving a setting.
The sensor’s infrared sensor relearns the environment when a setting is saved. If there is a
vehicle in the presence detection area while it relearns the environment, then the presence
output will lock on when the vehicle moves.
Programming Settings
Function
Setting Value
Sensor Output
Finish
thru
thru
thru
Green LED on front of
sensor will flash 6 times to
confirm
5. Wait for the sensor to save the setting and relearn the environment. Programming is now finished.
TIP:
TIP:

EMX Industries, Inc. Tech Support: 216-518-9889 7/10
OWL_Rev1.0_092220 [email protected]
Programmable Parameters
Setting Value
Button
Configure Relays –Set relay behavior (Presence/Motion)
NO/NO
NO/NC
NC/NO
NC/NC
Direction Detection –Prevents sensor from detecting objects moving away from it
Off
IR and
Microwave
IR
Microwave
Cross Traffic –Prevents sensor from detecting objects moving parallel to the door
Off
IR and
Microwave
IR
Microwave
Microwave Motion Sensitivity –Higher sensitivity increases area of detection
1 (Low)
2
3
4
5
6
7
8
9 (high)
IR Presence Sensitivity –Higher sensitivity lowers threshold of detection
1 (Low)
2
3
4
5
6 (High)
IR Rows –Adjusts which IR LED rows are on (see next page)
1 row
2 rows
3 rows
4 rows
All rows
IR Columns, Left Side –Adjusts which left-side IR columns are on (see next page)
None
2
4
All
IR Columns, Right Side –Adjusts which right-side IR columns are on (see next page)
None
2
4
All
IR Frequency –Change when multiple sensors are installed near each other to prevent interference
A
B
C
D
Presence Timer –Detection time before presence sensor relearns the local environment
30s
1min
2min
5min
10min
20min
1hr
2h
Never
Insect Mode –Reduce false detections from insects and other small objects
Off
On
Snow Mode –Reduces false detections due to snow. When set to Auto, will turn on below 40ºF (4ºC)
Off
Low
Med.
High
Low
Auto
Med.
Auto
High
Auto
Vibration Mode –Reduces false detections due to vibrations
Off
On
IR Detection Target –Configure IR to detect people and vehicles, or vehicles only
People
&
Vehicles
Vehicles
only
Default settings are bolded and colored in
Direction Detection and Cross Traffic functions will not work if any IR rows or columns are turned off
Left/Right columns are relative to the front of the sensor (see next page)

EMX Industries, Inc. Tech Support: 216-518-9889 8/10
OWL_Rev1.0_092220 [email protected]

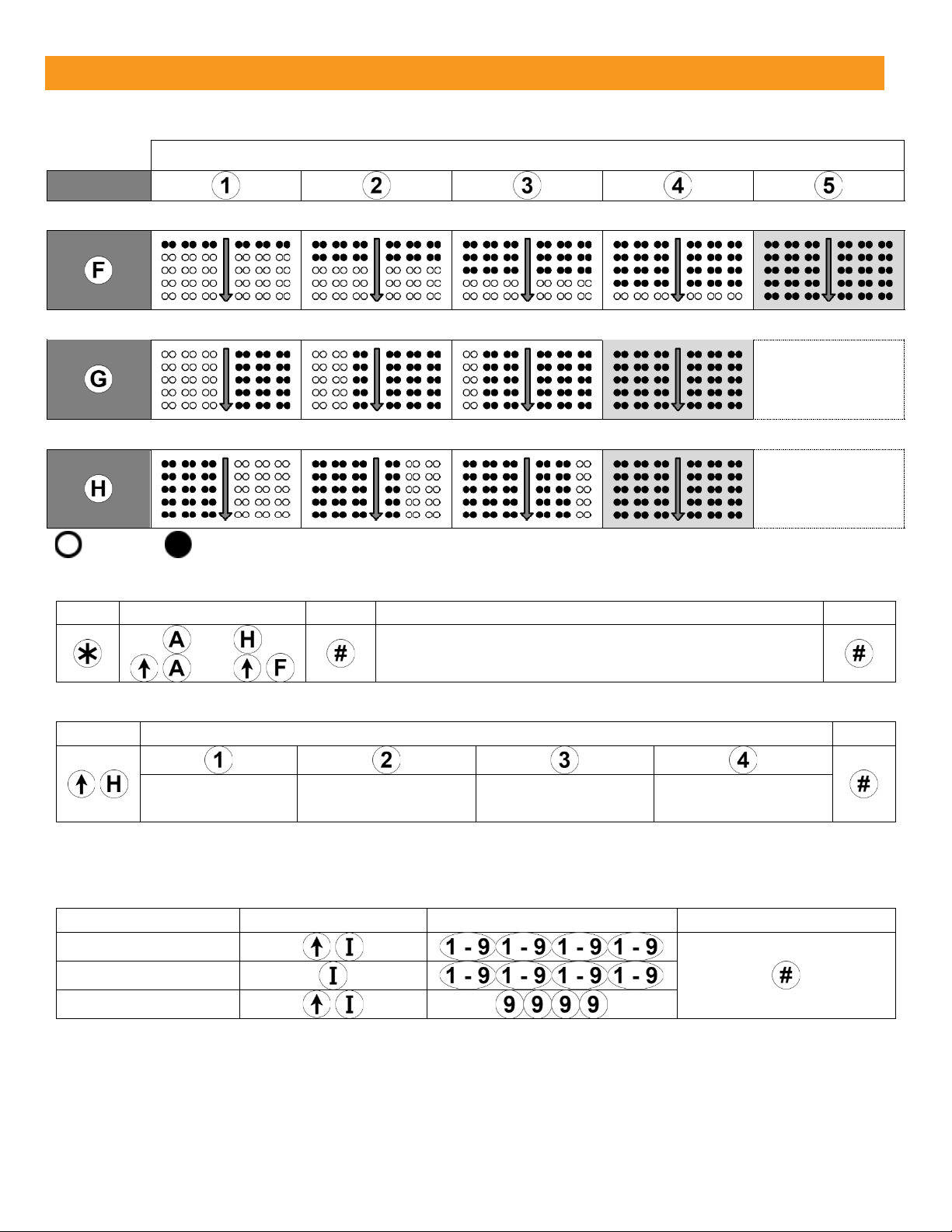

Additional Functions and Information
Details –IR Rows & Columns
Setting Value
Button
IR Rows –Adjusts which IR LED rows are on; turns off rows furthest from sensor first
IR Columns, Left Side –Turn on/off IR columns in pairs
IR Columns, Right Side –Turn on/off IR columns in pairs
= Off
= On
Reading Settings
Start
Desired Function
Enter
Sensor Output
Finish
thru
thru
Green LED on front of sensor will flash 1-9 times,
confirming the function setting value
Maintenance Mode
Start
Options
Enter
Activate output
relays indefinitely
Cancel output
relays activation
Return to factory
settings
Reset sensor
Note:
LEDs on front of sensor will act as below when outputs are turned on using Maintenance Mode
Blue: Solid
Yellow: Off
Red: Flashing
Security Code
Function
Button
Enter 4 Digit Code
Enter Button
Set Security Code
Unlock Sensor
Delete Security Code
Note: When unlocked, settings may be changed for 60 seconds. The timer stops while a setting is
being configured. The timer extends for 60 more seconds after a setting has been entered.
Note: To reset or delete the security code, power cycle the unit. The unit will not require a security code
for 60 seconds after power-up. Use the “Delete Security Code” function above, then set a new security
code.

EMX Industries, Inc. Tech Support: 216-518-9889 9/10
OWL_Rev1.0_092220 [email protected]

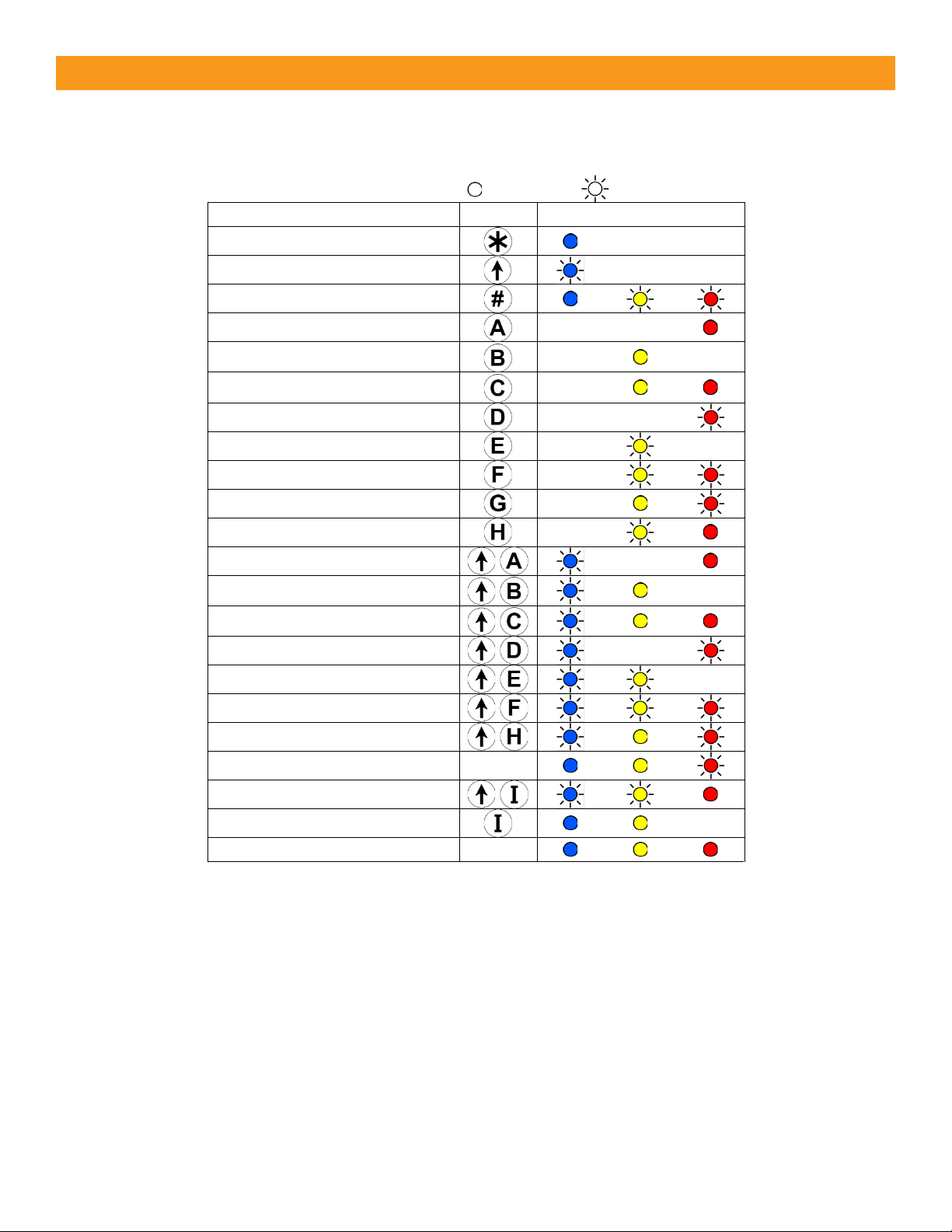

LED Indicators
While programming the sensor, the three indicator LEDs will turn on, off, or flash based on what function
is being configured. Below is a table to show which functions correspond to the states of the three LEDs.
= Solid
= Flashing
Function
Button
Blue
Yellow
Red
Read Setting
Up Arrow Button
Enter
Configure Relays
Direction Detection
Cross Traffic
Microwave Motion Sensitivity
IR Presence Sensitivity
IR Rows
IR Columns, Left Side
IR Columns, Right Side
IR Frequency
Presence Timer
Insect Mode
Snow Mode
Vibration Mode
IR Detection Target
Maintenance Mode
Relays Activated Indefinitely
Setting Security Code
Unlocking Security Code
Security Code Unlocked

EMX Industries, Inc. Tech Support: 216-518-9889 10/10
OWL_Rev1.0_092220 [email protected]
Troubleshooting
Symptom
Possible Cause
Solution
No LEDs on
No power or faulty power
connection
1. Verify the voltage is between 12-24 VDC or
12-24 VAC using a digital multimeter.
2. Verify wires are terminated properly.
3. If voltage is present and there are still no
LEDs on, the sensor is defective.
Door is detected
Sensor is angled toward
door
1. Adjust the sensor housing away from the
door.
2. Reduce the microwave and/or infrared
sensitivity settings.
3. Adjust the microwave tilt angle.
Vibrations
Turn on Vibration Mode.
Remote control
does not respond
Device is locked
Cycle power to the sensor. The sensor can now be
configured without a code for 60 seconds.
Batteries are low
Replace batteries with two AAA batteries (in cold
weather, battery life can be reduced).
Person is mistaken
for a vehicle
Microwave sensitivity is
set too high
Lower the microwave sensitivity setting.
Sensor is mounted too
low
Mount sensor higher, 11.5 to 21.3 ft (3.5 to 6.5 m)
from the ground.
Object is detected
too late
Microwave or infrared
sensitivity is set too low
Increase the microwave and/or infrared sensitivity
setting.
Sensor aimed too low
Adjust the aim of the sensor
Infrared rows turned off
Change the infrared rows setting ( )
False activation
Vibrations, water, metal,
or non-stationary object in
the sensor’s environment
1. Decrease the microwave and/or infrared
sensitivity setting.
2. Remove the non-stationary object from the
detection area
Rain
3. Install something to prevent rain from
interfering with the sensor
Sensor not
detecting
Sensor installed too high
Mount the sensor lower, 11.5 to 21.3 ft (3.5 to 6.5
m) from the ground.
Too cold
Sensor is not suitable for use in temperatures
below -4ºF (-20ºC).
Warranty
EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period
of two years from date of sale to our customer.
