Thank you for choosing
To get the most out of your ClubSport Magnetic Paddle Module, please read
this manual before use. It contains important health and safety information and
should be retained for future reference.

11
1. General ................................................................................................................. 3
2. Package Contents ............................................................................................... 4
3. Compatibility........................................................................................................ 5
4. Module basic assembly ...................................................................................... 6
4.1 Setup for large diameter steering wheels ................................................. 6
4.2 Setup for small diameter steering wheels ................................................ 6
5. Attachment to ClubSport Steering Wheel Formula V2 .................................... 7-8
6. Attachment to ClubSport Steering Wheel Universal Hub for Xbox One ........ 9-10
7. Attachment to Podium Hub ................................................................................ 11-12
8. Serial Number ...................................................................................................... 13
9. Cleaning ............................................................................................................... 13
10. Trademarks ........................................................................................................ 13
11. End of Life Product Recycling ......................................................................... 14
12. FCC Compliance ............................................................................................... 15
13. CE compliance .................................................................................................. 15
14. Warranty ............................................................................................................ 16-17
INDEX

22
WARNING! Musculoskeletal disorders
Use of game controllers, keyboards, mice, or other electronic input devices may be linked to seri-
ous injuries or disorders. When playing video games, as with many activities, you may experience
occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. However,
if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching,
tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS.
PROMPTLY SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you
are not playing a video game. Symptoms such as these can be associated with painful and some-
times permanently disabling injuries or disorders of the nerves, muscles, tendons, blood vessels,
and other parts of the body. These musculoskeletal disorders (MSDs) include carpal tunnel syn-
drome, tendonitis, tenosynovitis, vibration syndromes, and other conditions.
While researchers are not yet able to answer many questions about MSDs, there is general
agreement that many factors may be linked to their occurrence, including medical and physical
conditions, stress and how one copes with it, overall health, and how a person positions and
uses their body during work and other activities (including playing a video game). Some studies
suggest that the amount of time a person performs an activity may also be a factor. If you have
questions about how your own lifestyle, activities, or medical or physical condition may be related
to MSDs, see a qualied health professional.

33
ATTENTION
• The device must not be exposed to rain or humidity in order to avoid risk of re and/or electric
shock.
• Operating room temperature: 15°C – 35°C room temperature
•
The recommended operation time of the wheel with continuous force feedback activity is 1 hour.
• Excessive use may cause health risks. We recommend to take a break of 5 minutes every 20
minutes, and do not drive for more than 2 hours per day.
• Not intended for children under the age of 6 years old. Contains small pieces which pose a
choking hazard!
•
This device contains components that cannot be repaired by the user, unauthorized disassembly
or modication will void the warranty.
WARNING! Electrical Safety
• The ClubSport Magnetic Paddle Module must be connected to a compatible steering wheel and
never to any other power source besides that!
• To avoid damage, do not expose your ClubSport Magnetic Paddle Module to sources of heat.
• Use the ClubSport Magnetic Paddle Module only with compatible FANATEC®steering wheels.
•
If the ClubSport Magnetic Paddle Module becomes damaged in any way, stop using it immediately
and contact Technical Customer Support at www.fanatec.com/support/faq.
GENERAL NOTES
• For use of the ClubSport Magnetic Paddle Module please make sure that you have
installed the most recent rmware of your Fanatec wheel base and steering wheel.
The ClubSport Magnetic Paddle Module does not have a rmware itself. You can
obtain the driver package including rmware from the Media / Downloads section of
www.fanatec.com. A Windows PC is required to update your rmware.
•
All specications in this document are subject to change. The ClubSport Magnetic Paddle
Module, rmware, and / or PC driver may be updated to implement new features or general
improvements.
• This manual mentions Fanatec steering wheels and/or other products which are not included
within the ClubSport Magnetic Paddle Module package and sold separately. You can obtain
them from the Fanatec webshop: www.fanatec.com
•
This manual discusses assembly, connections, and functions related to Fanatec®steering wheels
and other additional devices. This is not a replacement manual for the other corresponding
products! Read the quick guides or user manuals for the other products as well!
•
The warranty does not include defects that are due to commercial use of the product. See
chapter “Warranty” at the end of this user manual as well as the Terms & Conditions at
www.fanatec.com for more details.
GENERAL
1

44

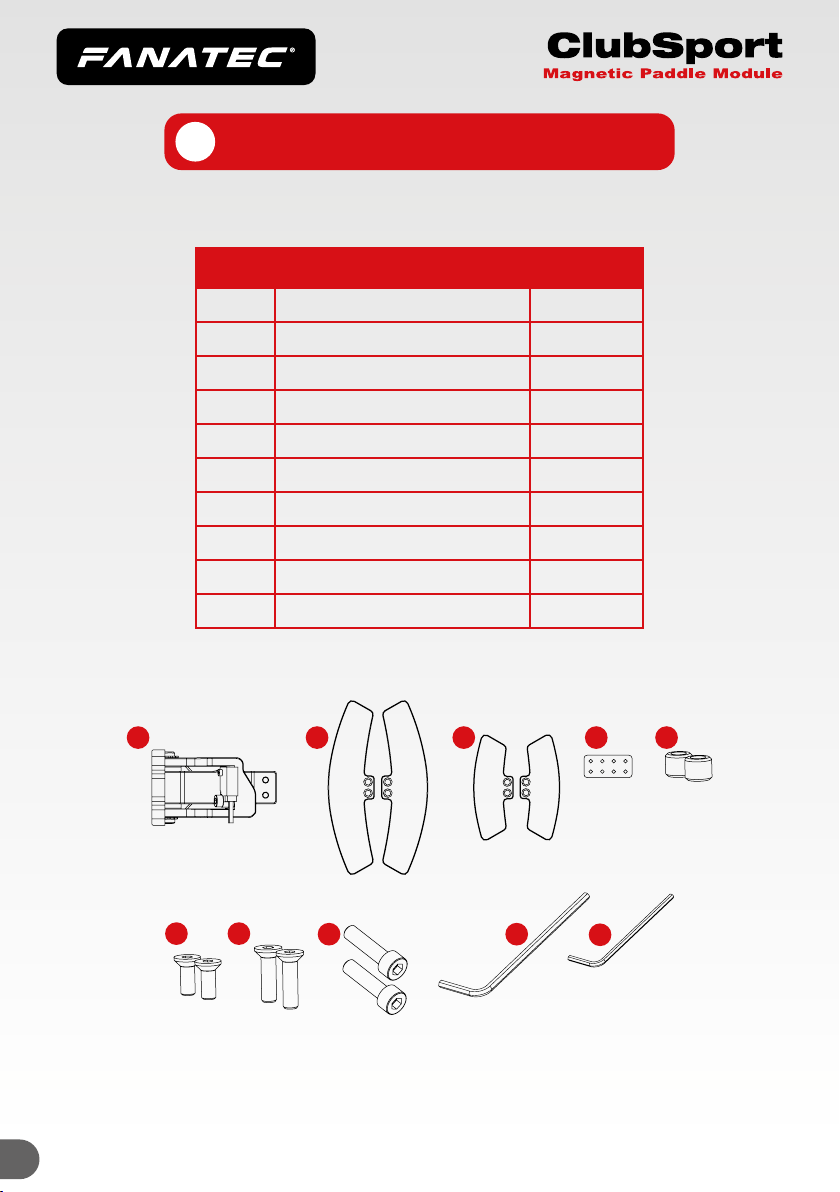

PACKAGE CONTENTS
2
IMPORTANT: Avoid dropping objects on or rubbing objects against the magnets
to prevent scratches.
Order Item Quantity
A ClubSport MPM core units 2
B GT paddles 2
C Formula paddles 2
D Paddle plate spacers 2
E Paddle spacers 4
F M3x7 mm bolts 8
G M3x12 mm bolts 4
H M5x12 mm bolts 4
I 4 mm Allen key 1
J 2 mm Allen key 1
BA C D E
F G H I J

55
COMPATIBILITY
The ClubSport Magnetic Paddle Module can be used with several Fanatec
products, including the ClubSport Steering Wheel Formula V2 (including limited
edition F1®20xx wheels and F1®PS4 wheel from the Podium Racing Wheel F1®
package), the ClubSport Universal Hub for Xbox One, and the Podium Hub. Please
check the compatibility section of the ClubSport Magnetic Paddle Module product
page on our webshop for detailed compatibility information: www.fanatec.com
The ClubSport Magnetic Paddle Module is compatible with PC and other systems,
depending on the compatibility of your wheel base and / or your steering wheel. For
example you need an Xbox One licensed Fanatec steering wheel attached on any
Fanatec wheel base to use the ClubSport Magnetic Paddle Module on Xbox One
or the new-generation Xbox.
Please check the compatibility information of your wheel base and steering wheel.
IMPORTANT: Please make sure you have installed the latest rmware on
your wheel base and steering wheel. A Windows PC is required to update your
rmware.
3

66
MODULE BASIC
ASSEMBLY
4
NOTE: Both the GT and Formula paddles as well as the ClubSport MPM core
units are symmetrical and can be used as left or right shifter paddles respectively.
Setup for steering wheels with a diameter larger than 28 cm (GT):
Setup for steering wheels with a diameter smaller than 28 cm (Formula):
A
A
B
C
D
E
F
F
G
IMPORTANT: For compatibility information and additional assembly instruc-
tions please refer to the manual of the selected steering wheel.
4.2
4.1

77
ATTACHMENT TO
CLUBSPORT STEERING
WHEEL FORMULA V2
5
Loosen the two bolts highlighted in red using the
2 mm Allen key (J).
Remove the rear cover.
Disconnect the standard shifter paddle cables.
Loosen the mounting bolts marked in red using a 4 mm
Allen key (I) to detach the standard paddle modules.
Loosen the shifter paddle bolts marked in red using a
2.5 mm Allen key (not included) for clearance to the
mounting bolts of the standard paddle modules.
Insert the cables of the ClubSport Magnetic
Paddle Module before attaching the modules.
Once the cables are completely pushed through,
attach the modules using the included M5x12 mm
bolts (H) and tighten them.
NOTE: Store the mounting bolts with the standard shifter
paddles for later use.
NOTE: Carefully pull on the plastic connectors and not
the cables of the standard shifter paddle modules.
1
2
3
4
5
6

88

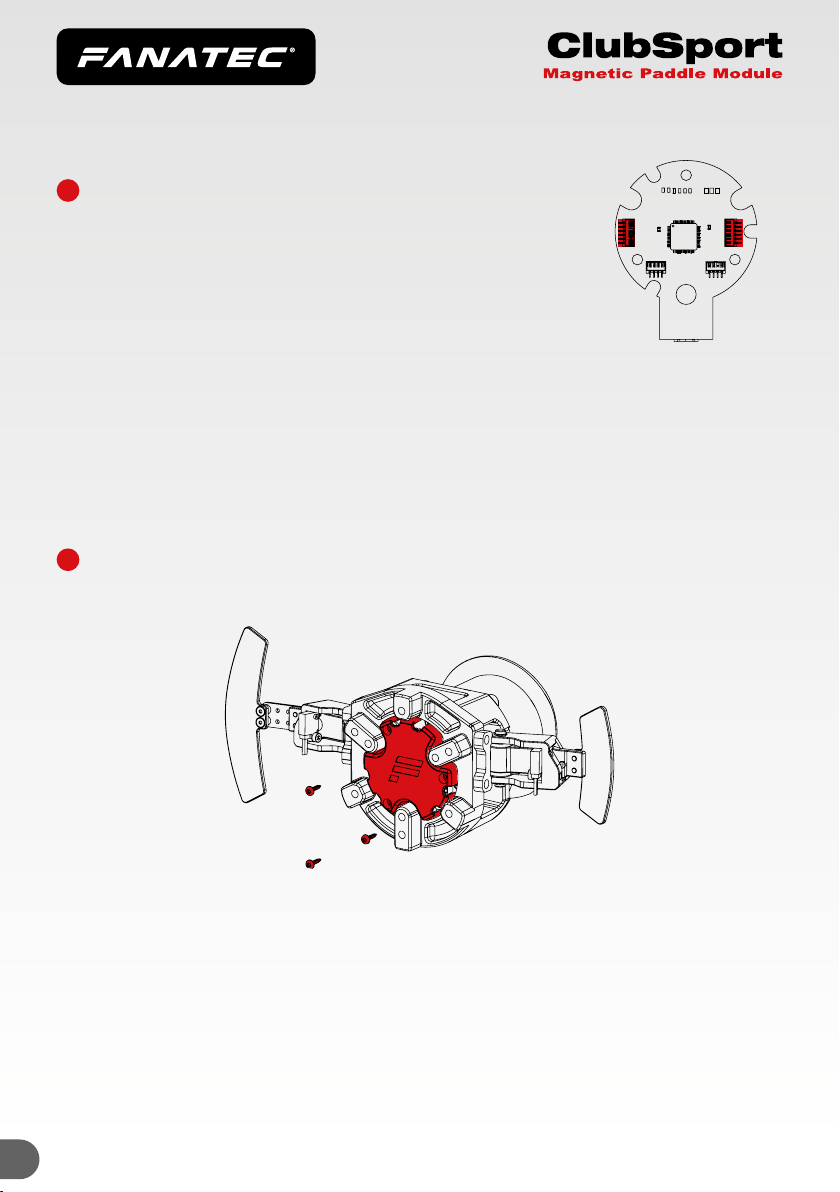

Connect each of the ClubSport Magnetic Paddle
Module connectors to the highlighted sockets
and arrange the cables neatly.
Reattach the rear cover, insert and tighten the
two bolts using the 2 mm Allen key (J) as in
the rst step.
IMPORTANT: The connector plugs have only one
correct orientation. Position the cables carefully
inside the housing before reattaching the rear
cover to avoid damage.
7
8

99
ATTACHMENT TO
CLUBSPORT STEERING
WHEEL UNIVERSAL HUB
FOR XBOX ONE
6

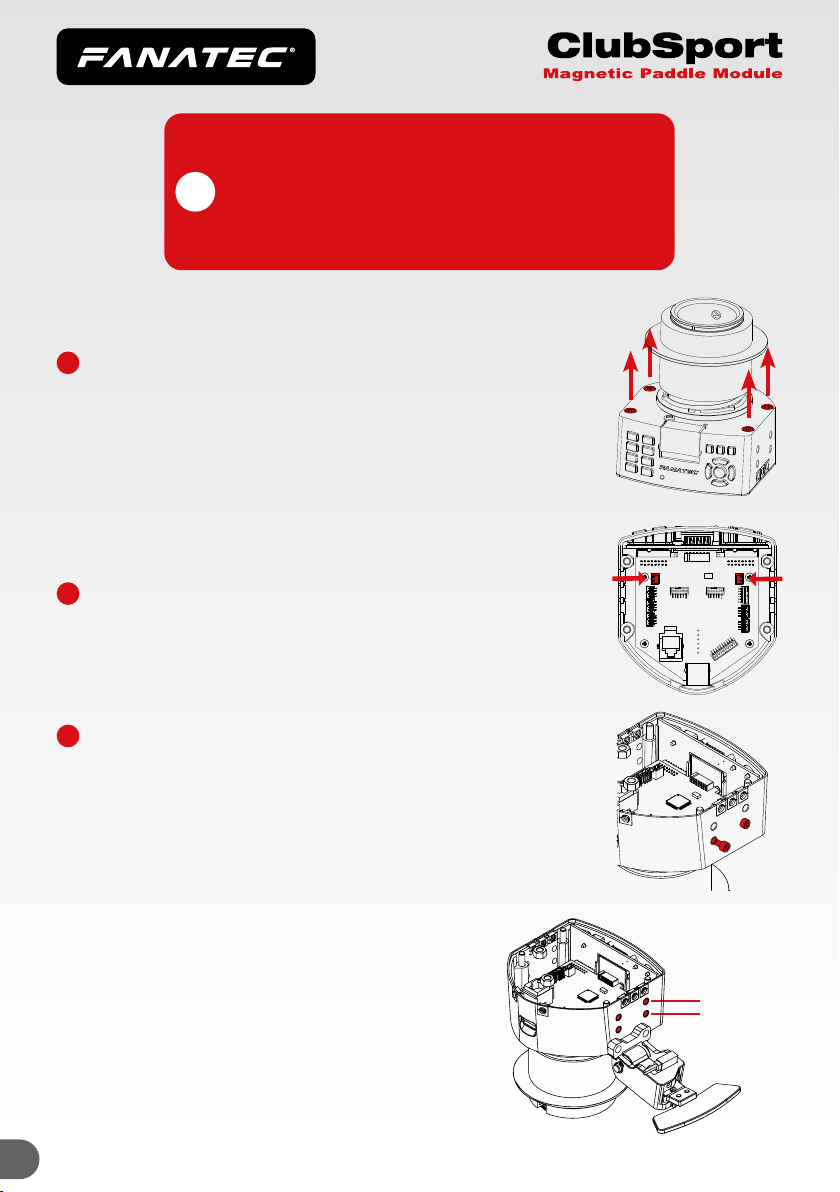

Loosen and remove the four bolts on the back of the
Universal Hub main body using a 3 mm Allen key (not
included). Detach the front cover to open the housing,
allowing access to the connectors inside.
Disconnect the standard shifter paddle cables.
1
2
3Loosen the mounting bolts marked in red using
a 4 mm Allen key (I) to detach the standard
paddle modules.
NOTE: Store the mounting bolts with the
standard shifter paddles for later use.
NOTE: There are two mounting
positions on the sides of the Universal
Hub depending on the selected
steering wheel.
Example: Use “Position 1” for dished
steering wheels and “Position 2” for
at steering wheels.
Position 1
Position 2
NOTE: Carefully pull on the plastic connectors and not
the cables of the standard shifter paddle modules.

10 10

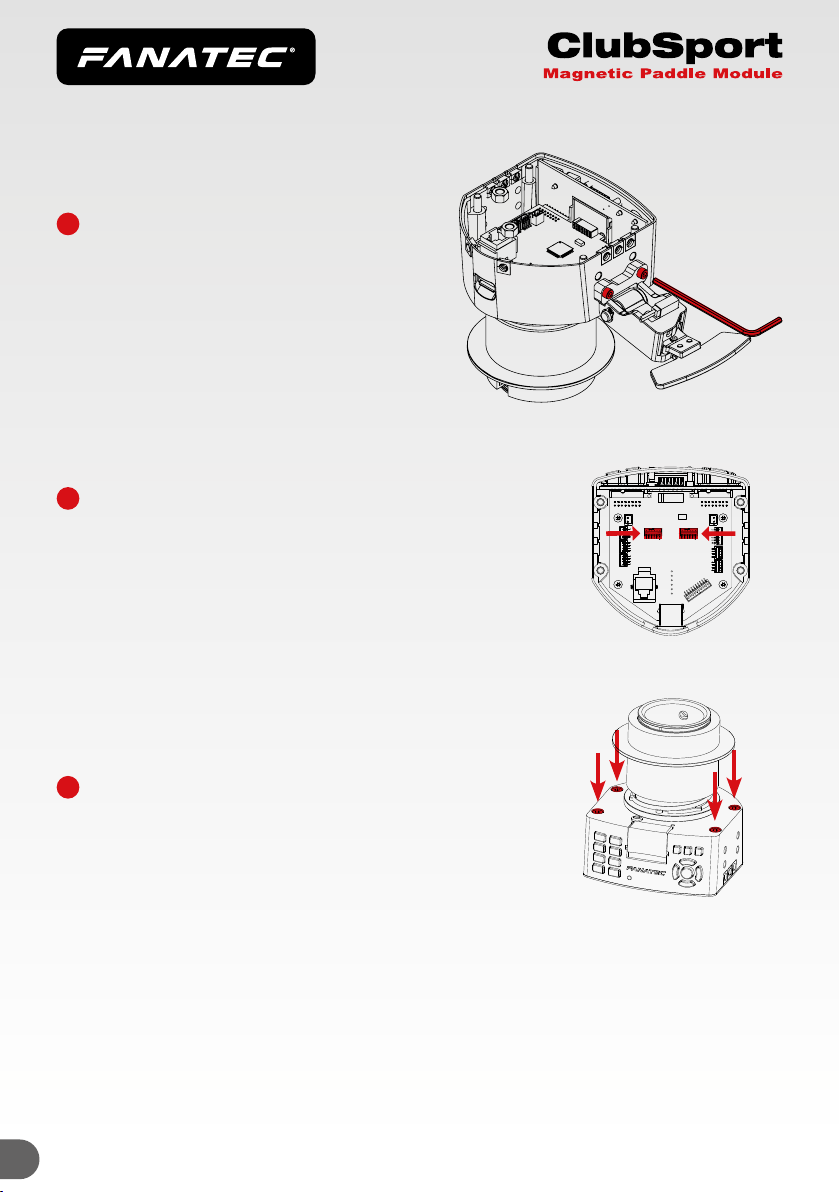

Connect the ClubSport Magnetic Paddle
Module cables to the highlighted sockets.
Insert and tighten the four bolts using a 3 mm
Allen key (not included).
IMPORTANT: The connector plugs have only
one correct orientation. Position the cables
carefully inside the housing before reattaching
the front cover to avoid damage.
Attach the ClubSport Magnetic
Paddle Module using the included
M5x12 mm bolts (H) and tighten
them using a 4 mm Allen key (I).
4
5
6

11 11
ATTACHMENT TO
PODIUM HUB
7
1
2
3

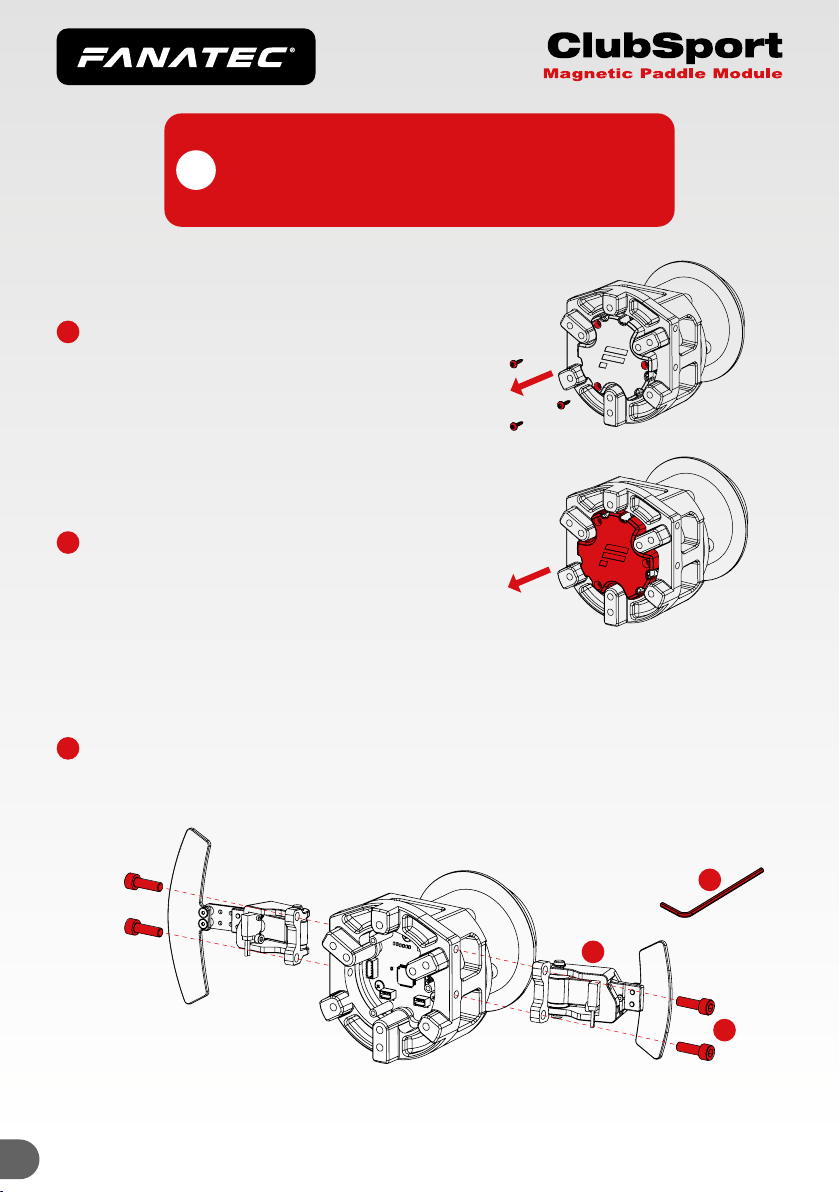

Loosen the three highlighted bolts on the
front cover using a 2 mm Allen key (J).
Remove the front cover.
Attach the ClubSport Magnetic Paddle Module using the M5x12 mm bolts (H)
and tighten them using the 4 mm Allen key (I).
A
I
H

12 12
Attach the front cover, insert and tighten the three bolts.
4
5
IMPORTANT: The connector plugs have only one correct orientation.
Position the cables carefully inside the housing before reattaching the
front cover to avoid damage.
Connect the ClubSport Magnetic Paddle Module
cables to the highlighted sockets.

13 13
SERIAL NUMBER
Before contacting the Technical Customer Support please note the serial num-
ber of your ClubSport Magnetic Paddle Module:
• ClubSport Magnetic Paddle Module: ……………...….....…………....
To nd your serial number, please check the label of your product box where it
reads “S/N:”
The serial number of the ClubSport Magnetic Paddle Module starts with letters
‘SL’ and has additional 8 numbers, for example: SL12704023.
CLEANING
9
Clean only with a dry or slightly damp cloth. Using cleaning solutions may dam-
age your ClubSport Magnetic Paddle Module.
8
TRADEMARKS
“FANATEC®” and “Endor®” are registered trademarks of Endor® AG/Germany.
All rights reserved.
All other trademarks are the property of their respective owners.
10

14 14
END OF LIFE PRODUCT
RECYCLING
11
Please follow your local regulations when disposing of this product as e-waste.
In the European Union: At the end of its working life, this product
should not be disposed of with standard household waste, but
rather dropped off at a collection point for the disposal of Waste
Electrical and Electronic Equipment (WEEE) for recycling.
Depending on their characteristics, the materials may be recy-
cled. Through recycling and other forms of processing Waste
Electrical and Electronic Equipment, you can make a signicant
contribution towards helping to protect the environment.
Please contact your local authorities for information on the collection point
nearest you.
For all other countries: Please adhere to local recycling laws for electrical and
electronic equipment.
Retain this information. Colours and decorations may vary.
In the European Union: The packaging materials can be depollut-
ed for recycling according to the legal regulations depending on
the country responsible for the corresponding law.
For all other countries: Please adhere to local recycling laws for packaging
materials.

15 15
FCC COMPLIANCE
CE COMPLIANCE
12
13
This device complies with part 15 of the FCC rules. The operation
of this device is subject to the following two conditions:
• This device may not cause harmful interference, and must
accept any interference received, including interference that
may cause undesired operation.
•
This device was not modied different than described explicitly in this
user manual.
Note: This device was tested and approved to the limitations for class B of
digital devices according to part 15 of the FCC rules. This limitations should en-
sure an adequate protection against harming interferences in residential areas.
However, a warranty for non occurring of interferences is not assumed.
Do not modify the device different than described explicitly in this user manual.
Nevertheless, if you do modications different from the described in this manual
you can be determined to stop the operation of the device.
This device complies with the European product regulations ac-
cording to CE regulations.
The CE regulations contain basic requirements for safe usage of
technical products.

16 16
WARRANTY
14
Endor®AG (“Endor”) warrants to the original purchaser that the Fanatec®prod-
uct, which includes components contained in the retail box with this product will
be free from material defects in material and workmanship for a period of one
year from the original date of purchase (the “Warranty Period”). This warranty
is valid in the country where the product was purchased. If this product is
determined to be materially defective during the warranty period, your
sole remedy and Endor’s sole and exclusive liability is limited to the re-
pair or replacement of this product with a factory-recertied product, at
Endor’s discretion. For purposes of this Limited Hardware Warranty and Lia-
bility, “factory recertied” means a product that has been returned to its original
specications.
This warranty does not apply if this product
a) is used with products that are not expressly declared in the product
descriptions as compatible with this product;
b)
is used with peripherals Endor does not license, expressly approve
or sell. This includes non-licensed hardware enhancement devices,
controllers, adaptors, and power supply devices (“non-licensed/non-
approved peripherals”);
c)
is used for any commercial purpose, including rental or arcade
purposes;
d)
is modied or tampered with contrary to the operating and maintenance
instructions;
e)
is damaged by the acts of God (natural disasters), negligence, accidents,
wear and tear, unreasonable use, or by causes unrelated to defective
materials or workmanship;
f) has the serial number altered, defaced or removed (where applicable);
g) has the warranty seal altered, defaced or removed (where applicable).
This warranty does not cover consumables (such as batteries) or prod-
ucts sold and clearly marked “AS IS” or with faults. Endor may void this
warranty if
1) Endor reasonably believes that the product has been used in a manner
that violates the terms of a separate end user agreement for rmware,

17 17
system software or game software;
2) the product is used with non-licensed/non-approved peripherals.
Consumer assume all risks and liabilities associated with use of third-
party products.
This warranty is provided to you in lieu of all other express or implied
warranties. This includes warranties of merchantability and tness for a
particular purpose for this product, which Endor disclaims under these
terms. However, if applicable law requires any of these warranties, then
they are limited in duration to the warranty period.
Except as expressly stated above, Endor excludes all liability for loss of
data, loss of prot, or any loss or damage suffered by you or any third
party, whether those damages are direct, indirect, consequential, special,
or incidental and however arising under any theory of law, as a result
of using this product. Some states or provinces do not allow limitations
on how long an implied warranty lasts and some states do not allow the
exclusion or limitations of consequential or incidental damages, so these
limitations or exclusions may not apply to you. This warranty gives you
specic legal rights. You may also have other rights which vary from state to
state or province to province. The warranty offered by Endor on this product is
the same whether or not you register your product.
This warranty does not apply to any system software / rmware that is prein-
stalled in the purchased product, or is subsequently provided via update or up-
grade releases. In case of issues apparently related to system software / rm-
ware as well as any other product related issues, Endor recommends checking
the FAQ database at www.fanatec.com/support/faq to see if your problem
can be solved there.
Designed in Germany
Made in China
Fanatec®is a registered trademark of Endor AG
Designed and developed by Endor AG in Germany
Manufactured by
E.ON-Allee 3 - 84036 Landshut - Germany
Telephone: [phone] Fax: [phone]
Email: [e-mail]
Website: www.fanatec.com - www.endor.ag
