Endress+Hauser Cerabar S PMP7 User manual

BA00413P/00/EN/03.14
71270370
Valid for software version:
02.10.54
Operating Instructions – Description of Device Functions
Cerabar S PMP71 with MID Part Certificate
Process pressure measurement

Cerabar S 4 to 20mA HART
2Endress+Hauser
A0023555
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number

Cerabar S 4 to 20mA HART Table of contents
Endress+Hauser 3
Table of contents
1 Notes on use . . . . . . . . . . . . . . . . . . . . 4
1.1 Finding parameter description using ID numbers . . . 4
1.2 Finding function group using graphic representation . 4
1.3 Finding parameter description using parameter names
(index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Finding parameter description using ID
numbers . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Graphic representation of function groups
7
4 Pressure measurement. . . . . . . . . . . . . 8
4.1 Calibration with reference pressure . . . . . . . . . . . . . 8
4.2 Calibration without reference pressure . . . . . . . . . . . 9
5 Description of parameters . . . . . . . . . 10
6 Troubleshooting . . . . . . . . . . . . . . . . . 38
6.1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.2 Response of outputs to errors . . . . . . . . . . . . . . . . . 45
6.3 Confirming messages . . . . . . . . . . . . . . . . . . . . . . . 46
7 Appendix . . . . . . . . . . . . . . . . . . . . . . 47
7.1 Operating menu for onsite display and digital
communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Notes on use Cerabar S 4 to 20mA HART
4Endress+Hauser
1 Notes on use
Section 5 describes all the parameters in the order of how they appear in the menu. Section 4
describe typical configuration examples.
Section 1.1 to Section 1.3 describe ways of finding a certain parameter description more easily.
1.1 Finding parameter description using ID numbers
Each parameter is shown on the onsite display with a unique identification number (ID). All the
parameters are listed in numerical order in Section 2. The page reference/link takes you to the
parameter in question.
In the operating program, additional parameters and, to an extent, other parameters are displayed.
These parameters are not shown in Section 2. You can find these parameters by means of the index.
See also Section 1.3.
1.2 Finding function group using graphic representation
Section 3 provides an outline of all of the function groups in tables. The page reference/link takes
you to the function group in question. In Section 5, all of the parameters in a function group are
summarized in a table.
1.3 Finding parameter description using parameter names
(index)
The index lists all the parameters in alphabetical order. The page reference/link takes you to the
parameter in question.

Cerabar S 4 to 20mA HART Finding parameter description using ID numbers
Endress+Hauser 5
2 Finding parameter description using ID
numbers
ID number Parameter name Description, see Page
014 DOWNLOAD SELECT 32
015 FULL PRESSURE See 1)
016 EMPTY PRESSURE See 1)
017 FULL CALIB. See 1)
018 EMPTY CALIB. See 1)
021 SET LRV See 1)
022 SET URV See 1)
036 PREAMBLE NUMBER 24
042 CURR. TRIM 20mA 36
043 OFFSET 4mA TRIM 37
044 OFFSET 20mA TRIM 37
045 CURR. TRIM 4mA 36
046 ALARM STATUS 33
047 ENTER RESET CODE 31
048 INSERT PIN No 32
055 CUST. TAG NUMBER 25
060 PRESS. ENG. UNIT 15
075 CUSTOMER UNIT P 15
079 LANGUAGE 10
245 SET LRV – "Pressure" measuring mode 12 or 15
246 SET URV – "Pressure" measuring mode 12 or 15
247 DAMPING TIME 12, 16
250 SENSOR SER. No. 28
254 OUTPUT CURRENT 20
264 SOFTWARE VERSION 25
266 HARDWARE REV. 25
270 SIM. CURRENT 33
271 HART MESSAGE 24
272 ADDITIONAL INFO. 25
301 PRESSURE – "Pressure" measuring mode 30
305 LONG TAG NUMBER 25
309 GET LRV 16
310 GET URV 16
317 CUST.UNIT FACT.P 15
318 TEMP. ENG. UNIT – "Pressure" measuring mode 17
319 CALIB. OFFSET 13
332 Pmin ALARM WINDOW 35
333 Pmax ALARM WINDOW 35
334 Tmin ALARM WINDOW 35
335 Tmax ALARM WINDOW 35
336 ALARM DELAY 35
339 DISPLAY CONTRAST 19
342 SET MAX. ALARM 22
343 SET MIN. CURRENT 22
345 BUS ADDRESS 23
350 DEVICE DESIGN. 25
352 CONFIG RECORDER 25
354 DEVICE SERIAL No 25
357 PCB TEMPERATURE 25
358 ALLOWED MIN. TEMP 25
359 ALLOWED MAX. TEMP 25
360 MAT. PROC. CONN. + 26
362 SEAL TYPE 27
363 DIP STATUS 26
365 MAT. 28
366 FILLING FLUID 28
367 SENSOR TEMP. 30
368 Tmin SENSOR 28
369 Tmax SENSOR 28
378 MEAS. VAL. TREND 30
386 ELECTR. SERIAL NO. 25
388 OUTPUT FAIL MODE 21

Finding parameter description using ID numbers Cerabar S 4 to 20mA HART
6Endress+Hauser
389 MEASURING MODE 11, 14
401 ACK. ALARM MODE 34
409 OPERATING HOURS 31
413 SIMULATION MODE 33
414 SIM. PRESSURE 33
419 MENU DESCRIPTOR 18
423 ALTERNATE DATA 19
432 MANUFACTOR ID 24
434 CORRECTED PRESS. – "Pressure" measuring mode 30
476 SIM. ERROR NO. 33
480 ALARM DISPL. TIME 35
481 HART DATE 24
482 PROC. CONN. TYPE 26
484 PRESS. SENS LOLIM 28
485 PRESS. SENS HILIM 28
487 SENS H/WARE REV 28
500 ACK. ALARM 34
563 POS. INPUT VALUE 11 or 13
564 LAST DIAG. CODE 34
570 Pmax PROC. CONN. 26
581 SENSOR MEAS.TYPE 28
584 SENSOR PRESSURE – "Pressure" measuring mode 30
591 MINIMUM SPAN 28
595 SELECT ALARMTYPE 34
597 ALT.CURR.OUTPUT 21
600 SELECT ALARMTYPE 34
603 RESET ALL ALARMS 34
679 MEASURED VALUE – "Pressure" 29
688 MAIN DATA FORMAT 18
694 CURR. CHARACT. – "Pressure" 21
696 CURR. CHARACT. – "Height" 21
699 DEVICE REVISION 23
764 CURR. CHARACT. – "Tank content" 21
802 DEVICE TYPE, Cerabar S 23
831 HistoROM AVAIL. 32
832 HistoROM CONTROL 32
836 SAFETY LOCKSTATE See 1)
838 SAFETY PASSWORD See 1)
840 DIGITS SET 19
841 DIGITS SET See 1)
844 ACK. ALARM MODE See 1)
845 MEASURING MODE See 1)
847 CALIB. OFFSET See 1)
852 SET LRV See 1)
853 SET URV See 1)
855 DAMPING TIME See 1)
856 CONF. PASSWORD See 1)
875 CURRENT OUTPUT See 1)
1) For further information, see the Cerabar S Functional Safety Manual (SD00190P).
ID number Parameter name Description, see Page

Cerabar S 4 to 20mA HART Graphic representation of function groups
Endress+Hauser 7
3 Graphic representation of function groups
1st Selection level 2nd Selection level (groups) Function groups Description,
see Page
LANGUAGE LANGUAGE (079) 10
OPERATING MODE OPERATING MODE (389) 10
QUICK SETUP pressure 11
OPERATING MENU (555) SETTINGS (557) POSITION ADJUSTMENT 12
BASIC SETUP pressure 14
EXTENDED SETUP pressure 17
SAFETY CONFIRM. See 1)
DISPLAY (558) 18
OUTPUT (559) 20
TRANSMITTER INFO (560) HART DATA 23
TRANSMITTER DATA 25
PROCESS CONNECTION 26
SENSOR DATA 28
PROCESSINFO (561) PROCESS VALUES pressure 29
OPERATING 31
DIAGNOSTICS (562) SIMULATION MODE 33
MESSAGES 33
USER LIMITS 35
SERVICE (561) SYSTEM 2 36
1) For further information, see the Cerabar S Functional Safety Manual (SD00190P).

Pressure measurement Cerabar S 4 to 20mA HART
8Endress+Hauser

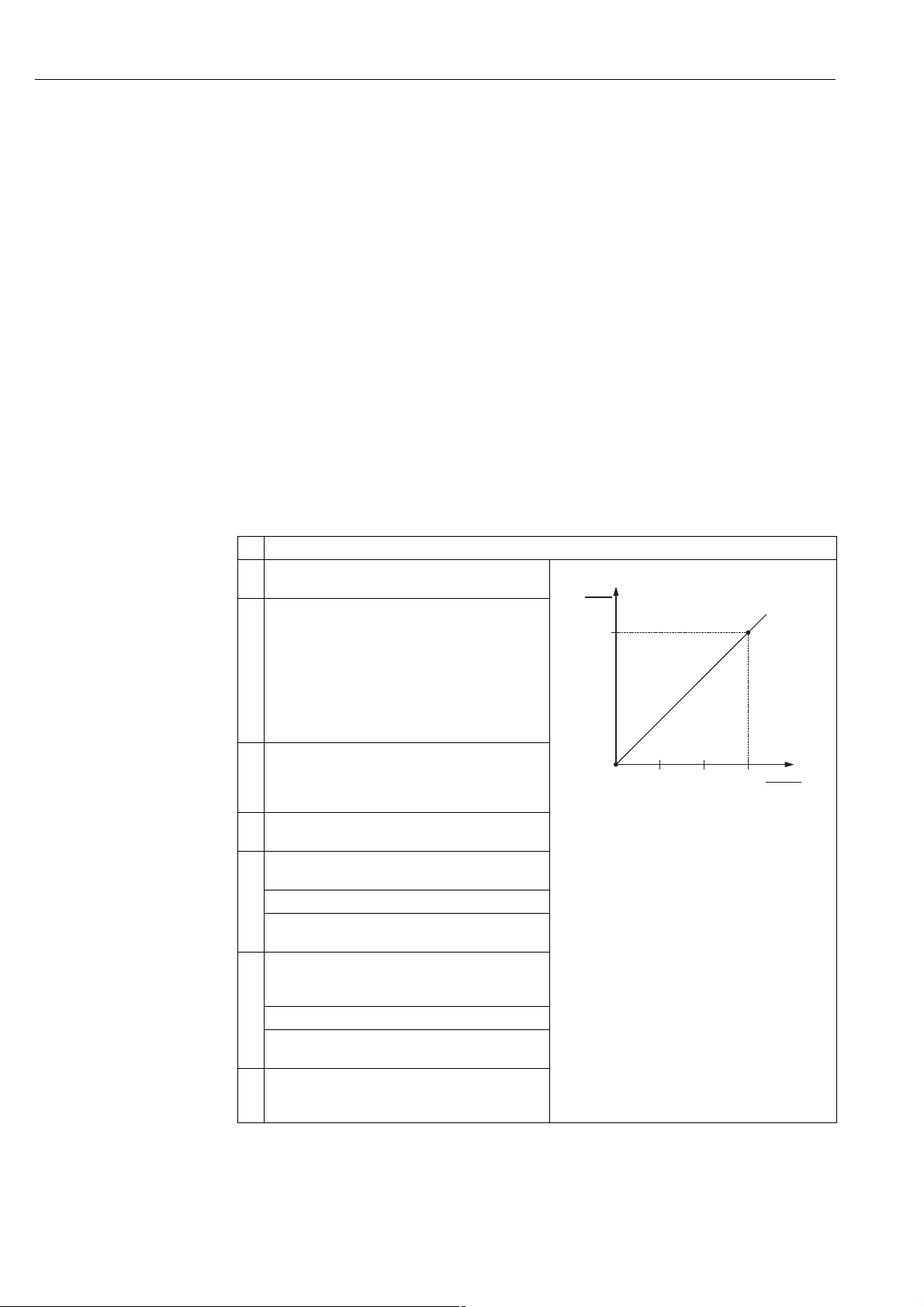

4 Pressure measurement
4.1 Calibration with reference pressure
Example:
In this example, a device with a 10 bar (150 psi) sensor is configured for the 0 to +4 bar (60 psi)
measuring range, i.e. 0 bar is assigned to the 4 mA value and 4 bar (60 psi) to the 20 mA value.
Prerequisite:
• The pressure values 0 bar and 4 bar (60 psi) can be specified. The device is already installed, for
example.
!Note!
• See also Operating Instructions for Cerabar S (BA00412P), "Pressure measurement" section.
• For a description of the parameters mentioned, see
– Page 10, Table 1: MEASURING MODE
– Page 12, Table 3: POSITION ADJUSTMENT
– Page 14, Table 4: BASIC SETUP.
• For a description of further relevant parameters, see
– Page 17, Table 5: EXTENDED SETUP
– Page 29, Table 12: PROCESS VALUES.
!Note!
• You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT
(Page 15).
Description
1 Carry out position adjustment if necessary. See Page 12,
Table 5: POSITION ADJUSTMENT.
P01-MIDxxxxx-05-xx-xx-xx-004
Fig. 1: Calibration with reference pressure
1 See Table, Step 5.
2 See Table, Step 6.
2 If necessary, select the "Pressure" measuring mode via
the MEASURING MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
Digital communication
Menu path: OPERATING MENU SETTINGS
BASIC SETUP MEASURING MODE
3 Onsite display:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION OPERATING MENU 
SETTINGS BASIC SETUP
4 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
5 The pressure for the lower range value (4 mA value) is
present at the device, here 0 mbar for example.
Select GET LRV parameter.
Confirm value present. The pressure value present is
assigned to the lower current value (4 mA).
6 The pressure for the upper range value (20 mA value) is
present at the device, here 300 mbar (4.5 psi) for
example.
Select GET URV parameter.
Confirm value present. The pressure value present is
assigned to the upper current value (20 mA).
7Result:
The measuring range is configured for 0 to +300 mbar
(4.5 psi).
20
4
I
[mA]
04
p
[bar]
➀
➁

Cerabar S 4 to 20mA HART Pressure measurement
Endress+Hauser 9
4.2 Calibration without reference pressure
Example:
In this example, a device with a 400 mbar (6 psi) sensor is configured for the 0 to +300 mbar
(4.5 psi) measuring range, i.e. 0 mbar is assigned to the 4 mA value and 300 mbar (4.5 psi) to the
20 mA value.
Prerequisite:
• This is a theoretical calibration, i.e. the pressure values for the
lower range and upper range value are known.
!Note!
• See also Operating Instructions for Cerabar S (BA00412P), "Pressure measurement" section.
• Due to the orientation of the device, there may be a shift in the measured value, i.e. when the
container is empty or partially filled, the MEASURED VALUE parameter does not display zero.
For information on how to perform position adjustment, see also Page 12, Table 3: Position
adjustment.
• For a description of the parameters mentioned, see
– Page 10, Table 1: MEASURING MODE
– Page 12, Table 3: POSITION ADJUSTMENT
– Page 14, Table 4: BASIC SETUP.
• For a description of further relevant parameters, see
– Page 17, Table 5: EXTENDED SETUP
– Page 29, Table 12: PROCESS VALUES.
!Note!
• You can also perform calibration without reference pressure by means of the QUICK SETUP
menu. See Page 11 ff, Table 2: QUICK SETUP menu.
• You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT
(Page 15).
Description
1 If necessary, select the "Pressure" measuring mode via
the MEASURING MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
Digital communication
Menu path: OPERATING MENU SETTINGS 
BASIC SETUP MEASURING MODE
P01-PMP71xxx-19-xx-xx-xx-000
P01-MIDxxxxx-05-xx-xx-xx-004
Fig. 2: Calibration without reference pressure
1 See Table, Step 4.
2 See Table, Step 5.
2 Onsite display:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION OPERATING MENU 
SETTINGS BASIC SETUP
3 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
4 Select SET LRV parameter.
Enter value, here 0 mbar, for the SET LRV parameter
and confirm. This pressure value is assigned to the lower
current value (4 mA).
5 Select SET URV parameter.
Enter the value for the "SET URV" parameter (here
300 mbar (4.5 psi)) and confirm. This pressure value is
assigned to the upper current value (20 mA).
6Result:
The measuring range is configured for 0 to +300 mbar
(4.5 psi).
20
4
I
[mA]
04
p
[bar]
➀
➁

Description of parameters Cerabar S 4 to 20mA HART
10 Endress+Hauser
5 Description of parameters
!Note!
• The following tables list all the parameters as per the menu structure. Each table corresponds to
a function group in the menu tree. The overall menu structure is illustrated in Section 7.1.
• The menu structure for local operation and digital communication are slightly different. The
differences mainly affect the MEASURING MODE and LANGUAGE parameters.
• In the operating program or HART handheld terminal, additional parameters are displayed. These
parameters are marked accordingly .
• The menu path is indicated in the header of each table. You can use this path to get to the
parameters in question.
• The menu has a different structure depending on the measuring mode selected. This means that
some function groups are only displayed for one measuring mode. If certain requirements have to
be met for a function group, these are listed in the first row of the table.
• Some parameters are only displayed if other parameters are appropriately configured.
• Parameter names are written in upper case in the text.
• In the "Parameter name" column, the unique identification number (ID) of the parameter is
indicated in brackets. This ID only appears on the onsite display.
P01-MIDxxxxx-19-xx-xx-EN-001
Fig. 3: 1st selection level in menu, LANGUAGE (see Page 10, Table 1)
1)
1)
1)
2)
1) Display via on-sitedisplay only
2) Display via digital communicationPressure
OPERATING MENU
Measured value
GROUP SELECTION
LANGUAGEMEASURING MODE QUICK SETUP
MEASURING MODE
Level (not
for PMP71 with MID)
provided
Table 1: GROUP SELECTION LANGUAGE – Onsite display
Parameter name Description
LANGUAGE (079)
Options
Select the menu language for the onsite display.
!Note!
• In the operating program and in the HART handheld terminal, the LANGUAGE
parameter is arranged in the DISPLAY function group.
• Select the menu language for the operating program via the "Options" menu 
"Settings" "Language" tab "Tool Language" field.
Options:
•Deutsch
• English
• Français
• Italiano
•Español
• Nederlands
• Chinese (CHS)
• Japanese (JPN)
Factory setting:
English

Cerabar S 4 to 20mA HART Description of parameters
Endress+Hauser 11
P01-MIDxxxxx-19-xx-xx-EN-003
Fig. 4: Quick Setup menu for the "Pressure" measuring mode
1)
1)
2)
1)
1) Display via on-sitedisplay only
2) Display via
digital communication
SET LRV
SET URV
DAMPING VALUE
POS. INPUT VALUE
Pressure
OPERATING MENU
Measured value
GROUP SELECTION
LANGUAGEMEASURING MODE QUICK SETUP
MEASURING MODE
Level (not
for PMP71 with MID)
provided
Table 2: (GROUP SELECTION ) QUICK SETUP "Pressure"
Parameter name Description
This menu displays the most important parameters for the "Pressure" measuring mode.
Prerequisite:
•MEASURINGMODE=Pressure
Note:
See also
– Page 14 ff, Table 6: BASIC SETUP
– Page 17, Table 13: EXTENDED SETUP
– Page 29 ff, Table 23: PROCESS VALUES
– Page 8 ff, Section 4 "Pressure measurement".
MEASURING MODE
Options
Select the measuring mode.
The operating menu is structured according to the selected measuring mode.
Prerequisite:
• Digital communication
Options:
• Pressure
Factory setting:
• Pressure
POS. INPUT VALUE (563)
Entry
Position adjustment – the pressure difference between zero (set point) and the measured
pressure need not be known. To correct the pressure difference, you need a reference
measured value (e. g. from a reference device).
Due to the orientation of the device, there may be a shift in the measured value, i.e. for
example, when the container is empty or partially filled, the MEASURED VALUE
parameter does not display zero or the desired value.
Example:
– MEASURED VALUE = 0.5 mbar (0.0075 psi)
– For the POS. INPUT VALUE parameter, specify the desired set point for the
MEASURED VALUE, e.g. 2 mbar (0.03 psi).
(MEASURED VALUEnew = POS. INPUT VALUE)
– MEASURED VALUE (after entry for POS. INPUT VALUE) = 2.0 mbar ( 0.03 psi)
– The CALIB. OFFSET parameter displays the resulting pressure difference (offset) by
which the MEASURED VALUE was corrected.
The following applies: CALIB. OFFSET = MEASURED VALUEold – POS. INPUT
VALUE,
here: CALIB. OFFSET = 0.5 mbar (0.0075 psi) – 2.0 mbar (0.03 psi) = – 1.5 mbar
(-0.0225 psi)
– The current value is also corrected.
Factory setting:
0.0

Description of parameters Cerabar S 4 to 20mA HART
12 Endress+Hauser
P01-MIDxxxxx-19-xx-xx-EN-026
Fig. 5: Function group POSITION ADJUSTMENT
SET LRV (245)
Entry
Set lower range value – without reference pressure.
Enter pressure value for the lower current value (4 mA).
Factory setting:
0.0 or as per order specifications
SET URV (246)
Entry
Set upper range value – without reference pressure.
Enter pressure value for the upper current value (20 mA).
Factory setting:
High sensor limit (see PRESS. SENS HILIM, Page 28) or as per order specifications
DAMPING VALUE (247)
Entry
Enter damping time (time constant ).
The damping affects the speed at which all subsequent elements, such as the onsite
display, measured value and current output react to a change in the pressure.
Input range:
0.0 to 999.0 s
Factory setting:
2.0 s or as per order specifications
Table 2: (GROUP SELECTION ) QUICK SETUP "Pressure"
Parameter name Description
1)
1)
LANGUAGE
BASIC SETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
OPERATING MENU
GROUP SELECTION
Measured value
EXTENDED SETUP
CALIB. OFFSET
POS. INPUT VALUE
1) Display via
on-sitedisplay only
Table 3: (GROUP SELECTION ) OPERATING MENU SETTINGS POSITION ADJUSTMENT
Parameter name Description
Due to the orientation of the device, there may be a shift in the measured value, i.e. when the container is empty or
partially filled, the measured value does not display zero. Cerabar S provides two different options for carrying out
position adjustment.
Recommendation:
• The pressure difference between zero (set point) and the measured pressure need not be known.
–POS.INPUTVALUE
• The pressure difference between zero (set point) and the measured pressure is known.
– CALIB. OFFSET

Cerabar S 4 to 20mA HART Description of parameters
Endress+Hauser 13
POS. INPUT VALUE (563)
Entry
Position adjustment – the pressure difference between zero (set point) and the measured
pressure need not be known. To correct the pressure difference, you need a reference
measured value (e. g. from a reference device).
Example:
– MEASURED VALUE = 0.5 mbar (0.0075 psi)
– For the POS. INPUT VALUE parameter, specify the desired set point for the
MEASURED VALUE, e.g. 2.0 mbar (0.03 psi).
(MEASURED VALUEnew = POS. INPUT VALUE)
– MEASURED VALUE (after entry for POS. INPUT VALUE) = 2.0 mbar ( 0.03 psi)
– The CALIB. OFFSET parameter displays the resulting pressure difference (offset) by
which the MEASURED VALUE was corrected.
The following applies: CALIB. OFFSET = MEASURED VALUEold – POS. INPUT
VALUE,
here: CALIB. OFFSET = 0.5 mbar (0.0075 psi) – 2.0 mbar (0.03 psi) = – 1.5 mbar
(-0.0225 psi)
– The current value is also corrected.
Factory setting:
0.0
CALIB. OFFSET (319)
Entry
Position adjustment – the pressure difference between zero (set point) and the measured
pressure is known.
Example:
– MEASURED VALUE = 2.2 mbar (0.033 psi)
– Via the CALIB. OFFSET parameter, enter the value by which the MEASURED VALUE
should be corrected. To correct the MEASURED VALUE to 0.0 mbar, you must enter
the value 2.2 here.
(MEASURED VALUE new = MEASURED VALUEold – CALIB. OFFSET)
– MEASURED VALUE (after entry for calib. offset) = 0.0 mbar
– The current value is also corrected.
Factory setting:
0.0
Table 3: (GROUP SELECTION ) OPERATING MENU SETTINGS POSITION ADJUSTMENT
Parameter name Description

Description of parameters Cerabar S 4 to 20mA HART
14 Endress+Hauser
P01-MIDxxxxx-19-xx-xx-EN-005
Fig. 6: BASIC SETUP function group for the "Pressure" measuring mode
*
*
1)
2)
1)
*
Parameters marked with an asterisk "*"
are not always displayed.Thedisplay
depends on thesettings of other parameters,
see thefollowing Table.
LANGUAGE
Pressure
BASIC SETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
OPERATING MENU
GROUP SELECTION
Measured value
MEASURING MODE
EXTENDED SETUP
PRESS. ENG. UNIT
CUSTOMER UNIT P
CUST. UNIT FACT. P
SET LRV
DAMPING VALUE
GET LRV
GET URV
SET URV
1) Display via on-sitedisplay only
2) Display via digital communication
Level (not
for PMP71 with MID)
provided
Table 4: (GROUP SELECTION ) OPERATING MENU SETTINGS BASIC SETUP "Pressure"
Parameter name Description
Prerequisite:
• MEASURING MODE = Pressure
Note:
See also
– Page 11, Table 3: QUICK SETUP
– Page 17, Table 13: EXTENDED SETUP
– Page 29 ff, Table 23: PROCESS VALUES
– Page 8 ff, Section 4 "Pressure measurement".
MEASURING MODE
Options
Select the measuring mode.
The operating menu is structured according to the selected measuring mode.
!Note!
When the measuring mode is changed, no conversion takes place. The device has to be
recalibrated if the measuring mode is changed.
Prerequisite:
• Digital communication
Options:
• Pressure
Factory setting
• Pressure

Cerabar S 4 to 20mA HART Description of parameters
Endress+Hauser 15
PRESS. ENG. UNIT (060)
Options
Select pressure unit.
If a new pressure unit is selected, all pressure-specific parameters are converted and
displayed with the new unit.
Options:
• mbar, bar
• mmH2O, mH2O, inH2O, ftH2O
• Pa, hPa, kPa, MPa
•psi
• mmHg, inHg
•Torr
•g/cm
2, kg/cm2
•lb/ft
2
•atm
•gf/cm
2, kgf/cm2
• User unit See also the following parameter description for CUSTOMER UNIT P and
CUST.UNIT FACT.P.
Factory setting:
Depends on the sensor nominal measuring range mbar or bar or as per order
specifications
CUSTOMER UNIT P (075)
Entry
Enter text (unit) for customer-specific pressure unit.
You can enter a maximum of eight alphanumeric characters here. See also
CUST.UNIT FACT.P.
Prerequisite:
• PRESS. ENG. UNIT = User unit
!Note!
Only the first five characters are shown on the onsite display. For example, if "crates" is
specified as the customer-specific unit, "crate" is displayed.
If the unit contains a slash, up to eight characters can be shown on the onsite display. The
maximum number of characters in the counter is again limited to five. For example, if
"crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. In
FieldCare, all eight characters are displayed.
In the HART handheld terminal, the customer-specific unit is only displayed in the
CUSTOMER UNIT P parameter. The measured value is displayed with the additional text
"User Unit".
Factory setting:
_ _ _ _ _ _ _ _
CUST.UNIT FACT.P (317)
Entry
Enter conversion factor for a customer-specific pressure unit.
The conversion factor must be entered in relation to the SI unit "Pa". See also
CUSTOMER UNIT P.
Prerequisite:
• PRESS. ENG. UNIT = User unit
Example:
– You want the measured value to be displayed in "PU" (PU: packing unit).
– MEASURED VALUE =10,000 Pa i1 PU
– Entry CUSTOMER UNIT P: PU
– Entry CUST.UNIT FACT.P: 0.0001
– Result: MEASURED VALUE = 1 PU
Factory setting:
1.0
SET LRV (245)
Entry
Set lower range value – without reference pressure.
Enter pressure value for the lower current value (4 mA).
Factory setting:
0.0 or as per order specifications
SET URV (246)
Entry
Set upper range value – without reference pressure.
Enter pressure value for the upper current value (20 mA).
Factory setting:
High sensor limit ( see PRESS. SENS HILIM, Page 28)
Table 4: (GROUP SELECTION ) OPERATING MENU SETTINGS BASIC SETUP "Pressure"
Parameter name Description

Description of parameters Cerabar S 4 to 20mA HART
16 Endress+Hauser
GET LRV (309)
Entry
Set lower range value – reference pressure is present at device.
The pressure for the lower current value (4 mA) is present at device. With the "Confirm"
option, you assign the lower current value to the pressure value present.
Onsite display: the pressure value present is displayed in the bottom line.
Options:
• Abort
•Confirm
GET URV (310)
Entry
Set upper range value – reference pressure is present at device.
The pressure for the upper current value (20 mA) is present at device. With the "Confirm"
option, you assign the upper current value to the pressure value present.
Onsite display: the pressure value present is displayed in the bottom line.
Options:
• Abort
•Confirm
DAMPING VALUE (247)
Entry
Enter damping time (time constant ).
The damping affects the speed at which all subsequent elements, such as the onsite
display, measured value and current output react to a change in the pressure.
Input range:
0.0 to 999.0 s
Factory setting:
2.0 s or as per order specifications
Table 4: (GROUP SELECTION ) OPERATING MENU SETTINGS BASIC SETUP "Pressure"
Parameter name Description

Cerabar S 4 to 20mA HART Description of parameters
Endress+Hauser 17
P01-MIDxxxxx-19-xx-xx-EN-012
Fig. 7: EXTENDED SETUP function group
for measuring mode "Pressure", see Page 17, Table 5
1)
1)
*
LANGUAGE
Pressure
BASIC SETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
OPERATING MENU
GROUP SELECTION
Measured value
EXTENDED SETUP
TEMP. ENG. UNIT
1) Display via on-sitedisplay only
Parameters marked with an asterisk "*"
are not always displayed.Thedisplay
depends on thesettings of other parameters,
see thefollowing Table.
Level (not
for PMP71 with MID)
provided
Table 5: (GROUP SELECTION ) OPERATING MENU SETTINGS EXTENDED SETUP "Pressure"
Parameter name Description
Prerequisite:
•MEASURINGMODE=Pressure
Note:
• See also Page 8 ff, Section 4 "Pressure measurement".
TEMP. ENG. UNIT (318)
Options
Select the unit for the temperature measured values.
See also PCB TEMPERATURE (Page 25) and SENSOR TEMP. (Page 30).
Options:
•°C
•°F
•K
•R
Factory setting:
°C

Description of parameters Cerabar S 4 to 20mA HART
18 Endress+Hauser
P01-xxxxxxxx-19-xx-xx-xx-093
Fig. 8: DISPLAY group
1)
1)
2)
DIGITS SETS
LANGUAGE
TOTALIZER SETUP
MENU DESCRIPTION
MAIN DATA FORMAT
ALTERNATE DATA
DISPLAY CONTRAST
LANGUAGE
DISPLAYSETTINGS
POSITIONADJUSTMENT
OPERATINGMENU
GROUP SELECTION
Measured value
1) Display via on-site display only
2) Display via digitalcommunication
Table 6: (GROUP SELECTION ) OPERATING MENU DISPLAY
Parameter name Description
MENU DESCRIPTOR (419)
Options
Specify contents for the main line of the onsite display in the measuring mode.
See also Operating Instructions BA00412P, Section "Onsite display".
Options:
• Main measured value (PV)
• Main measured value (%)
• Pressure
• Level
• Tank content
• Current
•Temperature
• Error number
The selection depends on the measuring mode chosen.
Factory setting:
Main measured value (PV)
MAIN DATA FORMAT (688)
Options
Specifies the number of places after the decimal point for the value displayed in the main
line.
See also Operating Instructions BA00412P, Section "Onsite display".
Options:
•Auto
•x.x
•x.xx
•x.xxx
• x.xxxx
• x.xxxxx
Factory setting:
Auto

Cerabar S 4 to 20mA HART Description of parameters
Endress+Hauser 19
ALTERNATE DATA (423)
Options
Switch on "Alternating display" mode.
In this display mode, the onsite display alternates between the following measured values
depending on the measuring mode selected.
– Pressure: primary value (PV), pressure, temperature and current
Options:
•Off
•On
Factory setting:
Off
LANGUAGE
Selection
Select the menu language for the onsite display.
!Note!
• In the case of local operation, the LANGUAGE parameter is arranged directly under
the GROUP SELECTION (menu path: GROUP SELECTION LANGUAGE, see also
Page 10).
• Select the menu language for the operating program via the "Options" menu 
"Settings" "Language" tab "Tool Language" field.
Options:
•Deutsch
• English
• Français
• Italiano
•Español
• Nederlands
• Chinese (CHS)
• Japanese (JPN)
Factory setting:
English
DISPLAY CONTRAST (339)
Entry
Adjust contrast of onsite display.
You specify the contrast of the display with a number. Changes are only accepted as single
steps, i.e. to change the value from "8" to "4", you need to save four times. You can also
adjust the contrast of the display by means of the keys on the electronic insert or at the
device.
See also Operating Instructions BA00412P, the section on operating keys function.
Input range:
4...13, 4: contrast weaker (brighter), 13: contrast stronger (darker).
Factory setting:
8
DIGITS SET (840)
Display
This parameter is used to verify correct display of characters and digits on the user
interface. If the characters and digits are correctly displayed, this parameter shows the
string "0123456789.-".
Table 6: (GROUP SELECTION ) OPERATING MENU DISPLAY
Parameter name Description

Description of parameters Cerabar S 4 to 20mA HART
20 Endress+Hauser
P01-MIDxxxxx-19-xx-xx-EN-013
Fig. 9: Group OUTPUT
1)
1)
SET MIN. CURRENT
ASSIGNCURRENT
Level measuring
mode only
ALT. CURR. OUTPUT
TOTALIZER SETUP
OUTPUT CURRENT
CURR. CHARACT.
OUTPUT FAIL MODE
SET MAX.ALARM
LANGUAGE
OUTPUTSETTINGS
POSITIONADJUSTMENT
OPERATINGMENU
GROUP SELECTION
Measured value
1) Display via on-sitedisplay only
Table 7: (GROUP SELECTION ) OPERATING MENU OUTPUT
Parameter name Description
OUTPUT CURRENT (254)
Display
Displays the current current value.
