Brief Operating Instructions
Deltabar FMD72
Electronic differential pressure for level measurement
These Instructions are Brief Operating Instructions; they do not replace the
Operating Instructions included in the scope of supply.
For detailed information, refer to the Operating Instructions and other
documentation on the CD-ROM provided or visit "www.endress.com/
deviceviewer".
KA01105P/00/EN/02.12
71191242

Table of contents Deltabar FMD72
2 Endress+Hauser
Table of contents
1 Document information ...................................... 3
1.1 Function of document and how to use .................................... 3
1.2 Document conventions ........................................... 4
2 Basic safety instructions ...................................... 6
2.1 Requirements concerning the staff ...................................... 6
2.2 Designated use ............................................... 6
2.3 Workplace safety .............................................. 7
2.4 Operational safety .............................................. 7
2.5 Product safety ................................................ 8
3 Product description ......................................... 8
4 Incoming acceptance and product identification ..................... 8
4.1 Incoming acceptance ............................................ 8
4.2 Product identification ........................................... 10
5 Storage and transport ...................................... 11
5.1 Storage conditions ............................................. 11
5.2 Transporting the product to the measuring point .............................. 11
6 Installation .............................................. 12
6.1 Mounting dimensions ........................................... 12
6.2 Mounting location ............................................. 12
6.3 Orientation ................................................ 12
6.4 General installation instructions ...................................... 12
6.5 Installing the sensor modules ........................................ 13
6.6 Seal for flange mounting .......................................... 14
6.7 Installing the transmitter .......................................... 14
6.8 Post-installation check ........................................... 14
7 Electrical connection ....................................... 15
7.1 Connecting the sensor mod. LP to the sensor mod. HP ........................... 15
7.2 Connecting the sensor module HP to the transmitter ............................ 16
7.3 Connecting the measuring unit ....................................... 18
7.4 Connection conditions ........................................... 20
7.5 Connection data .............................................. 20
7.6 Post-connection check ........................................... 20
8 Operation without an operating menu ........................... 21
8.1 Position of operating elements ....................................... 21
9 Operation with an operating menu ............................. 23
9.1 Operating concept ............................................. 23
9.2 Structure of the operating menu ...................................... 23
9.3 Operating options ............................................. 24
9.4 Operating the device using onsite display (optional) ............................. 24
9.5 Operation using Endress+Hauser operating program ............................. 27
9.6 Operation using Field Xpert SFX100 .................................... 27
9.7 Direct access to parameters ......................................... 27
9.8 Locking/unlocking operation ........................................ 27
9.9 Resetting to factory settings (reset) ..................................... 27
10 Commissioning ........................................... 27
10.1 Function check .............................................. 28

Deltabar FMD72 Document information
Endress+Hauser 3
10.2 Unlocking/locking configuration ...................................... 28
10.3 Commissioning without an operating menu ................................. 28
10.4 Commissioning with an operating menu .................................. 30
10.5 Selecting the language, measuring mode, high-pressure side, and pressure engineering unit .......... 30
10.6 Pos. Zero Adjust .............................................. 32
10.7 Configuring level measurement ....................................... 33
10.8 Linearization ................................................ 37
10.9 Configuring pressure measurement ..................................... 37
1 Document information
1.1 Function of document and how to use
1.1.1 Document function
The Brief Operating Instructions contain all the essential information from incoming acceptance
to initial commissioning.
1.1.2 Further standard device documentation
The document types listed are available:
• On the CD supplied with the device
•In the Download Area of the Endress+Hauser Internet site: www.endress.com ®
Download
Technical Information TI01033P: helps in planning your device
The document contains all the technical data on the device and provides an overview of the
accessories and other products that can be ordered for the device.
Operating Instructions BA01044P: your comprehensive reference
These Operating Instructions contain all the information that is required in various phases of the
life cycle of the device: from product identification, incoming acceptance and storage, to
mounting, connection, operation and commissioning through to troubleshooting, maintenance
and disposal.
Description of Device Parameters GP01013P: reference for your parameters
The document provides a detailed explanation of each individual parameter in the operating
menu. The description is aimed at those who work with the device over the entire life cycle and
perform specific configurations.

Document information Deltabar FMD72
4 Endress+Hauser
1.1.3 Safety Instructions (XA)
Safety Instructions (XA) are supplied with the device depending on the approval. These
instructions are an integral part of the Operating Instructions.
Certificate/type of protection Documentation Version in the
order code
ATEX II 1/2G Ex ia IIC T6 Ga/Gb XA00619P BA
ATEX II 1/2G Ex d [ia] IIC T6 Ga/Gb XA00620P BC
ATEX II 3G Ex nA IIC T6 BC XA00621P BD
IEC Ex ia IIC T6 Ga/Gb XA00622P IA
IEC Ex d [ia] IIC T6 Ga/Gb XA00623P IB
CSA C/US IS Cl.I Div.1 Gr.A-D, Ex ia Zone 0,1,2 XA00626P CA
CSA C/US XP Cl.I Div.1 Gr.A-D, Ex d [ia], Zone 0,1,2 XA00627P CB
CSA C/US Cl.I Div.2 Gr.A-D, Zone 2 XA00671P CC
FM C/US IS Cl.I Div.1 Gr.A-D, AEx ia, Zone 0,1,2 XA00624P FA
FM C/US XP AIS Cl.I Div.1 Gr.A-D, Exd [ia] Zone 0,1,2 XA00625P FB
FM C/US NI Cl.I Div.2 Gr.A-D, Zone 2 XA00669P FD
The nameplate provides information on the Safety Instructions (XA) that are relevant for
the device.
1.2 Document conventions
1.2.1 Safety symbols
Symbol Meaning
DANGER
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious
or fatal injury.
WARNING
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious
or fatal injury.
CAUTION
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor
or medium injury.
NOTICE
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result in personal
injury.

Deltabar FMD72 Document information
Endress+Hauser 5
1.2.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
)
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
*
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential equalization
line or a star grounding system depending on national or company codes of practice.
1.2.3 Tool symbols
A0011219 A0011220 A0013442 A0011221 A0011222
Phillips head
screwdriver
Flat blade
screwdriver Torx screwdriver Allen key Hexagon wrench
1.2.4 Symbols for certain types of information
Symbol Meaning
A0011182
Allowed
Indicates procedures, processes or actions that are allowed.
A0011183
Preferred
Indicates procedures, processes or actions that are preferred.
A0011184
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011193
Tip
Indicates additional information.
A0011194
Reference to documentation
Refers to the corresponding device documentation.

Basic safety instructions Deltabar FMD72
6 Endress+Hauser
Symbol Meaning
A0011195
Reference to page
Refers to the corresponding page number.
A0011196
Reference to graphic
Refers to the corresponding graphic number and page number.
,… ,
Series of steps
ÃResult of a sequence of actions
1.2.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous location.
2 Basic safety instructions
2.1 Requirements concerning the staff
The staff must fulfill the following requirements for their tasks:
►Trained staff: Must have a qualification which corresponds to their function and tasks.
►Authorized by the plant operator.
►Familiar with the national regulations.
►Before starting their work: Must have read and understood all instructions in the operating
manual and supplementary documentation as well as the certificate (depending on the
application).
►Must comply with all instructions and the regulatory framework.
2.2 Designated use
2.2.1 Application and media
The Deltabar FMD72 is a differential pressure transmitter for measuring differential pressure and
level in pressurized tanks. The device has two sensor modules, which measure the operating

Deltabar FMD72 Basic safety instructions
Endress+Hauser 7
pressure (High Pressure HP and Low Pressure LP). The differential pressure/hydrostatic level is
calculated in the transmitter unit. The sensor signal is transmitted digitally. In addition, sensor
temperatures and the individual process pressures present at the respective sensor modules can
be individually evaluated and transmitted. If the limit values specified in the "Technical Data"
and the conditions listed in the instructions and additional documentation are observed, the
measuring device may be used for the following measurements (process variables):
Measured process variables
• Pressure HP and Pressure LP
• Sensor temperature
Calculated process variables
• Differential pressure
• Level (level, volume or mass)
2.2.2 Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
►For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty
or liability.
2.2.3 Residual risks
Due to heat transfer from the process as well as power loss in the electronics, the temperature
of the electronics housing and the assemblies contained therein (e.g. display module, main
electronics module and I/O electronics module) may rise up to 80 °C (176 °F). When in
operation, the sensor may reach a temperature close to the medium temperature.
Danger of burns from contact with surfaces!
►For elevated fluid temperature, ensure protection against contact to prevent burns.
2.3 Workplace safety
For work on and with the device:
►Wear the required personal protective equipment according to federal/national regulations.
►Switch off the supply voltage before connecting the device.
2.4 Operational safety
Risk of injury!
►Operate the device in proper technical condition and fail-safe condition only.
►The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers
►If, despite this, modifications are required, consult with Endress+Hauser.

Product description Deltabar FMD72
8 Endress+Hauser
Repair
To ensure continued operational safety and reliability,
►Carry out repairs on the device only if they are expressly permitted.
►Observe federal/national regulations pertaining to repair of an electrical device.
►Use original spare parts and accessories from Endress+Hauser only.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the hazardous
area (e.g. explosion protection, pressure vessel safety):
►Based on the nameplate, check whether the ordered device is permitted for the intended use
in the hazardous area.
►Observe the specifications in the separate supplementary documentation that is an integral
part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the- art safety requirements, has been tested, and left the factory in a condition in which they
are safe to operate.
It fulfills general safety requirements and legal requirements. It also conforms to the EC directives
listed in the device-specific EC declaration of conformity. Endress+Hauser confirms this fact by
applying the CE mark.
3 Product description
See the Operating Instructions BA01044P on the CD-ROM provided.
4 Incoming acceptance and product identification
4.1 Incoming acceptance
A0015502
DELIVERY NOTE
1 = 2
A0016870

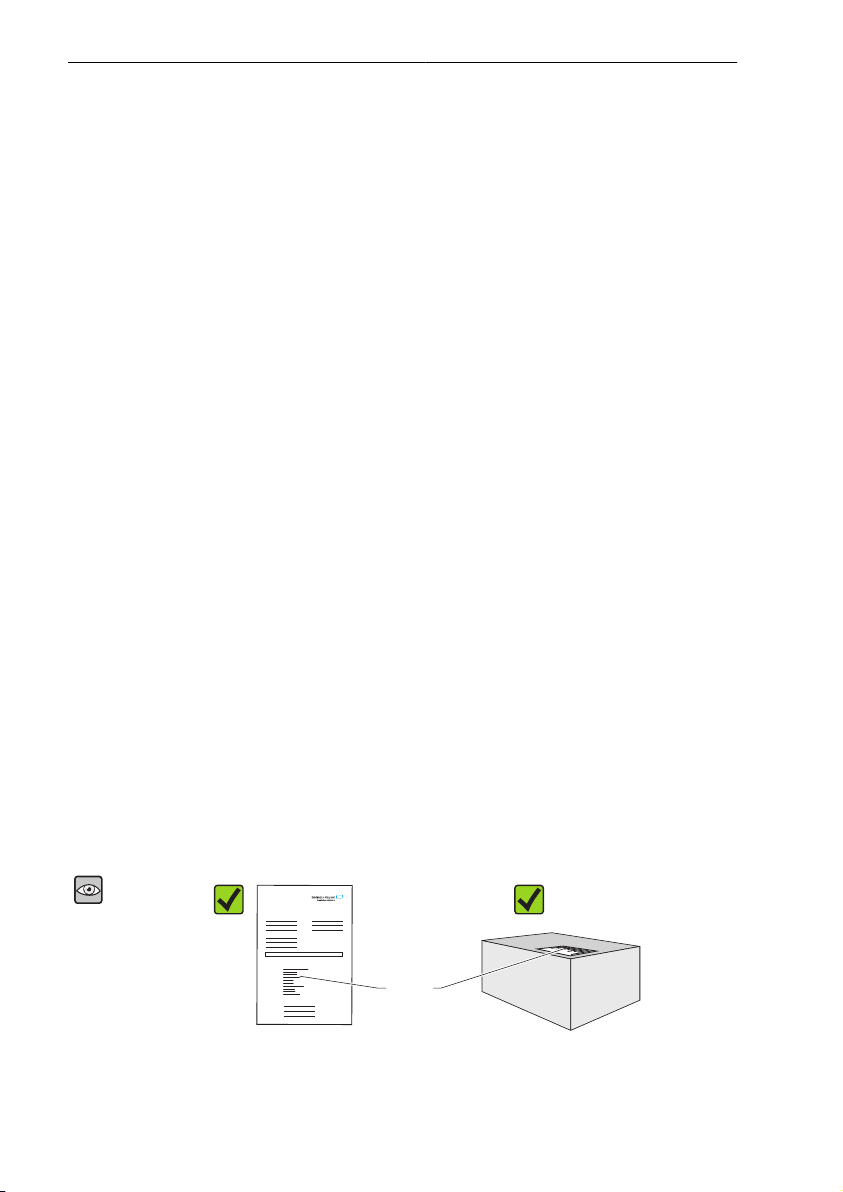

Is the order code on the delivery note (1) identical to the order code on the
product sticker (2)?

Deltabar FMD72 Incoming acceptance and product identification
Endress+Hauser 9
A0016052
A0015502
A0016053
Are the goods undamaged?
A0015502
DELIVERY NOTE
ex works SW:
Dev.Rev.:
250002755-C
Ext. order code:
Ser. no.:
U=
Span
P
MWP
Order code:
Made in Germany, D-79689 Maulburg
L=
15
1
23
4
67
8910
11
12
13
14
5
16
A0016054
Do the data on the nameplate correspond to the order specifications and the
delivery note?

Incoming acceptance and product identification Deltabar FMD72
10 Endress+Hauser
A0015502
A0016055

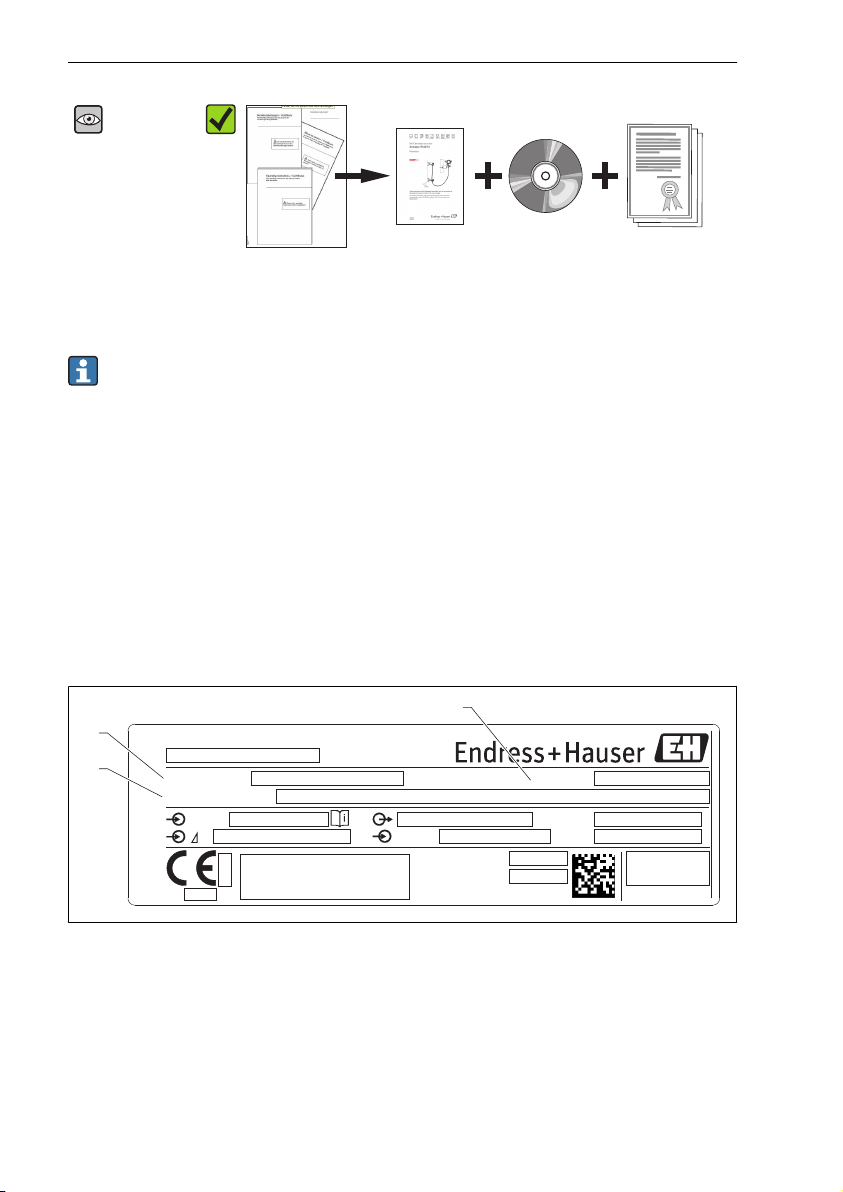

Are the CD-ROM (product documentation) and documentation present?
If required (see nameplate): Are the safety instructions (XA) present?
If one of these conditions is not met, please contact your Endress+Hauser sales office.
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
•Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
For an overview of the technical documentation provided, enter the serial number from the
nameplates in the W@M Device Viewer (www.endress.com/deviceviewer)
4.2.1 Nameplate
ex works SW:
Dev.Rev.:
250002755-C
Ext. order code:
Ser. no.:
U=
Span
P
MWP
Order code:
Made in Germany, D-79689 Maulburg
L=
1
2
3
A0016056
1Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)

Deltabar FMD72 Storage and transport
Endress+Hauser 11
5 Storage and transport
5.1 Storage conditions
Use original packaging.
5.1.1 Storage temperature range
–40 to +80 °C (–40 to +176 °F)
5.2 Transporting the product to the measuring point
!WARNING
Risk of damage to housing!
Risk of injury.
►Transport the measuring device to the measuring point in its original packaging or by the
process connection.
►Follow the safety instructions and transport conditions for devices weighing more than 18 kg
(39.6 lbs).
A0016058

Installation Deltabar FMD72
12 Endress+Hauser
6 Installation
When measuring in media containing solids, such as dirty liquids, installing separators and drain
valves is useful for capturing and removing sediment.
6.1 Mounting dimensions
For dimensions, see the "Mechanical construction" section in TI01033P.
6.2 Mounting location
The FMD72 is best suited to level measurement in tanks with pressure overlay, high distillation
columns and other containers with changing ambient temperatures.
The sensor module HP is mounted on the lower measuring connection and the sensor module
LP is mounted above the maximum level. The transmitter can be mounted on pipes or walls
with the mounting bracket.
6.3 Orientation
• Transmitter: Any orientation.
• Sensor modules: The orientation can cause a zero point shift .
This position-dependent zero point shift can be corrected directly at the device via the
operating key, and also in hazardous areas in the case of devices with external operation.

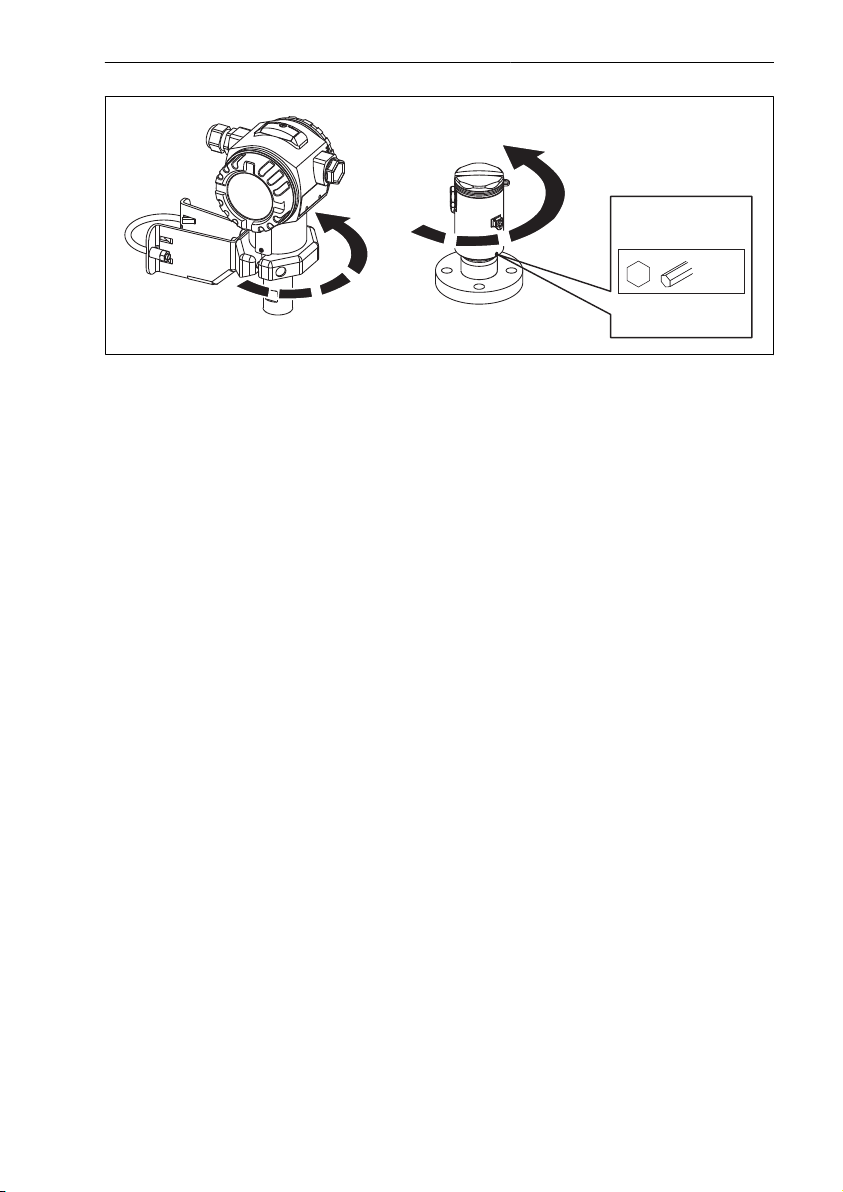

6.4 General installation instructions
Mounting the sensor modules and transmitter is very easy
• The housings of the sensor modules can be rotated up to 380°.
• The transmitter is freely rotatable in the mounting bracket.
The sensor modules and transmitter can be easily aligned when mounted.
Your benefits
• Easy to mount by optimally aligning the housing
• Good, accessible device operation
• Optimum readability of the onsite display (optional)
• Simple pipe installation through optional alignment of the modules

Deltabar FMD72 Installation
Endress+Hauser 13
max. 380°
2 mm
A0017506
6.5 Installing the sensor modules
• The nameplate on the sensor module specifies where the sensor module is typically installed:
HP (bottom)
LP (top)
For further information see the "Function" section.
• Due to the orientation of the sensor modules, there may be a shift in the zero point, i.e. when
the container is empty or partially full, the measured value does not display zero. You can
correct this zero point shift: see "Commissioning without an operating menu"(® ä 28) or
the "Position adjustment" section(® ä 32) .
• Always install the sensor module HP below the lowest measuring point.
• Always install the sensor module LP above the highest measuring point.
• Do not mount the sensor modules in the filling curtain or at a point in the tank which could
be affected by pressure pulses from an agitator.
• Do not mount the sensor modules in the suction area of a pump.
• The adjustment and functional test can be carried out more easily if you mount the sensor
modules downstream of a shutoff device.
• If a heated sensor module is cooled during the cleaning process (e.g. by cold water), a vacuum
develops for a short time, whereby moisture can penetrate the sensor through the pressure
compensation (3). If this is the case, mount the sensor with the pressure compensation (3)
pointing downwards.
• Keep the pressure compensation and GORE-TEX® filter (3) free from contamination.
• Do not clean or touch process isolating diaphragms with hard or pointed objects.

Installation Deltabar FMD72
14 Endress+Hauser
2
3
1
A0017512
6.6 Seal for flange mounting
NOTICE
Distorted measurement results.
The seal is not allowed to press against the process isolating diaphragm as this could affect the
measurement result.
►Ensure that the seal is not touching the process isolating diaphragm.
6.7 Installing the transmitter
The transmitter is installed with the mounting bracket supplied. The mounting bracket can be
installed on pipes with a diameter of 1¼" to 2" or on walls.
In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a torque
of at least 5 Nm (3.69 lbf ft).
6.7.1 Turning the display module
See Operating Instructions BA01044P on the CD-ROM supplied.
6.8 Post-installation check
mIs the device undamaged (visual inspection)?
m
Does the device conform to the measuring point specifications?
For example:
• Process temperature
• Process pressure
• Ambient temperature
• Measuring range
mAre the measuring point identification and labeling correct (visual inspection)?

Deltabar FMD72 Electrical connection
Endress+Hauser 15
mIs the device adequately protected from precipitation and direct sunlight?
mAre the securing screw and securing clamp tightened securely?
7 Electrical connection
!WARNING
If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
Risk of electric shock!
►In a wet environment, do not open the cover if voltage is present.
The sensor modules have a designation independent of the master/slave configuration.
This indicates where the sensor module is typically installed:
• Sensor module LP
LP = Low pressure; top
• Sensor module HP
HP = High pressure; bottom
For additional information, see "Function" section.
7.1 Connecting the sensor mod. LP to the sensor mod. HP
!WARNING
Is the supply voltage switched off?
Risk of electric shock and/or explosion!
►Switch off the supply voltage before connecting the device.
• Screw on the housing cover of the terminal compartment of the sensor module LP.
• Guide the cable of the sensor module HP through the cable gland of the sensor module LP.
Use the shielded 4-wire cable that is provided. The wire ends are color-coded to match the
corresponding terminal.
• Connect device in accordance with the following diagrams.
• Screw down housing cover.

Electrical connection Deltabar FMD72
16 Endress+Hauser
6
7
5
5
6
2 3 4
3
4
1
21
6
NPT ½"
M20
8
A0017528
1 BK (black)
2 BU (blue)
3 WH (white)
4 BN (brown)
5 Sensor module LP
6 Sensor module HP
7 Ground terminal
8 Torque 0.4 Nm
7.1.1 Screening with cable shield
Screening with cable shield is described in the associated documentation SD00354P. The
documentation is provided with the connecting cables.
7.2 Connecting the sensor module HP to the transmitter
!WARNING
Is the supply voltage switched off?
Risk of electric shock and/or explosion!
►Switch off the supply voltage before connecting the device.

Deltabar FMD72 Electrical connection
Endress+Hauser 17
• Screw on the housing cover of the terminal compartment of the sensor module HP.
• Guide the cable of the transmitter through the cable gland of the sensor module HP. Use the
shielded 4-wire cable that is provided. The wire ends are color-coded to match the
corresponding terminal.
• Connect device in accordance with the following diagram.
• Screw down housing cover.
6
5
5
72 3 4
3
4
1
21
6
5
NPT ½"
M20 8
8
A0017529
1BK (black)
2 BU (blue)
3 WH (white)
4 BN (brown)
5 Sensor module HP
6 Transmitter
7 Ground terminal
8 Torque 0.4 Nm
7.2.1 Screening with cable shield
Screening with cable shield is described in the associated documentation SD00354P. The
documentation is provided with the connecting cables.

Electrical connection Deltabar FMD72
18 Endress+Hauser
7.3 Connecting the measuring unit
7.3.1 Wiring the transmitter
!WARNING
Supply voltage switched off?
Risk of electric shock and/or explosion!
►Switch off the supply voltage before connecting the device.
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
• All explosion protection data are given in separate documentation which is available upon
request. The Ex documentation is supplied as standard with all devices approved for use in
explosion hazardous areas.
• Devices with integrated overvoltage protection must be grounded.
• Protective circuits against reverse polarity, HF influences and overvoltage peaks are integrated.
• The supply voltage must match the power supply specified on the nameplate (see "Nameplate"
(® ä 10))
• Switch off the supply voltage before connecting the device.
• Remove the housing cover of the terminal compartment.
• Guide cable through the gland. Preferably use twisted, screened two-wire cable.
• Connect device in accordance with the following diagram.
• Screw down housing cover.
• Switch on supply voltage.

Deltabar FMD72 Electrical connection
Endress+Hauser 19
4... 20mA Test
Test
1
2
3
4
5
4…20 mA
Test
4... 20mA Test
6
7
8
A0017530
1 Housing
2 4 to 20 mA test signal between positive and test terminal
3 External ground terminal
4 Internal ground terminal
5 Jumper for 4 to 20 mA test signal
6 Minimum supply voltage = 12 V DC, jumper is set as illustrated in the diagram.
7 Minimum supply voltage = 13 V DC, jumper is set in "Test" position.
8 Devices with integrated overvoltage protection are labeled "OVP" (overvoltage protection) here.
7.3.2 Supply voltage
!WARNING
Risk of explosion.
Risk of electric shock and/or explosion!
►When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations as well as the Safety Instructions.
►All explosion protection data are given in separate documentation which is available upon
request. The Ex documentation is supplied as standard with all devices approved for use in
explosion hazardous areas.
Electronic version Jumper for 4 to 20 mA test signal in
"Test" position (delivery status)
Jumper for 4 to 20 mA test signal in
"Non-test" position
4 to 20 mA HART, version for
non-hazardous areas
13 to 45 V DC 12 to 45 V DC
7.3.3 Measuring a 4 to 20 mA test signal
See Operating Instructions BA01044P on the CD-ROM supplied.

Electrical connection Deltabar FMD72
20 Endress+Hauser
7.4 Connection conditions
7.4.1 Cable specification for transmitter connection
See Operating Instructions BA01044P on the CD-ROM supplied.
7.4.2 Cable glands
See Operating Instructions BA01044P on the CD-ROM supplied.
7.4.3 Overvoltage protection (optional)
See Operating Instructions BA01044P on the CD-ROM supplied.
7.5 Connection data
7.5.1 Maximum load
See Operating Instructions BA01044P on the CD-ROM supplied.
7.5.2 Shielding
• You achieve optimum shielding against disturbances if the shielding is connected on both sides
(in the cabinet and on the device). If potential equalization currents are expected in the plant,
only ground shielding on one side, preferably at the transmitter.
• When using in hazardous areas, you must observe the applicable regulations. Separate Ex
documentation with additional technical data and instructions is included with all Ex systems
as standard.
7.6 Post-connection check
mIs the device or cable undamaged (visual check)?
mDo the cables comply with the requirements ?
mDo the cables have adequate strain relief?
mAre all the cable glands installed, firmly tightened and leak-tight?
mDoes the supply voltage match the specifications on the nameplate?
mIs the terminal assignment correct ?
mIf required: Has protective ground connection been established ?
mIf supply voltage is present, is the device ready for operation and do values appear on the display module?
mAre all housing covers installed and firmly tightened?
mIs the securing clamp tightened correctly?
