Operating Instructions
Liquicap M FMI51, FMI52
FEI57C PFM
Capacitive Level Measurement

Brief overview Liquicap M FMI51, FMI52 - Level Measurement - PFM
2
Brief overview
For quick and easy commissioning:
Safety instructions
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter in
question. The positions are indicated with the icons Warning #, Caution "and
Note !.
→Page 6 ff.
Æ
Installation
Here you can find the steps for installing the device and the installation
conditions
(such as the dimensions etc.).
→Page 16 ff.
Æ
Wiring
The device is delivered ready-wired as far as is possible. →Page 33 ff.
Æ
Display and operating elements
Here you can find an overview of the layout of the device's display and
operating elements.
→Page 38 ff.
Æ
Commissioning
The "Commissioning" section tells you how to switch on the device and check
the functions.
→Page 39 ff.
Æ
Troubleshooting
If faults and malfunctions occur during operation, use the checklist to find the
cause.
Here you can find measures you can take yourself to rectify any errors that may
occur.
→Page 43 ff.

Liquicap M FMI51, FMI52 - Level Measurement - PFM Brief overview
3

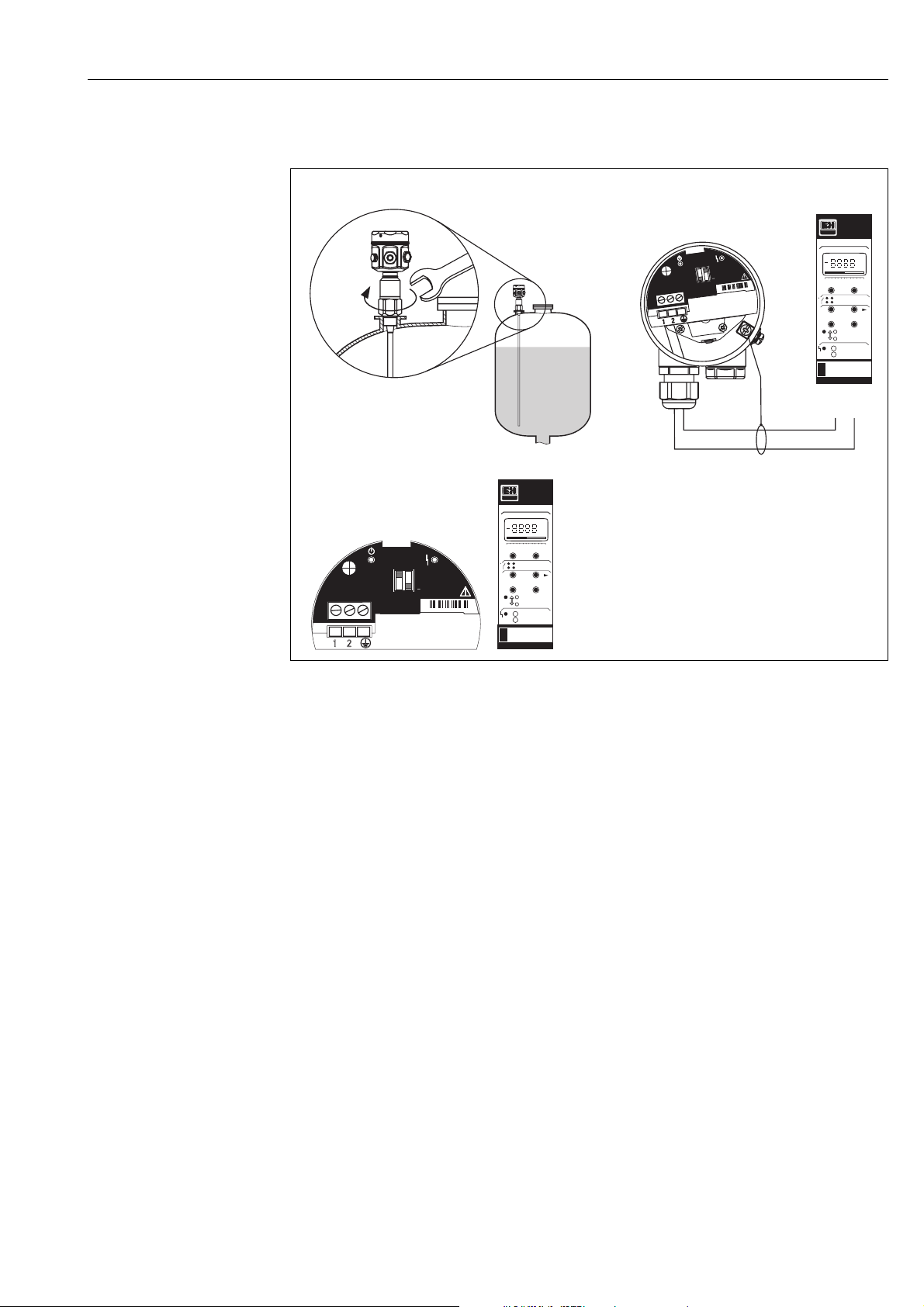

Brief operating instructions
L00-FMI5xxxx-16-00-00-en-001
!Note!
These Operating Instructions describe how to install and commission the level transmitter.
All functions that are needed for regular measuring tasks are taken into account.
In addition, the silometer, for example, has many other functions for optimising the measuring point
and converting the measured value which do not form part of these Operating Instructions.
An overview of the configuration options at the FEI57C electronic insert is provided on
Page 38.
2 (+)
1 (–)
d2 d4
(+) (–)
Silometer
FMC672
FMC672
VH
V
1
2
+
–
+
–
mA1
H
–
E
1000
00
>6 m
<6 m
Probe
length
FEI57C
Yes
No
Build up
-+
FEI57C
PFM
>6 m
>6 m
<6 m
<6 m
Yes
No
Build up Probe
length
FMC672
VH
V
1
2
+
–
+
–
mA1
H
–
E
1000
00
4. Make settings
1. Install probe 2. Wiring
3. Switch on power supply

Brief overview Liquicap M FMI51, FMI52 - Level Measurement - PFM
4

Liquicap M FMI51, FMI52 - Level Measurement - PFM Table of contents
5
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 6
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Installation, commissioning and operation . . . . . . . . 6
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Notes on safety conventions and icons . . . . . . . . . . . 7
2 Identification . . . . . . . . . . . . . . . . . . . . 8
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 15
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 15
3 Installation . . . . . . . . . . . . . . . . . . . . . 16
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 16
3.2 Incoming acceptance, transport, storage . . . . . . . . . 16
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 17
3.4 Installation instructions . . . . . . . . . . . . . . . . . . . . . 24
3.5 Installation examples . . . . . . . . . . . . . . . . . . . . . . . 25
3.6 With Separate Housing . . . . . . . . . . . . . . . . . . . . . 30
3.7 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 32
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 33
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 33
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 35
4.3 Recommendations for connection . . . . . . . . . . . . . 37
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 37
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 37
5 Operation . . . . . . . . . . . . . . . . . . . . . . 38
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 38
5.2 Display and operating elements . . . . . . . . . . . . . . . 38
5.3 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6 Commissioning. . . . . . . . . . . . . . . . . . 39
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.2 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7 Maintenance. . . . . . . . . . . . . . . . . . . . 40
8 Accessories. . . . . . . . . . . . . . . . . . . . . 41
8.1 Protective cover . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.2 Shortening set . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.3 HAW569 surge arrester . . . . . . . . . . . . . . . . . . . . . 41
8.4 Welding boss for universal adapter . . . . . . . . . . . . . 41
8.5 Welding neck G ¾ . . . . . . . . . . . . . . . . . . . . . . . . 42
8.6 Welding neck G 1 . . . . . . . . . . . . . . . . . . . . . . . . . 42
9 Troubleshooting . . . . . . . . . . . . . . . . . 43
9.1 Fault analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.3 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.6 Softwarehistorie . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.7 Contact addresses at Endress+Hauser . . . . . . . . . . . 45
10 Technical data . . . . . . . . . . . . . . . . . . 46

Safety instructions Liquicap M FMI51, FMI52 - Level Measurement - PFM
6
1 Safety instructions
1.1 Designated use
Liquicap M FMI51, FMI52 are compact, capacitance level transmitters for the continuous
measurement of conductive liquids.
1.2 Installation, commissioning and operation
Liquicap M is designed to meet state-of-the-art safety regulations and complies with the applicable
requirements and EC Directives. If used improperly or other than intended, the device can,
however, be a source of application-related danger, e.g. product overflow as a result of incorrect
installation or configuration. For this reason, installation, electrical connection,
commissioning,operation and maintenance of the measuring system must only be carried out by
trained technical personnel authorised to perform such work by the owner-operator.The technical
personnel must have read and understood these Operating Instructions and must follow the
instructions they contain. The device may only be repaired or modified if expressly permitted in the
Operating Instructions.
1.3 Operational safety
1.3.1 Ex area
When using the measuring system in Ex-areas, the appropriate national standards and regulations
have to be observed. Separate Ex documentation, which constitutes an integral part of this
documentation, is supplied with the device. The installation procedures, connection data and safety
instructions it contains must be observed.
• Make sure that the technical staff has adequate training.
• The special measuring and safety-related requirements for the measuring points must be
observed.

Liquicap M FMI51, FMI52 - Level Measurement - PFM Safety instructions
7
1.4 Notes on safety conventions and icons
To highlight safety-related or alternative processes, we have designed the following safety
instructions where every instruction is indicated by a corresponding pictogram.
Safety instructions
#
Warning!
Draws attention to activities or procedures that can result in serious injuries to persons, a safety risk
or the destruction of the device if not carried out properly.
"
Caution!
Draws attention to activities or procedures that can result in injuries to persons or the defective
operation of the device if not carried out properly.
!
Note!
Draws attention to activities or procedures that have an indirect effect on operation, or can trigger an
unforeseen device reaction if not carried out properly.
Type of protection
0
Explosion-protected equipment tested for type examination
If this sign can be found on the nameplate of the device, the device can be operated in hazardous
areas or non-hazardous areas in accordance with the approval
-
Hazardous area
This symbol in the drawings in these Operating Instructions indicates Ex-areas. Devices located in
Ex-areas, or cables for such devices, must have appropriate explosion protection.
.
Safe area (non-hazardous area)
This symbol in the drawings in these Operating Instructions indicates non-Ex areas. Devices in non-
hazardous areas must also be certified if connecting cables lead into hazardous areas.
Electrical symbols
%
Direct current
A terminal to which direct voltage is applied or through which the direct current flows.
&
Alternating current
A terminal to which alternating voltage (sine wave) is applied or through which the alternating
current flows.
)
Ground connection
A grounded terminal which, from a user's point of view, is grounded via a grounding system.
*
Protective earth connection
A terminal that has to be grounded before any other connections may be established.
+
Equipotential connection
A connection that has to be connected to the grounding system of the plant. This can be a potential
matching line or a star grounding system, depending on national or company codes of practice.
Immunity to temperature change of the connecting cables
Means that the connecting cables have to withstand a temperature of 85 °C at least.
t >85°C

Identification Liquicap M FMI51, FMI52 - Level Measurement - PFM
8
2 Identification
2.1 Device designation
2.1.1 Nameplate
You can take the following technical data from the nameplate of the device:

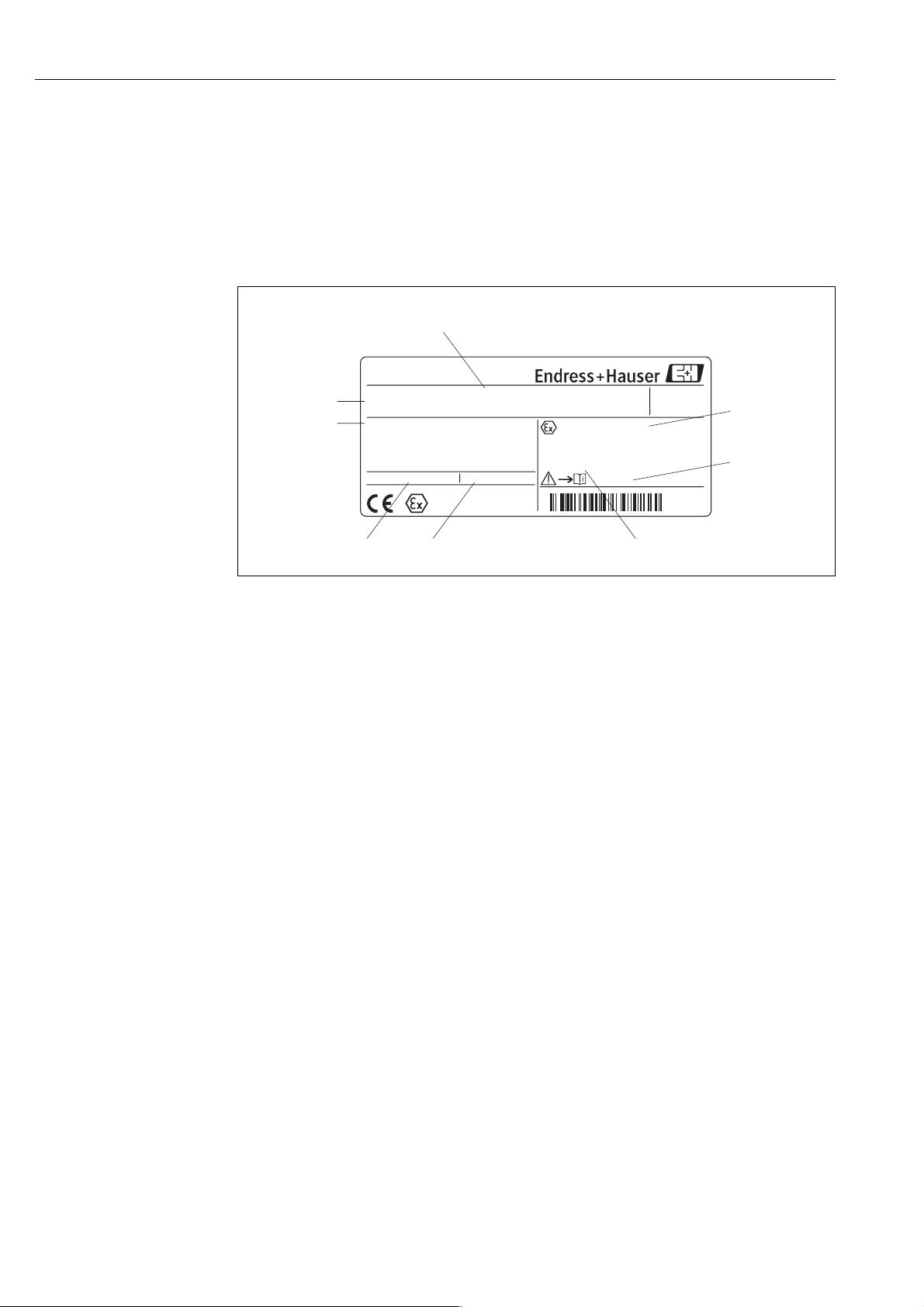

L00-FMI5xxxx-18-00-00-en-001
Information on the nameplate of Liquicap M (example)
250002075 - -
Dat.:
IP66/ IP67
NEMA4X
MWP:
≤Ta ≤+60°C
-40°C
Liquicap M
Order Code.:
Ser.No.:
XA327F
BVS 05 ATEX E 103 X
ATEX II 1/2 G EEx ia IIB T6
ATEX II 1/2 G EEx ia IIC T6
L1 = 1000
L3 = 1000
L = 2000
07/05
Made in Germany, D- 79689 Maulburg
Output:
XXXXXXXXXXXXX
mm
mm
mm
FEI57C
FMI51-xxxxxxxxxxxxxx
U: 14,8 V DC
25bar
Z 65.13.xxx
PFM
Order number
(see ordering information)
Approval No.
ATEX
Safety information
Serial number
Ambient temperature
at housing
Electronic insert
WHG approval
(German Water Resources Act)
Max. permissible pressure
in tank

Liquicap M FMI51, FMI52 - Level Measurement - PFM Identification
9
2.1.2 Liquicap M FMI51
10 Approval:
A Non-hazardous area
B Non-hazardous area, WHG (German Water Resources Act)
C ATEX II 1/2 GD EEx ia IIC T6
D ATEX II 1/2 GD EEx ia IIC T6, WHG (German Water Resources Act)
E ATEX II 1/2 GD EEx ia IIB T6
F ATEX II 1/2 GD EEx ia IIB T6, WHG (German Water Resources Act)
G ATEX II 1/2 G EEx d (ia) IIB T6, WHG (German Water Resources Act)
H ATEX II 1/2 GD EEx ia IIC T6,
XA, observe safety instructions (electrostatic charge)!
J ATEX II 1/2 GD EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
K ATEX II 1/2 G EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
L ATEX II 1/2 G EEx d (ia) IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
M ATEX II 3 GD EEx nA II T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
N CSA General Purpose, C US CSA
P CSA/FM IS Cl. I, II, III Div. 1+2 Gr. A-G
R CSA/FM XP Cl. I, II, III Div. 1+2 Gr. A-G
S TIIS Ex ia IIC T3
T TIIS Ex d IIC T3
Y Special version, to be specified
20 Inactive length (L3):
Price per 100 mm/1 inch
L3: 100...2000 mm/4...80 inch for 316L
L3: 150...1000 mm/6...40 inch for PTFE fully insulated
Protection against condensate + bypassing container nozzles
1Notselected
2mmL3, 316L
3 mm L3, 316L + PTFE fully insulated
5 inch L3, 316L
6 inch L3, 316L + PTFE fully insulated
9 Special version, to be specified
30 Active probe length (L1); insulation:
Price per 100 mm/1 inch
L1: 100...4000 mm/4...160 inch for ∅10 mm, ∅16 mm
L1: 150...3000 mm/6...120 inch for ∅22 mm (fully insulated)
A mm L1, 10 mm, 316L; PTFE
B mm L1, 16 mm, 316L; PTFE
C mm L1, 22 mm, 316L; PTFE
D mm L1, 16 mm, 316L; PFA
E mm L1, 10 mm, 316L; PTFE + ground tube
F mm L1, 16 mm, 316L; PTFE + ground tube
G mm L1, 16 mm, 316L; PFA + ground tube
H inch L1, 0.4 inch, 316L; PTFE
K inch L1, 0.6 inch, 316L; PTFE
M inch L1, 0.9 inch, 316L; PTFE
N inch L1, 0.6 inch, 316L; PFA
P inch L1, 0.4 inch, 316L; PTFE + ground tube
R inch L1, 0.6 inch, 316L; PTFE + ground tube
S inch L1, 0.6 inch, 316L; PFA + ground tube
Y Special version, to be specified
50 Process connection:
Threaded connection
GCJ G ½, 316L, 25 bar Thread ISO228
GDJ G ¾, 316L, 25 bar Thread ISO228
GEJ G 1, 316L, 25 bar Thread ISO228
GGJ G 1½, 316L, 100 bar Thread ISO228
RCJ NPT ½, 316L, 25 bar Thread ANSI
RDJ NPT ¾, 316L, 25 bar Thread ANSI

Identification Liquicap M FMI51, FMI52 - Level Measurement - PFM
10
REJ NPT 1, 316L, 25 bar Thread ANSI
RGJ NPT 1½, 316L, 100 bar Thread ANSI
Hygiene connection
GQJ G ¾ 316L, 25 bar Thread ISO2852
Accessories installation, welding neck
GWJ G 1 316L, 25 bar Thread ISO2852
Accessories installation, welding neck
MRJ DN50 PN40, 316L DIN11851
UPJ Adapter 43 mm 316L, 25 bar
Tri-Clamp connection
TCJ DN25 (1"), EHEDG 316L, 25 bar Tri-Clamp ISO2852
TJJ DN38 (1½"), EHEDG 316L, 25 bar Tri-Clamp ISO2852
TDJ DN40-51 (2"), 316L, 100 bar Tri-Clamp ISO2852
TNJ DN38 (1½"), 316L, 25 bar, 3A Tri-Clamp ISO2852
Tri-Clamp, removable
EN flanges
B0J DN25 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B1J DN32 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B2J DN40 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B3J DN50 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
CRJ DN50 PN25/40 B1, 316L Flange EN1092-1 (DIN2527 C)
DRJ DN50 PN40 C, 316L Flange EN1092-1 (DIN2512 F)
ERJ DN50 PN40 D, 316L Flange EN1092-1 (DIN2512 N)
BSJ DN80 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CGJ DN80 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
DGJ DN80 PN16 C, 316L Flange EN1092-1 (DIN2512 F)
EGJ DN80 PN16 D, 316L Flange EN1092-1 (DIN2512 N)
BTJ DN100 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CHJ DN100 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
PTFE clad
B0K DN25 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B1K DN32 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B2K DN40 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B3K DN50 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
BSK DN80 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
BTK DN100 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
ANSI flanges
ACJ 1" 150 lbs RF, 316/316L Flange ANSI B16.5
ANJ 1" 300 lbs RF, 316/316L Flange ANSI B16.5
AEJ 1½" 150 lbs RF, 316/316L Flange ANSI B16.5
AQJ 1½" 300 lbs RF, 316/316L Flange ANSI B16.5
AFJ 2" 150 lbs RF, 316/316L Flange ANSI B16.5
ARJ 2" 300 lbs RF, 316/316L Flange ANSI B16.5
AGJ 3" 150 lbs RF, 316/316L Flange ANSI B16.5
ASJ 3" 300 lbs RF, 316/316L Flange ANSI B16.5
AHJ 4" 150 lbs RF, 316/316L Flange ANSI B16.5
ATJ 4" 300 lbs RF, 316/316L Flange ANSI B16.5
AJJ 6" 150 lbs RF, 316/316L Flange ANSI B16.5
AUJ 6" 300 lbs RF, 316/316L Flange ANSI B16.5
PTFE clad
ACK 1" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ANK 1" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AEK 1½" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AQK 1½" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AFK 2" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ARK 2" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AGK 3" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AHK 4" 150 lbs, PTFE >316/316L Flange ANSI B16.5
JIS flanges
KCJ 10K 25 RF, 316L Flange JIS B2220
KEJ 10K 40 RF, 316L Flange JIS B2220
50 Process connection:

Liquicap M FMI51, FMI52 - Level Measurement - PFM Identification
11
KFJ 10K 50 RF, 316L Flange JIS B2220
KGJ 10K 80 RF, 316L Flange JIS B2220
KHJ 10K 100 RF, 316L Flange JIS B2220
KRJ 20K 50 RF, 316L Flange JIS B2220
PTFE clad
KCK 10K 25 RF, PTFE >316L Flange JIS B2220
KEK 10K 40 RF, PTFE >316L Flange JIS B2220
KFK 10K 50 RF, PTFE >316L Flange JIS B2220
KGK 10K 80 RF, PTFE >316L Flange JIS B2220
KHK 10K 100 RF, PTFE >316L Flange JIS B2220
YY9 Special version, to be specified
60 Electronics; output:
A FEI50H; 4...20 mA HART + display
B FEI50H; 4...20 mA HART
C FEI57C; PFM
V Without; Prepared for FEI5x + display, High cover, transparent
W Without; Prepared for FEI5x, Flat cover
Y Special version, to be specified
70 Housing:
1 F15 316L IP66, NEMA4X
2 F16 polyester IP66, NEMA4X
3 F17 aluminium IP66, NEMA4X
4 F13 aluminium + gas-tight process seal IP66, NEMA4X
5 T13 aluminium + gas-tight process seal
+ separate connection compartment
IP66, NEMA4X
9 Special version, to be specified
80 Cable entry:
AM20threadedjoint
BThreadG½
CThreadNPT½
DThreadNPT¾
E M12 connector
F7/8"connector
Y Special version, to be specified
90 Probe design:
L4: 300...6000 mm/12...240 inch
1 Compact
2 2000 mm L4 cable > separate housing
3 ....mm L4 cable > separate housing
4 80 inch L4 cable > separate housing
5 ....inch L4 cable > separate housing
9 Special version, to be specified
100 Additional option:
A Basic version
BLABSfree
C Metal probe rod surface refining
D EN10204-3.1 (316L wetted parts), Inspection certificate
E EN10204-3.1 (316L wetted),
NACE MR0175
Inspection certificate
F SIL2/IEC61508 declaration of conformity
S GL marine approval
Y Special version, to be specified
FMI51 Product designation
50 Process connection:

Identification Liquicap M FMI51, FMI52 - Level Measurement - PFM
12
2.1.3 Liquicap M FMI52
10 Approval:
A Non-hazardous area
B Non-hazardous area, WHG (German Water Resources Act)
E ATEX II 1/2 GD EEx ia IIB T6
F ATEX II 1/2 GD EEx ia IIB T6, WHG (German Water Resources Act)
G ATEX II 1/2 G EEx d (ia) IIB T6, WHG (German Water Resources Act)
H ATEX II 1/2 GD EEx ia IIC T6,
XA, observe safety instructions (electrostatic charge)!
J ATEX II 1/2 GD EEx ia IIC T6,
XA, observe safety instructions (electrostatic charge)!
K ATEX II 1/2 G EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
L ATEX II 1/2 G EEx d (ia) IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
M ATEX II 3 GD EEx nA II T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
N CSA General Purpose, C US CSA
P CSA/FM IS Cl. I, II, III Div. 1+2 Gr. A-G
R CSA/FM XP Cl. I, II, III Div. 1+2 Gr. A-G
S TIIS Ex ia IIC T3
T TIIS Ex d IIC T3
Y Special version, to be specified
20 Inactive length (L3):
Price per 100 mm/1 inch
L3: 100...2000 mm/4...80 inch for 316L
L3: 150...1000 mm/6...40 inch for PTFE fully insulated
Protection against condensate + bypassing container nozzles
1Notselected
2 ... mm L3, 316L
3 ... mm L3, 316L + PFA fully insulated
5 ... inch L3, 316L
6 ... inch L3, 316L + PFA fully insulated
9 Special version, to be specified
30 Active probe length (L1); insulation:
Price per 1000 mm/10 inch
L1: 420...10 000 mm/17...400 inch; fully insulated
A ... mm L1, 316L; FEP
B ... mm L1, 316L; PFA
C ... inch L1, 316L; FEP
D ... inch L1, 316L; PFA
Y Special version, to be specified
50 Process connection:
Threaded connection
GDJ G ¾, 316L, 25 bar Thread ISO228
GEJ G 1, 316L, 25 bar Thread ISO228
GGJ G 1½, 316L, 100 bar Thread ISO228
RDJ NPT ¾, 316L, 25 bar Thread ANSI
REJ NPT 1, 316L, 25 bar Thread ANSI
RGJ NPT 1½, 316L, 100 bar Thread ANSI
Hygiene connection
GWJ G 1 316L, 25 bar Thread ISO2852
Accessories installation, welding neck
MRJ DN50 PN40, 316L DIN11851
UPJ Adapter 43 mm 316L, 25 bar
Tri-Clamp connection
TCJ DN25 (1"), EHEDG 316L, 25 bar Tri-Clamp ISO2852
TJJ DN38 (1½"), EHEDG 316L, 25 bar Tri-Clamp ISO2852
TDJ DN40-51 (2"), 316L, 100 bar Tri-Clamp ISO2852

Liquicap M FMI51, FMI52 - Level Measurement - PFM Identification
13
EN flanges
B0J DN25 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B1J DN32 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B2J DN40 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B3J DN50 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
CRJ DN50 PN25/40 B1, 316L Flange EN1092-1 (DIN2527 C)
DRJ DN50 PN40 C, 316L Flange EN1092-1 (DIN2512 F)
ERJ DN50 PN40 D, 316L Flange EN1092-1 (DIN2512 N)
BSJ DN80 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CGJ DN80 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
DGJ DN80 PN16 C, 316L Flange EN1092-1 (DIN2512 F)
EGJ DN80 PN16 D, 316L Flange EN1092-1 (DIN2512 N)
BTJ DN100 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CHJ DN100 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
PTFE clad
B0K DN25 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B1K DN32 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B2K DN40 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B3K DN50 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
BSK DN80 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
BTK DN100 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
ANSI flanges
ACJ 1" 150 lbs RF, 316/316L Flange ANSI B16.5
ANJ 1" 300 lbs RF, 316/316L Flange ANSI B16.5
AEJ 1½" 150 lbs RF, 316/316L Flange ANSI B16.5
AQJ 1½" 300 lbs RF, 316/316L Flange ANSI B16.5
AFJ 2" 150 lbs RF, 316/316L Flange ANSI B16.5
ARJ 2" 300 lbs RF, 316/316L Flange ANSI B16.5
AGJ 3" 150 lbs RF, 316/316L Flange ANSI B16.5
ASJ 3" 300 lbs RF, 316/316L Flange ANSI B16.5
AHJ 4" 150 lbs RF, 316/316L Flange ANSI B16.5
ATJ 4" 300 lbs RF, 316/316L Flange ANSI B16.5
AJJ 6" 150 lbs RF, 316/316L Flange ANSI B16.5
AUJ 6" 300 lbs RF, 316/316L Flange ANSI B16.5
PTFE clad
ACK 1" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ANK 1" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AEK 1½" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AQK 1½" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AFK 2" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ARK 2" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AGK 3" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AHK 4" 150 lbs, PTFE >316/316L Flange ANSI B16.5
JIS flanges
KCJ 10K 25 RF, 316L Flange JIS B2220
KEJ 10K 40 RF, 316L Flange JIS B2220
KFJ 10K 50 RF, 316L Flange JIS B2220
KGJ 10K 80 RF, 316L Flange JIS B2220
KHJ 10K 100 RF, 316L Flange JIS B2220
KRJ 20K 50 RF, 316L Flange JIS B2220
PTFE clad
KCK 10K 25 RF, PTFE >316L Flange JIS B2220
KEK 10K 40 RF, PTFE >316L Flange JIS B2220
KFK 10K 50 RF, PTFE >316L Flange JIS B2220
KGK 10K 80 RF, PTFE >316L Flange JIS B2220
KHK 10K 100 RF, PTFE >316L Flange JIS B2220
YY9 Special version, to be specified
60 Electronics; output:
A FEI50H; 4...20 mA HART + display
B FEI50H; 4...20 mA HART
CFEI57C; PFM
V Without; Prepared for FEI5x + display, High cover, transparent
50 Process connection:

Identification Liquicap M FMI51, FMI52 - Level Measurement - PFM
14
W Without; Prepared for FEI5x, Flat cover
Y Special version, to be specified
70 Housing:
1 F15 316L IP66, NEMA4X
2 F16 polyester IP66, NEMA4X
3 F17 aluminium IP66, NEMA4X
4 F13 aluminium + gas-tight process seal IP66, NEMA4X
5 T13 aluminium + gas-tight process seal
+ separate connection compartment
IP66, NEMA4X
9 Special version, to be specified
80 Cable entry:
AM20threadedjoint
BThreadG½
CThreadNPT½
DThreadNPT¾
E M12 connector
F7/8"connector
Y Special version, to be specified
90 Probe design:
L4: 100...6000 mm/12...240 inch
1 Compact
2 2000 mm L4 cable > separate housing
3 ....mm L4 cable > separate housing
4 80 inch L4 cable > separate housing
5 ....inch L4 cable > separate housing
9 Special version, to be specified
100 Additional Option:
A Basic version
D EN10204-3.1 (316L wetted parts), Inspection certificate
E EN10204-3.1 (316L wetted parts),
NACE MR0175
Inspection certificate
F SIL2/IEC61508 declaration of conformity
S GL marine approval
Y Special version, to be specified
FMI52 Product designation
60 Electronics; output:

Liquicap M FMI51, FMI52 - Level Measurement - PFM Identification
15
2.2 Scope of delivery
"Caution!
Please pay particular attention to the instructions on unpacking, transporting and storing the
measuring devices outlined in the "Incoming acceptance, transport, storage" section on Page 16.
The scope of delivery comprises:
• The installed device
• Accessories, where applicable (see Page 41)
Documentation supplied:
• Operating Instructions (this manual)
• Approval documentation; if not listed in the Operating Instructions.
2.3 Certificates and approvals
CE mark, declaration of conformity
The device has been constructed and tested to state-of-the-art operational safety standards and left
the factory in perfect condition as regards technical safety. The device complies with the applicable
standards and regulations that are listed in the EC declaration of conformity and thus meets the legal
requirements of the EC Directives. Endress+Hauser confirms that the device has been tested
successfully by affixing the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademarks of E.I. Du Pont de Nemours & Co., Wilmington, USA
Tri-Clamp®
Registered trademark of Ladish & Co., Inc., Kenosha, USA

Installation Liquicap M FMI51, FMI52 - Level Measurement - PFM
16
3 Installation
3.1 Quick installation guide
L00-FMI5xxxx-17-06-xx-xx-001
1.) Screw in the device
2. a) Loose clamping screw that the housing can be alined easily.
2. b) Align the housing.
2. c) Tighten clamping screw (< 1 Nm) until the housing can no longer be rotated.
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check whether the packaging or content is damaged.
Check that the goods delivered are complete and compare the scope of delivery against the
information on your order.
3.2.2 Transporting to the measuring point
"Caution!
Observe safety instructions and transportation conditions for devices over 18 kg.
3.2.3 Storage
For storage and transportation, pack the device in such a way as to protect it reliably against impact.
The original packaging offers the best protection for this.
The permitted storage temperature is -50 °C…+85 °C.
12
a2.
1.
... 270°
b
12
c
12
< 80Nm(G )
< 100 Nm (G )
< 180 Nm (G1)
< 500 Nm (G1 )
½
¾
½

Liquicap M FMI51, FMI52 - Level Measurement - PFM Installation
17

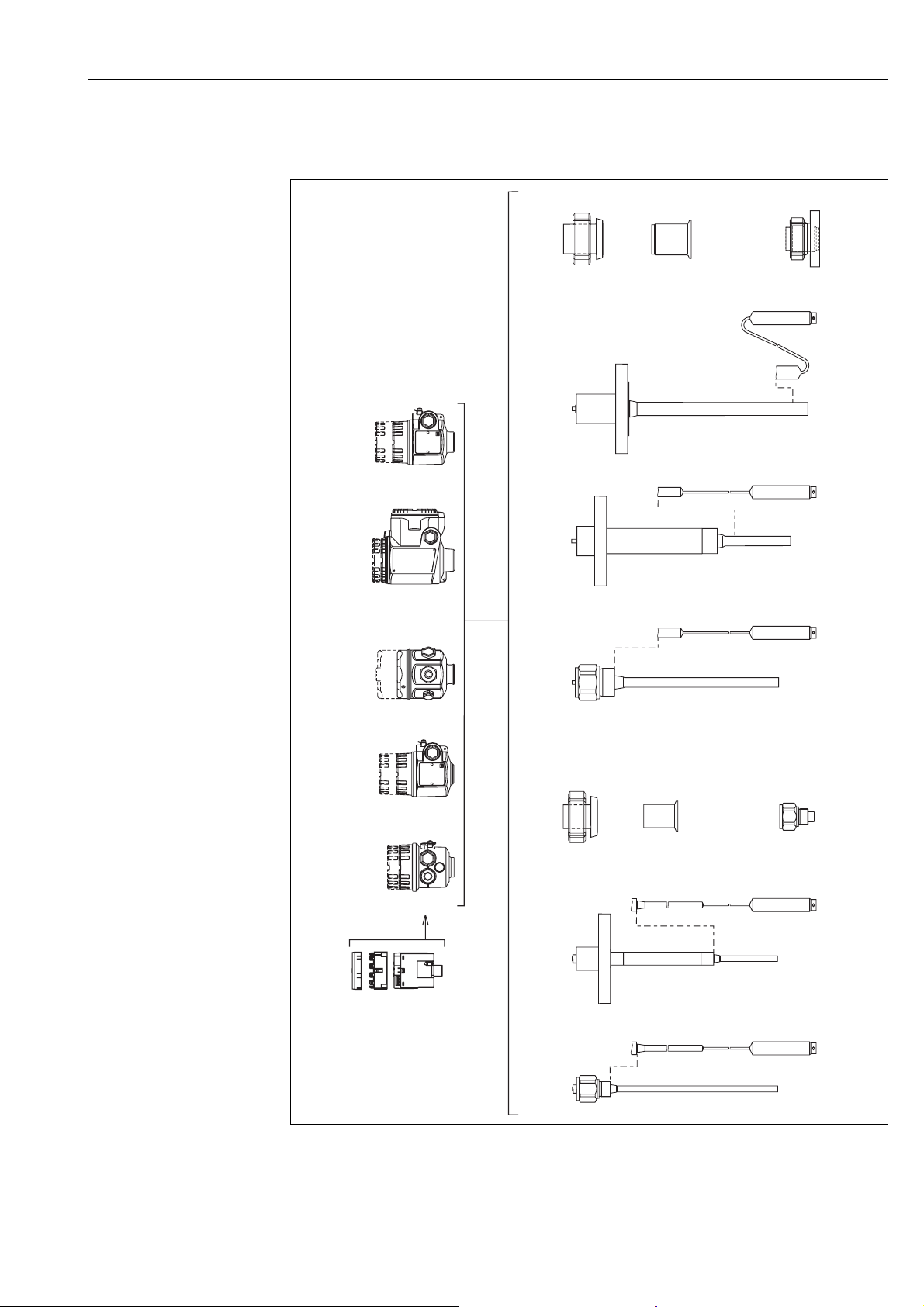

3.3 Installation conditions
L00-FMI5xxxx-03-05-xx-en-001
Polyester housing
F16
Aluminium housing
F17
Stainless steel housing
F15
Aluminium
T13
housing
with a separate connection
compartment and gas-tight
process seal
Aluminium
F13
housing
with a gas-tight
process seal
Rod/rope probe
10 mm
Rod/rope probe
16 mm
Rod/rope probe
with inactive length
10 mm
Rod/rope probe
with inactive length
16 mm
Fully insulated rod/rope probe
with fully insulated inactive length
22 mm
Tri-Clamp
(DN38 (1½");
DN40-51 (2"))
Clad flanges
(EN, ANSI, JIS) Hose gland
(DN50 PN40)
Thread
(G¾, NPT¾;
G1, NPT1;
G1½, NPT1½)
Flanges
(EN, ANSI, JIS)
Tri-Clamp
(DN25 (1");
DN38 (1½"))
Hygiene
(G¾, G1)
Hose gland
(DN50 PN40)
Thread
(G½, NPT½;
G¾, NPT¾;
G1, NPT1)
Flanges
(EN, ANSI, JIS)
Electronics
Display
Display holder
Hygiene
(universal adapter)
Hygiene connections
Flush-mounted seal
Hygiene connections

Installation Liquicap M FMI51, FMI52 - Level Measurement - PFM
18
3.3.1 Housing
!Note!
High cover for housing with display. All dimensions in mm (100 mm = 3.94 in).
Polyester housing F16
L00-FMI5xxxx-06-05-xx-en-001
Stainless steel housing F15
L00-FMI5xxxx-06-05-xx-en-003
Aluminium housing F17
L00-FMI5xxxx-06-05-xx-en-002
Aluminium housing F13
with gas-tight process
seal
L00-FMI5xxxx-06-05-xx-en-000
Aluminium housing T13
with separate connection
compartment and gas-tight
process seal
L00-FMI5xxxx-06-05-xx-en-004
ø85 max. 76
approx. 97
approx. 116
ø76 max. 64
approx. 95
approx. 134
ø80 max. 60
max. 65
approx. 105
approx. 134
ø80 max. 60
max. 65
approx. 118
approx. 147
max. 65 max. 97
approx. 135
approx. 147

Liquicap M FMI51, FMI52 - Level Measurement - PFM Installation
19
3.3.2 Housing extension heights with adapter
3.3.3 Process connections
Polyester housing
F16
Stainless steel
housing
F15
Aluminium housing
F17
Aluminium housing
F13*
Aluminium housing
with separate
connection
compartment T13*
L00-FMI5xxxx-06-05-xx-xx-044 L00-FMI5xxxx-06-05-xx-xx-046 L00-FMI5xxxx-06-05-xx-xx-045 L00-FMI5xxxx-06-05-xx-xx-048 L00-FMI5xxxx-06-05-xx-xx-047
Ordercode 21345
FMI51, FMI52
H1
(for electronic inserts without display)
144 142 152 194 202
H2
(for electronic inserts with display)
163 181 181 223 214
* Housing with gas-tight process seal
H1
H2
H1
H2
H1
H2
H1
H2
H1
H2

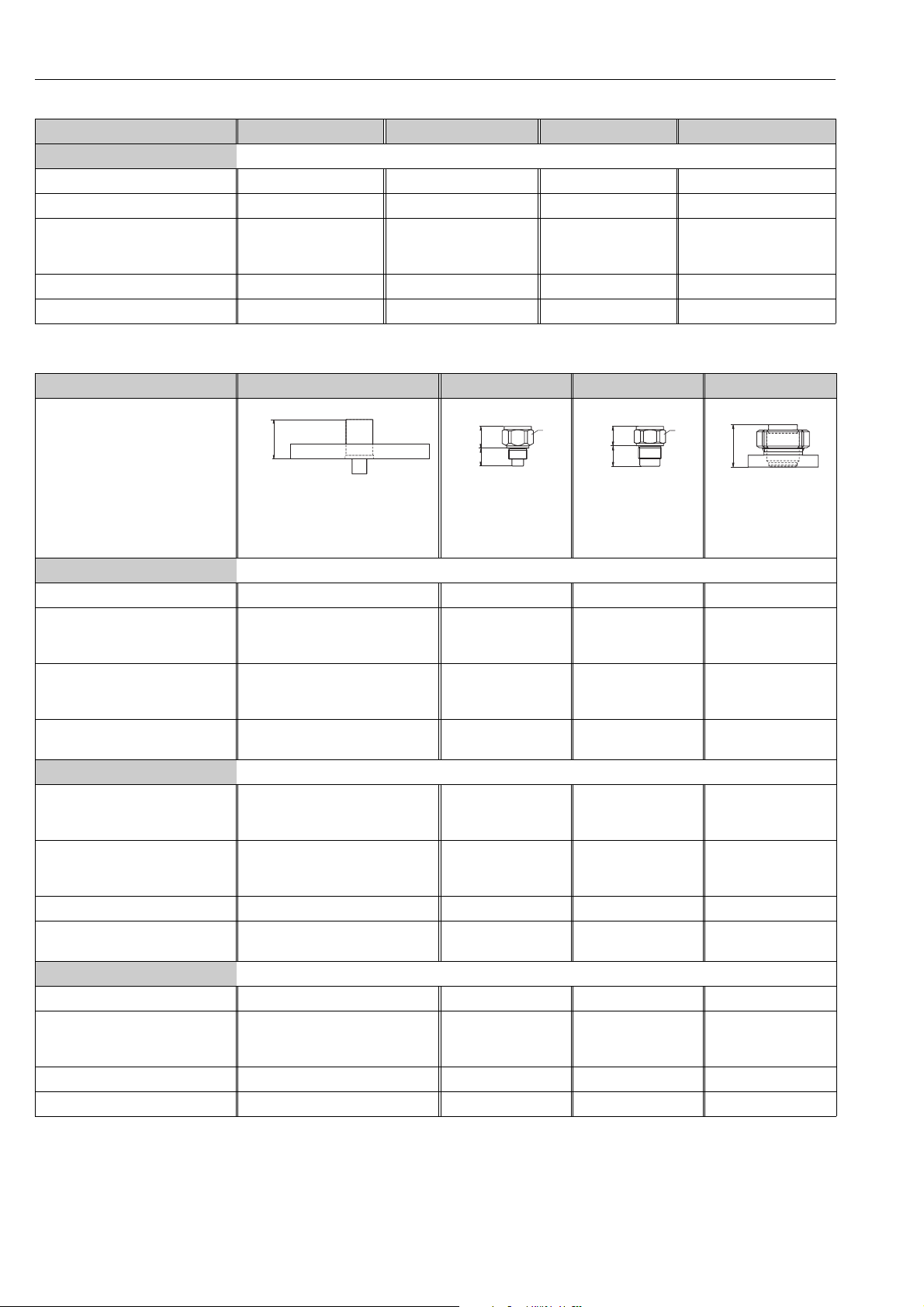

Thread G Thread NPT Threaded pipe joint Tri-Clamp
L00-FMI5xxxx-06-05-xx-en-007
(DIN ISO228/I)
L00-FMI5xxxx-06-05-xx-en-008
(ANSI B 1.20.1)
L00-FMI5xxxx-06-05-xx-xx-040
(DIN11851)
L00-FMI5xxxx-06-05-xx-xx-041
(ISO2852)
Rod probes ∅
∅∅
∅10, rope probes
For pressures up to 25 bar 25 bar 25 bar 16 bar
Version / order code G½ / GCJ
G¾ / GDJ
G1 / GEJ
NPT½ / RCJ
NPT¾ / RDJ
NPT1 / REJ
DN50 PN40 / MRJ DN25 (1") / TCJ
DN38 (1½") / TJJ
Dimensions H1 = 38
H2 = 19
AF = 41
H1 = 38
H2 = 19
AF = 41
H1 = 57 H1 = 57
Surface roughness - - ≤0.8 µm ≤0.8 µm
Additional information With elastomer flat seal - - EHEDG
Rod probes ∅
∅∅
∅16, rope probes
For pressures up to 25 bar 100 bar 25 bar 100 bar 40 bar 16 bar 16 bar
Version / order code G¾ / GDJ
G1 / GEJ
G1½ / GGJ NPT¾ / RDJ
NPT1 / REJ
NPT1½ / RGJ DN50 PN40 / MRJ DN38 / TJJ
(1½")
DN40-51 / TDJ
(2")
Dimensions H1 = 38
H2 = 19
AF = 41
H1 = 41
H2 = 25
AF = 55
H1 = 38
H2 = 19
AF = 41
H1 = 41
H2 = 25
AF = 55
H1 = 66 H1 = 47 H1 = 66
Surface roughness - - ≤0.8 µm ≤0.8 µm ≤0.8 µm
Additional information With elastomer flat seal - - -
H1
H2
AF
H1
H2
AF
H1
H1

Installation Liquicap M FMI51, FMI52 - Level Measurement - PFM
20
!Note!
Only use clad flanges for aggressive liquids.
Rod probes ∅
∅∅
∅22, rope probes
For pressures up to 50 bar 50 bar - -
Version / order code G1½ / GGJ NPT1½ / RGJ - -
Dimensions H1 = 85
H2 = 25
AF = 55
H1 = 85
H2 = 25
AF = 55
--
Surface roughness - - ≤0.8 µm ≤0.8 µm
Additional information With elastomer flat seal - - -
Thread G Thread NPT Threaded pipe joint Tri-Clamp
Flanges Hygiene connection Hygiene connection Hygiene connection
L00-FMI5xxxx-06-05-xx-xx-042
(EN1092-1)
(ANSI B 16.5)
(JIS B2220)
L00-FMI5xxxx-06-05-xx-en-009
With flush-mounted seal
L00-FMI5xxxx-06-05-xx-en-010
With flush-mounted seal
L00-FMI5xxxx-06-05-xx-xx-043
Adapter 43 mm
with flush-mounted seal
Rod probes ∅
∅∅
∅10, rope probes
For pressures up to max. 25 bar (depends on flange) 25 bar 25 bar -
Version / order code EN / B**
ANSI / A**
JIS / K**
G¾ / GQJ G1 / GWJ -
Dimensions H1 = 57 H1 = 31
H2 = 26
AF = 41
H1 = 30
H2 = 27
AF = 41
-
Additional information Also clad (PTFE) Welding neck see
"Accessories" Page 42
Welding neck see
"Accessories" Page 42
-
Rod probes ∅
∅∅
∅16, rope probes
For pressures up to max. 100 bar (depends on flange) - - 16 bar
(tightening torque
10 Nm)
Version / order code EN / B**
ANSI / A**
JIS / K**
- - Universal adapter
Dimensions H1 = 66 - - H1 = 57
Additional information Also clad (PTFE) - - Universal adapter see
"Accessories" Page 41
Rod probes ∅
∅∅
∅22, rope probes
For pressures up to max. 50 bar (depends on flange) - - -
Version / order code EN / B**
ANSI / A**
JIS / K**
---
Dimensions H1 = 110 - - -
Additional information Only clad (PTFE) - - -
** Wildcard for nominal diameter and permitted process pressure
H1
H1
H2
AF
H1
H2
AF
H1
