Operating Instructions
Memosens Wave CKI50
Process spectrometer for the measurement of color
BA01932C/07/EN/02.23-00
71625488
2023-08-10

Memosens Wave CKI50 Table of contents
Endress+Hauser 3
Table of contents
1 About this document ................ 4
1.1 Warnings ............................ 4
1.2 Symbols .............................. 4
1.3 Symbols on the device ................... 4
1.4 Documentation ........................ 5
2 Basic safety instructions ............ 6
2.1 Requirements of the personnel ............. 6
2.2 Intended use .......................... 6
2.3 Occupational safety ..................... 6
2.4 Operational safety ...................... 6
2.5 Product safety ......................... 7
3 Product description ................. 8
3.1 Product design ......................... 8
3.2 Measuring principle ..................... 8
4 Incoming acceptance and product
identification ..................... 10
4.1 Incoming acceptance ................... 10
4.2 Product identification ................... 10
4.3 Scope of delivery ...................... 11
4.4 Certificates and approvals ............... 11
5 Mounting the device ............... 12
5.1 Mounting requirements ................. 12
5.2 Mounting the process spectrometer ........ 15
5.3 Post-installation check .................. 16
6 Electrical connection .............. 17
6.1 Connecting the device .................. 17
6.2 Ensuring the degree of protection .......... 19
6.3 Post-connection check .................. 20
7 Commissioning .................... 21
7.1 Preparations ......................... 21
7.2 Function check ....................... 21
8 Operation ......................... 22
8.1 Adapting the measuring device to the process
conditions ........................... 22
9 Diagnostics and troubleshooting ... 24
9.1 General troubleshooting ................. 24
10 Maintenance ...................... 25
10.1 Maintenance work ..................... 25
11 Repair ............................ 36
11.1 General notes ........................ 36
11.2 Spare parts .......................... 36
11.3 Return .............................. 36
11.4 Disposal ............................ 36
12 Technical data .................... 38
12.1 Input ............................... 38
12.2 Performance characteristics .............. 38
12.3 Environment ......................... 39
12.4 Process ............................. 39
12.5 Mechanical construction ................ 40
Index .................................. 41

About this document Memosens Wave CKI50
4 Endress+Hauser
1 About this document
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
If necessary, Consequences of
non-compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious
injury.
LWARNING
Causes (/consequences)
If necessary, Consequences of
non-compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious
injury.
LCAUTION
Causes (/consequences)
If necessary, Consequences of
non-compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
If necessary, Consequences of
non-compliance (if applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to
property.
1.2 Symbols
Symbol Meaning
Additional information, tips
Permitted or recommended
Recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step
1.3 Symbols on the device
Symbol Meaning
Reference to device documentation

Memosens Wave CKI50 About this document
Endress+Hauser 5
1.4 Documentation
The following manuals, which complement these Operating Instructions, can be found on
the product pages on the Internet:
Technical Information Memosens Wave CKI50, TI01431C
Operating Instructions Liquiline CM44P, BA01954C
In addition to the Operating Instructions and depending on the relevant approval, XA
"Safety instructions" are supplied with sensors for the hazardous area.
‣Please follow the XA instructions when using the device in the hazardous area.

Basic safety instructions Memosens Wave CKI50
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements of the personnel
• Installation, commissioning, operation and maintenance of the measuring system may
be carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the
specified activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions
and must follow the instructions contained therein.
• Faults at the measuring point may only be rectified by authorized and specially trained
personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Intended use
The process spectrometer is used for the in-line analysis of liquids. It is used to detect color
using VIS spectroscopy (VIS = visible). The device can measure and determine color, color
variations or the accuracy of the color in liquids.
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Occupational safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
• Regulations for explosion protection
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable international standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.
2.4 Operational safety
Before commissioning the entire measuring point:
1. Verify that all connections are correct.
2. Ensure that electrical cables and hose connections are undamaged.
3. Do not operate damaged products, and protect them against unintentional operation.
4. Label damaged products as defective.
During operation:
‣If faults cannot be rectified:
products must be taken out of service and protected against unintentional operation.

Memosens Wave CKI50 Basic safety instructions
Endress+Hauser 7
LCAUTION
Programs not switched off during maintenance activities.
Risk of injury due to medium or cleaning agent!
‣Quit any programs that are active.
‣Switch to the service mode.
‣If testing the cleaning function while cleaning is in progress, wear protective clothing,
goggles and gloves or take other suitable measures to protect yourself.
2.5 Product safety
2.5.1 State of the art
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
international standards have been observed.

Product description Memosens Wave CKI50
8 Endress+Hauser
3 Product description
3.1 Product design
123
4
5
A0037587

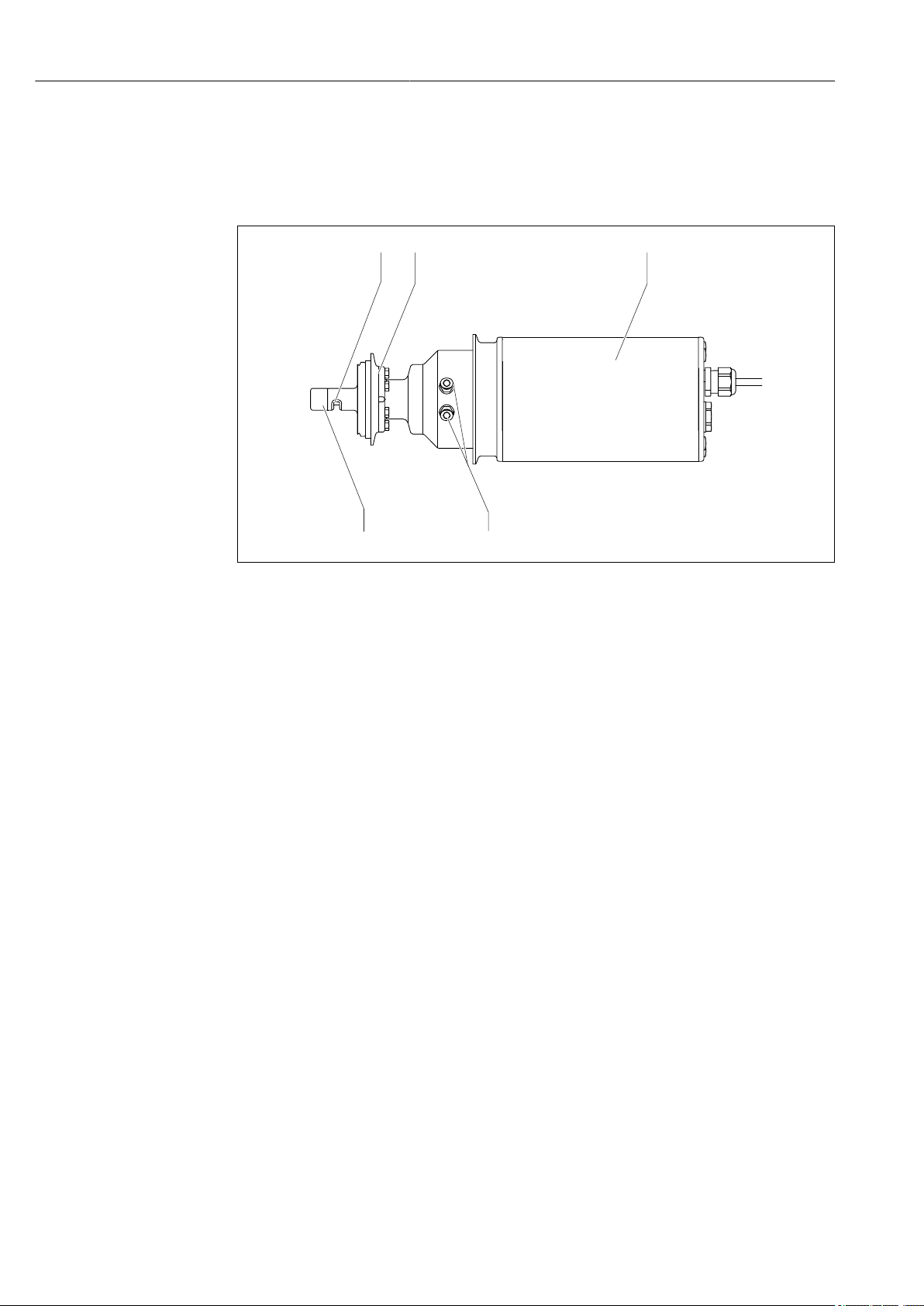

 1 Process spectrometer CKI50
1 Measurement gap
2 Process connection
3 Electronics unit
4 Cooling connections for water cooling
5 Measuring head
The process spectrometer can be operated directly in-line without any additional sampling.
All the necessary modules are contained in the electronics unit:
• Power supply
• Light sources
• Spectrometer
Receives the measurement signals, digitalizes them and converts them to a
measurement value.
• Microcontroller
Responsible for controlling internal processes and transmitting data.
• Processor unit
The process spectrometer contains the following light source:
Halogen bulb: 380 to 830 nm
3.2 Measuring principle
The process spectrometer uses optical signals to analyze the medium. Information about
the medium is then output as measurement parameters. The transmitter displays the
measurement parameters. These are used to monitor or directly control a process.
The process spectrometer measures the portion of the sample that is located in the
measurement gap of the measuring head. The sample is illuminated with light and an
interaction takes place between the sample and the introduced light. The transmitted light
is collected again via the observation window and analyzed in the electronics unit. The
spectrum of the collected light is then analyzed and the corresponding measurement
parameter is calculated.

Memosens Wave CKI50 Product description
Endress+Hauser 9
2
123
4
A0037674
 2 Absorption measurement
1 Light source
2 Optical windows
3 Detector
4 Direction of medium flow
A light source sends a beam of light through the medium via the optical windows. The
incident light beam is measured on the detector side →  2,  9.
3.2.1 Light absorption
The measuring principle is based on the Lambert-Beer law.
There is a linear dependency between the absorption of light and the concentration of the
absorbing substance:
A = -log10 (I/I0) = ε . c . OPL
A Absorption
I Intensity of received light at detector
I0Intensity of transmitted light of light source
ε Extinction coefficient
c Concentration
OPL Optical path length

Incoming acceptance and product identification Memosens Wave CKI50
10 Endress+Hauser
4 Incoming acceptance and product
identification
4.1 Incoming acceptance
1. Verify that the packaging is undamaged.
 Notify the supplier of any damage to the packaging.
Keep the damaged packaging until the issue has been resolved.
2. Verify that the contents are undamaged.
 Notify the supplier of any damage to the delivery contents.
Keep the damaged goods until the issue has been resolved.
3. Check that the delivery is complete and nothing is missing.
 Compare the shipping documents with your order.
4. Pack the product for storage and transportation in such a way that it is protected
against impact and moisture.
 The original packaging offers the best protection.
Make sure to comply with the permitted ambient conditions.
If you have any questions, please contact your supplier or your local Sales Center.
4.2 Product identification
4.2.1 Nameplate
The nameplate provides you with the following information on your device:
• Manufacturer identification
• Extended order code
• Serial number
• Safety information and warnings
‣Compare the information on the nameplate with the order.
4.2.2 Identifying the product
Product page
www.endress.com/cki50
Interpreting the order code
The order code and serial number of your product can be found in the following locations:
• On the nameplate
• In the delivery papers
Obtaining information on the product
1. Go to www.endress.com.
2. Page search (magnifying glass symbol): Enter valid serial number.
3. Search (magnifying glass).
 The product structure is displayed in a popup window.
4. Click the product overview.
 A new window opens. Here you fill information pertaining to your device,
including the product documentation.

Memosens Wave CKI50 Incoming acceptance and product identification
Endress+Hauser 11
Manufacturer address
Endress+Hauser Conducta GmbH+Co. KG
Dieselstraße 24
70839 Gerlingen
Germany
4.3 Scope of delivery
The scope of delivery comprises:
• 1 process spectrometer, version as ordered
• 1 USB stick
• 1 x Operating Instructions
• Safety instructions for hazardous areas (for devices with hazardous area approval)
4.4 Certificates and approvals
Current certificates and approvals for the product are available at www.endress.com on the
relevant product page:
1. Select the product using the filters and search field.
2. Open the product page.
3. Select Downloads.

Mounting the device Memosens Wave CKI50
12 Endress+Hauser
5 Mounting the device
5.1 Mounting requirements
5.1.1 Dimensions
Ø 114 (4.5)
Ø 104 (4.1)
Ø 119 (4.7)
Ø 90 (3.5)
Ø 64 (2.5)
Ø 36 (1.4)
Ø 60 (2.4)
2, 5, 10
(0.08, 0.2, 0.4)
7.7 (0.3)
Ø 20
(0.8)
Ø 84 (3.3)
19
(0.8)
69.7 (2.7)
93.7 (3.7)
43 (1.7)
55.3 (2.2) 305.7 (12)
361 (14.2)
A0037519

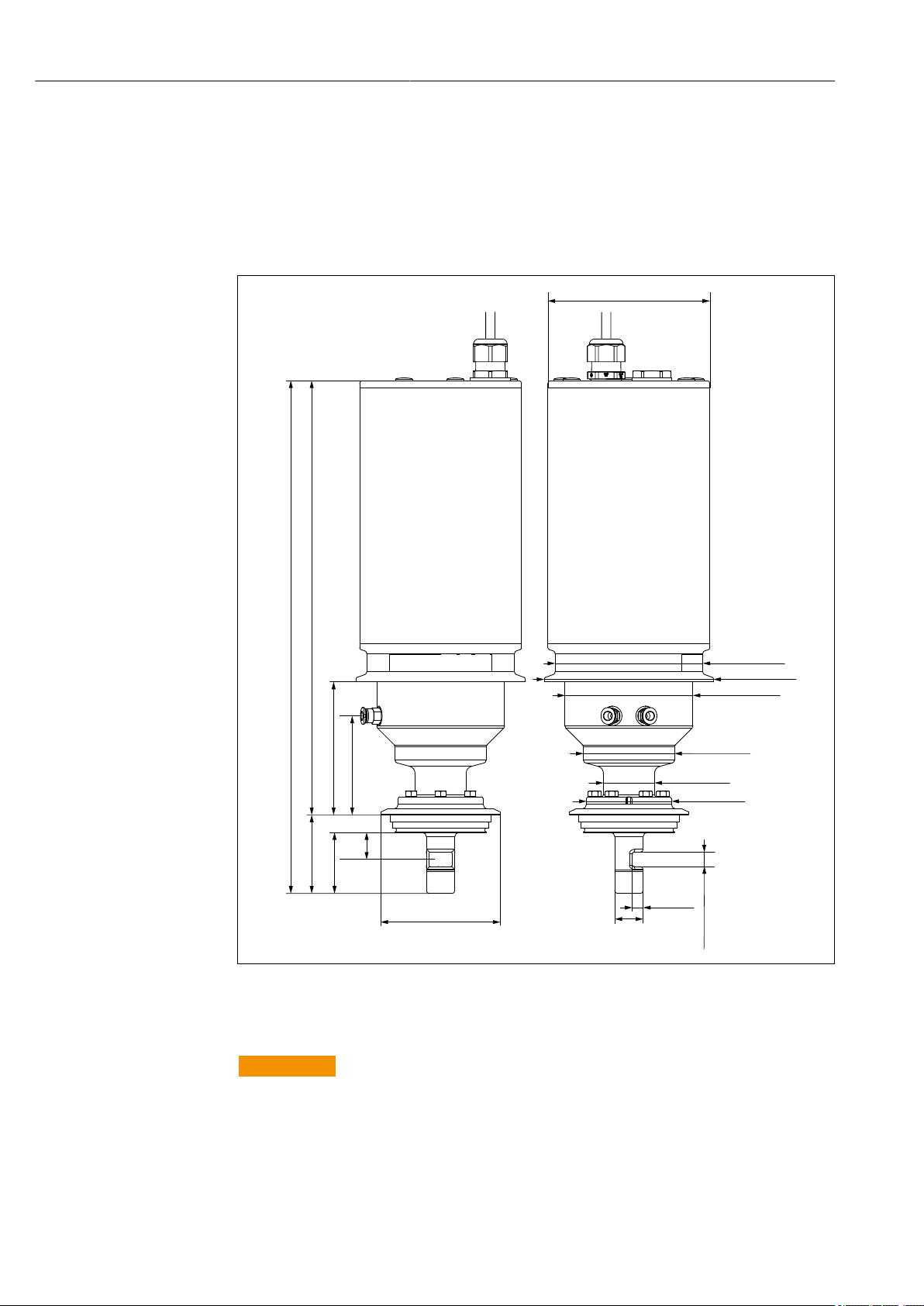

 3 Dimensions of CKI50. Dimensions: mm (in)
5.1.2 Mounting instructions
LWARNING
Escaping process medium
Risk of injury from high pressure, high temperatures or chemical hazards!
‣Only mount the device if the pipes are empty and unpressurized.
‣Wear protective gloves, protective goggles and protective clothing.

Memosens Wave CKI50 Mounting the device
Endress+Hauser 13
LWARNING
Device not securely fitted
Risk of injury from falling device parts!
‣Fasten and secure the device sufficiently.
• Choose a mounting location that can be easily accessed at a later stage. Installation in a
bypass is particularly suitable for this.
• Install the device upstream from the pressure regulators. The operation of the device
under pressure helps prevent the formation of air or gas bubbles.
• Install the device in places with uniform flow conditions.
• Install the device in places with low vibration.
• Do not install the process spectrometer in places where air may collect and foam bubbles
form or where suspended particles may settle.
• Align the device so that the measurement gap is rinsed by the flow of medium.
• Install the device so that it can be cleaned in the process.
5.1.3 Orientation
A0037673
 4 Flow direction of the medium (arrows)
‣Align the device in such a way that the medium flows through the measurement gap.
To align the device, pay attention to the orientation →  13 and the installation
marking on the process connection →  7,  14.
Orientation in pipes
> 1 (3.3)
A0041393
 5 Orientation of process spectrometer and flow direction (arrows). Engineering unit: m (ft)
Changes in the flow direction after pipe bends can cause turbulence in the medium.
The distance between the process spectrometer and a pipe bend must be at least
1 m (3.28 ft).

Mounting the device Memosens Wave CKI50
14 Endress+Hauser
2
1
3
90°
3
2
4
5
4
A0037832
 6 Permitted and forbidden orientations in a pipe
The best installation location is in the ascending pipe (item 1).
5.1.4 Installation marking
1
2
3
A0041529
 7 Installation marking for alignment
1 Optical windows
2 Measurement gap
3 Installation marking
The installation markings are located on both sides of the process connection.
‣Align the process spectrometer so that the installation markings follow the flow
direction.

Memosens Wave CKI50 Mounting the device
Endress+Hauser 15
5.2 Mounting the process spectrometer
5.2.1 Measuring system
The complete measuring system comprises at least:
• Process spectrometer CKI50
• Liquiline CM44P transmitter
• Process connection Varivent N DN50 - 125 immersion depth 68 mm (2.7 in) (included
in the delivery)
Pay attention to the specifications for the process connection Varivent N DN50 - 125.
2
3
1
4
A0037842

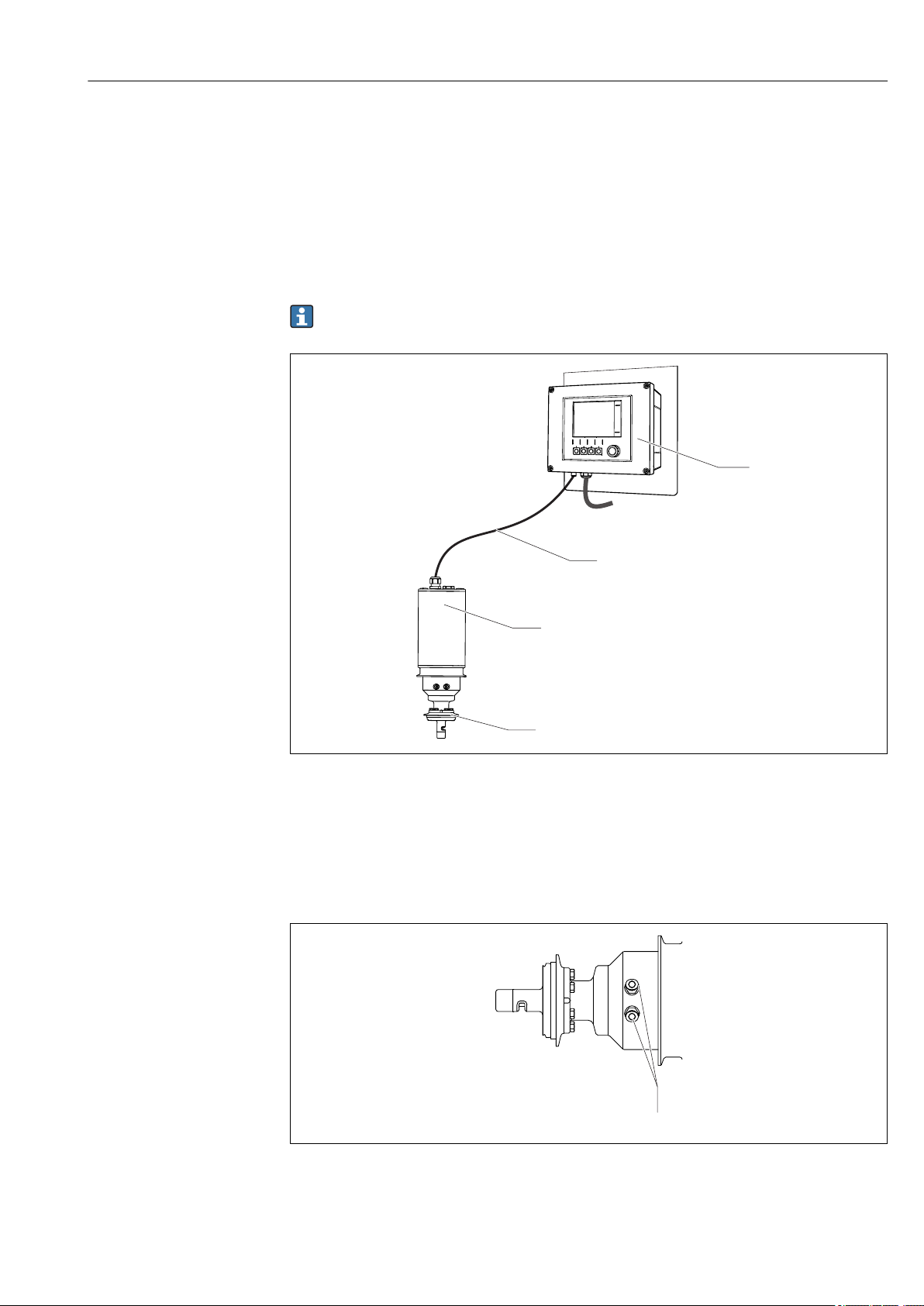

 8 Example of a measuring system with a process spectrometer
1 Liquiline CM44P transmitter
2 Fixed cable (15 m (49.2 ft))
3 Process spectrometer CKI50
4 Process connection
5.2.2 Water cooling
1
A0044153
 9 Process spectrometer
1 Cooling connections for water cooling

Mounting the device Memosens Wave CKI50
16 Endress+Hauser
There are cooling connections on the device for water cooling. These connections prevent
the device from overheating due to the heat flow of the process.
1. Ensure the connecting requirements are met for water cooling →  39.
2. If necessary, connect the water cooling to the process spectrometer.
5.3 Post-installation check
Put the device into operation only if you can answer "yes" to the following questions:
• Are the device and cable undamaged?
• Is the orientation correct?
• Has the process spectrometer been installed with the process connection, and does not
suspend freely from the cable?
• Are all screws secured?

Memosens Wave CKI50 Electrical connection
Endress+Hauser 17
6 Electrical connection
LWARNING
Device is live!
Incorrect connection may result in injury or death!
‣The electrical connection may be performed only by an electrical technician.
‣The electrical technician must have read and understood these Operating Instructions
and must follow the instructions contained therein.
‣Prior to commencing connection work, ensure that no voltage is present on any cable.
6.1 Connecting the device
The device can be connected as follows:
Via the cable of the process spectrometer to the plug-in terminals of an input on the
transmitter (version: fixed cable, end sleeves)
OG
YE
WH
BU
Sensor
A0041609
 10 Connection of the process spectrometer to the input
The cable length is 15 m (49.2 ft).
NOTICE
Incorrect connection of the cables can result in uncontrolled energy transmission!
‣Ensure the cables are connected at the correct input point on the transmitter.
6.1.1 Ground connection
LCAUTION
Ground connection not connected correctly
Uncontrolled voltage transmission on the device housing!
‣Properly connect the ground connection to the device housing.
‣For grounding, only use the screw provided for the ground connection.

Electrical connection Memosens Wave CKI50
18 Endress+Hauser
1
A0053745

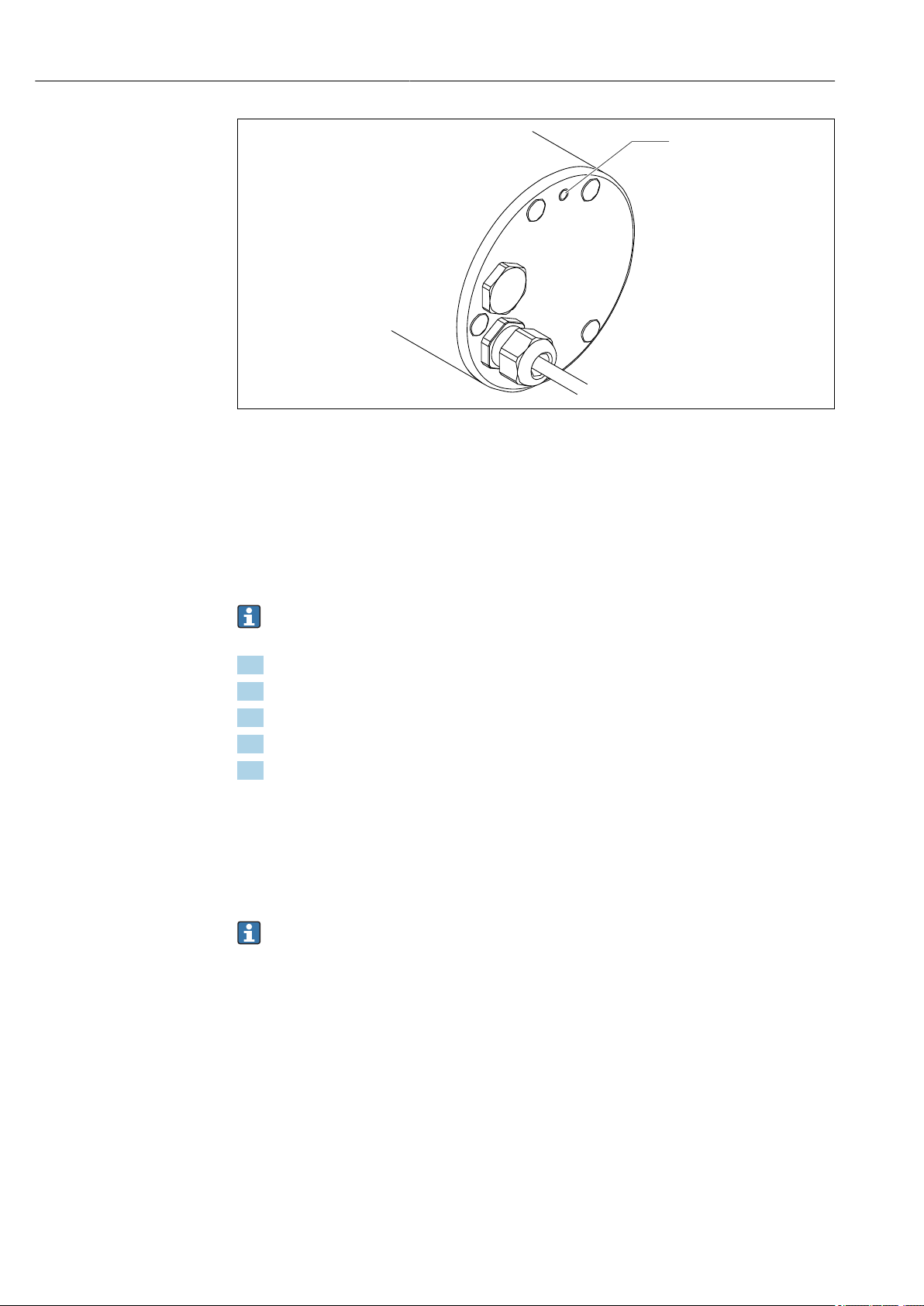

 11 Cover of the process spectrometer
1 Ground connection
This is an absolute requirement for devices with hazardous area approval →  11.
The ground connection is located on the cover of the device . An M4 thread is provided
there for connecting the grounding cable. The ground cable diameter must be at least
4 mm2 (0.16 in2) . The ground cable must be conductively connected to the cover by
means of a cable lug.
Connecting the process spectrometer to the pipe means that the device can also be
connected electrically to this pipe.
1. Hold the cable lug against the bore hole of the ground connection.
2. Insert the screw through the bore hole of the cable lug.
3. Screw the cable lug onto the housing cover.
4. Tighten the screw with an Allen key.
5. Connect the ground cable to the cable lug on the housing cover.
 The grounding connection is established.
Do not open the cable glands.
6.1.2 Connecting the cable shield
Device cable must be shielded cables.
Only use terminated original cables where possible.
Clamping range of cable clamps: 4 to 11 mm (0.16 to 0.43 in)

Memosens Wave CKI50 Electrical connection
Endress+Hauser 19
Cable sample (does not necessarily correspond to the original cable supplied)
12
3
 12 Terminated cable
1 Outer shield (exposed)
2 Cable cores with ferrules
3 Cable sheath (insulation)
4
A0045763
 13 Connect the cable to the
grounding clamp
4 Grounding clamp
A0045764
 14 Press the cable into the
grounding clamp
The cable shield is grounded using
the grounding clamp 1)
1) Please note the instructions in the "Ensuring the degree of protection" section
1. Loosen a suitable cable gland on the bottom of the housing.
2. Remove the dummy plug.
3. Attach the gland to the cable end, making sure the gland is facing the right direction.
4. Pull the cable through the gland and into the housing.
5. Route the cable in the housing in such a way that the exposed cable shield fits into
one of the cable clamps and the cable cores can be easily routed as far as the
connection plug on the electronics module.
6. Connect the cable to the cable clamp.
7. Clamp the cable.
8. Connect cable cores as per the wiring diagram.
9. Tighten the cable gland from outside.
6.2 Ensuring the degree of protection
Only the mechanical and electrical connections which are described in these instructions,
and which are necessary for the required, designated use, may be established on the device
delivered.
‣Exercise care when carrying out the work.
Individual types of protection permitted for this product (impermeability (IP), electrical
safety, EMC interference immunity, explosion protection) can no longer be guaranteed if,
for example:
• Covers are left off
• Cable glands are not sufficiently tightened (must be tightened with 2 Nm (1.5 lbf ft) for
the permitted level of IP protection)
• Unsuitable cable diameters are used for the cable glands
• Modules are not fully secured
• The display is not fully secured (risk of moisture entering due to inadequate sealing)
• Cables/cable ends are loose or insufficiently tightened
• Cable strands that may be conductive are left in the device

Electrical connection Memosens Wave CKI50
20 Endress+Hauser
6.3 Post-connection check
Device health and specifications Action
Is the outside of the spectrometer, assembly or cable
free from damage?
‣Perform a visual inspection.
Electrical connection Action
Are the mounted cables strain-relieved and not
twisted?
‣Perform a visual inspection.
‣Untwist the cables.
Is a sufficient length of the cable cores stripped, and
are the cores positioned in the terminal correctly?
‣Perform a visual inspection.
‣Pull gently to check they are seated correctly.
Are the power supply and signal lines correctly
connected?
‣Refer to the wiring diagram for the transmitter.
Are all screw terminals tightened? ‣Tighten the screw terminals.
Are all the cable entries installed, tightened and leak-
tight?
‣Perform a visual inspection.
In the case of lateral cable entries:
‣Point cable loops downward so that water can drip
off.
Are all cable entries mounted on the side or pointing
downwards?
