Technical Information
Proline Promag 50H, 53H
Electromagnetic Flow Measuring System
Flow measurement in hygiene, food and beverage or
process applications
Applications
Electromagnetic flowmeter for bidirectional
measurement of liquids with a minimum conductivity
of ≥ 5 µS/cm:
• Beverages, e.g. fruit juice, beer, wine
• Milk products, fruit mixtures
• Salt solutions
• Acids and causic solutions, etc.
• Flow measurement up to 4700 m3/h
• Fluid temperature up to +150 °C
• Process pressures up to 40 bar
• CIP/SIP cleaning
• Stainless steel housing
Approvals in the food industry/hygiene sector:
• 3A authorization, EHEDG-tested, conformity with
FDA
Application-specific lining materials:
•PFA
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS
Connection to process control system:
• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS RS485
Features and benefits
Promag measuring devices offer you cost-effective flow
measurement with a high degree of accuracy for a wide
range of process conditions.
The Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for batching, electrode cleaning and
pulsating flow
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Insensitivity to vibrations
• Simple installation and commissioning

Proline Promag 50H, 53H
2Endress+Hauser
Function and system design
Measuring principle Faraday’s law of induction states that a voltage is induced in a conductor moving in a magnetic field.
In electromagnetic measuring, the flowing medium corresponds to the moving conductor. The induced voltage
is proportional to the flow velocity and is detected by two measuring electrodes and transmitted to the ampli-
fier. Flow volume is computed on the basis of the pipe's diameter. The constant magnetic field is generated by
a switched direct current of alternating polarity.
A0003191
Ue = B · L · v
Q = A · v
Ue = induced voltage
B = magnetic induction (magnetic field)
L = electrode gap
v = flow velocity
Q = volume flow
A = pipe cross-section
I = current strength
Measuring system The measuring system consists of a transmitter and a sensor.
Two versions are available:
• Compact version: transmitter and sensor form a single mechanical unit.
• Remote version: transmitter and sensor are installed separately.
Transmitter:
• Promag 50 (user interface with push buttons for operation, two-line display)
• Promag 53 (“Touch Control” without opening the housing, four-line display).
Sensor:
• DN 2…100
Ue
I
I
B
L
V

Proline Promag 50H, 53H
Endress+Hauser 3
Input
Measured variable Flow rate (proportional to induced voltage)
Measuring range Typically v = 0.01...10 m/s with the specified measuring accuracy
Operable flow range Over 1000 : 1
Input signal Status input (auxiliary input):
U = 3…30 V DC, Ri= 5 kΩ,galvanically isolated.
Configurable for: totalizer(s) reset, measured value suppression, error-message reset.
Status input (auyiliary input) with PROFIBUS DP and MODBUS RS485:
U = 3…30 V DC, Ri= 3 kΩ, galvanically isolated
Switching level: 3...30 V DC, independent of polarity
Configurable for: totalizer(s) reset, measured value suppression, error-message reset,
batching start/stop (optional), batch totalizer reset (optional)
Current input (for Promag 53 only):
Active/passive selectable, galvanically isolated, full scale value selectable, resolution: 3 µA,
temperature coefficient: typ. 0.005% o.r./°C (o.r. = of reading)
active: 4...20 mA, Ri≤150 Ω, Uout = 24 V DC, short-circuit-proof
passive: 0/4...20 mA, Ri≤ 150 Ω, Umax = 30 V DC
Output
Output signal Promag 50
Current output:
active/passive selectable, galvanically isolated, time constant selectable (0.01...100 s),
full scale value selectable, temperature coefficient: typ. 0.005% o.r./°C (o.r. = of reading),
resolution: 0.5 µA
• active: 0/4…20 mA, RL< 700 Ω(HART: RL≥250 Ω)
• passive: 4…20 mA, operating voltage VS18...30 V DC, Ri≤150 Ω
Pulse/frequency output:
passive, open collector, 30 V DC, 250 mA, galvanically isolated.
• Frequency output: full scale frequency 2...1000 Hz (fmax = 1250 Hz), on/off ratio 1:1,
pulse width max. 10 s.
• Pulse output: pulse value and pulse polarity selectable, max. pulse width configurable
(0.5...2000 ms)
PROFIBUS DP interface:
• Transmission technology (Physical Layer): RS485 in accordance with ANSI/TIA/EIA-485-A: 1998,
galvanically isolated
• Profile version 3.0
• Data transmission rate: 9.6 kBaud...12 MBaud
• Automatic data transmission rate recognition
• Function blocks: 1 x analog input, 3 x totalizer
• Output data: volume flow, totalizer
• Input data: positive zero return (ON/OFF), totalizer control, value for local display
• Cyclic data transmission compatible with previous model “Promag 33”
• Bus address adjustable via miniature switches or local display (optional) at the measuring device

Proline Promag 50H, 53H
4Endress+Hauser
PROFIBUS PA interface:
• Transmission technology (Physical Layer): IEC 61158-2 (MBP), galvanically isolated
• Profile version 3.0
• Current consumption: 11 mA
• Permissible supply voltage: 9...32 V
• Bus connection with integrated reverse polarity protection
• Error current FDE (Fault Disconnection Electronic): 0 mA
• Function blocks: 1 x analog input, 1 x totalizer
• Output data: volume flow, totalizer
• Input data: positive zero return (ON/OFF), control totalizer, value for local display
• Cyclic data transmission compatible with previous model “Promag 33”
• Bus address adjustable via miniature switches or local display (optional) at the measuring device
Promag 53
Current output:
active/passive selectable, galvanically isolated, time constant selectable (0.01...100 s),
full scale value selectable, temperature coefficient: typically 0.005% o.r./°C (o.r. = of reading),
resolution: 0.5 µA
• active: 0/4…20 mA, RL< 700 Ω(HART: RL≥250 Ω)
• passive: 4…20 mA, operating voltage VS18...30 V DC, Ri≤150 Ω
Pulse/frequency output:
active/passive selectable, galvanically isolated (Ex i version: only passive)
• active: 24 V DC, 25 mA (max. 250 mA during 20 ms), RL> 100 Ω
• passive: open collector, 30 V DC, 250 mA
• Frequency output: full scale frequency 2...10000 Hz (fmax = 12500 Hz), EEx-ia: 2...5000 Hz;
on/off ratio 1:1; pulse width max. 10 s.
• Pulse output: pulse value and pulse polarity adjustable, pulse width configurable
(0.05...2000 ms)
PROFIBUS DP interface:
• Transmission technology (Physical Layer): RS485 in accordance with ANSI/TIA/EIA-485-A:
1998, galvanically isolated
• Profile version 3.0
• Data transmission rate: 9.6 kBaud...12 MBaud
• Automatic data transmission rate recognition
• Function blocks: 2 x analog input, 3 x totalizer
• Output data: volume flow, calculated mass flow, totalizer 1...3
• Input data: positive zero return (ON/OFF), totalizer control, value for local display
• Cyclic data transmission compatible with previous model “Promag 33”
• Bus address adjustable via miniature switches or local display (optional) at the measuring device
• Available output combination → Page 7 ff.
PROFIBUS PA interface:
• Transmission technology (Physical Layer): IEC 61158-2 (MBP), galvanically isolated
• Profile version 3.0
• Current consumption: 11 mA
• Permissible supply voltage: 9...32 V
• Bus connection with integrated reverse polarity protection
• Error current FDE (Fault Disconnection Electronic): 0 mA
• Function blocks: 2 x analog input, 3 x totalizer
• Output data: volume flow, calculated mass flow, totalizer 1...3
• Input data: positive zero return (ON/OFF), totalizer control, value for local display
• Cyclic data transmission compatible with previous model “Promag 33”
• Bus address adjustable via miniature switches or local display (optional) at the measuring device

Proline Promag 50H, 53H
Endress+Hauser 5
MODBUS interface:
• Transmission technology (Physical Layer): RS485 in accordance with ANSI/TIA/EIA-485-A:
1998, galvanically isolated
• MODBUS device type: Slave
• Adress range: 1...247
• Bus address adjustable via miniature switches or local display (optional) at the measuring device
• Supported MODBUS function codes: 03, 04, 06, 08, 16, 23
• Broadcast: supported with the function codes 06, 16, 23
• Transmission mode: RTU oder ASCII
• Supported baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Baud
• Response time:
Direct data access = typically 25...50 ms
Auto-scan buffer (data range) = typically 3...5 ms
• Available output combination → Page 7 ff.
FOUNDATION Fieldbus interface:
• FOUNDATION Fieldbus H1
• Transmission technology (Physical Layer): IEC 61158-2 (MBP), galvanically isolated
• ITK version 4.01
• Current consumption: 12 mA
• Error current FDE (Fault Disconnection Electronic): 0 mA
• Bus connection with integrated reverse polarity protection
• Function blocks: 5 x analog input, 1 x discrete output, 1 x PID
• Output data: volume flow, calculated mass flow, temperature, totalizer 1...3
• Input data: positive zero return (ON/OFF), reset totalizer
• Link Master (LM) functionality is supported
Signal on alarm • Current output → failure response selectable (e.g. in accord. with NAMUR Recom. NE 43)
• Pulse/frequency output → failure response selectable
• Status output (Promag 50) → non-conductive by fault or power supply failure
• Relay output (Promag 53) → de-energized by fault or power supply failure
Load See “Output signal”
Switching output Status output (Promag 50, Promag 53):
Open collector, max. 30 V DC / 250 mA, galvanically isolated.
Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit values.
Relay outputs (Promag 53):
Normally closed (NC or break) or normally open (NO or make) contacts available (default: relay 1 = NO,
relay 2 = NC),
max. 30 V / 0.5 A AC; 60 V / 0.1 A DC, galvanically isolated.
Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit values,
batching contacts.
Low flow cutoff Switch points for low flow cutoff are selectable
Galvanic isolation All circuits for inputs, outputs, and power supply are galvanically isolated from each other.

Proline Promag 50H, 53H
6Endress+Hauser
Power supply

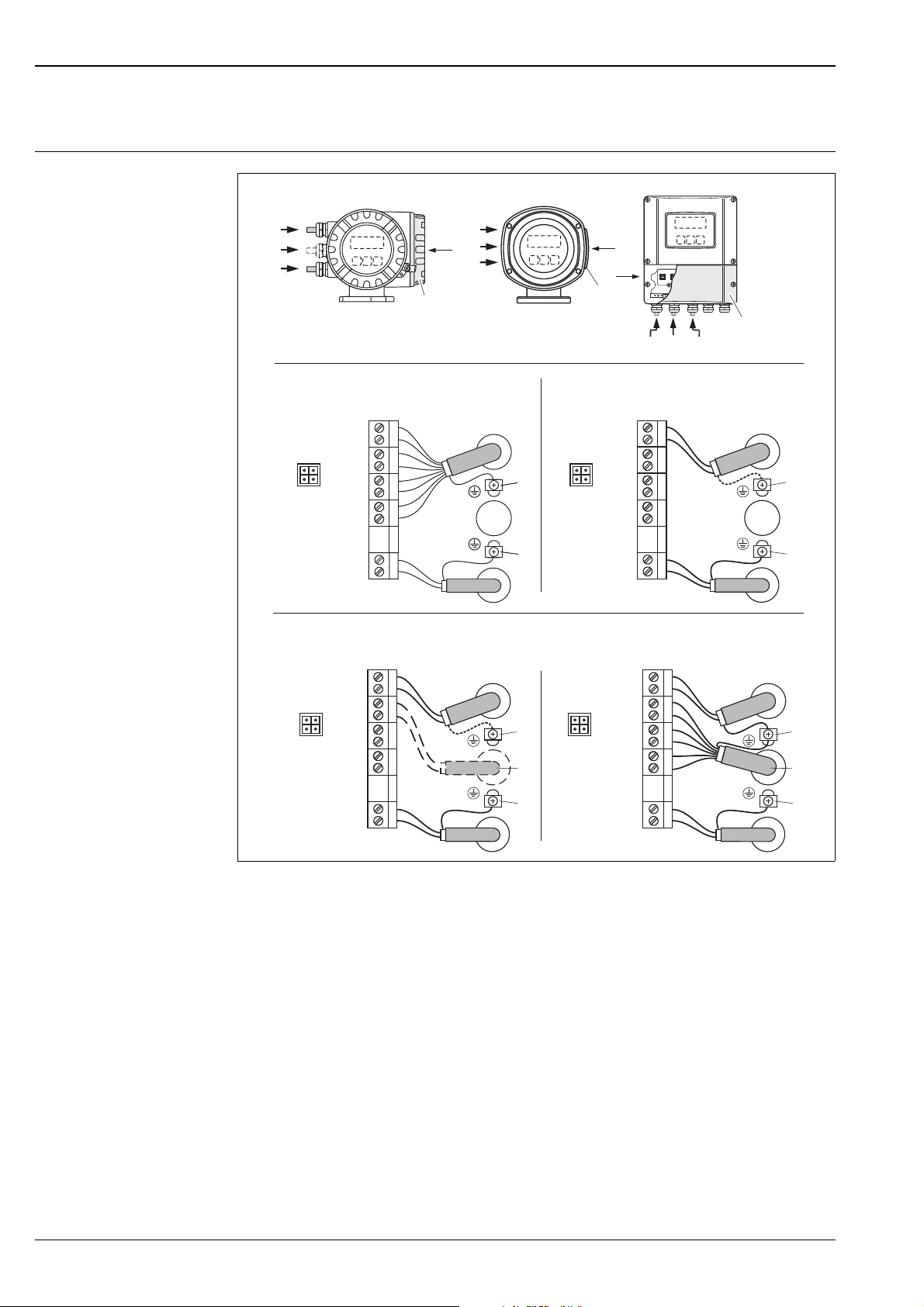

Electrical connection
Measuring unit
a0002441
Anschließen des Messumformers, Leitungsquerschnitt max. 2,5 mm2
AView A (field housing)
BView B (stainless steel field housing)
CView C (wall-mount housing)
*) not changeable communication board
**) changeable communication board
a Cover of the connection compartment
b Cable for power supply: 85...260 V AC, 20...55 V AC,16...62 V DC
Terminal No. 1: L1 for AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
c Ground terminal for protective conductor
d Signal cable: see Terminal assignment →Page 7 ff.
Fieldbus cable:
Terminal No. 26: DP (A) / PA (+) / FF (+) / MODBUS RS485 (A) / (PA, FF: with reverse polarity protection)
Terminal No. 27: DP (B) / PA (-) / FF (-) / MODBUS RS485 (B) / (PA, FF: with reverse polarity protection)
e Ground terminal for signal-cable shield / Fieldbus cable / RS485 line
f Service connector for connecting service interface FXA 193 (Fieldcheck, Tof Tool - Fieldtool Package)
g Signal cable: see Terminal assignment →Page 7 ff.
Cable for external termination (only for PROFIBUS DP with fixed assignment communication board):
Terminal No. 24: +5 V
Terminal No. 25: DGND
a
a
d
b
a
HART*
PROFIBUS DP**
MODBUS RS485**
27
25
23
21
2
1
26
24
22
20
L1 (L+)
N (L-)
–
–
–
+
+
+
PROFIBUS PA*
FOUNDATION Fieldbus*
PA(–)/FF(–)
27
25
23
21
2
1
26
24
22
20
L1 (L+)
N (L-)
–
–
–
+
+
+
A (RxD/TxD-N)
B (RxD/TxD-P)
PA(+)/FF(+)
d
c
e
b
–27
–25
–23
–21
+26
+24
+22
+20
N (L-) 2
L1 (L+)1
25
23
21
2
1
24
22
20
L1 (L+)
N (L-)
–
–
–
+
+
+
27
26
A (RxD/TxD-N)
B (RxD/TxD-P)
AB
C
g
d
b
g
d
c
e
b
d
c
e
b
g
d
c
e
b
g
PROFIBUS DP*
(d)
bd/(g)
f f
f f

Proline Promag 50H, 53H
Endress+Hauser 7
Terminal assignment, Promag 50
Terminal assignment, Promag 53
The inputs and outputs on the communication board can be either permanently assigned or variable, depending
on the version ordered (see table). Replacements for modules which are defective or which have to be replaced
can be ordered as accessories.
Terminal No. (inputs / outputs)
Order variant 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–)
50***-***********W−−−
Current output
HART
50***-***********A−−Frequency output Current output
HART
50***-***********DStatus input Status output Frequency output Current output
HART
50***-***********H–––
PROFIBUS PA
50***-***********J––
+5 V (external
termination)
PROFIBUS DP
50***-***********S––
Frequency output
Ex i, passive
Current output Ex i
active, HART
50***-***********T––
Frequency output
Ex i, passive
Current output Ex i
passive, HART
Ground connection, power supply →Page 6
Terminal No. (inputs / outputs)
Order variant 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–)
Fixed communication boards (fixed assignment)
53***-***********A−−Frequency output Current output
HART
53***-***********BRelay output 2 Relay output 1 Frequency output Current output
HART
53***-***********F–––
PROFIBUS PA
Ex i
53***-***********G–––
FOUNDATION
Fieldbus, Ex i
53***-***********H–––
PROFIBUS PA
53***-***********J–––
PROFIBUS DP
53***-***********K−−−
FOUNDATION
Fieldbus
53***-***********Q−−Status input MODBUS RS485
53***-***********S−−
Frequency output
Ex i
Current output Ex i
active, HART
53***-***********T−−
Frequency output
Ex i
Current output Ex i
passive, HART
Flexible communication boards
53***-***********CRelay output 2 Relay output 1 Frequency output Current output
HART
53***-***********DStatus input Relay output Frequency output Current output
HART
53***-***********LStatus input Relay output 2 Relay output 1 Current output
HART

Proline Promag 50H, 53H
8Endress+Hauser

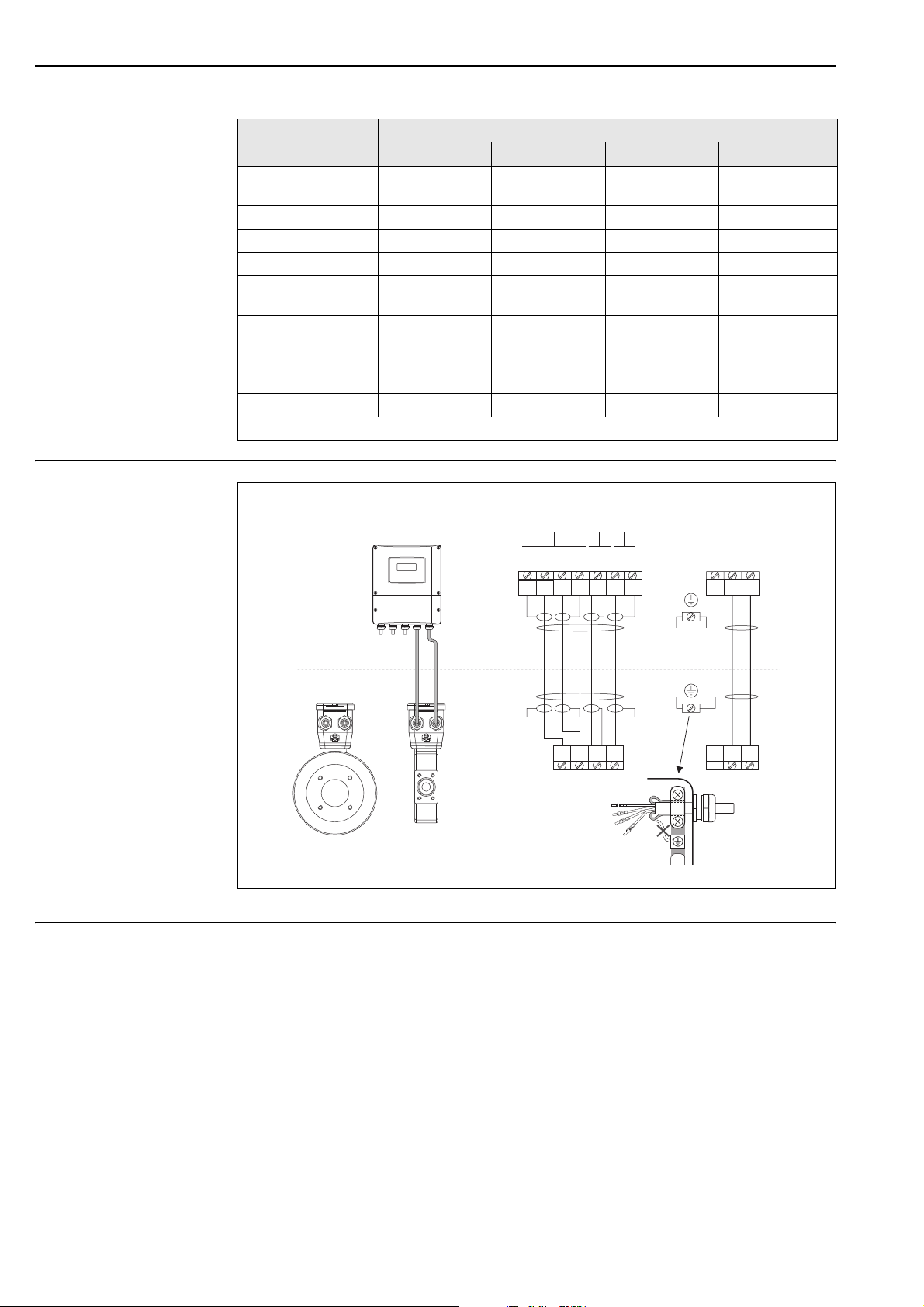

Electrical connection remote
version
F06-5xHxxxxx-04-xx-xx-en-001
n.c. = isolated cable shields, not connected
Cable entry Power-supply and signal cables (inputs/outputs):
• Cable entry M20 x 1.5 (8…12 mm)
• Threads for cable entries 1/2" NPT, G 1/2"
Connecting cable for remote version:
• Cable entry M20 x 1.5 (8…12 mm)
• Threads for cable entries 1/2" NPT, G 1/2"
53***-***********MStatus input Frequency output Frequency output Current output
HART
53***-***********NCurrent output Frequency output Status input MODBUS RS485
53***-***********PCurrent output Frequency output Status input PROFIBUS DP
53***-***********VRelay output 2 Relay output 1 Status input PROFIBUS DP
53***-***********2Relay output Current output Frequency output Current output
HART
53***-***********4Current input Relay output Frequency output Current output
HART
53***-***********5Status input Current input Frequency output Current output
HART
53***-***********7Relay output 2 Relay output 1 Status input MODBUS RS485
Ground connection, power supply →Page 6
Terminal No. (inputs / outputs)
Order variant 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–)
65
5
7
7
84
4
37
37
36 42
42
41
41
E1 E2
DN 40...100 DN 2...25
GND E
2
1
brown
white
green
yellow
n.c. n.c.n.c.
S1 E1 E2 S2 GND ES
EPD
Coil circuit
Pipe
Electrode circuit
Meas. signal

Proline Promag 50H, 53H
Endress+Hauser 9
Cable specifications
remote version
Coil cable:
• 2 x 0.75 mm2PVC cable with common, braided copper shield (Ø approx. 7 mm)
• Conductor resistance: ≤37 Ω/km
• Capacitance core/core, shield grounded: ≤120 pF/m
• Permanent operating temperature: –20…+80 °C
• Cable cross-section: max. 2.5 mm2
Signal cable:
• 3 x 0.38 mm2PVC cable with common, braided copper shield (Ø approx. 7 mm) and individually
shielded cores.
• With Empty Pipe Detection (EPD): 4 x 0.38 mm2PVC cable with common, braided copper shield
(Ø approx. 7 mm) and individually shielded cores.
• Conductor resistance: ≤50 Ω/km
• Capacitance core/shield: ≤420 pF/m
• Permanent operating temperature: –20…+80 °C
• Cable cross-section: max. 2.5 mm2
A0003194
a = signal cable, b = coil current cable (cross-section: max. 2.5 mm2)
1 = core, 2 = core insulation, 3 = core shield, 4 = core jacket, 5 = core strengthening,
6 = cable shield, 7 = outer jacket
Optionally, Endress+Hauser also supplies reinforced connecting cables with an additional, metal strenghtening
braid. We recommend such cables for the following cases:
• Cables laid underground
• Danger of rodent attack
• Device used with ingress protection IP 68
Operation in zones of severe electrical interference:
The measuring device complies with the general safety requirements in accordance with EN 61010,
the EMC requirements of EN 61326/A1, and NAMUR recommendation NE 21.
Caution!
Grounding is by means of the ground terminals provided for the purpose inside the connection housing.
Keep the stripped and twisted lengths of cable shield to the terminals as short as possible.
Supply voltage 85…260 V AC, 45…65 Hz
20…55 V AC, 45…65 Hz
16…62 V DC
PROFIBUS PA and FOUNDATION Fieldbus
Non-Ex: 9...32 V DC
Ex i: 9...24 V DC
Ex d: 9...32 V DC
Power consumption AC: <15 VA (including sensor)
DC: <15 W (including sensor)
Switch-on current:
• max. 13.5 A (< 50 ms) at 24 V DC
• max. 3 A (< 5 ms) at 260 V AC
1
2
3
4
5
6
7
ab

Proline Promag 50H, 53H
10 Endress+Hauser
Power supply failure Lasting min. 1 power cycle:
• EEPROM or T-DAT (Promag 53 only) retain the measuring system data in the event of a power supply failure
• S-DAT: exchangeable data storage chip which stores the data of the sensor (nominal diameter, serial number,
calibration factor, zero point, etc.)
Potential equalisation Perfect measurement is only ensured when the medium and the sensor have the same electrical potential.
Metal process connections
Potential matching usually takes place over the metallic process connection in contact with medium process
connections which are directly mounted on the measuring transmitter. This usually means that additional
potential matching measures are unnecessary.
Plastic process connections
For plastic process connections, potential matching must be ensured between sensor and medium using addi-
tional ground rings. If these ground rings are missing, this can influence accuracy or destroy the measuring
transmitter through the electrochemical decomposition of electrodes.
A0002651
1 Allen screw (process connection)
2 O-ring seals
3 Plastic washer (spacer) or ground ring
4Sensor
When using ground rings, note the following points:
• Depending on the option ordered, plastic washers may be installed at the process connections instead of
ground rings. These plastic washers serve only as spacers and have no potential equalization function. In
addition, they provide a sealing function at the interface between the sensor and process connection. For this
reason, with process connections without ground rings, these plastic washers/seals must not be removed,
or must always be installed.
• Ground rings can be ordered separately from Endress+Hauser as an accessory.
Also make sure that the ground rings are compatible with the electrode material. Otherwise the danger
exists that the electrodes could be destroyed by electrochemical corrosion. You can find material data on
Page 38 ff.
• Ground rings, incl. seals, are mounted inside the process connection.
This has no influence on the installation length. You can find the dimensions of ground rings on Page 33.
1
324
2

Proline Promag 50H, 53H
Endress+Hauser 11
Performance characteristics
Reference operating
conditions
To DIN EN 29104 and VDI/VDE 2641:
• Medium temperature: +28 °C ± 2 K
• Ambient temperature: +22 °C ± 2 K
• Warm-up period: 30 minutes
Installation:
• Inlet run >10 x DN
• Outlet run > 5 x DN
• Sensor and transmitter grounded.
• Sensor centered relative to the pipe.
Maximum measured error Promag 50:
Pulse output: ± 0.5% o.r. ± 1 mm/s (o.r. = of reading)
Current output: plus typically ± 5 µA
Promag 53:
Pulse output: ± 0.2% o.r. ± 2 mm/s (o.r. = of reading)
Current output: plus typically ± 5 µA
Supply voltage fluctuations have no effect within the specified range.
F06-5xxxxxxx-05-xx-xx-xx-000
Max. measured error in % of reading
Repeatability max. ± 0.1% o.r. ± 0.5 mm/s (o.r. = of reading)
01
2.5
[%]
2.0
1.5
1.0
0.5
0
246810
v [m/s]
0.2 %
0.5 %

Proline Promag 50H, 53H
12 Endress+Hauser
Operating conditions
Installation conditions

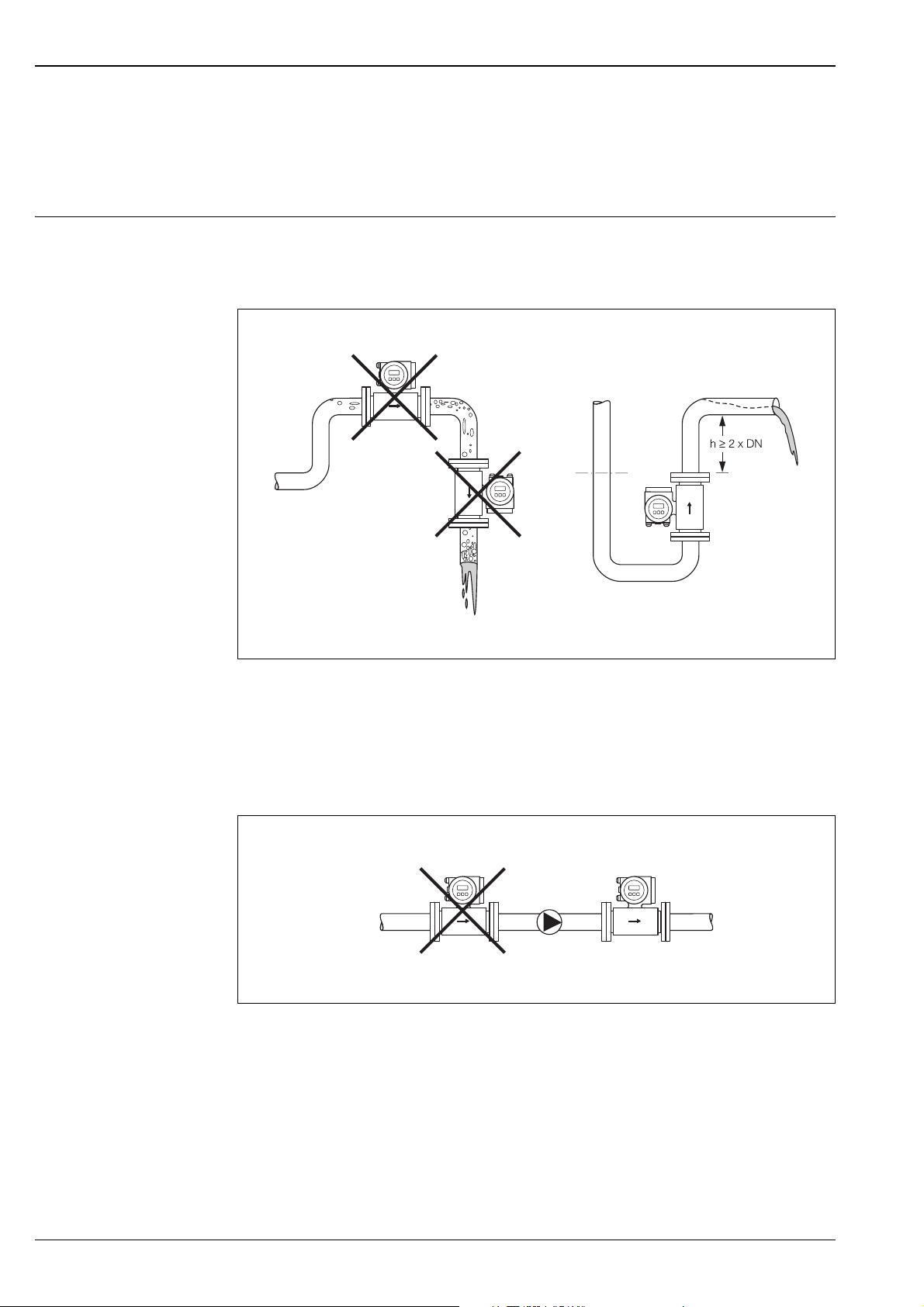

Installation instructions Mounting location
Correct measuring is possible only if the pipe is full. Avoid the following locations:
• Highest point of a pipeline. Risk of air accumulating.
• Directly upstream of a free pipe outlet in a vertical pipe.
F06-5xxxxxxx-11-00-00-xx-000
Installation of pumps
Do not install the sensor on the intake side of a pump. This precaution is to avoid low pressure and the
consequent risk of damage to the lining of the measuring tube. Information on the lining's resistance to partial
vacuum can be found on Page 18.
It might be necessary to install pulse dampers in systems incorporating reciprocating, diaphragm or peristaltic
pumps. Information on the measuring system's resistance to vibration and shock can be found on Page 17.
F06-5xxxxxxx-11-00-00-xx-001

Proline Promag 50H, 53H
Endress+Hauser 13

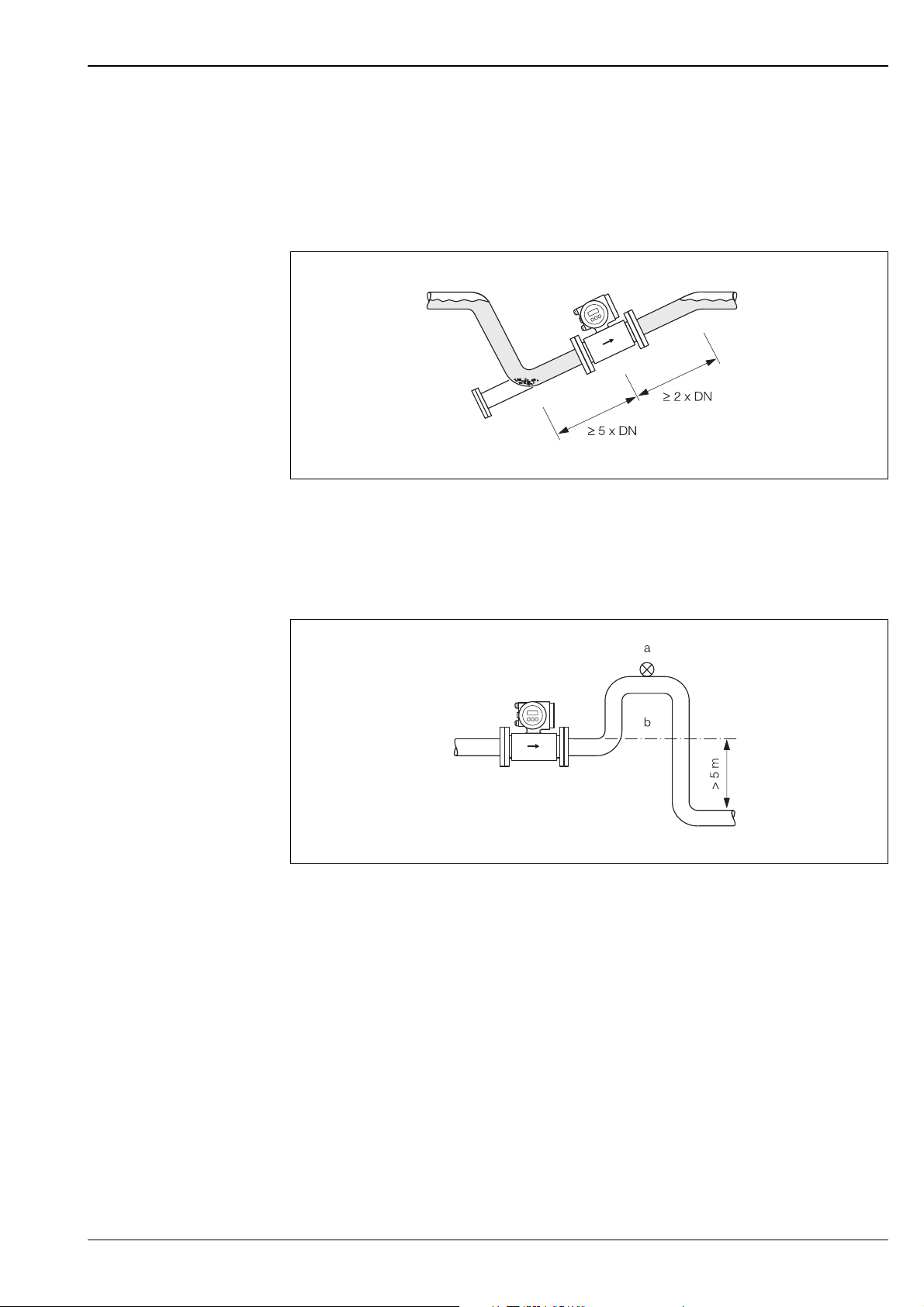

Partially filled pipes
Partially filled pipes with gradients necessitate a drain-type configuration. The Empty Pipe Detection (EPD)
function offers additional protection by detecting empty or partially filled pipes.
Caution!
Risk of solids accumulating. Do not install the sensor at the lowest point in the drain. It is advisable to install a
cleaning valve.
F06-5xxxxxxx-11-00-00-xx-002
Vertical pipes
Install a siphon (b) or a vent valve (a) downstream of the sensor in vertical pipes longer than 5 meters.
This precaution is to avoid low pressure and the consequent risk of damage to the lining of the measuring tube.
These measures also prevent the system losing prime, which could cause air inclusions. Information on the
lining’s resistance to partial vacuum can be found on Page 18.
F06-5xxxxxxx-11-00-00-xx-003
a = vent valve, b = siphon

Proline Promag 50H, 53H
14 Endress+Hauser
Orientation
An optimum orientation helps avoid gas and air accumulations and deposits in the measuring tube. Promag,
nevertheless, supplies a range of options and accessories for correct measuring of problematic mediums:
• Electrode Cleaning Circuitry (ECC) to remove electrically conductive deposits in the measuring tube, e.g. in
accretive mediums.
• Empty Pipe Detection (EPD) for recognition of partially filled measuring tubes, or for degassing mediums or
for applications with fluctuating process pressure (only for DN 15...100).
Vertical orientation:
This orientation is ideal for self-emptying piping systems and for use in conjunction with Empty Pipe Detection.
F06-5xxxxxxx-11-00-00-xx-004
Horizontal orientation:
The measuring electrode-plane should be horizontal. This prevents brief insulation of the two electrodes by
entrained air bubbles.
Caution!
Empty Pipe Detection functions correctly only when the measuring device is installed horizontally and the
transmitter housing is facing upward. Otherwise there is no guarantee that Empty Pipe Detection will respond
if the measuring tube is only partially filled or empty.
F06-5xxxxxxx-11-00-xx-xx-001
1 = EPD electrode (Empty Pipe Detection) except for Promag H / DN 2, 4
2 = Measuring electrodes (signal detection)
A
1
22
A

Proline Promag 50H, 53H
Endress+Hauser 15
Vibrations
Secure the piping and the sensor if vibration is severe.
Caution!
• It is advisable to install sensor and transmitter separately if vibration is excessively severe. Information on
resistance to vibration and shock can be found on Page 17.
• The sensor might require support or additional attachments, depending on the application and the length of
the piping run. When plastic process connections are used, the sensor must be additionally supported
mechanically. A wall-mounting kit can be ordered separately from Endress+Hauser as an accessory.
F06-5xxxxxxx-11-00-00-xx-006
Inlet and outlet runs If possible, install the sensor well clear of fittings such as valves, T-pieces, elbows, etc. Compliance with the
following requirements for the inlet and outlet runs is necessary in order to ensure measuring accuracy:
• Inlet run ≥ 5 x DN
• Outlet run ≥2 x DN
F06-5xxxxxxx-11-00-00-xx-005
> 10 m

Proline Promag 50H, 53H
16 Endress+Hauser
Adapters Suitable adapters to DIN EN 545 (double flange junction sections) can be used to install the sensor in larger-
diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving
fluids.
The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders. The
nomogram applies only to fluids of viscosity similar to water.
1. Calculate the ratio of the diameters d/D.
2. From the nomogram read off the pressure loss as a function of flow velocity (downstream from the reduc-
tion) and the d/D ratio.
F06-5xxxxxxx-05-05-xx-xx-000
Length of connecting cable Permissible cable length Lmax depends on the conductivity of the medium. A minimum conductivity of
20 µS/cm is required for measuring demineralized water.
F06-5xxxxxxx-05-xx-xx-xx-006
Gray shaded area = permissible range for medium conductivity
Lmax = length of connecting cable in [m]
Medium conductivity in [
µ S/cm]
In order to ensure measuring accuracy, moreover, comply with the following instructions when installing the
remote version:
• Secure the cable run or route the cable in a conduit. Movement of the cable can falsify the measuring signal,
particularly if the conductivity of the medium is low.
• Route the cable well clear of electrical machines and switching elements.
• Ensure potential equalisation between sensor and transmitter, if necessary.
D
d
max. 8°
100
10
0.5
d / D
[mbar]
0.6 0.7 0.8 0.9
1 m/s
2 m/s
3 m/s
4 m/s
5 m/s
6 m/s
7 m/s
8 m/s
1
200
100
5
10 100 200
[m]
[ S/cm]µ
Lmax
Lmax

Proline Promag 50H, 53H
Endress+Hauser 17
Environment
Ambient temperature Transmitter:
• Standard: –20...+60 °C
• Optional: –40...+60 °C
Note!
At ambient temperatures below –20 °C the readability of the display may be impaired.
Sensor:
• Flange material carbon steel: –10...+60 °C
• Flange material stainless steel: –40...+60 °C
Caution!
It is not allowed to use the device beyond the min. and max. lining specified temperature values
(→“Medium temperature range”).
Note the following points:
• Install the device at a shady location. Avoid direct sunlight, particularly in warm climatic regions.
• If both fluid and ambient temperatures are high, install the transmitter at a remote location from the sensor
(→“Medium temperature range”).
Storage temperature • The storage temperature corresponds to the ambient temperature range of the transmitter and sensor (see
“Ambient temperature”).
• The measuring device must be protected against direct sunlight during storage in order to avoid unacceptably
high surface temperatures.
• Choose a storage location where moisture does not collect in the measuring device. This will help prevent
fungus and bacteria infestation which can damage the liner.
• Do not remove the protective plates or caps on the process connections until the device is ready to install.
Degree of protection IP 67 (NEMA 4X) for transmitter and sensor
Shock and vibration resistance Acceleration up to 2 g by analogy with IEC 60068-2-6
CIP cleaning Possible
SIP cleaning Possible
Electromagnetic
compatibility (EMC)
To EN 61326/A1 and NAMUR recommendation NE 21

Proline Promag 50H, 53H
18 Endress+Hauser
Process conditions
Medium temperature range The permissible medium temperature depends on the sensor and the sealing material:
Sensor:
• DN 2…100: –20...+150 °C
Seal:
• EPDM: −20…+130 °C
• Silicon: −20…+150 °C
• Viton: −20…+150 °C
•Kalrez:−20…+150 °C
Conductivity Minimum conductivity:
≥ 5 µS/cm for fluids generally
≥ 20 µS/cm for demineralised water
Note that in the case of the remote version, the minimum conductivity is also influenced by the length of the
connecting cable →see “Length of connecting cable”
Medium pressure range
(nominal pressure)
The permissible nominal pressure depends on the process connection and seal:
• 40 bar: flange, weld nipple (with O-ring seal)
• 16 bar: all other process connections
Pressure tightness
(liner)
Limiting flow The diameter of the pipe and the flow rate determine the nominal diameter of the sensor. The optimum velocity
of flow is 2...3 m/s. The velocity of flow (v), moreover, has to be matched to the physical properties of the
medium:
• v > 2 m/s: for media forming coatings, e.g. in full-fat milk, etc.
Nominal diameter Measuring tube
lining
Resistance to partial vacuum of measuring tube lining
Limit values for abs. pressure [mbar] at various
fluid temperatures
[mm] [inch] 25 °C 80 °C 100 °C 130 °C 150 °C 180 °C
2…1001/12…4" PFA 000000
Flow characteristics (SI units)
Nominal
diameter
Recommended
flow rate
Factory settings
[mm] [inch]
Min./max. full scale value
(v ~ 0.3 or 10 m/s)
Full scale value
(v ~ 2.5 m/s)
Pulse weighting
(~ 2 pulse/s)
Creepage
(v ~ 0.04 m/s)
2 1/12" 0.06…1.8 dm3/min 0.5 dm3/min 0.005 dm30.01 dm3/min
4 5/32" 0.25…7 dm3/min 2 dm3/min 0.025 dm30.05 dm3/min
8 5/16" 1…30 dm3/min 8 dm3/min 0.10 dm30.1 dm3/min
15 1/2" 4…100 dm3/min 25 dm3/min 0.20 dm30.5 dm3/min
25 1" 9…300 dm3/min 75 dm3/min 0.50 dm31dm
3/min
40 1 1/2" 25…700 dm3/min 200 dm3/min 1.50 dm33dm
3/min
50 2" 35…1100 dm3/min 300 dm3/min 2.50 dm35dm
3/min
65 2 1/2" 60…2000 dm3/min 500 dm3/min 5.00 dm38dm
3/min
80 3" 90…3000 dm3/min 750 dm3/min 5.00 dm312 dm3/min
100 4" 145…4700 dm3/min 1200 dm3/min 10.00 dm320 dm3/min

Proline Promag 50H, 53H
Endress+Hauser 19
Pressure loss • With DN 8...100 no pressure loss if the sensor is installed in a pipe of the same nominal diameter.
• Pressure losses for configurations incorporating adapters to DIN EN 545 →Page 16.
Measuring-tube specifications
Flow characteristics (US units)
Nominal
diameter
Recommended
flow rate
Factory settings
[inch] [mm]
Min./max. full scale value
(v ~ 0.3 or 10 m/s)
Full scale value
(v ~ 2.5 m/s)
Pulse weighting
(~ 2 pulse/s)
Creepage
(v ~ 0.04 m/s)
1/12" 2 0.015…0.5 gal/min 0.1 gal/min 0.001 gal 0.002 gal/min
5/32" 4 0.07…2 gal/min 0.5 gal/min 0.005 gal 0.008 gal/min
5/16" 8 0.25…8 gal/min 2 gal/min 0.02 gal 0.025 gal/min
1/2" 15 1.0…27 gal/min 6 gal/min 0.05 gal 0.10 gal/min
1" 22 2.5…65 gal/min 18 gal/min 0.20 gal 0.25 gal/min
1 1/2" 40 7…190 gal/min 50 gal/min 0.50 gal 0.75 gal/min
2" 50 10…300 gal/min 75 gal/min 0.50 gal 1.25 gal/min
2 1/2" 65 16…500 gal/min 130 gal/min 1 gal 2.0 gal/min
3" 80 24…800 gal/min 200 gal/min 2 gal 2.5 gal/min
4" 100 40…1250 gal/min 300 gal/min 2 gal 4.0 gal/min
Nominal Diameter Pressure rating * Inside diameter of
measuring tube **
[mm] [inch] EN (DIN) [bar] PFA [mm]
2 1/12" PN 16 / PN 40 2.25
4 5/32" PN 16 / PN 40 4.5
8 5/16" PN 16 / PN 40 9.0
15 1/2" PN 16 / PN 40 16.0
– 1" PN 16 / PN 40 22.6
25 – PN 16 / PN 40 26.0
40 1 1/2" PN 16 35.3
50 2" PN 16 48.1
65 2 1/2" PN 16 59.9
80 3" PN 16 72.6
100 4" PN 16 97.5
* The pressure rating depends on the process connections and the seals (s. Page 18).
** Inside diameters of process connections →Page 26 ff.

Proline Promag 50H, 53H
20 Endress+Hauser
Mechanical construction

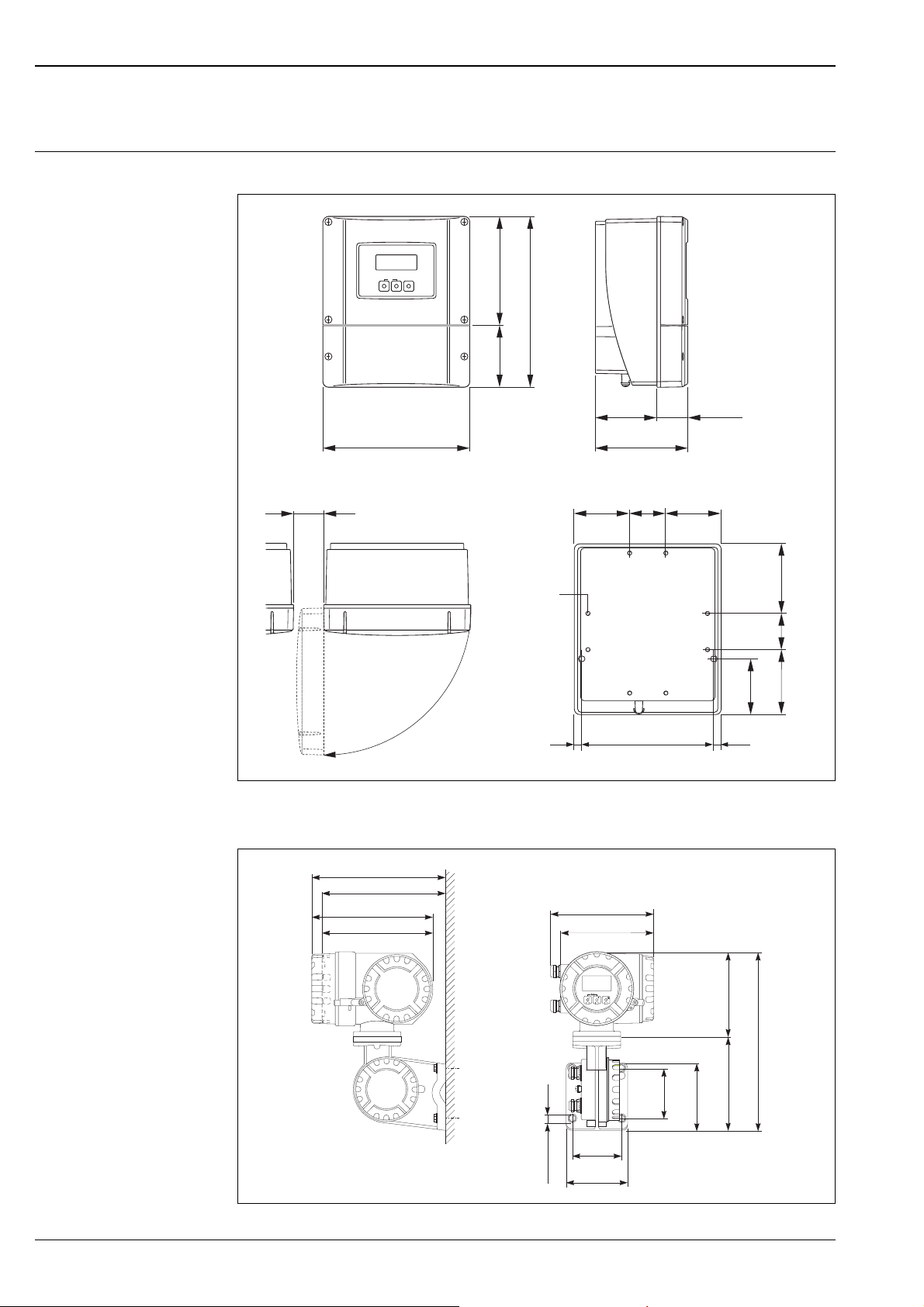

Design / dimensions Dimensions: Wall-mount housing (non hazardous area and II3G / zone 2)
A0001150
Dimensions: Remote field housing (II2GD / zone 1)
A00021287
Esc
E
- +
159.5 (6.28)
90.5 (3.56)
250 (9.84)
215 (8.46)
mm (inch)
90 (3.54)
135 (5.32)
45 (1.77)
53 (2.09)
81 (3.19)
192 (7.56) 11.5 (0.45)
102 (4.02)
95 (3.74)
81.5 (3.21)
8xM5
> 50 (1.97) 81 (3.19)
53 (2.09)
11.5 (0.45)
Esc
E
-+
N
i
c
h
t
u
n
t
e
r
S
p
a
n
n
u
n
g
ö
f
f
n
e
n
K
e
e
p
c
o
v
e
r
t
i
g
h
t
w
h
i
l
e
c
i
r
c
u
i
t
s
a
r
e
a
l
i
v
e
N
e
p
a
s
o
u
v
r i
r
l
’
a
p
p
a
r
e
i
l
s
o
u
s
t
e
n
s
i
o
n
K
e
e
p
c
o
v
e
r
t
i
g
h
t
w
h
i
l
e
c
i
r
c
u
i
t
s
a
r
e
a
l
i
v
e
Nicht-eigensichere
Stromkreise durch
IP40-Abdeckung geschützt
Non-intrinsically safe
circuits Ip40 protected
Boucles de courant
sans sécurité intrinsèque
protégées par Ip40
217
240
242
265
Ø 8.6 (M8)
100
186
206
123
100
133
188
355
167
