Operating Instructions
Levelflex FMP56, FMP57
FOUNDATION Fieldbus
Guided wave radar
BA01055F/00/EN/04.16
71344087
01.01.zz (Device software)

2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Table of contents
Endress+Hauser 3
Table of contents
1 Important document information .... 6
1.1 Document function ..................... 6
1.2 Symbols .............................. 6
1.2.1 Safety symbols .................. 6
1.2.2 Electrical symbols ................ 6
1.2.3 Tool symbols .................... 7
1.2.4 Symbols for certain types of
information .................... 7
1.2.5 Symbols in graphics ............... 7
1.2.6 Symbols at the device ............. 8
1.3 Supplementary documentation ............. 9
1.3.1 Safety Instructions (XA) ........... 10
2 Basic safety instructions ........... 13
2.1 Requirements for the personnel ........... 13
2.2 Designated use ....................... 13
2.3 Workplace safety ...................... 14
2.4 Operational safety ..................... 14
2.5 Product safety ........................ 14
2.5.1 CE mark ...................... 14
2.5.2 EAC conformity ................. 14
3 Product description ................ 15
3.1 Product design ........................ 15
3.1.1 Levelflex FMP56/FMP57 ......... 15
3.1.2 Electronics housing .............. 16
3.2 Registered trademarks .................. 17
4 Incoming acceptance and product
identification ..................... 18
4.1 Incoming acceptance ................... 18
4.2 Product identification .................. 18
4.2.1 Nameplate .................... 19
5 Storage, Transport ................ 20
5.1 Storage conditions ..................... 20
5.2 Transport product to the measuring point .... 20
6 Mounting ......................... 21
6.1 Mounting requirements ................. 21
6.1.1 Suitable mounting position ........ 21
6.1.2 Applications with restricted
mounting space ................. 23
6.1.3 Notes on the mechanical load of the
probe ........................ 24
6.1.4 Notes on the process connection .... 28
6.1.5 Securing the probe .............. 32
6.1.6 Special mounting conditions ....... 34
6.2 Mounting the device ................... 38
6.2.1 Required mounting tools .......... 38
6.2.2 Shortening the probe ............. 38
6.2.3 Mounting the device ............. 40
6.2.4 Mounting the "Sensor remote"
version ....................... 41
6.2.5 Turning the transmitter housing .... 43
6.2.6 Turning the display module ........ 43
6.3 Post-installation check .................. 44
7 Electrical connection .............. 45
7.1 Connection conditions .................. 45
7.1.1 Terminal assignment ............. 45
7.1.2 Cable specification ............... 46
7.1.3 Device plug connectors ........... 47
7.1.4 Power supply .................. 48
7.1.5 Overvoltage protection ........... 48
7.2 Connecting the device .................. 49
7.2.1 Pluggable spring-force terminals .... 50
7.3 Post-connection check .................. 50
8 Operation options ................. 52
8.1 Overview ............................ 52
8.1.1 Local operation ................. 52
8.1.2 Operation with remote display and
operating module FHX50 .......... 53
8.1.3 Remote operation ............... 53
8.2 Structure and function of the operating
menu .............................. 55
8.2.1 Structure of the operating menu .... 55
8.2.2 User roles and related access
authorization .................. 57
8.2.3 Write protection via access code ..... 58
8.2.4 Disabling write protection via access
code ......................... 59
8.2.5 Deactivation of the write protection
via access code ................. 59
8.2.6 Write protection via write protection
switch ........................ 60
8.2.7 Enabling and disabling the keypad
lock ......................... 62
8.3 Display and operating module ............ 63
8.3.1 Display appearance .............. 63
8.3.2 Operating elements .............. 66
8.3.3 Entering numbers and text ........ 67
8.3.4 Opening the context menu ......... 69
8.3.5 Envelope curve on the display and
operating module ............... 70
9 Integration into a FOUNDATION
Fieldbus network .................. 71
9.1 Device Description (DD) ................. 71
9.2 Integration into the FOUNDATION Fieldbus
network ............................ 71
9.3 Device identification and addressing ........ 71

Table of contents
4 Endress+Hauser
9.4 Block model .......................... 72
9.4.1 Blocks of the device software ....... 72
9.4.2 Block configuration when device is
delivered ...................... 73
9.5 Assignment of the measured values
(CHANNEL) in an AI Block ............... 73
9.6 Index tables of Endress+Hauser parameters .. 74
9.6.1 Setup Transducer Block ........... 74
9.6.2 Advanced Setup Transducer Block ... 75
9.6.3 Display Transducer Block .......... 76
9.6.4 Diagnostic Transducer Block ....... 77
9.6.5 Expert Configuration Transducer
Block ........................ 78
9.6.6 Expert Information Transducer
Block ........................ 80
9.6.7 Service Sensor Transducer Block .... 81
9.6.8 Service Information Transducer
Block ........................ 81
9.6.9 Data Transfer Transducer Block ..... 81
9.7 Methods ............................ 83
10 Commissioning via wizard ......... 84
11 Commissioning via operating
menu ............................. 85
11.1 Installation and function check ............ 85
11.2 Setting the operating language ............ 85
11.3 Configuration of a level measurement ...... 86
11.4 Recording the reference curve ............ 88
11.5 Configuration of the on-site display ........ 89
11.5.1 Factory settings of the on-site
display for level measurements ..... 89
11.5.2 Adjustment of the on-site display ... 89
11.6 Configuration management .............. 90
11.7 Protection of the settings against
unauthorized changes .................. 91
12 Commissioning (block-based
operation) ........................ 92
12.1 Function check ....................... 92
12.2 Block configuration .................... 92
12.2.1 Preparatory steps ............... 92
12.2.2 Configuring the Resource Block ..... 92
12.2.3 Configuring the Transducer Blocks ... 92
12.2.4 Configuring the Analog Input
Blocks ........................ 93
12.2.5 Additional configuration .......... 93
12.3 Scaling of the measured value in an AI Block .. 93
12.4 Language selection .................... 94
12.5 Configuration of a level measurement ...... 95
12.6 Configuration of the on-site display ........ 96
12.6.1 Factory settings of the on-site
display for level measurements ..... 96
12.7 Configuration management .............. 96
12.8 Configuration of the event behavior
according to the FOUNDATION Fieldbus
specification FF912 .................... 98
12.8.1 Groups of events ................ 99
12.8.2 Allocation parameters ........... 101
12.8.3 Configurable area .............. 104
12.8.4 Transmission of the event messages
to the bus .................... 105
12.9 Protection of the settings against
unauthorized changes ................. 105
13 Diagnostics and troubleshooting .. 106
13.1 General trouble shooting ............... 106
13.1.1 General errors ................. 106
13.1.2 Parametrization errors .......... 107
13.2 Diagnostic information on local display ..... 108
13.2.1 Diagnostic message ............. 108
13.2.2 Calling up remedial measures ..... 110
13.3 Diagnostic event in the operating tool ...... 111
13.4 Diagnostic messages in the DIAGNOSTIC
Transducer Block (TRDDIAG) ............ 111
13.5 Diagnostic list ....................... 111
13.6 Event logbook ....................... 112
13.6.1 Event history .................. 112
13.6.2 Filtering the event logbook ....... 112
13.6.3 Overview of information events .... 112
13.7 Firmware history ..................... 114
14 Maintenance .................... 115
14.1 Exterior cleaning ..................... 115
15 Repairs .......................... 116
15.1 General information on repairs ........... 116
15.1.1 Repair concept ................ 116
15.1.2 Repairs to Ex-approved devices .... 116
15.1.3 Replacement of an electronics
module ...................... 116
15.1.4 Replacement of a device ......... 116
15.2 Spare parts ......................... 117
15.3 Return ............................. 117
15.4 Disposal ........................... 117
16 Accessories ...................... 118
16.1 Device-specific accessories .............. 118
16.1.1 Weather protection cover ........ 118
16.1.2 Mounting bracket for the electronics
housing ..................... 119
16.1.3 Extension rod / centering HMP40 .. 120
16.1.4 Mounting kit, isolated ........... 121
16.1.5 Remote display FHX50 .......... 122
16.1.6 Overvoltage protection .......... 123
16.2 Communication-specific accessories ....... 124
16.3 Service-specific accessories .............. 124
16.4 System components ................... 124

Table of contents
Endress+Hauser 5
17 Operating menu .................. 125
17.1 Overview of the operating menu (display
module) ........................... 125
17.2 Overview of the operating menu (operating
tool) .............................. 131
17.3 "Setup" menu ........................ 137
17.3.1 "Mapping" wizard ............... 143
17.3.2 "Analog input 1 to 5" submenu ..... 144
17.3.3 "Advanced setup" submenu ........ 146
17.4 "Diagnostics" menu .................... 187
17.4.1 "Diagnostic list" submenu ......... 189
17.4.2 "Event logbook" submenu ......... 190
17.4.3 "Device information" submenu ..... 191
17.4.4 "Measured values" submenu ....... 193
17.4.5 "Analog input 1 to 5" submenu ..... 194
17.4.6 "Data logging" submenu .......... 196
17.4.7 "Simulation" submenu ........... 199
17.4.8 "Device check" submenu .......... 204
17.4.9 "Heartbeat" submenu ............ 206
Index ................................. 207

Important document information Levelflex FMP56, FMP57 FOUNDATION Fieldbus
6 Endress+Hauser
1 Important document information
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Symbols
1.2.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning
Direct current
Alternating current
Direct current and alternating current
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a
grounding system.
Protective ground connection
A terminal which must be connected to ground prior to establishing any other
connections.
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a
potential equalization line or a star grounding system depending on national or
company codes of practice.

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Important document information
Endress+Hauser 7
1.2.3 Tool symbols
Symbol Meaning
A0013442
Torx screwdriver
A0011220
Flat blade screwdriver
A0011219
Cross-head screwdriver
A0011221
Allen key
A0011222
Hexagon wrench
1.2.4 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
… Series of steps
Result of a step
Help in the event of a problem
Visual inspection
1.2.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections

Important document information Levelflex FMP56, FMP57 FOUNDATION Fieldbus
8 Endress+Hauser
Symbol Meaning
-
Hazardous area
Indicates a hazardous area.
.
Safe area (non-hazardous area)
Indicates the non-hazardous area.
1.2.6 Symbols at the device
Symbol Meaning
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions.
Temperature resistance of the connection cables
Specifies the minimum value of the temperature resistance of the connection cables.

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Important document information
Endress+Hauser 9
1.3 Supplementary documentation
Document Purpose and content of the document
Technical Information
TI01004F (FMP56, FMP57)
Planning aid for your device
The document contains all the technical data on the device and provides
an overview of the accessories and other products that can be ordered for
the device.
Brief Operating Instructions
KA01110F (FMP56/FMP57,
FOUNDATION Fieldbus)
Guide that takes you quickly to the 1st measured value
The Brief Operating Instructions contain all the essential information
from incoming acceptance to initial commissioning.
Description of Device Parameters
GP01015F (FMP5x, FOUNDATION
Fieldbus)
Reference for your parameters
The document provides a detailed explanation of each individual
parameter in the operating menu. The description is aimed at those who
work with the device over the entire life cycle and perform specific
configurations.
Special documentation
SD00326F
Functional Safety Manual
The document is part of the Operating Instructions and serves as a
reference for application-specific parameters and notes.
Special documentation
SD01872F
Manual for Heartbeat Verification and Heartbeat Monitoring
The document contains descriptions of the additonal parameters and
technical data which are available with the Heartbeat Verification and
Heartbeat Monitoring application packages.
For an overview of the scope of the associated Technical Documentation, refer to the
following:
• The W@M Device Viewer : Enter the serial number from the nameplate
(www.endress.com/deviceviewer)
• The Endress+Hauser Operations App: Enter the serial number from the nameplate
or scan the 2-D matrix code (QR code) on the nameplate.

Important document information Levelflex FMP56, FMP57 FOUNDATION Fieldbus
10 Endress+Hauser
1.3.1 Safety Instructions (XA)
Depending on the approval, the following Safety Instructions (XA) are supplied with the
device. They are an integral part of the Operating Instructions.
Feature 010 Approval Available for Feature 020: "Power Supply; Output"
A 1) B 2) C 3) E 4)/G 5) K 6)/L 7)
BA ATEX II 1G Ex ia IIC T6 Ga • FMP56
• FMP57 XA00496F XA01125F XA01126F XA00516F -
BB ATEX II 1/2G Ex ia IIC T6 Ga/Gb • FMP56
• FMP57 XA00496F XA01125F XA01126F XA00516F -
BE ATEX II 1D Ex t IIIC Da • FMP56
• FMP57
XA00501F XA00501F XA00501F XA00521F XA00501F
BF ATEX II 1/2D Ex t IIIC Da/Db • FMP56
• FMP57
XA00501F XA00501F XA00501F XA00521F XA00501F
BG ATEX II 3G Ex nA IIC T6 Gc • FMP56
• FMP57 XA00498F XA01130F XA01131F XA00518F XA01132F
BH ATEX II 3G Ex ic IIC T6 Gc • FMP56
• FMP57 XA00498F XA01130F XA01131F XA00518F -
B2 ATEX II 1/2G Ex ia IIC T6 Ga/Gb, 1/2D Ex ia IIIC Da/Db • FMP56
• FMP57
XA00502F XA00502F XA00502F XA00522F -
B3 ATEX II 1/2G Ex d[ia] IIC T6 Ga/Gb, 1/2 D Ex t IIIC
Da/Db
• FMP56
• FMP57
XA00503F XA00503F XA00503F XA00523F XA01136F
CD CSA C/US DIP Cl.II,III Div.1 Gr.E-G • FMP56
• FMP57
XA00529F XA00529F XA00529F XA00570F XA00529F
C2 CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, NI Cl.1 Div.2, Ex ia • FMP56
• FMP57
XA00530F XA00530F XA00530F XA00571F XA00530F
C3 CSA C/US XP Cl.I,II,III Div.1 Gr.A-G, NI Cl.1 Div.2, Ex d • FMP56
• FMP57
XA00529F XA00529F XA00529F XA00570F XA00529F
FB FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia, NI Cl.1 Div.2 • FMP56
• FMP57
XA00531F XA00531F XA00531F XA00573F XA00531F
FD FM XP Cl.I,II,III Div.1 Gr.A-G, AEx d, NI Cl.1 Div.2 • FMP56
• FMP57
XA00532F XA00532F XA00532F XA00572F XA00532F
FE FM DIP Cl.II,III Div.1 Gr.E-G • FMP56
• FMP57
XA00532F XA00532F XA00532F XA00572F XA00532F
GA EAC Ex ia IIC T6 Ga • FMP56
• FMP57
XA01380F XA01380F XA01380F XA01381F XA01380F
GB EAC Ex ia IIC T6 Ga/Gb • FMP56
• FMP57
XA01380F XA01380F XA01380F XA01381F XA01380F
IA IEC Ex ia IIC T6 Ga • FMP56
• FMP57 XA00496F XA01125F XA01126F XA00516F -
IB IEC Ex ia IIC T6 Ga/Gb • FMP56
• FMP57 XA00496F XA01125F XA01126F XA00516F -
IE IEC Ex t IIIC Da • FMP56
• FMP57
XA00501F XA00501F XA00501F XA00521F XA00501F
IF IEC Ex t IIIC Da/Db • FMP56
• FMP57
XA00501F XA00501F XA00501F XA00521F XA00501F
IG IEC Ex nA IIC T6 Gc • FMP56
• FMP57 XA00498F XA01130F XA01131F XA00518F XA01132F
IH IEC Ex ic IIC T6 Gc • FMP56
• FMP57 XA00498F XA01130F XA01131F XA00518F -
I2 IEC Ex ia IIC T6 Ga/Gb, Ex ia IIIC Da/Db • FMP56
• FMP57
XA00502F XA00502F XA00502F XA00522F -

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Important document information
Endress+Hauser 11
Feature 010 Approval Available for Feature 020: "Power Supply; Output"
A 1) B 2) C 3) E 4)/G 5) K 6)/L 7)
I3 IEC Ex d [ia] IIC T6 Ga/Gb, Ex t IIIC Da/Db • FMP56
• FMP57
XA00503F XA00503F XA00503F XA00523F XA01136F
KA KC Ex ia IIC T6 Ga • FMP56
• FMP57
XA01169F - XA01169F - -
KB KC Ex ia IIC T6 Ga/Gb • FMP56
• FMP57
XA01169F - XA01169F - -
MA INMETRO Ex ia IIC T6 Ga • FMP56
• FMP57
XA01038F XA01038F XA01038F - XA01038F
ME INMETRO Ex t IIIC Da • FMP56
• FMP57
XA01043F XA01043F XA01043F - XA01043F
MH INMETRO Ex ic IIC T6 Gc • FMP56
• FMP57
XA01040F XA01040F XA01040F - XA01040F
NA NEPSI Ex ia IIC T6 Ga • FMP56
• FMP57
XA00634F XA00634F XA00634F XA00640F XA00634F
NB NEPSI Ex ia IIC T6 Ga/Gb • FMP56
• FMP57
XA00634F XA00634F XA00634F XA00640F XA00634F
NF NEPSI DIP A20/21 T85…90oC IP66 • FMP56
• FMP57
XA00637F XA00637F XA00637F XA00643F XA00637F
NG NEPSI Ex nA II T6 Gc • FMP56
• FMP57
XA00635F XA00635F XA00635F XA00641F XA00635F
NH NEPSI Ex ic IIC T6 Gc • FMP56
• FMP57
XA00635F XA00635F XA00635F XA00641F XA00635F
N2 NEPSI Ex ia IIC T6 Ga/Gb, Ex iaD 20/21 T85…90°C • FMP56
• FMP57
XA00638F XA00638F XA00638F XA00644F XA00638F
N3 NEPSI Ex d[ia] IIC T6 Ga/Gb, DIP A20/21 T85…90°C
IP66
• FMP56
• FMP57
XA00639F XA00639F XA00639F XA00645F XA00639F
8A FM/CSA IS+XP Cl.I,II,III Div.1 Gr.A-G • FMP56
• FMP57
XA00531F
XA00532F
XA00531F
XA00532F
XA00531F
XA00532F
XA00572F
XA00573F
XA00531F
XA00532F
1) A: 2-wire; 4-20mA HART
2) B: 2-wire; 4-20mA HART, switch output
3) C: 2-wire; 4-20mA HART, 4-20mA
4) E: 2-wire; FOUNDATION Fieldbus, switch output
5) G: 2-wire; PROFIBUS PA, switch output
6) K: 4-wire 90-253VAC; 4-20mA HART
7) L: 4-wire 10,4-48VDC; 4-20mA HART
For certified devices the relevant Safety Instructions (XA) are indicated on the
nameplate.

Important document information Levelflex FMP56, FMP57 FOUNDATION Fieldbus
12 Endress+Hauser
Ex-marking in case of connected FHX50 remote display
If the device is prepared for the remote display FHX50 (product structure: feature 030:
Display, Operation", option L or M), the Ex marking of some certificates changes according
to the following table 1):
Feature 010 ("Approval") Feature 030 ("Display, Operation") Ex-marking
BE L or M ATEX II 1D Ex ta [ia] IIIC T500 xx°C Da
BF L or M ATEX II 1/2 D Ex ta [ia Db] IIIC Txx°C Da/Db
BG L or M ATEX II 3G Ex nA [ia Ga] IIC T6 Gc
BH L or M ATEX II 3G Ex ic [ia Ga] IIC T6 Gc
B3 L or M ATEX II 1/2G Ex d [ia] IIC T6 Ga/Gb,
ATEX II 1/2D Ex ta [ia Db] IIIC Txx°C Da/Db
IE L or M IECEx Ex ta [ia] IIIC T500 xx°C Da
IF L or M IECEx ta [ia Db] IIIC Txx°C Da/Db
IG L or M IECEx Ex nA [ia Ga] IIC T6 Gc
IH L or M IECEx Ex ic [ia Ga] IIC T6 Gc
I3 L or M IECEx Ex d [ia] IIC T6 Ga/Gb,
IECEx Ex ta [ia Db] IIIC Txx°C Da/Db
1) The marking of certificates not mentioned in this table are not affected by the FHX50.

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Basic safety instructions
Endress+Hauser 13
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the
application).
‣Follow instructions and comply with basic conditions.
The operating personnel must fulfill the following requirements:
‣Are instructed and authorized according to the requirements of the task by the facility's
owner-operator.
‣Follow the instructions in this manual.
2.2 Designated use
Application and measured materials
The measuring device described in these Operating Instructions is intended only for level
measurement of bulk solids. Depending on the version ordered the device can also
measure potentially explosive, flammable, poisonous and oxidizing materials.
Observing the limit values specified in the "Technical data" and listed in the Operating
Instructions and supplementary documentation, the measuring device may be used for the
following measurements only:
‣Measured process variables: level
‣Calculated process variables: Volume or mass in arbitrarily shaped vessels (calculated
from the level by the linearization functionality)
To ensure that the measuring device remains in proper condition for the operation time:
‣Use the measuring device only for measured materials against which the process-
wetted materials are adequately resistant.
‣Observe the limit values in "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
‣For special measured materials and cleaning agents, Endress+Hauser is glad to provide
assistance in verifying the corrosion resistance of wetted materials, but does not accept
any warranty or liability.
Residual risk
The electronics housing and its built-in components such as display module, main
electronics module and I/O electronics module may heat to 80 °C (176 °F) during operation
through heat transfer from the process as well as power dissipation within the electronics.
During operation the sensor may assume a temperature near the temperature of the
measured material.
Danger of burns due to heated surfaces!
‣For high process temperatures: Install protection against contact in order to prevent
burns.

Basic safety instructions Levelflex FMP56, FMP57 FOUNDATION Fieldbus
14 Endress+Hauser
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from the manufacturer only.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the
hazardous area (e.g. explosion protection, pressure vessel safety):
‣Based on the nameplate, check whether the ordered device is permitted for the
intended use in the hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an
integral part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate. It meets general safety standards and legal requirements.
2.5.1 CE mark
The measuring system meets the legal requirements of the applicable EC guidelines. These
are listed in the corresponding EC Declaration of Conformity together with the standards
applied.
Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
2.5.2 EAC conformity
The measuring system meets the legal requirements of the applicable EAC guidelines.
These are listed in the corresponding EAC Declaration of Conformity together with the
standards applied.
Endress+Hauser confirms successful testing of the device by affixing to it the EAC mark.

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Product description
Endress+Hauser 15
3 Product description
3.1 Product design
3.1.1 Levelflex FMP56/FMP57
1
2
5
3
4
A0012470

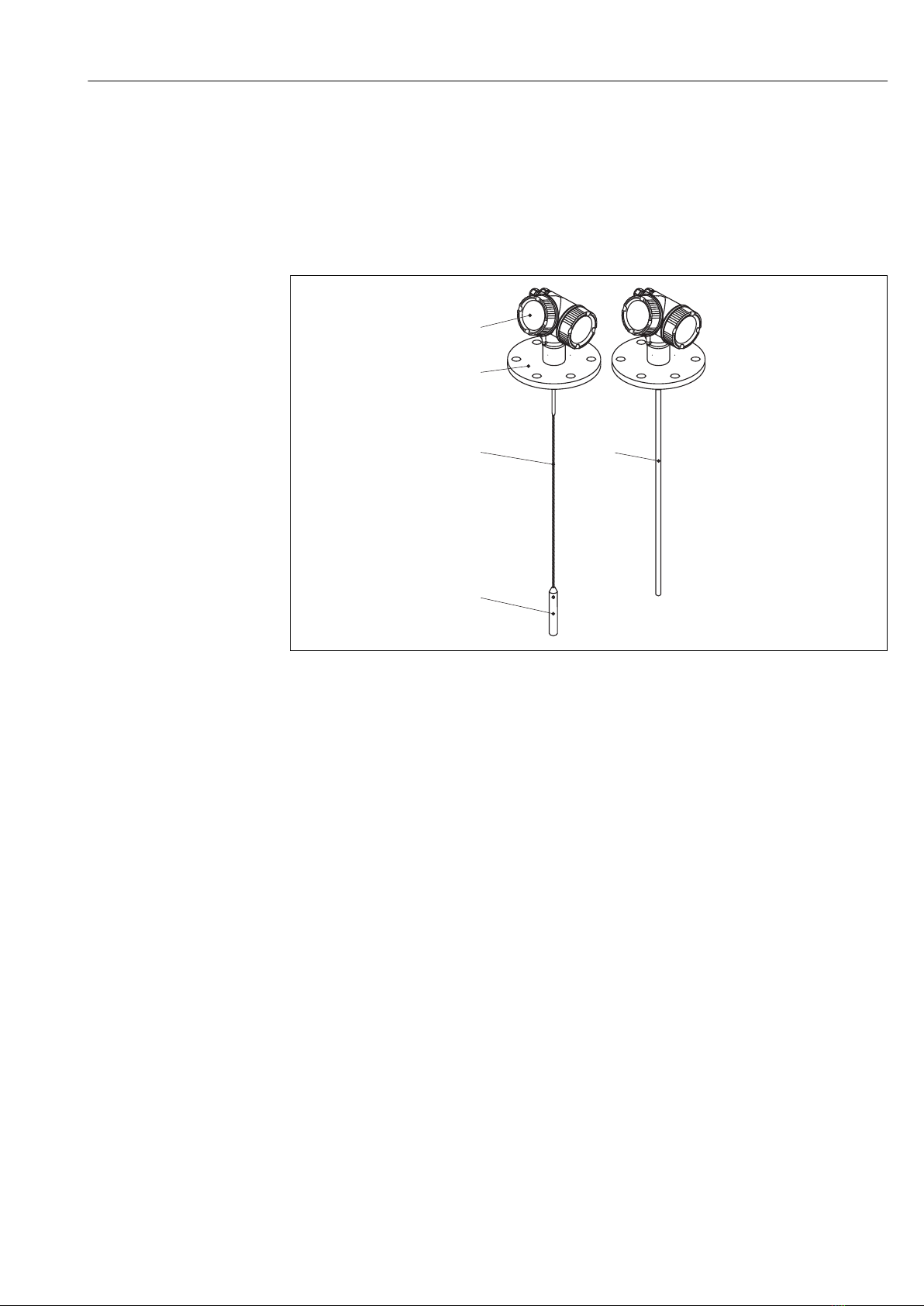

 1 Design of the Levelflex
1 Electronics housing
2 Process connection (here as an example: flange)
3 Rope probe
4 End-of-probe weight
5 Rod probe

Product description Levelflex FMP56, FMP57 FOUNDATION Fieldbus
16 Endress+Hauser
3.1.2 Electronics housing
Esc
–+E
123
4
5
6
9
7
8
A0012422
 2 Design of the electronics housing
1 Electronics compartment cover
2 Display module
3 Main electronics module
4 Cable glands (1 or 2, depending on instrument version)
5 Nameplate
6 I/O electronics module
7 Terminals (pluggable spring terminals)
8 Connection compartment cover
9 Grounding terminal

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Product description
Endress+Hauser 17
3.2 Registered trademarks
FOUNDATIONTM Fieldbus
Registered trademark of the FieldComm Group, Austin, Texas, USA
KALREZ®, VITON®
Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA
TEFLON®
Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA
TRI CLAMP®
Registered trademark of Alfa Laval Inc., Kenosha, USA

Incoming acceptance and product identification Levelflex FMP56, FMP57 FOUNDATION Fieldbus
18 Endress+Hauser
4 Incoming acceptance and product
identification
4.1 Incoming acceptance

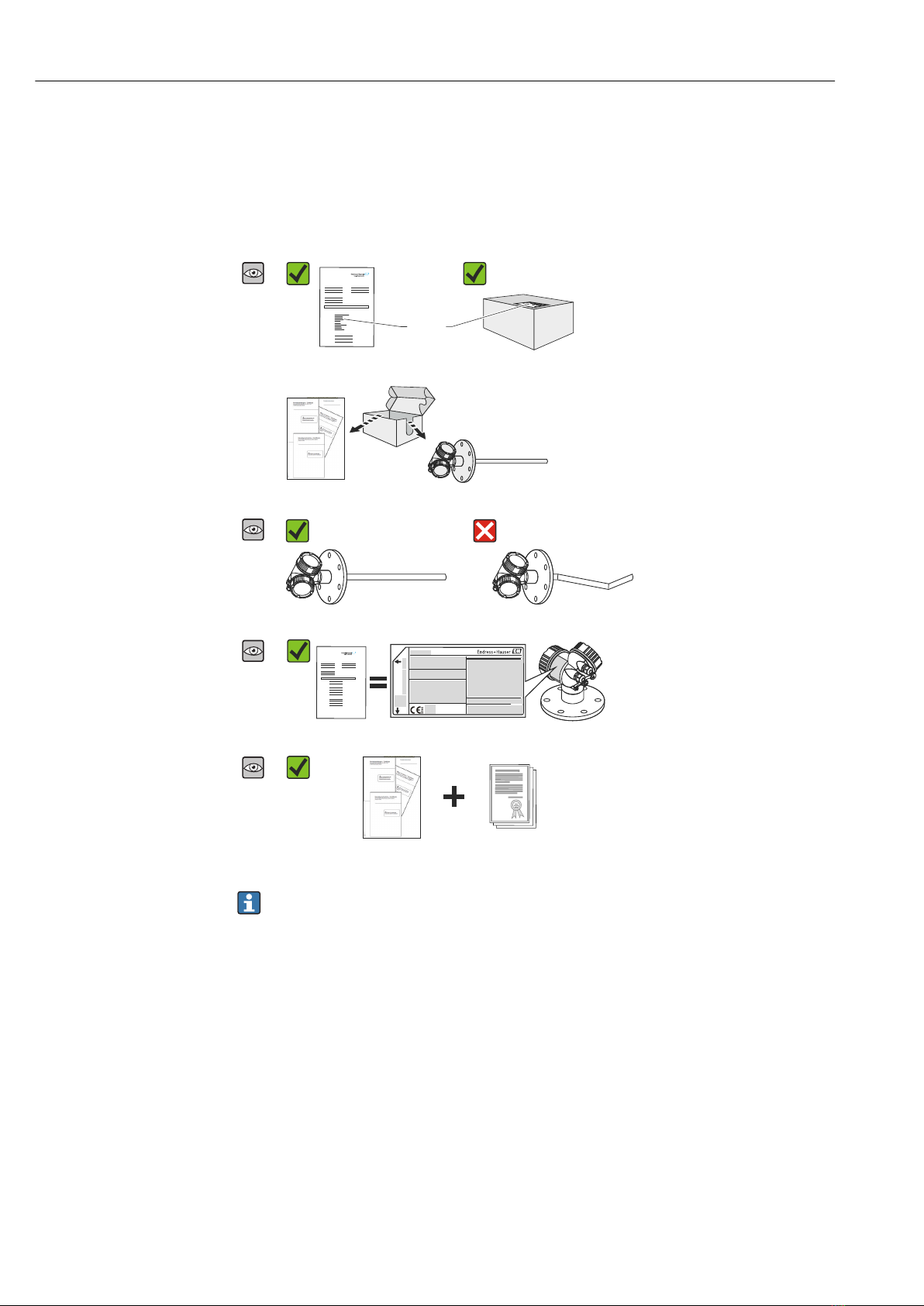

A0015502
DELIVERY NOTE
1 = 2
A0022480
Is the order code on the delivery
note (1) identical to the order
code on the product sticker (2)?
A0022486
A0015502
A0022489
Are the goods undamaged?
A0015502
DELIVERY NOTE
Made in Germany, 79689 Maulburg
A0022491
Do the nameplate data match the
ordering information on the
delivery note?
A0015502
A0022494
Is the DVD (operating tool)
present?
If required (see nameplate): Are
the Safety Instructions (XA)
present?
If one of the conditions does not comply, contact your Endress+Hauser distributor.
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
( www.endress.com/deviceviewer ): All information about the measuring device is
displayed.
• Enter the serial number from the nameplates into the Endress+Hauser Operations App
or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser
Operations App: all the information for the measuring device is displayed.

Levelflex FMP56, FMP57 FOUNDATION Fieldbus Incoming acceptance and product identification
Endress+Hauser 19
4.2.1 Nameplate
20
21
22
24
25
23
26
12
3
4
5
6
7
8
9
10
19
18
17
16
15
14
Ext. ord. cd.:
Order code:
Ser. no.:
LN =
Lref =
Mat.:
Date:
FW: Dev.Rev.:
DeviceID:
Ta:
if modification
see sep. label
X =
MWP:
12
11
47 (1.85)
92 (3.62)
mm (in)
13
A0010725
 3 Nameplate of the Levelflex
1 Device name
2 Address of manufacturer
3 Order code
4 Serial number (Ser. no.)
5 Extended order code (Ext. ord. cd.)
6 Process pressure
7 Gas phase compensation: reference distance
8 Certificate symbol
9 Certificate and approval relevant data
10 Degree of protection: e.g. IP, NEMA
11 Document number of the Safety Instructions: e.g. XA, ZD, ZE
12 2-D matrix code (QR code)
13 Modification mark
14 Manufacturing date: year-month
15 Permitted temperature range for cable
16 Geräterevision (Dev.Rev.)
17 Additional information about the device version (certificates, approvals, communication): e.g. SIL, PROFIBUS
18 Firmware version (FW)
19 CE mark, C-Tick
20 DeviceID
21 Material in contact with process
22 Permitted ambient temperature (Ta)
23 Size of the thread of the cable glands
24 Length of probe
25 Signal outputs
26 Operating voltage
Only 33 digits of the extended order code can be indicated on the nameplate. If the
extended order code exceeds 33 digits, the rest will not be shown. However, the
complete extended order code can be viewed in the operating menu of the device in
the Extended order code 1 to 3 parameter.

Storage, Transport Levelflex FMP56, FMP57 FOUNDATION Fieldbus
20 Endress+Hauser
5 Storage, Transport
5.1 Storage conditions
• Permitted storage temperature: –40 to +80 °C (–40 to +176 °F)
• Use the original packaging.
5.2 Transport product to the measuring point
LWARNING
Housing or probe may be damaged or break away.
Risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or at
the process connection.
‣Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the
probe but at the process connection. Take into account the mass center of the device in
order to avoid unintended tilting.
‣Comply with the safety instructions, transport conditions for devices over 18kg
(39.6lbs) (IEC61010).

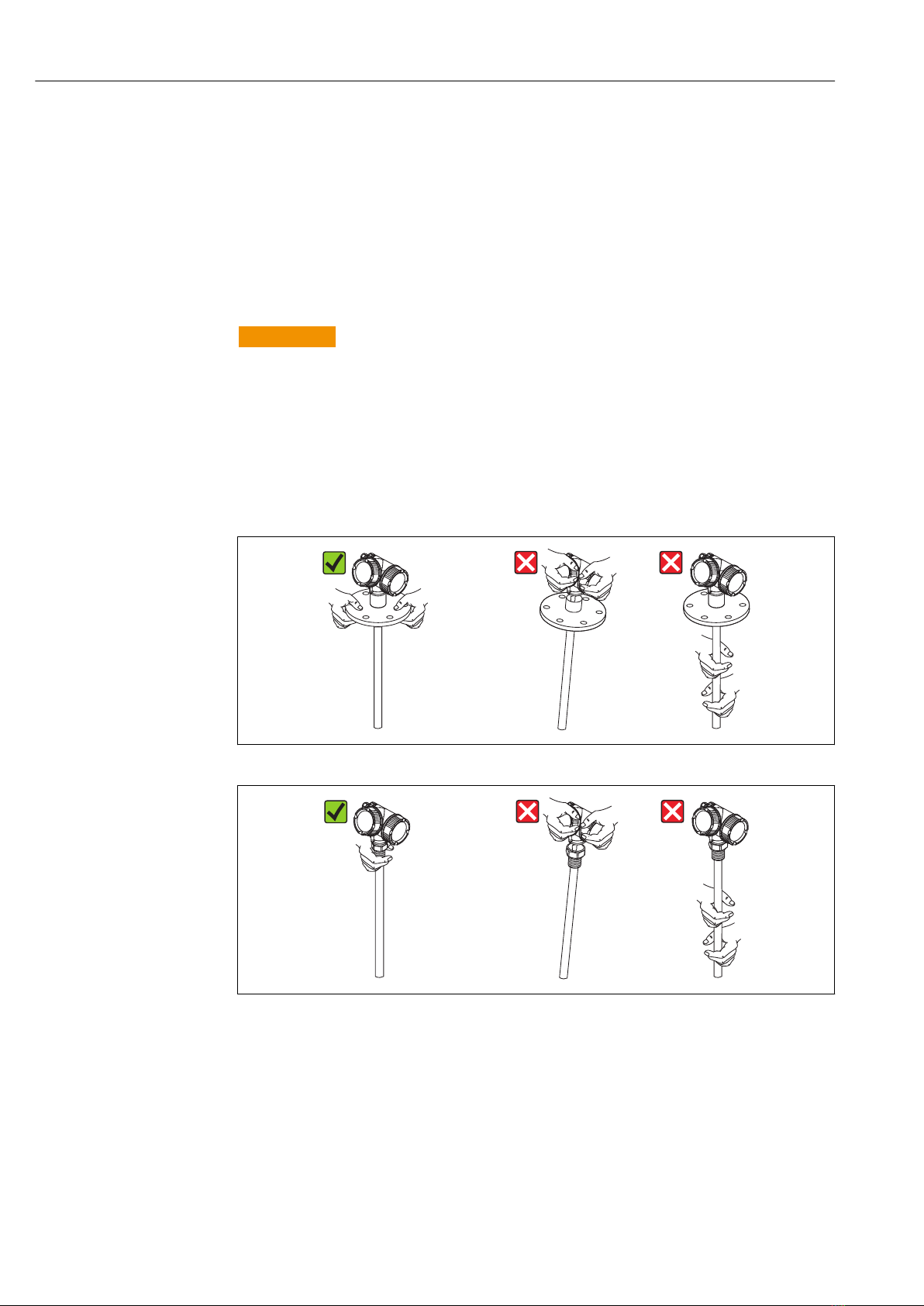

A0013920
A0014264
