Endura TWC1 User manual

Model: TWC1
FOR RECHARGEABLE LMR BATTERIES
Single Unit Rapid Charger

1
Introduction
Thank you for purchasing an ENDURA™ TWC1, Single Unit Rapid Charger.
This high quality product is designed for use with rechargeable LMR batteries.
With the appropriate charging pod installed, it can charge batteries with:
Lithium ion (Li-Ion), nickel metal hydride (NiMH), or nickel cadmium
(NiCd) chemistry.
For a complete list of charging pods available for this charger, contact your
Power Products dealer or call customer service at 800-529-1618.
Important
Read all Caution statements below and this User Manual before attempt-
ing to charge a battery.
Check to make sure a charging pod compatible with your battery is prop-
erly installed on charger before placing battery in pod.
Position charger away from TVs, radios, or other receivers to prevent the
charger from interfering with these types of products.
Always charge new batteries completely before initial use. Recycle bat-
teries when they can no longer be used. Do not discard unwanted batter-
ies in the trash or incinerate. Batteries exposed to fire or excessive heat
may explode.
For best battery performance, charge NiCd and NiMH batteries when they
are fully discharged.
■
1.
2.
3.
4.
5.

2
Caution
Never charge alkaline or dry cell batteries with this charger. They may
burst and cause damage or personal injury.
Do not charge Li-Ion, NiMH, or NiCd batteries unless they are designed
with overcharge protection.
Use charger indoors only. Do not expose the charger to rain, any liquids,
or excessive moisture.
Do not attempt to charge a battery without first installing the appropriate
charging pod. Use only charging pods designed for the ENDURA™ TWC1
charger. Disconnect charger from power supply before installing, adjust-
ing, or removing the charging pod.
Make sure contacts in charging pod and battery are clean. Do not allow
wire or metal objects to touch contacts in charging pod or any internal
part of the charger.
Do not remove the charger’s housing or make any modification to the charger.
Use only the power supply provided with the ENDURA™ TWC1 charger. If
a replacement power supply is required, order part number TWC1-C1. Use
of other power supplies may damage the charger or batteries you may be
attempting to charge.

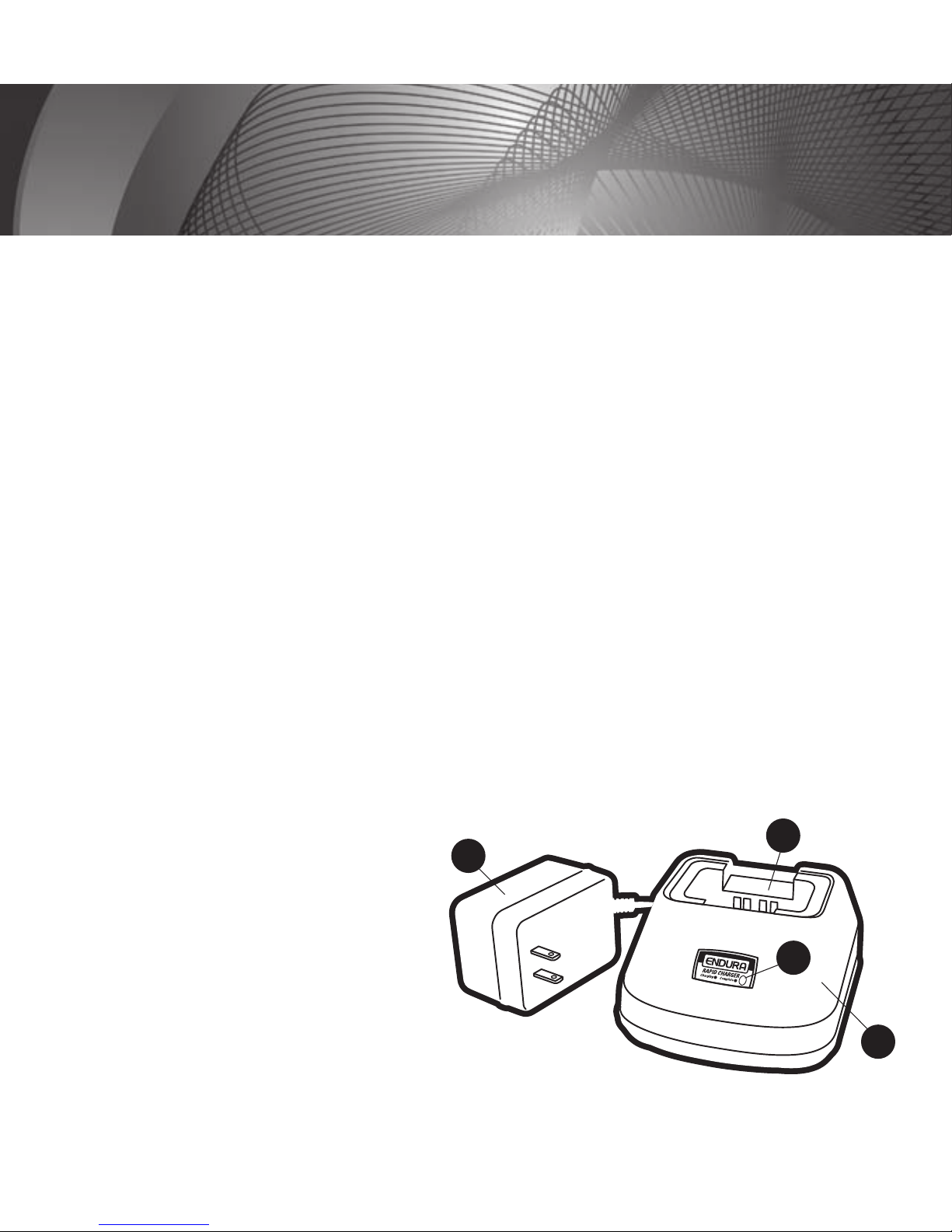

ENDURA™ TWC1 Features
Power Supply
Endura™ TWC1 Single Unit
Rapid Charger
Removable Charging Pod
Charge Status LED
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
Note: Quick reference informa-
tion for charge status is
located on bottom of charger.
1
2
3
4

3
Replacing A Charging Pod
The charging pod is made from quality materials and designed to provide
years of service when properly used. In most cases, the charging pod will
only be replaced when you want to use the charger with a different battery.
Follow these steps to change the charging pod:
Obtain a charging pod made specifically for the ENDURA™ TWC1. Confirm
that the charging pod is compatible with the battery you want to charge.
Unplug the AC to DC power supply from the ENDURA™ TWC1.
Turn the locking screw on the bottom of the charging pod counter-clock-
wise several rotations. (The screw remains connected to the charging
pod.) Lift the charging pod from the charging base.
Insert the replacement charging pod into the charging base and secure
with the locking screw. Do not over tighten the screw.
Inspect the charging contacts to ensure they are clean and unobstructed.
Connect the AC to DC power supply to the ENDURA™ TWC1. You are now
ready to charge a battery compatible with the charging pod.
1.
2.
3.
4.
5.
6.

4
Charging A Battery
Confirm that the charging pod and battery are compatible.
Connect the DC end of the power supply to the DC plug on the back of the
charger, then connect the AC adaptor to a wall outlet (120V AC).
Place battery to be charged in the charging pod. The battery may be
charged while attached to the radio. Note: If the battery is attached to
radio, turn the radio off while in the charger.
When a battery is placed in the charging pod, the charge status LED will
illuminate ORANGE for a short period while the charger performs a battery
diagnostic. Once completed, the charge status LED will change to RED.
This indicates the battery is charging.
While a battery is charging, the charge status LED will illuminate RED
with no flashing. If the charge status LED is red and flashes, a fault has
been detected. The flash pattern represents a specific fault condition.
See section Fault Conditions for details.
When the battery is charged to 80% of capacity, the charge status LED will
change to GREEN and begin to flash. It is recommended that the battery be
charged to at least 80% capacity before use.
The charge status LED will illuminate GREEN with no flashing when the
battery is fully charged. Note: Remove battery from charger within 15
hours after charging is complete.
After removing a fully charged battery, the charge status LED may remain
illuminated for a few seconds. Allow the charge status LED to go off before
placing another battery in the charging pod.
The ENDURA™ TWC1 is designed to operate at room temperatures be-
tween 15°C and 30°C. Charging batteries at room temperatures outside
this range may result in under charging of batteries.
1.
2.
3.
4.
5.
6.
7.
8.
9.

5
Fault Conditions
When the charge status LED flashes RED, a fault condition exists. There five
different flash patterns, each indicating a specific type of fault. The flash
patterns and fault conditions are as follows:
LED Flash
Pattern
Fault Type
Flashes 1
Time
Indicates over-current condition caused by battery short
circuit. Check battery contacts. Do not attempt charging the
battery if short circuit exists.
Flashes 2
Times
Indicates battery diagnostic has “timed out” and cannot be
completed due to excessively low battery voltage. Charge
battery with charger supplier with radio, then resume use of
ENDURA™ TWC1.
Flashes 3
Times
Indicates over-heat condition for a Li-Ion battery. Battery
temperature is over 43°C and charging has stopped. Battery
protection circuit may be defective.
Flashes 4
Times
Indicates battery contact is “open” and current is not pass-
ing through the (+) and (-) contacts on the battery. Check
charging pod to confirm compatibility with battery.
Flashes 5
Times
Indicates charging complete, but battery is under charged.
Battery voltage is below minimum level required.

6
Warranty And Service During Warranty
The ENDURA™ TWC1 is made from high quality materials and designed to
provide years of reliable service. The following warranty applies:
Power Products Unlimited, Inc. (PPU) warrants this product to be free from
defects in workmanship and materials for one-year from date of purchase
by the end user. This warranty applies to the original purchaser and is void
if the product has been altered, misused, damaged, neglected, purchased
outside the United States, or if repair is required because of normal wear
and tear. This is the only warranty made by PPU. In no event will PPU, its af-
filiates, subsidiaries, related entities, or their respective directors, officers,
or employees, be liable for any damages beyond repair or replacement as
described above, including without limitation, indirect, incidental, or con-
sequential damages. For service under warranty, return the product along
with dated proof of purchase to the retailer where purchased or to Power
Products. If returning directly to Power Products, follow these instructions:
Send to Power Products – Warranty Service Department, 2170 Brandon
Trail, Alpharetta, GA 30004. For your protection, we recommend you ob-
tain proof of delivery for your shipment.
Include with your product, dated proof of purchase, your name and day-
time telephone number, and return address (street address only; return
shipments cannot be made to a P.O. Box).
All items sent become the property of Power Products and will not be returned.
1.
2.
3.

ENDURA™ TWC1 Specifications
Dimensions 115 x 136 x 66 mm / 4.5 x 5.4 x 2.6 inches
Weight (Charger Only) 275 g / .6 lbs.
Compatible Chemistries NiCd / NiMH / Li-Ion
Operating Temperature 15° C – 30° C
Storage Temperature 0° C – 65° C
Power Supply Type AC to DC
Power Supply Output 15V – 18V DC (500mA – 900mA)
Specifications subject to change without notice.
