Endura NCC0355 User manual

User Manual
MODEL NCC0355
FOR IN-VEHICLE USE
Single Unit Rapid Charger

1
Introduction
Thank you for purchasing an ENDURA™ NCC0355, Single Unit Rapid Charger.
This high quality product is designed for charging LMR batteries in a ve-
hicle. With the appropriate charging pod installed, it can charge batteries
with: Lithium ion (Li-Ion), nickel-metal hydride (NiMH), or nickel cadmium
(NiCd) chemistry.

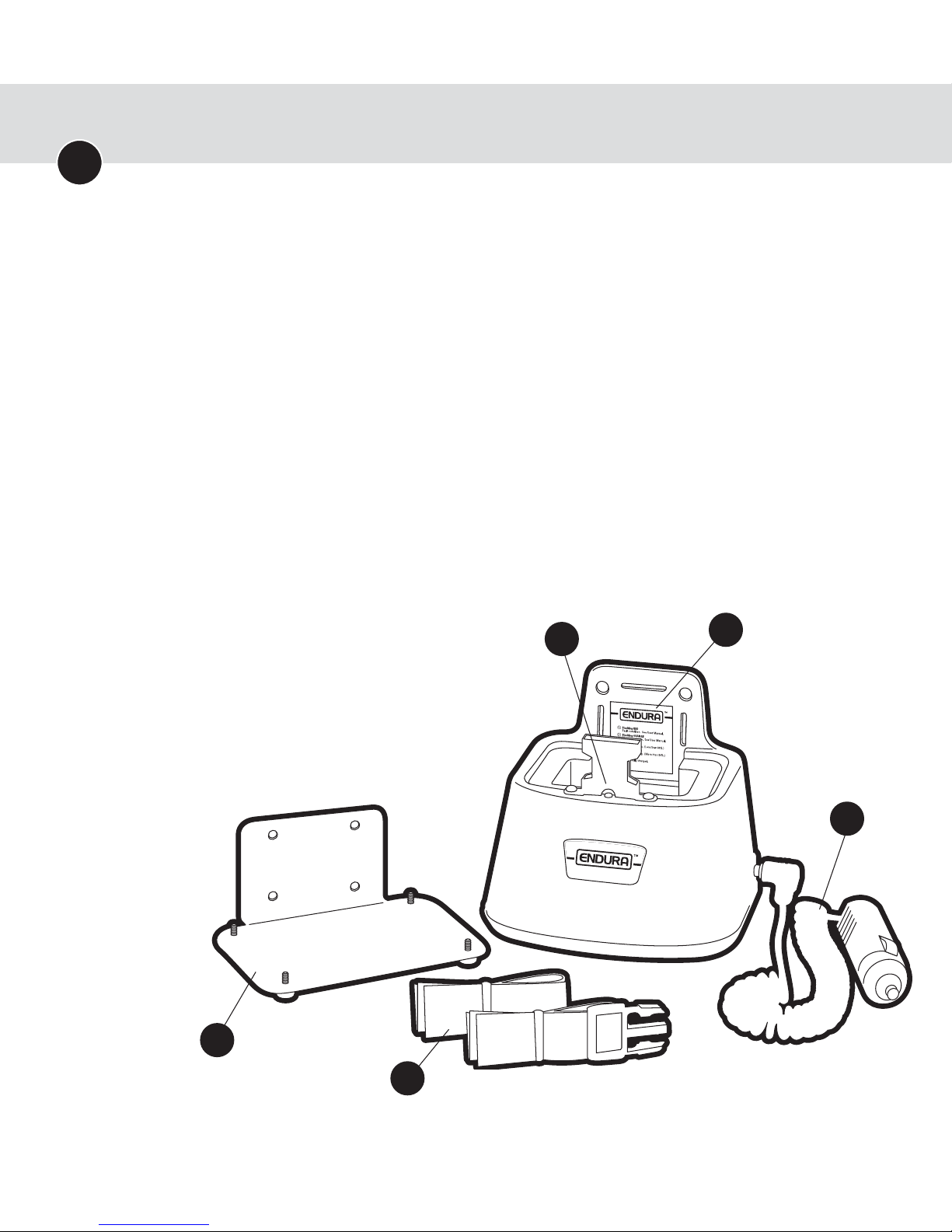

ENDURA™ NCC0355 Features
1. Mounting bracket.
2. Adjustable tie-down straps.
3. Charge status LED.
4. Charge status LED reference chart.
5.
Vehicle power adapter – supplies power
from a 12V – 24V outlet in your vehicle.
STATUS LED
RAPID CHARGER
2
1
34
5

2
Important
1. Read all Caution statements below and this User Manual before attempt-
ing to charge a battery.
2. Check to make sure a charging pod compatible with your battery is prop-
erly installed on charger before placing battery in pod.
3. Always charge new batteries completely before initial use. Recycle batteries
when they can no longer be used. Do not discard unwanted batteries in the
trash or incinerate. Batteries exposedto fire or excessiveheat may explode
4. For best battery performance, charge NiCd and NiMH batteries when
they are fully discharged.
Caution
1. Never charge alkaline or dry cell batteries with this charger. They may
burst and cause damage or personal injury.
2. Do not charge Li-Ion, NiMH, or NiCd batteries unless they are designed
with overcharge protection.
3. Use charger inside a vehicle only. Do not expose the charger to rain, any
liquids, or excessive moisture.
4.
Do not attempt to charge a battery without first installing the appropriate charg-
ing pod. Use only charging pods designed for the NCC0355. Disconnect charger
from power before installing, adjusting, or removing the charging pod.
5. Make sure contacts in charging pod and battery are clean. Do not allow
wire or metal objects to touch contacts in charging pod or any internal
part of the charger.
6.
Do not remove the charger’s housing or make any modification to the charger.
7. Use only the vehicle power adapter supplied with the NCC0355 charger. If a
replacement is required, order part number TWC6-VPA. Use of other vehicle
power adapters may damage the charger or batteries you attempt to charge.

3
Installing ENDURA NCC0355
1. Install NCC0355 in an area of the vehicle that is in close proximity to a 12V
outlet. The location selected should allow the vehicle power adapter to
be connected without excessive stretching of the cable.
2. Select a flat vertical surface in the vehicle for attaching the mounting
bracket. Use the 4 sheet metal screws provided to fasten the smaller sec-
tion of the bracket to the vehicle. Install the mounting bracket securely
and in a manner that allows the larger section of the bracket to be level.
(Width of smaller section is about 2.6” and width of larger section is 4.2”).
3. After the mounting bracket is installed, fasten NCC0355 to the bracket us-
ing the 4 brass thumb screws provided. If required, install the charging
pod in NCC0355 before attaching the charger to the mounting bracket. See
section Replacing A Charging Pod below.
4. Two tie-down straps are included with NCC0355. Use the 9.5” strap to se-
cure shorter radios (height 6” or less) or the 17” strap to secure taller
radios (height over 6”).
5. To attach the tie-down strap, slide the end without the plastic clip through
the narrow horizontal opening on the back of the charger (above status
LED chart), but do not yet attach the end of the strap to itself. Place the
radio in the charger, bring the strap over the radio, and insert the plastic
clip into the metal clip holder on the front of the charger. A clicking sound
confirms the clip is properly connected. At the back of the charger, pull
the end of the tie-down strap until it is relatively tight and then press it
onto itself.
6. To remove a radio secured with the tie-down strap, press the sides of
the plastic clip with your thumb and forefinger and lift the tie-down strap.
Note: It may be easier to install the tie-down strap before NCC0355 is at-
tached to the mounting bracket.

4
Replacing A Charging Pod
The charging pod is made from quality materials and designed to provide
years of service when properly used. In most cases, the charging pod will
only be replaced when you want to use the charger with adierent battery.
Follow these steps to change the charging pod:
1. Obtain a charging pod made specifically for the NCC0355. Confirm that the
charging pod is compatible with the battery you want to charge.
2. Unplug the vehicle power adaptor (DC power supply) from NCC0355 and
remove the radio from the charging pod.
3. Turn the locking screw on the bottom of the charging pod counter-clock-
wise several rotations. Lift the charging pod from the charging base.
4. Insert the replacement charging pod into the charging base and secure
with the locking screw. Do not over tighten the screw.
5. Inspect the charging contacts to ensure they are clean and unobstructed.
6. Connect the vehicle power adapter to NCC0355. You are now ready to
charge a battery compatible with the charging pod.
Charging A Battery
Before charging a battery confirm that the charging pod installed in NCC0355
and the battery you want to charge are compatible.
1. Connect the large plug end of the vehicle power adapter to the 12V DC
outlet in your vehicle and the small end to the connection point on the
right side of the charger.
2. Place battery to be charged in the charging pod. The battery may also be
charged while attached to the radio.
3. When a battery is placed in the charging pod, the charge status LED will
illuminate ORANGE for a short period while the charger performs a bat-
tery diagnostic. If the LED does not illuminate, check to make sure the

5
12V outlet is receiving power. The charge status LED will change from
ORANGE to RED once the battery diagnostic is complete.
4. While a battery is charging, the charge status LED will illuminate RED
with no flashing. If the charge status LED is red and flashes, a fault has
been detected. The flash pattern represents a specific fault condition.
See section Fault Conditionsfor details.
5. When the battery is charged to 80% of capacity, the charge status LED
will change to GREEN and flash. It is recommended that the battery be
charged to at least 80% capacity before use. The charge status LED will
illuminate GREEN with no flashing when the battery is fully charged.
6. After removing a fully charged battery, the charge status LED may remain
illuminated for a few seconds. Allow the charge status LED to go o be-
fore placing another battery in the charging pod.
7. The NCC0355 is designed to operate at room temperatures between 15°C
and 30°C. Charging batteries at temperatures outside this range may re-
sult in under charging of batteries.
ENDURA™ NCC0355 Specifications
Dimensions 116 x 98 x 106 mm / 4.6 x 3.9 x 4.3 inches
Weight (Charger Only) 320 g / .7 lbs.
Compatible Chemistries NiCd / NiMH / Li-Ion
Operating Temperature 15° C – 30° C
Storage Temperature 0° C – 65° C
Vehicle Power Adapter - Input 12V – 24V DC (10A)
Charging Rate 10.6V – 12.4V (700mA)
Specifications subject to change without notice.

6
Fault Conditions
When the charge status LED flashes RED, a fault condition exists. There
are five dierent flash patterns, each indicating a specific type of fault. The
flash patterns and fault conditions are as follows:
LED Flash
Pattern Fault Type
Flashes 1
Time
Indicates over-current condition caused by battery short
circuit. Check battery contacts. Do not attempt charging the
battery if short circuit exists.
Flashes 2
Times
Indicates battery diagnostic has “timed out” and cannot be
completed due to excessively low battery voltage. Charge
battery with charger supplier with radio, then resume use
of TWC1M.
Flashes 3
Times
Indicates over-heat condition for a Li-Ion battery. Battery
temperature is over 43°C and charging has stopped. Battery
protection circuit may be defective.
Flashes 4
Times
Indicates battery contact is “open” and current is not pass-
ing through the (+) and (-) contacts on the battery. Check
charging pod to confirm compatibility with battery.
Flashes 5
Times
Indicates charging complete, but battery is under charged.
Battery voltage is below minimum level required.

Warranty And Service During Warranty
The ENDURA™ NCC0355 is made from high quality materials and designed to
provide years of reliable service. The following warranty applies:
Power Products Unlimited, Inc. (PPU) warrants this product to be free from
defects in workmanship and materials for one-year from date of purchase
by the end user. This warranty applies to the original purchaser and is void
if the product has been altered, misused, damaged, neglected, purchased
outside the United States, or if repair is required because of normal wear
and tear. This is the only warranty made by PPU. In no event will PPU, its af-
filiates, subsidiaries, related entities, or their respective directors, officers,
or employees, be liable for any damages beyond repair or replacement as
described above, including without limitation, indirect, incidental, or con-
sequential damages. For service under warranty, return the product along
with dated proof of purchase to the retailer where purchased or to Power
Products. If returning directly to Power Products, follow these instructions:
1. Send to Power Products – Warranty Service Department, 2170 Brandon Trail,
Alpharetta, GA 30004. For your protection, we recommend you obtain proof of
delivery for your shipment.
2. Include with your product, dated proof of purchase, your name and daytime tele-
phone number, and return address (street address only; return shipments cannot
be made to a P.O. Box).
3. All items sent become the property of Power Products and will not be returned.
