Enduraplas CLEAN BOSS PRO User manual

OWNER’S MANUAL
CLEAN BOSS PRO
™
Version 1.1 Copyright © Enduraplas. All Rights Reserved.
Product Codes:
SCB100DB580
CLEAN BOSS PRO

2Clean Boss™ Pro
English
CONTENTS
INTRODUCTION 3
WARNINGS 4 - 5
GETTING STARTED 6 - 9
MAINTAINING 10 - 11
TROUBLESHOOTING 12 - 13
WARRANTY 14 - 17

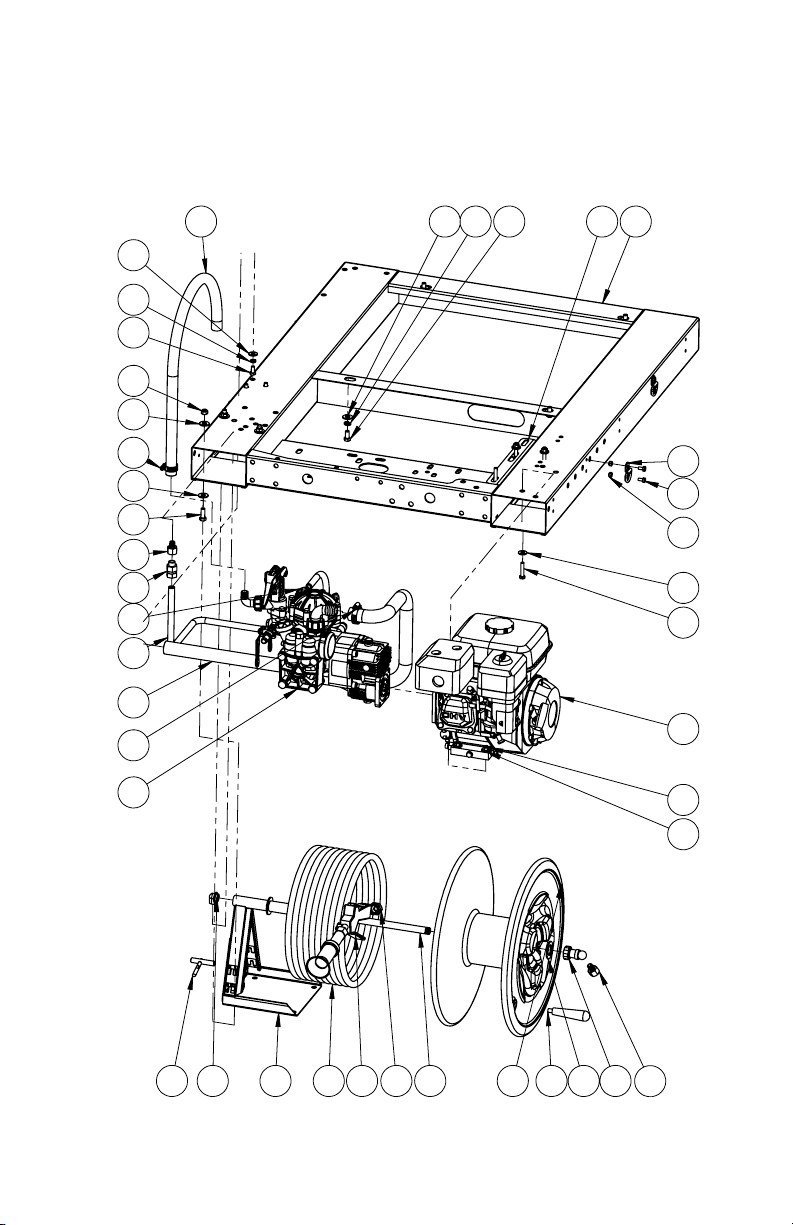

PARTS BREAKDOWNS 18 - 23
!

3Version 1.1
English
INTRODUCTION
Congratulations! You now own an Enduraplas sprayer. Durable
design and construction assure you a lifetime of extreme
performance. No sprayer is tougher. No sprayer will last longer.
Take a look through this owner’s manual to learn how the pros
use their Enduraplas sprayer.
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas

4Clean Boss™ Pro
English
WARNINGS
1. When connecting this sprayer to your UTV (or vehicle), ensure
that you have read the UTV’s Owner’s Manual and that you
comply with all the weight restrictions as specified by the
UTV’s manufacturer, as overloading can cause injury or death.
Remember that 1 gallon of water weighs 8.33 pounds.
2. To ensure your own safety and that of others, you must
comply with all relevant environmental, work place health,
safety legislation and codes of practice.
3. Select and wear appropriate Personal Protection Equipment in
accordance with the label of the product you intend to use.
4. Care should be taken when spraying in windy conditions
as spray drift may contaminate the air and may affect the
operator or damage adjacent non-target vegetation. It is
recommended that a speed of 6mph is not exceeded.
5. Once the spraying operation has been completed,
decontaminate the spray tank and spray accessories. Dispose
of tank rinsing’s in compliance with current environmental,
work place health and safety regulations.
6. Personal Protection Equipment must still be worn while
decontaminating your sprayer as per warning 3 above.
7. Improper or careless use of this sprayer can cause serious
injury. Minors should never be allowed to use this sprayer.
This sprayer should not be used when bystanders or animals
are in the area. This sprayer should never be used while
children are in the area.
8. Never leave the sprayer unattended without turning off the
pump, relieving the line pressure, and flushing the sprayer of
any harmful chemicals.
9. You must be in good mental health to operate this sprayer
and not be under the influence of alcohol or any drugs
that could impair your vision, physical strength, dexterity,
judgment, or other mental capacity.
!

5Version 1.1
English
10. No modifications and/or alterations may be made to this
sprayer. Any such modifications not only void the sprayer
warranty but can make the unit dangerous to anyone
operating the pump.
11. Always inspect hoses and piping to avoid burst injuries.
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas

6Clean Boss™ Pro
English
Operating the Sprayer
GETTING STARTED
2) If you wish to use the d-ring tie down
system find your desired configuration and
mount two tie down points on each side of
the sprayer.
3) Hook up the freshwater tank brackets to
the inserts on top of the tank.
4) Insert the freshwater tank into the
brackets and secure it
1) Screw the hose reel handle into place.

7Version 1.1
English
Operating the Sprayer
GETTING STARTED
6) There is a 3-way valve that switches
suction between your main tank and your
freshwater tank. When the handle points
toward the main tank it is drawing from
that tank. When the handle is pointing to
the left, it is drawing from the freshwater
tank.
7) To drain the freshwater tank or to wash
your hands, twist the spigot so the valve is
open.
5) Hook up the freshwater tank hose and
tighten the clamp.
8) Fill the fuel tank on the engine with
regular gasoline

8Clean Boss™ Pro
English

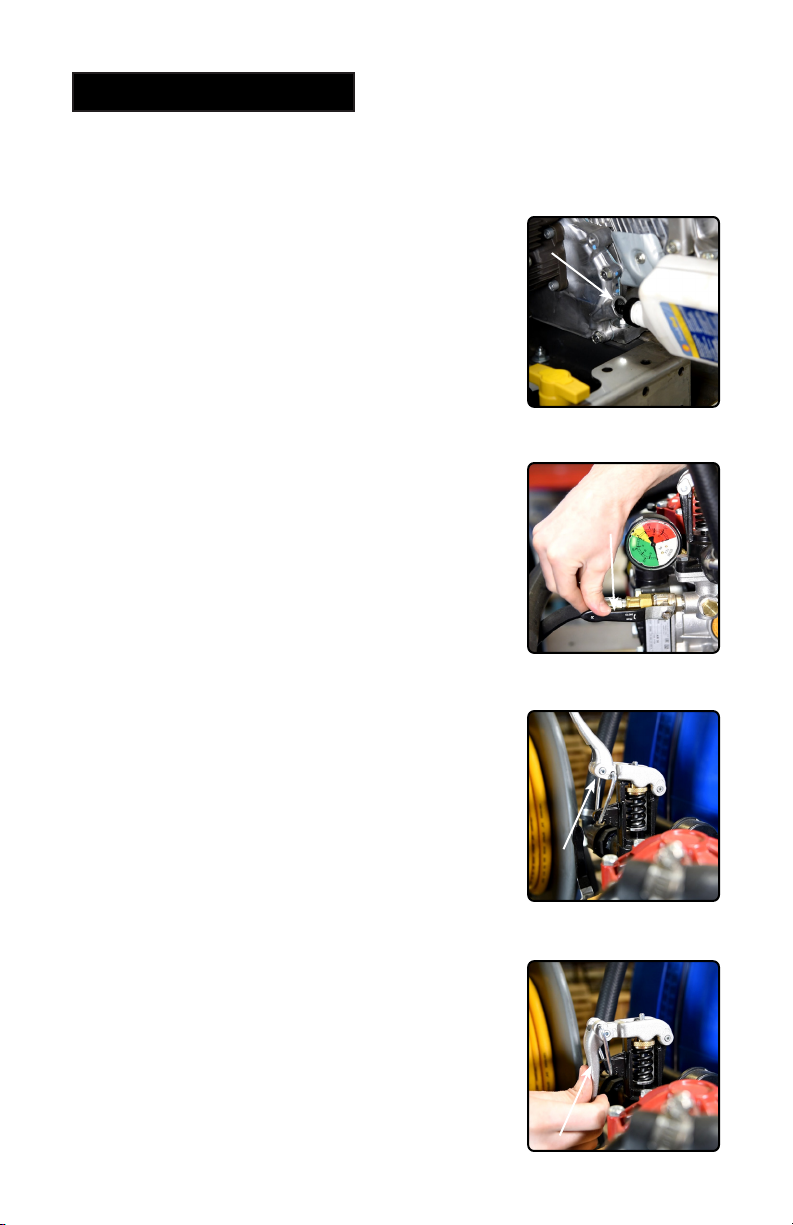

9) Remove the oil cap and fill the engine
with 10-30 weight engine oil
10) Switch hose reel control valve to the
“open” position.
11) Before starting your engine make sure
the pressure regulator is fully open to avoid
premature wear or damage to the pump.
12) There are 4 settings on the pressure
clasp system. Choose 1 and engage the
clasp to build system pressure.
Operating the Sprayer
GETTING STARTED

9Version 1.1
English
13) You can also change and preset these
4 settings by turning the brass knurled dial
just below the clasp.
Pro Tip:
To maximize pump life, maintain pressure settings that do
not cause the pump to pulsate whenever possible.
GETTING STARTED
Operating the Sprayer
14) To clean your filter during use, twist the
red insert clockwise and pull it out. This will
engage a valve in the filter body to stop
liquid from draining out the line. You can
then twist the cap off, remove the filter, and
clean it.
15) To drain your tank, open the camlock
valve at the front of the sprayer and twist
the yellow handle so it is parallel with the
pipe.

10 Clean Boss™ Pro
English
MAINTAINING
Keeping your sprayer in good condition will help you lengthen
the life of the sprayer. Everyone knows a well maintained piece of
equipment ensures a longer life span. Sprayer maintenance can
seem a huge task if you don’t have the right tools.
Cleaning Your Tank, Hoses & Fittings
Turn the page to see how the pros clean the tank
on their sprayer equipment.
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas

11Version 1.1
English
The information applies in normal operating conditions. The specific intervals must be shortened accordingly for longer daily working hours. If the machine is only used occasionally, the intervals can be extended accordingly.
Before starting work
At the end of work
and/or daily
Weekly or every 40
operating hours
After the first 5
operating hours
Every 250 operating
hours o once a year
If damaged
If required
Complete machine
Visual inspection (condition, leaks) X Clean
Tank, hoses and fittings
Clean X Drain X
Filter basket (inside lid) Clean X X
In-line filter Clean X X Spray lance nozzle
Clean X Replace X
All accessible screws and nuts Re-tighten X Safety labels Replace X Pump Maintain Read and follow all maintenance and care instructions in the
pump manual.

12 Clean Boss™ Pro
English
TROUBLESHOOTING
CONDITION CAUSE REMEDY
Pump will not
prime
1) Insufficient motor
RPM
2) Air leak on suction
plumbing
3) Blocked/Restricted
intake hose
4) Filter cap disengaged
5) Filter gasket
damaged/missing
1) Increase motor RPM
until pump primes
2) Tighten/replace
fittings & hose clamps.
Verify suction hoses are
in good condition
3) Remove blockage
from suction line,
ensure line is not
kinked
4) Lock filter cap into
position
5) Replace filter gasket
Pressure drops/
fluctuates during
standard
operation
1) Restriction on suction
line
2) Pump sucking air
3) Plugged filter
4) Damaged regulator
1) Inspect tank and
suction lines and
remove restriction
2) Tighten fittings
3) Remove and clean
filter mesh and housing
4) Remove regulator
stem and inspect for
broken parts/pieces
Pressure gauge
not registering
1) Plugged with debris 1) Unthread, check and
clean pressure gauge

13Version 1.1
English
Discover More Helpful Tips:
blog.enduraplas.com/spraying
Watch Instruction Videos:
www.youtube.com/enduraplas
CONDITION CAUSE REMEDY
Hand gun loses
pressure
1) Debris in hose or
nozzle
2) Pump losing prime
3) Pump pressure
dropping/fluctuating
1) Unthread nozzle tip
and clean
2) See Remedy for
‘Pump will not prime or
loses prime’
3) See Remedy for
‘Pressure drops/
fluctuates during
standard operation’

14 Clean Boss™ Pro
English
WARRANTY
LIMITED WARRANTY
1. Poly Tank Limited Warranty -Subject to other terms in this Limited
Warranty, Manufacturer warrants to the original end user that this
Tank will be free from material defects caused during the
manufacturing process for a period of 5 years from the Purchase
Date provided such warranty to the original end user shall be
extended to 10 years from the Purchase Date if the original end
user registers the Tank with Manufacturer within 30 days of the
Purchase Date. To register the Limited Warranty, registration must
be completed in accordance with the requirements set forth at
enduraplaswarranty.com
Other Products and Parts Limited Warranty -Subject to other
terms in this Limited Warranty, Manufacturer warrants to the
original end user that products and parts manufactured by
Manufacturer (other than tanks) will be free from material defects
caused during the manufacturing process for a period of 1 year
from the Purchase Date unless otherwise expressly stated in
writing by Manufacturer that an extended warranty applies.
2. Other Warranties Disclaimed and Excluded
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED,
WHICH EXTEND BEYOND THE LIMITED WARRANTY HEREIN
STATED, AND MANUFACTURER EXPLICITLY DISCLAIMS AND
EXCLUDES ANY AND ALL OTHER WARRANTIES INCLUDING
BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY,
FITNESS FOR PARTICULAR PURPOSE, CUSTOM OR USAGE
OF TRADE, AND COURSE OF DEALING. NO AGENT,
EMPLOYEE OR REPRESENTATIVE OF MANUFACTURER HAS
AUTHORITY TO BIND MANUFACTURER TO ANY
REPRESENTATION OR WARRANTY EXCEPT AS STATED IN
THIS LIMITED WARRANTY.

15Version 1.1
English
3. Limitation of Liability under the Limited Warranty -In addition to
those warranties disclaimed and excluded in clause 2 above,
Manufacturer expressly further limits its warranty and liability
under the Limited Warranty as set forth below in this clause 3.
3.1. The liability of Manufacturer under this Limited Warranty is
excluded to the extent that any defect has been caused or
contributed to by:
a) any accident, contamination, tampering, willful damage,
abuse, modification, improper storage, improper use
(including but without limitation the storage of material) or
negligent act of, or omission by, any person other than
Manufacturer;
b) the improper installation of the Goods, or deterioration of
the base on which any of the Goods rest or are mounted
to;
c) any damage to the Goods caused by storm, wash away,
landslide, mudslide, lightning, or any other natural
phenomenon, vermin or other pests, and any
undermining of the base of the Tank through any cause
whatsoever;
d) the repositioning of the Goods from their original
installation;
e) weathering or degradation of the Goods due to extreme
climatic conditions;
f) improper installation of extra fittings;
g) any staining or discoloration, including from trees or ash
fall-out from fires or other causes;
h) a Tank not being placed on a base that is free of any
protruding objects of any kind;
i) a Tank being used for any purpose other than the storage
of suitable liquids at the ambient temperatures.

16 Clean Boss™ Pro
English
3.2. Without limiting the generality of clause 3.1:
a) Manufacturer will not be liable for any personal injury,
indirect or incidental damages, consequential losses, loss
of liquids, loss of profit or any like claims whatsoever
arising from any use of, or incidental to, or repairs to any
of the Goods by a party other than Manufacturer;
b) to the extent that any component or material (including,
but without limitation the polyethylene) used in the
manufacture of any of the Goods is supplied and/or
manufactured by a third party, the liability of Manufacturer
is limited to Manufacturer’s right of redress (if any)
against the third-party supplier/manufacturer;
c) Tanks feature a vented lid at the time of manufacture.
Any subsequent pressurization of the Tank by removing
the vent, sealing the vent, or otherwise will cause this
Limited Warranty as to such Tank to be null and void.
d) The liability of Manufacturer under this Limited Warranty
is limited to, at Manufacturer's discretion:
e) providing a replacement Good (including shipping but
excluding other replacement costs);
f) refunding an amount equal to a sum equal to the current
Retail price divided by the months in the warranty,
multiplied by the months remaining in the warranty
period;
g) repairing the Good at no cost.
4. Proof of Purchase -The original invoice or other similar proof of
purchase of the applicable must be provided by Purchaser to
Manufacturer when making a claim under this Limited Warranty.
Warranty claims must be received in writing by Manufacturer
within the Limited Warranty period.

17Version 1.1
English
5. Claims and Questions -If you have questions about this Limited
Warranty or to make a warranty claim, contact Manufacturer at:
[email protected]
6. Definitions -For this Limited Warranty the following definitions
apply:
a) Manufacturer means Enduraplas LLC.
b) Purchase Date means the date upon which the
applicable goods were purchased by the original end
user.
c) Purchase Price means the actual price paid for the Tank
by the original Purchaser.
d) Tank means the storage Tank manufactured by
Manufacturer and purchased by the original end user
Purchaser being the subject matter of the Limited
Warranty.
e) Good(s) mean Tanks and/or other products or parts
manufactured by Enduraplas LLC.
f) Limited Warranty means this written Limited Warranty.
7. State Law -Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation and
exclusion may not apply to certain parties. Some states do not
allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to certain parties. This limited
warranty gives specific legal rights and other rights, which vary
from state to state, may also apply.
8. Governing Law -This Limited Warranty will be governed by the
laws of the State of Minnesota, without giving effect to any choice
of law rule that would cause the application of the laws of any
other jurisdiction

18 Clean Boss™ Pro
English
OVERVIEW
A
B
View A
View B

19Version 1.1
English
DETAIL VIEW A
DETAIL
A
SCALE
1 : 11
2
46
54
50
58
4 1
72
12
53
644461 32 6566 63146062 68
13
39
33
67
34
32
47
40
49
45
48
54
71
57
47
55
43
47
33
54
View A

20 Clean Boss™ Pro
English
DETAIL VIEW B
DETAIL
B
SCALE
1 : 13
10544252 11 5 7
28
22
74
73
24
21
25
27
30 29 2026
23
17
18
16
19
15
56
3
35
59
31
69
41
38
37
6
8
9
5155
40
44
39
70
23
18
View B
36
