Eneo IPB-62M2712M5A User manual

EN
User Manual
1/2,8" Network Camera,
1920x1080, Day&Night, DOL-WDR,
2,7-12mm, Infrared, IP66
IPB-62M2712M5A

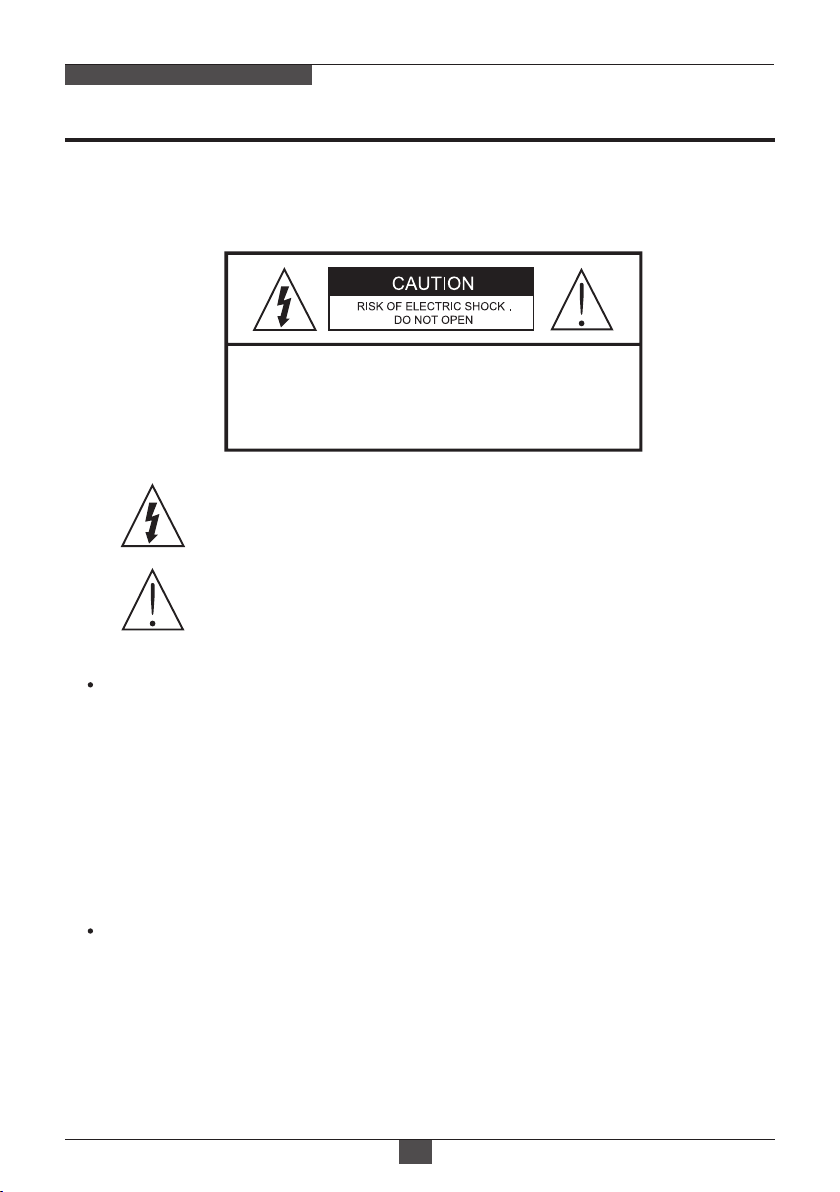

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to opera te the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Safety Precaution
03
MEGA-PIXEL NETWORK CAMERA

Safety Precaution
04
NOTICE
• The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
• Avoid installing areas where has shock or vibration which results in the problems.
• Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
• Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
• Maintenance and repair have to be carried out only by authorized service centers.
• Use only a mild detergent to clean the housing body.
• The camera should never be operated beyond the technical specifications.
This can lead to destruction.
• The camera should never be operated in water.
MEGA-PIXEL NETWORK CAMERA

Contents
05
MEGA-PIXEL NETWORK CAMERA
Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p
Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p
Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p
Installation Instructions . . . . . . . . . . . . . . . . 09~11p
Operating Instructions . . . . . . . . . . . . . . . . . 14~17p
. . . . . . . . . . . . . . . . . . . . . . . . . 12~13p
Specifications
2-1. Information
2-2. Video & Image
2-3. Event
2-4. System
1. LIVE VIEW
2. SETUP
Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 18~58p
........................................................ 18p
............................................... 20p
......................................... 20p
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 59~60p
.............................................................. 20p
........................................................ 36p
...................................................... 48p

Features
06
MEGA-PIXEL NETWORK CAMERA
• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)
• The best low light performance with SONY’s STARVIS sensor
• ONVIF Conformance
• ONVIF Event Mapping
• Zero configuration
• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)
• Adaptive web resizing depending on layout & resolution of
display device by RESPONSIVE WEB
• Increased usability for all PC, tablet and mobile
• Simultaneously H.265(+), H.264(+) & MJPEG (Multi streaming)
• f=2.7~12mm, Motorized vari-focal lens
• Motorized Zoom & Focus Adjustment
• DOL WDR (Digital Overlap Wide Dynamic Range)
• D-WDR (Digital Wide Dynamic Range)
• Improved noise figure with the enhanced 3DNR
• LDC(Lens Distortion Compensation)
• Smart Stream, ROI(Region of Interest)
- Enables to process video data smartly according
to users demand.
- Available to deliver high quality video on interested
region while less quality video on non interested region.
- Lowering overall bandwidth and reduce the storage burden
• Privacy Mask, Motion Detection, Defog, HLC/ BLC,
Digital Zoom(~x10), Mirror/Flip, Contrast, Brightness, Hue,
Saturation, Sharpness, DIS (Digital Image Stabilization)
• Circuit protection against faulty connection in power polarity
• Built-in 4pcs High power SMD LEDs
• Cooling Fan & Optimized Heat sink System
• PoE(IEEE Std. 802.3af) & DC12V
• Combination of Aluminum Cast & PC(Polycarbonated)
• Dual window for protecting IR reflection
• One touch 3-Axis locking bracket
• IP66 Protection

Composition
07
Dimension
MEGA-PIXEL NETWORK CAMERA
Plastic Anchor:
6 x 30mm (3pcs)
Mounting
Template
Operating
Instruction
Camera
Ø66
Ø78.5
120
135
214
199
Mounting Screw:
3.5 x 25mm (3pcs)

Part Names
08
MEGA-PIXEL NETWORK CAMERA
DUAL WINDOW
SUNSHIELD BOLT
SUNSHIELD
FRONT CASE
BRACKET
REAR CASE
• Extreme care should be taken NOT to scratch the surface of window while
the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or
spot light.
CAUTION
POWER
CABLE
Case
Open
• When assembling the front case, be sure that a Rubber sealing is not protrusive.
If the front case is tightened excessively, sealing may not be ensured.
IP Reset
Button

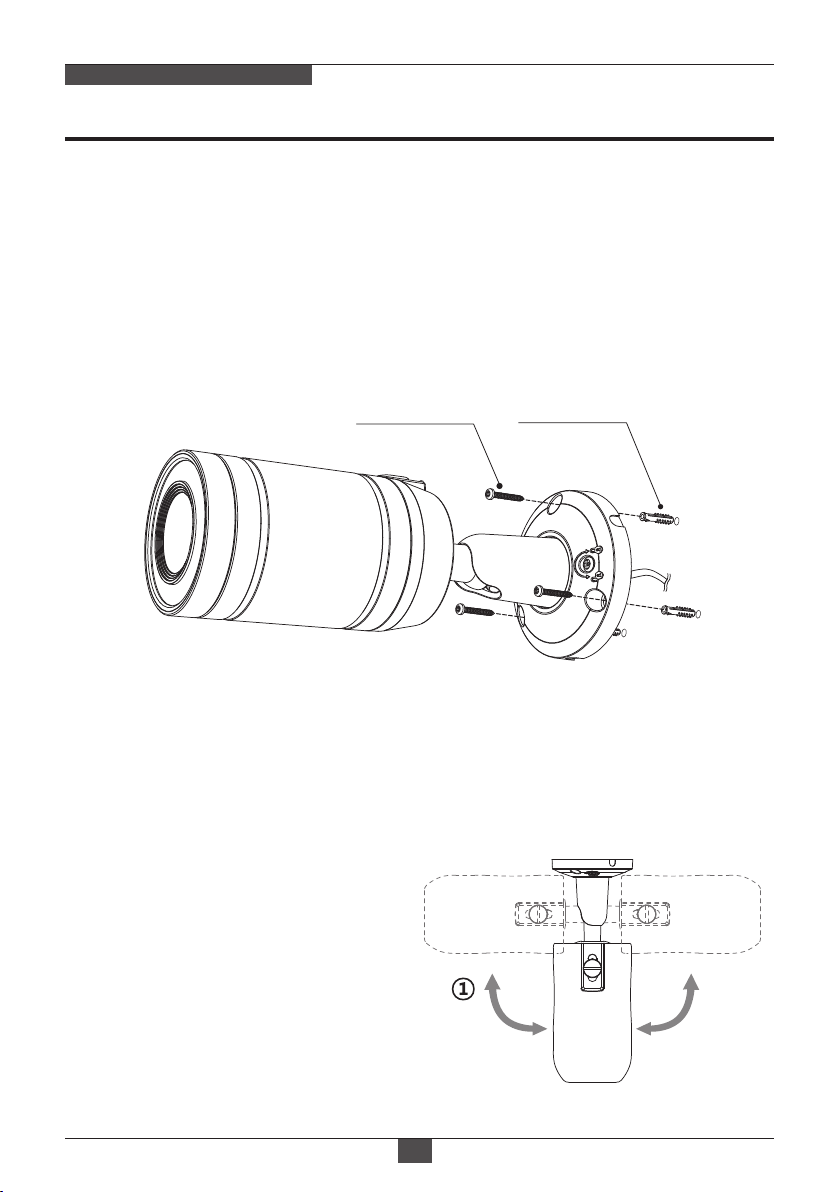

Installation Instructions
09
MEGA-PIXEL NETWORK CAMERA
Mounting Screw
: 4x40mm
1. Locate the mounting template at the installation position and drill the ceiling
or wall if needed.
2. Route the Power cable to the connecting place.
3. Place the camera bracket on pre-drilled position and fix it through using
mounting screws.
4. Set the camera’s viewing angle by using the driver. (Refer to ‘TIP’ ).
5. Put the sunshield to the camera unit and tighten the sunshield-bolt.
Pan & Tilt adjustments
1) Pan limit:
Pan is limited to +/- 90°.
2) Tilt limit:
Tilt is limited to 0°(2°) min ~ 90° max.
for wall(ceiling) installation respectively
with reference to the wall(ceiling) when
the inclination of camera module is 0°,
that is, the image is aligned horizontally.
90° 90°
Plastic Anchor
: 6x30mm
• Pan: Adjusts view direction
• Tilt: Adjusts view angle
• Inclination: Adjusts view rotation

Installation Instructions
10
MEGA-PIXEL NETWORK CAMERA
Adjustment of viewing angle with 3-Axis bracket.
① Lock/Unlock Screw
② Sub-Lock Screw
3) Inclination limit
(Horizontal image alignment):
Inclination limited to +/-90° max.
• Unlock the Lock/Unlock screw on the camera bracket using the driver.
• Adjust the camera’s viewing angle then lock the Lock/Unlock screw and fix
the sub-lock screw on the other side of bracket.
90°90°
±90°
•on the wall •on the ceiling
Pan
Tilt
Inclination
[ TIP ]

Installation Instructions
11
MEGA-PIXEL NETWORK CAMERA
Installation and commissioning Instructions
• Make sure the power is removed before the installation.
• After all connections are finished properly, follow the order for applying power.
a) Plug the network cable into RJ-45 Ethernet Port.
If PoE is the unique power, there will be no need to connect Power terminal.
b) When DC12V Local power is necessary, connect the low voltage
(DC12V) first, then plug the DC adapter to DC outlets to avoid an
improper reset from power jitter and a damage from the surge voltage when
no load.
Power Supply Connections
Camera can work with either 12VDC or PoE(IEEE Std. 802.3af).
Primary and secondary grounds are completely isolated to avoid the possible
ground loop problems.
► When PoE and Local DC power are connected at the same time,
Local power has priority.

Specifications
12
MEGA-PIXEL NETWORK CAMERA
ITEM
Imaging Sensor
Effective Pixels
Sensitivity
Scanning mode
Video Compression
Video Frame Rate
H.265(+) Main profile, H.264(+) High, Main, Base line profile MJPEG
Video Resolution
FTP Uploading MJPEG Still Image
Video Streaming
Simultaneously H.265(+), H.264(+) & MJPEG (Multi Streaming)
Independent Frame Rate and Bandwidth Control, VBR/CBR
Power Source
Housing
NETWORK SPECIFICATION
Color: 0.06 Lux, B/W: 0.003 Lux
Progressive Scan
S/N Ratio
WDR
DOL WDR (Digital Overlap Wide Dynamic Range)
Day & Night mode
ICR by Auto, Day, Night, External, Color D/N
DNR
2D-NR, 3D-NR
Lens
Functions
Dimension
50dB
Up to 30fps@1920x1080p
Shutter Speed
Control
f=2.7~12mm, Motorized vari-focal lens
IP66, PC & Aluminum Cast, One touch 3-Axis locking bracket,
Dual window, Cooling Fan & Optimized Heat sink System
Automatic: Min. 1/10,000 sec ~ Max.1/25 sec
Manual: Min. 1/10,000 sec ~ Max.1/25 sec
PoE(IEEE Std. 802.3af ), DC12V
Circuit protection against faulty connection in power polarity.
1/2.8" Sony 2.16 Mega pixel RGB STARVIS CMOS Sensor
1945(H) x 1097(V) approx. 2.13M pixels
78.5mm(W)x78.5mm(H)x199mm(L)_with Bracket / About 520g
1920X1080, 1600X900, 1280X720, 960X540, 640X360, 320X180
Installation Temp.
Operating Temp.
-20ºC ~ +50 ºC (Humidity : 20%RH ~ 80%RH, Non-condensing)
-20ºC ~ +50 ºC (Humidity : 20%RH ~ 80%RH, Non-condensing)
Motion Detection, Privacy Mask, Defog, D-Zoom(~x10), BLC/HLC,
Mirror/Flip, Sens-up(Slow shutter), Brightness, Contrast, Saturation,
Sharpness, Hue, VerticalView(90°/270°), DIS(Digital Image Stabilization)
LED
4pcs x 850nm High power SMD LEDs
Auto White Balance
mode
ATW-Indoor/Outdoor, Shade, Clear sky, Fluorescent light,
Light bulb, Flame, Manual
Gain Control
Automatic: ~ Max. 69dB / Manual: ~ Max. 69dB
NTSC PAL

Specifications
13
MEGA-PIXEL NETWORK CAMERA
Multi User Authority, IP Filtering, HTTPS, Video Stream, Export/Import
Security
Synchronize Computer/NTP Server, Manual
Network Time Sync.
Protocol
Restart, Reset, Factory Default
Software Reset
Backup, Restore
Auto Recovery
Using Web Browser
Remote Upgrade
Built-In Web, ONVIF Compatible 3rd Party VMS
Client Software
API, ONVIF Profile S Compliant
Not Available
Not Available
SDK Support
SD memory card
Audio & Alarm
(*) Design and specifications are subject to change for product improvements without prior notice.
TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP,
RTCP, DHCP, ARP, Zeroconf, Bonjour
Login Authority Administrator, Operator, Guest

Operating Instructions
14
MEGA-PIXEL NETWORK CAMERA
Setup Menu table
Category Menu Configuration
LIVE VIEW
Player Control
Video Stream
Protocol
PTZ Control
Display (Window Fit, Full Screen, Custom)
Stream1, Stream2, Stream3
HTTPS, HTTP, TCP, UDP
Zoom, Focus, Push AF
Pause, Snapshot
SETUP
Information
Video & Image
Source
General, System Information, Open source Information
Stream1/2/3
Smart
Video Stream
Privacy Mask
Digital Zoom
Basic Brightness, Contrast, Saturation, Hue,
Sharpness, Enable flip image, Enable
mirror image
Enable text OSD, Enable date&time
OSD, Enable zoom&focus OSD Mode
Mode, Level
Mode, Rotation
WDR(Mode, Level), DWDR(Mode, Level),
Defog(Mode, Level)
BLC(Mode, Level), HLC(Mode)
3DNR(Mode, Level)
Mode, Switching time, Threshold (D->N),
Threshold (N->D)
OSD
AE
Mode, RGain, GrGain, GbGain, BGain
AWB
Day&Night
WDR
BLC
DNR
LDC
VerticalView
Color, Name
Level
DIS
AF Mode, Speed, Lens Locking, Locking
Timer, Lens Calibration, Enable Day&
Night sync focus, Lens initialize on boot
ROI(Region Of Interest), Dynamic GOP
Mode, Slow shutter, Luminance compensation,
Auto Iris, Auto Flickerless, Shutter,
Max. Shutter, Gain, Max. Gain

Operating Instructions
15
MEGA-PIXEL NETWORK CAMERA
SETUP
System User, HTTPS, IP Filter, ONVIF, Video Stream,
Export/Import
Language
Current Time, New Time, Time Zone, Date & Time
Display
TCP/IP, DDNS, RTP, UPnP, Zeroconf, Bonjour
Security
Date & Time
Network
English, Deutsch, Français, 한국어
Maintain (Restart, Reset, Default), Upgrade,
Setup Export, Setup Import
Logs (Database Capacity, Search Condition, Log
List), Log Sever, Report
Maintenance
Logs & Report
Event
E-Mail, FTP, Video Boost, Notification Server Actions
Triggers
Rules Event Processing, ONVIF Mapping
Motion, System, Manual, Network, Timer,
Day/Night
LOG OUT

Network Menu Control
16 - 17
MEGA-PIXEL NETWORK CAMERA
Quick Network Setup
■ Log in the web viewer
Default user name: admin
Default password: admin
XXX-XXXXXXXXXX
1. After the camera is connected to the network, start ‘eneo Site Manager’ tool.
(downloadable from www.eneo-security.com).
2. You will get a list of cameras connected to the local network.
Highlight your camera in the list and open a context menu with a click of the
right mouse button.
3. Select the „Set IP Address [dhcp / static]“ option to open a window for setting
the cameras IP properties. When you are done click the „OK“ button to update
the camera settings.
4. By default the camera is set to DHCP. If there is no DHCP server present in the
network the camera will fall back to a default IP address after a while.
In this scenario please only add one camera at a time to the network to avoid
conflicts due to identical IP addresses.
The network camera‘s default IP address is: 192.168.1.10.
5. Right clicking the device name in the eneo Scan Device tool will bring up the
context menu. Use the ‘Open Device Web Site’ option to access the camera.
6. The web viewer login page will open up in your default web browser.
In case of Microsoft Internet Explorer install Active-X named VIDEOR E. Hartig
GmbH according to the instruction at the bottom of the browser.
7. Use the default user name and password to log in.

Full Menu Setup
18
MEGA-PIXEL NETWORK CAMERA
1. LIVE VIEW
Enter the live view menu on the Web Viewer.
■Web Viewer description
A) Menu button : Click the button to show or hide the setup menu bar.
B) Model name : Show a camera model name connected.
C) Select Language : Set the web viewer language English, Deutsch or French.
D) Main setup menu bar : Set the camera or network functions.
E) Camera monitoring window: Display the currently connected camera view or function.
F)
Log out and exit the web viewer
■Player Control
1 2
①Pause : Pauses the live view.
② Snapshot : Captures the image in .jpg format with
the current stream resolution.
XXX-XXXXXXXXX
A B
D
E
C
F

Full Menu Setup
19
MEGA-PIXEL NETWORK CAMERA
■Video Stream
■Protocol
■PTZ Control
• Do not adjust zoom/focus in low light conditions or night mode. It might cause
erroneous focusing.
Selects the video source stream to display the live view only.
Selects the network protocol out of HTTPS, HTTP, TCP or UDP.
•
PUSH AF : Gets the lens to focus at the push of a button.
•
FOCUS : Adjusts the lens focus manually for NEAR & FAR.
•
ZOOM : Controls the lens optical zoom in/out for WIDE & TELE.
CAUTION
Used to adjust zoom/focus manually or one-push focus automatically.
③Window Fit : Resizes the live view display to fit
along with the display window size.
④Full Screen: Resizes the live view display to fit
to the monitor resolution. ESC key returns to the
previous view.
⑤Custom : Selects the live view display scale,
0%~200%, by the control bar.
100% is original size.
■Display
3
4
5
5

Full Menu Setup
20
MEGA-PIXEL NETWORK CAMERA

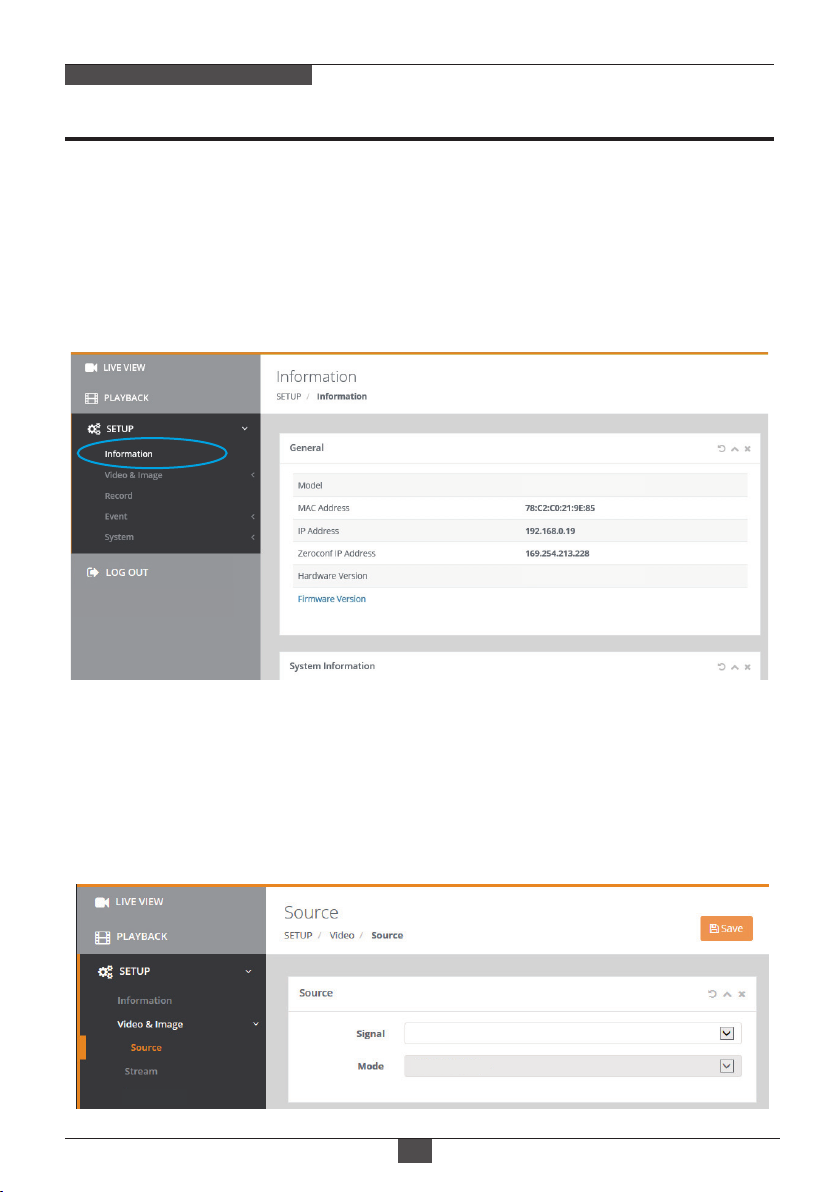

2-1. Information
Enter the setup menu on the Web Viewer.
2. SETUP
2-2. Video & Image
2-2-1. Source
• SIGNAL : Set NTSC/PAL mode depending on TV system. Generally set to NTSC in
60Hz area and PAL in 50Hz area for the electrical power system of your country.
Changes will restart the camera.
Smart Stream
XXXXxXXXX@XXfps
XXXX
XXX-XXXXXXXXXX
XX
X.X.X.XXX
Shows the overall information about the system such as Model name, MAC address,
IP address, Zeroconf, IP address, Hardware version, Firmware version, Server time,
Running time, CPU
usage, Inbound/Outbound Bandwidth and Open source list.

Full Menu Setup
21
MEGA-PIXEL NETWORK CAMERA

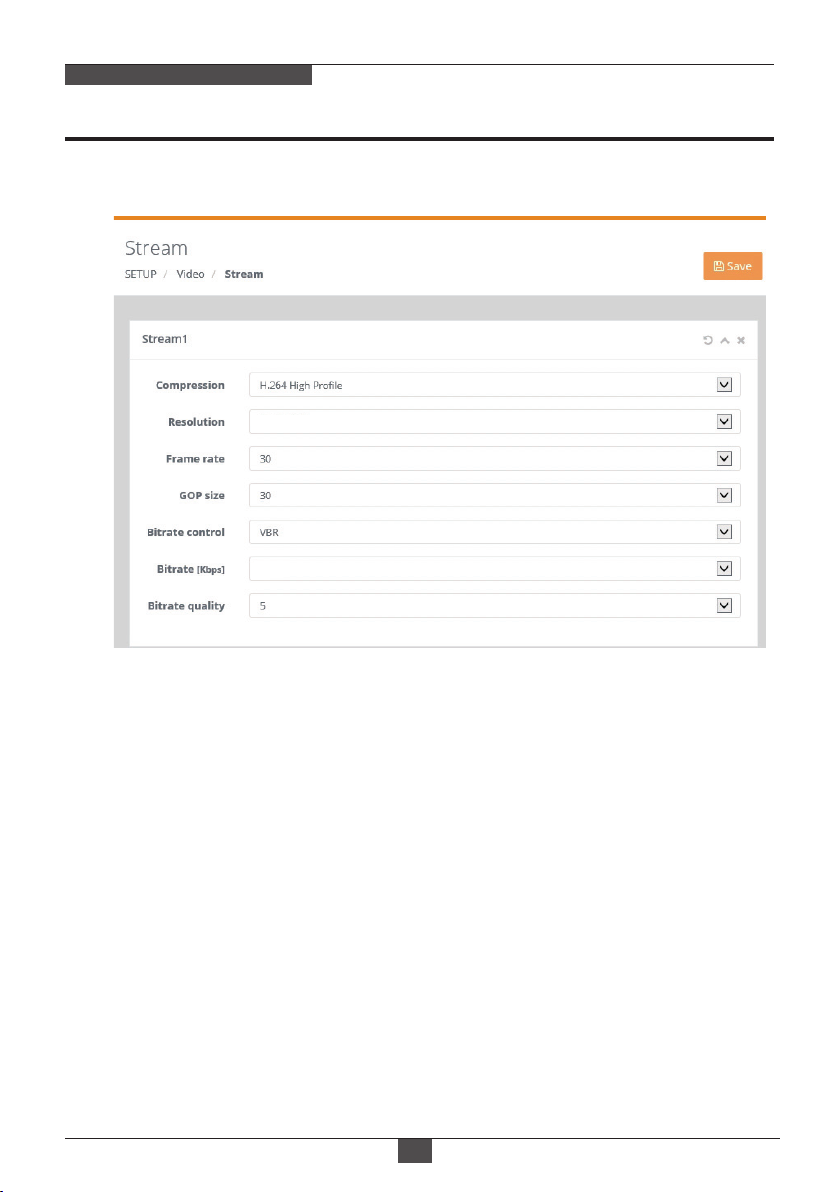

2-2-2. Stream
XXXXxXXXX
4000
● Stream1, 2, 3
> COMPRESSION : H.265(+) and H.264(+) are available in all stream but MJPEG is
available in Stream 3 only.
•
H.265+, H.264+ : Enables to process video data smartly according to users demand and
lowering overallbandwidth, and reduce the storage burden.
If H.265+ or H.264+ is selected, Smart Video Stream and Dynamic GOP are switched
ON automatically.
Accordingly, ROI(Region of Interest) and Dynamic GOP should be set in Smart Video Stream
menu to use H.265+ and H.264+.
> RESOLUTION : Each stream can have its individual resolution selected from its list.
> FRAME RATE : Each stream can have its individual frame rate in fps selected from
its list.
