Eneo ISM-52F0021WMA User manual

EN
DE
Learn more about eneo IN series
on our YouTube channel.
Quick Installation Guide
Network Board Camera
1/2.8” Network Module Camera,
1920x1080, Day&Night, WDR,
H.265, PoE, 12VDC, ONVIF

2

3
EN
TABLE OF CONTENT
ABOUT THIS DOCUMENT ......................................................................................................4
SAFETY INSTRUCTIONS ........................................................................................................5
OPEN SOURCE SOFTWARE LICENSE INFORMATION..........................................................7
PRIOR TO USE .........................................................................................................................9
Dimensions (in mm) & Specications��������������������������������������������������������������������������������������������������������������������������������9
Parts supplied�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������9
INSTALLATION......................................................................................................................10
Connection cable������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
Camera overview�������������������������������������������������������������������������������������������������������������������������������������������������������������������� 11
NETWORK CONNECTION & IP ASSIGNMENT ....................................................................12
FURTHER INFORMATION ....................................................................................................13

4
ABOUT THIS DOCUMENT
In this document you will nd a comprehensive description of a specic series of units,
which has been prepared with great care and accuracy to give you a detailed insight into the
general functions and features that characterise this series of units�
Please note, however, that the detailed characterisation in this document refers to the
general product line� The individual scope of functions of individual models or versions
within this series may vary depending on the conguration�
These variations may be reected in an extended or restricted range of functions and
features, so that the actual specications of individual products may dier in some respects
from the designs presented in this document�
For this reason, it is strongly recommended to carefully read the specic data sheet for the
respective product� The data sheet contains specic and detailed information tailored to the
particular model� It is the primary reference document that provides the most authentic and
accurate information about the individual functions and features of each specic product in
our appliance series�
We thank you for your understanding and willingness to invest time to gain accurate
knowledge about your selected product of our appliance series� Please do not hesitate to
contact us if you have any further questions or require additional information�

5
EN
SAFETY INSTRUCTIONS
Mounting & Installation
Power supply & wiring
Security
Read the safety instructions and the operating instructions carefully before installing the
product� Depending on the product type, individual points may be omitted�
• Ensure that the intended mounting location is suitable for the respective product (e�g� in terms of weight)�
• Securely fasten the products to the locations and surfaces recommended by the manufacturer to ensure
stability and safety�
• Ensure that the products are weatherproof when installed outdoors, e�g� protect cameras from direct sunlight or
extreme temperatures�
• Make sure that any ventilation slots are not blocked to ensure sucient air circulation and cooling�
• Make sure that cameras, switches, etc� are installed with sucient safety distance to ammable materials, power
sources, running water, etc�
• Assembly, commissioning and maintenance may only be carried out by authorized specialist personnel in
compliance with the relevant standards and guidelines�
• To ensure a safe power supply, use only power supplies and cables recommended by the manufacturer�
• Make sure that the cables are properly routed and protected from tampering and damage (e�g� kinking) to avoid
power failures or short circuits (e�g� due to moisture ingress)�
• Make sure that the cables are not routed through doors, windows or other moving parts to avoid damage and
tripping hazards�
• To disconnect the system from the power supply, pull the cable only by the plug and never directly by the cable�
• When shortening exible connection cables, use wire end ferrules�
• Use strong passwords for all cameras and devices to prevent unauthorized access�
• Keep device rmware up to date to minimize security vulnerabilities�
• Protect (remote) access to the devices using secure methods such as encrypted connections or VPN�

6
Operation
Cleaning & Maintenance
Warning, Privacy & Legal Notices
• The devices may only be operated within the temperature and humidity ranges specied in the data sheet�
• Sucient ventilation must be provided to prevent overheating� This applies in particular to devices such as
recorders and switches that can generate heat�
• Ensure that no sight lines are blocked and that accessories do not obscure areas used by other equipment or
people�
• Ensure cameras are oriented to provide a clear view of the desired area without interfering with people’s privacy
• Clean the lenses and housings of the cameras regularly to ensure a clear view�
• Keep the ventilation slots clean and free of dust to ensure ecient cooling�
• Use a mild detergent for cleaning� Harsh cleaning agents such as thinner or benzine may permanently damage
the surface�
• Check the product regularly for damage and signs of wear�
• Only use original spare parts (e�g� connection cable) or accessories from VIDEOR E� Hartig GmbH�
• Any tampering by unauthorized persons will void the warranty�
• Before opening the housing, disconnect the power supply�
• Draw the attention of visitors to the fact that they are being recorded by means of clearly visible notices�
• If necessary, point out rules of conduct�
• Ensure that cameras are oriented in such a way that privacy is not violated, e�g�, by recording neighbours or
public areas�
• Comply with local laws and regulations on video surveillance and data protection (GDPR)�

7
EN
OPEN SOURCE SOFTWARE LICENSE INFORMATION
The software components provided with eneo products may contain copyrighted software that is licensed under
various open source software licenses� For detailed information about the contained open source software packages,
the used package versions, license information and complete license terms, please refer to…
• the open source information included in your products user interface,
• the product detail pages on the eneo website (www.eneo-security.com),
• the eneo download portal (https://datacloud.videor.com/s/eneodownloadportal)� In case that previous link is
broken, the latest link to the eneo download portal can be found on the respective eneo product page at
www.eneo-security.com�
• the download package of your rmware� The complete open source software license information of your
product is included in the corresponding software download package that can be found in our download
portal�
If you are missing any information, please contact [email protected]om, we will of course be happy to
provide you with the missing information and will also make the missing information available to the public�
If you want to get access to the open source components (source codes) used in our products, please contact
[e-mail]�

8
WEEE (Waste Electronical & Electronic Equipment)
Correct Disposal of This Product (Applicable in the European Union and other European countries with separate
collection systems)�
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life� To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate this from other types of wastes and recycle
it responsibly to promote the sustainable reuse of material resources� Household users should contact
either the retailer where they purchased this product, or their local government oce, for details of
where and how they can take this item for environmentally safe recycling� Business users should contact
their supplier and check the terms and conditions of the purchase contract� This product should not be
mixed with other commercial wastes for disposal�
Graphical Symbols
Please pay attention to the safety instructions & carefully read through this instruction guide before initial operation�
Important points of warning are marked with a caution symbol�
Important points of advice are marked with a notice symbol�
Class A device note
This is a Class A device� This device can cause malfunctions in the living area; in such an event, the operator may need to
take appropriate measures to compensate for these�

9
EN
PRIOR TO USE
• Only mount this unit in suitable locations, such as a concrete wall�
• When mounting, use the accessories supplied depending on the mounting position�
Dimensions (in mm) & Specications
Construction:
board camera
Dimensions(mm):
50,00 x 50,00
Weight:
125,00 g (0�28 lb)
Parts supplied
Camera QIG

10
INSTALLATION

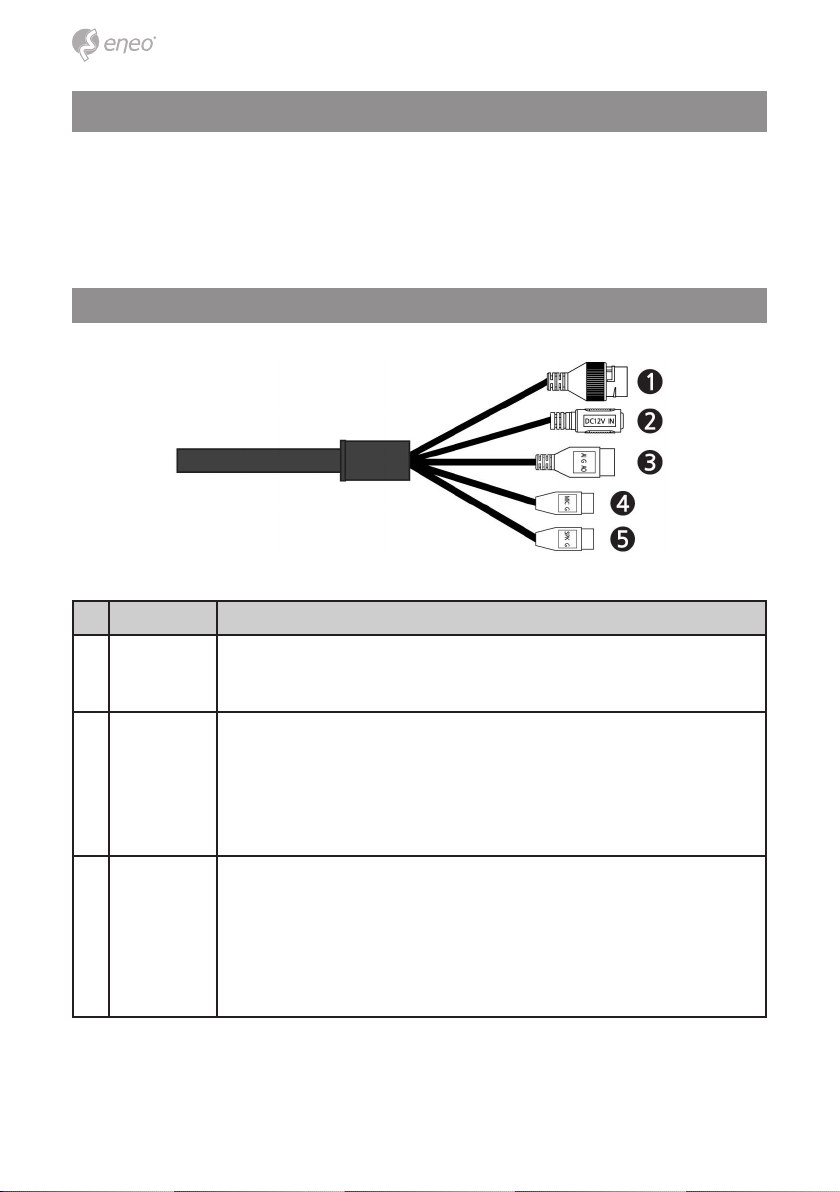

Connection cable
To operate the network camera, it is necessary to connect a network cable for data
transmission and a power connection from the power supply unit� Depending on the
operating mode, it is possible to additionally connect an alarm cable� For mounting in
dierent locations, please contact an installer�
No Item Description
1 RJ-45
Ethernet, RJ 45 connector compatible with 10/100Mbps PoE Modular Jack�
Connect a standard RJ 45 cable to the network port of the network camera� Usually a cross-over
cable is used for direct connection to a PC, while a direct cable is used for connection to a hub�
You can also use a router with PoE (Power over Ethernet) to supply power to the camera��
2 DC Jack
Main power supply, DC socket, DC12V
Connect the 12VDC power supply for the network camera� Connect the positive (+) terminal
to the + position and the negative (--) terminal to the -- position for the DC power supply�
When connecting the power cable, be careful not to reverse the polarity�
• A router with PoE (Power over Ethernet) can also be used to power the camera�
• For power supply specications, see the Appendix, Product Specication�
• When both PoE and 12 VDC are applied, the camera is powered by the higher voltage,
either
3 Alarms
Alarm input and output, 3-pole terminal
• AI: Alarm Input
You can use external devices to signal the network camera to respond to events� Mechanical or
electrical switches can be connected to the KI (Alarm In) and G (Ground) terminals�
• G: GND
Connect the ground side of the alarm input and/or alarm output to the G (Ground) terminal�
• AO: Alarm Output
The network camera can activate external devices such as buzzers or lights� Connect the device
to the AO (Alarm Out) and G (Ground) terminals�
