Eneo MPD-62M2812P0A User manual

EN
User Manual
1/2.8” HD Dome, Fixed, WDR,
Day&Night, 1920x1080, 12V,
Infrared, 2.8-12mm, Indoor
MPD-62M2812P0A

Safety Precaution
03
MPD-62M2812P0A
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.

MPD-62M2812P0A
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.

MPD-62M2812P0A
Contents
05
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.08
Part Names
p.09
Installation Instructions
p.10~12
Operating Instructions
p.13~29
Specifications
p.30

MPD-62M2812P0A
Features
Key Features
06
• Full-HD 2Mega pixel CAMERA, 1920x1080(30p/25p)
• The best low light performance with SONY’s STARVIS sensor
• Video output EX-SDI 1.0,2.0 / HD-SDI / TVI mode / AHD mode / CVI mode
or CVBS Selectable
• TVI mode / AHD mode / CVI mode, Video Transmission Distance
over Coax.; 500M
• f=2.8~12mm F1.4, 5Mega pixel Motorized zoom lens
• Automatically removable IR Cut filter by Dual filter switcher
• SNAP Focus by Motorized Zoom lens
• Motorized Zoom & Focus Adjustment
• Sensitivity of Color 0.08 Lux(LED off), B/W 0.005 Lux (LED off)
• True WDR (Wide Dynamic Range), 30/25fps
• ROI (Region of Interest) WDR mode:
- Proper compensation of exposure for each inside and outside of
interested area.
- Better contrast and No motion ghost effect
• Improved Noise figure with the enhanced 3D-NR
• Motion Detection, Privacy Mask, Defog, Sens-up(~x32), ACE(D-WDR),
Sharpness, Mirror/Flip, BLC/HLC, Anti-Saturation, Smart IR, Title Set
• Top performance at low light sensitivity (Sens-up On)
• Selectable Digital output 1080p or 720p
• OSD Menu & Video Sub-out port for easy installation & maintenance
• Circuit protection against faulty connection in power polarity
• UTC control through HD-TVI (Pelco-C, Hikvision) / AHD
• Built-in 2pcs High power LED
• Double side Anti-scratch Hard coated bubble dome
• Quick installation with Easy Adaptor (Flat or Tilted Adaptor)

07
Composition
MPD-62M2812P0A
Mounting Template Operating Instruction
Video Sub-out Cable
Mounting Screw:
3.5 x 25mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
Dome Camera
Easy Adaptor
(Flat type)
Open Driver (1pc)
Easy Adaptor
(Tilted type)

MPD-62M2812P0A
Dimensions
08
(unit : mm)
• Extreme care should be taken NOT to scratch the bubble dome surface while
the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or
spot light.
CAUTION
Tilted Adaptor
Ø116
Ø80
94 (with Flat adaptor)
52.5
116.3 (with Tilted adaptor)

MPD-62M2812P0A
Part Names
09
Dome Cover
Lens
Bubble Shield
Bubble
Dome Base
OSD Menu Control board
Easy Adaptor
Flat type
SMD LEDs
Light
Sensor
Power/Video Cable
3-Axis Gimbal
Tilted Easy Adaptor

MPD-62M2812P0A
Installation Instructions
10
Mounting Screw
(3.5x25mm)
Plastic Anchor
(6x30mm)
OPEN
LOCK
1. Drill three holes for mounting on the ceiling or wall.
2. Place the Easy Adaptors at the pre-drilled installation position and fix it by
using mounting screws.
3. Route the power/video cable to the connecting place.
4. Attach the dome base assembly to the Easy Adaptor.
5. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)
6. Assemble the dome cover to the dome base unit.
• Be careful the LEDs when you control
the OSD setting with the joystick.
• Remove the sticker on the gimbal after
the OSD setting
CAUTION

MPD-62M2812P0A
Installation Instructions
11

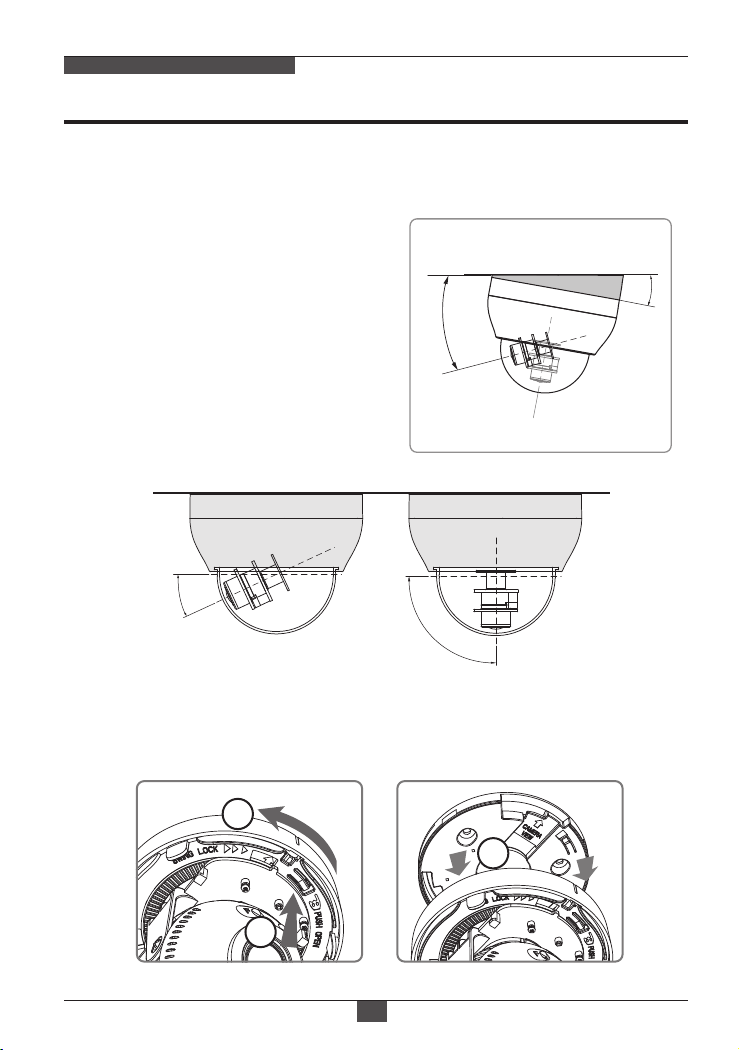

Limit of pan & tilt
1) Pan limit:
Pan is limited to +/- 165°.
Do NOT force to rotate the gimbal
over the limit to prevent from the
internal damage.
2) Tilt limit:
Tilt is limited to 25° min ~ 90° max.
with reference to the ceiling when the
inclination of camera module is 0°,
that is, the image is aligned horizontally.
3) Inclination limit
(Horizontal image alignment):
Inclination limited to +/-60° max.
25º
10º
90º
Tilted Easy Adaptor
■ EXTENDED VIEWING ANGLE
15º
■Detach the dome camera from the easy adaptor
Push the hook on the dome base and swing the dome base to counter-
clock wise. Then detach the dome camera from the installed easy adaptor.
1
2
3

MPD-62M2812P0A
Installation Instructions
12
12

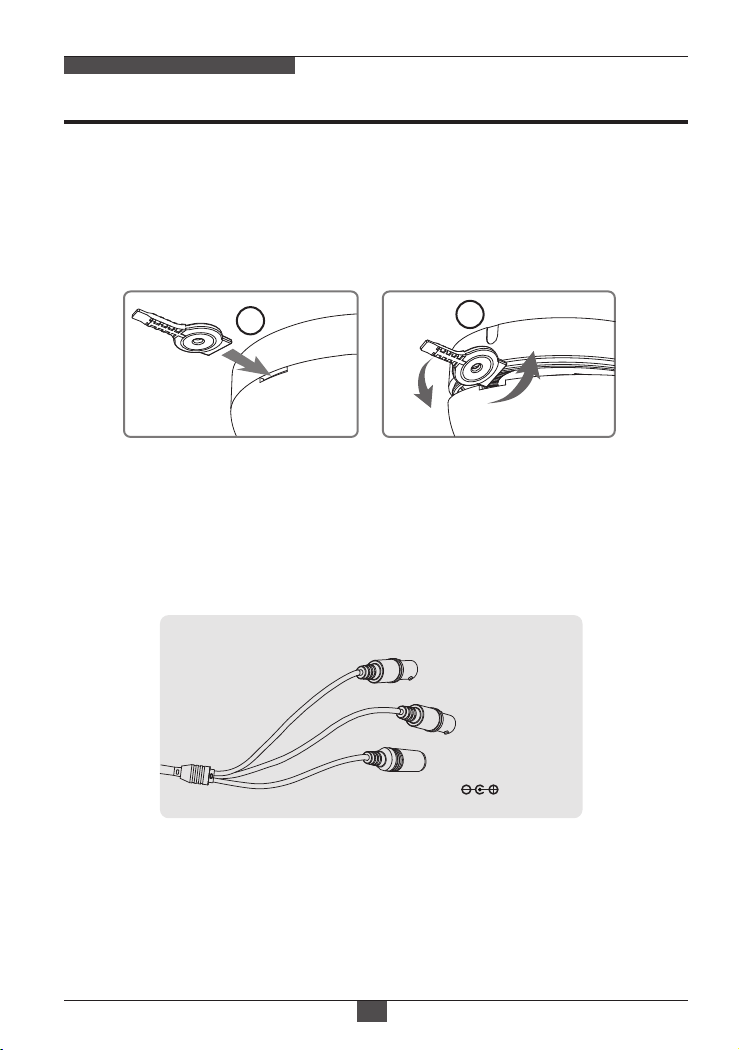

■Open the dome cover
②Hold the Dome housing with one hand and turn the open tool until Dome
Cover is sufficiently open.
①Insert wide side of Open Tool into the lock of Dome Cover.
③Once Dome Base and Dome Cover are detached, press the edge of
Dome Cover and pull it down with hands.
Power Supply Connections
Camera can be operated with the regulated or unregulated 12VDC but
the regulated power supply of 12VDC is recommended.
Camera is protected from the damage by the reverse connection of polarity.
※SDI OUTPUT
(Yellow)
ANALOG OUTPUT
(Black)
POWER ( )
※Please use the cable as provided with camera. If camera cable is cut
and re-wired, the transmission distance of video can be reduced.
Especially SDI cable should not be cut because it requires detailed
wiring job and affects the transmission distance.

MPD-62M2812P0A
Operating Instructions
13
Using OSD Controller
Setup menu can be accessed and controlled by OSD control joy stick on the
side of the gimbal. Five commands are available with the joy stick.
The design of OSD could be different according to the Model.
1) SET Key (●) : Access to the menu or enter the setting.
To enter the main menu, press the Set Key down.
2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the
cursor up or down.
3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu. Used
to adjust the desired menu selection and to move the cursor left or right.
Description of the OSD control operation
4) ‘ ’denotes the long press down straightly for about 2 seconds
Description of the Motorized ZOOM&FOCUS* adjustment
1) ▲: Zoom In
2) ▼ : Zoom Out
3) ◄: Focus Near
4) ►: Focus Far
(*) Works only when OSD Menu is inactive.
OSD Control Joy Stick
Video sub-out Connector
ANALOG OUT0 should be set to TVI MODE, AHD MODE or CVI MODE
to get CVBS video in sub-out. If it is set to CVBS, there is no CVBS video
in sub-out port. (SYSTEM> OUTPUT> ANALOG OUTPUT0)
If CVBS video is enabled through ANALOG OUT0 or Sub-out port, WDR
and 3D-NR functions are disabled in all video outputs.
It should be considered when installer adjusts the video with installation
monitor via CVBS video signal.

MPD-62M2812P0A
Operating Instructions
14
OSD menu Table
MENU SUB MENU CONFIGURATION
LENS
EXPOSURE
BACKLIGHT
DC
MANUAL
MODE (INDOOOR, OUTDOOR, DEBLUR)
0~20
WEIGHT
MODE ROI WINDOW ZONE/USE,
H/V-POS, H/V-SIZE
NORMAL
OFF
HLC LEVEL, COLOR
H/V-POS, H/V-SIZE
BLC
WDR
MIDDLE, HIGH, LOW
COLOR
DAY & NIGHT
3D-NR
AWB
COLOR GAIN
EXTERN
AUTO
COLOR
B&W
SHARPNESS
SMART IR, ANTI-SAT., DELAY, IR LED CTL (AUTO, OFF)
SMART IR, ANTI-SAT., AGC THRES, AGC MARGIN, DELAY
SMART IR, ANTI-SAT.
AUTO, AUTOext, PRESET, MANUAL (C-TEMP, R/B-GAIN)
OFF, LOW, MIDDLE, HIGH
MAIN
OUTPUT
ANALOG
OUT0
ANALOG
OUT0
TVI MODE 0~10
AHD MODE 0~10
TVI MODE, AHD MODE,
CVBS, CVI MODE
BRIGHTNESS
SHUTTER
SENS-UP
AGC
0~20
AUTO MODE (INDOOR, OUTDOOR, DEBLUR)
MANUAL
(SPEED)
FLICKERLESS
0~10
OFF, x2, x4, x8, x16, x32
ZOOM / FOCUS AF MODE
SCANNING
MODE CHANGE
ONEPUSHAF
SYNC TDN
INITIAL ON
HALF, FULL
ENABLED, DISABLED
ON
ON, OFF
ZOOMPUSH, MANUAL
CVI MODE 0~10
1/30(1/25), 1/60(1/50), 1/120(100), 1/250(200),
1/500(400), 1/1000(800), 1/2000(1600), 1/4000
(3200), 1/8000(6400), 1/15000(12800), 1/30000
(25600)

MPD-62M2812P0A
Operating Instructions
15
GAMMA 0.45, 0.55, 0.65, 0.75
OFF, ON
MIRROR
DEFOG
ACE
MODE (AUTO, MANUAL)
LEVEL (LOW, MIDDLE, HIGH)
OFF, LOW, MIDDLE, HIGH
OFF, ON
OFF, ON
FLIP
MOTION OSD
TEXT ALARM
SYSTEM
EXIT
OUTPUT
RESOLUTION
TV SYSTEM
SAVE, CANCEL
CAM TITLE
RESET
LANGUAGE ENG, CHN(S), CHN, JPN, KOR, GER
OFF, ON
SDI OUTPUT
ANALOG OUT0
HD-SDI, EX-SDI 1.0, EX-SDI 2.0, OFF
TVI MODE, AHD MODE, CVBS, CVI MODE
1080 30P(25P), 720 30P(25P), 720 60P(50P)
US(NTSC), EU(PAL)
DET WINDOW
DET TONE
MDRECT FILL
SENSITIVITY
OFF, ON
OFF, ON
OFF, ON
0~10
0~4
WINDOW ZONE, WINDOW USE, DET
H/V-POS, DET H/V-SIZE
MOTION
OFF, RIGHT UP, LEFT DOWN
ON
PRIVACY ZONE NUM, ZONE DISP, H/V-POS, H/V-
SIZE, Y LEVEL, CB/CR LEVEL, TRANS
OFF, ON
IMAGE SHARPNESS MAIN
OUTPUT
ANALOG
OUT1
SDI
OUTPUT
ANALOG
OUT1
SDI&CVBS
SDI&CVBS
0~10
SDI OUT HD-SDI, EX-SDI 1.0,
EX-SDI 2.0, OFF
CVBS
0~10

MPD-62M2812P0A
Operating Instructions
16
2-1. AF MODE
2. ZOOM/FOCUS
OSD menu Startup
• EXIT : Enters ‘EXIT’ menu with save current setting or without save.
• RETURN : Returns to the previous menu.
Press the ‘OSD menu SET key’ down to access the setup menu mode.
• ZOOMPUSH: Focusing works steadily for sharp focusing on the object.
In the case of a Motor driven lens, focusing resumes in about 7~8 seconds
to save the lens lifetime when the focus gets lost.
• MANUAL: Focusing can only be adjusted by ▲,▼ of OSD control joystick.
MENU V0. XX
1. LENS
2. ZOOM/FOCUS
3. EXPOSURE
4. BACKLIGHT
5. DAY&NIGHT
6. COLOR
7. 3D-NR
8. IMAGE
9. MOTION
A. SYSTEM
B. EXIT
OFF
EXTERN
MIDDLE
OFF
SAVE
DC
1. LENS
: DC is for the best image when DC Auto iris Vari-focal lens is installed.
1-1. DC
1-2. MANUAL : MANUAL is for the best image when Fixed lens is installed.
Lens can be selected either DC or MANUAL lens.
It should be selected according to lens type.
- INDOOR: Optimized of indoor environment.
- OUTDOOR: Optimized of outdoor environment.
- DEBLUR: It enables to reduce the blur in a certain indoor environment.
Noise or color rolling can be increased.
• MODE : Selects MODE according to lighting condition.

MPD-62M2812P0A
Operating Instructions
17
2-3. SCANNING
2-4. ONEPUSHAF
Focusing is activated only when zoom in/out is working.
Compensates for IR correction when the camera switches to DAY or NIGHT.
It is recommended to set OFF except specific conditions.
2-5. SYNC TDN
2-6. INITIAL
Lens initialization is necessary during the installation or the regular operation
to align the position data with the mechanical positions whose lens elements
may move and deviate from its calibrated position by the shock or vibration,
for example, during the transportation. Lens initialization is automatically
executed at power up.
INITIAL starts the lens initialization when pressing the joystick straight down
for about 2 sec. It is strongly necessary to execute LENS INIT in cases below;
- At the final step for the installation.
- When focus becomes out of control by the shock or vibration.
Lens scanning can be set to performs HALF or FULL on the screen.
Scanning checks the positions for zoom/focus at both of the end positions
and saves them for the references.
2. ZOOM/FOCUS
AF MODE
MODE CHANGE
SCANNING
ONEPUSHAF
SYNC TDN
INITIAL
RETURN
AF MODE Changes to MANUAL automatically
after 3 hrs when MODE CHANGE is ENABLED.
ZOOMPUSH
DISABLED
HALF
ON
OFF
ON
2. ZOOM/FOCUS
AF MODE
MODE CHANGE
SCANNING
ONEPUSHAF
SYNC TDN
INITIAL
RETURN
MANUAL
NOT USED
HALF
ON
OFF
ON
2-2. MODE CHANGE
MODE CHANGE is activated to set ZOOMPUSH in AF MODE.
It is for locking of the lens control to prevent undesirable operation.
• ENABLED : Locks and disables the lens operation after 3 hours.
It is recommended to maintain the working-life of the motorized zoom lens.
• DISABLED : Disables the locking feature allowing lens operation at any time.
(Available only with AF MODE is ZOOMPUSH)

MPD-62M2812P0A
Operating Instructions
18
- INDOOR: Optimized of indoor environment.
- OUTDOOR: Optimized of outdoor environment.
- DEBLUR: It enables to reduce the blur in a certain indoor environment.
Noise or color rolling can be increased.
• MODE : Selects MODE according to lighting condition.
Adjusts the brightness of video (0~20).
3-1. BRIGHTNESS
The brighter video can be obtained by increasing the exposure time in the
night with SENS-UP. It can be set to Off, x2, x4, x8, x16 or x32.
Higher setting can get the brighter video but the slower frame rates with
more white pixels.
3-3. SENS-UP
AGC(0~10) amplifies the video gain for brighter video but noise and white pixel
accordingly.
3-4. AGC
3. EXPOSURE
BRIGHTNESS
SHUTTER
SENS-UP
AGC
RETURN
AUTO
X2
llllllllllllllllllllll
9
llllllllllllllllllllll
7
3-2-1. AUTO: Optimizes the video level by controlling the iris and the shutter
speed automatically.
3-2-3. FLICKERLESS : Flicker is used to remove the flickering on screen due to
differences in light and electric frequencies.
3. EXPOSURE
Selects AUTO or set manually.
If SHUTTER set to MANUAL modes, SENS-UP mode is inactivated.
3-2. SHUTTER
3-2-2. MANUAL : 1/30(1/25), 1/60(1/50), 1/120(100), 1/250(200), 1/500(400),
1/1000(800), 1/2000(1600), 1/4000(3200), 1/8000(6400), 1/15000(12800),
1/30000(25600) Shutter can be set to fix.

MPD-62M2812P0A
Operating Instructions
19
Cuts out the highlight area with mask and excludes it from compensation.
4-1. HLC (High Light Compensation)
4-1-1. LEVEL (0~20): Sets the HLC level. It determines the video level that starts
cutting out. Lower setting starts the cut out at lower level.
The cut out area is masked with selected color.
4-2-1. H-POS, V-POS :
Sets the position of BLC area to move vertically and horizontally.
4-2-2. H-SIZE, V-SIZE :
Sets the size of BLC area to move vertically and horizontally.
4-1-2. COLOR : Select mask color from 9 colors.
Black, White, Yellow, Cyan, Green, Magenta, Red, Blue and Customize.
llllllllllllllllllllll
10
HLC
LEVEL
COLOR
RETURN
BLK
BLC
H-POS
V-POS
H-SIZE
V-SIZE
RETURN
8
7
3
3
4-2. BLC (Backlight Compensation)
Compensates the video image to cut out the highlight area with mask or control
the contrast of video. It can be set the compendation level or areas.
This function is used to brighten an image in the foreground with a highly
light area behind it such as sunlight, limiting the affect of silhouette.
BLC has a target window for compensation and its size and position can be
set by H-POS, V-POS, H-SIZE and V-SIZE.
4. BACKLIGHT

MPD-62M2812P0A
Operating Instructions
20
If CVBS video is enabled through ANALOG OUT0 or Sub-out port, WDR
and 3D-NR functions are disabled in all video outputs.
It should be considered when installer adjusts the video with installation
monitor via CVBS video signal.
4-3. WDR (Wide Dynamic Range)
4-3-1. MODE : Selects WDR mode normal or ROI setting.
4-3-2. WEIGHT : LOW, MIDDLE, HIGH
Selects the WDR value that you set the target area in MODE.
•
NORMAL: WDR function applies full screen.
• ROI (Region Of Interest) : Sets specific area of WDR by window setting.
Select window zone number from 0 to 3 and window use set to on.
Then the window zone can be modified position and size.
WDR is extended the gain range of the video that is mostly useful if camera
takes a simultaneous picture of both indoor and outdoor nearby window.
It improves contrast of the picture in outdoor scenery as well as indoor.
Video outputs image processed from two images by dual shutter (long and
short shutter) in a field to provide the best dynamic range. Highlight area is
compensated by the short shutter and dark area is compensated by the long
shutter. Final video may have less contrast compared to the conventional
camera which does not have WDR function.
WDR
MODE
WEIGHT
RETURN
ROI
MIDDLE
ROI
WINDOW ZONE
WINDOW USE
H-POS
V-POS
H-SIZE
V-SIZE
RETURN
0
ON
469
194
739
688
