Eneo MED-62V2812M0A User manual

EN
User Manual
1/2.8” HD Dome, Fixed,
Day&Night, 1920x1080, 12VDC,
2.8-12mm, Infrared, IP66
MED-62V2812M0A

Safety Precaution
03
ULTRA CLEAR RESOLUTION CAMERA
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA
Contents
05
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.07
Part Names
p.08
Installation Instructions
p.09~10
Operating Instructions
p.11~28
Specifications
p.29~30

ULTRA CLEAR RESOLUTION CAMERA
Features
Key Features
06
• 1/2.8” SONY Exmor CMOS sensor
• 1080P TVI mode, CVI mode, AHD Video or 960H CVBS Video Selectable
• TVI mode/CVI mode/AHD Video Transmission Distance over Coax.; 500M
• Automatically removable IR Cut filter by Dual filter switcher
• Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal lens
• Sensitivity of Color 0.3 Lux / BW 0.005 Lux (@IRE 40, Sens-up On, IR Off)
• D-WDR (Wide Dynamic Range)
• Improved noise reduction 2D+3DNR(TVI mode/CVI mode/AHD), 2DNR(CVBS)
• FOCUS ASSIST for Error free focus adjustment
• 2 Auto(AE/AWB) control
• LSC (Lens Shading Compensation)
• DPC (Defective Pixel Compensation)
• Motion detection, Privacy mask, BLC/HSBLC, Defog, Sens-up(~x30),
Mirror/Flip, Freeze, Negative Image, IR Smart, Cam Title
• OSD MENU & CVBS output for easy installation & maintenance
• Built-in 30pcs IR-LED
• One-side Anti-scratch hard coated clear bubble
• Zoom & Focus Adjustment
• 3-Axis gimbal
• IP66 Protection
• Power: DC12V

07
Composition
Dimensions
(unit : mm)
ULTRA CLEAR RESOLUTION CAMERA
Video Sub-out
Cable (1pc)Mounting Template
Mounting Screw:
4 x 24mm (4pcs)
Plastic Anchor:
6.5 x 26.5mm (4pcs)
Camera
Operating Instruction
Ø144
Ø100
108
60
L-Wrench (1pc)

ULTRA CLEAR RESOLUTION CAMERA

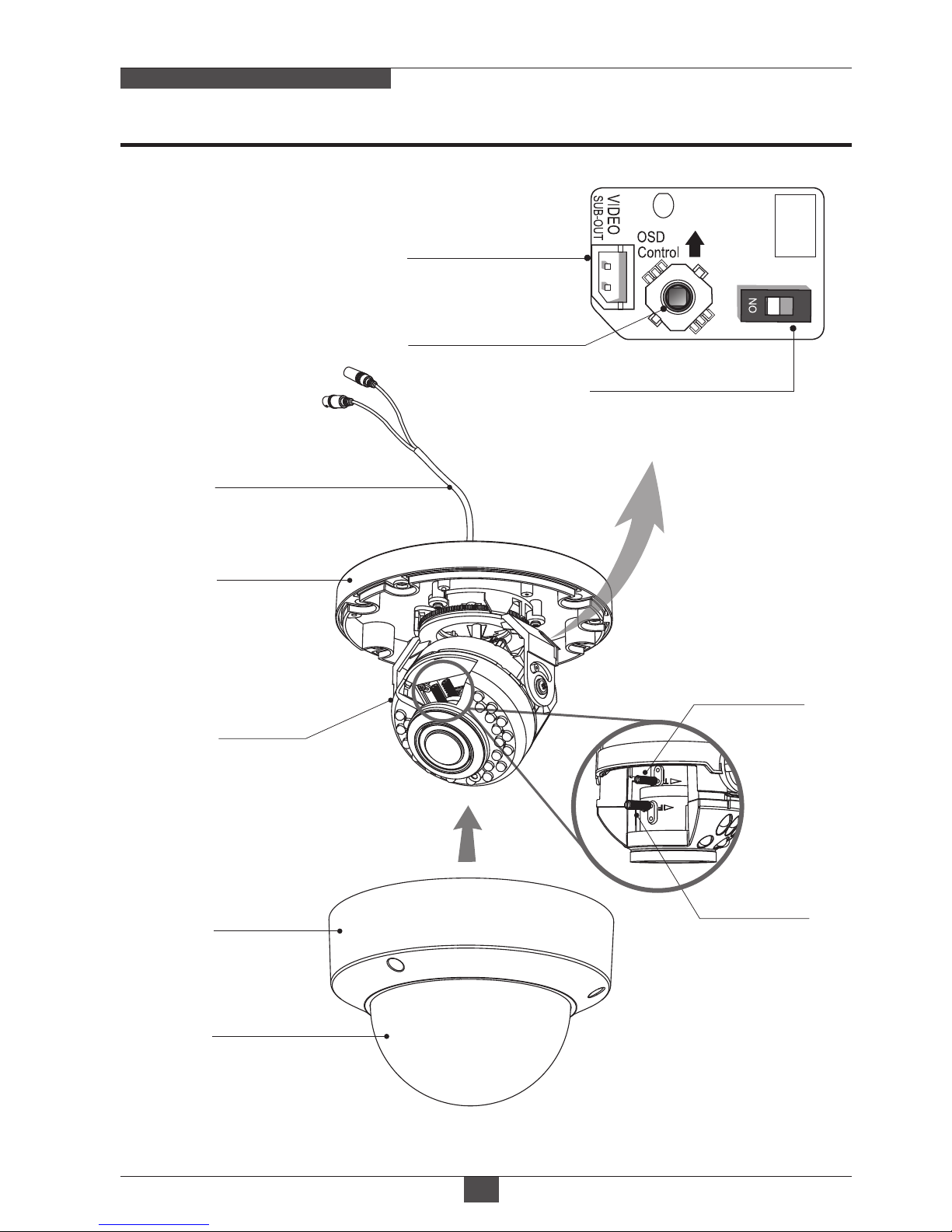

Part Names
08
Video sub-out
Connector
3-Axis
Gimbal
Dome Cover
Bubble Dome
Dome Base
Zoom lever
Focus lever
Power Cable
OSD Control &
Video format Joystick
Video format DIP Switch
CVBS
HD

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
09
• Extreme care should be taken NOT to scratch the bubble dome surface while
the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or
spot light.
CAUTION
Mounting Screw
(4x24mm)
Plastic Anchor
(6.5x26.5mm)
1. Drill four holes for mounting on the ceiling or wall.
2. Place the dome base at the pre-drilled installation position and fix it by using
mounting screws.
3. Route the Power/BNC cable to the connecting place.
4. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)
5. Assemble the dome cover to the dome base unit.

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
10

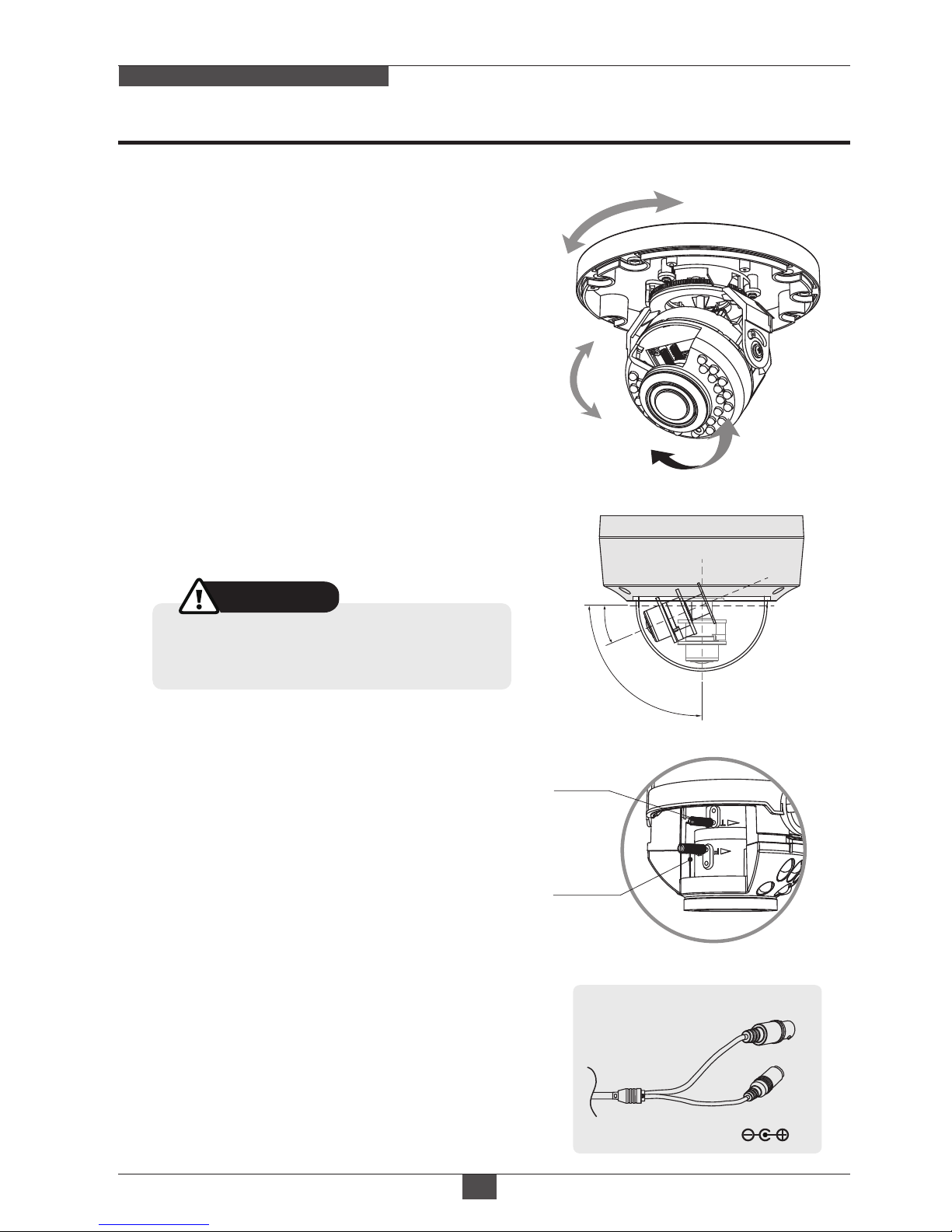

Zoom & focus adjustments
Limit of Pan & Tilt
1) Pan limit:
Adjusts the first pan angle by turning
the gimbal 360˚.
2) Tilt limit:
Tilt is limited to 25°min ~ 90°max. with
reference to the ceiling when the
inclination of camera module is 0°, that
is, the image is aligned horizontally.
3) Rotation limit
(Horizontal image alignment):
Adjust the rotation angle by turning
the upper gimbal 360°.
Pan
Tilt
Rotation
• Be careful with the cable twisting
during pan or tilt adjustments.
CAUTION
25º
90º
• To widen the viewing angle, turn the Zoom
to “W”(Wide) and to obtain a closer view,
turn it to “T”(Tele)
• Turn the Focus lever to “N”(Near) or “∞”(Far)
until the sharpest focus is made.
Power Supply Connections
Camera can be operated with the regulated
or unregulated DC12V but the regulated power
supply of DC12V is recommended.
Camera is protected from the damage by the
reverse connection of polarity.
VIDEO (BNC)
POWER ( )
Zoom
Focus

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
11
Using OSD Controller
Setup menu can be accessed and controlled by OSD control joystick inside
of the camera unit. Five commands are available with the joystick.
The design of OSD could be different according to the Models.
■ Description of the OSD control operation
1] SET Key (●) : Access to the menu or enter the setting.
To enter the main menu, press the Set Key down.
2] UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the
cursor up or down.
3] LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu. Used
to adjust the desired menu selection and to move the cursor left or right.
OSD Control &
Video format Joysick
CVBS
HD
Video format
DIP Switch
Using Video Format Switch
The DIP SWITCH setting has first priority.
If the switch is set to CVBS, only CVBS output is available for both main video
output and sub-out. Please be advised that camera generates only one video
output for both main video output and sub-out. It takes 3~5 seconds when video
format is changing. The default DIP SWITCH setting is CVBS mode.
If OSD menu is adjusted in specific video format, adjusted value is applied to
only related video format. For example, if the menu is adjusted in CVBS mode,
adjusted value is applied to CVBS video only.
■DIP SWITCH setting
NOTE

OSD menu Startup
• EXIT : Enters ‘EXIT’ menu.
• RETURN : Returns to the previous menu.
• DEFAULT : Restores to factory default.
Press the ‘OSD menu SET key’ down to access the setup menu mode.
MAIN MENU
1. LENS
2. FOCUS ASSIST
3. EXPOSURE
4. BACKLIGHT
5. WHITE BAL
6. DAY & NIGHT
7. NR
8. SPECIAL
9. ADJUST
10. EXIT
OFF
ATW
AUTO
SAVE&END
DC
ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
12
Switching video format is available by Video format joystick.
If you want to set the HD video format, set the DIP Switch to HD mode first.
Then set the one of HD Video format by joystick. The default setting is TVI mode.
■ JOYSTICK setting
1] TVI mode (Up▲) : Moving up direction for about 3 seconds to TVI mode.
2] CVBS (Down▼) : Moving down direction for about 3 seconds to CVBS.
3] AHD (Left◄) : Moving left direction for about 3 seconds to AHD.
4] CVI mode (Right►) : Moving right direction for about 3 seconds to CVI mode.

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
13
OSD menu Table
MAIN MENU SUB MENU CONFIGURATION
LENS
FOCUS ASSIST
EXPOSURE
BACKLIGHT
DC
MANUAL
DN DWELL
SHUTTER
AGC
SENS UP
BRIGHTNESS
D-WDR
DEFOG POS/SIZE, GRADATION(0~2), DEFAULT
INDOOR, OUTDOOR
MODE
IRIS SPEED
0~15
SELECT
DISPLAY
BLACK MASK
LEVEL
MODE
DEFAULT
OFF
HSBLC
FLK, 1/60(1/50), 1/30(1/25), AUTO, x30~x2, 1/50000~1/200
1~100
OFF, AUTO (2x~30x)
ON(LEVEL:0~8), AUTO, OFF
OFF, AUTO
AREA1~4
ON, OFF
ON, OFF
0~100
ALL DAY, NIGHT(AGC LEVEL)
MOTION AREA1~4
OFF, ON(POSITION, SIZE)
0~100
Green, Red, White, Blue
0.00~1.00
VIEW TYPE, OSD VIEW, ALARM OUT, TIME
SELECT
DISPLAY
SENSITIVITY
COLOR
TRANS
ALARM*
WHITE BAL
DAY & NIGHT
NR
SPECIAL
BACKLIGHT
ATW, AWB, MANUAL(BLUE/RED GAIN), OUTDOOR, INDOOR, AWC->SET
LEVEL, AREA, DEFAULTBLC
AUTO
EXT
B/W
COLOR
2DNR
3DNR(AHD only)
CAM TITLE
D-EFFECT
D->N(AGC/CDS), D->N(DELAY), N->D(AGC/CDS), N->D(DELAY)
D->N(DELAY), N->D(DELAY)
BURST, IR SMART, IR PWN*
LOW, MIDDLE, HIGH
LOW, MIDDLE, HIGH
OFF, ON
OFF, ON
MIRROR, V-FLIP, ROTATE, OFF
FREEZE
MIRROR
NEG. IMAGE

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
14
DEFAULT
DEFAULT
ADJUST
EXIT
SPECIAL PRIVACY
LANGUAGE
DEFECT
RS-485*
VERSION
COLOR BAR
SAVE&END, NOT SAVE, RESET
MONITOR
LSC
VIDEO OUT
COMET (CVBS)
MONITOR OUT(HD)
SHARPNESS
ENG, TUR, NED, POR, RUS, POL, SPA, ITA, FRA, GER,
CHN1/CHN2
OFF, ON
LIVE DPC
WHITE DPC
BLACK DPC
CAM ID, ID DISPLAY, BAUDRATE
FW VER, ISP VER, AHD RX VER
AUTO
OFF
LDC, CRT
OFF, ON
NTSC/PAL
OFF, ON
OFF, ON
AHD, TVI mode, CVI mode, CVBS
SELECT
DISPLAY
COLOR
TRANS
AGC LEVEL(0~255), LEVEL(0~100)
SENS-UP, POS/SIZE, START, DPC VIEW, AGC
POS/SIZE, START, DPC VIEW, LEVEL
LEVEL, START AGC, END AGC
AREA1~4
COLOR, INV, MOSAIC
0.25~1.00
White, User, Cyan, Green,
Yellow, Blue, Red, Black
MOTION
(*) : Not Available

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
15
DC LENS MODE
1. MODE
2. IRIS SPEED
3. RETURN
OUTDOOR
RET
OSD menu Setup
1. LENS
• INDOOR: Optimized of indoor environment.
• OUTDOOR: Optimized of outdoor environment. Can set Min.SHUTTER
speed or Max.SHUTTER speed
: Selects lens mode according to installation place.
: Sets IRIS speed for INDOOR or OUTDOOR mode.
1-1. DC LENS MODE
1-2. MANUAL LENS MODE
(default: DC)
1-1-1. MODE
1-1-2. IRIS SPEED
: Horizontal wave or bar may be seen when MANUAL is selected and the camera
is working under florescent or similar lights.
Lens can be selected either DC or MANUAL lens.
Lens MUST be set to DC for the best image when DC iris lens is installed
2. FOCUS ASSIST
9
llllllllllllllllllllll
OUTDOOR MODE
1. MIN SHU.
2. MAX SHU.
3. RETURN
1/25
1/2000
RET
Usually cameras are installed in the day time and they often become OUT OF
FOCUS at night time and IN FOCUS again at next day time.
This problem can occur at any cameras regardless of types or manufacturers.
FOCUS ASSIST menu is the unique and patented feature that prevents from
the wrong focus and helps the EXACT NEEDLE focus by simulating DAY &
NIGHT conditions.
Set zoom first and adjust focus to get NEEDLE FOCUS while switching at DAY
& NIGHT.

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
16
14
llllllllllllllllllllll
38
llllllllllllllllllllll
FOCUS ASSIST
1. DN DWELL
2. RETURN
ADJUST ZOOM & FOCUS ON LENS
FOR DAY & NIGHT WHILE SWITCHINGS
5 SEC
RET
EXPOSURE
1. SHUTTER
2. AGC
3. SENS-UP
4. BRIGHTNESS
5. D-WDR
6. DEFOG
7. RETURN
AUTO
OFF
RET
FLK
AUTO
14
llllllllllllllllllllll
45
llllllllllllllllllllll
EXPOSURE
1. SHUTTER
2. AGC
3. SENS-UP
4. BRIGHTNESS
5. D-WDR
6. DEFOG
7. RETURN
AUTO
OFF
RET
- - -
AUTO
2-1. DN DWELL
: ICR switcher switches DAY & NIGHT at the interval of D/N DWELL to help
the EXACT NIDDLE focus at DAY and NIGHT mode.
Further simulations are performed internally during switching.
• FLK : Reduces the flicker in video when NTSC/PAL mode is used in 50Hz /
60Hz fluorescent lighting respectively.
• 1/60(1/50), 1/30(1/25), x30~x2, 1/50000 ~ 1/240: Shutter can be set to fix.
• AUTO: Optimizes the video level by controlling the iris and the shutter speed
automatically.
3. EXPOSURE
: Selects AUTO, FLK(Flickerless), or set manually.
If SHUTTER set to MANUAL or FLK modes, SENS-UP mode is inactivated.
If DC LENS MODE in the LENS option is set to OUTDOOR, SHUTTER mode
is inactivated.
3-1. SHUTTER (default: FLK)
[ video format: HD ] [ video format: CVBS ]

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
17
DEFOG
1. POS/SIZE
2. GRADATION
3. DEFAULT
4. RETURN RET
0
llllllllllllllllllllll
: Adjusts the brightness of video(1~100).
3-4. BRIGHTNESS
• AUTO: SENS-UP is enabled or disabled automatically by the scene brightness.
Higher SENS-UP can get the brighter video but the slower frame rates with more
white pixels. If set to AUTO, maximum integration limit for SENS-UP can be set
to x2, x4, x6, x8, x10, x15, x20, x25, x30 in SENS-UP menu.
• OFF: Disables SENS-UP.
: The brighter video can be obtained by increasing the exposure time in the night
with SENS-UP. SENS-UP is the maximum integrations of frame by DSS (Digital
Slow Shutter) in the low light.
3-3. SENS-UP
: AGC(0~15) amplifies the video gain for brighter video but noise and white pixel
accordingly. AGC level less than 10 disables AUTO in DAY/NIGHT.
3-2. AGC
3-5. D-WDR
※CVBS video signal:Connecting 2nd video to CVBS port disables D-WDR
function temporary. It should be considered when installer adjusts the video
with installation monitor via CVBS video signal.
: Enhance the foggy video according to status of scene. Video quality can be
less in normal environments. Setting to AUTO, it can be adjusted working
area on screen.
3-6. DEFOG (default: OFF)
: Sets the position and size
to make activated area box.
: Sets the level from 0 to 10.
3-6-1. POS/SIZE
3-6-2. GRADATION
: Restores to factory default.
3-6-3. DEFAULT
: Improves the visibility for the high bright area and the dark area by compen-
sating the video gain. Selects OFF, AUTO or ON. With D-WDR On, the level
can be set. Care should be taken to select this mode because video may
lose its quality in some environments by the over compensation.
Video noise can be increased in the dark area accordingly.

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
18
4. BACKLIGHT
: Cuts out the highlight area with black mask and excludes it from compensation.
4-1. HS BLC
4-2. BLC
4-1-1. SELECT : Select areas to set HSBLC function
4-2-1. LEVEL (default: MIDDLE) : Sets the BLC level.
4-2-2. AREA : Sets BLC area with position and size.
4-2-3. DEFAULT : Restores to BLC factory default.
4-1-2. DISPLAY : Displays ON/OFF the selected area and adjusts position/size.
4-1-3. BLACK MASK : Sets ON or OFF the black mask.
4-1-4. LEVEL (0~100): Sets the HS BLC level. It determines the video level
that starts cutting out. Lower setting starts the cut out at lower level.
The cut out area is masked with black color.
• ALL DAY : Enables HS BLC regardless of DAY or NIGHT mode.
• NIGHT : Enables HLC only when camera works in NIGHT mode.
Can be adjusted AGC level.
4-1-5. MODE : Sets NIGHT only or ALL DAY.
4-1-6. DEFAULT : Restores to factory default.
: Cuts out the highlight area with black mask and excludes it from compensation.
It has target areas for compensation and each area can be set LEVEL, MODE,
and DISPLAY.
: This function is used to brighten an image in the foreground with a highly
light area behind it such as sunlight, limiting the affect of silhouette.
80
llllllllllllllllllllll
HS BLC
1. SELECT
2. DISPLAY
3. BLACK MASK
4. LEVEL
5. MODE
6. DEFAULT
7. RETURN
ALL DAY
RET
AREA1
ON
ON

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
19
5-1. ATW (Auto Trace White balance)
5-2. AWB (Auto White Balance)
D&N AUTO
1. D N (AGC)
2. D N (DELAY)
3. N D (AGC)
4. N D (DELAY)
5. RETURN
5. WHITE BALANCE (default: ATW)
ATW, AWB, OUTDOOR, INDOOR, AWC->SET, and MANUAL are available for
the white balance modes.
6. DAY & NIGHT
: Automatically tracks the changes of color temperature and continuously
adjusts the white balance. The white balance range is 2,500°K~8,500°K.
: Automatically tracks the changes of color temperature and continuously
adjusts the white balance. The white balance range is 2,000°K~11,000°K.
5-4. OUTDOOR
: Optimized for outdoor sunlight applications and more easily compensates
ATW for high color temperature such as sunlight.
5-5. INDOOR
: Optimized for Indoor installation and more easily compensates ATW
for low color temperature such as incandescent lights.
5-6. AWC->SET
: WB is performed only whenever ● is pressed.
5-3. MANUAL
: White balance is fixed to the settings by Red_GAIN and Blue-GAIN.
This mode can be used only when the color temperature does not vary.
DAY/NIGHT is used to control the setting during day-time and night-time
operation. Select the mode according to the light condition and the camera
types.
3
llllllllllllllllllllll
24
llllllllllllllllllllll
3
llllllllllllllllllllll
120
llllllllllllllllllllll
RET
D&N AUTO
1. D N (CDS)
2. D N (DELAY)
3. N D (CDS)
4. N D (DELAY)
5. RETURN
3
llllllllllllllllllllll
24
llllllllllllllllllllll
3
llllllllllllllllllllll
120
llllllllllllllllllllll
RET
[None LED model] [Built-in LED model]

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
20
6-1. AUTO (AGC/CDS)
6-1-1. D→N (AGC/CDS):
6-3-1. BURST :
Sets the BURST option ON/OFF to output burst signal in B/W mode.
Used when DAY or NIGHT is determined by light level through the lens and
DAY from/to NIGHT is switched automatically by the scene brightness.
It can be controlled the threshold level and delay time.
6-2. EXT
D→N is a threshold level which determines to switch from DAY to NIGHT.
Lower(Higher) value makes the camera switch from Day to Night at
lower(higher) illumination. If it stays in Day(Color) mode at night time,
increase DAY→NIGHT threshold value until it just switches to Night.
6-1-3. N→D (AGC/CDS):
N→D is a threshold level which determines to switch from NIGHT to D AY.
Lower(Higher) value makes the camera switch from Night to Day at
lower(higher) illumination. If it stays in NIGHT(B/W) mode at day time,
decrease NIGHT→DAY threshold value until it just switches to DAY.
6-1-2. D→N (DELAY):
D→N DELAY is time in second while camera maintains its status before
Day to Night switches. DELAY can avoid the unwanted/frivolous switching
by a short term lights such as light from the passing car.
6-1-4. N→D (DELAY):
N→D DELAY is time in second while camera maintains its status before
Night to Day switches.
EXT is not related to this model. AUTO(CDS) works like EXT.
6-3. B/W
The camera is always in B/W mode.
Forcibly removes IR cut filter and switches to B/W regardless of light level.
6-3-2. IR SMART :
6-3-3. IR PWM* : Not Available
• LEVEL (0~15): Sets the IR brightness level
• AREA: Sets the IR SMART working area with position and size.
SMART IR can be set to reduce the saturation by the strong IR illumination
in the night in any menu. Zero(0) turns off SMART IR and High setting
avoids the saturation strongly but the corners will be darker accordingly.
