Enercell 175-Watt Pocket Power Inverter User manual

Please read this user’s guide before using your new power inverter.
Product name and product name
descriptors
TM
M
T
22-164 User’s Guide
175-Watt
Pocket Power Inverter
2/3

2
Package contents
Features
• Converts12VDCpowerfromacarorairplaneinto115VAC
powerforyourhouseholddevicesor5VDCforyourUSB
powereddevices.
• Built-inUSBportenablesyoutopowerorchargeacell
phone,MP3player,orotherUSB-powereddevice.
• Fusedcircuitryandshort-circuitprotectionsafeguardyour
devicesintheeventofapoweroverload.
• Automaticallyshutsoffifyourvehiclebatteryisrunning
low.
nNote: Remove the protective cover wrapped around the
power inverter before using.

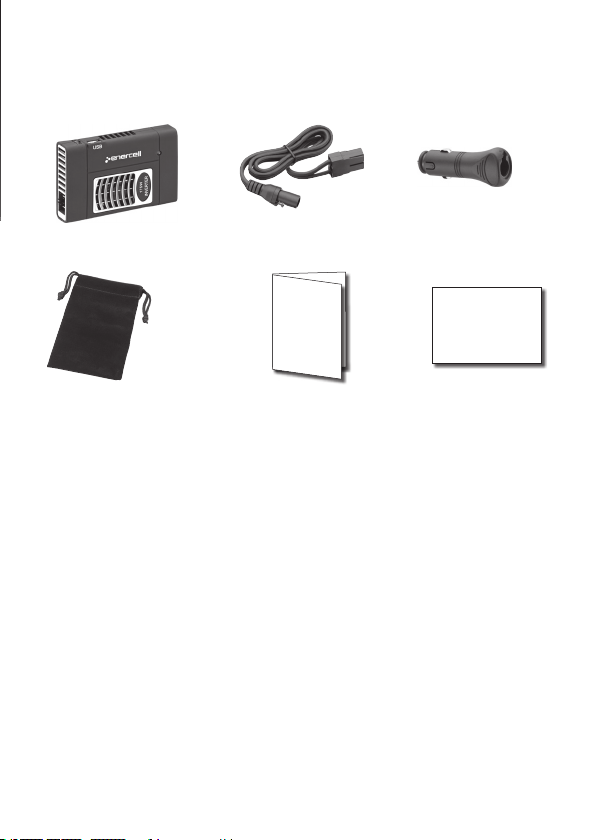

Power Inverter Car DC Adapter
Carry Pouch
Quick Start
User’s
Guide
Power Cord

3
2.In a car:PlugintotheDC
adapter,thenplugthe
DCadapterintothecar’s
powersocket.
In an airplane: Plugthe
powercord’sotherend
intotheairplane’s12V
auxiliaryport.
1Connect Power Cord
1. Pressthelockingcliponthepowercord’sconnectorand
plugitintotheinverter.
ToremovetheDCadapter,
pressandholddowntab,
thenpullout.
Locking clip
OR

4
2Connect Device
Power Indicator
Lightswhenthe
inverterisconnected.

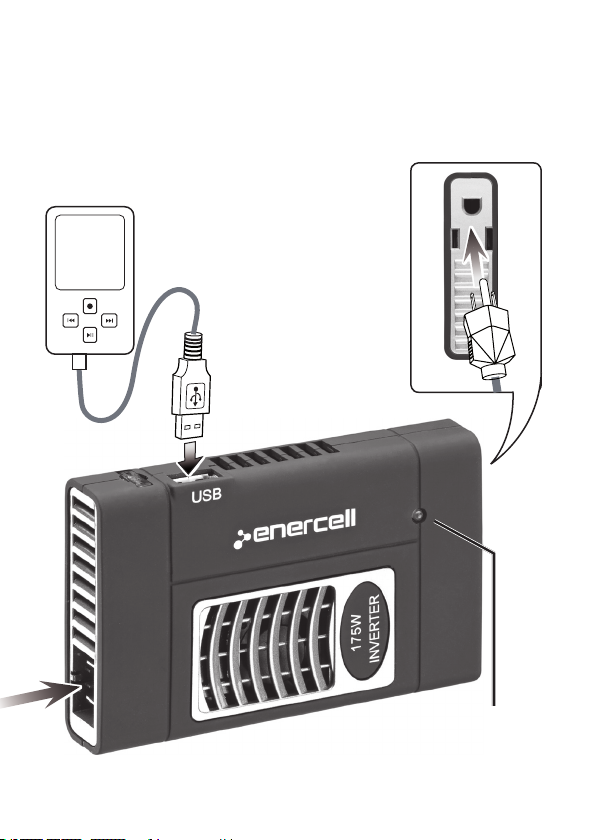

USB device:Plugoneend
ofaUSBcable(notsupplied)
intotheUSBportonthe
inverter,anditsotherendto
theportontheUSBdevice.
AC device:PlugyourAC
device’spowercordintothe
ACsocketontheinverter.

5
nNote:
• YoucanpowerandchargebothACandUSBdevices
simultaneously,buttheACdevicecannotexceed175W
andtheUSBdevicecannotexceed500mA.
• Positiontheinvertertoallowheattodisperse.
Troubleshooting
Ifyourdevicedoesnotpowerup,orthepowerindicatordoes
notlight:
Possible Cause Solution
Defectivedevice
pluggedintothe
inverter.
Tryanotherdevicetoseeiftherstone
isdefective.
Vehiclebattery
voltageis10Vor
lower.
Runthevehicle’senginetorechargethe
battery.
Temperature
exceeds158°F
(70°C).
Unplugtheapplianceandwaituntilthe
invertercools.Positiontheinverterso
thatairowsfreelyaroundittoallow
theheattodisperse.Operationresumes
whenthetemperaturedecreasesto
about104°F(40°C).
Continuouspower
loadexceeds175
watts.
Disconnectthedevice.Useonlydevices
withacontinuouspowerloadof175
wattsorless.
Dirtypowerportor
adapter
Makesurethepowerportandadapter
areclean.Dirtcanpreventtheinverter
fromworking.

6
Safety Information
wWARNING! Shock Hazard
ThisinvertergeneratesthesamepotentiallydangerousAC
voltageasahouseholdwalloutlet.Failuretofollowthese
warningsmayresultinpersonalinjuryordamagetothe
inverter.

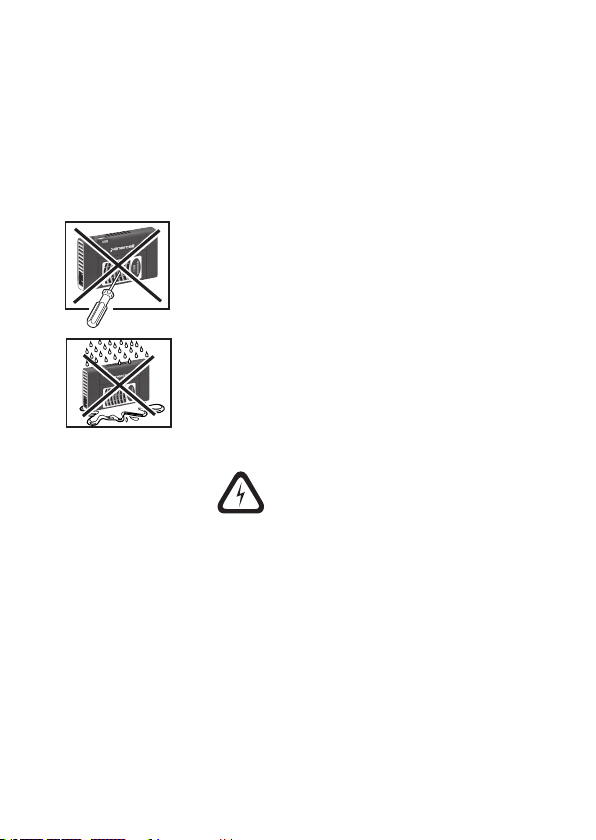

Donotinsertforeignobjectsinto
theinverter’soutletsorvents.
Donotexposetheinvertertowater.
wCaution
• Donotconnectdevicesthatrequirepowergreaterthan
175wattsofcontinuouspower.
• ThetotalcurrentformultipledevicesconnectedtotheAC
socketcannotexceed1.5amps.Ifyoudonotknowthe
totalamperageforyourdevices,connectjustonedevice
atatime.
• Lettheinvertercooldowncompletelybeforestoring.
• Donotusethepowerinverterinapositive-grounded
vehicle.Checkwithyourmechanictodetermineifyour
vehicleispositive-grounded.

7
• Duringoperation,keeptheinverterawayfrommaterials
thatmaybeaffectedbyhightemperatures.
• Makesurethepowerportandplugareclean.Adirty
powerportcanpreventtheinverterfromworkingproperly.
• Alwaysremovetheinverterfromthepowerportwhennot
inuse.
Replacing the Fuse

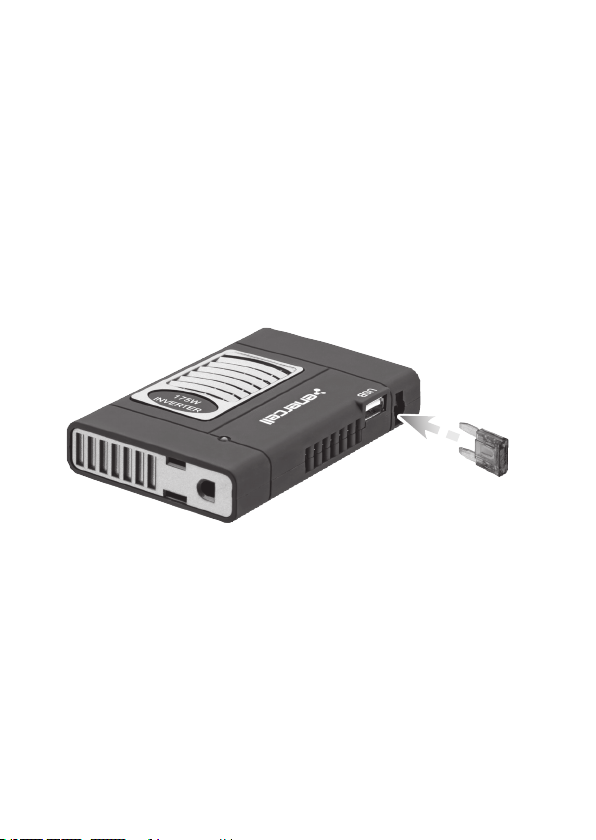

Ifthefusehasblown,replaceitwitha30amp,32VMini
Blade-Typefuse(notsupplied).
Takeoutthefusewithpliers.Theninsertthenewfuse.
wCaution: Do not use a fuse with a different rating. Doing
so can damage your inverter.
Heat Dispersion
Theinverter’sthermalprotectionpreventsitfromoperating
whenitstemperatureexceeds158F(70C).Iftheinvertergets
toohotwhileworking,itwillturnoff.Positiontheinverter
whereairowsfreelyaroundittoallowtheheattodisperse.
Operationresumeswhentemperaturedecreasestoabout
104°F(40°C).

8
Specifications
Input.................................................................11.5–15.5VDC
USBOutput.....................................5VDC±5%,500mA(Max.)
ACOutput................................ 115VAC(±10VAC),60Hz(±3Hz)
ContinuousACPower...................................................... 175W
PeakPower.................................................350Wforonecycle
StandbyCurrent............................................ <0.5AMP@13.8V
Fuse............................................ 30amp,32VMiniBlade-Type
Cordlength............................................................. 2ft(60cm)
Dimensions(HxWxD)..........................0.79x4.33x2.76in.
.................................................................... (20x110x70mm)
Weight............................................................... 5.29oz(150g)
Specicationsaresubjecttochangeandimprovementwithoutnotice.
Actualproductmayvaryfromtheimagesfoundinthisdocument.
FCC Information
Thisequipmenthasbeentestedandfoundtocomplywiththelimits
foraClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These
limitsaredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.Thisequipmentgenerates,uses
andcanradiateradiofrequencyenergyand,ifnotinstalledandused
inaccordancewiththeinstructions,maycauseharmfulinterferenceto
radiocommunications.However,thereisnoguaranteethatinterference
willnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeter-
minedbyturningtheequipmentoffandon,theuserisencouragedto
trytocorrecttheinterferencebyoneormoreofthefollowingmeasures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthatto
whichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

9
ChangesormodicationsnotexpresslyapprovedbyIgnitionL.P.
maycauseinterferenceandvoidtheuser’sauthoritytooperatethe
equipment.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubject
tothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmful
interference,and(2)thisdevicemustacceptanyinterferencereceived,
includinginterferencethatmaycauseundesiredoperation
LimitedWarranty
IgnitionL.P.warrantsthisproductagainstdefectsinmaterialsand
workmanshipundernormalusebytheoriginalpurchaserforninety
(90) daysafterthedateofpurchase.IGNITIONL.P.MAKESNOOTHER
EXPRESSWARRANTIES.
Thiswarrantydoesnotcover:(a)damageorfailurecausedbyorattribut-
abletoabuse,misuse,failuretofollowinstructions,improperinstallation
ormaintenance,alteration,accident,ActsofGod(suchasoodsorlight-
ning),orexcessvoltageorcurrent;(b)improperorincorrectlyperformed
repairsbypersonswhoarenotaIgnitionL.P.AuthorizedServiceFacility;
(c)consumablessuchasfusesorbatteries;(d)ordinarywearandtear
orcosmeticdamage;(e)transportation,shippingorinsurancecosts;
(f)costsofproductremoval,installation,set-upservice,adjustmentor
reinstallation;and(g)claimsbypersonsotherthantheoriginalpurchaser.
Shouldaproblemoccurthatiscoveredbythiswarranty,takethe
productandthesalesreceiptasproofofpurchasedatetotheplaceof
purchase.IgnitionL.P.will,atitsoption,unlessotherwiseprovidedby
law:(a)repairtheproductwithoutchargeforpartsandlabor;(b)replace
theproductwiththesameoracomparableproduct;or(c)refundthe
purchaseprice.Allreplacedpartsandproducts,andproductsonwhicha
refundismade,becomethepropertyofIgnitionL.P.Neworrecondi-
tionedpartsandproductsmaybeusedintheperformanceofwarranty
service.Repairedorreplacedpartsandproductsarewarrantedforthe
remainderoftheoriginalwarrantyperiod.Youwillbechargedforrepair
orreplacementoftheproductmadeaftertheexpirationofthewarranty
period.
IGNITIONL.P.EXPRESSLYDISCLAIMSALLWARRANTIESAND
CONDITIONSNOTSTATEDINTHISLIMITEDWARRANTY.ANY
IMPLIEDWARRANTIESTHATMAYBEIMPOSEDBYLAW,INCLUDING

10
Protecttheenvironmentbyrecyclingusedelectronics.Goto
E-CyclingCentral.comtondanelectronicrecyclingcenter
nearyou.
Printed 
inChina
05B10
22-164
©2010.IgnitionL.P.Allrightsreserved.
EnercellisatrademarkusedbyIgnitionL.P.
THEIMPLIEDWARRANTYOFMERCHANTABILITYAND,IFAPPLI-
CABLE,THEIMPLIEDWARRANTYOFFITNESSFORAPARTICULAR
PURPOSE,SHALLEXPIREONTHEEXPIRATIONOFTHESTATED
WARRANTYPERIOD.
EXCEPTASDESCRIBEDABOVE,IGNITIONL.P.SHALLHAVENO
LIABILITYORRESPONSIBILITYTOTHEPURCHASEROFTHE
PRODUCTORANYOTHERPERSONORENTITYWITHRESPECTTO
ANYLIABILITY,LOSSORDAMAGECAUSEDDIRECTLYORINDI-
RECTLYBYUSEORPERFORMANCEOFTHEPRODUCTORARISING
OUTOFANYBREACHOFTHISWARRANTY,INCLUDING,BUTNOT
LIMITEDTO,ANYDAMAGESRESULTINGFROMINCONVENIENCE
ANDANYLOSSOFTIME,DATA,PROPERTY,REVENUE,ORPROFIT
ANDANYINDIRECT,SPECIAL,INCIDENTAL,ORCONSEQUENTIAL
DAMAGES,EVENIFIGNITIONL.P.HASBEENADVISEDOFTHEPOS-
SIBILITYOFSUCHDAMAGES.
SomeStatesdonotallowlimitationsonhowlonganimpliedwar-
rantylastsortheexclusionorlimitationofincidentalorconsequential
damages,sotheabovelimitationsorexclusionsmaynotapplytoyou.
Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromStatetoState.YoumaycontactIgnitionL.P.at:
IgnitionL.P.,3102MapleAve.Suite450,Dallas,TX75201 02/09
Forproductsupport,call1-866-315-0426.
