Energy Veritas V-6.3 User manual

.~.~ .~.
Veritas Series
Owner's Manual
.~.~ .~.
Veritas Series
Owner's Manual

IMPORTANT SAFID INSTRUCTIONS!
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, ~
or sold with the apparatus. When a cart is used, use caution when moving the cart! ~
apparatus combination to avoid injury from tip-over.
11. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with
liquids, such as vases, are placed on the apparatus.
• Placing them near a corner or wall provides the greatest amount of bass while
moving the speakers away from room boundaries reduces bass energy.
• Asymmetrical placement of a pair of speakers from adjacent side walls can
smooth room-induced bass unevenness.
• Bookshelf models may be placed on shelves or optional floor stands.
• Experiment with the above guidelines to suit your taste and to compensate for
your room's acoustic characteristics.
Center Channel Speakers (See Figures 1 and 2.)
• Place immediately above or below center of your video display.
• Use the supplied self-stick rubber pads to cover the bottom of the speaker.
(See Figure 4.)
WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.
WARNING: No naked flame sources - such as candles - should be placed on the product.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
CAUTION! Turn your amplifier off before making any
connections.
Surround Channel Speakers (See Figures 1 and 2.)
• Place approximately 2 feet above the listening position. (Typically this will be
about 5-7 feet above the floor.)
• The surrounds should be placed on the walls directly adjacent to the listening
position. Another option would be on the wall behind the listening position.
• The final surround speaker placement depends on your room's characteristics.
• Use the attached wall bracket to hook to an appropriately sized screw head
screwed into a wall stud or wall anchor with a suitable weight bearing
capacity. (See Figure 2.)
• See your Energy dealer for optional, adjustable wall mounts if required. These
mounts utilize the threaded bushings on the rear of the cabinet.
• The new Veritas surrounds have bipole and dipole settings. If your surrounds
will be placed parallel with your seating area, use the dipole setting. If the sur-
rounds are placed elsewhere then us the bipole setting. (See Figure 5.)
CONNECTING
AA
It.. CAUTION! Never use the attached wall bracket for mounting the
.... speaker to the ceiling!
A
A The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert
~ the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electrical shock to persons.
SPEAKER SET-UP
For optimum acoustic performance, use the spike feet. On hard floors, the spike
receiver cups may be utilized. When spike use is not practical, use the threaded
rubber bumper feet. A base plinth is provided with this product and should be
utilized for optimal stability.
It.. The exclamation point, within an equilateral triangle, is intended to alert the user to
.... the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
To attach the plinth to the base of the cabinet, carefully stand the speaker on
its top on a non-abrasive surface. Take care not to scratch the elegant finish or
damage the drivers while handling. Align the mounting holes in the plinth with
threaded inserts in the bottom of the cabinet. Attach the plinth to the cabinet with
the four mounting screws provided.
Screw the spike feet (with lock nuts) fully into the threaded inserts. Place the
speaker upright in desired location. Use the wrench provided to adjust the spike
height so the unit is level and stable (not rocking). Next, tighten the lock nuts to
secure the spike feet in their adjusted location. (See Figure 6.)
ROOM PLACEMENT
Your Veritas loudspeakers will perform well in a variety of locations, but best
results will be achieved using the following guidelines:
Front Left and Right Speakers (See Figures 1 and 2.)
• Place on a common wall 6 to 15 feet apart.
• If used in a home theater system, position the speakers flanking your video display.
• Position them equidistant from the back wall.
• Position them at the same height above the floor (for non-floor standing
models) with the high frequency drivers at seated ear height.
• Angle speakers toward the listener and even with or forward of any adja-
cent obstructions.
Your loudspeakers are equipped with positive (Red) and negative (Black) connection
terminals on the rear of the cabinet. These correspond to the positive and negative
terminals on the appropriate channel (left, right, center, rear, etc.) of your amplifier.
Standard Connections (See Figure 3.)
• Some Veritas speakers come with dual binding posts that are connected
by a metal strip. Do not remove this strip or your speakers will not function
correctly. Keep this strip in place and connect your speaker wire to the top
set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets
of binding posts. Please see your receiver's manual for further instructions.
• All speakers in your system must be connected in phase with the positive
speaker terminal connected to the positive amplifier terminal. Repeat this
for the negative speaker terminal and amplifier terminals. Most speaker
wire has distinguishing markings on the insulation of one of the conductors
to assist in correct hook up.
• Use 16 gauge (AWG), two conductor, copper wire at a minimum and larger
gauge wire for longer runs. The connection terminals on your loudspeaker will
accommodate bare wire, spade terminals or banana type plugs.
• Use either pair of positive and negative terminals keeping the metal coupling
straps in place.
It.. CAUTION! With all connection types, take care that there is no
.... contact between the positive and negative terminals at the speaker
and amplifier. Damage to your equipment may result!
IMPORTANT SAFID INSTRUCTIONS!
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. ONLY USE attachments/accessories specified by the manufacturer.
10. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, ~
or sold with the apparatus. When a cart is used, use caution when moving the cart! ~
apparatus combination to avoid injury from tip-over.
11. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with
liquids, such as vases, are placed on the apparatus.
• Placing them near a corner or wall provides the greatest amount of bass while
moving the speakers away from room boundaries reduces bass energy.
• Asymmetrical placement of a pair of speakers from adjacent side walls can
smooth room-induced bass unevenness.
• Bookshelf models may be placed on shelves or optional floor stands.
• Experiment with the above guidelines to suit your taste and to compensate for
your room's acoustic characteristics.
Center Channel Speakers (See Figures 1 and 2.)
• Place immediately above or below center of your video display.
• Use the supplied self-stick rubber pads to cover the bottom of the speaker.
(See Figure 4.)
WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.
WARNING: No naked flame sources - such as candles - should be placed on the product.
WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this
equipment are hazardous to life. No user-serviceable parts inside.
Refer all servicing to qualified service personnel.
CAUTION! Turn your amplifier off before making any
connections.
Surround Channel Speakers (See Figures 1 and 2.)
• Place approximately 2 feet above the listening position. (Typically this will be
about 5-7 feet above the floor.)
• The surrounds should be placed on the walls directly adjacent to the listening
position. Another option would be on the wall behind the listening position.
• The final surround speaker placement depends on your room's characteristics.
• Use the attached wall bracket to hook to an appropriately sized screw head
screwed into a wall stud or wall anchor with a suitable weight bearing
capacity. (See Figure 2.)
• See your Energy dealer for optional, adjustable wall mounts if required. These
mounts utilize the threaded bushings on the rear of the cabinet.
• The new Veritas surrounds have bipole and dipole settings. If your surrounds
will be placed parallel with your seating area, use the dipole setting. If the sur-
rounds are placed elsewhere then us the bipole setting. (See Figure 5.)
CONNECTING
AA
It.. CAUTION! Never use the attached wall bracket for mounting the
.... speaker to the ceiling!
A
A The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert
~ the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electrical shock to persons.
SPEAKER SET-UP
For optimum acoustic performance, use the spike feet. On hard floors, the spike
receiver cups may be utilized. When spike use is not practical, use the threaded
rubber bumper feet. A base plinth is provided with this product and should be
utilized for optimal stability.
It.. The exclamation point, within an equilateral triangle, is intended to alert the user to
.... the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
To attach the plinth to the base of the cabinet, carefully stand the speaker on
its top on a non-abrasive surface. Take care not to scratch the elegant finish or
damage the drivers while handling. Align the mounting holes in the plinth with
threaded inserts in the bottom of the cabinet. Attach the plinth to the cabinet with
the four mounting screws provided.
Screw the spike feet (with lock nuts) fully into the threaded inserts. Place the
speaker upright in desired location. Use the wrench provided to adjust the spike
height so the unit is level and stable (not rocking). Next, tighten the lock nuts to
secure the spike feet in their adjusted location. (See Figure 6.)
ROOM PLACEMENT
Your Veritas loudspeakers will perform well in a variety of locations, but best
results will be achieved using the following guidelines:
Front Left and Right Speakers (See Figures 1 and 2.)
• Place on a common wall 6 to 15 feet apart.
• If used in a home theater system, position the speakers flanking your video display.
• Position them equidistant from the back wall.
• Position them at the same height above the floor (for non-floor standing
models) with the high frequency drivers at seated ear height.
• Angle speakers toward the listener and even with or forward of any adja-
cent obstructions.
Your loudspeakers are equipped with positive (Red) and negative (Black) connection
terminals on the rear of the cabinet. These correspond to the positive and negative
terminals on the appropriate channel (left, right, center, rear, etc.) of your amplifier.
Standard Connections (See Figure 3.)
• Some Veritas speakers come with dual binding posts that are connected
by a metal strip. Do not remove this strip or your speakers will not function
correctly. Keep this strip in place and connect your speaker wire to the top
set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets
of binding posts. Please see your receiver's manual for further instructions.
• All speakers in your system must be connected in phase with the positive
speaker terminal connected to the positive amplifier terminal. Repeat this
for the negative speaker terminal and amplifier terminals. Most speaker
wire has distinguishing markings on the insulation of one of the conductors
to assist in correct hook up.
• Use 16 gauge (AWG), two conductor, copper wire at a minimum and larger
gauge wire for longer runs. The connection terminals on your loudspeaker will
accommodate bare wire, spade terminals or banana type plugs.
• Use either pair of positive and negative terminals keeping the metal coupling
straps in place.
It.. CAUTION! With all connection types, take care that there is no
.... contact between the positive and negative terminals at the speaker
and amplifier. Damage to your equipment may result!

Bass Management
When using your speakers in a home theater system, consult the owner's manual
of your surround electronics for proper application of bass management settings.
• As a general rule, compact speakers (Bookshelf, Center Channel and Sur-
rounds) are set to the "Small," or bass-limited setting.
• Floorstanding speakers are typically set to the "Large," or fUll-range setting.
• Also refer to the electronics instructions for adjusting the relative volume levels
of the speakers so they are at the same level when in the listening position.
CARE AND CLEANING
• Occasional dusting or wiping of the cabinet with a damp cloth is all that is
required. Never use abrasive or solvent type cleaners or harsh detergents.
• A vacuum cleaner with a soft brush attachment may be used to clean the
grille fabric.
• Never spray polishes or cleaners on the drive units (woofers, midranges or tweeters).
WARRANTY - U.S. AND CANADA
Energy warrants to the original retail purchaser that this product is to be free
from defective materials and workmanship for a period of five (5) years from
the date of purchase, if it is properly used and maintained. If this product
proves defective in either material or workmanship, Energy, at its option, will (a)
repair the product, or (b) replace the product, at no charge for parts or labor.
If the product model is no longer available and cannot be repaired effectively
or replaced with an identical model, Energy at its sole option may replace the
unit with a current model of equal or greater value. In some cases, modification
to the mounting surface may be required where a new model is substituted.
Energy assumes no responsibility or liability for such modification. To obtain a
repair or replacement under the terms of this warranty, please return to dealer
first, if possible, and they will direct you accordingly for repairs or replacement.
You will be required to submit a copy of the original receipt.
Limitations:
• This limited warranty does not cover failure of the product resulting from
improper installation, misuse, abuse, accident, neglect, mishandling or
wear from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint
damage, or consequential damage to other components or premises
which may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance
with Energy's instructions.
• This limited warranty is null and void for products with altered or missing
serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this
product to another party.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION
TO JURISDICTION OR COUNTRY TO COUNTRY. ENERGY'S RESPONSIBILITY
FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACE-
MENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. FOR
CANADIAN CUSTOMERS, ENERGY DISCLAIMS ALL OTHER WARRANTIES AND
CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, FOR THE
PRODUCT. FOR U.S. CUSTOMERS, ALL EXPRESS AND IMPLIED WARRANTIES
FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES,
JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN
IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY OR CONDITIONS LASTS, SO THIS LIMITATION MAY
NOT APPLY TO YOU. ENERGY DOES NOT ACCEPT LIABILITY FOR SPECIAL,
INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT
LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS AGAINST YOU
FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE
MAXIMUM LIABILITY FOR WHICH ENERGY MAY BE RESPONSIBLE WILL BE
NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE
SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
WARRANTY OUTSIDE THE U.S. AND CANADA
The Warranty on this product if it is sold to a consumer outside of the United
States and Canada shall comply with applicable law. To obtain any applicable
warranty service, please contact the dealer from which you purchased this
product, or the distributor that supplied this product.
PRODUCT REGISTRATION
Register your Energy Speakers at energy-speakers.com/register
FCC AND CANADA EMC COMPLIANCE INFORMATION:
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not in-stalled and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radiofTV technician for help.
Approved under the verification provision of FCC Part 15 as a Class B Digital Device.
Caution: Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this device.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE BEST CON FORME A LA NORME
NMB-003 DU CANADA.
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union EMC Directive
2004/108/EC.
WEEE NOTICE
Note: This mark applies only to countries within the European Union (EU) and Norway.
This appliance is labeled in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equipment
(WEEE). This label indicates that this product should not be disposed
of with household waste. It should be deposited at an appropriate
facility to enable recovery and recycling.

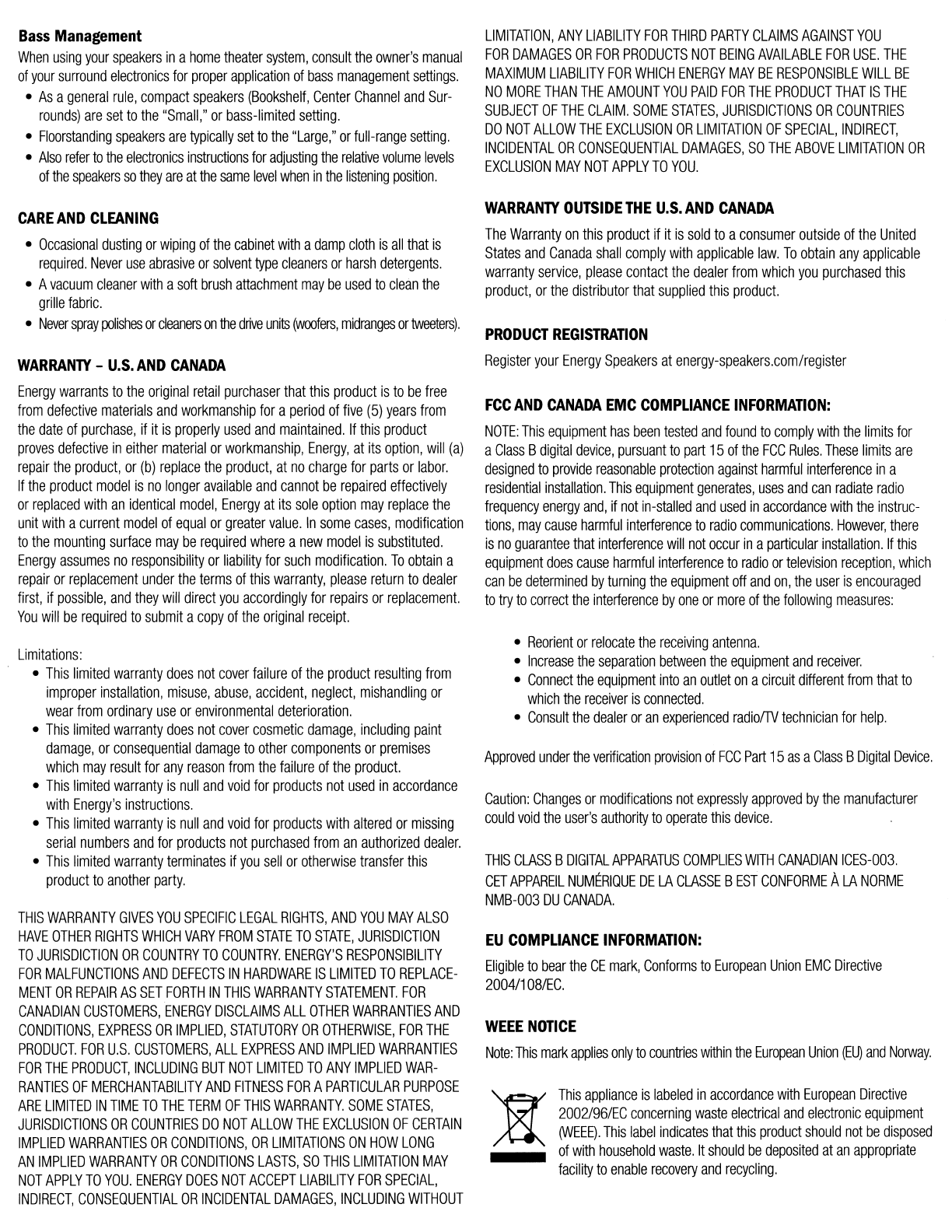

Bass Management
When using your speakers in a home theater system, consult the owner's manual
of your surround electronics for proper application of bass management settings.
• As a general rule, compact speakers (Bookshelf, Center Channel and Sur-
rounds) are set to the "Small," or bass-limited setting.
• Floorstanding speakers are typically set to the "Large," or fUll-range setting.
• Also refer to the electronics instructions for adjusting the relative volume levels
of the speakers so they are at the same level when in the listening position.
CARE AND CLEANING
• Occasional dusting or wiping of the cabinet with a damp cloth is all that is
required. Never use abrasive or solvent type cleaners or harsh detergents.
• A vacuum cleaner with a soft brush attachment may be used to clean the
grille fabric.
• Never spray polishes or cleaners on the drive units (woofers, midranges or tweeters).
WARRANTY - U.S. AND CANADA
Energy warrants to the original retail purchaser that this product is to be free
from defective materials and workmanship for a period of five (5) years from
the date of purchase, if it is properly used and maintained. If this product
proves defective in either material or workmanship, Energy, at its option, will (a)
repair the product, or (b) replace the product, at no charge for parts or labor.
If the product model is no longer available and cannot be repaired effectively
or replaced with an identical model, Energy at its sole option may replace the
unit with a current model of equal or greater value. In some cases, modification
to the mounting surface may be required where a new model is substituted.
Energy assumes no responsibility or liability for such modification. To obtain a
repair or replacement under the terms of this warranty, please return to dealer
first, if possible, and they will direct you accordingly for repairs or replacement.
You will be required to submit a copy of the original receipt.
Limitations:
• This limited warranty does not cover failure of the product resulting from
improper installation, misuse, abuse, accident, neglect, mishandling or
wear from ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint
damage, or consequential damage to other components or premises
which may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance
with Energy's instructions.
• This limited warranty is null and void for products with altered or missing
serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this
product to another party.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION
TO JURISDICTION OR COUNTRY TO COUNTRY. ENERGY'S RESPONSIBILITY
FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACE-
MENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. FOR
CANADIAN CUSTOMERS, ENERGY DISCLAIMS ALL OTHER WARRANTIES AND
CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, FOR THE
PRODUCT. FOR U.S. CUSTOMERS, ALL EXPRESS AND IMPLIED WARRANTIES
FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES,
JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN
IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY OR CONDITIONS LASTS, SO THIS LIMITATION MAY
NOT APPLY TO YOU. ENERGY DOES NOT ACCEPT LIABILITY FOR SPECIAL,
INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT
LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS AGAINST YOU
FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE
MAXIMUM LIABILITY FOR WHICH ENERGY MAY BE RESPONSIBLE WILL BE
NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE
SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
WARRANTY OUTSIDE THE U.S. AND CANADA
The Warranty on this product if it is sold to a consumer outside of the United
States and Canada shall comply with applicable law. To obtain any applicable
warranty service, please contact the dealer from which you purchased this
product, or the distributor that supplied this product.
PRODUCT REGISTRATION
Register your Energy Speakers at energy-speakers.com/register
FCC AND CANADA EMC COMPLIANCE INFORMATION:
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not in-stalled and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radiofTV technician for help.
Approved under the verification provision of FCC Part 15 as a Class B Digital Device.
Caution: Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this device.
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE BEST CON FORME A LA NORME
NMB-003 DU CANADA.
EU COMPLIANCE INFORMATION:
Eligible to bear the CE mark, Conforms to European Union EMC Directive
2004/108/EC.
WEEE NOTICE
Note: This mark applies only to countries within the European Union (EU) and Norway.
This appliance is labeled in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equipment
(WEEE). This label indicates that this product should not be disposed
of with household waste. It should be deposited at an appropriate
facility to enable recovery and recycling.

Below
~~
Optional side surround placement :, SR:,
: SL: (Option A is preferred) 8:'" :
: ..... :8
IImI
mmJ
0
~I
0
I~
,'-IS'
e:-~
Sub
Sub
TV
OR
0Ic00
OR mI
e:-
X=Y=I
Y
-rJ Above
~
ISLI
A
~
PI.
IilmJ Standard Connections
amDI~----------
mBl-----------
mmm~----------
D
Sub
TV
c
Below
~~
Optional side surround placement :, SR:,
: SL: (Option A is preferred) 8:'" :
: ..... :8
IImI
mmJ
0
~I
0
I~
,'-IS'
e:-~
Sub
Sub
TV
OR
0Ic00
OR mI
e:-
X=Y=I
Y
-rJ Above
~
ISLI
A
~
PI.
IilmJ Standard Connections
amDI~----------
mBl-----------
mmm~----------
D
Sub
TV
c

V-6.3 V-6.2
V-S.l
V-S.2-C V-s
V-Mini
V-Mini-C
V-6.3 V-6.2
V-S.l
V-S.2-C V-s
V-Mini
V-Mini-C

1 [phone] • energy-speakers.com
© 2010 Klipsch Speakers
1 [phone] • energy-speakers.com
© 2010 Klipsch Speakers

MOUNTING YOUR V-MINI AND V-MINI CENTER SPEAKERS
NOTE:The V-Mini includes a very simple wall mounting system.The V-Mini
Center uses the same bracket,but it is NOT included. Careful attention
must be made to mount it securely as the speaker is heavy and damage
to the product and/or injury could result from improper mounting. Please
follow the directions carefully!
Reference Figures 1-7 on opposite side of this page:
1. Select the mounting position best suited for your room.
2. Place the wall mounting bracket against the wall in the desired
mounting location and mark the center of the two holes with a pencil.
This is where you need to insert the appropriate mounting hardware
to securely fasten a load of 15 Ibs. Hardware is not included with the
speaker,as building materials vary greatly in different countries,but
the recommended screw head size is a #8. Screw length is to be
determined by the wall material. /
3. If you are mounting directly to drywall,please ensur~hat you use the
appropriate anchors, as screws into drywall itself will not provide a
secure mount. Insert the anchors, and then hold the mounting bracket
up to the wall.lnsert the screws until tight. Try to locate into wall studs
wherever possible.
4. The mounting bracket is very flexible and can be installed in one of
four different positions on the rear of the speaker, depending on your
application. Using the included allen key,remove the screw on the rear
terminal plate that suits your installation and put this screw aside, it
is NOT used with the mounting bracket. Using the 16mm long screw
packaged with the bracket, attach the bracket to the back of the
speaker terminal plate. The top and bottom screws will allow you the
most flexibility in terms of horizontal adjustment, while the left or right
screws will give you the most flexibility in terms of vertical adjustment.
5. Bring the two pieces of the bracket together and screw the included
bolt until snug. Using the included allen key, tighten the screw to hold
the speaker in place once the final position has been chosen. Do not
overtighten.
'~-'
\
