Enersound CS-300 User manual

Conference System
CS-300
This is a professional, plug and play, turn-key solution to both
your microphone and sound needs. It is ideal for panel
discussions, plenary sessions, press conferences, and more.
It can also be used to enhance sound quality of
videoconferences (Zoom, Skype, Microsoft Teams, etc.) with the
USB adapter pack add-on. The CS-300 can be configured for
groups of different sizes.
5869 SW 21 Street, West Park, FL33023, USA • Phone: [phone] • Fax: [phone] • www.enersound.com

5869 SW 21 Street, West Park, FL33023, USA • Phone: [phone] • Fax: [phone] • www.enersound.com
The control unit is the core of the discussion
system. It controls and provides power to the
delegate and chairman units. Each control unit
can handle up to 50 microphone units and a
maximum of 150 microphones with 3 control
units can be interconnected.
The chairman unit allows the chairperson or
moderator to participate in a discussion by
speaking through a microphone. It not only pro-
vides the same functions as the delegate unit,
but also features a “priority button,” which en-
ables the chairperson to control the discussion
by temporarily or permanently overriding and
deactivating all active delegate units. Each
chairman unit comes with a 6.6 ft cable at-
tached.
Delegate units allow attendees to participate in a
discussion by speaking through a microphone
controlled by an ON/OFF push button. They can
also listen to the discussion through the internal
loudspeaker or the external headphone, similarly
to the chairman unit. Each microphone comes
with a built-in speaker. Microphone units can be
connectedconnected in daisy chain to one another. A 6.6 ft
cable is attached to each unit. You may need addi-
tional extension cables depending on the system
layout.
CH-300 Chairman Unit
CU-300 Control Unit
DU-300 Delegate Unit
Components

5869 SW 21 Street, West Park, FL33023, USA • Phone: [phone] • Fax: [phone] • www.enersound.com
For up to 6 DU-300 and/ or CH-300
microphone units, 1 CU-300 control
unit and a pouch for cables.
For up to 8 DU-300 and/ or CH-300
microphone units and a pouch
for cables.
Extension cables are available in 9.8ft (3m), 16.4ft (5m),
32.8ft (10m) and 65.6ft (20m). Cables can be intercon-
nected for longer lengths. Extension cables are recom-
mended for greater flexibility in different microphone
layouts.
CBL-300 Extension Cables
CAS-306U
CAS-308
USB Adapter Pack
Required to connect the control unit to a
computer, and thus easily set up a remote
meeting through Zoom, Skype, Microsoft
Teams or other platforms for teleconferenc-
ing.
Accessories

5869 SW 21 Street, West Park, FL33023, USA • Phone: [phone] • Fax: [phone] • www.enersound.com
System Set-up
Connection to
other equipment
CU-300
CU-300
CH-300
DU-300
Teleconference
Equipment
External
PA System
Wireless
Microphone

5869 SW 21 Street, West Park, FL33023, USA • Phone: [phone] • Fax: [phone] • www.enersound.com
CU-300 Control Unit
- Operating voltage: 100-240 VAC, 50/60 Hz
(auto-switching)
- Current consumption: MAX 0.9A (100VAC) 0.3A
(240VAC)
- DC supply to contribution units: ±15V
-- Line, Telephone Coupler and Insertion In/Outputs
(Unbalanced)
• Input sensitivity: -14dBV/+11dBV
• Input impedance: 33KΩ
• Output level: -14dBV/+11dBV
• Output impedance: 500Ω
- Recorder In/Out (Unbalanced)
•• Input sensitivity: -20dBV/+5dBV
• Input impedance: 47KΩ (for L & R channel)
• Adjustment: -20dBV/+5dBV
• Output level: +0/-30dB
• Output impedance: 500Ω
- External Microphone Input (Balanced)
• Input sensitivity: -56dBV
•• Adjustment: +6dB/-6dB
• Phantom Power: 12V+/-1V, 2 x 680Ω (+/-2%)
• Output connection: 3.5mm stereo jack
- Headphone Output
• Output level: -8dBV/+2dBV
• Output Impedance: 22Ω
CH-300 Chairman Unit &
DU-300 Delegate Unit
- Gooseneck Microphone:
• Type: Electret Condenser
• Frequency response: 50 to 18,000Hz
• Polar pattern: Cardioid
•• Max. SPL for 1% THD: 125dB
• Gooseneck length: 15” / 40 cm
System Limits:
Number of delegate/chairman units
connected to a single control unit:
• Maximum total: 50
• Maximum per trunk output: 25
•• Maximum cable length per trunk: 328 ft
(100m) including the 6.6 ft (2m) cable
attached to each unit.
Maximum number of interconected control
units: 3 for a maximum of 150 microphone
units.

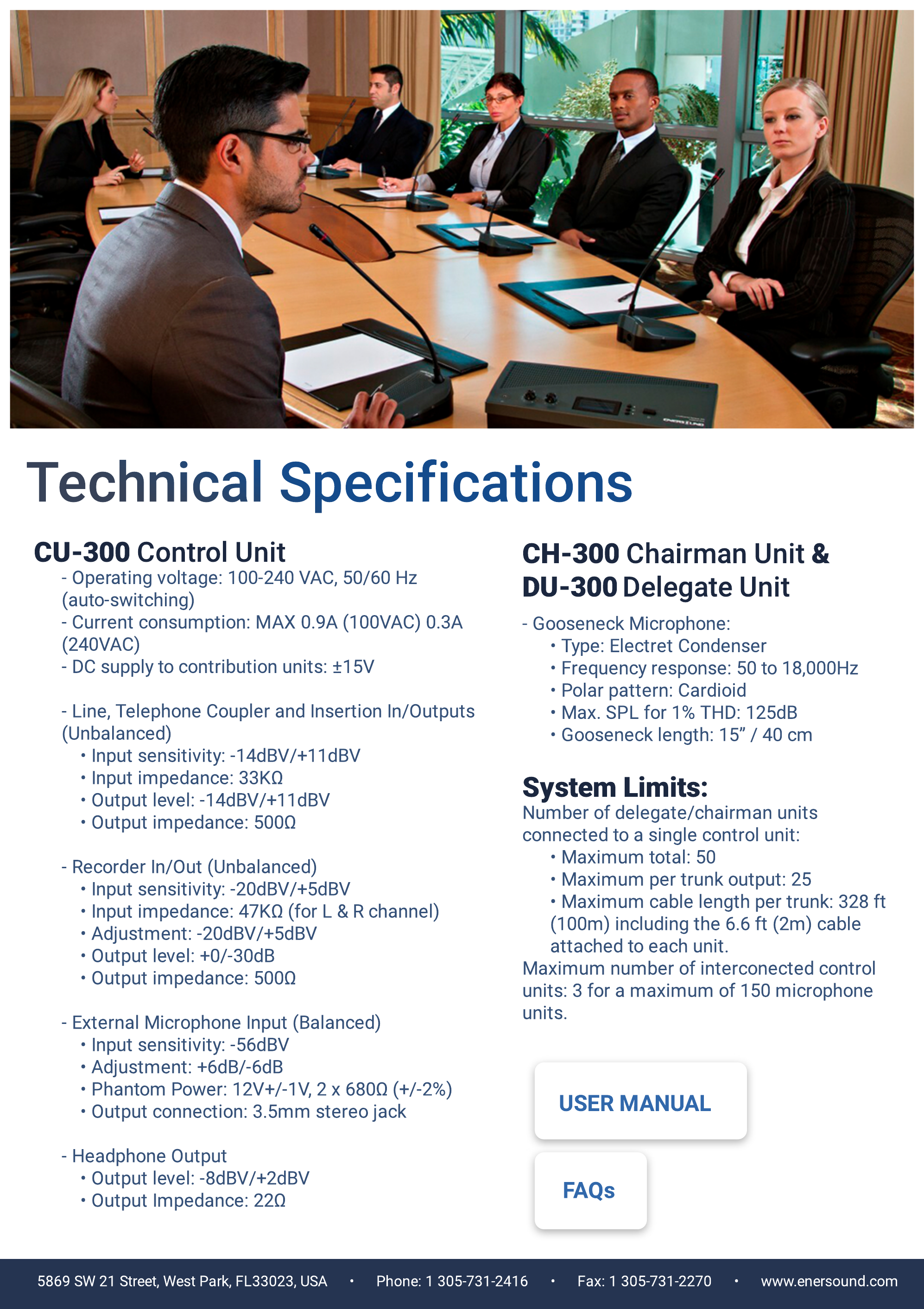

USER MANUAL
FAQs
Technical Specifications

5869 SW 21 Street, West Park, FL33023, USA • Phone: [phone] • Fax: [phone] • www.enersound.com
