Installation- and maintenance instruction
B 30 2A
DESCRIPTION
171 205 20 07-01
Components
1. Shrouded disc
2. Nozzle
3. Ignition electrodes
4. Nozzle assembly
5. Ignition cable
6. Ignition transformer
7. Reset button
8. Electric panel
9. Cover, inspection glass
10. Switch I-II
11. Switch 0-I
12. Fan wheel
13. Motor
14. Nozzle assembly adjustment
15. Blast tube
16. Damper motor
17. Photo cell
18. Air damper
19. Air intake
20. Connecting pipe Stage 1
21. Solenoid valve
22. Connecting pipe Stage 2
171 235 06 10-01
TECHNICAL DATA
Electrode adjustment
Because of different boiler types
existing on the market, with varying
combustion chamber designs, it is
angle or spray pattern.
Note that the spray angle and the
spray pattern change with the pump
pressure.
Recommended nozzle
Output range and nozzles recommended
Burner tube Length of burner tube
Measure B
A 209 174
A 309 274
Burner tube Oil capacity Capacity Recommended nozzle Recommended Pump pressure
Bar
Angle Danfoss Monarch Stage 1 Stage 2
A 6,0-17,0 71-202 61-173 45° - 60° S, B R, PLP 8-12 18-25
Type designation B30A
Recommended pump pressure
The factorysettingofthepumppressure
is 10 bar for stage 1 and 20 bar for
stage 2. To accommodate the range of
the burner the pressure can be reduced
the pressure range of the pump.
Dimensions
188
395 B372
ø108
ø108
220
281
303
ø108 35
160-190
2,5-3,5 1,0-2,0
7,0-9,0
General rules
The installation of an oil burner
should be carried out in accordance
with local regulations. The installer of
the burner must therefore be aware
of all regulations relating to oil and
combustion.
Only oil suitable for the burner should
be used and then in combination with
of the burner.
If the burner is replacing an existing
is replaced or cleaned. The installa-
tion must only be undertaken by
experienced personnel. Care should
be taken by the installer to ensure
pipes are trapped or damaged during
Installation instructions
General installation instructions
accompany the burner and should be
left in a prominent place adjacent to
the burner.
Adjustment of burner
The burner is from the factory pre-set
to an average value that must then be
adjusted to the boiler in question.
All burner adjustments must be made in
accordance with boiler manufacturers
instructions.These must include the
average water temperature and CO2
or O2concentration.
To adjust the combustion device, start
by increasing the air volume and the
burner starts it is burning with excess
air and smoke number 0. Reduce the
nozzle assembly adjustment until
soot occurs, and then increase the
adjustment to make the soot disap-
pear again. Then the volume of air
is reduced until soot occurs and in-
creased again to reach a combustion
free of soot.
By this procedure an optimum
adjustment is obtained. If larger
nozzles are used the preadjustment
of both the air volume and the nozzle
assembly must be increased.
Awhistling sound may be heard which
can be eliminated or reduced as
follows: Increase the nozzle assembly
adjustmentsomewhat.TheCO2-content
and consequently the air volume will
then be reduced.
Condensation in chimney
A modern burner works with less
excess air and often also with smaller
Maintenance
regularly for any signs of malfunction
or oil leakage.
Oil supply
The oil line should be dimensioned
in accordance with the pump manu-
facturer´s instruction. In the suction
mounted to prevent any particles in
the oil from reaching the burner. If the
installation consists of several burners
each one should have its own suc-
tion line from the tank or a circulation
system should be used.
The temperature in the oil line should
be kept as constant as possible.
Avoid exposing the line to excessive
cold which may cause blockages of
The oil pipe and electric cable should
the combustion device.

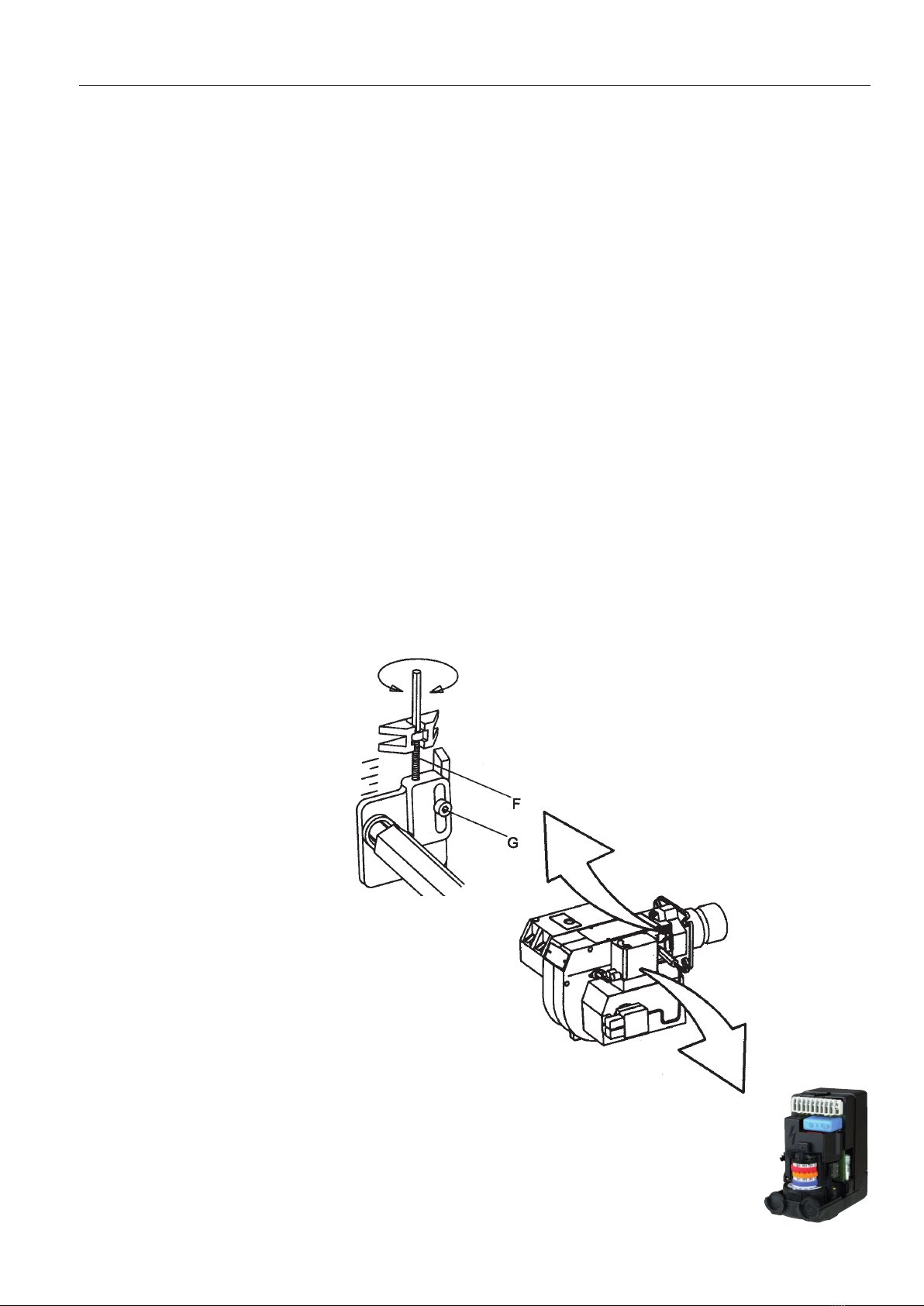

Adjustment of nozzle assembly
Loosen the screw G and adjust
the nozzle assembly by turning the
screw F.
Max. capacity - Front position
Medium capacity - Middle position
Min. capacity - Rear position
GENERAL INSTRUCTIONS
nozzles than older models.
the risk of condensation in the
chimney. The risk increases if the area
exceed 60°C measured 0,5 metres
from the chimney top.
Measures to raise the temperature:
Insulate the chimney in cold attics
Install a tube in the chimney
Install a draught regulator (dilutes the
them up during standstill)
Increase the oil quantity
-
moving turbulators, if any, in the boiler.
Instructions for use
The end user of the burner should be
instructed about the operation and
safety features of the burner.
He should also be made aware of
the importance of the area around
combustible material.
Pump adjustment
See separate description.
Air adjustment
See page "Air adjustment with damper
motor"
171 305 51 10-01
Releasing button
N.B. The upper position is the standard
position
High capacity (red)
Low capacity (orange)
Closed damper (blue))
Solenoid valve High capacity (black)
171 315 07 09-01
AIR ADJUSTMENT WITH DAMPER MOTOR
The damper motor turns the damper
between 3 preset positions: fully
closed, low capacity and high capa-
city. These positions are controlled in
the motor by cams which are set by
means of the coloured disks. In ad-
dition there is a black disk controlling
the connection of solenoid valve 2.
If the air volume needs changing:
Remove the cover from the damper
motor and change the position of the
Low capacity:
Adjust the operating switch to high
capacity (II).
• Reduce the air volume:
Turn orange cam towards 0°.
• Increase the air volume:
Turn orange cam towards 90°.
Adjust the operating switch back to
low capacity and check.
Full capacity:
Adjust the operating switch to low
capacity (I).
• Reduce the air volume:
Turn red cam towards 0°.
• Increase the air volume:
Turn red cam towards 90°.
If the red cam is moved, change the
black cam as much. Adjust the opera-
ting switch back to high capacity and
ensure that the correct air volume has
been obtained.
Note!
The blue cam is the limit position for
fully closed damper and it is normally
not necessary to change it.
Releasing button
By pressing the button and snapping
it down, the motor will be released
and the damper can easily be turned.
This function facilitates an exchange
of damper motor.
MAINTENANCE OF OIL BURNER
Warning: Before doing any service switch off power at the main switch and cut off the oil supply.
171 305 74 07-01
Open the cover and disconnect the
connecting pipes by loosening screw
A.

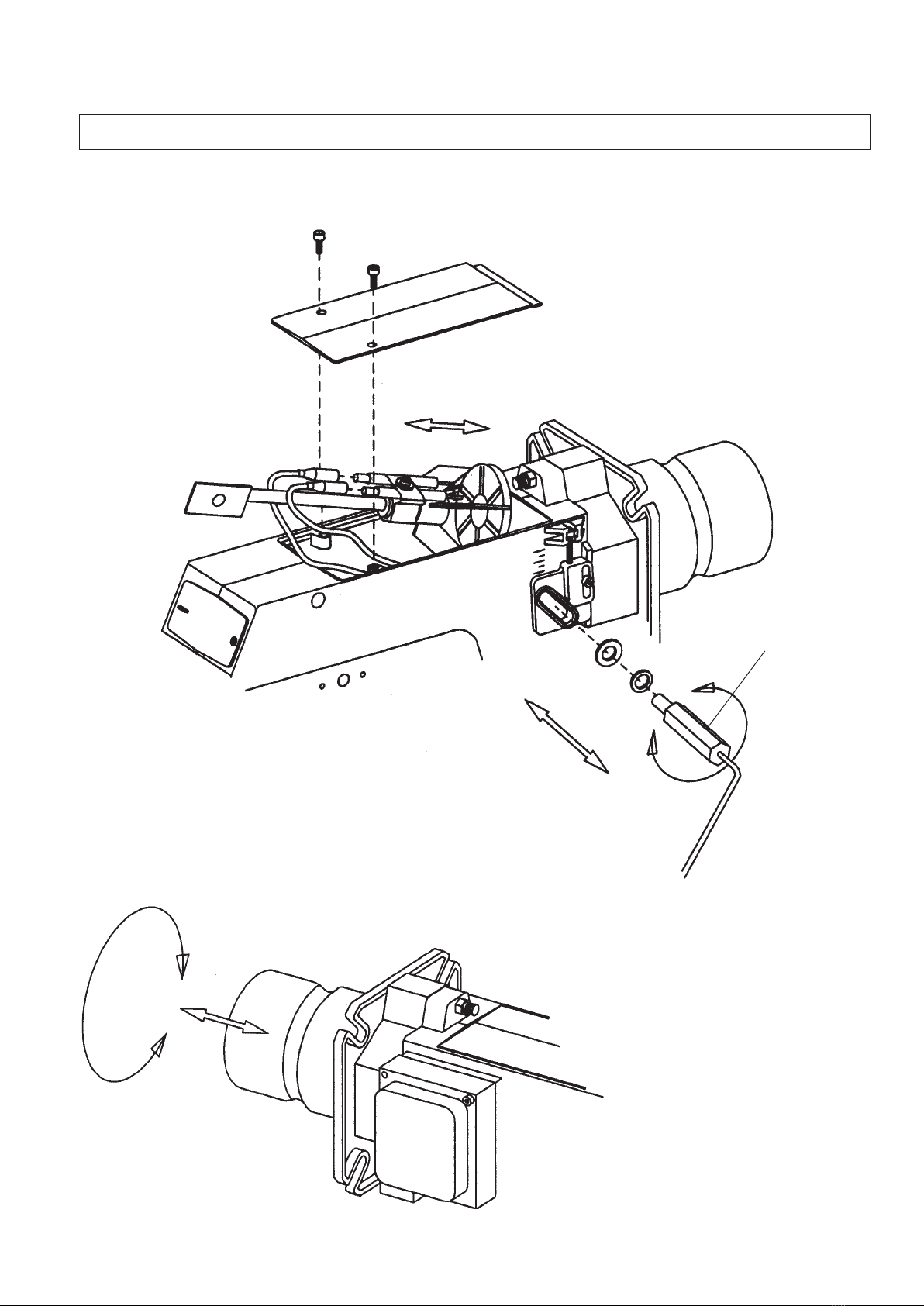

Service of burner head
1. Loosen or swing out the burner
from the boiler.
2. Turn the blast tube to the left and
withdraw it.
A
171 425 12 10-01
ELECTRIC EQUIPMENT
Oil burner control: LOA21... / LOA24...

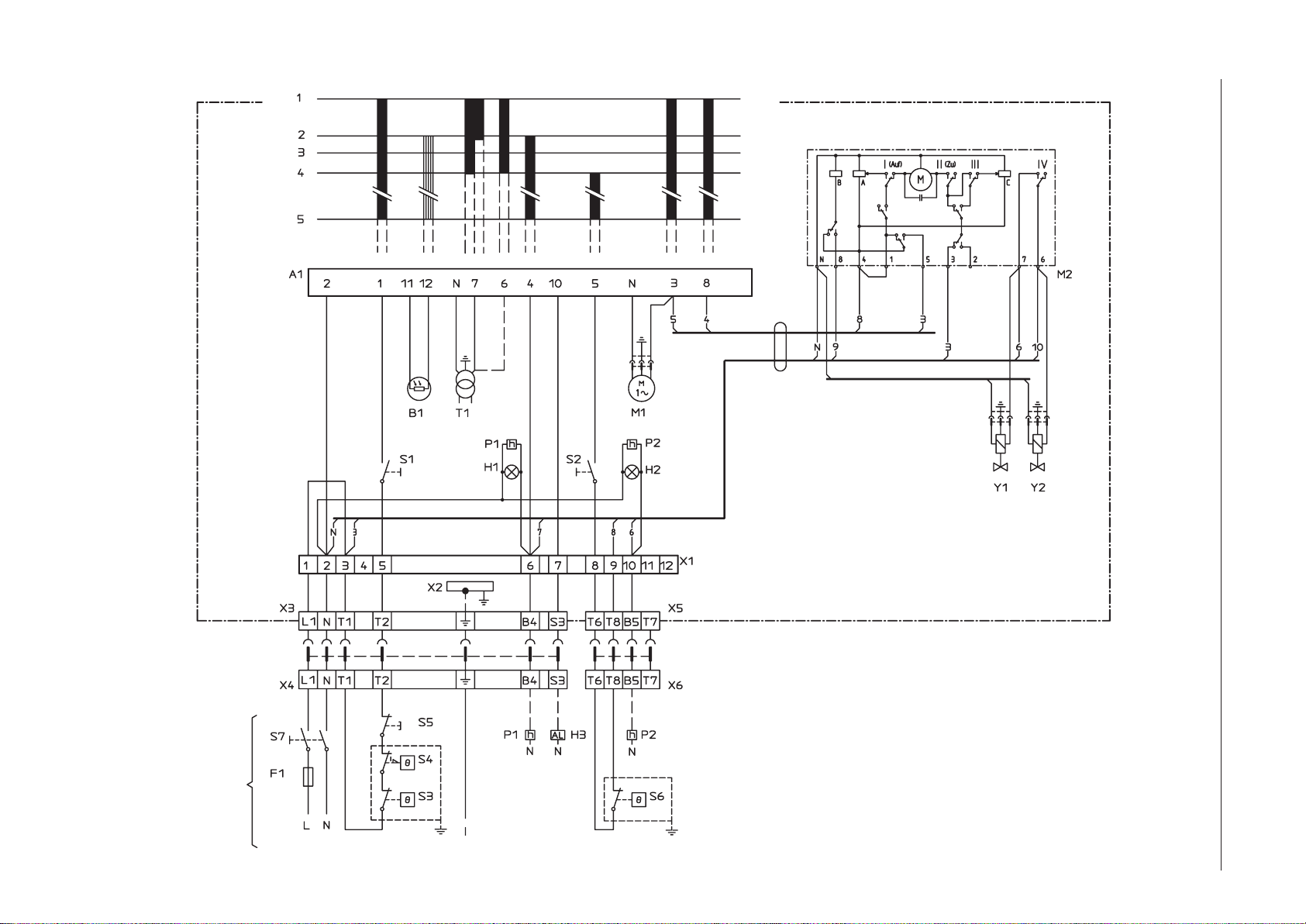

Wiring diagram
* If the boiler is not equipped with wired contacts, connect the
enclosed contacts to terminals X4 and X6 in accordance with
wiring diagram.
(1)(2)
*
1(3)
171 425 12 10-01
2(3)
ELECTRIC EQUIPMENT
List of components
A1 Oil burner control
B1 Photoresistor
F1 Fuse
H1 Lamp, low capacity
H2 Lamp, high capacity
M1 Burner motor
M2 Damper motor SQN75.244A21B
P1 Time meter, low capacity (optional)
P2 Time meter, high capacity (optional)
S1 Operating switch
S3 Control thermostat
S4 Temperature limiter
S5 Micro switch for hinged door
S7 Main switch
T1 Ignition transformer
X1 Connection terminal board
X2 Earth terminal
X3 Plug-in-contact, burner
X4 Plug-in-contact, boiler
Y1 Solenoid valve 1
Y2 Solenoid valve 2
If S6 is missing connection between T6 and T8.
Mains connection and fuses in accordance with local regulations.
171 425 12 10-01
ELECTRIC EQUIPMENT
Function
1. Switch on operating switch and twin thermostat
A spark is formed. The air damper motor opens the damper to low load
position. The burner motor starts, the prepurge goes on till the prepurge
period expires and the solenoid valve 1 opens (2)
2. Solenoid valve 1 opens
(1) (LOA24.171...).
(2)
transformer is connected to terminal 7 (LOA24.173...).
3. The safety time expires
burner will make an attempt to re-start.
4. High/Low thermostat ON
The burner is in operating position and can now change between full
load and low load.
4-5. Operating position
If the burner operation is interrupted by means of the main switch or the
thermostat, a new start takes place when the conditions in accordance
The oil burner control cuts out
A red lamp in the control is lit. Press the reset button and the burner
re-starts.
Post-ignition
(2) If a post-ignition of 15 s. is wanted, move the ignition transformer from
terminal 7 to terminal 6 (LOA24.173...).
Technical data
Pre-ignition time: 13 s
Pre-purge time: 13 s
(1) Post-ignition time: 15 s
(2) Post-ignition time: 2 s
Safety lock-out time: 10 s
Reset time after lockout: ≈50 s
Ambient temperature: from - 20 to + 60°C
Enclosure: IP 40
(Under voltage proof only LOA24...)
Control of photo current
the current through photo unit is measured with a d.c. ammeter (a moving coil
instrument connected in series with the photo unit).
3(3)

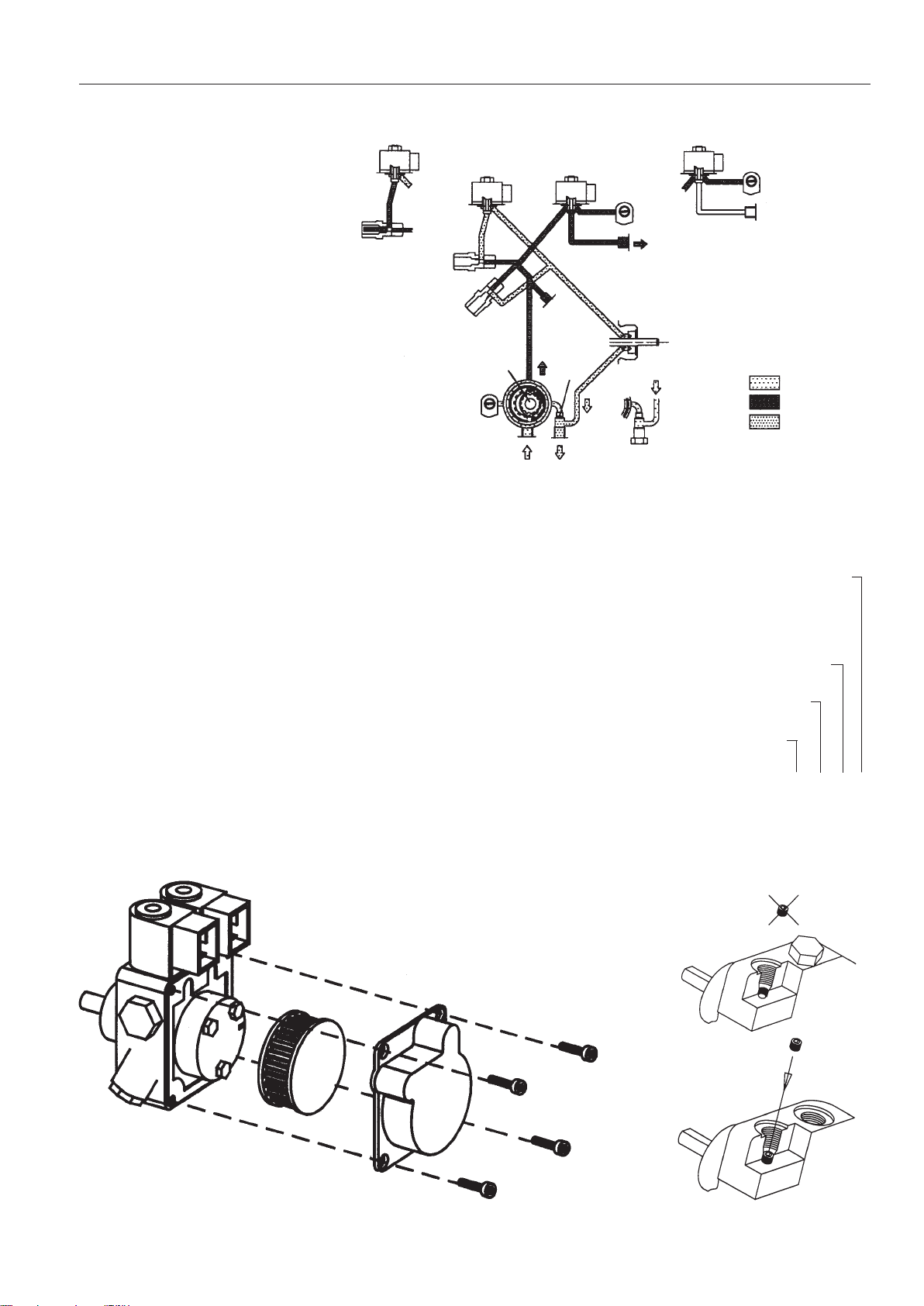

INSTRUCTIONS PUMP TYPE SUNTEC AT2 45C
Technical data
2
Pressure range: 8-25 bar
Factory setting: Stage 1 10 bar
Stage 2 20 bar
Oil temperature: max 60°C
Components
1.Pressure adjustment Stage 1
and internal by-pass plug
8.Return plug
9.Pressure adjustment Stage 2
Suction line tables
The suction line tables consist of
theoretically calculated values where
the pipe dimensions and oil velocity
have been matched so that turbulences
will not occur. Such turbulences will
result in increased pressure losses
and in acoustic noise in the pipe system.
In addition to drawn copper piping
a pipe system usually comprises 4
elbows, a non-return valve, a cut-off
The sum of these individual resistances
disregarded.The tables do not include
any lengths exceeding 100 m as
experience shows that longer lengths
are not needed.
The tables apply to a standard fuel oil
of normal commercial quality according
tocurrentstandards.Oncommissioning
with an empty tube system the oil pump
should not be run without oil for more
than 5 min. (a condition is that the pump
is being lubricated during operation).
The tables state the total suction line
length in metres at a nozzle capacity
of 3,0 Gph. Max. permissible pressure
at the suction and pressure side is 2,0
bar. For two-pipe system Qmax
pump capacity at 0 bar.
1-pipe system
Height Pipe diameter
H ø4 mm ø6 mm ø8 mm
m m m m
4,0 28 100 100
3,0 24 100 100
2,0 21 100 100
1,0 18 92 100
0,5 16 83 100
0,0 14 75 100
1-pipe system
Height Pipe diameter
H ø6 mm
m m
system is not recommended
Two-pipe system
Height Pipe diameter
H ø6 mm ø8 mm ø10 mm
m m m m
4,0 29 96 100
3,0 25 85 100
2,0 22 73 100
1,0 18 61 100
0,5 16 55 100
0,0 14 49 100
Two-pipe system
Height Pipe diameter
H ø6 mm ø8 mm ø10 mm
m m m m
0,0 14 49 100
-0,5 12 43 100
-1,0 10 37 94
-2,0 7 26 65
-3,0 3 14 37
-4,0 0 2 8
171 505 24 10-01
H
H
Shaft rotation and nozzle location
Left hand nozzle (seen from
Shaft end)
Gear set capacity
(see pump capacity curves)
Standard model
Solenoid valve
with cut-off
- Light oil.
- One or two-pipe system.
Pump operating principle
The oil pump has a built in solenoid
valve which controls the regulator
cut-off valve giving fast cut-off and
cut-on function independent of the
rotational speed.
The gear-set draws oil from the tank
it to the valve that regulates the oil
pressure to the nozzle line.
All oil which does not go through the
nozzle line will be dumped through
the valve back to the return line or, if
it is a one-pipe installation, back to the
suction port in the gear-set.
- Two-pipe operation
the by-pass channel between the
pressure and return sides of the valve
is open.
No pressure will then be built up to
open the valve. It does not matter
which speed the gear set has.
by-pass channel will be closed and
because of the full speed of the gear-
set, the pressure necessary to open
the valve will be built up very rapidly
which gives a very sharp cut-on
function.
- One-pipe operation
Bleeding on one-pipe is not automatic,
and a pressure port must be opened
to bleed the system.
Cut-off
opens the by-pass at the same moment
which drains all the oil down to the return
and the nozzle valve closes immediately.
This gives a very sharp cut-off function.
The cut-on and off can be regulated
regardless of motor speed and has
an extremely fast response.
Exchange of ilter Mounting/dismounting return plug
171 505 37 11-01
APPLICATIONS FOR SUNTEC AT2 45C
One pipe system
Two pipe system
the torque requirement is low up to
full motor speed.
C452
AT
By-passed oil
returned to tank,
or to suction
Oil under pressure
Oil under suction
To nozzle
Pressure
gauge port
By-pass
plug
Gear set
Shaft seal
Back to suction
One pipe installation
Two pipe installation
Return
gauge port
Suction
Low pressure
adjustment
High pressure ad-
justment
Pressure
outlet
or pressure
gauge port
Blocking solenoid
valve open
Blocking solenoid
valve closed
By-pass solenoid
valve open
By-pass solenoid
valve closed
171 505 44 07-01
Gph 8 9 10 11
0,40 1,33 16 13 1,41 17 14 1,49 18 15 1,56 18 16
0,50 1,66 20 17 1,76 21 18 1,86 22 19 1,95 23 20
0,60 2,00 24 20 2,12 25 22 2,23 26 23 2,34 28 24
0,65 2,16 26 22 2,29 27 23 2,42 29 25 2,54 30 26
0,75 2,49 29 25 2,65 31 27 2,79 33 28 2,93 35 30
0,85 2,83 33 29 3,00 36 31 3,16 37 32 3,32 39 34
1,00 3,33 39 34 3,53 42 36 3,72 44 38 3,90 46 40
1,10 3,66 43 37 3,88 46 39 4,09 48 42 4,29 51 44
1,20 3,99 47 41 4,24 50 43 4,47 53 46 4,68 55 48
1,25 4,16 49 42 4,40 52 45 4,65 55 47 4,88 58 50
1,35 4,49 53 46 4,76 56 48 5,02 59 51 5,27 62 54
1,50 4,98 59 51 5,29 63 54 5,58 66 57 5,85 69 60
1,65 5,49 65 56 5,82 69 59 6,14 73 63 6,44 76 66
1,75 5,82 69 59 6,18 73 63 6,51 77 66 6,83 81 70
2,00 6,65 79 68 7,06 84 72 7,45 88 76 7,81 93 80
2,25 7,49 89 76 7,94 94 81 8,38 99 85 8,78 104 89
2,50 8,32 99 85 8,82 105 90 9,31 110 95 9,76 116 99
2,75 9,15 108 93 9,71 115 99 10,24 121 104 10,73 127 109
3,00 9,98 118 102 10,59 126 108 11,16 132 114 11,71 139 119
3,50 11,65 138 119 12,35 146 126 13,03 154 133 13,66 162 139
4,00 13,31 158 136 14,12 167 144 14,89 176 152 15,62 185 159
4,50 14,97 177 153 15,88 188 162 16,75 198 171 17,57 208 179
5,00 16,64 197 170 17,65 209 180 18,62 221 190 19,52 231 199
5,50 18,30 217 187 19,42 230 198 20,48 243 209 21,47 255 219
6,00 19,97 237 204 21,18 251 216 22,34 265 228 23,42 278 239
6,50 21,63 256 220 22,94 272 234 24,20 287 247 25,37 301 259
7,00 23,29 276 237 24,71 293 252 26,06 309 266 27,33 324 279
7,50 24,96 296 254 26,47 314 270 27,92 331 285 29,28 347 298
8,00 26,62 316 271 28,24 335 288 29,79 353 304 31,23 370 318
8,50 28,28 335 288 30,00 356 306 31,65 375 323 33,18 393 338
9,00 29,95 355 305 31,77 377 324 33,59 398 342 35,14 417 358
NOZZLE TABLE
Pump pressure bar
The table applies to oil with a viscosity of 4,4 mm23.
Burner with preheater
Consider that on preheating the oil quantity is reduced by 5-20% depending on.
- Rise in temperature at the nozzle
- Design of nozzle
- Capacity (high capacity - small difference)
1(2)
171 505 44 07-01
Gph 12 13 14 15
0,40 1,63 19 17 1,70 20 17 1,76 21 18 1,82 21 18
0,50 2,04 24 21 2,12 25 22 2,20 26 22 2,28 27 23
0,60 2,45 29 25 2,55 30 26 2,64 31 27 2,73 32 28
0,65 2,65 31 27 2,75 33 28 2,86 34 29 2,96 35 30
0,75 3,08 36 31 3,18 38 32 3,30 39 34 3,42 40 35
0,85 3,47 41 35 3,61 43 37 3,74 44 38 3,87 46 39
1,00 4,08 48 42 4,24 50 43 4,40 52 45 4,56 54 46
1,10 4,48 53 46 4,67 55 48 4,84 57 49 5,01 59 51
1,20 4,89 58 50 5,09 60 52 5,29 63 54 5,47 65 56
1,25 5,10 60 52 5,30 63 54 5,51 65 56 5,70 68 58
1,35 5,50 65 56 5,73 68 58 5,95 70 61 6,15 73 63
1,50 6,11 72 62 6,36 75 65 6,60 78 67 6,83 81 70
1,65 6,73 80 69 7,00 83 71 7,27 86 74 7,52 89 77
1,75 7,14 85 73 7,42 88 76 7,71 91 79 7,97 94 81
2,00 8,18 97 83 8,49 101 86 8,81 104 90 9,12 108 93
2,25 9,18 109 94 9,55 113 97 9,91 117 101 10,26 122 105
2,50 10,19 121 104 10,61 126 108 11,01 130 112 11,39 135 116
2,75 11,21 133 114 11,67 138 119 12,11 144 123 12,53 148 128
3,00 12,23 145 125 12,73 151 130 13,21 157 135 13,67 162 139
3,50 14,27 169 145 14,85 176 151 15,42 183 157 15,95 189 163
4,00 16,31 193 166 16,97 201 173 17,62 209 180 18,23 216 186
4,50 18,35 217 187 19,10 226 195 19,82 235 202 20,51 243 209
5,00 20,39 242 208 21,22 251 216 22,03 261 225 22,79 270 232
5,50 22,43 266 229 23,34 277 238 24,23 287 247 25,07 297 256
6,00 24,47 290 249 25,46 302 260 26,43 313 269 27,49 326 280
6,50 26,51 314 270 27,58 327 281 28,63 339 292 29,63 351 302
7,00 28,55 338 291 29,70 352 303 30,84 366 314 31,91 378 325
7,50 30,59 363 312 31,83 377 324 33,04 392 337 34,19 405 349
8,00 32,63 387 333 33,95 403 346 35,25 418 359 36,47 432 372
8,50 34,66 411 353 36,07 428 368 37,45 444 382 38,74 459 395
9,00 36,71 435 374 38,19 453 389 39,65 470 404 41,02 486 418
NOZZLE TABLE
The table applies to oil with a viscosity of 4,4 mm23.
Burner with preheater
Consider that on preheating the oil quantity is reduced by 5-20% depending on.
- Rise in temperature at the nozzle
- Design of nozzle
- Capacity (high capacity - small difference)
2(2)
Pump pressure bar
FAULT LOCATION
Burner fails to start
Delayed ignition, burners starts violently
Burner fails to start after normal operation
Situation
Motor runs
Burner pre-purges
Flame occurs
Burner locks out
Motor runs
Burner pre-purges
Burner locks out
Possible causes
Flame instability
Incorrect head settings
Low oil pressure
Excess air
Photocell not seeing light
Photocell failed
Control faulty
False light
No spark
No oil
Remedies
Check nozzle to burner head dimension
and electrode position
Check oil pressure
Adjust air damper
Check that photocell is clean and
unobstructed
advisable to change the photocell if also
changing control)
Check that photocell is not seeing
ambient light
Check that H.T. leads are sound and are
not arcing other than at electrode gap
Check oil supply to burner - check that
pump is not airlocked
Check operation of magnetic valve
Burner fails to start
Lamp not lit
Motor runs
Burner runs to lockout
Fuse has blown
Appliance thermostat has not reset
Appliance overheat device has operated
Control relay or photocell defective
No oil being delivered
No spark
Check or replace fuse if necessary.
Check reason for failure
Adjust thermostat
Reset overheat device. Find reason for
its operation and rectify
Check by replacement
and nozzle are all in good order
Rectify condition
Check ignition transformer. Check
electrode gap and porcelain
Burner pulsates on start-up
Burner pulsates on start-up
Burner starts violently
Excessive draught
Nozzle partly blocked
Oil pressure too low
Flue blocked or damaged
Fan slipping on shaft
Pump coupling loose or worn
Delayed ignition
Adjust the burner
Replace nozzle
Check and adjust
Check and rectify
Check and retighten
Check and replace
Check the electrode adjustment, see
diagram
Check electrodes for damage
Check H.T. leads for damage and
disconnection
171 915 01 08-01
Försäkran om överensstämmelse
Declaration of conformity
Konformitätserklärung
Déclaration de conformité
Brännare, Burner, Ölbrenner, Brûleur
Certifikat TÜV Süddeutschland
Certifikat nr. Typ, Type:
08128915006 BF 1
0111110535004 B 1
0207110535005 B 2
02119815001 ST 97, ST 108, ST 120,
ST 133, ST 146
02119815002 B 9, B 10, B 11
Certifikat nr. Typ, Type:
02119815003 B 20, B 30, B 40, B 45
02119815004 B 50, B 60, B 70, B 80
040588622001 B 55
040588622002 B 65
13129815007 B 45 MF, B 45-2 MF
Enertech AB försäkrar under eget ansvar att ovannämnda produkter är i överensstämmelse med följande standarder eller andra
regelgivande dokument och uppfyller tillämpliga delar i EU direktiv.
Enertech AB declares under sole responsibility that the above mentioned product is in conformity with the following standards or other
normative documents and follows the provisions of applicable parts in the following EU Directives.
Enertech AB erklärt in eigener Verantwortung, dass obenstehende Produkte mit folgenden Normen oder anderen normativen
Dokumenten und anwendbare Teile in EU-Direktiven in Übereinstimmung stehen
Enertech AB déclare sous sa seule responsabilité que les produits désignés ci-dessus sont conformes aux normes et aux documents
normatifs suivants et satisfont aux critères applicables des directives CE suivantes:
Dokument: EN 267
EN 60335
EU direktiv. EU Directives, EU-Direktiven, CE suivantes:
2004/108/EC Elektromagnetisk kompatibilitet, Electromagnetic compatibility EC-Richtlinie, Compatibilité électromagnétique
2006/95/EC Lågspänningsdirektivet, Low-voltage directive, Niederspannungs-Richtlinie, Directive sur les basses tensions
2006/42/EC Maskindirektivet, Machinery directive, Maschinen-Richtlinie, Directive sur les machines
92/42/EEC Verkningsgradsdirektivet, Efficiency directive, Wirkungsgrad-Richtlinie, Directive sur les exigences de rendement
Genom att brännaren uppfyller ovannämnda standarder och direktiv erhåller brännaren CE - märkningen.
In that the burner conforms to the above mentioned standards it is awarded the CE mark.
Indem der Brenner die obengenannten Normen und Richtlinien erfüllt, erhält der Brenner die CE-Kennzeichnung.
Du fait de leur conformité aux directives mentionnées ci-dessus, les brûleurs Bentone bénéficient du marquage CE.
Enertech AB, Bentone Division/
är kvalitetscertifierat enligt/
is quality certified according to/
ist nach dem Qualitätsmanagement /
est certifiée à la norme de qualité
SS-EN ISO 9001:2008
Ljungby, Sweden, 150227 (27/02/15)
ENERTECH AB Bentone Division
Box 309
SE-341 26 Ljungby Sweden
Håkan Lennartsson
171 901 06 15-01
OIL BURNERS MAINTENANCE
INSTRUCTIONS
General information
Keep the boiler room clean. Ensure that the boiler
room has permanent fresh air intake. Switch off before
dismantling the oil burner.
At hinged mounting, make sure that an automatic safety
switch is fitted, so that the burner cannot start when
theswing door is open.
Don´t use the oil fired boiler to burn paper or
rubbish,unless the boiler is especially fitted with a hinged
door tomake this possible.
Don´t fill tank while burner is working.
Starting precautions
Make sure that the oil tank is not empty
Make sure that the valves on oil and water supply pipes
areopen.
Make sure that the boiler flue damper is open.
Make sure that the boiler thermostat is set at the correct
temperature.
Switch on the current. Most relay systems have a
delayed action so that the burner will not start for
perhaps 20 seconds.
With heavy oil the delay will be longer as the burner
will notstart until the oil in the preheater reaches the
requiredtemperature.
If the burner will not start
Press the reset button on the relay. Check that the
thermostats are correctly adjusted.
Don´t forget the room thermostat, check that any
fusesare intact and main switch is on.
If the burner starts but does not ignite
Make an attempt to start the burner.
Never make close repeated start attempts.
Don´t restart the burner until the boiler is free from oil
gases.
If the burner still does not ignite send for the service
engineer.
When switching off during summer
Always use the main switch to cut out the burner even
when adjusting the burner or cutting off the heating for
ashort time. For longer periods of shut down, close all
valves and the oil supply stop-cock.
Clean the filter and nozzle by washing in petrol or
paraffin.
Make sure the filter medium is not damaged or defective.
Protect electrical gear from damp.
Warning
Never stand too near or put your face to the inspection
or fire door, when the burner is about to start.
Never use a naked flame to ignite oil if the electrical
ignition fails.
Always wait for about 10 minutes for the unburnt gases
to disperse before restarting the oil burner if it has failed
to ignite previously.
Installed by:
Tel:
170 025 01 2012-04-16
Enertech AB. P.O Box 309, SE-341 26 Ljungby.
www.bentone.se, www.bentone.com
This manual suits for next models
1
Table of contents
Other Enertech Burner manuals
Enertech
Enertech Bentone B2S Classic Technical specifications
Enertech
Enertech Bentone B60-2FH Technical specifications
Enertech
Enertech Bentone BENTOFLEX ST120KA Technical specifications
Enertech
Enertech Bentone B1FUV Classic Technical specifications
Enertech
Enertech Bentone B40A Technical specifications
Enertech
Enertech Bentone BG 450 M Technical specifications
Enertech
Enertech Nu-Way NG Series Instruction Manual
Enertech
Enertech Bentone BENTOFLEX ST 133 KA/K Technical specifications
Enertech
Enertech BG 450 Technical specifications
Enertech
Enertech Bentone B65 RME Technical specifications
Enertech
Enertech Nu-Way MG1190-LN T3D Instruction Manual
Enertech
Enertech B20KAV Technical specifications
Enertech
Enertech Bentone BG 300-2 Technical specifications
Enertech
Enertech Bentone B55 Series Technical specifications
Enertech
Enertech Bentone BFG1 User manual
Enertech
Enertech Bentone BG400 User manual
Enertech
Enertech Bentone ST50 ST 120 KA Technical specifications
Enertech
Enertech Nu-Way MGN 190 T1L Instruction Manual
Enertech
Enertech BG950 User manual
Enertech
Enertech Bentone BFG1 Technical specifications
Popular Burner manuals by other brands
Eclipse
Eclipse BrightFire 200 series operating instructions
Charmglow
Charmglow Gourmet Series owner's manual
smev
smev 911 series Instruction book
gsc evolution
gsc evolution 401025008 quick start guide
Unigas
Unigas HR93A Manual of installation - use - maintenance
Riello
Riello RLS 650/M MX Installation, use and maintenance instructions
Mason-Lite
Mason-Lite OpalEscence LDB24L-EN Installation & operation manual
Delta Heat
Delta Heat DHSB1D-C Use & care manual
Riello
Riello Gulliver BG7D Installation, use and maintenance instructions
Riello
Riello RLS 68/EVi MX FS1 Installation, use and maintenance instructions
Riello
Riello 40 F10 Installation & operating manual
Riello
Riello RDB2.2 BG1 BLU 16 kW Installation, use and maintenance instructions
Bentone
Bentone B 70i-3R FAME J Assembly, installation and maintenance instructions
Renaissance Cooking Systems
Renaissance Cooking Systems RSB3A Installation and operating instructions
HomeTech
HomeTech Q1B-CH-2000ST manual
NTGAS
NTGAS P31 Technical installation instructions use and maintenance instructions
Riello
Riello LPG kit Installation, use and maintenance instructions
Riello
Riello Riello F10 Installation, use and maintenance instructions
