Enertech Bentone B1FUV Classic Technical specifications
Providing sustainable energy solutions worldwide
178 066 31-3 2017-10–09
Installation- and maintenance instruction
B1FUV CLASSIC
2
Contents
1. GENERAL ____________________________________________3
1.1 Description _____________________________________________ 3
1.2 Safety directions ________________________________________ 4
1.3 Condensation in chimney _________________________________ 4
1.4 Setting the burner _______________________________________ 4
2. TECHNICAL DATA _____________________________________5
2.1 Type designation B ______________________________________ 5
2.2 Dimensions_____________________________________________ 5
2.3 Burner capacity _________________________________________ 5
2.4 Recommended nozzle ___________________________________ 5
3. INSTALLATION ________________________________________6
3.1 Acceptance inspection ___________________________________ 6
3.2 Preparations for installation _______________________________ 6
3.3 Distribution of oil ________________________________________ 6
3.4 Electrical connections ____________________________________ 6
3.5 Setting of the shrouded disc and air flow ____________________ 6
4. BASIC SETTINGS _____________________________________7
4.1 Pump pressure, bar______________________________________ 7
4.2 Adjustment of the nozzle assembly_________________________ 7
4.3 Air adjustment __________________________________________ 7
4.4 Pressure in front of the shrouded disc ______________________ 7
5. MAINTENANCE _______________________________________8
5.1 Suspension of burner ____________________________________ 8
5.2 Removing the blast tube__________________________________ 8
5.3 Shrouded disc __________________________________________ 8
5.4 Rubber cable ___________________________________________ 8
5.5 Setting the ignition electrodes _____________________________ 9
5.6 Suction plate __________________________________________ 10
5.7 Cleaning the fan wheel __________________________________ 10
5.8 Trimming ______________________________________________ 10
5.9 Automatic air damper ___________________________________ 10
5.10 Service position electric package _________________________ 11
5.11 Pump filter ____________________________________________ 11
6. INSTRUCTIONS PUMP TYPE BFP 41L3 ________________12
6.1 Technical data _________________________________________ 12
6.2 Components __________________________________________ 12
6.3 Venting _______________________________________________ 12
6.4 BFP 41L3 operation principle_____________________________ 13
6.5 Suction line tables ______________________________________ 14
7. ELECTRIC EQUIPMENT_______________________________15
7.1 Oil burner control: LMO14.113... / LMO24.255... ___________ 15
8. FAULT LOCATION ____________________________________18
8.1 Burner fails to start _____________________________________ 18
8.2 Burner fails to start after normal operation __________________ 18
8.3 Delayed ignition, burners starts violently____________________ 18
9. DECLARATION OF CONFORMITY______________________19
10. OIL BURNERS MAINTENANCE INSTUCTIONS __________20
3171 155 05 05-01
12
3
3456
7
8
9
10
1112
13
14
15 16
17 18
19 20
21
01. GENERAL
Description
1. Fan housing, upper part
2. Fan housing, middle part
3. Photoresistor
4. Test nipple, fan pressure
5. Frame
6. Blast tube
7. Control box
8. Electric contact X1,X2 (see wiring diagram)
9. Ignition transformer
10. Oil pump
11. Motor
12. Air adjustment
13. Adjustment of nozzle assembly
14. Automatic air damper
15. Suction plate
16. Fan wheel
17. Shrouded disc
18. Preheater
19. Electrodes
20. Oil pipe
21. Plate, silencer
1. GENERAL
1.1 Description
4171 355 02 07-01
01. GENERAL
- The contents of this manual are to be observed by all who work for
any reason on the unit and its appertaining system parts.
- This manual is intended especially for authorised personnel.
- This manual is to be regarded as part of the burner and shall always
be available near the place of installation.
- Ensure that the supply of fresh air to the place where the burner is
- Bentone recommends that the burner is switched off while the cistern
risk of clogging.
- Ensure that the burner is protected against direct spraying with water.
Safety directions
The electrical installation shall be made according to valid regulations for
heavy current and in a professional way, so that the risk of leaking oil,
Care should be taken by the installer to ensure that no electrical cables
or fuel/gas pipes are trapped or damaged during installation or service/
maintenance.
Condensation in chimney A modern burner works with less air surplus and often with a smaller
also the risk of condensation in the chimney. The risk is greater if the
the chimney.
Measures to raise the temperature:
Insulate the chimney thermally in cold loft area.
Fit an insert tube in the chimney.
Install Dragex or equivalent (to dry and ventilate the chimney during
standstill).
Setting the burner
or condensation in the chimney.
1.2 Safety directions
1.3 Condensation in chimney
1.4 Setting the burner
5
Burner capacity
Recommended nozzle
S could be an option.
Table of nozzles
Length of Projecting from
size B
133 108
183 158
171 535 15 06-02
02. TECHNICAL DATA
Type designation B1
Model FUV
Dimensions
Boiler overpressure mbar ø89
B
83156
230 293
147
10,5
ø89,5
130-150
21
-0,3
0,0
0,3
0,6
0,9
1,2
10,0 15,0 20,0 25,0 30,0 35,0 40,0
Burner output kW
1,20-3,06 kg/h
14,2-36,3 kW
8 bar 9 bar 10 bar 11 bar 12 bar
Gph kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW
0,40 1,15 13,6 1,22 14,4 1,28 15,2 1,35 16,0 1,41 16,7
0,45 1,35 16,0 1,43 17,0 1,51 17,9 1,58 18,8 1,65 19,6
0,50 1,57 18,6 1,67 19,8 1,76 20,8 1,84 21,8 1,93 22,8
0,55 1,79 21,2 1,90 22,5 2,00 23,8 2,10 24,9 2,20 26,0
0,60 2,04 24,1 2,16 25,6 2,28 27,0 2,39 28,3 2,49 29,5
0,65 2,32 27,5 2,46 29,1 2,59 30,7 2,72 32,2 2,84 33,6
0,75 2,58 30,5 2,73 32,4 2,88 34,1 3,02 35,8 3,16 37,4
0,85 2,90 34,4 3,08 36,5 3,24 38,4 3,40 40,3 3,55 42,1
1,00 3,26 38,6 3,46 41,0 3,65 43,2 3,82 45,3 3,99 47,3
With preheater
2. TECHNICAL DATA
2.1 Type designation B
2.2 Dimensions
2.3 Burner capacity
2.4 Recommended nozzle
6171 635 04 05-01
03. INSTALLATION
Acceptance inspection
Ensure that everything is delivered and that there is no transport damage.
If there is anything wrong with the delivery, please report it to the supplier.
Any transport damage should be reported to the forwarding company.
Preparations for installation
Ensure that the size and capacity range of the burner are suitable for the
boiler. Power data on the data plate refer to the minimum and maximum
power of the burner.
Distribution of oil
To ensure satisfactory operation it is essential that the oil distribution
system is correct. Observe the following:
- See Pump instructions for choice of tube diameter, tube length and
height difference.
- Fix the tubes so that the oil hoses are not subjected to tensile stress
or sharp bending when swinging out the burner or removing it for
service.
Electrical connections
The main power switch must be turned off before beginning the electrical
installation. If the boiler has a 7-pole contact device type Eurostecker it will
device. The operating thermostat and maximum thermostat, and also
are to be strapped.
If another electrical connection is used than the one recommended by
Bentone, there might be a risk of material damage or personal injury.
Choice of nozzle
See under Technical Data: Recommended nozzle and table of nozzles.
Setting of the shrouded disc and air fl ow
The burner is pre-set on delivery in relation to the nozzle provided. If the
size of the nozzle is changed the burner can be initially set according
to “Basic settings”. Note that it is only a question of a basic setting that
should be trimmed when the burner is started. This should include a
!
Warning
3. INSTALLATION
3.1 Acceptance inspection
3.2 Preparations for installation
3.3 Distribution of oil
3.4 Electrical connections
3.5
7
Setting of the shrouded disc and air fl ow
171 725 01 06-01
04. BASIC SETTINGS
Pump pressure, bar
Air adjustment
Adjustment of the nozzle
assembly
Pressure in front of the shrouded disc
Fan pressure
Air, scale
Fan pressure, mbar
Burner capacity, kW
Burner capacity, kW
Burner capacity, kW
8
1
0
1
2
1
4
1
6
15 20 25 30 35 40 45
0,45gph 0,50gph 0,55gph 0,60gph 0,65gph 0,75gph
0,85gph
Pump pressure, bar
Burner capacity, kW
Nozzle assembly, scale
0
2
4
6
8
10
12
14
15 20 25 30 35 40 45
Suction plate=4
Suction plate=1
0
5
10
15
20
15 20 25 30 35 40 45
Suction plate=1 Suction plate=4
2
2,2
2,4
2,6
2,8
3
3,2
3,4
3,6
15 20 25 30 35 40 45
4. BASIC SETTINGS
4.1 Pump pressure, bar
4.2 Adjustment of the nozzle
assembly
4.3 Air adjustment
4.4 Pressure in front of the shrouded disc
8171 755 16 06-01
05. MAINTENANCE
Suspension of burner
During service the burner can be hung up on the screw in the burner
are then easily accessible.
Removing the blast tube
1. Loosen the two fastening screws one turn.
2. Turn to the right and withdraw the blast tube.
Shrouded disc
The preheater plug and the electrodes shall be placed on either side of
the oil tube. The hole in the shrouded disc shall be placed upwards to
increase the light towards the photoresistor.
Rubber cable
necessary air leakage.
1(2)
5. MAINTENANCE
5.1 Suspension of burner
5.2 Removing the blast tube
5.3 Shrouded disc
5.4 Rubber cable
9
171 755 16 06-01
2(2)
05. MAINTENANCE
Setting the ignition electrodes
Proper setting of the electrodes is essential to ensure satisfactory opera-
will also cause radio disturbance. There is also a risk that carbonisation
will occur. Since the electrode pack is of the factory-set twin electrode
type it will be necessary to bend the wires to make any adjustment.
1,8 ± 02
7,5 ± 0,5
+0,2 ± 0,3
ø63
ø67
5.5 Setting the ignition electrodes
10 171 755 02 06-01
05. MAINTENANCE
Suction plate
In the case of higher power, as well as with boilers featuring overpressure
in the combustion chamber, it is possible to achieve higher fan pressure
by altering the position of the suction plate, see illustration. The plate is
located beneath the outer half of the fan housing, see illustration, Clea-
ning the fan wheel.
Position 1 is normally used for nozzles up to 0.60 gph and position 4 for
larger nozzles. Position 2 and 3 are intermediate positions. Position 5
and higher does not give more pressure and they are not used.
Check that the plate is placed in the correct position. Otherwise the air-
cannot be adjusted to the correct value.
Cleaning the fan wheel
Unscrew the four fastening screws. Remove the half of the fan housing.
Check the position of the suction plate (position 1 up to and including
0.60 gph nozzle). Remove the suction plate. Inspect and clean the fan if
forward.
Trimming
assembly and air according to the recommendations in section Basic set-
tings. For the individual boiler installation, adjustments can then always
be made to optimise economy, operational reliability and environmental
effects.
gas analysis and a soot meter.
The principle of the adjustment is:
- reduce the air, either with the air regulation or the nozzle assembly,
- increase the air to give a safety margin of 0,5-1% CO2before soot is
created. To throttle more with the shrouded disc (smaller reading on
better combustion, but if one goes too far there will be starting problems.
Throttling less with the shrouded disc gives a longer and more yellowish
The pressure in front of the shrouded disc can be utilised as an aid in
the adjusment. Recommended pressure, see under Basic settings. Re-
the adjustments.
Automatic air damper
The automatic air damper is provided with a small spring at the right shaft
journal. Check that the air damper moves easily.
Pump fi lter
5.6 Suction plate
5.7 Cleaning the fan wheel
5.8 Trimming
5.9 Automatic air damper
11
Cleaning the fan wheel
05. MAINTENANCE
Service position electric package
Loosen the hexagon nut from the stud bolt. Pull the electric package
When required the electric package can be suspended in the cables.
Pump fi lter
171 755 19 05-01
5.10 Service position electric package
5.11
12 171 805 04 03-01
Technical data
Viscosity range: 1,3-12,0 mm2/s
Pressure range: 7-15 bar
.
Components
1. Nozzle connection G 1/8”
2. Pressure gauge connection G 1/8”
3. Pressure control 4 mm Allen key
5. Vacuum gauge connection G 1/8”
6. Return pipe G 1/4”
7. Suction pipe G 1/4”
8. Return plug
Venting
Venting is only necessary in a one-pipe system. In two-pipe systems the
pump is automatically vented by the return pipe.
Changing cartridge fi lter
lightly.
Remember to change the O-ring.
06. INSTRUCTIONS PUMP TYPE BFP 41L3
1(3)
6. INSTRUCTIONS PUMP TYPE BFP 41L3
6.1 Technical data
6.2 Components
6.3 Venting
13
Changing cartridge fi lter
171 805 04 03-01
06. INSTRUCTIONS PUMP TYPE BFP 41L3
BFP 41L3 operating principle
When the pump is started, oil is drawn from the suction port (S) th-
The oil then moves to the pressure side of the gearwheel and is thus
pressurised. The pressure is controlled and maintained at a constant
pre-set level by diaphragm (D) of the control valve (P1)
The control valve (P1) distributes the oil supplied by gear-set (C) bet-
ween the nozzle connection (E) and the return port of the pump (R).
The amount of oil consumed is determined by the pressure set on the
control valve (P1) and by the size of the oil nozzle in the nozzle line.
The control valve (P1) operates as follows:
- When the oil attains opening pressure, the port to the return side opens.
- The diaphragm and the spring keep a constant pump pressure at the
set value.
- If the pump becomes overloaded, i.e. if an attempt is made to take out
more oil than the gear-set can deliver in the prevailing circumstances,
the oil pressure will fall below the set value causing the valve to close,
by diaphragm (D), to the return port (R) and return to the starting posi-
tion.
This can be remedied by:
- Lowering the pump pressure.
- Reducing the amount of oil delivered, i.e. changing to a smaller nozzle.
- Changing to a pump with higher capacity.
2(3)
A
G
R
S
P
V
C
NC
P1
E
D
6.4 BFP 41L3 operation principle
14 171 805 04 03-01
06. INSTRUCTIONS PUMP TYPE BFP 41L3
Suction line tables
One-pipe system
m m m m
With an underlying tank a one-pipe
system is not recommended
Two-pipe system
m m m m
0 17 53 100
-0,5 15 47 100
-1,0 13 41 99
-1,5 11 34 84
-2,0 9 28 68
-2,5 7 22 53
-3,0 5 15 37
-3,5 3 9 22
4,0 1 3 6
The suction line tables consist of theoretically calculated values where
the pipe dimensions and oil velocity have been matched so that turbulent
pressure losses and noise in the piping. A piping system consists normally
of drawn copper pipes and four bends, a non-return valve, a shut-off valve
The sum of these individual resistances is negligible. The tables do not
include any lengths exceeding 100 m because experience shows that
longer lengths are not needed.
The tables apply to standard fuel oil of normal commercial quality ac-
cording to current standards. On commissioning with an empty tube
system the oil pump should not be run without oil for more than 5 mi-
nutes. The tables state the total length in metres of the suction line at a
nozzle capacity of 2.5 kg/h. Maximum allowed pressure at the suction
and return port is 2.0 bar.
One-pipe system
m m m m
4,0 51 100 100
3,5 45 100 100
3,0 38 94 100
2,5 32 78 100
2,0 26 62 100
1,5 19 47 97
1,0 13 31 65
0,5 6 16 32
Two-pipe system
m m m m
4,0 33 100 100
3,5 31 98 100
3,0 29 91 100
2,5 27 85 100
2,0 25 79 100
1,5 23 72 100
1,0 21 66 100
0,5 19 60 100
Mounting/dismounting return plug
One pipe system Two pipe system
3(3)
6.5 Suction line tables
15
7. ELECTRIC EQUIPMENT
7.1 Oil burner control: LMO14.113... / LMO24.255...
171 435 28 16-01
List of components
A1 Oil burner control
A2 Twin thermostat
E1 Preheater
F1 Fuse, max. 10A
M1 Burner motor
P1 Time meter (optional)
R1 Photoresistor
S3 Main switch
T1 Ignition transformer
Y1 Solenoid valve
X1 Plug-in contact, burner
X2 Plug-in contact, boiler
The colours of the preheater cable:
A Blue
B Brown
C Black
Outer electrical connection
Mains connection and fuses in
accordance with local regulations.
Wiring diagram
*
If there is no plug-in contact (X2) on the boiler,
connect to the contact enclosed. In case the
twin thermostat is in series on incoming phase
L1, a loop between the terminals T1 and T2
is necessary.
X1
X2
*
1(3)
16 171 435 28 16-01
ELECTRIC EQUIPMENT
Function
1.Switch on operating switch and twin thermostat
The burner motor starts, an ignition spark is formed, the prepurge goes
on till the prepurge period expires and the solenoid valve opens (2).
2. Solenoid valve opens
3. The safety time expires
burner will make an attempt to re-start.
3-4. Operating position
If the burner operation is interrupted by means of the main switch or the
thermostat, a new start takes place when the conditions in accordance
The oil burner control cuts out
A red lamp in the control is lit. Press the reset button and the burner
re-starts.
LMO14.113... LMO24.255...
Pre-ignition time: 15 s 25 s
Pre-purge time: 16 s 26 s
Post-ignition time: 3 s 5 s
Safety lock-out time: < 10 s < 5 s
Reset time after lockout: < 1 s < 1 s
< 1 s < 1 s
Ambient temperature:
45 µA 45 µA
Max. photo current at start: 5,5 µA 5,5 µA
Technical data oil burner control
Control of photo current
Current through photo unit is measured with a d.c. ammeter (a moving coil
instrument connected in series with the photo unit).
2(3)
17
Switch on operating switch and twin thermostat
171 435 28 16-01
Colour codes LMO14/24
When the burner starts, three signal lights in the reset switch indicate
the normal sequence, as well as provide indication if something ab-
normal is happening in accordance with the following table:
Preheater in operation Solid yellow
Ignition switched on Flashing yellow
Normal operation Solid green
Flashing green
Undervoltage Flashing yellow-red
Fault, alarm Solid red
False light Flashing red-green
Communication mode Fluttering red
Fault codes LMO14/24
When the red light for a blocked relay box comes on, you can get
information about what has caused the problem by pressing and
holding the reset button for 3 seconds.
expires
False light during start
Time-out for preheater *
Incorrect wiring, internal fault or si-
multaneous occurrence of two faults
* In order for this fault code to occur, the preheater shall not reach
its cut-off temperature within 10 mins. from switch on.
To return to normal operation: Press the reset button for 1 second.
If the reset button is instead kept pressed a second time for at least
3 seconds, you can, via an interface, obtain the corresponding in-
To return to normal operation: Press the reset button for 1 second
3(3)
18
FAULT LOCATION
Burner fails to start
Delayed ignition, burners starts violently
Burner fails to start after normal operation
Situation
Motor runs
Burner pre-purges
Flame occurs
Burner locks out
Motor runs
Burner pre-purges
Burner locks out
Possible causes
Flame instability
Incorrect head settings
Low oil pressure
Excess air
Photocell not seeing light
Photocell failed
Control faulty
False light
No spark
No oil
Remedies
Check nozzle to burner head dimension
and electrode position
Check oil pressure
Adjust air damper
Check that photocell is clean and
unobstructed
advisable to change the photocell if also
changing control)
Check that photocell is not seeing
ambient light
not arcing other than at electrode gap
Check oil supply to burner - check that
pump is not airlocked
Check operation of magnetic valve
Burner fails to start
Lamp not lit
Motor runs
Burner runs to lockout
Fuse has blown
Appliance thermostat has not reset
Appliance overheat device has operated
Control relay or photocell defective
No oil being delivered
No spark
Check or replace fuse if necessary.
Check reason for failure
Adjust thermostat
Reset overheat device. Find reason for
its operation and rectify
Check by replacement
and nozzle are all in good order
Rectify condition
Check ignition transformer. Check
electrode gap and porcelain
Burner pulsates on start-up
Burner pulsates on start-up
Burner starts violently
Excessive draught
Nozzle partly blocked
Oil pressure too low
Flue blocked or damaged
Fan slipping on shaft
Pump coupling loose or worn
Delayed ignition
Adjust the burner
Replace nozzle
Check and adjust
Check and rectify
Check and retighten
Check and replace
Check the electrode adjustment, see
diagram
Check electrodes for damage
disconnection
171 915 01 08-01
8. FAULT LOCATION
8.1 Burner fails to start
8.2 Burner fails to start after normal operation
8.3 Delayed ignition, burners starts violently
19
9. DECLARATION OF CONFORMITY
20
OIL BURNERS MAINTENANCE
INSTRUCTIONS
General information
Keep the boiler room clean. Ensure that the boiler
room has permanent fresh air intake. Switch off before
dismantling the oil burner.
At hinged mounting, make sure that an automatic safety
switch is fitted, so that the burner cannot start when
theswing door is open.
Don´t use the oil fired boiler to burn paper or
rubbish,unless the boiler is especially fitted with a hinged
door tomake this possible.
Don´t fill tank while burner is working.
Starting precautions
Make sure that the oil tank is not empty
Make sure that the valves on oil and water supply pipes
areopen.
Make sure that the boiler flue damper is open.
Make sure that the boiler thermostat is set at the correct
temperature.
Switch on the current. Most relay systems have a
delayed action so that the burner will not start for
perhaps 20 seconds.
With heavy oil the delay will be longer as the burner
will notstart until the oil in the preheater reaches the
requiredtemperature.
If the burner will not start
Press the reset button on the relay. Check that the
thermostats are correctly adjusted.
Don´t forget the room thermostat, check that any
fusesare intact and main switch is on.
If the burner starts but does not ignite
Make an attempt to start the burner.
Never make close repeated start attempts.
Don´t restart the burner until the boiler is free from oil
gases.
If the burner still does not ignite send for the service
engineer.
When switching off during summer
Always use the main switch to cut out the burner even
when adjusting the burner or cutting off the heating for
ashort time. For longer periods of shut down, close all
valves and the oil supply stop-cock.
Clean the filter and nozzle by washing in petrol or
paraffin.
Make sure the filter medium is not damaged or defective.
Protect electrical gear from damp.
Warning
Never stand too near or put your face to the inspection
or fire door, when the burner is about to start.
Never use a naked flame to ignite oil if the electrical
ignition fails.
Always wait for about 10 minutes for the unburnt gases
to disperse before restarting the oil burner if it has failed
to ignite previously.
Installed by:
Tel:
170 025 01 2012-04-16
10. OIL BURNERS MAINTENANCE
INSTUCTIONS
Table of contents
Other Enertech Burner manuals
Enertech
Enertech Bentone BFG1 User manual
Enertech
Enertech Bentone B 45A2.2H User manual
Enertech
Enertech BG 450 Technical specifications
Enertech
Enertech Bentone B 30 2A Technical specifications
Enertech
Enertech B20KAV Technical specifications
Enertech
Enertech Bentone BG 300-2 Technical specifications
Enertech
Enertech BG950 User manual
Enertech
Enertech Bentone B2S Classic Technical specifications
Enertech
Enertech BG 700-2 Technical specifications
Enertech
Enertech Nu-Way Owner's manual
Enertech

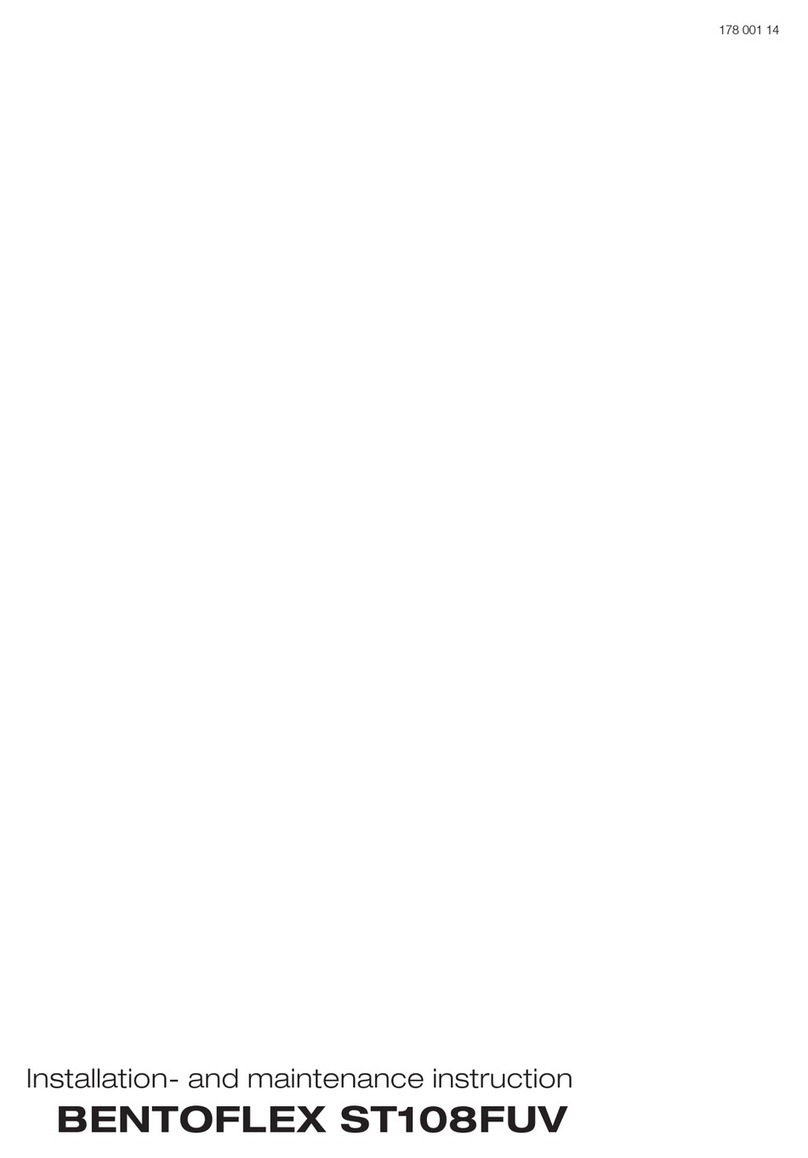

Enertech BENTOFLEX ST108FUV Technical specifications
Enertech
Enertech Bentone B 45A2.2H Technical specifications
Enertech
Enertech Bentone BFG1 Technical specifications
Enertech
Enertech Bentone B 45 A2.2 Technical specifications
Enertech
Enertech Nu-Way G200 Universal Instruction Manual
Enertech
Enertech Nu-Way MGN 190 T1L Instruction Manual
Enertech
Enertech Bentone B40 CN Technical specifications
Enertech
Enertech Bentone B55 Series Technical specifications
Enertech
Enertech Bentone BG400 User manual
Enertech
Enertech Bentone BFG1 Technical specifications
Popular Burner manuals by other brands
Maxi-matic
Maxi-matic Elite CUISINE ESB-301BF instruction manual
baltur
baltur BTL 4P Original instructions
Regency Fireplace Products
Regency Fireplace Products Plateau PTO30 Owners & installation manual
baltur
baltur TBG 35 ME INSTALLATION, USE AND MAINTENANCE INSTRUCTION MANUAL
Unigas
Unigas LMV5 Series Manual of installation - use - maintenance
Avanzini
Avanzini DRAGO P1 Assembly instructions
Bentone
Bentone BFG 1 H1 Installation and maintenance instruction
Viessmann
Viessmann Vitoflame 100 Service instructions
Riello Burners
Riello Burners G3R Installation, use and maintenance instructions
Ferroli
Ferroli SUN G3 R Operating, installation and maintenance instructions
Charmglow
Charmglow Drop-In Side Burner owner's manual
Riello
Riello RS 1000/EV BLU Installation, use and maintenance instructions
Riello
Riello RG1F Installation, use and maintenance instructions
Bentone
Bentone BG 800 M Installation and maintenance instruction
Riello
Riello 40 FS5 Installation, use and maintenance instructions
Viessmann
Viessmann MatriX-Disk burner Service instructions for contractors
elco
elco EKEVO N6.2400 GL-E Original operating instructions
Topex
Topex 44E102 instruction manual
