ENFORCER EV-6680-N3WQ User manual

Note: Model numbers that end with “Q” or that have a round green “Q” sticker signify RoHS-compliant products.
OSD (On-Screen Display)
for Covert PIR Camera
Manual
For the following cameras:
Model Format
Programmable
Motion-Activated LED
Covert
IR LEDs
EV-6680-N3WQ
NTSC
Yes
No
EV-6680-P3WQ
PAL
Yes
No
EV-6681-N3WQ
NTSC
No
Yes
EV-6681-P3WQ
PAL
No
Yes
EV-6680 Series
Motion-activated LED
programmable from the
OSD menu, simulating a
real PIR sensor.
EV-6681 Series
Invisible 940nm IR
LEDsprovide infrared
light for the camera but
are invisible to the
human eye.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
2SECO-LARM U.S.A., Inc.
HLC OFF
D-WDR OFF
2D-NR OFF
HLC ON
D-WDR ON
2D-NR ON
Digital Wide Dynamic Range (D-WDR)...........9
Motion Detection.............................................9
Day / Night Mode...........................................10
2D Noise Reduction (NR)..............................11
Camera ID.....................................................11
Sync ..............................................................11
Language......................................................12
Camera Reset...............................................12
Troubleshooting.............................................12
Table of Contents:
Programmable Features................................... 2
How to Use the OSD Controller........................ 3
Main Setup Menu............................................. 3
Menu Diagram 1............................................... 4
Menu Diagram 2............................................... 5
Lens.................................................................. 5
Shutter / Automatic Gain Control (AGC)........... 6
White Balance.................................................. 7
Backlight Compensation (BLC)........................ 8
Programmable Features:
•Lens
Choose between DC Auto Iris and Manual
Lens Adjustment
•Shutter
Manually adjust the shutter speed
•White Balance
Adjust the color temperature and image
color of the picture
•Backlight Compensation (BLC)
Adjust the exposure to properly display the
subject in front of a bright light source
•Highlight Compensation (HLC)
Define target areas and remove spotlights
to make certain objects visible
•Picture Adjustment
Adjust the camera’s brightness, contrast,
sharpness, hue, and gain
•Digital Wide Dynamic Range (D-WDR)
Adjust the brightness values of the image for
a more detailed picture
•Motion Detection
Detect if there is motion in the scene
•Day/Night Mode
Adjust the level where the camera will
switch from color to B/W when the ambient
light is low
•2D Noise Reduction (NR)
Adjust for less interference on the screen in
an area with low illumination
•Camera ID
Set a name for the camera to display on
screen
•Language
Set the OSD language

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
SECO-LARM U.S.A., Inc. 3
1. Press down on the joystick to open the OSD menu.
2. Use the joystick to navigate the OSD menu.
3. To select an item, press down on the joystick.
Please read the camera installation manual for safety precautions and detailed instructions on
how to install the camera.
How to Use the OSD Controller:
Main Setup Menu:
Menu items can be selected by using the joystick.
1. Press down on the joystick.
The Main Setup Menu will be displayed on the monitor.
2. Move to and select the required function by moving the joystick up and down.
3. Change the menu setting by moving the joystick left and right.
4. After choosing the setting, move the cursor to EXIT and press down on the joystick.
MenuDiagram1
MenuDiagram2
Note:
•Select available options bymoving the cursor to the desired feature.
•A submenu is available where the option reads .
•SYNC SETUP cannot be altered. SYNC SETUP is set to internal synchronization mode.
OSD
Controller

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
4SECO-LARM U.S.A., Inc.
Menu Diagram 1:
SETUP MENU
SETTING
SETTING OPTIONS
1) LENS
(see page 5) AUTO
TYPE: DC / VIDEO
MODE: AUTO / OPEN / CLOSE
SPEED: 0~255Adjustable range
MANUAL
Set for fixed lens camera
2) SHUTTER / AGC
(see page 6)
AUTO
High Luminance: MODE1: SHUT + AUTO IRIS / AUTO IRIS / SHUT
BRIGHTNESS: 0~255 Adjustable range
Low Luminance: MODE: AGC / OFF
BRIGHTNESS: x0.25, x0.50, x0.75, x1.00
MANUAL
MODE: SHUT + AGC
SHUTTER: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,
1/10,000
AGC: 6.00, 12.00, 18.00, 24.00, 30.00, 36.00, 42.00, 44.80
3) WHITE BAL
(see page 7)
ATW
SPEED: 0~255Adjustable range
DELAY CNT: 0~255Adjustable range
ATW FRAME: x.050, x1.00, x1.50, x2.00
ENVIRONMENT: INDOOR / OUTDOOR
PUSH
Disable white balance mode
USER1
B-Gain: 0~255Adjustable range
R-Gain: 0~255Adjustable range
USER2
B-Gain: 0~255Adjustable range
R-Gain: 0~255Adjustable range
ANTI CR
Enable anti-color rolling
MANUAL
LEVEL: 26~72Adjustable range
PUSH LOCK
Disable white balance mode bypressingENTER
4) BACKLIGHT
(see page 8)
OFF
Disable backlight compensation
BLC
Enable backlight compensation
HLC
Enable highlight compensation
5) PICT ADJUST
(see page 8)
MIRROR
ON / OFF
BRIGHTNESS
0~255Adjustable range
CONTRAST
0~255Adjustable range
SHARPNESS
0~255Adjustable range
HUE
0~255Adjustable range
GAIN
0~255Adjustable range
6) D-WDR
(see page 9) ON
LUMINANCE: LOW / MID / HIGH
CONTRAST: LOW / MIDLOW / MID / MIDHIGH / HIGH
OFF
Disable digital wide dynamic range
7) MOTION DET
(see page 9) ON
DETECTSENSE: 0~127 Adjustable range
BLOCK DISP: ON / OFF / ENABLE
MONITOR AREA: ON / OFF
AREA SEL: Up to4 selectable zones
TOP: 0~244Adjustable range
BOTTOM: 0~244Adjustable range
LEFT: 0~474 Adjustable range
RIGHT: 0~474 Adjustable range
OFF
Disable motion detection
8) NEXT Access Menu Diagram 2 (see page 5)
9) EXIT Exit menu and save settings
10) SAVE ALL Savemenu settingswithoutexiting the menu
1 In MANUAL LENS mode,onlySHUTmode is available. InAUTO LENS mode, SHUT + AUTO IRIS and AUTO IRIS
modesare alsoavailable.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
SECO-LARM U.S.A., Inc. 5
Menu Diagram 2:
SETUP MENU
SETTING
SETTING OPTIONS

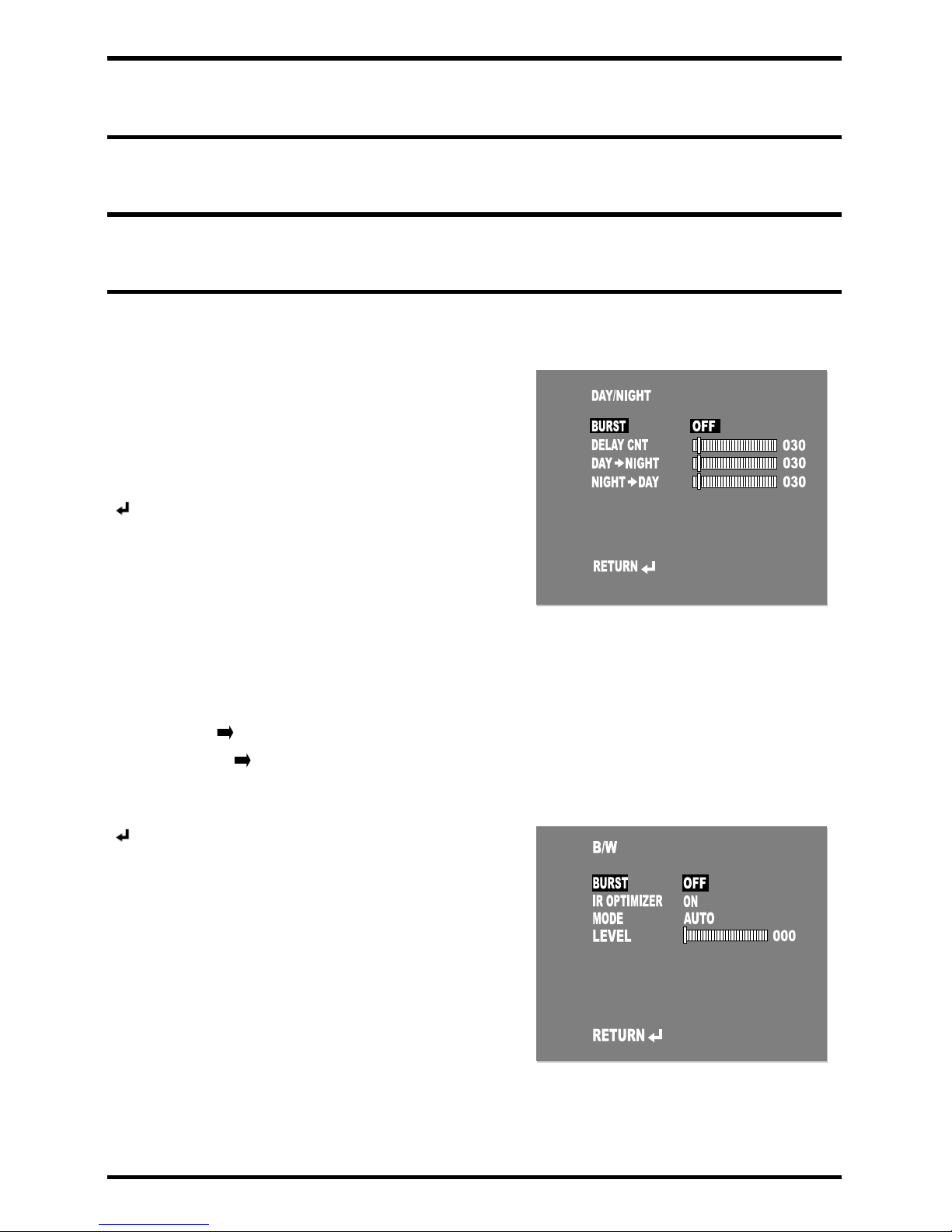

1) DAY / NIGHT
(see page 10)
AUTO
BURST: ON / OFF
DELAY CNT: 0~255Adjustable range
DAY NIGHT: 0~255 Adjustable range
NIGHT DAY: 0~255Adjustable range
COLOR
Display color image
B/W
BURST: ON / OFF
2) 2DNR
(see page 11)
NR MODE: OFF / Y / C / Y/C
Y LEVEL: 0~15 Adjustable range
C LEVEL: 0~15 Adjustable range
3) CAMERA ID
(see page 11)
ON
Set aname for the camera to display on screen
OFF
Disable camera ID
4) SYNC
(see page 11)
Function is not used
5) LANGUAGE
(see page 12)
English, Chinese, Japanese, German, French, Russian, Portuguese, Spanish
6) CAMERA RESET
(see page 12) Resetcamera to factorysettings
7) BACK Access Menu Diagram 1 (see page 4)
8) EXIT Exit menu and save settings
9) SAVE ALL Savemenu settingswithoutexiting the menu
Lens:
This function is used to select the camera’s lens type.
1. Select LENS on the SETUP menu screen.
2. Select the desired lens type by pressing the joystick button.
3.
Select RETURN to return to the SETUP menu.
AUTO: Select automatic mode for DC
Auto Iris lens.
•TYPE: Select lens type (DC or
VIDEO).
•MODE: Select the mode (AUTO,
OPEN, or CLOSE).
•SPEED: Set the Auto Iris movement
speed. Adjustable range: 0~255.
MANUAL: Select manual mode for
manual or fixed lens.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
6SECO-LARM U.S.A., Inc.
Shutter / Automatic Gain Control (AGC):
This function is used to manually adjust the shutter speed and AGC settings.
1. Select SHUTTER / AGC on the SETUP menu screen.
2. Select the desired shutter or AGC type by pressing the joystick button.
3. Select RETURN to return to the SETUP menu.
AUTO: The camera is in automatic shutter
mode.
A. HIGH LUMINANCE
•MODE: Select shutter mode.
-SHUT – This function is not used.
-AUTO IRIS – Adjust the iris to
allow a specific amount of
exposure.
-SHUT + AUTO IRIS –
Combination of both SHUT and
AUTO IRIS.
In manual lens mode, only SHUT mode is available. In automatic lens mode, only
AUTO IRIS or SHUT + AUTO IRIS modes are available.
•BRIGHTNESS: Set the auto-exposure image brightness. Adjustable range: 0~255.
B. LOW LUMINANCE
•MODE: Select low luminance mode (AGC or OFF).
•BRIGHTNESS: Select the automatic gain value. This setting has no effect if AGC is
on. Adjustable range: x0.25, x0.50, x0.75, x1.00.
MANUAL: The camera is in a fixed shutter
mode.
•MODE: This function is not used.
•SHUTTER: Selectable shutter speed.
Adjustable range: 1/60, 1/120, 1/250,
1/500, 1/1000, 1/2000, 1/4000,
1/10000.
•AGC: Set the gain value.
Adjustable range: 6.00, 12.00, 18.00,
24.00, 30.00, 36.00, 42.00, 44.80.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
SECO-LARM U.S.A., Inc. 7
White Balance:
This function is used to adjust the color temperature and image color of the picture.
1. Select WHITE BAL on the SETUP menu screen.
2. Select the desired white balance mode by
pressing the joystickbutton.
3. Select RETURN to return to the SETUP menu.
Automatic Tracking White Balance
(ATW):When the image color temperature
changes, it will automatically adjust the
white balance color temperature range from
1,800°K~10,500°K (ex.: a fluorescent light
or outdoors).
•SPEED: Set the ATW speed. Adjustable range: 0~255.
•DELAY CNT: Set the ATW delay time. Adjustable range: 0~255.
•ATW FRAME: Set the ATW zone ratio. Adjustable range: x0.50, x1.00, x1.50, x2.00.
•ENVIRONMENT: Set the ATW environment (INDOOR or OUTDOOR).
PUSH: In PUSH mode, the white balance
setting willbe disabled.
USER 1/2 WB: Independently set the white
balance setting for USER1 or USER 2.
•B-GAIN: Set the blue gain.
Adjustable range: 0~255.
•R-GAIN: Set the red gain.
Adjustable range: 0~255.
ANTI CR: Select this mode when color
rolling or flickering caused by the
unmatched frequency of electric lights
occurs.
MANUAL: Set the white balance level
manually.
•LEVEL: Set the color on-screen.
Adjustable range: 26~72.
PUSH LOCK: In PUSH LOCK mode, the
white balance setting will be disabled when
the ENTER button (OSD controller) or
joystick is pressed.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
8SECO-LARM U.S.A., Inc.
Backlight Compensation (BLC):
This function is used to control the light level to overcome strong backlight conditions.
1. Select BACKLIGHT on the SETUP menu screen.
2. Select the desired BLC mode by pressing the joystick button.
3. Select RETURN to return to the SETUP menu.
Backlight Compensation (BLC): Select this mode to correct the exposure of subjects in
front of a strong backlight.
BLC OFF
BLC ON

Highlight Compensation (HLC): Select this mode to improve the picture by displaying
shades of gray on a strong highlight.
HLC OFF
HLC ON
Picture Adjustment:
This function is used to adjust the color temperature and image color of the picture.
1. Select PICT ADJUST on the SETUP menu screen.
2. Select the desired picture setting by pressing the
joystick button.
3. Select RETURN to return to the SETUP menu.
•MIRROR: Flip the image horizontally.
•BRIGHTNESS: Set picture brightness.
Adjustable range: 0~255.
•CONTRAST: Set picture contrast.
Adjustable range: 0~255.
•SHARPNESS: Set picture sharpness.
Adjustable range: 0~255.
•HUE: Set picture hue.
Adjustable range: 0~255.
•GAIN: Set picture gain.
Adjustable range: 0~255.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
SECO-LARM U.S.A., Inc. 9
Digital Wide Dynamic Range (D-WDR):
This function willadjust the brightness value of the image for a more detailed picture.
1. Select D-WDR on the SETUP menu screen.
2. Select the desired D-WDR setting by pressing
the joystick button.
3. Select RETURN to return to the SETUP menu.
•LUMINANCE: Set the D-WDR brightness
(LOW, MID, or HIGH).
•CONTRAST: Set the D-WDR contrast
(LOW, MIDLOW, MID, MIDHIGH, or HIGH).
D-WDR OFF
D-WDR ON
Motion Detection:
This function is used to detect moving objects on-screen.
EV-6680 Series Only: The motion-activated LED is tied to the motion detection feature. Turn
MOTION DET ON or OFF to turn the motion-activated LED ON or OFF.
1. Select MOTION DET on the SETUP menu screen.
2. Select the desired MOTION DET mode by
pressing the joystickbutton.
•DETECT SENSE: Set detection sensitivity.
Adjustable range: 0~255.
•BLOCK DISP: Mosaic blocks will appear
where movement is present (ON, OFF, or
ENABLE). In ENABLE mode, select a certain
area in which motion is not detected. To exit
ENABLE mode, press down on the joystick for
2 seconds and then release.
•MONITOR AREA: Set detection area.
•AREA SEL: Set up to 4 detection zones.
-TOP: Set vertical start position. Adjustable range: 0~244.
-BOTTOM: Set vertical end position. Adjustable range: 0~244.
-LEFT: Set horizontal start position. Adjustable range: 0~244.
-RIGHT: Set horizontal end position. Adjustable range: 0~244.
Note: If motion detection is turned
ON for EV-6680-N3WQ and
EV-6680-P3WQ, a red LED will turn
ON every time motion is detected.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
10 SECO-LARM U.S.A., Inc.
Next:
Select to advance to the next menu diagram.
Exit:
Select to save current settings and exit the SETUP menu.
Save All:
Select to save menu settings without exiting the SETUP menu.
Day/Night Mode:
This function willadjust the brightness value of the image for a more detailed picture.
1. Select DAY/NIGHT on the SETUP menu screen.
2. Select the desired DAY/NIGHT setting by
pressing the joystickbutton.
3. Select RETURN to return to the SETUP menu.
AUTO: The camera image will switch to
color in normal situations and B/W when
ambient light is low.
•BURST: Set BURST mode (ON or OFF). When BURST mode is ON, the image colors will
be suppressed but present when the camera switches to B/W mode. When BURST mode
is OFF, the image colors willbe B/W when the camera switches to B/W mode.
•DELAY CNT: Set the COLOR/B&W interchange delaytime. Adjustable range: 0~255 sec.
•DAY NIGHT: Define light level to trigger B/W mode. Adjustable range: 0~255.
•NIGHT DAY: Define light level to trigger COLOR mode. Adjustable range: 0~255.
PUSH: The camera image will always display in color.
B/W: The camera image will always display in B/W.
•BURST: Set BURST mode (ON or OFF). When
BURST mode is ON, the image colors will be
suppressed but present when the camera
switches to B/W mode. When BURST mode is
OFF, the image colors will be B/W when the
camera switches to B/W mode.
•IR OPTIMIZER: Turn ON or OFF.
•MODE: AUTO optimizes the IR, or optimizes to
the CENTER.
•LEVEL: Sets the level of IR optimization.
Adjustable range: 0~255.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
SECO-LARM U.S.A., Inc. 11
2D Noise Reduction (2DNR):
This function is used to adjust the gain level to reduce the interference on thescreen in an area
with low illumination.
1. Select NR on the SETUP menu screen.
2. Select the desired 2D NR setting by pressing the
joystick button.
3. Select RETURN to return to the SETUP menu.
•NR: Set the noise reduction mode (OFF, Y, C,
or Y/C).
•Y LEVEL: Set the brightnesssignal noise
reduction level. Adjustable range: 0~15.
•C LEVEL: Set the color signalnoise reduction
level. Adjustable range: 0~15.
2D-NR OFF
2D-NR ON
Camera ID:
This function is used to seta name for the camera.
1. Select CAMERA ID on the SETUP menu screen.
2. Turn CAMERA ID ON or OFF by pressing the
joystick button.
3. If CAMERA ID is ON, use the cursor to select the
character in the alphabet list. Press the joystick
button to select the character.
4. Select RETURN to return to the SETUP menu.
•CHR1/CHR2: Functions not used.
•: Adjust the cursor position.
•CLR: Forward delete the selected character.
•POS: Set the location of the CAMERA ID text.
•RETURN: Save and return to the SETUP menu.
Sync:
This function is not used.

ENFORCER OSD (On-Screen Display) for Covert PIR Camera
12 SECO-LARM U.S.A., Inc.
NOTICE:
The information and specifications printed in this manual are current at the time of publication. However, the SECO-
LARM policy is one of continual development and improvement. For this reason, SECO-
LARM reserves the right to change
specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved.
This material may not be reproduced or copied, in whole or in part,
without the written permission of SECO-LARM.
WARRANTY
:
This SECO-
LARM product is warranted against defects in material and workmanship while used in normal service
for two (2) years from the date of sale to the original customer. SECO-
LARM’s obligation is limited to the repair or replacement of
any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or
attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage,
or faulty
installation, or if for any other reason SECO-
LARM determines that such equipment is not operating properly as a result of causes
other than defects in materialand workmanship. The sole obligation of SECO-
LARM and the purchaser’s exclusive remedy, shall be
limited to the replacement or repair only, at SECO-LARM’s option. In no event shall SECO-
LARM be liable for any special, collateral,
incidental, or consequentialpersonalor property damage of any kind to the purchaseroranyone else.
SECO-LARM®U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA, 92606 Website: www.seco-larm.com
PICVN3
Phone: [phone] | [phone]
Email: [e-mail]
MiEV-668x-N3WQ_OSD_1402.docx
Language:
This function is used to select the OSD display language.
1. Select LANGUAGE by moving the cursor UP and DOWN on the SETUP menu screen.
2. Select the desired language by pressing the joystick button.
Camera Reset:
Select to return the camera settings to factory default.
Back:
Select to return to the previous menu diagram.
Exit:
Select to save current settings and exit the SETUP menu.
Save All:
Select to save menu settings without exiting the SETUP menu.
Troubleshooting:
The screen is blank, despite working as
before using the joystick.
•Check that the camera is powered up.
•Check that the monitor is powered up.
•Check that the power supply’s polarity is correct.
FCC COMPLIANCE STATEMENT: Information to the user: This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against
harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user willbe required to correctthe interference at his orher ownexpense.
IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and
local laws and statutes related to monitoring and recording audio and video signals. SECO-
LARM willnot be held responsible for the
use of the product in violation of any current laws or statutes.
