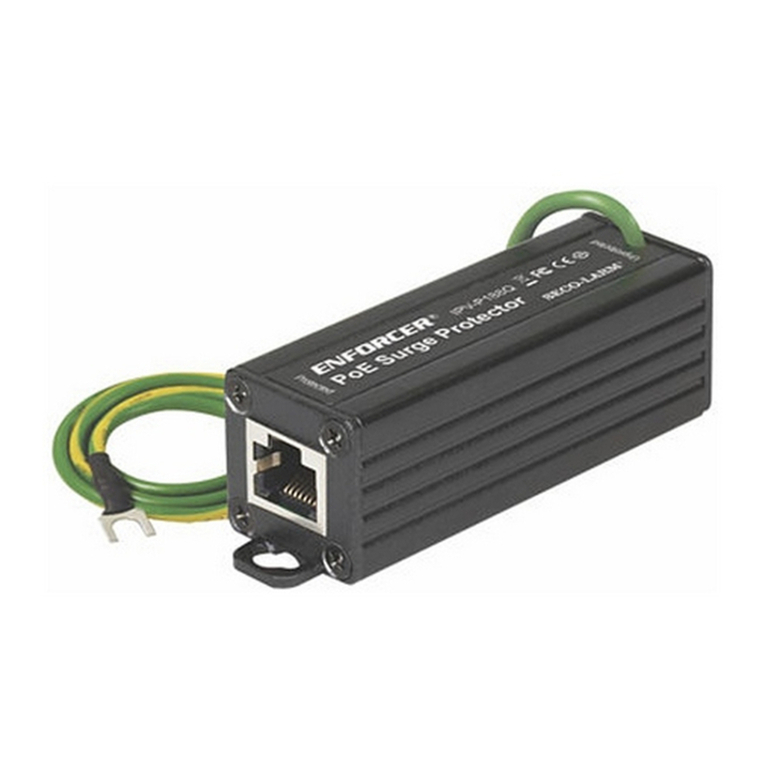

ENFORCER IPV-P188Q User manual

IPV-P188Q
Manual
Helps prevent damage to sensitive networking equipment
Intercepts repeated surges and spikes that could damage network
equipment
Installs on a Cat5e/6 4-pair UTP cable with RJ45 jacks
Power and signal line protection
10/100 Base-T Cat5/5e compatible
Support mid-span PoE and end-span PoE
Complies with 802.3af and 802.3at for PoE
Includes a 16” grounding wire for convenient connection to ground
PoE (Power over Ethernet) Surge Protector

ENFORCER PoE (Power over Ethernet) Surge Protector
2SECO-LARM U.S.A., Inc.
Bandwidth
Up to 68MHz
Maximum input
58Vp-p
Insertion loss
<0.2dB
Return loss
16dB@100Ω
Frequency response
Up to 3dB@68MHz
Insulation resistance
10,000MΩ
Maximum surge voltage
Up to 4 kV
Discharging current
400A
Surge life
30000 surges@4 kV
Surge protection time
1ns
Surge resistance
0Ω
Signal passing
capability
Breakdown voltage
58V
Clamping voltage
77V
Power passing capability
45W
Connector
In
RJ45
Out
RJ45
Impedance
42Ω
Dimensions
3½"x1"x1" (88x26x25 mm)
Weight
2.8-oz (80g)
Material
Aluminum
Operating temperature
-40°~185° F (-40°~85° C)
Introduction:
The ENFORCER PoE (Power over Ethernet) Surge Protector is a passive device that helps protect
sensitive networking equipment from power surges. The device can be deployed in new
installations or added to existing ones.
The ENFORCER PoE Surge Protector should be installed between the PoE hub and a networked
device to protect against surges that could damage the equipment.
NOTE: For the best protection, installing two surge protectors is recommended: one at each end of
the network cable.
Specifications:
Overview:
Unprotected End
Protected End
3½”(88mm)
3”(75mm)
1” (25mm)
1”
(25mm)
1” (25mm)
Mounting Tab
Grounding
Wire
To
Cat5e/6
Cable
Top View

ENFORCER PoE (Power over Ethernet) Surge Protector
SECO-LARM U.S.A., Inc. 3
1x PoE Surge Protector
2x Mounting Screws
2x Plastic Wall Anchors
1. Each of the two PoE Surge Protectors should be mounted as close as possible to the devices that are to
be protected.
2. Detach the existing Cat5e/6 cables from the devices to be protected (such as a PoE switch and IP
Camera) and attach them to end of their corresponding PoE Surge Protector marked “Cable End.”
3. Prepare and connect an additional Cat5e/6 cable to each device to be protected and to the end of its PoE
Surge Protector marked “Equipment End.” For best protection, these cables should be the shortest length
possible to connect the PoE Surge Protectors and the protected devices. In addition the protected cables
should not cross unprotected cables.
4. Connect the ground wires from the PoE Surge Protectors to earth ground. The system should use a
single ground point and the protected device should be isolated from ground.
Protecting a Single Device:
1. The PoE Surge Protector should be mounted as close as possible to the device that is to be protected.
2. Detach the existing Cat5e/6 cable from the device to be protected and attach it to end of the PoE Surge
Protector marked “Cable End.”
3. Prepare and connect an additional Cat5e/6 cable to the device to be protected and to the end of the PoE
Surge Protector marked “Equipment End.” For best protection, this cable should be the shortest length
possible to connect the PoE Surge Protector and the protected device. In addition the protected cables
should not cross unprotected cables.
4. Connect the ground wire from the PoE Surge Protector to earth ground. The system should use a single
ground point and the protected device should be isolated from ground.
Protecting Multiple Devices:
NOTE: These instructions assume that 2 PoE devices have already been connected together.
IP Camera
(Protected)
PoE Switch
(Not Protected)
PoE Surge
Protector
To ground
Shortest Possible
Cat5e/6 cable
Cat5e/6 cable
Protected End
Unprotected End
Unprotected End
Protected End
Shortest
Possible Cat5e/6
cable
PoE Switch
(Protected)
To ground
PoE Surge
Protector
PoE Surge
Protector
Cat5e/6 cable
Protected End
IP Camera
(Protected)
Shortest
Possible Cat5e/6
cable
Installation:
Parts List:

ENFORCER PoE (Power over Ethernet) Surge Protector
4SECO-LARM U.S.A., Inc.
Also Available from SECO-LARM:
Wavy or ghost video image if connected to
an image processor (e.g., multiplexer or
DVR), but not if connected directly to the
monitor.
Move the cable away from possible sources of interference.
Replace the cable with a new cable.
Ensure that the protected cable is as short as possible
Video image background flutters between
dark and light.
Remove a local power source, or adjust the monitor’s
brightness and contrast.
Video image is weak or faded.
Reduce the cable length.
Replace with a higher-grade cable. Cat5 cable meets the
specifications in the manual. Cat6 cable allows longer
range.
No video image.
Double-check that the cables were connected properly.
Run a continuity test on all wires in the cable.
Troubleshooting:
Video Surge Protector
VS-1V12BQ

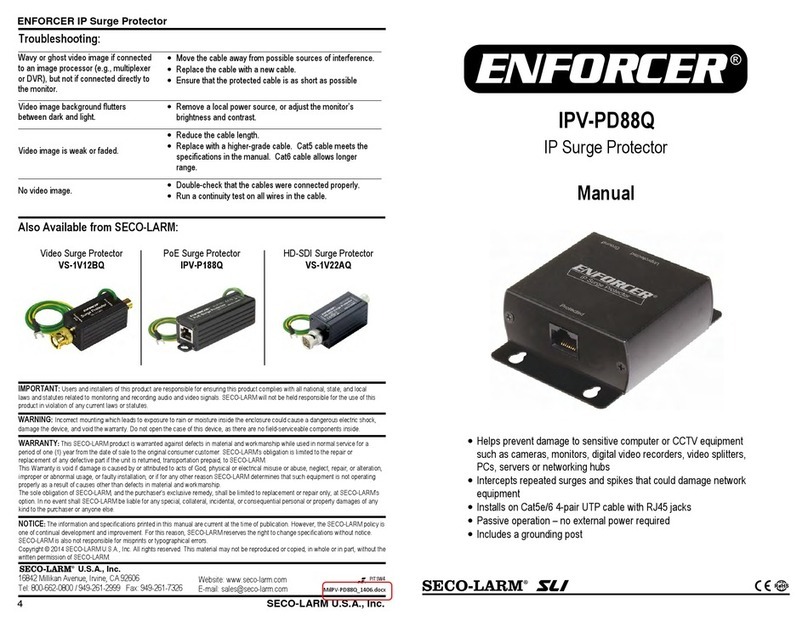

IP Surge Protector
IPV-PD88Q
HD-SDI Surge Protector
VS-1V22AQ
MilPV-P188Q_1404.docx
PITSW4
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: [phone] Fax: [phone]
Website: www.seco-larm.com
E-mail: [e-mail]
NOTICE:The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is
one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice.
SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2014 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the
written permission of SECO-LARM.
IMPORTANT:Users and installers of this product are responsible for ensuring this product complies with all national, state, and local
laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this
product in violation of any current laws or statutes.
WARNING:Incorrect mounting which leads to exposure to rain or moisture inside the enclosure could cause a dangerous electric shock,
damage the device, and void the warranty. Do not open the case of this device, as there are no field-serviceable components inside.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a
period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating
properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM’s
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any
kind to the purchaser or anyone else.
